1. Introduction
Crack-free manufacturing is very difficult to achieve in mechanical industries. In fact, cracks occur inevitably on the surface of processed materials or products during plastic deformation. In particular, several microcracks can be observed during cold-forming because the deformation resistance of raw materials may be considerably higher than that during hot-forming. Inspectors performing quality inspections of the surface of a cold-formed material subjected to plastic deformation must determine the depth of microcracks on the product. The identified microcrack depth and its reliability often depend strongly on the resolution of the applied nondestructive testing method.
Many nondestructive testing methods are available for crack detection, including acoustic emission sensor [
1,
2], fiber optic sensor [
3,
4], and Lamb wave excitation [
5,
6]. However, only a few methods are available for inspecting microcracks with depths of 100–200 μm, and most of these require expensive inspection equipment. All detections or measurements were based on a small variation of the target system during the creation of a micro-depth crack [
7,
8,
9,
10]. Surface inspections using an eddy current sensor are currently applied widely in mechanical industries because they offer low costs and short inspection times. However, the minimum microcrack depth that can be detected exceeds 200 μm; microcracks shorter than 200 μm cannot be detected. Based on a theoretical model for a basic structure such as beam, one study investigated the changes in dynamic characteristics depending on whether or not a microcrack is produced [
10], and another investigated the frequency response characteristics by analyzing the sideband frequency near the co-vibration point in a cracked structure when applying a Lamb wave signal [
6]. The high sensitivity of a frequency response function (FRF) to crack initiation can be used to inspect microcracks in a mechanical system [

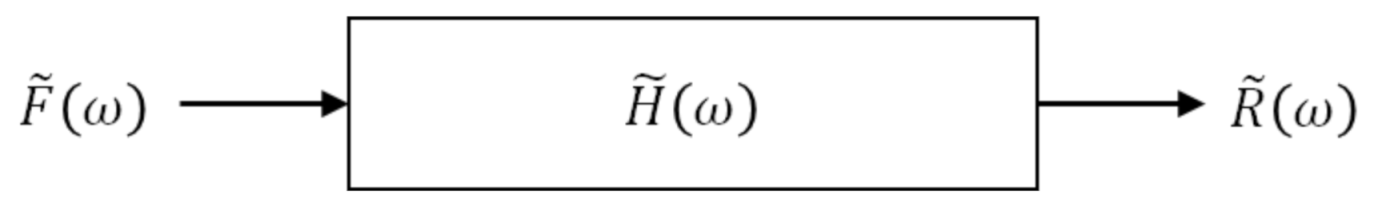

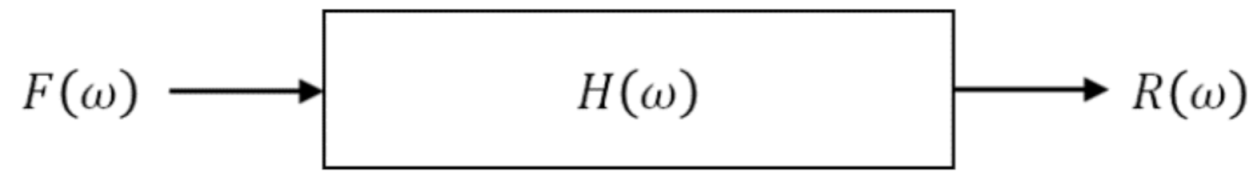

8]. The FRF has been used frequently to identify the dynamic behavior of a linear system and to extract the modal parameters, eigenvalue, and mode shape in the frequency domain [
11,
12]. FRFs can be measured by simply using an impact hammer or a modal exciter with low experimental cost compared to those of other nondestructive microcrack detection methods. A previous study detected microcracks experimentally by using the coherence function from measured FRFs in a mechanical component [
13]. However, it could not be applied to practical problems because the signal processing to calculate the FRF between the input force data and the response data for the target mechanical components had to be conducted before judging the microcrack. In the present study, the feasibility of detecting microcracks from the response data alone was determined using a simple mechanical specimen subjected to a controlled input force produced using an impact hammer. The input force was controlled effectively as in Charpy impact tests [
14,
15], and both the spectral responses and the FRFs were calculated experimentally for two simple specimens with and without 200 μm microcracks. By using the coherence function, the dynamic variation near the resonance frequency of a simple specimen could be detected for different response data locations. Microcracks could be detected successfully near the resonance frequency zone using both the spectral responses and the FRF; therefore, the microcrack depth could be predicted if the impact force could be controlled. Because crack detection using spectral response data alone is simpler than that using FRFs, the newly proposed method may be more effective for a practical inspection solution.
3. Crack Inspection with Simple Specimen
To verify the theory, an impact experiment was conducted using a simple rectangular specimen, one end of which (40 mm) was clamped using a rigid body jig, as shown in
Figure 3. Two simple specimens were prepared for the impulse test and the material of the responsible specimens was SS400 (POSCO, Pohang, South Korea); they differed in that one specimen had a microcrack along its middle at one face. The response data for these simple specimens were obtained using attached unidirectional accelerometers (#1–#6, Model: 3225F2, Dytran, Chatsworth, CA, USA), and that for the rigid body jig was obtained using another accelerometer (#5), as shown in

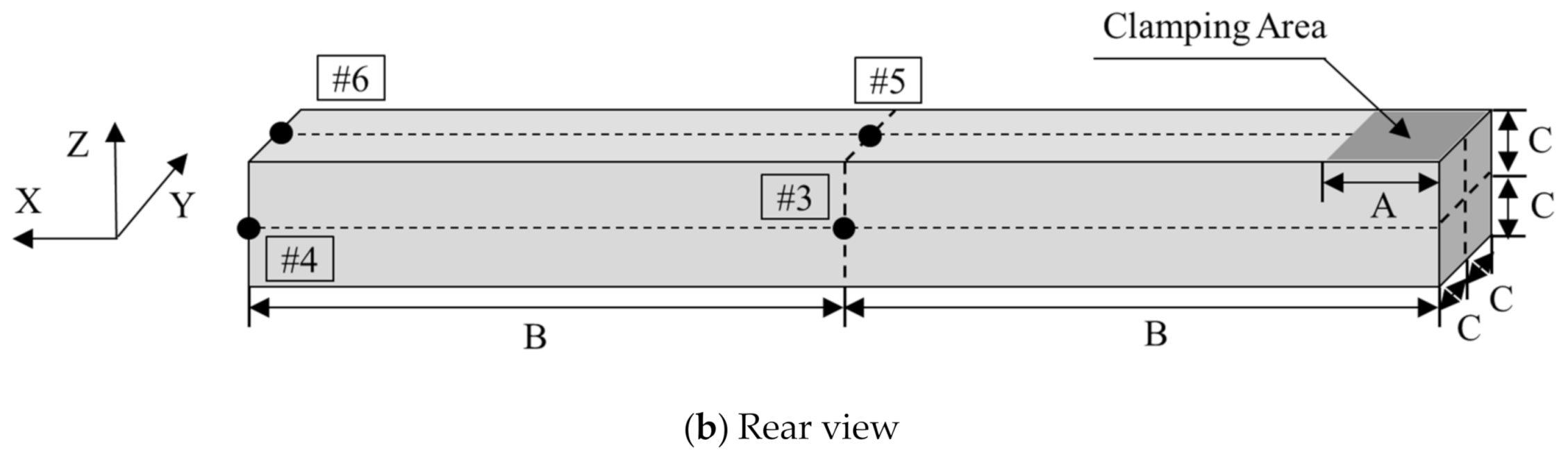

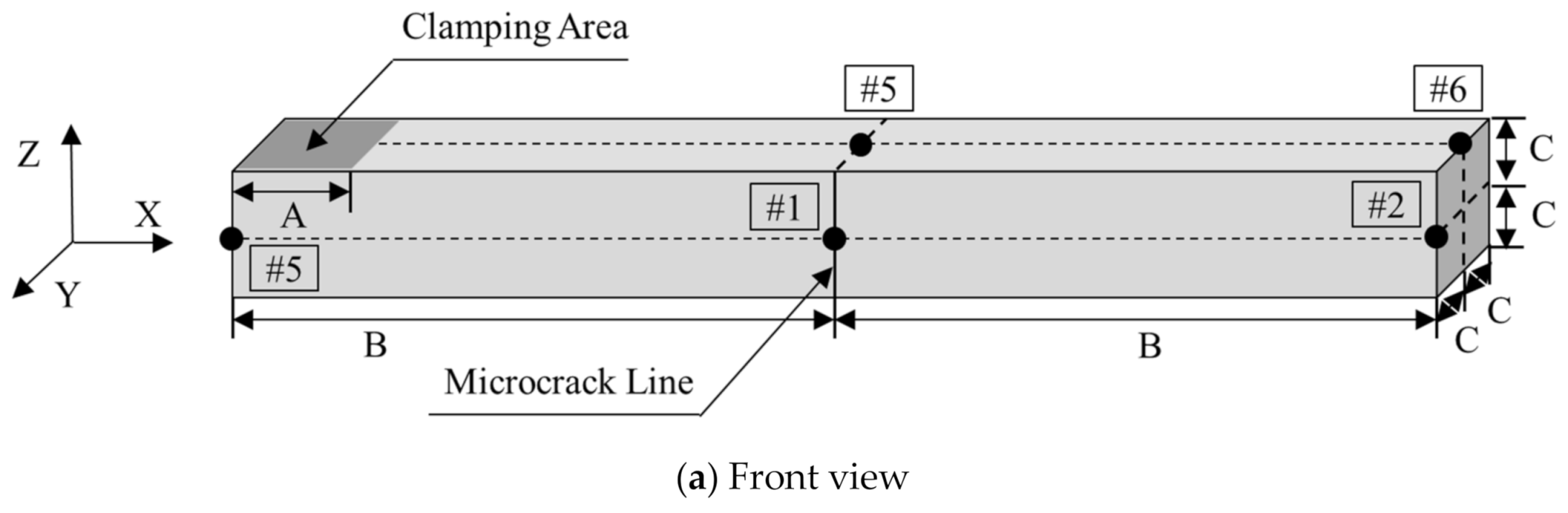

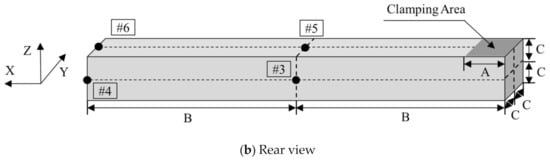

Figure 3. Three acceleration sensors (#1, #2, and #5) were attached at the front planes (X-Y), and the two sensors (#3, #4) were attached at the rear planes (X-Y) as shown in
Figure 3. The other two acceleration sensors (#5, #6) were attached at orthogonal planes (X-Z). Because the microcrack was located at node #1, as shown in

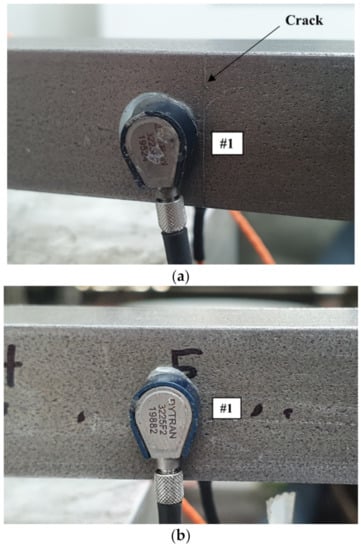

Figure 4a, the response at node #1 was the nearest to the crack position (see
Figure 5) and that at node #2 was far from the cracked position on the same face of the specimen. The other specimen had no crack at node #1, as shown in
Figure 4b. Nodes #3 and #4 were at a similar distance from the cracked location in a manner corresponding to nodes #1 and #2, respectively, except that the face of the measured specimen was opposite to the cracked one. Because the specimen had a square cross section and the clamping area (40 mm × 19 mm) was perpendicular to the two measured faces of the specimen, the boundary conditions for the two faces were assumed to be similar except for the existence of the crack.
Before approaching the microcrack detection, the experimental modal analysis was preliminarily conducted for two rectangular simple specimens with and without microcrack as shown in
Figure 4. The impact hammer (Model: 5800B3, Dytran, Chatsworth, CA, USA) was used to assign impact force at #1, and response acceleration data were obtained at seven locations from #1 to #7, respectively. The acquisition of FRFs was done with TEST.LAB (Siemens, Munich, Germany), and the identification of modal parameters, both the resonance frequency and the modal damping coefficient, were conducted with PolyMax algorithm in TEST.LAB software. Maximum frequency was set to 3200 Hz, and 1024 spectral lines were used during the modal parameter identification. In case of uncracked specimen case, the first bending mode was found at 1145 Hz (with 0.38% damping coefficient) and the X-Y plane was in-plain mode, whereas the first mode of cracked specimen was 1090 Hz (0.51% damping coefficient, in-plain for X-Z plane) and the second bending mode could be identified at 1150 Hz (1.15% damping coefficient, in-plain for X-Y plain). The modal assurance criterion (MAC) value between two bending mode showed 0.57 owing to the orthogonality between X-Z plane and X-Y plane. The third peak of the cracked specimen was also found at 1185 Hz but that mode was not considered because MAC value between the second bending mode and the third one was 92.3 so that two peaks seemed to be very similar each other. The resonance frequency of the rectangular simple specimen was decreased from 1145 Hz to 1090 Hz, and sideband frequencies were also initiated under the presence of microcrack at the simple specimen. The results of two rectangular simple specimen of the modal analysis are summarized in
Table 1.
The first bending mode can be found at 1090 Hz (with 0.39% modal damping coefficient) and only effective on X-Y planes. In case of cracked specimen, another impact hammer test was also conducted by assigning the impact force at #5 to figure out the behavior at X-Z plane more visibly. However, the modal test result was similar to the impact hammer case at #1. Accordingly, both X-Y planes and X-Z plane are denoted as the in-plane and the out-of-plane for the first bending mode. Second mode could not be found under the maximum frequency band, 3200 Hz. That means the response at #6, #7 was small at the resonance frequency so that the microcrack detection at the two locations will be less reliable as compared to other measurement locations, #1~#4. The crack detection was mainly conducted for the four measured data, from #1 to #4, and the results from the out-of-plane locations, #6 and #7, are discussed later.

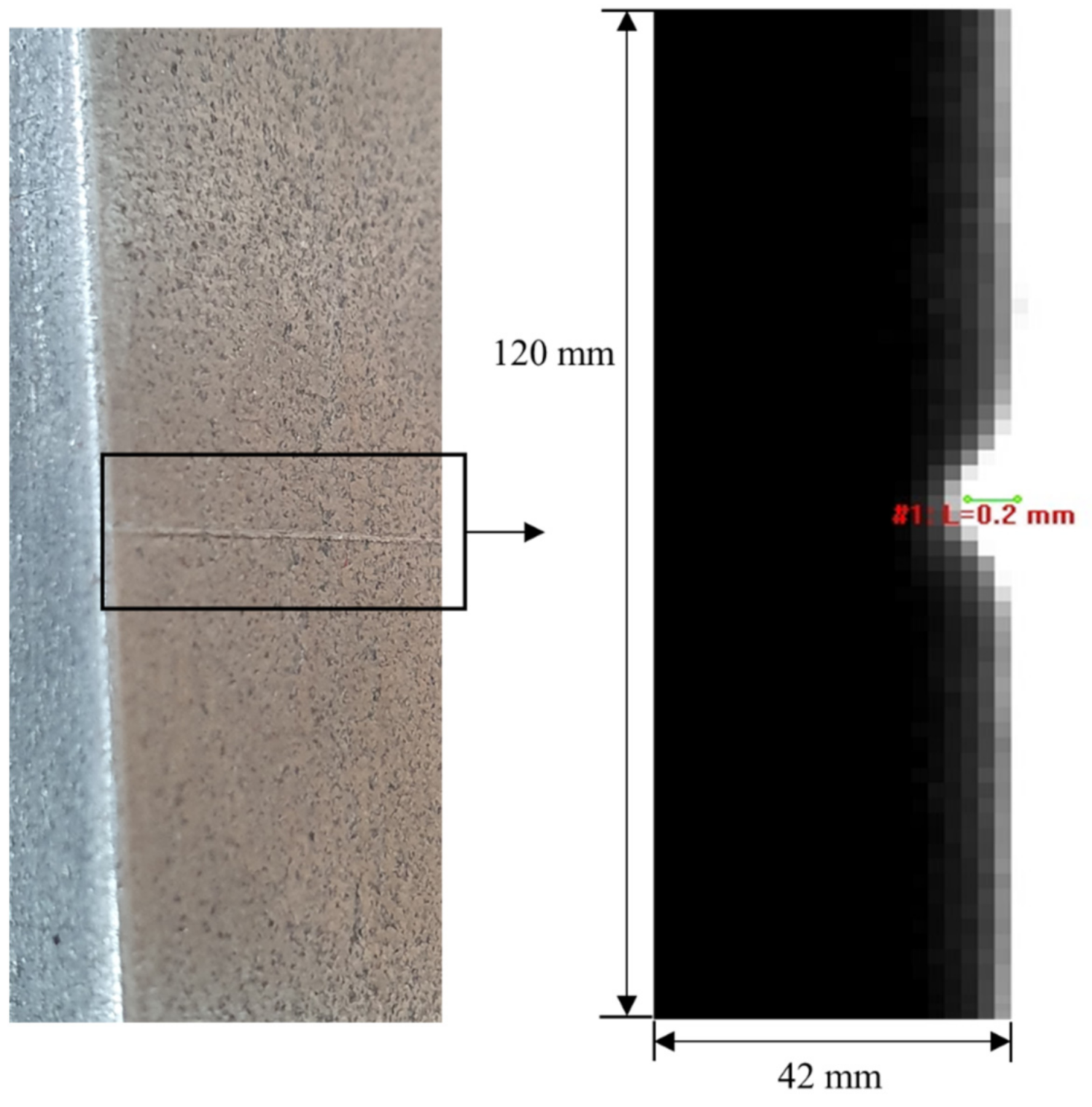

The microcrack depth was measured using X-ray equipment (Dual Tube 3D CT, TECHVALLEY, South Korea), and the maximum depth was 200 μm, as shown in
Figure 5. Therefore, the crack depth in the specimen was acceptable for inspection.
Under these conditions, another test set-up with an impact hammer was designated to measure the response data by imposing an impact force at locations #1–#6 in both specimens.

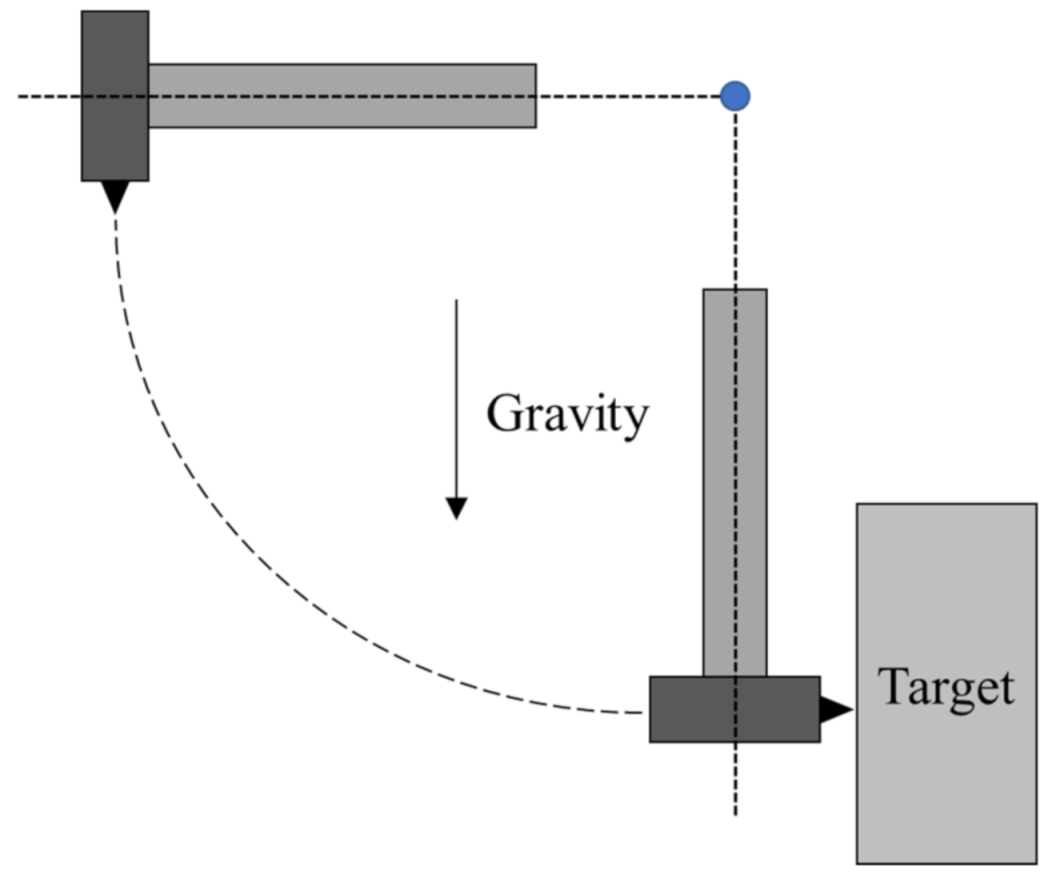

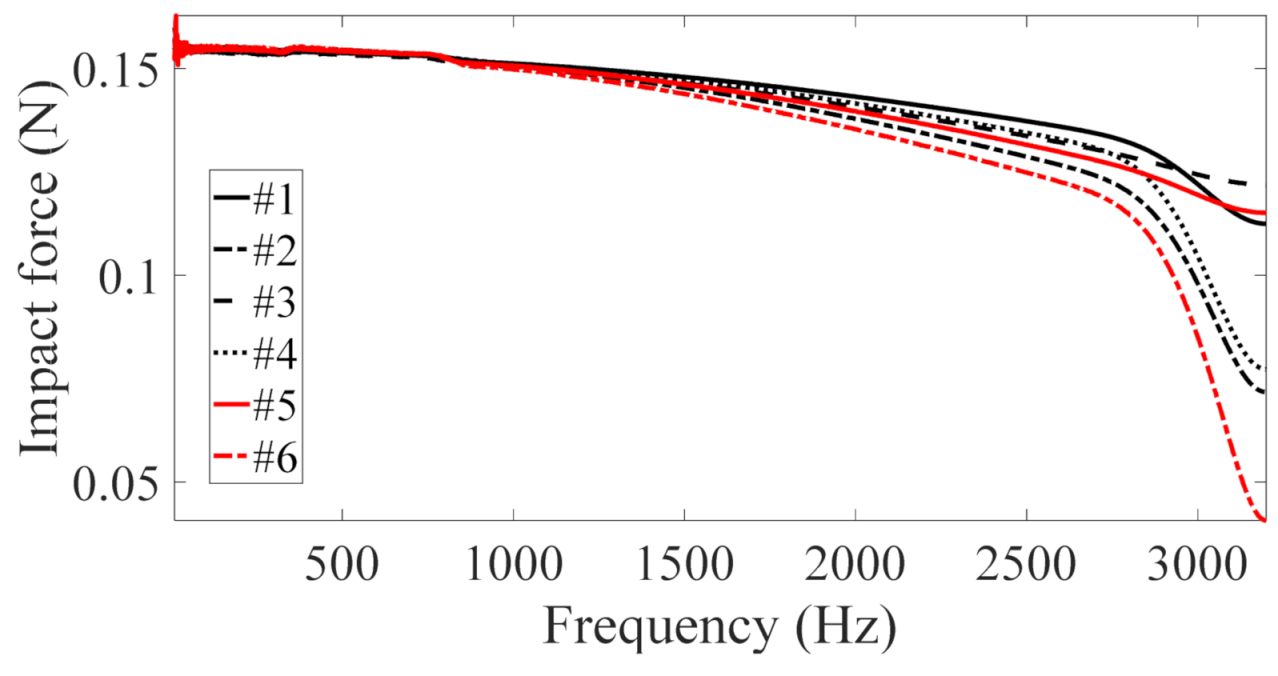

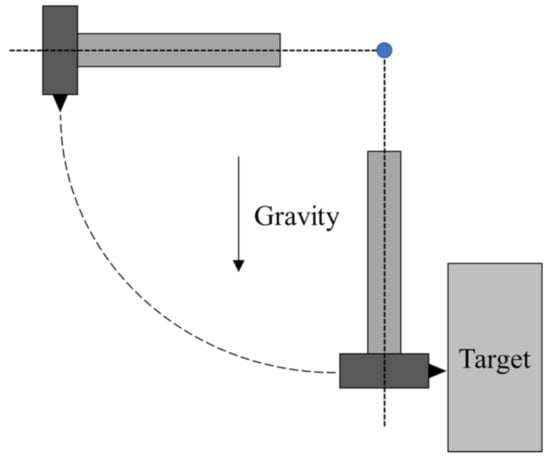

Figure 6 shows the measured impact forces in the specimen with a crack. To impose the same impact force on the target specimen, the impact hammer was moved with a circular trajectory by clamping one end of the impact hammer as in the Charpy impact test, as shown in
Figure 7. The experimental results indicated that the impact hammer was setup suitably, and the similar impulse spectrum pattern obtained indicated that the approximation in Equation (2) was acceptable.
When an impulse force was imposed using the impact hammer at node #
i, the response accelerations were measured at all sensor-attached locations in
Figure 3. In practice, it was difficult to localize the microcrack from the target structure of inspection so that the microcrack inspection method would consider the distance between the impact position and the microcrack position, in the determination of microcrack existence. So, the response data were only considered for the same location of impact position, and the relationship between the crack indicator (see the Equations (3) and (4)) and the measurement position was analyzed in this study. In each case of impulse force input at node #
i, the response acceleration at the same node #
i was selected and shown in

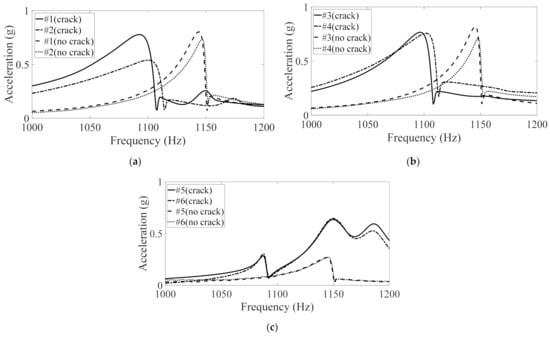

Figure 8 for two rectangular simple specimens with and without microcrack. Sideband frequencies between 1000 and 1200 Hz that were derived from the crack position were seen at nodes #1 and #3 near the crack; these frequencies seemed very sensitive to the distance from the crack. In case of uncracked specimen, single frequency peak could be found at X-Y plane, #1~#4, and small peak were also shown in X-Z plane, #5 and #6, near 1145 Hz frequency. In case of cracked specimen, the frequency peak was observed near 1090 Hz at X-Y plane, #1~#4, and small two sideband frequencies were found at #1 and #2 (front face of X-Y plane). On the other hand, the sideband frequencies were highlighted at X-Z plane, #5 and #6, but the bending mode near 1090 Hz was relatively small. Those responses were well matched with the experimental modal test results in
Table 1.

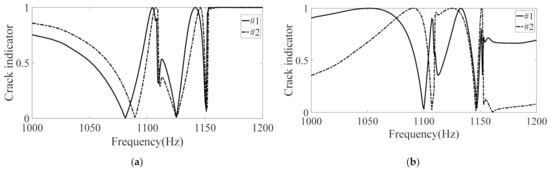

The coherence functions were calculated using the FRFs in both specimens, as shown in
Figure 9a,

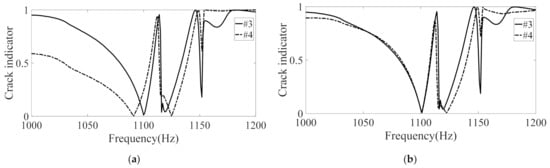

Figure 10a and
Figure 11a, respectively. All six coherence functions were sensitive to two frequencies: resonance frequency at ~1090 Hz and sideband frequency at 1150 Hz. These results verified the previous study of microcrack detection. The crack indicator at the sideband frequency decreased rapidly regardless of the measurement location, and the coherence values near the resonance frequency varied according to the measurement location. The indicating frequency at the minimum coherence values was lower at #1, #2 (front face in X-Y plane) than #3, #4 (rear face in X-Y plane) near 1090 Hz. In case of X-Z plane, the sensitivity near the resonance frequency at 1090 Hz was not remarkable and additional sensitive frequency could be found at 1145 Hz because the X-Z plane was out-of-plane of the bending mode shape at 1090 Hz. Therefore, the suitable frequency for microcrack detection is the sideband frequency rather that the resonance frequency as in the FRF case.

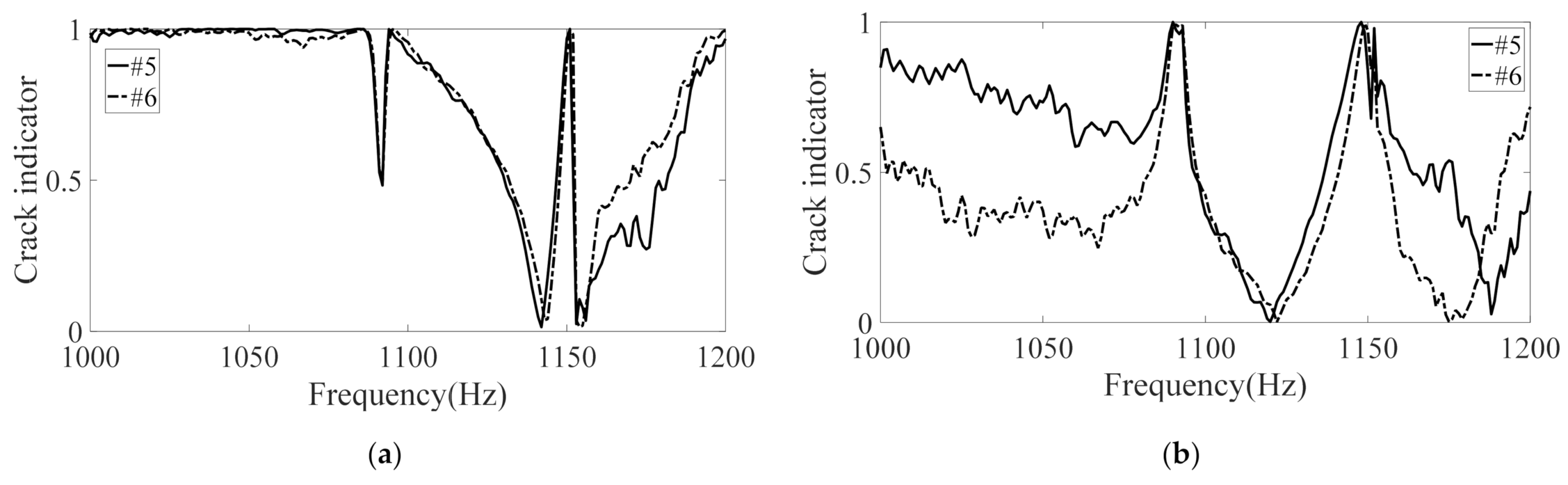

The same coherence function was used with response data alone for crack detection, and the results for the cracked and the uncracked face (see
Figure 3) are shown in
Figure 9b,
Figure 10b and
Figure 11b, respectively. For the X-Y plane (front), locations #1 and #2 were both very sensitive to the sideband frequency, whereas the sensitivity to the resonance frequency differed with the measurement position. For the X-Y plane (rear), locations #3 and #4 both showed similar sensitivity to the resonance frequency; by contrast, location #3 (near the crack) showed high sensitivity to the sideband frequency whereas location #4 did not. The coherence function in X-Z plane was not similar to X-Y plane; the most sensitive frequency was at ~1121 Hz and the least sensitive frequencies were 1090 Hz and 1145 Hz. The difference results in X-Z plane were caused by the orthogonality between two resonance frequencies in cracked specimen. So, the sensitivity in microcrack detection was dependent on the measurement position, and the mode shape of target structure will be critical factor to select the suitable position of sensor location.
The crack indicator obtained using the FRF was relatively consistent for all measurement locations and seemed less dependent on the distance from the crack position if the measurement location was in-plane with the critical mode shape of cracked specimen. The only limitation was the sideband frequency at #4. An inspection methodology that is independent of the crack position will be beneficial because it is difficult to determine the exact location of a crack in a target structure in advance. In case of out-of-plane measurement, the sensitivity of crack detection was partially applicable at sideband frequency and not valid for the resonance frequency. As shown in
Figure 9a,
Figure 10a and
Figure 11a, this advantage holds even for crack inspection using the response data alone, although the crack indicator at each measurement location showed a different coherence value in the resonance frequency zone when the measurement position belonged to in-plane mode with the critical mode shape. The sideband frequency decreased rapidly except at measurement location #4, and these results were similar to the FRF cases. These results indicate the feasibility of the crack indicator obtained using the response data alone for the sideband frequency with minor dependency on the measurement location, and the resonance frequency seems usable if the measurement allows location dependency.
The difference in the crack indicator obtained using these two different methods may arise from the difference of the phase information in the frequency domain, because the proposed method assumed similar input forces even though it is impossible to control the phase of the impulse force in practice. Nonetheless, the crack indicator obtained using the response data alone is advantageous compared with the previous FRF-based method owing to its simple calculation process and the lack of the need for information of the input impulse force. Therefore, the crack indicator obtained using the response data alone should be used preferentially if the crack sensitivity can vary by a small margin with the measurement location.
The limitation of this study was the dynamic dependency on the rectangular simple specimen. The orthogonality between two resonance frequencies in the cracked specimen was not explained, and both the in-plane and out-of-plane may not be valid for other shape of specimen, if the cross-section was round. In addition, the localization of microcrack was not possible from the proposed crack indicator. Both of issues will be future work from current studies.
