Article

A Novel Framework for Extracting Knowledge Management from Business Intelligence Log Files in Hospitals

by
Serkan Turkeli
1,2,* and
Fatih Ozaydin
3
1
Department of Health Informatics and Technologies, Faculty of Health Sciences, Marmara University, 34722 Istanbul, Turkey
2
TESODEV Technology Solutions Development Co., Ltd., Esenler, 34220 Istanbul, Turkey
3
Institute for International Strategy, Tokyo International University, 1-13-1 Matoba-Kita, Kawagoe 350-1197, Saitama, Japan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(11), 5621; https://doi.org/10.3390/app12115621
Submission received: 23 April 2022 / Revised: 28 May 2022 / Accepted: 31 May 2022 / Published: 1 June 2022
(This article belongs to the Section Computing and Artificial Intelligence)
Browse Figures
Versions Notes

Abstract

:
This paper proposes a framework to extract knowledge-management elements from business systems in healthcare organizations. According to results of in-depth interviews with experts in the field, a framework is defined, and software was developed to generate log files. Following the application of the Bag of Words (BoW) method on log files of 455 days for feature extraction, the k-means algorithm was used to cluster the feature vectors. The framework was tested with queries for confirmation. The developed framework successfully clustered the generated reports at operational, tactical, and strategic levels to extract knowledge-management elements. This study provides evidence for the knowledge-management pyramid by finding that the generated reports are reviewed mostly at the operational level, then tactical, and then the least at the strategic level. Our framework has the potential to be used not only in the health sector, but also in banking, insurance, and other businesses using business intelligence, especially in accordance with the organization’s goals at operational, tactical, and strategic levels of the knowledge-management pyramid.

1. Introduction

Information technologies are reshaping the competition in enterprises and are leading to a global knowledge society [1]. In order to achieve a competitive advantage, organizations need to be prepared for and regularly updated on future trends and applications with the help of business intelligence (BI) tools [2]. In this vein, the use of machine-learning techniques is becoming irreplaceable in knowledge management [3,4] from Industry 4.0 in general [5] to healthcare [6], spanning a wide range from predicting diseases [7,8,9] to high-level knowledge extraction [10,11].
Enterprises can be considered as capital-intensive enterprises or knowledge-intensive enterprises [12,13], and knowledge-intensive enterprises attract intense attention in knowledge-management research [14]. Studying the dimensions of knowledge management orientation and analyzing the survey data from managers of large firms, Lin showed that the major factor of internal process performance is knowledge sharing, and that financial performance is affected by non-financial performance measures such as learning and growth [15]. Through a comprehensive literature analysis bridging the professional complex systems and knowledge network structure, Rangachari found that, contrary to complex systems where the effective knowledge-sharing networks may be richer in density, it may be richer in brokerage and hierarchy in the professional complex networks [16]. Based on empirical data, Gerbin and Drnovsek studied knowledge management in academia–-industry interactions and found negative effects of collaborations with industry on knowledge sharing of researchers [17].
Via integration of the open innovation and knowledge-transfer literature, Simeone et al. developed a framework for effective knowledge translation mechanisms, in particular for the R&D projects [18]. Due to the dynamic and complex nature of knowledge systems, managing knowledge which might not be predictable or controllable requires an intense effort [19,20], advanced theories and framework development [21]. Leadership in knowledge-intensive firms is also a center of attraction in knowledge-management research. Very recently, focusing on the thought leadership in knowledge-based organizations, Harvey et al. addressed the problem of providing a comprehensive definition of the thought leadership, found specific tensions as a consequence of creating thought leadership and developed a framework for the engagement of thought leadership at various levels [22].
Extracting knowledge from medical or clinical documents through developing frameworks based on NLP has been a key direction in the field, and transformer models are attracting increased attention. For example, the Bidirectional Encoder Representations from Transformers (BERT) [23] model was used by Arnaud et al. to learn contextual embeddings from free-text triage notes of a French hospital’s emergency department [10]. BERT models were also used by Harnoune et al. to extract knowledge from biomedical clinical notes [11].
While extracting and managing knowledge in the healthcare industry has already been taking advantage of developing frameworks based on various natural language processing (NLP) techniques [24], there is still a great deal of room for research and development. Based on a two-decade experience of NLP practices at the Mayo Clinic, Wen et al. recently pointed out room for improvement by developing a framework for stressing the potentials of NLP in healthcare [25]. As social media platforms have already become a major information source, NLP techniques are recently being employed to extract knowledge from the communications among patients and healthcare professionals on social healthcare networks [26].
Aiming to contribute to knowledge management in the healthcare industry, the present work is based on the following steps. First, in order to understand the need for BI systems and the capabilities of business intelligence software, we interviewed 32 experts. Second, based on the interview data, we translated the data into meaningful information by the framework developed as the core contribution of the present work in alignment with the recent literature exploring the potentials of NLP in knowledge management in healthcare. To achieve the framework goals, we developed a software to generate log files. Third, for the validation of the defined framework, we conducted a case study of a healthcare group (Hospital 1), a leading actor in the Turkish medical industry, with 17 hospitals, 13 medical centers, and around 13,000 staff. Please note that, in compliance with regulations, the name of Hospital 1 is undisclosed. We analyzed the log files generated for Hospital 1 that contained data for 455 days. In order to extract features from the data, we applied the Bag of Words (BoW) method, and then clustered the feature vectors using the K-Means clustering algorithm [27]. Monitoring the types of data created by the organizations, we analyzed the log files that contained demand-specific reports and their reviews by different managers. After discussions with medical and technical professionals, the framework was tested with queries for confirmation. The reliability of the presented framework can be defined as correctly identifying people in accordance with the management pyramid through their backgrounds, and this reliability was confirmed through feedback from various professionals, including the Chief Technology Officer, nurses and doctors. It is found that the present study of investigating the reports of various personnel of a hospital and mining the text to determine their place in the applying knowledge management pyramid (strategic, tactical and operational level) as a real-life case is an embodiment of the decision-making levels described in the knowledge-management literature.
This paper is structured as follows. Following a more detailed literature review below, first, the concepts used in the paper are defined. Then, the case in consideration is introduced in the methodology, and the case study and text-mining algorithms are discussed. Finally, the results of the study are set out and potential research directions are discussed.
Hospitals are complex organizations and diseases are complex problems that are difficult to solve [28,29]. A solution is usually produced by gathering and evaluating data from many sources. While creating a solution, it is imperative that people with different goals and expertise work together in harmony.
Being a knowledge-intense industry, healthcare is a cradle of research in knowledge management and business intelligence, where advanced techniques are used. For example, through structural equation modeling (SME) on survey data, Kim et al. found evidence that the institutional structure is a key influencer in knowledge-sharing practices, improving patient safety considerably [30]. Performing SME on survey data, Wang and Byrd found that units in healthcare industry can substantially benefit by obtaining valuable knowledge via business analytics tools through knowledge absorption effectively, and improve the decision-making process [31]. Through purposive and snowball sampling and thematic analysis, Pahani et al. discovered major themes and sub-themes in the tacit knowledge flow amongst physicians on social networks [32]. As healthcare virtual communities emerge and grow, the natural question arises: what are the influencing factors in the growth of these communities?
Addressing this question, Antonacci et al. conducted a seven-year research study and collected communications data from 16 healthcare virtual communities of practice. Applying multilevel regression models, they found that the growth of a community can be predicted through structural and content-based variables, and that dynamic leaders play a key role in the growth of the community [33]. Analyzing the data collected from healthcare end users, Sánchez-Polo et al. showed how continuous learning practices can help overcome the barriers created by IT assimilation in healthcare industry through lack of appropriate training, hierarchical or bureaucratic procedures and cultural gaps [34]. Besides worldwide issues in knowledge management in healthcare industry, due to cultural differences, research based on specific regions make a substantial contribution to knowledge-management science. An interesting recent research study in this vein was conducted by Maheshwari et al., focusing on the healthcare industry in India. Performing partial least square SME on survey data collected from healthcare professionals, they explored how the indigenous cultural factors such as face, reputation and reciprocity affect the knowledge-sharing practices in Web 2.0 [35]. Collecting data from the frontline community health workers fighting breast cancer in the Gujarat region of India, Fletcher-Brown et al. found that mobile technology generates knowledge as a resource for improving healthcare [36]. Focusing on the Lebanon case and analyzing the data collected from hospital workers, Epaminonda et al. found no significant relationship between independent and dependent variables such as information and communications technologies, knowledge management, job satisfaction and customer satisfaction [37].
Framework development is at the heart of knowledge management in healthcare. Focusing on the practices of information-communication technologies in healthcare delivery, Tripathi et al. developed a framework to demonstrate the creation of knowledge at organizational boundaries [38]. Collecting data from a Brazilian hospital system and adding absorptive capacity to the organizational knowledge cycle, Souza et al. designed a framework to develop a novel knowledge management for healthcare [39].
Knowledge management (KM) is based on data and therefore evidence. It is often used in the healthcare industry as evidence-based medicine, and in the literature it is called “Evidence-Based Knowledge Management” [40]. Knowledge management should define a continuous process as factors such as technology change rapidly. In order for organizations to achieve their goals, relevant and valuable data must be gathered, shared and knowledge management rituals should be applied as a continuous process [41].
A good knowledge-management system should measure an organization’s achievement of its goals at strategic, tactical and operational levels, which are often called decision-making levels [42]. At the strategic level, decisions are made by answering the questions: “At which state must the organization reside?” and “Which area of business must be chosen”. At the tactical level, strategic ideas are identified by answering questions such as “How do we compete?”, “How do we outclass other organizations?” and “How do we succeed in this competition?”. At the operational level, functional and supportive actions are carried out to achieve the determined strategies. Through these actions, tangible decisions are made [43,44]. We identified that it is carried out at different levels, i.e., strategic, tactical, and operational levels, as illustrated in Figure 1; this is also called a management pyramid [43,44].

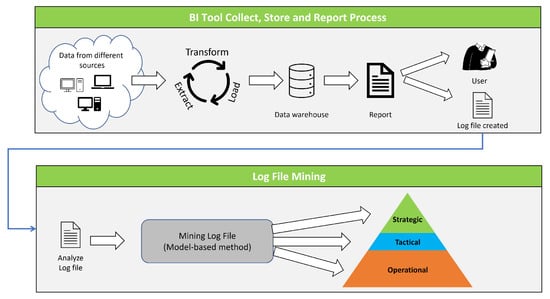

BI is a part of knowledge management, covering the methods and processes of converting data into information and information into knowledge [45,46], and it is defined as an analytic process that uses acquired data to formulate decisions [47].
The business value of BI in healthcare organizations is measured through the effective use of resources [48], and measures of cost avoidance [49] and improved patient care [50]. Critical success factors for BI have been investigated and BI maturity, information content quality, information access quality, the analytical decision-making culture, and the use of information in business processes are defined as BI success dimensions [51].

2. Materials and Methods

2.1. Interviews: Understanding the Structure

Multiple semi-structured interviews with 32 experts were conducted to identify the needs and expectations of using a business intelligence system. After initial interviews with several expert groups, including the Chief Executive Officer (CEO), Chief Information Officers (CIO), and Software Group Leaders (SGL) of three private hospitals, four different BI software vendor consultants (SVC), numerous director medical doctors (DMD), and managers of nursing services (MNS), it was found that Hospital 1 is an appropriate case for this study, which is described in Table 1.
Hospital 1 is a leading actor in the Turkish medical sector that has long since used BI tools and was eager to provide quantitative data. We developed software based on the expert interviews and information from Hospital 1 to generate log files to store digital actions for different types of employees and experts within an internal network. In total, 32 experts were each interviewed privately by one of the interviewers in a total of 46 sessions. Table 2 summarizes the interview information. The information gathered from the interviews with the experts was used to analyze the current situation. It was translated into clearly identified research goals, which were used as input for the case study and text mining phases.

2.2. Case Study: Implementing the Phenomena

Due to the nature of the field and the paucity of organizations that use BI tools, we conducted a case study as a qualitative research method. Yin has criticized the utility of case studies, as they are generally used in research asking the questions why and how, and about contemporary phenomena in practical life [52]. However, we investigated the decision levels in medical organizations, which are complex systems [29] and focused on understanding the dynamics of a complex system based on a single case [53].
The goal of this work is to contribute to the field and provide a framework for the scholars and practitioners for extracting knowledge from event logs recorded by the BI software. Event logs are generally used for detecting process, control, organizational, and social structures [54]. The structure of the log file is dependent on the type of server and database. The log file developed by the software includes “date”, “user name” and “report_id” fields. The date is in <yyyy>/<mm>/<dd> format and contains a time stamp of when the log’s transaction happened. The user name is in <user’s name> format and contains the user name of the user performing the transaction. The report ID is in <report_id> format, which also lets the software obtain a report’s review count. Analyzing the log files, tables are created, such as the one presented in Table 3.
After analyzing Hospital 1 as an in-depth case study, text-mining techniques were applied to understand the relations (information), patterns (knowledge) and finally the principles (wisdom). Data gathered from different sources are stored in a Data Warehouse after passing through the “extract, transform, and load” (ETL) procedure. A report is produced corresponding to the needs of users by constructing essential relations from the data. The log file includes user information, report type and the time of the request when sending the requested report to the user. The log files were separated into clusters at the strategic, tactical and operational levels according to the position of the requester using a model-based approach. The framework is illustrated in Figure 2.

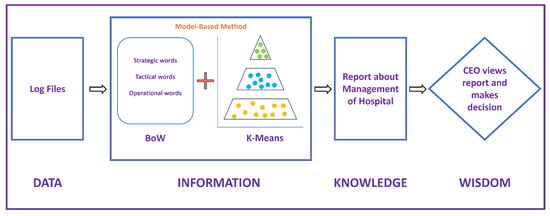

2.3. Understanding the Data: Model-Based Method

The data are grouped using K-Means cluster algorithms developed by Lloyd [27]. Cluster methods aggregate similar or interrelated data into the same cluster [55]. Cluster methods are generally classified into four groups: partitioning, hierarchical, density-based and model-based methods. Within the scope of the present study, model-based methods were chosen because the data groups could be formed according to appropriate “management levels” as suggested in the literature. Our method counts every cluster as pertaining to a model; hence, the data are grouped with respect to the related models, as explained by Han et al. [55]. The general scheme of the system is illustrated in Figure 3. This system contains log files that include who viewed the specific functional features of the hospital; for example, the medical operations performed that day. These log files were examined and the words in the files were identified according to our BoW method, as explained in the following subsection. These words are defined as the data. Then, we applied the K-Means clustering algorithms to these words to find the predefined strategic, tactical and operational clusters. These clusters are considered as the information. Finally, a hospital management report is generated. This report indicated that this hospital is managed at the operational level 73.98 % of the time, at the tactical level 19.81 % of the time, and at the strategic level 6.21 % of the time. Based on this report, the hospital CEO can make hospital-management decisions. Insight and focus of each level of the organization was taken into consideration when clustering the data and identifying the clusters themselves.

2.4. Bag of Words (BoW)

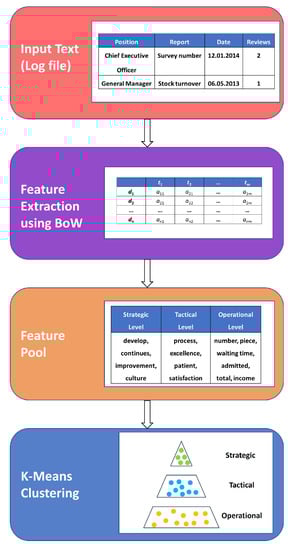

In this paper, we designed a model-based system using the text-mining algorithm Bag of Words (BoW). With this method, we are able to retrieve the useful data from an unstructured log file. Many studies have used the BoW method [56,57,58,59], and in a recent study, combining BoW with word embeddings, Ahmed et al. showed how to improve classification of biomedical texts [60].
We improved the performance of multiclass classification of biomedical texts for cardiovascular diseases by combining two different feature representation methods, i.e., bag-of-words (BoW) and word embeddings (WE).

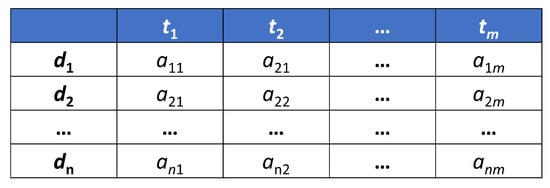

A term is considered an element of a dataset. Then, each file is checked to see whether the term is included. A feature vector is created according to the existence or non-existence of words. Figure 4 outlines the feature extraction using BoW method. Hospital 1 uses the balanced scorecard as a strategic management system, which was also studied by Lin [15]. Analyzing the balanced scorecard documents, we found that some words play big roles in operational, tactical and strategic issues. For example, “key performance indicator metrics” are operational, “objectives” are tactical and “strategies” are strategic. These words were defined as the words in our BoW method. Table 4 presents examples of these words. After using the BoW Method, we clustered the feature vectors using the K-Means clustering algorithm, as explained in the following subsection.

2.5. K-Means Clustering Algorithm

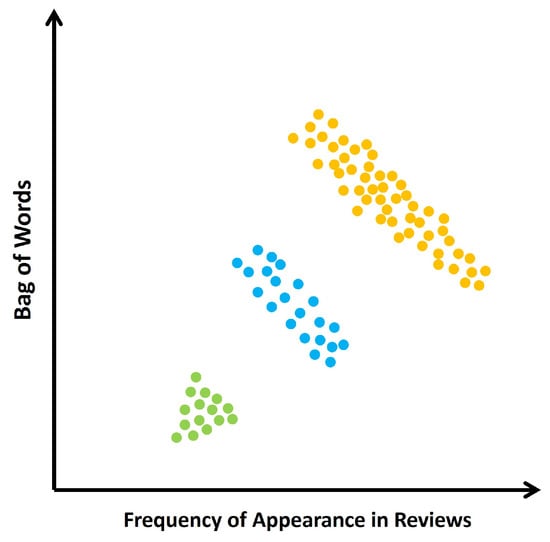

The K-Means clustering algorithm is one of the most popular clustering algorithms [61,62,63]. It is a good fit for the presented research as we investigate “management levels” which are the clusters in consideration and we have a reliable feature pool for initialization. The algorithm divides instances into predefined K clusters. The center of each cluster is calculated first. After each iteration, the closest instances are added to that cluster and new centers are calculated. The algorithm continues until the centers converge. In the present study, because three categories are considered: strategic, tactical and operational, we set K = 3 . Our feature vectors were partitioned into these classes and these clusters were in pyramid form, as shown in Figure 5, where strategic, tactical and operational clusters are shown in green, blue and orange colors, respectively. The illustration of the methodology is shown in Figure 6.
The software is developed in C # language [64] in The JetBrains Rider IDE [65]. Oracle Business Intelligence Enterprise Edition is used in Hospital 1 to develop BI dashboards [66]. Oracle Data Integrator is used for ETL [67]. Wolfram Mathematica [68] is used to plot the data in Figure 7.

3. Results

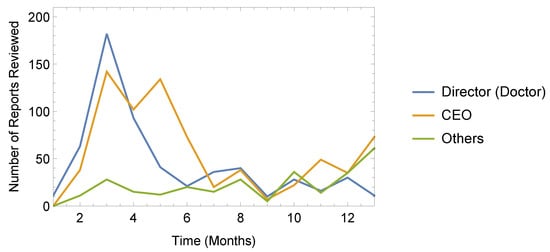

Event log data were acquired from the sample hospital’s BI tool, which contained data throughout a period of 455 days. In this study, we identified 1595 reports reviewed by managers at different levels, including the Outpatient Center Manager, Chief Executive Officer, General Manager, General Manager Accounting, Hospital Service Managers, Director of Business Management (Doctor), Managers of Nursing Services, Director of Business Management, Director of Business Management (Finance) and Medical Center Manager, as presented in Figure 7.
From the pyramid model and the BoW cluster analysis, it is clear that if managers are at the “strategic level”, they are expected to interact with the strategic reports more frequently. The frequency of BI tool use by the hospital managers is shown in Table 5. The Chief Executive Officer processed 733 reports, of which 214 were strategic or tactical and 519 were operational. The Director of Business Management (Doctor) reviewed 582 reports: 106 were strategic and tactical and 476 were operational. The Management Director looked at 53 reports: 20 were tactical and 33 were operational. The General Manager examined 63 reports: 21 were strategic and tactical, and 42 were operational. The Managers of Nursing Services used the BI tool only twice in 455 days and reviewed 20 reports, of which 16 were tactical and four were operational.

4. Discussion

Developing NLP-based frameworks for extracting knowledge and actionable insights from medical and clinical data is at the heart of knowledge management in the healthcare industry [4,7,8,9,10,11,25,28]. Aligned with these research efforts, the main purpose of this work is to provide a framework to extract knowledge management from business intelligence for the scholars and professionals in the healthcare knowledge-management field. Knowledge management can be defined as gathering, sharing and applying knowledge to create business value. Using business intelligence fully supports data collection and the sharing element of knowledge management, but applying knowledge to create business value may differ according to position.
In previous research, Türkeli and Erçek defined 3 strategies (strategic level), 21 strategic targets (business management, tactical level) and 223 criteria at the operational level in a teaching and research hospital [69]. The current research results are in good agreement with the model (Management Pyramid) shown in Figure 1 through the analyses of the total number of strategic, tactical and operational level reports. However, as seen in Table 5, the data form two clusters: a cluster showing agreement with the model, and a cluster that does not show agreement with the model. Managers from a technical background concentrate on an operational (143 reports) level primarily and on a tactical (74 reports) level secondarily. This result can be understood from the perspective of project-management science, as follows. Functional managers who use the analytic approach are specialists in the relevant field and they know the details of each operation in their remit. Project managers, on the other hand, who use the systems approach and are expected be skilled at synthesis, should experience a “metamorphose from a technical caterpillar into a generalist butterfly” to be able to oversee many functional areas and gain the ability to synthesize the pieces to form a coherent whole [70]. Hence, an important contribution of this work to the field is to evaluate the managerial competency of healthcare organizations’ managers by extracting the knowledge corresponding to their report viewing data.
At every decision level (management pyramid), the determination of correct strategies and decisions is related to a reliable decision-making process. Fountas et al.separated the decision-making process into three parts: gathering data; correlating data with information; and making further connections with this information, leading to a decision [71]. March and Hevner identified the first phase of this process as intelligence, in which information is gathered to be processed for management decisions [72]. Business intelligence (BI) is defined as the collection of the remaining levels, where a decision is achieved after performing analytical operations. In a rapidly changing environment, i.e., one with growing amounts of data, it is vital to perform analytical operations using BI tools and BI dashboards [47,73]. Sahay and Ranjan approached BI from two perspectives: process and technological. They clarified BI as an analytical process that shapes acquired data into decisions [47]. In this way, strategic goals need to be adapted to enable the business to survive in a competitive environment. As their second approach, they claimed that BI was a cluster of technological concepts, such as text mining and online analytical processing (OLAP), and that BI tools store data about analytical operations. Türkeli identified BI as applications that are capable of providing the desired information to the required site within an appropriate time [74].
The significance of the decision-making process is apparent, as every organization encounters a dynamic environment shaped by the nature of business competition [47]. As this technology-dependent process determines the survival of organizations, various kinds of research have discussed thriving BI systems and the benefits of BI tools. Türkeli determined the significance of BI by using a survey of information technology (IT) managers by the Gartner Company, and pointed out that BI investment is acknowledged as the most important and privileged IT investment [74]. Murphy and Simon discussed the complexity of benefit evaluation in BI tools, as BI tools provide mainly intangible benefits that are not directly visible through cost analysis. They summarized the intangible benefits under five topics: operational, managerial, strategic, IT infrastructure and organizational [75].
The terms of strategic, tactical and operational decision-making have been set out here, and it has been determined that these levels are relevant to BI tools. In this study, using log file mining, the number of reports at strategic, tactical and operational levels were identified.
The concept of mining knowledge from a log file is not a new idea [54,76], but mining knowledge elements from a log file is a new idea, presented herein. The interviews demonstrated that the data needed for this study were included within log files. Consequently, the BI tool log file was used as the data source. When the study had progressed to that point, the necessity of a research method for understanding the existence of changes in log files was raised, as in Figure 3. Among the text-mining methods, we chose the model-based method with K-means analysis, a type of cluster method [55], as detailed in the Methods section.
Limitations of the present work can be considered as follows. Firstly, although the BoW method was found to be successful in designing and testing the present framework, other approaches have attracted more attention recently. Transformer-based machine-learning techniques for NLP are especially worth considering within the same context. For example, BERT models [23] are considered promising for future improvements and possible generalizations of the present framework, as well as for comparing the performance of such methods. Though considered to have a minor impact on the results of testing the framework, another limitation is the number of interviewed experts. Thus, having the opportunity to access more experts could potentially improve the results.
Choosing the number of clusters, k is a challenge in general for evaluation of the quality of clusters, requiring metrics such Within-Cluster-Sum of Squared Errors. In the present work, however, the number is set to k = 3 by definition, associated with the clusters of tactical, operational, and strategic level as imposed by the theory of Management Pyramid [43], and following the expert opinions, each word in the BoW is pre-associated with one of the clusters. Hence, although another choice with k ≠ 3 could potentially lead to slightly better or worse results, it would not be in accordance with the theory.
The final validation of the framework was conducted through expert reviews which were consulted in design process of the framework, as listed in Table 2. The experts reviewed the results carefully and stated that our results are in a good alignment with their knowledge and experience, meeting their expectations from the developed framework. In more detail, an important aspect of the results is that, as presented in Table 5, the agreement of the report examining process with the Management Pyramid (in Figure 1) depends on the level of control. That is, while a good agreement is found for the top level, this is not the case for the lower levels, being one of the major findings of our framework, which is confirmed by the experts.

5. Conclusions

In this work, a novel framework for distinguishing knowledge application (decision-making) and management levels by analyzing log files is presented. The reliability of this framework was confirmed by professionals from various medical organizations. After analyzing log-file data for the selected case using text mining, we concluded that most of the reports reviewed by various managers were not at a strategic level (only 6.21%). The majority of the reports created by the BI tool were operational (73.98%) or tactical (19.81%). Our results clearly indicate that this real-life case is an embodiment of the well-known management pyramid.
The Chief Executive Officer, Director of Business Management (Doctor), and General Manager showed agreement with the model, whereas the Director of Business (Finance), Director of Business Management, Outpatient Center Manager, Managers of Nursing Services, Medical Center Manager, Hospital Service Managers, and General Manager Accounting did not show agreement with the model. Managers from a technical background concentrate on the operational and tactical levels. The gap between a business intelligence system and applying knowledge (decision-making levels) is determined by the background and behavior of the users, which are very important at the decision-making level. For example, nurses, accountants and financial officers have technical backgrounds and solve routine business problems daily. The Managers of Nursing Services are experienced nurses who are specialized in patient care. When a nurse becomes a manager, his/her background and behavior is aimed at solving daily or weekly problems, so their decision-making level is operational and tactical. The chief executive officer, general manager and director of business management have a functional background and behavior. Typically, they have a Bachelor’s degree in the health sciences or business administration and all of them have a Master’s of business administration. Their background and behavior are aimed at solving daily, weekly, monthly and yearly problems, so their decision-making level is operational, tactical and strategic. The business intelligence system should be redesigned after looking at the decision-making levels based on user background and behaviors.
From an academic research perspective, this study extracts knowledge management from business intelligence levels. In practice, this study suggests a framework for analyzing the performance of business intelligence systems. By analyzing the performance of business intelligence systems organizations can maximize the benefits of their business intelligence systems and applying knowledge to create business value.
In future research, it would be useful to examine text mining in business areas other than the medical sphere to validate the reliability of the management pyramid. This study contributes to the significance of information systems research in the medical domain by verifying the reliability of text mining and clustering methods.
Finally, it should be remembered that business intelligence is sufficient at the point of gathering and sharing elements of knowledge management. It is important to make personalized designs for the values expected from people and their demands at the point of applying knowledge. The proposed framework will be beneficial not only for the health sector, but also for banking, insurance and all other businesses using business intelligence.

Author Contributions

Conceptualization, S.T.; methodology, S.T.; software, S.T.; validation, S.T. and F.O.; formal analysis, S.T.; investigation, S.T. and F.O.; resources, S.T.; data curation, S.T.; writing—original draft preparation, S.T. and F.O.; writing—review and editing, S.T. and F.O.; visualization, S.T. and F.O.; supervision, S.T.; project administration, S.T.; funding acquisition, S.T. and F.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Personal Research Fund of Tokyo International University. The APC was funded by TESODEV and Tokyo International University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data within this study are confidential. If necessary, please contact the authors.

Acknowledgments

S.T. thanks Kenan Kaan Kurt, Hüseyin Tanzer Atay, Mustafa Alpkan Çiçek and İnci Çilesiz. S.T. and F.O. thank Mert Yenen.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
BERTBidirectional Encoder Representations from Transformers
BIBusiness intelligence.
BoWBag of Words.
CEOChief Executive Officer.
CIOChief Information Officers.
DMDDirector Medical Doctors.
ETLExtract, Transform and Load.
ITInformation Technology.
KMKnowledge Management.
MNSManagers of Nursing Services.
NLPNatural Language Processing.
OLAPOnline Analytical Processing.
SMEStructural Equation Modelling.
SGLSoftware Group Leaders.
SVCSoftware Vendor Consultants.

References

  1. Fedoroff, N.V. The global knowledge society. Science 2012, 335, 503. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. McGrath, R.G. The End of Competitive Advantage: How to Keep Your Strategy Moving as Fast as Your Business; Harvard Business Review Press: Boston, MA, USA, 2013. [Google Scholar]
  3. Ford, N. From information-to knowledge-management: The role of rule induction and neural net machine learning techniques in knowledge generation. J. Inf. Sci. 1989, 15, 299–304. [Google Scholar] [CrossRef]
  4. Delen, D.; Zaim, H.; Kuzey, C.; Zaim, S. A comparative analysis of machine learning systems for measuring the impact of knowledge management practices. Decis. Support Syst. 2013, 54, 1150–1160. [Google Scholar] [CrossRef]
  5. Candanedo, I.S.; Nieves, E.H.; González, S.R.; Martín, M.; Briones, A.G. Machine learning predictive model for industry 4.0. In Proceedings of the International Conference on Knowledge Management in Organizations, Zilina, Slovakia, 6–10 August 2018; Springer: Cham, Switzerland, 2018; pp. 501–510. [Google Scholar]
  6. Shailaja, K.; Seetharamulu, B.; Jabbar, M.A. Machine learning in healthcare: A review. In Proceedings of the 2018 Second International Conference on Electronics, Communication and Aerospace Technology (ICECA), Coimbatore, India, 29–31 March 2018; pp. 910–914. [Google Scholar]
  7. Larabi-Marie-Sainte, S.; Aburahmah, L.; Almohaini, R.; Saba, T. Current Techniques for Diabetes Prediction: Review and Case Study. Appl. Sci. 2019, 9, 4604. [Google Scholar] [CrossRef] [Green Version]
  8. Nedyalkova, M.; Madurga, S.; Simeonov, V. Combinatorial K-Means Clustering as a Machine Learning Tool Applied to Diabetes Mellitus Type 2. Int. J. Environ. Res. Public Health 2021, 18, 1919. [Google Scholar] [CrossRef]
  9. Wani, S.U.D.; Khan, N.A.; Thakur, G.; Gautam, S.P.; Ali, M.; Alam, P.; Alshehri, S.; Ghoneim, M.M.; Shakeel, F. Utilization of Artificial Intelligence in Disease Prevention: Diagnosis, Treatment, and Implications for the Healthcare Workforce. Healthcare 2022, 10, 608. [Google Scholar] [CrossRef]
  10. Harnoune, A.; Rhanoui, M.; Mikram, M.; Yousfi, S.; Elkaimbillah, Z.; El Asri, B. BERT based clinical knowledge extraction for biomedical knowledge graph construction and analysis. Comput. Methods Programs Biomed. Update 2021, 1, 100042. [Google Scholar] [CrossRef]
  11. Arnaud, É.; Elbattah, M.; Gignon, M.; Dequen, G. Learning embeddings from free-text triage notes using pretrained transformer models. In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022), Vienna, Austria, 9–11 February 2022. [Google Scholar]
  12. Alvesson, M. Management of Knowledge-Intensive Companies; de Gruyter: Berlin, Germany, 2011. [Google Scholar]
  13. Millar, C.C.J.M.; Lockett, M.; Mahon, J.F. Knowledge intensive organisations: On the frontiers of knowledge management. J. Knowl. Manag. 2016, 20, 845–857. [Google Scholar] [CrossRef]
  14. Durst, S.; Edvardsson, I. Knowledge management in SMEs: A literature review. J. Knowl. Manag. 2012, 16, 879–903. [Google Scholar] [CrossRef]
  15. Lin, H.-F. Linking knowledge management orientation to balanced scorecard outcomes. J. Knowl. Manag. 2015, 19, 1224–1249. [Google Scholar] [CrossRef]
  16. Rangachari, P. Knowledge sharing networks in professional complex systems. J. Knowl. Manag. 2009, 13, 132–145. [Google Scholar] [CrossRef]
  17. Gerbin, A.; Drnovsek, M. Knowledge-sharing restrictions in the life sciences: Personal and context-specific factors in academia–industry knowledge transfer. J. Knowl. Manag. 2020, 24, 1533–1557. [Google Scholar] [CrossRef]
  18. Simeone, L.; Secundo, G.; Schiuma, G. Knowledge translation mechanisms in open innovation: The role of design in R&D projects. J. Knowl. Manag. 2017, 21, 1406–1429. [Google Scholar]
  19. Ferreira, J.; Fernandes, C.; Alves, H.; Raposo, M. Drivers of innovation strategies: Testing the tidd and bessant (2009) model. J. Bus. Res. 2015, 68, 1395–1403. [Google Scholar] [CrossRef]
  20. Carayannis, E.G.; Campbell, D. ‘Mode 3’ and ‘quadruple helix’: Toward a 21st century fractal innovation ecosystem. Int. J. Technol. Manag. 2009, 46, 201–234. [Google Scholar] [CrossRef] [Green Version]
  21. Ferreira, J.; Mueller, J.; Papa, A. Strategic knowledge management: Theory, practice and future challenges. J. Knowl. Manag. 2018, 24, 121–126. [Google Scholar] [CrossRef] [Green Version]
  22. Harvey, W.S.; Mitchell, V.-W.; Almeida Jones, A.; Knight, E. The tensions of defining and developing thought leadership within knowledge-intensive firms. J. Knowl. Manag. 2021, 25, 1–33. [Google Scholar] [CrossRef]
  23. Devlin, J.; Chang, M.W.; Lee, K.; Toutanova, K. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv 2018, arXiv:1810.04805. [Google Scholar]
  24. Iroju, O.G.; Olaleke, J.O. A systematic review of natural language processing in healthcare. Int. J. Inf. Technol. Comput. Sci. 2015, 8, 44–50. [Google Scholar] [CrossRef] [Green Version]
  25. Wen, A.; Fu, S.; Moon, S.; El Wazir, M.; Rosenbaum, A.; Kaggal, V.C.; Liu, S.; Sohn, S.; Liu, H.; Fan, J. Desiderata for delivering NLP to accelerate healthcare AI advancement and a Mayo Clinic NLP-as-a-service implementation. NPJ Digit. Med. 2019, 2, 130. [Google Scholar] [CrossRef]
  26. Lavanya, P.M.; Sasikala, E. Deep learning techniques on text classification using Natural language processing (NLP) in social healthcare network: A comprehensive survey. In Proceedings of the 2021 3rd International Conference on Signal Processing and Communication (ICPSC), Coimbatore, India, 13–14 May 2021; pp. 603–609. [Google Scholar]
  27. Lloyd, S. Least squares quantization in PCM. IEEE Trans. Inf. Theory 1982, 28, 129–137. [Google Scholar] [CrossRef] [Green Version]
  28. Karamitri, I.; Talias, M.A.; Bellali, T. Knowledge management practices in healthcare settings: A systematic review. Int. J. Health Plan. Manag. 2017, 32, 4–18. [Google Scholar] [CrossRef] [PubMed]
  29. Plsek, P.E.; Wilson, T. Complexity, leadership, and management in healthcare organisations. BMJ 2001, 323, 746–749. [Google Scholar] [CrossRef] [PubMed]
  30. Kim, Y.; Newby-Bennett, D.; Song, H. Knowledge sharing and institutionalism in the healthcare industry. J. Knowl. Manag. 2012, 16, 480–494. [Google Scholar] [CrossRef]
  31. Wang, Y.; Byrd, T.A. Business analytics-enabled decision-making effectiveness through knowledge absorptive capacity in health care. J. Knowl. Manag. 2017, 21, 517–539. [Google Scholar] [CrossRef] [Green Version]
  32. Panahi, S.; Watson, J.; Partridge, H. Conceptualising social media support for tacit knowledge sharing: Physicians’ perspectives and experiences. J. Knowl. Manag. 2016, 20, 344–363. [Google Scholar] [CrossRef]
  33. Antonacci, G.; Fronzetti Colladon, A.; Stefanini, A.; Gloor, P. It is rotating leaders who build the swarm: Social network determinants of growth for healthcare virtual communities of practice. J. Knowl. Manag. 2017, 21, 1218–1239. [Google Scholar] [CrossRef] [Green Version]
  34. Sánchez-Polo, M.T.; Cegarra-Navarro, J.-G.; Cillo, V.; Wensley, A. Overcoming knowledge barriers to health care through continuous learning. J. Knowl. Manag. 2019, 23, 508–526. [Google Scholar] [CrossRef]
  35. Maheshwari, B.; Sarrion, M.; Motiani, M.; O’Sullivan, S.; Chandwani, R. Exploration of factors affecting the use of Web 2.0 for knowledge sharing among healthcare professionals: An Indian perspective. J. Knowl. Manag. 2020, 25, 545–558. [Google Scholar] [CrossRef]
  36. Fletcher-Brown, J.; Carter, D.; Pereira, V.; Chandwani, R. Mobile technology to give a resource-based knowledge management advantage to community health nurses in an emerging economies context. J. Knowl. Manag. 2020, 25, 525–544. [Google Scholar] [CrossRef]
  37. Epaminonda, E.; Chaanine, J.; Vrontis, D.; Thrassou, A.; Christofi, M. Information communication technology, knowledge management, job and customer satisfaction: A study of healthcare workers in Lebanon. J. Knowl. Manag. 2020, 25, 618–641. [Google Scholar] [CrossRef]
  38. Tripathi, V.R.; Popli, M.; Ghulyani, S.; Desai, S.; Gaur, A. Knowledge creation practices at organizational boundaries: The role of ICT in sickle-cell care for tribal communities. J. Knowl. Manag. 2020, 25, 595–617. [Google Scholar] [CrossRef]
  39. Souza, V.P.D.; Baroni, R.; Choo, C.W.; Castro, J.M.; Barbosa, R.R. Knowledge management in health care: An integrative and result-driven clinical staff management model. J. Knowl. Manag. 2020, 25, 1241–1262. [Google Scholar] [CrossRef]
  40. Corrao, S.; Arcoraci, V.; Arnone, S.; Calvo, L.; Scaglione, R.; Di Bernardo, C.; Licata, G. Evidence-Based Knowledge Management: An approach to effectively promote good health-care decision-making in the Information Era. Intern. Emerg. Med. 2009, 4, 99–106. [Google Scholar] [CrossRef] [PubMed]
  41. Valsamidis, S.; Kazanidis, I.; Kontogiannis, S.; Florou, G. Knowledge management for business intelligence measurement in an e-business system. Int. J. Electron. Bus. 2017, 13, 323–341. [Google Scholar] [CrossRef]
  42. Ahmed, P.K.; Lim, K.K.; Zairi, M. Measurement practice for knowledge management. J. Workplace Learn. 1999, 11, 304–311. [Google Scholar] [CrossRef]
  43. Leonard, D.; McAdam, R. The role of the business excellence model in operational and strategic decision making. Manag. Decis. 2002, 40, 17–25. [Google Scholar] [CrossRef]
  44. Winter, A.; Haux, R.; Ammenwerth, E.; Brigl, B.; Hellrung, N.; Jahn, F. Strategic Information Management in Hospitals. In Health Information Systems; Springer: London, UK, 2010. [Google Scholar]
  45. Lönnqvist, A.; Pirttimäki, V. The measurement of business intelligence. Inf. Syst. Manag. 2006, 23, 32–40. [Google Scholar] [CrossRef]
  46. Baars, H.; Kemper, H.G. Management support with structured and unstructured data—An integrated business intelligence framework. Inf. Syst. Manag. 2008, 25, 132–148. [Google Scholar] [CrossRef]
  47. Sahay, B.S.; Ranjan, J. Real time business intelligence in supply chain analytics. Inf. Manag. Comp. Secur. 2008, 16, 28–48. [Google Scholar] [CrossRef] [Green Version]
  48. Crist-Grundman, D.; Mulrooney, G. Effective workforce management starts with leveraging technology, while staffing optimization requires true collaboration. Nurs. Econ. 2011, 29, 195–200. [Google Scholar] [PubMed]
  49. Pine, M.; Sonneborn, M.; Schindler, J.; Stanek, M.; Maeda, J.L. Harnessing the power of enhanced data for healthcare quality improvement: Lessons from a Minnesota Hospital Association Pilot Project. J. Healthc. Manag. 2012, 57, 406–418. [Google Scholar] [CrossRef] [PubMed]
  50. Tremblay, M.C.; Hevner, A.R.; Berndt, D.J. Design of an information volatility measure for health care decision making. Decis. Support Syst. 2012, 52, 331–341. [Google Scholar] [CrossRef]
  51. Popovič, A.; Hackney, R.; Coelho, P.S.; Jaklič, J. Towards business intelligence systems success: Effects of maturity and culture on analytical decision making. Decis. Support Syst. 2012, 54, 729–739. [Google Scholar] [CrossRef]
  52. Yin, R.K. Case Study Research and Applications: Design and Methods; Sage: Newbury Park, CA, USA, 1994. [Google Scholar]
  53. Eisenhardt, K.M. Building theories from case study research. Acad. Manag. Rev. 1989, 14, 532–550. [Google Scholar] [CrossRef]
  54. Van der Aalst, W.; Weijters, T.; Maruster, L. Workflow mining: Discovering process models from event logs. IEEE Trans. Knowl. Data Eng. 2004, 16, 1128–1142. [Google Scholar] [CrossRef]
  55. Han, J.; Pei, J.; Kamber, M. Data Mining Concepts and Techniques; Morgan Kaufmann: Waltham, MA, USA, 2012. [Google Scholar]
  56. Martins, C.A.; Monard, M.C.; Matsubara, E.T. Reducing the dimensionality of bag-of-words text representation used by learning algorithms. In Proceedings of the 3rd IASTED International Conference on Artificial Intelligence and Applications, Benalmadena, Spain, 8–10 September 2003; pp. 228–233. [Google Scholar]
  57. Fortuna, B.; Grobelnik, M.; Mladenic, D. Visualization of text document corpus. Informatica 2005, 29, 497–502. [Google Scholar]
  58. Hotho, A.; Nürnberger, A.; Paaß, G. A brief survey of text mining. Ldv Forum 2005, 20, 19–62. [Google Scholar]
  59. Nahm, U.Y.; Mooney, R.J. Text Mining with Information Extraction. In Proceedings of the AAAI 2002 Spring Symposium on Mining Answers from Texts and Knowledge Bases, Palo Alto, CA, USA, 25–27 March 2002; pp. 60–67. [Google Scholar]
  60. Ahmed, N.; Dilmaç, F.; Alpkocak, A. Classification of Biomedical Texts for Cardiovascular Diseases with Deep Neural Network Using a Weighted Feature Representation Method. Healthcare 2020, 8, 392. [Google Scholar] [CrossRef]
  61. Cui, X.; Potok, T.E. Document clustering analysis based on hybrid PSO+ K-means algorithm. J. Comput. Sci. Spec. Issue 2005, 27–33. [Google Scholar]
  62. Deokar, S.T. Text documents clustering using k means algorithm. Int. J. Eng. Sci. Technol. 2013, 1, 282–286. [Google Scholar]
  63. Gupta, H.; Srivastava, R. k-means based document clustering with automatic `k’selection and cluster refinement. Int. J. Comput. Sci. Mob. Appl. 2014, 2, 7–13. [Google Scholar]
  64. Available online: https://docs.microsoft.com/en-us/dotnet/csharp/ (accessed on 28 May 2022).
  65. Available online: https://www.jetbrains.com/rider/ (accessed on 28 May 2022).
  66. Available online: https://www.oracle.com/tr/business-analytics/business-intelligence/technologies/bi-enterprise-edition.html (accessed on 28 May 2022).
  67. Available online: https://www.oracle.com/tr/integration/data-integrator-enterprise-edition/ (accessed on 28 May 2022).
  68. Available online: https://www.wolfram.com/mathematica/ (accessed on 28 May 2022).
  69. Turkeli, S.; Ercek, M. Designing a capability-focused strategic management model for a Turkish public hospital: Learning from failure. Syst. Pract. Action Res. 2010, 23, 353–370. [Google Scholar] [CrossRef]
  70. Meredith, J.R.; Mantel, S.J. Project Management: A Managerial Approach; John Wiley and Sons: Toronto, ON, Canada, 1989. [Google Scholar]
  71. Fountas, S.; Wulfsohn, D.; Blackmore, B.S.; Jacobsen, H.L.; Pedersen, S.M. A model of decision-making and information flows for information-intensive agriculture. Agric. Syst. 2006, 87, 192–210. [Google Scholar] [CrossRef]
  72. March, S.T.; Hevner, A.R. Integrated decision support systems: A data warehousing perspective. Decis. Support Syst. 2007, 43, 1031–1043. [Google Scholar] [CrossRef]
  73. Dowding, D.; Randell, R.; Gardner, P.; Fitzpatrick, G.; Dykes, P.; Favela, J.; Currie, L. Dashboards for improving patient care: Review of the literature. Int. J. Med. Inform. 2015, 84, 87–100. [Google Scholar] [CrossRef]
  74. Turkeli, S. Sağlık Sektöründe Karar Destek Sistemi Olarak İş Zekası Uygulaması ve Model Önerisi. In Proceedings of the 5th TurkMIA Congress, Antalya, Turkey, 13–16 November 2008. [Google Scholar]
  75. Murphy, K.E.; Simon, S.J. Intangible benefits valuation in ERP projects. Inf. Syst. J. 2002, 12, 301–320. [Google Scholar] [CrossRef]
  76. Cook, J.E.; Wolf, A.L. Discovering models of software processes from event-based data. ACM Trans. Softw. Eng. Methodol. 1998, 7, 215–249. [Google Scholar] [CrossRef]
Applsci 12 05621 g001 550

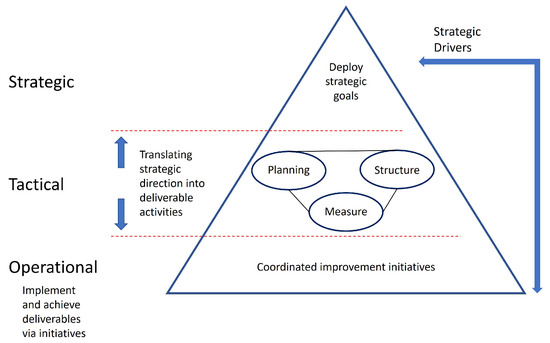

Figure 1. The management pyramid (source: ref. [43]).
Figure 1. The management pyramid (source: ref. [43]).
Applsci 12 05621 g001
Applsci 12 05621 g002 550
Figure 2. Framework used for mining at the decision-making Level.
Figure 2. Framework used for mining at the decision-making Level.
Applsci 12 05621 g002
Applsci 12 05621 g003 550
Figure 3. The general scheme of the system.
Figure 3. The general scheme of the system.
Applsci 12 05621 g003
Applsci 12 05621 g004 550
Figure 4. Illustration of the feature extraction using BoW method.
Figure 4. Illustration of the feature extraction using BoW method.
Applsci 12 05621 g004
Applsci 12 05621 g005 550
Figure 5. The clusters are in pyramidal form.
Figure 5. The clusters are in pyramidal form.
Applsci 12 05621 g005
Applsci 12 05621 g006 550
Figure 6. Methodology and the general flowchart of information.
Figure 6. Methodology and the general flowchart of information.
Applsci 12 05621 g006
Applsci 12 05621 g007 550
Figure 7. Number of reports reviewed each month by Director of Business Management (Doctor), CEO, and Others.
Figure 7. Number of reports reviewed each month by Director of Business Management (Doctor), CEO, and Others.
Applsci 12 05621 g007
Table
Table 1. H1 Hospital in the in-depth case study.
Table 1. H1 Hospital in the in-depth case study.
Case HospitalHospital 1
ProviderHospital 1 Healthcare Group
Established1991
Employees2200 doctors, 3500 nurses; 13,000 in total
Facilities19 hospitals and 13 medical centers
Table
Table 2. Summary of the interviews.
Table 2. Summary of the interviews.
Position of the IntervieweeNumber of ExpertsNumber of Sessions
CEO/Director78
CIO/SGL58
SVC813
DMD/MNS1217
Total3246
Table
Table 3. Analyzed Log File.
Table 3. Analyzed Log File.
PositionReportDateReview Count
Chief Executive OfficerSurvey number12 January 20142
General ManagerStock turnover6 May 20131
Table
Table 4. Feature pool (some of the special terms in our word bag).
Table 4. Feature pool (some of the special terms in our word bag).
Strategic LevelTactical LevelOperational Level
develop,process,number, patient,
continuous,excellence,waiting, time,
improvement,patient,admitted,
culturesatisfactioninpatients,
total, income
Table
Table 5. Number of reports examined with respect to positions.
Table 5. Number of reports examined with respect to positions.
In Agreement with the Pyramid?Level of Control/ PositionStrategic Level ReviewsTactical Level ReviewsOperational Level ReviewsTotal Number of Reports Examined
Chief Executive Officer77137519733
YESDirector of Business Management (Doctor)2185476582
General Manager1204263
NODirector of Business Management (Finance)057075
Director of Business Management0203353
Outpatient Center Manager0242650
Managers of Nursing Services016420
Medical Center Manager061016
Hospital Service Managers0202
General Manager Accounting0101
Total:99 (6.21%)316 (19.81%)1180 (73.98%)1595
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Turkeli, S.; Ozaydin, F. A Novel Framework for Extracting Knowledge Management from Business Intelligence Log Files in Hospitals. Appl. Sci. 2022, 12, 5621. https://doi.org/10.3390/app12115621

AMA Style

Turkeli S, Ozaydin F. A Novel Framework for Extracting Knowledge Management from Business Intelligence Log Files in Hospitals. Applied Sciences. 2022; 12(11):5621. https://doi.org/10.3390/app12115621

Chicago/Turabian Style

Turkeli, Serkan, and Fatih Ozaydin. 2022. "A Novel Framework for Extracting Knowledge Management from Business Intelligence Log Files in Hospitals" Applied Sciences 12, no. 11: 5621. https://doi.org/10.3390/app12115621

APA Style

Turkeli, S., & Ozaydin, F. (2022). A Novel Framework for Extracting Knowledge Management from Business Intelligence Log Files in Hospitals. Applied Sciences, 12(11), 5621. https://doi.org/10.3390/app12115621

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
