Nonlinear Response Prediction of Spar Platform in Deep Water Using an Artificial Neural Network

Abstract

The finite element method (FEM) is an essential method for predicting the response of the spar platform considering all nonlinear variables. Although FEM is an extremely laborious and time-consuming process for predicting platform responses using hydrodynamic loads, artificial neural networks (ANNs) can predict the response quickly, as required for platform management to either linger or stop the production of oil and gas. The application of ANN approaches to estimate the wave height and period from the expected wind forces is investigated in this paper. The ANN model can also predict the nonlinear responses of the spar platform subjected to the structural parameter as well as the wave height and wave period. The backpropagation technique depletes feed-forward neural networks, allowing the network to be trained. Following the formation of the neural network, rapid reactions from a freshly anticipated wind force are obtained. The results are validated via a comparison with results from a conventional finite element analysis. The findings demonstrate that the artificial neural network (ANN) technique is effective and is able to significantly reduce the required time to make predictions when compared to the conventional FEM.

1. Introduction

Offshore structures arrange immense potentials for the progress and utilization of oceanic energy and resources. Offshore industrializations are moving rapidly towards deep seawaters for oil and gas exploration in oceanic environments to meet global energy demands. Typically, these constructed structures are subjected to more severe load conditions than those seen on land. The main source of structural load pressure for soil foundations is the ocean waves affecting the platform. In addition to the conditions and situations that often occur in inland structures, offshore structures have additional complications due to their location in the marine environment, where hydrodynamic interactions and dynamic reactions are essential considerations in their design. An offshore structure based on mobility can be of two types: offshore fixed structures and offshore floating structures. In shallow waters, both fixed types of offshore-based structures (gravity and jacketed platforms) are cost-effective and practical. Using fixed platforms, mainly in deep water (nearly 300 m deep), is vulnerable to technical complications linked to economic issues that increase rapidly as the water depth increases. Contrarily, compatible floating structures such as tension leg platforms and spar platforms provide an economical solution to exploration and production facilities in profound and ultra-deep water [1].

Most floating-on-water-based offshore structures are largely ostentatious by certain uncertainties primarily related to steep and nonlinear waves, wind, and currents, which cause the ringing and springing of tension leg platforms (TLPs), slow the drift-yaw motion of floating production, storage, and offloading (FPSO), and significant oscillations in spar platforms due to vortex shedding [2].

Due to non-linearities such as geometry, changeable pretension, and varying immersion, investigating floating offshore constructions such as spar platforms and evaluating their environmental impact is difficult. Spar platforms are the most suitable and economical offshore floating structures suitable for deep-sea waters. In the exploration phase of oil and gas drilling operations, several environmental and associated forces often affect offshore floating structures. An early decision should be made to either delay or stop production based on the prediction of the spar platform’s response to several anticipated environmental situations.

The finite element method (FEM) can be considered a key practice for dealing with such analysis. Several recent studies have been conducted to forecast and predict the responses of spar types of platforms using several conventional methods [3,4,5,6]. However, utilizing such methodologies to analyze the reaction of spar platforms is time-consuming and difficult.

Artificial neural networks (ANNs) are cutting-edge algorithms that can deliver very quick and efficient results in instances where a traditional analysis would be quite difficult. Hence, Simoes et al. [7] developed an ANN model to predict the mooring forces and analyze the dynamic behavior of guard tent and FPSO in a tandem configuration. It is of great importance to monitor the integrity of the mooring lines [8] on floating offshore platforms in order to detect any damage or failures. To address the problem, Sidarta et al. [9] exploited an ANN model for mooring line damage detection based on a proprietary methodology that only uses GPS tracking to detect tiny fluctuations in the long drift period of a moored floating vessel as a signal of mooring line failure. ANN was applied by Yee et al. [10] for the purpose of monitoring the health of a floating offshore structure’s mooring line. Two machine learning models, a gradient-boosted regression tree (GBRT) and an artificial neural network (ANN), were used to forecast offshore platform risk assessments [11]. In other work, Uddin et al. [12] predicted the top tension response of the spar mooring lines using an ANN for a long-time history. This style was appropriate for averting ship strikes and maintaining the mooring line.

Response-based hydrodynamic models (SAMERS) were suggested by Mazaheri et al. to predict the excursion and mooring power of the FPSO over a lifetime of year N [13,14]. They computed the responses from an offshore floating-based platform exposed to arbitrary waves, current loads, and wind. Hybrid versions of the ANN-FEM technique have been implemented by Guarize et al. [15] for a long-term time-based history to predict the retort of the FPSO and for the indiscriminate dynamic-based response of ladder tubes as well as for mooring lines.

Pina et al. [16] have developed an ANN-based surrogate model for predicting the response of offshore structures. They used FEM instead of dynamic analysis. The authors employed the line tension of FPSO to find the test model, and the results demonstrated that ANN is highly successful in precisely and swiftly anticipating responses. Moghim et al. [17], Shafiefar et al. [18], Shafiefar and Moghim [19], and Zhou and Luan [20] used ANNs to forecast the hydrodynamic forces caused by waves and currents on thin cylinders.

With an ANN-based technique, the current study proposes a nonlinear prediction of spar platform responses under numerous environmental-related factors, such as the wave period and wave height. By using entirely new environmental forces as inputs for the ANN, it was found that the response of the spar platform time history could be predicted more accurately. The findings demonstrate that the ANN technique is proficient and can ominously shorten the computation time required to predict response time histories.

2. Materials and Methods

2.1. Finite Element Modelling and Analysis

To implement pairs of completely integrated spar hulls and mooring lines that are coupled under wave loading, a finite element model (FEM) was used. The spar platform analysis considers the actual physical connection between a vertical rigid floating hull and a mooring line. Such a unique model can capture all different types of loading, nonlinearities, and boundary conditions [21]. Thus, the integrated binding consequence used in this study was examined to demonstrate the drag damping importance in mooring systems under deep water conditions. The FEM code AQUA/ABAQUS was utilized to find the responses of the spar types of the platform.

The primary purposes of this research are to achieve the right catenary shape of the mooring line under gravity (self-weight), stiffness, and axial tension, all of which are related to its mean curvature. This equilibrium state is obtained conclusively when the spar cylinder is gently released under buoyancy. This dynamic analysis was performed under normal seawater circumstances.

A decoupled quasi-static method that totally or partially ignores the influences of the interaction between the platforms and mooring lines is the most commonly used strategy for handling the dynamics of a spar platform. In this technique, the mooring lines are used to model as massless linear or nonlinear springs. For the mooring line responses, the platform motions are applied in a comprehensive finite element model of the catenary mooring line as an external loading with regard to the imposed boundary conditions. Hence, the dynamic interactions between mooring lines and platforms are not appropriately modelled in the uncoupled conventional analysis [22]. For platforms in deeper waters, moorings often contribute to considerable damping and inertia due to their longer length, greater weight, and greater dimensions. These damping values must be taken into account in order to provide an appropriate motion analysis of a platform in deep waters.

2.1.1. Modeling of the Spar Platform

The installation of a spar platform at a depth of 1018 m was selected for this study. The spar platform is mainly made up of three parts: spar hulls, a riser, and mooring lines. The geotechnical and mechanical characteristics of the mooring system are listed in

Table 1. Geometrical and mechanical properties of moorings and spar hull.

Description		Value	Unit
Sea-bed size		5000 × 5000	m2
Spar (Classic JIP Spar)	Length	213.044	m
	Diameter	40.54	m
	Draft	198.12	m
	Mass	2.515276 × 108	kg
	Mooring Point	106.62	m
	No. of Nodes	17
	No. of Elements	16
	Type of Element	Rigid beam element
Depth of Water		1018	m
Mooring	No. of Moorings	4
	Length	2000.0	m
	Stiffness (EA)	1.50 × 109	N
	Mass	1100	Kg/m
	Mooring line pretension	1.625 × 107	N
	No. of Nodes	101
	Element Type	Hybrid beam element

.

Table 2. Hydrodynamic Properties for spar platform.

Description	Coefficient	Value
Spar	Drag	0.6
	Inertia	2.0
	Added mass	1.0
Mooring line	Drag	1.0
	Inertia	2.2
	Added mass	1.2

also shows the hydrodynamic characteristics and properties of the marine environment.

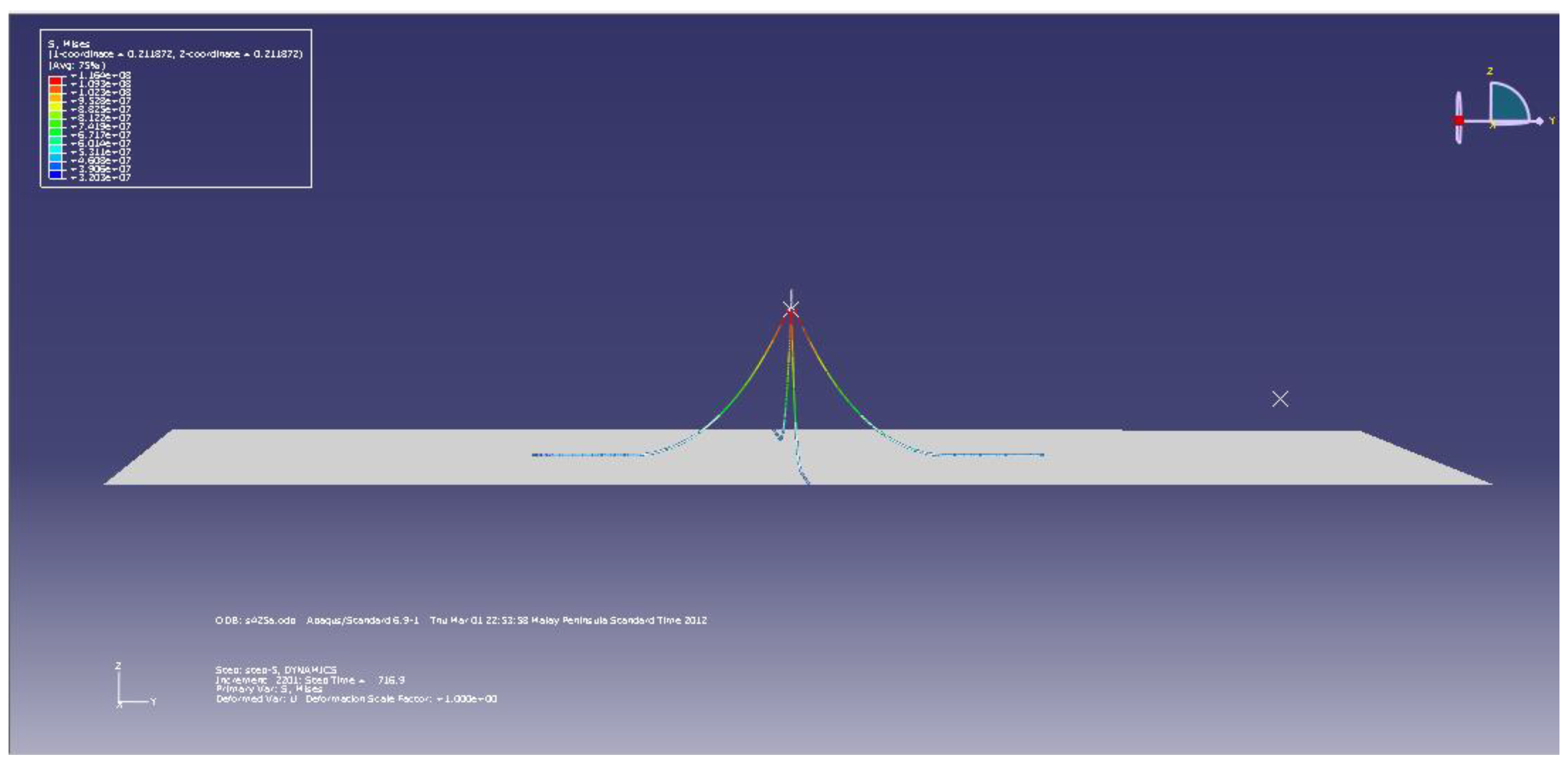

In the vertical guiding position, the spar hull was depicted as a rigid beam with a mooring line securing it to the bottom. The riser’s reaction point was attached to the riser. Six springs were used to connect the hard spar platform to the flexible mooring lines (three for translations such as surge, heave, and sway and three for rotations such as pitch, roll, and yaw). The translation spring had a relatively high individual stiffness, but the rotation spring had a relatively low stiffness, approximating a hinge connection.

The relevant mooring line was designed to cover all sorts of significant non-linearity, including low deformation and variable deformation non-linearity. The mooring line was developed using the hybrid beam element. It has been called a hybrid system since the situation uses two shape functions to preserve the catenary shape of every mooring line: one to simulate elastic behavior and the other to simulate axial tension. For simplicity of convergence, other elements such as linear or nonlinear truss elements can be explored in addition to the hybrid beam element.

For modeling purposes, the seabed was treated as a rigid plate. The mooring line was in contact with the seafloor but did not penetrate it. This interface was modeled as a frictionless surface-to-surface contact. For contact interaction, the surfaces around the mooring lines and the seabed surfaces were chosen. For the final pieces, the integrated spar hulls and mooring lines were simulated in the ABAQUS code, as illustrated in Figure 1.

2.1.2. Response Analysis of Spar Platform

In our current investigation, a completely coupled analysis of the mooring line and spar hull was performed as a single and integrated prototype. At each phase, this tactic maintained a dynamic steadiness among the forces operating on the mooring lines and spar hull. This accurately depicted the damping and showed the genuine behavior of the spar hull and mooring line arrangement. A completely integrated analysis method was used to determine the ability to forecast the platform’s response more correctly. The structural behavior of the spar platform was examined after it was simulated and studied under hydrodynamic loadings.

The wave data were considered when analyzing responses in Morrison’s regime, and it was assumed that these measures provided statistical stability in the structure and accuracy in the solutions for short periods [23]. The results of the response analysis of the platform and the detailed responses of the mooring lines are presented. Dynamic and static loads were applied depending on the analysis. The model automatically incorporated the stress and stiffness related with the mean curvature. Hence, it was an accurate approach. The wave loading of the mooring line was carried out at each stage.

2.2. Artificial Neural Network

An ANN was employed to develop models to predict the response of the spar platform. The reaction of the spar platform was anticipated using the ANN model, and the wave period and height were obtained. Prior to that, the wave period and height were anticipated by means of forecasting the wind speed and the ANN model. The ANN model was developed in this study considering a nonlinear autoregressive network model (NARX) to predict the wave period and wave height. The NARX is a dynamic recurrent neural network model with many layers involving feedback connections. The NARX model can be expressed mathematically as follows:

$$y\left(t\right)=F\left(x\left(t-1\right),x\left(t-2\right),\dots ,x\left(t-n\right),y\left(t-1\right),y\left(t-2\right),\dots ,y\left(t-n\right)\right)$$

(1)

where F(.) is the nonlinear function assessed by a multi-layer perceptron, x(t − n) and y(t − n) are the input and output of the network at the time (t − n), respectively, and n is the input delay. The trained network can predict output y(t) based on the input values.

The NARX network contains five neurons in the hidden layer with an activation function and two-step delays for both the input and the output. The Levenberg–Marquardt backpropagation [24,25] algorithm helps to obtain the minimum mean square error (MSE) between the target and output by adjusting the weights and bias. In total, 1460 data samples were collected, of which 992 were used for training, 234 were used for validation, and 234 were used for testing. The NARX network was trained and predicted the wave height and wave period from randomly selected wind forces.

The obtained wave height and wave period, along with the geometrical and mechanical properties (Table 1) and hydrodynamic properties (Table 2), were used as inputs for the response prediction of the spar platform using an ANN. A feed-forward backpropagation neural network was used to develop the ANN model for the prediction responses such as the heave, surge, and pitch of spar hulls and the top tension of the mooring line. The ANN architecture primarily consists of input, output, and hidden layers. The ANN architecture may be expressed mathematically as

$$y_j\left(t\right)=\phi \left(x_i\left(t\right) W_{ij}+b\right)$$

(2)

where $x_i\left(t\right)$ is the value of the input at time t; i is the number of inputs; $y_j\left(t\right)$ is the value of the output, which consists of responses at time t; j is the number of output data; $W_{ij}$ is the weight that is multiplied with the input; b is the bias; and φ is the activation function.

The activation function can be utilized via a hyperbolic tangent sigmoid transfer function that can be expressed as

$$\phi \left(x\right)=\tan sig\left(n\right)=\frac{2}{1+e^{-2n}}-1$$

(3)

The hidden layer contains 20 neurons with a transfer function in the ANN and the output layer with a purely linear function type of activation function. When the ANN results differed from the anticipated output response, the Levenberg–Marquardt backpropagation was employed to reduce error. The weights were determined using the gradient optimization method, and the ANN network was created using the trial-and-error method. The effectiveness and efficiency of the network were then measured using MSE. In order to observe the ANN performance, the root-mean-square errors (RMSE), correlation coefficient (R), and bias were calculated using the following expressions:

$$Bias=\frac{1}{n}{\displaystyle \sum }_{i=1}^n\left(y_{i\left(Predict\right)}-y_{i\left(Target\right)}\right)$$

(4)

$$RMSE=\sqrt{\frac{{{\displaystyle \sum }}_{i=1}^n{\left(y_{i\left(Predict\right)}-y_{i\left(Target\right)}\right)}^2}{n}}$$

(5)

$$R=\frac{{{\displaystyle \sum }}_{i=1}^n\left(y_{i\left(Target\right)}-{\stackrel{-}{y}}_{\left(Target\right)} \right)\left(y_{i\left(Predict\right)}-{\stackrel{-}{y}}_{\left(Predict\right)} \right)}{\sqrt{{{\displaystyle \sum }}_{i=1}^n{(y_{i\left(Target\right)}-{\stackrel{-}{y}}_{\left(Target\right)} )}^2{{\displaystyle \sum }}_{i=1}^n{(y_{i\left(Predict\right)}-{\stackrel{-}{y}}_{\left(Predict\right)} )}^2}}$$

(6)

where $y_{i\left(Target\right)}$ is the target value at the ith step, $y_{i\left(Predict\right)}$ is the predicted value at the same step, n is the number of increments, ${\stackrel{-}{y}}_{\left(Target\right)}$ is the average target, and ${\stackrel{-}{y}}_{\left(Predict\right)}$ is the average of the predicted values.

The time history data that contain 3000 s responses (i.e., surge, heave, pitch, and top tension) of the spar platform obtained from FEM were used as the target in the ANN. The data were randomly divided into three groups: 70% for training, 15% for validation, and 15% for testing. Before training the ANN, the input and target data were normalized within the range of −1 to 1 using the following equation:

$$a\frac{x_i-x_{min}}{x_{max}-x_{min}}+b$$

(7)

where x_min and x_max are the minimum and maximum values of input and target, and a and b are the scaling factors. The network was trained by the iterative process, and it stopped when the error variation was too small.

3. Results

3.1. Prediction of Wave

The NARX neural network model was used to forecast the wave height and period based on a random wind force. Because the gradient of the performance function tended to be zero, the ANN network training was terminated after 436 training epochs. The performance of the NARX neural network model was evaluated by comparing the predicted results with the observed data for the wave height and wave period (Figure 2 and Figure 3, respectively).

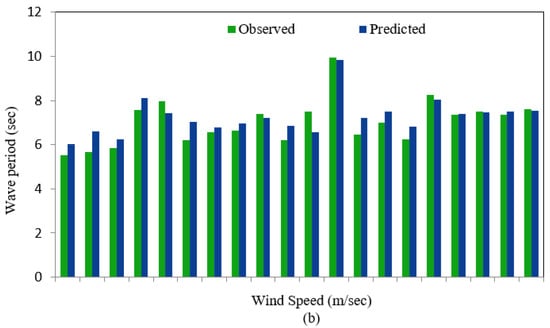

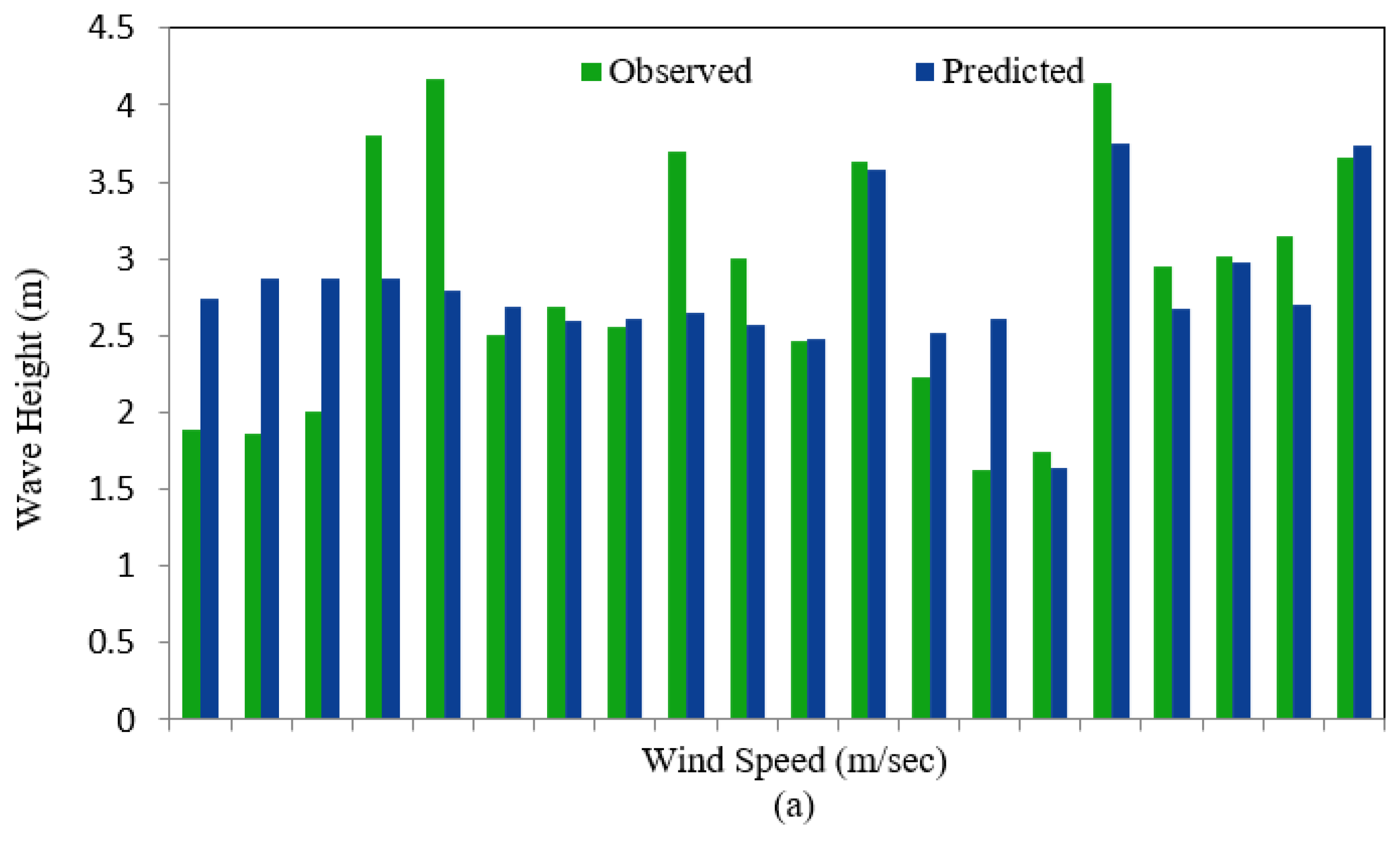

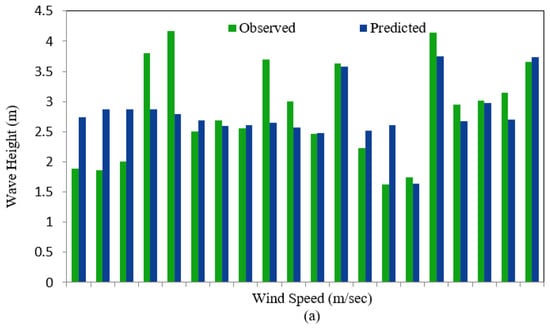

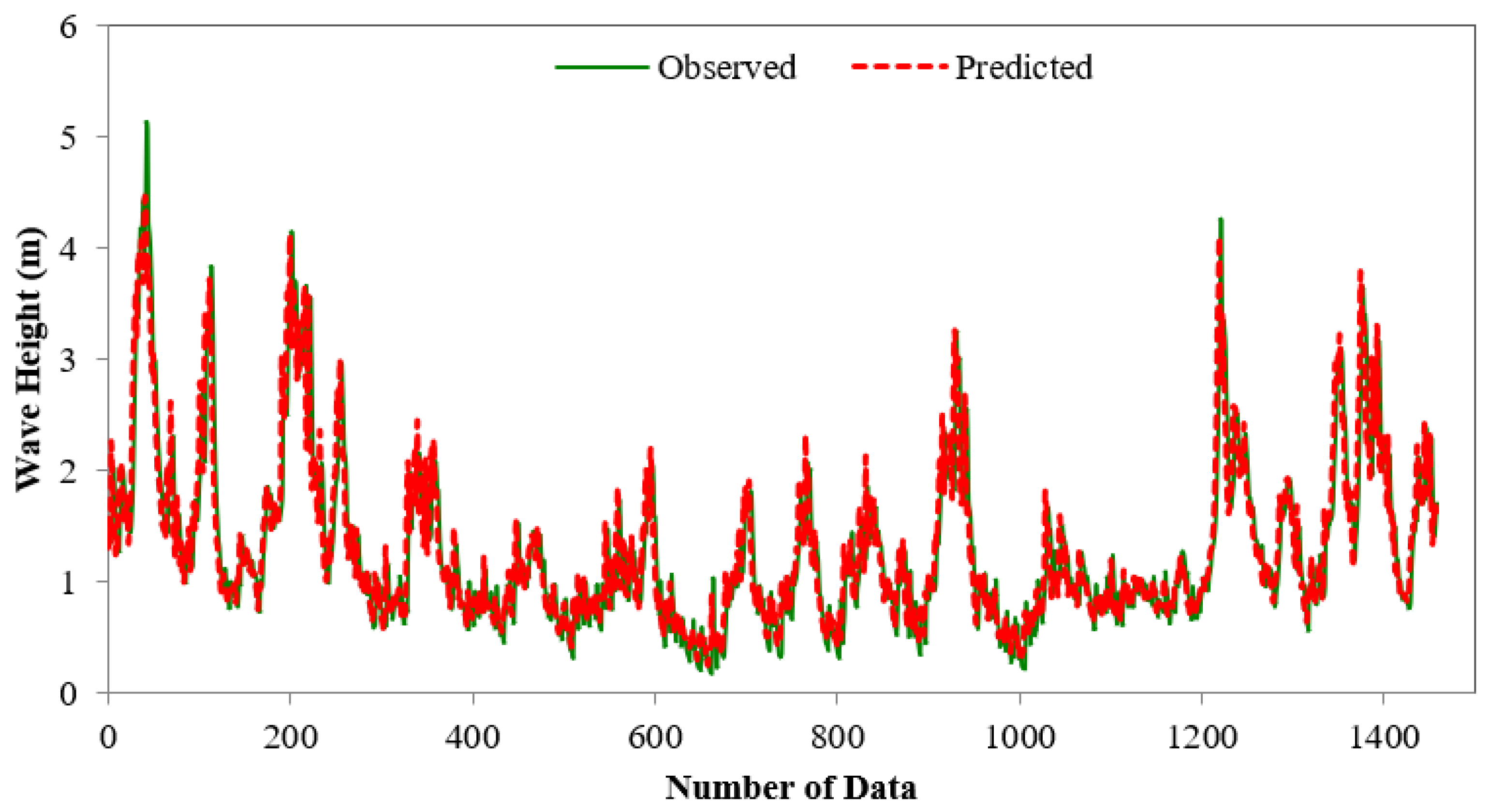

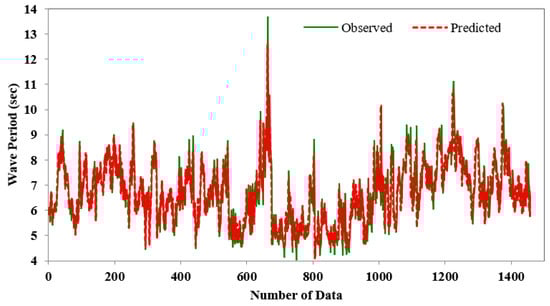

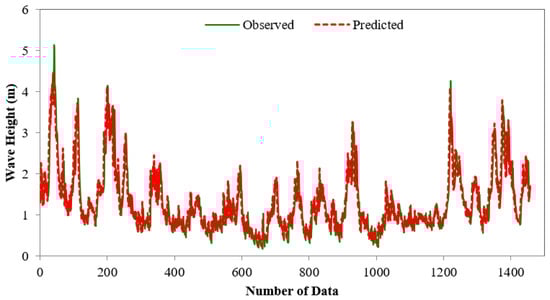

Figure 4a,b compares the observed data and the results predicted by the ANN model of wave period and wave height for the training results. Here, the ANN model’s predicted results and observed values are plotted with corresponding trend lines. In the ANN model, the overall prediction accuracies were discovered to be good.

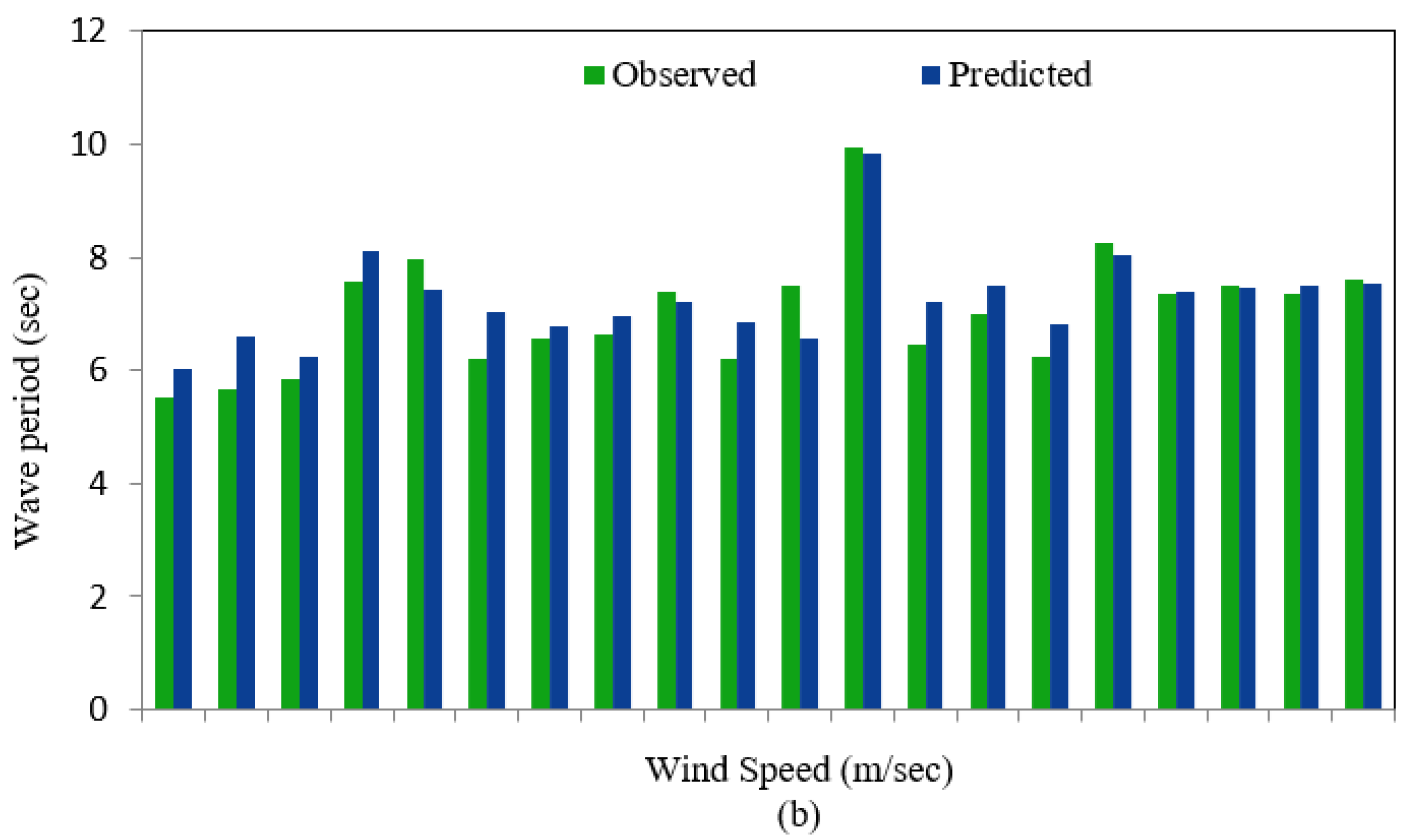

The predictions of wave period and wave height, using a randomly chosen wind force as the input, along with the observed data for testing, are shown in Figure 5a,b, respectively. Despite modest changes in the observed and anticipated wave height and length due to the new randomly picked wind force, the ANN model’s overall performance was good.

3.2. Surge Response

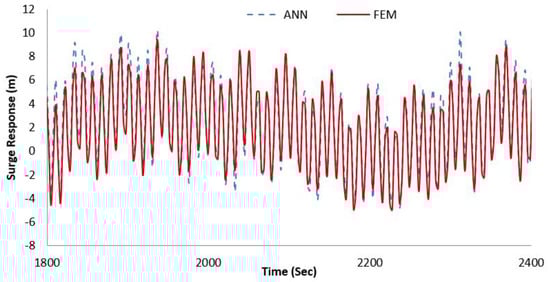

The FEM model’s predictions of the surge response of the spar hull for an 11.39 s wave period and a 12.65 m wave height were contemplated to validate the ANN model in the current study. Figure 6 shows the surge responses of the spar hull from the training data of the ANN model results alongside the FEM results. The expected responses of the network outcome align with the FEM results.

The statistics of the surge response of the spar platform predicted by ANN and FEM for a wave height of 12.65 m and wave period of 11.39 s for the training results are shown in

Table 3. Statistical surge response of spar platform for wave height of 12.65 m and wave period of 11.39 s.

Response of Surge (m)	Max	Min	Mean	Std. Deviation
ANN model	11.311	−10.154	0.916	3.917
FEM	11.279	−9.497	1.017	3.741
Difference (%)	0.29	6.478	9.93	4.477

. The ANN model was used to predict the surge response based on newly chosen environmental forces and a mechanical parameter (Figure 7). A 3000 s time history of surge response was predicted by the ANN model for a wave height of 9.65 m and a wave period of 10.10 s.

3.3. Heave Response

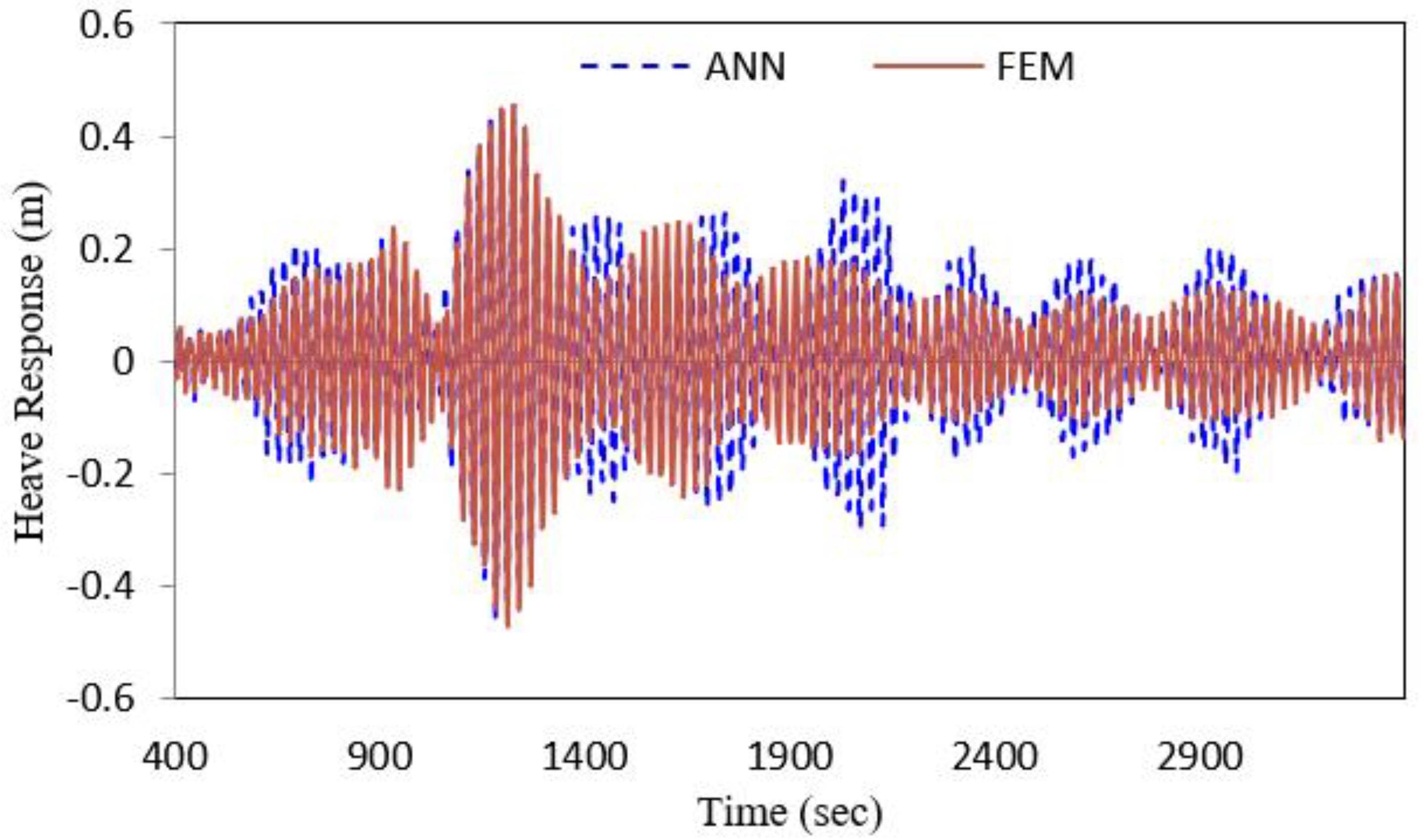

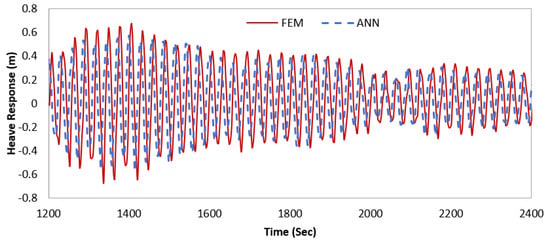

The prediction of the heave response of the spar hull using the ANN model was compared with the FEM results for a wave height of 9.65 m and a 9.94 s wave period (Figure 8). The figure shows that the training data of the ANN model results follow the same trends as the FEM results.

The statistical heave responses for a wave height of 9.65 m and a wave period of 9.94 s are reported in

Table 4. Statistical heave responses of ANN and FEM at a wave height of 9.65 m and a period of 9.94 s.

Heave Response (m)	Max	Min	Mean	Standard Deviation
Resp-Pred	0.574	−0.575	0.033	0.222
FEM	0.675	−0.668	0.033	0.250
Difference (%)	14.96	13.92	0.480	11.2

, as predicted by both the ANN and FEM approaches. The results show that the ANN approach is suitable for predicting the heave response.

The performance of the ANN approach was assessed by the heave response predictions of a spar platform using newly selected environmental force and mechanical parameters and comparing these predictions with the FEM results (Figure 9). The 3000 s heave response time history was predicted for a wave height of 6.65 m and a wave period of 8.25 s. The heave response oscillated about the mean location, alternating between smaller and greater amplitudes and repeating the same trend over time. The fluctuations narrowed by around 20% as they progressed from wide to narrow.

3.4. Pitch Response

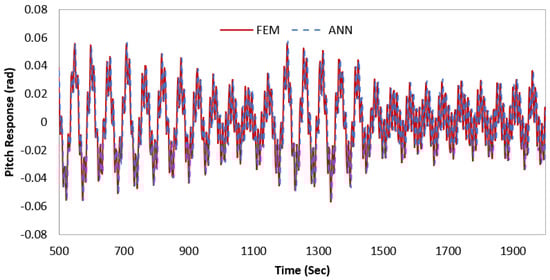

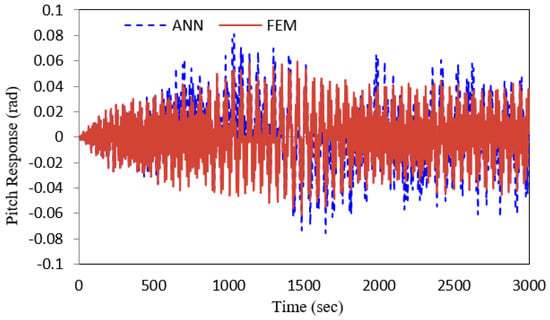

The ANN model was used to validate the pitch response results and FEM results for a wave height of 9.65 m and a wave period of 9.94 s. Figure 10 presents the convergence of the predicted values from the ANN training data and the FEM response of the spar hull. As shown, the outcomes forecasted by the ANN model results and the FEM results follow similar trends.

Table 5. ANN and FEM statistical pitch responses for wave height of 9.65 m and the wave period of 9.94 s.

Pitch Response (m)	Max	Min	Mean	Standard Deviation
FEM	0.055	−0.057	0.00026	0.021
Resp-Pred	0.057	−0.057	0.00019	0.021
Difference (%)	3.56	0.287	24.038	0.173

displays the ANN’s statistical pitch response and the FEM results for a wave height of 9.65 m and a period of 9.94 s. The results of the ANN technique indicate accurate pitch response predictions.

The average prediction error was less for the prediction of the pitch response of the spar hull based on the newly chosen mechanical parameters and environmental forces (Figure 11). The response for a time history of 3000 s, wave height of 12.65 m, and wave period of 11.39 s was predicted by the ANN, and the outcomes were compared with the FEM model results. The pitch response exhibited a peak value of 0.8 rad.

3.5. Maximum Mooring Tension Response

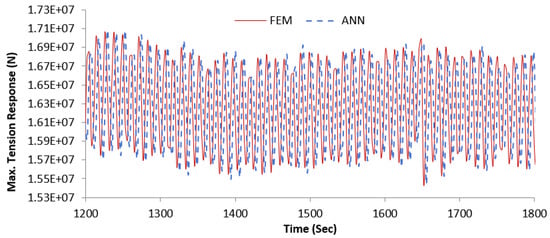

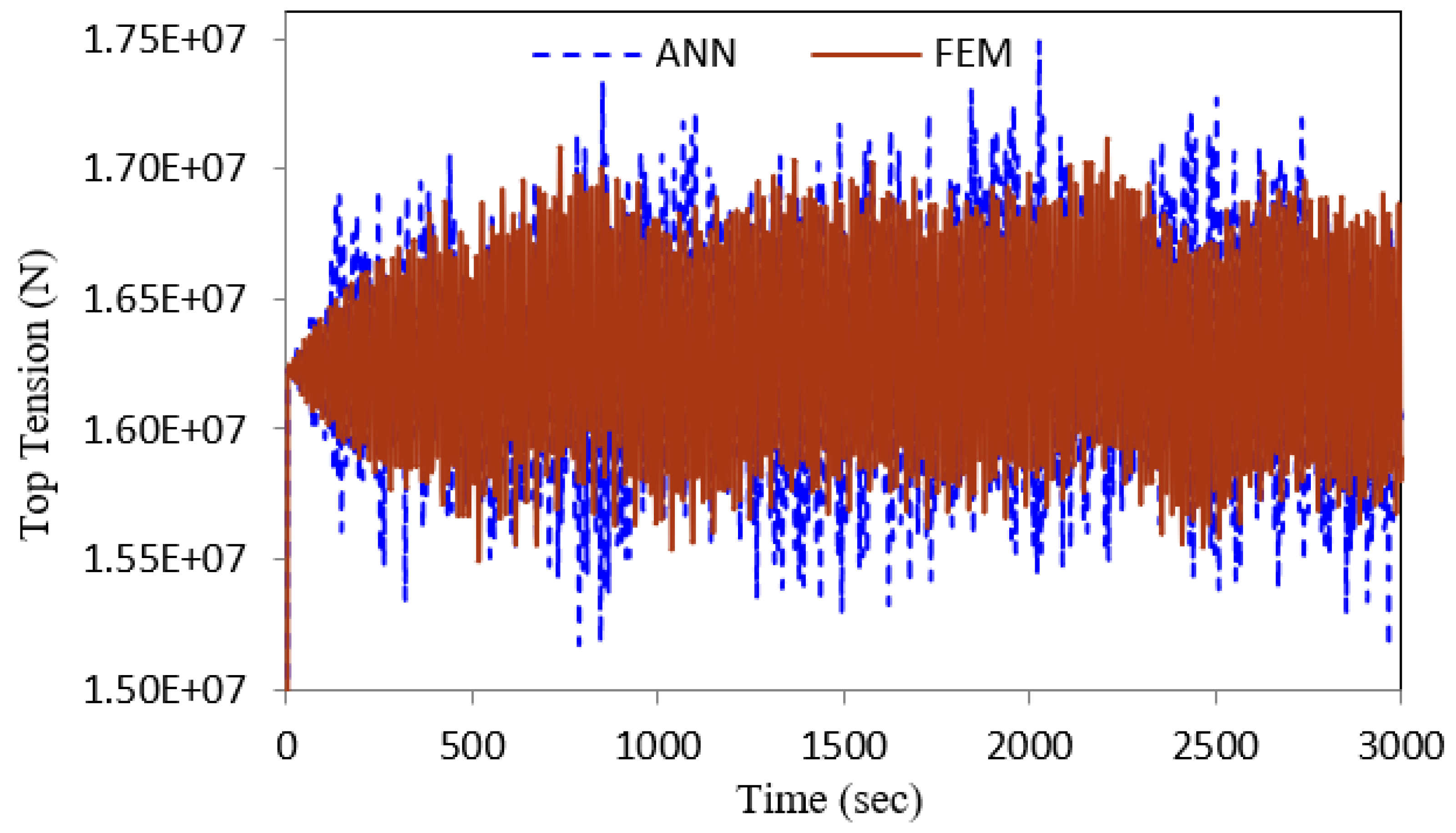

The maximum mooring response was predicted by the ANN model using training data; the results were then compared with the FEM model’s results (Figure 12). The prediction of the top tension responses of the spar platform was obtained by considering a wave height of 12.65 m and a wave period of 11.39 s. The ANN model’s predictions aligned with the FEM findings.

Table 6. FEM and ANN results for statistical mooring line top tension response for wave height of 12.65 m and time of 11.39 s.

Mooring line Tension (N)	Min	Max	Mean	Standard Deviation
Resp-Pred	11,182,323.9	17,085,820.59	16,263,011	463,165.8
FEM	11,182,200	17,062,834.5	16,266,318	463,666.5
Difference (%)	0.001	0.13	0.020	0.108

presents the statistical analysis of the mooring line tension response of the spar platform concerning the FEM and ANN results. The results of the ANN model are suitable for predicting the top tension response in terms of newly chosen mechanical parameters and environmental forces (Figure 13). The top tension response for the 3000 s time history was predicted by the ANN model and compared with the FEM model results for a wave height of 11.30 m and a wave period of 14.15 s.

4. Discussion

The performance of the artificial neural network (ANN) model was evaluated primarily using three parameters: root-mean-square errors (RMSE), the coefficient of correlation (R), and bias (

Table 7. The statistics of the ANN models for training results.

Parameter	Max. Error	Min Error	Standard Deviation Error	RMSE	Bias	R
Wave Height (m)	0.3368	−0.4832	0.0662	0.0673	0.0123	0.996
Wave Period (s)	0.6969	−2.1046	0.2078	0.2106	0.0344	0.989

). The statistical parameters were analyzed from the network-predicted results and the target for the training data. The ANN results exhibited good performance for predicting the wave height and wave period, as revealed by the high correlation coefficient values of 0.996 and 0.989, respectively.

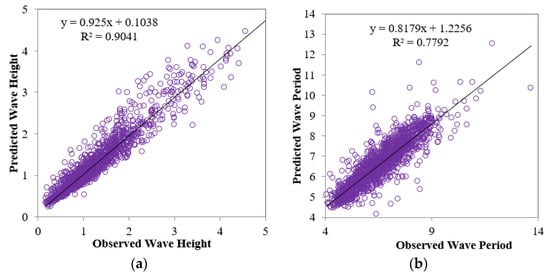

The artificial neural network (ANN) model’s predictions were compared to the observed values of wave height and wave period. It was critical to train the network so that the series-parallel configuration errors were relatively tiny for the model to be effective in parallel response (iterated prediction). The greatest prediction error was less than ±1 per cent, and this model can estimate wave height and period based on randomly selected wind forces.

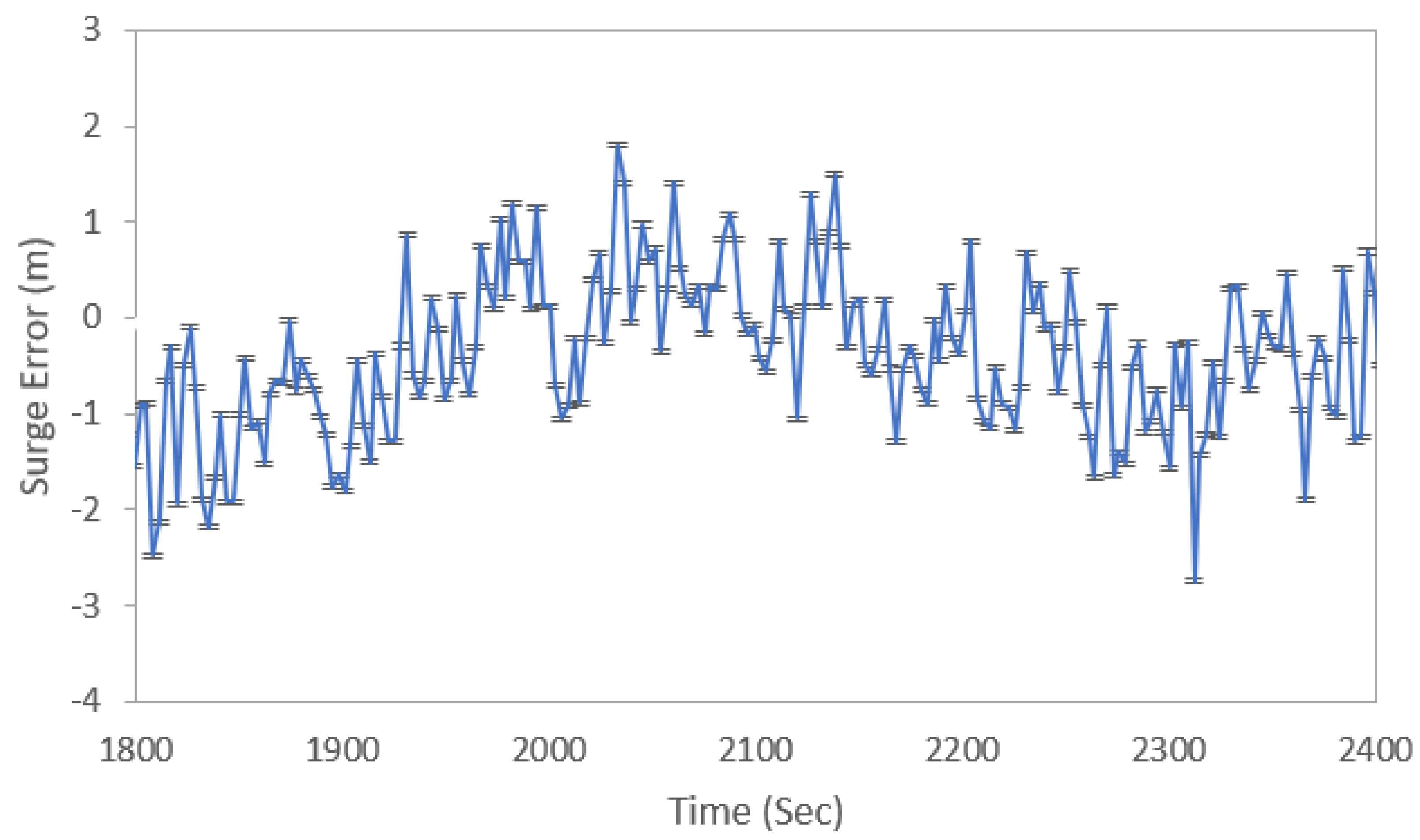

The relative comparison between the ANN and FEM models’ results for surge response error is shown in Figure 14. The ANN model’s overall performance was obtained to be reliable for predicting surge responses.

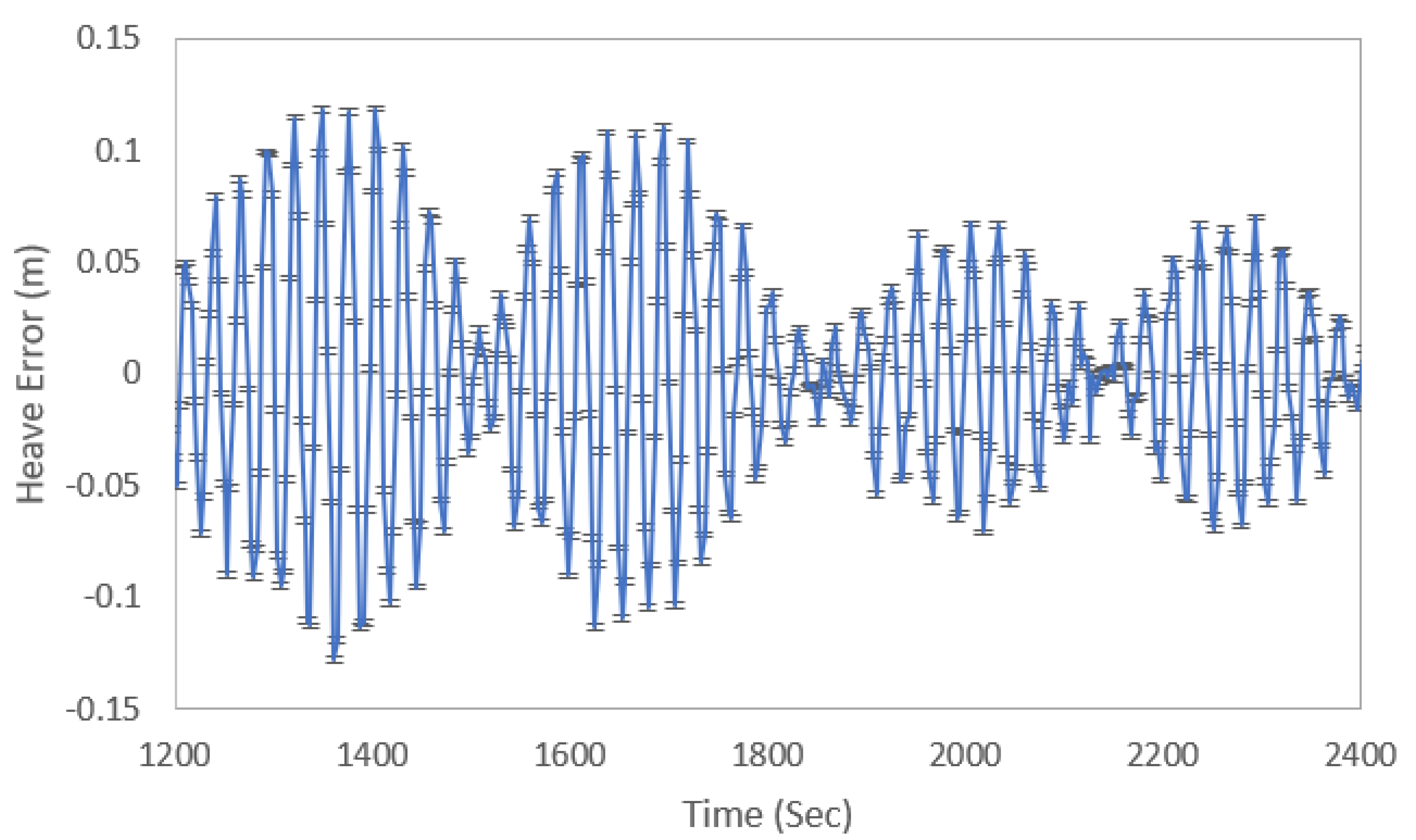

Figure 15 shows the standard error bar of heave responses between the ANN model and FEM results for the 9.65 m wave height and 9.94 s wavelength. The ANN model’s response predictions were very accurate.

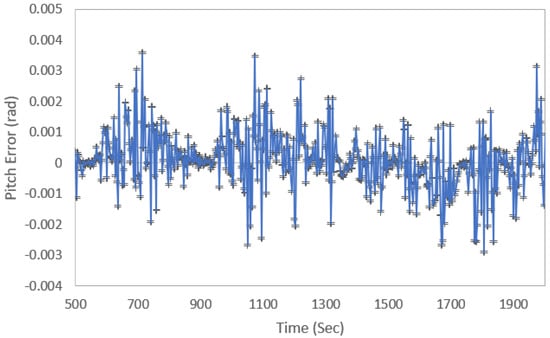

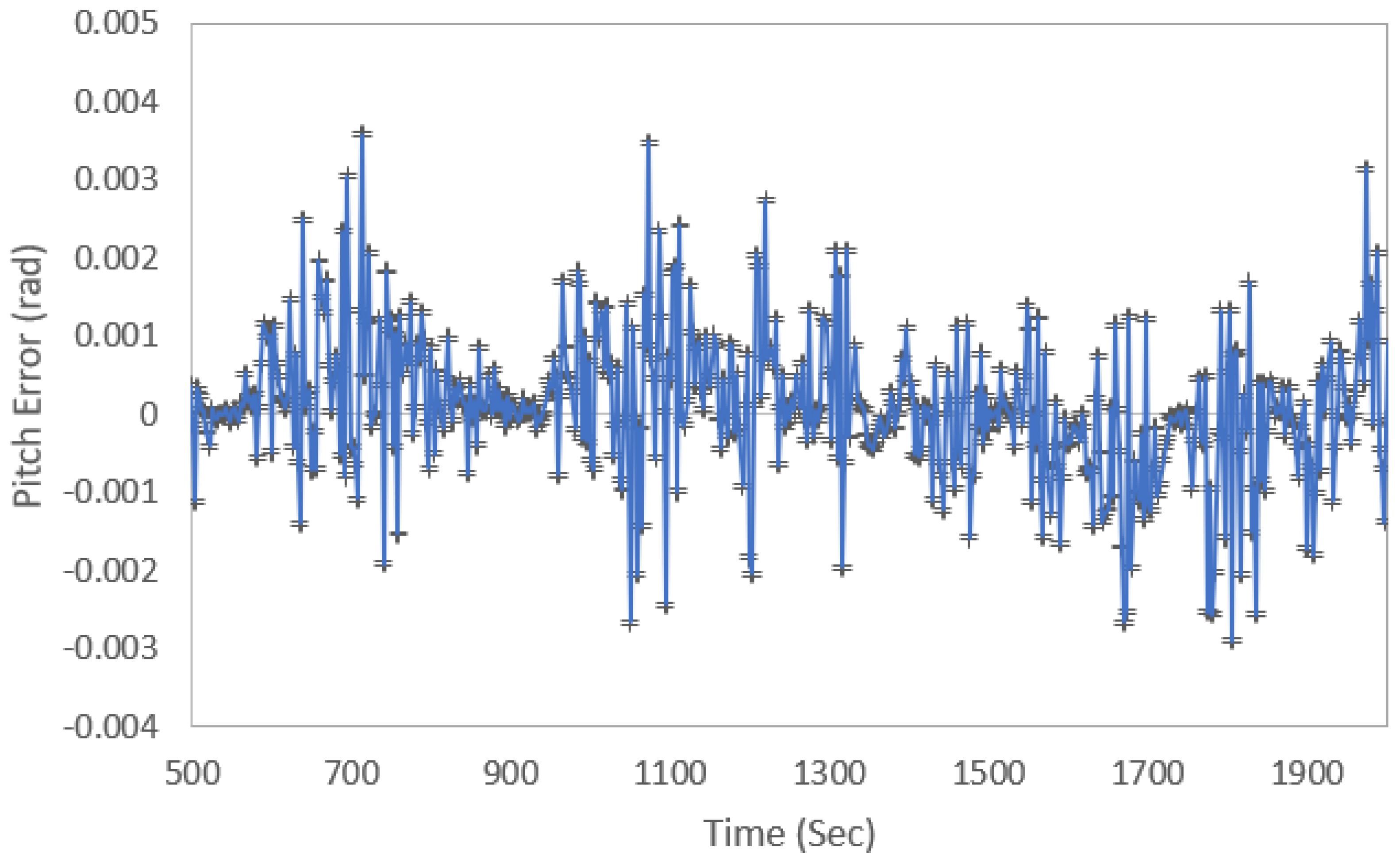

The pitch response error obtained by the difference of predicted responses by ANN and FEM is depicted in Figure 16. The overall prediction performance of the neural network was decent.

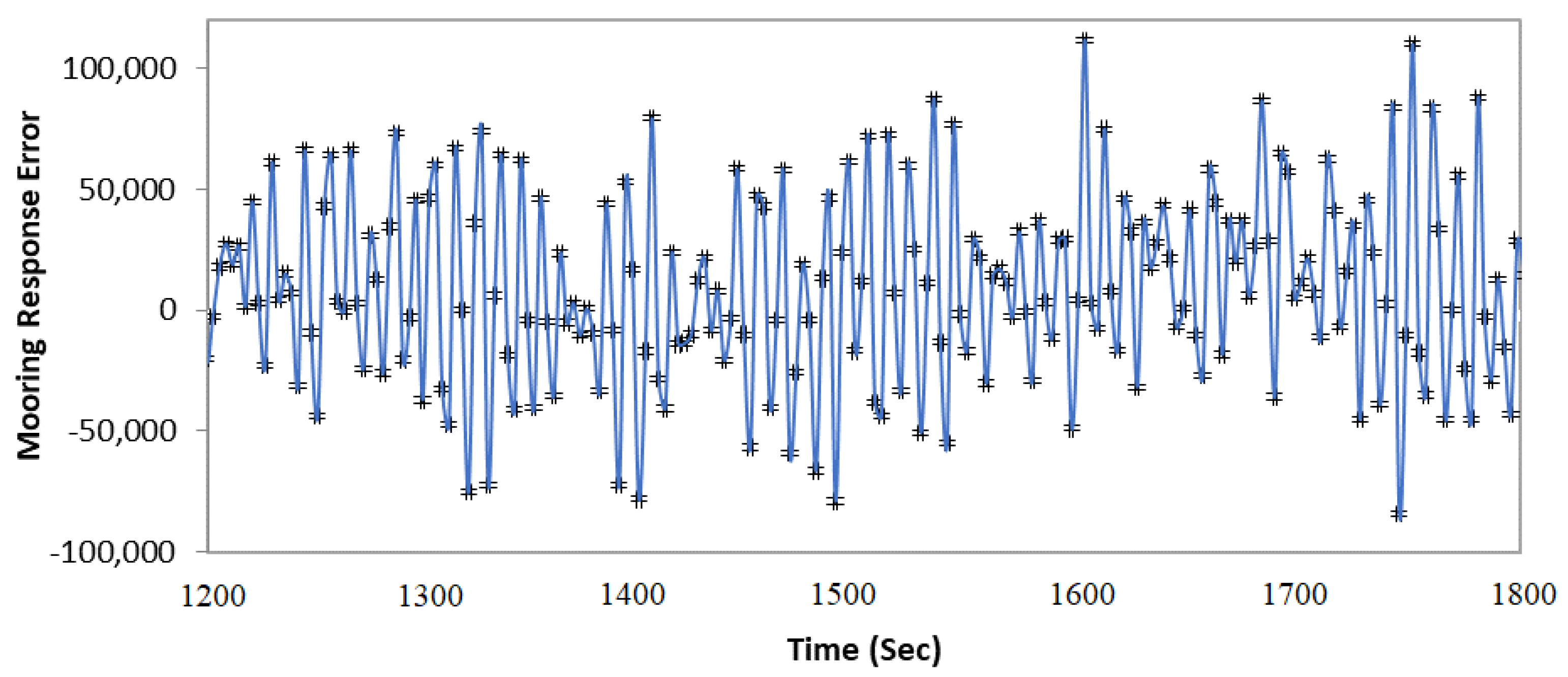

The maximum mooring line tension response error was calculated based on the difference between the FEM results and ANN results (Figure 17). The predicted FEM and ANN results were plotted for a wave height of 12.65 m and a wave period of 11.39 s.

The performance of the ANN model was assessed based on how much the predicted responses differed from the obtained FEM results and generated errors. As shown in

Table 8. Results predicted by ANN and FEM in a statistical comparison of Spar mooring responses.

Parameter	MaxE	MinE	StdevE	Bias	RMSE	R
Surge response (m)	2.564	−2.749	0.75	0.1005	0.757	0.9819
Pitch response (rad)	0.004	−0.003	0.001	0.0001	0.001	0.999
Heave response (m)	0.119	−0.128	0.041	−0.0002	0.041	0.9919
Top tension (N)	116230	−88155	35704	3307.5	35839	0.997

, the correlation coefficient (R) and root-mean-square error (RMSE) reflect the network’s error function and prediction abilities, respectively.

Based on the above discussion, the ANN model can predict the surge, pitch, and heave response of a spar hull and the maximum mooring line response using untrained wave height and wave period data as well as structural parameters. It has been observed that the ANN model is highly efficient and considerably reduces the time needed to predict response time histories of spars and mooring lines. The responses of the spar platform predicted by the ANN model correlate well with the FEM results. However, an ANN model that has already been trained and formed the networks for a spar platform cannot predict the response for other different types of platforms.

5. Conclusions

Using newly chosen wave periods and wave heights, an ANN model was used to anticipate the responses of a spar platform. Based on structural and environmental limitations and parameters, this attempt forecasted the heave, surge, and pitch response of a spar hull as well as the top tension of mooring lines.

The ANN model remains effective and can significantly reduce the prediction time of spar hull and mooring line response time histories.

The spar platform responses predicted by the ANN technique align with FEM-derived outcomes.

The required time to calculate the response of a spar platform by means of the ANN technique is 10 s with 4.0 GB of RAM (i3-2100 CPU @ 3.10 GHz) on a normal desktop PC, while the FEM model on a Dell Workstation (Intel Xeon E5620 @ 2.40 GHz and 8 GB of RAM) takes 23 h. Rapid forecasting using the ANN will assist in making decisions related to whether to stop or continue oil and gas production in the event of adverse weather conditions. Furthermore, the practice of ANN does not necessarily require the on-site attendance of a skilled technical person to obtain the platform responses.

The accuracy of predicting the spar platform responses within the range of the training data was 90.0%.

The accuracy of predicting responses outside the range of the training data was 85.35%. Thus, accurate results can be obtained if more data are used for training.

An artificial neural network (ANN) can be used to monitor the responses of spar platforms in the face of extreme storms, unintentional collisions with supply vessels, and more. For safety analysis and design, an ANN can be employed to investigate the reliability of the spar platform.
