Dosimetric Effect of Injection Ports in Tissue Expanders on Post-Mastectomy Volumetric Modulated Arc Therapy (VMAT) Planning for Left-Sided Breast Cancer

Abstract

This study aimed to compare the dosimetric effect of traditional metallic ports and radio frequency identification (RFID) ports (Motiva Flora^®) on post-mastectomy volumetric modulated arc therapy (VMAT) planning for left-sided breast cancer. Computed tomography (CT) simulation was performed on an anthropomorphic torso phantom by attaching two types of tissue expander on the left chest wall. For the comparison of CT artifacts, five points of interest were selected and compared: point A = central chest wall, B = medial chest wall, point C = lateral chest wall, point D = axilla, and point E = left anterior descending artery. VMAT planning using two partial arcs with a single isocenter was generated, and dosimetric parameters were investigated. Compared to metallic ports, RFID ports tremendously decreased distortion on CT images, with the exception of point D. The V_5Gy, V_10Gy, V_15Gy, V_20Gy, V_30Gy, and D_mean values of the heart in RFID ports were lower than those in metallic ports. The V_5Gy, V_15Gy, V_20Gy, V_30Gy, and D_mean values of the ipsilateral lung in RFID ports were also lower than those in metallic ports. RFID ports showed superior dosimetric results for doses to the heart and lungs as compared to that in metallic ports.

1. Introduction

Breast reconstruction is a cosmetic option for patients receiving mastectomy. Since the introduction of breast implants as an option for immediate breast reconstruction following mastectomy in the 1960s, the use of prostheses has exceeded that of autologous tissue reconstruction in the early 2000s [1]. The most commonly practiced form of implant-based breast reconstruction to date is the two-stage rather than single-stage direct-to-implant reconstruction [2]. The two-stage prosthetic breast reconstruction process involves insertion of a tissue expander into the pocket created after mastectomy. The expander undergoes saline inflation to stretch the dimensions of the retained skin envelope and to avoid wound contraction during wound maturation. Once the skin is sufficiently stretched, the expanders are removed and replaced with breast implants. Moreover, the development of tissue expanders by Radovan has created new possibilities in immediate and delayed reconstructions [3,4]. Currently, more than 70% of all breast reconstruction cases are implant-based, which has become the most popular method of breast reconstruction following mastectomy [5,6,7].

Post-mastectomy radiation therapy (PMRT) is often delivered to patients who undergo breast reconstruction using temporary tissue expanders (TEs). Most traditional TEs contain an injection port, which commonly consists of a metal needle guide and a central magnet that aids in locating the injection site. However, since dose distribution is calculated on computed tomography (CT), these high-density materials may lead to altered dosimetry and inaccurate dose distribution during RT planning [8]. Recently, TEs that make use of a radio frequency identification (RFID) port have been developed (Motiva Flora^®), which have replaced ferromagnetic materials with copper rings and metal needle guides with plastic. Therefore, it can be assumed that these structural differences will reduce the distortion of CT images and improve the accuracy of the dose calculation algorithms. As such, there is a need to dosimetrically study strategies designed to reduce the effect of metallic ports.

The purpose of this study was to compare the dosimetric effect of traditional metallic ports and RFID ports on post-mastectomy volumetric modulated arc therapy (VMAT) planning for left-sided breast cancer.

2. Materials and Methods

2.1. Tissue Expander

To evaluate the dosimetric effect of metallic and RFID ports on post-mastectomy VMAT planning, two products were tested: a conventional TE with a magnetic port and a magnet-free TE with an RFID port (Motiva Flora^® TE (Establishment Labs^®, Alajuela, Costa Rica)). Compared to magnet ports, RFID ports offer conditional magnetic resonance imaging (MRI) compatibility, thereby reducing the frequently encountered artifacts in conventional TEs [9]. The characteristics of each port are summarized in

Table 1. Characteristics of breast tissue expanders.

Parameter	Traditional Expander	Motiva Flora®
Identification of port location	Magnet	RFID coil
Material	Neodymium	Copper
Density	7.01 g/cm3	8.96 g/cm3
Diameter	13.3 mm *	Outer: 24.7 mm Inner: 20.3 ± 0.2 mm
Height	4.4 mm *	2.150 ± 0.1 mm
Needle guide
Material	Stainless steel	Polyetheretherketone
Density	7.5~8 g/cm3	1.3 g/cm3
Diameter	36.5 mm *	Dome: 40.1 mm *, Needle stop: 26.8 mm * Base: 42.5 mm *
Height	10.0 mm *	12.9 mm *
Thickness	2.1 mm *	1.5 mm *

* Average value of five individual measurements. RFID, radio frequency identification device.

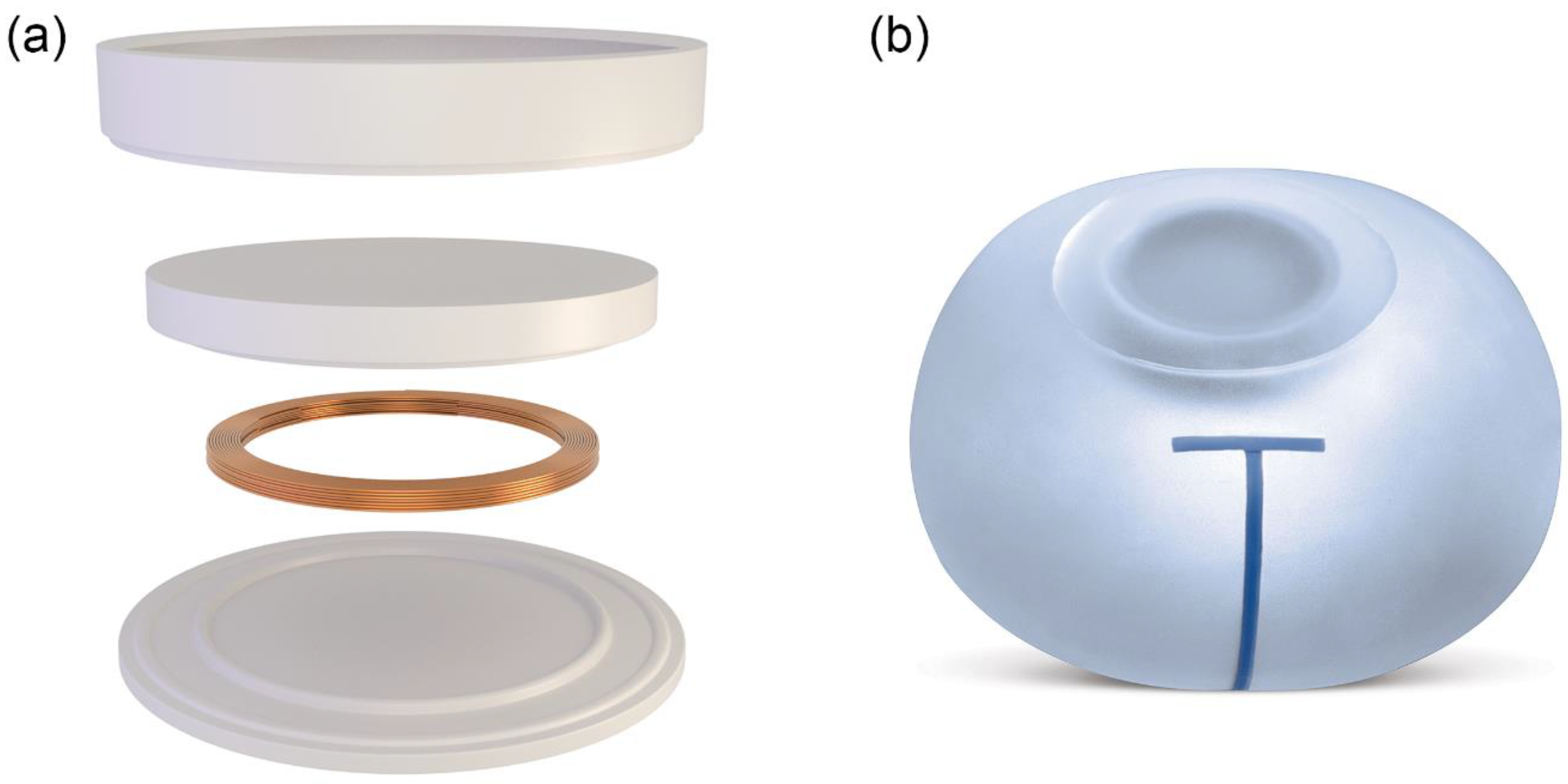

, and the schematic diagram of the RFID port is shown in Figure 1.

2.2. Computed Tomography Simulation

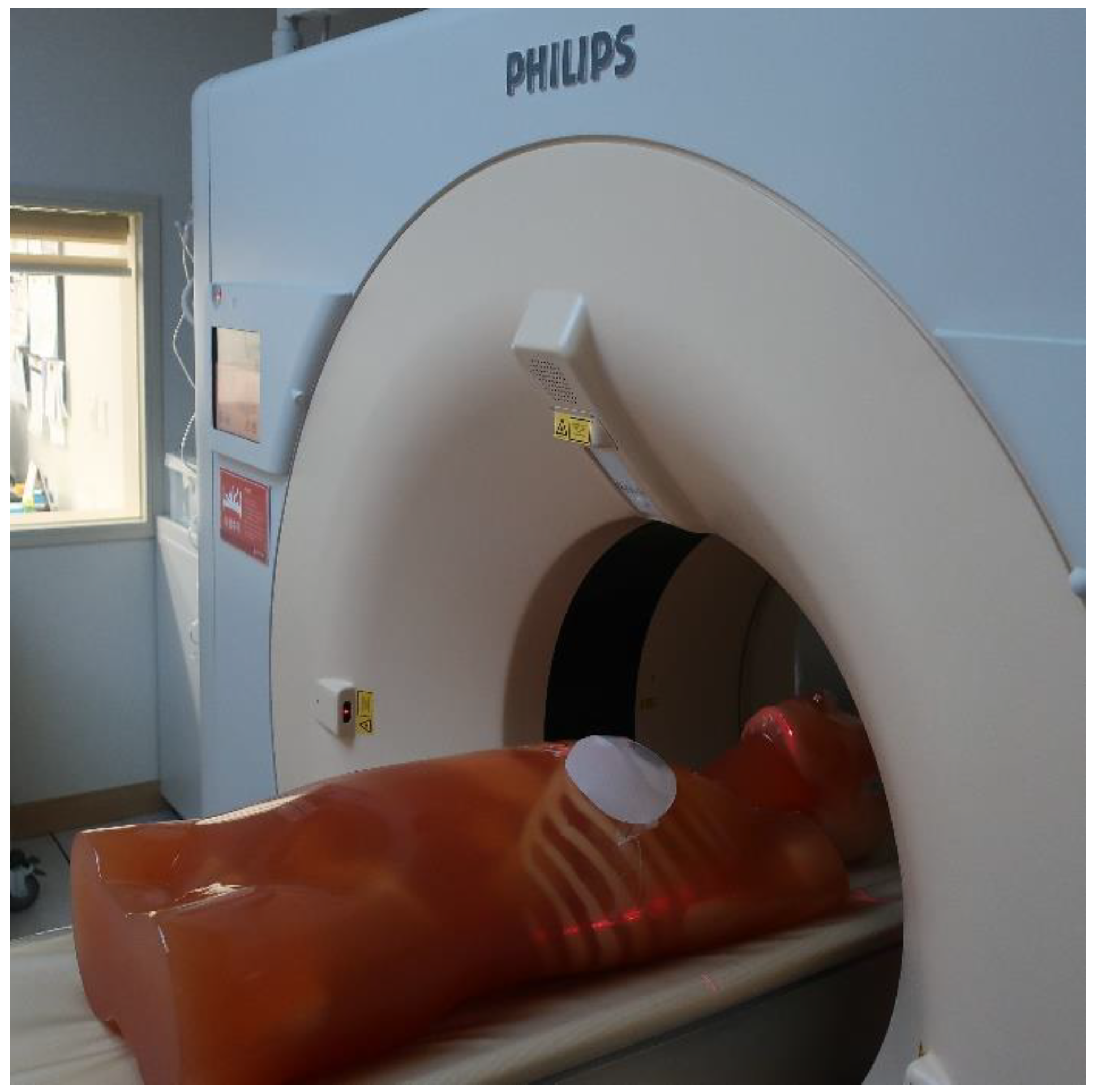

CT simulation was performed on an anthropomorphic torso phantom (CT torso phantom CTU-41, Kyoto Kagaku America Inc., Torrance, CA, USA) using a Philips Brilliance CT scanner (Philips Medical Systems, Cleveland, OH, USA) (Figure 2). This was used since phantom materials with radiation absorption approximates to human tissue (heart, aorta, and vena cava: 40 Hounsfield unit (HU); pulmonary vessels: 8 HU; rib cartilage: 90 HU; and liver: 70 HU) and allows scanning under actual clinical settings. To reproduce TE insertion following mastectomy, a male phantom was used with two types of TE, which were equally set to 345 cc and attached on the left chest wall. TEs were adjusted to be in the same position by referring to three-plane CT imaging. Afterwards, 2.5 mm thick axial images were acquired for RT planning. To reduce CT artifacts caused by the metal implants, a commercial metal artifact reduction for orthopedic implants (O-MAR, Philips Medical Systems, Cleveland, OH, USA) was also applied to the CT images.

2.3. Radiation Therapy Planning

Delineation of the clinical target volume and planning target volume (PTV) was carried out by a physician (M.K.) in accordance to the European Society of Therapeutic Radiology and Oncology-Advisory Committee for Radiation Oncology Practice (ESTRO-ACROP) guidelines [10]. The whole heart was delineated superiorly, starting inferior to the left pulmonary artery and inferiorly blending with the diaphragm [11]. RT planning was performed using the Eclipse^TM treatment planning system for Halcyon^TM (Varian Medical Systems, Palo Alto, CA, USA). The prescription dose to PTV, which was 50 Gy in 25 fractions, was given at the isodose line, encompassing at least 95% of the PTV while limiting maximum doses to less than 107%. Furthermore, the heart, ipsilateral lung, contralateral lung, whole lung, and contralateral breast were delineated as organs at risk (OAR).

Dose constraints were prescribed based on institutional guidelines (heart: V_30Gy (volume receives 30 Gy) < 5%, D_mean (mean dose) < 5 Gy; contralateral breast: D_mean < 3 Gy; ipsilateral lung: D_mean < 7 Gy; contralateral lung: D_mean < 3 Gy; whole lung V_20Gy < 10%, D_mean < 5 Gy). A 5 mm thick bolus was created and placed on the surface of the TEs for each CT image using the Eclipse^TM treatment planning system.

VMAT planning using two partial arcs (collimator angle: 130–285) with a single isocenter was generated using a 6 MV flattening-filter-free photon beam with a maximum dose rate of 800 MU/min. The VMAT plan was further optimized using the Eclipse photon optimization algorithm, and the Acuros XB algorithm (version 16.1) was used for dose calculation.

2.4. Computed Tomography Image Analysis

To compare CT artifacts, five points of interest were selected by the physician: point A = central chest wall, point B = medial chest wall, point C = lateral chest wall, point D = axilla, and point E = left anterior descending artery (LAD). The main target volume of PMRT is the chest wall (Points A, B, and C). The axillary lymph nodes are often the location most affected by breast cancer and are represented by point D as axilla level I. Radiation dose to LAD is possible risk factor for cardiac complication. Although it was not possible to contour the LAD exactly, it was contoured to represent the position in relation to human anatomy. The HUs of each point were measured on 10 consecutive slices (Figure 3), and the average HU between the RFID and metallic ports were compared. Using a 10 mm diameter cursor on each slice, the corresponding reference CT numbers within the points were determined on the phantom without the tissue expanders to prevent metal artifacts on the same image set. The HUs were measured on the same CT images as described in Section 2.3 without bolus insertion.

2.5. Assessment of Plan Quality

As proposed by the Radiation Therapy Oncology Group (RTOG), the homogeneity index (HI), conformity index (CI), and quality of coverage (QOC) were used to evaluate dose distribution, which represents the conformance between the prescription dose and PTV, the degree of uniformity inside the PTV, and the dose fall-off outside the PTV [12]. HI was calculated with the formula: HI = I_max/RI, where Imax is the maximum isodose in the target, and RI is the reference isodose. CI was calculated with the formula: CI = V_RI/TV, where V_RI is the reference isodose volume, and TV is the target volume. Lastly, QOC was calculated with the formula: QOC = I_min/RI, where I_min is the minimum isodose in the target. Parameters for OAR were also compared.

2.6. Statistical Analysis

To compare the parameters between the RFID and metallic ports, the percentage difference was calculated, which was defined as the absolute value of the change in value divided by the average of the two values as seen in Equation (1). The HU differences were calculated using Equation (2).

% difference = |Value 1 − Value 2| ÷ ([Value 1 + Value 2]/2) × 100

(1)

HU difference = HU in CT without tissue expander − HU in CT with tissue expander.

(2)

The quality of CT images was compared using the Wilcoxon signed-rank tests. For all statistical analyses, the IBM SPSS Statistics for Windows, version 25.0 (IBM Corp., Armonk, NY, USA) was used, and results were considered statistically significant at p < 0.05.

3. Results

Table 2. Comparison of Hounsfield units.

Points of the Reference ROIs	RFID Port			Metallic Port
	Averaged HU	Averaged HU Difference	p-Value	Averaged HU	Averaged HU Difference	p-Value
A (central chest wall)	−2.73	−18.33	0.043	118.57	−139.63	0.007
B (medial chest wall)	−19.36	8.17	0.028	−34.62	23.43	0.017
C (lateral chest wall)	−37.36	14.93	0.028	−74.37	51.94	0.005
D (axilla)	−0.92	−15.14	0.005	−12.32	−3.74	0.169
E (left anterior descending artery)	32.41	−2.86	0.059	44.71	−15.16	0.005

ROI, region of interest; RFID, radio frequency identification device; HU, Hounsfield unit.

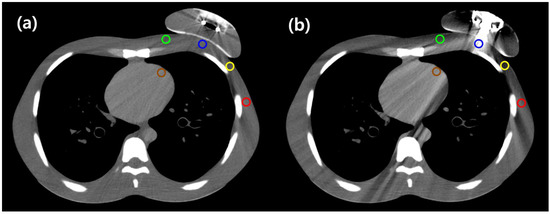

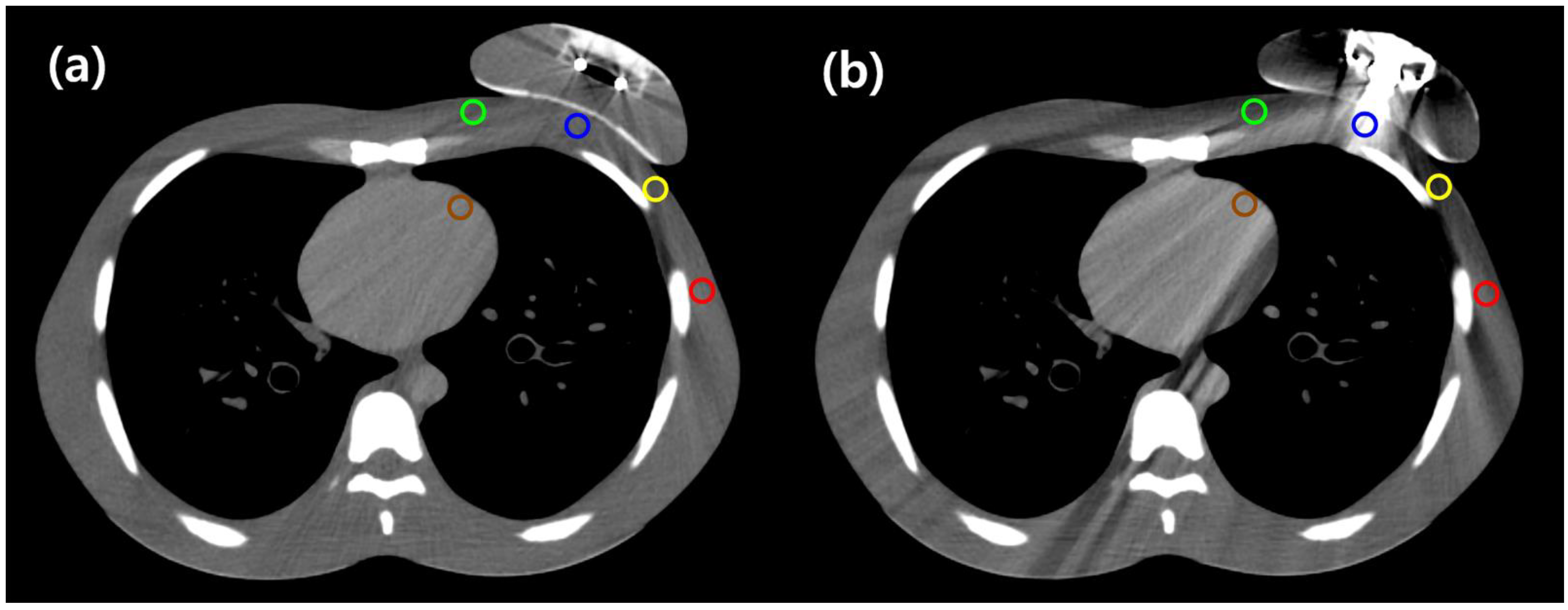

summarizes the results of CT image analysis. As compared with metallic ports, RFID ports tremendously decreased the distortion on CT images, with the exception of point D (axilla). In point E (LAD), the average HU difference for the reference values of the RFID and metallic ports were −2.86 (p = 0.059) and −15.16 (p = 0.005), respectively. In addition, both ports showed statistically significant average HU differences for the reference values in points A, B, and C on the chest wall.

Table 3. Assessment of plan quality.

Parameter	RFID Port	Metallic Port	Percentage Difference
PTV
HI	1.31	1.32	0.76
CI	0.95	0.95	0
QOC	0.92	0.90	2.19
V95, %	98.40	98.10	0.30
V107, %	71.70	80.80	11.93
Heart
V5Gy, %	22.91	29.75	25.97
V10Gy, %	6.54	11.46	54.66
V15Gy, %	2.77	4.97	56.84
V20Gy, %	1.39	2.75	65.70
V30Gy, %	0.23	0.68	98.90
Dmean, Gy	4.08	4.92	18.66
Ipsilateral lung
V5Gy, %	36.08	38.86	7.41
V15Gy, %	12.85	14.73	13.63
V20Gy, %	7.50	8.67	14.47
V30Gy, %	1.87	2.36	23.16
Dmean, Gy	6.43	6.94	7.62
Contralateral lung
Dmean, Gy	2.44	2.51	2.82
Whole lung
V20Gy, %	3.69	4.25	14.10
Dmean, Gy	4.40	4.68	6.16
Contralateral breast
Dmean, Gy	2.58	2.68	3.80

RFID, radio frequency identification device; PTV, planning target volume; HI, homogeneity index; CI, conformity index; QOC, quality of coverage; V_D, percentage volume receiving D% of the prescribed dose; V_DGy, percentage volume of a given structure receiving a radiation dose of D Gy; D_mean, mean dose.

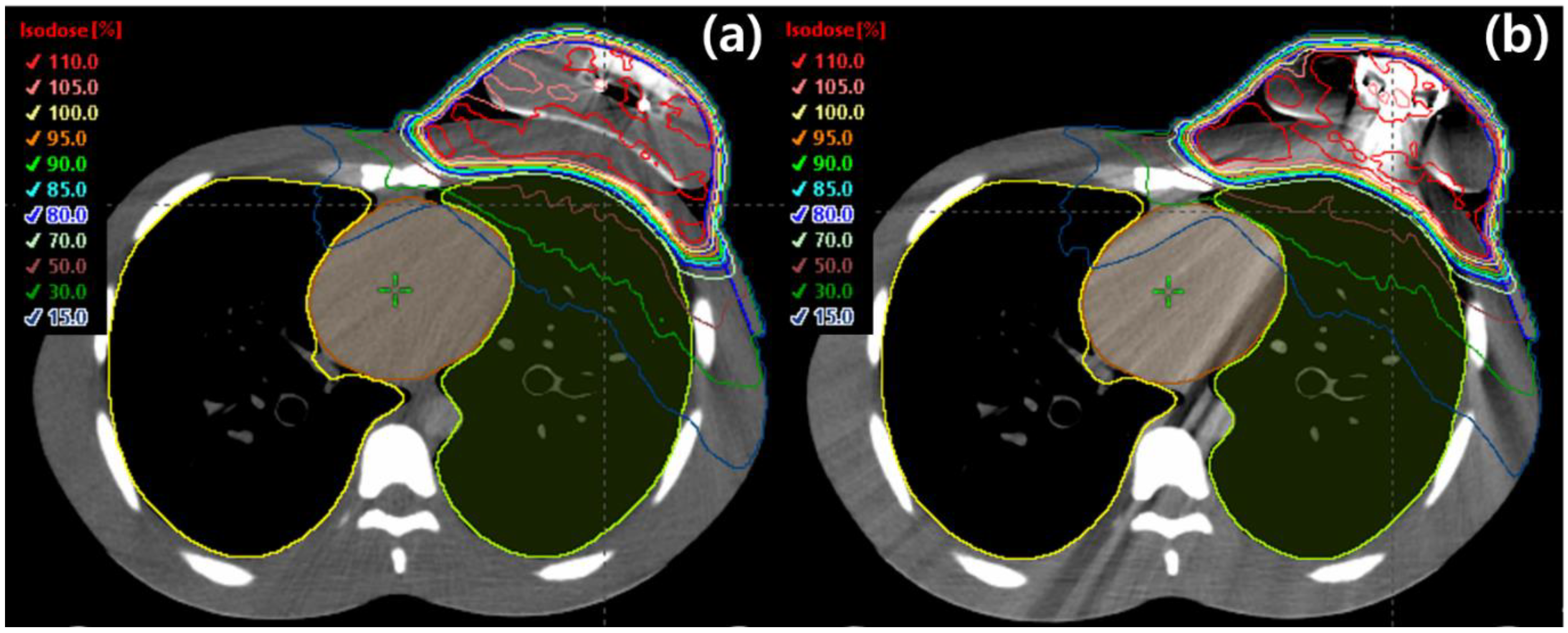

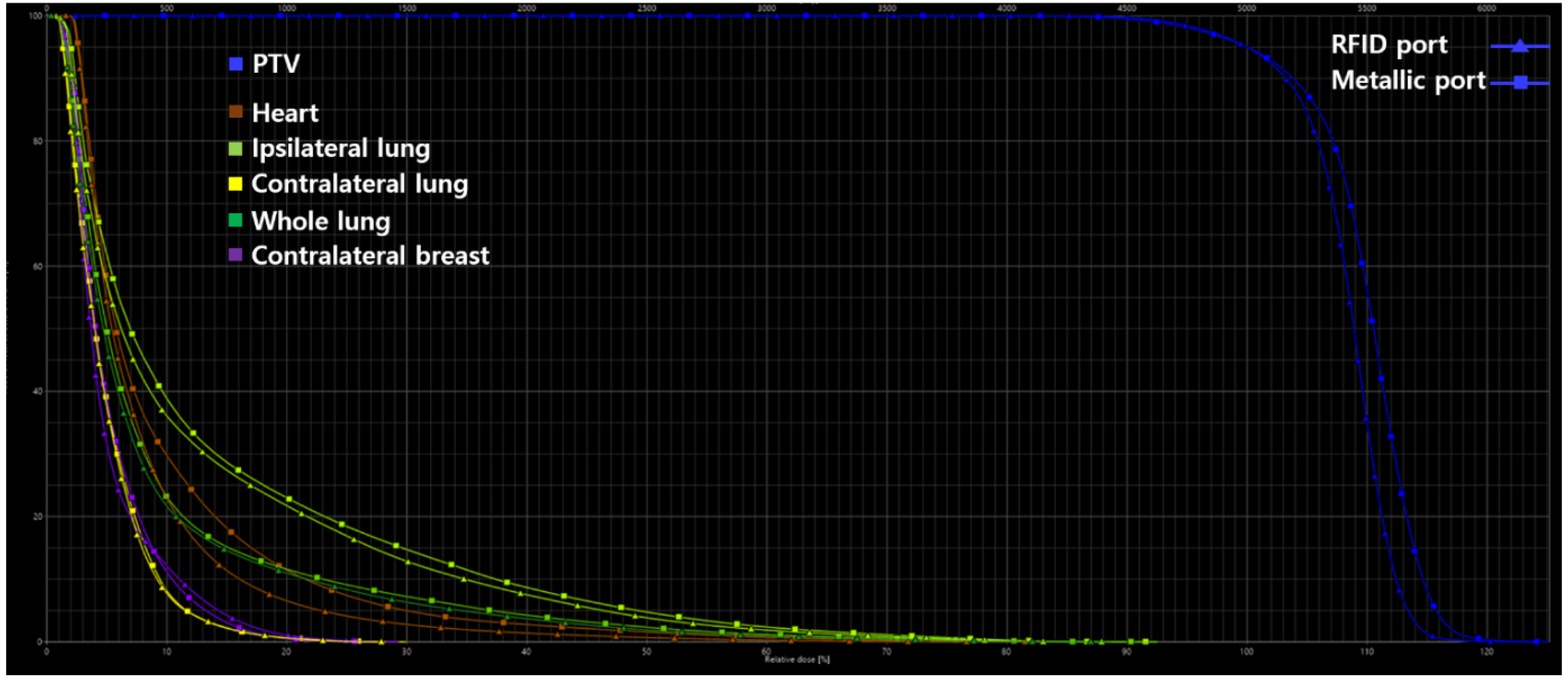

summarizes the results of the dosimetric parameters for PTVs and OARs between the RFID and metallic ports. Dose distributions for the RFID and metallic ports in the axial view are shown in Figure 4. The volumes of PTV_RFID and PTV_magnet were 921.65 cm³ and 951.9 cm³, respectively. The optimization algorithm was balanced for the PTV coverage, and planned PTV coverage for both the metallic and RFID ports was acceptable. The percentage differences between HI, CI, QOC, and V95 of the PTV for both ports narrowly ranged from 0 to 2.19. However, V₁₀₇ of the PTV was 71.70% for RFID ports and 80.80% for metallic ports, indicating a percentage difference of 11.93. The V_5Gy, V_10Gy, V_15Gy, V_20Gy, V_30Gy, and D_mean values of the heart in the RFID ports were lower than those in the metallic ports. Specifically, the percentage differences between the RFID and metallic ports was 25.97 (22.91% vs. 29.75%) for V_5Gy, 54.66 (6.54% vs. 11.46%) for V_10Gy, 56.84 (2.77% vs. 4.97%) for V15Gy, 65.70 (1.39% vs. 2.75%) for V_20Gy, 98.90 (0.23% vs. 0.68%) for V_30Gy, and 18.66 (4.08 Gy vs. 4.92 Gy) for D_mean. Similarly, the V_5Gy, V_15Gy, V_20Gy, V_30Gy, and D_mean values of the ipsilateral lung in the RFID port were also lower than those in the metallic port. For the ipsilateral lung, the percentage differences between the RFID and metallic ports was 7.41 (36.08% vs. 38.86%) for V_5Gy, 13.63 (12.85% vs. 14.73%) for V_15Gy, 14.47 (7.50% vs. 8.67%) for V_20Gy, 23.16 (1.87% vs. 2.36%) for V_30Gy, and 7.62 (6.94 Gy vs. 7.62 Gy) for D_mean. Our results showed that higher V_DGy values were associated with greater percentage differences in the heart and ipsilateral lung. Dose-volume histogram for PTV and OARs in RT plans of both RFID port and metallic port are shown in Figure 5.

4. Discussion

Our study compared two types of tissue expanders: those with traditional metallic injection ports and those with RFID ports. We focused on how the dose of RT affected the heart in left-sided breast cancer. We also analyzed how different types of injection ports influenced RT planning and how the dosimetry affected the surrounding normal tissues. In comparison to the metallic ports, the RFID ports showed superior results in terms of RT doses to the heart and lungs as well as in the dosimetric factors related to the target volume.

Currently, most RT planning systems have been developed for CT. However, in the presence of metal implants within or around the target volume, metal artifacts may affect the accuracy required for dose calculation. In fact, many authors have reported on the effects of metallic ports on PMRT. Damast et al. [13], for one, reported their preference of using a permanent implant over TE due to the potential dosimetric effects. Their investigation of single-beam film dosimetry showed that the Magna-Site may attenuate a standard 6 MV photon beam by as much as 22% and a 15 MV beam by 16%. Considering the difference in beam attenuation despite the minimal volume of tissue affected, they recommended the use of a 15 MV photo beam rather than a 6 MV photon beam. Asena et al. [14] also reported reductions of approximately 20% in the photon tangent treatment and 56% in electron boost fields immediately downstream of the implants with magnetic disks.

When treating patients with left-sided breast cancer, measures should be taken to reduce the dose to the heart, as this may increase the risk of heart diseases [15,16,17,18,19]. In addition to this, the present study analyzed the RT doses to the surrounding critical organs. On analysis, RFID ports showed superior results for the doses to the heart and lungs, supporting the notion to keep radiation dose to the heart as low as reasonably achievable. Although metal artifacts vary depending on the size and composition of the metallic port inside the TE, RIFD ports make use of copper rings instead of a solid magnet, thereby reducing the metal volume. Moreover, the RFID ports in this study uses a plastic material, polyetheretherketone (PEEK), as the needle guide, which differs from the stainless steel in conventional TEs. As PEEK has a relatively lower HU than other metals, this potentially reduces the artifacts on CT imaging [20].

Despite these findings, one limitation of the study is that a phantom was used for analysis, which does not accurately reflect the varying chest contours and distance between the heart and target volume in actual practice. Therefore, the comparison of RFID and metallic ports should be further applied and analyzed in different clinical situations. Another limitation was that the metal artifacts were not completely eliminated despite the use of O-MAR.

5. Conclusions

The RFID ports (Motiva Flora^®) showed superior dosimetric results for doses to the heart and lungs, as compared to traditional metallic ports. Given that PMRT are usually for patients with more advanced breast cancer, minimizing damage to surrounding healthy tissues is more critical. It is expected that risk of side effects may be reduced by decreasing the radiation dose to the heart and lungs by applying an RFID port. However, further studies are needed to assess how RFID ports may affect different types of radiation techniques and clinical outcomes.
