A Nonlinear Energy Sink Design to Attenuate the Torsional Oscillations of Lightly Loaded Gear Pairs

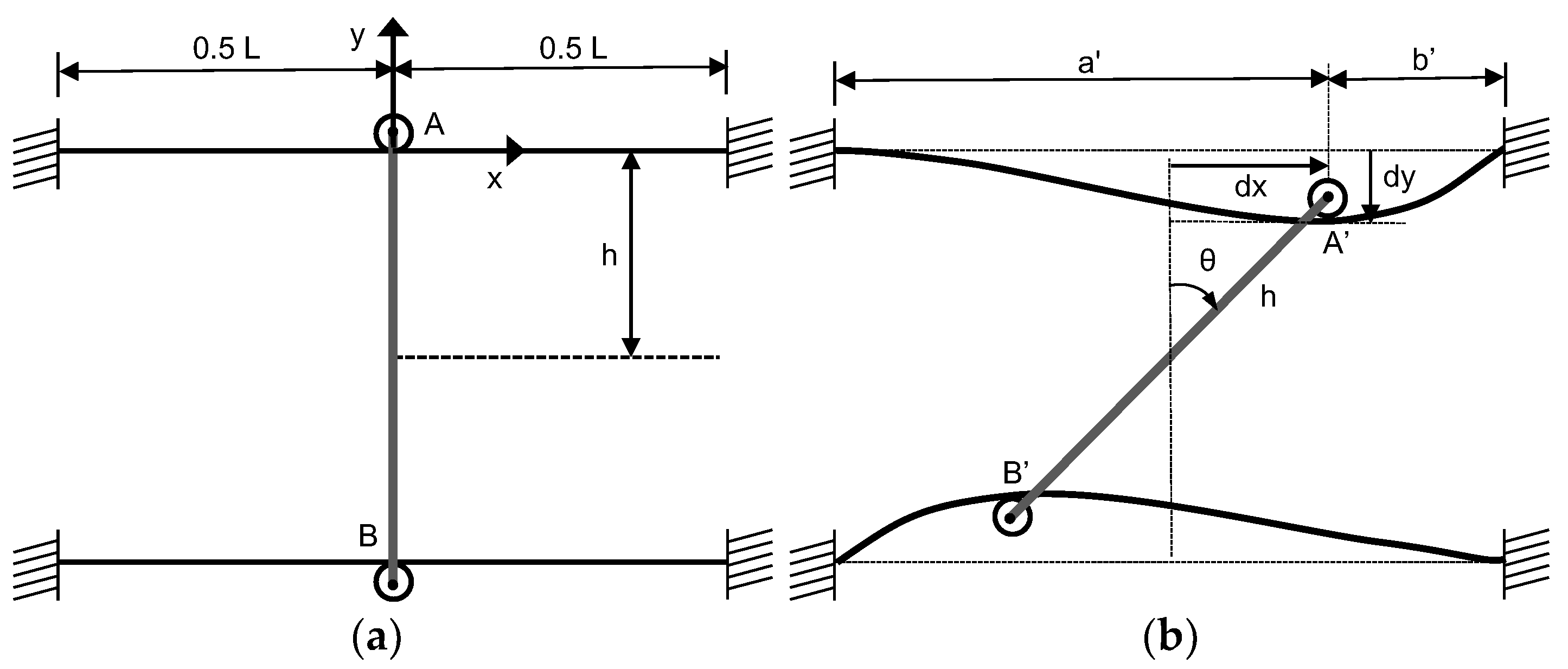

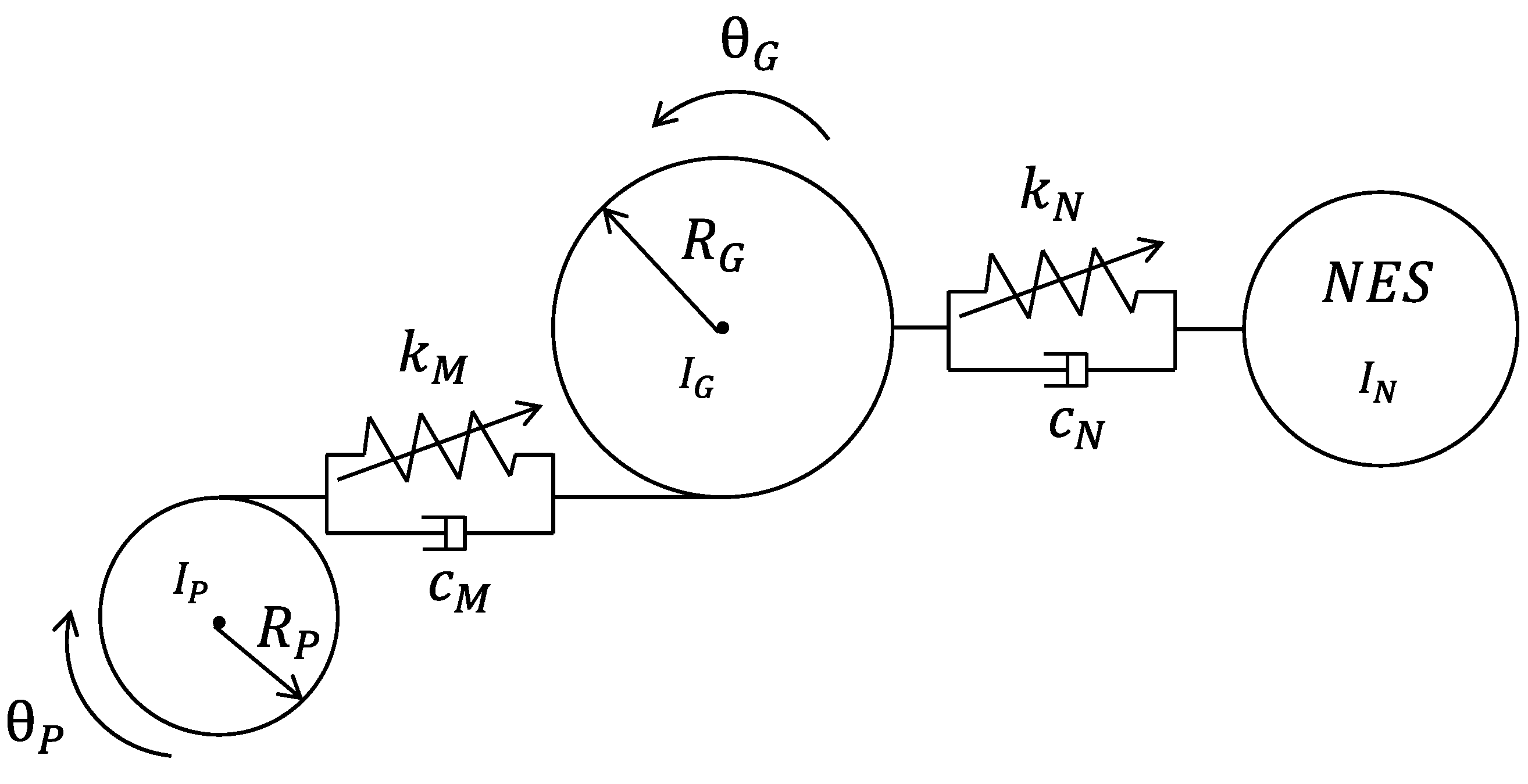

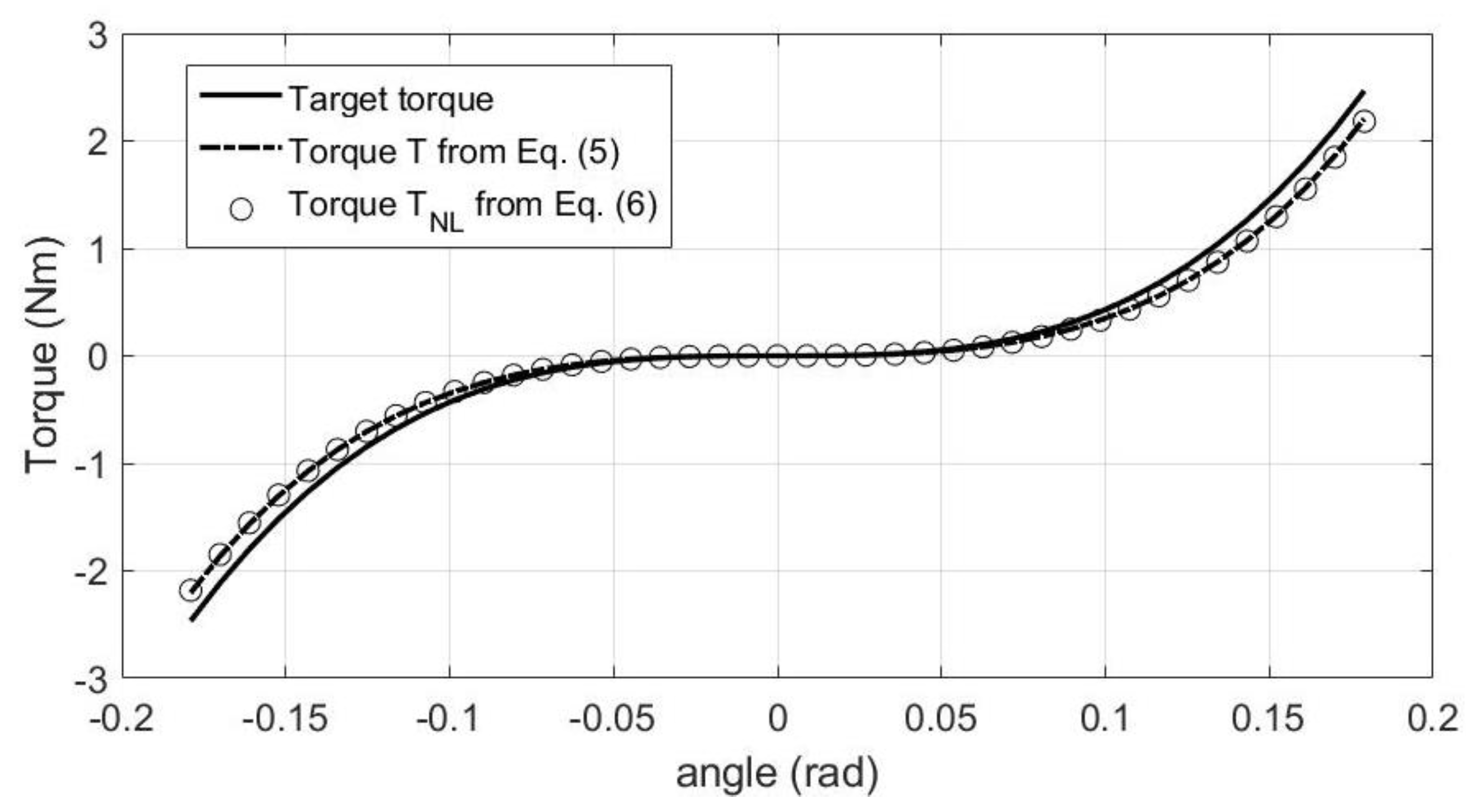

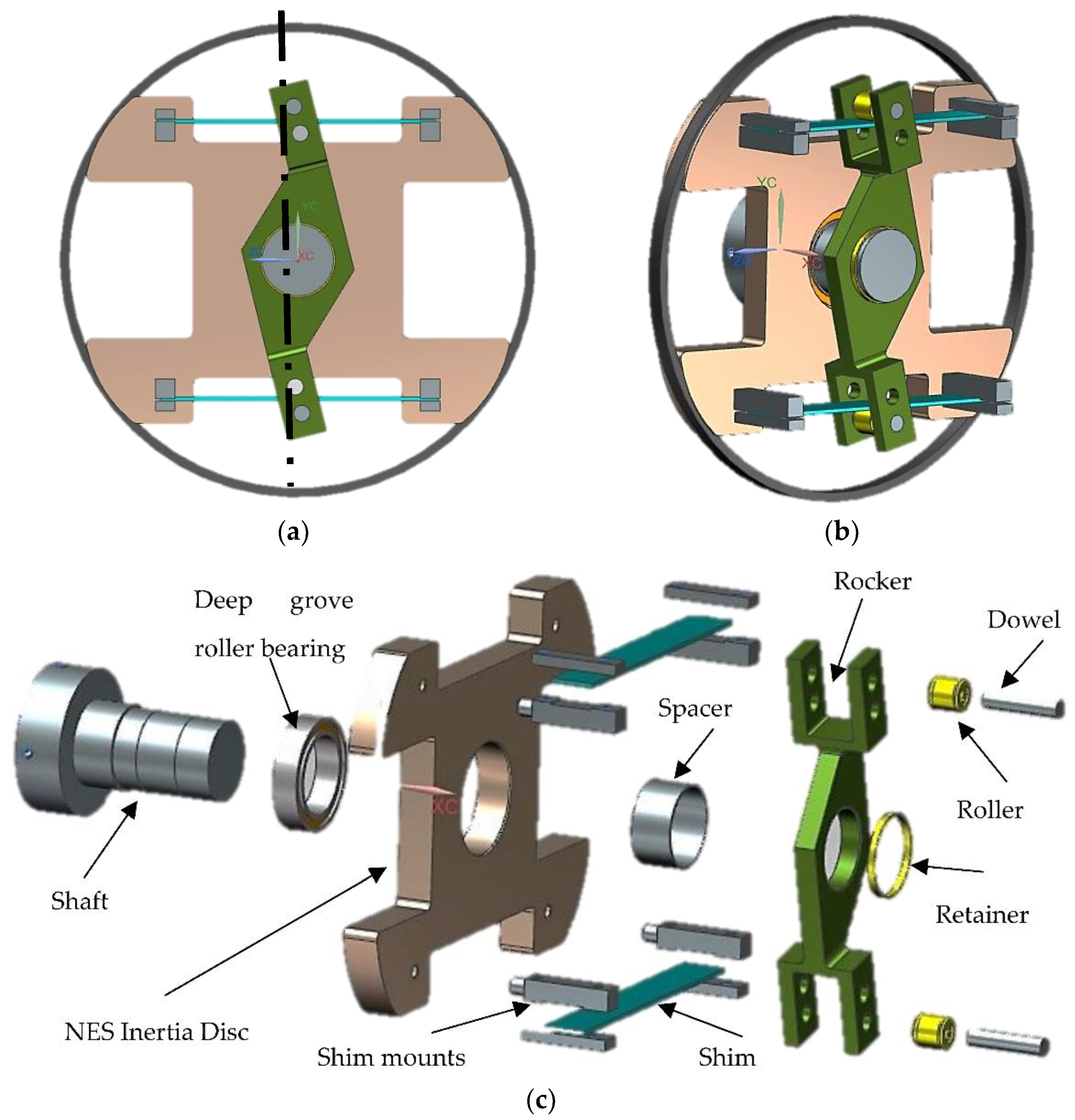

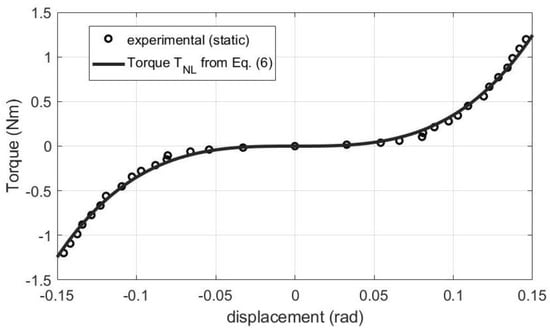

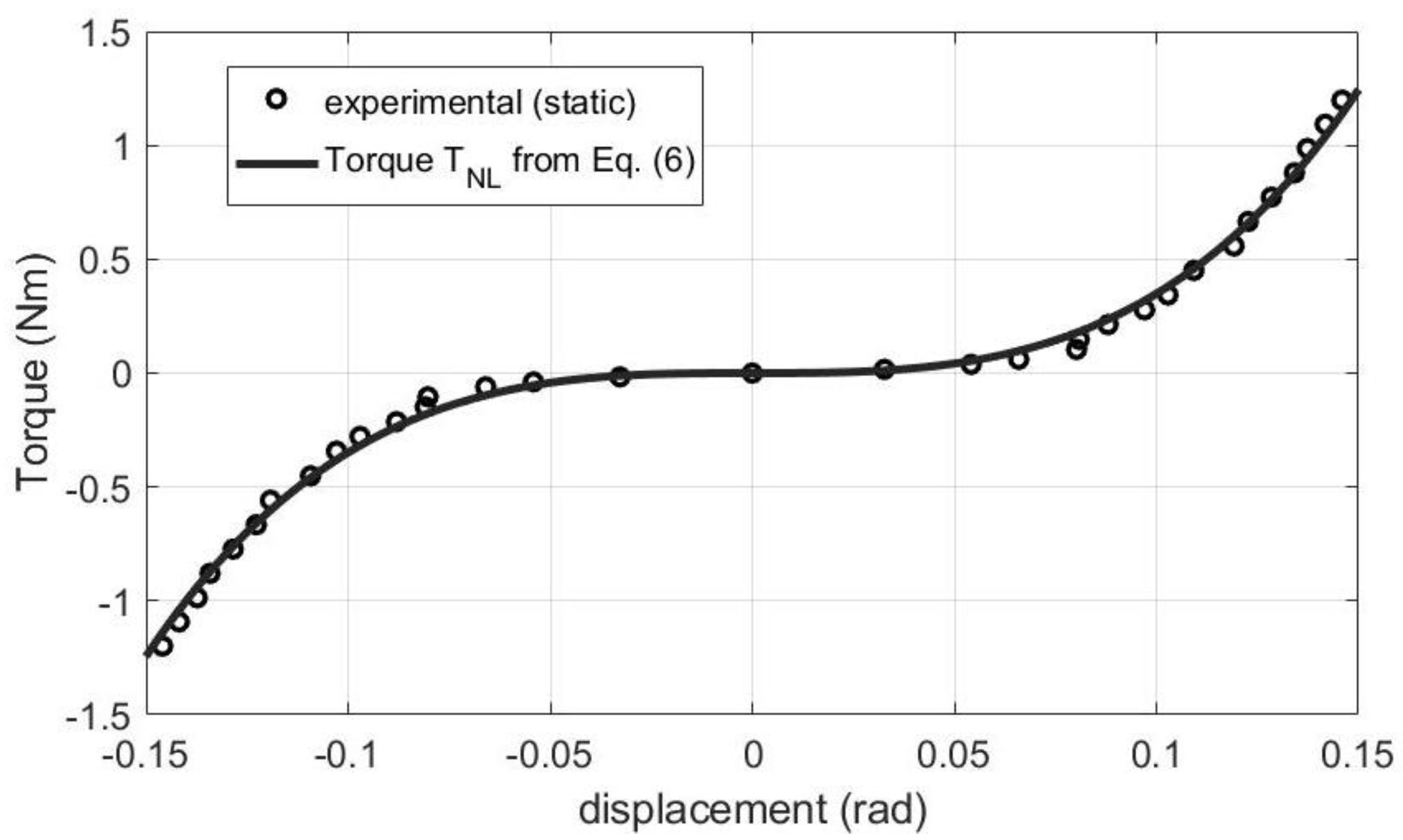

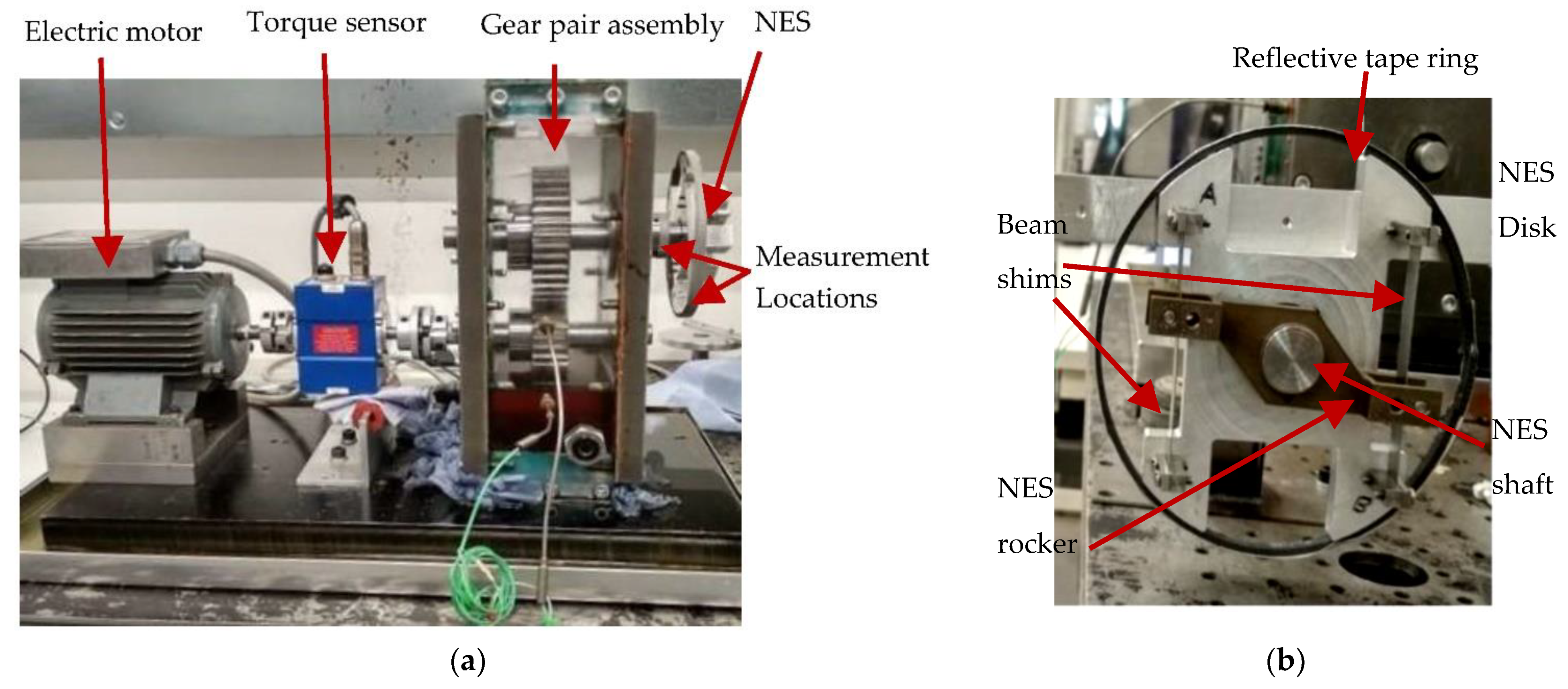

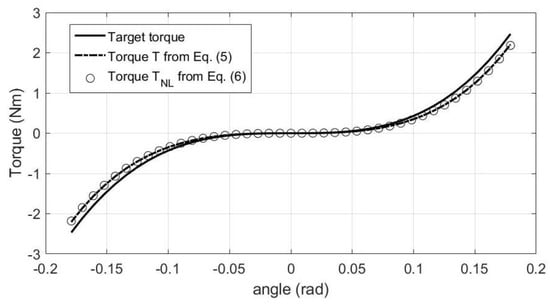

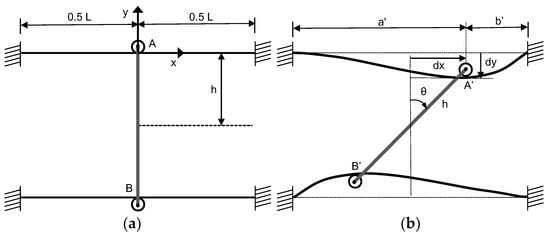

Nonlinear energy sinks (NES) have recently attracted significant interest for the suppression of unwanted vibrations in a variety of mechanical systems. The key advantage in employing this (vibration absorber) approach is the broadband nature of the interactions with a primary system for which vibration energy dissipation is required. Thus, the effectiveness of the NES is decoupled from the need of tuning to specific frequencies. Nevertheless, NES for rotational fluctuations of powertrains have received limited attention in the literature. In this work, a design for a rotational NES to mitigate speed fluctuations in gear trains is presented and tested experimentally. The development of the proposed system is underpinned by previous optimisation studies conducted by the authors, where a disk was utilised as an inerter NES. A set of beams couple the inerter with the wheel gear of a spur gear pair with a nonlinear restoring torque, which is designed to approach the desired essential nonlinearity within realistic practical tolerances. Static and dynamic identification is conducted to confirm the desired characteristics. Despite uncertainties in the prototype testing, the approach is found to reduce the speed fluctuations on the gear pair output shaft, with appropriate predictability established for the model and the design procedure.
