Detection of Polystyrene Microplastic Particles in Water Using Surface-Functionalized Terahertz Microfluidic Metamaterials

Abstract

We propose a novel method for detecting microplastic particles in water using terahertz metamaterials. Fluidic channels are employed to flow the water, containing polystyrene spheres, on the surface of the metamaterials. Polystyrene spheres are captured only near the gap structure of the metamaterials as the gap areas are functionalized. The resonant frequency of terahertz metamaterials increased while we circulated the microplastic solution, as polystyrene spheres in the solution are attached to the metamaterial gap areas, which saturates at a specific frequency as the gap areas are filled by the polystyrene spheres. Experimental results were revisited and supported by finite-difference time-domain simulations. We investigated how this method can be used for the detection of microplastics with various solution densities. The saturation time of the resonant frequency shift was found to decrease, while the saturated resonant frequency shift increased as the solution density increased.

1. Introduction

Microplastics are defined as plastic particles with a size between 1 µm and 5 mm, which have become a tremendous issue for the aquatic environment [1,2], and subsequently may affect human health through the food chain [2]. For example, microbeads composed of either polyethylene, polypropylene, or polystyrene have been used in various hygiene products such as toothpaste, shampoo, conditioner, and body wash and have been found to be accumulated in seafood, oceans, freshwater lakes, and rivers [3,4,5,6]. It was reported that the typical size of microbeads detected in bottled water is between 1 and 5 µm [7]. Various methods including Fourier transform infrared spectroscopy (FTIR), and Raman spectroscopy have been employed to both qualitatively and quantitatively monitor microplastics in aquatic environments [8,9,10]. However, their limitations in measurement time, target particle size, and complex pre-treatment steps (e.g., density separation) make developing novel in-situ detection methods for microplastics in water environments imperative [2].

Metamaterials are artificially designed structures that interact with electromagnetic waves at a specific frequency, determined by their geometrical parameters and surrounding dielectric environment [11,12,13]. The inductive–capacitive (LC) resonance mode in metamaterials, described by $f_0=1/2\mathsf{\pi }\sqrt{LC}$, where L is the inductance and C is the capacitance of the gap area, has been extensively investigated in biosensing research owing to its controllability and high sensitivity [14,15,16,17,18,19,20,21,22]. It is noteworthy that it has been demonstrated that metamaterials operating in the terahertz (THz) frequency range offer ideal platforms for dielectric sensing, more specifically for sensing a few micron-sized target materials such as fungi, and bacteria in ambient and aqueous environments [23,24,25,26]. Additionally, the sensitivity of THz metamaterials as a function of the relative position of the polystyrene microbead has been recently studied explicitly [27].

Therefore, it is pertinent to exploit THz metamaterials to develop novel microplastic sensors working in water environments. As the detection volume of THz metamaterials is strongly confined to the region near the surface of the metamaterials [15,28], a fluidic channel with a thin water layer can be integrated into the metamaterials to minimize the THz absorption from water and flow the microplastic solution on the surface of the metamaterials [29,30,31,32,33,34,35,36]. Further to this, the gap area of the metamaterials could be functionalized to capture the microplastics only near the gap structure of the metamaterials where the actual detection occurs [27]. However, the in situ detection of microplastics using functionalized THz metamaterials devices in water environments has not been demonstrated yet.

Here, we investigated a new approach to detecting microplastics in aqueous environments using surface-functionalized THz microfluidic metamaterials that can overcome the limitation of existing methods based on FTIR and Raman spectroscopy. The fast circulation technique has been employed to enhance the detection speed and sensitivity for sensing microplastics in aqueous environments. We monitored the change in the resonant frequency of the metamaterials with in situ THz spectroscopy while circulating the microplastic solution on the surface-functionalized metamaterials using fluidic channel devices. Finite-difference time-domain (FDTD) simulations were performed to understand the experimental results. Additionally, we studied the saturation behavior in the resonant frequency shift as polystyrene-microplastic spheres (PS) were attached to the gap area of the metamaterials for various PS solution densities.

2. Results and Discussions

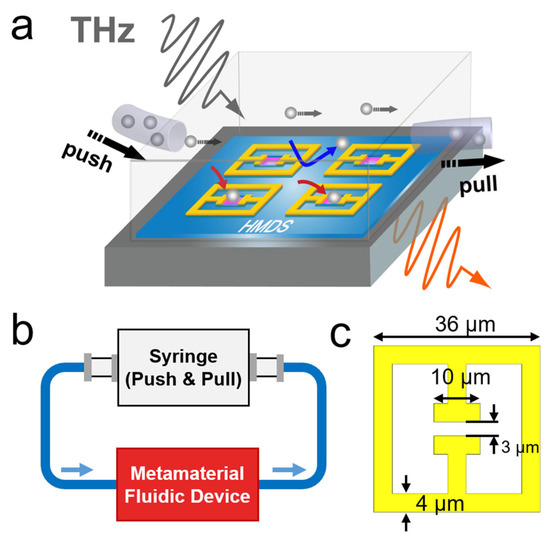

Fluidic channel devices that incorporate the functionalized metamaterials were fabricated as shown schematically in Figure 1a,b. The key idea is that the gap areas of metamaterials are filled by the target materials while the PS solution is continuously circulated as the gap area are functionalized. We note that plasmonic and metamaterial sensors generally address the density of target material at the sensor surface [16,23,37], while it is the volume density that is required for sensing in the aqueous environment. We monitored the change in the resonant frequency of the metamaterials with in situ THz spectroscopy while injecting the PS solution into the fluidic device. The transmission amplitudes of THz metamaterial devices were obtained from a conventional in situ THz time-domain spectroscopy system with an acquisition time of 4 s as described elsewhere [38,39].

A conventional photolithography method was used to pattern metamaterials on a high-resistivity Si substrate with a thickness of 550 µm. Cr/Au (2 nm/98 nm) metal layers were deposited to define the arrays of the split-ring resonator (SRR) with a periodicity of 50 µm. The SRR consists of a rectangle ring with outer dimensions of 36 × 36 µm², a gap width of 3 µm and a gap length of 10 µm. The linewidth and the thickness of the SRR were chosen to be 4 µm and 100 nm, respectively. The geometrical parameters of the metamaterial unit cell are shown in Figure 1c. Metamaterials were then functionalized to capture the PS in the water by partially coating an adhesive poly-L-lysine (PLL) layer only in the gap area, while the rest of the area was coated with an anti-adhesive hexamethyldisilazane (HMDS) layer [27]. The full-width at half maximum of the metapattern resonance in water was 130 GHz and we obtained the resonant peak position by using the Gaussian fitting with an uncertainty of around 1 GHz. To circulate the PS solution on the metasurface, we fabricated the polydimethylsiloxane (PDMS) fluidic channel with a height of 20 µm and a width of 2 mm on the metamaterials. The height of the PDMS channel is determined by the height of the SU-8 mold which was used to fabricate the PDMS channel. The PDMS fluidic channel was bonded to the surrounding substrate area of the metasurface using the plasma surface treatment method [31]. We note that the PS solution was circulated through the fluidic channel using a peristaltic pump with an 80 μL/min rate.

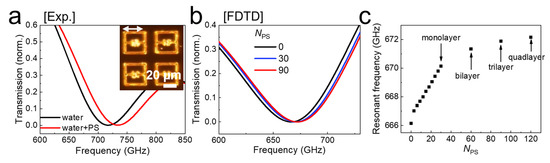

Figure 2a shows the separated THz transmission amplitudes of the surface-functionalized microfluidic metamaterials when the water (black solid line) and PS solution (red solid line) was circulated through the fluidic channel. The inset of Figure 2a shows an optical image of fabricated metamaterials after the circulation of PS solution through the fluidic channel. The polarization direction of the incident THz waves is indicated with a white arrow. It was clearly shown that the PSs were captured only in the functionalized gap areas where the PLL layer was deposited, while HMDS-coated area repelled the PS in the water [27]. We observed a 15.4 GHz blue-shift in the resonant frequency from 717 to 732 GHz with the presence of the PS in the water. We note that the blue-shift occurred as the PS in the water decreased the effective dielectric constant of the target solution due to its low dielectric constant (ε_PS = 2.56) [27] when compared to that of water (ε_water = 4.8) [31]. At the low density regime, the blue-shift induced by the presence of the PS in the water can be quantified by the following relationship: $\Delta f/f_0=-\alpha N_{PS}\left({\epsilon }_{PS}-{\epsilon }_{water}\right)/{\epsilon }_{eff}$, where α is a sensitivity coefficient, N_PS is the average number of PS in the gap areas, and ε_eff is the effective dielectric constant near the gap area, which is determined by the combined contributions of the dielectric constants of the substrate and the water [23]. ε_eff can be obtained from the relation of $f_{water}=f_{air}/{\left({\epsilon }_{eff}\right)}^{1/2}$, where f_water is the resonant frequency of the metamaterials with an overlaid water layer on the substrate and f_air is the resonant frequency of the metamaterials without the substrate (air embedded). We also note that the fluidic channel device without metamaterials pattern was used as a reference to mitigate the transmission loss from the water layer.

To verify and understand our experimental findings, we performed FDTD simulations using commercial software (CST Studio Suite 2022). The time-domain solver was used to minimize the effect of the internal reflection from the substrate. The geometric parameters and periodic boundary conditions were adopted from the metamaterials used in the experiments. Dielectric constants of 11.8, 4.8, and 2.56, were used for silicon, water, and PS structures, respectively. Two-ports were assigned to the simulation model to generate and receive a linearly polarized incident THz plane wave in the time-domain. We then performed a fast-Fourier transform to obtain the frequency-domain transmission amplitude of the metamaterials. Figure 2b shows the simulated transmission amplitudes of the metamaterials with a 20 µm thick water layer for N_PS = 0, 30, 90. The resonant frequency of 667 GHz was observed for N_PS = 0 and the blue-shift of the resonant frequency occurred as N_PS increased. A discrepancy between the experimental results and simulations in the resonant frequency of the metamaterials was observed, which can be attributed to the fabrication tolerance in the experiments. We note that N_PS was first gradually increased to N_PS = 30 with a step of three until there was no space to locate additional PS in the gap area, then we increased N_PS with a step of 30 up to N_PS = 120 by adding the additional PS layer that consists of 30 PS right above the existing PS layer. The resonant frequency of the metamaterials as a function of N_PS was investigated in Figure 2c to see how the presence of the PS in the water layer affects the resonant frequency shift behavior. The amount of blue-shift increased as the number of PS layers increased, but was saturated at a specific frequency owing to the confined effective sensing volume of the metamaterials near the gap area; this is consistent with the saturation thickness of 1.5 μm estimated for the gap-width of 3 μm [28]. Conversely, in the monolayer case (for N_PS < 30), the sensitivity coefficient α of 7.1 × 10⁻⁴ was obtained, when f_air = 1963 GHz and ε_eff = 8.66.

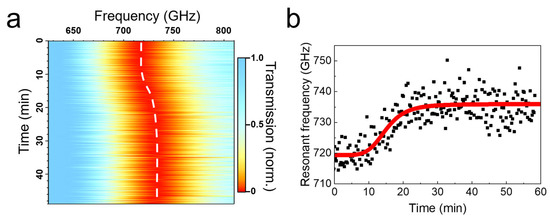

In order to study the resonant frequency shift behavior of the surface functionalized fluidic metamaterials, we performed in situ THz spectroscopy while we were circulating the PS solution with a density of 2 × 10⁸ mL⁻¹ through the fluidic channel. Figure 3a shows THz transmission amplitude as a function of the circulation time of the PS solution. The blue-shift behavior was observed as the PLL layer in the gap area attracted the PS in the solution. In Figure 3b, we extracted the resonant frequency from Figure 3a as a function of circulation time. We note that a fluctuation was observed in the extracted resonant frequency over circulation time that could be attributed to the mechanical motion of the peristaltic pump [40,41]. Therefore, the fitted curve of the resonant frequency (red line) was plotted along with the extracted resonant frequency (black square dots). The resonant frequency of the metamaterials increased while the PSs in the solution were being attached to the gap area but was saturated at a specific frequency as there is no change in the effective dielectric constant of the gap area after a certain level of accumulation of the PS in the gap area over time, as indicated from our simulation results in Figure 2c.

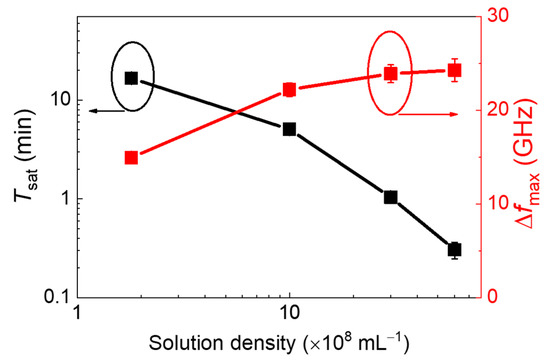

To investigate the effect of the PS solution density on the saturation behavior of the resonance, we performed the same in situ THz spectroscopy again but for various PS solution densities (2 × 10⁸, 1 × 10⁹, 3 × 10⁹, 6 × 10⁹ mL⁻¹). In Figure 4, the saturation time (T_sat) of the resonant frequency shift and the saturated resonant frequency (Δf_max) were plotted as a function of the PS solution density. Here, T_sat corresponds to the time when the resonant frequency shift reaches the half of the maximum frequency shift. Δf–time curves for different solution densities were best fitted with the sigmodal function of $\Delta f=\Delta f_{max}\left(1-1/\left(1+{\left(t/T_{sat}\right)}^p\right)\right)$, where p is the exponent. The saturation time of 16.6 min was obtained with the PS solution density of 2 × 10⁸ mL⁻¹, which decreased to 18.5 s with the PS solution density of 6 × 10⁹ mL⁻¹. We note that FTIR and Raman spectroscopy have been often employed to detect microplastics in water [8,9,10]. However, a liquid sample containing microplastics must go through a pre-treatment step called density separation. The density separation extracts microplastics from the sample liquid by either letting microplastics float or sink in solutions with higher or lower densities than the microplastics [8,9,10]. This process makes the detection techniques employing FTIR and Raman spectroscopy a time-consuming job, which often takes 5 h to up to 1 day [8]. On the other hand, we could detect microplastics in water with in situ THz spectroscopy by using surface-functionalized fluidic metamaterials. The saturated resonant frequency shift increased further from 15 to 24 GHz as we increased the PS solution density from 2 × 10⁸ to 6 × 10⁹ mL⁻¹ even though it was expected that the number of the accumulated PS in the gap area would be similar for different PS solution densities. This could be explained by the fact that the effective dielectric constant of the surrounding PS solution also decreases as the PS solution density increases, owing to the low dielectric constant of the PS compared to the water, leading to a further increase in the saturated resonant frequency shift. It is noteworthy that we reported the relationship between the dielectric constant of overlaid liquid and the resonant frequency shift in our previous study [31]. For instance, we estimated the effective dielectric constant for the 6 × 10⁹ mL⁻¹ case from the saturated frequency shift and found that the dielectric constant decreased by −1.0 when compared to the water case.

3. Conclusions

We investigated a novel real-time microplastic sensor in a water environment by performing in situ THz spectroscopy on surface-functionalized fluidic metamaterials. PSs were only captured in the gap structure of the metamaterials as the PLL layer in the gap attracted the PS in the water, while HMDS coated area repelled the PS. We showed that the resonant frequency of metamaterials increased as the PSs were captured in the gap area. Also, we monitored the resonant frequency change while we were circulating the PS solution through the fluidic channel and extracted the saturation time of the resonant frequency shift, and the saturated resonant frequency shift for various PS solution densities. Experimental results were confirmed and supported by FDTD simulation results. We successfully demonstrated the detection of the PS in water with in situ THz spectroscopy by using surface-functionalized fluidic metamaterials. We anticipate that this work will contribute to the development of real-time, on-site, cost-efficient, and highly sensitive microplastic sensors to tackle the absence of efficient microplastic sensors working in an aqueous environment.
