Characteristics of Local Geomagnetic Field Variations and the Tectonic Stress Field Adjacent to the 21 May 2021, Ms 6.4 Yangbi Earthquake, Yunnan, China

Featured Application

This work is mainly applied to the analysis of relevant geophysical field changes caused by earthquakes.

Abstract

The tectonic processes leading up to an earthquake and the occurrence of the earthquake itself will cause local changes in the geophysical field (geomagnetic field, stress field, etc.). In this paper, the variation characteristics of the tectonic stress field (TSF) and local geomagnetic field (LGF) before and after the Yangbi Ms 6.4 earthquake are studied. The regional stress tensor damping inversion method was used to invert the TSF using focal mechanism solutions (FMSs). The change characteristics of the TSF before and after the earthquake were analyzed. An annual variation model of the LGF was constructed, and the variation of the horizontal vector was analyzed. The azimuth and plunge of the maximum principal compressive stress axis of the TSF in the epicentral region before and after the earthquake were −4.4° and 2.7°, 172.7° and 6.6°, respectively. The variations in the declination, inclination and total intensity of the epicenter one year before and one month after the earthquake were −0.20′ (0.07′), 0.29′ (−0.12′), and −1.7 nT (−1.9 nT), respectively. The epicenter is located at the boundary of the “weak variation region” of the horizontal vector. This research is of great significance concerning the TSF background and incubation mechanism of earthquakes.

1. Introduction

The geomagnetic field and stress field are important geophysical fields. Changes in these fields caused by tectonic activities such as earthquakes have long been central issues in geophysical research [1,2]. Because these fields are associated with two different disciplines, little research on the relationship between the geomagnetic field and the stress field has been published [3,4].

Most earthquakes are processes of crustal stress release, which causes changes in the stress field on or around the fault, and has a great impact on the seismic activity in the area near the earthquake source [5]. The inversion of the tectonic stress field (TSF) based on the earthquake focal mechanism solution (FMS) is an effective method to study the process and mechanism of earthquake initiation and occurrence [6,7]. Although the FMS of a single earthquake cannot be used to define the actual direction of the tectonic stress applied underground, the characteristics of the TSF in the region can be inferred through many FMSs in a given area [8,9,10].

The lithospheric magnetic field, also known as the crustal magnetic field, is an important part of the geomagnetic field [11,12]. The spatial structure of lithospheric magnetic anomalies is extremely complex but very stable over time because the sources of the local geomagnetic field (LGF) are stable [13,14]. However, during strong tectonic activity, the LGF changes rapidly; examples of this include the magnetic field near earthquake buildup areas, volcanoes and faults [15,16,17]. Studies have shown that tectonic activities in the crust are related to changes in crustal stress [18,19]. The magnetic mineral composition of crustal rocks at temperatures below the Curie point shows the characteristics of induced magnetization and residual magnetization [20,21,22]. In the area of tectonic movement, these magnetic minerals produce local geomagnetic anomalies due to the piezomagnetic variations caused by stress [23,24,25]. How then does tectonic movement cause changes in the crustal stress, which, in turn, lead to variations in local geomagnetic anomalies [26,27]?

The corresponding relationship between the stress and the magnetic changes in rock samples has been established under laboratory conditions [28,29]. Based on laboratory results, many researchers have provided reasonable explanations for the magnetic anomalies caused by tectonic activity in the crust [18,30,31]. However, some researchers have also found that the magnetic anomalies observed during earthquakes are much smaller than expected. The expected magnetic changes are not observed in volcanic areas or near active faults, and even the magnetic changes observed during the storage of a reservoir are much larger than the calculated values based on the experimental conclusions [19,32]. The reason is that the results of magnetic experiments on rock samples have certain limitations. Due to the limitation of experimental conditions, the experimental environment of rock samples is often quite different from the underground physical environment in an area with geological tectonic movement, and the scale of rock samples is very different from that of a tectonic area [4,25]. The magnetic anomalies caused by general geological processes are difficult to explain based on conclusions from rock magnetic experiments.

There are no reports on the correlation between the TSF and LMF caused by earthquakes. On May 21, 2021, a magnitude 6.4 earthquake occurred in Yangbi County, Yunnan Province, China [33]. To better understand the tectonic stress background and the magnetic anomaly changes resulting from the earthquake, we used the fault sliding direction to reverse the TSF in the epicentral area and then analyzed the changes in the TSF before and after the Yangbi earthquake. At the same time, repeated observations of the geomagnetic field were used to analyze the changes in the LGF before and after the Yangbi earthquake. A “weak variation” pattern of the horizontal vector change in the epicentral area was revealed, and the evolution of the Yangbi earthquake was analyzed based on the experimental theory of meta-instability [34].

2. Data and Methods

2.1. Yangbi Ms 6.4 Earthquake

The epicenter of the Ms 6.4 Yangbi earthquake was located at 99.87° E, 25.67° N, and the focal depth was 8 km (https://www.cea-igp.ac.cn/kydt/278248.html (accessed on 16 January 2022)), as shown in Figure 1. The earthquake sequence presents a typical foreshock-mainshock-aftershock pattern, which is roughly distributed in a NW strip along the western side of the Weixi-Qiaohou-Weishan fault [35]. The rupture featured a NW-SE high dip angle and right-handed strike-slip motion. The extreme slip zone was located southeast of the epicenter, and the main fracture length was approximately 12–15 km [33].

2.2. Inversion and Modeling Data

2.2.1. FMS Data

With the inversion of the TSF before the Yangbi earthquake, 40 FMSs with Mw > 4.8 from 1 January 1976 to 30 April 2021 were collected for the surrounding area (98° E−102° E, 23.7° N−27.2° N). These data were from the Global Centroid Moment Tensor Catalog (GCMT) of Harvard University. The focal mechanisms of these earthquakes show that the focal types in the study area are mainly strike-slip [37,38].

We used 13 earthquake events (Ms > 4.0) within 15 km of the epicentral area before and after the Yangbi earthquake to study the changes in the regional TSF. FMSs are shown in

Table 1. FMSs of the typical Ms > 4.0 event of the Yangbi earthquake sequence.

Earthquake Time	Epicenter Location		Magnitude	Fault-Plane I			Fault-Plane II
	Longitude (°)	Latitude (°)	Ms	Strike	Dip	Rake	Strike	Dip	Rake
2021.5.18 21:39	99.93	25.65	4.2	41	78	8	309	82	168
2021.5.19 20:05	99.91	25.65	4.4	229	90	−15	319	75	180
2021.5.21 20:56	99.93	25.64	4.2	159	45	−115	12	50	−67
2021.5.21 21:21	99.93	25.65	5.6	217	86	−12	308	78	−176
2021.5.21 21:48	99.88	25.69	6.4	135	75	−168	42	78	−15
2021.5.21 21:56	99.95	25.64	4.9	220	84	20	128	70	174
2021.5.21 22.15	99.97	25.60	4.0	128	80	160	222	70	11
2021.5.21 22.21	99.98	25.60	5.2	146	48	−161	43	76	−44
2021.5.21 23:23	99.98	25.60	4.5	127	87	177	217	87	3
2021.5.22 00:51	99. 87	25.69	4.0	35	85	−9	126	81	−175
2021.5.22 09:48	99.88	25.67	4.0	313	84	−176	223	86	−6
2021.5.22 20:14	99.93	25.61	4.4	325	44	−140	204	63	−54
2021.5.27 19:52	99.95	25.74	4.1	194	90	−5	284	85	180

[35].

2.2.2. Geomagnetic Measurement Data

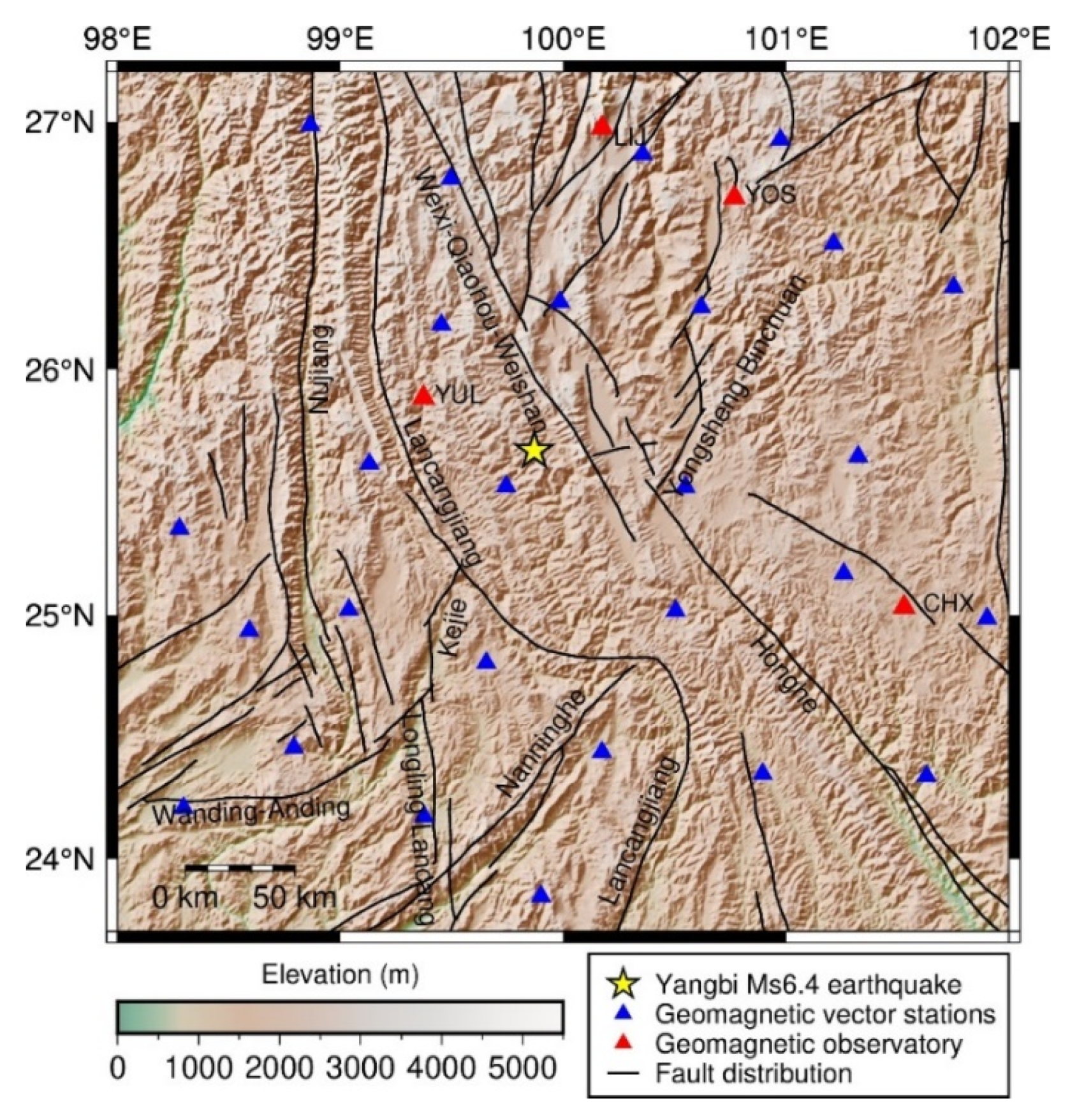

There are four continuously recording geomagnetic observatories within 200 km of the mainshock. The nearest station (YUL) is only 55 km away from the epicenter, while the farthest (CHX)- is 180 km away. These stations are shown in the red triangles in Figure 1. These geomagnetic observatories provide reliable data for the correction of the daily variation and secular variation of the ground repeated magnetic survey data.

In addition, there are 27 repeated geomagnetic field vector measurement stations within 250 km of the epicenter, with a spacing of approximately 70 km (shown as blue triangles in Figure 1). The total intensity (F) of the geomagnetic field was measured using a proton precession magnetometer (GSM-19T) with an absolute accuracy of ± 0.2 nT and a resolution of 0.01 nT [4,25]. A DI magnetometer with an accuracy of 0.2′ and a resolution of 0.1′ was used to measure the magnetic inclination (I) [39]. GPS and DI magnetometer were combined to complete the measurement of the magnetic declination (D). These stations have recorded data from March to May every year since 2010.

In this paper, we use continuously recorded data from four observatories from 1 January 2018 to 30 June 2021, as well as a total of five ground magnetic vector observation data points during 2018–2021 and one month after the Yangbi earthquake.

2.3. Inversion and Modeling Methods

2.3.1. TSF Inversion Method

The regional stress tensor damping inversion method is adopted, and the damping coefficient is introduced based on the linear stress inversion method to control the mismatch between the theoretical and observed values and the relative weight of the model complexity [40]. First, the optimal damping coefficient in the inversion process is determined by an automatic program. Second, the FMSs are divided into many grids (each grid adopts at least one FMS), and stress inversion is carried out to obtain the optimal stress tensor for each grid point. Finally, the bootstrap method is used to resample the data of each grid to obtain the confidence interval of the stress tensor axis [41].

In this paper, the tectonic stress field near the epicenter is calculated by using the regional stress tensor damping inversion method and MSATSI program [42]. The number of earthquakes in every grid is set to 1, the number of automatic resamplings is 1000, and the confidence level is 95%.

2.3.2. LGF Modeling Method

According to the continuous absolute value data of the geomagnetic observatories (as shown in Figure 1), the diurnal variation of the observed data is corrected to eliminate the external field component of the geomagnetic field using the data processing method described by Wang et al. [25,43]. The secular variation of the geomagnetic field is eliminated by using the natural orthogonal component model in mainland China [4]. The 8th-order spherical cap harmonic model of the Chinese geomagnetic reference field is used to eliminate the main magnetic field component to obtain the lithospheric magnetic field change every year, and then the lithospheric magnetic field of the adjacent two years is used to obtain the annual change [39]. Finally, the surface spline fitting method is used to construct a high-precision model of the annual change in the lithospheric magnetic field in the study area.

3. Results

3.1. TSF Characteristics

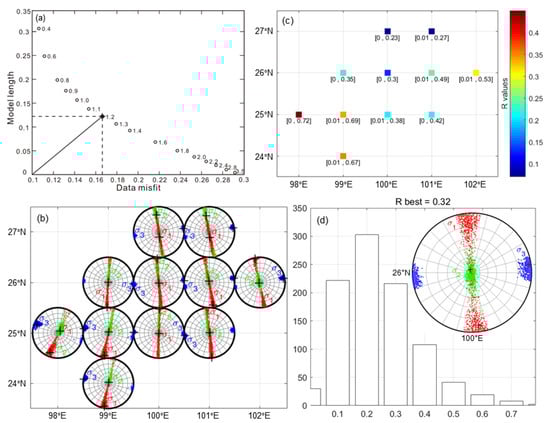

Figure 2 and

Table 2. Results of stress field.

Location	σ1		σ2		σ3		R Value
	Azimuth	Plunge	Azimuth	Plunge	Azimuth	Plunge	R Best	R Min	R Max
(98° E, 25° N)	−159.2	10.3	56.2	77.4	−67.9	7.1	0.45	0.00	0.72
(99° E, 24° N)	−169.7	4.2	21.2	85.7	−79.6	0.8	0.35	0.01	0.67
(99° E, 25° N)	−170.2	4.9	21.7	85.0	−80.1	1.0	0.34	0.01	0.69
(99° E, 26° N)	−177.1	1.3	−8.7	88.7	92.9	0.3	0.22	0.00	0.35
(100° E, 25° N)	1.0	2.5	169.0	87.4	−89.1	0.5	0.21	0.01	0.38
(100° E, 26° N)	−4.4	2.7	−175.2	87.3	85.6	0.4	0.13	0.00	0.30
(100° E, 27° N)	−8.0	21.7	174.1	68.3	82.3	0.7	0.07	0.00	0.23
(101° E, 25° N)	174.3	1.4	45.6	87.7	−95.7	1.8	0.21	0.00	0.42
(101° E, 26° N)	170.5	6.2	−16.8	83.7	80.4	0.8	0.24	0.01	0.49
(101° E, 27° N)	−11.2	24.0	176.2	65.8	80.0	2.8	0.07	0.01	0.27
(102° E, 26° N)	−10.6	1.7	−128.5	86.4	79.5	3.1	0.31	0.01	0.53

display the inversion results of the TSF before the Ms 6.4 Yangbi earthquake. The compromise curve between the stress field inversion fitting error and the length of the model (or the complexity of the model) is shown in Figure 2a. The number marked on the right of the circle in the figure is the value of the damping coefficient, and the cross is the calculated optimal damping coefficient (inflection point). The best stress field inversion result can be obtained at the inflection point, that is, when the optimal damping coefficient is 1.2, as shown in Figure 2b. The azimuth of the maximum horizontal principal compressive stress rotates counterclockwise from west to east and rotates clockwise from north to south, which is consistent with the results of previous studies [33,44,45]. In the epicentral area (100° E, 26° N), the azimuths and plunges of the optimal solutions of σ₁, σ₂, and σ₃ are −4.4° and 2.7°, −175.2°and 87.3°, 85.6°and 0.4°, respectively, and the corresponding 95% confidence intervals for azimuth of σ₁, σ₂, and σ₃ are −183.1°~166.8°, −355.2°~4.3°, and 78.2°~91.5°, respectively.

The relative stress magnitude R is defined as [7]

$$R=\frac{\mathsf{\sigma }2-\mathsf{\sigma }1}{\mathsf{\sigma }3-\mathsf{\sigma }1}.$$

(1)

The R value is the minimum at grid points (100° E, 27° N) and (101° E, 27° N), and the optimal solution is 0.07; the maximum is at (98° E, 25° N), and the optimal solution is 0.45; the optimal solution for the R value in the epicentral area (100° E, 26° N) is 0.13, and the 95% confidence interval is (0.00~0.30), as shown in Figure 2c.

We also inverted the TSF in the epicentral region of the Ms 6.4 Yangbi earthquake. The inversion parameters were the same as above, and the results are shown in Figure 2d. The optimal solution of the relative stress R value is 0.32. The azimuth of σ₁ is 172.7° (150.8°~316.7°), and the plunge is 6.6° (−75.8°~88.3°). The azimuth of the minimum principal stress axis σ₃ is 82.4° (73.6°~98.6°), and the plunge is 2.4° (−10.8°~15.0°).

3.2. Variations in Regional LGF

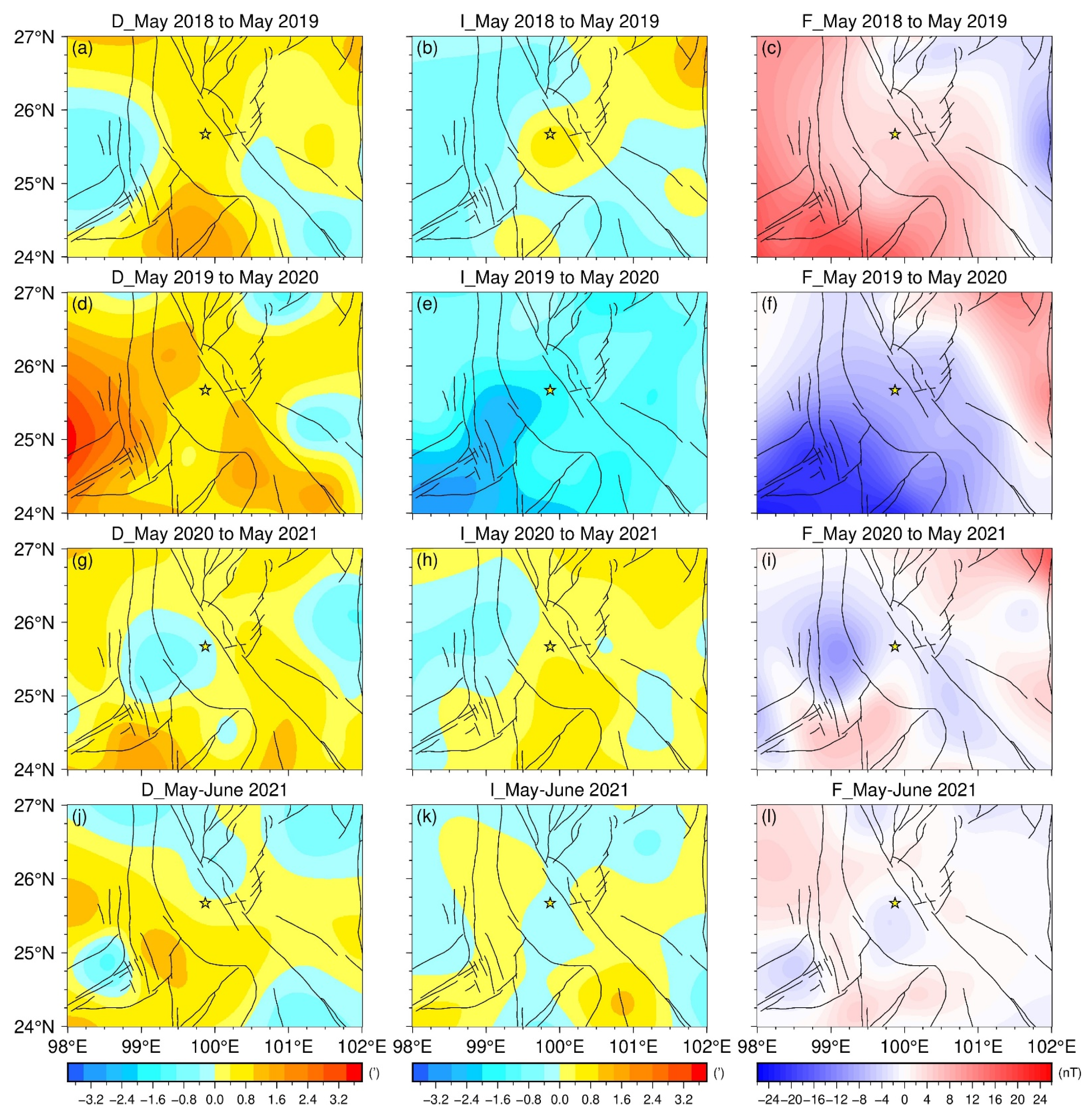

Figure 3a,d,g,j show the dynamic variation characteristics of D from 3 years before the earthquake to 1 month afterwards. The D near the epicenter continued to increase by 0.05′, as shown in Figure 3a,d. Before the earthquake (Figure 3g), D decreased slightly and then rebounded after the earthquake (Figure 3j). During this period, there were local anomalies with annual changes in D near the epicenter, and the epicenter was in the transition zone between two local anomalies. The positive anomaly areas are shown on the northern and southern sides and the negative anomaly areas on the eastern and western sides in Figure 3a; the large value areas of positive anomaly are present on the eastern and western sides of Figure 3d; the local isolated negative anomaly areas and their surrounding positive anomaly areas are illustrated in Figure 3g; and the positive anomaly areas on the southern side and negative anomalies on the northern side are shown in Figure 3j. Positive and negative anomalies coexisted in the area near the epicenter, and the epicenter was located near the “zero value” in annual D before (Figure 3g) and after (Figure 3j) the earthquake.

The dynamic changes in I are shown in Figure 3b,e,h,k. There are obvious abnormal areas at the epicenter, such as the positive anomaly on the northeastern side in Figure 3b, the large value areas of negative anomaly on the southwestern side in Figure 3e, the negative anomaly on the western side in Figure 3h, and the negative anomalies on the eastern and western sides in Figure 3k. Before (Figure 3h) and after the earthquake (Figure 3k), the epicenter was located near the “zero value” in annual I.

Figure 3c,f,i,l show the dynamic characteristics of F of the geomagnetic field. In Figure 3c, the negative anomaly area was located in the northeast of the epicenter, the positive anomaly area was located in the southwest, and the epicenter was located in the transition area from small to large of the positive anomaly area. The positive and negative anomalies areas in Figure 3f were opposite to those in Figure 3c. The northeast of the epicenter was a positive anomaly area, the southwest was a negative anomaly area, and the epicenter was located in the transition area from large to small of the negative anomaly. In subgraphs c and f, the areas of positive and negative anomalies were large and continuous. There was no obvious law of positive and negative anomalies in Figure 3i,l, the anomaly areas were relatively small and discontinuous, and the epicenter was located near the “zero value”.

According to the three components of D/I/F, we calculated the changes in the north component (X), east component (Y), horizontal component (H) and vertical component (Z) of the geomagnetic field. The annual changes in seven components of the geomagnetic field at different times within a radius of 50 km away from the epicenter of the Yangbi earthquake are reported, as shown in

Table 3. The magnitude of the annual variation in each component of the magnetic field at the epicenter of the Yangbi earthquake and within a radius of 50 km. The upper row corresponding to each component is the amplitude of the epicenter position, and the lower row is the variation amplitude within a radius of 50 km around the epicenter.

Components	Different Annual Variation Cycles
	May 2018 to May 2019	May 2019 to May 2020	May 2020 to May 2021	May–June 2021
Declination (′)	0.86	0.91	−0.20	0.07
	0.18~0.96	0.65~1.31	−0.67~0.51	−0.37~0.78
Inclination (′)	0.54	−1.73	0.29	−0.12
	−0.25~0.65	−2.43~−1.03	−0.26~0.67	−0.18~0.27
Total intensity (nT)	3.8	−7.3	−1.7	−1.9
	1.9~5.0	−11.2~−4.7	−7.6~1.1	−3.0~1.5
North component (nT)	−1.7	10.1	−3.9	−0.4
	−2.4~4.7	4.3~14.2	−5.8~−1.2	−1.4~1.7
East component (nT)	9.2	9.6	−2.0	0.7
	1.9~10.1	6.9~13.8	−7.1~5.6	−4.0~8.5
Horizontal intensity (nT)	−1.9	9.9	−3.8	−0.4
	−2.6~4.7	4.1~14.0	−6.5~−0.5	−1.5~1.8
Vertical intensity (nT)	8.3	−23.2	2.0	−2.5
	−1.4~9.6	−15.5~−33.1	−7.9~7.0	−3.9~3.6

.

4. Discussion

4.1. Analysis of Geomagnetic Field Changes Based on the Meta-Instability Theory

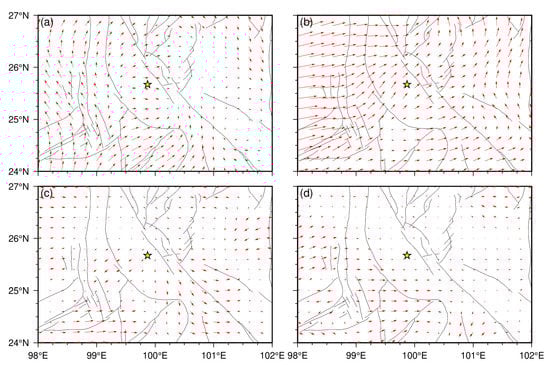

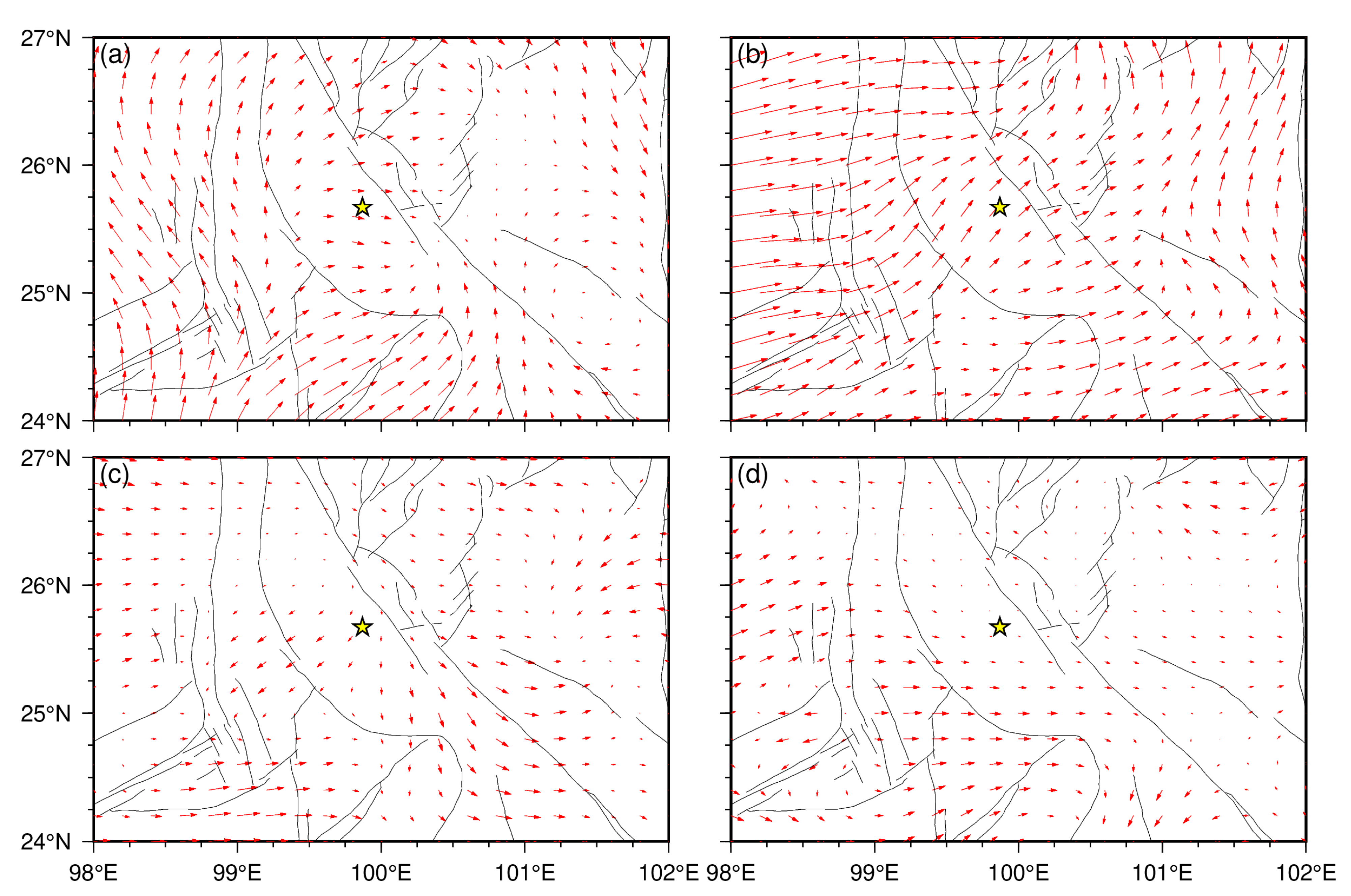

Figure 4 gives the phase-by-phase variations in the horizontal vector of the LGF in the western Yunnan region before and after the Yangbi earthquake. The first three panels are all drawn based upon the observational data before the earthquake, while the last panel is the observational data before (one month) and after (one month) the earthquake.

Figure 4a shows the changes from 2018 to 2019. There are obvious low values in most areas from west to east of the Yongsheng-Binchuan fault and around the connection between the Weixi-Qiaohou-Weishan fault and the Honghe fault. The horizontal vector direction is divided into two different trends from west to east and from south to north at the intersection of the Longling-Lancang fault and the Wanding-Anding fault. With the direction of the trend distribution, the change in its value gradually decreases. When the fault is in the meta-instability stage after the peak stress intensity, it has entered an irreversible deformation stage, which indicates that the occurrence of earthquakes is inevitable [34]. According to the theory of meta-instability, there is a peak stress point around the Yongsheng-Binchuan fault zone before the meta-instability stage begins, and the magnitude in the surrounding area is relatively small. This indicates that the surrounding area is subjected to regional stress loading, which is a metastable state.

Figure 4b shows the variations from 2019 to 2020. The local area enclosed by the arc section of the Lancangjiang fault, the western branch of the Nanninghe fault, the Longling-Lancang fault and the Kejie fault is an area where the value of the horizontal vector is low. The horizontal vector direction is generally oriented from west to east from the Nujiang fault and Wanding-Anding fault and gradually becomes south to north after passing through the Honghe fault and Yongsheng-Binchuan fault. Compared with the vector in the previous period (2018 to 2019), the vector is roughly oriented in the same direction, but its magnitude is greater than that of the previous period. Compared with the change in Figure 4a, the “weakly variable area” migrates from northeast to southwest. According to the determination of the vector direction and magnitude, this area is still undergoing a stress loading process in the region, or it is in a metastable state.

Figure 4c shows the changes from 2020 to 2021. Compared with Figure 4b, the horizontal vector in the variation diagram in Figure 4c is generally small, and a “weak variation area” crosses the epicenter and appears on the northern and southern sides of the epicenter. Among them, the “weakly variable areas” on the northern side are distributed from west to east on the Weixi-Qiaohou-Weishan fault, Lancangjiang fault, and Nujiang fault. The magnitudes of local areas reach zero. In addition, the weak variation areas on the southern side are along the Lancangjiang fault and Kejie fault. The magnitude of the local area near the intersection also reaches zero. The horizontal vector directions spreading to the southeast and southwest from the epicenter show divergent trends from northwest to southeast and northeast to southwest, respectively, and the corresponding magnitudes also increase from small to large. The scope of the “weak variation area” is seen to have expanded compared with those of the previous two periods, and the northern and southern sides are around the epicenter. At the same time, the horizontal vector direction is completely reversed in the southwestern part of the Weixi-Qiaohou-Weishan fault compared with those of the previous two periods, and there is a clockwise rotation of nearly 90° in the vector direction around the Honghe fault. From the analysis of the above characteristics, a large-scale “weak variation region” appears in this period, accompanied by the change in vector direction and a gradual increase in magnitude in two local regions; these features indicate that the region with the change in vector direction has completely entered the metastable state, which implies that an earthquake will inevitably occur. The observation in western Yunnan was completed approximately 15 days before the earthquake, which shows that the observed anomalous characteristics of the metastable state occurred 15 days after the Yangbi MS 6.4 earthquake, and that its epicenter was located at the edge of the “weak variation area”.

Figure 4d shows the variation from May–June 2021. For the coseismic effect of the horizontal vector of the LGF associated with the Yangbi earthquake, the vector magnitude in the region from the Weixi-Qiaohou-Weishan fault to the Yongsheng-Binchuan fault reached a value of zero, which indicates that the stress loading in this area was still at the peak stage. From the Weixi-Qiaohou-Weishan fault to the west along the Lancangjiang fault and then to the Nujiang fault, the vector direction spread from west to east, and the magnitude gradually increased. There are two situations in this area: stress remains loaded, or strain is released. These results also show that the seismomagnetic effect does not subside rapidly in a short time after the earthquake.

The results of the TSF show that the azimuth of σ₁ in the epicentral area was NNW, close to positive N, before the Yangbi earthquake, and changed to SSE, close to the positive S direction, after the earthquake [33]. The seismogenic structure is subjected to dextral strike-slip movement under the regional stress of near north-south compression and east-west tension. The formation of the structure may be associated with the SE slip of the Sichuan-Yunnan block and the clockwise rotation of the Southwest Yunnan block [35].

4.2. Seismomagnetic Mechanism

The performance and mechanisms of geomagnetic anomalies in the early stages of earthquakes are very complex, involving geomagnetic anomalies generated by the continuous changes of the source, regional stress fields, and other factors related to earthquakes [16,26,27]. It is necessary to separate earthquake-related anomalous signals from the collected geomagnetic anomaly signals, as these signals may be caused by earthquakes and other factors. Additionally, these measured geomagnetic signals mainly include the basic magnetic field and the changing magnetic field; the abnormal changes of the geomagnetism are also affected by these two parts. Therefore, it is necessary to filter out the geomagnetic anomaly caused by the changing magnetic field unrelated to the earthquake. Diurnal and secular variation corrections are made in observational data precisely to ensure the acquisition of reliable geomagnetic anomalies.

Tectonic activities such as earthquakes and volcanoes are very complex physical processes, often accompanied by subsurface thermal convection, causing changes in temperature, pressure, and fluid movement. The physical mechanisms leading to the magnetic anomalies caused by these tectonic activities are not unique. Besides the piezomagnetic effect related to the change of rock magnetization caused by stress, they also include the electrokinetic effect caused by the existence of electric double layer at the solid-liquid interface, the thermal demagnetization effect caused by temperature, etc. [15,20]. Song et al. calculated the piezomagnetic and electrokinetic effects probably produced by the Yangbi earthquake, and found that the changes at a distance of 20 km from the epicenter were −0.3 nT and −0.2 nT, respectively, which were much smaller than the actually observed change in the geomagnetic field [46]. Therefore, a single mechanism cannot effectively explain the geomagnetic field changes before and after the Yangbi earthquake, and it is necessary to synthesize a variety of data for quantitative analysis.

5. Conclusions

The TSFs near the epicenter before and after the Yangbi earthquake were inverted by using the FMS around the epicenter. Based on repeated observational data for 27 ground geomagnetic survey vectors within 250 km of the Yangbi earthquake epicenter, an annual variation model of the geomagnetic field around the epicenter from 3 years before the earthquake to 1 month afterwards was constructed. Based on the laboratory meta-instability theoretical model, the annual variation model of the horizontal vector of the geomagnetic field was used to analyze the buildup, occurrence and evolution of the Yangbi earthquake. We reached the following important conclusions:

(1)

The azimuth of the maximum principal compressive stress axis of the TSF in the epicentral area was deflected nearly 180 degrees from before to after the Yangbi earthquake.

(2)

The epicenter was not located in the area with large values of annual anomalous variations in the geomagnetic field but near the area with zero variation and its adjacent area.

(3)

The area was found to have entered the meta-instability stage one year before the earthquake.

In the meta-instability stage, the fault is in an irreversible deformation stage, which indicates that an earthquake will inevitably occur. However, the application of meta-instability research from the laboratory to the field is an extension from one-dimensional linear results to a two-dimensional plane. The phase-by-phase variation distribution of the horizontal vector of the geomagnetic field shows that the above four states coexist in the same region, and these four states can be transformed with time in a spatial region. During this transformation, the boundary zone of the “weak variation region” of the horizontal vector is the potential epicentral region and is the most easily recognized sign in the field before the area enters the meta-instability stage. The spatiotemporal evolution of the “weakly variable region” and the change in the surrounding vector direction are the basic conditions for analyzing whether the epicentral region will enter the meta-instability stage in the future.

The results are of great value for the study of the earthquake incubation environment and the source of local geomagnetic anomalies, and play a theoretical guiding role in the identification of magnetic field anomalies that are precursors to earthquakes.

This paper does not present a more in-depth analysis of the corresponding (or quantitative) relationship between the TSF and LGF before and after the earthquake, as this will be covered in future research.
