Over and beyond the Primate baubellum Surface: A “Jewel Bone” Shielded in Museums

by
Federica Spani
1,2,*,
Maria Pia Morigi
3,4,
Matteo Bettuzzi
3,4,
Massimiliano Scalici
2 and
Monica Carosi
2,*
1
Diagnostic Imaging Unit, Departmental Faculty of Medicine and Surgery, Campus Bio-Medico University of Rome, Via Álvaro del Portillo 200, 00128 Rome, Italy
2
Department of Sciences, Roma Tre University, Viale Guglielmo Marconi 446, 00146 Rome, Italy
3
Department of Physics and Astronomy “Augusto Righi”, Bologna University, Viale Berti Pichat 6/2, 40127 Bologna, Italy
4
National Institute for Nuclear Physics, Bologna Division, Viale Berti Pichat 6/2, 40127 Bologna, Italy
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2022, 12(4), 2096; https://doi.org/10.3390/app12042096
Submission received: 31 December 2021 / Revised: 14 February 2022 / Accepted: 15 February 2022 / Published: 17 February 2022
(This article belongs to the Special Issue Beyond the Surface: Novel Non-destructive Techniques to Explore Works of Art)
Browse Figures
Versions Notes

Abstract

:
Computed Tomography (CT), mostly used in the medical field, has also recently been involved in Cultural Heritage studies, thanks to its efficiency and total non-invasiveness. Due to the large variety of sizes and compositions typical of Cultural Heritage objects, different X-ray sources, detectors, and setups are necessary to meet the different needs of various case studies. Here, we focus on the use of micro-CT to explore the morphology and shape of a small, neglected bone found inside the clitoris of non-human primates (the baubellum), which we obtained by accessing two prestigious primatological collections of the American Museum of Natural History (New York, NY, USA) and the National Museum of Natural History (Washington, DC, USA). Overcoming methodological limits imposed by the absence of homologous landmarks, we combined the use of the non-invasive 3D micro-CT and a recently released landmark-free shape analysis (the alpha-shape technique) to objectively describe and quantify the shape complexity of scanned primate baubella. Micro-CT provided high-resolution results, overcoming constraints linked to museum policy about non-disruptive sampling and preserving samples for future research. Finally, it proved appropriate as post-mortem sampling had no impact on protected wild primate populations.

1. Introduction

Nowadays, among a variety of diagnostic imaging tools in the medical field, the use of Computed Tomography (CT) has been shown to be the most widely used. Recently, its importance and potential have become increasingly evident even when applied to other areas, such as industry and Cultural Heritage [1]. A growing number of authors have reported the successful use of CT as an efficient and non-destructive tool for the study of, for example, archaeological findings and works of art [2,3,4,5,6,7,8,9,10,11,12,13,14,15].
CT can be considered the natural evolution of radiography, being capable of providing both morphological and physical information on the inner structure of the objects. In fact, in conventional radiography, the 3D structure of an object is projected onto a 2D detector, and each point of the resulting image provides a measure of the overall attenuation of the X-ray beam as it crosses through the subject. Consequently, while the specimen’s lateral dimensions (height and width) are retained on the radiograph, the third dimension (depth) is lost. In general, in the case of essentially bi-dimensional works of art, such as paintings, this is not a crucial issue, but it may create problems when a case study is a tri-dimensional object [16]. The 3D reconstruction of the objects makes it possible to obtain a large amount of information not only on the conservation status and inner morphological features (e.g., useful for conservation and restoration purposes) but also on the manufacturing and construction technique of a specific artifact (e.g., of a work of art). Information can be retrieved as either 2D cross-section images (the so-called slices) or 3D full-volume images, thus allowing for the inspection and classification of the different materials making up the object studied. Thanks to the use of sophisticated computer programs, it is possible to manipulate the 3D renderings, by making virtual cuts on the reconstructed volume or selectively removing some layers to reveal additional information. Moreover, by processing tomographic data, a 3D numerical model of the sample can be obtained for either virtual reality applications, digital archive storage, or the creation of replicas using 3D printing [17,18].
Due to the large variety of sizes and compositions of the target tissues/materials this technique can be applied to, different X-ray sources, detectors, and setups are necessary to meet the different needs of various case studies. The geometrical setup and X-ray beam energy of medical CT scanners, for example, are optimized for the human body, so their application in areas different from the medical field is characterized by strong constraints about the size, shape, and density of the object to be analyzed [16]. This has been the case when medical scanners have been used for the analysis of human mummies [19,20,21,22,23,24,25,26], human and animal bone fossil materials [27,28], and clay/ceramic archaeological artifacts [29,30,31]. As for size, whereas traditional CT scanners target medium-sized objects (whose minimal voxel size is usually not lower than 0.5 mm—but see [32] for special CT scanners up to 0.2–0.3 mm), large works of art, or else extremely small objects, must rely on specifically enhanced scanners, such as CT systems, which use X-ray sources of up to 200 kV [6], and micro-CT systems, respectively. Micro-CT is a versatile technique that can be successfully applied to different materials, such as small metal objects, jewelry, ceramics [33], prehistoric pottery, stone [34], and organic material, such as wood [35], charcoal [36], textiles, and archaeological food remains [37], insect museum samples [38], fossil and non-fossil teeth [39,40], and bones [41,42].
Non-human animal bones are used by scholars interested in evolutionary history research through the study of bone morphological variation. This kind of study usually requires the collection of a large number of bone samples, and natural history museums all over the world may represent an essential and extraordinary source of specimens. Nevertheless, especially for studying museum samples, it is necessary to apply non-invasive methodologies of investigation that allow both preserving sample integrity and following strict museum rules about manipulation and non-destructive sampling. Spani and colleagues [42] established a highly reliable methodological protocol for obtaining high-resolution images of primate small bones (i.e., genital bones, known as baculum in males and baubellum in females) by applying micro-CT on museum specimens. The use of micro-CT allowed us to overcome museum policy constraints and to investigate both anatomy and morphology while keeping samples fully preserved for future research. Although the study of genital bones in primates has always suffered a widespread omission of both occurrence and morphology data in both sexes, a notable bias disproportionally favors male data, making the study of baubella even more urgent (see [43] for more details). In this study, we apply micro-CT focusing on primate baubella to contribute to investigating the morphology and shape variation of this neglected bone.
Bone morphology is made up of size, shape, structure, and patterns. The shape has traditionally been the subject of controversial studies (not limited to bones) because it is hard to reliably quantify it objectively. This is, in fact, the assumption of morphometry for reading shape as a set of all geometric information contained in it, after eliminating any distortion effects, such as position and orientation in space, and scale [44]. Shape quantification, not just description, is fundamental to studying its variation in an evolutionary context and to better understand the diversity of life and phenomena, such as adaptation and speciation [45,46]. Thanks to the progress made in the digitization of samples, a variety of new methodologies have been developed to analyze and quantify biological data from 3D shapes. By quantifying the variation of the shape based on multivariate methods, the study of the covariation either between forms or between forms and extrinsic factors has been carried out (e.g., [47]).
Over the last decade, geometric morphometric (GMM) techniques have radically changed the analysis of shape and form. The GMM techniques analyze coordinates of homologous reference points (i.e., landmarks) that are identified on every specimen studied. When this is possible, GMM has proved extremely useful in the study of morphology in a variety of structures, such as vertebrate skulls [48,49], brachyuran claws [50] and carapace [51], molluscan shells [52,53,54], insect wings [55], and tree leaves [56]. On the contrary, however, the application of GMM is hard when landmarks are lacking, such as in anthropological artifacts [57], seeds [58], otoliths [59], ribs [60], diaphysis of long bones [61], and genital bones [62,63]. In this respect, therefore, the study of shape variation of genitals in general, and genital bones in particular, represents a challenge, and GMM techniques have been successfully applied only to specific cases (e.g., comparisons among morphologically very similar either conspecific [64,65,66,67,68] or congeneric individuals [69,70]).
In this stimulating methodological scenario, we aimed to investigate morphology and shape variation of primate baubella, taking advantage of the primatological collections of two of the most prestigious natural history museums, the American Museum of Natural History (NY, USA) and the National Museum of Natural History (Washington, DC, USA). In particular, our goals were: (1) collecting and visualizing 3D baubella volumes by using the non-invasive micro-CT technique, which allows the preservation of sample integrity, following museum rules on non-destructive sampling, and (2) by overcoming constraints imposed by the use of GMM techniques, objectively describing and quantifying shape by applying for the first time on baubella a recently proposed landmark-free method known as alpha-shapes [62].

2. Materials and Methods

2.1. Female Genital Bone Sampling

Two types of samples were used to analyze the female genital bone occurrence and morphology: (1) a fresh sample and (2) museum samples.

2.1.1. Fresh Sample

The fresh sample of baubellum was supplied by Istituti Zooprofilattici Sperimentali (II. ZZ. SS.) which in Italy are responsible for receiving primate corpses (dead for natural causes or trauma/disease) from zoos and/or research institutes and carrying out necropsy investigations aimed at identifying possible risks of zoonoses. To maximize chances to gather samples for our project, an agreement between the Department of Sciences (Roma Tre University) and the Ministry of Health (as the referent for all Italian II.ZZ.SS.) was signed. Thanks to this agreement, whenever a primate cadaver of either sex was available at an IZS, the Authors (FS, MS, MC) were notified, and the sample was obtained. To standardize the section of the external genitals by the IZS veterinarians, a protocol was provided by the Authors (FS, MC) to the II. ZZ. SS., including a sample preservation method (70% ethanol). Samples would later be stored at the Department of Sciences until dissection and bone extraction.

2.1.2. Museum Samples

Museum samples were selected by exploring some of the widest wet museum collections (70% ethanol) of primates belonging to the American Museum of Natural History (AMNH, New York, NY, USA Vertebrate Collection Database available at http://sci-web-001.amnh.org/db/emuwebamnh/index.php, accessed on 1 March 2018) and National Museum of Natural History (Washington DC, USA, Mammal Collection Database available at https://collections.nmnh.si.edu/search/mammals/, accessed on 2 April 2019). Museum samples were either whole bodies or external genitals only. Neither skins nor skeletons were considered in the present study because the taxidermic preparations they are subjected to usually result in a definitive loss of soft tissue (in the former), and a high probability of loss of smaller skeletal components (such as genital bones) during the boiling process (in the latter).

2.2. Anatomical Data Collection and 3D Morphological Data Acquisition

As part of a wider study of primate genital bones, a 3-step methodological protocol was applied (palpation, X-rays, micro-CT [42]) to obtain a set of data on bone occurrence, anatomical position, and external and internal morphology. Depending on sample type (fresh/museum) and origin (Italy/USA), slight variations to this protocol have been made for (a) micro-CT scanner models and (b) a few necessary methodological adjustments, as reported in Table 1 (see also Table 2 for the micro-CT scanning settings).
The final phases of reconstruction, segmentation, and post-processing were performed by using different software depending on sample type/origin: the proprietary software PARREC for the Italian/fresh sample and the Datos software for USA/museum samples, both followed by rendering with VGStudioMax 3.1 (see details in [42]). The total average time needed to detect and visualize genital bones differed between fresh and museum samples (4 h 50′ and 1 h 30′, respectively, see Table 3). For USA samples, no dissection was performed since it did not fit with museum destructive sampling requirements (Table 3 for museum samples).

2.3. Morphological Analysis and Form Variation

2.3.1. Qualitative Analysis

Overall evaluation of baubellum external morphology has been made based on both actual bone appearance (i.e., dissections and extractions, applied only to the fresh sample) and 3D scans. The internal morphology of scanned baubella has been investigated only after the scan process, thus allowing the examination of inner parts, preserving sample integrity, and making it available for future studies.

2.3.2. Quantitative Analysis

To study shape variation, it was necessary to overcome the difficulties related to the extreme morphological variability that affects the baubellum and that did not allow the identification of homology points and the use of spatial landmarks (i.e., anatomical loci recognizable in all samples) necessary to analyze geometric morphometry. Thus, to quantify the 3D morphological complexity and obtain a continuous variable summarizing the 3D surface shape variation of scanned baubella, we applied a recently established landmark-free technique known as ‘alpha-shapes’ analysis [62,63]. ‘Complexity’ was measured as the degree of sophistication required for the volume of an appropriately fitted ‘alpha’ shape to match the 3D model of a baubellum. The procedure used is summarized below:
  • The product of segmentation (see ‘Anatomical data collection and 3D morphological data acquisition’ section) was extracted either as a 3D polygonal volumetric model (file format: ply) or mesh. The polygonal models were post-processed with Amira and Geomagic Studio 2014 software.
  • The total number of polygons was taken down to 250,000 in Amira, and the extracted surface, loaded into Geomagic Studio 2014, was corrected by deleting (automatically and manually) computational errors in the mesh, such as non-manifold edges, self-intersections, highly creased edges, spikes, small components, small tunnels, and small holes. Only the external surface of bones was kept, by emptied 3D models, to avoid anatomical non-homologies in the bone’s internal structure. In addition, each baubellum length was measured by using the distal and proximal ends of the bones as reference points. The length was recorded 3 times by the same operator (FS), and the mean was calculated.
  • The mesh was converted to a point cloud with Meshlab software, and the total number of points making up the cloud was set to 100,000.
  • An ‘alpha-shape’ is formed by the boundary of an alpha complex, which, in turn, is a sub-complex of the Delaunay triangulation for a given set of points [71]. For a given set of points in space, a family of ‘alpha-shapes’ can be defined, ranging from a conformation that fits the set of points very coarsely (forming a convex ‘shell’ around the points) to a conformation that fits very finely around the points. The following equation was used to calculate the typical radius α for each individual:
    α = k × l r e f
    where α is the radius, k is the refinement coefficient, and lref is the reference length (for more details see [62,63]).
  • Since the present study is only interested in quantifying shape complexity regardless of size, all α-rays were scaled to the overall mesh size summarized by the lref factor. The size factor was then calculated as the average of the average distances of each point of the cloud from the 100 closest ones.
  • The complexity of the baubella shapes analyzed in 3D was visualized by graphing the trend of a curve (representative of this morphological complexity) given by the ratio of the variables k to the percentage of the CT volume as described by the volume of the alpha-shapes; furthermore, morphological complexity was also quantified by the 1/k ratio, as suggested by Brassey and collaborators [63].
Steps 4 through 6 were performed in R software, and scripts are available under motivated request to the Author (FS).

3. Results

3.1. 3-Step Protocol and baubellum Occurrence Data

Six samples of female external genitalia (including 3 clitoris and 3 whole bodies, based on the availability of both museum and fresh samples) were analyzed using the methodology proposed by Spani and collaborators ([42]; 3-step protocol) and the results are summarized in Table 4 (including comparison with available scientific literature).
All 3 clitoral samples belonged to adult specimens: (1) Cebus capucinus (capuchin monkey, museum collection of the NMNH); (2) Varecia variegata (black-and-white ruffed lemur, museum collection of the AMNH); (3) Lemur catta (ring-tailed lemur, fresh sample from the I.Z.S. di Lazio e Toscana). The first two specimens proved positive at all steps of the 3-step protocol [42] (Figure 1A,F), while the third one proved negative at the first step (i.e., palpation) and then positive at the last 2 (Figure 1C). Three whole bodies scanned belonged to 3 adult specimens (1) Galagoides demidoff (Demidoff’s galagon), (2) Otolemur crassicaudatus (giant brown galago), and (3) Propithecus verreauxi (Verreaux’s sifaka; all specimens from the museum collection of the AMNH). All these samples tested positive for baubellum presence at all steps of the 3-step protocol (Figure 1B,D,E).

3.2. Anatomical and 3D Morphological Data

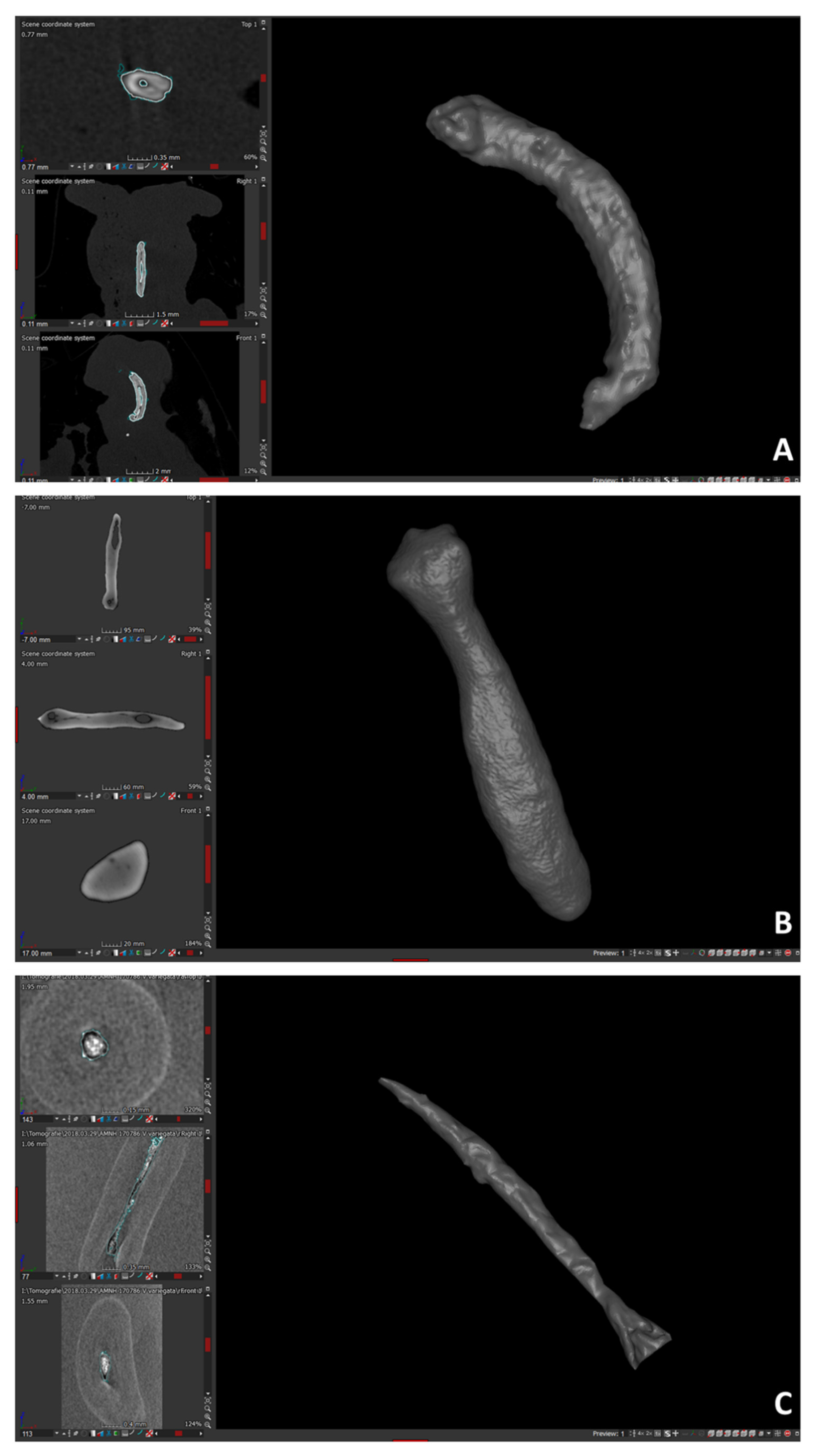

Two-dimensional data revealed that all baubella are located at the distal end of the clitoris, and bone length (measured from distal to proximal end) ranged from 0.5 mm in O. crassicaudatus to 5.55 mm in L. catta (Figure 1). Three different morphologies appear: (1) the stick shape (the most common), straight in G. demidoff, V. variegata, and L. catta (Figure 1B,C,F), and curved in C. capucinus (Figure 1A); (2) the Y-shape in P. verreauxi (Figure 1E); (3) the extremely small and rounded baubellum in O. crassicaudatus (Figure 1D). Internally, the bony tissue appeared compact overall, and numerous canals (likely Haversian channels) ran through it (see some examples of baubellum internal morphology in Figure 2).

3.3. Analysis of α-Shapes

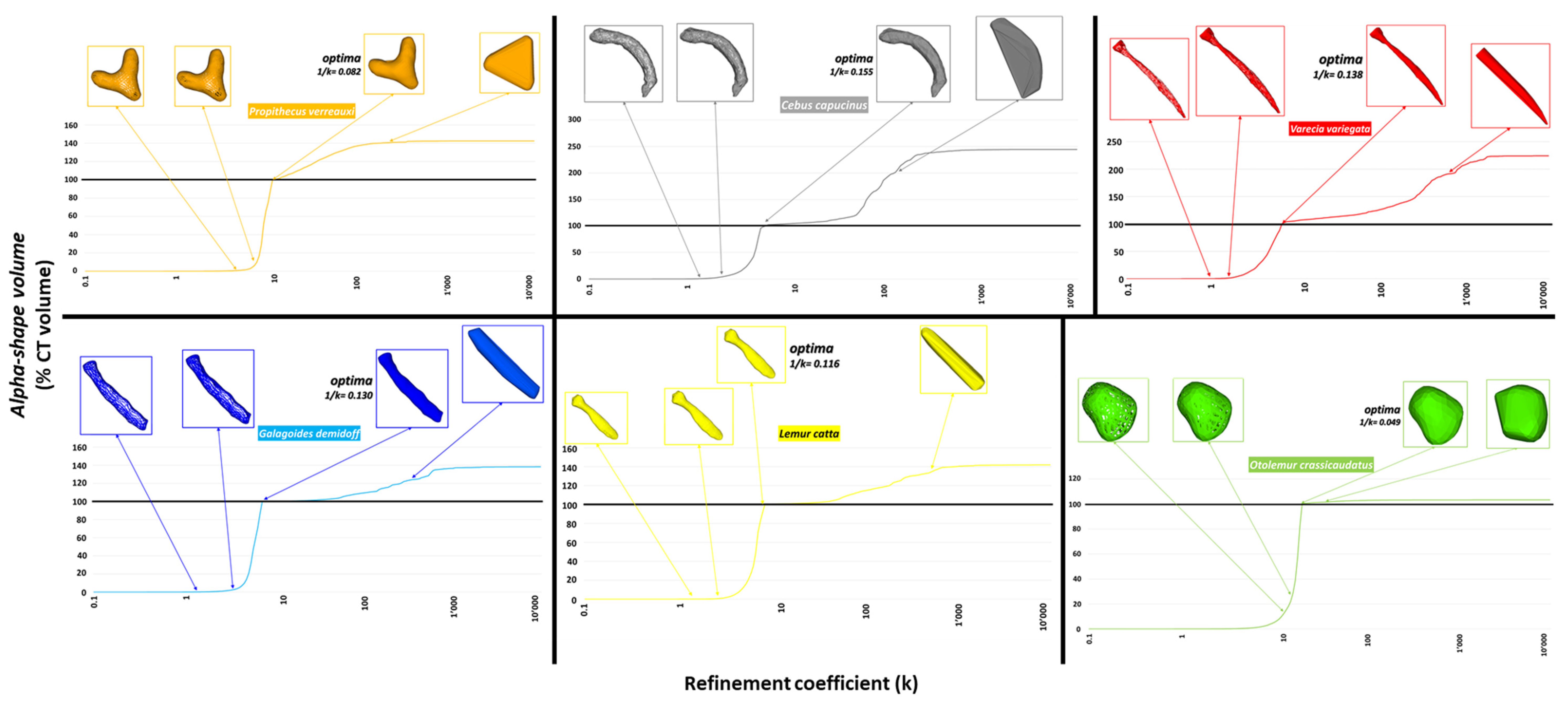

The alpha-shape methodology shows and summarizes the complexity of the 3D shape of the scanned baubella in a single curve representative of each sample (Figure 3). As the value of the refinement coefficient (k) (in abscissa) decreases, the percentage of the alpha-shape volume that intersects the CT volume also decreases. Below 100%, the alpha-shape “decomposes” and traverses the point cloud. The “optimal” refinement (indicated in Figure 3 as optima) corresponds to the value of the parameter 1/k that describes a continuous variable of the morphological complexity; the optimal value of k is reached when the volume of the alpha-shapes is exactly equal (100%) to the CT volume. On the contrary, excessively high k values correspond to highly coarse alpha-shapes that wrapped the cloud of points adapting only to the outermost points of the cloud itself. Figure 4 shows all the curves obtained as described by a single parameter, the refinement coefficient (k), which facilitates further and subsequent comparative analyses and represents the morphological complexity of the scanned baubella.

4. Discussion

In compliance with the museum’s non-destructive sampling rules, anatomical and 3D morphological data were obtained thanks to the application of non-invasive micro-CT. The micro-CT followed by the alpha-shapes analysis proved appropriate to describe a variety of traits (i.e., shape, surface, length, internal structure) in the museum (and fresh) baubellum specimens, both at the specific and the comparative inter-specific level, disentangling morphological differences among species. All samples of the clitoris revealed a baubellum inside regardless of specimen type (i.e., either museum/fresh or clitoris/whole body). For almost all species (C. capucinus, G. demidoff, L. catta, O. crassicaudatus, and V. variegata), our occurrence data confirmed the literature data ([72,73,74,75,76] respectively). More importantly, for P. verreauxi no information is available in the literature so far; thus, our datum of baubellum presence represents the first report for the species.
Overall, forms reconstructed and visualized in 3D appeared rather variable both in size (length ranging from less than a millimeter to little more than 5 mm) and shape. Three different shape types were unfolded that we defined as ‘stick’ (more or less curved), ‘Y’, and rounded type. According to the only one scanned sample of primate baubellum previously described [42], the surface of our baubellum samples appeared smooth and coherent (also compared with the rough and jagged surface described for the baculum of Mandrillus sphinx [42]. In all samples, the internal morphology showed a very similar internal arrangement, including the Haversian channels, as already observed in Sapajus apella baubellum (Linnaeus, 1758) [42].
Alpha shape profiles of scanned 3D surfaces allowed us to characterize and finally quantify baubellum shapes. Specifically, similar/dissimilar external morphologies were marked out by comparing (a) the trend of the curves (qualitative evaluation) and (b) the optimal refinement coefficient “1/k” (quantitative evaluation). As shown in Figure 4, all baubella recognized as a morphological type similar to a ‘stick’ (i.e., C. capucinus, gray line; G. demidoff, blue line; L. catta, yellow line; V. variegate, red line) are described by profiles with a similar trend. Accordingly, the values of k at which the volumes of the alpha-shapes reach 100% of the CT volumes were close, as the corresponding values of the 1/k parameters showed in Figure 3 (C. capucinus = 0.15; G. demidoff = 0.13, L. catta = 0.11; V. variegata = 0.13). On the contrary, alpha shape profiles of the other two morphological types showed different trends (both between them and also in comparison with the ‘stick’ types), as shown by the green line of the rounded baubellum type (i.e., O. crassicaudatus) and the orange line of the ‘Y’ type (i.e., P. verreauxi). As expected, 1/k parameters resulted far from each other (1/k = 0.049 and 1/k = 0.082, respectively) and from those of the ‘stick’ type. It is, therefore, appropriate to affirm that for baubella that are externally very similar (or dissimilar) to each other, the relationship between the percentage of CT volume (described by the volume of the alpha-shapes) and the refinement coefficient (k) is characterized by very similar (or dissimilar) profiles, with close (or far) values of the parameter 1/k.
We aimed to obtain quantitative data about shape description and variation on a challenging bone by accessing precious museum reserves and by applying a combination of non-invasive data acquiring techniques and landmark-free techniques. Although overall research on genital bones is still far from being exhausted, no quantitative study about their morphological evolution, however, has ever tried to investigate the evolution of shape in such diverse bones, but has rather focused on size only, even represented by a very simple estimate such as length [77,78,79,80,81]. One crucial reason that explains the focus on length rather than on shape may lie in the difficulties of finding, on bone surface, the homologous references (landmarks) at the interspecific level, which are essential to apply the appropriate geometric morphometrics. The development of automated landmark-free methods has recently been stimulated by the necessity of quantifying shape in all those biological structures that are deficient in homologous points, and the alpha-shapes method [62] proved extremely useful for our specific aim. An alternative landmark-free method proposed by Pomidor and colleagues [82] is the Generalized Procrustes Surface Analysis (GPSA). However, the GPSA technique could not be applied to the present study due to the impossibility of controlling the superimposition process (i.e., the centering, rotating, and scaling of all surfaces at the same point in the space, in the same orientation, and at the same dimension, respectively [72,83,84]). Specifically, if applied to our scans, the distal end of a baubellum could theoretically be erroneously aligned in the space onto the proximal end of another bone due to dummy homologies. The alpha shape methodology allowed us to overcome the problem of uncontrolled alignment by comparing several surfaces independently.
In addition, our focus centered on the shape quantification of the most neglected primate genital bone, the baubellum. Based on the bias found in the literature about variation in genital morphology, which returns data and discussions mostly limited to the male’s genital external and internal features (e.g., penile length and complexity of distal morphology, the size, and shape of keratinized spines, baculum occurrence, length, and width, descriptive morphology [85,86]), we considered it mandatory (and fair) to enhance and initiate implementing the literature status of the baubellum (as for occurrence, external and internal morphology, length, and shape quantification data). The paucity of studies on the baubellum (as well as the clitoris) is even more striking by considering that: (a) it is not limited to the primate order but it also applies to upper taxonomic levels (i.e., mammals) and (b) although baculum (and penis) and baubellum (and clitoris) are homologous structures (i.e., they share ontogeny), most scientific efforts have been always and unjustifiably focused on just the male counterpart ([73,86,87,88,89,90,91], but see the most recent [43,92,93]).
Most of the world’s population of primate species are threatened by extinction [94], therefore the invasive level of analysis usually required for anatomical studies [95] is inappropriate and unacceptable, especially for the primate order. Therefore, data acquisition from museum collection specimens represents a kind of post-mortem sampling that prevents the depletion of protected wild primate populations. In addition, museum collections are even more valorized when non-disruptive 3D scanning is applied since it allows both to produce advanced data from historic material (either exhibited or hidden in basements) and also to protect the integrity of samples thus available for future research to come [42,43]. The baubellum still represents a wide and worthy topic to investigate. We believe that a systematic study building up a dataset on quantitative data about shape description and variation would contribute with a refreshingly novel perspective to shed light on the evolutionary history of baubella in primates. We hope this study will encourage and open up new opportunities for research about primate baubellum phylogenetic distribution (i.e., by filling occurrence gaps), evolutionary developmental biology (i.e., by studying shared ancestry and ontogeny), and adaptive meaning (i.e., by hypothesizing and investigating “mysterious” function(s)), especially taking into account the huge and unexploited materials still available in museums all over the world.
In conclusion, we have been able to overcome methodological limits imposed by the absence of homologous landmarks on baubella, and we objectively described and quantified shape complexity by combining the use of the non-invasive 3D micro-CT and the alpha-shape technique. Micro-CT provided high-resolution results, overcoming constraints linked to museum policy about non-disruptive sampling and preserving samples for future research, and it proved appropriate as post-mortem sampling has no impact on protected wild primate populations. By quantifying baubellum morphological complexity and variability, we aimed to take the study of the anatomy and morphology of baubellum to a higher level to fill knowledge gaps in its evolutionary development, phylogeny, and function(s).
