Gait Training for Hemiplegic Stroke Patients: Employing an Automatic Neural Development Treatment Trainer with Real Time Detection

Featured Application

This paper investigates the effectiveness of using an automatic NDT trainer for the clinical rehabilitation of stroke patients.

Abstract

This paper presents a clinical rehabilitation protocol for stroke patients using a movable trainer, which can automatically execute a neurodevelopmental treatment (NDT) intervention based on key gait events. The trainer consists of gait detection and motor control systems. The gait detection system applied recurrent neural networks (RNNs) to recognize important gait events in real time to trigger the motor control system to repeat the NDT intervention. This paper proposes a modified intervention method that simultaneously improves the user’s gait symmetry and pelvic rotation. We recruited ten healthy subjects and had them wear a rehabilitation gaiter on one knee joint to mimic stroke gaits for verification of the effectiveness of the trainer. We used the RNN model and a modified intervention method to increase the trainer’s effectiveness in improving gait symmetry and pelvic rotation. We then invited ten stroke patients to participate in the experiments, and we found improvement in gait symmetry in 80% and 90% of the patients during and after the training, respectively. Similarly, pelvic rotation improved in 80% of the patients during and after the training. These findings confirmed that the movable NDT trainer could improve gait performance for the rehabilitation of stroke patients.

1. Introduction

Stroke has been reported as the second leading cause of death in the last 15 years [1]. The most common disorder caused by stroke is motor impairment, which typically affects the control of movement on one side of the body and is seen in about 80% of patients [2]. Although 65% to 85% of stroke survivors could recover independent walking by six months post-stroke, gait abnormalities persist through the chronic stages [3]. Only 30–50% of stroke survivors achieve community mobility, which is an essential indicator of the activities and participation domains according to the International Classification of Functioning, Disability, and Health [4]. People with stroke may have an impaired ability to adapt to environmental challenges. They have trouble walking across obstacles, increasing the risk of tripping or navigating around more significant obstacles (e.g., another person approaching in the opposite direction). Long-term rehabilitation is usually required for these patients to help them recover their ability to live independently and walk on their own. As stroke recovery progresses, stroke survivors usually develop better gross motor skills in trunk balance and greater leg strength. Despite spasticity and the inability to selectively activate individual muscles, most stroke survivors will eventually walk. Therefore, gait training is essential for stroke patients [3].

Poststroke gait deficits may be primary or secondary gait deviations [5]. The former is related to the disruption of neural pathways controlling gait, while the latter is the adaptive compensations following the primary deviation. Compared to stroke patients, relatively strict symmetric coordination of the lower limbs is a characteristic of bipedal walking in people with intact central nervous and musculoskeletal systems [6]. In contrast to other features of poststroke gait patterns, gait asymmetry appears to be more resistant to intervention. The majority (>79%) of people with subacute stroke will not significantly improve gait asymmetry during inpatient rehabilitation, despite improving other features of walking and balance [7]. Traditional gait rehabilitation methods use hands-on techniques to guide the patient’s body movements and gait patterns [8,9,10]. Among these techniques, neurodevelopmental treatment (NDT) is used to give the patients the feeling of walking with minimal intervention. Hence, patients can intentionally drive their center of gravity (COG) forward and balance themselves using striding steps. However, this conventional rehabilitation practice places high demands on therapists. Therefore, many rehabilitation devices have been proposed to help patients improve their walking abilities with minimal therapist intervention.

Colombo et al. [11] developed a gait orthosis that could move the user’s legs on a treadmill. Schmidt et al. [12] proposed programmable footplates that could control the patients’ feet to simulate walking patterns. Wang et al. [13] presented an active gait trainer that used motors to guide the user’s ankles. Unlike these devices, which guide the users’ feet according to preset movements, NDT training stimulates the patients’ joints at key time points and lets the patients intentionally drive their bodies, so that the patients can elicit positive brain reorganization and regain control of their feet by motor training. However, despite its effectiveness in stroke rehabilitation, traditional NDT training can also be very labor intensive and time consuming for therapists. Therefore, Wang et al. [14,15] designed a stationary NDT trainer that could automatically repeat the therapist’s intervention patterns. They then developed a movable NDT trainer [16], which allowed the users to walk at their preferred speeds while receiving visual feedback.

Correct identification of gait events is crucial for rehabilitation intervention. For example, Wang et al. [14,15] found that therapists tended to cue the subject’s anterior superior iliac spine (ASIS) when observing the subject’s heel strike (HS) on the opposite side during clinical NDT training. Therefore, automatic NDT trainers were designed to repeat this intervention pattern at the key gait events, and many methods have been proposed to identify these important gait events. For instance, optical motion capture systems, such as the VZ4000 [17] and VICON [18], are frequently applied to measure motions. Much research has also applied artificial intelligence to detect gait events based on gait information obtained by inertial measurement units (IMUs) [19,20]. For example, Williamson and Andrews [21] applied machine learning to detect real-time gait events using accelerometer signals, whereas Aminian et al. [20] estimated stride length and velocity using gyroscope data. Mazilu [22] proposed multi-feature fusion to recognize freezing gaits, and Sun et al. [23] applied wearable IMUs to recognize elderly users. Wang et al. [16] developed a gait detection algorithm to identify important gait events based on IMU data. The algorithm could automatically update parameters in real time for different users with various walking patterns. However, updating the parameters took several steps (in a few seconds) and might have degraded the rehabilitation effects. Therefore, a recurrent neural network (RNN) model was applied to the gait detection system [24], and this allowed detection of HS events in real time based on the IMU data from two legs. The average accuracy was more than 98%, and the average latency was less than 0.036 s for different subjects, including elderly subjects, stroke patients, and patients with Parkinson’s disease (PD). Therefore, in this paper, we applied the RNN model to detect HS events.

The currently available NDT trainer can repeat the therapist’s intervention pattern by cuing the subject’s ASIS when observing the HS on the opposite side. However, we noted that the present intervention method improves the subject’s longitudinal symmetry but does not improve pelvic rotation. The locomotion of the pelvis is closely related to walking stability [25,26]. For example, Wagenaar et al. [27] showed the contribution of pelvic rotation to lengthening the stride, especially when walking at fast speeds. Energy conservation is crucial during gait, and the vertical displacement of the body is minimized by a number of factors known as the determinants of gaits. These determinants operate independently and simultaneously to produce a smooth sinusoidal vertical and horizontal path, which has one vertical peak and trough for each step. One of the determinants of gait is the rotation of the pelvis, which reduces center of mass (COM) movement, thereby conserving energy [28,29]. Therefore, we analyzed the subjects’ pelvic motions and the therapists’ interventions during clinical NDT rehabilitation and proposed a modified method to improve the pelvic rotation. We implemented the modified intervention method and recruited 10 healthy subjects who wore a rehabilitation gaiter to mimic stoke gaits to verify the effectiveness of the trainer in improving gait performance and pelvic rotation. We also invited 10 stroke patients to participate in the experiments, and their results confirmed that the proposed intervention method simultaneously improved both pelvic rotation and gait symmetry.

This paper is organized as follows. Section 2 describes the movable trainer, which can automatically conduct NDT rehabilitation intervention. The trainer consists of a gait detection system and a motor control system. The gait detection system employs an RNN model to identify HS events in real time, so that the motor system can be activated for NDT intervention at the key time. Section 3 introduces a modified intervention method that can simultaneously improve the subjects’ gait symmetry and pelvic rotation. We recruited 10 healthy subjects and had them wear a rehabilitation gaiter to imitate stroke gaits to test the trainer. The results confirmed the effectiveness of the trainer. Section 4 presents the results for 10 stroke patients invited to participate the experiments and shows that the NDT trainer can improve both gait symmetry and pelvic rotation in stroke patients. Finally, we draw conclusions in Section 5.

2. The Movable NDT Trainer: Experimental Design and Data Collection

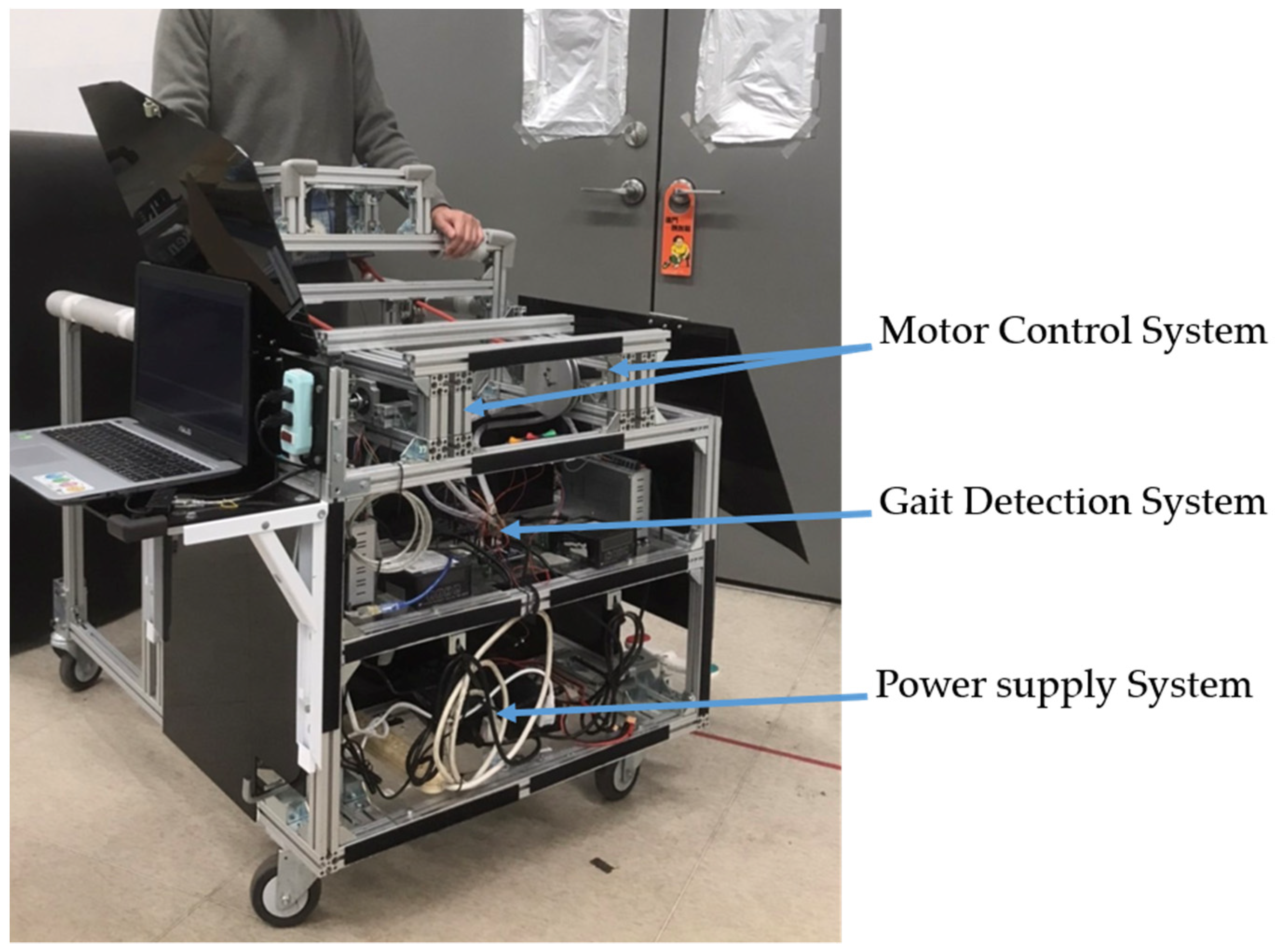

This section describes the movable trainer [16], which automatically repeats the NDT intervention. The trainer consists of a gait detection system and a motor control system, as shown in Figure 1, which equips with an adjustable handle for safety. The gait detection system analyzed the gait information obtained from two IMUs attached to the user’s shanks. It could automatically recognize the HS events and send triggering signals to the motor control system to imitate the therapists’ intervention. The motor control system could repeat the therapists’ intervention patterns by stimulating the users through ropes. The ropes connected the motors and the user’s pelvis to cue the user as the traditional NDT training. Load cells were implemented between the ropes and the motors to measure the applied forces for feedback control. Previous studies [14,15,16] showed that the therapists tended to cue the subject’s right (left) pelvis when the subject’s left (right) foot struck the ground. Therefore, an RNN model [24] was applied to the gait detection system, which detects the HS in real time to activate the motor control system. The motor control system then repeats the NDT intervention after receiving the triggering signals from the gait detection system [14,15,16].

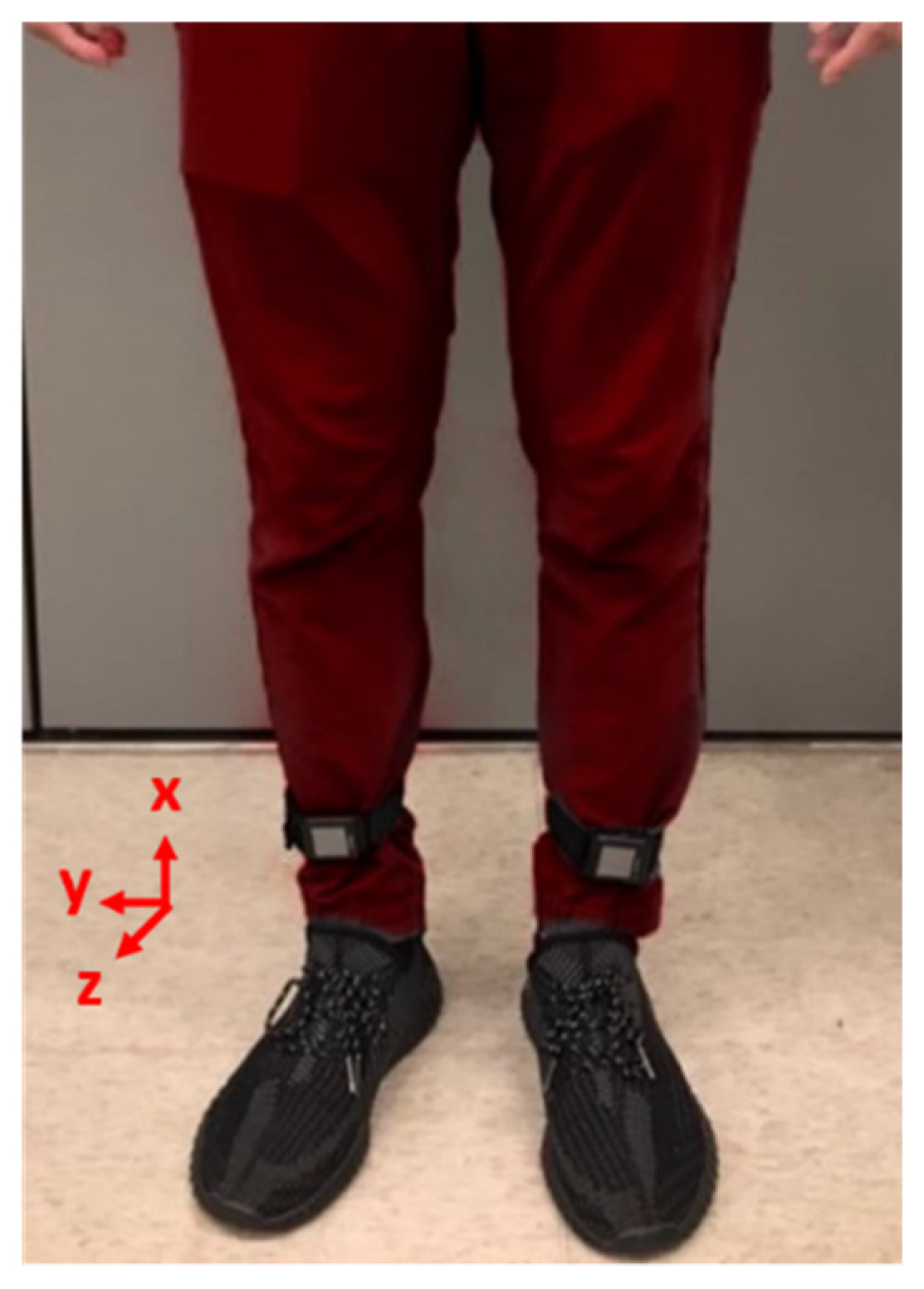

Stroke patients tend to have uneven gaits due to hemiparesis, and stroke patients have their own individual walking patterns and speeds. Therefore, we developed an RNN model to detect HS events for subjects who might have varied walking patterns and speeds [24]. We applied the APDM OPAL system [30] to measure each subject’s kinematic data with a sampling rate of 25 Hz. Two IMUs were attached to the subject’s legs, as shown in Figure 2, to measure gait data. The specifications of the IMU are illustrated in

Table 1. Specifications of the APDM OPAL IMU [30].

Size	43.7 mm × 39.7 mm × 13.7 mm
Weight	<25 g (with battery)
Resolution	17.5 bits
Sampling rate	20 to 128 Hz
Max measurement range of gyroscope	±200 g
Max measurement range of accelerometer	±2000 deg/s
Max measurement range of magnetometer	±8 Gauss

.

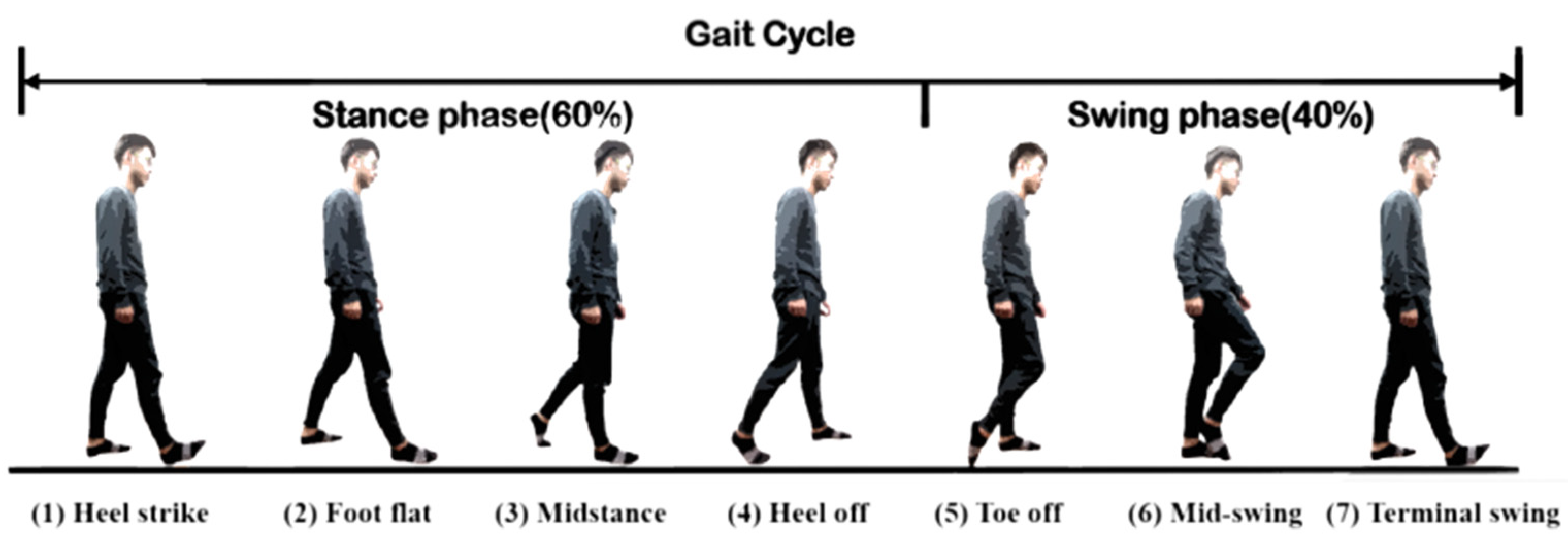

Human gaits are regularly periodic. A complete gait cycle, as illustrated in Figure 3, contains three important gait events: mid-swing, HS, and toe-off. We applied the six-axial IMU data and marked the HS events to build an RNN model [24], as shown in Figure 4. The model was trained by the gait data measured in five healthy subjects who wore a rehabilitation gaiter with a 2 kg mass to limit their joint movement on one knee to increase gait varieties (see Figure 5). We segmented the gait data with a sliding window, as illustrated in Figure 4, which consisted of 50 samples of six-axial IMU data as the model input. The window was then moved by one sample each time, with an overlap of 98%. The model output was marked as 1 for an HS event or 0 for a non-HS event. We applied the leave-one-out cross validation method [31] to train the RNN model. We then applied the model to three groups of subjects: healthy elderly subjects, stroke patients, and patients with PD. The results illustrated in

Table 2. Testing results of the RNN model [24].

	Average Accuracy (%)	Average Latency (Samples)
Elder	100.00%	0.59 ± 0.73
Stroke	99.12%	0.84 ± 1.04
PD	99.84%	0.48 ± 0.62
Average	99.65%	0.64 ± 0.80

confirm that the RNN model successfully recognized the HS events with an average accuracy of 99.65% and an average delay of 0.0256 s. Therefore, we applied the RNN model to detect the HS and to activate the NDT intervention in real time.

3. Modified NDT Intervention

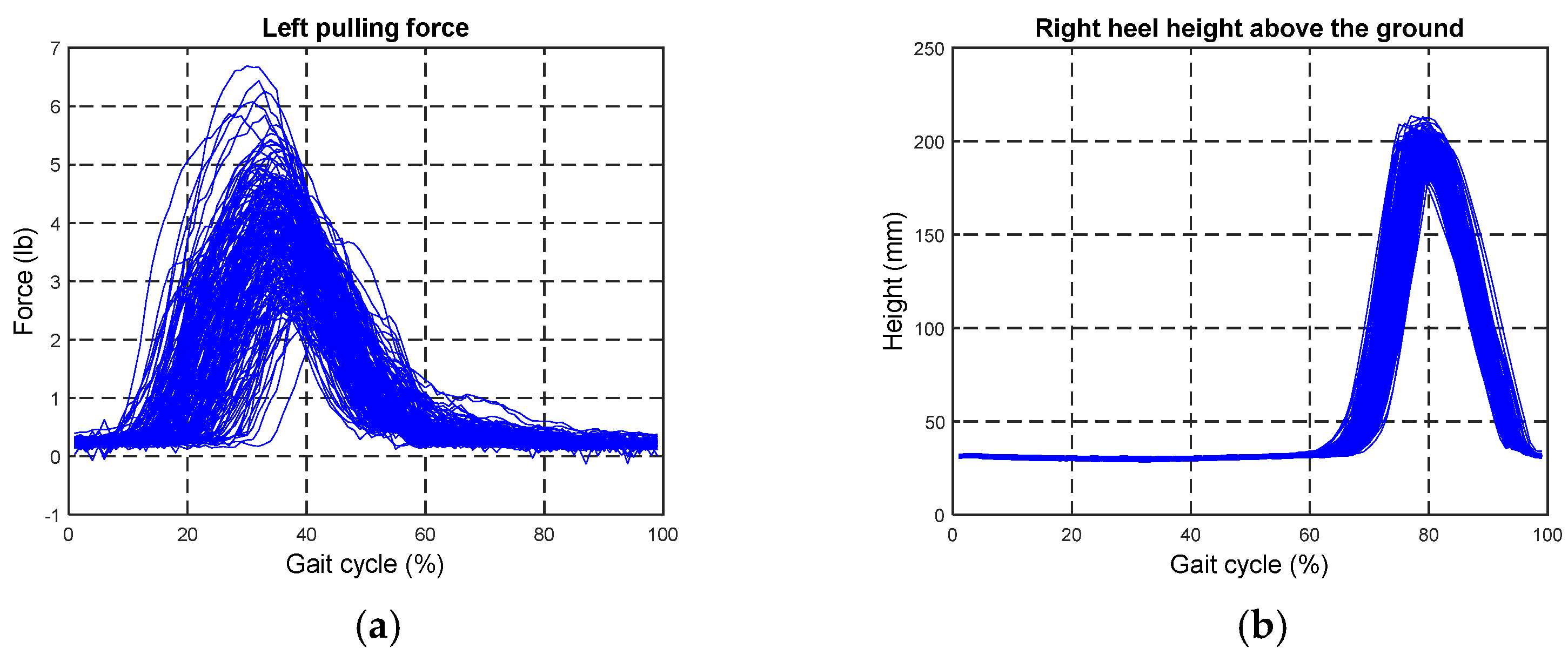

The motor control system can repeat the NDT intervention after receiving the triggering signals from the gait detection system. In previous studies [14,15,16], we concluded that the therapists cued a subject’s right (left) pelvis when they observed the subject’s left (right) HS during the NDT rehabilitation, as illustrated in Appendix A. Therefore, we designed the motor control system to automatically repeat this pattern. When detecting a HS, the detection system sent a triggering signal to the motor control system on the opposite side, which tracked the following force command:

$$F(t)=\frac{({\overline{F}}_{\max }-{\overline{F}}_{\min })}{2}\times \sin (2\pi ft)+\frac{({\overline{F}}_{\max }+{\overline{F}}_{\min })}{2}$$

(1)

where ${\overline{F}}_{\max }$ and ${\overline{F}}_{\min }$ represent the maximum and the minimum forces, respectively, while f is the frequency. Based on previous experiences [14,15,16], we set ${\overline{F}}_{\max }=6 \mathrm{lb}$, ${\overline{F}}_{\min }=1 \mathrm{lb}$, and f =1 Hz in the experiments.

Since gait symmetry is critical for walking rehabilitation, we analyzed the asymmetry of the swing phase [32], defined as follows:

$$Asy{m}_{SP}(\%)=\frac{S{P}_{paretic}-S{P}_{non-paretic}}{S{P}_{paretic}}\times 100\%$$

(2)

where $S{P}_{non-paretic}$ and $S{P}_{paretic}$ represent the proportion of the swing phase on the paretic side and the non-paretic side, respectively. Since stroke patients tend to have hemiparesis and a longer swing time on the paretic side, we applied $Asy{m}_{SP}$ to evaluate the rehabilitation effectiveness and regarded the training as effective if $Asy{m}_{SP}$ approached zero.

We recruited 10 healthy subjects for the experiments. The subjects’ data are provided in

Table 3. Information of the healthy subjects.

Subject	Gender	Age	Height (cm)	Weight (kg)
H1	Male	25	172	76
H2	Female	58	164	64
H3	Male	25	170	65
H4	Male	23	172	70
H5	Male	23	178	70
H6	Male	24	164	70
H7	Male	22	166	61
H8	Male	25	165	50
H9	Female	24	158	45
H10	Male	23	185	85

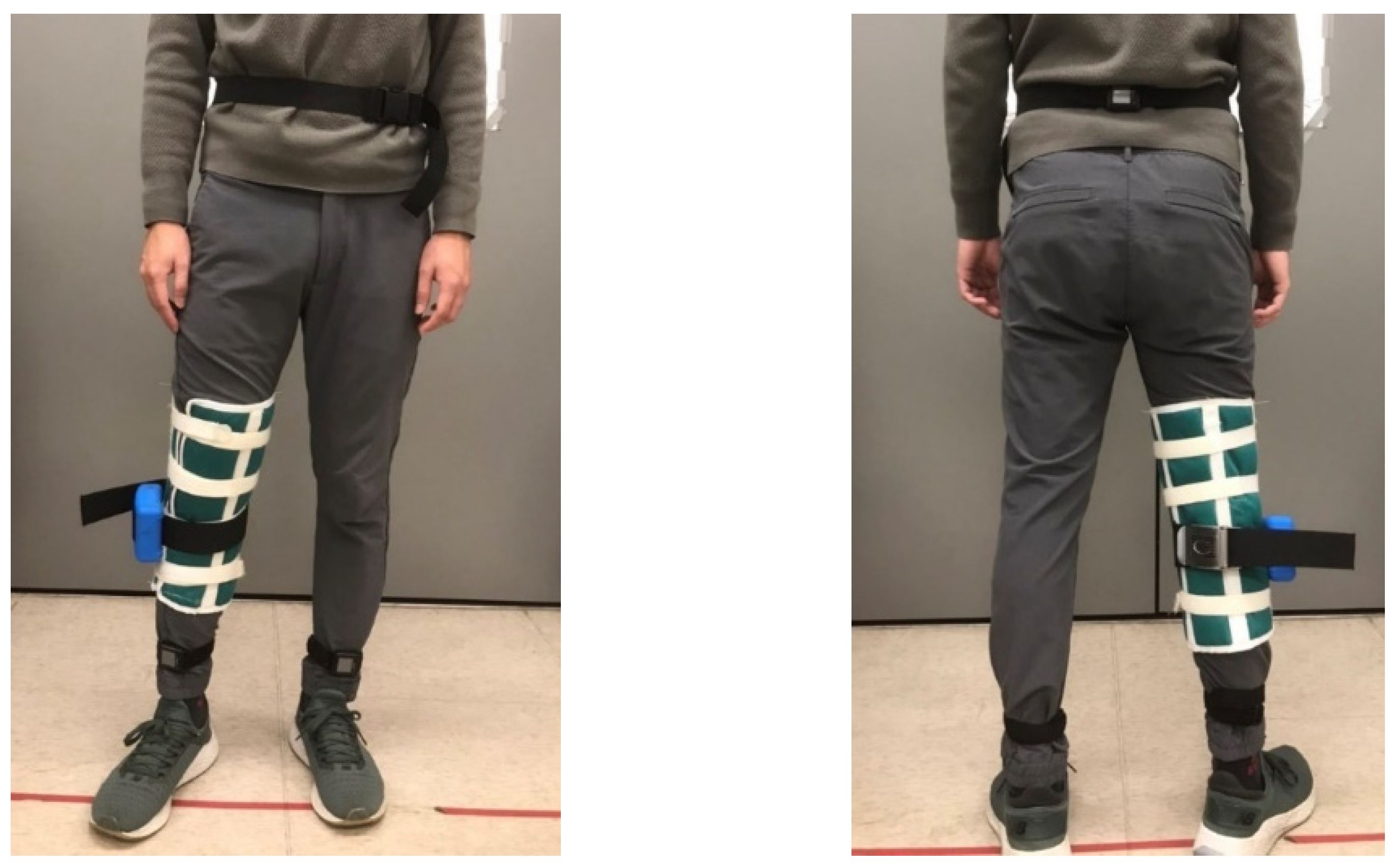

. A rehabilitation gaiter was attached to one knee joint on each subject to limit the joint movements and to mimic stroke gaits. Each subject received the tests by the $\mathrm{A}-\mathrm{B}-\overline{\mathrm{A}}$ procedures, where $\mathrm{A}, \mathrm{B}, \mathrm{and} \overline{\mathrm{A}}$ represented the before-treatment, during-treatment, and after-treatment periods, respectively. The subjects first walked on their own once down a 20 m corridor (A). They then received NDT training twice by the trainer on the 20 m corridor (B), and they finally walked on their own down the 20-m corridor once ($\overline{\mathrm{A}}$). Their gait data were recorded, as illustrated in Appendix B, to evaluate the training effects.

The experimental results are shown in

Table 4. The asymmetry of the swing phase.

Subject	A	$\mathbf{B} (\mathbf{imp}\%)$	$\overline{\mathrm{A}} (\mathbf{imp}\%)$
H1	41.4	35.7 (14)	30.9 (25)
H2	34.4	40.2 (−17)	31.5 (8)
H3	61.9	66.8 (−8)	50.8 (18)
H4	38.4	27.3 (29)	30.2 (21)
H5	59.7	42.2 (29)	43.7 (44)
H6	20.4	15.9 (22)	6.7 (67)
H7	17.3	18.9 (−10)	12.4 (28)
H8	39.9	14.9 (63)	18.9 (52)
H9	14.9	38.9 (−160)	18.8 (−25)
H10	11.0	5.6 (17)	4.7 (57)

, where imp% represents the percentage improvement of the training compared to before the training (stage A). As shown in Table 4, the asymmetry of the swing phases of 9 of the 10 subjects was improved after the treatment ($\overline{\mathrm{A}}$ stage). A possible reason is that subject H9 had a light body weight and may have had insufficient muscle strength to push the movable trainer. Generally, the NDT intervention is effective in improving $Asy{m}_{SP}$.

Apart from the gait symmetry, the locomotion of the pelvis is also important for maintaining walking stability [25,26,27]. During each step, the pelvis rotates forward on the side of the swinging limb. The axis of this rotation is the hip joint of the stance leg, which undergoes internal rotation. As the pelvis forms a bridge between the two hips, it reduces the angle of intersection of the thighs to reduce the vertical descent of the trunk. As mentioned previously, pelvis rotation conserves energy during the normal gait and allows people to walk at a comfortable pace. Therefore, we further analyzed the subjects’ pelvic rotation during the NDT training. The amplitude of pelvic rotation $Am{p}_{PR}$ is defined as the maximum rotation angle between two consecutive HS events on the paretic side, as follows:

$$Am{p}_{PR}={\theta }_{\max }^{}-{\theta }_{\min }^{}$$

(3)

where ${\theta }_{\max }^{}$ and ${\theta }_{\min }^{}$ represent the maximum and minimum pelvic angles during a complete gait cycle, respectively, as shown in Figure 6. Since stroke patients’ muscles are usually weakened on the paretic side, their pelvic rotation is limited and less than in healthy persons. Therefore, we can evaluate the effectiveness of the NDT rehabilitation by $Am{p}_{PR}$, and we regard the training as effective if $Am{p}_{PR}$ is increased. We attached an IMU to the subjects’ waists (see Figure 5) to record their pelvic rotations. The results are illustrated in

Table 5. The amplitude of pelvic rotation ($Am{p}_{PR}$) using the original intervention.

Subject	A	$$\mathbf{B} (\mathbf{imp}\%)$$		$$\overline{\mathrm{A}} (\mathbf{imp}\%)$$
H1	7.6	13.9	(82)	9.6	(27)
H2	12.9	7.7	(−41)	10.5	(−19)
H3	6.0	11.2	(86)	6.4	(5)
H4	7.5	11.9	(59)	8.0	(7)
H5	12.4	14.5	(17)	15.3	(23)
H6	6.7	6.5	(−3)	4.5	(−33)
H7	7.8	8.2	(5)	9.1	(17)
H8	15.6	15.4	(−1)	16.5	(6)
H9	12.7	7.3	(−42)	7.1	(−44)
H10	9.9	17.0	(72)	9.1	(−8)

; only 6 of the 10 subjects had an improvement in $Am{p}_{PR}$ during the treatment (B stage) and after the treatment ($\overline{\mathrm{A}}$ stage). That is, the current intervention method can improve the subjects’ gait symmetry but not their pelvic rotation. Therefore, we analyzed the therapists’ interventions during the clinical NDT training in [14,15,16], as those interventions were manually conducted by the therapists. The analyses are illustrated in Appendix C and show that the therapist tended to increase the intervention forces on the non-paretic side when the subject’s pelvic rotation was small. Based on that analysis, we proposed a modified NDT intervention algorithm that can improve the gait asymmetry and the pelvic rotation simultaneously.

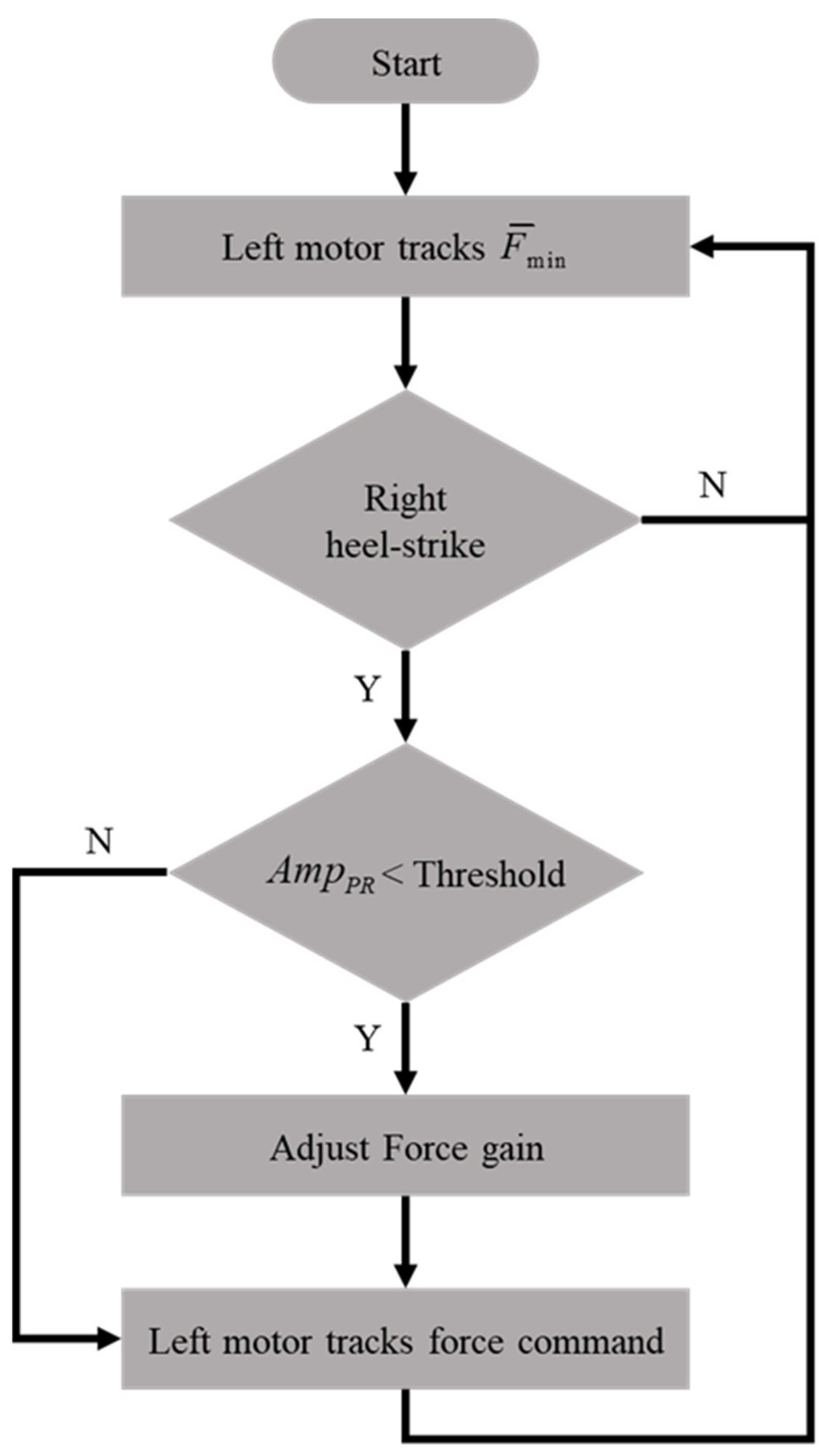

The modified intervention method is shown in Figure 7, where the maximum intervention forces on the non-paretic side are increased by 50% if the pelvic rotation is less than a given threshold. For example, we applied the rehabilitation gaiter to the subjects’ right knee so that the left motor was controlled according to the following procedures:

i.

The motor tracked a minimum force of ${\overline{F}}_{\min }$ to keep the rope straight.

ii.

The motor was activated to follow the intervention force pattern of (2), when the right HS was detected.

iii.

The maximum intervention force ${\overline{F}}_{\max }$ was increased if the pelvic rotation $Am{p}_{PR}$ was less than a threshold value.

We implemented the modified intervention method with the movable NDT trainer and repeated the experiments. In this paper, we increased the maximum intervention force ${\overline{F}}_{\max }$ by 50% when the pelvic rotation $Am{p}_{PR}$ was less than a threshold of ${12}^{°}$. The analysis results are shown in

Table 6. Results of the experiments employing the modified intervention method.

	Asymmetry of the Swing Phase			Amplitude of Pelvic Rotation
Subject	A	$\mathbf{B} (\mathbf{imp}\%)$	$\overline{\mathrm{A}} (\mathbf{imp}\%)$	A	$\mathbf{B} (\mathbf{imp}\%)$	$\overline{\mathrm{A}} (\mathbf{imp}\%)$
H1	36.4	36.3 (0.16)	25.4 (30)	8.5	15.8 (86)	13.6 (60)
H2	37.5	52.2 (−39)	45.5 (−21)	12.4	9.3 (−24)	12.9 (4)
H3	75.4	62.4 (17)	62.1 (18)	6.5	13.5 (107)	8.8 (35)
H4	33.1	20.8 (37)	12.8 (61)	6.0	11.8 (95)	6.7 (12)
H5	64.9	44.2 (32)	27.0 (59)	9.3	12.4 (34)	13.1 (41)
H6	18.5	13.0 (30)	7.6 (59)	10.3	6.3 (−39)	11 (7)
H7	8.2	16.5 (−101)	5.5 (33)	9.0	10.2 (14)	13.4 (49)
H8	29.1	−3.7 (87)	0.2 (99)	7.0	15.0 (114)	14.7 (109)
H9	17.7	19.5 (−10)	13.8 (22)	10.1	9.3 (−8)	10.5 (3)
H10	−2.1	0.8 (62)	1.7 (22)	8.6	18.1 (106)	12.2 (41)

. First, the modified intervention improved the pelvic rotation in 7 of 10 subjects during the training and in 9 of 10 subjects after the training. That is, the modified method can provide greater improvement in pelvic rotation compared with the original method (see Table 5). Second, the modified method also improved the gait symmetry $Am{p}_{PR}$ in 7 of 10 subjects during the training and in 9 of 10 subjects after the training. Compared with the data shown in Table 4, the modified method increased pelvic rotation without sacrificing the improvement in gait symmetry. That is, the modified method can simultaneously improve the subject’s pelvic rotation and gait symmetry. However, factors still might limit the improvement in gait symmetry or pelvis rotation. One is that healthy participants still have normal muscle strength to exert a force against external load, so they display a less significant pelvis rotation. By contrast, the paretic side of a stroke patient is relatively weak and less resistant. Another possibility is that the healthy individual’s restricted leg can exert more force when extra weight is applied. Therefore, their gait pattern may not be as asymmetric as that of stroke patients before intervention and no improvement may be evident. Therefore, we applied the modified NDT intervention in clinical trials on stroke patients.

4. Clinical NDT Rehabilitation with Stroke Patients

We recruited 10 stroke patients to participate in the experiments. The following restrictions were set on the selection of subjects: (i) the Mini-Mental State Examination (MMSE) score [33] was higher than 24 and the subject could cooperate with orders; (ii) the Brunnstrom Stage (BS) [34] on the paretic lower extremity was stage 3 to 4; (iii) the Functional Ambulation Category (FAC) [35] was stage 3 to 4; (iv) subjects could walk 10 m indoors with or without aid devices; and (v) subjects could stand up on their own using a handrail and aids. The patients’ data are provided in

Table 7. Information of stroke participants.

	Brunnstrom Stage	Paretic Side	Height (cm)	Weight (kg)
S1	3	L	166	79
S2	3	L	168	67
S3	3	R	162	59
S4	3	R	168	61
S5	3	R	165	58
S6	3	R	168	76
S7	4	L	163	80
S8	4	R	167	86
S9	4	L	155	70
S10	4	L	167	75

. All subjects signed informed consent forms approved by the Human Subject Research Ethics Committee of the Institutional Review Board (IRB number: (870)110-16, Cheng-Hsin General Hospital, Taipei, Taiwan, ClinicalTrials.gov Identifier: NCT04968418).

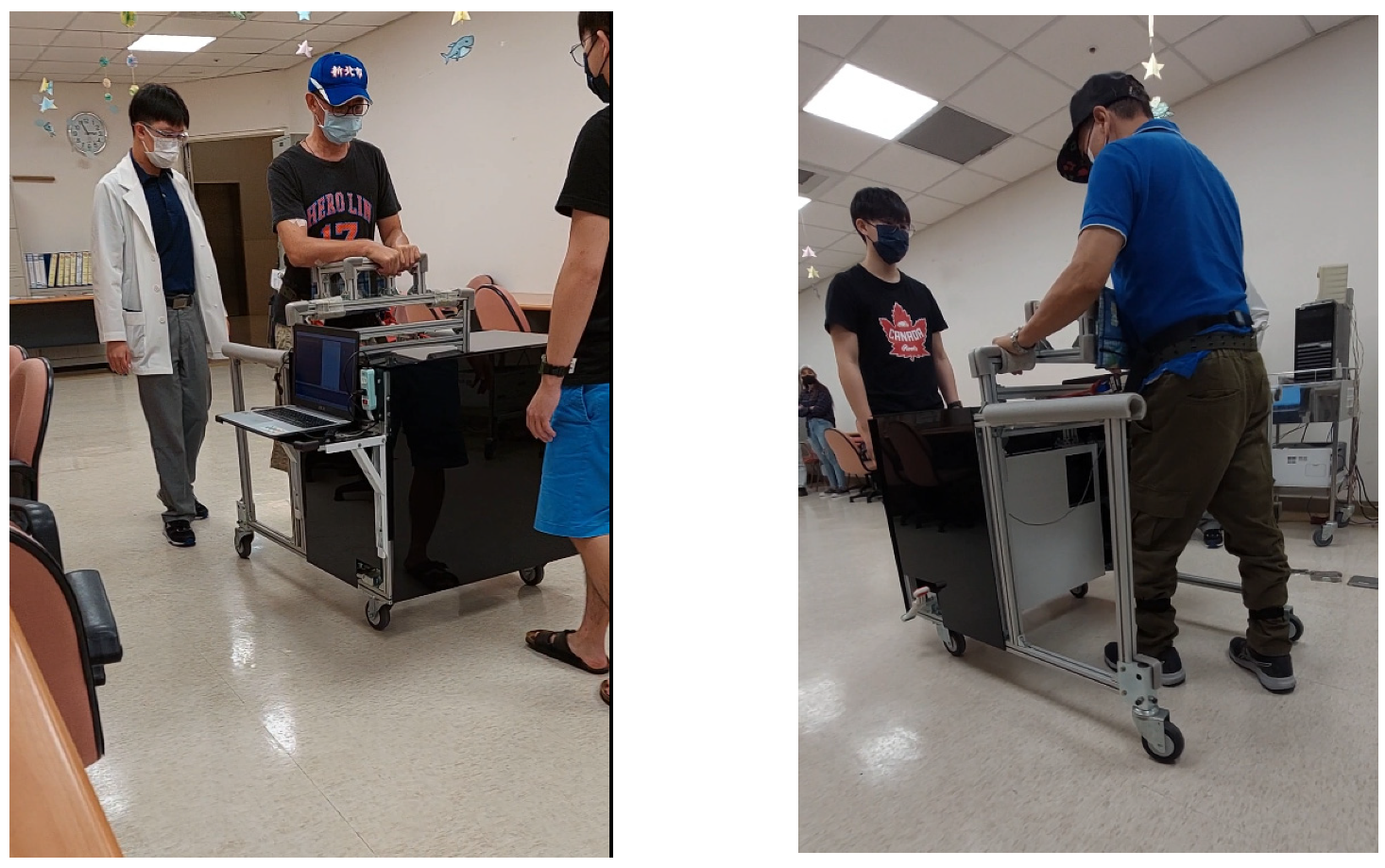

We attached three IMUs onto each subject’s legs and waist and conducted clinical experiments in the hospital, as shown in Figure 8. Each subject underwent the tests by the $\mathrm{A}-\mathrm{B}-\overline{\mathrm{A}}$ procedures, as demonstrated in Appendix D. The subjects walked forth and back with the trainer on a straight line of about 11 m. At stage A (before treatment), the subjects walked three times (about 66 m) with the motors off. At stage B (during treatment), the trainer’s motors were switched on, and the subjects walked six times (about 132 m). Finally, at stage $\overline{\mathrm{A}}$ (after treatment), the subject walked three times (about 66 m) on their own with the motors off. No break was given between the $\mathrm{A}-\mathrm{B}-\overline{\mathrm{A}}$ procedures, but the subjects were free to rest at any time during the experiments.

The experimental results are shown in

Table 8. Experimental results of the stroke patients.

	Asymmetry of the Swing Phase			Amplitude of Pelvic Rotation
Subject	A	$\mathbf{B} (\mathbf{imp}\%)$	$\overline{\mathrm{A}} (\mathbf{imp}\%)$	A	$\mathbf{B} (\mathbf{imp}\%)$	$\overline{\mathrm{A}} (\mathbf{imp}\%)$
S1	23.22	16.84 (27.47)	16.12 (30.55)	10.95	13.01 (18.80)	12.17(11.09)
S2	47.79	49.66 (−3.90)	32.88 (31.20)	6.79	11.39 (67.57)	8.25(21.43)
S3	43.60	38.88 (10.82)	34.05 (21.91)	10.90	7.44 (−31.74)	9.77 (−10.39)
S4	33.53	23.36 (30.33)	24.87 (25.83)	8.08	11.87 (46.93)	11.39(40.99)
S5	43.51	20.32 (53.30)	16.25 (62.65)	11.89	14.25 (19.86)	13.08(10.01)
S6	29.02	23.72 (18.28)	23.47 (19.14)	10.42	10.10 (−2.99)	11.00(5.60)
S7	17.82	16.06 (9.87)	17.05 (4.30)	4.77	6.84 (43.51)	3.41 (−28.45)
S8	25.35	30.2 (−19.14)	32.45 (−28.01)	7.64	9.02 (18.01)	8.03 (5.12)
S9	14.41	14.09 (2.23)	10.38 (28.00)	8.85	12.05 (36.12)	10.56(19.37)
S10	24.21	23.94 (1.10)	18.26 (24.56)	7.48	9.62 (28.57)	8.01(7.10)

. The gait symmetry $Asy{m}_{SP}$ was improved in 8 of the 10 patients during the training and in 9 of the 10 patients after the training. The average percentage improvements (imp%) were 13.04% and 22.01% during and after the training, respectively. The pelvic rotation $Am{p}_{PR}$ was improved in 8 of the 10 patients both during and after the training. The average percentage improvements (imp%) were 24.46% and 8.19% during and after the training, respectively. The trainer helped improve the rehabilitation effects in stroke patients in general. However, several factors may have contributed to the lack of improvement during this intervention. One was that patients with poor hand function of the hemiparetic upper limb were able to hold the handrails only with the unaffected hand. Thus, body sway during walking was common and could have limited the effect of pelvis rotation. Second, spasticity of the lower limbs causes an abnormal synergy pattern of movement, including knee extension and ankle plantarflexion and eversion, which may interfere with the coordination of pelvis rotation. Third, in this study, the patients’ heights varied. Therefore, not all NDT interventions could precisely induce pelvic rotation since the cuing force would be a projection of the applied force. For example, taller patients may have experienced downward plus forward force rather than forward force alone to induce pelvic rotation due to their higher pelvic position. Last, the current trainer’s induction force is only 100% or 150%. Therefore, this device is not customized for patients with different physical characteristics or ambulation functions. Due to these technical limitations, a future study will optimize the device by adding vertical adjustability and providing fasteners for the participants’ hands on the handrails to decrease asymmetry during the intervention.

Overall, based on the clinical experimental results, the movable NDT trainer employing the RNN gait detection model and the modified NDT intervention was deemed to help improve stroke patients’ rehabilitation effects.

5. Conclusions

This paper demonstrated the results of clinical stroke rehabilitation using a movable trainer employed during NDT intervention. The trainer consisted of a gait detection system and a motor control system. We implemented an RNN model in the gait detection system and a modified NDT intervention in the motor control system. The RNN model can recognize the HS events in real time to activate the NDT intervention at critical moments. The users can feel walking and intentionally drive their body to regain gait control by motor training. The aim of using the modified NDT intervention method was to simultaneously improve the user’s gait symmetry and pelvic rotation. We recruited ten healthy subjects to verify the effectiveness of the trainer. The results showed that the trainer could simultaneously improve the subjects’ gait symmetry and pelvic rotation. The findings from 10 stroke patients invited to participate in the experiments showed that gait symmetry improved in 80% of the patients during the training and 90% after the training. The pelvic rotation was improved in 80% both during and after the training. Based on these results, we conclude that the NDT trainer can potentially help stroke patients’ rehabilitation. Some patients did not show improvements, possibly due to difficulty in holding handrails with the paretic hand or variations in the participants’ heights that affected accurate pelvic rotation force and limited induction force options (we only included 100% and 150%). Therefore, in future studies, we plan to fasten the participants’ hands onto the handrails for the participants’ hands to decrease asymmetry during the intervention. We will also modify the trainer design, for example, by applying a suitable mechanism to automatically adjust the intervention positions for patients with different heights and body weights or by adding motor wheels to reduce the burden of pushing the trainer.
