Diagnosis of Intracranial Tumors via the Selective CNN Data Modeling Technique

Abstract

A brain tumor occurs in humans when a normal cell turns into an aberrant cell inside the brain. Primarily, there are two types of brain tumors in Homo sapiens: benign tumors and malignant tumors. In brain tumor diagnosis, magnetic resonance imaging (MRI) plays a vital role that requires high precision and accuracy for diagnosis, otherwise, a minor error can result in severe consequences. In this study, we implemented various configured convolutional neural network (CNN) paradigms on brain tumor MRI scans that depict whether a person is a brain tumor patient or not. This paper emphasizes objective function values (OFV) achieved by various CNN paradigms with the least validation cross-entropy loss (LVCEL), maximum validation accuracy (MVA), and training time (TT) in seconds, which can be used as a feasible tool for clinicians and the medical community to recognize tumor patients precisely. Experimentation and evaluation were based on a total of 2189 brain MRI scans, and the best architecture shows the highest accuracy of 0.8275, maximum objective function value of 1.84, and an area under the ROC (AUC-ROC) curve of 0.737 to accurately recognize and classify whether or not a person has a brain tumor.

1. Introduction

A brain tumor is a condition where there is a development of abnormal cells in the brain. When a brain tumor grows it increases the intracranial pressure which leads to brain damage and is even life-threatening. Brain tumors can be classified into two categories: benign and malignant tumors. Malignancies consist of cancer cells, whereas benign tumors consist of noncancerous cells. In comparison, the growth of malignant tumors is very rapid, whereas benign tumors are very slow in growth and present less symptoms compared to those of malignant tumors [1]. Brain tumors can also be categorized based on origin: primary brain tumors, which are cancer lesions that are apparent within the brain such as gliomas, oligodendrogliomas, pituitary adenomas, schwannomas, and astrocytomas whereas metastatic tumors (secondary brain tumors) develop at different locations of the CNS and migrate to the brain through arterial circulation [2]. The frontal lobe is the most common site for metastatic tumors.

According to the report, the National Brain Tumor Foundation (NBTF) stated that in the USA, a total of 29,000 people were diagnosed with primary intracranial tumors, out of which 13,000 patients died due to this disastrous tumor. Additionally, one-quarter of all cancer deaths among children are due to brain tumors. The total yearly frequency of primary intracranial tumors in the USA is 11–12 per 100,000 people, and for primary malignant intracranial tumors, it is 6–7 per 100,000. Over 4200 people are diagnosed with brain tumors every year in the UK (estimation of 2007), and 16 out of 1000 diagnosed cancer patients had a brain tumor. Approximately 200 other types of tumors are diagnosed in the UK every year. According to a report in 2007, a total of 80,271 cases were diagnosed in India with various types of tumors [3]. Majority of childhood tumors i.e., 17% are located in the parietal, frontal, and occipital lobe followed by cerebellum and brain stem. As per doctors’ grading, tumors can be classified into four grades: Grade 1 when tissue is benign, Grade 2 when tissue is malignant and the cell looks less like normal cells, Grade 3 when malignant tissues have a cell that is very different from normal cells (anaplastic), Grade 4 where malignant tissue has cells that look most abnormal and grow rapidly.

Malignancies contain structural heterogeneity, as well as active cancer cells, whereas in benign tumors, there is uniformity and they do not contain any active cancer cells. Growth of benign tumors is slow but with time it may convert into a deadly malignant tumor. Benign tumors are also known as low-grade tumors and can be subclassified into two categories, gliomas and meningioma. Similarly, malignant tumors are considered high-grade brain tumors that can also be classified into two parts: glioblastoma and astrocytoma [4]. Benign tumors are not harmful as they do not spread across in the brain, but in the case of malignant tumor, they are very harmful as they have rapid growth. They are removable and they rarely grow back. Malignant tumors can be classified into distinct categories based on various factors like locations, severity level, and type of originating tissues.

Head injuries, hereditary syndromes, immune suppression, prolonged electromagnetic field exposure to ionizing radiation, or chemicals, such as vinyl chloride and formaldehyde, are the major causes of brain tumors. There are many symptoms of a brain tumor, such as persistent headache, eyesight issues, hearing and speech problems, walking and balancing problems, memory lapse, nausea and vomiting, a problem in concentration, and seizures. Early detection of tumors can lead to successful treatment but treatment gets relatively complex with time. There are various therapies related to brain tumors such as radiation therapy is an effective treatment for malignant gliomas. Chemotherapy also plays an important role in the treatment of high-grade gliomas as they kill cancerous cells. Factors like optimum dosing, resection radius, sequencing of radiotherapy, and chemotherapy (concurrent and adjuvant) affect the effectiveness of the treatment. To monitor the anatomy, vascular supply, and cellular structures of intracranial tumors, we used magnetic resonance imaging (MRI), which helped us to diagnose and provide valuable treatment [5,6].

Magnetic resonance imaging (MRI) is a medical image processing technique that assists medical experts in diagnosis and treatment according to the condition of the patient. It is the process by which we can identify the disorders present inside the brain. It makes efficient use of the magnetic area, pulses, and computer visualizing for analyzing bones, organs, and other structures of the body of patients. Computed tomography (CT) scan diagnosis is much more complicated, but an MRI offers the ability to understand the posterior brainstem efficiently. Segmentation always plays a major role in finding malicious regions from medical images, which are complicated [7]. Magnetic resonance imaging (MRI) has many applications in imaging techniques for noticing intracranial tumors, as it is a nonintrusive system; hence, it can be used alongside other imaging modalities, such as magnetic resonance spectroscopy (MRS), computed tomography (CT), and positron emission tomography (PET) to ensure that we can obtain a more accurate tumor structure [8,9]. For biopsy sampling, an MRI is used for tumor grading by pathologists to provide the tumor location, and we obtain full details of the shape and size of the brain tumor by using MRI images [10].

The medical field is greatly impacted by machine learning, computer vision, and deep learning, as they solve a large number of problems in an efficient manner, such as ECG classification, brain tumor, and heart disease detection [11,12,13,14]. In addition, deep learning model techniques, such as CNN and ANN have also improved the classification of objects and the detection of images [15,16]. As a deep learning prototype, CNN [17] can be used to draw out exact characteristics from different types of raw input images present in the dataset, which consist of various configurations of images [18]. Similarly, generative modeling also plays a vital role in solving a large number of problems [19].

In this study, we explore the performance metrics attained by various configured CNN architectures. To find the best and optimal architecture, maximum accuracy (MVA), minimal loss (LVCEL), and training time (TT) were considered, and thus, we also computed the objective function value for each CNN. The objective function value led us to find the best CNN for classifying tumor patients. This brain tumor automatic diagnosis with real-time deployment enables us to achieve precise results with a low computational cost. Further sections of the paper include, Section 2 discussed about the related work of brain tumor, Section 3 comprises about the materials and methods used for solving this binary classification problem, Experimentation and Results are discussed in Section 4, and in Section 5 we concluded with the discussion regarding the future work.

2. Related Work

From the last decade, most of the medical field has been receiving contributions from machine learning and deep learning techniques to make the work easier and more convenient for medical workers. Most of the research papers are oriented toward deep learning techniques, such as CNN’s, transfer learning, and classical neural networks for solving problems regarding brain tumors [20,21,22]. Thillaikkarasi et al. (2019) performed brain tumor segmentation by using a deep learning algorithm that included a CNN with M-SVM that fragmented the tumor automatically. The MRI images were modified using the Laplacian of Gaussian filtering method (LoG) and contrast limited adaptive histogram equalization (CLAHE). Both methods achieved an accuracy of 84% [23].

Ghassemi et al. (2020) used a new deep learning technique, i.e., a generative adversarial network (GAN) on the dataset for extracting the robust and structured features from the MRI images, and imported them into a convolution layer architecture to classify three types of tumors: meningioma, glioma, and pituitary tumors. The dataset contained 3064 total images, and they achieved accuracies of 93.01% and 95.6% for the introduced split and random split, respectively [24]. For instance, the simple CNN technique used by Seetha et al. (2018) achieved an accuracy of 97.5% in brain tumor detection by using CNN architectures where the weight of neurons was very smaller compared to normal deep learning architectures. They used a gradient descent algorithm for calculating the loss function, and the dataset used was deployed by BRAIN TUMOR IMAGE SEGMENTATION BENCHMARK (BRATS) in 2015 [25].

The deep neural network was used by Mohsen H et al. (2017) for the classification of brain tumors, where the dataset contained four classes, including sarcoma, glioblastoma, metastatic bronchogenic carcinoma tumors, and normal tumors. The classifiers were used in conjunction with a principal component analysis (PCA) and a discrete wavelet transform (DWT), which yielded fairly good results across all performance metrics, but the dataset used was very small [26]. Similarly, an accuracy of 81% was achieved by Pashaei et al. (2018). The authors used 3 × 3 size filters and the model construction was based on five layers [27]. The results were good, as they had an ensemble of a CNN and a kernel extreme learning machine (KELM), and they named the merging methodology KE-CNN. They compared their proposed methodology with other classifiers, such as an SVM, a radial base function, and some other classifiers.

A capsule network (CapsNet) was used for tumor detection by recognizing the relationship between the tumor and its nearby tissues. This was a modified form of CNN architecture that was introduced by Afshar et al. (2019) [28]. Transfer learning plays an important role in the classification of tumors and was applied to content-based image retrieval (CBIR) by Swati et al. (2019). The evaluation was performed on a publicly available dataset, and Swati et al. (2019) obtained good results [29]. Jain et al. (2019) used the VGG-16 model, which was trained to detect Alzheimer’s disease from MRI images [30].

Convolutional neural networks greatly contribute to the medical field due to their inclined nature toward images. In the present day, a large amount of unstructured image data are being generated. Therefore, CNN architectures are the best and optimal solution for these real-world problems. In our work, brain MRI images are used, and thus, CNN architecture also plays a crucial role, which is justified in Section 3.4. There are many techniques for detecting brain tumors in patients, but there are also several limitations. The main reason behind this research was to reduce the computational cost and provide an efficient diagnosis system for brain tumors by using CNN. Many radiologists face issues regarding this binary classification due to lack of information and available data.

3. Materials and Methods

In this section, we discuss the materials and methodology used for classifying brain tumors using MRI images. We also specify the dataset and the technology used for experimentation and computation. This section is organized as follows: In 3.1 we have discuss about the dataset used for this study, Section 3.2 explains about the image augmentation, similarly, Section 3.3 and 3.4 explains about the artificial neural network and convolutional neural network and in Section 3.5 we have discuss about the software and hardware used for experimentation.

3.1. Dataset Used

MRI data used for this brain tumor detection study were collected from Kaggle. The dataset was deployed by Navoneel Chakrabarty on Kaggle. The author collected all the images from Google images and gathered approximately 253 images for dataset formation [31]. The images were categorized into two categories, YES and NO, where the YES folder contained 155 MRI scans of people with brain tumors and the NO folder contained 98 MRI scans of people without brain tumors. Figure 1 depicts an MRI scan of a positive and a negative patient.

Table 1. Dataset distribution of training and testing after augmentation.

	Brain Tumor Patient (YES)	Normal (NO)
Training	1037	781
Testing	234	137
Total	1271	918

shows the augmented dataset distribution of MRI scans for training and testing the CNN models. The dataset was very small, and thus, image augmentation played an important role in the dataset increment.

3.2. Image Augmentation

Image augmentation played a vital role in the training of a CNN architecture by providing various aspects of images for training and testing by increasing the sample images [32,33,34,35,36]. Image augmentation works on different parameters, such as shearing, zooming, rescaling, flipping, whitening, random rotations, and shifts. In our approach, we used rotation, shearing, brightness increment, horizontal and vertical flipping, width, and height shifting for the wider range of our training data.

3.3. Artificial Neural Network (ANN)

ANNs are powerful and simple neural networks because they are highly interconnected with each other. Artificial neural network (ANN) architectures have a wide range of applications in the field of deep learning, such as speech recognition [37,38], face recognition [39], and signature verification applications [40]. They are made up of multiple nodes that are similar to biological neurons of the human brain. The initial node takes up the input data and performs the various operations. The result from the performing neuron is passed to other neurons, and the output from every node is known as the activation value.

Mathematically, it can be represented as $input\to x$. Then we transform a set $S\subset A{E}^x$ of input signals where (a:x—neuron on S) is a function as follows:

$$U:A{E}^x\times S\ni \left(\overrightarrow{b},\overrightarrow{c}\right)\to U\left(\overrightarrow{b},\overrightarrow{c}\right)=f\left(<\overrightarrow{b},\overrightarrow{c}>\right)\ni AE$$

(1)

where $\overrightarrow{b}$ is a weight vector; <…> is a real scalar product as follows:

$$f:AE\to \mathrm{\AE }$$

This is called the activation function of the neuron in ANN layers. If $f$ is a linear operator, then the neuron is linear as follows:

A function

$$U^{*}:=U\left(\overrightarrow{b},.\right):S\ni \overrightarrow{c}\to U^{*}\left(\overrightarrow{c}\right)\in AE$$

(2)

is called a model that is trained on the x—neuron on $S$.

Bounded functions are mostly used for representing the activation functions in output layers. The above equations show that a two-vector variable employs a neuron as a function, whereas compared to a trained neuron, there is a weight vector that fits in trained neurons; therefore, we can state that a mapping of only one vector variable is known as a trained neuron. Activation functions are the most essential part of ANNs. There are various types of activation functions, such as Sigmoid, ReLu, Tanh, Softmax, and Swish. In ANN, the output of any neuron works as an input for another neuron, which leads to developing better results.

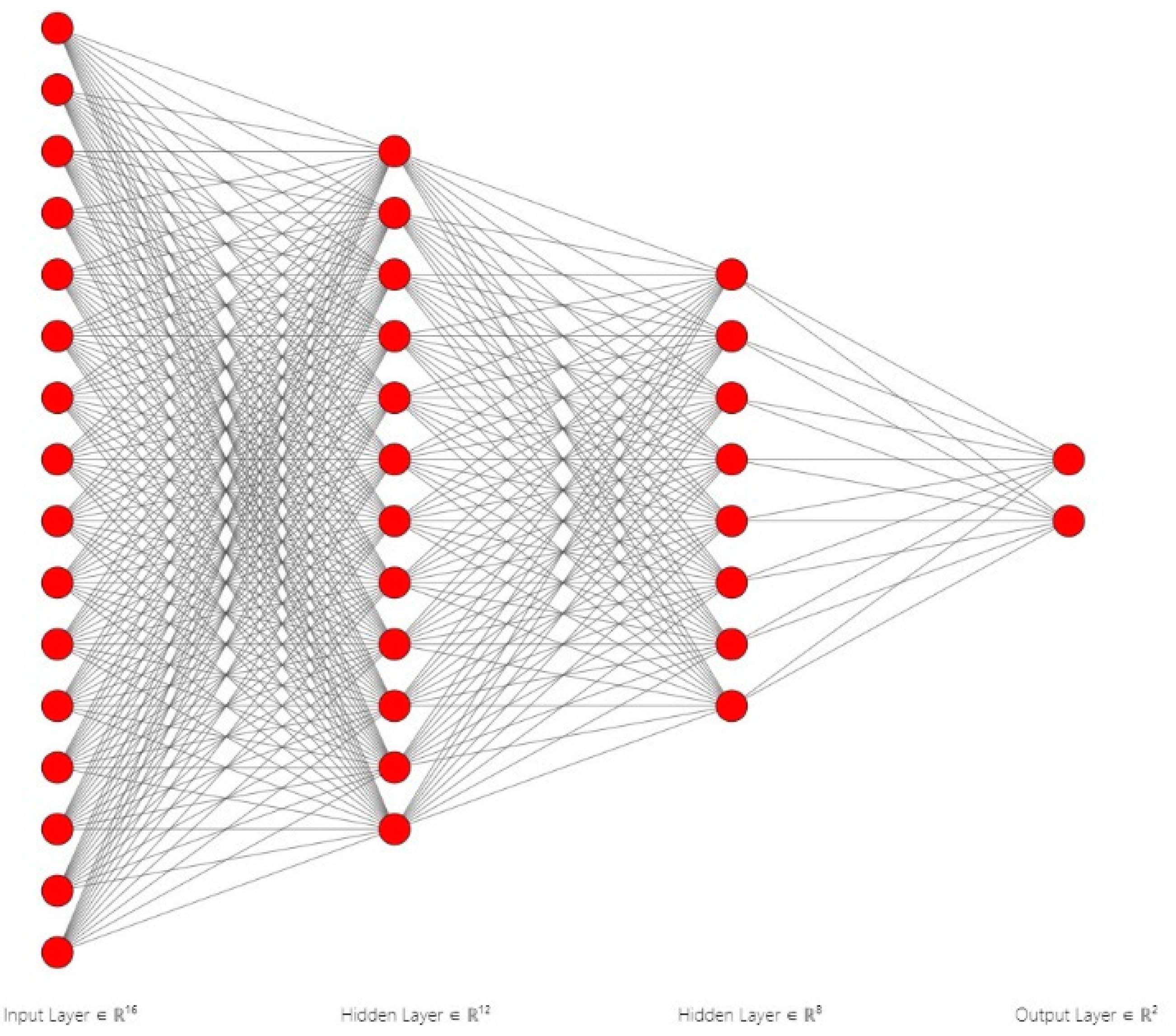

Figure 2 shows the connection of ANN layers with each other in the order from left to right in a layer-wise manner, {16, 12, 8, 2}. The input layer consists of 16 nodes, and they are attached with two hidden layers having nodes, 12 and 8. The output layer consists of two nodes. A person will either suffer from a tumor or not. Thus, it is a binary classification and the Softmax function comes into play in the output layer, which helps to sum up the values to 1.

3.4. Convolutional Neural Network (CNN)

Convolutional neural network architecture acts as the backbone of deep learning, as it has a wide range of applications in this modern world, such as decoding facial recognition [41], ECG classification [42], analyzing documents [43], understanding climate [44], predicting earthquakes [45], etc., [46,47,48]. These CNN architectures provide better and more efficient solutions to real-world complex problems. According to observation, it was found that heavy architectures show outstanding performance and they handle numerous critical use cases in a precise way.

A convolutional neural network (CNN) consists of two parameters, weights and biases. Automatic diagnosis systems and various recognition systems are based on CNN architectures. Similarly, the medical field is also acquiring major contributions, including the detection of diseases such as malaria detection [49], heart disease detection [50], and arrhythmia detection [51]. CNN architectures are also used in microbial detections where nuclei segmentation is a major example in this field [52,53], and these neural networks can also be widely used across the field of chronic diseases and the health care sector [54,55]. These architectures are easy to handle, and optimization of these neural networks via hyper parameter tuning is much easier when compared to other neural networks. Figure 3 shows a basic block diagram of the CNN architecture. Convolutional networks are mainly attracted to the image pattern. These architectures are feed-forward neural networks. CNN architectures make use of spatial correlations with input image data. The deep learning architectures were developed by LeCun et al. in 1998 [56].

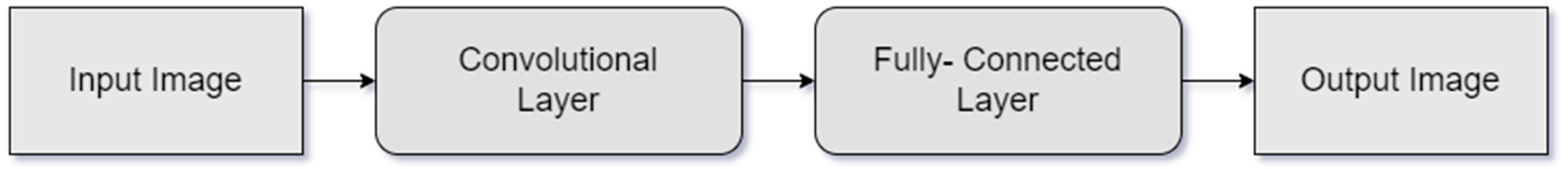

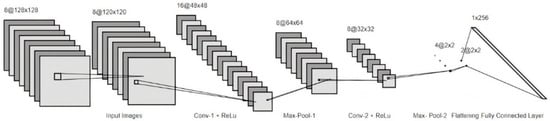

CNN architectures are composed of four layers, namely, the convolution layer, the pooling layer, and the flattening and fully connected layers, which are discussed below.

3.4.1. Convolutional Layer

Convolutional layers are the initial layer of CNN architectures that work on the convolutional theorem. The major principle of working is that the output of each layer acts as the input for successive layers, and the output received from these layers is in the form of vectors, known as a feature map. Equation (3) shows the convolutional theorem as follows:

$$a\left(b\left(x\right)\right)=b\left(a\left(x\right)\right)$$

(3)

3.4.2. Pooling Layer

Pooling layers are successive layers after the convolutional layers, which primarily help in the downsampling process by using various spatial variances. The pooling layer can be distributed into two categories: max-pooling and average-pooling. Equation (4) shows the formula for calculating the output dimensions as follows:

$$Outpu{t}_{dimension} =\frac{\left(h-f+1\right)\times \left(w-f+1\right)}{s\left(s\times c\right)}$$

(4)

where $h$ represents the height of the feature map, $w$ represents the width of the feature map, $c$ represents channels in the feature map, $f$ is the filter size, and $s$ denotes the length of the stride.

3.4.3. A Flattening and Fully Connected Layer

This is the last layer of the CNN architecture, and it plays an essential role in converting the output of CNN architectures. In the flattening layer, the output of the max-pooling layer is converted into a one-dimensional array that is used as input for the last layer, i.e., a fully connected layer. This layer connects all the 1-D neurons and performs operations. This operation leads to the generation of output. Figure 4 shows all connections and different layers in two-layered fully convolutional neural networks.

Convolutional neural networks (CNN) outperform other neural networks in terms of usage on image datasets due to their excellent functionality and various hyperparameter tuning. These neural networks can be easily implemented on an image dataset, and the accuracies and results gained by these architectures are excellent. In our approach, CNN architectures have played a crucial role in the classification of brain tumors.

3.5. Software and Hardware

All the ConvNet architectures trained during the experiment were implemented using Python-based programming with the Keras and TensorFlow libraries on Jupyter Notebooks. The hardware system that was used was configured with 16 GB RAM and an i5 8th Gen. Processor.

4. Experimentation and Results

This section contains the experimentation and results carried out on the dataset through various architectures that consisted of different parameters. Then, we chose the optimal architecture for classification with a low computational cost. This section is divided into 2 parts where Section 4.1 discuss about the experimentation and results whereas in Section 4.2 we discuss regarding the evaluation of selected architecture.

4.1. Experimentation and Analysis

We implemented various configured CNNs to find the optimal model. For various implementations, we had a variety of hyperparameters, such as artificial layers and convolutional layers, as well as regularization parameters, including Level 1 regularization (L1), Level 2 regularization (L2), image input sizes (IS), batch norm (BN), dropout (DO), kernel sizes (KS), and pooling matrix sizes (PS). We analyzed all the CNN architectures based on maximum accuracy (MVA), least cross-entropy loss (LVCEL), and time taken (TT) for training. The optimal architecture was selected on the basis of the objective function value (OFV), which is expressed in Equation (5) as follows:

$$ObjectiveFunctionValue \left(OFV\right)=\frac{MVA}{TT+LVCEL}$$

(5)

Table 2. Performance of all 15 convolutional neural network (CNN) models.

S. no.	CL	AL	Regularization				IS	FD	KS	PS	LVCEL	MVA	TT
			L1	L2	BN	DO
1	2	3	✕	✕	✕	✕	(128,128)	{64,32}	{9,3}	{4,2}	0.3339	0.8518	195
2	2	4	✕	✕	✕	✕	(128,128)	{64,32}	{9,3}	{4,2}	0.3710	0.8491	209
3	2	4	✕	✕	✓	✓	(128,128)	{64,32}	{9,3}	{4,2}	0.3800	0.8491	216
4	2	4	✕	✕	✓	✕	(128,128)	{64,32}	{9,3}	{4,2}	0.3801	0.8329	219
5	2	4	✕	✕	✕	✓	(64,64)	{64,32}	{9,3}	{4,2}	0.5461	0.7358	131
6	2	2	✕	✕	✕	✕	(64,64)	{64,32}	{9,3}	{4,2}	0.5651	0.7224	134
7	2	3	✕	✕	✓	✓	(128,128)	{64,32}	{9,3}	{4,2}	0.3281	0.8464	220
8	3	4	✕	✕	✓	✕	(128,128)	{128,64,32}	{9,6,3}	{4,2,2}	0.3900	0.8518	211
9	3	5	✕	✓	✕	✕	(128,128)	{128,64,32}	{9,6,3}	{4,2,2}	0.3811	0.8383	196
10	4	4	✓	✕	✕	✓	(128,128)	{128,64,32,16}	{9,6,3,3}	{4,2,2,2}	0.4100	0.8167	192
11	4	5	✓	✓	✕	✕	(128,128)	{128,64,32,16}	{9,6,3,3}	{4,2,2,2}	0.3486	0.8652	181
12	4	5	✕	✕	✕	✕	(128,128)	{128,64,32,16}	{9,6,3,3}	{4,2,2,2}	0.4146	0.8571	180
13	4	5	✕	✕	✕	✕	(64,64)	{64,32,32,16}	{9,6,3,3}	{2,2,2,2}	0.4480	0.8275	106
14	5	5	✕	✕	✕	✕	(128,128)	{128,64,64,32,16}	{9,6,6,3,3}	{2,2,2,2,2}	0.4012	0.8464	184
15	5	6	✕	✕	✕	✕	(128,128)	{128,64,64,32,16}	{9,6,6,3,3}	{2,2,2,2,2}	0.4040	0.8356	182

Where AL stands for artificial neural network Layers, CL stands for convolutional neural network layers, L1 stands for Level 1 regularization, L2 stands for Level 2 regularizations, BN stands for batch normalization, DO stands for dropout, IS stands for input size of image, FD stands for feature detected, KS stands for kernel sizes, PS stands for pooling sizes, LVCEL stands for least validation cross-entropy loss, MVA stands for maximum validation accuracy, and TT stands for training time (in seconds).

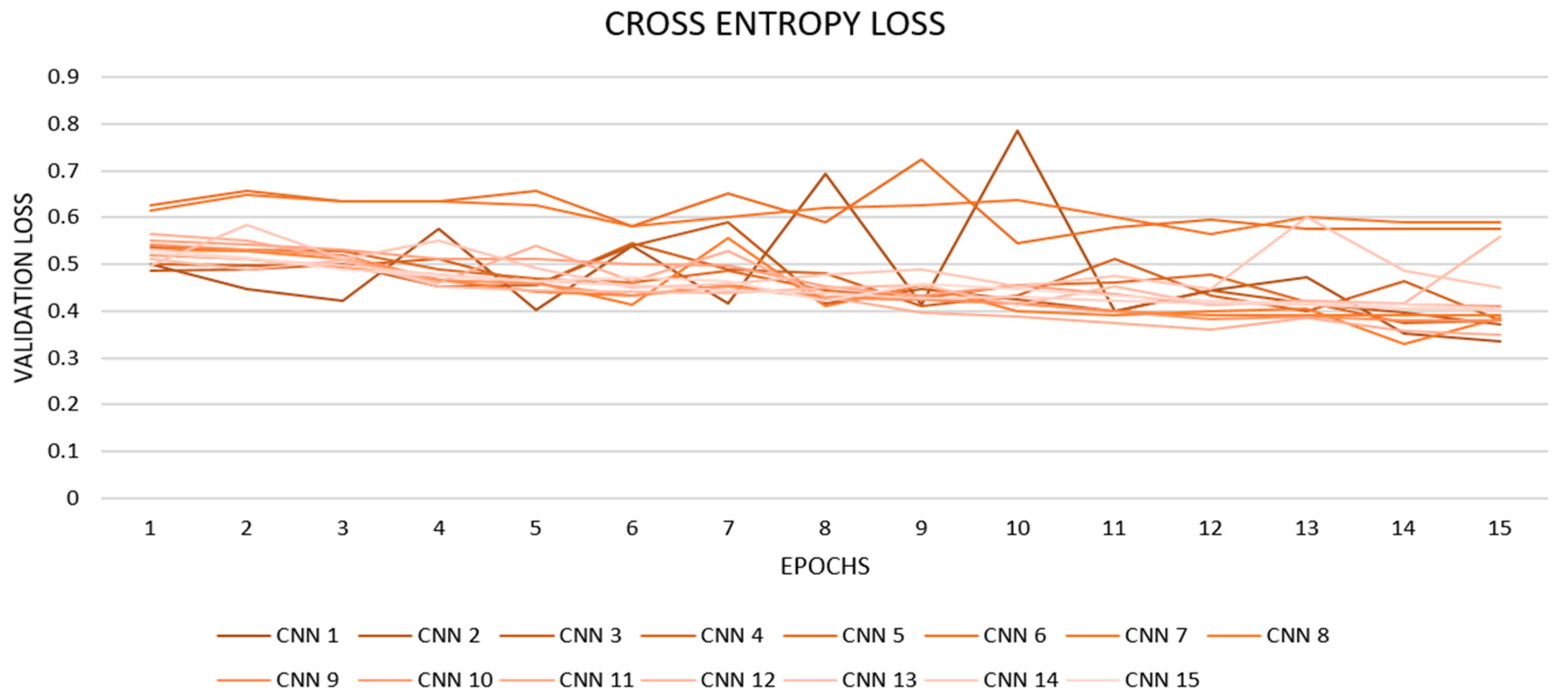

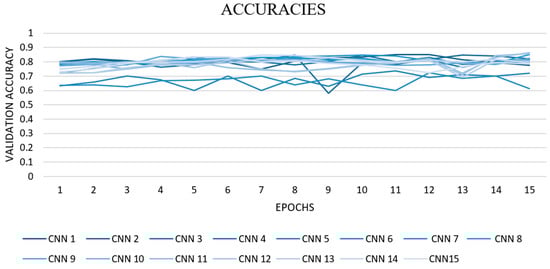

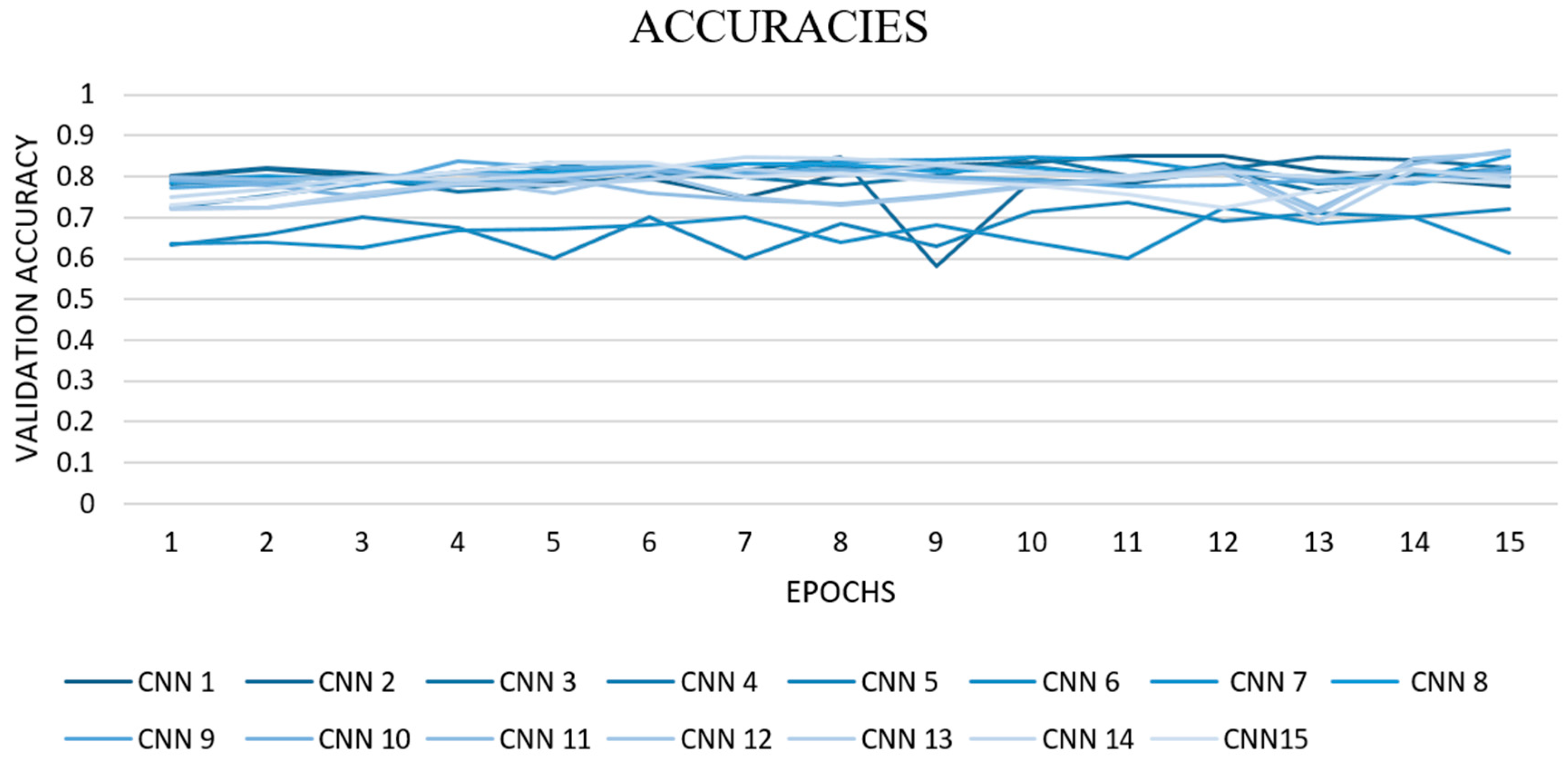

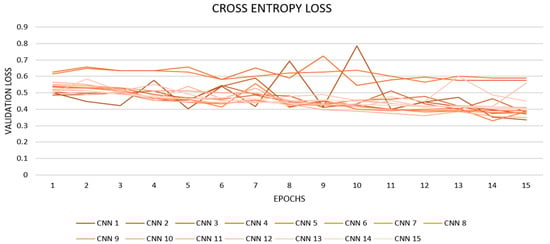

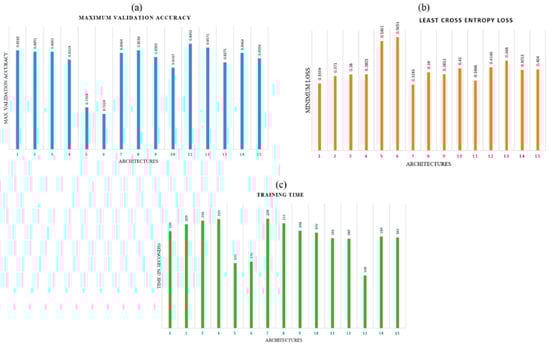

contains all the information regarding all 15 different CNNs with their MVA, LVCEL, and TT in seconds. Figure 5 shows the MVA, LVCEL and TT for each architecture. Figure 6 shows the validation accuracy, and Figure 7 depicts the validation loss of each CNN model for each epoch. In Table 2, we notice that architecture 4 had the lowest OFV of 0.6073. This might be due to batch normalization, as it reduces training time. We also observed a directly proportional connection between the training time and our different CNN architectures. As in architectures 5, 6, and 13, we fed image sizes of (64, 64) according to which training time was reduced drastically. Hence, we can claim that training time is highly dependent upon IS. Earlier, as we mentioned, TT (Figure 5c) changed drastically when there was an increase or decrease in architecture size, i.e., when we expanded or reduced the layers of CNN and ANN or applied different parameters. According to Table 2, it can also be observed that there is no drastic change in the MVA and LVCEL. However, the maximum OFV of 1.84 was achieved by the 13th CNN architecture, and the minimum OFV was scored by the 4th model as 0.6073. Therefore, we can finally conclude that the simple architecture performed better and was more stable and accurate. For further consideration, architecture 13 was considered an optimal CNN model to diagnose and classify brain tumors.

4.2. Evaluation of Selected Architecture

Architecture 13 was chosen as the optimal architecture, as the performance was good in terms of MVA, LVCEL, TT, and OFV. A confusion matrix was used to calculate the recall, precision, and F1 score for better evaluation and assessment as follows:

$$Precision=\frac{True Positive}{True Positive+False Positive}$$

(6)

$$Recall=\frac{True Positive}{True Positive+False Negative}$$

(7)

$$F1Score=\frac{\left(2\times Precision\times Recall\right)}{\left(Precision+Recall\right)}$$

(8)

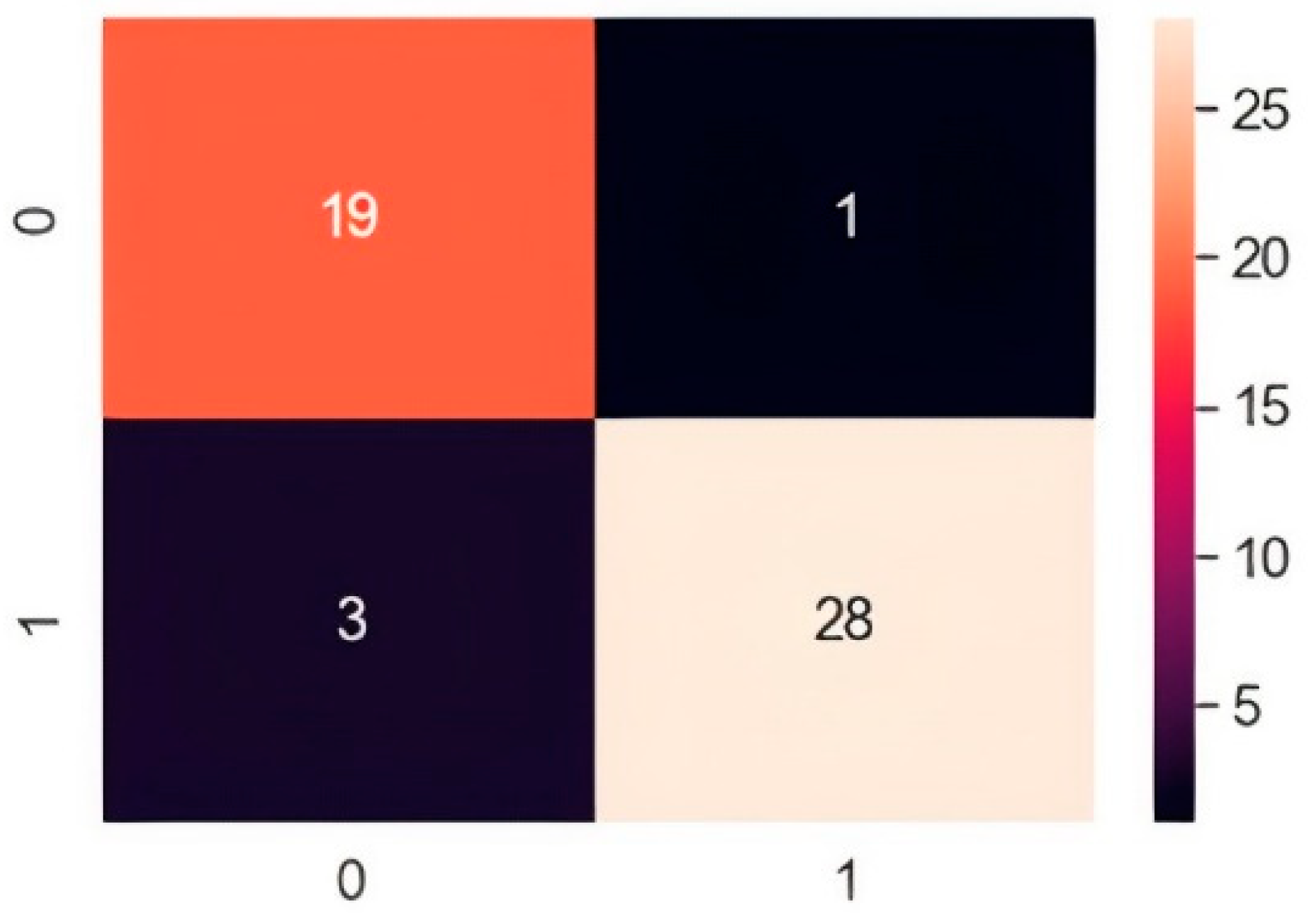

Figure 8 shows the confusion matrix of the optimal convolutional neural network architecture, where 51 non-augmented images were considered for metric evaluation. As data augmentation was used for enlarging the original dataset, so we cannot use augmented images for the evaluation of our architectures. Therefore, we considered only 51 images for better testing of our optimal architecture. We also evaluated architectures based on 371 augmented images where results gained were quite similar but for fair results, non-augmented images were considered.

From Equations (6)–(8), we calculated $Precision=0.90322$, $Recall=0.9655,$ and $F1-Score=0.93331$. Our model performed outstandingly, as all the metrics were above 90%. Therefore, we can claim that our architecture performed excellently in diagnosing brain tumors. Figure 9 shows the AUC-ROC where the area under the curve was found to be 0.737, which was good.

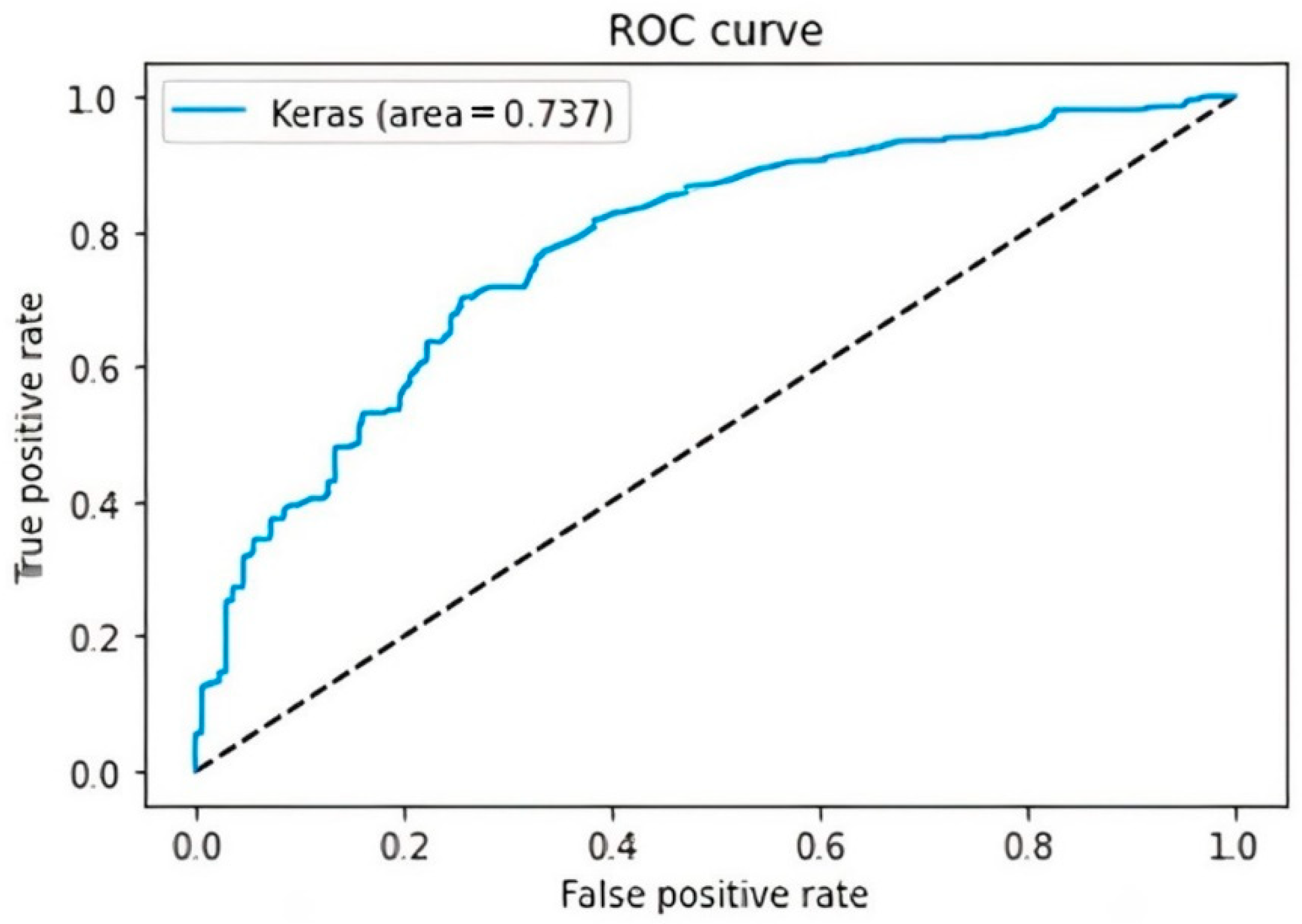

5. Conclusions and Future Work

In this paper, we make an effort to provide the best CNN architecture for brain tumor classification using MRI images by comparing all the performances of 15 configured CNN architectures. Based on the objective function value, we selected the ideal model, which was easily trainable and detected tumors faster than other architectures, with a low computational cost. The parameters and configuration of the selected CNN model were simpler than those of the other 14 architectures. Based on the outcomes of this study, we recommend that the simpler architectures perform best and are more stable and reliable than the complex ones. We admit that architecture 13 can perform better, and can gain a higher level of accuracy and stability if we perform small adjustments and experimentation. We also admit that the dataset was very small for testing. In the real-world implementation, we require more MRI scans for training and testing of various state-of-art deep learning models.

In terms of future work on brain tumor detection, various transfer learning architectures can be trained for classification, and architectures, such as ResNet, VGG and many other ImageNet models can be implemented. Therefore, brain tumor detection, which is a sensible case, can provide the best outcome via transfer learning and can better diagnose tumors. A large dataset can be used instead of image augmentation which can lead to better stability of architectures for the classification of MRI scans.
