Calculation and Characterization of Air Void in Mortar of the Hot Mix Asphalt (HMA) Based on CT Scanning and Image Analysis Methods

Featured Application

Authors are encouraged to provide a concise description of the specific application or a potential application of the work. This section is not mandatory.

Abstract

The air void content is one of the most important volumetric properties of asphalt matrixes, such as asphalt mixtures or mortars, because it can greatly affect the performance of the matrix. At the mixture level, there are standardized methods for measuring the air void content, which is an important design parameter of a mixture. However, at the mortar scale, no unified method has been proposed to determine the air void content corresponding to the asphalt mixture. Therefore, this research aims to, first, characterize the air void distribution within the mortar of an asphalt mixture and then develop an updated theoretical method for calculating the air void content of asphalt mortar. The internal structures of air voids from three commonly used asphalt mixtures with different gradations were captured using an industrial CT scanning technique and then morphologically characterized using the image analysis method. Three-dimensional models of the air voids were reconstructed, and the air void content calculated from the CT images was also verified by density tests. The scanning results show that the air void content and air void size fit the cumulative Weibull curve. The results show that the nominal maximum particle size (NMPS) of mortar and the mixture air void content were the main parameters that affected the mortar’s air voids. The mortar air void content had linear relationships with both the mixture air void content and the mixture asphalt aggregate ratio. The mortar air void content was more sensitive to the NMPS of the asphalt mixture compared with the air void content or asphalt aggregate ratio of the mixture. This research provides a quantitative method to calculate the air void content of asphalt mortar within a mixture, which may help in the matrix design of mortar.

1. Introduction

Asphalt mixtures, consisting of aggregate, asphalt and air voids, can be divided into a coarse aggregate phase and an asphalt mortar phase. Coarse aggregates comprise the skeleton and occupy most of the volume, while asphalt mortar fills in the intervals of the coarse aggregates and works as a bonding material between the coarse aggregates [1,2]. The air voids in an asphalt mixture can be distinguished as open or closed porosities, and many studies have focused on the size and distribution of the voids in a mixture and their influence on the pavement performance [3]. The air void content is a vital parameter which characterizes an asphalt mixture, and it is measured by one minus the ratio of the bulk density to the maximum theorical density [4,5]. To obtain a stable mixture, control parameters are used, such as the passing rate, asphalt aggregate ratio and air void content. Among these constituents, the air void content has a significant effect on pavement performance [6]. The air void content is controlled by design, and the compaction has a direct impact on multiple mixture’s performance, such as the fracture resistance [7,8,9], high-temperature creep resistance [10] and fatigue performance [11]. For example, a mixture with a larger air void content would be less stiff and have a smaller modulus compared with those with a smaller air void content, while a mixture with a certain air void percent has the best anti-rutting performance [12]. The aging rate of service pavement mixtures is also affected by the air void content [13,14,15]. Thus, the air void content is another vital control parameter for compaction, since dense and loose compactions in the same type of mixture have different volume properties and pavement performances [16].

The multiscale approach to asphalt mixtures has drawn increasing attention at the multiscale level, such as mortar and mastic, when comparing the asphalt materials’ performance at this scale. Mortar, or FAM (fine aggregate matrix), is the transaction scale between asphalt binder and asphalt mixture, which has both the viscoelastic properties of asphalt binder and dynamic modulus and fatigue performance similar to asphalt mixture [16]. With these features, mortar research on asphalt mixtures has been vital for understanding mixture performances or distress mechanisms [17]. With the numerous studies on mixtures, increasing attention has been paid to the mortar phase in a mixture [18]. Currently, as there is no standard specification for mortar preparation, testing and evaluation, many attempts have been made to reveal the manufacturing method, various performances and relationships of binder and the mixture of a mortar [18]. For further research on mortar, when manufacturing it in laboratories, it should have similar physical properties as pavement. However, the actual void percent and distribution condition of mortar in mixtures have still not been fully revealed. Researchers have studied void size and distribution in mortar and have made much progress, but the calculating the accurate air void content of mortar is still unclear. For example, in [19], less than 25% of the air void content for a 1.18 mm mortar and approximately 50–75% of the air void content in a NMPS 2.36 mm mortar were reported [19,20], but a more direct and accurate solution is needed.

The measurement of the air void content in mixtures has been well developed. The conventional method calculates the ratio of the volume of the air void content in the mixture to that of the whole mixture containing both solids and air voids [21]. With high-tech approaches, such as computerized tomography (CT) [22,23], air void details, such as their size and distribution in an asphalt mixture, can be characterized and analyzed. CT is a meso-structure testing approach that provides details on voids inside of samples to determine and evaluate the size and number of voids [24]. CT images with high-energy X-ray scanning of the sample can be used to illustrate an image array. Asphalt has a lower reflection rate, and painted as dark areas and aggregates have a larger reflection rate than painted as light areas. DIP is a quantitative approach that can illustrate the different phases in scanned images [10]. Using the DIP threshold segmentation method, such as the Otsu and modified Otsu method, with erosion and dilation [25], the asphalt, aggregate and air void parts can be separated and quantized. Then, the image information of a mixture or mortar slice can be acquired for mixture interstructure evaluation, such as contact indices, asphalt mortar thickness, aggregate particle orientation and air void distribution indices. CT and DIP [26] used together are a popular approach to researching the accurate interstructure of asphalt mixtures and asphalt mortars [24]. This approach is widely applied in evaluating mixture and pavement meso-structures through load and failure procedures, aging and recycling procedures and complete and distress procedures. Air void content is characterized using a coded program or commercial software. In addition to mixture samples, characterization of the mortar’s interstructure can also be studied using this approach.

2. Objective

The objective of this study was to calculate the mortar air void content based on CT scanned samples’ volume information and then to calculate the mortar’s volumetric properties. Although researchers can assume the mortar’s volumetric properties, which makes manufacturing easier, mortar material with similar volumetric properties as a mortar mixture would be useful when studying interstructure stress and volume change. Scholars have conducted similar studies testing the performance of asphalt mortar and coarse aggregate asphalt separately and then deciding on the optimal gradation composition of the mortar and coarse aggregate asphalt for the design of a mixture [27]. The challenge of mortar theorization and application is that there is no clear definition of the volumetric properties of mortar. When discussing the air void percent, it means the void percent of a mixture. The void percentage in a mortar and in the coarse aggregate will not affect the mixture’s air void value, but they may have different mortar air void contents. There are two existing methods to conduct mortar research. Firstly, assuming that the air voids that exist in mortar are similar to those in a mixture, the mortar design is conducted the same as for mixture design. The usage of each part and the volumetric properties can be controlled. Secondly, when studying the quantitative air void properties in mortar through CT, the results are accurate but disposable, which means that the mortar’s air void content and the mortar’s air void percent in the mixture can only be obtained at high cost. Therefore, this study attempted to combine the accuracy of the CT approach and the certainty of the mixture design approach to develop a general and relatively accurate approach to mortar air void determination.

To achieve this objective, three types of asphalt mixtures with different nominal maximum particle size (NMPS) were manufactured in the laboratory and scanned using an industrial CT scanner. The scanned images were processed with binarization and threshold segmentation. Then, all of the voids in mixture were identified, numbered, counted and fitted with a statistical curve. The small voids were counted in the mortar, while the large ones were counted in the mixture; then, the identified air voids in the mortar of the mixture could be calculated. In addition, a new method to calculate the mortar air void content was designed and promoted based on the specific surface area method. There were mortars with different NMPS for each mixture; thus, in total, there were 12 types of mortar air voids calculated, and the sensitivity of the mortar air void content to the mixture’s air void content and asphalt aggregate ratio was analyzed.

3. Materials Preparation

3.1. Commonly Used Mixture Designs

Basalt and limestone are the most widely used asphalt mixture aggregates in Jiangsu Province. The surface layer uses basalt, while the middle and bottom layers use limestone. Three types of dense mixtures with various nominal maximum particle size (NPMS), AC-13, AC-20 and AC-25, were designed in the laboratory, and their gradation and design are common in Jiangsu. Basalt was used in AC-13 as the surface layer, and limestone was used in AC-20 and AC-25 for the middle and bottom layers. The mixture gradation and design are shown below. Then, these mixtures were mixed and compacted by a Marshall compactor for 75 cycles. All of the design symbols and abbreviations of the mixture design correspond to asphalt pavement construction standards in China [28]. All of the design results are the same as commonly used pavement asphalt of Jiangsu expressways. The designed air void content for AC-13, AC-20 and AC-25 were 4.0%, 4.5% and 5%. The designed asphalt aggregate values for AC-13, AC-20 and AC-25 were 5.0%, 4.5% and 4.2%. The asphalt mixture gradation passing rates are shown in

Table 1. Commonly used mixture designs.

Passing Rate %	31	26.5	19	16	13	9	4.75	2.36	1.18	0.6	0.3	0.15	0.075
SBS PG76-22 AC-13 5% asphalt aggregate ratio 4% air void content
Gradation	100	100	100	100	94.9	67.0	38.4	33.1	26.0	17.0	12.0	9.3	5.9
SBS PG76-22 AC-20 4.5% asphalt aggregate ratio 4.5% air void content
Gradation	100	100	97.1	87.0	76.0	59.6	43.8	27.7	21.6	14.3	8.8	7.1	5.7
AH 70# AC-25 4.2% asphalt aggregate ratio 5% air void content
Gradation	100	100	96.1	83.2	73.1	60.2	41.1	29.6	23.3	15.6	9.9	8.1	6.6

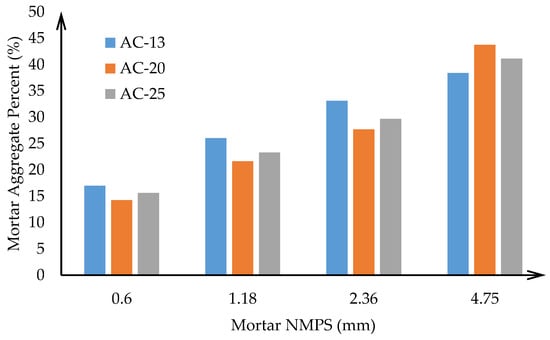

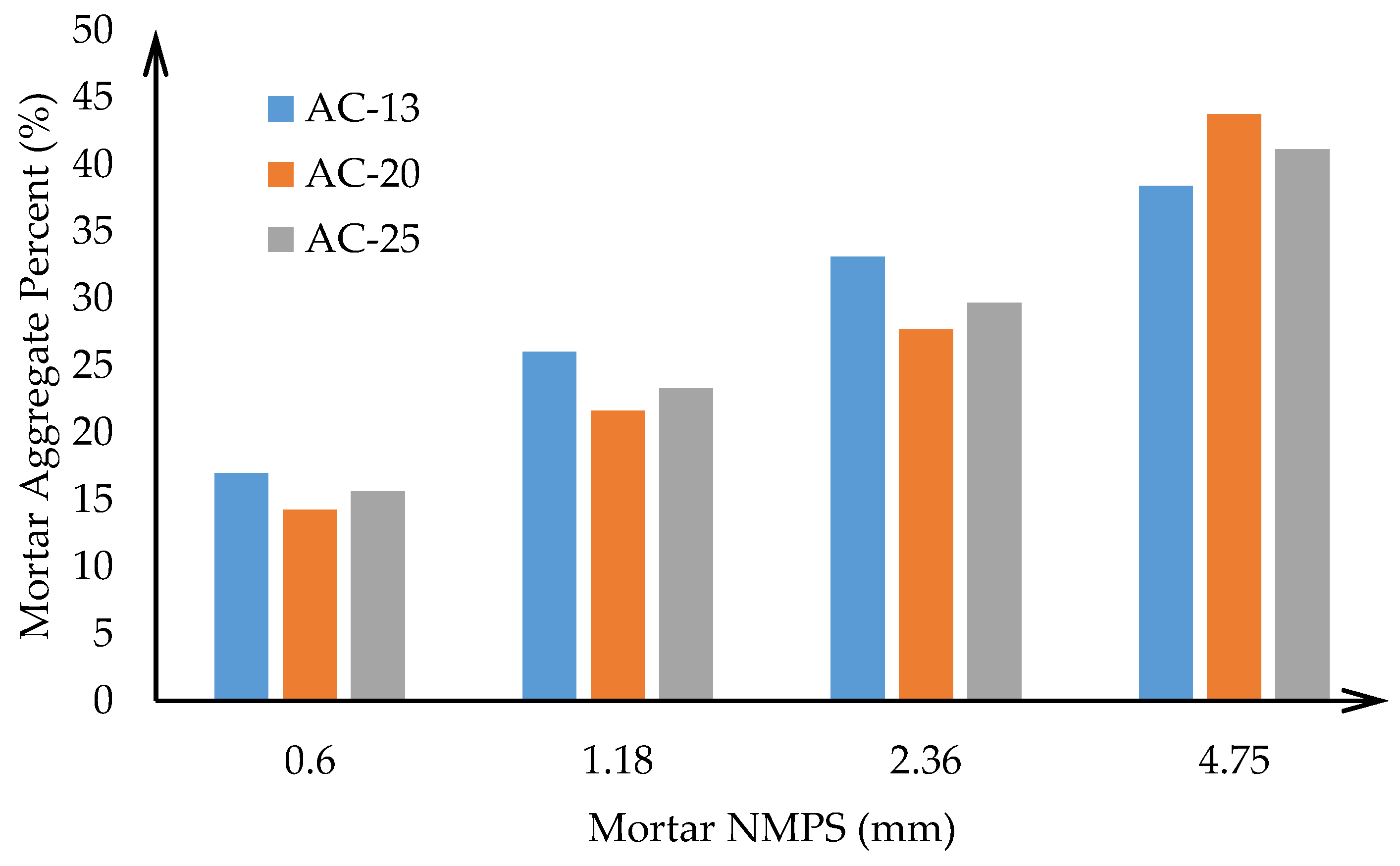

. The surface layer of AC-13 was finer, so it had a larger passing rate (13.2 mm) and fine aggregate (<4.75 mm) particles. The bottom layer of AC-25 had a smaller fine aggregate passing rate.

3.2. Mortar Design

To obtain general results, maximum aggregate sizes from 0.6 to 4.75 mm (0.6, 1.18, 2.36 and 4.75 mm) were used for the mortar design. These sizes are the same as the sieve size used for asphalt mixtures on China’s mainland. The asphalt aggregate ratio of the mortar was calculated by the specific surface area method, and the mortar design results are shown in Figure 1, and the gradation of each mortar is shown in

Table 2. Mortar design results.

Mortar Type	Passing Rate (%)							Asphalt Aggregate Ratio (%)
Sieve Size (mm)	4.75	2.36	1.18	0.6	0.3	0.15	0.075
AC-13
0.6 Mortar				100.0	70.5	54.6	34.6	20.16
1.18 Mortar			100.0	65.3	46.0	35.7	22.6	14.85
2.36 Mortar		100.0	78.6	51.3	36.2	28.0	17.8	12.82
4.75 Mortar	100.0	86.2	67.7	44.2	31.2	24.2	15.3	11.69
AC-20
0.6 Mortar				100.0	61.6	50.0	40.2	21.39
1.18 Mortar			100.0	66.0	40.6	33.0	26.6	15.87
2.36 Mortar		100.0	78.0	51.5	31.7	25.7	20.7	13.57
4.75 Mortar	100.0	63.3	49.4	32.6	20.1	16.3	13.1	9.06
AC-25
0.6 Mortar				100.0	63.3	52.1	42.3	18.72
1.18 Mortar			100.0	67.0	42.4	34.9	28.4	14.04
2.36 Mortar		100.0	78.5	52.6	33.3	27.4	22.3	12.02
4.75 Mortar	100.0	72.1	56.6	37.9	24.0	19.8	16.0	9.12

, which also shows the aggregate sieving results of the mortar.

The design of the aggregate rate of the mortar was calculated using Equations (1)–(3).

$$S{A}_r=\sum \left(P_i\times F{A}_i\right)$$

(1)

where SA_r is the total surface area of the mortar (m²/kg); P_i is the passing rate of each mortar particle aggregate (%); FA_i is the specific surface area of the particle size aggregate; and r (0 < r < mixture NMPS) is the NMPS of the calculated mortar (mm).

$$P_{a-r}=\frac{\left(S{A}_r/SA\right)\times P_a}{P_r}\times 100$$

(2)

where P_a−r is the asphalt aggregate ratio of the mortar (%); SA is the total surface area of the selected mixture (m²/kg); P_a is the asphalt content of the selected mixture (%); and P_r is the mortar mass rate of the mixture (%).

$$P_{si-r}=100-\frac{P_{a-r}}{100+P_{a-r}}$$

(3)

where P_si−r is the aggregate rate of the mortar (%).

Equations (2) and (3) determine the usage of asphalt in designing the mortar. SA is the total surface area of all aggregates. This step in the mortar design can be conducted using the specific surface area method. Assuming that all of the aggregate particles had the same asphalt film thickness, the specific surface area method was used for deciding the mortar asphalt dosage.

4. CT Scan and Image Processing

4.1. CT Scan Test

CT scanning is an accurate and commonly used method for confirming the internal structure of asphalt samples. The investigation of the air void distribution characteristics of the laboratory fabricated samples was conducted with CT scanning tests on the three types of asphalt mixture. The AC-13, AC-20 and AC-25 samples were compacted in the laboratory. Then, a high-resolution industrial CT scanner, Compact-255 by YXLON, was used for scanning. The volumetric properties of the samples are presented after the introduction of the CT scanners, as well as the number and distribution of the air voids of the mortar in asphalt mixtures.

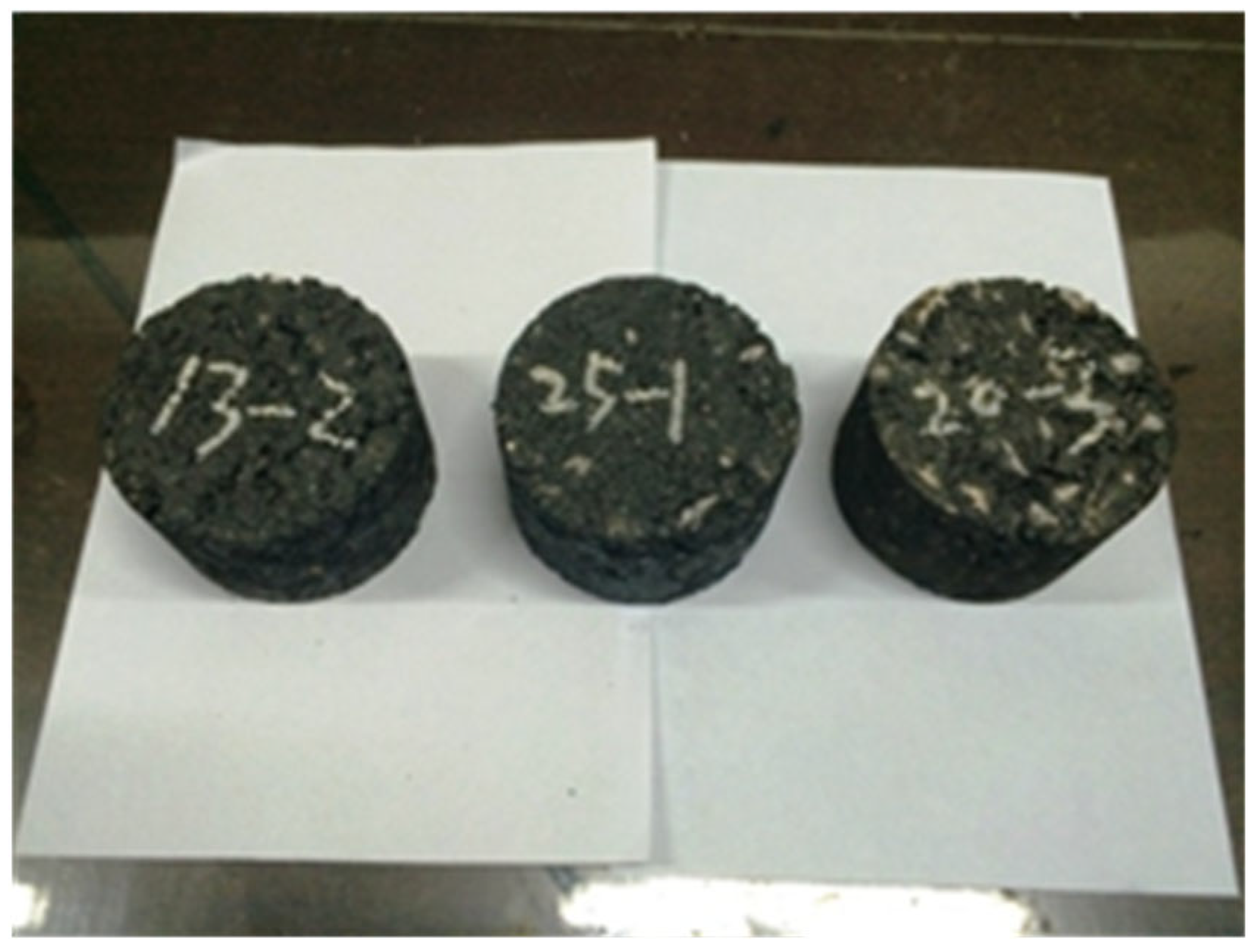

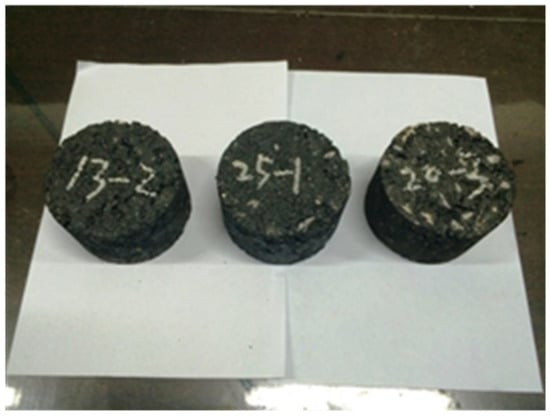

To obtain the same mixture used in Jiangsu, the CT scanned samples’ diameter was 101 mm and the height was 63.5 mm. The mixture samples were compacted by a Marshall striker to the designed air void content in the laboratory. Figure 2 shows a picture of the three mixture samples. In the scanned images, the light areas are the stone, while the black areas are voids, whether air voids or outside. The scanned images had a resolution of 0.11 mm × 0.11 mm. The distance between neighboring images was 0.11 mm. The scanned images are grayscale map with 256 bit depth. The voxels of the voids in the CT images correspond to the volume in the slices of the scanned sample; each fraction was identified and marked. The 2D images were analyzed using the MATLAB program.

4.2. Image Processing

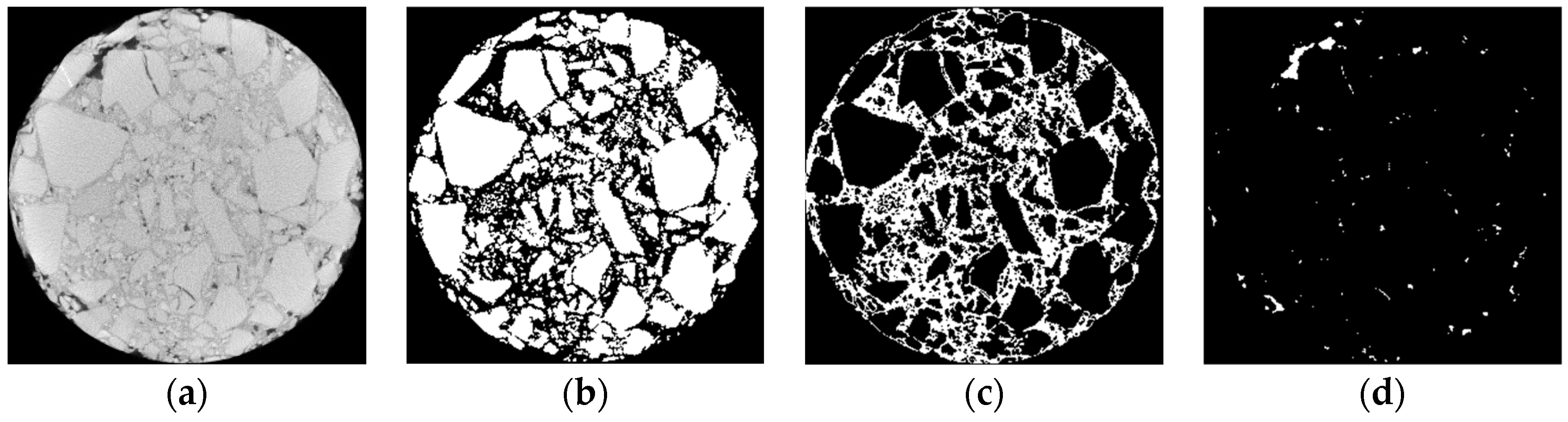

Each sample’s images were used without the top and bottom 10 mm to obtain stable void data. The scanned images consisted of voxels (volume elements) with different gray scales. The resolution of the images was 0.11 mm × 0.11 mm, and the distance between adjacent images was 0.11 mm. Image enhancement was the first step for the scanned images to make unclear details clearer and to reduce uninteresting regions. CT scanning of the sliced images was conducted, and median filter and grey level transformation were used [29]. The second step was image segmentation, which was based on ring region and Otsu method [30]. The circle image was cut into 6 different rings to reduce the brightness change in the radial direction, and the Otsu method was used for each ring for the segmentation and then combined back into one picture [31]. For example, the image segmentation results for AC- 20 is shown in Figure 3; from left to right is the scanned image, voids, mortar and aggregate, which are plotted in white at the same position as in the scanned image.

Then, post-processing was applied, and the particle diameters and void diameters were calculated by assuming that all of the particles in the picture were circles [24,29,32]. After a 2D void analysis, the 2D slice images were integrated and 3D models were constructed using industrial CT software; the different materials were identified as coarse aggregate, mortar and voids. In this section, mortar with NMPS 2.36 mm and no air voids was used, since this NMPS is widely selected. Then, the voids were classified by volume and characterized using Equations (4) and (5).

The 2D equivalent diameters of the particles were as in Equation (4):

$$\mathrm{Feremeter}2=2\sqrt{\mathrm{Area}/\pi }$$

(4)

where Feretmeter2 is the equivalent diameter (mm), and Area (mm²) is the area of the voids in the image.

The 3D equivalent diameters of the particles were as in Equation (5):

$$\mathrm{Feremeter}3=2\sqrt[3]{\left(3\times \mathrm{Volume}\right)/\left(4\times \pi \right)}$$

(5)

where Feretmeter3 is the equivalent diameter (mm), and Volume (mm³) is the area of the voids in the image.

5. Void Analysis and Mortar Void Percent

5.1. 2D Void Analysis

The multiscale approach to asphalt pavement often divides the asphalt mixture into coarse aggregate, mortar and voids [33,34]. All voids are counted when designing a mixture, but for mortar, some voids are too large. In this study, a simple but effect method is introduced where only the voids smaller than the NMPS are counted as voids in mortar, while voids lager than the NMPS are counted as voids not in the mortar but in the mixture. An analysis of the 3D model followed the same rule [18]. The voids in the mortar example are shown in Figure 4.

With image processing, each void’s details were identified. By conducting the void static using the equivalent diameter, as in Equation (4), the void passing rate at an integer void size was identified. The void passing rates are introduced and shown in

Table 3. Void passing rate with different void sizes of the different mixtures.

Mixture Type	Void Passing Rate (%)
	1 mm	2 mm	3 mm	4 mm	5 mm	6 mm
AC-13	13.2	38.6	63.4	81.4	91.8	96.9
AC-20	10.8	32.1	54.8	73.2	85.8	93.2
AC-25	10.9	28.5	46.6	62.4	74.9	84.0

, and the void passing rate can be regarded as the concept of “void gradation”, which is similar to the mixture aggregate gradation.

Void gradation is defined as the passing rate of the void size, similar to the aggregate gradation, and the calculation of the void gradation of the mixture and the results are as follows: Using Table 3, we can obtain the void percent in mortar using Equation (6). The cumulative void percent followed the cumulative Weibull distribution. The cumulative value and regression value of the void gradation of the three mixtures are shown in Figure 5. With the fitting curve, the void percent of any size can be calculated. For mortar with the maximum particle of 2 mm, the AC-13 mortar had 38.6% voids for the total void content of 4.1% in the mixture, while AC-20 had 32.1% of 4.2% and AC-25 had 28.5% of 4.4%. For the mortar with the maximum particle of 4 mm, the AC-13 mortar had 81.4% of the total void content for 4.1% of the mixture, while AC-20 had 73.2% for 4.2% and AC-25 had 62.4% for 4.4%. The cumulative Weibull curve was fitted with the void passing rate and obtained relatively ideal fitting results. With this we could obtain the void percent of the mortar with a common NPMS. The regression of the cumulative Weibull curve of the three mixture’s air void sizes is shown in Figure 5, and the void percent results of the commonly used sizes are shown in Figure 6. The parameter v_r is the void percent (%) which is the percent of air voids that exist in certain types of mortar [29].

The void passing rate of a mixture fitting the cumulative Weibull curve is calculated using Equation (6):

$$F\left(x\right)=\left[1-e^{-{\left(x/\lambda \right)}^k}\right]\times 100, x\ge 0$$

(6)

where x is the void size (mm); λ (mm) and k (dimensionless) are the shape parameters; and F(x) is the fitted passing rate responding to size x (%). The parameter λ controls the void size distribution, and the larger the value of λ, the larger the scale of the air void size. Parameter k controls the void size concentration, and the larger the value of k, the greater the concentration of air voids at the middle size.

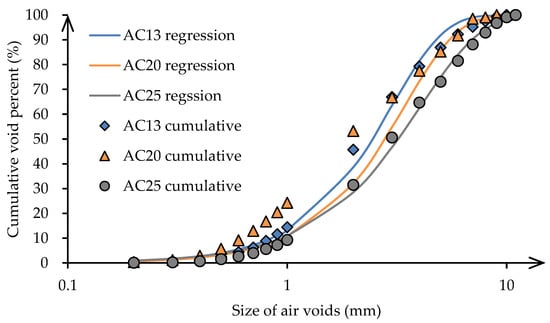

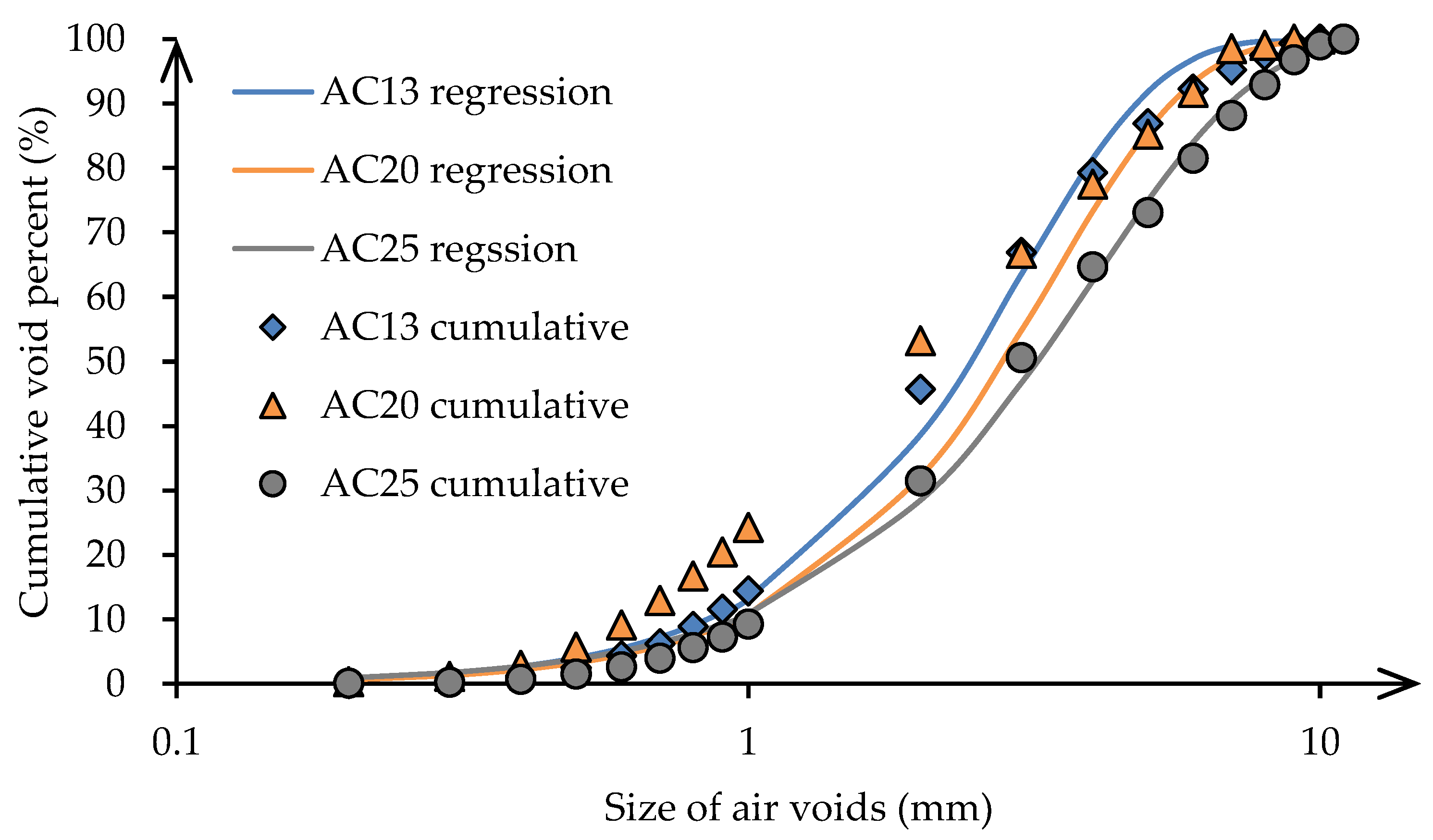

Figure 5 displays the cumulative Weibull curve and fitting curve of the three mixtures. Using these curves, the cumulative void percent can be obtained. For a 0.6 mm mortar, the mortar void percent is 5.1% to 5.5% of the total mixture air void content of 4.1% to 4.4%; for a 1.18 mm mortar, this value is 13.8% to 17.4% of 4.1% to 4.4%; for a 2.36 mm mortar, it is 35.1% to 48.1% of 4.1% to 4.4%; and for a 4.75 mm mortar, this value is 72.1% to 89.8% of 4.1% to 4.4%. This also means that most of the void volume is less than 4.75 mm, nearly half of them are less than 2.36 mm and only a slight amount of the void volume is less than 0.6 and 1.18 mm. For a 1.18 mm mortar size, the void percent results are in the range of other studies [20], verifying the reliability of both the previous and this study.

5.2. 3D Void Analysis

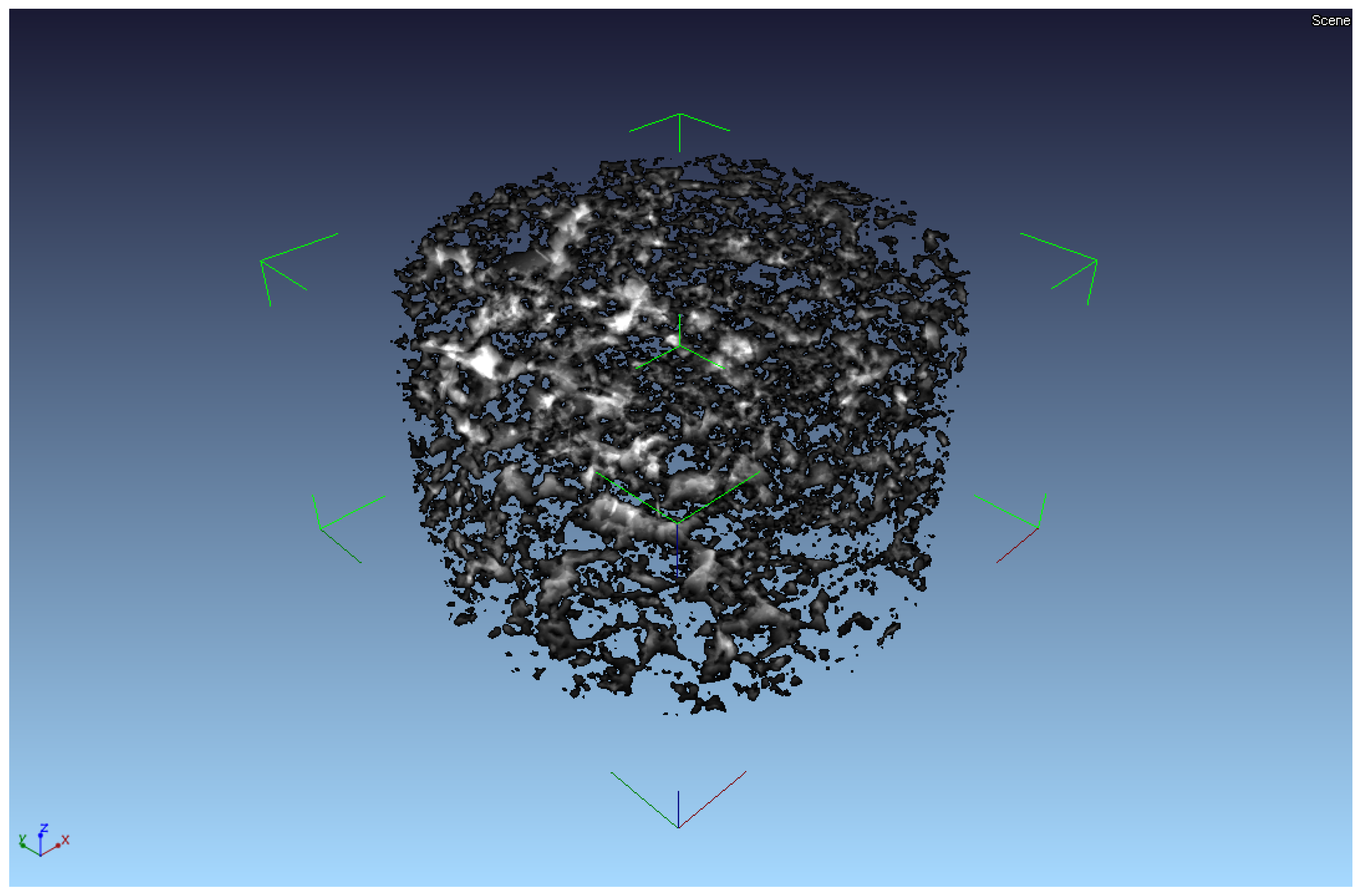

The sliced images were reconstructed as a 3D model, and the total voxel number of the coarse aggregate, mortar (without voids) and voids were plotted. A three-dimensional model of AC-13 with voids is shown in Figure 7. The voids, after measuring tests and CT scanning, were compared, and the results are shown in

Table 4. Air void content, coarse aggregate volume and deviation of the CT and test results.

Mixture Type	Air Void Content
	Designed (%)	Tested (%)	Scanned (%)	Deviation (%)
AC-13	4	4.1	4.2	0.1
AC-20	4.2	4.2	4.1	−0.1
AC-25	4.5	4.4	4.6	0.2

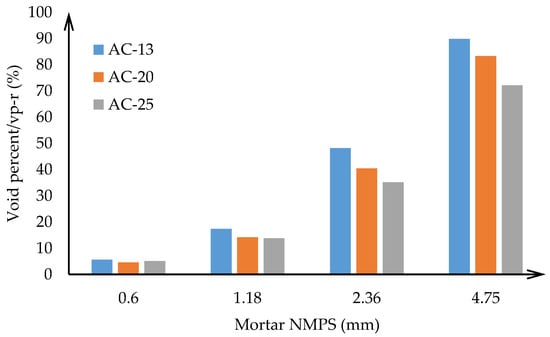

. In this section, all of the mortar mentioned had an NMPS of 2.36 mm for research consistency and one NMPS mortar was enough to clarify the different parts of the mixture [32]. Then, the air void content of the three laboratory manufactured asphalt mixtures were calculated using Equation (7). The density of the mixture samples was tested by the surface dry method, and the theoretical maximum density was tested by the vacuum method. The two methods follow the “Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering”.

Table 5. Calculation results of the air voids, mortar and coarse aggregate volume.

Mixture Type	Air Void		Mortar (without Voids)		Coarse Aggregate
	Voxel	Volume (mm3)	Voxel	Volume (mm3)	Voxel	Volume (mm3)
AC-13	1.08 × 107	15,646.3	8.97 × 107	129,641.1	1.57 × 108	227,244.5
Percent (%)	4.2		34.8		61
AC-20	1.58 × 107	22,842.0	1.27 × 108	183,293.0	2.43 × 108	350,986.6
Percent (%)	4.1		32.9		63
AC-25	1.57 × 107	22,721.8	9.87 × 107	142,752.1	2.27 × 108	328,478.1
Percent (%)	4.6		28.9		66.5

shows the voxel statistic results of air void, mortar and coarse aggregate. And Table 4 shows that the CT scanned air void content matched the tested air void content.

The aggregates and asphalt parts in the mortar (without void) occupied a larger volume percent in AC-13 than that in AC-20, and the aggregates and asphalt parts in the mortar occupied a larger volume percent in AC-20 than that in AC-25. The coarse aggregate volume percent of AC-13 was less than AC-20, and the coarse aggregate volume percent of AC-20 was less than AC-25. The larger the mixture’s NMPS, the less the mortar, and the larger the mixture’s NMPS, the larger the coarse aggregate percent.

6. Mortar Air Void Content Calculation Equation

Based on the preparation work, the method to calculate the designed mortar air void content with various NMPS and different mixture types was introduced. The calculation method consists of several equations from Equations (7)–(13), and the calculation results are shown in Figure 8.

Equation (7) is the calculation for the mixture air void content:

$$VV=\left(1-\frac{{\gamma }_f}{{\gamma }_t}\right)\times 100$$

(7)

where VV is the designed mixture air void content (%); γ_f is the measured sample density (g/cm³); and γ_t is the theoretical maximum density (g/cm³) of the mixture sample.

The effect density of the mortar is determined by Equation (5), which is similar to the effect density of the mixture aggregate. Equations (8)–(12) determining the effect density for the mortar, which is vital for calculating the mortar voids.

The bulk density, γ_sb−r (g/cm³), of the mortar aggregate with r NMPS is calculated as per Equation (8):

$${\gamma }_{sb-r}=\frac{100}{\frac{P_{1-r}}{{\gamma }_{1-r}}+\frac{P_{2-r}}{{\gamma }_{2-r}}+\cdots +\frac{P_{n-r}}{{\gamma }_{n-r}}}$$

(8)

where P_i−r is the mass content of aggregate particle i (%); γ_i−r is the bulk density of mortar particle i (g/cm³), 1 ≤ i ≤ n.

The apparent density, γ_sa−r (g/cm³), of the mortar aggregate with r NMPS is calculated as per Equation (9):

$${\gamma }_{sa-r}=\frac{100}{\frac{P_{1-r}}{{\gamma }_1^{\prime }}+\frac{P_{2-r}}{{\gamma }_2^{\prime }}+\cdots +\frac{P_{n-r}}{{\gamma }_n^{\prime }}}$$

(9)

where γ’_i is the bulk density of mortar particle i (g/cm³), 1 ≤ i ≤ n.

The effective density, γ_se−r (g/cm³), of the mortar aggregate with r NMPS is calculated as per Equation (10):

$${\gamma }_{se-r}=C\times {\gamma }_{sa-r}+\left(1-C\right)\times {\gamma }_{sb-r}$$

(10)

where C is the aggregate absorption index (%).

The aggregate absorption index, C, is calculated by Equation (11), which is a widely used empirical equation in China and also recommended in the standard for the use of modified asphalt mixtures. Equation (11) is as follows:

$$C=0.033W_{x-r}^2-0.296W_{x-r}+0.9339$$

(11)

where W_x−r is the water absorption percent (%).

The water absorption percent, W_x−r, is calculated as per Equation (12):

$$W_{x-r}=\left(\frac{1}{{\gamma }_{sb-r}}-\frac{1}{{\gamma }_{sa-r}}\right)\times 100$$

(12)

Finally, the air void content of a given mortar NMPS can by calculated by Equation (13), which clarifies each phase’s volume, including the air voids in the mortar, mortar aggregate and asphalt. In this equation, v_p−r is the void percent of the mortar (%); P_a is the mortar aggregate passing rate (%), and P_a = 100% in this equation; γ_a is the density of the asphalt (g/cm³); and VV_m−r is the air void content of the mortar with NMPS r (%). The final step is the calculation of the mortar voids, as shown in Equation (13); the top part of the fraction are the air voids in the mortar, and the bottom part of the fraction is the accumulated volume of voids, mortar aggregate and mortar asphalt. This equation is the calculation for a certain mortar NMPS and asphalt mixture type.

The air void content, VV_m−r, of a mortar with an NMPS is calculated as per Equation (13):

$$V{V}_{m-r}=\frac{VV\times v_{p-r}}{\left(VV\times v_{p-r}+\frac{P_{si-r}}{{\gamma }_{se-r}}+\frac{P_{a-r}}{{\gamma }_a}\right)}\times 100$$

(13)

7. Equation Calculation Results and Analysis

7.1. Mortar Air Void Content Results

The expressway pavement consisted of an AC13 layer as the surface layer, an AC20 layer as the middle layer and an AC25 layer as the bottom layer, and the mixture’s air void contents were 4%, 4.5% and 4.2%, like the commonly used mixture mentioned before. When designing the air void content of the mortar, we first determined the volume in this mortar with a certain mixture type, mixture air void content and mortar NMPS. The air void content of the mortar may larger or smaller than that of the mixture, because the total mortar volume consists of only some part of the whole mixture. For example, the calculation for the mortar with an NMPS of 2.36 mm, the void percent is 48.1%, 40.5% and 35.1%. The P_a values are 33.1%, 40.5% and 35.1%; γ_se−r are 2.74, 2.71 and 2.71 g/cm³; P_b−r are 12.8%, 13.6% and 12.0%; γ_b is 1.03 g/cm³. For example, the air void content of the AC-13 mortar with an NMPS of 2.36 mm is:

$$V{V}_{AC-13-2.36}=\frac{4\%\times 48.1\%}{\left(4\%\times 48.1\%+\frac{33.1}{2.74}+\frac{12.8}{1.03}\right)}\times 100=4.8(\%)$$

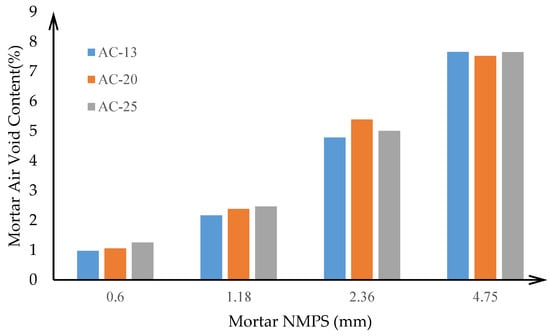

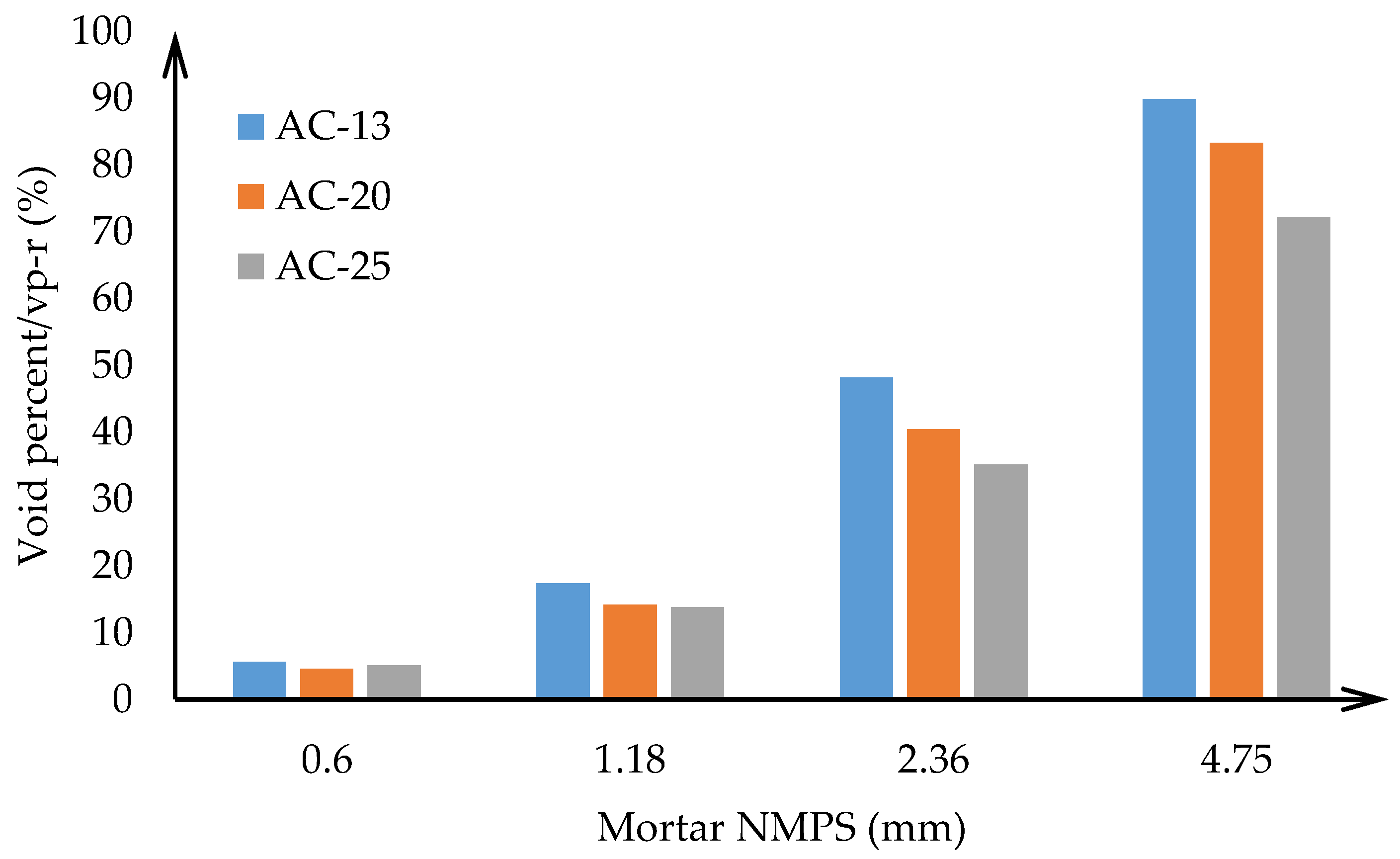

Using the same method to calculate the other mortars with different NMPS and mixture types, the results are shown in Figure 8. From Figure 8, the air void content of the AC-13 mortar is smaller than that of AC-20 and AC-25 with a certain NMPS. The air void content of the AC-13 mortar increases with an increasing NMPS.

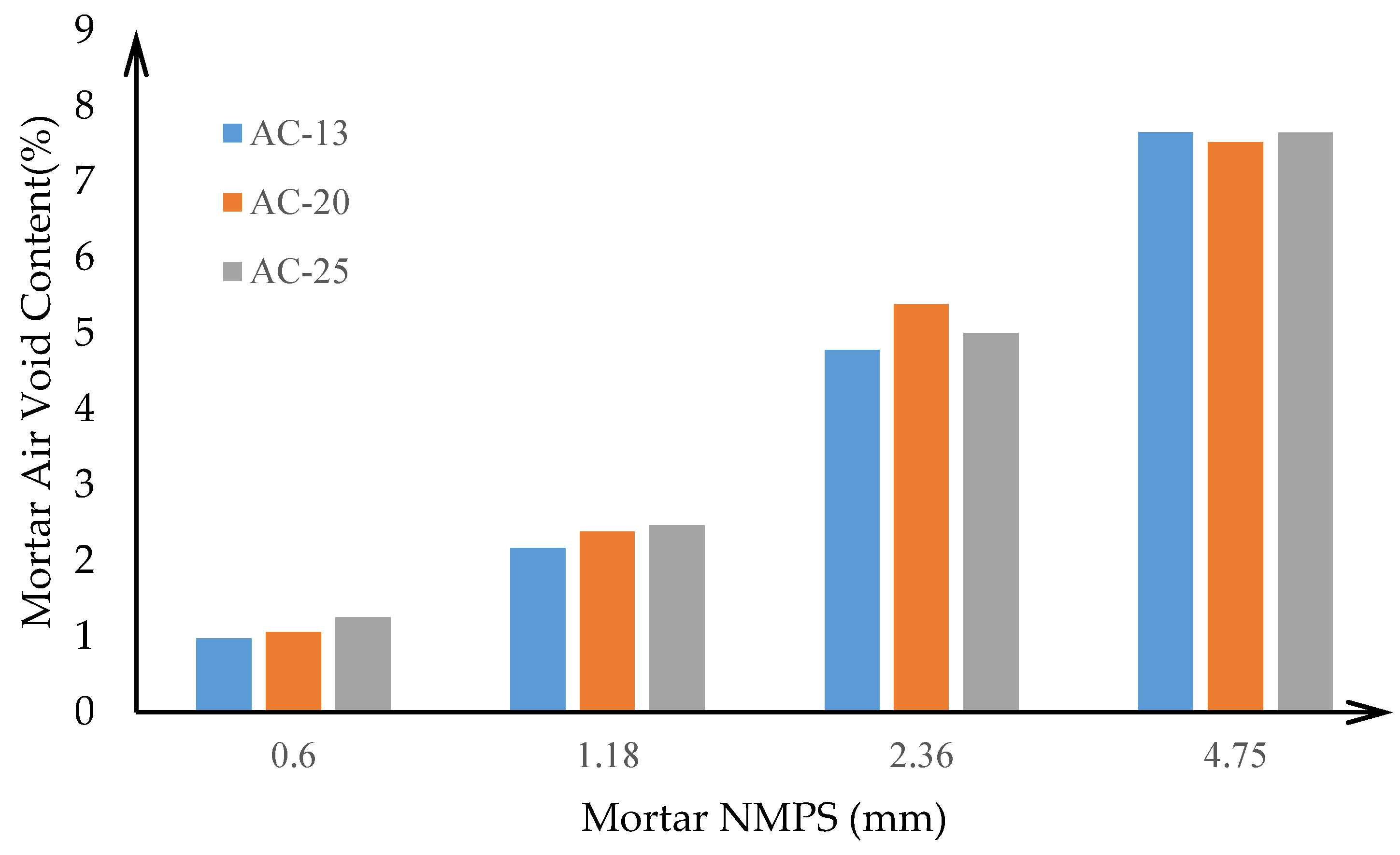

With this calculation method, a more accurate air void content of the mortar can be obtained. From Figure 4, the air void content of a 0.6 mm mortar is approximately 1% and that of a 4.75 mm is approximately 8%. Different NMPS have a much smaller effect on the air void content than mortar NMPS. With the increase in the mortar NMPS, the mortar air void content increases at the same time.

7.2. Results of the Sensitivity Analysis

Changing the air void content of the mixture could affect the mortar voids, and a commonly used asphalt aggregate ratio and air void content range were studied. The mortar void sensitivity analysis of the AC-13 mortar is shown in Figure 9.

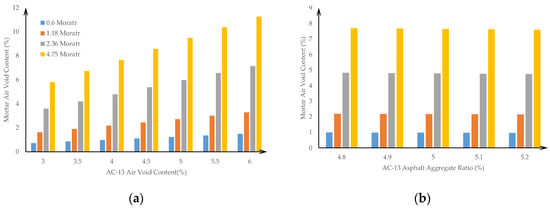

AC-13 had a designed air void content of 4% and a designed asphalt aggregate ratio of 5%. Several changes were applied to the air voids and asphalt aggregate ratio. From Figure 9, it is revealed that the mortar with different NMPS had different sensitivities. For the mortar with a 0.6 mm NMPS, a 1% parameter value change in the air content or asphalt aggregate ratio in the corresponding asphalt mixture could lead to an approximately 0.1% change in the 0.6 mm mortar’s air void content and a 1% change in the 4.75 mm mortar’s air void content. The air void content of the mortar with a larger NMPS was more sensitive than that of a smaller NMPS. With same mortar NMPS, the air voids of the mixture were more sensitive to the mortar air voids than the asphalt aggregate ratio of the mixture. Because this result was calculated by the given design, the mortar air void content versus the different AC-13 air void contents had a significant linear correlation, and each coefficient of determination, R², was almost 1. These results were calculated by their scanned mixture samples; therefore, they had good correlation.

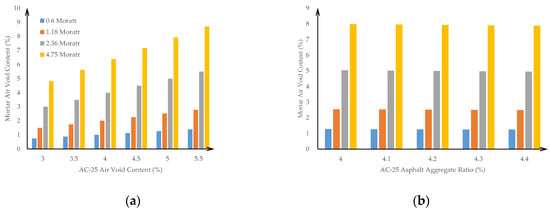

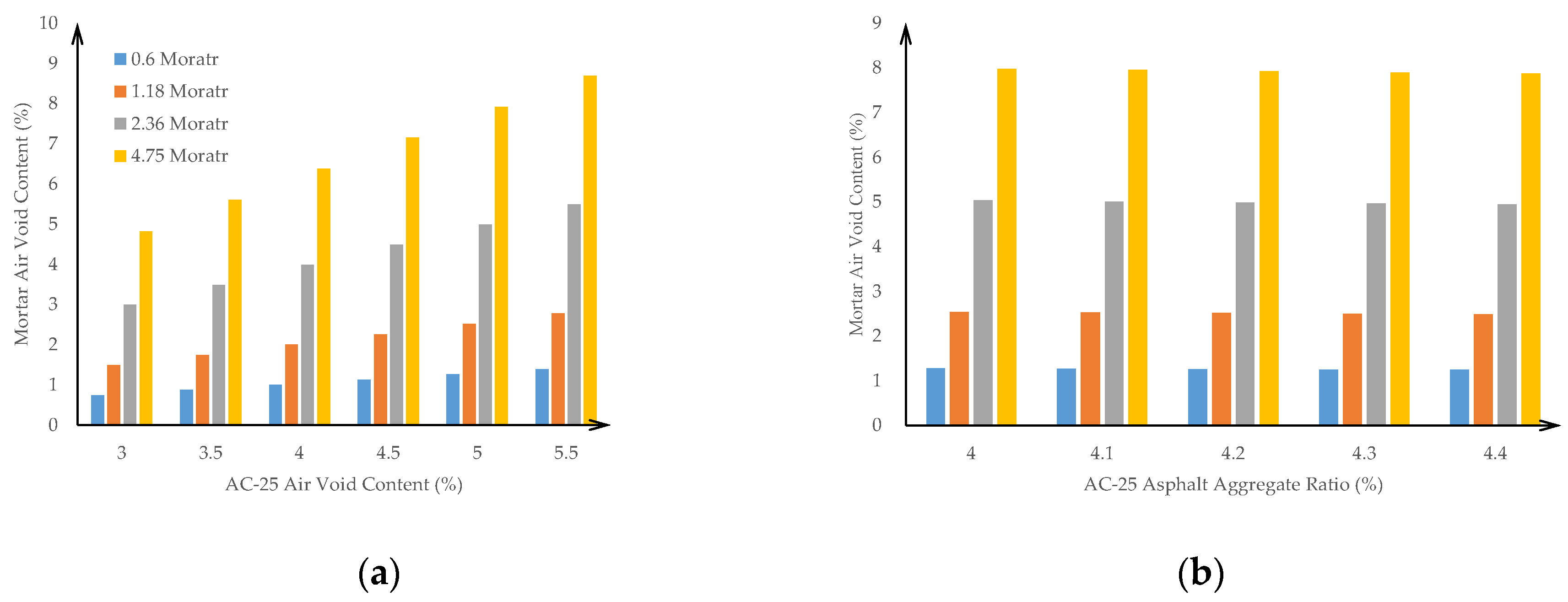

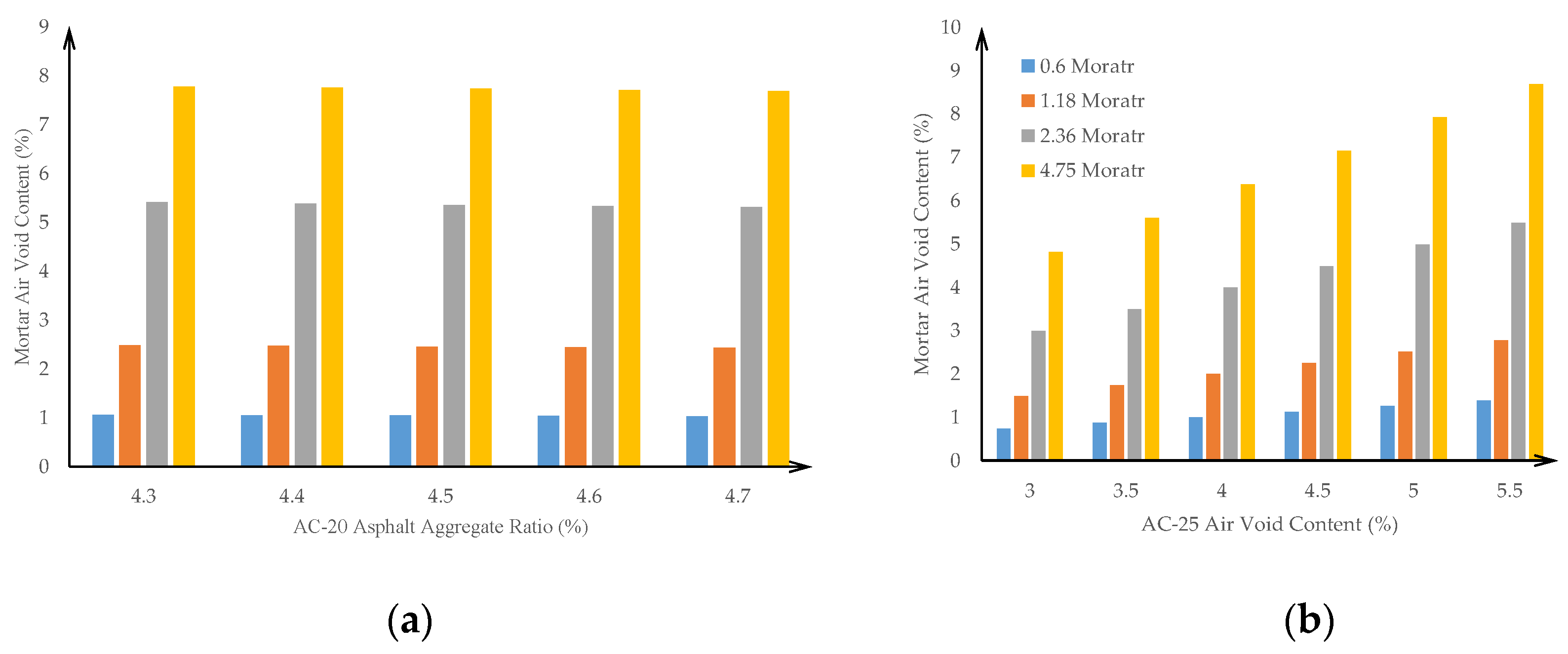

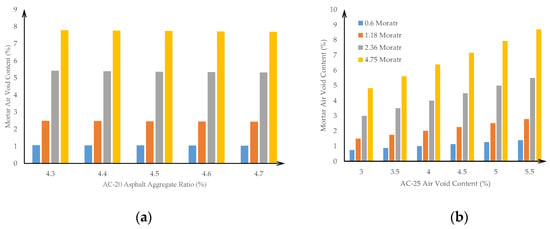

When changing the mixture air void content and asphalt aggregate, the mortar air void content of AC-20 and AC-25 are shown in Figure 8, Figure 9 and Figure 10. The mortar air void content versus the different AC-20 and AC-25 air void contents had a significant linear correlation, and each coefficient of determination, R², was close to 1, similar to AC-13. The AC-13 slope absolute value of the mortar air void content versus the mixture air void content was bigger than that of AC-20, and AC-20’s was bigger than AC-25’s. This indicates that with the same mixture air void content as in AC-13, it would have a larger mortar air void content whether the mortar NMPS and the mixture with a lower NMPS had a higher mortar air void content sensitivity. The AC-13 slope absolute value of the mortar air void content versus the asphalt aggregate ratio was bigger than that of AC-20 and lower than that of AC-25, indicating that this slope absolute value did not have a clear rule with NMPS. The Figure 10 showed AC-20 mortar void content with different mixture’s air void content and with different asphalt aggregate ratios. The Figure 11 showed AC-25 mortar void content with different mixture’s air void content and with different asphalt aggregate ratios.

The sensitivity analysis of the mortar air void content was more sensitive with the air void content change and less sensitive with the common asphalt aggregate ratio change.

8. Conclusions

• Three commonly used asphalt mixture samples were scanned using industrial CT and the air void distribution and void passing rate of the samples were calculated. A new method for calculating a mortar’s designed air void content was created and used.
• The mixture that had a small NMPS had a larger void percent, larger air void content and lower coarse aggregate percent for the mortar with a certain NMPS; for same gradation type, the mortar with the larger NMPS had a larger void percent and more air void content. The CT scanned air void content matched the tested air void content for the mixture samples.
• The asphalt aggregate ratio had a lower impact on the mortar air void content, while the mixture air void content greatly affected the mortar air void content. The mortar with a 2.36 mm NMPS had an air void content that was closest to the mixture air void content; the mortar with an NMPS less than 2.36 mm had a lower air void content than that of the corresponding mixture; the mortar with a 4.75 mm NMPS had larger one than that of the corresponding mixture.
• Both the mixture air void content and the asphalt aggregate ratio had a good linear correlation with the mortar air void of any NMPS.
