Geochemical Characteristics of Elements and Main Controlling Factors of Organic Matter Enrichment in Shale from Wufeng Formation to Submember Long-11 in Southern Sichuan
Abstract
:1. Introduction
2. Geological Condition
3. Sample and Method
4. Laboratory Result
4.1. TOC
4.2. Chemical Characteristics of Elements
5. Discussion
5.1. Relationship between REDOX Conditions and Total Organic Carbon Content
5.2. Primary Productivity
5.3. Terrigenous Material Content
5.4. Relative Height of Sea Level
6. Conclusions
- (1)

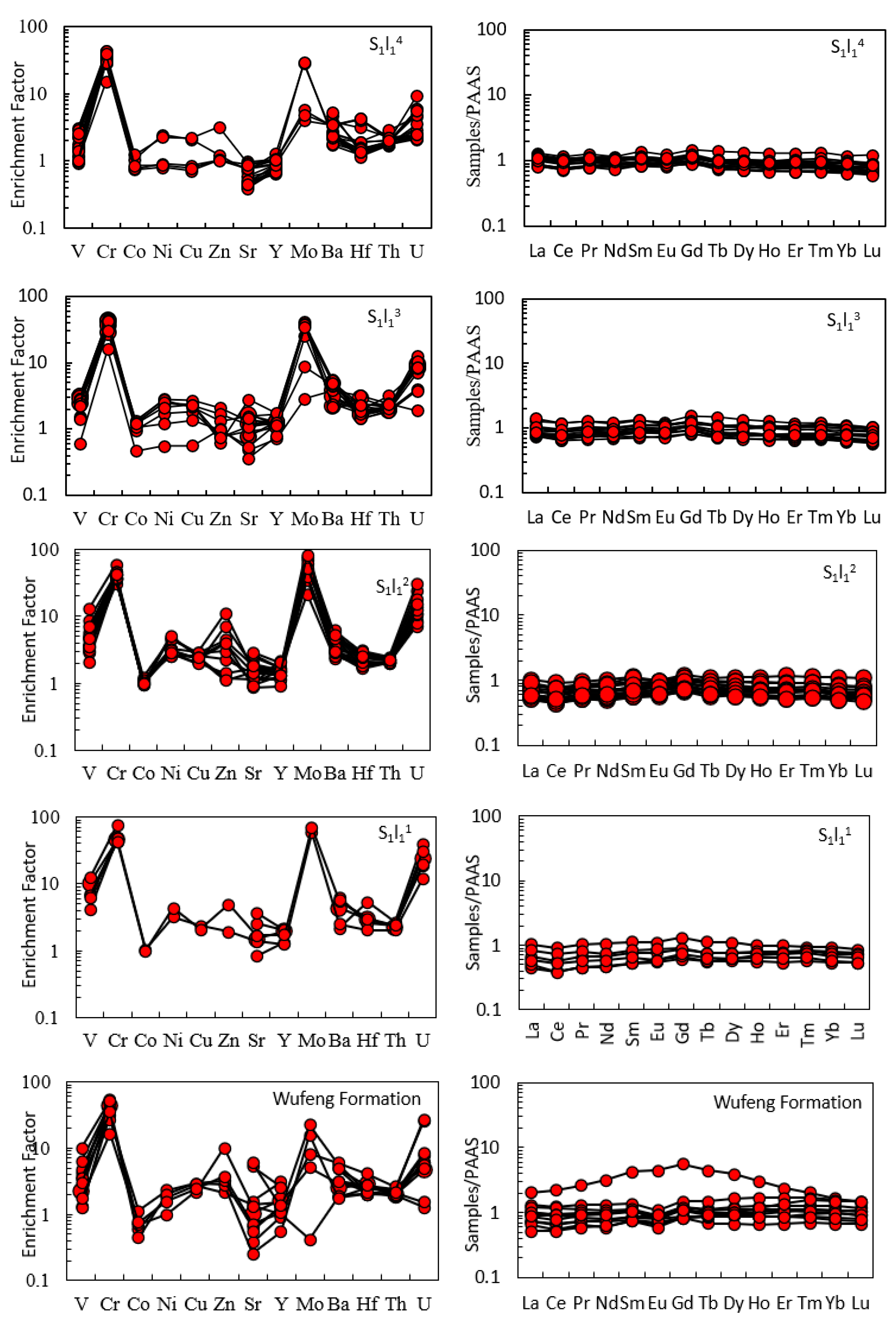

- The trace elements such as Mo, U, Ba and Ni are relatively enriched in the shale of Wufeng Formation–Submember Long-11 in the Changning area, while the Co element is deficient. The distribution pattern of rare earth is flat, which indicates that the shale deposits in the research area are weakly influenced by terrigenous materials.
- (2)
- During the shale deposition period of Wufeng Formation–Submember Long-11 in the Changning area, the REDOX conditions of the water body changed many times, and they were generally dominated by an anaerobic environment. The shale of Bed Long-111 and Bed Long-112 was generally an anaerobic environment, the shale of Bed Long-113 was generally an oxygen-poor environment, and the shale of Bed Long-114 changed from an oxygen-poor environment to an oxygen-rich environment. The water REDOX conditions of the Wufeng Formation varied greatly, mainly in terms of the oxygen-poor and anaerobic environment.
- (3)
- Organic matter enrichment in Wufeng Formation–Submember Long-11 in the Changning area was mainly controlled by REDOX conditions; the amount of terrigenous injection in Wufeng Formation was higher than that in Bed Long-111, and the amount of terrigenous injection gradually increased from Bed Long-111 to Bed Long-114, which resulted in the reduction and dilution of organic matter, and this was an important reason for the decrease in organic matter content. A relatively high sea level has a positive effect on organic matter enrichment. There is no obvious relationship between the paleoproductivity and organic matter enrichment.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Zhao, Q.; Wang, H.; Liu, R.; Bai, W.; Zhang, X. Development status and exploration prospect of shale gas in the world. Nat. Gas Technol. 2008, 3, 11–14, 57, 78. [Google Scholar]
- Liu, S.; Ma, W.; Luba, J.; Huang, W.; Zeng, X.; Zhang, C. Shale reservoir characteristics of Lower Silurian Longmaxi Formation in eastern Sichuan Basin. Acta Petrol. Sin. 2011, 27, 2239–2252. [Google Scholar]
- Tian, H.; Zhang, S.; Liu, S.; Zhang, H. Pore characteristics of organic-rich shale by mercury injection and gas adsorption. Acta Pet. Sin. 2012, 33, 419–427. [Google Scholar]
- Li, Y.; Shao, D.; Lv, H.; Zhang, Y.; Zhang, X.; Zhang, T. The relationship between element geochemical characteristics and organic matter enrichment in marine shale of Wufeng Formation-Longmaxi Formation of Sichuan Basin. Acta Pet. Sin. 2015, 36, 1470–1483. [Google Scholar]
- Passey, Q.R.; Bohacs, K.M.; Esch, W.L.; Klimentidis, R.E. Form oil-prone source rock to gas-producing shale reservoir-geologic and petrophysical characterization o1 unconventional shale-gas reservoirs. In Proceedings of the SPE International Oil and Gas Conference and Exhibition, China, Beijing, China, 8–10 June 2010; p. SPE131350. [Google Scholar]
- Pedersen, T.F.; Calver, S.E. Anoxia vs, productivity; what controls the formation of organic carbon-rich sediments and sedimentary rocks? AAPU Bull. 1990, 74, 454–466. [Google Scholar]
- Li, S.; Xiao, K.; Wo, Y. Controlling factors for the development of high-quality source rocks in Upper Ordovician Unified Posilurian in Nanli marine facies. Acta Sedimentol. Sin. 2008, 260, 872–880. [Google Scholar]
- Tribovillard, N.; Algeo, T.J.; Lyons, T.W.; Riboulleau, A. Trace metals as paleoredox and paleoproductivity proxies: An update. Chem. Geol. 2006, 232, 12–32. [Google Scholar] [CrossRef]
- Chang, H.; Chu, X.; Feng, L.; Huang, J.; Zhang, Q. Implications of REDOX sensitive trace elements for paleomarine sedimentary environment. Geol. Rev. 2009, 55, 91–99. [Google Scholar]
- Rimmer, S.M. Geochemical paleoredox indexes in Devonian-Mississippian black shales, C’entral Appalachian Basin (USA). Chem. Ueol. 2004, 206, 373–391. [Google Scholar]
- Liang, D.; Guo, T.; Bian, L.; Chen, J.; Zhao, J. Some recent advances in the study of hydrocarbon generation and accumulation of Nanli marine facies in China (III): Sedimentary facies and controlling factors of the development of four sets of regional marine source rocks in Nanli, China. Mar. Orig. Pet. Geol. 2009, 14, 1–19. [Google Scholar]
- Xie, C.; Zhang, J.; Li, Y.; Wang, X. Development characteristics and gas content of organic-rich shale of Bucambrian in Well Yuke 1, southeast Chongqing. Oil Gas Geol. 2013, 34, 11–15. [Google Scholar]
- Zhang, W.; Yang, H.; Yang, W.; Wu, K.; Liu, F. Geological characteristics evaluation of lacustrine shale oil in Chang 7 of Yanchang Formation, Ordos Basin. Geochimica 2015, 44, 505–515. [Google Scholar]
- Yu, B.; Chen, J.; Li, X.; Lin, C. Geochemistry and depositional setting of trace elements and rare earth elements in Lower Cambrian siliceous rocks in Shoerbulak Profile, Tarim Basin. Acta Sedimentol. Sin. 2004, 22, 59–66. [Google Scholar]
- Wang, P.; Zhang, L.; Li, C.; Li, X.; Zou, C.; Zhang, Z.; Li, J.; Li, Q. REDOX conditions and organic matter enrichment mechanism of black shale: A case study of Wufeng Formation-Longmaxi Formation in Well A, Zhaotong Shale Gas Demonstration Area. Oil Gas Geol. 2017, 38, 933–943. [Google Scholar]
- He, L.; Song, C.; Liu, J. Geochemical characteristics and organic matter enrichment mechanism of Wufeng-Longmaxi Formation shale in Mabian area, southern Sichuan. J. Northeast Pet. Univ. 2018, 42, 52–65. [Google Scholar]
- Zhao, S.; Yang, Y.; Zhang, J.; Wang, L.; Wang, X.; Luo, C.; Tian, C. Shale bed division and fine reservoir correlation of Lower Silurian Longmaxi Formation in Sichuan Basin. Nat. Gas Geosci. 2016, 27, 470–487. [Google Scholar]
- Rows, H.D.; Loucks, R.G.; Ruppel, S.C.; Rimmer, S.M. Mississippian Barnett Formation, Fort worth Basin. Texas: Bulk geochemical inferences and Mo-TOC constraints on the severity of hydrographic restriction. Chem. Geol. 2008, 257, 16–25. [Google Scholar]
- Algeo, T.J.; Kuwahara, K.; Sano, H.; Bates, S.; Lyons, T.; Elswick, E.; Hinnov, L.; Ellwood, B.; Moser, J.; Maynard, J.B. Spatial variation in sediment fluxes, redox conditions, and productivity in the Permian-Triassic Panthalassic Ocean. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2011, 308, 65–83. [Google Scholar] [CrossRef]
- Wignall, P.B. Black Shales; Clarendon Press: Oxford, UK, 1994; p. 46. [Google Scholar]
- Ding, J.; Zhang, J.; Li, X.; Lang, Y.; Zheng, Y.; Xu, L. Characteristics and controlling factors of organic matter enrichment in interplatform black rock series of Lower Carboniferous in southern Guizhou Depression. Lithol. Reserv. 2019, 31, R3–R95. [Google Scholar]
- Li, J. Study on Paleo-Environment Restoration and Organic Matter Enrichment of Lower Cambrian Niutitang Formation Shale in Northern Guizhou. Doctoral Thesis, China University of Geosciences (Beijing), Beijing, China, 2018. [Google Scholar]
- Barnes, C.E.; Cochran, J.K. Uranium removal in oceanic sediments and the oceanic U balance. Earth Planet. Sci. Lett. 1990, 97, 94–101. [Google Scholar] [CrossRef]
- Klinkhammer, G.P.; Palmer, M.R. Uranium in the oceans: Where it goes and why. Geochim. Cosmochim. Acta 1991, 55, 1799–1806. [Google Scholar] [CrossRef]
- Crusius, J.; Calvert, S.; Pedersen, T.; Sage, D. Rhenium and molybdenum enrichments in sediments as indexes of oxic, suboxic, and sulfidic conditions of deposition. Earth Planet. Sci. Lett. 1996, 145, 65–78. [Google Scholar] [CrossRef]
- Zheng, Y.; Anderson, R.F.; Van Geen, A.; Kuwabara, J. Authigenic molybdenum formation in marine sediments. a linkto pore water sulfide in the Santa Barbara Basin. Geochim. Cosmochim. Acta 2000, 64, 4165–4178. [Google Scholar] [CrossRef]
- McManus, J.; Berelson, W.M.; Klinkhammer, G.P.; Hammond, D.E.; Holm, C. Authigenic uranium: Relationship to oxygen penetration depth and organic carbon rain. Geochim. Acta 2005, 69, 95–108. [Google Scholar] [CrossRef]
- Emerson, S.R.; Huested, S.S. Ocean anoxia and concentrations of molybdenum and vanadium in seawater. Mar. Chem. 1991, 34, 177–196. [Google Scholar] [CrossRef]
- Broecker, W.S.; Peng, T.H. Tracers in the Sea; Eldigio Press: New York, NY, USA, 1982; Volume 690. [Google Scholar]
- Hatch, J.R.; Leventhal, J.S. Relationship between inferredredox potential of the depositional environment and geochemistry of the Upper Pennsylvanian (Missourian) stark shale member of the dennis limestone, Wabaunsee County. Kans. USA Chem. Geol. 1992, 99, 65–82. [Google Scholar] [CrossRef]
- Jones, B.; Manning, A.C. Comparison of geochemical indices used for the interpretation of palaeoredox conditions in ancient mudstones. Chem. Geol. 1994, 111, 111–129. [Google Scholar] [CrossRef]
- Tenger; Liu, W.; Xu, W.; Chen, J. Discussion on anaerobic environment and geochemical identification markers: A case study of Ordos Basin. Acta Sedimentol. Sin. 2004, 22, 365–372. [Google Scholar]
- Wang, S.; Dong, D.; Wang, Y.; Li, X.; Huang, J. Geochemical characteristics and sedimentary environment of gas-rich shale in Silurian Longmaxi Formation, Sichuan Basin. Bull. Mineral. Petrol. Geochem. 2015, 34, 1203–1212. [Google Scholar]
- Kimura, H. Ocean anoxicevent at the Precambrian-Cambrian Boundary. Geology 2001, 29, 33–35. [Google Scholar]
- Raiswell, R.; Buckley, F.; Berner, R.A.; Anderson, T.F. Degree of pyritization of iron as a paleoenvironmental indicator of bottom-water oxygenation. J. Sediment. Petrol. 1988, 58, 812–819. [Google Scholar]
- Wang, T.; Hao, A.; Chen, Q.; Li, C.; Wang, Q.; Lu, H.; Liu, D. Main controlling factors of shale development of Wufeng Formation and Longmaxi Formation in Yichang area of Middle Yangtze. Nat. Gas Geosci. 2018, 29, 616–631. [Google Scholar]
