Deep Learning and Long-Duration PRPD Analysis to Uncover Weak Partial Discharge Signals for Defect Identification

Abstract

This study focuses on improving the defect recognition accuracy under weak partial discharges (PDs) in epoxy resin through phase-resolved partial discharge (PRPD) analysis. The method is to refine the data rather than enhance the algorithm. Two measurement conditions are compared until PRPD pattern saturation is achieved: one-minute and one-hour durations. The PD data specifically target three void types located at different positions within the epoxy material. The aim is to evaluate how the presence of weak PDs at the PD extinction voltage (PDEV) influences defect recognition accuracy. This research sheds light on the potential implications of neglecting the significance of weak PD signals in defect detection. A convolutional neural network (CNN) model is trained using PRPD data recorded at the repetitive PD inception voltage (RPDIV) and tested using the new PRPD data from both conditions recorded from a lower PDIV to a PDEV. The trained CNN model achieves a defect recognition accuracy of 100% for a one-hour duration, highlighting the importance of not neglecting weak PD signals. This emphasizes the significance of extended measurement duration and pattern saturation in capturing and analyzing weak PD signals for an improved defect recognition. This study contributes to the advancement of practical applications by understanding the behavior of the epoxy material and enhancing defect detection techniques.

1. Introduction

Partial discharges (PDs) occur in electrical insulation systems and indicate the presence of defects or degradation within the insulation material [1,2,3]. According to IEC 60270, a PD is referred to as an electrical pulse-type discharge that partially bridges the insulation [4]. It is a critical parameter to monitor because excessive PD activity can lead to insulation breakdown and failure [5,6]. In recent years, the development of advanced measurement techniques and defect recognition methods has been instrumental in improving the accuracy and reliability of PD detection [7,8]. One method that has gained significant attention is phase-resolved partial discharge (PRPD) analysis. PRPD analysis involves capturing and analyzing the patterns of PD pulses in a time domain, allowing for a more comprehensive understanding of PD behavior and improved defect recognition capabilities [9]. Valuable insights can be gained regarding the condition of the insulation material by examining the characteristics of PD pulses from a partial discharge inception voltage (PDIV) to a partial discharge extinction voltage (PDEV).

The accurate detection and characterization of defects are of the utmost importance in the field of epoxy resins that are widely used as insulation materials in various electrical applications [10,11,12]. Artificially fabricated voids are commonly used as representative defects to simulate the imperfections that occur in epoxy resins. The positions of these voids within the resin can significantly influence the PD characteristics and, consequently, the accuracy of defect recognition. In this study, the positions of the voids in the epoxy were placed at the top, center, and bottom.

Caprara et al. increased the voltage value step by step above the repetitive partial discharge inception voltage (RPDIV) level, where sporadic bursts of PD can occur. These bursts meet the conditions for RPDIV. However, the PD activity is unstable and may be extinguished. The current definition of RPDIV in international standards does not account for PD bursts. To address this issue, conditioning the insulation system above the RPDIV level is proposed as a suitable approach to reduce the likelihood of observing PD bursts [13,14]. This study provides recommendations for performing more accurate RPDIV measurements by combining the understanding of PD activity behavior with the impact of conditioning.

Different procedures were followed in this study. Specifically, the voltage value was decreased step by step from below the RPDIV level to the PDEV level. Subsequently, it was observed that PDs occurred at a very low level until the PRPD pattern cannot be recognized for a long time, up to 1 h. This observation raised questions regarding the influence of weak PDs on defect recognition during RPDEV measurements.

Combining the PRPD method with advanced techniques, such as convolutional neural networks (CNNs), has shown promising results for defect recognition [15,16]. However, the traditional approaches often overlook the significance of weak PD signals in the PDEV. It is crucial to highlight that neglecting weak PDs in the PDEV can lead to missed detections and compromised accuracy in defect recognition. Therefore, this study aimed to clarify the potential of weak PDs by exploring the effects of an extended measurement duration and CNN-based analysis on PD analysis from the PDIV to the PDEV. In addition, this research aimed to enhance defect recognition capabilities and improve the reliability of high-voltage equipment diagnostics by emphasizing the importance of capturing weak PDs in the PDEV.

As mentioned previously, a CNN was employed to analyze and interpret PD data, which is a deep learning model known for its effectiveness in pattern recognition tasks. The CNN model was trained and tested using PRPD data collected under two measurement conditions. PD data that were recorded at the PDIV for a duration of one minute were utilized to train the CNN. Additionally, 100 PD data images were collected from each of the three test samples.

PD data were recorded by gradually reducing the voltage from the PDIV to the PDEV to test the CNN. Ten PD data images with a duration of one minute each were captured to evaluate the performance of the CNN model. Additionally, one PD data image was continuously captured for one hour to represent a saturated condition.

The duration of PD data collection and presence of saturated PD patterns affecting the accuracy of defect recognition in epoxy resins were assessed using these different approaches for training and testing the proposed CNN model. A comparison of the CNN performances under these different scenarios provided insights into the optimal data collection duration and conditions for accurate defect recognition.

The remainder of this paper is organized as follows. The PD test process, fabrication of test samples, experimental setup, and data collection are presented in Section 2. The analysis of the PRPD patterns under different conditions from the PDIV to the PDEV are presented in Section 3. The CNN algorithm modeling is presented and the training and testing results and their implications are discussed in detail in Section 4. Finally, significant remarks and suggestions for future research are provided in Section 5.

2. Experiment Setup and Measurement of PD Data

2.1. PD Test System

PD experiments were conducted at the high-voltage laboratory of the National Taiwan University of Science and Technology. The pulse current method specified in the IEC 60270 standard was followed to conduct the PD measurements.

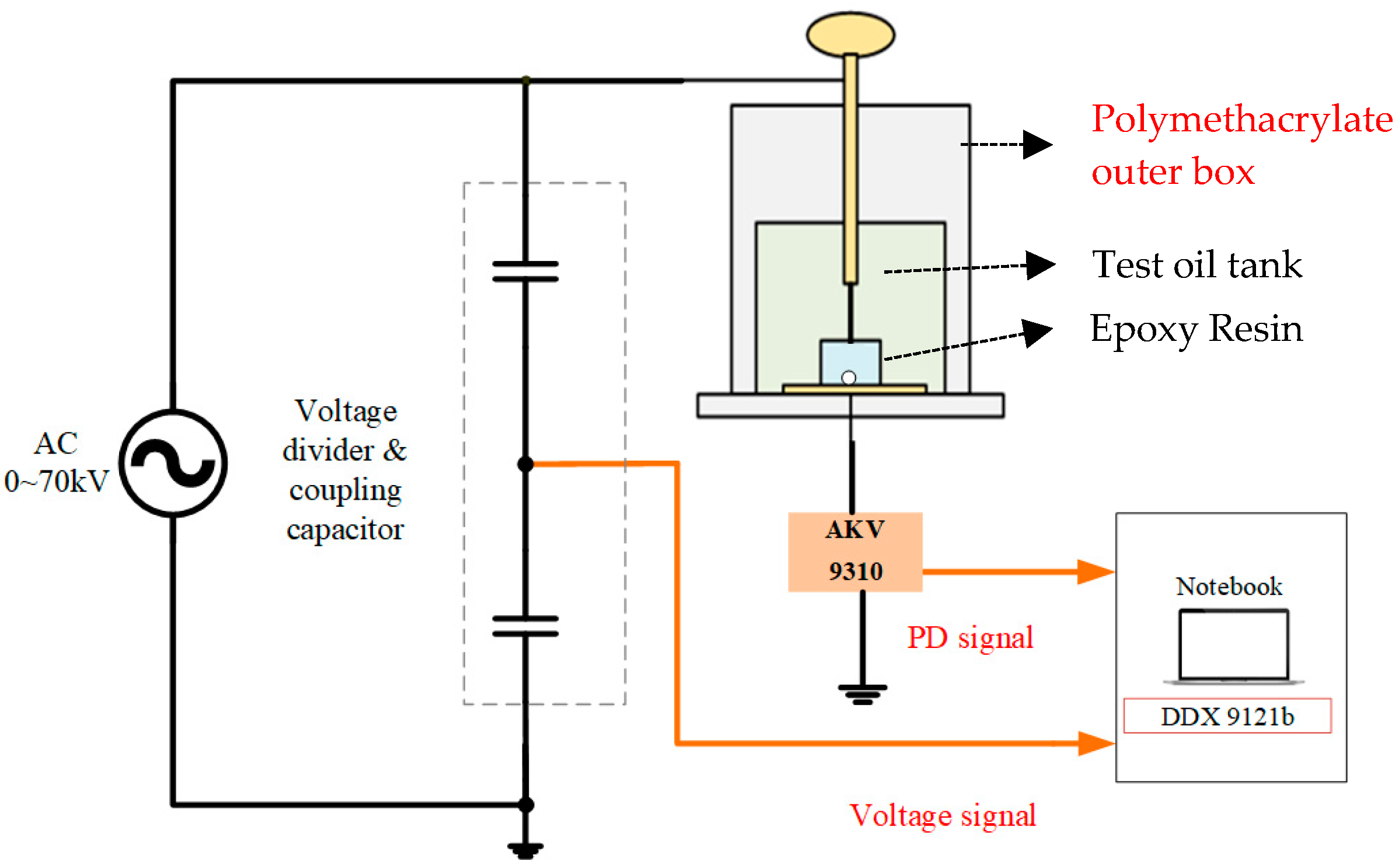

The PD measurement setup consisted of a Hipotronics 700-DI series (Brewster, NY, USA) AC Dielectric test set model with a high-voltage source, Haefely 9230 model (Basel, Switzerland) high-voltage capacitive divider, PD test subjects representing the epoxy resin test samples with artificially fabricated voids at different positions that were immersed in a test oil tank, and a height-adjustable copper electrode on the top that could lock the high-voltage lead to connect to the high-voltage end of the test subject. The bottom was a screw connected to the low-voltage end of the test object, which was simultaneously connected to a Haefely AKV 9310 series PD analyzer that was optimized for use with the Haefely DDX 9121b series PD detector. The experimental setup of the epoxy resin with a void at the bottom is shown in Figure 1.

An AC voltage source operating at a frequency of 60 Hz was used to supply high voltage to the test subjects. A test oil tank with an epoxy resin sample and void defect was connected to a PD analyzer. This constituted a wideband quadrupole system for PD measurements with a lower-limit frequency range of 34–7 kHz and an upper-limit frequency of >8 MHz. The bandwidth and center frequencies were set to 400 and 230 kHz, respectively. These parameters determined the frequency range over which the PD signals could be effectively captured and analyzed.

The capacitive voltage divider had the primary function of stepping down the high voltage across the test subjects to a manageable level for measurement. This voltage reduction allowed for safe and accurate measurements without overwhelming the measurement equipment.

PD signals were acquired from the PD analyzer, whereas voltage signals were obtained from the capacitive voltage divider. The PD and voltage signals at the corresponding voltage levels were captured simultaneously using a PD detector and stored in a notebook for further analysis.

2.2. Fabrication of Artificial Defects in Epoxy Resins

Epoxy resin is a general term for a large class of polymer materials. It is characterized by high plasticity and can be poured into differently shaped molds. Epoxy resins exhibit strong adhesion, low shrinkage, good chemical stability, and excellent mechanical and electrical insulation properties. As such, they are widely used in several fields, such as civil structure reinforcement, electronic component packaging, high-voltage insulation perfusion, waterproof engineering, adhesives, and industrial parts.

Bisphenol A and polyoxypropylene diamine were used as the epoxy resin and curing agent, respectively, and were mixed at a ratio of 3:1. The mixture solidified after curing, allowing for the easy observation of internal changes. The mixture was poured into a square silicone mold to form epoxy resin samples with a length and width of 3.5 cm.

The choice of a square shape for the mold offered some advantages. First, the square shape ensured that the image of the resin sample remained undistorted when viewed from the side, providing a clear and accurate representation of any defects. Second, the inner walls of the mold were designed to be smooth, which helped to obtain clean and well-defined PRPD patterns.

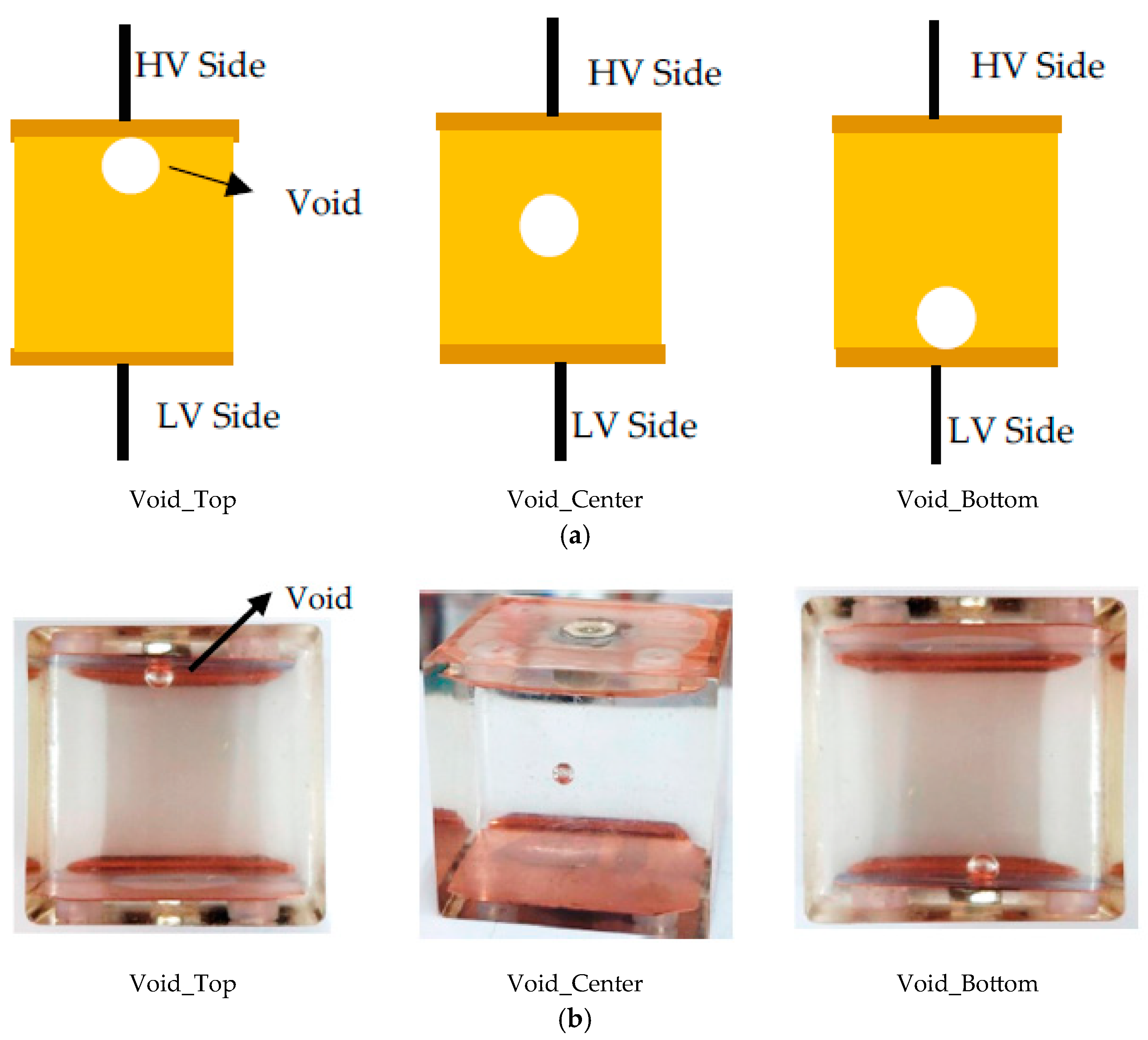

Artificial defects (voids of 0.3 cm in epoxy resins) were fabricated using a controlled and deliberate process. Each sample included only one void. However, there still remained some very tiny bubbles that could be neglected. Schematic diagrams and photographs of the fabricated voids at different positions in the epoxy resin are shown in Figure 2a,b, respectively.

Copper sheets were positioned at the top and bottom of the epoxy test samples to ensure proper connectivity of the electrodes with the lead wires on the high voltage (HV) and low voltage (LV) sides. As mentioned previously, these samples were immersed in a test oil tank during the experiment, and the entire setup was placed in an acrylic outer box, as shown in Figure 1.

2.3. PD Data Collection from Defect Samples

After establishing the necessary connections and ensuring proper electrical contact, high voltage was applied to the test object until PRPD patterns looked saturated. Note that these voltages were higher than PDIV and could be regarded as RPDIV. The PD data were recorded for each test sample at the RPDIV. Therefore, two PD measurement conditions were implemented to investigate this issue, as shown in Figure 3.

Under the first condition, as the upper brown color section in Figure 3, the PD measurements were conducted for one minute by increasing voltage by 1 kV until the RPDEV was observed.

Under the second condition, as the lower blue color section in Figure 3, the PD measurements were conducted for one minute from the RPDIV to the PDEV by decreasing voltage by 1 kV. A substantial amount of PRPD patterns were captured during this time. Furthermore, the measurement duration was extended to one hour, allowing for the accumulation of RPRPD patterns near to the PDEV.

The impact of weak PDs at the PDEV on the accuracy of defect recognition was evaluated by comparing the PD data obtained under these two conditions. This investigation is important for understanding the behavior of weak PDs and their role in defect detection.

The values of the RPDIV were measured to be 28, 35, and 23 kV for the test samples with void positions at the top, center, and bottom, respectively. The possible reason that the top and bottom voids should have two different PDIVs is that the voids at these positions are closer to the ground electrode. These factors can influence the electrical field distribution and the resulting PD characteristics.

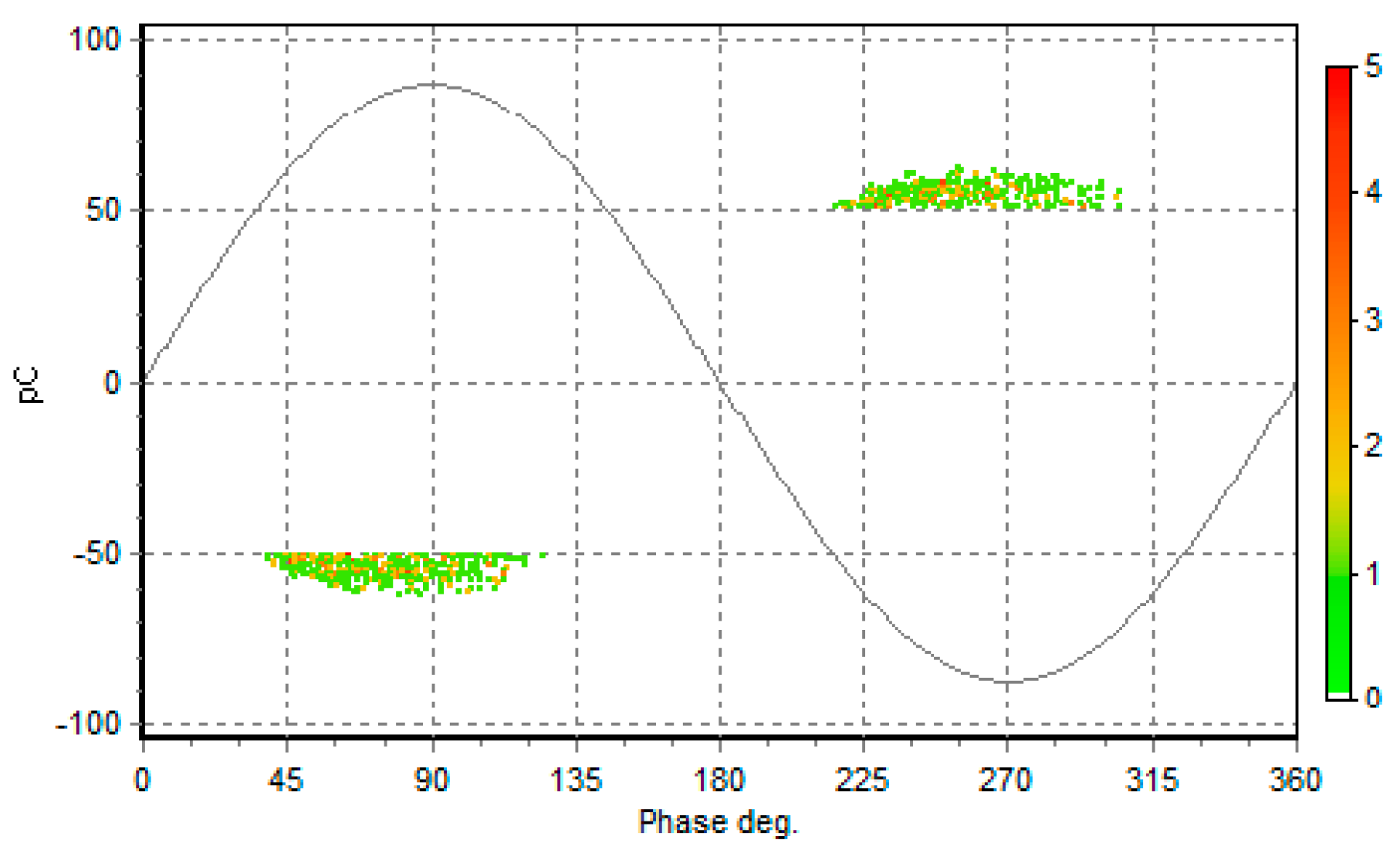

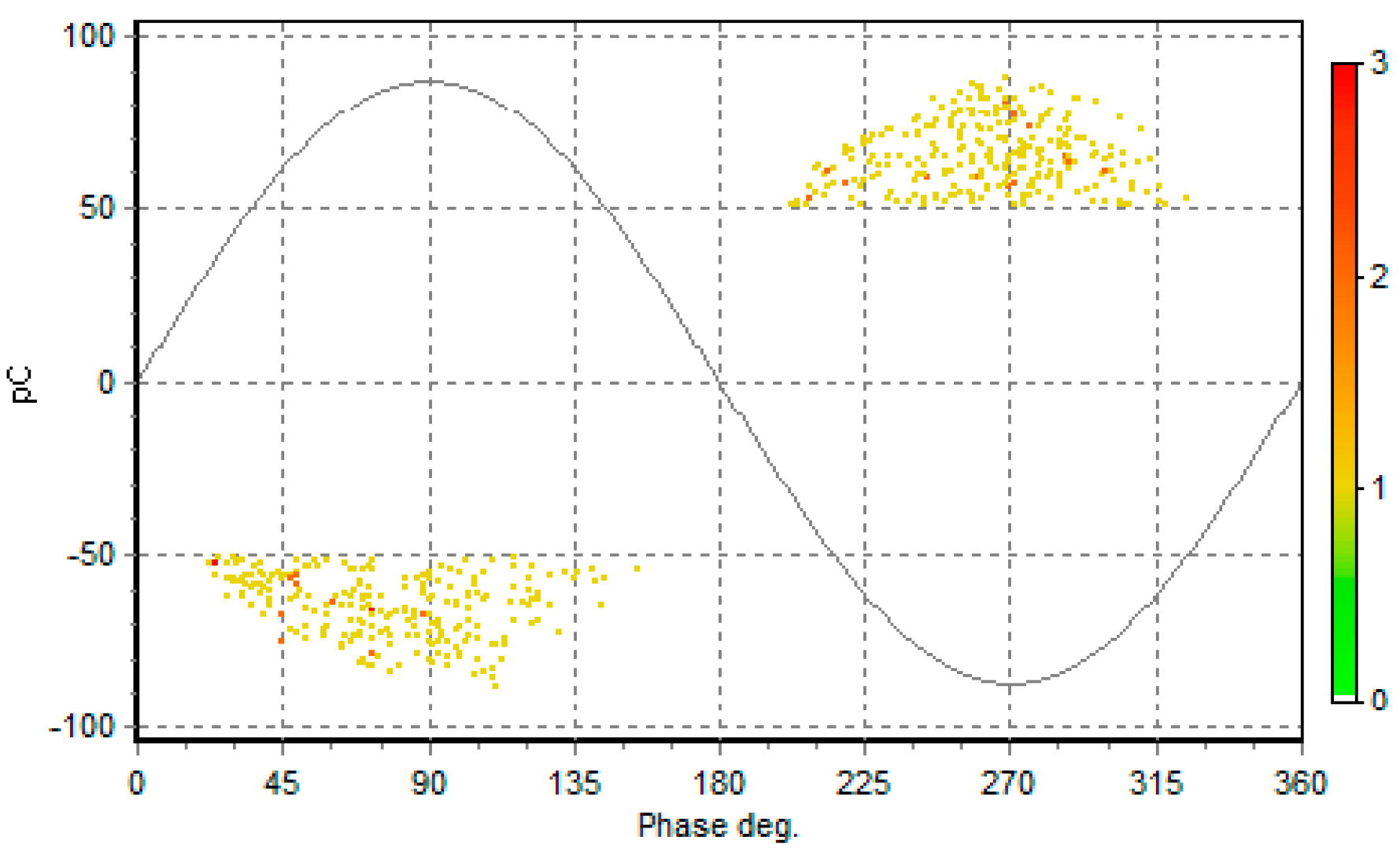

The PRPD patterns of these test samples provided a visual representation of the PD signals recorded for each void position and are, respectively, shown in Figure 4, Figure 5 and Figure 6. A stable PD shape was observed in the Void_Top, indicating that the PD phenomenon reached a steady state at the applied voltage. Additionally, a further increase in the voltage did not result in any significant changes in the shape of the PD pattern whose observation duration was longer than 1 min and up to 1 h, which is the limit of the PD instrument.

Similar PD pattern shapes for the void positions at the center and bottom can be attributed to various factors, as shown in Figure 5 and Figure 6, respectively. Additionally, other factors may contribute to the similarities in the observed PD pattern shapes, such as the resin properties, void geometry, and electrode configuration.

PD data were collected during the recording process for a duration of one minute. The PD data obtained at the RPDIV comprised 100 PRPD patterns for each test sample, labeled as Void_Top, Void_Center, and Void_Bottom. Subsequently, the PD data were used as the training dataset for the CNN, as shown in

Table 1. PD data from epoxy test samples at different void positions at the RPDIV.

Defect Type	Number of PRPD Patterns
Void_Top	100
Void_Center	100
Void_Bottom	100
Total Training Data	300

. Therefore, the CNN could learn the distinctive features associated with each void position and improve its ability to accurately identify and classify defects in future testing scenarios. The PRPD data collection for the testing cases is discussed in more detail in Section 4.

3. Defect Recognition Using CNNs at Different PD Measurement Duration

CNNs have demonstrated significant success in image recognition tasks, making them suitable for analyzing and classifying PRPD patterns [15,17,18,19,20]. The goal of this study was to enhance defect type recognition in epoxy resins using CNNs, particularly focusing on PRPD pattern images associated with three different void positions within the epoxy material; hence, the improvement of the CNN method was not and is supposed not to be included.

The CNN architecture is particularly well-suited for image recognition owing to its inherent characteristics. CNNs are comprised of input, hidden, and output layers, with the hidden layers incorporating four convolutional layers, two max-pooling layers, and three rectified linear unit activation functions. The convolutional layers are responsible for learning local features within the input images using filters. The pooling layers then downsample the learned features, reduce the spatial dimensions, and extract the most relevant information. The activation functions introduce nonlinearity into the network, enabling it to capture complex patterns and make accurate predictions. The Adam optimizer was used to update the network-learnable parameters, and a maximum of 20 epochs were used for training. In addition, a cross-entropy method was used to adjust the weights during model training.

PRPD pattern images were captured from epoxy resin samples containing void defects positioned at three different locations: top, center and bottom. These void positions were deliberately selected to represent different scenarios encountered in real-world applications. The PD data associated with each void position were recorded, and the corresponding PRPD pattern images were generated for defect type recognition.

The images of the PRPD patterns of all three types of defects were stored and individually labeled as Void_Top, Void_Center, and Void_Bottom. All images considered for training the CNN had a size of 88 × 66 px. This size was chosen because of its effectiveness and best performance when training and testing a CNN [17].

4. Results

4.1. Training CNN with PD Data Recorded at the RPDIV

The CNN model was trained using the PD data recorded at the RPDIV for a duration of one minute. As mentioned in Section 2, 300 PRPD images were captured for training the CNN. This training phase allowed the CNN to learn distinctive features and patterns associated with each void position. The CNN model was tested using new PD data after the training was complete. Data were recorded for one-minute and one-hour durations at a RPDIV lower than the PDEV to evaluate accuracy in recognizing and classifying the defect types. This will be discussed in more detail in Section 4.2.

The training of the CNN model using 300 PRPD patterns labeled Void_Top, Void_Center, and Void_Bottom for the one-minute duration at RPDIV yielded promising results. The learning curves for accuracy and loss during the training process are shown in Figure 7.

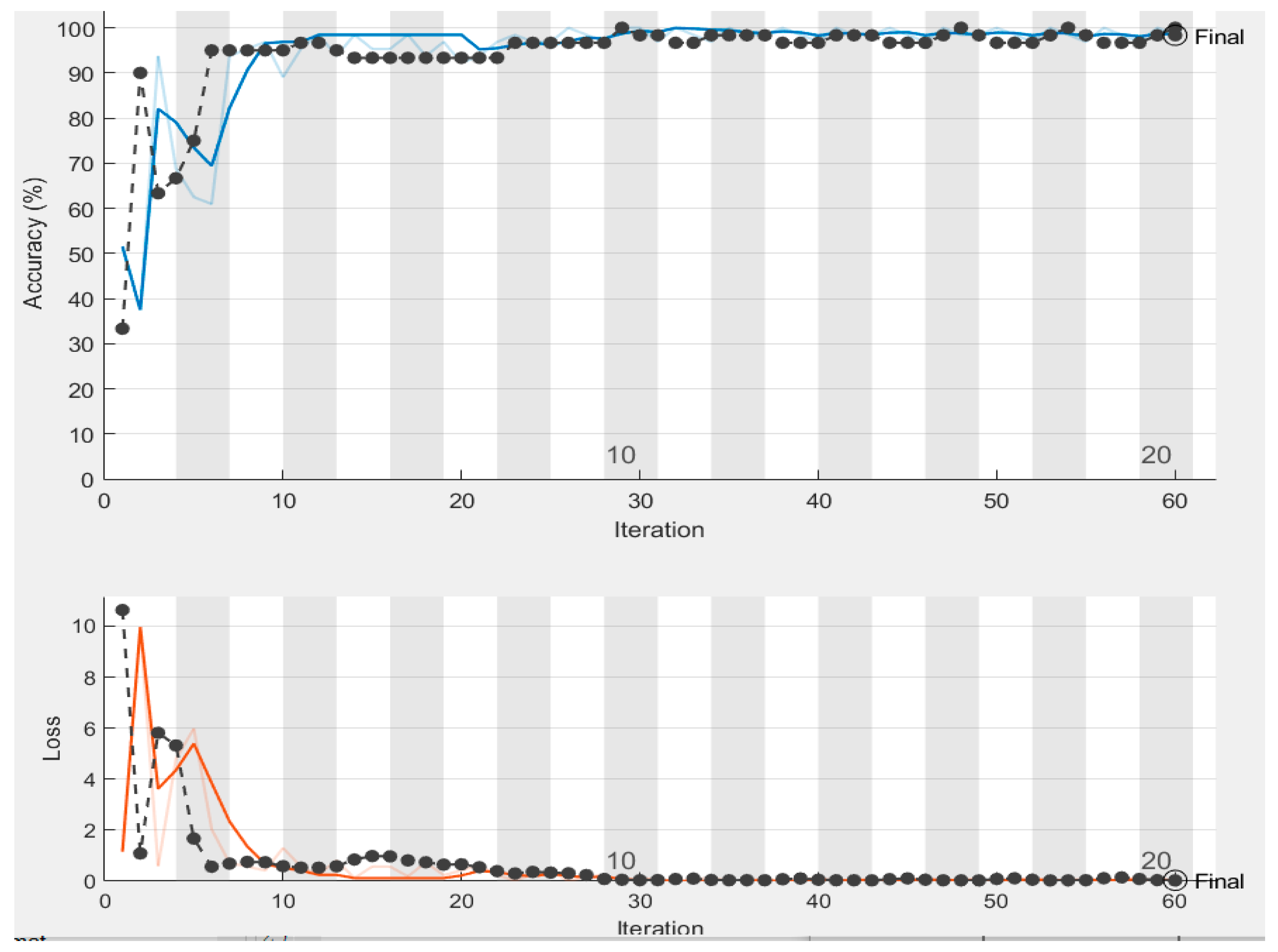

The graph of the accuracy curve demonstrates how the accuracy of the model improved over the iterations until convergence. The accuracy steadily increased as the iterations progressed, indicating that the model effectively learned the patterns and features associated with each type of defect. A training accuracy of 98.33% demonstrated that the model correctly classified the majority of the training samples.

The loss curve represents the loss of the model, which measures the dissimilarity between the predicted and actual labels. The decreasing trend of the loss curve indicated that the model predictions gradually aligned with the true labels as training proceeded. This indicates that the model effectively minimized the errors in its predictions and improved its overall performance.

The high training accuracy achieved in this study is a positive outcome, indicating that the CNN model could effectively learn and recognize PRPD patterns associated with different void positions in the epoxy resin. However, it is important to note that the performance of a model with unseen data may vary. To validate the robustness of the model, it was crucial to evaluate its performance on a separate testing dataset that the model did not observe during training.

The confusion matrices represent the metrics for evaluating the performance in predicting the three defect types and were obtained during the training process, as shown in Figure 8. These confusion matrices provide important information regarding the correct and incorrect predictions of every combination of the CNN model during the training process.

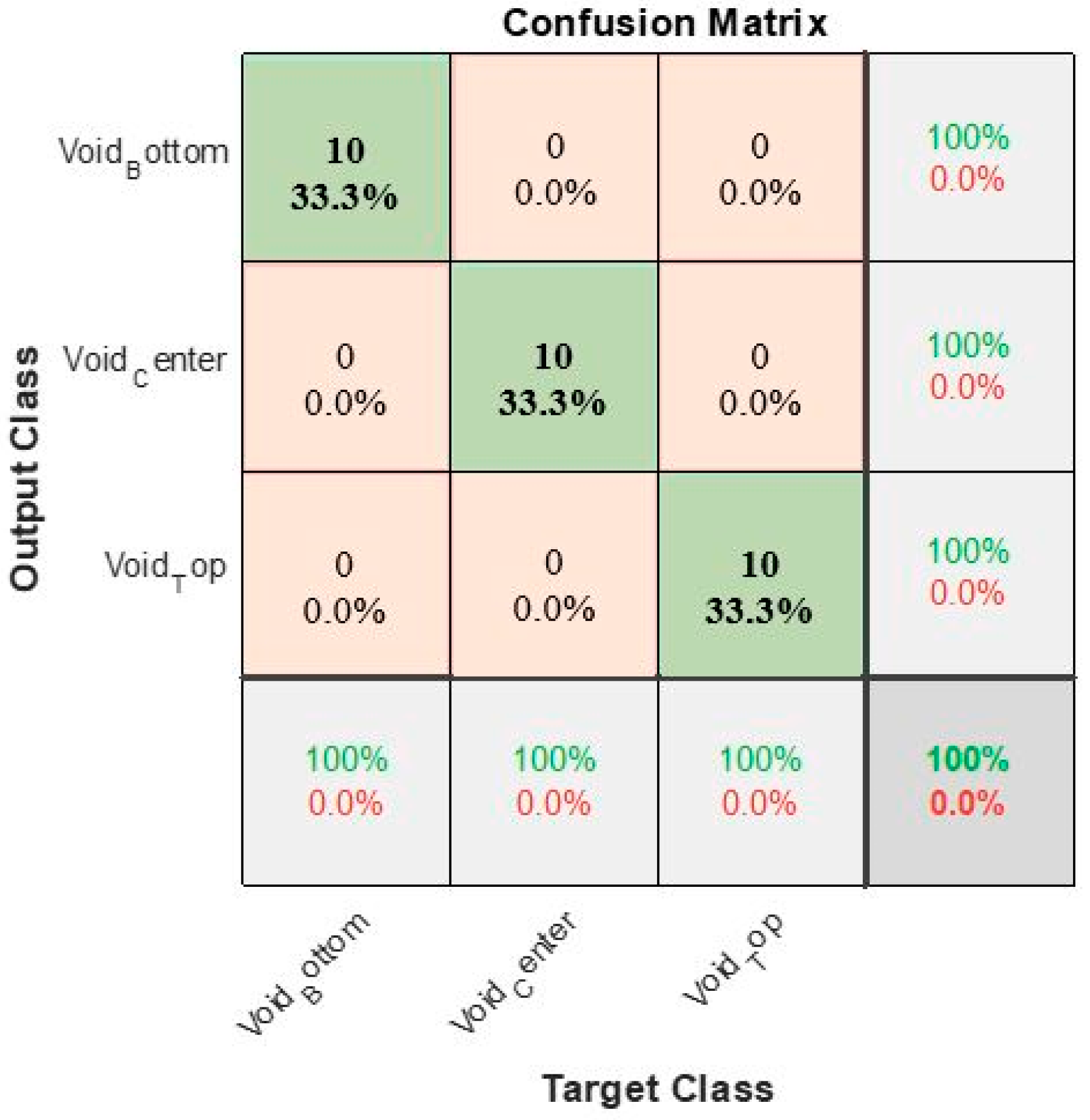

No incorrect predictions were found, suggesting that the trained CNN model achieved perfect accuracy on the training dataset, as shown in Figure 8.

4.2. Testing Results of CNN with PD Data

The PD data were recorded during the testing phase by gradually reducing the voltage from the RPDIV to the PDEV, with reductions performed in steps of one. The PDEV values for the test samples with void positions at the top, center, and bottom were 21, 26, and 21 kV, respectively.

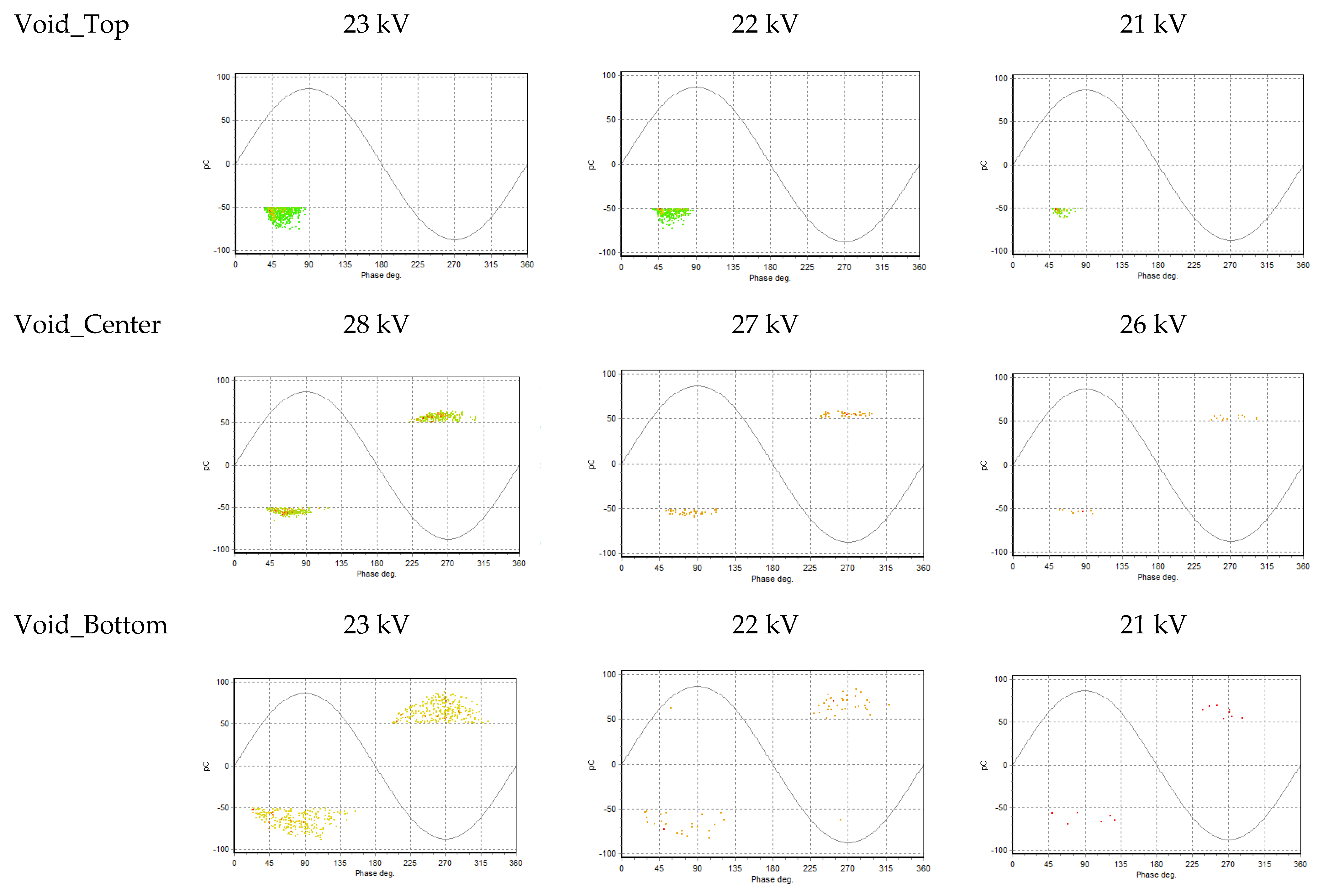

The PRPD patterns during this voltage reduction process exhibited distinct characteristics. Ten PRPD patterns were captured for a one-minute duration for each type of test sample from the lower RPDIV to the PDEV, which were labeled as Void_Top, Void_Center, and Void_Bottom. The PRPD patterns of these test samples demonstrated the influence of voltages from the PDEV to the RPDIV on the PD pattern shapes, as shown in Figure 9. The electrical stress within the insulation material increases as the voltage increases. This increased stress can cause PD activity to concentrate at certain discharge locations. PD may occur infrequently or at multiple sites at lower voltages, resulting in less regular patterns. These discharge sites, however, become more apparent and stable at higher voltages, resulting in more uniform and predictable PD patterns.

The visibility and stability of the patterns clearly improved as the voltage increased from the PDEV, based on an analysis of the PRPD patterns. The reason is that the PDs have chaotic and random characteristics, and thus, the distribution of each PD pulse in the PRPD pattern will not be the same but distribute as a particular shape [5]. However, it is impractical to adjust the voltage levels during PD testing in real-world scenarios. A more feasible approach is to increase the measurement duration of the PRPD analysis.

In addition, there can be instances of inrush surges in practical scenarios, in which the voltage levels momentarily exceed the RPDIV and then stabilize at normal or lower RPDIV values over time. This voltage fluctuation makes it challenging to precisely adjust the voltage according to the desired RPDIV. In such cases, increasing the measurement duration in the PRPD analysis becomes a more feasible and viable approach. This approach will be discussed in more detail in Section 4.3.

After analyzing the PRPD pattern shapes, the defect-type testing of the CNN model that was trained using the RPDIV and PRPD patterns (as discussed in Section 4.1) was conducted with two datasets. The first dataset included all the lower RPDIV and PRPD patterns up to the PDEV, whereas the second dataset only focused on the PDEV and PRPD patterns of the three defect types. The results of the test scenarios are presented in

Table 2. Testing accuracies of CNN model with one-minute duration for PRPD data.

Defect Type	Overall Testing Accuracy (%)	Testing Accuracy (%) at PDEV Data
Void_Top	79.3	50
Void_Center	88.9	88
Void_Bottom	57.1	20

.

Considering all the lower RPDIV values, the overall testing accuracies for the different void positions were 79.3%, 57.1%, and 88.9% for Void_Top, Void_Bottom, and Void_Center, respectively. These accuracies indicated the ability of the trained CNN model to correctly classify the PRPD patterns associated with each void position.

However, the results showed a decrease in accuracy for Void_Top (50%) and Void_Bottom (20%) when focusing specifically on the testing accuracy at the PDEV compared to the accuracies obtained when considering all the lower RPDIV values. Conversely, the testing accuracy for Void_Center remained at 88%, which may be due to the high PRPD data.

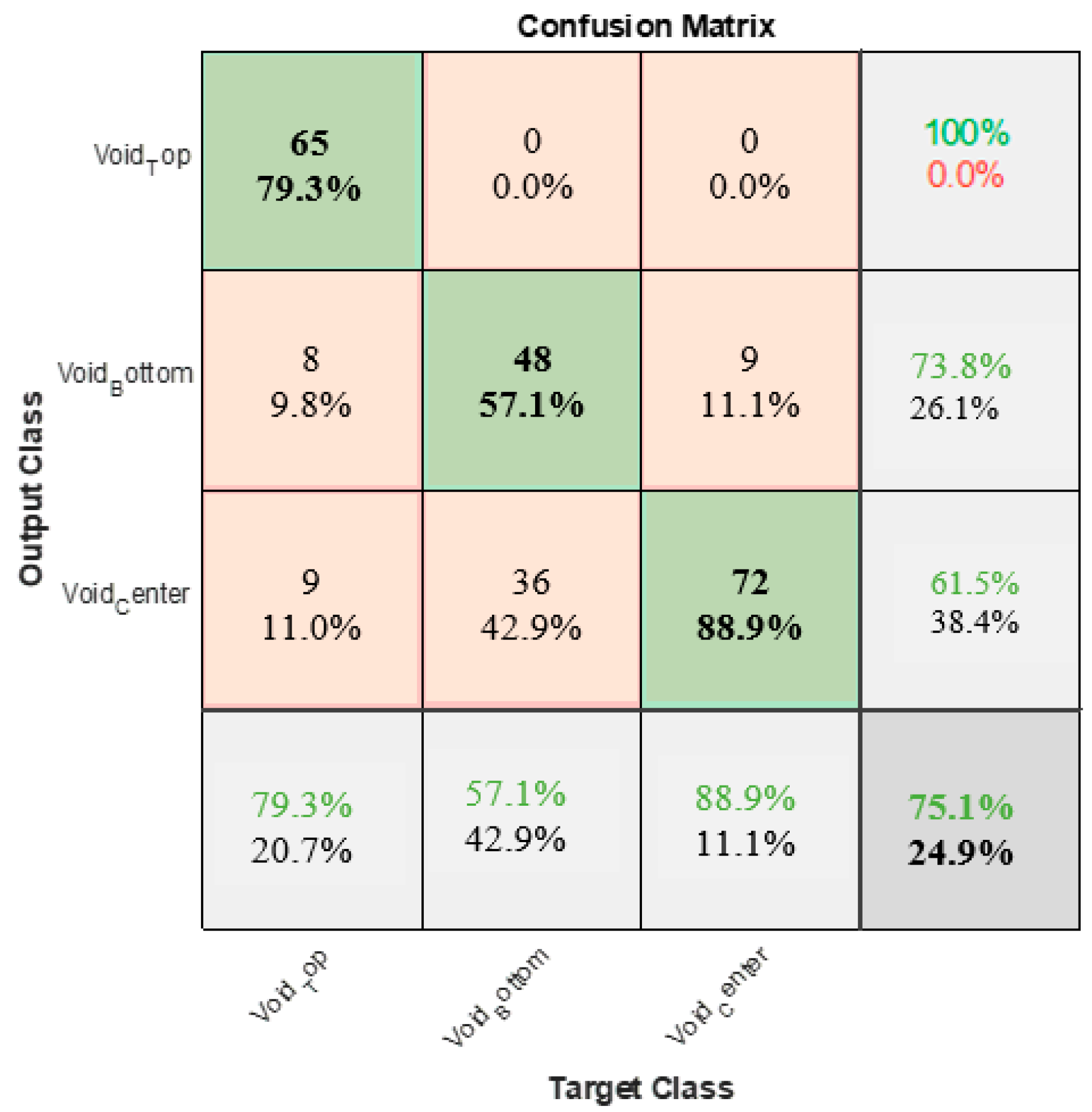

The confusion matrix of the CNN when testing the overall data from the lower RPDIV to the PDEV is shown in Figure 10. The reason for the lower accuracy of the Void_Bottom defect type was due to the Void_Center accuracy being 42.9%.

4.3. Testing CNN Model with One-Hour Measurement Duration

A wider range of PD events could be captured by extending the measurement duration, including those occurring during inrush surges and subsequent stable periods, as discussed in Section 4.2. This provided a more comprehensive understanding of the defect patterns and their characteristics under different voltage conditions. Consequently, the CNN model trained on longer-duration PRPD patterns became more robust and capable of handling variations in voltage levels.

Defect recognition accuracy was improved by increasing the measurement duration to one hour for each voltage from the lower RPDIV to the PDEV. This decision was made based on the observation that the condition of one-minute-duration PRPD patterns did not yield satisfactory results.

The choice of one hour as the measurement duration was influenced by the maximum duration of the PD analyzer used in the experiment. This longer duration provided a more comprehensive capture of the PD activity and a greater amount of data for analysis. The PRPD patterns of these test samples for the one-hour duration are depicted in Figure 11.

Similar to previous conditions, it was clear that the visibility and stability of the patterns improved as the voltage increased, as shown from the analysis of the PRPD pattern shapes presented in Figure 11. The defect recognition accuracy of the CNN model during defect-type testing was significantly enhanced compared to similar test results from the one-minute condition, as summarized in

Table 3. Testing accuracies of CNN model with one-hour duration for PRPD data.

Void Type	Overall Testing Accuracy (%)	Testing Accuracy (%) at PDEV Data
Void_Top	100	100
Void_Center	100	100
Void_Bottom	100	100

.

The overall testing accuracies for Void_Top, Void_Bottom, and Void_Center were all 100% when considering the lower RPDIV values up to the PDEV. This indicated that the CNN model successfully classified the PRPD patterns for all three defect types with perfect accuracy.

Moreover, the testing accuracies for Void_Top, Void_Bottom, and Void_Center remained at 100% when focusing specifically on the PDEV and PRPD patterns. This implies that the CNN model correctly identified the defect types without any misclassifications, even at the lowest voltage level (PDEV).

The highlight of these results is that the PRPD measurements for the transition from the one-minute to one-hour duration led to improved accuracy in defect recognition. The CNN model achieved perfect classification accuracy for all defect types, demonstrating its enhanced ability to differentiate between the PRPD patterns. Additionally, the robust generalization of the model was evident, as it maintained perfect accuracy at the lowest voltage level (PDEV). The extended measurement duration allowed the capture of more distinct PRPD patterns, resulting in enhanced discrimination and improved defect recognition across different void positions in the epoxy resin samples.

These findings underscore the need to consider and analyze weak PD signals, even at the PDEV, as they can provide valuable insights for reliable defect recognition. On the other hand, the measurement duration should be set longer than one minute when the PD signal was observed intermittently or even never.

5. Discussion

This paper emphasized the concept of the saturation of the PRPD pattern. The visibility and stability of the patterns can be improved by increasing the measurement duration when the testing voltage is near PDEV. This process might mine the weak PD signal under normal operation voltage for online monitoring maintenance.

The results clearly demonstrated the crucial role of measurement duration in defect type recognition accuracy in epoxy resin materials with void defects. Moderate to high accuracy for defect recognition was observed when testing the CNN model with one-minute duration PRPD patterns recorded from the lower RPDIV to the PDEV. However, certain misclassifications occurred. Remarkable improvements in accuracy were achieved when using one-hour duration PRPD patterns recorded at the PDEV. Furthermore, the CNN model successfully recognized void defects at different positions with 100% accuracy.

Future research could focus on developing adaptive thresholding methods that dynamically adjust the detection threshold based on signal characteristics. This would enable a more accurate identification and classification of weak PD signals, thereby improving the overall performance of defect recognition algorithms. Furthermore, the test objects can be practical equipment, such as power cables, transformers, etc.
