Methods for Detecting Picric Acid—A Review of Recent Progress

by
Magdalena Fabin
,
Mieczysław Łapkowski
and
Tomasz Jarosz
*
Department of Physical Chemistry and Technology of Polymers, Silesian University of Technology, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(6), 3991; https://doi.org/10.3390/app13063991
Submission received: 15 February 2023 / Revised: 17 March 2023 / Accepted: 18 March 2023 / Published: 21 March 2023
Browse Figures
Versions Notes

Abstract

:
Nitroaromatic compounds in general and 2,4,6-trinitrophenol (picric acid) in particular have recently attracted significant research attention as environmental contaminants. This spurred a wave of development regarding the methods of detecting these compounds. This work focuses on picric acid as the most common and problematic of these contaminants. The key classes of materials sensitive to picric acid are indicated, and recent developments are discussed in detail. Particular attention is given to the detection and speciation capabilities of the discussed materials and methods utilising them, with various technical considerations noted as relevant.

1. Introduction

2,4,6-trinitrophenol (commonly referred to as picric acid) is a nitroaromatic compound bearing a strongly acidic proton in its hydroxyl group [1]. Picric acid (PA) is an explosive that has been widely used for the manufacture of munitions and explosive charges, particularly during World War I [2,3,4]. PA was also used in the dye and pharmaceutical industries, in chemical laboratories [5,6], for the manufacture of fungicides [7,8] and as one of the components used to monitor the automated synthesis of peptides [9]. In the interwar period (1919–1939), picric acid was rapidly replaced in its military applications by 2,4,6-trinitrotoluene [10], due to the latter being less sensitive to mechanical stimuli (Table 1) and due to the significant toxicity of PA [11].
Nitroaromatic compounds (NACs), including PA, are known for their harmful hepatotoxic and haematotoxic effects. They cause mutagenesis and carcinogenesis within living cells [13,14]. The toxicity of picric acid is described as higher than that of nitroderivatives of toluene, xylene or naphthalene [11]. Chronic exposure to PA can damage blood, liver and kidney cells and cause cancer, anaemia, cyanosis and male sterility [15,16]. In animals, the metabolism of picric acid takes place via the reduction of its nitro groups to amine groups, followed by acetylation of the amino group, whereby picric acid is excreted as 2-amino-4,6-dinitrophenol (picramic acid) derivatives [15,17,18,19].
The toxicity of PA is exacerbated by its high solubility in water [20], which facilitates contamination of various media, posing a potential risk to human health and to the environment. Antiquated munitions are the primary source of PA contamination, as it can be readily leached out from such devices and objects. The presence, toxicity and environmental fate of PA have long been an issue of concern [21], particularly near sites in which post-World War munitions have been stored. To combat the issue of PA contamination and identify any sources of its release into the environment, sensitive and efficient methods for its detection and speciation from among other NACs, often at trace concentration levels, are necessary [22]. Recent years have brought about significant developments in this subject, with a wide variety of materials and approaches being reported, particularly regarding the use of fluorescence quenching, as briefly summarised in this work.

2. Selected Fluorescence-Based PA Detection Mechanisms

2.1. Fundamentals of Fluorescence Quenching Methods

Fundamentally, luminescence is the process of a molecule returning to a ground state from its excited state via the emission of electromagnetic radiation, with the emitted radiation typically being in the visible light range [23]. Depending on the mechanism by which the molecule achieves its excited state, various types of luminescence, for example, chemiluminescence, electroluminescence and fluorescence, can be differentiated. In the case of fluorescence, this excited state is brought about by the absorption of electromagnetic radiation, with the emitted radiation varying in energy from the absorbed radiation, typically the energy of the emitted radiation being lower than that of the absorbed radiation (Stokes shift) [24].
The excited state of a molecule can, however, also decay through collisions and interactions with other molecules, leading to non-radiative transitions. Purposefully introducing substances interacting with fluorophores in such a way as to promote non-radiative transitions over fluorescence is the basis of all detection methods relying on the phenomenon of fluorescence quenching.
Methods based on fluorescence quenching constitute the vast majority of methods for detecting picric acid (PA), however, several fluorescence enhancement mechanisms have also been described. Based on the interaction between the fluorophore and PA, the detection mechanisms can be divided into non-covalent interaction-based phenomena, which include resonance energy transfer (RET) and photo-induced electron transfer (PET) and interaction-free phenomena, which include, for example, the inner filter effect (IFE) phenomenon.

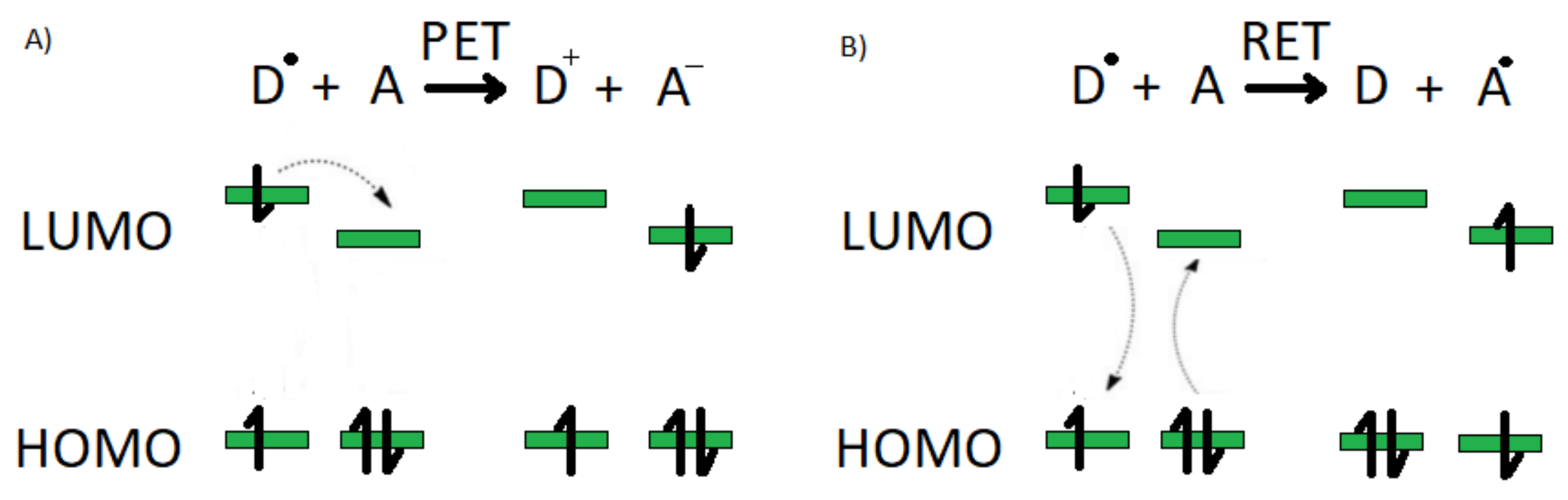

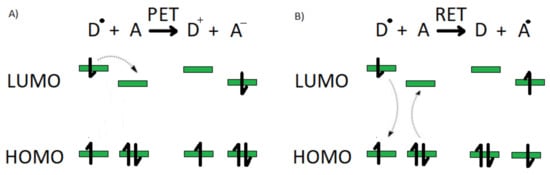

2.2. Resonance Energy Transfer (RET)

One of the most important processes attempted in detecting aromatic nitro compounds, including PA, is resonant energy transfer (RET). This process occurs whenever the emission spectrum of a donor is superimposed on the absorption spectrum of an acceptor [25]. The basic prerequisite for the RET mechanism in the fluorescence quenching process is the overlap between the absorption spectra of the nitroaromatic compound and the photoluminescence spectra of the material [26,27,28].In the case of PA, the absorption peak appears at around 370 nm, which limits many materials used as potential sensors for the selective detection of PA [29]. In RET, the excited donor releases energy during the return to the ground state, which is absorbed and used by the acceptor, which is excited to a higher energy state Figure 1. The rate of energy transfer depends on the overlap between the emission spectrum of the donor and the absorption spectrum of the acceptor and the distance between the donor and acceptor [30,31].

2.3. Photo-Induced Electron Transfer (PET)

In high-energy materials containing nitro groups, there is a high electron deficiency so that these compounds can readily bind to electron-rich fluorescent sensing materials through acceptor–donor interactions [32]. In detection systems based on the PET phenomenon, a reaction takes place between an excited electron donor and an electron acceptor, forming a [D+A−] complex Figure 1 [33].
This charge-transfer complex can return to the ground state without photon emission, but in some cases, exciplex emission can be observed. Eventually, the extra electron on the acceptor is returned to the electron donor. The direction of electron transfer in the excited state is determined by the oxidation and reduction potentials of the ground and excited states. Due to the complex formation, the PET phenomenon has been used to develop fluorescent sensors [34,35,36].

2.4. Aggregation-Caused Quenching (ACQ)

When describing the phenomenon of luminescence, mention should also be made of the common phenomenon of attenuation or extinction at high concentrations. This concentration attenuation is mainly due to aggregate formation, which is often referred to as aggregation-caused quenching (ACQ) [37]. The ACQ effect is detrimental to some practical applications, for example, for organic light-emitting diode (OLED) and light-emitting electrochemical cell applications. For example, for many sensors, the preferred operating condition during detection is an aqueous solution. Very often, however, sensor materials belong to hydrophobic compounds that are insoluble in water. Therefore, they can precipitate and aggregate in water, resulting in an ACQ effect. Aggregate systems may look like homogeneous solutions, but the aggregates are, in fact, dispersed rather than dissolved in the solvent [38]. Moreover, the resulting aggregates are very small, sufficient to maintain thermodynamic and kinetic stability without precipitating. While the apparent mechanism of action of ACQ is aggregation, the real mechanism is the formation of excimers and exciplexes, assisted by collisional interactions between aromatic molecules in both the excited and ground states of [37]. Aggregates with random or ordered structures are formed by Π − Π stacking of planar rings of neighbouring fluorophores [31]. The excited states of the aggregates often decay in a non-radiative pathway, resulting in immediate fluorescence quenching.

2.5. Inner Filter Effect (IFE)

IFE is an important phenomenon in occurring spectrofluorometry based on the non-radiation energy conversion model. It results from the absorption of the excitation spectrum and/or emission of the fluorophore by an absorber, for example, nitroexplosive, leading to an exponential quenching of the fluorescence of the fluorophore. This phenomenon increases the sensitivity of the system and contributes to the low limit of detection (LOD) during detection of [39,40,41]. The IFE can be divided into two components. The first, referred to as the primary IFE (p-IFE), is formed by the absorption of the excitation radiation by the absorber. The second, referred to as the secondary IFE, is formed by the absorption of the emitting radiation by the same absorber [42]. The principle of IFE-based systems is very simple and requires no interaction between the fluorophore and the quencher. The condition is a perfect match between the fluorophore and the quencher, where the absorbance of the quencher should coincide with the excitation and/or emission of the fluorophore. Formerly, IFE was considered an error in fluorescence measurements. However, the phenomenon has recently gained the attention of researchers due to the development of various chemical and biological sensors that can utilise IFE [41].

3. Sensors for Detecting and Measuring PA

3.1. Metal–Organic Frameworks Sensor

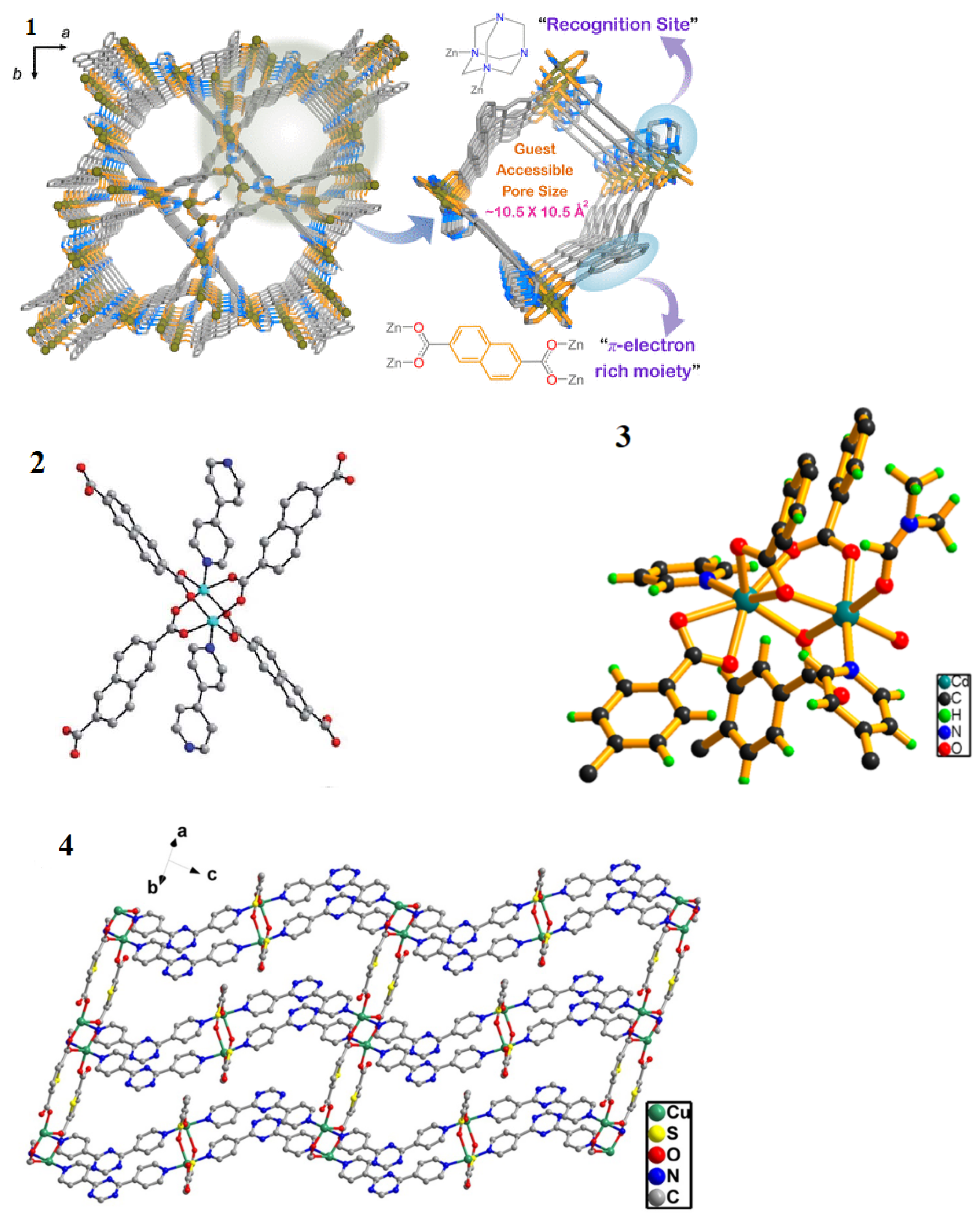

Metal–organic frameworks (MOFs) have attracted significant research interest due to their versatile catalytic [43], adsorption [44] and gas separation properties [45,46].
MOFs are composed of metal ions or clusters and organic ligands (“linkers”). Based on the geometry of one-, two- or three-dimensional coordination networks, organic linkers and coordination modes of inorganic metal ions, their structures can be modified depending on the desired properties.
MOFs containing π -rich conjugated bonds have been shown to possess strong luminescence properties. The luminescent character of the materials is determined by various properties and phenomena, including ligand-based luminescence, ligand-to-metal charge transfer, metal-to-ligand charge transfer, antenna effects, sensitivity, excimer/exciplex emission and surface activity [47].
This type of MOF luminescence has shown great potential for the production of fluorescent sensors.
Some MOFs exhibit higher porosity than conventional porous materials, such as zeolites or carbon materials, because the pores in MOFs can be tuned by various combinations of metal ions and organic linkers, while functional sites can be readily immobilised on pore surfaces for their specific molecular recognition. The ultra-high porosity of MOFs, reaching up to 90% of the free volume [48] and large internal surfaces, exceeding the Langmuir area of 10,000 m2/g [49,50] is another reason for using MOFs as selective sensors. MOFs as fluorescent sensors work on the principle of luminescence quenching. It is usually induced by the collapse of the MOF backbone, ion exchange between the central metal ion of the sensor and the compound to be analysed, or competitive absorption of light of the same wavelength between the sensor and the molecule [51,52,53,54]. In dynamic quenching, electrons are directly transferred between the excited fluorescent material and the quenching agent in the form of a collision. Electron or energy transfer can be the main cause of quenching [55,56]. The main factor determining the efficiency of electron or energy transfer is the distance between the quenching agent and the MOF [57].

3.1.1. d-Block MOFs

Of the MOFs, whose luminescence properties are being studied for PA detection, structures based on d- and f-block metals have become particularly popular. MOFs containing Zn atoms have attracted particular interest [58,59,60,61] due to their properties such as high sensitivity in detecting PA, stability and low detection limit, which are associated with the possibility of obtaining strong emission properties and, above all, low toxicity [59]. The selectivity of PA detection was also confirmed for some MOFs containing Cd [59,62], Cu [63] or Zr atoms [64] (Figure 2).
It should be noted that most works on the use of MOFs for detecting PA focus on the role of the organic ligands. Consequently, apart from the purely empirical observation that Zn-based MOFs afford good sensing performance, little theoretical foundation is available to justify using Zn-based MOFs over MOFs containing other d- and f-block metal atoms (Table 2).

3.1.2. Lanthanide-MOFs

Unlike transition metals, the electrons of metals belonging to the lanthanide group allow them to have a larger coordination sphere. Lanthanide ions are mostly trivalent, except for Eu2+ and Ce4+, with a ground-state electron configuration of [Xe]4fn which can generate a rich diversity of electron levels and translations [65].
Based on considerations for hard soft acids and bases [66], the lanthanides show affinity in relatively hard oxygen-containing linkers to other functional groups. Due to the structural stability provided by the bond between the ligand and the central ionic unit of the metal due to the transition metal (paramagnetic) ion, the luminescence of MOFs is focused on the metal, as metal ions with an f orbital can act as junctions. In addition, the metal centre ion can combine with the ligand to provide high absorption of metal centre-coordinated bands, facilitating the inter-system transition from singlet to triplet excited states in the Ln-MOF. This phenomenon is known as the antenna effect, and it provides good emission enhancement properties [67,68] (Figure 3).
Investigations were carried out for different types of MOFs, in the context of the possibility of their ability to detect aromatic nitrocompounds, with particular emphasis on PA. Positive luminescence quenching selectivity results were obtained for PA in most of the Ln-MOFs tested (Table 3).
Research on Ln-MOFs as sensors for high-energy nitro compounds in aqueous solutions has shown that in most cases, MOFs can perform well as selective PA sensors. For other solvents, the affinity of some MOFs for PA is much lower than for other nitroaromatic compounds Figure 4. This suggests that the presence of electron-rich molecules and the flexible coordination geometry of lanthanide ions may provide many opportunities towards specific interactions between MOFs and selective analytes.
Applsci 13 03991 g003 550

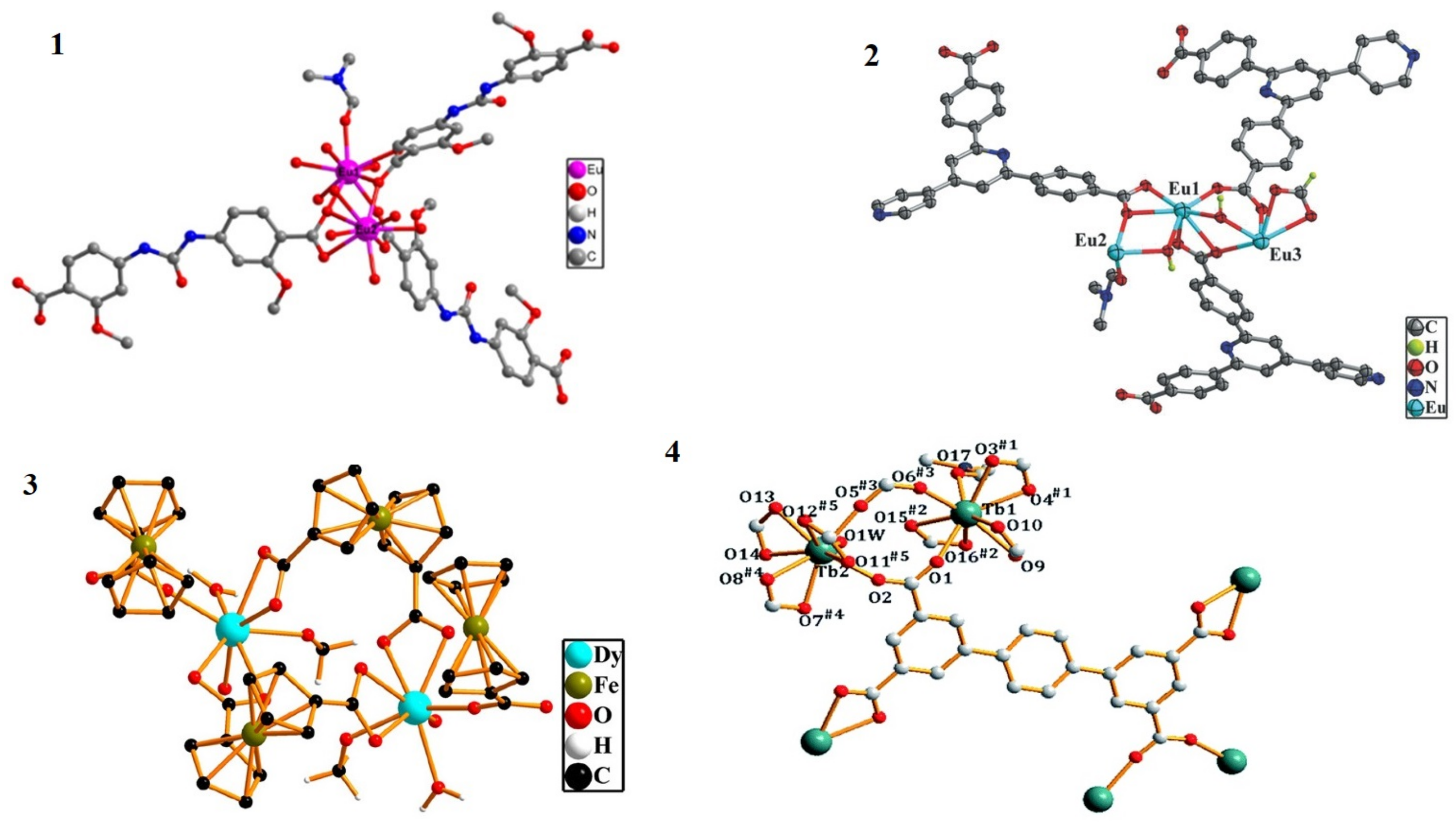

Figure 3. Structures of selected Ln-MOF compounds: (1) Coordination environment of Eu3+. Reprinted with permission from [69]. Copyright 2020, American Chemical Society; (2) Ball-and-stick representation of the asymmetric unit in the crystal structure of Eu-MOF. Reprinted with permission of John Wiley & Sons, Inc. from [76]; (3) Molecular structure of [Dy( μ 2-FcDCA)1.5(MeOH)-(H2O)]·0.5H2O]n showing the coordination environment around the Dy(III) metal ion. Reprinted with permission from [71]. Copyright 2019, American Chemical Society; (4) Coordination environments of Tb1 and Tb2 in complex (C2H6NH2)2[Tb2(ptptc)2(DMF)(H2O)]·DMF·6H2O, guests and hydrogen atoms are omitted for clarity. Reprinted with permission of the Royal Society of Chemistry from [73]. Copyright 2018, permission conveyed through Copyright Clearance Center, Inc.
Figure 3. Structures of selected Ln-MOF compounds: (1) Coordination environment of Eu3+. Reprinted with permission from [69]. Copyright 2020, American Chemical Society; (2) Ball-and-stick representation of the asymmetric unit in the crystal structure of Eu-MOF. Reprinted with permission of John Wiley & Sons, Inc. from [76]; (3) Molecular structure of [Dy( μ 2-FcDCA)1.5(MeOH)-(H2O)]·0.5H2O]n showing the coordination environment around the Dy(III) metal ion. Reprinted with permission from [71]. Copyright 2019, American Chemical Society; (4) Coordination environments of Tb1 and Tb2 in complex (C2H6NH2)2[Tb2(ptptc)2(DMF)(H2O)]·DMF·6H2O, guests and hydrogen atoms are omitted for clarity. Reprinted with permission of the Royal Society of Chemistry from [73]. Copyright 2018, permission conveyed through Copyright Clearance Center, Inc.
Applsci 13 03991 g003
Applsci 13 03991 g004 550

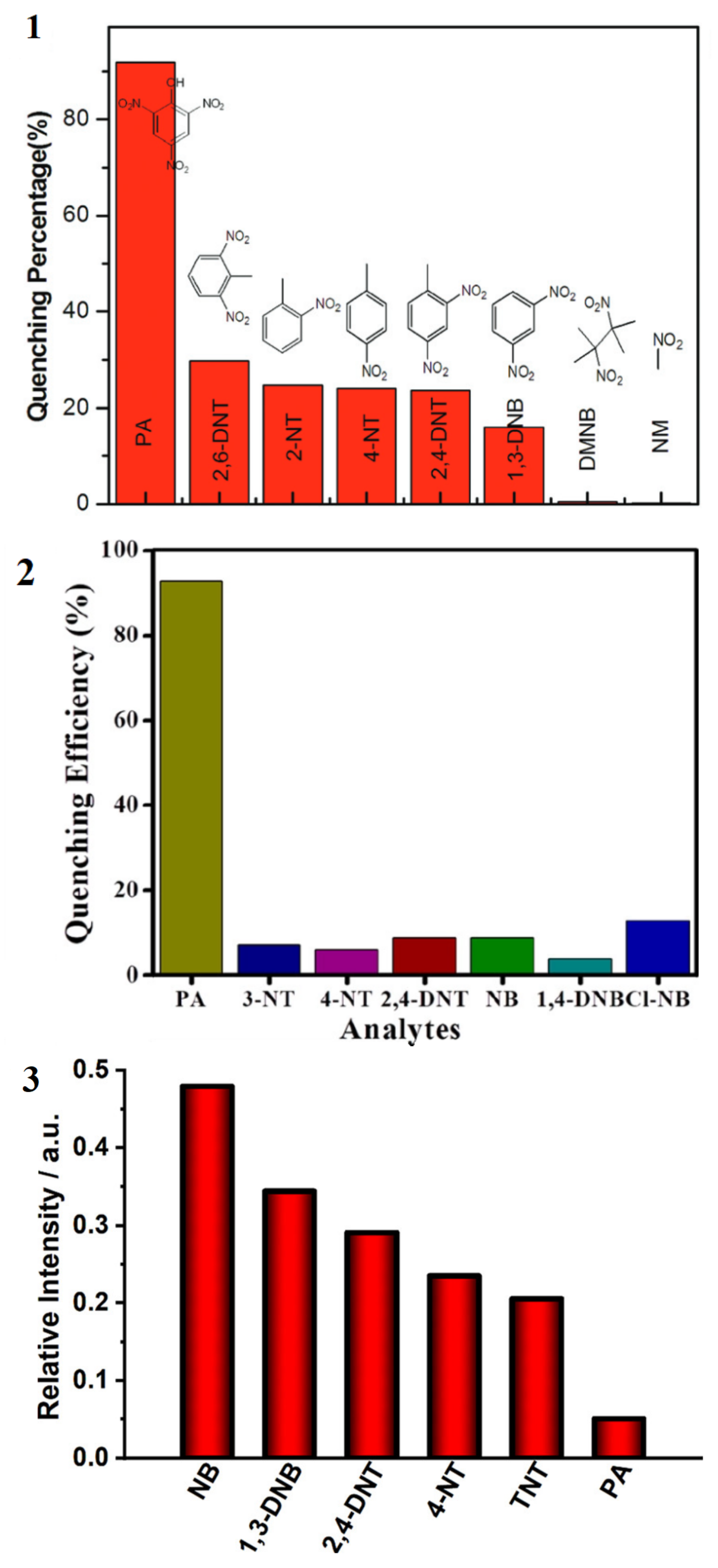

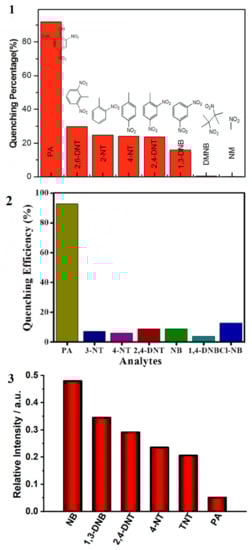

Figure 4. (1) The luminescence responses of large-porous Eu-MOF dispersed in DMF for nitro compounds. Reprinted with permission of the Royal Society of Chemistry from [79]. Copyright 2013, permission conveyed through Copyright Clearance Center, Inc.; (2) Luminescence quenching efficiencies of [Dy( μ 2-FcDCA)1.5(MeOH)-(H2O)]·0.5H2O]n. Reprinted with permission from [71]. Copyright 2019, American Chemical Society; (3) Luminescence responses of Eu-MOF to various nitroexplosives (5 mM) in DMF. Reprinted with permission from [69]. Copyright 2020, American Chemical Society.
Figure 4. (1) The luminescence responses of large-porous Eu-MOF dispersed in DMF for nitro compounds. Reprinted with permission of the Royal Society of Chemistry from [79]. Copyright 2013, permission conveyed through Copyright Clearance Center, Inc.; (2) Luminescence quenching efficiencies of [Dy( μ 2-FcDCA)1.5(MeOH)-(H2O)]·0.5H2O]n. Reprinted with permission from [71]. Copyright 2019, American Chemical Society; (3) Luminescence responses of Eu-MOF to various nitroexplosives (5 mM) in DMF. Reprinted with permission from [69]. Copyright 2020, American Chemical Society.
Applsci 13 03991 g004

3.2. Covalent Organic Polymers (COPs) and Covalent Organic Frameworks (COFs)

Recently, there have been an increasing number of reports in the literature on the exploitation of the action of covalent organic polymers (COPs) and covalent organic frameworks (COFs) [80] as novel sensor materials. Most COP- and COF-based high-energy materials sensors work based on phenomena such as RET, PET or dynamic quenching, among others. Some materials serve as sensors for high-energy nitromaterials in general [81] while others are tailored for specific high-energy compounds [82,83]. Nitrophenols contain a polar hydroxyl group capable of forming hydrogen bonds, making COP and COF-based sensors more selective for nitrophenols than for other compounds, for example, nitrotoluenes in general. The selectivity of these sensors was explained by the formation of hydrogen bonds between nitrophenols and O- and N-rich COP and COF and the overlap of absorption spectra between them.
The reason for this phenomenon may be because nitrophenols have an acidic hydroxyl group and will be more susceptible to interactions with basic groups, as in the case of curcumin derivatives [84]. No specific mechanism of interactions has, however, been proposed. Due to the non-selective and non-specific nature of these interactions, likely, many other interferents bearing acidic hydroxyl groups will also be detected by this method.
Hydrogen bonding is also responsible for the dominance of the ACQ mechanism in the fluorescence response.

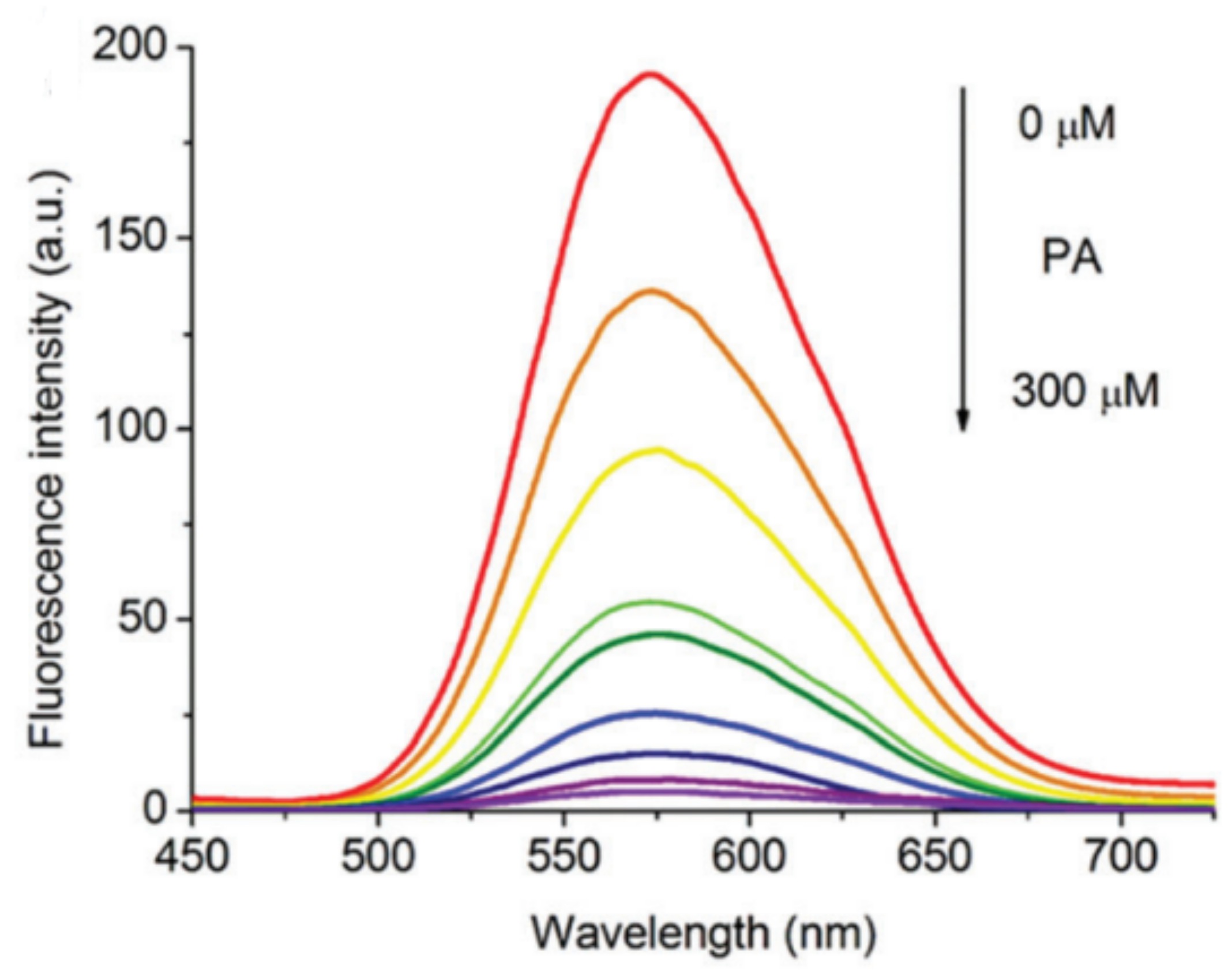

During a detailed study of the mechanism of detection of high-energy materials by COPs, two main factors affecting selectivity for PA were demonstrated using COP-301 as an example. The first was the relative positions of HOMO and LUMO and the electron-withdrawing effect of the functional groups of the NO2 [82]. COP and nitro-aromatic high-energy materials interact via Π − Π interactions. Upon excitation, electrons in the COP conduction band are transferred to the LUMO PA, resulting in quenching. Due to the electron-withdrawing effect of the nitro groups, PA has the lowest LUMO, so its quenching ability is the highest. The main difference observed between COF and COP sensors is in the magnitude of the extinction constants. COFs can exhibit KSV values in the order of ×106 to ×107, while most COPs reach maximum values in the order of ×105 (Table 4). This suggests that the long-range order in COFs contributes to higher extinction degrees for a given analyte concentration and initial fluorescence signal.

3.3. Carbon Dots

Carbon dots (C-dots), comprising graphene quantum dots (GQDs), carbon nanodots (CNDs) and carbon quantum dots (CQDs) [90,91] belong to a relatively new class of carbon nanomaterials, which are less than 10 nm in size [92]. Currently, C-dots are obtained by laser ablation of graphite powder and cement [93,94], and the thermal cracking of organic compounds [95,96], electro-oxidation of graphite [97]. C-dots are generally characterised by simple and inexpensive preparation methods and strong electromagnetic wave absorption properties, especially in the UV range, and depending on the method of obtaining them, this range can be extended to visible light wavelengths [98,99,100,101,102,103,104]. To date, it has not been possible to propose a unified mechanism for the fluorescence of C-dots. There are currently three main theories on the subject, these are the surface state theory [105,106,107,108,109], the quantum confinement effect theory [110,111,112,113] and the molecular fluorescence theory [114,115,116].
Due to their luminescent properties and low toxicity [97,117] C-dots have shown potential for, among other things, fluorescence bioimaging [118] and multimodal bioimaging of cells or tissues [119]. C-dots can also be used as biosensors, for example, for visual monitoring of elemental content in cells [120,121], glucose levels [122] or pH values [123]. Nanomaterials of this type are optically sensitive to compounds that are chromophores.
Based on the ability of C-dots to undergo fluorescence quenching in the presence of PA, they have attracted significant interest as potential probes for the detection of picric acid and other nitroaromatic compounds (Table 5).

3.4. Polymers and Organic Molecules

Detecting picric acid (PA) using organic compounds and polymers relies almost entirely on the use of those materials as fluorescent probes (Table 6) because both PA and other nitroaromatic compounds are strong fluorescence quenchers, but otherwise do not have a large impact on the readily-measurable properties of those materials. The recently reported fluorescence probes viable for this purpose are mostly π -conjugated polymers, including donor–acceptor copolymers [131], more classical polyfluorene derivatives [132] and rylene-based systems [133,134]. Non-conjugated polymers [135] and non-polymer rylene derivatives [136] have also been reported as promising materials for detecting PA.

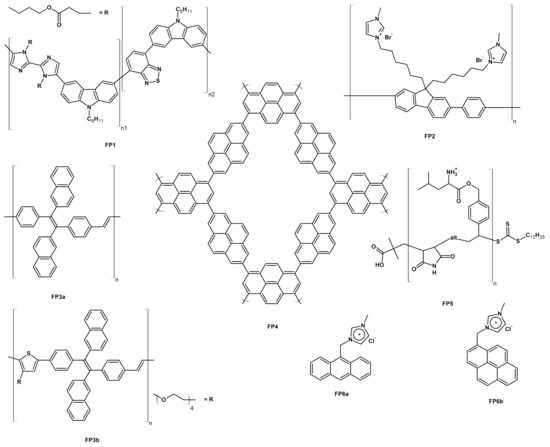

Most of the fluorescent probes offer similarly high detection parameters, with limits of detection (LODs) in the submicromolar range, regardless of the specific classification of the employed material. It has also been shown that as the concentration of the analyte tested increases, the fluorescence signal read by the probes increases (Figure 5). The sole outlier with a subnanomolar LOD was a π -conjugated polymer [132].
Table

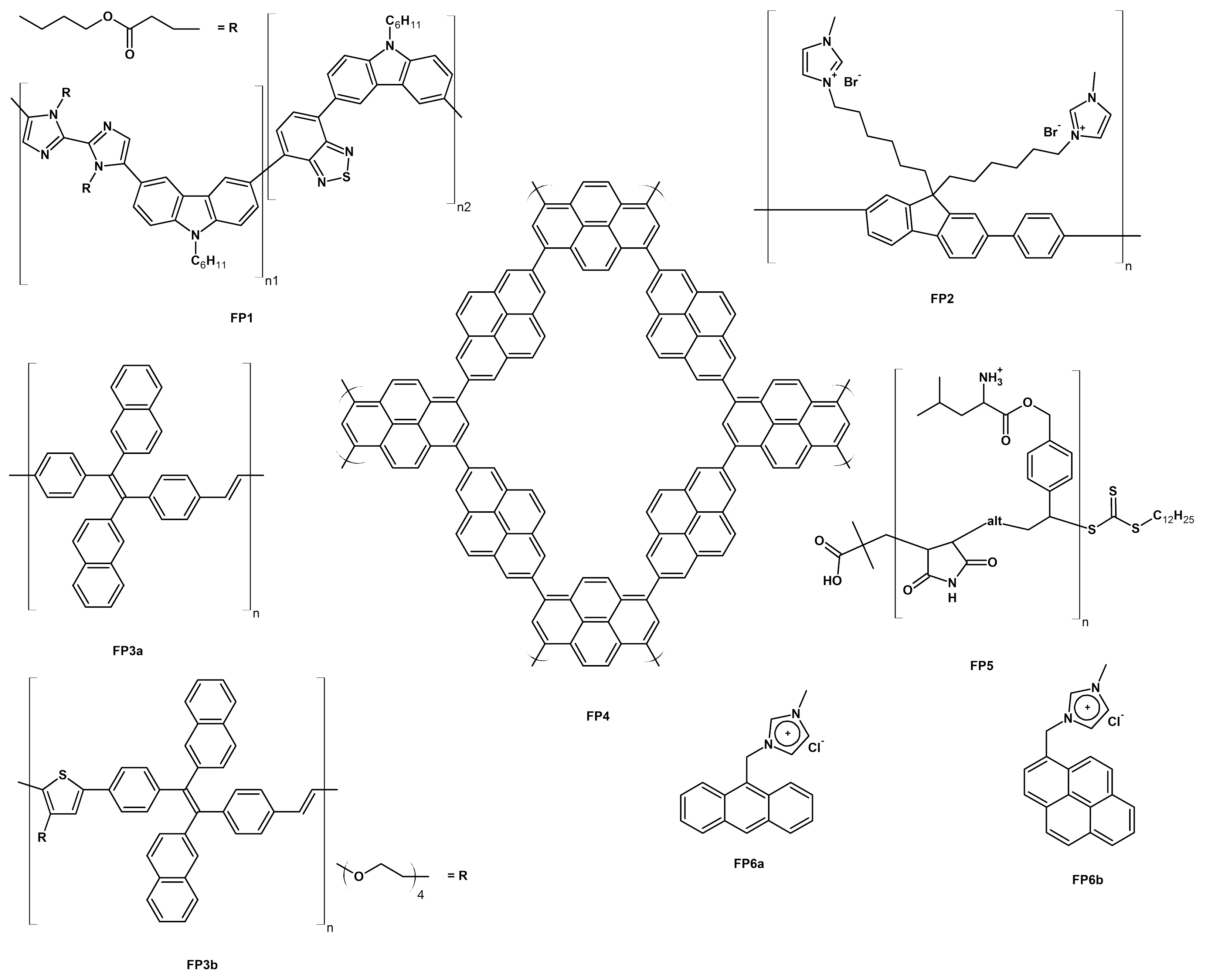

Table 6. Summary of polymer and organic fluorescent probes used for the detection of picric acid. Numeric designations refer to compounds presented in Figure 6.
Table 6. Summary of polymer and organic fluorescent probes used for the detection of picric acid. Numeric designations refer to compounds presented in Figure 6.
Fluorescent ProbeLOD 1Selectivity 2Ref.
FP15.1 × 10−7 MLimited for NACs 3; High for cations[131]
FP23.09 × 10−11 MAverage[132]
FP3a1.81 × 10−7 Mn/a[133]
FP3b1.4 × 10−6 Mn/a[133]
FP4n/aLimited[134]
FP544.0 ppbLimited/Average[135]
FP6an/aLimited[136]
FP6bn/aLimited[136]
1 n/a = No quantitative data reported; 2 Selectivity is described based on the ratio of the response of the sensor to PA to the response for interfering agents, as follows: Limited (ratio < 10), Average (10 < ratio < 103), High (ratio > 103), n/a (no relevant data reported); 3 NAC = nitroaromatic compound.
The main drawback of these methods is that while they offer some measure of selectivity towards PA, their responses to other nitroaromatic compounds (NACs) are significant and few works investigate the effect of sample contamination with the heavy metals typically present alongside PA, particularly in the case of unexploded munitions. Consequently, while methods based on fluorescence quenching are an excellent tool for the detection of NACs in general, particularly as part of a suite of portable/on-site analyses, speciation analysis of the NACs needs to be carried out using different methodology.
An altogether different approach to detecting PA is to use a Schiff base that can form an adduct with PA that exhibits different absorption in the UV-Vis spectral range [137]. Not only does this approach rely on a simplistic and readily portable measurement method (UV-Vis spectroscopy), but offers high sensitivity (LOD of 6.92 × 10−7 M), comparable with fluorescence quenching methods and may far exceed them in terms of selectivity towards PA.

4. Conclusions

The most popular method for detecting picric acid (PA) relies on fluorescence quenching induced in a variety of fluorescent probes upon their interaction with PA. These fluorescent probes range from metal–organic frameworks, through quantum dots to conjugated polymers. Regardless of the type of fluorescent probe, micromolar or sub-micromolar (ca. 10−7 M) PA concentrations can be detected. Such an outcome may be indicative of the performance of the fluorescent probes outpacing the other elements of the detection systems (e.g., light detectors) and making those elements constrain the achievable LODs for PA.
Apart from the above constraint, detection of PA via methods relying on fluorescence quenching is burdened by limited selectivity. This is due to the fact that the fluorescent probes are often equipped with numerous functional groups, which can interact not only with PA, but also with a vast range of other substances. Due to this lack of selectivity, the detection of PA or even of NACs, in general, may require any experimental samples to undergo extensive pre-processing. In many applications (e.g., handling of expired munitions, mine clearance), such pre-processing will be unfeasible due to time and infrastructure considerations.
In light of the above, alternative methods for the rapid and selective or even specific detection of PA need to be developed. One example of such potentially promising methods is to use Schiff bases that selectively form adducts with PA that can be readily detected via, for example, UV-Vis spectroscopy.

Author Contributions

M.F.: investigation, formal analysis, data curation, writing—original draft preparation, writing—review and editing, visualisation. M.Ł.: writing—original draft preparation, formal analysis. T.J.: conceptualisation, writing—original draft preparation, writing—review and editing, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

Magdalena Fabin acknowledges the support of grant No. 2020/39/O/ST5/03293, funded by the National Science Centre of Poland.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
