Selection of Potential Regions for the Creation of Intelligent Transportation Systems Based on the Machine Learning Algorithm Random Forest

Abstract

The planning and management of traffic flow networks with multiple input data sources for decision-making generate the need for a mathematical approach. The program of measures for the development of the transport infrastructure of the Russian Federation provides for the selection of pilot regions for the creation of intelligent transportation systems. With extensive knowledge of theoretical and applied mathematics, it is important to select and adapt mathematical methods for solving problems. In this regard, the aim of the study is to develop and validate an algorithm for solving the problem of classifying objects according to the potential of creating intelligent transportation systems. The main mathematical apparatus for classification is the «random forest» machine learning algorithm method. A bagging machine learning meta-algorithm for high accuracy of the algorithm was used. This paper proposes the author’s method of sequential classification analysis for identifying objects with the potential to create intelligent transportation systems. The choice of using this method is justified by its best behavior under the large number of predictor variables required for an objective aggregate assessment of digital development and quality of territories. The proposed algorithm on the example of Russian regions was tested. A technique and algorithm for statistical data processing based on descriptive analytics tools have been developed. The quality of the classification analysis algorithm was assessed by the random forest method based on misclassification coefficients. The admissibility of retrained algorithms and formation of a «fine-grained» «random forest» model for solving classification problems under the condition of no prediction was proven to be successful. The most productive models with the highest probability of correct classification were «reached» and «finalized» on the basis of logistic regression analysis of relationships between predictors and categorical dependent variables. The regions of class 1 with «high potential for the creation of intelligent transportation systems» are most likely to be ready for the reorganization of infrastructure facilities; the introduction of digital technologies in the management of traffic flows was found.

1. Introduction

The importance of creating intelligent transportation systems lies in the regulation of traffic flows, providing users of transport networks with information and security, and improving the quality of traffic participants compared to conventional transportation systems [1,2,3,4]. Intelligent transportation systems make it possible to automate the process of traffic control [5], create a system of photo and video recording of violations of traffic rules [6], automate the weight and size control of cars, organize the work of toll highways [7], organize the work of parking spaces [8], perform meteorological monitoring, and automatically regulate the lighting of highways [9]. In this regard, the issues of creating intelligent transportation systems are relevant and require study based on big data and modern mathematical approaches [10,11,12].

With the increasing volume of information in various fields of applied science and practice, public administration, and industrial production, there is a high demand for intelligent data analysis. The management of complex processes and networks of traffic flows generates the relevance of creating intelligent transportation systems. In this case, improving the efficiency of material flows directly depends on the development of transport infrastructure, the quality of the transport network, and the level of management technology.

The creation of intelligent transportation systems envisages the automation of road traffic control processes in urban agglomerations with a population of over 300 thousand people. The implementation of the project envisages significant financial investments for the development of transport and production infrastructure and other activities, which requires the correct selection of pilot territories. For this purpose, the task has been set to identify the regions with the greatest potential for the creation of intelligent transportation systems.

The issues of creating intelligent transportation systems are widely studied in foreign and domestic literature. Modern aspects of the design and implementation of intelligent transportation systems are outlined in the book by R. Dushkin, a Russian specialist in artificial intelligence technology [13,14]. In foreign scientific publications, the problems of road safety and reliability of automobile networks by means of intellectual transportation systems are considered [15,16,17], and technology for traffic monitoring and event information are proposed [18,19].

In particular, Zhang X. and coauthors investigated security in the cyber-physical system of a vehicle using blockchain knowledge [20]. Alanazi F. conducted an extensive literature review on autonomous and connected vehicles in traffic management [21]. Wu S. et al. studied dynamic scheduling and AGV optimization in manufacturing logistics systems based on the digital twin [22]. Wang S. and the research team modeled a neural network with inverse convolution to predict traffic flow in the frequency domain [23]. Mohammed G.P. and coauthors predicted traffic flows using Pelican optimization with a hybrid network of deep trust in smart cities [24].

Under the leadership of Ahmed Hamza M., a hyperparametric deep autocoding model was built for a road classification model in intelligent transportation systems [25]. Petrov T., Pocta P., and Kovacikova T. carried out a comparative analysis of cellular communications based on 4G and 5G-V2X for transport infrastructure and urban scenarios in collaborative intelligent transportation systems [26]. An approach to assessing cyber-physical risks for transport infrastructure with the support of the Internet of Things was developed by Ntafloukas K., McCrum D.P., and Pasquale L. [27]. Behrooz H. and Hayeri Y.M. studied machine learning applications in ground transportation systems [28].

One of the artificial intelligence algorithms can be an adequate tool for classifying objects according to a number of features. In terms of the development of artificial intelligence, the literature has explored the use of data mining technologies to evaluate intelligent transportation systems [29]. The technological aspects of blockchain applications for transport networks have been reviewed [30,31]. Researchers and practitioners have investigated the use of the Internet of Things for the automotive sensor network, industrial transport [32,33], and spatiotemporal visual analysis of urban traffic characters from CCTV data [34,35,36].

Decision tree methods and algorithms are quite widely used in applied classification problems. They are used to making decisions for the modernization of production processes [37,38,39], improving the environmental friendliness of the industry [40,41,42], and aircraft manufacturing [43]. Random forest-based classification algorithms play a significant role in the banking and financial sectors to ensure the security of work processes, customer identification, and other needs [44,45,46].

«Random forest» classification analysis techniques in market research and social media management [47,48,49,50] are relevant. A large body of work is devoted to the use of machine learning algorithms in medicine for disease diagnosis, the detection of viral infections, and drug monitoring [51,52,53]. The fields of applied mathematics, statistics, and computer science have also extensively developed the apparatus of decision tree methods and algorithms with the flexibility to solve almost any machine learning problem: classification, regression, as well as more complex outlier and anomaly search problems [54,55].

However, despite the availability of extensive theoretical and practical material, certain issues surrounding the use of machine learning algorithms for solving problems in public administration remain unexplored. In particular, it is the creation and development of intelligent transportation systems, including the problems of integration of automated control systems into a single space based on digital technology. Not all developments take into account the specifics of regions as sociotechnical systems with individual features of basic development.

2. Methodology

Data mining technologies were used to assess the potential for creating intelligent transportation systems in the regions. In particular, the method from the «classification trees» group, suitable for a wide range of tasks, is applied to solve the task of classifying objects in order to objectively select potentially capable regions for the development of the integration platform and obtain a high response from investments in the framework of targeted programs. When making a decision using the classification tree method, the values of multiple predictor variables are taken into account simultaneously. Moreover, in contrast to discriminant analysis, the consideration of variables is performed recursively or as the hierarchy is built. The consistent study of the effects of variables and the possibility of using both continuous and categorical predictors for branching make the classification tree method somewhat flexible. Nonessential constraints on the way in which the predictor variable is measured are imposed.

In order to obtain a more reliable classification by reducing the variance of the data, the random forest method, which consists of the use of an ensemble classification method of solver trees, namely the composite learning meta-algorithm of bagging machines, was used. The basic idea is to use a large ensemble of solver trees, each of which by itself is of low classification quality, but at the expense of a large number of trees, the result is good.

Training the classifiers independently on different subsets of the training sample conducted, as a result of the classification, the object is assigned to the class voted for by the majority of the trees, provided that each tree has one vote.

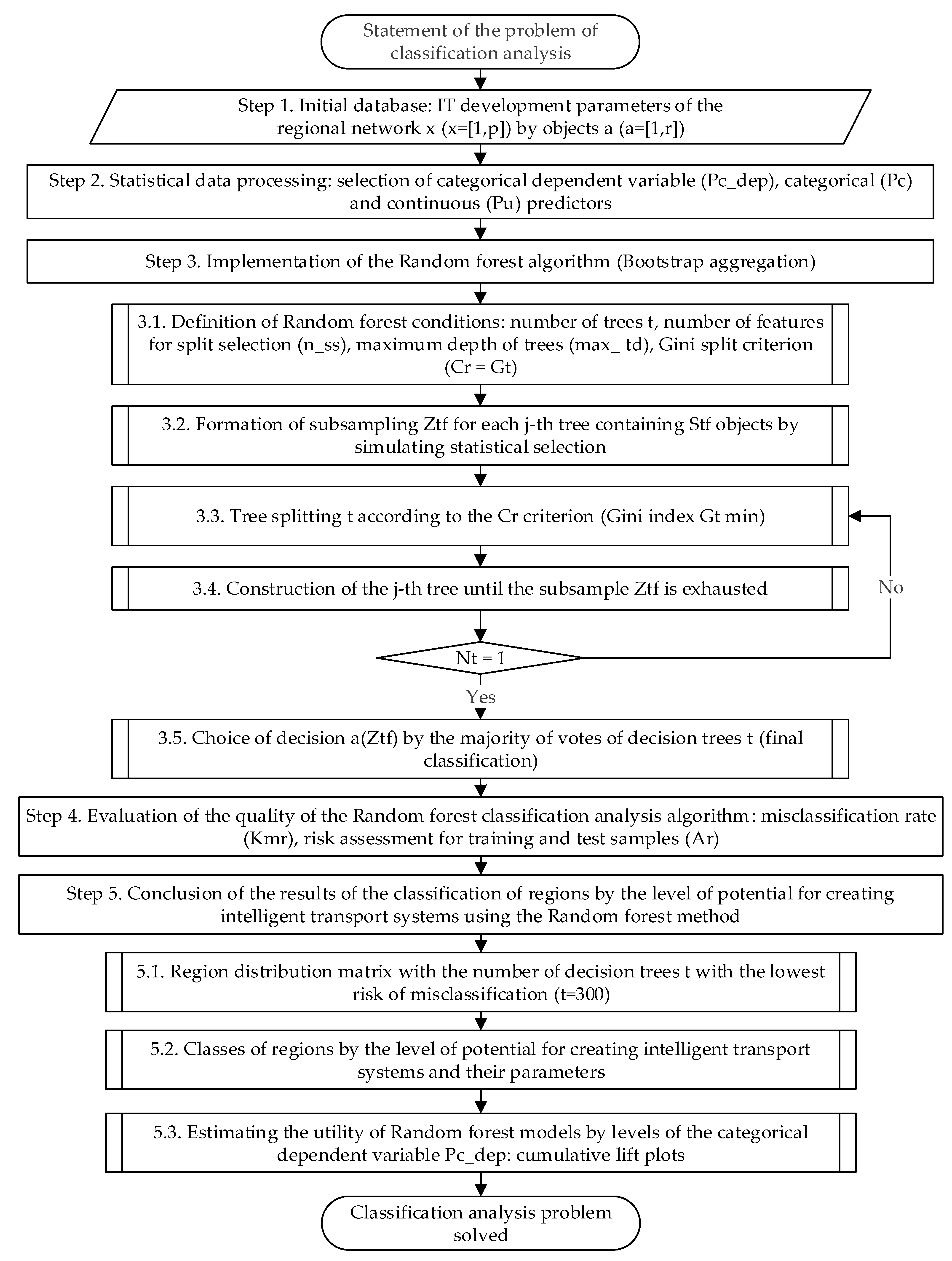

The authors have developed a methodology that includes a sequence of mathematical and logical procedures for selecting pilot regions to implement a large-scale investment project to develop a smart transport and logistics network. The algorithm of the author’s methodology for solving the problem of classifying objects according to their potential for creating intelligent transportation systems using the random forest machine-learning method in Figure 1 is presented. Below, we will describe each step of the procedure.

Step 1: In the first step, the task of classification analysis is set, taking into account the initial database—parameters of the digital development of the regional network x (x = [1, p]) by objects a (a = [1, r]). Six indicative indicators of state statistics are developed as initial parameters:

• X1_a—share of digitalization of telecommunication networks in region a:

$${X1}_a=\frac{{Tdig}_a}{{Tall}_a},\hspace{1em}\hspace{1em}a=[1,r]$$

(1)

where

• Tdig_a—is the number of digital nodes in the telecommunication network in the region,
• Tall_a—is the total number of nodes in the telecommunication network in the region;
• X2_a—is the gross product per capita in the region:

$${X2}_a=\frac{{Vp}_a}{P_a},a=[1,r]$$

(2)

where

• Vp_a—is the gross domestic product of the region.
• P_a—population in the region;
• X3_a—proportion of digitalization of the regional telephone network:

$${X3}_a=\frac{{Cdig}_a}{{Call}_a}, a=[1,r]$$

(3)

where

• Cdig_a—is the number of digital nodes in the telephone network in the region,
• Call_a—is the total number of nodes in the telecommunication network in the region;
• X4_a—is the share of investment in the reconstruction and modernization of infrastructure in the total investment in fixed capital:

$${X4}_a=\frac{{Iinf}_a}{{Iall}_a}, a=[1,r]$$

(4)

where

• Iinf_a—is the amount of investment for the reconstruction and modernization of infrastructure in the region,
• Iinf_a—is the total amount of investment in the region,
• X5_a—is the proportion of public roads that meet regulatory requirements:

$${X5}_a=\frac{{Rnorm}_a}{{Rall}_a},\hspace{1em}\hspace{1em}a=\left[1,r\right],$$

(5)

where

• Rnorm_a—is the length of the public roads that meet regulatory requirements,
• Rall_a—is the total length of public roads in the region,
• X6_a—is the proportion of nondepreciated fixed assets in transport, communications, and information:

$${X6}_a=\frac{{Fan}_a}{{Fall}_a}, a=[1,r]$$

(6)

where

• Fan_a—is the value of nondepreciated fixed assets in transport, communications, and information in the region
• Fall_a—total value of fixed assets in transport, communications, and information in the region.

Step 2: Verification of data through statistical processing and selection of variables for random forest classification analysis: categorical dependent variable (Pc_dep), categorical (Pc), and continuous (Pu) predictors.

Data processing can be implemented on the basis of the calculation and analysis of descriptive statistic indicators: sampling variance (Sv), standard error (Es), standard deviation (Ds), mean (Av), kurtosis (Ex), asymmetry (As), interval (Int), minimum (Min), maximum (Max), and number of objects (Ra). The calculation of the indicators according to generally accepted methods of statistical data analysis is carried out.

As a key indicator affecting the choice of variables, we will take the sample variance (Sv), calculated as the deviation of the sample data from the mean:

$$S_y=\sum \frac{{(x}_i-x_{av})\ast 2}{(n-1)}$$

(7)

where

• X_av is the sample average of the indicator;
• X_i is the i-th element of the sampling frame for the indicator;
• n is the size of the sampling frame for the indicator.

The variance indicates how much the data of a sample population deviate from its mean. Accordingly, the greater the variance, the greater the dispersion of the data. Let us set the following condition for moving the baseline indicator (X1–X6) into the category of a variable for classification analysis: if the sample variance (Sv) deviates from the mean (Av) by more than 10 times, the baseline indicator X_i cannot participate in the classification analysis of the «random forest»:

$$if \raisebox{1ex}{${Sv}_x$}\!\left/ \!\raisebox{-1ex}{${Av}_x$}\right.>10, then x\notin {Pc}_{dep},\mathrm{P}\mathrm{c},\mathrm{P}\mathrm{u}.$$

(8)

In contrast, in this condition, the indicator X_i can participate in «random forest» classification analysis as a variable.

Step 3. The next step is the key step, where the random forest algorithm by the ensemble bootstrap method is implemented. This step consists of five sequential procedures.

3.1. Define the basic parameters for classifying objects:

the number of trees (t),

is the number of set parameters to select splitting (n_ss),

maximum tree depth (max_ td),

splitting criterion (Cr).

The Gini criterion (G_t) is used as the criterion for splitting treetops when solving the classification problem:

$$G_t=1-{\sum }_{j=1}^v{P}^2\left(Y_h\right)$$

(9)

where P (Y_h) is the specific weight of objects of class Y_h in the subsample of tree nodes t, h = [1, v].

3.2. For each tree (t) from the training sample, a subsample Zt, containing St objects is generated. The formation of a subsample Zt is carried out on the basis of a random selection with a possible repetition of objects. As a result of the described procedure for each tree (t), a subsample of object Zt is formed.

3.3. Splitting of the constructed t-trees is performed. For each split, n_ss numbers of features or variables in the tree are considered. Then, the most informative variable, for which the treetop is split according to the criterion Cr, is selected. When the Gini index is applied, the optimal one is the splitting of the treetop, for which the value of the criterion is minimal. According to Formula (9), in binary classification, the quality index of splitting is evaluated as follows:

$$G_t^{split}=\frac{N_1}{N}{G}_{t1}+\frac{N_2}{N}{G}_{t2}\to min$$

(10)

where

• N—is the number of objects in the current tree node t (the «parent» node);
• N₁ and N₂—are the numbers of objects in vertices t1 and t2, corresponding to the left and right vertices (node «daughter») in the case of a binary tree.

3.4. In the final step, the tree (t) is traversed until the subsample Z_tf is exhausted, i.e., until a single representative is at the top of the tree built.

3.5. The final classifier «random forest» a(Z_tf) selects the solution according to the majority of votes of the constructed decision trees:

$$a\left(z_{rf}\right)=sign\sum _{j=1}^{r}b\left(z_{tf}^{}\right)$$

(11)

where

• a(Z_tf)—is the solution of the final classifier of the j-th tree t (j = 1, t);
• b(Z_tf)—is the solution of the base classifier of the j-th tree (j = 1, t);
• sign—is a function that returns the sign of its argument.

Step 4: The next step is to evaluate the quality of the random forest classification analysis algorithm: the misclassification error rate (Kmr), risk assessment for the training, and test samples (A_r):

$$A_r=1-\frac{P_{rs}}{P_s},$$

(12)

where

• A_r—is an estimate of the risk of the object classification error;
• P_rs—is the number of cases correctly classified by the tree;
• P_s—is the total number of times the objects are classified (sample size).

Step 5: The final step is to derive the results of the «random forest» classification of regions according to their level of capacity for building intelligent transportation systems. The procedure involves three steps.

5.1. Formation of a region distribution matrix for the number of decisive trees t with the lowest risk of misclassification. In the case of a classification analysis of regions, the optimal number of trees in a random forest is 300.

5.2. Outputting the final data on the classes of regions according to the level of intelligent transportation system capacity and their parameters. For this purpose, the most informative predictors with respect to the categorical dependent variable based on the Gini tree node splitting criterion Gt are identified (in the case of our analysis, these are Pu3, Pu4, and Pu5).

5.3. The utility of random forest models is estimated for the levels of the categorical dependent variable Pc dep by constructing cumulative lift diagrams. The charts represent a logistic regression to analyze the relationship between predictors and the categorical dependent variable.

An analysis of the magnitude of the lift of the curve or the area between the lift line and the baseline results in a conclusion about the level of productivity and the probability of correct classification of the resulting classification models. This completes the classification analysis task.

To implement the decision tree method, the software package Statistica, which implements intelligent data analysis functions, was used.

3. Results

3.1. Statistical Processing of Raw Data

The digitalization of transport flows requires the integration of all local subsystems into a single organizational set. The effect of the integrated digitalization of transportation systems could be an increase in the efficiency of the overall management system of the territorial unit due to the information interaction of all subsystems in the places where business processes are linked. In our view, a certain level of digitalization of the territory and the level of technical and technological readiness of the transportation industry are required to create an intelligent system.

In this regard, based on the bagging techniques of the random forest (classification analysis), the potential for creating an integration platform in sociotechnical systems is assessed. The studied data set or objects of classification are regions (a = [1, r], where r = 84) as administrative units, characterized by a certain level of development of digital technology and industrial and social infrastructure [20].

Under the conditions of classification analysis, we assume an equal number of misclassification costs (misclassification cost = equal across categories), i.e., the misclassification cost matrix, in this case, will be symmetric. We will take the a priori probability distribution of the value, as the probability that the object falls into one of the classes is proportional to the size of the classes of the dependent variables (prior probability = estimated). The costs of misclassification are combined with the a priori probabilities in calculating the classification probabilities during estimation.

In order to carry out intelligent data analysis, a database of state statistical indicators is formed with the following parameters as the key:

X1 is the share of digitalization of telecommunication networks in the region;

X2 is the gross domestic product per capita in the region;

X3 is the proportion of digitalization of the regional telephone network;

X4 is the share of investment in the reconstruction and modernization of infrastructure in total investment in fixed assets;

X5 is the proportion of public roads that meet regulatory requirements;

X6 is the share of nondepreciated fixed assets in transportation, communications, and information.

In order to verify the data, a descriptive analysis of the sample indicators was carried out. The statistical processing of empirical data, their systematization, and their quantitative description allowed us to identify variables that are adequate to the conditions for the input data of the random forest ensemble using the machine learning method (

Table 1. Descriptive data statistics for intelligent analysis of the probability of creating an integration platform in sociotechnical systems.

	X1	X2	X3	X4	X5	X6
Sampling variance (Sv)	1.12	5439.97 × 108	60.10	68.87	285.09	60.13
Standard error (Es)	0.12	80,474.63	0.85	0.91	1.84	0.85
Standard deviation (Ds)	1.06	737,562.14	7.75	8.30	16.88	7.75
Average (Av)	2.24	635,182.02	94.86	19.07	44.79	40.71
Excess (Ex)	−1.00	27.81	9.60	−0.03	0.45	−0.34
Asymmetry (As)	0.44	4.71	−2.60	0.41	0.25	0.23
Interval (Int)	3.00	5,564,744.30	47.00	40.40	91.32	35.60
Minimum (Min)	1.00	145,723.10	53.00	2.90	5.70	25.30
Maximum (Max)	4.00	5,710,467.40	100.00	43.30	97.03	60.90
Number of objects (Ra)	84	84	84	84	84	84

). The X2—gross domestic product per capita in the region—has a high sampling variance that does not meet the given condition (8) (Sv = 5439.97 × 10⁸). Standard deviation (Ds = 737,562.14) and standard error (Es = 80,474.63) were excluded from the input data.

The result of data verification is the choice of variables for the classification analysis. Given the random forest conditions denoting the mandatory presence of categorical variables, the indicator X2—gross domestic product per capita in the region—is transformed from a quantitative expression into a qualitative text-independent variable—the standard of living of the population in the region (Pc1).

Thus, the dependent categorical variable Pc_dep as the level of digitalization of telecommunication networks in the sociotechnical system is taken (text variable: achieved, finalized, precompleted, and projected). The independent categorical and continuous predictors are as follows:

Pc1 is the standard of living of the population in the region (average per capita gross product) (text variable: high, medium, or low);

Pu2 is the share of digitalization of the regional telephone network;

Pu3 is the share of investment in the reconstruction and modernization of infrastructure in total investment in fixed assets;

Pu4 is the proportion of public roads that meet regulatory requirements;

Pu5 is the share of nonwearing fixed assets in transportation, communications, and information.

3.2. Quality Assessment of the Random Forest Machine Learning Algorithm

The following presents the results of the quality assessment of the random forest classification analysis algorithm. Figure 2 shows graphs of the misclassification coefficients (Kmr) for successive steps of adding trees. Initially, the number of trees, tmax = 100, is given. The graphs show lines for training data and test data. As can be seen, it took at least 85 trees to achieve the lowest misclassification rate (Kmr ≈ 0.5). This result is close to the prediction model with the best predictive validity.

However, in the test samples for all variants of the investigated sets of decision trees in «random forest» (tmax = 50, 100, 150, 200, 250, 300, and 400) there is almost a 50% risk of misclassification of trees (interval A_r = (0.471651; 0.579786).

Table 2. Risk assessment for the training and test samples when constructing a random forest with different numbers of trees.

Number of Trees in Random Forest (tmax)	Name of Sample	Risk Assessment (Ar)	Standard Error (Es)
50	Train data	0.074835	0.003651
	Test data	0.579786	0.009371
100	Train data	0.037389	0.002632
	Test data	0.507696	0.009492
150	Train data	0.056641	0.003207
	Test data	0.507696	0.009492
200	Train data	0.054273	0.003144
	Test data	0.507696	0.009492
250	Train data	0.054273	0.003144
	Test data	0.471651	0.009478
300	Train data	0.073526	0.003621
	Test data	0.471651	0.009478
400	Train data	0.054273	0.003144
	Test data	0.506362	0.009492

presents the risk estimation for the training and test samples. For our classification problem, where the condition is the presence of a categorical dependent variable (Pc_dep—level of digitization of telecommunication networks) and equal misclassification costs, the risk as the fraction of cases misclassified by trees is calculated.

The high value of the risk score and the significant difference in the error probability of the trained algorithm on the test sample objects compared to the training sample is probably indicative of the low generalizability of the learning algorithm due to overtraining. Note that machine learning researchers have indicated that samples with high noise or a given data set make the random forest model prone to overtraining [22,44]. In our case, the reason for overtraining is the high complexity of the model due to the unknown stochastic relationship between the objects (predictors) and the response (dependent categorical variables).

Retraining the algorithm means taking a large amount of information from the raw data and using it in the model. In our problem, five predictors are used in the model: categorical Pc1 and continuous Pu2–Pu5. The three numerical continuous predictors (Pu3, Pu4, and Pu5) are highly correlated with the dependent categorical variable Pc_dep and show an importance (informativeness) of over 0.9 (Pu5 = 1.0; Pu4 = 0.99; and Pu3 = 0.95). The informativeness of the predictor Pu2 is moderate at 0.57. Most of the bagging trees use the strong predictors Pu3–Pu5 at their bases. Consequently, most «random forest» trees are similar, and the classification results are highly correlated.

The resulting random forest model can be characterized as «fine-grained», where a large number of variables can lead to complex processing. At the same time, there are no complex models and overfitting algorithms in classification problems, as in this case, which can be erroneous and tolerated. Additionally, taking into account the large number of input data on the situation in the regions is very important when solving management tasks of territorial development and the allocation of financial resources. The optimal value of trees tmax = 300, due to the lowest estimate of the risk of misclassification.

Thus, we believe that the resulting model is adequate for the task of classifying regions according to the probability of developing intelligent transportation systems.

3.3. Classes of Regions According to the Level of Capacity for Building Intelligent Transportation Systems Using the Random Forest Method

As a result of performing all the sequential procedures of constructing a random forest with the number of decision trees t = 300, a given sample of regions is classified into four groups—classes according to the level of capacity to create intelligent transportation systems (ITS) (

Table 3. Modeled classes of regions according to the level of capacity to create intelligent transportation systems using the random forest method.

Name of Decisive Variables		Class 1 «High Capacity to Create ITS»	Class 2 «Average Capacity to Create ITS»	Class 3 «Low Capacity to Create ITS»	Class 4 «Creating an ITS Is not Feasible»
Share of digitalization of telecommunication networks in the region, %	Pc_dep	100.0	95.0 < Pc_dep < 100.0	90.0 < Pc_dep < 95.0	Pc_dep < 90.0
share of investments in reconstruction and modernization of infrastructure in the total volume of investments in fixed assets, % (group average)	Pu3	18.90	19.20	19.90	18.30
proportion of public roads that meet regulatory requirements, % (group average),	Pu4	44.80	42.70	47.50	46.60
share of nondepreciated fixed assets in transportation, communications, and information, % (group average)	Pu5	42.16	41.03	37.49	40.72

). The classification is carried out according to the most informative continuous predictors (Pu3, Pu4, and Pu5) and the dependent categorical variable by voting, where the choice is made on the basis of the highest number of votes (trees) attributing to the classified object to one of the classes.

Class 1, with «high potential for establishing intelligent transportation systems» includes 21 regions with a completed process of digitalization of telecommunication networks in the region, i.e., Pc_dep = 100%. The average values of the variables Pu3, Pu4, and Pu5 per class are 18.90%, 44.80%, and 42.16%, respectively.

Class 2, with an «average intelligent transportation system capacity» comprises 52 regions with a telecom network digitalization share of 95.0% < Pc_dep < 100.0%. The average values of the variables Pu3, Pu4, and Pu5 across the classes are 19.20%, 42.70%, and 41.03%, respectively.

Class 3, with a «low potential for establishing intelligent transportation systems» includes 20 regions with a share of 90.0% < Pc_dep < 95.0% of the digitization of telecommunication networks. The average values of the variables Pu3, Pu4, and Pu5 across the classes are 19.90%, 47.50%, and 37.49%, respectively.

Class 4, “Establishment of intelligent transportation systems is not feasible” includes seven regions with a share of digitalization of telecommunication networks Pc_dep < 90.0. The average values of variables Pu3, Pu4, and Pu5 per class are 18.30%, 46.60%, and 40.72%, respectively.

The distribution matrix of the regions by the random forest method with the number of decision trees t = 300 is shown in

Table 4. «Random forest» distribution matrix for the number of decision trees t = 300.

Pc_dep Variable Level	Class 1 «High Capacity to Create ITS »	Class 2 «Average Capacity to Create ITS»	Class 3 «Low Capacity to Create ITS»	Class 4 «Creating an ITS Is Not Feasible»	Distribution of Regions by Pc_dep Level, %
Reached
Share in Class 1–4, %	85.84	20.82	17.98	51.41	36.00
Share in reached, %	50.00	30.00	10.00	10.00
Final
Share in Class 1–4, %	0.00	54.24	17.84	0.00	31.00
Share in final, %	0.00	88.74	11.26	0.00
Prefinal
Share in Class 1–4, %	0.00	19.17	33.10	48.59	20.00
Share in prefinal, %	0.00	49.78	33.18	17.03
Project
Share in Class 1–4, %	14.16	5.77	31.09	0.00	13.00
Share in project, %	24.37	24.57	51.06	0.00
Distribution of regions by ITS capacity (Grades 1–4), %	21.00	52.00	20.00	7.00

.

The data obtained provide objective information for making decisions on the participation of regions in the pilot project for the creation of intelligent transportation systems. Regions of Class 1 with «high potential for the creation of intelligent transportation systems» are most likely to have high readiness in reorganizing infrastructure facilities and introducing digital technologies in the management of traffic flows.

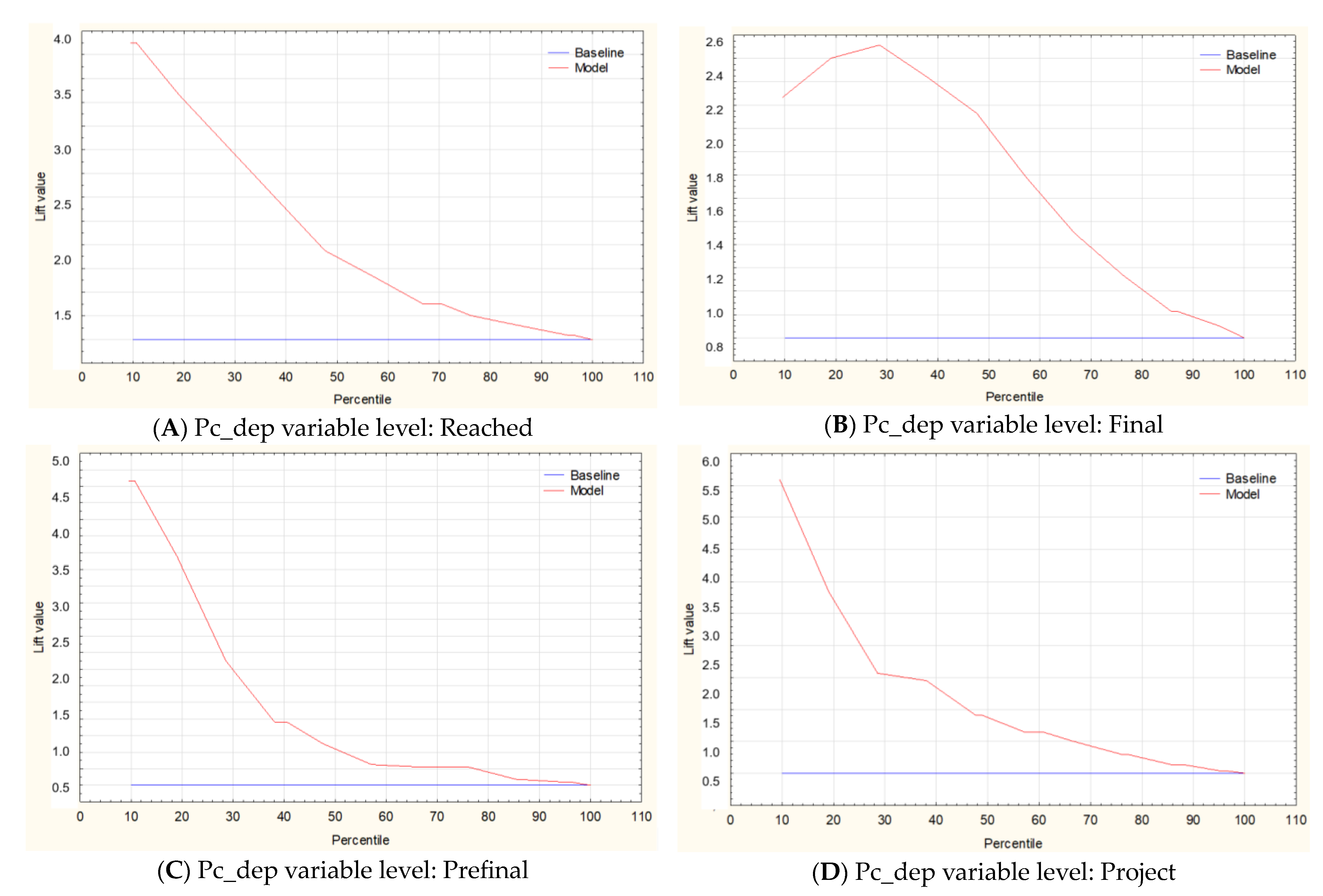

To confirm the above, cumulative lift charts were constructed to evaluate the utility and performance of the random forest model on the levels of the categorical dependent variable Pc_dep «level of digitalization of telecommunication networks in a sociotechnical system». The charts reflect a logistic regression to analyze the relationship between the predictors Pc1, Pu2–Pu5, and the categorical dependent variable Pc_dep (Figure 3).

Logistic regression is a special case of the linear classifier random forest a(z_tf) and has the ability to estimate the probability of assigning an object to a class. The observations in the diagram in descending order of predicted probability are ordered. The rising curve shows the ratio of the number of positive observations to the expected number of positive outcomes based on the random model. The rise on the Y-axis corresponds to the k-th percentile on the X-axis, which allows us to estimate the frequency distribution of the observations. The Y-axis is a multiplier of the underlying random choice model expressed.

The largest lift in the curve was observed at the Pc_dep «prefinal» and «project» variable levels, where the Y-axis values at the first 10 percent reached 4.6 and 5.5, respectively. However, these models show a significant drop in the lift curve after 20–30% and a lower probability of classification.

Compared to the «prefinal» and «project» charts, in the Pc_dep «reached» and «final» charts, the angle of the lift line is closer to 45°. Accordingly, the area between the lift line and the baseline is the largest, which characterizes these models as the most productive, with the highest probability of correct classification.

4. Conclusions

Thus, in the process of solving the problem of classifying objects according to the potential of creating intelligent transportation systems using the random forest machine learning algorithm, the following scientific and practical results were obtained:

• The author’s methodology for sequential classification analysis for identifying objects with the potential to create intelligent transportation systems is proposed. The methodology is based on the random forest method of classifying trees using a bagging machine and a composite learning meta-algorithm. The choice of the method is justified by its best behavior, with a large number of predictor variables required for an objective aggregate assessment of digital development and the quality of territories. For the convenience of potential users, the method is presented as an algorithm of five key procedures: (1) setting the analysis task and forming the initial database; (2) statistical data processing based on descriptive analytics; (3) step-by-step implementation of the random forest algorithm by the ensemble bootstrap aggregation method; (4) quality assessment of the classification analysis algorithm based on the misclassification error rate and risk assessment for training and test samples; and (5) the output of the random forest method classification of regions by the level of intelligent transportation system creation potential.
• The proposed classification analysis algorithm is demonstrated using the example of selecting Russian regions for the creation of intelligent transportation systems. The procedure for statistical data processing based on descriptive analytics is shown. Continuous and classification predictors for random forest machine learning are defined from the set of basic indicators, taking into account the conditions of sample variance established in the methodology: Pc1—living standard of the population in the region; Pu2—share of digitalization of the regional telephone network; Pu3—share of investments aimed at reconstruction and modernization of the infrastructure in total investment in fixed capital; Pu4—share of public roads that meet regulatory requirements; and Pu5—the share of depreciated fixed assets in transport, communications, and information.
• The quality of the classification analysis algorithm is evaluated by the random forest method based on the misclassification coefficients. Analysis of the coefficients for all variants of the studied sets of solving trees (tmax = 50, 100, 150, 200, 250, 300, and 400) showed a low generalization ability of the learning algorithm due to its retraining. The reason for overtraining is the high complexity of the model due to the large amount of information, as well as the stochastic relationship between the predictors and the dependent categorical variable. The admissibility of retrained algorithms and the formation of the «fine-grained» random forest model for solving the classification problems under the condition of no prediction is proven. The optimal value of trees, tmax = 300, is established in view of the smallest estimate of the risk of misclassification.
• As a result of performing all the sequential procedures for constructing a random forest with the number of decision trees t = 300, the given sample of regions is classified into four classes according to the most informative continuous predictors (Pu3, Pu4, and Pu5). The classes formed by certain standards for the values of intelligent transportation system capacity are characterized. The numerical distribution of the population of regions in the form of a matrix is presented. The cumulative lift diagrams to assess the probability of assigning an object to a class, utility, and performance of random forest class models are constructed. Based on logistic regression analysis of the relationship between predictors and the categorical dependent variable, the Pc_dep «reached» and Pc_dep «finalized» models obtained are the most productive with the highest probability of correct classification.

The data obtained provide objective information for making decisions on the participation of regions in the pilot project for the creation of intelligent transportation systems. Regions of Class 1 with «high potential for the creation of intelligent transportation systems» are most likely to have high readiness for reorganizing infrastructure facilities and introducing digital technologies into the management of traffic flows.

The results can be used by government officials, design engineers, and academics to design programs for the development of intelligent transportation systems as part of the national project «Safe and Quality Roads», involving the automation of road traffic control processes.
