Effect of Zr Modification on NH3-SCR Reaction Performance of Cu-Ce/SAPO-34 Catalysts

by
Chongfei Liu
1,2,
Xuetao Wang
1,2,*,
Lili Xing
1,2,
Xingxing Cheng
3,
Xingyu Zhang
4,
Haojie Li
1,2 and
Mengjie Liu
1,2
1
Department of Energy and Power Engineering, Henan University of Science and Technology, Luoyang 471003, China
2
Longmen Laboratory, Luoyang 471000, China
3
National Engineering Lab of Coal-fired Pollution Emission Reduction, Shandong University, Jinan 250061, China
4
Department of Energy and Power Engineering, Qilu University of Technology, Jinan 250353, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(8), 4763; https://doi.org/10.3390/app13084763
Submission received: 2 March 2023 / Revised: 24 March 2023 / Accepted: 7 April 2023 / Published: 10 April 2023
(This article belongs to the Topic Theoretical, Numerical and Experimental Studies on Clean Energy and Combustion)
Browse Figures
Versions Notes

Abstract

:
Molecular sieve catalysts containing transition metals have been attracting attention for their potential applications in various fields, including environmental and industrial catalysis. A Cu-Ce-Zr/SAPO-34 series of molecular sieve catalysts were prepared by the impregnation method, and the effect of Zr introduction on the selective catalytic reduction of NO by Cu-Ce/SAPO-34 molecular sieve catalysts was explored. Through various characterization methods, the physical and chemical properties of the catalysts were analyzed, and the denitration mechanism of the molecular sieve catalyst was discussed. This study found that the total acid content of the acid sites on the catalyst surface decreased with the introduction of Zr, leading to a decrease in the denitration efficiency of the catalyst. At 350–400 °C, the denitration efficiency of the 4Cu-4Ce-4Zr/SAPO-34 catalyst was over 80%, and at 400–500 °C, it was over 99%. Moreover, excessive metal Zr could destroy its CHA structure and decrease the denitration efficiency of the catalyst. This study analyzed the reaction mechanism of NH3-SCR of Zr-modified polymetallic zeolites and the effect of Zr modification on the NH3-SCR reaction results. This study contributes to the understanding of the performance of molecular sieve catalysts containing transition metals. Reliable conclusions were obtained, which offer data support for future research in the field of NH3-SCR.

1. Introduction

Nitrogen oxides (NOx) are currently the main atmospheric pollutants in the world. They not only endanger the natural environment but also affect human social production and living activities, and they even endanger human health. Selective catalytic reduction (SCR) technology is currently a mature denitration technology, which is widely used in thermal power plants, waste incineration furnaces, boiler facilities, diesel engines, gas turbines, and other scenarios. The core of SCR technology is the catalyst, which is the main factor of catalyst performance. The main factors affecting catalyst performance include the catalyst carrier, auxiliary pharmacy, active components, precursors, and the preparation method [1,2,3,4].
In terms of the selection of active components, researchers have conducted deep explorations of metal oxides such as Cu, Fe, and Mn and have found that they all show advantages under various working conditions. Researchers [5] found that, under the same support and preparation method, the denitration efficiency of catalysts followed the following order: Cu–Fe-based > Cu-based > Fe-based, that is, bimetallic oxide catalysts are superior to single-metal-oxide ones, and Cu-based catalysts are superior to Fe-based catalysts. According to Yan’s research [6], under the same conditions, the denitration efficiency of catalysts followed the following order: Cu–Mn > Cu > Mn; when the reaction conditions were higher than 200 °C, the order was: Cu > Cu–Mn > Mn, indicating that Cu catalysts are superior to Mn catalysts, and bimetallic oxide catalysts are superior to single-metal-oxide catalysts at a temperature lower than 200 °C. In conclusion, it was proposed to select Cu as the active component of the catalyst. In terms of the carrier, most mainstream researchers choose zeolite molecular sieves, active carbon, TiO2, etc., as the carrier of catalysts. Zeolite molecular sieves are widely used in various fields because of their porosity, selective adsorption of molecules through channels, large specific surface area, and the fact that they are excellent catalyst carriers. As reported in the literature in [7], the denitrification performance of Cu Mn/SAPO-34 is generally better than that of Cu Mn/ZSM-5; Kouadio Brou Albert pointed out that [8] Cu/SAPO-34 catalysts have a wide active temperature window, excellent hydrothermal stability, and resistance to alkali metal and alkaline earth metal poisoning. According to the actual conditions of the laboratory, an SAPO-34 molecular sieve was proposed to be used as the catalyst carrier.
To obtain a superior denitration performance and a wider range of applications, SCR denitration catalysts are mostly bimetallic or even polymetallic in order to obtain the physical and chemical properties of various metals. Many scholars [9,10] have found that doping with metal Ce has a positive effect on the denitration ability of Cu-based molecular sieve catalysts. Ce can improve the thermal stability of the catalyst, improve the distribution of active substances on the catalyst surface, and enhance the redox performance of the catalyst. Therefore, Ce was proposed to be used as a metal in a multi-metal-oxide catalyst. According to Zhang’s research [11], Zr can increase the oxygen vacancy concentration of Cu–Ce metal oxide catalysts, enhance their oxidation–reduction capacity, and improve the catalysts’ adsorption capacity for NOx. However, it will slightly reduce their denitration performance. Some scholars [12] found that doping with Zr can inhibit the aggregation of Cu on the catalyst surface, promote the dispersion of Cu, increase the concentration of Cu species on the catalyst surface, and improve the resistance to Ca poisoning. However, there is still no consensus on the reasons as to why Zr doping leads to a decline in the catalyst denitration performance, nor is there a consensus on the reasons behind the advantages and disadvantages of Zr participating in denitration reactions and their mechanisms. Therefore, Zr was selected as the last metal of the polymetallic oxide catalyst.
In previous research, it was found that a 4Cu-4Ce/SAPO-34 (the mass fraction of Cu and Ce being 4%) bimetallic oxide catalyst had the best performance in all aspects. On this basis, Zr was added to the catalystand the influence of different Zr loading amounts on the denitration performance of the catalyst was explored to obtain the best Zr loading. The physical and chemical properties of the catalyst were studied through XRD, SEM, NH3-TPD, in situ DRIFTS, XPS, and other characterization techniques. The possible NH3-SCR reaction path of Cu-Ce-Zr/SAPO-34 was proposed.

2. Materials and Methods

2.1. Preparation of Catalysts

The 4Cu-4Ce-xZr/SAPO-34 catalyst (x being the mass fraction of metal Zr in the catalyst) with different Zr loading amounts was prepared by the immersion method. Copper nitrate, cerium nitrate, and zirconium nitrate were mixed together in correct proportions. Then, the SAPO-34 molecular sieve was placed in a muffle furnace at 400 °C for 2 h to remove impurities and water. The mass fraction of fixed Cu and Ce was 4%, while the mass fraction of Zr was changed between 0%, 2%, 4%, 6%, and 8%, respectively. Five portions of impregnating solution were prepared with the corresponding proportion. the SAPO-34 carrier was fully dissolved in the impregnating solution according to the corresponding mass. It was heated and stirred with a magnetic stirrer for 5 h to form a paste. An ultrasonic oscillator was used to vibrate the mixture for 40 min so that the active substance could fully adhere to the carrier surface. Then, it was dried at a constant temperature of 110 °C in a constant-temperature blast-drying oven overnight. The five obtained samples were fully ground to a powder and then put into a muffle furnace for roasting at 450 °C for 2 h. After being ground again, they were bagged for standby and were recorded as 4Cu-4Ce-xZr/SAPO-34 (where x was the mass fraction of metal Zr in the catalyst).

2.2. Experimental Conditions and Equipment

2.2.1. Catalytic Activity Test

The denitration performance of the catalyst samples was tested using a VDRT-200SCR catalyst evaluation device (Quzhou Ward Instrument Co., Ltd., Quzhou, China). The test required 200 mg of the catalyst. The simulated flue gas consisted of 0.1% NH3, 0.1% NO, and 1% O2. N2 was used as a balance gas. The evaluation device was equipped with a mass flow meter, which could accurately control the gas flow. The simulated flue gas flow was 200 mL/min, the space velocity was 22,000 h−1, and the temperature range was 100–500 °C. The temperature was increased by 50 °C within 5 min, kept constant for 30 min, then increased by 50 °C within 5 min, and this cycle was repeated. The volume concentration of NOx after the reaction was recorded. The NOx concentration in the reaction tail gas was detected using a German Testo 350 Pro flue gas analyzer. The following formula was used to calculate the denitration efficiency η:
η = NO x , i n − NO x , o u t / NO x , i n × 100 %
where NO x , i n represents the volume concentration of NOx before the reaction and NO x , o u t is the volume concentration of NOx after the reaction.

2.2.2. Characterization of the Catalyst

The crystal phase composition of the catalyst was characterized by an X-ray diffractometer (DX-2700B, Dandong Haoyuan Instrument Co., Ltd., Dandong, China). The scanning angle was 6–70°, and the scanning rate was 2°/min. Field emission scanning electron microscopy (JSM-7800F, Japan Electron Optics Laboratory Co., Ltd., Tokyo, Japan) was used to test the surface micromorphology and element distribution of the catalyst samples. A TP-5076TPD/TPR dynamic adsorption instrument from Tianjin Xianquan was used to conduct the temperature-programmed adsorption (NH3-TPD) experiment on the catalyst to test the acidity of the catalyst. Fourier transform infrared absorption spectroscopy (IRT racer-100, Shimadzu Corporation, Kyoto, Japan) was used to determine the surface functional groups of the catalyst samples and the types of acidic sites of the catalyst samples.

3. Results and Discussion

3.1. NH3-SCR Catalytic Activity

Figure 1 shows the test results of the catalyst denitration performance. In the temperature range of 150–500 °C, the NOx conversion increased with increasing the temperature. In the temperature range of 200–350 °C, the increase in the denitration performance of the catalyst was the most obvious. 4Cu-4Ce/SAPO-34 showed the most excellent denitration performance in the temperature range of 200–500 °C, which was consistent with the conclusion that metal Zr reduced the overall denitration performance of the catalyst to a certain extent [11]. At temperatures below 200 °C, the denitration performance of the 4Cu-4Ce-4Zr/SAPO-34 catalyst was better than that of 4Cu-4Ce/SAPO-34, and we inferred that an appropriate Zr doping could improve the low-temperature activity of the denitration catalyst. Among all the trimetallic catalysts, the 4Cu-4Ce-4Zr/SAPO-34 catalyst had the best denitration performance. In the range of 350~500 °C, the denitration efficiency was above 80%. In the range of 400~500 °C, the denitration efficiency was more than 99%. The reason why the Zr reduced the denitration efficiency of the catalyst and the reason for the better denitration performance of the 4Cu-4Ce-4Zr/SAPO-34 catalyst need to be further explored.

3.2. XRD

Figure 2 shows the XRD spectrum of the prepared catalyst and SAPO-34. In the figure, it can be seen that 9.47°, 12.84°, 16.04°, 17.72°, 20.52°, 25.03°, 25.88°, and 30.58° were the characteristic peaks of the SAPO-34 molecular sieve support [13], which was a typical CHA structure with a high crystallinity. The corresponding characteristic peaks of the metal oxides were also detected in the experiment. The characteristic peaks detected at 35.3° and 38.5° were associated with CuO [14], 28.2° and 33.1° were associated with CeO2 [15], and 33.8°, 50.7°, and 60.1° were associated with ZrO2 [16]. Five catalysts showed the same characteristic peaks of SAPO-34, while their peaks were slightly different. Comparing the characteristic peaks of 4Cu-4Ce/SAPO-34, SAPO-34, and 4Cu-4Ce-4Zr/SAPO-34, it was found that the loading of Cu and Ce reduced the characteristic peaks of SAPO-34. After the Zr modification, the characteristic peaks of SAPO-34 were enhanced, which proved that a small amount of Zr could promote the crystallization growth of the SAPO-34 zeolite molecular sieve to a certain extent. It also enhanced the CHA skeleton structure of SAPO-34 [14]. However, the characteristic peaks of SAPO-34 of 4Cu-4Ce-6Zr/SAPO-34 and 4Cu-4Ce-8Zr/SAPO-34 almost disappeared. It was speculated that a large number of Zr oxides appeared in the channel and outer surface of the crystal, resulting in a decrease in its crystallinity, the disappearance of the characteristic peaks, and the destruction of the crystal structure [17,18]. The characteristic peaks of Cu, Ce, and Zr were not detected in the five catalysts, indicating that the above metal species were dispersed on the surface of the catalyst in an amorphous form, which was conducive to the NH3-SCR reaction [19].

3.3. NH3-TPD

Figure 3 shows the NH3-TPD spectrum of the prepared catalyst. The figure shows the temperature of the acid center of ammonia desorption. Three desorption peaks were found at about 77 °C, 161.1 °C, and 371.1 °C, representing the different types of acid sites on the catalyst surface. In general, the intensity of the acid sites was proportional to the temperature of the desorption peak, and the number of acid sites was proportional to the area of the desorption peak. The desorption peaks at about 77 °C and 161.1 °C were attributed to weak acidic sites bound to NH3, while the desorption peaks at 371.1 °C were attributed to strong acidic sites bound to NH3 [20]. Compared with the desorption peaks of 4Cu-4Ce/SAPO-34, 4Cu-4Ce-4Zr/SAPO-34, and 4Cu-4Ce-8Zr/SAPO-34, the number of weak acid sites at 77 °C decreased, and the intensity increased with the increase in the Zr mass fraction. In addition, the number of acidic sites of 4Cu-4Ce/SAPO-34 was the largest. The number and intensity of weak acid sites at 161.1 °C increased first and then decreased, and the number and intensity of acidic sites of 4Cu-4Ce-4Zr/SAPO-34 were the largest. The catalysts with the strongest acidic sites at about 371.1 °C were 4Cu-4Ce/SAPO-34 and 4Cu-4Ce-6Zr/SAPO-34. In conclusion, the total number of acidic sites of 4Cu-4Ce/SAPO-34 was the largest, and thus the denitration efficiency was the highest. This shows that the Zr loading reduced the total number of acidic sites of 4Cu-4Ce/SAPO-34, thus reducing the denitration efficiency. The denitration efficiency of 4Cu-4Ce-4Zr/SAPO-34 was only lower than that of 4Cu-4Ce/SAPO-34, which could be attributed to the fact that the number and intensity of weak acid sites at 161.1 °C increased due to the introduction of the appropriate amount of Zr. Similarly, the poor denitration efficiency of 4Cu-4Ce-6Zr/SAPO-34 could be attributed to the excessive metal Zr, which led to a reduction in the number of acidic sites. The type of specific acid sites at each temperature needs to be further concluded through in situ DRIFTS tests.

3.4. SEM

Figure 4 shows SEM photos of some of the prepared catalysts. SEM characterization is mainly used to explore the crystal state, microstructure, and adhesion state of active components on catalyst surfaces. As shown in Figure 4, all the catalysts presented a cube state related to the CHA structure of SAPO-34. The grain size was about 4 μm. The surface of the 4Cu-4Ce/SAPO-34(a) catalyst was covered with randomly shaped materials, and it was speculated that Cu and Ce oxides were attached to the crystal surface after interaction [21]. The XRD results showed that the characteristic peaks of the 4Cu-4Ce-2Zr/SAPO-34(b) and 4Cu-4Ce-4Zr/SAPO-34(c) samples were high, that is, both the crystallinity and strength were high. Compared with the SEM photos, it was found that the 4Cu-4Ce-2Zr/SAPO-34(b) and 4Cu-4Ce-4Zr/SAPO-34(c) cubes had complete structures and flat surfaces, and each particle was in an independent state, which confirmed the conclusion of the XRD analysis. For the 4Cu-4Ce-6Zr/SAPO-34(d) catalyst, it was found that most of cubic structures were damaged, the surface was rough, and most of the particles were bonded together after being damaged, which was consistent with the conclusion that the XRD results showed that the characteristic peaks disappeared, the crystallization decreased, and the grain structure was damaged.

3.5. In Situ DRIFTS Measurements

To ascertain the types of acidic sites on the surface of the 4Cu-4Ce-4Zr/SAPO-34 catalyst and the paths of the NH3-SCR denitration reaction, samples of the 4Cu-4Ce-4Zr/SAPO-34 catalyst were measured and analyzed by in situ DRIFTS measurements.

3.5.1. NH3 Adsorption Experiment

Figure 5 shows the in situ DRIFTS spectra of NH3 adsorbed onto the 4Cu-4Ce-4Zr/SAPO-34 catalyst. The test temperature was 100 °C, and the characteristic curves of the samples at 3, 6, 10, 20, 30, and 40 min were recorded. In Figure 5, it can be seen that the characteristic peaks appeared at 1097, 1128, 1400, 1458, 1508, 1651, 2360, 3034, and 3117 cm−1. The adsorption peak at 3117 cm−1 in the N-H stretching vibration area was attributed to the symmetric vibrations of NH3 in the Lewis acid coordination state [22], the peak at 3034 cm−1 was attributed to the Brønsted acid site with the deformation vibrations of NH4+ in an ionic state adsorbed on the peak [23], the peak at 2360 cm−1 was attributed to the N-N stretching vibrations of surface N2 molecules [24], and the peak at 1651 cm−1 was attributed to the symmetric bending vibrations of N-H bonds in covalently adsorbed NH3 in the Lewis acid sites. The peaks at 1458 and 1400 cm−1 were classified as the deformed vibrations of NH4+ in the ionic state on the Brønsted acid site [25,26], and the peaks at 1508, 1128, and 1097 cm−1 were regarded as the symmetric vibrations of NH3 coordinated by the Lewis acid site [27]. According to the conclusions of the NH3-TPD analysis, the majority of the weak acid sites were considered to be weak Lewis acid sites, and the quantity of strong acid sites was less than that of Brønsted acid sites. In general, there were both Lewis acid sites and Brønsted acid sites on the surface of the 4Cu-4Ce-4Zr/SAPO-34 catalyst. Lewis acid sites were dominant due to their large amount, which played an important role in the NH3-SCR activity of 4Cu-4Ce-4Zr/SAPO-34.

3.5.2. Transient Reaction of NO+O2 after NH3 Adsorption Saturation

After NH3 was saturated for 40 min, NO+O2 was introduced for transient reaction, and the samples were scanned at 3, 6, 10, 20, and 30 min to analyze the change in the curve. As shown in Figure 6, with the introduction of NO+O2, the characteristic peaks of Lewis acid at 3117 and 3034 cm−1 disappeared, and the N-N extension vibration at 2360 cm−1 was enhanced, which may be due to the reaction between adsorbed NH3 and gaseous NO+O2, resulting in the formation of N2, which enhanced the characteristic peak at 2360 cm−1 attributed to N2. the rest of the characteristic peaks did not change significantly, but new characteristic peaks were formed at 1383 cm−1 and 1265 cm−1, among which the adsorption species at 1265 cm−1 belonged to the bridged nitrate species [26,28], and the adsorption peak at 1383 cm−1 was the strongest and belonged to the CIS-N2O22− species [29,30], indicating that new nitrate species were generated on the catalyst surface. In general, the characteristic peaks of Lewis acid disappear, which proved that the adsorbed NH3 reacted with gaseous NO+O2. This process followed the E-R mechanism, while the characteristic peaks of Brønsted acid did not change significantly. Therefore, the weak Lewis acid site played a leading role in the reaction process.

3.5.3. NO+O2 Adsorption Experiment

Figure 7 shows the in situ DRIFTS spectra of NO+O2 adsorption on the 4Cu-4Ce-4Zr/SAPO-34 catalyst. The experimental temperature was kept at 150 °C, the characteristic curves of the samples were recorded at 3, 6, 10, 20, 30, and 40 min, and characteristic peaks appeared at 1244, 1384, 2268, 2397, and 3109 cm−1. The characteristic peak at 1384 cm−1 was the strongest, which was classified as belonging to a CIS-N2O22− species, the peak at 1244 cm−1 was considered to be due to a bridging nitrate species [31,32], and the characteristic peaks at 2268 and 2397 cm−1 were mainly composed of NOH+ and HNO2+ and were formed by NO adsorption on the catalyst surface [33]. The peak at 3109 cm−1 was the hydroxyl vibration peak formed by the oxygen in the mixed gas and the H bond in the molecular sieve framework. The in situ DRIFTS spectrum of NO+O2 adsorption on the 4Cu-4Ce-4Zr/SAPO-34 catalyst hardly changed with time, indicating that the adsorption of NO onto the 4Cu-4Ce-4Zr/SAPO-34 catalyst reached a saturated state at the beginning, and this may be related to metallic Zr.
Figure 8 shows the in situ DRIFTS spectra of 4Cu-4Ce/SAPO-34 and 4Cu-4Ce-4Zr/SAPO-34 after adsorbing NO+O2 for 40 min up to saturation. Compared with 4Cu-4Ce/SAPO-34, 4Cu-4Ce-4Zr/SAPO-34 had more adsorption peaks and higher peaks, indicating that there were more nitrate species adsorbed onto the surface of 4Cu-4Ce-4Zr/SAPO-34, which proved that metal Zr could enhance the adsorption capacity of the catalyst for NOx [11,34], which facilitated the reaction with NH3-SCR.

3.5.4. Transient Reaction of NH3 after NO+O2 Adsorption Saturation

NO+O2 was adsorbed on the surface of the 4Cu-4Ce-4Zr/SAPO-34 catalyst for 40 min. After the adsorption was saturated, a transient reaction experiment of NH3 was carried out. The sample was scanned at 3, 6, 10, 20, and 30 min to analyze its changes. Figure 9 shows the characteristic reaction curve of the above experiment. It can be seen that after NH3 was introduced, the bridging nitrate characteristic peak at 1244 cm−1 and the monodentate nitrate characteristic peak at 1384 cm−1 did not change significantly. However, new characteristic peaks were formed at 1624 and 3334 cm−1, and the characteristic peak at 1624 cm−1 was attributed to weakly adsorbed NO2 [35]. It was speculated that the introduction of NH3 might enhance the conversion and adsorption of NO. The characteristic peak at 3334 cm−1 was considered to be due to the NH3 species adsorbed on the Lewis acid site [36,37]. During the reaction process, the main characteristic peaks of the nitrate species formed on the catalyst surface did not change significantly, and new NH3 adsorption species were formed, but both of them did not change significantly after they became stable, indicating that no obvious reaction occurred between the adsorbed NO and NH3, that is, the process did not follow the L-H mechanism.

3.6. XPS

Figure 10, Figure 11 and Figure 12 show the XPS spectra of Cu 2p, Ce 3d, and Zr 3d of 4Cu-4Ce/SAPO-34 and 4Cu-4Ce-4Zr/SAPO-34 catalysts, respectively, in which the surface valence structure of the catalyst and the influence of Zr doping on the catalyst were analyzed.
There were two characteristic peaks of Cu 2p3/2 and Cu 2p1/2 orbits in the Cu 2p spectrum of 4Cu-4Ce/SAPO-34, as shown in Figure 10. According to the reference [38,39], Cu 2p3/2 can be resolved into two characteristic peaks. The characteristic peak with a binding energy of 933.3 eV was due to Cu+, and the characteristic peak with a binding energy of 935.7 eV was due to Cu2+. Similarly, the characteristic peak with a binding energy of 953.6 eV at Cu 2p1/2 was classified as Cu+, and the satellite peak with a binding energy of 943.1 eV was classified as Cu2+. After doping with Zr, the binding energies of the Cu+ characteristic peak were 933.2 eV and 953 eV, and the binding energies of the Cu2+ characteristic peak were 936 eV were 943.9 eV, which was similar with the characteristic peak of the binding energy of 4Cu-4Ce/SAPO-34 copper ions. As for the area of the characteristic peak, after doping with Zr, the area of the characteristic peak of Cu+ increased by about 15%. Cu+ can promote the catalytic performance of a catalyst in the low-temperature range [40,41], so the doping with Zr improved the low-temperature performance of the catalyst. The characteristic peak area of Cu2+ decreased by about 40%, and the total characteristic peak area of Cu++Cu2+ decreased by about 8.3%. Cu++Cu2+ played a key role in the performance of the catalyst, which might be the reason for the decline in the catalyst performance after Zr doping.
In the Ce 3d spectrum of 4Cu-4Ce/SAPO-34, as shown in Figure 11, there were characteristic peaks of Ce 3d5/2 and Ce 3d3/2 orbits. According to reference [42,43], both Ce 3d5/2 and Ce 3d3/2 can be resolved into two characteristic peaks. The characteristic peaks with binding energies of 886.1 eV and 904.5 eV were classified as Ce3+, which were caused by its photoelectron emission, while the characteristic peaks with binding energies of 882.4 eV and 900.6 eV were caused by photoelectron emission of Ce4+. After doping with Zr, the binding energies of the characteristic peaks of Ce3+ were 886.2 eV and 904.9 eV, and those of the characteristic peaks of Ce4+ were 882.5 eV and 900.9 eV. The binding energies of the four characteristic peaks were slightly increased, which confirmed that Zr could increase the stability of the catalyst. The area of the characteristic peak of Ce3+ decreased by 90.6%, the area of the characteristic peak of Ce4+ decreased by about 92.3%, and the total area of the characteristic peak of Ce3++Ce4+ decreased by about 91.1%. The transition from Ce4+ to Ce3+ enabled the Ce to have a strong redox performance and oxygen storage performance [43,44]. The addition of Zr caused a significant decrease in the total amount of Ce3++Ce4+, which was one of the reasons for the decline in the performance of the catalyst after Zr doping.
The Zr 3d spectrum of 4Cu-4Ce-4Zr/SAPO-34 shown in Figure 12 contains the characteristic peaks of Zr 3d5/2 and Zr 3d3/2 orbits. According to the reference [45,46], the characteristic peak binding energy of the Zr 3d3/2 orbit was 185.18 eV, and that of the Zr 3d5/2 orbit was 182.78 eV. Both characteristic peaks belonged to Zr4+. Therefore, it was concluded that Zr on the 4Cu-4Ce-4Zr/SAPO-34 surface only existed in the form of Zr4+.

4. Conclusions

The overall denitration performance of 4Cu-4Ce-4Zr/SAPO-34 was only inferior to that of 4Cu-4Ce/SAPO-34. At 350~400 °C, the denitration efficiency was more than 80%, and at 400~500 °C, the denitration efficiency was more than 99%. Zr could improve the low-temperature performance of NH3-SCR below 200 °C but reduced its overall denitration performance. The main reason was that Zr could reduce the amount of Cu and Ce metal ions on the catalyst surface, thus decreasing the total acid content of the acidic sites on the catalyst surface.
An appropriate amount of Zr could increase the relative crystallinity of the molecular sieve. There was an interaction between Zr and the CHA structure of SAPO-34, which could enhance its skeleton structure. In addition, Cu, Ce, and Zr were well dispersed, but excessive Zr damage the CHA structure, leading to a decline in the catalyst’s denitration performance.
There were Lewis acid sites and Brønsted acid sites on the surface of the 4Cu-4Ce-4Zr/SAPO-34 catalyst, which was dominated by Lewis acid sites. Zr could increase the amount of weak Lewis acid sites and enhance the catalyst’s adsorption capacity for NOx, which is of great significance for its NH3-SCR reaction performance. The reaction process only followed the E-R mechanism, not the L-H mechanism.

Author Contributions

Conceptualization, X.W.; software, X.Z.; formal analysis, C.L. and M.L.; investigation, X.W., L.X., X.C., X.Z. and H.L.; resources, C.L., X.Z. and H.L.; data curation, C.L., L.X., H.L. and M.L.; writing—original draft, C.L.; writing—review & editing, L.X.; supervision, X.W. and X.C.; project administration, X.C., H.L. and M.L.; funding acquisition, X.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 50806020), Excellent Youth Foundation of Henan Scientific Committee (No. 114100510010), Henan Province Science and Technology Research Project (No. 152102210280), and The Natural Science Foundation of Shandong Province (No. ZR2021QE066).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, D.; Hui, S.; Liu, C. Effect of the different types of titanium dioxide carrier on the DeNOX performance of V-Ti catalysts. Environ. Chem. 2014, 33, 5. [Google Scholar]
  2. Meng, L.; Fang, J.; Guan, X. Effect of Active Component Doping on the Denitration Properties of Manganese Based Catalyst at Low Temperature. Mater. Rev. 2017, 31, 35–39, 56. [Google Scholar]
  3. Wu, Y.; Liang, H.; Chen, X.; Chen, C.; Wang, X.; Dai, C.; Hu, L.; Chen, Y. Effect of preparation methods on denitration performance of V-Mo/TiO2 catalyst. J. Fuel Chem. Technol. 2020, 48, 189–196. [Google Scholar] [CrossRef]
  4. Chen, G.; Fang, J.; Ma, T.; Wang, L. Effect of Different Precursor Solution on the Denitrification Performance of Mn/TiO2 Catalyst. Bull. Chin. Ceram. Soc. 2018, 37, 2274–2279. [Google Scholar]
  5. Wang, A.; Wang, Y.; Walter, E.D.; Washton, N.M.; Guo, Y.; Lu, G.; Peden, C.H.F.; Gao, F. NH3-SCR on Cu, Fe and Cu+Fe exchanged beta and SSZ-13 catalysts: Hydrothermal aging and propylene poisoning effects. Catal. Today 2019, 320, 91–99. [Google Scholar] [CrossRef]
  6. Yan, Q.; Chen, S.; Qiu, L.; Gao, Y.; O’Hare, D.; Wang, Q. The synthesis of CuyMnzAl1-zOx mixed oxide as low-temperature NH3-SCR catalyst with enhanced catalytic performance. Dalton Trans. 2017, 47, 2992–3004. [Google Scholar] [CrossRef] [PubMed]
  7. Zhao, S.; Huang, L.; Jiang, B.; Chen, M.; Zhang, J.; Hu, Y. Stability of Cu–Mn bimetal catalysts based on different zeolites for NOX removal from diesel engine exhaust. Chin. J. Catal. 2018, 39, 800–809. [Google Scholar] [CrossRef]
  8. Albert, K.B.; Fan, C.; Pang, L.; Chen, Z.; Ming, S.; Albert, T.; Li, T. The influence of chemical poisoning, hydrothermal aging and their co-effects on Cu-SAPO-34 catalyst for NOX reduction by NH3-SCR. Appl. Surf. Sci. 2019, 479, 1200–1211. [Google Scholar] [CrossRef]
  9. Cao, Y.; Zou, S.; Lan, L.; Yang, Z.; Xu, H.; Lin, T.; Gong, M.; Chen, Y. Promotional effect of Ce on Cu-SAPO-34 monolith catalyst for selective catalytic reduction of NOX with ammonia. J. Mol. Catal. A Chem. 2015, 398, 304–311. [Google Scholar] [CrossRef]
  10. Zhou, J.; Zhao, C.; Lin, J.; Yang, H.; Zhou, R. Promotional effects of cerium modification of Cu-USY catalysts on the low-temperature activity of NH3-SCR. Catal. Commun. 2018, 114, 60–64. [Google Scholar] [CrossRef]
  11. Zhang, X.; Cheng, X.; Ma, C.; Wang, X.; Wang, Z. Effect of a ZrO2 support on Cu/Fe2O3–CeO2/ZrO2 catalysts for NO removal by CO using a rotary reactor. Catal. Sci. Technol. 2018, 8, 5623–5631. [Google Scholar] [CrossRef]
  12. Xue, H.; Meng, T.; Liu, F.; Guo, X.; Wang, S.; Mao, D. Enhanced resistance to calcium poisoning on Zr-modified Cu/ZSM-5 catalysts for the selective catalytic reduction of NO with NH3. RSC Adv. 2019, 9, 38477–38485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Wang, C.; Wang, J.; Wang, J.; Wang, J.; Shen, M. Promotional effect of ion-exchanged K on the low-temperature hydrothermal stability of Cu/SAPO-34 and its synergic application with Fe/Beta catalysts. Front. Environ. Sci. Eng. 2021, 15, 30. [Google Scholar] [CrossRef]
  14. Gao, Z.; Zhao, D.; Yang, Y.; Jiang, X.; Tian, Y.; Ding, T.; Li, X. Influence of copper locations on catalytic properties and activities of Cu/SAPO-34 in C3H6-SCR. Ind. Eng. Chem. Res. 2021, 60, 6940–6949. [Google Scholar] [CrossRef]
  15. Salah Aldeen, O.D.A.; Mahmoud, M.Z.; Majdi, H.S.; Mutlak, D.A.; Uktamov, K.F.; Kianfar, E. Investigation of Effective Parameters Ce and Zr in the Synthesis of H-ZSM-5 and SAPO-34 on the Production of Light Olefins from Naphtha. Adv. Mater. Sci. Eng. 2022, 2022, 6165180. [Google Scholar] [CrossRef]
  16. Huang, F.; Cao, J.; Wang, L.; Wang, X.; Liu, F. Enhanced catalytic behavior for methanol to lower olefins over SAPO-34 composited with ZrO2. Chem. Eng. J. 2020, 380, 122626. [Google Scholar] [CrossRef]
  17. Aghaei, E.; Haghighi, M.; Pazhohniya, Z.; Aghamohammadi, S. One-pot hydrothermal synthesis of nanostructured ZrAPSO-34 powder: Effect of Zr-loading on physicochemical properties and catalytic performance in conversion of methanol to ethylene and propylene. Microporous Mesoporous Mater. 2016, 226, 331–343. [Google Scholar] [CrossRef]
  18. Varzaneh, A.Z.; Towfighi, J.; Mohamadalizadeh, A. Comparative study of naphtha cracking over SAPO-34 and HZSM-5: Effects of cerium and zirconium on the catalytic performance. J. Anal. Appl. Pyrolysis 2014, 107, 165–173. [Google Scholar] [CrossRef]
  19. Tian, S.; Ji, S.; Lü, D.; Bai, B.; Sun, Q. Preparation of modified Ce-SAPO-34 catalysts and their catalytic performances of methanol to olefins. J. Energy Chem. 2013, 22, 605–609. [Google Scholar] [CrossRef]
  20. Bin, F.; Song, C.; Lv, G.; Song, J.; Wu, S.; Li, X. Selective catalytic reduction of nitric oxide with ammonia over zirconium-doped copper/ZSM-5 catalysts. Appl. Catal. B Environ. 2014, 150, 532–543. [Google Scholar] [CrossRef]
  21. Chen, Q.; Yang, Y.; Luo, H.; Liu, Z.; Tong, Z.; Tao, C.; Du, J. Ce regulated surface properties of Mn/SAPO-34 for improved NH3-SCR at low temperature. RSC Adv. 2020, 10, 40047–40054. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, S.; Fan, C.; Zhao, Z.; Liu, Q.; Xu, G.; Wu, M.; Chen, J.; Li, J. A facile and controllable in situ sulfation strategy for CuCeZr catalyst for NH3-SCR. Appl. Catal. A Gen. 2020, 597, 117554. [Google Scholar] [CrossRef]
  23. Zhao, H.; Xie, G.; Liu, Z.; Liu, Y. A Combined in-situ Diffuse Reflectance FTIR and On-line Mass Spectroscopy Study of Surface Acidity and Reactivity over a CuO/Al2O3 Catalyst. Acta Chim. Sin. 2008, 66, 1021–1027. [Google Scholar]
  24. Zhang, Q.; Wang, X. Preparation and properties of Ce-Mn/ZSM-5 catalysts modified with different metals. J. Fuel Chem. Technol. 2019, 47, 1265–1272. [Google Scholar]
  25. Guo, J.; Yang, W.; Zhang, Y.; Gan, L.; Fan, C.; Chen, J.; Peng, Y.; Li, J. A multiple-active-site Cu/SSZ-13 for NH3-SCO: Influence of Si/Al ratio on the catalytic performance. Catal. Commun. 2020, 135, 105751. [Google Scholar] [CrossRef]
  26. Zhang, Q.; Fan, J.; Ning, P.; Song, Z.; Liu, X.; Wang, L.; Wang, J.; Wang, H.; Long, K. In situ DRIFTS investigation of NH3-SCR reaction over CeO2/zirconium phosphate catalyst. Appl. Surf. Sci. 2018, 435, 1037–1045. [Google Scholar] [CrossRef]
  27. Wang, S.; Chen, Z.; He, B.; Yan, Z.; Wang, H.; Liu, L.; Wang, X. In situ DRIFTS investigation on CeOx catalyst supported by fly-ash-made porous cordierite ceramics for low-temperature NH3-SCR of NOX. Catalysts 2019, 9, 496. [Google Scholar] [CrossRef] [Green Version]
  28. Xie, S.; Li, L.; Jin, L.; Wu, Y.; Liu, H.; Qin, Q.; Wei, X.; Liu, J.; Dong, L.; Li, B. Low temperature high activity of M (M = Ce, Fe, Co, Ni) doped M-Mn/TiO2 catalysts for NH3-SCR and in situ DRIFTS for investigating the reaction mechanism. Appl. Surf. Sci. 2020, 515, 146014. [Google Scholar] [CrossRef]
  29. Zhang, L.; Pierce, J.; Leung, V.L.; Wang, D.; Epling, W.S. Characterization of Ceria’s Interaction with NOX and NH3. J. Phys. Chem. C 2013, 117, 8282–8289. [Google Scholar] [CrossRef]
  30. Gao, C.; Yang, G.; Huang, X.; Yang, Q.; Li, B.; Wang, D.; Peng, Y.; Li, J.; Lu, C.; Crittenden, J. Key intermediates from simultaneous removal of NOx and chlorobenzene over a V2O5–WO3/TiO2 catalyst: A combined experimental and DFT study. Catal. Sci. Technol. 2021, 11, 7260–7267. [Google Scholar] [CrossRef]
  31. Liang, H.; Gui, K.; Zha, X. DRIFTS study of γFe2O3 nano-catalyst for low-temperature selective catalytic reduction of NOX with NH3. Can. J. Chem. Eng. 2016, 94, 1668–1675. [Google Scholar] [CrossRef]
  32. Mihaylov, M.Y.; Zdravkova, V.R.; Ivanova, E.Z.; Aleksandrov, H.A.; Petkov, P.S.; Vayssilov, G.N.; Hadjiivanov, K.I. Infrared spectra of surface nitrates: Revision of the current opinions based on the case study of ceria. J. Catal. 2021, 394, 245–258. [Google Scholar] [CrossRef]
  33. Weng, X.; Dai, X.; Zeng, Q.; Liu, Y.; Wu, Z. DRIFT studies on promotion mechanism of H3PW12O40 in selective catalytic reduction of NO with NH3. J. Colloid Interface Sci. 2016, 461, 9–14. [Google Scholar] [CrossRef] [PubMed]
  34. Morandi, S.; Prinetto, F.; Ghiotti, G.; Castoldi, L.; Lietti, L.; Forzatti, P.; Daturi, M.; Blasin-Aubé, V. The influence of CO2 and H2O on the storage properties of Pt-Ba/Al2O3 LNT catalyst studied by FT-IR spectroscopy and transient microreactor experiments. Catal. Today 2014, 231, 116–124. [Google Scholar] [CrossRef]
  35. Jia, Y.; Jiang, J.; Zheng, R.; Guo, L.; Yuan, J.; Zhang, S.; Gu, M. Insight into the reaction mechanism over PMoA for low temperature NH3-SCR: A combined In-situ DRIFTs and DFT transition state calculations. J. Hazard. Mater. 2021, 412, 125258. [Google Scholar] [CrossRef]
  36. Chen, L.; Si, Z.; Wu, X.; Weng, D. DRIFT study of CuO–CeO2–TiO2 mixed oxides for NOX reduction with NH3 at low temperatures. ACS Appl. Mater. Interfaces 2014, 6, 8134–8145. [Google Scholar] [CrossRef]
  37. Wei, L.; Wang, Z.; Liu, Y.; Guo, G.; Dai, H.; Cui, S.; Deng, J. Support promotion effect on the SO2 and K+ co-poisoning resistance of MnO2/TiO2 for NH3-SCR of NO. J. Hazard. Mater. 2021, 416, 126117. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, J.; Peng, Z.; Qiao, H.; Yu, H.; Hu, Y.; Chang, L.; Bao, W. Cerium stabilized Cu-SSZ-13 Catalyst for the Catalytic Removal of NOX by NH3. Ind. Eng. Chem. Res. 2016, 55, 1174–1182. [Google Scholar] [CrossRef]
  39. Wilken, N.; Nedyalkova, R.; Kamasamudram, K.; Li, J.; Currier, N.W.; Vedaiyan, R.; Yezerets, A.; Olsson, L. Investigation of the Effect of Accelerated Hydrothermal Aging on the Cu Sites in a Cu-BEA Catalyst for NH3-SCR Applications. Top. Catal. 2013, 56, 317–322. [Google Scholar] [CrossRef]
  40. He, P.; Shen, D.; Liu, G. NH3-SCR performance of modified SAPO-34 molecular sieve. J. Southeast Univ. (Nat. Sci. Ed.) 2017, 47, 513–520. [Google Scholar]
  41. Chen, D.; Yan, Y.; Guo, A.; Rizzotto, V.; Lei, H.; Qiao, Z.; Liang, H.; Jabłońska, M.; Jiang, X.; Jiang, J.; et al. Mechanistic insights into the promotion of low-temperature NH3-SCR catalysis by copper auto-reduction in Cu-zeolites. Appl. Catal. B Environ. 2023, 322, 122118. [Google Scholar] [CrossRef]
  42. Yan, Q.; Gao, Y.; Li, Y.; Vasiliades, M.A.; Chen, S.; Zhang, C.; Gui, R.; Wang, Q.; Zhu, T.; Efstathiou, A.M. Promotional effect of Ce doping in Cu4Al1OX–LDO catalyst for low-T practical NH3-SCR: Steady-state and transient kinetics studies. Appl. Catal. B Environ. 2019, 255, 117749. [Google Scholar] [CrossRef]
  43. Gao, X.; Jiang, Y.; Fu, Y.; Zhong, Y.; Luo, Z.; Cen, K. Preparation and characterization of CeO2/TiO2 catalysts for selective catalytic reduction of NO with NH3. Catal. Commun. 2010, 11, 465–469. [Google Scholar] [CrossRef]
  44. Xiao, M.; Zhang, X.; Yang, Y.; Cui, X.; Chen, T.; Wang, Y. M (M = Mn, Co, Cu)-CeO2 catalysts to enhance their CO catalytic oxidation at a low temperature: Synergistic effects of the interaction between Ce3+-Mx+-Ce4+ and the oxygen vacancy defects. Fuel 2022, 323, 124379. [Google Scholar] [CrossRef]
  45. Raveendra, G.; Li, C.; Liu, B.; Cheng, Y.; Meng, F.; Zhong, L. Synthesis of lower olefins from syngas over Zn/Al2O3–SAPO-34 hybrid catalysts: Role of doped Zr and influence of the Zn/Al2O3 ratio. Catal. Sci. Technol. 2018, 8, 3527–3538. [Google Scholar] [CrossRef]
  46. Li, W.; Li, M.; Liu, H.; Jia, W.; Yu, X.; Wang, S.; Zeng, X.; Sun, Y.; Wei, J.; Tang, X.; et al. Domino transformation of furfural to γ-valerolactone over SAPO-34 zeolite supported zirconium phosphate catalysts with tunable Lewis and Brønsted acid sites. Mol. Catal. 2021, 506, 111538. [Google Scholar] [CrossRef]
Applsci 13 04763 g001 550

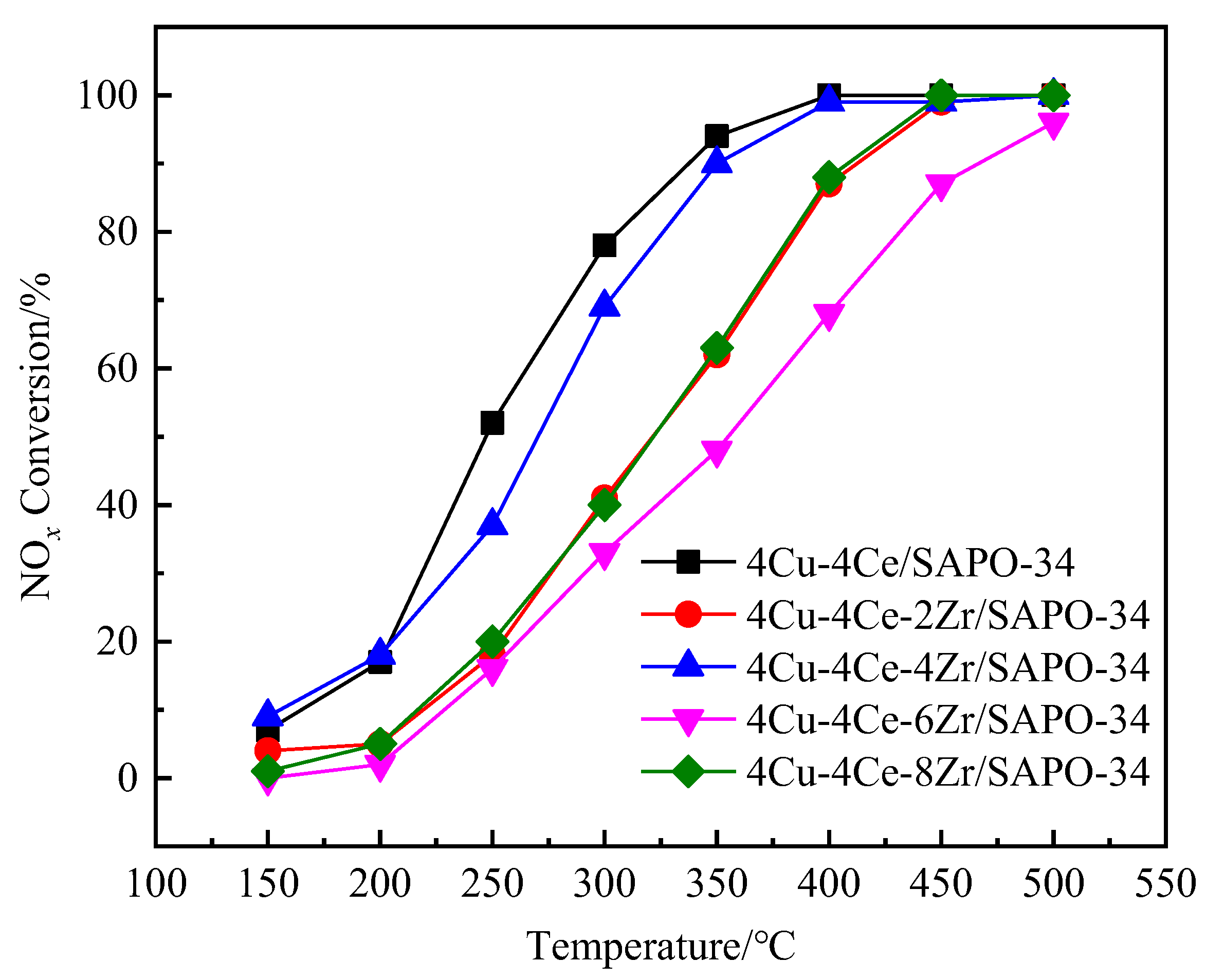

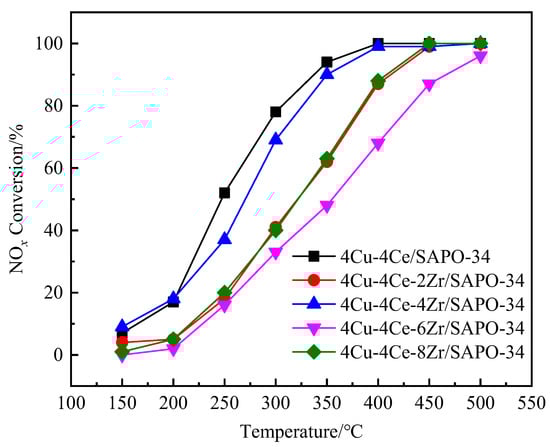

Figure 1. NOx conversion of catalysts with different Zr loadings.
Figure 1. NOx conversion of catalysts with different Zr loadings.
Applsci 13 04763 g001
Applsci 13 04763 g002 550

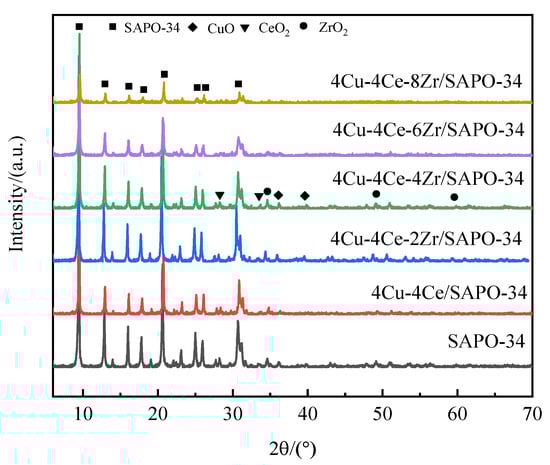

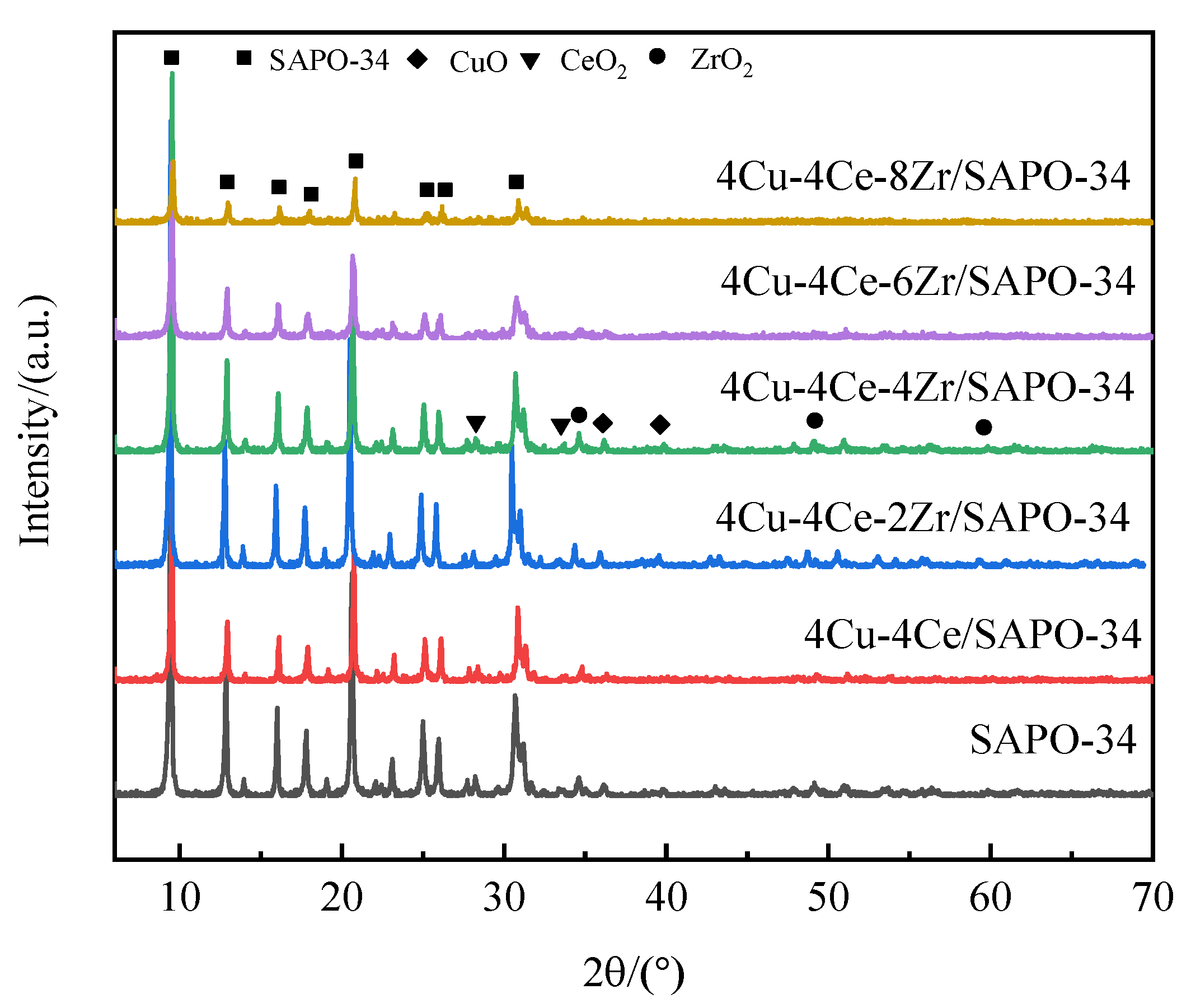

Figure 2. XRD spectra of catalysts with different Zr loadings.
Figure 2. XRD spectra of catalysts with different Zr loadings.
Applsci 13 04763 g002
Applsci 13 04763 g003 550

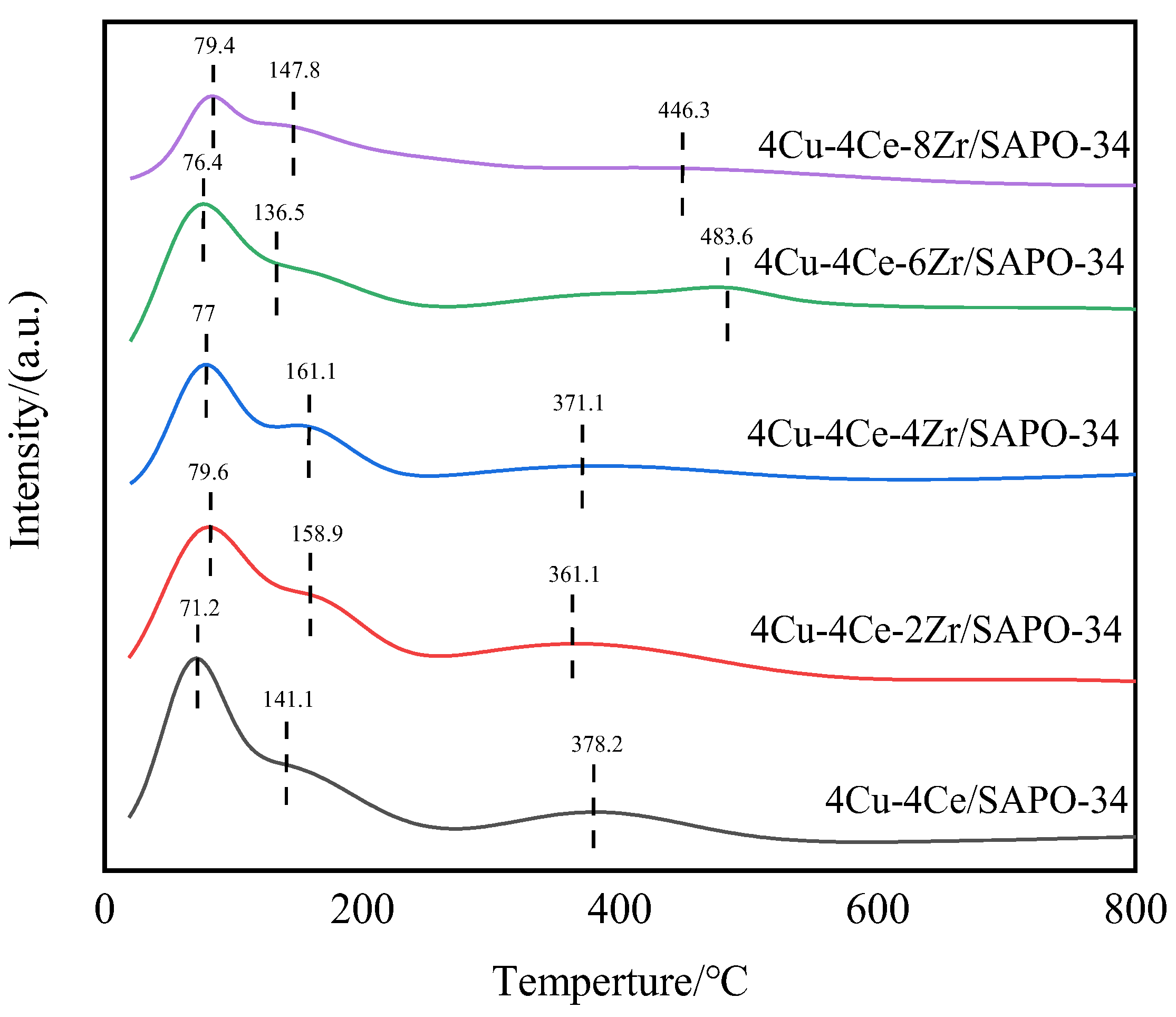

Figure 3. NH3-TPD spectra of catalysts with different Zr loadings.
Figure 3. NH3-TPD spectra of catalysts with different Zr loadings.
Applsci 13 04763 g003
Applsci 13 04763 g004a 550Applsci 13 04763 g004b 550

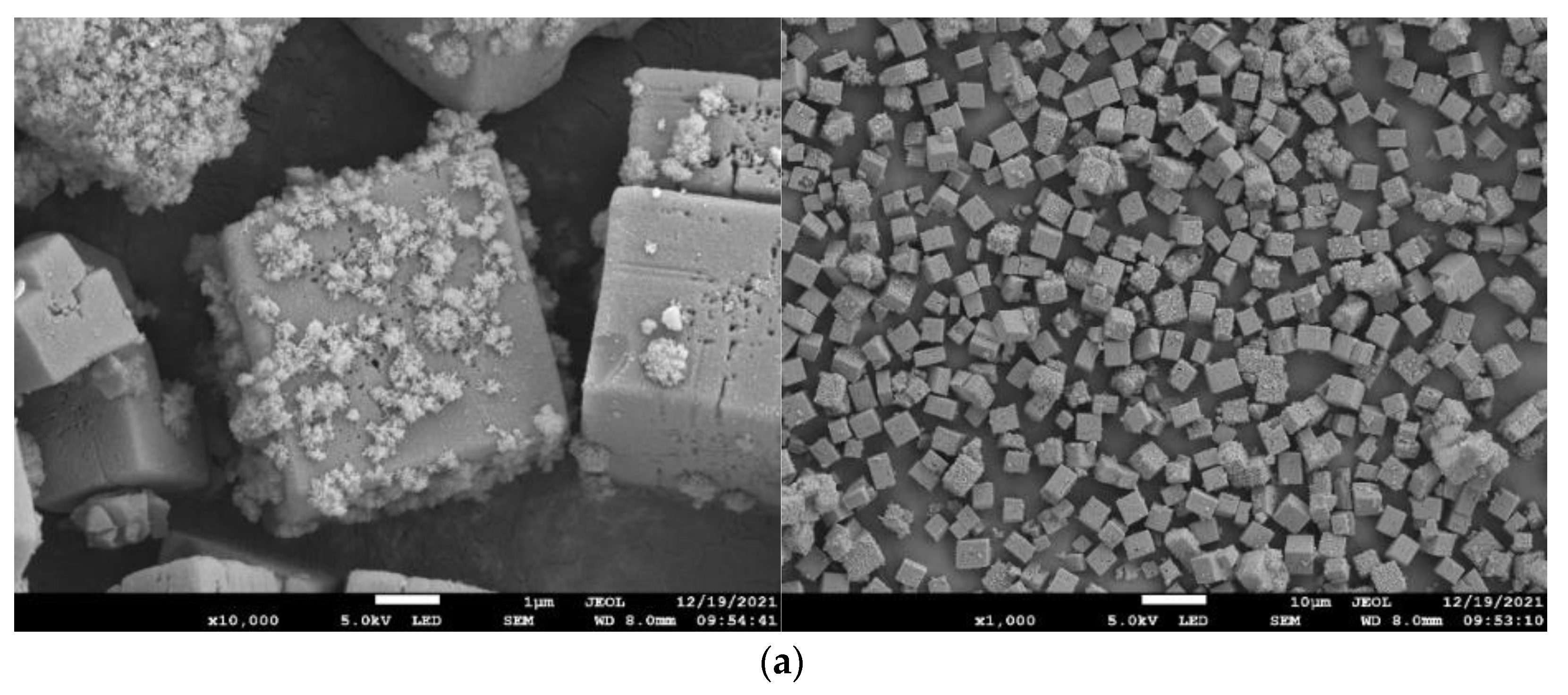

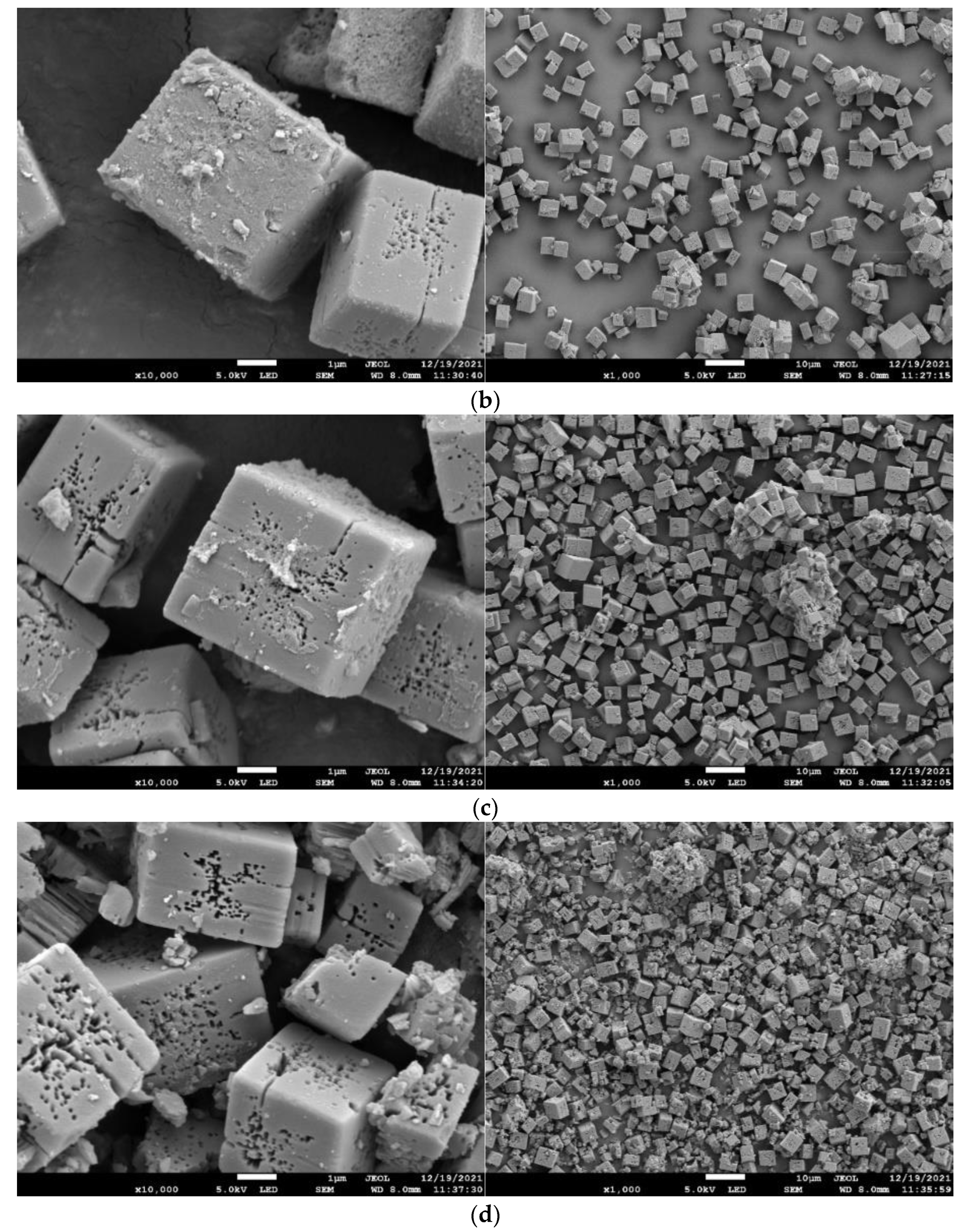

Figure 4. SEM images of 4Cu-4Ce/SAPO-34 (a), 4Cu-4Ce-2Zr/SAPO-34 (b), 4Cu-4Ce-4Zr/SAPO-34 (c), and 4Cu-4Ce-6Zr/SAPO-34 (d) (the magnifications is 10,000 and 1000 times).
Figure 4. SEM images of 4Cu-4Ce/SAPO-34 (a), 4Cu-4Ce-2Zr/SAPO-34 (b), 4Cu-4Ce-4Zr/SAPO-34 (c), and 4Cu-4Ce-6Zr/SAPO-34 (d) (the magnifications is 10,000 and 1000 times).
Applsci 13 04763 g004aApplsci 13 04763 g004b
Applsci 13 04763 g005 550

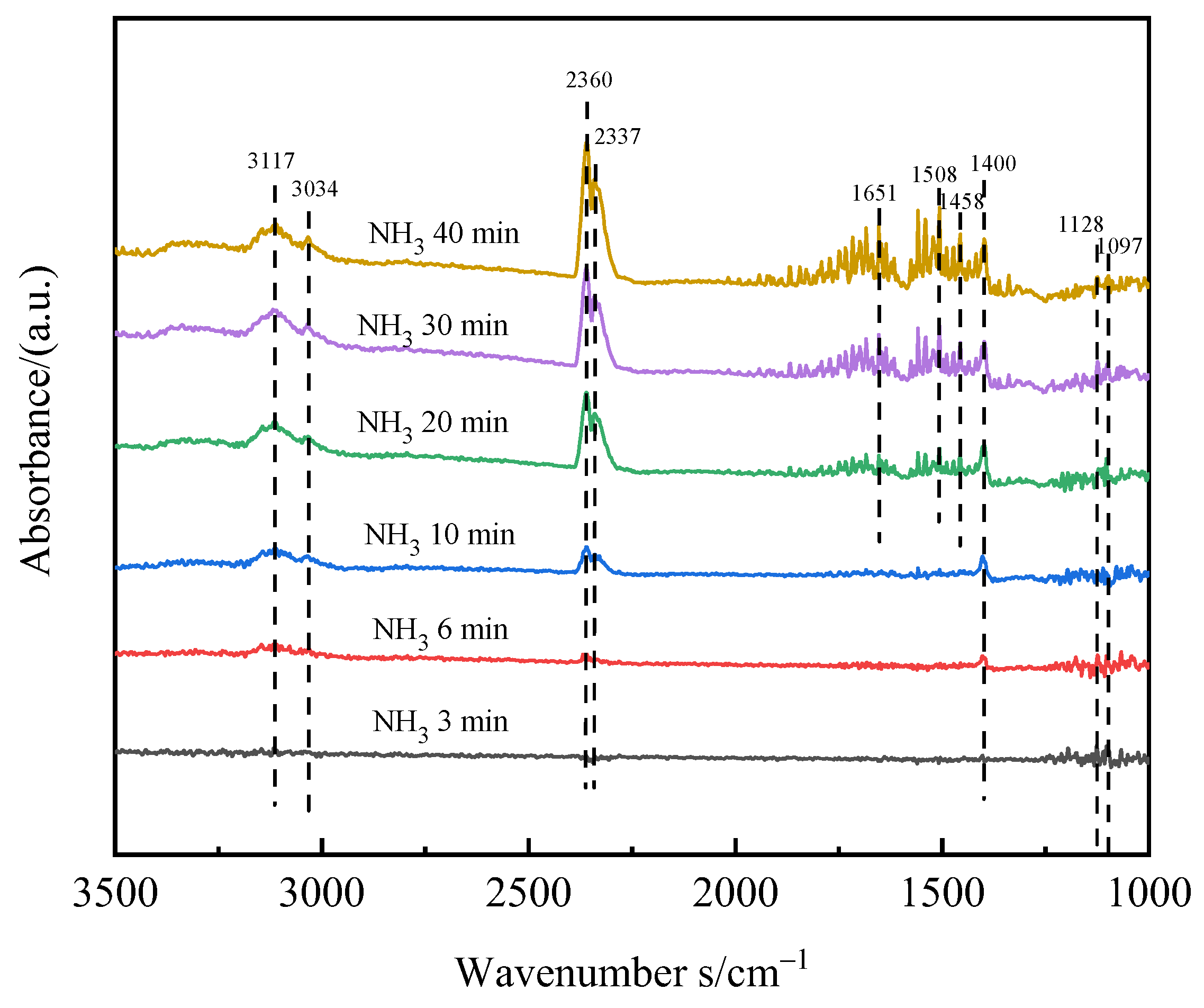

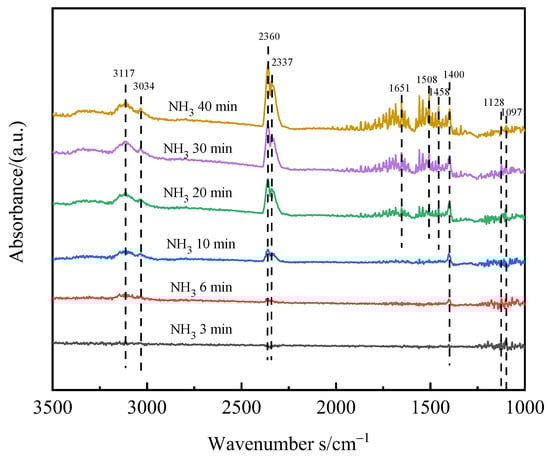

Figure 5. In situ DRIFTS of NH3 adsorbed on the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Figure 5. In situ DRIFTS of NH3 adsorbed on the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Applsci 13 04763 g005
Applsci 13 04763 g006 550

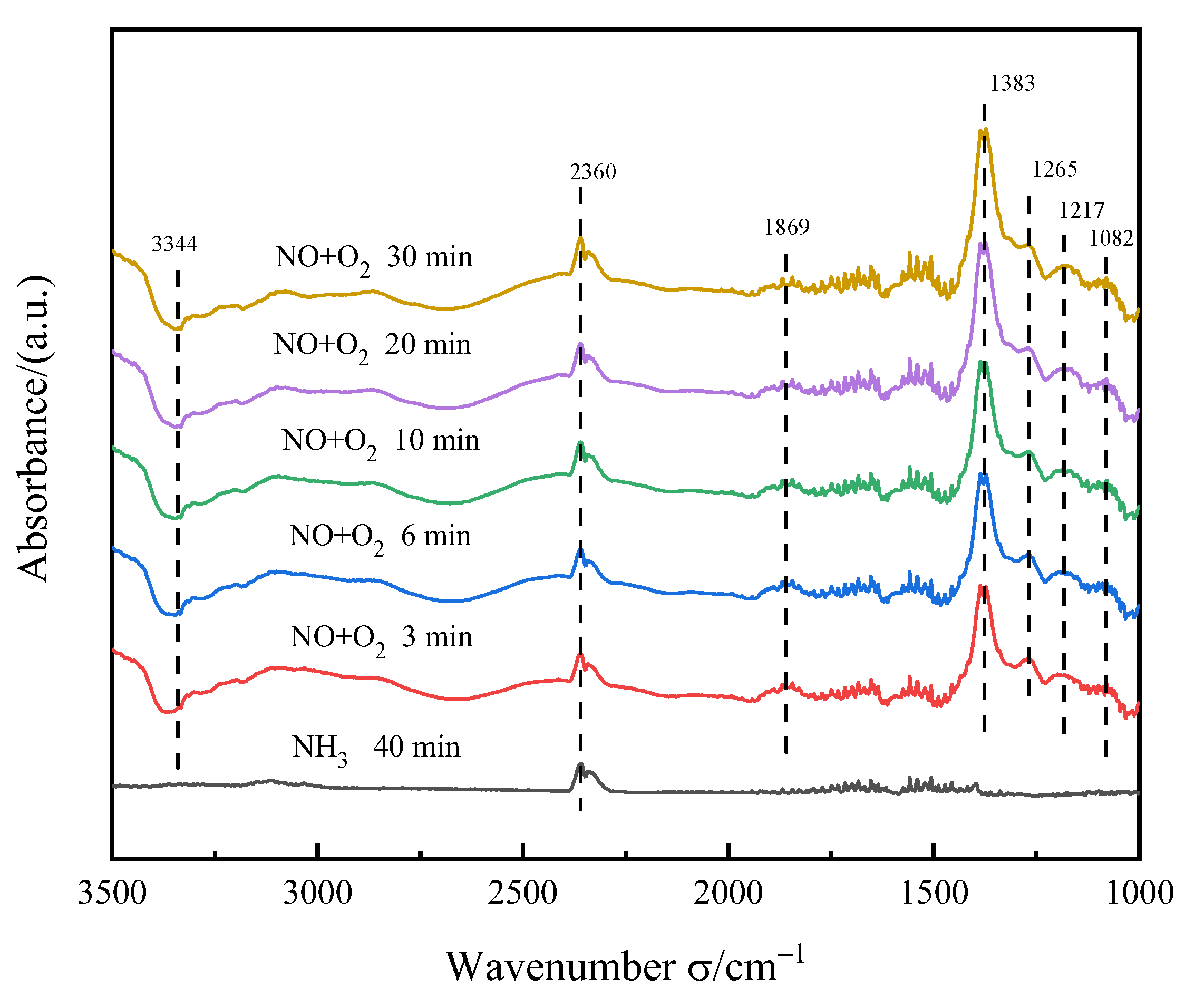

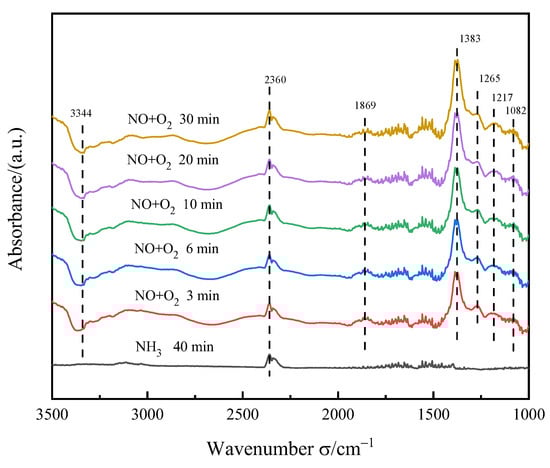

Figure 6. In situ DRIFTS of NO+O2 reacting with pre-adsorbed NH3 over the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Figure 6. In situ DRIFTS of NO+O2 reacting with pre-adsorbed NH3 over the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Applsci 13 04763 g006
Applsci 13 04763 g007 550

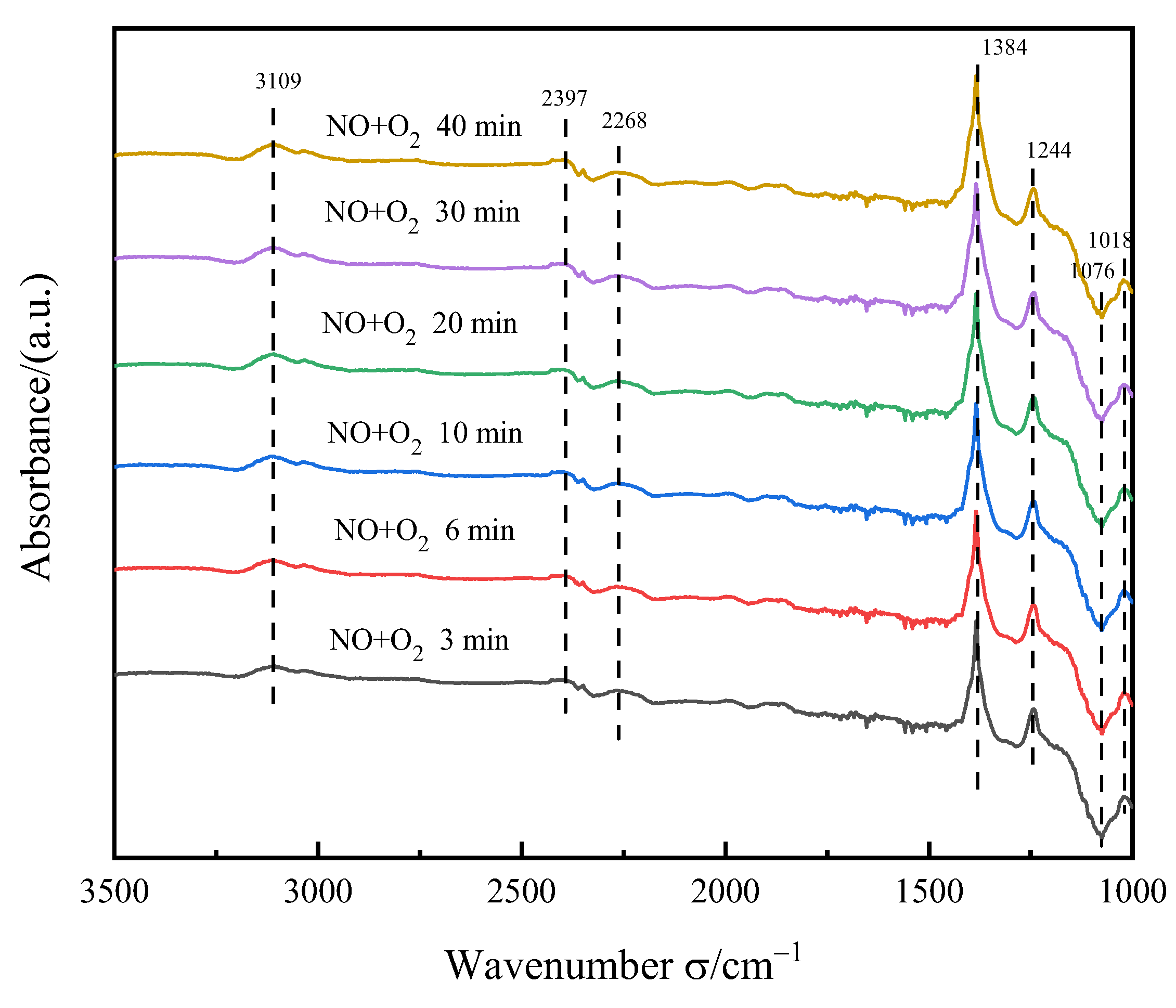

Figure 7. In situ DRIFTS of NO+O2 adsorbed over the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Figure 7. In situ DRIFTS of NO+O2 adsorbed over the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Applsci 13 04763 g007
Applsci 13 04763 g008 550

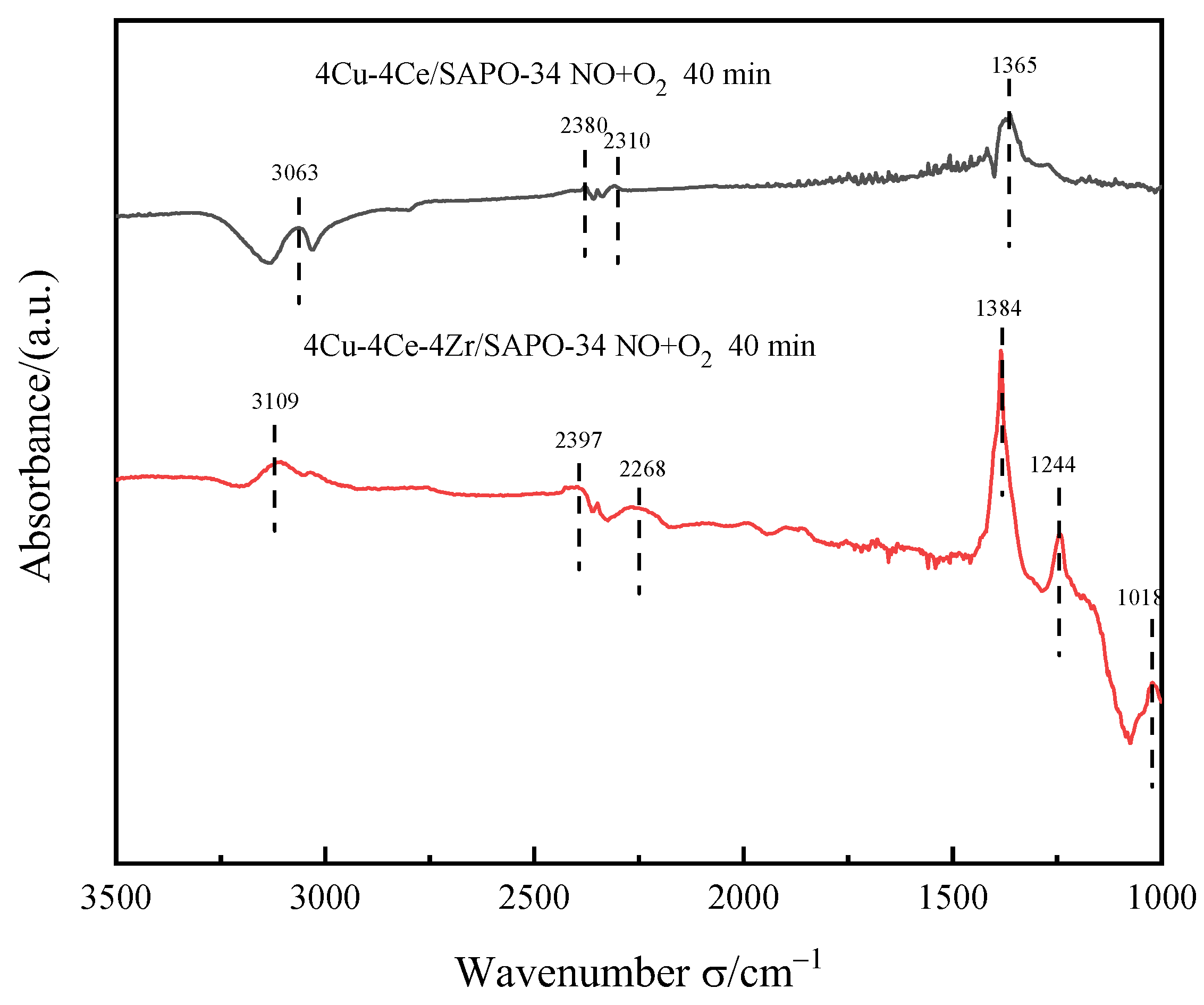

Figure 8. In situ DRIFTS of NO+O2 adsorbed over the 4Cu-4Ce-4Zr/SAPO-34 and 4Cu-4Ce/SAPO-34 catalyst.
Figure 8. In situ DRIFTS of NO+O2 adsorbed over the 4Cu-4Ce-4Zr/SAPO-34 and 4Cu-4Ce/SAPO-34 catalyst.
Applsci 13 04763 g008
Applsci 13 04763 g009 550

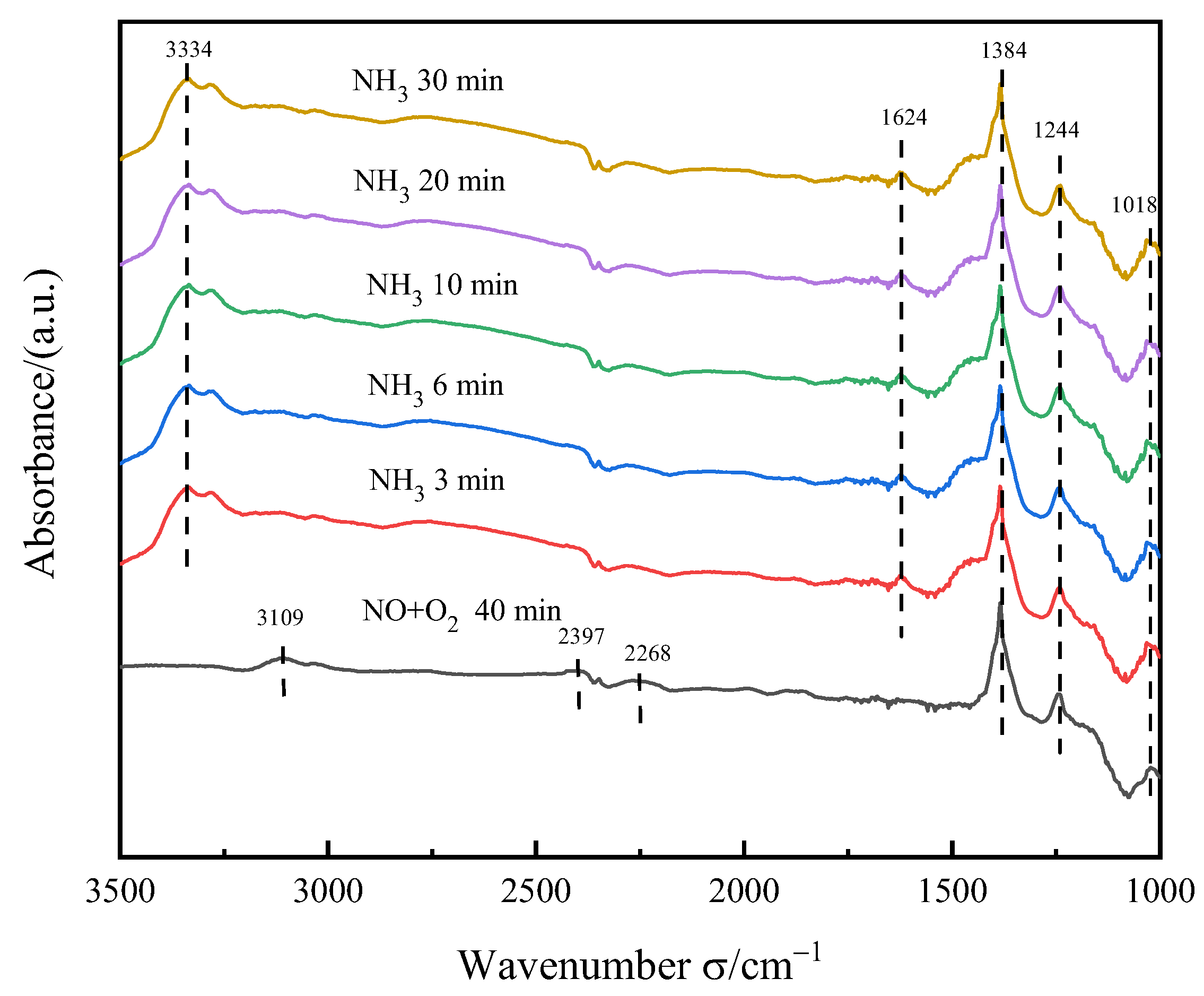

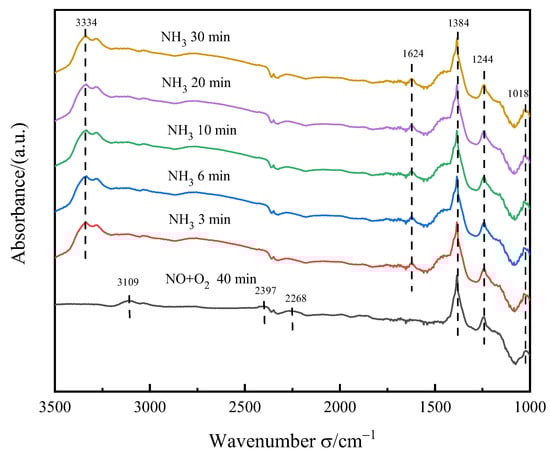

Figure 9. In situ DRIFTS of NH3 reacting with pre-adsorbed NO+O2 over the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Figure 9. In situ DRIFTS of NH3 reacting with pre-adsorbed NO+O2 over the 4Cu-4Ce-4Zr/SAPO-34 catalyst.
Applsci 13 04763 g009
Applsci 13 04763 g010 550

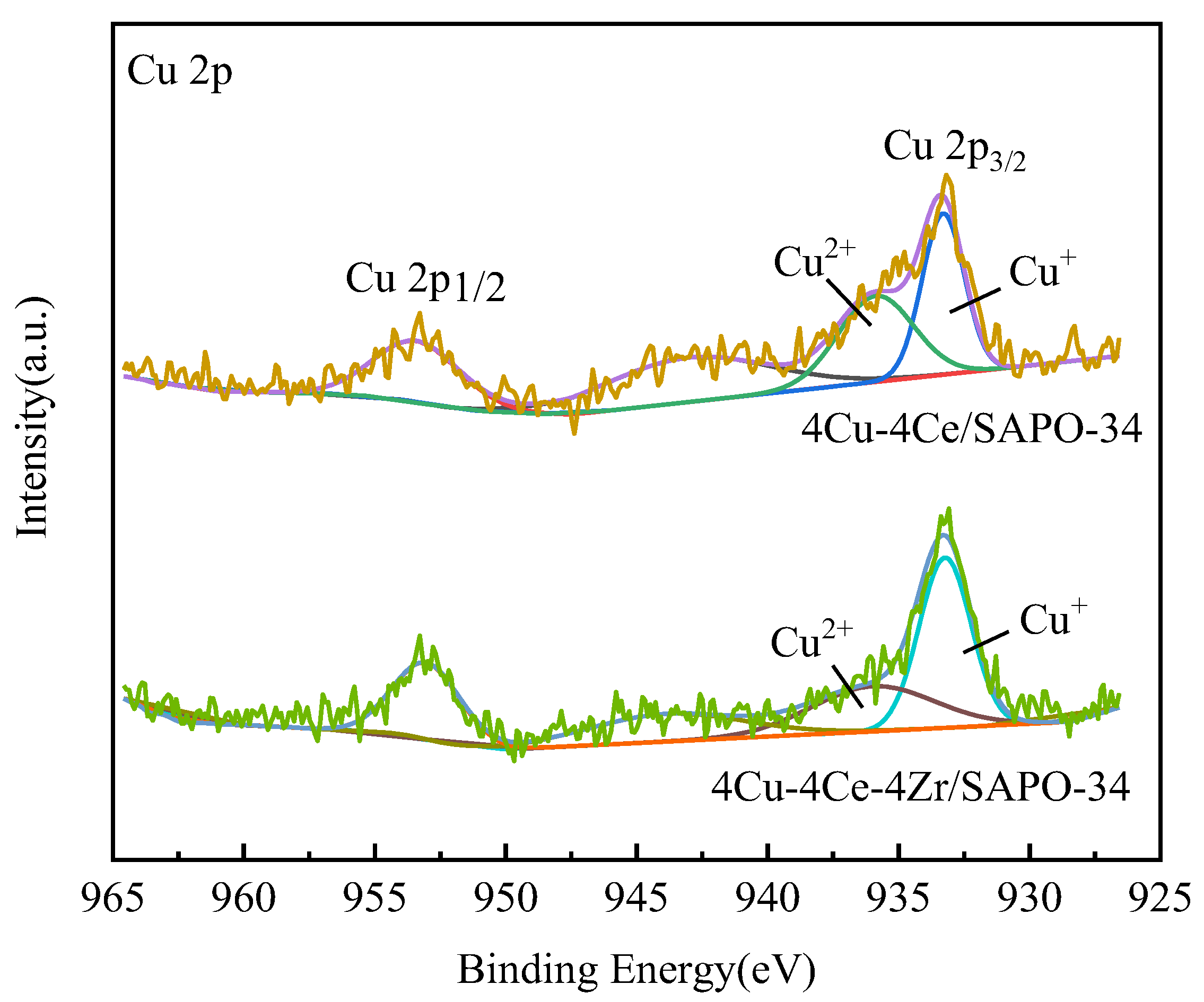

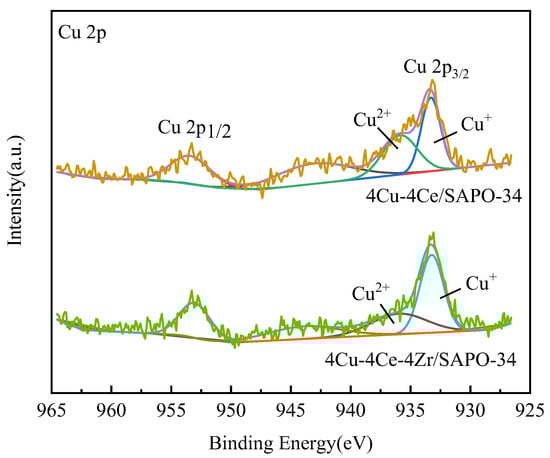

Figure 10. Cu 2p XPS spectra of 4Cu-4Ce/SAPO-34 and 4Cu-4Ce-4Zr/SAPO-34.
Figure 10. Cu 2p XPS spectra of 4Cu-4Ce/SAPO-34 and 4Cu-4Ce-4Zr/SAPO-34.
Applsci 13 04763 g010
Applsci 13 04763 g011 550

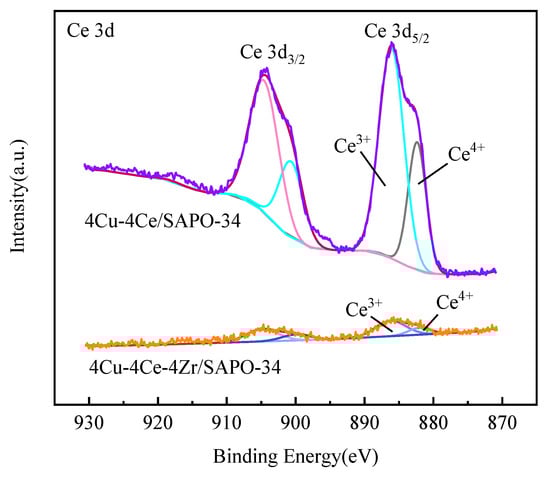

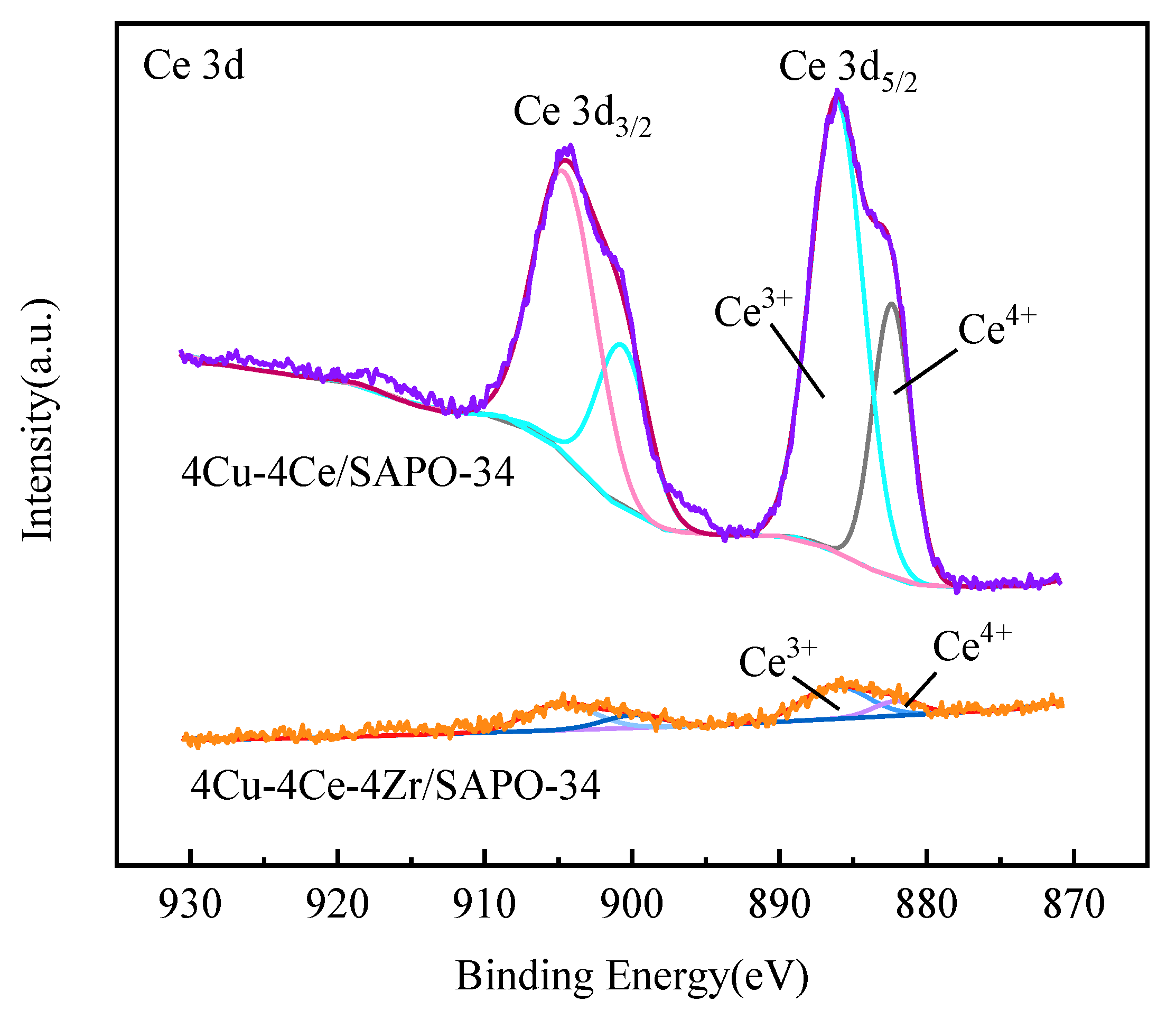

Figure 11. Ce 3d XPS spectra of 4Cu-4Ce-4Zr/SAPO-34 and 4Cu-4Ce/SAPO-34.
Figure 11. Ce 3d XPS spectra of 4Cu-4Ce-4Zr/SAPO-34 and 4Cu-4Ce/SAPO-34.
Applsci 13 04763 g011
Applsci 13 04763 g012 550

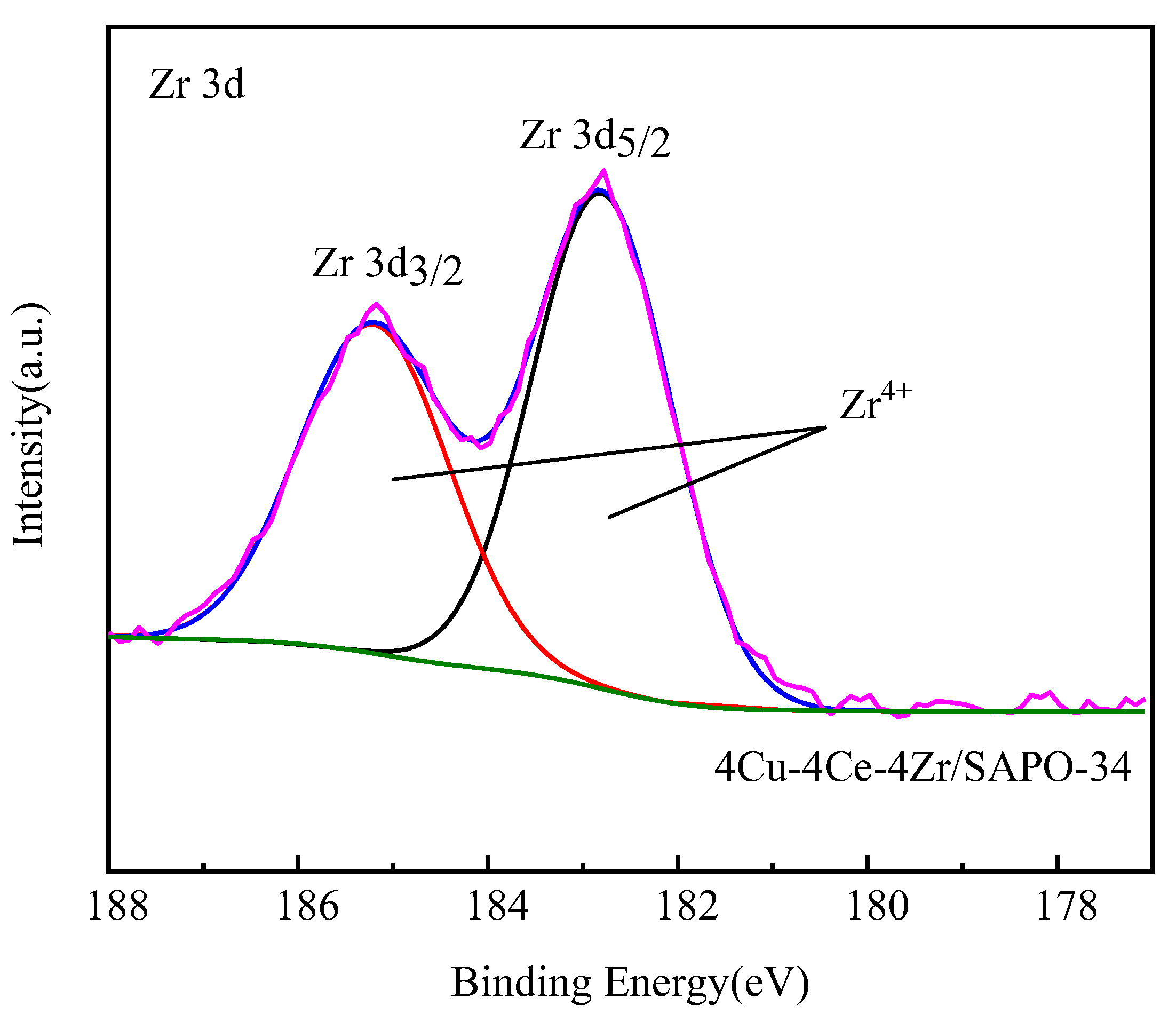

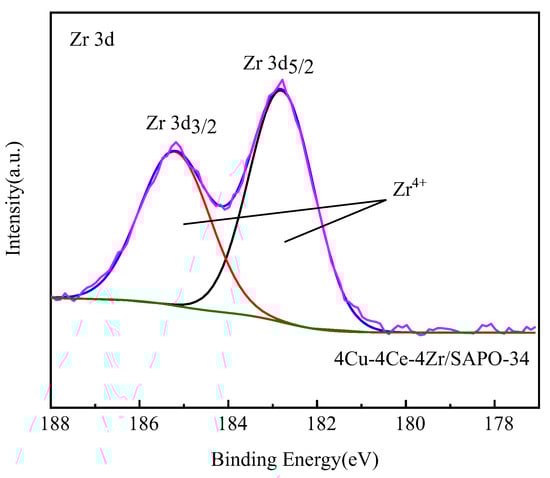

Figure 12. Zr 3d XPS spectrum of 4Cu-4Ce-4Zr/SAPO-34.
Figure 12. Zr 3d XPS spectrum of 4Cu-4Ce-4Zr/SAPO-34.
