1. Introduction
When one wants to model the behavior of controllers for embedded and cyber–physical systems, including those used in automation areas, it is widely accepted that selecting a modeling formalism having both precise execution semantics, a textual representation, and a graphical representation will be an advantage, as far as it will allow for a proper support from computational tools, as well as an effective interaction between the humans involved.
Among those formalisms widely in use, state-based modeling formalisms, such as state diagrams, statecharts, and Petri nets, are common examples. However, the expressiveness of the model and its compactness, specifically in terms of its graphical representation, are major characteristics that need to be considered when selecting the modeling formalism.
Some modeling formalisms (tentatively, most of them) benefit from the usage of hierarchical structuring mechanisms, while others achieve compactness through encapsulating behavioral dependencies into the model’s annotations. The latter has a strong drawback: It can be perceived as a risky approach, because to achieve compactness, one may lose the intuitive perception of the behavior that one wants to model from the graphical representation.
We argue that the desired behavior needs to be clearly perceived from the model, using the graph structure to provide a clear description of the intended behavior.
In this paper, we propose to improve the model compactness through the usage of events obtained from the analysis of the evolution of the controller’s input signals. These events can, in turn, be generated by the execution of a priori available (hidden) sub-models or pre-processing at the execution code level.
Petri nets will be used as the modeling formalism to express the controller’s behavior and to model the events generated from the analysis of the signal evolution. In particular, the class of IOPT nets (Input-Output Place-Transition nets) [
1,
2,
3] will be considered. In addition, the associated computational tools framework IOPT-Tools [
4,
5,
6], freely available at
http://gres.uninova.pt/IOPT-Tools/ (accessed on 3 June 2024), will be used to support the model editing (where the proposals have been integrated).
This approach (even presented within a Petri net modeling-based approach) can be adopted by several other state-based behavioral formalisms, including state diagrams, and derived formalism, such as hierarchical and concurrent state diagrams and statecharts and other classes of Petri nets as well (as far as all the generated event sub-models, even expressed using a Petri net notation, can also be unfolded into state diagrams). It is important to emphasize that the automatic code generation possibility will be preserved, supported by a model-driven approach, while allowing for the delivery of executable code from the behavioral model directly deployable into implementation platforms (ultimately without writing a line of code).
The structure of this paper is as follows.
Section 2 gives the basic information on some approaches to include events within system modeling, as well as on Petri nets and IOPT nets.
Section 3 provides the rationale and summarizes the steps associated with the proposed approach.
Section 4 addresses the generation of events associated with Boolean signals, while
Section 5 addresses similar topics considering multivalued signals. Finally,
Section 6 provides a brief discussion on the results using a small example, and
Section 7 concludes and points out some future works.
2. Related Work
It is relevant to note that the use of events is transversal across several application areas, allowing for the detection of simple changes or even complex behaviors. This is the case in [
7], where a graphical formalism for signal interpretation modeling is proposed, allowing for the identification of associated events and conditions, which can be used in the behavior model description of the system.
Complex Event Processing (CEP) [
8] has been used in a wide range of areas, including network management, databases, and discrete-event simulation. CEP handles the composition of events from an event cloud, leading to the implementation of Event-Driven Architectures and allowing for the extraction of information from distributed systems based on events and messages.
In the context of controllers for embedded and cyber–physical systems, events, considered changes in the value of signals, are widely used by different modeling formalisms, technologies, and computational tools. Their use leads to an intrinsic reduction in the dimension of the model when graphical representations are considered. This is notably the case for some state-based computational models, such as reactive systems [
9], statecharts [
10], and Petri nets [
11].
In [
12], the approach followed in this paper was first proposed, relying on the definition of sub-models to encapsulate the detection of specific signal evolution and further execution concurrently with the main system’s model. In [
12], two types of signals were considered, namely, Boolean signals and multivalued signals. For Boolean signals, a set of associated events was proposed, namely,
Up,
Down,
UpOrDown,
UpDown, and
DownUp. For multivalued signals, the set of events defined for Boolean signals was defined and extended with
UpDownHyst and
DownUpHyst, introducing a hysteresis dependency on the analysis of multivalue signals.
Building upon the work of [
12], this paper refines their proposals on hysteresis dependencies and introduces a novel event type. This new event type incorporates an additional constraint when analyzing signal evolution, requiring a specific condition to be met for event generation.
IOPT Nets—Input-Output Place-Transition Nets—A Brief Overview
Carl Adam Petri introduced basic Petri net concepts in his 1962 Ph.D. thesis [
13]. Since then, various classes of Petri nets have been proposed, making them a diverse family of languages [
14]. Despite their diversity, all Petri nets can be represented through a graph with two types of nodes, named places and transitions, connected by directed arcs. Nodes of one type can only connect to nodes of the other type. Places are visually represented as circles or ellipses, while bars, squares, or rectangles denote transitions. These two types of nodes embody a dual perspective when modeling systems: places are associated with states or resources, while transitions are associated with changes in the state, actions, or resource production and consumption.
A positive integer value, which can include zero, is associated with each place, is referred to as the “place marking”, and is graphically represented by tokens in the form of small dots inside the place or by a number. The current system state is composed of a set of place markings. The system state undergoes changes when one or more transitions are fired. When a transition fires, it removes tokens from its input places and generates tokens into its output places according to the weights assigned to the arcs connecting the transition and the place.
A transition in a Petri net model can only fire if it is
enabled. For a transition to be enabled, each input place contains at least the number of tokens specified by the arc weight connecting that place to the transition. However, when the goal is to model automation systems and discrete-event controllers’ behavior, it is of paramount importance to consider additional external conditions that must be met for a transition to fire. In such cases, we refer to the Petri net as a non-autonomous model, and for the transition to be fireable, it must be enabled (from the point of view of the marking) and
ready (from the point of view of the external constraints). Several classes of non-autonomous Petri nets have been introduced over the years, namely, [
15,
16,
17,
18,
19,
20], including some specifically addressing manufacturing systems as the application domain [
21].
Some of these Petri net classes were developed by adopting or expanding upon the concepts of synchronized and interpreted Petri nets [
20] or targeting specific areas, such as Control Interpreted Petri nets (independently proposed by [
22,
23]).
This paper considers Input-Output Place-Transition nets (IOPT nets), which belong to the category of non-autonomous Petri nets designed for modeling discrete-event controllers [
1,
2,
3]. Additionally, a suite of web-based tools, collectively known as IOPT-Tools, is freely available [
4,
5,
6]. This set of tools directly supports editing, simulation, property verification, and code generation. Automatic code generators can produce both C and VHDL code directly from the models, which aligns with the goal of having execution code without writing a line of code. The C code can be directly executed on platforms like Arduino boards and several single-board computers, including Raspberry Pi and other Linux platforms. Also, VHDL code can be seamlessly deployed into FPGA-based boards.
IOPT nets are a non-autonomous extension of place-transition nets [
24], being equipped with non-autonomous characteristics that build upon the principles of synchronized and interpreted Petri nets, as outlined in [
20]. Specifically, IOPT nets consider input signals, which can constrain transition firing when involved in the transition guard. The analysis of signal evolution, which identifies changes in its value, can generate events, which in turn can also constrain transition firing.
In this sense, in an IOPT net, the firing of a transition needs to be enabled (enough tokens at input places) and ready from the point of view of its guard and its event (if any). We consider that a transition is fireable when it is enabled and ready.
In the simple model presented in
Figure 1, for transition
to fire, places
and
must be marked, the guard evaluated to
(input signal
b equals to 1), and the event
(associated with input signal
a) occurs.

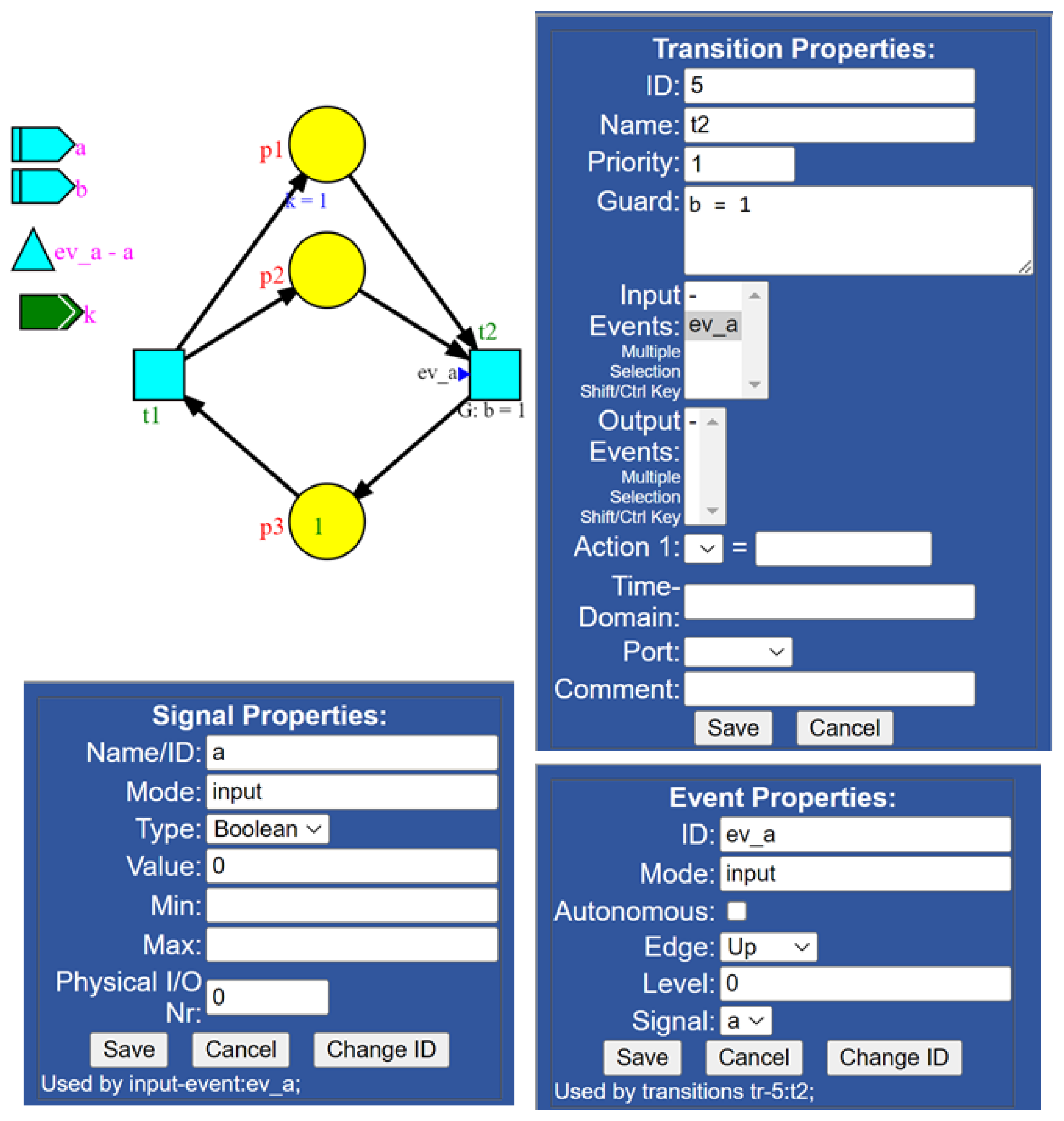

Figure 1 shows the simple IOPT net, as well as the relevant interfaces (to provide characteristics for signal
a, event
, and transition
) provided by IOPT-Tools to support its implementation.
IOPT Nets: Interface, Syntax, and Semantics
In this sub-section, a few basic definitions associated with the class of IOPT nets are presented. They are adapted from [
3] and start with the characterization of the interface with the environment in terms of the inputs and outputs of the controller. After that, the syntax of the IOPT nets is presented, as well as the associated execution semantics, where the dependencies of the inputs and outputs of the system are considered.
Definition 1 (Model interface)
. (from [
3]
.) The interface between the controlled system and the IOPT net is a tuple satisfying the following:- 1.
is a finite set of Boolean input signals;
- 2.
is a finite set of range (non-negative integers) input signals;
- 3.
is a finite set of non-autonomous input events;
- 4.
is a finite set of autonomous input events;
- 5.
is a function applying non-autonomous input events to a signal and an upper or lower edge: ;
- 6.
is a finite set of Boolean output signals;
- 7.
is a finite set of range (non-negative integers) output signals;
- 8.
is a finite set of non-autonomous output events;
- 9.
is a finite set of autonomous output events;
- 10.
is a function applying non-autonomous output events to a signal and an upper or lower edge: ;
- 11.
.
Definition 2 (IOPT net)
. (adapted from [
3]
.) Given a model interface , an IOPT net is a tuple satisfying the following requirements:- 1.
P is a finite set of places;
- 2.
T is a finite set of transitions, such that ;
- 3.
A is a set of arcs, such that ;
- 4.
is a set of test arcs, such that ;
- 5.
M is the marking function: ;
- 6.
is the arc weight function: ;
- 7.
is the test arc weight function: ;
- 8.
is a partial function applying transitions to non-negative integers, , and we write when transition t has no defined priority;
- 9.
is a guard partial function applying transitions to Boolean expressions, where all the variables are markings or signals: , where ;
- 10.
is an input event partial function applying transitions to input events: ;
- 11.
is an output event function applying transitions to output events: ;
- 12.
is a transition action partial function applying transitions to actions: and and .
- 13.
is an output signal condition function from places into sets of rules: , where , and .
The execution of the IOPT net, modeling a discrete-event controller, adheres to step-based execution semantics. Each step encompasses several stages: (1) reading the input signals; (2) computing the input events based on the current and previously read values from the input signals; (3) considering a maximal step semantics execution firing all the enabled and ready transitions in the net (taking into consideration the existing conflicts); (4) updating the output values; and (5) storing the last input values for the subsequent steps.
The concepts of fireable transition, enabled transition, and ready transition were informally introduced in the previous section; ref. [
3] is recommended to obtain additional details on the associated formal definitions.
In this paper, whenever necessary, the order of a step is explicitly referred to as “n” while “” refers to the preceding execution step, and so forth.
3. Proposed Approach
As identified in
Section 1, the main goal of this work is to improve the model compactness by encapsulating the input signal evolution dependencies into events. The proposed approach can be applied to different state-based formalisms. In this paper, IOPT nets will be considered the supporting formalism for their usage.
In this context, the most simple event associated with a Boolean signal is generated by a change in the value of the signal in two consecutive execution steps, previously proposed in [
1,
12,
25]. This leads to the common
Up and
Down events associated with the two possible changes in signal value. However, other types of simple events are of interest to mimic the more complex evolution of signals. Two of those events are the
UpDown event and the
DownUp event, initially proposed in [
12]. In the
UpDown event, a full evolution of the signal from 0 to 1 and back to 0 is necessary to be observed, while the
DownUp event detects dual evolution. In

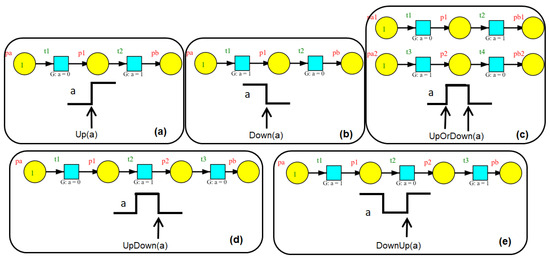

Figure 2, those events are presented (showing the time evolution of signal
a and the instant where the associated event is generated), along with the
UpOrDown event, where any of the evolutions associated with the events
Up or
Down are detected. For all these events, a simple state diagram using a Petri net notation is presented, allowing for the detection of that evolution of the signal
a (taking advantage of the transition guards constrained by the signal value). To better clarify the diagrams’ semantics, we now detail the working of the first diagram in
Figure 2. As stated in the previous section, each transition can only fire when it is
enabled and
ready. A transition is
enabled when there is one token in all of its input places (all are
marked). In the example, it suffices to have one token in place
pa as it is the only input place for transition
t1; in IOPT nets, the tokens in each place are specified by a positive number in each place (
1 in
Figure 2a). A transition is
ready when the respective guard and input event are true. Absent guards or absent input events are semantically equivalent to guards and input events that evaluate to true. In the model in
Figure 2a, transition
t1 only fires when signal
a has value 0; then, transition
t1 becomes enabled (one token in place
p1) and can only fire when signal
a has value
1 (it becomes
ready. The model in
Figure 2a represents the behavior of the input signal
a as depicted in the time evolution diagram below the Petri net. Therefore, the signal
a behavior
Up(a) can be expressed by the above time evolution diagram or by the Petri net. The same happens for each of the other diagrams in
Figure 2. This dual representation has a direct correspondence to what can be performed in the implementation: (1) either the Petri net model (IOPT model) is added to the primary model to specify the signal behavior or (2) the signal time evolution is computed so that the event is made available for the Petri net modeler to use in one or more transitions.

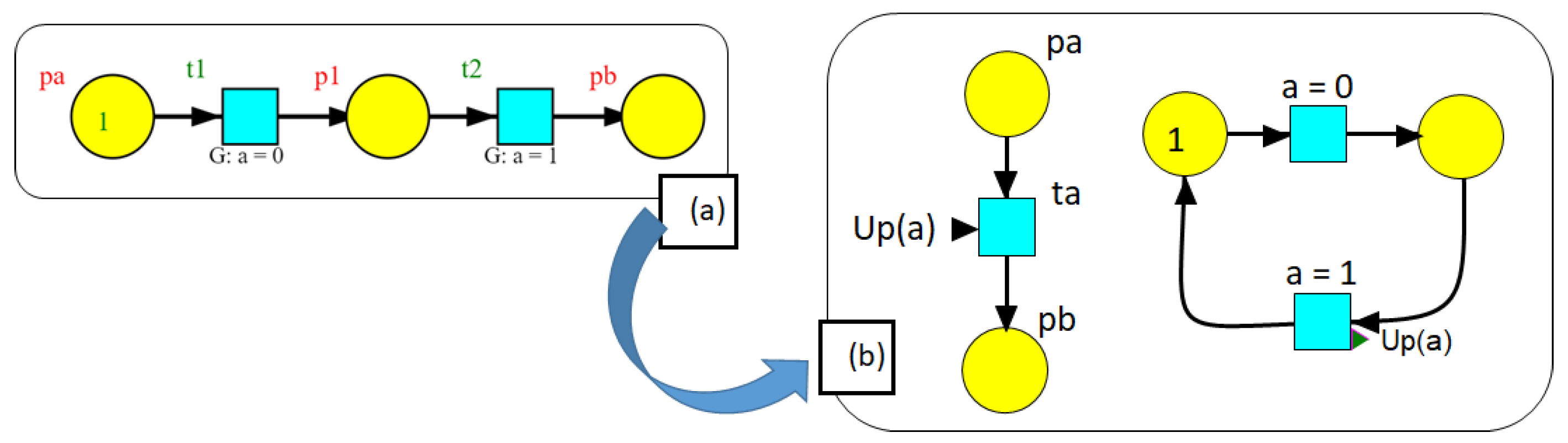

The proposed approach intends to shrink the model collapsing sequence of nodes associated with a specific signal evolution into an event depending on the same signal evolution. In this sense, instead of using the Petri net model presented in
Figure 3a associated with the
Up event (introduced in
Figure 2a), it is proposed to use the simplified model presented in
Figure 3b, composed of a simplified model where transition
ta encapsulates the sub-model composed of
t1,
p1, and
t2, which will be executed concurrently with the model responsible for the analysis of the signal
a evolution and for the generation of the event
Up(a).

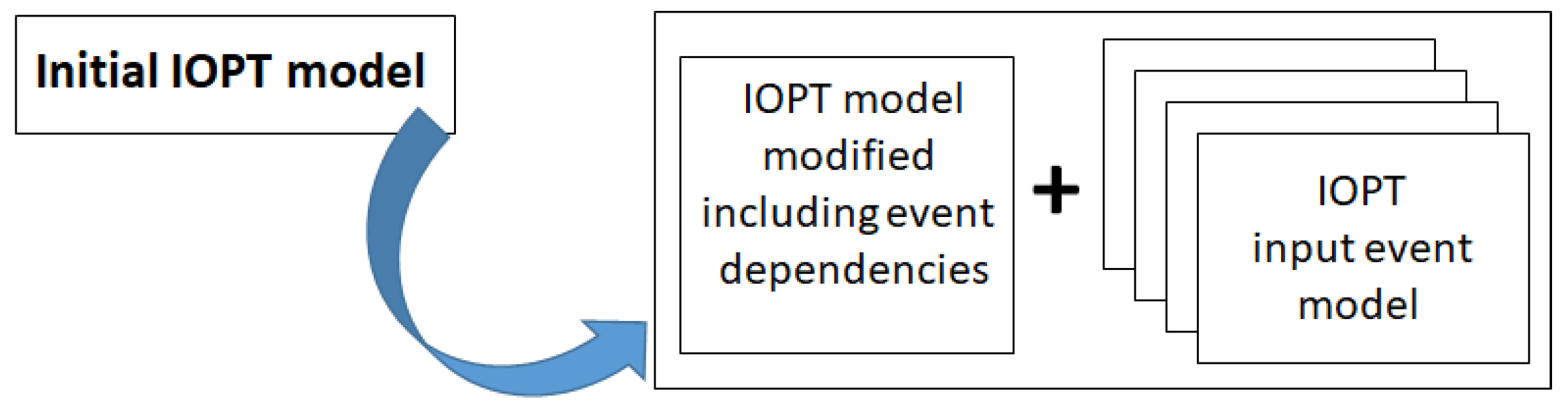

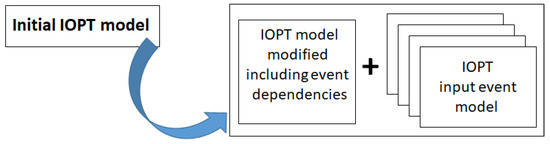

In this sense, the proposed strategy to improve the compactness and legibility of the model relies on encapsulating the specific evolution of the signals into the events, which will be associated with the transitions firing the sub-models characterizing the specific evolution of the signals. Those transitions will be constrained by the event’s occurrence, which in turn characterizes the specific evolution of the signal and will be described through specific sub-models to be executed concurrently. The overall approach is summarized in
Figure 4, where the “IOPT input event model” will be intrinsically considered available (without the need to be explicitly edited). Therefore, the model to be produced by the designer will be much smaller, as it will benefit from the encapsulation of the event dependencies.
It is important to note that this approach will preserve the operational behavior of the initial model when executing the transformed model. This preservation aligns with the Petri net reduction techniques as presented by Murata [
26], preserving the Petri net model’s liveness, safeness, and boundedness properties.
In addition to the already referred events, a set of new types of events are proposed. This new type of event starts considering the already defined events but imposes a specific condition that constrains their analysis. The condition to be fulfilled is that the transition to which the event is associated needs to be enabled (from the point of view of the marking) and ready (from the point of view of the non-autonomous characteristics attached to the transition). Those new types of events will have “Trigger” added to the name of the five defined events, so their names will be UpTrigger, DownTrigger, UpOrDownTrigger, UpDownTrigger, and DownUpTrigger.

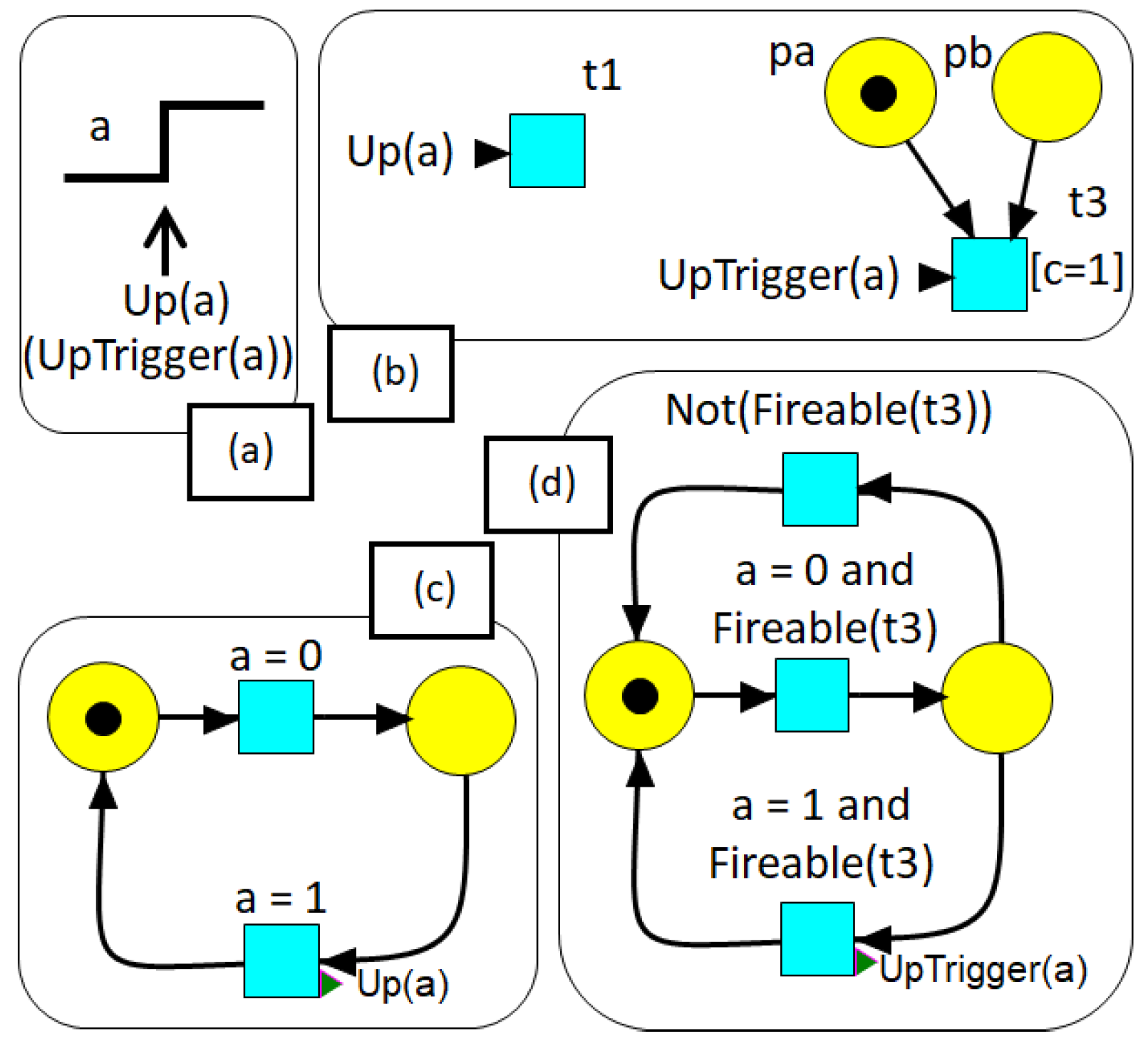

To illustrate the proposal more clearly, let us consider the UpTrigger event. Similar to the Up event, it analyzes the signal’s evolution. However, this analysis occurs only after and while the associated transition is enabled and ready. This readiness is determined by the marking of the input places and the guard constrained by other signals.
Figure 5b illustrates the approach: transition
t1 is receptive to the event
Up associated with signal
a, following the operational model of
Figure 5c; similarly, transition
t3 is receptive to the event
UpTrigger, which is associated with signal
a and also to this specific transition
t3, following the operational model of
Figure 5d. Regarding transition
t3 firing, the analysis of the signal evolution is carried on if and while transition
t3 is fireable. Transition
t3 is fireable when it is enabled (places pa and pb in
Figure 5b are marked) and ready (the guard composed of signal c equals to 1 and evaluates to true). In
Figure 5d (and other figures to be presented in the next sections), the evaluation of this condition is included in the notation as
and
. In the presented case of
Figure 5d, the condition
is evaluated by
.
In the following two sections, events associated with Boolean signals and events associated with multivalued signals are presented.
5. Events Depending on Multivalued Signals
This section presents the set of events associated with multivalued signals, where a range of integer values can be read (digital inputs). Similarly to the analysis of Boolean signals,
Table 2 presents the definition of four sets of five events generated through the evolution analysis of multivalued signals, providing updated definitions for the former set composed of
,
,
,
, and
events (which were initially proposed in [
1,
12,
25]), where a threshold value
k is used for comparison with a predefined level. A second set of events is proposed associated with similar events constrained by the verification of conditions to fire the transition with whom they are associated; this set is composed of
,
,
,
, and
, also considering a value
k for comparison.

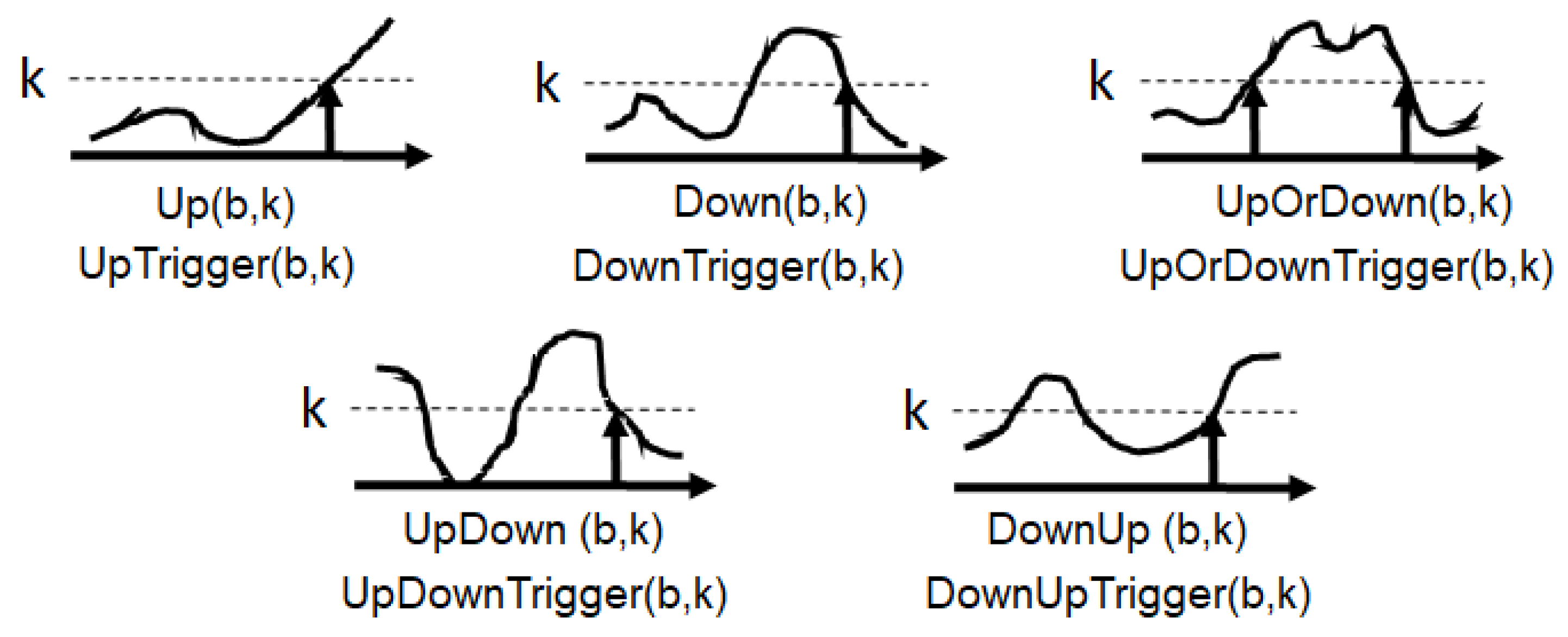

Figure 7 presents the timings associated with generating the referred events.
Considering the specificity of multivalued input signals, which can be affected by noise during their acquisition, it is of paramount importance to intrinsically include an analysis of the signal evolution considering two levels of comparison, using a hysteresis strategy as proposed in [
25], in order to improve the robustness to noise. With this in mind, two new sets of events are proposed as duplicates of the two sets referred to in the previous paragraph, where two levels of comparison (
and

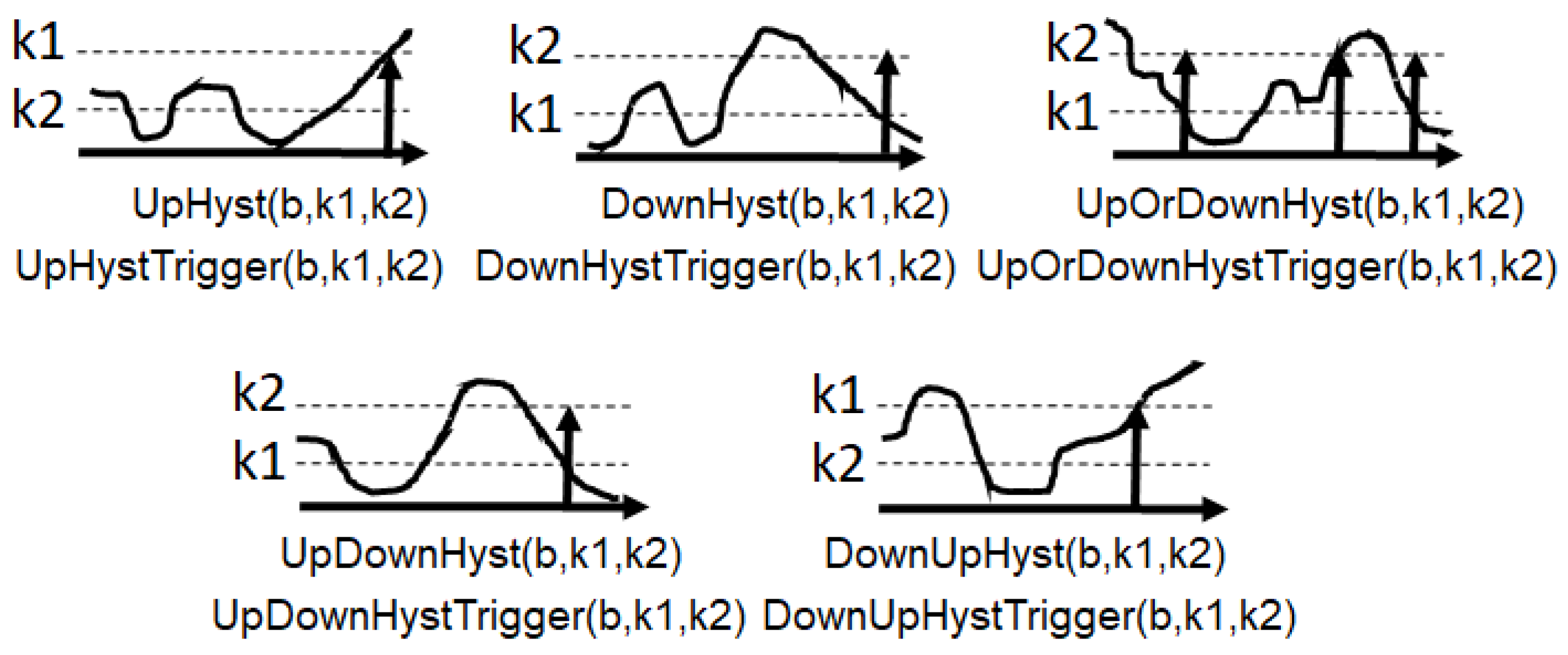

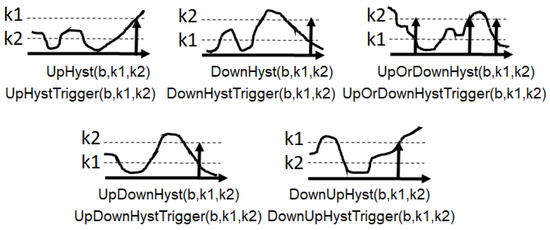

) are used to consider a hysteresis dependency. Timings associated with the generation of the referred events are presented in
Figure 8.

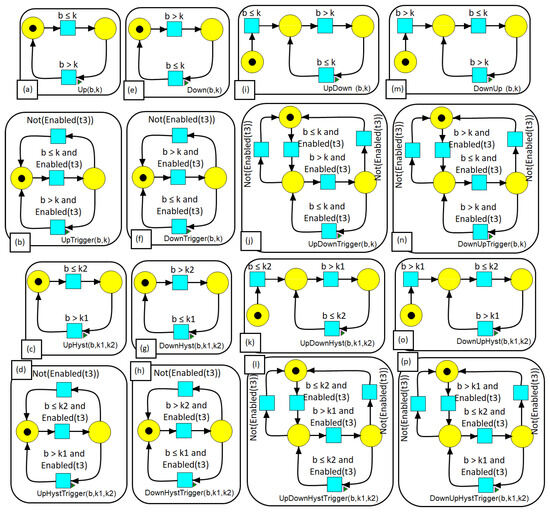

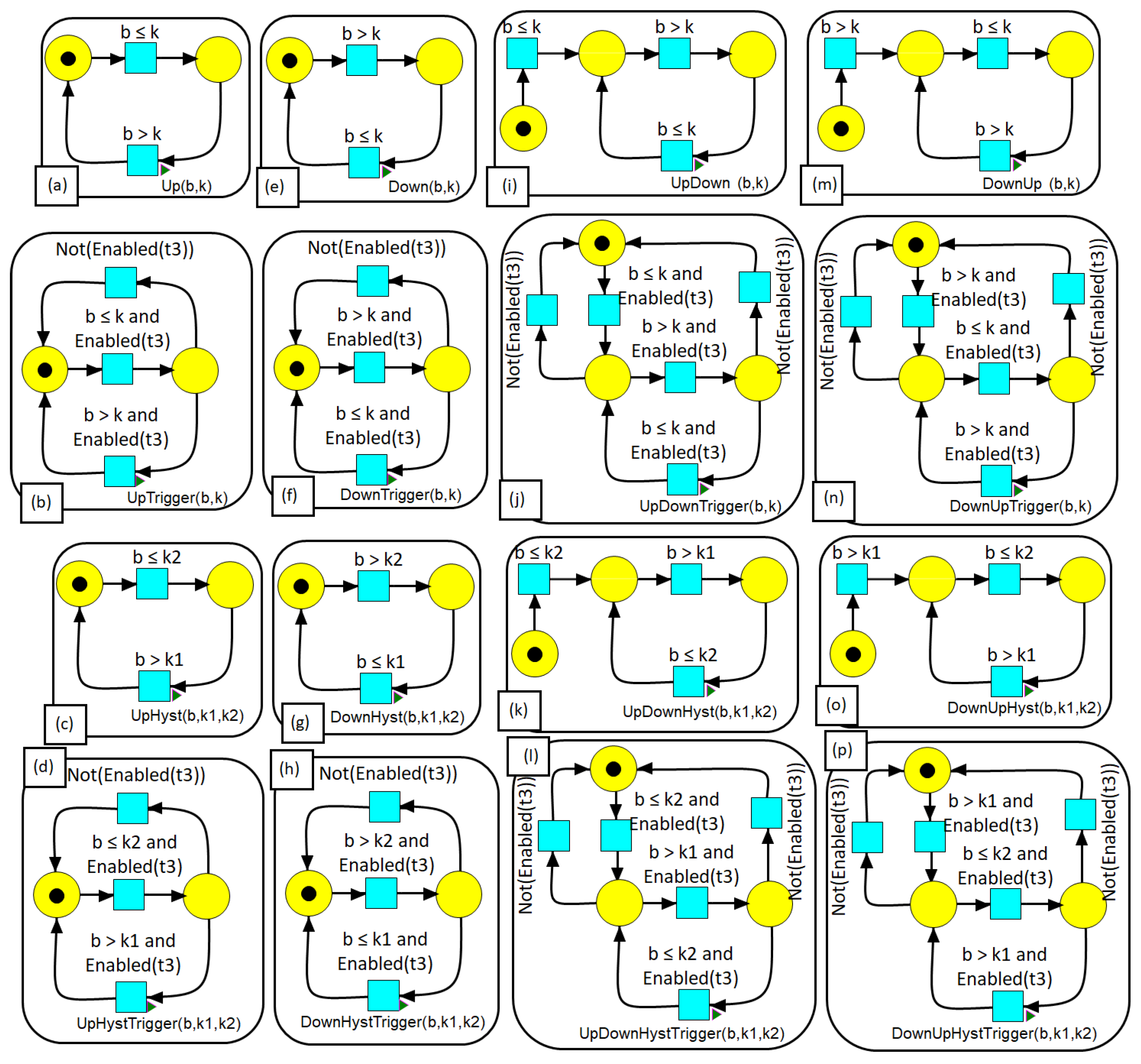

Figure 9 illustrates the sets of the models associated with each of the events above, executed concurrently with the specification model where these events are employed. Similar to the previous presentation of Boolean signals, we also assume here that the “Trigger” events are associated with transition
t3.
6. Discussion
In order to illustrate the effectiveness of the proposed approach, a controller for a simple system responsible for packing three components coming from three different conveyors (
A,
B, and
C) is used. Referring to

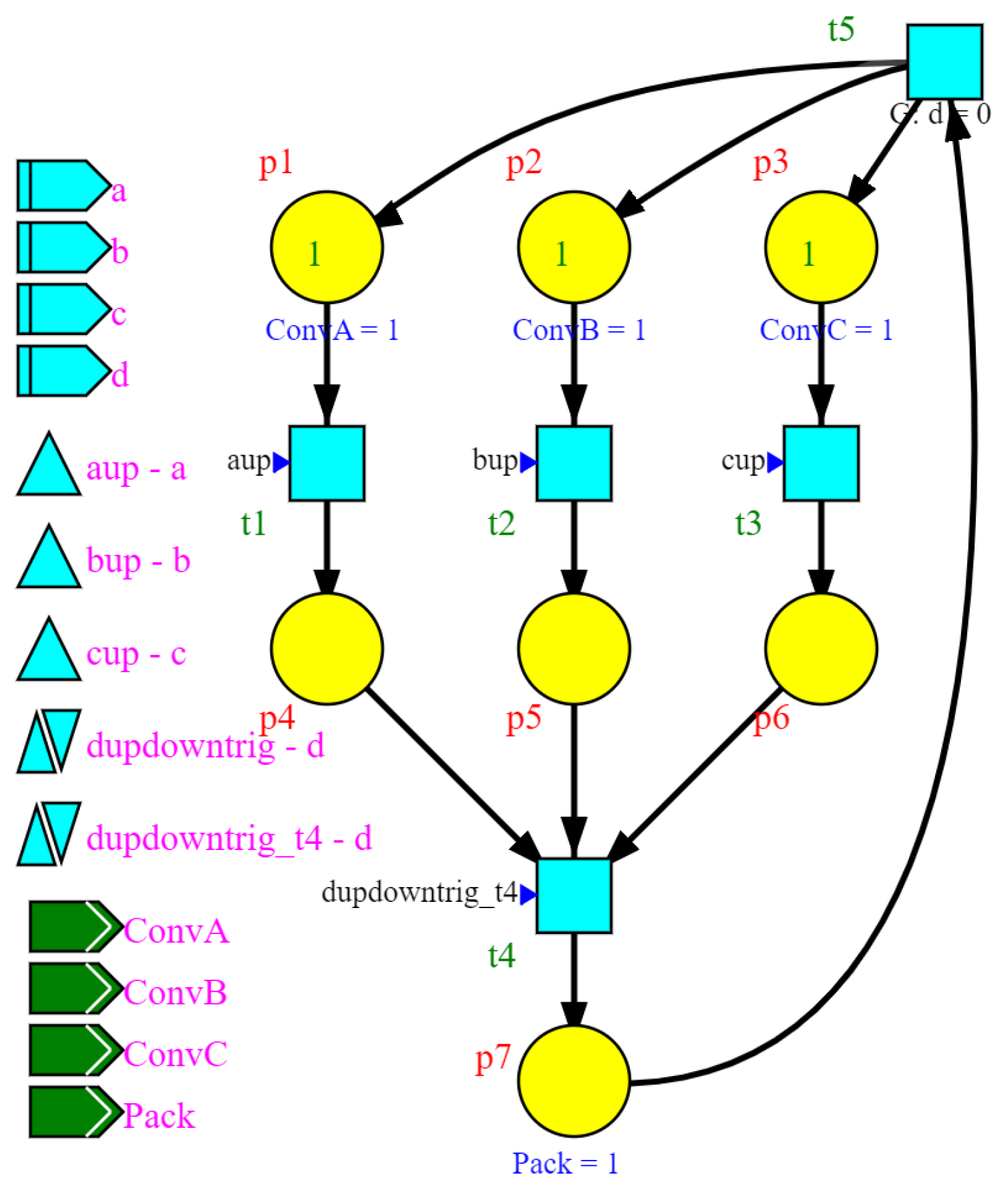

Figure 10, conveyor
X will be moving if the output
ConvX (with
X belonging to
A,
B, and
C) is active (places
p1,
p2, and
p3 marked). The movement of each conveyor will stop whenever transitions
t1,
t2, or
t3 fire. These transitions have an
event associated with three dedicated events (generated by the activation of a limit switch). Whenever the three components arrive at the packing area, the operator activates a pedal associated with signal
d, which in turn generates the
event associated with transition
t4, launching the packaging mechanism and returning afterward to the initial state after releasing the pedal.

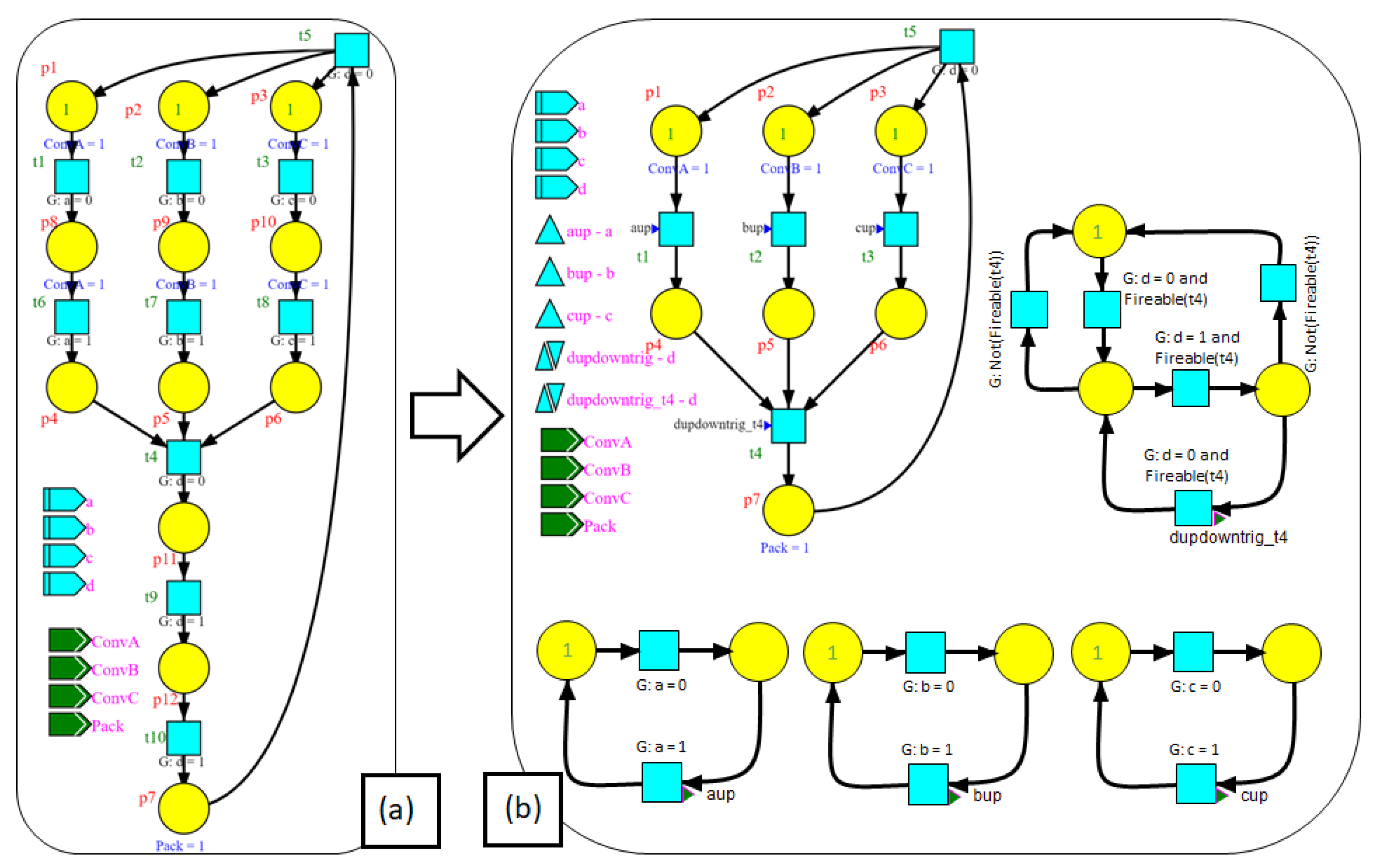

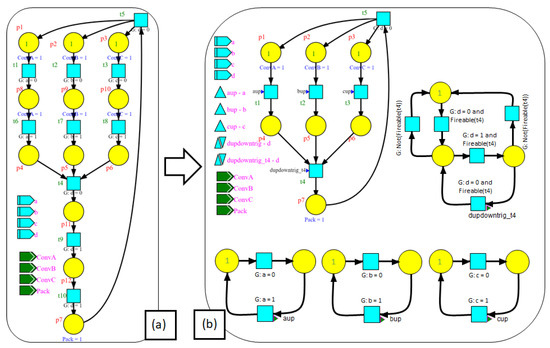

It is also important to note that if the use of events is not available, the model of the system would be similar to the one presented in
Figure 11a, composed of twelve places and ten transitions. By using events, the model of the system can be described employing seven places and five transitions, as presented in
Figure 10 and the top left of
Figure 11b. In this sense, the user benefits from the compactness of the model and improved readability. However, from the point of view of the execution of the model, the five models presented in
Figure 11b are executed concurrently (even the user only sees the one in
Figure 10).
The proposed event modeling strategy is foreseen to be supported by the IOPT-Tools framework, freely available at
http://gres.uninova.pt/IOPT-Tools/ (accessed on 3 June 2024).
7. Conclusions and Future Work
When graphical representations of modeling formalisms are in use for the description of controller behaviors, relying on events to encapsulate the detection of a specific evolution in the controller’s input signals can contribute to achieving higher levels of compactness of the model, improving its expressiveness and having a positive impact on its readability.
The approach proposed in this paper, supported by (hidden) sub-models generating events associated with the specific evolution of input signals, is in line with this strategy and is entirely supported by a web-based tools framework (IOPT-Tools), which is freely available and covers all the steps of controller development, including the automatic generation of the execution code. This approach results in a more compact controller model that enhances its comprehensibility and readability. To our knowledge, no other Petri net-based tool frameworks exist that utilize events to encapsulate signal evolution behavior while maintaining the ability to automatically generate executable code for a wide range of platforms, including software implementations (C, with Python planned), hardware implementations (VHDL), and PLC platforms, benefiting from the translation of the underlying Petri net model into ladder diagrams.

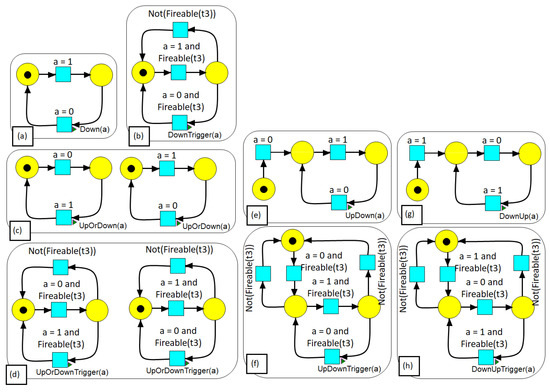

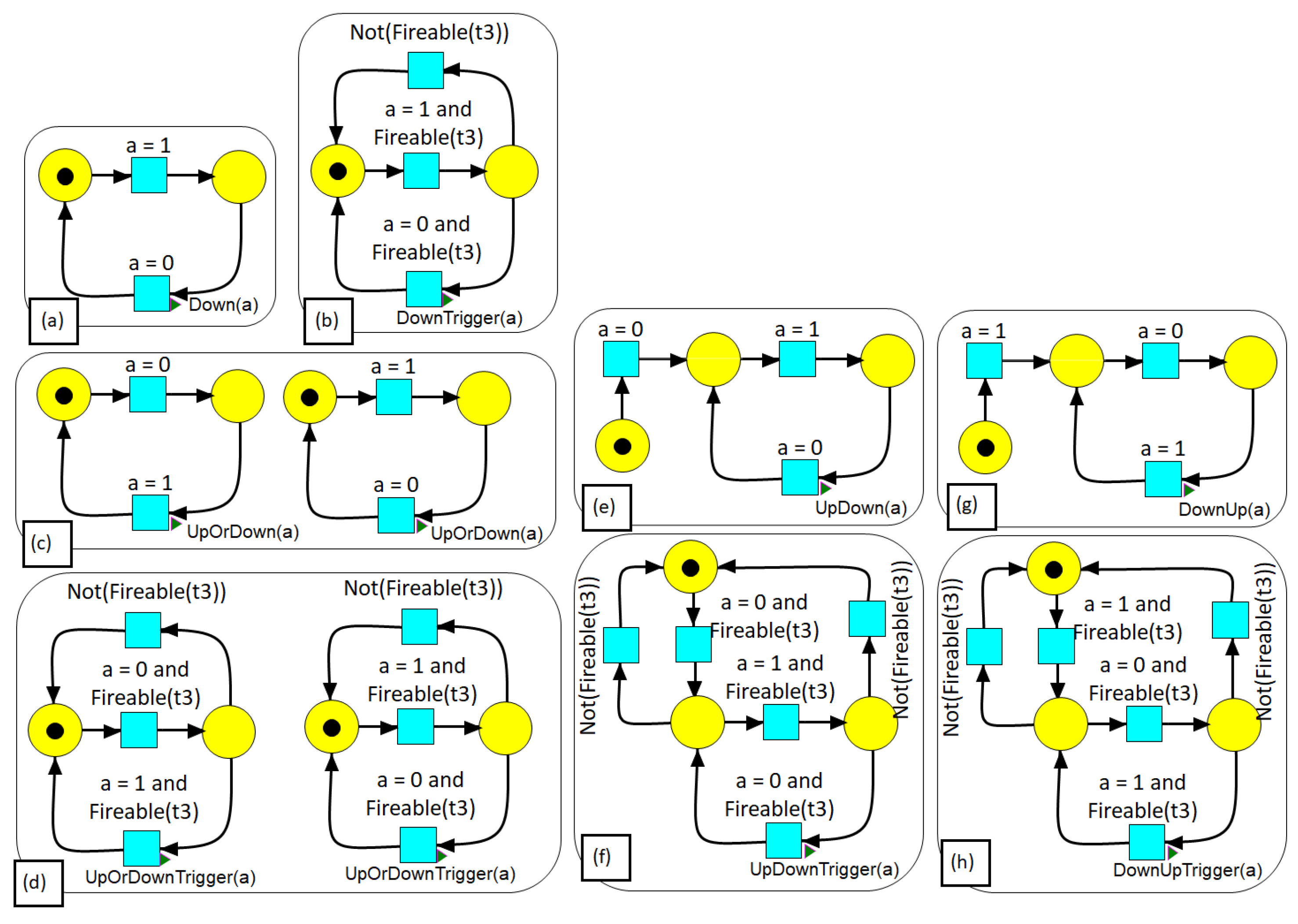

It is important to note that the proposed approach, even presented within a Petri nets-based development framework, can also be used in cooperation with other discrete-event state-based modeling formalisms, namely, concurrent state machines, statecharts, and other classes of non-autonomous Petri nets. As a matter of fact, all the presented sub-models can be seen as state diagrams represented using a Petri net notation.
In future work, the definition of additional composed events based on the analysis of several signals (such as the ones suggested in this paper) is worth analyzing with a possible significant impact on the compactness of the behavioral models related to embedded controllers.
