Parallel GPU-Acceleration of Metaphorless Optimization Algorithms: Application for Solving Large-Scale Nonlinear Equation Systems

Abstract

Traditional population-based metaheuristic algorithms are effective in solving complex real-world problems but require careful strategy selection and parameter tuning. Metaphorless population-based optimization algorithms have gained importance due to their simplicity and efficiency. However, research on their applicability for solving large systems of nonlinear equations is still incipient. This paper presents a review and detailed description of the main metaphorless optimization algorithms, including the Jaya and enhanced Jaya (EJAYA) algorithms, the three Rao algorithms, the best-worst-play (BWP) algorithm, and the new max–min greedy interaction (MaGI) algorithm. This article presents improved GPU-based massively parallel versions of these algorithms using a more efficient parallelization strategy. In particular, a novel GPU-accelerated implementation of the MaGI algorithm is proposed. The GPU-accelerated versions of the metaphorless algorithms developed were implemented using the Julia programming language. Both high-end professional-grade GPUs and a powerful consumer-oriented GPU were used for testing, along with a set of hard, large-scale nonlinear equation system problems to gauge the speedup gains from the parallelizations. The computational experiments produced substantial speedup gains, ranging from 33.9× to 561.8×, depending on the test parameters and the GPU used for testing. This highlights the efficiency of the proposed GPU-accelerated versions of the metaphorless algorithms considered.

1. Introduction

Nonlinear equations and nonlinear equation systems (NESs) are ubiquitous in simulations of physical phenomena [1] and play a crucial role in pure and applied sciences and engineering [2]. NESs are considered among the most challenging problems to solve in numerical mathematics [3,4], and their difficulty increases substantially as the number of equations in the system grows. A compendium of complex optimization challenges involving important NESs in science, engineering, and economics was produced by Mehta and Grosan [5].

The well-known Newton method and its variants [6] are among the most common iterative numerical techniques used to solve NESs. The effectiveness of these solvers is strongly dependent on the quality of the initial approximations used [7,8], and convergence may not be guaranteed. Furthermore, there is no sufficiently efficient and robust general numerical method for solving NESs [9], and they can be computationally demanding, especially for large and complex systems. Hence, it is critical to explore alternative approaches to tackle the challenge of efficiently obtaining accurate approximations of the solutions of NESs.

In recent years, there has been growing interest in population-based metaheuristic algorithms due to their ability to tackle complex and challenging numerical problems, such as NESs. These algorithms belong to a broader category of computational intelligence techniques, offering a versatile and robust approach to optimization [10]. However, although they are capable of addressing large-scale and high-dimensional problems and providing near-optimal solutions within a reasonable time frame, it is important to note that they do not guarantee optimal (i.e., exact) solutions.

Population-based metaheuristic algorithms, typically drawing inspiration from natural evolution and social behavior, encompass several different techniques, such as swarm-based optimization (e.g., particle swarm optimization (PSO) [11]), genetic algorithms, evolution strategies, evolutionary programming, genetic programming, artificial immune systems, and differential evolution. These algorithms utilize principles observed in nature to guide their search for optimal solutions. Numerous modifications have been proposed to make such algorithms more efficient, and their inherent characteristics make them natural candidates for parallelization. However, their effective application requires the careful selection of an appropriate strategy and the tuning of specific parameters, which is neither simple nor obvious.

In contrast, population-based metaphorless optimization algorithms operate independently of metaphors or analogies. These methods do not rely on algorithm-specific parameters but rather on standard control specifications such as population size and the number of allowed iterations. Originating from the pioneering work of R. V. Rao [12], these algorithms have gained increasing importance due to their relative simplicity and efficiency in solving problems across various domains with varying levels of complexity. They are frequently more abstract and rely on mathematical principles or specific optimization strategies rather than mimicking real-world phenomena. The development of population-based metaphorless optimization algorithms is a growing research field. For instance, a novel metaphorless algorithm known as the fully informed search algorithm (FISA) [13] and the max–min greedy interaction algorithm [14] were recently introduced. Consequently, the need for innovative parallel computation approaches to enhance performance is particularly pertinent.

Given the complexities associated with solving large-scale NESs, high-performance computing (HPC) techniques, such as the use of heterogeneous architectures, become crucial to ensuring access to adequate computational resources and achieving accurate and timely solutions. The use of graphics processing units (GPUs) as general-purpose computing devices has represented a noteworthy advancement in HPC and is fundamental to increasing the computational efficiency of algorithms that are inherently parallel. These hardware units are equipped with a multitude of cores, allowing for the execution of numerous parallel operations simultaneously, thus surpassing the capabilities of traditional central processing units (CPUs). This approach offers a cost-effective means of achieving scalability and efficiency, making it possible to accelerate computations across various domains, including scientific simulations, artificial intelligence, financial modeling, and data analytics. The GPU acceleration of population-based metaheuristics allows for the efficient resolution of large and complex optimization problems and facilitates the exploration of vast solution spaces that would otherwise be impractical with traditional sequential computing due to high computational costs.

This paper provides a review and detailed description of metaphorless algorithms, including the Jaya optimization algorithm [12], the enhanced Jaya (EJAYA) algorithm [15], which is a variant of Jaya that has recently been shown to be effective in solving nonlinear equation systems [16], the three Rao algorithms [17], the best-worst-play (BWP) algorithm [18], and the recent max–min greedy interaction (MaGI) algorithm [14]. In addition to examining prior parallelizations of the Jaya optimization algorithm, this paper introduces enhanced GPU-based massively parallel implementations of these algorithms, employing a more efficient parallelization strategy. In particular, a novel GPU-accelerated version of the MaGI algorithm is proposed. The performance of the GPU-accelerated versions of the metaphorless algorithms is evaluated using a series of challenging and large-scale NESs across a range of GPU devices.

NESs must be reformulated into optimization problems to solve them using metaheuristics. Considering a NES represented generically in vector form as $f\left(x\right)=0$, with components $f_i(x_1,\dots ,x_n)=0,i=1,\dots ,n$, this system of n nonlinear equations with n unknowns can be transformed into an n-dimensional nonlinear minimization problem. Transforming NESs into optimization problems involves defining an objective function to minimize. In this paper, the objective function is defined as the sum of the absolute values of the residuals, ${\sum }_{i=1}^n\left|f_i(x_1,\dots ,x_n)\right|$.

In population-based optimization algorithms, the initial population generation typically involves the random or strategic generation of a group of potential candidates to serve as the starting point for the optimization process. As a standard practice, the default initialization approach for the majority of metaheuristic algorithms involves the use of random number generation, or the Monte Carlo method [19], in which individuals within the initial population are generated randomly within predefined bounds or limitations. This approach does not guarantee an even distribution of candidate solutions across the search space [20] and can influence the performance of the algorithms. However, tests have shown that this behavior is contingent on both the test problems and the algorithm under consideration [19], indicating that certain combinations of problem domains and algorithms are almost impervious to this scenario. Considering the prevalent use of randomly generated starting populations and the limited number of experiments employing alternative initialization procedures, a stochastic population initialization approach was adopted in this study.

In addition to proposing novel parallelization for the MaGI algorithm and more efficient parallelizations for the other metaphorless algorithms, the primary goal of this work is to investigate the efficacy, scalability, and performance characteristics of GPU-based implementations of metaphorless optimization algorithms within the framework of a standardized parallelization strategy. This study also aims to analyze the impact of parallel computation on algorithmic efficiency across a diverse set of large-scale NESs with varying dimensions and under different GPU hardware configurations. Furthermore, this research aims to evaluate the adaptability of the proposed enhanced parallelization strategy for handling varying computational demands across distinct computational resources, thus assessing its effectiveness in meeting the computational requirements of various applications and environments.

The organization of this article is as follows: the theoretical aspects and implementation details of the aforementioned metaphorless algorithms are provided in Section 2. Principles of GPU programming and details of the GPU-based implementation of each algorithm, including aspects of the different parallelization strategies employed, are presented in Section 3. All aspects of the experimental setup and methodology used to evaluate the performance of GPU-based algorithms are detailed in Section 4, including details of the hardware and benchmark functions used. The computational experiment findings and discussion are presented in Section 5. Finally, the conclusions drawn from the key findings are presented in Section 6.

2. Metaphorless Optimization Algorithms

The theoretical underpinnings and practical considerations of Jaya [12], EJAYA [15], Rao [17], BWP [18], and MaGI [14] algorithms are presented here. This section provides a comprehensive exploration of these methods, as well as detailed instructions and guidelines for implementing the algorithms.

2.1. Jaya Algorithm

The Jaya optimization algorithm [12] was introduced with the purpose of optimizing both unconstrained and constrained problems. Jaya (a Sanskrit term meaning ‘victory’) stands out as a metaphorless algorithm, representing an unprecedented and unique feature in the field of population-based metaheuristic algorithms.

Due to its simplicity and efficiency, the Jaya algorithm has garnered growing interest and has emerged as a viable alternative to other widely recognized metaheuristic algorithms such as PSO [21] in various scientific and engineering disciplines (see [22,23]).

The process of updating the population in Jaya in order to optimize a given objective function entails adjusting current solutions by directing the search toward more favorable regions within the solution space while simultaneously moving away from potential solutions with worse fitness.

Considering the parameters associated with the given problem, encompassing the number of decision variables $numVar$, a variable index v ranging from 1 to $numVar$, the population size $popSize$, a population index p varying from 1 to $popSize$, and the iteration index i ranging from 1 to $maxIter$, the value of the v-th variable for the p-th population candidate at the i-th iteration is represented as $X_{p,v,i}$, and the updated value $X_{p,v,i}^{new}$ is determined based on the following equation:

$$X_{p,v,i}^{new}=X_{p,v,i}+r_{1,v,i}\left(X_{best,v,i}-\left|X_{p,v,i}\right|\right)-r_{2,v,i}\left(X_{worst,v,i}-\left|X_{p,v,i}\right|\right),$$

(1)

where $X_{best,v,i}$ and $X_{worst,v,i}$ denote the population candidates with the best and worst fitness values, while $r_{1,v,i}$ and $r_{2,v,i}$ represent uniformly distributed random numbers within $[0,1]$.

The pseudocode for the Jaya algorithm is delineated in Algorithm 1. The general framework of the computational procedure of this algorithm can be succinctly expressed with the following steps: initialization, where the initial set of potential solutions is generated; the main loop, where the refinement of the candidate solutions is performed using the Jaya Equation (1), accompanied by the selection of the best candidate solution between the current and updated candidates until the termination criterion is satisfied; reporting of the best solution identified at the end of the algorithm.

Algorithm 1 Jaya pseudocode

1: /* Initialization */   2: Initialize $numVar$, $popSize$ and $maxIter$;   3: $X\leftarrow$ Generate_initial_population();   4: Evaluate fitness value $f\left(X\right)$;   5: $i\leftarrow 1$;   6: /* Main loop */   7: while  $i\le maxIter$  do   8:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$;   9:     for $p\leftarrow 1,popSize$  do 10:         for $v\leftarrow 1,numVar$  do 11:            Update population $X_{p,v,i}^{new}$ by Equation (1); 12:            Check_boundary_integrity $\left(X_{p,v,i}^{new}\right)$; 13:         end for 14:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$; 15:         Greedy_selection $(X_{p,v,i},X_{p,v,i}^{new})$; 16:     end for 17:     $i\leftarrow i+1$; 18: end while 19: Output the best solution found and terminate.

The initial population of candidate solutions is arbitrarily positioned within the specific constraints of the optimization problem, employing random numbers uniformly distributed in $[0,1]$. A detailed description of the procedure used is presented in Algorithm 2. The lower bound ($LB$) and upper bound ($UB$) parameters determine the size of the search space and the boundaries for each decision variable. These parameters are specific to the characteristics of the optimization problem under consideration.

Algorithm 2 Initial population generation

1: function Generate_initial_population( ) 2:     for $p\leftarrow 1,popSize$  do 3:         for $v\leftarrow 1,numVar$  do 4:            $X_{p,v}\leftarrow L{B}_v+rand\left(\right)\times (U{B}_v-L{B}_v)$. 5:         end for 6:     end for 7: end function

To maintain the feasibility of solutions and prevent candidates from going outside the search space, the range of decision variable values of every newly generated candidate solution ($X_{new}$) must be checked and corrected to conform to the problem-specific constraints.

This is accomplished by checking if there are decision variables that fall outside the lower or upper bounds and bringing them back to the search space boundaries in accordance with Algorithm 3.

Algorithm 3 Boundary integrity control

1: function Check_boundary_integrity($X_{p,v}^{new}$) 2:     if $X_{p,v}^{new}>U{P}_v$ then 3:         $X_{p,v}^{new}\leftarrow U{P}_v$; 4:     end if 5:     if $X_{p,v}^{new}<L{B}_v$ then 6:         $X_{p,v}^{new}\leftarrow L{B}_v$. 7:     end if 8: end function

A common characteristic of this class of metaheuristics is the use of a greedy selection algorithm to expedite the convergence speed of the optimization process. The procedure outlined in Algorithm 4 is employed locally to choose the best candidate (i.e., the candidate solution with the best fitness value) between the newly generated candidate and the current candidate solution under consideration. The evaluation of the best fitness value is tied to the optimization goal, which may involve either minimizing or maximizing an objective function.

Algorithm 4 Greedy selection

1: function Greedy_selection($X_{p,v},X_{p,v}^{new}$) 2:     if $f\left(X_{p,v}^{new}\right)$ is better than $f\left(X_{p,v}\right)$ then 3:         $X_{p,v}\leftarrow X_{p,v}^{new}$; 4:         $f\left(X_{p,v}\right)\leftarrow f\left(X_{p,v}^{new}\right)$; 5:     else 6:         Keep $X_{p,v}$ and $f\left(X_{p,v}\right)$ values. 7:     end if 8: end function

2.2. Enhanced Jaya Algorithm

The EJAYA algorithm [15] is a metaheuristic built upon the Jaya algorithm to address some of its limitations, namely the limited focus on the current best and worst solutions to guide the search process that might lead to premature convergence. This issue is tackled in EJAYA through the introduction of a more comprehensive exploration strategy capable of leveraging different search methods and incorporating additional information about the population to effectively exploit and explore possible solutions. This strategy aims to safeguard population diversity, navigate away from local optima, and facilitate further enhancement and refinement of candidate solutions.

Similarly to the original Jaya algorithm, EJAYA incorporates information regarding the best and worst solutions to explore the search space. However, it distinguishes itself by utilizing supplementary parameters, including the mean solution and historical solutions, to harmonize its local exploitation strategy (LES) and global exploration strategy (GES).

The LES phase involves the calculation of two elements, the upper and lower local attraction points. These attraction points are employed to direct the population towards potentially superior solutions and simultaneously mitigate the risk of premature convergence.

The upper local attraction point ($PU$) serves to characterize the solution positioned between the current best solution ($X_{best}$) and the current mean solution, determined in the following way:

$$PU=r_3\times X_{best}+\left(1-r_3\right)\times M,$$

(2)

where $r_3$ represents a random number that follows a uniform distribution over the interval from 0 to 1, and M signifies the current population mean defined as follows:

$$M=\frac{1}{popSize}\sum _{p=1}^{popSize}{X}_p.$$

(3)

The lower local attraction point ($PL$) is determined similarly to the upper local attraction point, but instead, it represents the solution in between the present solution with the worst fitness ($X_{worst}$) and the mean solution through the following formulation:

$$PL=r_4\times X_{worst}+\left(1-r_4\right)\times M,$$

(4)

where $r_4$ signifies a random number following a uniform distribution over the interval $[0,1]$.

By leveraging both the $PU$ and $PL$ attraction points, the LES phase of EJAYA can be described as follows:

$$X_{p,v,i}^{new}=X_{p,v,i}+r_{5,v,i}\left(P{U}_i-X_{p,v,i}\right)-r_{6,v,i}\left(P{L}_i-X_{p,v,i}\right),$$

(5)

where $r_{5,v,i}$ and $r_{6,v,i}$ indicate randomly generated numbers uniformly distributed over the interval $[0,1]$.

In an effort to more comprehensively explore the global search space, EJAYA utilizes a GES phase that is based on the principles of the backtracking search optimization algorithm [24]. This is accomplished by alternatively leveraging information from either the current population ($X_{p,v}$) or a historical population ($X_{p,v}^{old}$).

In the first iteration (i.e., at the start of the algorithm), the historical population $X_{p,v}^{old}$ coincides with $X_{p,v}$; however, in the following iterations, it is determined by a switching probability defined in the following way:

$$X_{p,v}^{old}=\left\{\begin{array}{cc}{X}_{p,v}\hfill & \mathrm{if}{P}_{switch}\le 0.5\hfill \\ X_{p,v}^{old}\hfill & \mathrm{otherwise},\hfill \end{array}\right.$$

(6)

with $P_{switch}$ denoting a random number uniformly distributed between 0 and 1.

Subsequently, the historical population $X_{p,v}^{old}$ undergoes the following procedure:

$$X_{p,v}^{old}=permuting\left(X_{p,v}^{old}\right),$$

(7)

where $permuting$ represents a shuffling function that reorders each individual (i.e., candidate solution) within $X_{p,v}^{old}$ randomly.

Finally, the main operational procedure for the GES phase is expressed as follows:

$$X_{p,v,i}^{new}=X_{p,v,i}+k\times \left(X_{p,v,i}^{old}-X_{p,v,i}\right),$$

(8)

with k representing a randomly sampled value with a standard normal distribution spanning from 0 to 1.

Given the pivotal and complementary roles played by both the LES and GES phases in the optimization process, EJAYA ensures a balanced utilization of these search strategies. This equilibrium is maintained through an equivalent switching probability, as expressed by the following formulation:

$$\mathrm{Search} \mathrm{strategy}=\left\{\begin{array}{cc}LES\hfill & \mathrm{if}{P}_{select}>0.5\hfill \\ GES\hfill & \mathrm{otherwise,},\hfill \end{array}\right.$$

(9)

where $P_{select}$ represents a randomly generated number following a uniform distribution in the range of 0 to 1.

Algorithm 5 presents pseudocode, providing a comprehensive overview of the distinct procedural steps constituting EJAYA.

Algorithm 5 EJAYA pseudocode
1: /* Initialization */
2: Initialize $numVar$, $popSize$ and $maxIter$;
3: $X\leftarrow$ Generate_initial_population();
4: Evaluate fitness value $f\left(X\right)$;
5: $X^{old}\leftarrow X$;
6: $i\leftarrow 1$;
7: /* Main loop */
8: while  $i\le maxIter$  do
9:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$;
10:     Determine $P{U}_i$ by Equation (2);
11:     Determine $P{L}_i$ by Equation (4);
12:     if $P_{switch}\le 0.5$ then
13:         $X_i^{old}\leftarrow X_i$;
14:     end if
15:     Permute $X_i^{old}$ by Equation (7);
16:     for $p\leftarrow 1,popSize$  do
17:         if $P_{select}>0.5$ then	▹ Local exploitation strategy
18:            for $v\leftarrow 1,numVar$  do
19:                Update population $X_{p,v,i}^{new}$ by Equation (5);
20:                Check_boundary_integrity $\left(X_{p,v,i}^{new}\right)$;
21:            end for
22:         else	▹ Global exploration strategy
23:            for $v\leftarrow 1,numVar$  do
24:                Update population $X_{p,v,i}^{new}$ by Equation (8);
25:                Check_boundary_integrity$\left(X_{p,v,i}^{new}\right)$;
26:            end for
27:         end if
28:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$;
29:         Greedy_selection$(X_{p,v,i},X_{p,v,i}^{new})$;
30:     end for
31:     $i\leftarrow i+1$;
32: end while
33: Output the best solution found and terminate.

2.3. Rao Optimization Algorithms

The Rao optimization algorithms [17] were proposed in 2020 by R. V. Rao, the same author of the Jaya algorithm, and are composed of three different optimization methods, denoted as Rao-1, Rao-2, and Rao-3.

These algorithms represent a concerted endeavor to advance the field of optimization by devising simple and efficient metaphorless methodologies. A distinctive feature of these algorithms is their deliberate avoidance of algorithm-specific control parameters. This underscores an emphasis on common parameters such as population size and the number of iterations, guided by a simplicity-driven perspective. The motivation behind these developments is based on a broader strategy to foster optimization techniques that eschew reliance on metaphors while simultaneously maintaining algorithm robustness.

The three Rao algorithms share the common approach of incorporating information about the current best and worst solutions and random factors to update and direct the population towards an optimal solution, but each algorithm uses different strategies.

In the context of the Rao-1 algorithm, the updated value ($X_{p,v,i}^{new}$) is determined by the following equation:

$$X_{p,v,i}^{new}=X_{p,v,i}+r_{7,v,i}\left(X_{best,v,i}-X_{worst,v,i}\right),$$

(10)

where $r_{7,v,i}$ is a randomly generated number uniformly distributed over the interval $[0,1]$.

The Rao-2 and Rao-3 algorithms are extended versions of Rao-1 with an additional set of terms in their update equations that introduce a second random factor and random interactions between candidates based on fitness values. This additional set of terms of the Rao-2 and Rao-3 equations is contingent upon whether the fitness value of the current candidate solution, denoted as $f\left(X_{p,v,i}\right)$, is better than the fitness value of the randomly chosen solution, $f\left(X_{t,v,i}\right)$. The main functions of Rao-2 (Equation (11)) and Rao-3 (Equation (12)) are described below:

$$\begin{array}{cc}\hfill X_{p,v,i}^{new}& =X_{p,v,i}+r_{8,v,i}\left(X_{best,v,i}-X_{worst,v,i}\right)\hfill \\ \hfill & +\left\{\begin{array}{cc}{r}_{9,v,i}\left(\left|X_{p,v,i}\right|-\left|X_{t,v,i}\right|\right)\hfill & \mathrm{if}f\left(X_{p,v,i}\right)\mathrm{better}\mathrm{than}f\left(X_{t,v,i}\right)\hfill \\ r_{9,v,i}\left(\left|X_{t,v,i}\right|-\left|X_{p,v,i}\right|\right)\hfill & \mathrm{otherwise},\hfill \end{array}\right.\hfill \end{array}$$

(11)

$$\begin{array}{cc}\hfill X_{p,v,i}^{new}& =X_{p,v,i}+r_{10,v,i}\left(X_{best,v,i}-X_{worst,v,i}\right)\hfill \\ \hfill & +\left\{\begin{array}{cc}{r}_{11,v,i}\left(\left|X_{p,v,i}\right|-X_{t,v,i}\right)\hfill & \mathrm{if}f\left(X_{p,v,i}\right)\mathrm{better}\mathrm{than}f\left(X_{t,v,i}\right)\hfill \\ r_{11,v,i}\left(\left|X_{t,v,i}\right|-X_{p,v,i}\right)\hfill & \mathrm{otherwise}.\hfill \end{array}\right.\hfill \end{array}$$

(12)

In this context, $r_{8,v,i}$, $r_{9,v,i}$, $r_{10,v,i}$ and $r_{11,v,i}$ are random variables uniformly distributed in a range from 0 to 1, and $X_{t,v,i}$ denotes a randomly selected candidate solution from the population (i.e., $t\in [1,popSize]$) that is distinct from $X_{p,v,i}$ (i.e., $t\ne p$).

A unified description of the pseudocode for the Rao-1, Rao-2, and Rao-3 algorithms is presented in Algorithm 6.

Algorithm 6 Rao-1, Rao-2, and Rao-3 pseudocode

1: /* Initialization */   2: Initialize $numVar$, $popSize$ and $maxIter$;   3: $X\leftarrow$ Generate_initial_population();   4: Evaluate fitness value $f\left(X\right)$;   5: $i\leftarrow 1$;   6: /* Main loop */   7: while  $i\le maxIter$  do   8:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$;   9:     for $p\leftarrow 1,popSize$  do 10:         if algorithm = ‘Rao-2’ or ‘Rao-3’ then 11:            $t\leftarrow$ Random candidate solution different than p; 12:         end if 13:         for $v\leftarrow 1,numVar$  do 14:            if algorithm = ‘Rao-1’ then 15:                Update population $X_{p,v,i}^{new}$ by Equation (10); 16:            else if algorithm = ‘Rao-2’ then 17:                Update population $X_{p,v,i}^{new}$ by Equation (11); 18:            else if algorithm = ‘Rao-3’ then 19:                Update population $X_{p,v,i}^{new}$ by Equation (12); 20:            end if 21:            Check_boundary_integrity$\left(X_{p,v,i}^{new}\right)$; 22:         end for 23:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$; 24:         Greedy_selection$(X_{p,v,i},X_{p,v,i}^{new})$; 25:     end for 26:     $i\leftarrow i+1$; 27: end while 28: Output the best solution found and terminate.

2.4. Best-Worst-Play Algorithm

The BWP algorithm [18] is an optimization approach for unconstrained and constrained optimization problems that aim to strike a balance between exploration and exploitation by consecutively employing two operators inspired by Jaya and Rao-1 algorithms.

Through a process of hybridization, the BWP algorithm maintains a straightforward approach analogous to that of the original methods. This is evidenced by its capability to progressively improve the quality of the population over time, ultimately converging toward a near-optimal solution by leveraging information regarding both the best and worst candidate solutions.

The update equation for the BWP algorithm incorporates both Jaya and Rao-1 heuristics. In the case of Jaya, it employs the same unaltered method (see Equation (1)), while the Rao-1 method undergoes modification in the $X_{worst,v,i}$ parameter, as shown below:

$$X_{p,v,i}^{new}=X_{p,v,i}+r_{12,v,i}\left(X_{best,v,i}-\left|X_{worst,v,i}\right|\right),$$

(13)

where $r_{12,v,i}$ is a random variable with a uniform distribution from 0 to 1.

These two methods are applied one after the other to all candidate solutions across all iterations, as illustrated in Algorithm 7.

Algorithm 7 BWP pseudocode

1: /* Initialization */   2: Initialize $numVars$, $popSize$ and $maxIters$;   3: $X\leftarrow$ Generate_initial_population();   4: Evaluate fitness value $f\left(X\right)$;   5: $i\leftarrow 1$;   6: /* Main loop */   7: while  $i\le maxIters$  do   8:     /* Leverage the Jaya heuristic */   9:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$; 10:     for $p\leftarrow 1,popSize$  do 11:         for $v\leftarrow 1,numVars$  do 12:            Update population $X_{p,v,i}^{new}$ by Equation (1); 13:            Check_boundary_integrity$\left(X_{p,v,i}^{new}\right)$; 14:         end for 15:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$; 16:         Greedy_selection$(X_{p,v,i},X_{p,v,i}^{new})$; 17:     end for 18:     /* Leverage the Rao-1 based heuristic */ 19:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$; 20:     for $p\leftarrow 1,popSize$  do 21:         for $v\leftarrow 1,numVars$  do 22:            Update population $X_{p,v,i}^{new}$ by Equation (13); 23:            Check_boundary_integrity$\left(X_{p,v,i}^{new}\right)$; 24:         end for 25:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$; 26:         Greedy_selection$(X_{p,v,i},X_{p,v,i}^{new})$; 27:     end for 28:     $i\leftarrow i+1$; 29: end while 30: Output the best solution found and terminate.

2.5. Max–Min Greedy Interaction Algorithm

The MaGI algorithm is a metaphorless optimization approach recently published by R. Singh et al. [14] that demonstrated effectiveness in mechanism synthesis and exhibited promise for diverse optimization tasks.

The algorithm utilizes maximum and minimum values within the group of candidates, essentially representing the best and worst candidates, to update the population. This approach incorporates operators inspired by the Jaya and Rao-2 algorithms and appears to be influenced by the BWP methodology, as both heuristics are executed sequentially throughout the iteration process. The Jaya main function (see Equation (1)) remains unmodified, whereas the Rao-2 method undergoes adjustments in several parameters, as indicated by the following equation:

$$\begin{array}{cc}\hfill X_{p,v,i}^{new}& =X_{p,v,i}+r_{13,v,i}\left(X_{best,v,i}-\left|X_{worst,v,i}\right|\right)\hfill \\ \hfill & +\left\{\begin{array}{cc}{r}_{14,v,i}\left(X_{p,v,i}-X_{t,v,i}\right)\hfill & \mathrm{if}f\left(X_{p,v,i}\right)\mathrm{better}\mathrm{than}f\left(X_{t,v,i}\right)\hfill \\ r_{14,v,i}\left(X_{t,v,i}-X_{p,v,i}\right)\hfill & \mathrm{otherwise}.\hfill \end{array}\right.\hfill \end{array}$$

(14)

For this condition, $r_{13,v,i}$ and $r_{14,v,i}$ are chosen randomly from a uniform distribution spanning from 0 to 1.

The implementation outline, detailed in Algorithm 8, provides an in-depth explanation of the step-by-step procedures inherent in the MaGI methodology.

Algorithm 8 MaGI pseudocode

1: /* Initialization */   2: Initialize $numVars$, $popSize$ and $maxIters$;   3: $X\leftarrow$ Generate_initial_population();   4: Evaluate fitness value $f\left(X\right)$;   5: $i\leftarrow 1$;   6: /* Main loop */   7: while  $i\le maxIters$  do   8:     /* Leverage the Jaya heuristic */   9:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$; 10:     for $p\leftarrow 1,popSize$  do 11:         for $v\leftarrow 1,numVars$  do 12:            Update population $X_{p,v,i}^{new}$ by Equation (1); 13:            Check_boundary_integrity$\left(X_{p,v,i}^{new}\right)$; 14:         end for 15:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$; 16:         Greedy_selection$(X_{p,v,i},X_{p,v,i}^{new})$; 17:     end for 18:     /* Leverage the Rao-2 based heuristic */ 19:     Determine $X_{best,v,i}$ and $X_{worst,v,i}$; 20:     for $p\leftarrow 1,popSize$  do 21:         for $v\leftarrow 1,numVars$  do 22:            Update population $X_{p,v,i}^{new}$ by Equation (14); 23:            Check_boundary_integrity$\left(X_{p,v,i}^{new}\right)$; 24:         end for 25:         Evaluate fitness value $f\left(X_{p,v,i}^{new}\right)$; 26:         Greedy_selection$(X_{p,v,i},X_{p,v,i}^{new})$; 27:     end for 28:     $i\leftarrow i+1$; 29: end while 30: Output the best solution found and terminate.

3. GPU Parallelization of Metaphorless Optimization Algorithms

In this section, the concepts underpinning GPU programming, including architecture aspects, the nature of parallel computation, and the specific CUDA programming concepts, are discussed. Additionally, detailed information regarding the methodology used for GPU parallelization and the specific implementation of the examined algorithms is also presented.

3.1. Principles of CUDA Programming

GPUs have become an essential component of modern computers. Initially designed for rendering graphics, this hardware has evolved to manage a multitude of graphical elements simultaneously, such as pixels or vertices, for which a large parallel processing capacity is required.

The compute unified device architecture (CUDA) [25] is a computing platform developed by NVIDIA that harnesses the power of GPUs for general-purpose parallel computing, making it possible to take advantage of the massive parallelism offered by the GPU for distinct computing tasks. The CUDA Toolkit 12.1 stack acts as a framework that abstracts the inherent complexities of GPU programming. This streamlines communication and coordination between the CPU and GPU, providing an interface to efficiently utilize GPU resources in order to accelerate specific functions within programs. The functions designed to execute highly parallelized tasks on the GPU are referred to as kernels.

CUDA functions as a heterogeneous computing framework, consequently dictating a specific execution pattern within kernels. The CPU functions as the host, which is responsible for initiating kernel launches and overseeing the control flow of the program. On the other hand, the kernels are executed in parallel by numerous threads on the GPU, designated as the device. In essence, the host performs tasks that are better suited for sequential execution while the GPU handles the computationally intensive parts of the program in parallel. This relationship is illustrated in Figure 1.

The computational resources of the GPU are organized into a grid to execute multiple kernels in parallel. This grid acts as an abstraction layer, structuring the available computational elements into blocks, each containing a set number of threads. This thread hierarchy is configurable into grids with one, two, or three dimensions, tailored to accommodate the parallelization needs of a specific kernel. The configuration parameters within the thread hierarchy play a pivotal role in determining GPU hardware occupancy, making them a critical aspect of optimizing resource utilization.

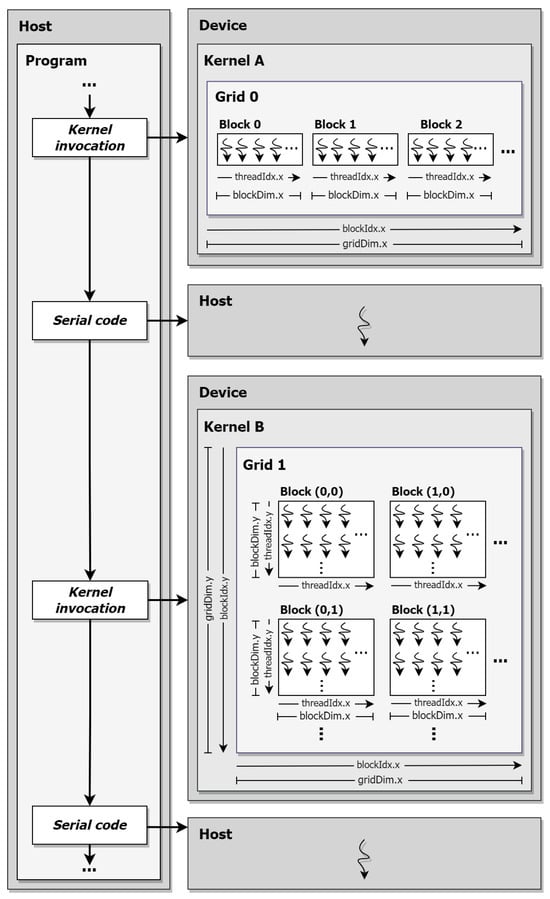

In Figure 1, Kernel A showcases a one-dimensional thread-block arrangement, while Kernel B displays a two-dimensional configuration. The illustration also includes the CUDA built-in variables for accessing the grid and block dimensions (gridDim and blockDim), block and thread indices (blockIdx and threadIdx), and their respective coordinates (x and y). These variables also facilitate the unique identification of individual threads within a kernel through a process known as thread indexing.

The discrete nature of the host and device hardware involves separate memory spaces, preventing direct data access between them. This necessitates explicit data transfers, resulting in substantial computational overheads and performance degradation. Consequently, meticulous optimization of memory access patterns and a reduction in the frequency of data transfer are crucial to mitigating performance bottlenecks [26].

CUDA also provides access to diverse memory types within the GPU memory hierarchy, which is an important consideration for performance optimization. The memory types encompass global, shared, and local memories, each serving distinct purposes. Global memory is the largest memory segment on the device but also the slowest. It remains persistent throughout kernel execution, serves as the interface for data transfers between the host and device, and is accessible by all threads in the GPU, thus enabling global data sharing. The shared memory, though much smaller, offers greater speed but is exclusive to threads within a block, enabling efficient data exchange among them. Finally, local memory is the smallest in size and is private to individual threads, enabling them to store their specific local variables and facilitate the execution of code tailored to each thread.

Implementing CUDA algorithms presents several significant challenges. Efficient memory management, including the optimization of various memory types, is critical. Thread divergence and synchronization overheads must be carefully managed to maintain parallelism and avoid performance degradation. Ensuring scalability through balanced workload distribution and optimal utilization of CUDA cores is essential, along with addressing resource constraints to maximize occupancy. More details about addressing these challenges are discussed in the following subsections.

3.2. Methodology Used for GPU-Based Parallelization

The primary step in parallelizing any algorithm requires an extensive assessment of its architecture, dependencies, data structure, etc., to devise a viable parallelization strategy. While some aspects may not be conducive to parallel execution, others, albeit parallelizable, may pose implementation challenges.

Several studies focusing on parallel and distributed metaheuristic algorithms have employed implementation strategies based on decomposing the optimization problem into smaller, independent subproblems (see [27,28]). These subproblems can then be distributed across multiple parallel computation units, sometimes running several sequential instances of metaheuristic algorithms concurrently. An alternative method involves running specific phases of the algorithm in parallel while others are executed sequentially (see [29,30]). However, these approaches often prove less efficient due to the loss of computational resources attributed to overheads related to data transfers, synchronization, and other communication mechanisms.

While these parallel strategies can notably enhance computational performance compared to their original sequential counterparts, they are suboptimal for GPU computing due to their tendency to underutilize the available computational resources [31]. Furthermore, specific parallelization strategies can result in modifications in the behavior of the parallel algorithm in contrast to its original version, leading to variations in convergence characteristics and the quality of the obtained approximations.

As CUDA inherently adopts a heterogeneous approach, establishing an effective balance between the host and device is crucial. In the proposed GPU-based parallelization, the primary responsibilities of the host include initializing algorithm variables, invoking kernel functions, managing the primary loop, and reporting the best solution found. Consequently, all intensive computations are exclusively handled by the device.

Given this perspective, the proposed methodology for GPU-based parallelization of metaphorless optimization algorithms must ensure optimal utilization of the available GPU resources while still aligning with the fundamental operating principles of the original algorithm. This is essential to ensure a similar convergence behavior and quality of the obtained solutions in the parallelized version. Additionally, maintaining the same flexibility as the original algorithm is paramount, ensuring that the parallel algorithm can operate under virtually any optimization parameters.

To accomplish these objectives and handle large-scale optimization problems efficiently, the GPU-based parallelization design emphasizes the data structures of the optimization algorithms. In this approach, the GPU computational units are assigned based on the size and structure of the data segment being processed. Consequently, scalability is achieved when the number of threads allocated closely matches the size of the data computed. This leads to the alignment of both one-dimensional (1D) and two-dimensional (2D) arrays with the corresponding CUDA thread hierarchy, facilitating their processing by the respective kernels and addressing data locality issues.

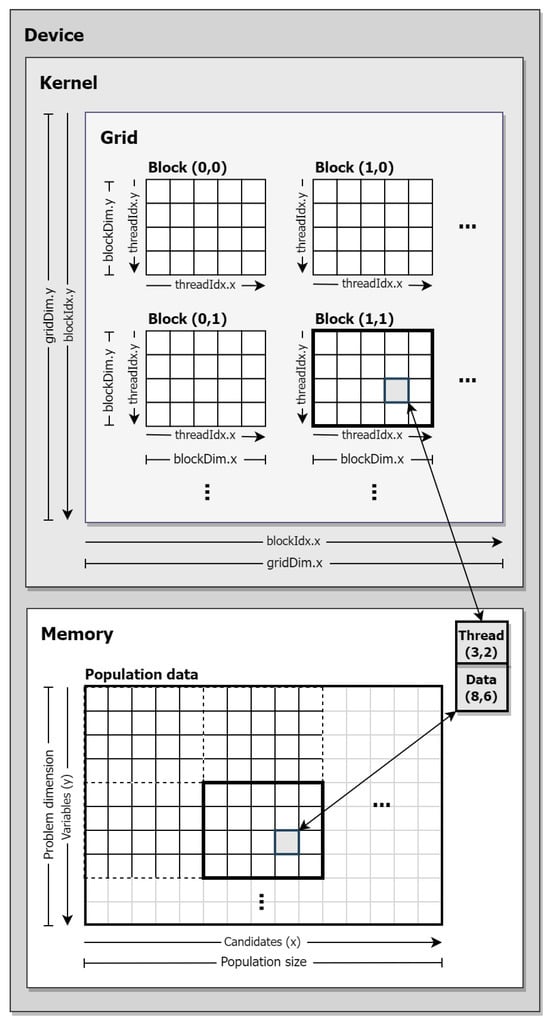

Figure 2 illustrates the data-to-thread indexing of the largest data structure, a 2D array containing population data, to a 2D grid arrangement on the device. This configuration enables parallel computation across multiple blocks of threads. In this example, data corresponding to variable 6 from candidate 8 (using 0 as the starting index) are processed by thread (3,2) within block (1,1). For the parallel processing of 1D array data, such as fitness values from each candidate solution, a 1D thread-block arrangement is utilized.

Optimizing the number of blocks and threads per block is critical for leveraging hardware resources efficiently. However, determining the optimal configuration is not straightforward; it varies based on algorithm characteristics, GPU architecture, memory needs, and workload specifics. Traditional methods for determining this configuration involve iterative experimentation, optimization, and profiling, which can be time-consuming.

In the proposed GPU-based parallelization approach, a dynamic and generalized method to automatically determine optimal GPU hardware occupancy was developed, and its overview is presented in Algorithm 9. This process involves a function that predicts the launch configurations for each kernel using CUDA runtime methods available in devices supporting CUDA 6.5 or higher, utilizing parameters such as data size, supported block size, and kernel memory requirements. To suit the algorithmic data being processed by optimization algorithms, two kernel launch configuration functions were created, one for 1D and another for 2D thread-block kernels. This approach ensures that kernels are adaptable to diverse GPU hardware configurations and are inherently structured for horizontal scalability through the utilization of additional available threads, all achieved without the need for modifications to the parallel implementation. Although automatic methods present the potential for achieving maximum GPU occupancy, they may not consistently produce the most efficient parameters tailored to a specific hardware setup.

In this study, the method for automatically determining optimal GPU hardware occupancy has undergone revision. The modification entails the incorporation of a parameter designed to constrain the suggested block size (i.e., the number of threads allocated for computation in each block used) to a multiple of the supported warp size by the GPU (see line 3 of Algorithm 9). The warp size, which denotes the minimum number of threads that can be concurrently executed in CUDA, is inherently dependent on the GPU architecture and can be automatically derived from the hardware parameters. Empirical tests have revealed that constraining the suggested block size to twice the warp size yields an additional average performance improvement of 19.8% compared to the preceding version of the automated launch configuration method when using the RTX 3090 GPU. This enhancement is primarily attributed to the facilitated coalesced memory access and optimized instruction dispatch achieved through the harmonization of block size.

Algorithm 9 Function to determine kernel occupancy

1: function kernel_launch_configuration($kernel\_fn$, $kernel\_args$, $data\_dim$)   2:     /* Constrain the number of threads per block */   3:     $max\_block\_size\leftarrow 2\times$  device_warp_size;   4:     /* Get the optimal launch configuration */   5:     $launch\_conf\leftarrow$ cudaOccupancyMaxPotentialBlockSize($kernel\_fn$, $max\_block\_size$);   6:     /* Determine threads per block */   7:     $threads\leftarrow$ Determine_threads($data\_dim,launch\_conf$);   8:     /* Calculate required blocks */   9:     $blocks\leftarrow$ Determine_blocks($data\_dim,threads$); 10:     /* Launch the kernel */ 11:     Launch_kernel($kernel\_fn$, $kernel\_args$, $threads$, $blocks$). 12: end function

While both shared memory and local memory exhibit faster access compared to global memory due to their proximity to processing units, their limited size and accessibility pose challenges when handling extensive data volumes. Therefore, the proposed GPU-based implementation prioritizes the use of larger global memory. This memory type offers substantial storage capacity, accommodating extensive datasets, variables, diverse data types, and complex data structures. Moreover, it aids in thread synchronization, ensuring that when a kernel concludes execution and the subsequent one initiates, all processed data synchronizes in the GPU global memory. In scenarios where quicker memory access is more efficient, this approach presents a drawback by potentially limiting computational task performance. Nevertheless, it fosters a versatile implementation in terms of problem size, population size of the optimization algorithm, and GPU hardware compatible with this parallelization method.

The GPU parallelization strategy presented aims to be versatile and adaptable. It is not only capable of utilizing resources across different GPU hardware but can also be seamlessly tailored to suit other metaheuristic optimization methods.

3.3. GPU-Based Acceleration of the Jaya Optimization Algorithm

GPU-Jaya was the first known parallelization of the Jaya algorithm on a GPU, introduced by Wang et al. in 2018 [32] to estimate the parameters of a Li-ion battery model. The parallelization strategy employed in this algorithm focuses on minimizing data transmission between the host and the GPU. It utilizes both global and shared memories to efficiently manage data location, and the algorithm incorporates a parallel reduction procedure to optimize specific steps of the parallelization further. Data are stored in a collection of one-dimensional arrays, leading to the establishment of a set of conversion and mapping mechanisms. This implies a potential computing overhead resulting from the use of data adaptations. The number of threads is fixed at 32, while the number of blocks is determined by the size of the population array ($popSize\times numVar$) divided by 32. This suggests that the population array may need to be a multiple of 32, imposing constraints on selectable test parameters.

The testing encompassed modest population sizes, ranging from 64 to 512. The problem involved six decision variables, with a maximum allowable number of iterations set at 20,000. With the fastest GPU used for testing, a Tesla K20c GPU with 2496 CUDA cores and 5 GB of VRAM, the GPU-Jaya achieved speedup factors ranging from 2.96 to 34.48, with an average of 13.17.

Jimeno-Morenilla et al. proposed [33] another parallelization of the Jaya algorithm on the GPU in 2019. The parallel execution scheme in this implementation determines the number of blocks based on the number of algorithm runs, while the number of threads per block is established by the population size and the number of design variables. However, this approach has the disadvantage of leading to an inefficient use of GPU resources, as the hardware allocation is influenced by the number of algorithm runs rather than the dimensions of the test case. Moreover, it imposes notable constraints on the allowable range of test parameters, particularly the population size and the number of decision variables. These restrictions stem from the close correlation of these parameters with the hardware characteristics of the GPU used for testing, particularly the maximum number of threads per block.

The algorithm underwent evaluation on a GTX 970 GPU featuring 1664 CUDA cores and 2 GB of video random access memory (VRAM). It utilized a set of 30 unconstrained functions with population sizes ranging from 8 to 256, encompassing 2 to 32 decision variables and constrained by a maximum iteration count of 30,000. The implementation achieved maximum speedup factors ranging from 18.4 to 189.6, with an average of 53.

A recent GPU parallelization of the Jaya algorithm proposed by Silva and Lopes [34] makes use of the parallel execution strategy on GPUs detailed in the preceding section. The fundamental structure of this GPU-based version of Jaya is elucidated in Algorithm 10.

Algorithm 10 GPU-based parallel Jaya
1: /* Initialization */
2: Initialize $numVar$, $popSize$ and $maxIter$;	▹ Host
3: $X\leftarrow$ Generate_initial_population_kernel();
4: Evaluate_fitness_values_kernel(X);
5: $i\leftarrow 1$;	▹Host
6: /* Main loop */
7: while $i\le maxIter$ do	▹Host
8:     Determine $X_{best,i}$ and $X_{worst,i}$;
9:     $X_i^{new}\leftarrow$ Jaya-driven_population_update_kernel(Xi);
10:     Evaluate_fitness_values_kernel$\left(X_i^{new}\right)$;
11:     Greedy_selection_kernel$(X_i,X_i^{new})$;
12:     $i\leftarrow i+1$;	▹ Host
13: end while
14: Output the best solution found and terminate.	▹ Host and device

Upon initial observation, juxtaposing the GPU-based Jaya algorithm with its sequential counterpart (Algorithm 1) elucidates a notably analogous structure. They primarily adhere to identical execution procedures, diverging primarily due to the absence of nested loops iterating through the population elements (i.e., candidate solutions) and decision variables. This aspect is a fundamental component of the established parallelization methodology, aiming to maintain the philosophical underpinnings of the original algorithm throughout its adaptation to GPU processing. As a result, the GPU-based version of Jaya retains the ability to generate an optimization behavior identical to the original algorithm.

The provided procedure relies on a heterogeneous computational approach, where the computational involvement of the host is notably limited. As delineated in Algorithm 10, the primary tasks of the host entail initializing algorithmic parameters, invoking various kernel functions, overseeing the algorithm’s iterative steps (encapsulated in the main loop), and documenting the optimal solution identified. Consequently, the host manages the sequential aspects of the algorithm, whereas all optimization-related data reside and undergo processing exclusively within the device. This operational paradigm ensures that no data are transferred between the host and device throughout the main computational process. In the final step of the algorithm, the device identifies the best solution discovered, which is then transferred to the host for output.

Given the aforementioned details, the generation of the initial population takes place directly within the device, following the procedure outlined in Algorithm 11.

In the context of the GPU-based algorithm, the conventional nested loops utilized for iterating through population data during processing have become obsolete due to concurrent/parallel execution. Employing a two-dimensional thread block arrangement grid, the kernel specified in Algorithm 11 facilitates the parallel creation of the initial population. This methodology assigns an individual thread to generate each individual data element within the population (X), supported by a matrix data structure with dimensions $popSize\times numVar$. The kernel leverages the x and y coordinates (indices) from the block dimension (blockDim), block index (blockIdx), and thread index (threadIdx) to determine the specific row and column in the data matrix allocated for computation for assigning each data element individually to a separated thread for processing. This allocation strategy maximizes the efficiency of parallel processing, allowing each thread to perform designated computations based on its unique position within the block and grid structure.

Algorithm 11 Kernel for generating the initial population

1: function Generate_initial_population_kernel( ) 2:     /* Device code */ 3:     Determine $row$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$; 4:     Determine $col$ using y dimension of $blockDim$, $blockIdx$, and $threadIdx$; 5:     if $row\le popSize$ and $col\le numVar$ then 6:         $X[row,col]\leftarrow LB\left[col\right]+rand\left(\right)\times \left(UB\right[col]-LB[col\left]\right)$. 7:     end if 8: end function

The same parallelization technique is applied across various algorithm phases encompassed within the main loop. Consequently, each stage of the computational process now runs concurrently on all elements within a given iteration. This paradigm shift means that $X^{new}$ now signifies all updated candidate solutions within a given algorithmic iteration rather than representing a singular updated candidate. Subsequently, all algorithmic steps have been adjusted accordingly, commencing with the population update kernel outlined in Algorithm 12.

Algorithm 12 Kernel for population update (Jaya)
1: function Jaya-driven_population_update_kernel(X)
2:     /* Device code */
3:     Determine $row$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;
4:     Determine $col$ using y dimension of $blockDim$, $blockIdx$, and $threadIdx$;
5:     if $row\le popSize$ and $col\le numVar$ then
6:         $X^{new}[row,col]=X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-\left|X[row,col]\right|)-$         $rand\left(\right)\times (X_{worst}\left[col\right]-|X[row,col]\left|\right)$;	▹ Equation (1)
7:         Check_boundary_integrity_function$\left(X^{new}\right)$.
8:     end if
9: end function

Similar to the original algorithm, the maintenance of newly generated candidate solutions within the search space boundary remains a necessity. Within the GPU-based algorithm, this task is managed by the function delineated in Algorithm 13.

Algorithm 13 Function to ensure boundary integrity

1: function Check_boundary_integrity_function($X^{new}$) 2:     if $X^{new}[row,col]>UP\left[col\right]$ then 3:         $X^{new}[row,col]\leftarrow UP\left[col\right]$; 4:     end if 5:     if $X^{new}[row,col]<LB\left[col\right]$ then 6:         $X^{new}[row,col]\leftarrow LB\left[col\right]$. 7:     end if 8: end function

The selection of the best candidate solution by a greedy selection algorithm is parallelized in Algorithm 14.

Algorithm 14 Kernel for greedy selection

1: function Greedy_selection_kernel(X, $X^{new}$)   2:     /* Device code */   3:     Determine $index$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;   4:     if $index\le popSize$ then   5:         if $f\left(X^{new}\left[index\right]\right)$ is better than $f\left(X\right[index\left]\right)$ then   6:            $X\left[index\right]\leftarrow X^{new}\left[index\right]$;   7:            $f\left(X\left[index\right]\right)\leftarrow f\left(X^{new}\left[index\right]\right)$.   8:         end if   9:     end if 10: end function

Considering that the data structures supporting fitness values for both the newly generated candidate solutions and the current candidate solutions consist of single-dimensional arrays, each with a length of $popSize$, the kernel implementation solely requires a one-dimensional grid arrangement to conduct parallel comparisons.

Essentially, for concurrent determination of the optimal candidate solution, the greedy selection kernel operates using a total number of threads equivalent to $popSize$. The indexing of data and threads is managed by the variable $index$, which is determined using inherent variables with details about the hierarchical arrangement of blocks and threads.

The present GPU-based parallelization of Jaya distinguishes itself from the previous approaches by its efficient utilization of both the host and device during computation. Specifically, the host exclusively oversees the main loop, and data transfers between the host and device are minimized, never occurring during the most computationally demanding phases of the algorithm. Furthermore, the device directly accesses data without necessitating additional mapping or conversion. Notably, the approach to GPU grid arrangement and kernel invocations deviates from prior implementations. The dimensional structure of the grid and the determination of the necessary threads and blocks for computation are primarily driven by the size and structure of the data undergoing processing.

3.4. GPU-Based Acceleration of the Enhanced Jaya Algorithm

No mention has been found in the existing literature of any GPU-based parallel EJAYA algorithm other than the one detailed in this section and proposed by the authors [35,36].

While analyzing the differences between EJAYA and the original Jaya optimization algorithm, it becomes evident that EJAYA encompasses several additional steps and a more intricate formulation, primarily due to a more complex search method. Consequently, the GPU parallelization of EJAYA explained here demands a more elaborate approach than the original algorithm, requiring the redesign and adaptation of its methods to meet the requisites and constraints of parallel processing. The overview of the GPU-based parallel EJAYA can be observed in Algorithm 15.

According to the GPU-based parallelization strategy employed, all updated candidate solutions are generated simultaneously during each algorithm iteration. This means that some parts of the implementation need to be adjusted to ensure that all essential data for the LES and GES phases (Equations (5) and (8)) are readily available for computation in the population update kernel.

Consequently, to perform the LES phase, the GPU-based EJAYA requires the prior determination of the upper and lower local attraction points ($PU$ and $PL$), as indicated in Equations (2) and (4). This procedure is described in Algorithm 16.

Algorithm 15 GPU-based parallel EJAYA
1: /* Initialization */
2: Initialize $numVar$, $popSize$ and $maxIter$;	▹ Host
3: $X\leftarrow$ Generate_initial_population_kernel();
4: Evaluate_fitness_values_kernel$\left(X\right)$;
5: $X^{old}\leftarrow X$
6: $i\leftarrow 1$;	▹Host
7: /* Main loop */
8: while $i\le maxIter$ do	▹Host
9:     Determine $X_{best,i}$ and $X_{worst,i}$;
10:     Determine_attract_points_kernel();
11:     if $P_{switch}\le 0.5$ then	▹ Host
12:         $X_i^{old}\leftarrow X_i$
13:     end if
14:     Permute_population_kernel$\left(X_i^{old}\right)$;
15:     $P_{select}\leftarrow$ Determine_exploration_strategy_kernel();
16:     $X_i^{new}\leftarrow$ EJAVA-driven_population_update_kernel(Xi);
17:     Evaluate_fitness_values_kernel$\left(X_i^{new}\right)$;
18:     Greedy_selection_kernel$(X_i,X_i^{new})$;
19:     $i\leftarrow i+1$;	▹ Host
20: end while
21: Output the best solution found and terminate.	▹ Host and device

Algorithm 16 Kernel for determining upper and lower attraction points
1: function Determine_attract_points_kernel()
2:     /* Device code */
3:     Determine $index$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;
4:     if $index\le numVar$ then
5:         $PU\left[index\right]\leftarrow ran{d}_{PU}\times X_{best}\left[index\right]+(1-ran{d}_{PU})\times popMean\left[index\right]$;	▹ Equation (2)
6:         $PL\left[index\right]\leftarrow ran{d}_{PL}\times X_{worst}\left[index\right]+(1-ran{d}_{PL})\times popMean\left[index\right]$.	▹ Equation (4)
7:     end if
8: end function

Both $PU$ and $PL$ are single-dimensional arrays with a length the same as the problem dimension ($numVar$). This workload is parallelized simultaneously using a one-dimensional grid arrangement with a number of threads equal to $numVar$, where each thread, denoted by the variable $index$, handles the computation of a specific element within the arrays. The formulation of $PU$ and $PL$ necessitates the determination of two random numbers ($ran{d}_{PU}$ and $ran{d}_{PL}$) and the population mean ($popMean$) prior to the kernel execution.

For the GES phase of the GPU-based EJAYA, the historical population ($X^{old}$) is determined using Equation (6) and subsequently processed by Equation (7). The determination of the switching probability $P_{switch}$ is conducted by the host (specifically, in line 11 of Algorithm 15). This approach is preferable as it is more computationally efficient to handle a simple instruction such as an $if$ statement in the host rather than by the device, considering the overhead related to kernel invocation. For the permutation of the historical population, the first step involves predetermining the random permutation of the position index of the candidate solutions within the population ($rand\_perm\leftarrow randomize\left(\right[1,popSize\left]\right)$). This permutation is then used as a template to shuffle the order of the candidates, as described in Algorithm 17.

Algorithm 17 Kernel for permuting the population

1: function Permute_population_kernel($X^{old}$) 2:     /* Device code */ 3:     Determine $index$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$; 4:     if $index\le popSize$ then 5:         $X^{old}\left[index\right]\leftarrow X^{old}[rand\_perm\left[index\right]]$. 6:     end if 7: end function

Before updating the population, the exploration strategy, denoted as $P_{select}$ in Equation (9), needs to be determined. In the GPU-based EJAYA, where the newly generated candidate solutions $X^{new}$ represent the candidates for the entire population in a single iteration, the $P_{select}$ factor must correspond to the exploration strategy for the whole population. This ensures that the exploration strategy aligns with the parallel processing of the entire population. The procedure is illustrated in Algorithm 18.

Algorithm 18 Kernel for determining the exploration strategy

1: function Determine_exploration_strategy_kernel( )   2:     /* Device code */   3:     Determine $index$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;   4:     if $index\le popSize$ then   5:         if $rand\left(\right)>0.5$ then   6:            $P_{select}\left[index\right]\leftarrow$‘LES’;   7:         else   8:            $P_{select}\left[index\right]\leftarrow$‘GES’.   9:         end if 10:     end if 11: end function

The functionality required for performing both the LES and GES search strategies during the population update phase is facilitated through a unified kernel, as illustrated in Algorithm 19. In this kernel, the method for updating the population in the GES phase requires predefining an array of random numbers following a normal distribution called $randn$, with a length equal to $popSize$ in each iteration. This approach ensures a correct parallelization of Equation (8), as the same random number is applied to update every dimension of a population candidate.

Algorithm 19 Kernel for population update (EJAYA)
1: function EJAYA-driven_population_update_kernel(X)
2:     /* Device code */
3:     Determine $row$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;
4:     Determine $col$ using y dimension of $blockDim$, $blockIdx$, and $threadIdx$;
5:     if $row\le popSize$ and $col\le numVar$ then
6:         if $P_{select}\left[row\right]=‘{\mathit{LES}}^{’}$ then	▹ LES
7:            $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (PU\left[col\right]-X[row,col])-$ $rand\left(\right)\times \left(PL\right[col]-X[row,col\left]\right)$;	▹Equation (5)
8:         else	▹ GES
9:            $X^{new}[row,col]\leftarrow X[row,col]+randn\left[row\right]\times (X^{old}[row,col]-$ $X[row,col])$;	▹Equation (8)
10:         end if
11:         Check_boundary_integrity_function$\left(X^{new}\right)$.
12:     end if
13: end function

3.5. GPU-Based Acceleration of the Rao Optimization Algorithms

Algorithm 20 presents a comprehensive characterization of a collective GPU-based parallelization of the three Rao algorithms recently proposed by the authors [37]. This implementation integrates the elementary methods constituting Rao-1, Rao-2, and Rao-3 heuristics into a singular and unified parallelization.

Algorithm 20 GPU-based parallel Rao-1, Rao-2, and Rao-3
1: /* Initialization */
2: Initialize $numVar$, $popSize$ and $maxIter$;	▹ Host
3: $X\leftarrow$ Generate_initial_population_kernel();
4: Evaluate_fitness_values_kernel$\left(X\right)$;
5: $i\leftarrow 1$;	▹Host
6: /* Main loop */
7: while $i\le maxIter$ do	▹Host
8:     Determine $X_{best,i}$ and $X_{worst,i}$;
9:     if algorithm = ‘Rao-2’ or ‘Rao-3’ then
10:         $t_i\leftarrow$ Select_random_solutions_kernel();
11:     end if
12:     $X_i^{new}\leftarrow$ Rao-driven_population_update_kernel (Xi);
13:     Evaluate_fitness_values_kernel$\left(X_i^{new}\right)$;
14:     Greedy_selection_kernel$(X_i,X_i^{new})$;
15:     $i\leftarrow i+1$;	▹ Host
16: end while
17: Output the best solution found and terminate.	▹ Host and device

The three Rao algorithms employ a shared optimization approach, differing primarily in their population update strategies. Their fundamental algorithmic phases bear a resemblance to those in Jaya. Notably, the main distinction arises in Rao-2 and Rao-3, where these algorithms necessitate selecting a random candidate solution from the population to compute the newly generated candidate solutions. Given the current parallelization strategy, this random candidate solution must be established in advance for all population candidates in each iteration before conducting the population update. This procedure is outlined in Algorithm 21.

Algorithm 21 Kernel for selecting random solutions from the population

1: function Select_random_solutions_kernel()   2:     /* Device code */   3:     Determine $index$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;   4:     if $index\le popSize$ then   5:         $t\left[index\right]\leftarrow rand(1,popSize)$   6:         while  $t\left[index\right]\ne index$  do   7:            $t\left[index\right]\leftarrow rand(1,popSize)$.   8:         end while   9:     end if 10: end function

The kernel is organized to operate using a one-dimensional grid, as its purpose is to generate a 1D array with a length equal to $popSize$ containing the indices of the random candidate solutions.

Algorithm 22 provides a consolidated method that generates updated candidate solutions for all the Rao algorithms in a unified manner.

Algorithm 22 Kernel for population update (Rao algorithms)
1: function Rao-driven_population_update_kernel(X)
2:     /* Device code */
3:     Determine $row$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;
4:     Determine $col$ using y dimension of $blockDim$, $blockIdx$, and $threadIdx$;
5:     if $row\le popSize$ and $col\le numVar$ then
6:         if algorithm =‘Rao-1’ then	▹ Equation (10)
7:            $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-X_{worst}\left[col\right])$;
8:         else if algorithm =‘Rao-2’ then	▹ Equation (11)
9:            if $f\left(X\right)\left[row\right]$ is better than $f\left(X\right)\left[t\right[row\left]\right]$ then
10:                $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-$                $X_{worst}\left[col\right])+rand\left(\right)\times (abs\left(X[row,col]\right)-abs\left(X[t\left[row\right],col]\right))$;
11:            else
12:                $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-$                $X_{worst}\left[col\right])+rand\left(\right)\times (abs\left(X[t\left[row\right],col]\right)-abs\left(X[row,col]\right))$;
13:            end if
14:         else if algorithm =‘Rao-3’ then	▹ Equation (12)
15:            if $f\left(X\right)\left[row\right]$ is better than $f\left(X\right)\left[t\right[row\left]\right]$ then
16:                $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-$                $abs\left(X_{worst}\left[col\right]\right))+rand\left(\right)\times (abs\left(X[row,col]\right)-X[t\left[row\right],col])$;
17:            else
18:                $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-$                $abs\left(X_{worst}\left[col\right]\right))+rand\left(\right)\times (abs\left(X[t\left[row\right],col]\right)-X[row,col])$;
19:            end if
20:         end if
21:         Check_boundary_integrity_function$\left(X^{new}\right)$.
22:     end if
23: end function

3.6. GPU-Based Acceleration of the BWP Algorithm

The main skeleton of the GPU-based parallel BWP algorithm presented by the authors in [38] is shown in Algorithm 23.

Algorithm 23 GPU-based parallel BWP algorithm.
1: /* Initialization */
2: Initialize $numVar$, $popSize$ and $maxIter$;	▹ Host
3: $X\leftarrow$Generate_initial_pop_kernel();
4: Evaluate_fitness_kernel$\left(X\right)$;
5: $i\leftarrow 1$;	▹Host
6: /* Main loop */
7: while $i\le maxIter$ do	▹Host
8:     /* Leverage the Jaya heuristic */
9:     Determine $X_{best,i}$ and $X_{worst,i}$;
10:     $X_i^{new}\leftarrow$ Jaya-driven_population_update_kernel(Xi);
11:     Evaluate_fitness_kernel$\left(X_i^{new}\right)$;
12:     Greedy_selection_kernel$(X_i,X_i^{new})$;
13:     /* Leverage the Rao-1 based heuristic */
14:     Determine $X_{best,i}$ and $X_{worst,i}$;
15:     $X_i^{new}\leftarrow$ BWP-Rao1-based_population_update_kernel(Xi);
16:     Evaluate_fitness_kernel$\left(X_i^{new}\right)$;
17:     Greedy_selection_kernel$(X_i,X_i^{new})$;
18:     $i\leftarrow i+1$;	▹ Host
19: end while
20: Output the best solution found and terminate.	▹ Host and device

Although the BWP optimization strategy involves the consecutive use of two distinct algorithms (namely Jaya and a Rao-1-based heuristic), it is not possible to reduce the number of steps in the main loop. This limitation stems from the absence of overlapping methods, as each algorithmic phase is inherently sequential in nature.

The contents of Algorithm 24 detail the population update process within the Rao-1-based method.

Algorithm 24 Kernel for population update (BWP)
1: function BWP-Rao1-based_population_update_kernel(X)
2:     /* Device code */
3:     Determine $row$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;
4:     Determine $col$ using y dimension of $blockDim$, $blockIdx$, and $threadIdx$;
5:     if $row\le popSize$ and $col\le numVar$ then
6:         $X^{new}[row,col]=X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-|X_{worst}\left[col\right]\left|\right)$;	▹ Equation (13)
7:         Check_boundary_integrity_function$\left(X^{new}\right)$.
8:     end if
9: end function

3.7. A Novel GPU-Based Parallelization of the MaGI Algorithm

This section introduces a novel GPU-based parallelization of the MaGI algorithm following the methodology outlined in this study, as illustrated by Algorithm 25.

Since the MaGI algorithm employs two sequential metaphorless heuristics in sequence, its approach to parallel implementation closely resembles that of BWP.

Algorithm 25 GPU-based parallel MaGI algorithm
1: /* Initialization */
2: Initialize $numVar$, $popSize$ and $maxIter$;	▹ Host
3: $X\leftarrow$Generate_initial_pop_kernel();
4: Evaluate_fitness_kernel$\left(X\right)$;
5: $i\leftarrow 1$;	▹Host
6: /* Main loop */
7: while $i\le maxIter$ do	▹Host
8:     /* Leverage the Jaya heuristic */
9:     Determine $X_{best,i}$ and $X_{worst,i}$;
10:     $X_i^{new}\leftarrow$ Jaya-driven_population_update_kernel(Xi);
11:     Evaluate_fitness_kernel$\left(X_i^{new}\right)$;
12:     Greedy_selection_kernel$(X_i,X_i^{new})$;
13:     Determine $X_{best,i}$ and $X_{worst,i}$;
14:     /* Leverage the Rao-2 based heuristic */
15:     $t_i\leftarrow$ Select_random_solutions_kernel();
16:     $X_i^{new}\leftarrow$ MaGI-Rao2-based_population_update_kernel(Xi);
17:     Evaluate_fitness_kernel$\left(X_i^{new}\right)$;
18:     Greedy_selection_kernel$(X_i,X_i^{new})$;
19:     $i\leftarrow i+1$;	▹ Host
20: end while
21: Output the best solution found and terminate.	▹ Host and device

In accordance with the original algorithm (Algorithm 8), the first phase of the main loop of the GPU-based parallel MaGI algorithm involves employing the Jaya heuristic to generate an updated population, followed by further refinement using a Rao-2-based heuristic. This last heuristic requires the identification of random solutions from the population that have to be precomputed for all candidate solutions before population updates take place (line 15 of Algorithm 25), in accordance with the parallelization strategy presented for the original Rao-2 algorithm.

The GPU-based parallel implementation of the modified version of the Rao-2 heuristic is presented in Algorithm 26.

Algorithm 26 Kernel for population update (MaGI)
1: function MaGI-Rao2-based_population_update_kernel(X)
2:     /* Device code */
3:     Determine $row$ using x dimension of $blockDim$, $blockIdx$, and $threadIdx$;
4:     Determine $col$ using y dimension of $blockDim$, $blockIdx$, and $threadIdx$;
5:     if $row\le popSize$ and $col\le numVar$ then
6:         if $f\left(X\right)\left[row\right]$ is better than $f\left(X\right)\left[t\right[row\left]\right]$ then	▹ Equation (14)
7:            $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-$ $abs\left(X_{worst}\left[col\right]\right))+rand\left(\right)\times (X[row,col]-X[t\left[row\right],col])$;
8:         else
9:            $X^{new}[row,col]\leftarrow X[row,col]+rand\left(\right)\times (X_{best}\left[col\right]-$ $abs\left(X_{worst}\left[col\right]\right))+rand\left(\right)\times (X[t\left[row\right],col]-X[row,col])$;
10:         end if
11:         Check_boundary_integrity_function$\left(X^{new}\right)$.
12:     end if
13: end function

4. Computational Experiments

This section offers a thorough description of the experimental setup and the methodology utilized to evaluate the performance of the implemented algorithms. It also details the specifications of the hardware employed in the experiments, in addition to the test parameters and the problems selected for testing.

4.1. Experimental Setting and Implementation

Throughout this study, all computation times encompass the entire algorithmic process, from its initialization phase to reaching the stopping criterion and reporting the best solution found. This comprehensive approach ensures unbiased comparisons between the execution times of sequential and parallel implementations of the same algorithm. Specifically, in the case of parallel implementations running on the GPU, considerations such as algorithm initialization, data movements, overheads associated with kernel calls, and other sequential computation costs inherent in its heterogeneous approach are factored into their computational times.

The sequential and parallel implementations were written in Julia programming language [39] (version 1.9.4) using double-precision floating-point arithmetic. Julia is an open-source and dynamic high-level language for scientific computation that shares syntax similarities with MATLAB, a widely adopted language in academia and industry for optimization problems. The parallel implementations leveraged the CUDA.jl package [40] (version 5.1.1) that serves as the primary gateway for programming NVIDIA GPUs in Julia.

To ensure a more rigorous and unbiased comparison of results, meticulous care was taken to implement the sequential and parallel algorithms in a highly standardized manner. This deliberate approach helps ensure a fair and accurate assessment of their performance.

The algorithmic parameters selected for this study encompassed a range of problem dimensions extending from 500 to 2000, with increments of 500. Additionally, the population size was determined to be 10 times the problem dimension, resulting in a range of population sizes from 5000 to 20,000, with increments of 5000. To improve the accuracy and reliability of experimental results, a total of 31 independent runs were carried out for every combination of algorithm, problem instance, and dimension before averaging the results, and the stopping criterion for each run was set to 1000 iterations.

The Julia programming language utilizes a just-in-time (JIT) compilation process, translating high-level code into machine code [41]. This particular feature often results in longer execution times during the initial runtime of a Julia program. To ensure the integrity of the computational analysis, a warm-up phase was implemented that runs prior to testing. During this phase, a single run of each test combination is executed, and the results are discarded. Ultimately, this approach effectively prevents the inclusion of the delay caused by the JIT compiler during the first-time loading and compiling of Julia code.

Both the sequential and parallel implementations used the same parameters, ensuring a consistent evaluation across all experiments.

Sequential computation times of the tested algorithms serve as a reference point for performing a comparative analysis aimed at quantifying the degree of acceleration achieved by their corresponding GPU-based implementation.

4.2. Hardware Used in the Computational Experiments

The hardware setup for the sequential algorithm comprised the AMD Ryzen 9 5950X desktop CPU, featuring 16 cores, 32 threads, and 16 GB of DDR4 RAM. Despite the availability of the AMD Epyc 7643 server CPU, the AMD Ryzen 9 5950X was selected for sequential tests due to its superior performance in our analysis. Although both CPUs are implementations of the same Zen 3 microarchitecture, the Ryzen 9 5950X, with its higher clock speeds (3.4 GHz base and 4.9 GHz boost compared to the 2.3 GHz base and 3.6 GHz boost of the Epyc 7643 CPU), was able to achieve around 13.2% faster mean computational times. Higher clock speeds can have a marked impact on CPU performance [42], resulting in faster execution of instructions and improved throughput.

Performance analysis of GPU-based parallel algorithms was conducted on different GPUs with distinct hardware configurations. This approach was adopted to gain insights into the real-world applicability of the employed parallelization strategy, evaluating its performance and scalability across different architectures and available computing resources. The following GPU hardware was selected for the GPU-based computational experiments:

• NVIDIA GeForce RTX 3090 GPU (Ampere architecture) with 10 496 CUDA cores and 24 GB of GDDR6X VRAM;
• NVIDIA Tesla T4 GPU (Turing architecture) with 2560 CUDA cores and 16 GB of GDDR6 VRAM;
• NVIDIA Tesla V100S PCIe GPU (Volta architecture) with 5120 CUDA cores and 32 GB of HBM2 VRAM;
• NVIDIA A100 PCIe GPU (Ampere architecture) with 6912 CUDA cores and 80 GB of HBM2e VRAM.

Performance across the GPU devices will serve as benchmarks for evaluating algorithm efficiency and identifying potential bottlenecks. Initially, detailed performance analysis will primarily focus on the RTX 3090 and the A100 GPUs, both from the same Ampere architecture. While the former is a consumer-grade GPU, the latter is a professional-grade device. One of the main differences between these GPU classes is that the RTX 3090 was designed to have a high number of CUDA cores, whereas the A100 was designed for high memory bandwidth. This analysis aims to thoroughly evaluate the behavior of parallel algorithms in terms of performance and scalability across a spectrum of hardware configurations, assessing their adaptability to different available hardware resources.

4.3. Test Problems

The collection of NESs chosen to serve as benchmark problems represents the modeling of several real-world scenarios from a variety of scientific disciplines, including engineering, physics, and mathematics. These equations were specifically selected from existing literature due to their complex nature, encompassing a wide range of difficulty levels. Consequently, they present great challenges for their resolution, in particular through traditional iterative numerical methods, also due to the computational demands involved.

Upon consideration of the analyzed algorithms, benchmark functions, and problem dimensions, a total of 280 distinct test setups were identified for 31 separate executions in both sequential and parallel implementations (with repetition for each tested GPU hardware).

The mathematical expressions for the selected benchmark functions are provided below. All test problems demonstrate scalability in terms of problem dimension, emphasizing the growing demand for computer resources as the problem size increases.

Problem 1.

(Broyden tridiagonal function [43], $n=500,1000,1500,2000$)

$f_1\left(\mathit{x}\right)=(3-2x_1)x_1-2x_2+1$,

$f_n\left(\mathit{x}\right)=(3-2x_n)x_n-x_{n-1}+1$,

$f_i\left(\mathit{x}\right)=(3-2x_i)x_i-x_{i-1}-2x_{i+1}+1,i=2,\dots ,n-1$,

$D={([-1,1],\dots ,[-1,1])}^T$.

Problem 2.

(Discrete boundary value function [43], $n=500,1000,1500,2000$)

$f_1\left(\mathit{x}\right)=2x_1-x_2+h^2{(x_1+h+1)}^3/2$,

$f_n\left(\mathit{x}\right)=2x_n-x_{n-1}+h^2{(x_n+nh+1)}^3/2$,

$f_i\left(\mathit{x}\right)=2x_i-x_{i-1}-x_{i+1}+h^2{(x_i+t_i+1)}^3/2,$$i=2,\dots ,n-1$,

where $h=\frac{1}{n+1}$ and $t_i=ih$,

$D={([0,5],\dots ,[0,5])}^T$.

Problem 3.

(Extended Powell singular function [43], $n=500,1000,1500,2000$)

$f_{4i-3}\left(\mathit{x}\right)=x_{4i-3}+10x_{4i-2}$,

$f_{4i-2}\left(\mathit{x}\right)=\sqrt{5}(x_{4i-1}-x_{4i})$,

$f_{4i-1}\left(\mathit{x}\right)={(x_{4i-2}-2x_{4i-1})}^2$,

$f_{4i}\left(\mathit{x}\right)=\sqrt{10}{(x_{4i-3}-x_{4i})}^2,i=1,\dots ,5$,

$D={([-100,100],\dots ,[-100,100])}^T$.

Problem 4.

(Modified Rosenbrock function [44], $n=500,1000,1500,2000$)

${\displaystyle f_{2i-1}\left(\mathit{x}\right)=\frac{1}{1+exp(-x_{2i-1})}-0.73}$,

$f_{2i}\left(\mathit{x}\right)=10(x_{2i}-x_{2i-1}^2),i=1,\dots ,\frac{n}{2}$,

$D={([-10,10],\dots ,[-10,10])}^T$.

Problem 5.

(Powell badly scaled function [44], $n=500,1000,1500,2000$)

$f_{2i-1}\left(\mathit{x}\right)={10}^4{x}_{2i-1}{x}_{2i}-1$,

$f_{2i}\left(\mathit{x}\right)=exp(-x_{2i-1})+exp(-x_{2i})-1.0001,i=1,\dots ,\frac{n}{2}$,

$D={([0,100],\dots ,[0,100])}^T$.

Problem 6.

(Schubert–Broyden function [45], $n=500,1000,1500,2000$)

$f_1\left(\mathit{x}\right)=(3-x_1)x_1+1-2x_2$,

$f_n\left(\mathit{x}\right)=(3-x_n)x_n+1-x_{n-1}$,

$f_i\left(\mathit{x}\right)=(3-x_i)x_i+1-x_{i-1}-2x_{i+1},i=2,\dots ,n-1$,

$D={([-100,100],\dots ,[-100,100])}^T$.

Problem 7.

(Martínez function [46], $n=500,1000,1500,2000$)

$f_1\left(\mathit{x}\right)=(3-0.1x_1)x_1+1-2x_2+x_1$,

$f_n\left(\mathit{x}\right)=(3-0.1x_n)x_n+1-2x_{n-1}+x_n$,

$f_i\left(\mathit{x}\right)=(3-0.1x_i)x_i+1-x_{i-1}-2x_{i+1}+x_1,i=2,\dots ,n-1$,

$D={([-100,100],\dots ,[-100,100])}^T$.

Problem 8.

(Extended Rosenbrock function [43], $n=500,1000,1500,2000$)

$f_{2i-1}\left(\mathit{x}\right)=10(x_{2i}-x_{2i-1}^2)$,

$f_{2i}\left(\mathit{x}\right)=1-x_{2i-1},i=1,\dots ,\frac{n}{2}$,

$D={([-100,100],\dots ,[-100,100])}^T$.

Problem 9.

(Bratu’s problem [47], $n=500,1000,1500,2000$)

$f_1\left(\mathit{x}\right)=-2x_1+x_2+\alpha h^{2}exp\left(x_1\right)$,

$f_n\left(\mathit{x}\right)=x_{n-1}-2x_n+\alpha h^{2}exp\left(x_n\right)$,

${\displaystyle f_i\left(\mathit{x}\right)=x_{i-1}-2x_i+x_{i+1}+\alpha h^{2}exp\left(x_i\right)}$, $i=2,\dots ,n-1$,

where $h=\frac{1}{n+1}$ and $\alpha \ge 0$ is a parameter; here $\alpha =3.5$,

$D={([-100,100],\dots ,[-100,100])}^T$.

Problem 10.

(The beam problem [47], $n=500,1000,1500,2000$)

$f_1\left(\mathit{x}\right)=-2x_1+x_2+\alpha h^{2}sin\left(x_1\right)$,

$f_n\left(\mathit{x}\right)=x_{n-1}-2x_n+\alpha h^{2}sin\left(x_n\right)$,

${\displaystyle f_i\left(\mathit{x}\right)=x_{i-1}-2x_i+x_{i+1}+\alpha h^{2}exp\left(x_i\right)}$, $i=2,\dots ,n-1$,

where $h=\frac{1}{n+1}$ and $\alpha \ge 0$ is a parameter; here $\alpha =11$,

$D={([-100,100],\dots ,[-100,100])}^T$.

5. Results and Discussion

The subsequent discussion examines the results from the parallelization of the metaphorless optimization algorithms discussed in this article in the GPU architecture. The primary emphasis lies in evaluating the attained speedup gains, understanding their behavior concerning increases in the problem dimension, and exploring different GPU hardware configurations. This aims to unravel the implications of leveraging parallel computational resources for optimizing algorithmic performance.

The speedup factor quantifies the performance improvements resulting from the parallel implementation and is defined as the ratio of the sequential to the parallel computation time. It is important to note that the speedup values presented in this analysis were calculated using the full computational times without rounding up.

Test data are systematically organized into tables, wherein test problems are categorized by dimension (i.e., population size and number of variables). The mean sequential computational times are presented in the column labeled CPU, while the results for parallel computation are organized into distinct columns based on the GPU hardware used for testing. All reported computational times pertain to the comprehensive execution of the algorithm, encompassing the entire duration from initiation to completion.

The primary emphasis in parallel computation is on data obtained with the RTX 3090 and A100 GPUs, which are presented in columns bearing the same names. The selection of the RTX 3090 GPU aligns with its consistent use in previous parallelization of the majority of algorithms discussed in this article, while the A100 GPU represents a highly relevant hardware option in the professional sector, and it is employed here to illustrate the scalability of the parallel implementations and its adeptness in harnessing additional GPU resources without necessitating adjustments to the underlying parallelization strategy.

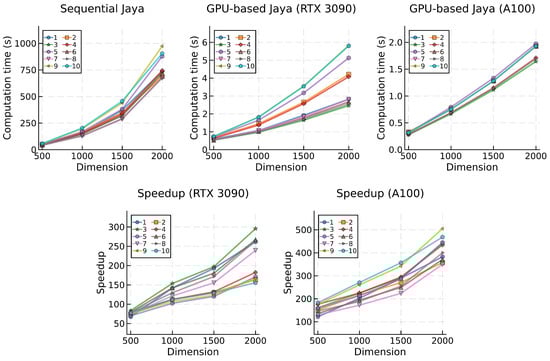

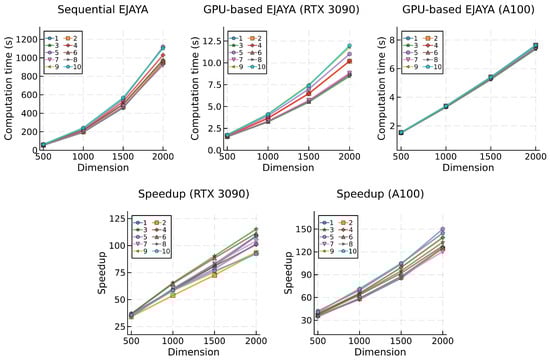

Data obtained from the analysis of mean computational times for both sequential and parallel implementations, along with the corresponding speedup gains for each studied algorithm, were organized into tables and grouped based on similarities in algorithmic structure. Consequently,

Table 1. Mean computational results for the Jaya and Enhanced Jaya algorithms. The time is in seconds, and the speedup gain for each GPU is shown in parentheses.

		Jaya			EJAYA
Pop. (Vars)	Prob. No.	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)
	1	39.90	0.59 (67.6)	0.33 (121.9)	54.98	1.56 (35.3)	1.54 (35.8)
	2	49.72	0.66 (74.8)	0.33 (151.0)	56.23	1.65 (34.1)	1.54 (36.5)
	3	44.69	0.53 (83.6)	0.28 (160.7)	56.78	1.54 (36.9)	1.50 (37.7)
	4	50.11	0.63 (79.2)	0.28 (176.4)	58.86	1.64 (35.9)	1.51 (39.0)
5000	5	49.33	0.70 (70.2)	0.31 (158.9)	63.58	1.72 (36.9)	1.51 (42.2)
(500)	6	42.70	0.54 (79.6)	0.31 (135.7)	57.49	1.56 (36.8)	1.54 (37.4)
	7	40.87	0.55 (74.7)	0.31 (129.9)	52.99	1.56 (33.9)	1.54 (34.4)
	8	42.18	0.54 (78.2)	0.29 (146.7)	53.54	1.54 (34.7)	1.51 (35.4)
	9	55.34	0.73 (75.3)	0.32 (175.4)	63.19	1.78 (35.5)	1.53 (41.2)
	10	57.69	0.74 (77.8)	0.32 (182.8)	62.75	1.76 (35.6)	1.54 (40.7)
	1	152.28	1.07 (141.8)	0.75 (202.5)	195.02	3.31 (58.9)	3.38 (57.6)
	2	163.46	1.45 (112.5)	0.75 (216.9)	198.86	3.70 (53.8)	3.39 (58.7)
	3	150.11	0.98 (153.7)	0.67 (225.1)	212.96	3.25 (65.5)	3.30 (64.6)
	4	154.95	1.38 (112.4)	0.69 (224.7)	217.28	3.65 (59.6)	3.32 (65.5)
10,000	5	169.35	1.65 (102.5)	0.79 (213.4)	230.65	3.93 (58.7)	3.33 (69.3)
(1000)	6	146.03	1.03 (142.1)	0.75 (194.0)	214.38	3.31 (64.8)	3.39 (63.3)
	7	129.48	1.07 (121.4)	0.75 (172.1)	200.85	3.34 (60.2)	3.39 (59.3)
	8	129.78	1.00 (129.7)	0.69 (188.3)	194.61	3.26 (59.6)	3.31 (58.7)
	9	196.08	1.83 (107.2)	0.75 (260.4)	241.98	4.15 (58.3)	3.38 (71.6)
	10	203.50	1.82 (111.8)	0.75 (270.8)	240.76	4.11 (58.5)	3.38 (71.2)
	1	370.98	1.92 (193.0)	1.28 (289.7)	459.26	5.65 (81.2)	5.38 (85.4)
	2	346.46	2.66 (130.4)	1.28 (270.6)	470.60	6.48 (72.6)	5.40 (87.1)
	3	324.86	1.65 (197.1)	1.12 (290.9)	497.39	5.51 (90.3)	5.24 (94.9)
	4	339.46	2.57 (132.1)	1.15 (294.4)	525.25	6.49 (81.0)	5.28 (99.5)
15,000	5	381.45	3.17 (120.3)	1.33 (285.9)	549.86	7.00 (78.5)	5.29 (103.9)
(1500)	6	319.96	1.77 (180.4)	1.28 (249.6)	497.15	5.62 (88.5)	5.40 (92.0)
	7	287.13	1.85 (155.4)	1.28 (223.8)	474.74	5.71 (83.1)	5.41 (87.7)
	8	292.39	1.70 (171.7)	1.15 (255.3)	462.30	5.57 (83.1)	5.27 (87.7)
	9	439.23	3.56 (123.4)	1.28 (342.4)	565.03	7.50 (75.4)	5.41 (104.5)
	10	457.05	3.54 (129.0)	1.28 (356.7)	567.82	7.41 (76.7)	5.41 (105.0)
	1	737.74	2.82 (261.5)	1.93 (383.0)	949.89	8.74 (108.7)	7.59 (125.1)
	2	689.07	4.21 (163.6)	1.93 (357.5)	950.15	10.19 (93.2)	7.63 (124.5)
	3	729.06	2.46 (295.8)	1.65 (443.0)	977.18	8.48 (115.3)	7.36 (132.7)
	4	744.16	4.08 (182.5)	1.71 (434.7)	1030.45	10.21 (100.9)	7.42 (138.9)
20,000	5	878.30	5.13 (171.1)	1.97 (444.8)	1119.75	11.01 (101.7)	7.46 (150.1)
(2000)	6	714.79	2.68 (267.2)	1.93 (371.0)	975.85	8.76 (111.5)	7.63 (127.8)
	7	674.34	2.82 (239.4)	1.93 (350.0)	919.19	8.83 (104.1)	7.64 (120.4)
	8	678.22	2.57 (264.3)	1.69 (400.4)	932.70	8.55 (109.1)	7.40 (126.0)
	9	974.28	5.83 (167.0)	1.93 (505.3)	1106.00	11.78 (93.9)	7.64 (144.8)
	10	904.68	5.81 (155.8)	1.93 (468.5)	1105.26	11.98 (92.2)	7.64 (144.7)

Note: Bold numbers in parentheses represent the speedup gain for each GPU.

presents computational results for the Jaya and EJAYA algorithms; the three Rao algorithms are showcased in

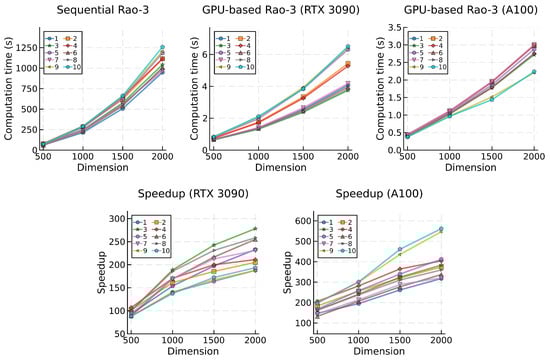

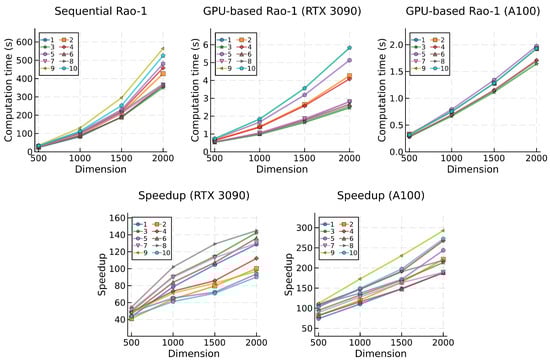

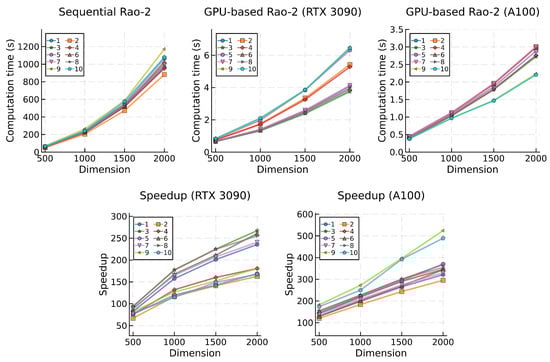

Table 2. Mean computational results for the Rao algorithms. The time is in seconds, and the speedup gain for each GPU is shown in parentheses.

		Rao-1			Rao-2			Rao-3
Pop. (Vars)	Prob. No.	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)
	1	24.03	0.55 (43.3)	0.32 (74.2)	55.51	0.67 (82.6)	0.43 (129.6)	62.39	0.67 (93.4)	0.42 (147.6)
	2	27.01	0.66 (41.1)	0.33 (82.0)	50.78	0.76 (67.0)	0.42 (120.5)	76.75	0.75 (101.8)	0.42 (183.2)
	3	26.37	0.54 (49.2)	0.28 (94.8)	61.59	0.66 (93.9)	0.40 (154.5)	64.46	0.64 (100.0)	0.40 (163.1)
	4	30.90	0.63 (48.8)	0.28 (109.1)	56.52	0.75 (75.7)	0.40 (143.0)	79.82	0.75 (107.0)	0.39 (206.2)
5000	5	34.11	0.70 (48.8)	0.31 (108.6)	60.58	0.80 (76.0)	0.42 (143.6)	70.70	0.80 (87.9)	0.42 (167.7)
(500)	6	25.76	0.55 (46.5)	0.32 (81.7)	58.38	0.66 (88.2)	0.45 (129.4)	59.20	0.66 (89.1)	0.45 (132.7)
	7	28.29	0.55 (51.3)	0.32 (89.5)	60.83	0.68 (90.0)	0.44 (138.4)	63.15	0.67 (93.9)	0.44 (144.3)
	8	29.80	0.55 (54.5)	0.29 (103.8)	61.48	0.65 (94.3)	0.41 (151.4)	65.34	0.66 (99.6)	0.40 (162.8)
	9	35.18	0.73 (47.9)	0.31 (112.2)	68.65	0.84 (81.8)	0.38 (182.2)	74.35	0.84 (88.1)	0.37 (200.0)
	10	32.55	0.74 (43.9)	0.32 (103.1)	65.59	0.84 (78.4)	0.38 (173.7)	73.43	0.83 (88.2)	0.37 (197.0)
	1	82.91	1.05 (78.6)	0.75 (110.4)	219.10	1.39 (157.5)	1.11 (198.1)	214.49	1.39 (153.8)	1.10 (195.0)
	2	90.39	1.41 (64.2)	0.75 (119.9)	204.32	1.75 (116.8)	1.11 (183.9)	283.81	1.76 (161.1)	1.11 (256.4)
	3	88.50	0.97 (90.8)	0.67 (132.6)	234.66	1.32 (177.7)	1.03 (227.3)	248.38	1.32 (188.7)	1.03 (241.1)
	4	101.40	1.38 (73.5)	0.69 (146.9)	227.08	1.72 (132.1)	1.04 (218.1)	292.75	1.72 (170.3)	1.04 (281.8)
10,000	5	109.02	1.67 (65.3)	0.79 (137.4)	237.69	1.98 (120.2)	1.07 (221.3)	276.37	1.97 (140.1)	1.07 (258.4)
(1000)	6	86.80	1.04 (83.8)	0.75 (115.9)	227.92	1.36 (167.7)	1.13 (202.5)	231.80	1.37 (169.1)	1.12 (206.7)
	7	95.58	1.06 (90.0)	0.75 (127.9)	233.46	1.41 (165.1)	1.12 (208.3)	239.59	1.42 (169.2)	1.12 (214.0)
	8	101.57	1.00 (102.0)	0.69 (147.4)	236.84	1.34 (176.8)	1.05 (225.9)	248.91	1.34 (185.8)	1.05 (237.9)
	9	130.21	1.83 (71.2)	0.75 (172.8)	263.01	2.07 (126.8)	0.97 (272.4)	292.20	2.08 (140.6)	0.97 (300.2)
	10	112.72	1.84 (61.3)	0.76 (149.2)	242.10	2.11 (115.0)	0.97 (249.8)	290.69	2.11 (137.6)	0.96 (301.3)
	1	190.52	1.82 (104.7)	1.28 (148.8)	515.54	2.56 (201.1)	1.94 (265.5)	507.35	2.57 (197.4)	1.94 (262.0)
	2	210.81	2.65 (79.6)	1.28 (164.6)	472.17	3.34 (141.2)	1.94 (243.6)	620.31	3.34 (185.5)	1.94 (320.4)
	3	188.79	1.65 (114.7)	1.12 (169.1)	536.08	2.38 (225.0)	1.78 (300.3)	578.01	2.38 (242.6)	1.78 (324.5)
	4	221.14	2.58 (85.8)	1.15 (191.7)	520.62	3.25 (160.2)	1.79 (290.6)	651.36	3.26 (199.9)	1.79 (364.6)
15,000	5	230.39	3.19 (72.3)	1.34 (171.7)	548.90	3.84 (142.8)	1.87 (294.2)	631.89	3.85 (164.1)	1.86 (339.6)
(1500)	6	189.74	1.77 (107.2)	1.28 (147.8)	525.59	2.49 (211.1)	1.95 (269.4)	539.88	2.49 (216.6)	1.95 (277.2)
	7	209.67	1.86 (113.0)	1.28 (163.5)	537.68	2.59 (207.3)	1.96 (274.2)	564.67	2.66 (212.6)	1.96 (288.2)
	8	218.59	1.69 (129.2)	1.15 (190.9)	543.32	2.42 (224.6)	1.80 (301.1)	558.39	2.42 (231.1)	1.80 (310.4)
	9	295.56	3.57 (82.9)	1.28 (230.5)	585.36	3.85 (152.1)	1.48 (396.4)	660.64	3.94 (167.5)	1.52 (435.6)
	10	252.91	3.56 (71.0)	1.28 (197.4)	575.19	3.86 (149.0)	1.47 (392.4)	663.25	3.85 (172.4)	1.44 (461.2)
	1	362.13	2.81 (128.8)	1.93 (188.0)	961.60	4.08 (235.5)	2.99 (321.4)	948.69	4.07 (232.8)	2.99 (317.6)
	2	426.73	4.26 (100.2)	1.93 (221.4)	882.08	5.42 (162.7)	2.99 (295.3)	1114.94	5.43 (205.2)	2.98 (374.1)
	3	351.16	2.46 (142.5)	1.65 (213.4)	1001.60	3.75 (267.3)	2.72 (367.8)	1043.39	3.75 (278.2)	2.72 (383.4)
	4	458.26	4.08 (112.2)	1.71 (267.7)	952.20	5.27 (180.6)	2.76 (345.4)	1113.26	5.27 (211.1)	2.75 (404.2)
20,000	5	481.20	5.13 (93.7)	1.97 (243.7)	1067.28	6.32 (168.9)	2.88 (370.2)	1185.69	6.32 (187.7)	2.88 (411.8)
(2000)	6	363.18	2.67 (136.1)	1.93 (188.5)	1029.87	3.95 (260.8)	2.99 (344.2)	1008.06	3.95 (255.0)	2.99 (337.1)
	7	364.72	2.81 (129.9)	1.93 (189.3)	993.69	4.13 (240.6)	3.01 (330.3)	965.57	4.18 (230.9)	3.01 (321.1)
	8	370.64	2.56 (145.0)	1.69 (218.8)	978.14	3.83 (255.2)	2.76 (354.5)	989.94	3.83 (258.6)	2.75 (359.7)
	9	564.40	5.83 (96.9)	1.93 (292.7)	1171.44	6.48 (180.9)	2.23 (524.3)	1206.58	6.43 (187.5)	2.21 (546.7)
	10	525.56	5.83 (90.1)	1.93 (272.2)	1078.68	6.45 (167.2)	2.21 (489.2)	1258.08	6.50 (193.4)	2.24 (561.8)

Note: Bold numbers in parentheses represent the speedup gain for each GPU.

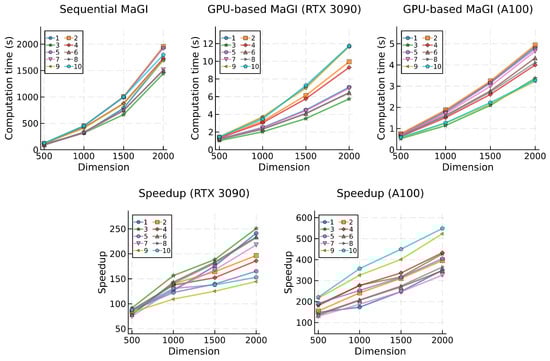

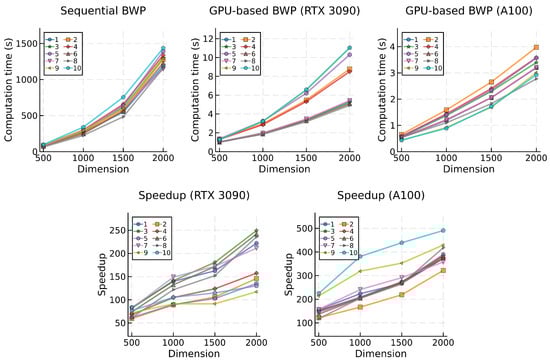

, while the outcomes of the tests conducted with the BWP and MaGI algorithms are displayed in

Table 3. Mean computational results for the Jaya and enhanced Jaya algorithms. The time is in seconds, and the speedup gain for each GPU is shown in parentheses.

		BWP			MaGI
Pop. (Vars)	Prob. No.	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)	CPU Time	RTX 3090 Time (Gain)	A100 Time (Gain)
	1	83.04	1.00 (83.3)	0.53 (156.0)	107.64	1.23 (87.4)	0.72 (148.7)
	2	79.48	1.34 (59.4)	0.65 (121.5)	117.63	1.41 (83.2)	0.76 (155.2)
	3	83.83	1.03 (81.6)	0.56 (150.4)	94.22	1.03 (91.7)	0.52 (180.4)
	4	88.05	1.30 (68.0)	0.58 (151.0)	116.55	1.33 (87.7)	0.63 (185.6)
5000	5	84.39	1.37 (61.7)	0.58 (145.6)	123.60	1.43 (86.4)	0.65 (191.4)
(500)	6	74.44	1.01 (73.9)	0.54 (137.4)	93.03	1.18 (78.6)	0.69 (135.6)
	7	83.18	1.02 (81.7)	0.53 (157.0)	90.15	1.20 (74.9)	0.69 (130.1)
	8	64.09	1.04 (61.4)	0.54 (118.2)	91.30	1.17 (78.2)	0.65 (141.0)
	9	92.16	1.28 (71.9)	0.43 (214.1)	120.75	1.46 (82.9)	0.56 (216.4)
	10	98.07	1.28 (76.5)	0.44 (224.9)	128.80	1.46 (88.0)	0.58 (221.1)
	1	266.94	1.91 (139.8)	1.19 (223.4)	318.06	2.51 (126.6)	1.83 (173.6)
	2	265.09	2.98 (89.0)	1.59 (166.8)	452.80	3.23 (140.0)	1.87 (241.7)
	3	280.87	1.99 (141.2)	1.38 (204.1)	317.79	2.03 (156.4)	1.14 (278.1)
	4	300.54	2.87 (104.8)	1.44 (208.6)	419.10	3.05 (137.4)	1.51 (276.6)
10,000	5	291.19	3.25 (89.7)	1.40 (207.4)	447.20	3.65 (122.6)	1.77 (253.2)
(1000)	6	248.07	1.88 (132.3)	1.22 (204.2)	334.23	2.33 (143.3)	1.62 (206.8)
	7	291.98	1.96 (149.0)	1.21 (241.2)	320.02	2.47 (129.4)	1.70 (187.7)
	8	225.04	1.85 (121.8)	1.10 (204.4)	329.33	2.34 (140.7)	1.58 (207.9)
	9	293.84	3.22 (91.3)	0.92 (318.8)	409.07	3.74 (109.4)	1.26 (325.9)
	10	340.01	3.22 (105.5)	0.89 (381.0)	454.26	3.47 (130.8)	1.27 (357.2)
	1	550.07	3.39 (162.4)	2.06 (267.5)	789.59	4.50 (175.6)	3.18 (247.9)
	2	581.02	5.48 (106.0)	2.65 (218.9)	1008.38	6.14 (164.2)	3.24 (310.8)
	3	614.33	3.40 (180.8)	2.30 (267.1)	665.81	3.53 (188.5)	2.10 (317.6)
	4	658.30	5.32 (123.8)	2.41 (273.6)	878.04	5.77 (152.2)	2.61 (336.7)
15,000	5	637.82	6.20 (102.8)	2.34 (272.8)	993.52	7.12 (139.5)	3.15 (315.6)
(1500)	6	563.17	3.28 (171.6)	2.06 (273.3)	750.12	4.09 (183.6)	2.77 (270.5)
	7	598.77	3.47 (172.3)	2.06 (291.4)	740.67	4.41 (167.8)	3.00 (247.1)
	8	484.28	3.18 (152.1)	1.83 (264.7)	746.81	4.12 (181.1)	2.72 (274.7)
	9	596.64	6.53 (91.4)	1.69 (352.9)	869.23	6.94 (125.2)	2.17 (401.2)
	10	755.36	6.59 (114.7)	1.72 (439.1)	1002.26	7.27 (137.8)	2.23 (450.0)
	1	1190.73	5.37 (221.9)	3.20 (372.5)	1704.56	7.07 (241.2)	4.86 (350.4)
	2	1280.47	8.78 (145.9)	3.98 (321.9)	1956.22	9.95 (196.6)	4.94 (395.9)
	3	1299.94	5.21 (249.4)	3.40 (382.4)	1442.29	5.75 (250.8)	3.37 (427.5)
	4	1338.01	8.50 (157.4)	3.58 (373.4)	1732.39	9.31 (186.1)	4.00 (433.2)
20,000	5	1391.69	10.30 (135.1)	3.57 (389.5)	1929.49	11.68 (165.2)	4.77 (404.7)
(2000)	6	1231.50	5.09 (241.9)	3.21 (383.9)	1503.84	6.43 (233.9)	4.33 (347.1)
	7	1147.42	5.43 (211.4)	3.21 (357.6)	1515.59	6.95 (218.0)	4.65 (326.1)
	8	1160.41	4.92 (235.9)	2.78 (418.0)	1501.78	6.46 (232.4)	4.11 (365.0)
	9	1293.98	11.03 (117.3)	3.01 (429.4)	1690.29	11.69 (144.6)	3.23 (523.4)
	10	1436.48	11.04 (130.1)	2.93 (490.7)	1798.28	11.75 (153.1)	3.28 (548.7)

Note: Bold numbers in parentheses represent the speedup gain for each GPU.

. Although Jaya and EJAYA are presented side by side, it is important to highlight that the EJAYA algorithm possesses a distinct structure compared to the other algorithms.

Findings reveal the superior efficiency of GPU-based algorithms compared to their corresponding sequential implementations. In all algorithms, the speedup gains increased proportionally with the growth of the problem dimension. Consequently, the lower speedup gains were observed in the smallest dimensions, while the most pronounced speedups were achieved in the largest dimensions. This expectation is rooted in the parallelization strategy employed for GPU-based algorithms, wherein the allocation of GPU processing capabilities (expressed in terms of the number of CUDA cores, the block size, and the number of blocks) is adjusted automatically according to the problem dimensionality and inherent characteristics of the GPU.

Regarding the GPU hardware, the A100 GPU demonstrated speedup gains ranging from a minimum of 34.4$\times$ in the EJAYA algorithm to a maximum of 561.8$\times$ in Rao-3, achieving a global mean speedup (across all algorithms, problems, and dimensions) of 231.2$\times$. This performance surpassed that of the RTX 3090 GPU, which attained speedups ranging from 33.9$\times$ in the EJAYA algorithm to 295.8$\times$ with the Jaya algorithm, resulting in a global mean speedup of 127.9$\times$, approximately 44.7% lower than that of the A100 GPU.

The GPU-based algorithm that most effectively leveraged the parallel processing capabilities of the GPU hardware was the Rao-3 algorithm, with an average speedup across all problems and dimensions of 169.9$\times$ for the RTX 3090 GPU and 290.0$\times$ for the A100. In contrast, the GPU-based EJAYA algorithm demonstrated more modest, although still relevant, speedup values, with an average speedup of 69.9$\times$ for the first GPU and 82.6$\times$ for the second. This observed result could be attributed to the parallelization strategy employed for the EJAYA algorithm, which faced challenges in attaining a similar level of efficiency as the remaining algorithms. Additionally, inherent characteristics of the EJAYA algorithm, such as the utilization of a more complex exploration method involving different strategies requiring switching and selecting probabilities, mean historical solutions, and permutation of population elements, contribute to its distinct performance dynamics.

Upon analyzing the results obtained for the Rao algorithms (refer to Table 2), a clear pattern becomes apparent. The Rao-1 algorithm, characterized by the simplest mathematical model among the three, exhibited the shortest computational time, resulting in an average of 194.23 s for the sequential algorithm (executed on the CPU). Conversely, Rao-2 and Rao-3 required approximately 147.9% more time on average than Rao-1 to complete identical tests, with a respective duration of 460.08 s and 502.96 s.

In a comparative evaluation, the GPU-based implementations demonstrated superior scalability amidst the increasing complexity of the Rao algorithms when juxtaposed with their sequential counterparts. With the RTX 3090 GPU, the Rao-1 algorithm yielded a global average of 2.06 s, while Rao-2 and Rao-3 exhibited an increase of approximately 26.7% (2.60 s for Rao-2 and 2.61 s for Rao-3). Employing the A100 GPU, the difference in the global average between Rao-1 (1.04 s) and both Rao-2 and Rao-3 (1.51 s and 1.50 s) was approximately 45.1% higher. Although this denotes a superior growth rate in computational time when compared with the RTX 3090 GPU, it is noticeable that the A100 GPU achieved an average speedup that was 73.7% higher.

This enhanced scalability of the GPU-based algorithm is further reflected in the speedup values attained across the various Rao algorithms. The algorithm with lower computational demands achieved comparatively lower speedup gains. Specifically, for the GPU-based Rao-1 algorithm running on the RTX 3090, the average speedup was 84.8$\times$, escalating to 155.4$\times$ for Rao-2 and 169.9$\times$ for Rao-3. Compared to Rao-1, this represents an increase in speedup of 83.3% and 100.3%, respectively. A similar trend is observed with the A100 GPU, where average speedup gains for the Rao algorithms were 159.8$\times$, 261.1$\times$, and 290.0$\times$. This denotes a comparative increase in speedup achieved with Rao-2 and Rao-3 over Rao-1 of 63.4% and 81.5%, respectively.

A similar scenario unfolds with the BWP and MaGI algorithms (Table 3), where the speedup attained by the GPU-based implementation increases when transitioning to a more computationally demanding algorithm. Despite both algorithms being Jaya-based, the MaGI algorithm features a slightly more intricate mathematical model, being based on Rao-2 as opposed to Rao-1 in the case of the BWP algorithm. Consequently, the sequential implementation of the MaGI algorithm resulted in a 34.1% increase in global average computation time compared to BWP.

When comparing both algorithms using the GPU-based implementation, the observed increases were smaller. Utilizing the RTX 3090, the increase was approximately 14.7%, and it rose to approximately 26.5% with the A100 GPU. Consistent with previous findings, while the A100 exhibits a greater growth in computational times compared to the RTX 3090 GPU when transitioning to a more demanding algorithm, the speedups achieved by the A100 were superior, resulting in an average increase of 104.5% when considering both the BWP and MaGI algorithms.

The behavior of both sequential and parallel implementations of the studied metaphorless algorithms across the different problem dimensions, along with the achieved speedups, is depicted in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9.

While profiling the different test problems and specifically examining the top three most and least computationally demanding in terms of average execution time, certain patterns become evident. Results from the sequential implementation of the algorithms reveal that problems 5, 9, and 10 consistently rank among the most demanding, with the exception of problem 9, which does not appear in the top three most demanding for the BWP and MaGi algorithms. In parallel testing, the RTX 3090 GPU exhibits a similar pattern, consistently ranking problems 5, 9, and 10 as the most computationally demanding across all algorithms. However, when using the A100 GPU, no similar or consistent pattern emerges. No single problem ranks as the most demanding of all algorithms, but problems 1, 2, and 5 typically rank among the slowest. After analyzing the test problems per individual algorithm, problem 5 appears to be one of the slowest in both sequential and parallel implementations for most tested algorithms. The exception is in EJAYA, Rao-2, and Rao-3, where problem 5 does not rank among the top three slowest problems when computing with the A100 GPU.

Problems 1, 6, 7, and 8 usually emerge as the least computationally demanding in the sequential tests. However, no single problem consistently ranks as the fastest for all algorithms. In the context of the GPU-based implementations, tests utilizing the RTX 3090 GPU consistently position problems 3, 6, and 8 as the fastest across all tested algorithms. Nonetheless, no consistent pattern is observed when using the A100 GPU. Generally, problems 3, 8, 9, and 10 rank among the top three in terms of the lowest average execution time. When individually assessing the test problems for each algorithm, problem 8 generally appears among the least computationally intensive in both sequential and parallel implementations, with the exception of the Rao-2 and Rao-3 algorithms, where no specific pattern has emerged.

A consistent trend observed in all sequential implementations reveals an escalating impact with the growing problem dimension, giving rise to a concave upward curve characterized by an increasing slope. This trend indicates that computational time becomes more pronounced as dimensionality increases. Such behavior aligns seamlessly with the nature of the test problems, as scaling up NESs generally leads to a surge in computational complexity. This underscores the imperative need for efficient algorithmic strategies capable of navigating the computational challenges posed by these intricate mathematical models.

Upon analyzing the computational times for GPU-based algorithms, two key observations provide insights into the performance characteristics of the proposed parallel implementation and GPU hardware. The first observation pertains to the grouping of lines representing computation times for each test problem. The general dispersion of lines observed in the data obtained with the RTX 3090 GPU suggests that this hardware may be more influenced by problem complexity, resulting in higher variability in computational performance. In contrast, the A100 GPU exhibits a more clustered grouping of computation times, indicating more stable and predictable performance across different problem dimensions. Notably, two exceptions to this trend are observed in the GPU-based implementation of BWP (Figure 8) and MaGI (Figure 9) algorithms.

The second and more pertinent observation concerns the gradient of computation time. When testing GPU-based algorithms with the RTX 3090 GPU, increases in problem dimension result in a less pronounced rise in computational time compared to the corresponding sequential version of the same algorithm. Conversely, most tests conducted with the A100 GPU suggest an almost linear relationship between computational time and problem dimension. However, it is noteworthy that some results obtained with the BWP and MaGI algorithms deviate more substantially from a linear trend. This implies that the rate at which computational time increases remains more constant with the growing problem dimension when the A100 GPU is used.

This observation suggests that GPU-based algorithms can more efficiently handle the scaling of computational demands. It also implies that the parallel implementation is adept at effectively distributing and managing the workload across its parallel processing cores, thereby better controlling the rise in computational time.

Insights into the scalability and efficiency gains of the proposed parallelization strategy can be derived from an analysis of the speedup achieved during the transition from sequential to parallel GPU algorithms. Across all test scenarios, the speedup lines (bottom plots in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9) exhibit a clear upward trend, indicating the proficient parallelization of the algorithms in the GPU-based implementation tested in both the RTX 3090 and A100 GPU. Furthermore, with the increase in problem dimension, the speedup consistently rises, emphasizing the effectiveness of the parallelization strategy in managing larger computational workloads and highlighting its scalability.

With the RTX 3090 GPU, variations in problem dimensions, as observed in the Jaya, BWP, and MaGI GPU-based algorithms, sometimes result in more jagged speedup lines, while the A100 GPU tends to consistently produce smoother speedup results. This observation suggests that the former GPU is more sensitive to variations in computational demands. While the speedup lines obtained with both GPUs exhibit positive growth for all algorithms across all problem dimensions, specific algorithms such as EJAYA, Rao-2, and Rao-3 display a concave downward shape in the speedups achieved with the RTX 3090, indicating a slowdown in speedup growth at higher dimensions. In contrast, the speedup lines resulting from the A100 GPU mostly show a nearly linear or concave upward shape, signifying that the parallelization strategy effectively leverages this GPU hardware to achieve superior processing capabilities.

A noteworthy observation unfolds when examining the speedup performance across different problems. Problems 9 and 10 generally demonstrate remarkable speedup achievements with the A100 GPU. In contrast, these same problems tend to rank among the worst speedup results when executed on the RTX 3090 GPU. This disparity in speedup outcomes between the two GPUs underscores the nuanced influence of problem characteristics on the effectiveness of parallelization strategies.

A more comprehensive analysis aiming to further investigate the adaptation capabilities of the parallelization strategy across various GPU hardware configurations is presented in

Table 4. Mean computational results per algorithm and dimension. The time is in seconds, and the speedup gain for each GPU is shown in parentheses.

Alg.	Pop. (Vars)	CPU Time	Tesla T4 Time (Gain)	RTX 3090 Time (Gain)	Tesla V100S Time (Gain)	A100 Time (Gain)
Jaya	5000 (500)	47.25	0.82 (57.6)	0.62 (75.9)	0.36 (132.2)	0.31 (153.6)
	10,000 (1000)	159.50	2.72 (58.7)	1.33 (120.1)	0.80 (199.0)	0.74 (216.9)
	15,000 (1500)	355.90	5.84 (61.0)	2.44 (145.9)	1.44 (247.7)	1.24 (286.1)
	20,000 (2000)	772.46	10.16 (76.0)	3.84 (201.1)	2.28 (338.3)	1.86 (415.5)
EJAYA	5000 (500)	58.04	2.27 (25.5)	1.63 (35.6)	1.40 (41.6)	1.53 (38.0)
	10,000 (1000)	214.73	8.45 (25.4)	3.60 (59.6)	3.28 (65.4)	3.36 (64.0)
	15,000 (1500)	506.94	23.61 (21.5)	6.29 (80.5)	5.76 (88.1)	5.35 (94.8)
	20,000 (2000)	1006.64	40.25 (25.0)	9.85 (102.2)	8.85 (113.8)	7.54 (133.5)
Rao-1	5000 (500)	29.40	0.82 (35.8)	0.62 (47.4)	0.36 (82.3)	0.31 (95.6)
	10,000 (1000)	99.91	2.71 (36.8)	1.32 (75.4)	0.80 (124.6)	0.74 (135.9)
	15,000 (1500)	220.81	5.84 (37.8)	2.43 (90.8)	1.44 (153.7)	1.24 (177.4)
	20,000 (2000)	426.80	10.16 (42.0)	3.84 (111.0)	2.28 (187.0)	1.86 (229.6)
Rao-2	5000 (500)	59.99	1.22 (49.2)	0.73 (82.2)	0.49 (123.3)	0.41 (145.7)
	10,000 (1000)	232.62	4.46 (52.1)	1.65 (141.4)	1.25 (185.6)	1.06 (219.6)
	15,000 (1500)	536.04	10.00 (53.6)	3.06 (175.2)	2.42 (221.7)	1.80 (298.1)
	20,000 (2000)	1011.66	17.54 (57.7)	4.97 (203.6)	3.87 (261.2)	2.75 (367.3)
Rao-3	5000 (500)	68.96	1.22 (56.6)	0.73 (94.6)	0.49 (141.7)	0.41 (169.2)
	10,000 (1000)	261.90	4.46 (58.7)	1.65 (158.9)	1.25 (209.5)	1.06 (247.7)
	15,000 (1500)	597.58	10.00 (59.8)	3.08 (194.3)	2.42 (247.3)	1.80 (332.7)
	20,000 (2000)	1083.42	17.52 (61.8)	4.98 (217.8)	3.87 (280.0)	2.75 (393.7)
BWP	5000 (500)	83.07	1.59 (52.3)	1.17 (71.3)	0.62 (133.3)	0.54 (154.2)
	10,000 (1000)	280.36	5.48 (51.2)	2.51 (111.6)	1.42 (197.1)	1.23 (227.1)
	15,000 (1500)	603.98	11.95 (50.5)	4.68 (128.9)	2.63 (229.4)	2.11 (286.1)
	20,000 (2000)	1277.06	20.95 (61.0)	7.57 (168.8)	4.31 (296.2)	3.29 (388.6)
MaGI	5000 (500)	108.37	1.96 (55.2)	1.29 (84.0)	0.75 (144.2)	0.64 (168.1)
	10,000 (1000)	380.19	7.00 (54.3)	2.88 (131.8)	1.81 (209.8)	1.56 (244.3)
	15,000 (1500)	844.44	15.42 (54.7)	5.39 (156.7)	3.43 (246.1)	2.72 (310.8)
	20,000 (2000)	1677.47	27.02 (62.1)	8.70 (192.7)	5.66 (296.5)	4.15 (403.8)

Note: Bold numbers in parentheses represent the speedup gain for each GPU.

. The provided data include the average times of all test problems per problem dimension and are grouped by algorithm. The computations encompass results for the sequential implementation (in the column labeled ‘CPU’) and the GPU-based implementation executed on four different GPUs, along with the achieved speedup gains.

The performance hierarchy among the tested GPUs indicates that the Tesla T4 exhibits the lowest overall performance, followed by the RTX 3090, Tesla V100S, and, finally, the A100, thereby showcasing the highest performance. This alignment consistently corresponds to the inherent hardware characteristics and capabilities of each GPU. The RTX 3090, distinguished by a markedly greater number of CUDA cores and higher memory bandwidth compared to the Tesla T4, naturally positions itself higher in the performance hierarchy. Despite both the Tesla V100S and A100 having fewer CUDA cores than the RTX 3090, they are intricately engineered for parallel processing, featuring notably more advanced memory subsystems capable of facilitating data movement at substantially higher rates.

Comparatively, the Tesla V100S and A100 GPUs differ in their configurations. The former has both a higher CUDA core count and a wider memory bus. It is important to acknowledge that critical aspects of the GPU microarchitecture, including CUDA compute capability, instruction pipeline depth, execution unit efficiency, and memory hierarchy intricacies, also contribute greatly to the overall performance of a GPU.

All tested GPUs demonstrated positive speedup ratios across all algorithms and dimensions. Nevertheless, concerning algorithms EJAYA, BWP, and MaGI, the Tesla T4 GPU exhibited a marginal decrease in average speedup ratios within some of the middle problem dimensions, followed by an increase in the highest problem dimension. Despite this marginal reduction, it is crucial to emphasize that the Tesla T4 GPU consistently maintained positive speedup ratios. This indicates a nuanced shift in the efficiency of the GPU, which could be attributed to factors related to the parallelization strategy or to GPU hardware, such as the arrangement of CUDA cores or the internal configuration of processing units.

When examining the execution times of the sequential implementations, the Rao-1 algorithm stands out as the fastest, indicative of a lower computational demand. However, this was not mirrored in the GPU results of the same algorithm. The computational times obtained with the GPU-based Rao-1, across all tested GPUs, closely resemble those acquired with the GPU-based Jaya, a mathematically more complex algorithm. This observation suggests a potential bottleneck in the performance of the parallelization strategy, possibly stemming from inherent characteristics of the parallelization design coupled with other factors related to GPU programming. These factors may encompass thread setup and coordination, overhead associated with kernel launch, thread synchronization mechanisms, and other CUDA programming nuances.

6. Conclusions

The analysis of GPU-based implementations of metaphorless optimization algorithms, conducted within the framework of a standardized parallelization strategy, has yielded insightful conclusions regarding the efficacy, performance characteristics, and scalability of parallel computation across a diverse set of large-scale NESs with varying dimensions, tested on different GPU hardware configurations.

The utilization of parallel computational resources on GPUs proved highly effective in enhancing algorithmic performance. The GPU-based versions of the tested metaphorless optimization algorithms consistently demonstrated superior efficiency compared to their sequential counterparts. In the detailed analysis conducted, the achieved speedup ranged from a minimum of 33.9$\times$ to a maximum of 561.8$\times$. The observed speedup gains showed a proportional correlation with the augmentation of the problem dimension. Smaller dimensions resulted in more modest speedup gains, while larger dimensions led to more notable improvements. This behavior aligns with the adaptive nature of the parallelization strategy, dynamically adjusting GPU processing capabilities based on problem complexity.

The efficiency of GPU-based implementations varied among different optimization algorithms. The Rao-3 algorithm demonstrated exceptional efficiency in leveraging parallel processing capabilities, achieving the highest average speedup across all tested dimensions. Conversely, algorithms with more intricate mathematical models, such as EJAYA, exhibited more modest yet still substantial speedup values. This observation underscores the impact of algorithmic complexity on the effectiveness of parallelization.

These observations were derived from results obtained with both the RTX 3090 and A100 GPUs, with the latter consistently outperforming the former despite having fewer CUDA cores. Moreover, the RTX 3090 GPU displayed higher sensitivity to variations in problem complexity, resulting in greater variability in computational performance. On the other hand, the A100 GPU showcased more stability and predictability, delivering consistent performance across different problem dimensions. This underscores the nuanced influence of GPU hardware characteristics on algorithmic efficiency.

The dynamic adaptability of the parallelization strategy to various GPU hardware configurations was further analyzed. Results revealed that all tested GPUs exhibited positive speedup ratios across all algorithms and dimensions, leading to the emergence of a performance hierarchy. The Tesla T4 demonstrated the lowest overall performance, followed by the RTX 3090, the Tesla V100S, and finally, the A100, which showcased the highest performance. This performance hierarchy is closely aligned with the intrinsic hardware capabilities of each GPU, indicating that the parallelization strategy effectively capitalized on the specific architectural features of each hardware. Furthermore, the results highlighted that while individual factors such as the number of cores and memory bandwidth play a crucial role in determining the computational capacity of a GPU, they only offer a partial view of the overall performance. Such nuances underscored the importance of interpreting performance results within the context of real-world applications.

In GPU programming, the pursuit of optimal performance should be harmonized with some degree of flexibility. While maximizing performance remains crucial, overly rigid optimized strategies may restrict algorithmic parameters or compatibility with different GPU hardware. The parallel implementation proposed in this paper showcases the capability of a generic approach to efficiently manage GPU resource allocation while providing scalability across different hardware configurations. This adaptability is achieved automatically, without requiring any source code modification, ensuring that applications remain responsive to evolving computational needs and effectively harness the potential of GPUs for general-purpose computing.

Refining and optimizing the parallelized metaphorless optimization algorithms on GPU architecture, as presented in this study, unveils several promising avenues for further research. An exhaustive examination of the algorithms under consideration, with a concerted effort to refine and optimize their parallelized versions, holds the potential for substantial enhancements to their performance. Exploring the specific impact of test problems on parallel computation may yield valuable insights into the nuanced effects of parallel processing across diverse computational scenarios. Exploring dynamic parallelization strategies that adapt to varying problem complexities and GPU characteristics could also lead to additional gains in efficiency, scalability, and performance across a broader spectrum of hardware configurations. As an illustrative example, revising the method responsible for determining the block size, as suggested in this study, resulted in a noteworthy improvement of approximately 19.8% in the average performance of the GPU-based implementations.

Building upon these conclusions, several promising avenues for future research can be explored. Further research into methods for determining the block size in parallel execution is essential to enhancing algorithmic performance. As indicated in the study, revising the method for automatically determining optimal GPU hardware occupancy yielded marked performance improvements. Exploring alternative approaches or refining existing methods could yield further enhancements. Other aspects of the parallelization strategy could also be improved by meticulously fine-tuning existing implementations or by incorporating additional algorithmic optimizations, such as asynchronous kernel execution, dynamic parallelism, and kernel fusion, to further enhance performance and computational efficiency. Furthermore, a comprehensive examination of the performance of the GPU-based algorithms under different test problems could elucidate the nuances of this parallelization strategy in varied computational scenarios. It would also be relevant to verify the time complexity of the proposed implementations and to expand the performance analysis of the algorithms across problems of varying scales.
