Toward Automated Structural Design for Controlled Vibration Characteristics Using Topology Optimization and Computer Vision in Space Missions

Abstract

This study explores the integration of computer vision with topology optimization for additive manufacturing, with a focus on maximizing eigenfrequency in a design domain. Utilizing custom-developed photogrammetry software, high-resolution images are processed to generate detailed 3D models, which are subsequently converted to STL files with precision. Adaptive meshing in COMSOL 5.3 Multiphysics, controlled through a MATLAB 2023 API, ensures optimal mesh resolution. Prioritizing resource conservation in extraterrestrial environments, the original volume is reduced by 50% while preserving structural integrity. The design domain undergoes rigorous topology optimization in MATLAB, supported by COMSOL’s advanced FEM simulation. The optimized design exhibits a 57% performance improvement and a 50% weight reduction, maintaining the desired vibration characteristics, validating the efficacy of the modifications. Moreover, the case with an eccentric mass shows a significant 64% increase in eigenfrequency.

1. Introduction

The pursuit of space exploration and the extraction of extraterrestrial resources are fundamentally intertwined with the trajectory of human advancement and scientific inquiry. Earth’s finite resources, juxtaposed with the burgeoning global population and escalating demands for energy and materials, underscore the imperative to expand our endeavors beyond terrestrial confines. The potential discovery and utilization of extraterrestrial resources present transformative opportunities for addressing critical challenges facing humanity, from energy sustainability to the colonization of distant celestial bodies [1,2,3].

Advancements in space exploration technologies have significantly enhanced our comprehension of the cosmos and broadened the spectrum of accessible space resources. For instance, the prospecting of asteroids, which are abundant in precious metals and rare earth elements, represents a promising avenue for resource extraction. These celestial bodies contain vast quantities of materials essential for high-tech industries and renewable energy technologies, such as platinum, cobalt, and lithium, which are crucial for manufacturing batteries, electronics, and catalytic converters. The utilization of these resources could alleviate the strain on Earth’s limited reserves, thereby supporting technological progress and economic growth [4,5,6,7].

Space missions necessitate high adaptability due to dynamic, unforeseen situations. Space constraints and pre-mission planning limitations emphasize real-time design adjustments. Unlike terrestrial operations, space conditions amplify the consequences of errors, increasing stakes. Real-time adaptability is crucial due to unpredictable mission challenges like technical malfunctions, unexpected environments, and logistical needs. Flexible design and robust contingency planning allow prompt response and mitigation, safeguarding mission objectives and crew safety. Space missions demand on-the-spot problem-solving due to logistical complexity and resource constraints. Distance and communication delays necessitate autonomous systems for independent critical adjustments. The inability to address issues can lead to catastrophic outcomes. Thus, mission protocols must prioritize flexibility and resilience, integrating advanced technologies for successful space exploration [8,9,10,11,12]. The exigencies of space missions, characterized by substantial time lags in transmitting instructions and uploading designs from Earth due to the considerable distances, underscore the critical necessity for autonomous structural design and construction processes [13,14,15,16,17,18,19,20,21,22]. Moreover, in space missions, significant signal transmission delays occur due to Earth’s varying distance from celestial bodies like Mars, which can reach up to 401 million kilometers. This results in communication latencies ranging from 3 to 22 min, depending on their relative orbital positions [23,24,25,26,27,28].

Reliance on Earth-based instructions and designs becomes impractical for timely decision-making and execution in space missions due to significant communication delays. Autonomous structural design and construction methodologies enable spacecraft and habitats to adapt to dynamic environmental conditions and unforeseen challenges without constant Earth-based intervention. Integrating artificial intelligence and advanced robotics into these processes allows for the autonomous formulation and execution of optimized structural designs. This capability mitigates the impact of communication delays, enhancing mission efficiency and resilience. By leveraging AI-driven systems and robotic technologies, space missions can achieve greater flexibility, enabling real-time adjustments and responses to emergent situations, thereby ensuring the safety and success of long-duration extraterrestrial endeavors. This autonomous approach is crucial for maintaining operational integrity and addressing the complexities of space environments, where rapid adaptation is essential for survival and mission accomplishment [8,9,10,11,12].

Structural design is an intellectual endeavor rooted in the discernment and expertise of the designer, varying with their experience and overarching vision. The advent of topology optimization, pioneered by Michell [29] through the solving structural optimization design utilizing Maxwell’s lemma [30], has significantly advanced computer-aided design, enabling the creation of designs based on rigorous non-parametric optimization principles. While the complete automation of evaluation and design processes remains an aspirational goal, it is a crucial imperative for advancing future transportation technologies, particularly in the realm of deep space missions. This integration of sophisticated computational methods into the design process not only enhances precision and efficiency but also paves the way for innovations that are essential for overcoming the unique challenges of extraterrestrial exploration and transportation [31,32,33].

Topology optimization encompasses two main categories: non-parametric optimization and generalized shape optimization. It involves dividing a domain into discrete parts with defined spatial relationships, such as finite differences, boxes, elements, and volumes. Initially addressing layout challenges, topology optimization concentrates on configuring designated regions (design domains) within a specified space, each having fixed traction and support points [34,35,36,37]. Numerous efforts have been invested in advancing topology optimization methodologies. A significant contribution to this field has been the utilization of numerical discretization of structures, as proposed by Dorn et al. [38], to enhance the efficiency and precision of topology optimization techniques. This approach involves the detailed numerical representation of structural elements, allowing for more accurate and refined optimization outcomes. Bartel [39] leveraged sequential unconstrained minimization and constrained steepest descent techniques to minimize structure weight. Charrett and Rozvany [40] adopted the Prager–shield implementation to identify optimal design criteria for rigid-perfectly plastic systems under multiple loading conditions. Rozvany and Prager [41] investigated the optimal design of grillage-like continua, emphasizing spatial distribution within confined grillage units. Rossow and Taylor [42] utilized the finite element method to determine the optimal thickness of variable thickness sheets, addressing potential energy considerations for elastic sheet in-plane stress assumptions and pioneering shape optimization by introducing holes into plate structures. Cheng and Olhoff [43] implemented the finite element method to optimize the thickness of annual plates with a stiffened approach, incorporating homogenization as an averaging method in topology optimization. The discretized continuous optimality criterion (DCOC) further advanced topology optimization, leading to the conceptualization of fictitious materials by Bendsoe and the subsequent development of the Solid Isotropic Material with Penalization (SIMP) method [44,45,46]. The SIMP method has been instrumental in optimizing structures with minimal stress concentrations, leveraging image processing techniques to construct design cases and transform them into the topology optimization process.

Moreover, several other effective methods for topology optimization exist, including the Evolutionary Structural Optimization (ESO) method [47,48] and the Metaheuristic Structure Binary-Distribution (MSB) method [35,49]. Additionally, shape optimization methods that focus on the boundaries of the structure are currently showing promising results, such as the level-set method [50] and the H1 gradient method [51].

This research investigates the integration of advanced camera technology on spacecraft to enhance the eigenfrequency optimization of structures automatically modeled via computer vision. Utilizing topology optimization with minimal human intervention, this study aims to revolutionize the design and construction of habitable structures in extraterrestrial environments. By leveraging cutting-edge 3D printing methodologies, the research seeks to automate and optimize structural design processes, thereby advancing the capabilities and efficiency of space habitation construction [52,53,54,55]. As a design methodology, this study employs topology optimization to maximize eigenfrequency, a critical parameter in structural dynamics [56,57,58,59,60]. Several researchers investigated topology optimization for design structures with a desirable vibration characteristic. Zuo et al. and Liu et al. performed topology optimization in 2D and 3D models to maximize the natural frequencies [61,62]. Liang et al. established both multi-material and multi-scale models for concurrent vibroacoustic topology optimization [63], and Zhang et al. used shape interpolation to generate multiple microstructure samples for concurrent optimization of the macrostructure and multiple microstructures and their distributions to maximize natural frequencies [64]. Dynamic problems often involve eigenfrequency problems because when a structure has undesirable natural frequencies relative to its surrounding environment, resonance phenomena can lead to structural destruction and noise. Therefore, it is important to design the natural frequencies of the vibration modes so that they do not match the excitation frequency in order to avoid resonance phenomena.

By utilizing camera vision, the computational system identifies design domain parameters and applies topology optimization techniques for efficient design execution. The research is motivated by several factors. Firstly, the weight constraints of space missions necessitate minimizing additional measurement devices, such as laser scanners, to reduce costs. Secondly, considering energy efficiency, computationally intensive methods, such as machine learning, while effective for emulating expert systems, impose significant computational loads compared to more resource-efficient optimization approaches like the method of moving asymptotes or optimality criteria [65]. Thirdly, the logistical challenges of vast distances in space emphasize the importance of locally executable design processes for swift communication between Earth and extraterrestrial habitats. Lastly, topology optimization is well suited for 3D printing applications, supporting its viability for space construction projects. The paper is structured as follows: Section 2.1 discusses computer vision, Section 2.2 covers topology optimization, Section 3 presents numerical investigations, and Section 4 provides conclusions.

2. Materials and Methods

2.1. Computer Vision 3D Simulation Using Computer Vision

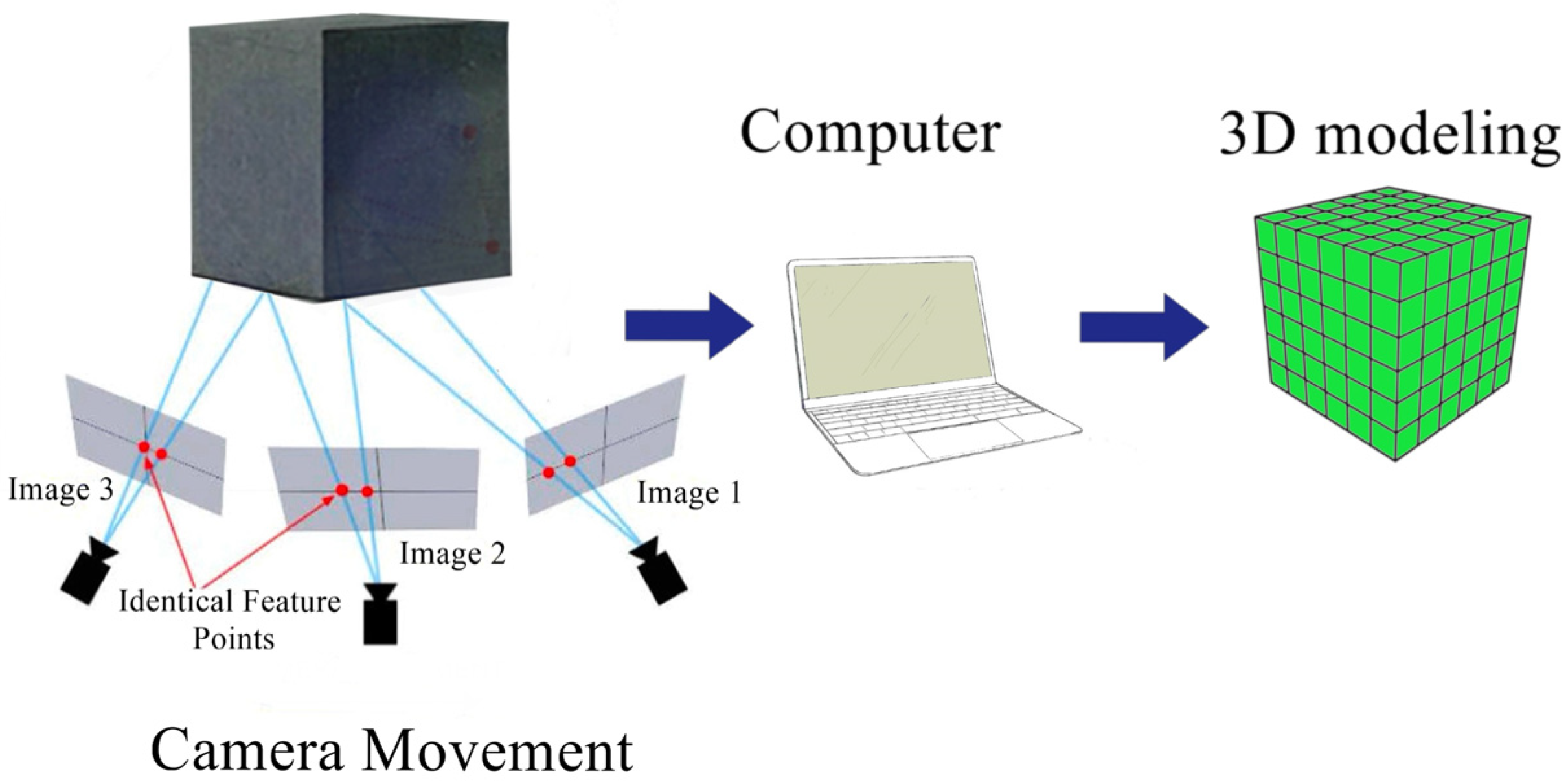

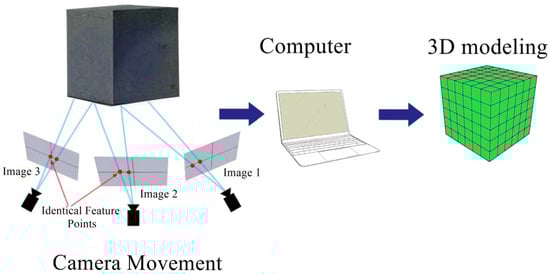

In this study, we propose the integration of photogrammetry into the realm of design engineering to facilitate 3D modeling of the design domain using camera alone [66,67,68,69,70,71,72]. Photogrammetry, a technique widely utilized in modern engineering for 3D modeling of objects, leverages the principles of optics, geometry, and computer vision to reconstruct physical objects from photographic images. This method enables engineers to create accurate digital representations of real-world objects, which are crucial for various applications such as industrial design, architecture, archaeology, and forensics. The process of photogrammetry begins with capturing multiple photographs of an object from different angles using calibrated cameras. These images, along with known camera parameters such as focal length and sensor size, serve as inputs for computational algorithms. Through feature extraction and matching techniques, corresponding points across images are identified, forming a point cloud representation of the object’s surface, as presented in Equation (1). Subsequently, these points are used to generate a dense mesh, which accurately describes the object’s geometry in three-dimensional space (as illustrated in Figure 1).

Where $P$ represents the perceived size of an object in an image, $f$ is the focal length of the camera lens, $B$ denotes the actual size of the object, and $D$ signifies the distance between the camera and the object.

$$P=f·B·D^{-1}$$

(1)

The transformation in photogrammetry is depicted in Equation (2)

$$X=T^{-1}·\overline{x}$$

(2)

where $X$ represents the coordinates of a point in the object’s 3D space, $T$ denotes the transformation matrix derived from camera calibration and orientation, and $\overline{x}$ corresponds to the homogeneous coordinates of the point in the image. This equation encapsulates the process of triangulation, enabling the computation of accurate 3D coordinates from 2D image data. The accuracy and resolution of photogrammetric models depend on several factors, including the quality of input images, camera parameters, and the computational algorithms used for point cloud generation and mesh reconstruction. Advanced photogrammetric software packages facilitate the automated processing and refinement of models, offering tools for texture mapping, surface reconstruction, and error minimization techniques.

2.2. Topology and Shape Optimization

Topology optimization originated as a discipline rooted in deterministic functional analysis, initially employing tangible physical models. As mathematical understanding and techniques advanced, various methodologies were developed to tackle previously underdetermined problems. The introduction of virtual work significantly broadened the range of viable solutions for practical applications. Structural optimization is broadly classified into parametric and non-parametric approaches. Parametric optimization utilizes heuristic and metaheuristic methods to manipulate parameters within a defined domain, guided by well-approximated mathematical models that adhere to constraints and optimality criteria. For example, sizing optimization directly links variables such as cross-section, material size, and hole placement to minimize stress.

However, determining the optimal material distribution within a structural space presents challenges, as it cannot be straightforwardly represented by known quantities like masses, loads, or reactions. The difficulty lies in establishing a direct correlation between topology design and known constraints while formulating a universally applicable parametric objective. This challenge has spurred the development of non-parametric optimization methods, exemplified by topology optimization encompassing layout and shape optimization.

Topology optimization, known for its conceptual clarity rooted in mathematical rigor, opens new avenues in design. It focuses on mathematically optimizing a predefined state space or higher-order set of criteria, driven solely by the imperative to fulfill the optimization process. The resultant designs theoretically offer the best possible solutions within defined constraints, representing an optimal solution bounded by prescribed parameters [73,74,75].

This paper addresses the optimal topology of the structure, aiming to maximize the natural frequency of a specified mode while imposing a mass constraint to limit material usage. The optimization objective is to enhance the natural frequency of the selected mode, with the volume fraction of each node serving as the design variable. The topology optimization problem can be formulated as shown in Equation (3):

$$\begin{array}{l}\max {\omega }_i\\ s.t.: (K-{\omega }^{2}M)U=F\\ {\displaystyle {\int }_{{\mathsf{\Omega }}_d}\rho d\rho \le v, }\rho \in (0,1], \forall \rho \in {\mathsf{\Omega }}_d\end{array}$$

(3)

where ${\omega }_i$ represents the eigen frequency of the designated mode, and $\rho$ is the design variable of topology optimization. K is the global stiffness matrix, and M is the global mass matrix. Moreover, $v$ is the volume reduction condition within the design domain ${\mathsf{\Omega }}_d$.

In the context of the present study, topology optimization is employed to maximize the first eigen frequency, i.e., ${\omega }_{ 1}$.

3. Results

This section introduces a numerical study exploring the innovative integration of computer vision with topology optimization for additive manufacturing. We employ custom-developed photogrammetry software to process imagery captured by cameras within the design domain. This software captures dynamic, high-resolution photographs that facilitate the creation of detailed 3D models through comprehensive object scanning protocols. The rich imagery serves as the foundation for the subsequent 3D modeling process.

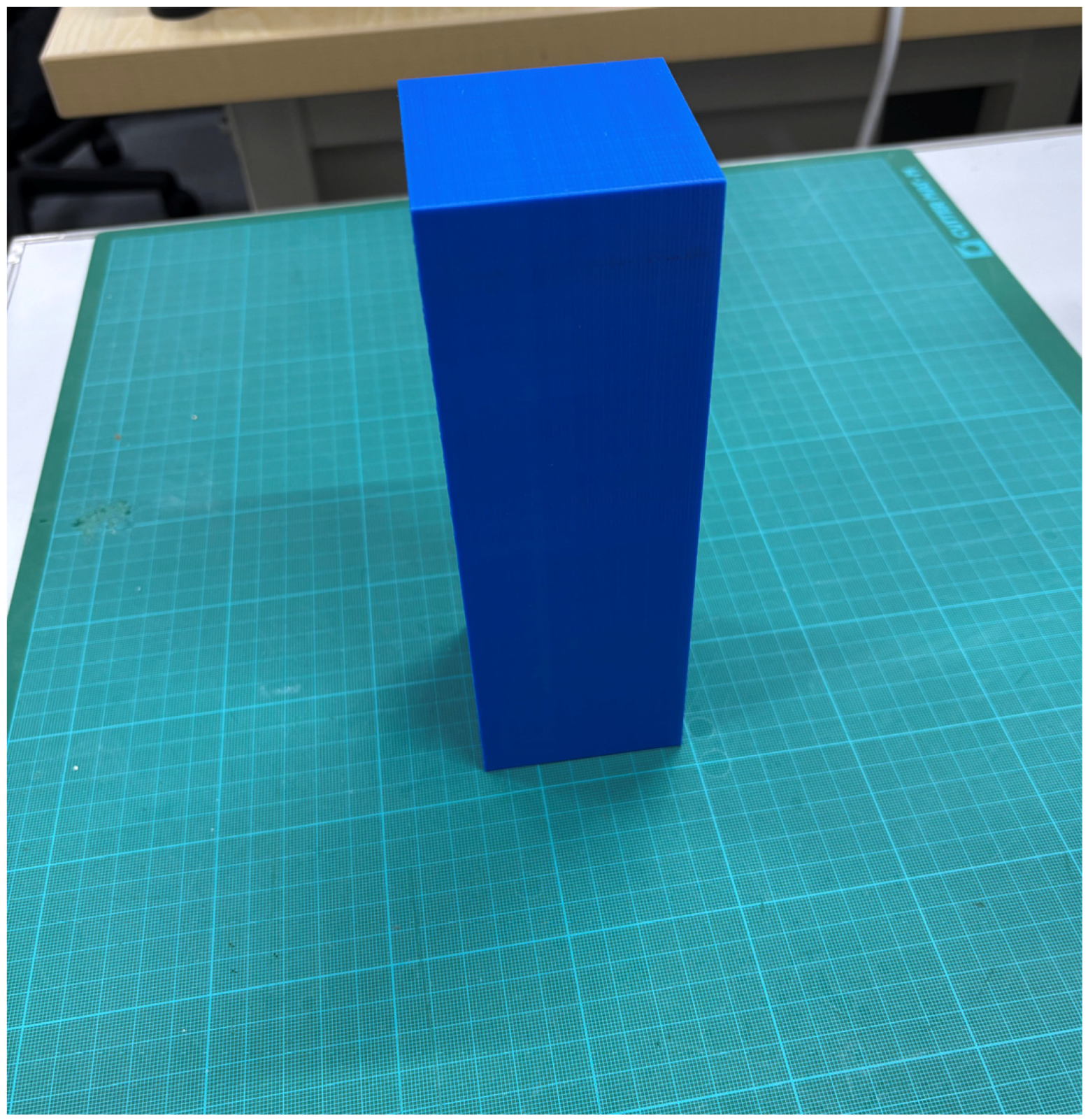

We utilized a square-based pillar measuring 192 mm in height and with a square base side length of 96 mm, as illustrated in Figure 2. The model underwent scanning via photogrammetry to construct a comprehensive 3D spatial matrix. This involved a 360-degree scan using cameras to capture detailed spatial configurations.

Upon completing the 3D modeling phase, the resulting model was converted into an STL file format, a standard in both additive manufacturing and computational modeling. This conversion was performed with high precision using an automated approach to ensure the intricate details captured during the initial scanning phase were preserved.

Following the STL conversion, the file underwent remeshing using an adaptive meshing algorithm within the COMSOL 5.3 Multiphysics environment. This process is controlled by a custom-built MATLAB application programming interface, integrating MATLAB’s computational capabilities with COMSOL’s simulation tools. This synergy enables the refinement of the mesh structure to meet the demands of subsequent computational simulations.

The adaptive meshing strategy ensures optimal mesh resolution by dynamically adjusting to local geometric complexities. This approach enhances the accuracy and fidelity of the computational analyses that follow, providing a robust framework for investigating the proposed design methodologies in additive manufacturing.

The preliminary phase of our investigation entailed a thorough examination of the parameters essential for the design and fabrication of a concrete pillar using advanced 3D-printing techniques. This pillar is intended to serve as a structural component for supporting vertical structures, necessitating strict considerations for stability and material efficiency. Given the imperative of resource conservation, especially in extraterrestrial environments like the Moon or Mars where time and materials are scarce, our study prioritizes optimizing printing time while minimizing material usage. To achieve this objective, we adopt a strategy of volumetric reduction, aiming to decrease the original volume of the solid block configuration by 50% (i.e., 0.5 volume fraction). This reduction is a central tenet of our optimization approach, utilizing constrained optimization techniques to reduce volume while maintaining the pillar’s structural integrity and functionality.

The initial step involves digitally inserting the pillar into the design environment through a comprehensive scanning process. This process employs a camera array positioned for 360-degree rotation around the object, capturing images at 1-degree increments, as illustrated in Figure 3. This panoramic scanning protocol ensures the acquisition of complete spatial data, essential for subsequent modeling and optimization efforts. The design domain, captured through this detailed scanning process, is imported into the MATLAB topology optimization environment. Here, we rigorously explore structural optimization strategies. MATLAB’s robust computational platform and advanced optimization algorithms enable a systematic investigation of material-efficient design configurations. This integrated framework facilitates the development of optimized, resource-efficient structural components for advanced additive manufacturing, addressing the challenges of extraterrestrial construction with precision and efficiency. The computational capabilities of MATLAB are significantly enhanced through integration with COMSOL Multiphysics, utilized as both a mesher and a FEM solver. This synergy improves the fidelity and computational efficiency of the optimization process. COMSOL’s advanced meshing capabilities generate high-quality finite element meshes that accurately represent the intricate details of the imported design domain. Its powerful FEM solver then facilitates precise simulations of structural behavior under various loading conditions.

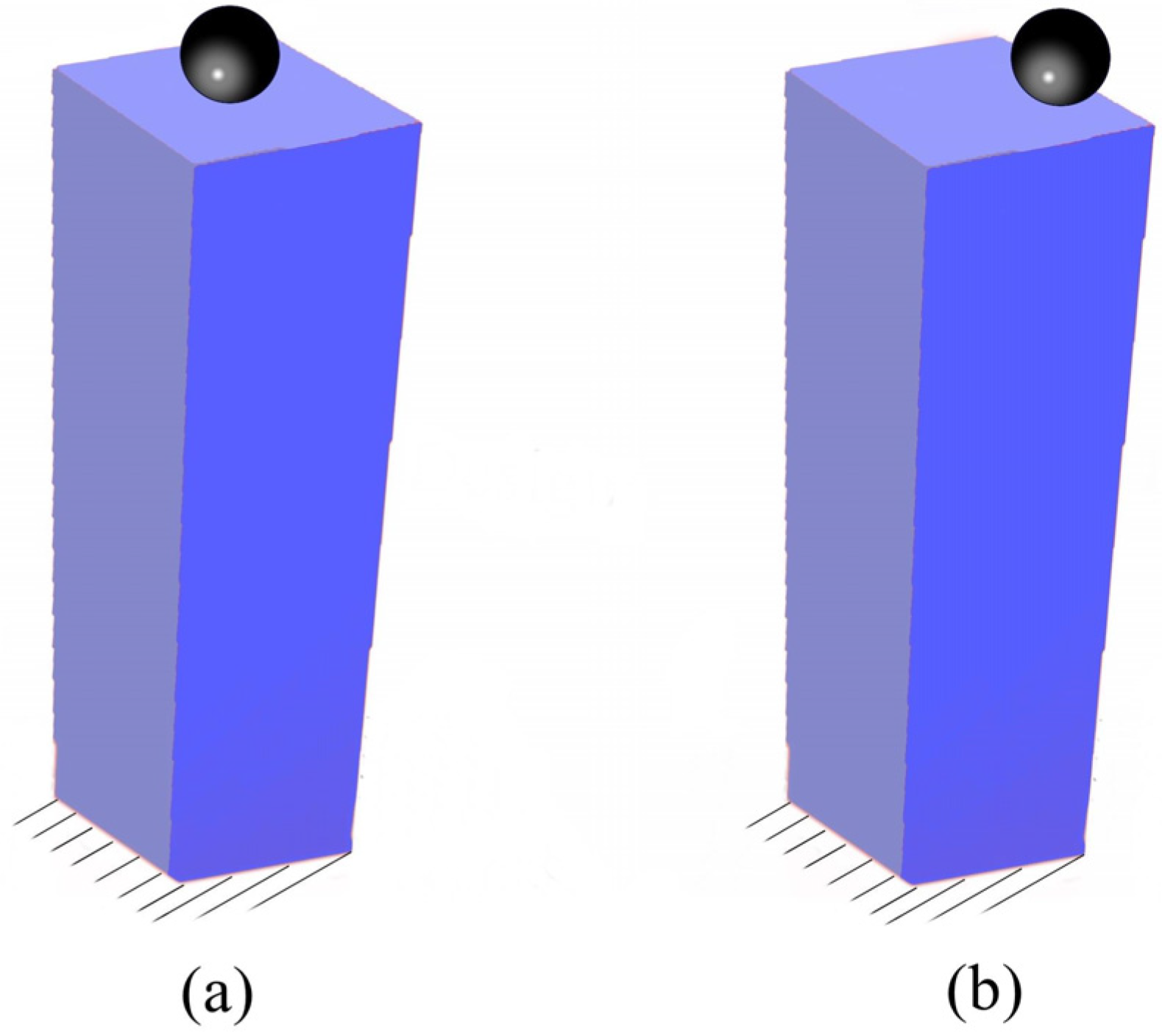

In Figure 4, the computer modeling for topology optimization is presented, with a pillar simulated for two cases; the first case is with central mass (as shown in Figure 4a) and the second case is with mass on the far side of the pillar as shown in Figure 4b). Topology optimization endeavors to minimize the volume of the design while concurrently improving the structure dynamic stability addressing the reduction in the natural frequency. The Young moduli of elasticity and mass are standardized to unity, with a Poisson ratio set at 0.3 to maintain consistency across analyses. The results are depicted in Figure 5. Topology optimization gave a result of an elongated hollow pillar. In the three-dimensional perspective (a), the pillar exhibits distinct vertical and horizontal striations, oriented along the z-axis. The cross-sectional profile (b) provides a detailed view of the internal structure. From the frontal view (c), the pillar reveals a symmetrical narrowing towards the bottom, maintaining alignment with the z-axis. The rear view (d) highlights a concentric circular design centered on the z-axis. The top view (e) emphasizes the striated texture and the tapering shape towards each end. Finally, the side view (f) within a bounding box illustrates the uniform width of the pillar and its tapered ends, providing a comprehensive understanding of the structure’s geometry.

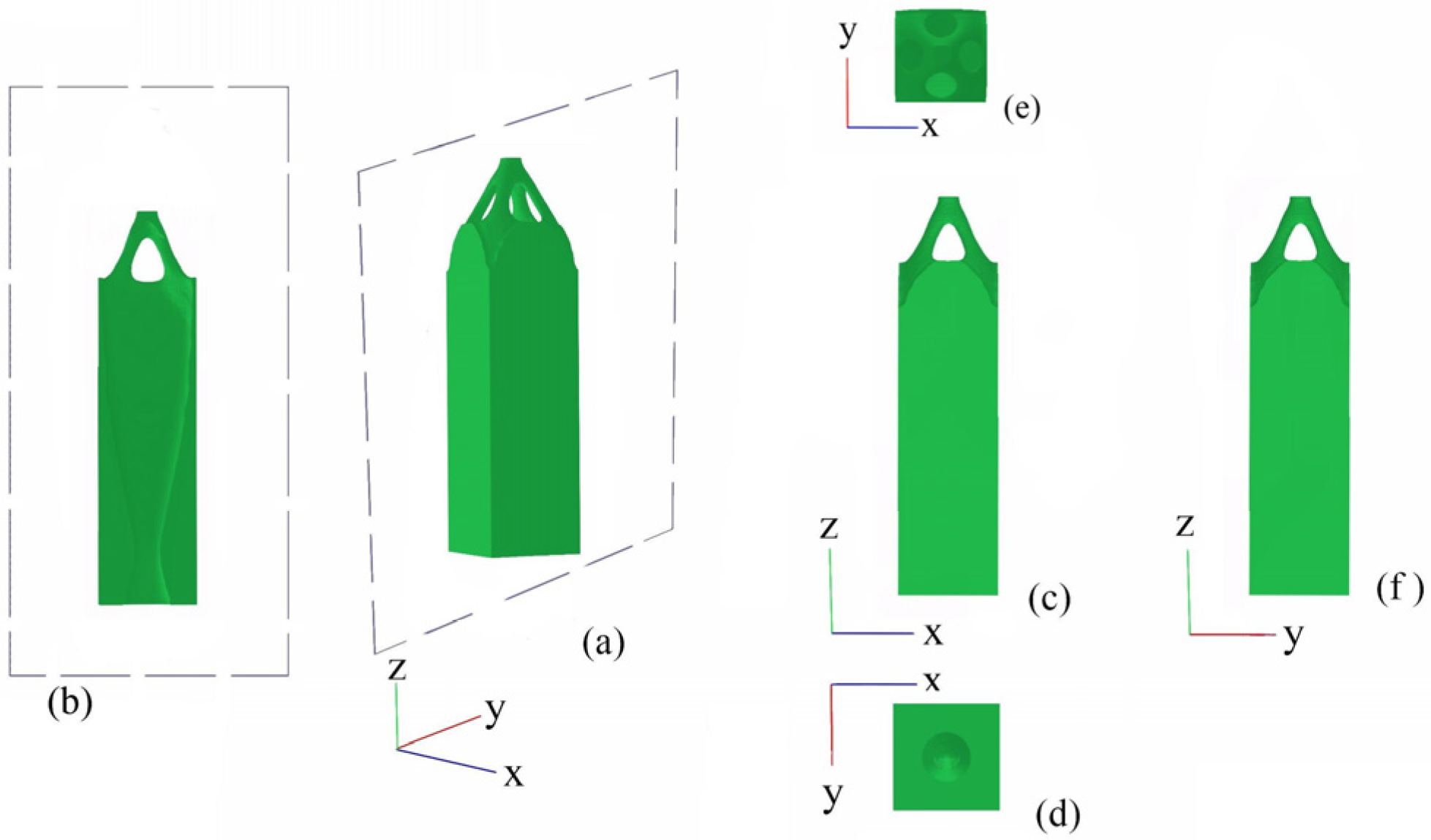

Our investigation reveals a significant reduction in the volume of the design domain, a central goal in our comprehensive optimization framework. Notably, this volume reduction demonstrates a clear spatial pattern, with the most pronounced decreases occurring towards the central region of the design domain and gradually tapering towards the periphery near the structural constraints. This deliberate spatial distribution of volume reduction is strategically designed to enhance the stability of the resulting structure while also optimizing the utilization of materials. This approach, rooted in optimization principles, parallels strategies seen in civil engineering where minimizing weight often involves incorporating hollow structures within solid frameworks.

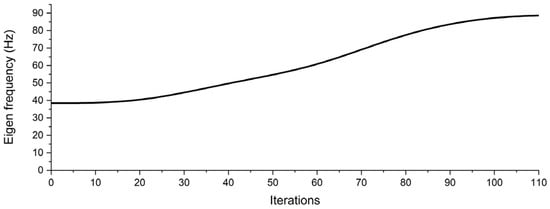

Figure 5 illustrates the convergence pattern of our optimization algorithm across multiple iterations. The x-axis tracks the iteration count, while the y-axis represents the value of the eigen frequency. Initially, the objective function value starts near 1, indicating suboptimal conditions at the outset. As iterations progress, there is a sharp decline in the objective function value, signaling rapid convergence towards an optimal solution. By around the 50th iteration, the curve begins to plateau, approaching a value close to zero, indicating diminishing returns from subsequent iterations. This plateau suggests that the algorithm has effectively maximized the objective function and is nearing its optimal value. The steep initial descent followed by the leveling off underscores the efficiency and stability of the algorithm in achieving optimization. Such behavior is highly desirable in optimization techniques, showcasing both computational efficiency and robustness in achieving convergence. The results also demonstrated a significant enhancement in performance, with a 57% improvement observed in shifting eigen frequency to become higher compared to the non-optimized structure. Additionally, we achieved a substantial reduction in weight by 50%, resulting in a lighter structure. This weight reduction was achieved without compromising the desired vibration characteristics. We can conclude that the optimized design not only maintains the structural integrity but also enhances the dynamic performance, showcasing the effectiveness of the applied modifications.

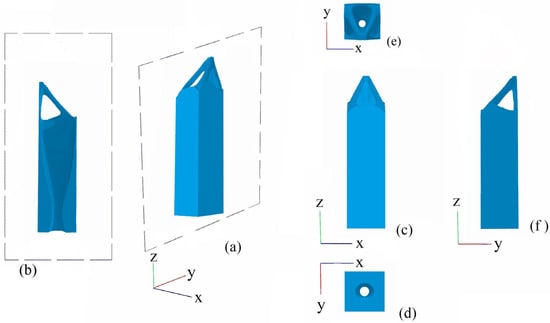

By integrating an eccentric mass, engineers can precisely modify the natural frequency of structures, thereby optimizing stability and performance. The structure depicted in Figure 6b features a pillar-like design with a square base, specifically configured for modifications aimed at altering its dynamic behavior. Figure 6a,c–f present various views of the original structure, including the side, front, and top perspectives, which collectively illustrate its geometric configuration and form the basis for subsequent modifications.

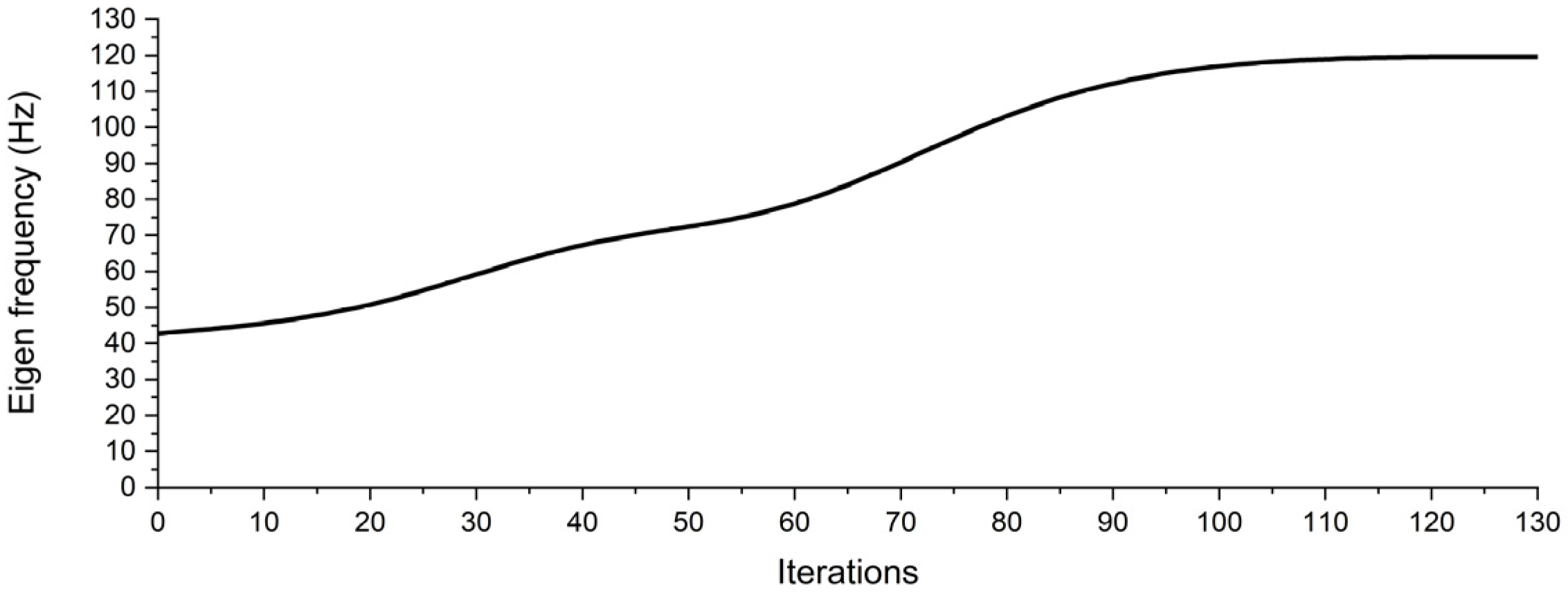

Figure 7 illustrates the convergence pattern of our optimization algorithm over multiple iterations. The results demonstrate a significant performance enhancement, with a 64% increase in eigenfrequency relative to the non-optimized structure. Concurrently, a 50% reduction in weight was achieved, resulting in a lighter structure that maintains the desired vibration characteristics. These outcomes validate that the optimized design not only preserves structural integrity but also markedly improves dynamic performance, highlighting the effectiveness of the modifications in achieving superior structural efficiency and resilience. Both the central and eccentric mass cases demonstrate significant enhancements in dynamic performance and weight reduction. The central mass case emphasizes a strategic volume reduction for improved stability and material optimization, while the eccentric mass case focuses on adjusting natural frequency for performance improvements. Both approaches achieve a 50% weight reduction and substantial increases in eigenfrequency, underscoring the effectiveness of the optimization techniques applied in each case.

4. Conclusions

In conclusion, this numerical study demonstrates the innovative integration of computer vision with topology optimization for additive manufacturing, specifically targeting the minimization of eigenfrequency in a design domain. Using custom-developed photogrammetry software, dynamic, high-resolution images were captured, forming the basis for precise 3D models. These models were converted into STL files through an automated, high-precision process, and subsequently meshed with an adaptive algorithm within the COMSOL Multiphysics environment, controlled via a custom MATLAB API. The study investigated two cases of a pillar with a central mass on top and an eccentric mass, where the center of gravity is positioned on the left side of the top surface.

The results from the first case highlight the significant advancements realized through topology optimization. Specifically, there was a 57% increase in performance, demonstrated by a substantial elevation in eigenfrequency, coupled with a 50% reduction in structural weight. Importantly, these enhancements were achieved while preserving the desired vibration characteristics, thereby affirming the effectiveness of the applied modifications. These findings provide a robust foundation for future innovations in extraterrestrial construction and resource-efficient structural design. Similarly, the second case exhibited comparable improvements, with a notable increase in eigenfrequency, further validating the high-performance outcomes of the optimization process. This dual success underscores the potential for implementing such optimization strategies in demanding environments where material efficiency and structural integrity are paramount. Moreover, the eccentric mass case results showed a significant 64% increase in eigenfrequency and a 50% weight reduction without compromising vibration characteristics, demonstrating that the optimized design maintains structural integrity while enhancing dynamic performance, highlighting the efficacy of the applied modifications.
