Industrial Image Anomaly Detection via Self-Supervised Learning with Feature Enhancement Assistance
Abstract
:1. Introduction

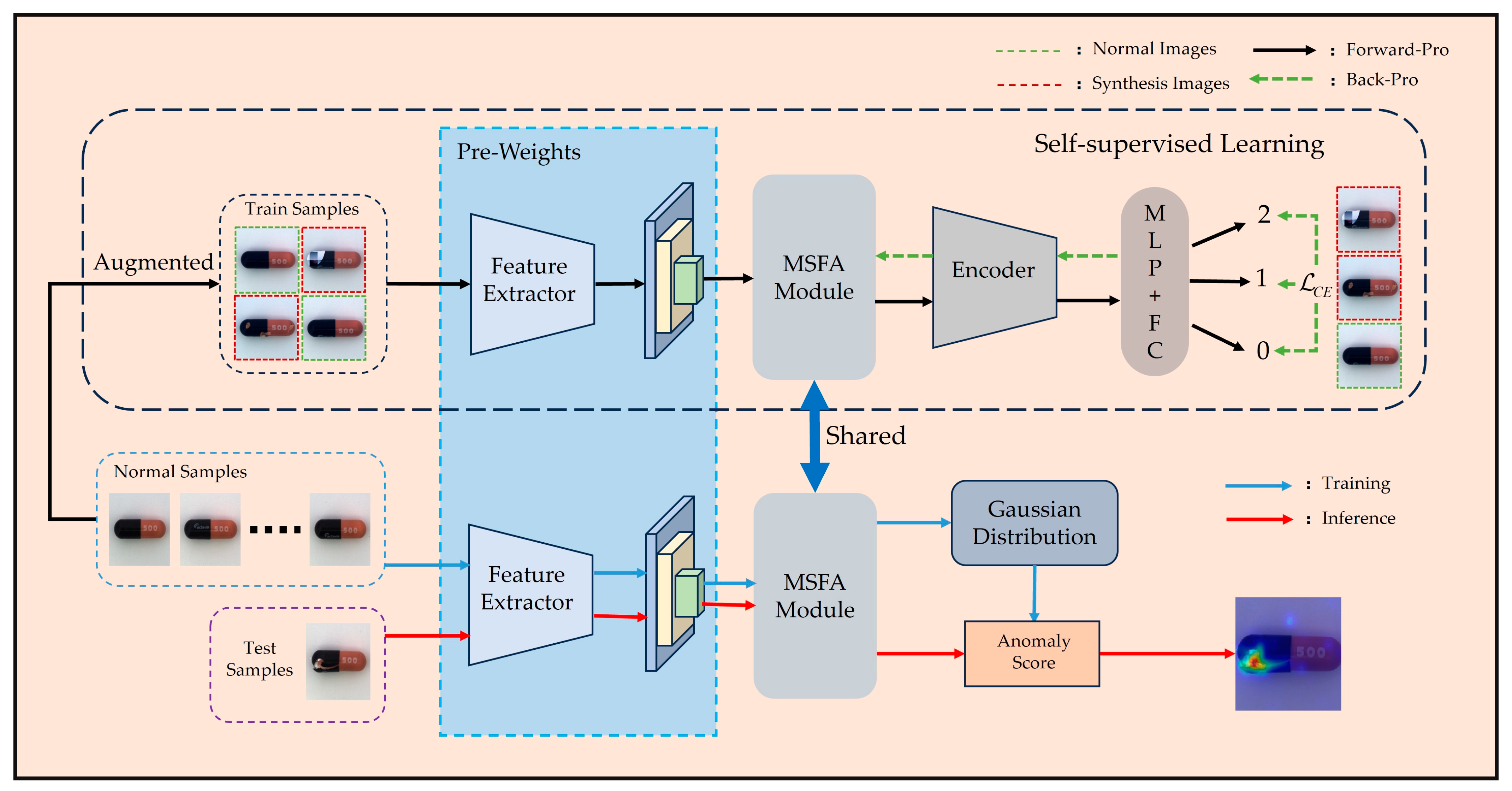

- We have designed a new unsupervised anomaly detection framework, FEPDM, which reduces bias between the source and target domains while significantly decreasing the number of model training parameters by conducting training at the feature level.
- We have introduced a novel anomaly simulation strategy for self-supervised learning of the model. This strategy generates anomaly blocks with diverse textures and structures, closely resembling real-world anomalies.
- We have elaborated a multi-scale feature aggregation module capable of integrating multi-resolution, multi-semantic features from different network hierarchies. This module effectively reduces the dimensionality of these features to the target dimensions through an efficient dimensionality reduction strategy.
- Extensive experiments on today’s most challenging real-world datasets, such as MVTec and BTAD, demonstrate that our approach exhibits excellent performance and generalization.
2. Related Work
2.1. Reconstruction-Based Approach
2.2. Embedding-Based Approach
2.3. Self-Supervised Learning Based Approach
3. Materials and Methods

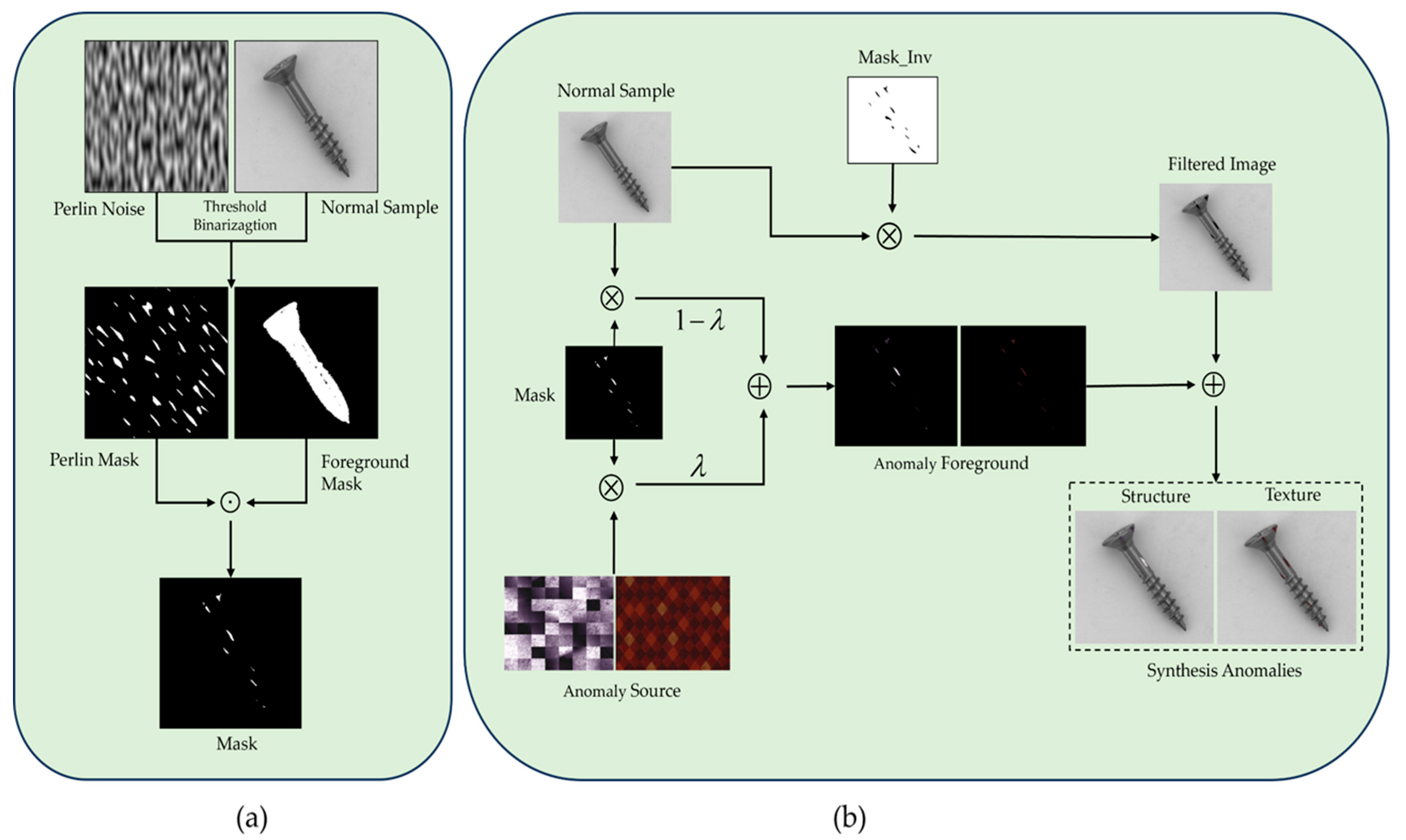

3.1. Pseudo-Anomaly Image and Label Generation
- (a)
- A random two-dimensional Perlin noise P is first generated and randomly rotated to increase diversity. Subsequently, the noise is binarized using a set threshold to obtain the original anomaly mask . For the normal image I, we obtain the foreground mask of the input image through threshold binarization. This ensures that our simulated anomalies are generated on the detected target rather than in the background, avoiding unnecessary noise. The simulated anomaly mask M is obtained by multiplying the foreground mask with the Perlin mask, as shown in Figure 2a.
- (b)
- The foreground of the anomaly block is obtained by multiplying the anomaly source image and the simulated anomaly mask M on an element-by-element multiplication:
- (c)
- Multiply the input image by the simulated anomaly inverse mask to get the image without anomalous blocks (Figure 2b), and finally add it to the anomalous block mask to obtain the final pseudo-anomalous image .

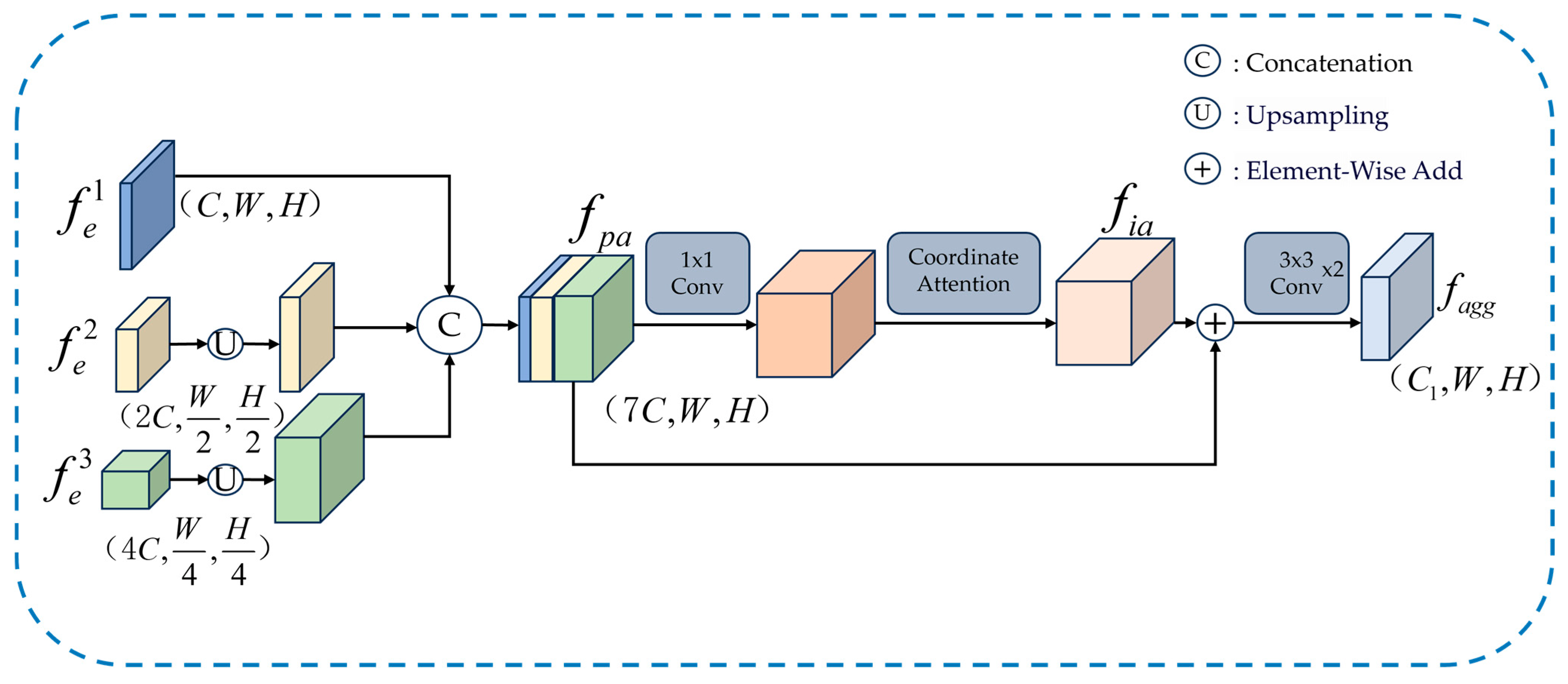

3.2. Multi-Scale Feature Aggregation
3.3. Self-Supervised Training
3.4. Calculate Anomaly Score Map
3.5. Datasets
4. Results
4.1. Experimental Details
4.2. Experimental Results
4.2.1. Evaluation Metrics
4.2.2. Image-Level Anomaly Detection

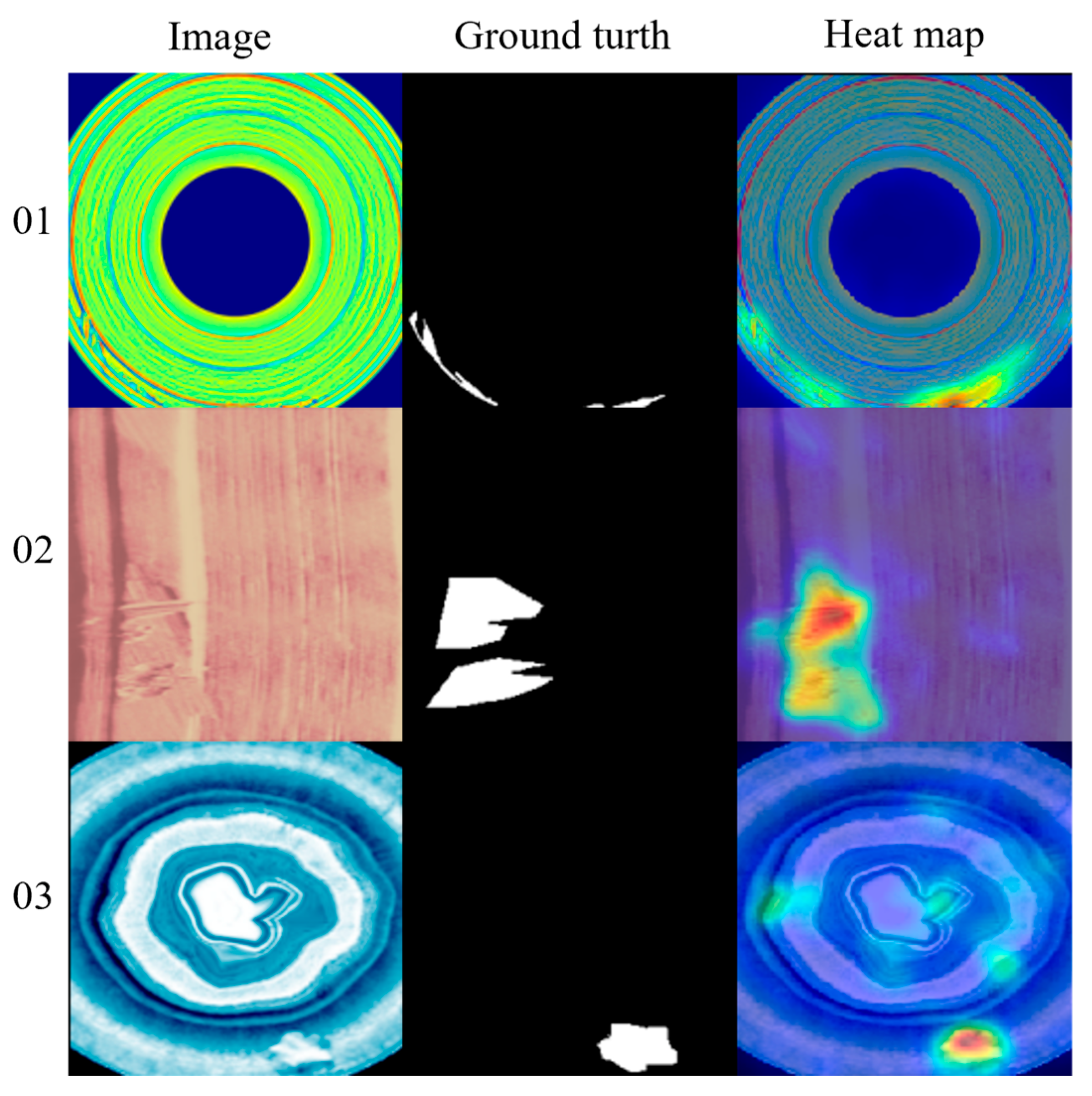

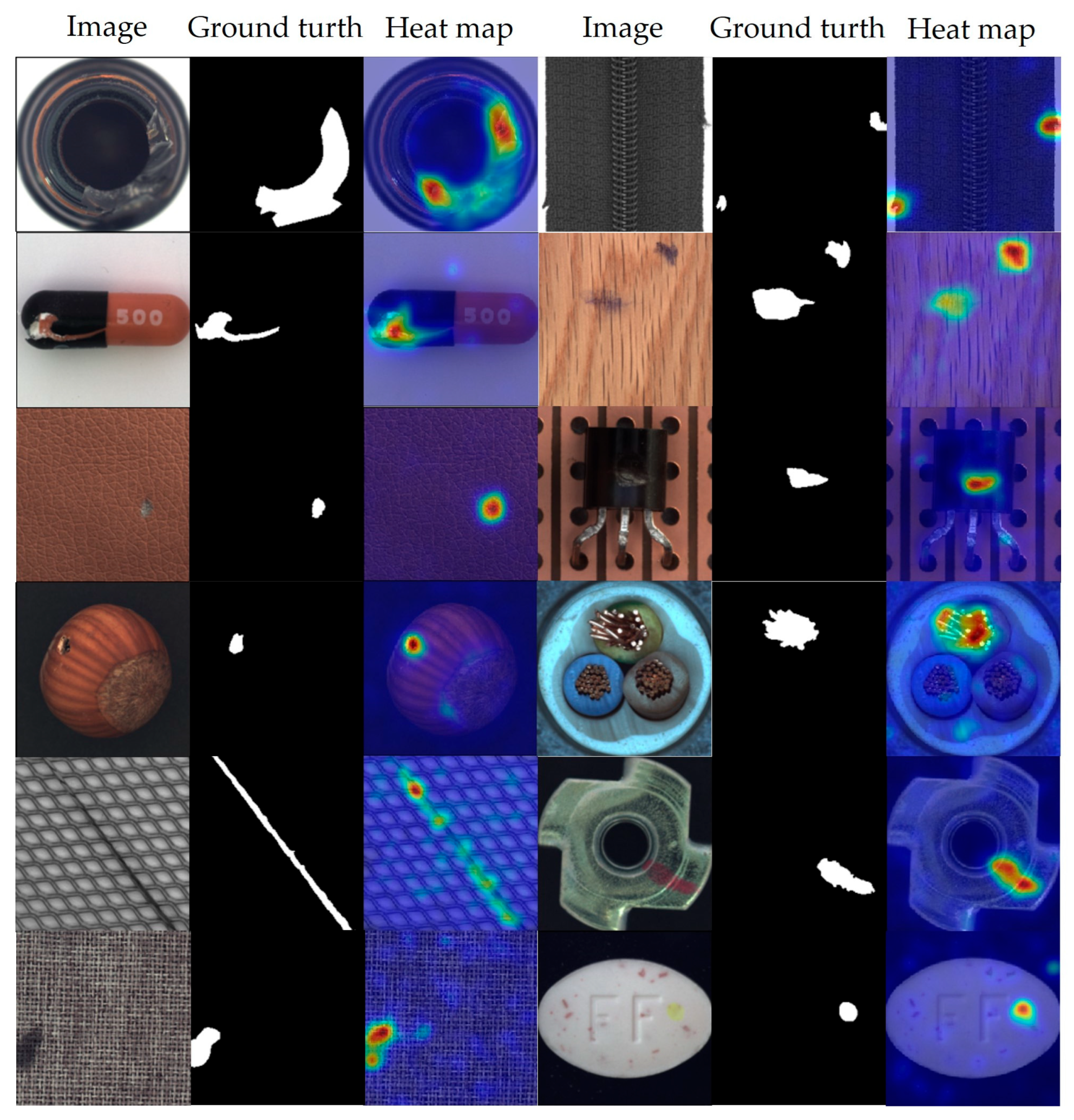

4.2.3. Pixel-Level Anomaly Location
4.3. Ablation Experiment

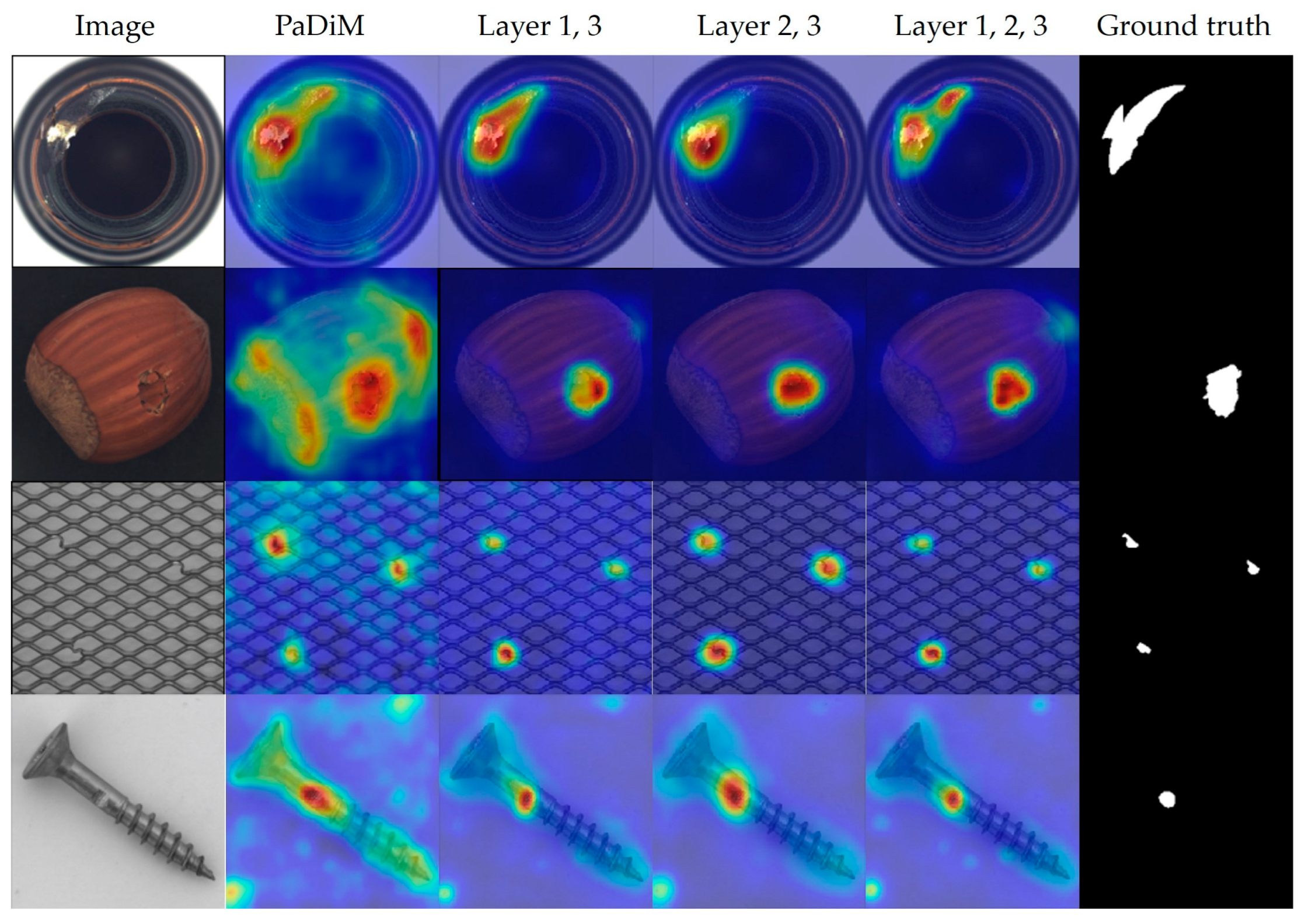

4.3.1. Features Layer Selection
4.3.2. Attention Mechanisms
4.3.3. Dimensional Ablation

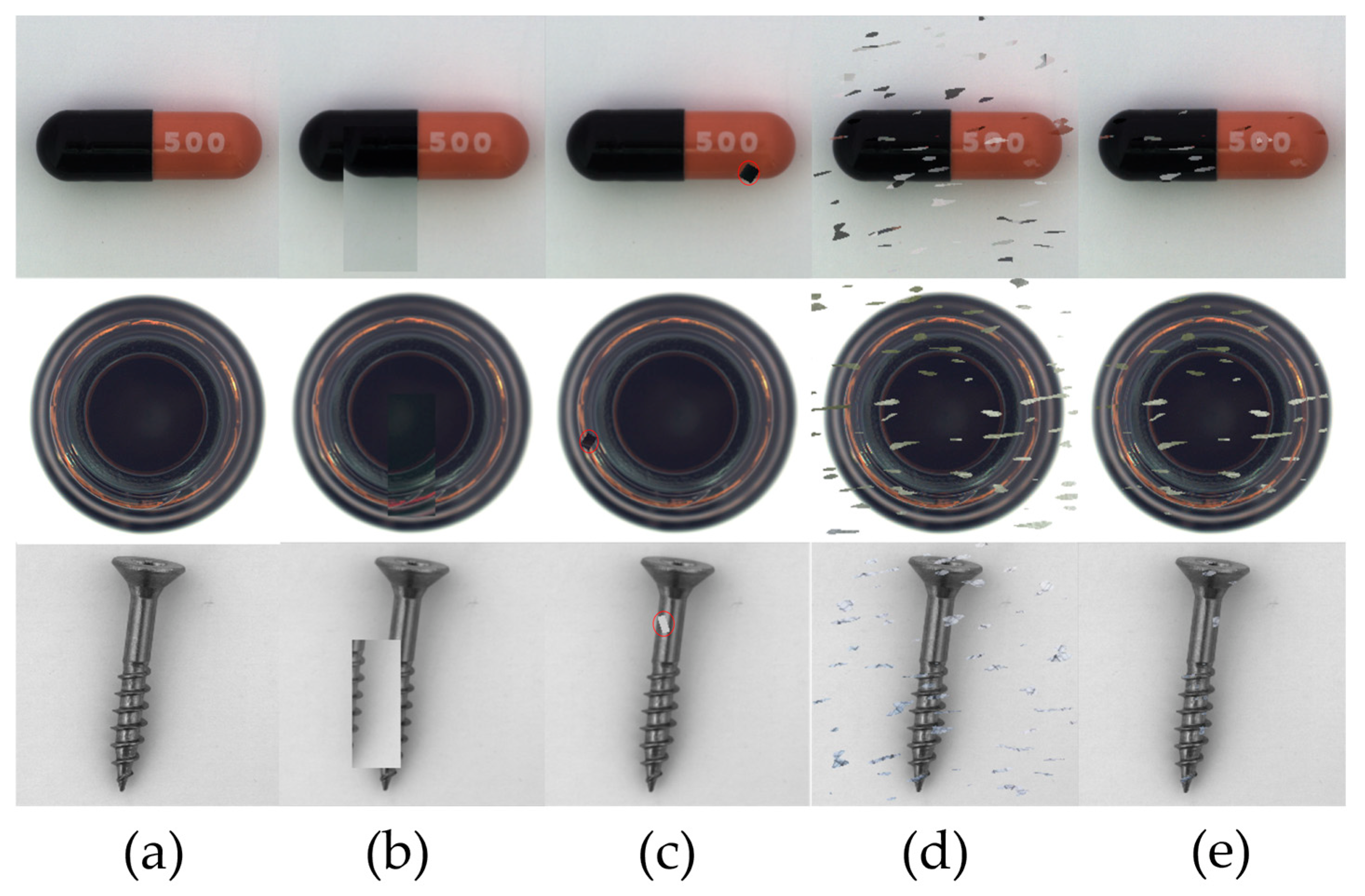

4.3.4. Different Anomaly Simulation Strategies
4.4. Discussions
4.4.1. Computational Complexity and Memory Complexity

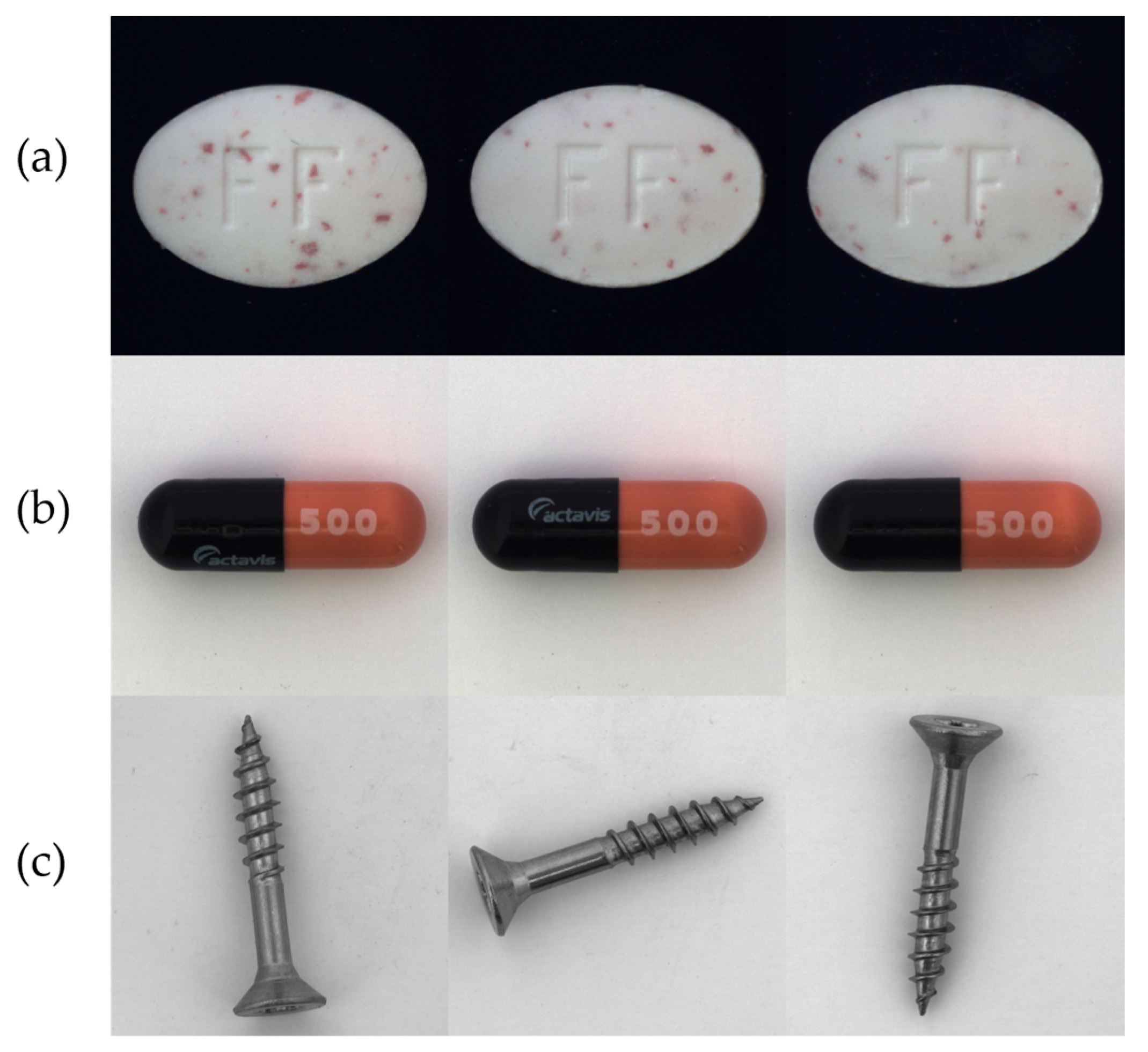

4.4.2. Limitations
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Pang, G.; Shen, C.; Cao, L.; van den Hengel, A. Deep Learning for Anomaly Detection: A Review. ACM Comput. Surv. 2022, 54, 1–38. [Google Scholar] [CrossRef]
- Fernando, T.; Gammulle, H.; Denman, S.; Sridharan, S.; Fookes, C. Deep Learning for Medical Anomaly Detection—A Survey. arXiv 2021, arXiv:2012.02364. [Google Scholar] [CrossRef]
- Bergmann, P.; Fauser, M.; Sattlegger, D.; Steger, C. MVTec AD—A Comprehensive Real-World Dataset for Unsupervised Anomaly Detection. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, Long Beach, CA, USA, 16–20 June 2019; pp. 9584–9592. [Google Scholar]
- Adam, A.; Rivlin, E.; Shimshoni, I.; Reinitz, D. Robust Real-Time Unusual Event Detection Using Multiple Fixed-Location Monitors. IEEE Trans. Pattern Anal. Mach. Intell. 2008, 30, 555–560. [Google Scholar] [CrossRef]
- Cohen, N.; Hoshen, Y. Sub-Image Anomaly Detection with Deep Pyramid Correspondences. arXiv 2021, arXiv:2005.02357. [Google Scholar]
- Defard, T.; Setkov, A.; Loesch, A.; Audigier, R. PaDiM: A Patch Distribution Modeling Framework for Anomaly Detection and Localization. In Pattern Recognition. ICPR International Workshops and Challenges, Virtual, 10–15 January 2021; Del Bimbo, A., Cucchiara, R., Sclaroff, S., Farinella, G.M., Mei, T., Bertini, M., Escalante, H.J., Vezzani, R., Eds.; Lecture Notes in Computer Science; Springer International Publishing: Cham, Switzerland, 2021; Volume 12664, pp. 475–489. [Google Scholar]
- Roth, K.; Pemula, L.; Zepeda, J.; Scholkopf, B.; Brox, T.; Gehler, P. Towards Total Recall in Industrial Anomaly Detection. In Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), New Orleans, LA, USA, 19–24 June 2022; pp. 14298–14308. [Google Scholar]
- Zhang, H.; Cisse, M.; Dauphin, Y.N.; Lopez-Paz, D. Mixup: Beyond Empirical Risk Minimization. arXiv 2018, arXiv:1710.09412. [Google Scholar]
- Berthelot, D.; Carlini, N.; Goodfellow, I.; Papernot, N.; Oliver, A.; Raffel, C.A. MixMatch: A Holistic Approach to Semi-Supervised Learning. In Proceedings of the Advances in Neural Information Processing Systems, Vancouver, BC, Canada, 8–14 December 2019; Wallach, H., Larochelle, H., Beygelzimer, A., d’Alché-Buc, F., Fox, E., Garnett, R., Eds.; Curran Associates, Inc.: New York, NY, USA, 2019; Volume 32. [Google Scholar]
- Li, C.-L.; Sohn, K.; Yoon, J.; Pfister, T. CutPaste: Self-Supervised Learning for Anomaly Detection and Localization. In Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Nashville, TN, USA, 19–25 June 2021; pp. 9659–9669. [Google Scholar]
- Perlin, K. An Image Synthesizer. ACM Siggraph Comput. Graph. 1985, 19, 287–296. [Google Scholar] [CrossRef]
- Bergmann, P.; Löwe, S.; Fauser, M.; Sattlegger, D.; Steger, C. Improving Unsupervised Defect Segmentation by Applying Structural Similarity to Autoencoders. In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications, Prague, Czech Republic, 25–27 February 2019; pp. 372–380. [Google Scholar]
- Liu, W.; Li, R.; Zheng, M.; Karanam, S.; Wu, Z.; Bhanu, B.; Radke, R.J.; Camps, O. Towards Visually Explaining Variational Autoencoders. In Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), IEEE, Seattle, WA, USA, 13–19 June 2020; pp. 8639–8648. [Google Scholar]
- Sabokrou, M.; Khalooei, M.; Fathy, M.; Adeli, E. Adversarially Learned One-Class Classifier for Novelty Detection. In Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018; pp. 3379–3388. [Google Scholar]
- Zavrtanik, V.; Kristan, M.; Skočaj, D. Reconstruction by Inpainting for Visual Anomaly Detection. Pattern Recognit. 2021, 112, 107706. [Google Scholar] [CrossRef]
- Pirnay, J.; Chai, K. Inpainting Transformer for Anomaly Detection. In Image Analysis and Processing–ICIAP 2022, Proceedings of the 21st International Conference, Lecce, Italy, 23–27 May 2022; Sclaroff, S., Distante, C., Leo, M., Farinella, G.M., Tombari, F., Eds.; Lecture Notes in Computer Science; Springer International Publishing: Cham, Switzerland, 2022; Volume 13232, pp. 394–406. [Google Scholar]
- Yang, Q.; Guo, R. An Unsupervised Method for Industrial Image Anomaly Detection with Vision Transformer-Based Autoencoder. Sensors 2024, 24, 2440. [Google Scholar] [CrossRef]
- Dosovitskiy, A.; Beyer, L.; Kolesnikov, A.; Weissenborn, D.; Zhai, X.; Unterthiner, T.; Dehghani, M.; Minderer, M.; Heigold, G.; Gelly, S.; et al. An Image Is Worth 16x16 Words: Transformers for Image Recognition at Scale. arXiv 2021, arXiv:2010.11929. [Google Scholar]
- Dai, Y.; Zhang, L.; Fan, F.-Y.; Wu, Y.-J.; Zhao, Z.-K. SCGAN: Extract Features From Normal Semantics for Unsupervised Anomaly Detection. IEEE Access 2023, 11, 137957–137968. [Google Scholar] [CrossRef]
- Fan, F.-Y.; Zhang, L.; Dai, Y. FEGAN: A Feature Extraction Based Approach for GAN Anomaly Detection and Localization. IEEE Access 2024, 12, 76154–76168. [Google Scholar] [CrossRef]
- Zavrtanik, V.; Kristan, M.; Skočaj, D. DSR–A Dual Subspace Re-Projection Network for Surface Anomaly Detection. In Computer Vision–ECCV 2022, Proceedings of the 17th European Conference, Tel Aviv, Israel, 23–27 October 2022; Avidan, S., Brostow, G., Cissé, M., Farinella, G.M., Hassner, T., Eds.; Lecture Notes in Computer Science; Springer Nature: Cham, Switzerland, 2022; Volume 13691, pp. 539–554. [Google Scholar]
- Zavrtanik, V.; Kristan, M.; Skocaj, D. DRÆM–A Discriminatively Trained Reconstruction Embedding for Surface Anomaly Detection. In Proceedings of the 2021 IEEE/CVF International Conference on Computer Vision (ICCV), IEEE, Montreal, QC, Canada, 11–17 October 2021; pp. 8310–8319. [Google Scholar]
- Ristea, N.-C.; Madan, N.; Ionescu, R.T.; Nasrollahi, K.; Khan, F.S.; Moeslund, T.B.; Shah, M. Self-Supervised Predictive Convolutional Attentive Block for Anomaly Detection. In Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), New Orleans, LA, USA, 19–24 June 2022; pp. 13566–13576. [Google Scholar]
- Yu, J.; Zheng, Y.; Wang, X.; Li, W.; Wu, Y.; Zhao, R.; Wu, L. FastFlow: Unsupervised Anomaly Detection and Localization via 2D Normalizing Flows. arXiv 2021, arXiv:2111.07677. [Google Scholar]
- Gudovskiy, D.; Ishizaka, S.; Kozuka, K. CFLOW-AD: Real-Time Unsupervised Anomaly Detection with Localization via Conditional Normalizing Flows. In Proceedings of the 2022 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV), Waikoloa, HI, USA, 4–8 January 2022; pp. 1819–1828. [Google Scholar]
- Sohn, K.; Li, C.-L.; Yoon, J.; Jin, M.; Pfister, T. Learning and Evaluating Representations for Deep One-Class Classification. arXiv 2021, arXiv:2011.02578. [Google Scholar]
- Bergman, L.; Cohen, N.; Hoshen, Y. Deep Nearest Neighbor Anomaly Detection. arXiv 2020, arXiv:2002.10445. [Google Scholar]
- Rippel, O.; Mertens, P.; Konig, E.; Merhof, D. Gaussian Anomaly Detection by Modeling the Distribution of Normal Data in Pretrained Deep Features. IEEE Trans. Instrum. Meas. 2021, 70, 1–13. [Google Scholar] [CrossRef]
- Schölkopf, B.; Platt, J.C.; Shawe-Taylor, J.; Smola, A.J.; Williamson, R.C. Estimating the Support of a High-Dimensional Distribution. Neural Comput. 2001, 13, 1443–1471. [Google Scholar] [CrossRef]
- Tax, D.M.J.; Duin, R.P.W. Support Vector Data Description. Mach. Learn. 2004, 54, 45–66. [Google Scholar] [CrossRef]
- Yi, J.; Yoon, S. Patch SVDD: Patch-Level SVDD for Anomaly Detection and Segmentation. In Proceedings of the 15th Asian Conference on Computer Vision–ACCV 2020, Virtual, 30 November–4 December 2020; Ishikawa, H., Liu, C.-L., Pajdla, T., Shi, J., Eds.; Lecture Notes in Computer Science. Springer International Publishing: Cham, Switzerland, 2021; Volume 12627, pp. 375–390. [Google Scholar]
- Ahn, J.-Y.; Kim, G. Application of Optimal Clustering and Metric Learning to Patch-Based Anomaly Detection. Pattern Recognit. Lett. 2022, 154, 110–115. [Google Scholar] [CrossRef]
- Gidaris, S.; Singh, P.; Komodakis, N. Unsupervised Representation Learning by Predicting Image Rotations. arXiv 2018, arXiv:1803.07728. [Google Scholar]
- DeVries, T.; Taylor, G.W. Improved Regularization of Convolutional Neural Networks with Cutout. arXiv 2017, arXiv:1708.04552. [Google Scholar]
- Zhang, R.; Isola, P.; Efros, A.A. Colorful Image Colorization. In Computer Vision–ECCV 2016, Proceedings of the 14th European Conference, Amsterdam, The Netherlands, 11–14 October 2016; Leibe, B., Matas, J., Sebe, N., Welling, M., Eds.; Lecture Notes in Computer Science; Springer International Publishing: Cham, Switzerland, 2016; Volume 9907, pp. 649–666. [Google Scholar]
- Yun, S.; Han, D.; Chun, S.; Oh, S.J.; Yoo, Y.; Choe, J. CutMix: Regularization Strategy to Train Strong Classifiers With Localizable Features. In Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision (ICCV), Seoul, Republic of Korea, 27 October–2 November 2019; pp. 6022–6031. [Google Scholar]
- Olsson, V.; Tranheden, W.; Pinto, J.; Svensson, L. ClassMix: Segmentation-Based Data Augmentation for Semi-Supervised Learning. In Proceedings of the 2021 IEEE Winter Conference on Applications of Computer Vision (WACV), Waikoloa, HI, USA, 5–9 January 2021; pp. 1368–1377. [Google Scholar]
- Hyun, J.; Kim, S.; Jeon, G.; Kim, S.H.; Bae, K.; Kang, B.J. ReConPatch: Contrastive Patch Representation Learning for Industrial Anomaly Detection. In Proceedings of the 2024 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV), Waikoloa, HI, USA, 4–8 January 2024; pp. 2041–2050. [Google Scholar]
- Zuo, Z.; Wu, Z.; Chen, B.; Zhong, X. A Reconstruction-Based Feature Adaptation for Anomaly Detection with Self-Supervised Multi-Scale Aggregation. In Proceedings of the ICASSP 2024—2024 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Seoul, Republic of Korea, 14 April 2024; pp. 5840–5844. [Google Scholar]
- Liu, Z.; Zhou, Y.; Xu, Y.; Wang, Z. SimpleNet: A Simple Network for Image Anomaly Detection and Localization. In Proceedings of the 2023 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Vancouver, BC, Canada, 18–22 June 2023; pp. 20402–20411. [Google Scholar]
- Hua, L.; Qi, Q.; Long, J. P2 Random Walk: Self-Supervised Anomaly Detection with Pixel-Point Random Walk. Complex Intell. Syst. 2024, 10, 2541–2555. [Google Scholar] [CrossRef]
- Yang, M.; Wu, P.; Feng, H. MemSeg: A Semi-Supervised Method for Image Surface Defect Detection Using Differences and Commonalities. Eng. Appl. Artif. Intell. 2023, 119, 105835. [Google Scholar] [CrossRef]
- Cimpoi, M.; Maji, S.; Kokkinos, I.; Mohamed, S.; Vedaldi, A. Describing Textures in the Wild. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Columbus, OH, USA, 24–27 June 2014; pp. 3606–3613. [Google Scholar]
- He, K.; Zhang, X.; Ren, S.; Sun, J. Deep Residual Learning for Image Recognition. In Proceedings of the 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Las Vegas, NV, USA, 26 June–1 July 2016; pp. 770–778. [Google Scholar]
- Hou, Q.; Zhou, D.; Feng, J. Coordinate Attention for Efficient Mobile Network Design. In Proceedings of the 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Nashville, TN, USA, 19–25 June 2021; pp. 13708–13717. [Google Scholar]
- Mishra, P.; Verk, R.; Fornasier, D.; Piciarelli, C.; Foresti, G.L. VT-ADL: A Vision Transformer Network for Image Anomaly Detection and Localization. In Proceedings of the 2021 IEEE 30th International Symposium on Industrial Electronics (ISIE), Kyoto, Japan, 20 June 2021; pp. 1–6. [Google Scholar]
- Loshchilov, I.; Hutter, F. SGDR: Stochastic Gradient Descent with Warm Restarts. arXiv 2017, arXiv:1608.03983. [Google Scholar]
- Hu, J.; Shen, L.; Sun, G. Squeeze-and-Excitation Networks. In Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–22 June 2018; pp. 7132–7141. [Google Scholar]
- Woo, S.; Park, J.; Lee, J.-Y.; Kweon, I.S. CBAM: Convolutional Block Attention Module. In Proceedings of the European Conference on Computer Vision–ECCV 2018, Munich, Germany, 8–14 September 2018; Ferrari, V., Hebert, M., Sminchisescu, C., Weiss, Y., Eds.; Lecture Notes in Computer Science. Springer International Publishing: Cham, Switzerland, 2018; Volume 11211, pp. 3–19. [Google Scholar]
- Zagoruyko, S.; Komodakis, N. Wide Residual Networks. arXiv 2016, arXiv:1605.07146. [Google Scholar]
Structure | Input | Output | Channel |
---|---|---|---|
Conv_block1 | 56 × 56 | 56 × 56 | 128 |
Avgpool1 | 56 × 56 | 28 × 28 | 128 |
Conv_block2 | 28 × 28 | 28 × 28 | 256 |
Avgpool2 | 28 × 28 | 14 × 14 | 256 |
Conv_block3 | 14 × 14 | 14 × 14 | 512 |
Avgpool3 | 14 × 14 | 7 × 7 | 512 |
AdaptiveAvgPool | 7 × 7 | 1 × 1 | 512 |
MLP | [512, 512, 128] | ||
FC | 3 |
Category | SPADE [5] | RIAD [15] | P-SVDD [31] | P-SVDD-C [32] | PaDiM [6] | CutPaste [10] | SCGAN [19] | Ours | |
---|---|---|---|---|---|---|---|---|---|
Carpet | 92.8 | 84.2 | 92.9 | 94.4 | 99.9 | 93.1 | 97.0 | 98.9 | |
Grid | 47.3 | 99.6 | 94.6 | 95.6 | 95.7 | 99.9 | 96.3 | 96.9 | |
Texture | Leather | 61.5 | 100.0 | 90.9 | 96.1 | 100.0 | 100.0 | 94.7 | 100.0 |
Tile | 96.5 | 98.7 | 97.8 | 93.5 | 97.4 | 93.4 | 97.4 | 97.3 | |
Wood | 95.8 | 93.0 | 96.5 | 98.0 | 98.8 | 98.6 | 100.0 | 97.8 | |
Average | 85.6 | 95.1 | 94.5 | 95.5 | 98.4 | 97.0 | 97.1 | 98.2 | |
Bottle | 97.2 | 99.9 | 98.6 | 99.5 | 99.8 | 98.3 | 98.3 | 99.9 | |
Cable | 84.8 | 81.9 | 90.3 | 97.8 | 92.2 | 80.6 | 98.2 | 94.9 | |
Capsule | 89.7 | 88.4 | 76.7 | 88.7 | 91.5 | 96.2 | 83.2 | 90.3 | |
Hazelnut | 88.1 | 83.3 | 92.0 | 97.9 | 93.3 | 97.3 | 97.5 | 94.2 | |
Object | Metal nut | 71.0 | 88.5 | 94.0 | 96.5 | 99.2 | 99.3 | 90.1 | 99.1 |
Pill | 80.1 | 83.8 | 86.1 | 91.9 | 94.4 | 92.4 | 89.4 | 89.7 | |
Screw | 66.7 | 84.5 | 81.3 | 83.3 | 84.4 | 86.3 | 100.0 | 87.5 | |
Toothbrush | 88.9 | 100.0 | 100.0 | 95.6 | 97.2 | 98.3 | 100.0 | 94.7 | |
Transistor | 90.3 | 90.9 | 91.5 | 92.1 | 97.8 | 95.5 | 91.3 | 95.7 | |
Zipper | 96.6 | 98.1 | 97.9 | 95.9 | 90.9 | 99.4 | 92.4 | 98.2 | |
Average | 85.3 | 89.9 | 90.8 | 93.9 | 94.1 | 94.3 | 94.0 | 93.9 | |
Average | 85.4 | 91.7 | 92.1 | 94.4 | 95.5 | 95.2 | 95.1 | 95.7 |
Category | SPADE [5] | RIAD [15] | P-SVDD [31] | P-SVDD-C [32] | PaDiM [6] | CutPaste [10] | Ours | |
---|---|---|---|---|---|---|---|---|
Carpet | 97.5 | 96.3 | 92.6 | 92.9 | 98.8 | 98.3 | 98.9 | |
Grid | 93.7 | 98.8 | 96.2 | 97.2 | 93.6 | 97.5 | 94.0 | |
Texture | Leather | 97.6 | 99.4 | 97.4 | 98.2 | 99.0 | 99.5 | 99.2 |
Tile | 87.4 | 89.1 | 91.4 | 91.9 | 91.7 | 90.5 | 94.0 | |
Wood | 85.5 | 85.8 | 90.8 | 92.1 | 94.0 | 95.5 | 91.6 | |
Average | 92.3 | 93.9 | 93.7 | 94.5 | 95.3 | 96.3 | 95.5 | |
Bottle | 98.4 | 98.4 | 98.1 | 98.6 | 98.1 | 97.6 | 97.3 | |
Cable | 97.2 | 84.2 | 96.8 | 97.6 | 94.9 | 90.0 | 96.0 | |
Capsule | 99.0 | 92.8 | 95.8 | 96.3 | 98.2 | 97.4 | 97.5 | |
Hazelnut | 99.1 | 96.1 | 97.5 | 98.2 | 97.9 | 97.3 | 96.6 | |
Object | Metal nut | 98.1 | 92.5 | 98.0 | 98.1 | 96.7 | 93.1 | 94.1 |
Pill | 96.5 | 95.7 | 95.1 | 92.4 | 94.6 | 95.7 | 95.7 | |
Screw | 98.9 | 98.8 | 95.7 | 95.3 | 97.2 | 96.7 | 96.7 | |
Toothbrush | 97.9 | 98.9 | 98.1 | 96.0 | 98.6 | 98.1 | 97.2 | |
Transistor | 94.1 | 87.7 | 97.0 | 93.5 | 96.8 | 93.0 | 96.4 | |
Zipper | 96.5 | 97.8 | 95.1 | 96.0 | 97.6 | 99.3 | 97.9 | |
Average | 97.6 | 94.3 | 96.7 | 96.2 | 97.1 | 95.8 | 96.5 | |
Average | 96.0 | 94.2 | 95.7 | 95.6 | 96.5 | 96.0 | 96.2 |
Category | SPADE [5] | P-SVDD [31] | PatchCore [7] | VT-ADL [46] | Ours |
---|---|---|---|---|---|
01 | (91.4, 97.3) | (95.7, 91.6) | (90.9, 95.5) | (-, 99.0) | (97.3, 97.0) |
02 | (71.4, 94,4) | (72.1, 93.6) | (79.3, 94.7) | (-, 94.0) | (84.1, 96.6) |
03 | (99.9, 99.1) | (82.1, 91.0) | (99.8, 99.3) | (-, 77.0) | (98.7, 99.2) |
Average | (87.6, 96.9) | (83.3, 92.1) | (90.0, 96.5) | (-, 90.0) | (93.4, 97.6) |
Layer 1 | Layer 2 | Layer 3 | I-AUROC | P-AUROC |
---|---|---|---|---|
√ | 89.1 | 94.5 | ||
√ | 95.4 | 94.9 | ||
√ | 95.7 | 94.2 | ||
√ | √ | 93.2 | 95.3 | |
√ | √ | 95.4 | 95.8 | |
√ | √ | 95.6 | 95.6 | |
√ | √ | √ | 95.7 | 96.2 |
Category | w/o Atten | +SE | +CBAM | +CA |
---|---|---|---|---|
Texture | (97.8, 95.1) | (97.3, 94.6) | (96.5, 94.7) | (98.2, 95.5) |
Object | (93.9, 96.0) | (93.2, 96.2) | (93.4, 96.3) | (93.9, 96.5) |
Average | (95.2, 95.7) | (94.6, 95.7) | (94.4, 95.7) | (95.7, 96.2) |
Component | 256d | 200d | 160d | 100d |
---|---|---|---|---|
+SE | (95.4, 96.2) | (94.4, 95.9) | (95.2, 96.0) | (94.6, 95.7) |
+CBAM | (95.2, 96.4) | (94.9, 96.3) | (94.6, 96.3) | (94.4, 95.7) |
+CA | (95.1, 96.4) | (95.5, 96.6) | (94.9, 96.2) | (95.7, 96.2) |
Category | Rect | Scar | Rect & Scar | 2-Way | w/o Mask | Mask |
---|---|---|---|---|---|---|
Texture | (97.8, 95.3) | (98.4, 95.5) | (98.3, 95.6) | (97.7, 94.9) | (98.7, 96.7) | (98.2, 95.5) |
Object | (91.4, 95.7) | (91.5, 95.4) | (92.7, 95.6) | (92.9, 95.9) | (92.4, 96.3) | (93.9, 96.5) |
Average | (93.5, 95.6) | (93.8, 95.5) | (94.6, 95.6) | (94.5, 95.6) | (94.5, 96.4) | (95.7, 96.2) |
Models | I-AUROC | P-AUROC | Memory Bank (GB) | Parameters (M) |
---|---|---|---|---|
PaDiM (R18-RD100) | 90.5 | 96.5 | 0.12 | — |
PaDiM (R18-Full) | 93.9 | 97.1 | 2.3 | — |
PaDiM (WR50-RD550) | 95.5 | 97.3 | 3.5 | — |
CutPaste | 95.2 | 96.0 | — | 11.8 |
Ours | 95.7 | 96.2 | 0.12 | 3.8 |
