Alfalfa Stalk Crushing Simulation Test and Parameter Optimization Method
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

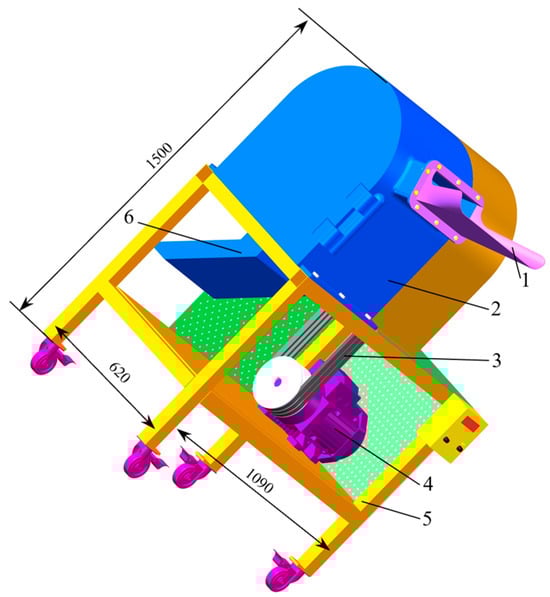

2.2. Methods

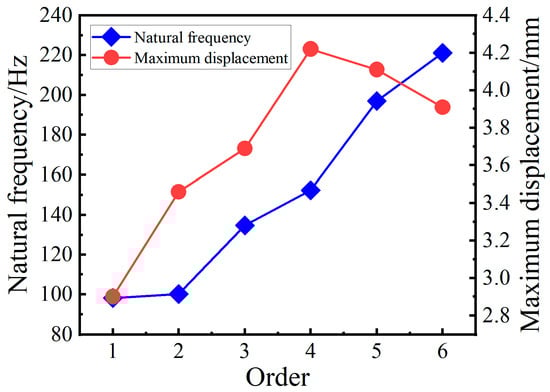

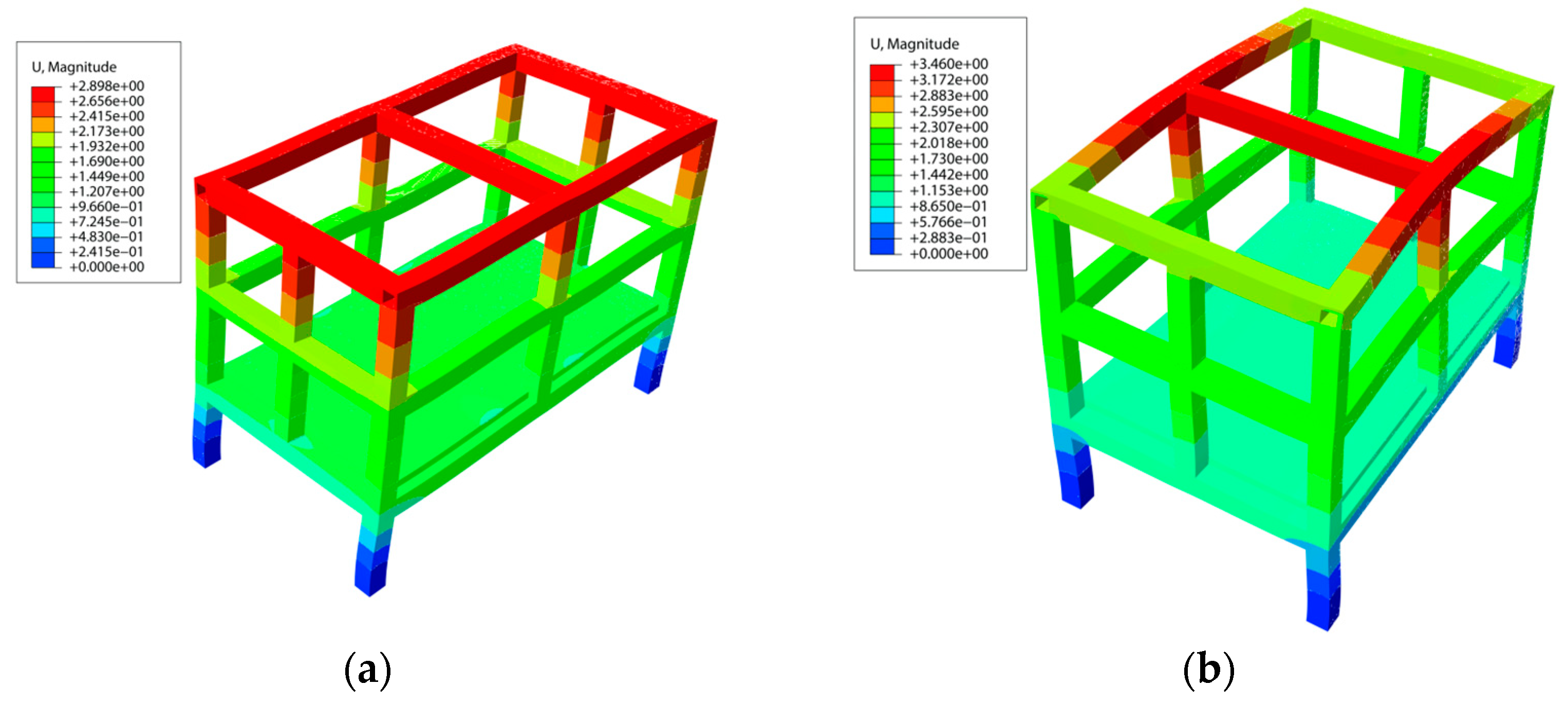

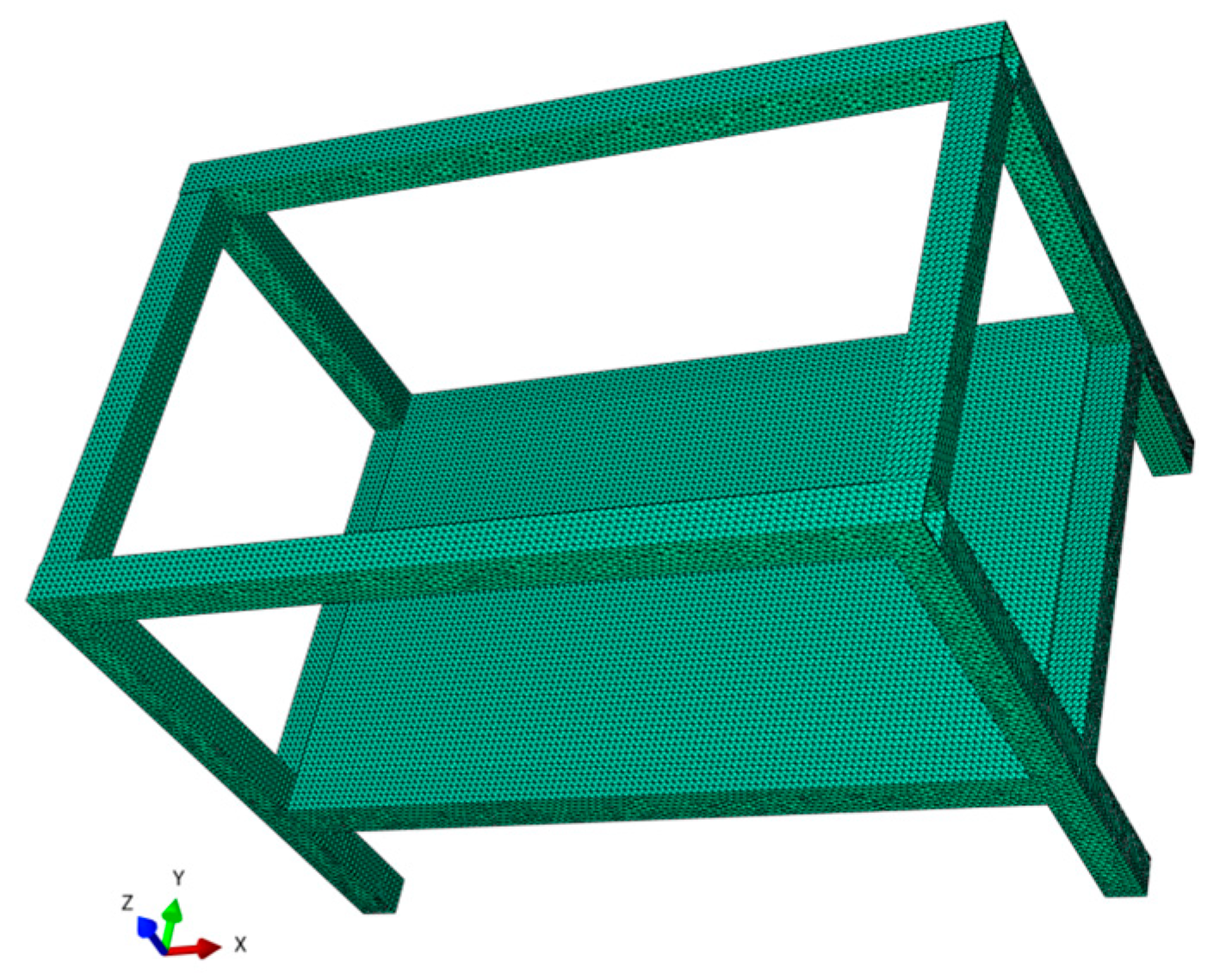

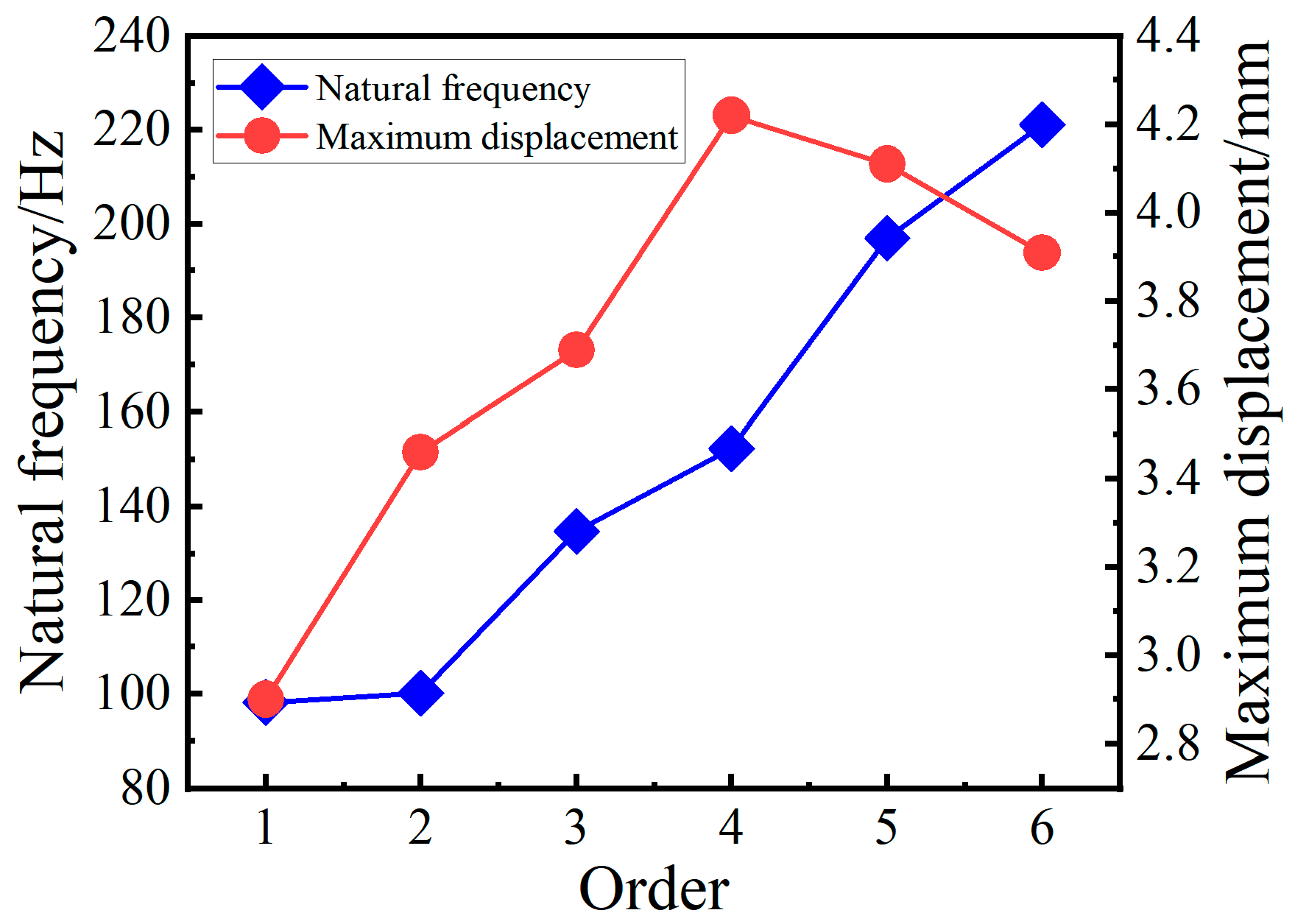

3. Key Steps in Modal Analysis and Results
4. Key Steps in Discrete Element Simulation and Results

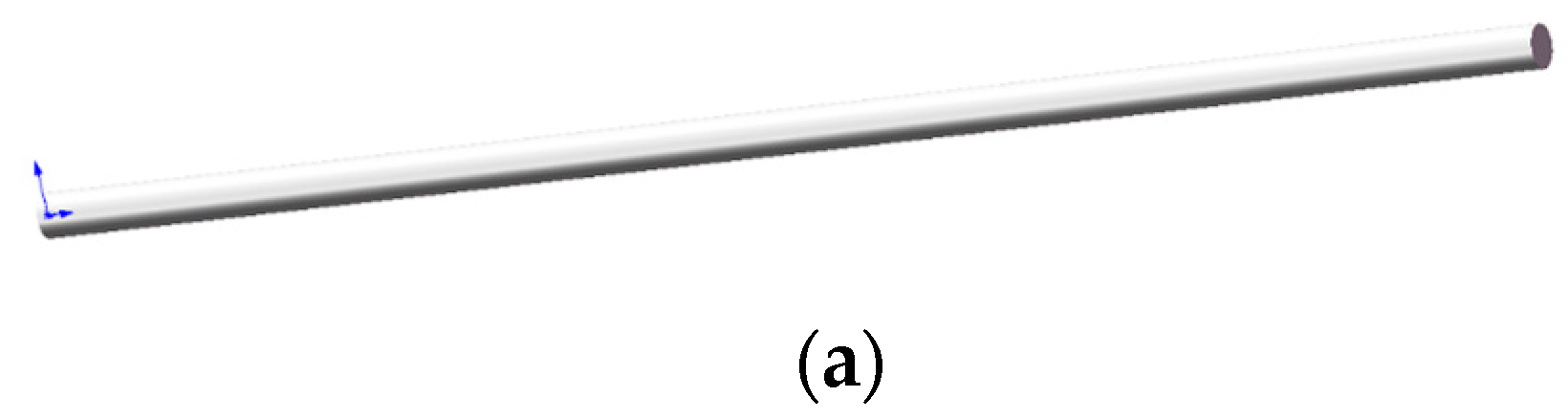

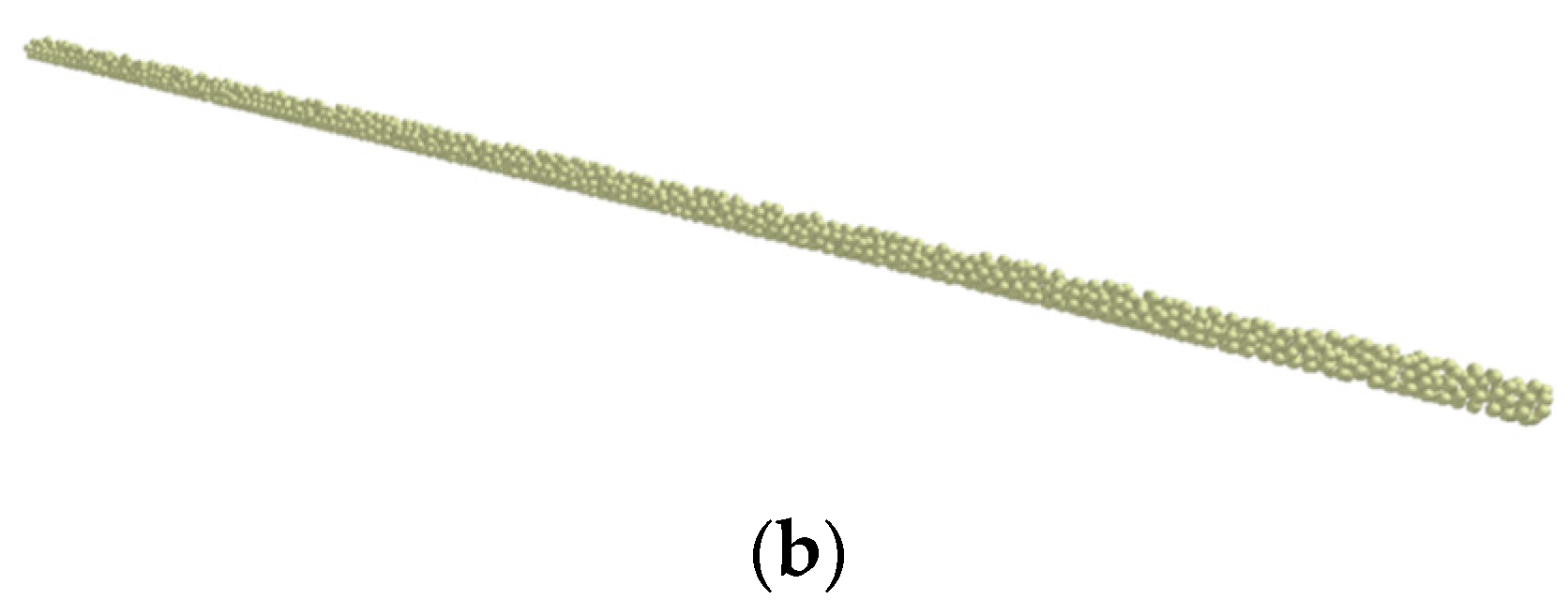

4.1. Construction of the Alfalfa Stalk Model

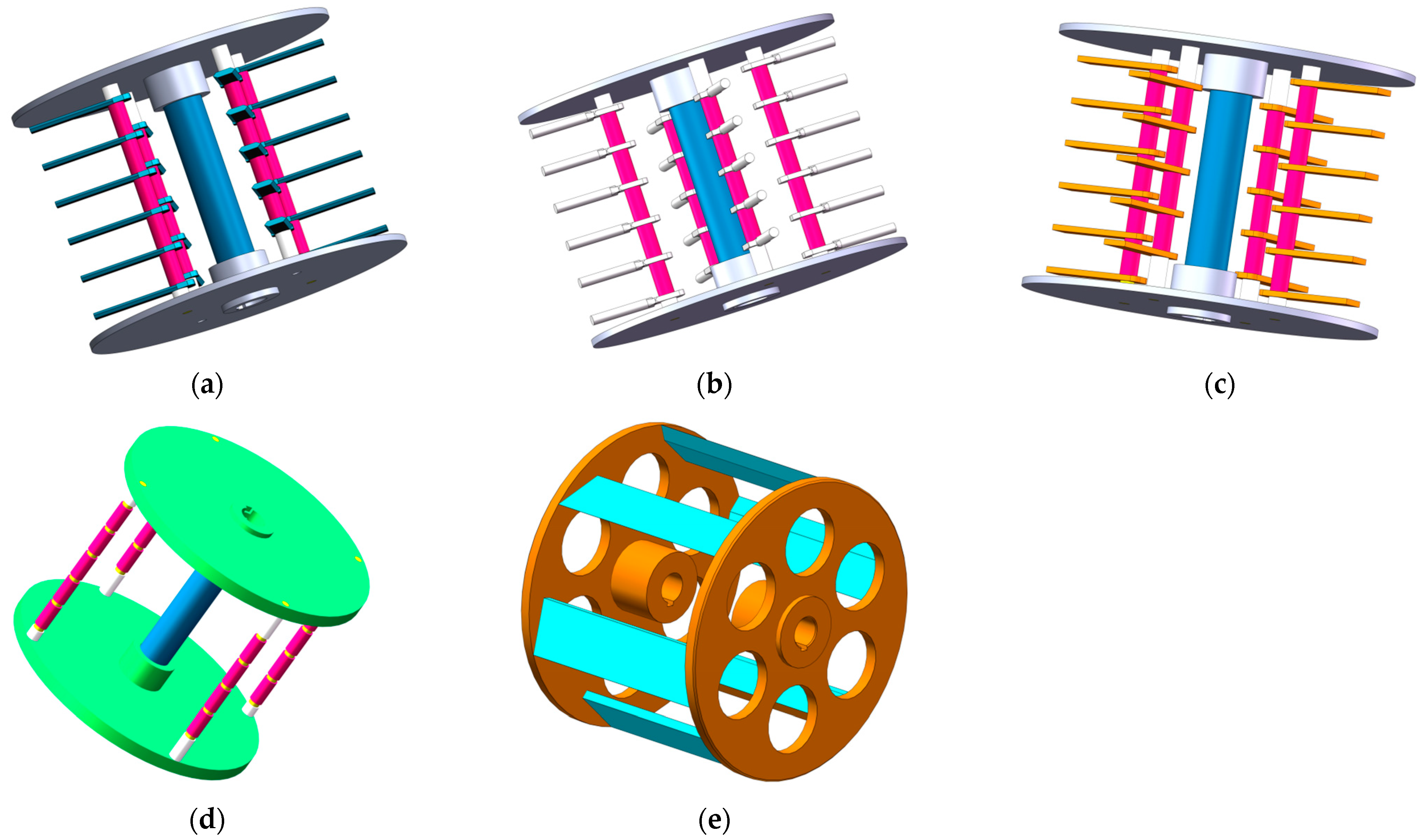

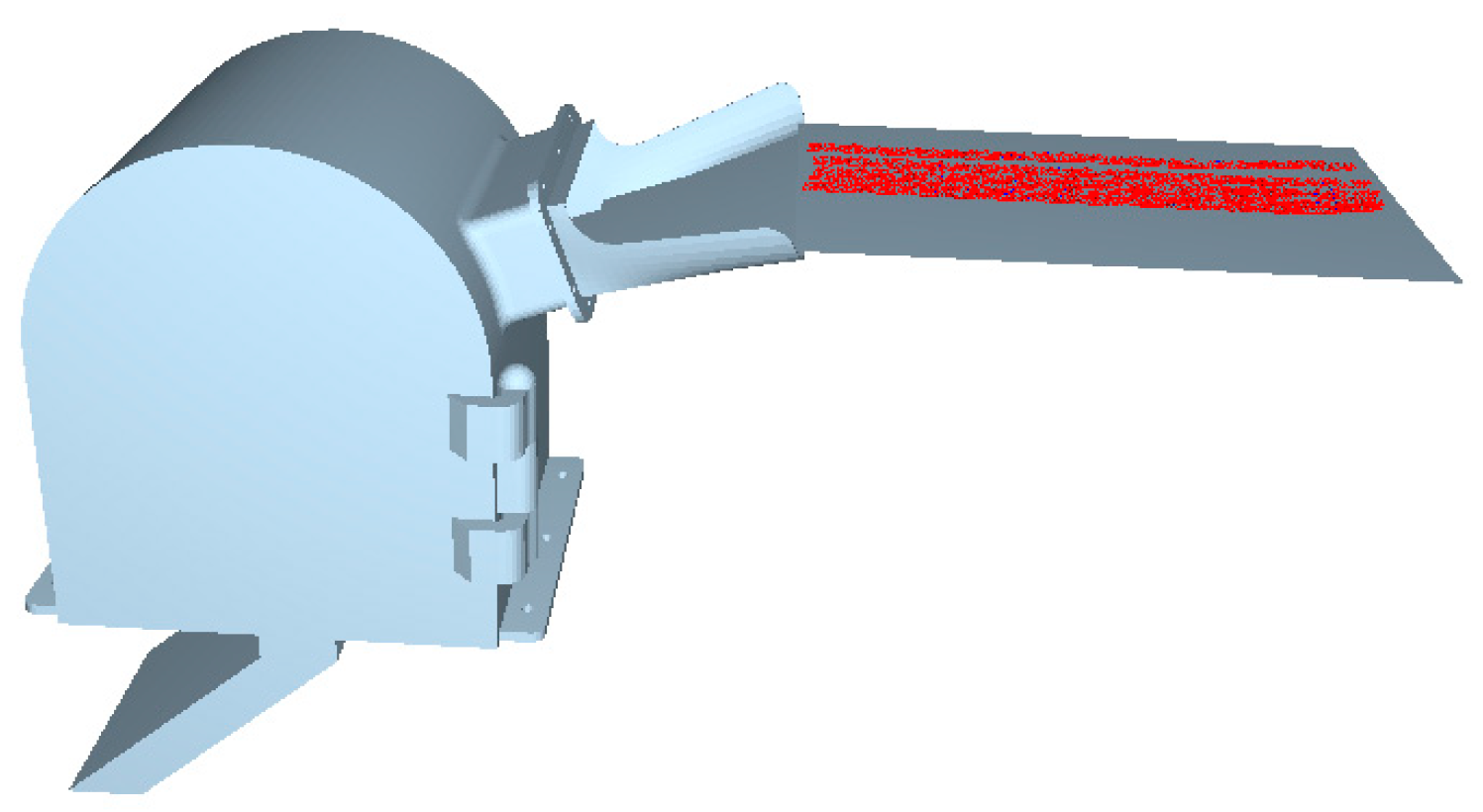

4.2. Construction of the Crushing Device Model

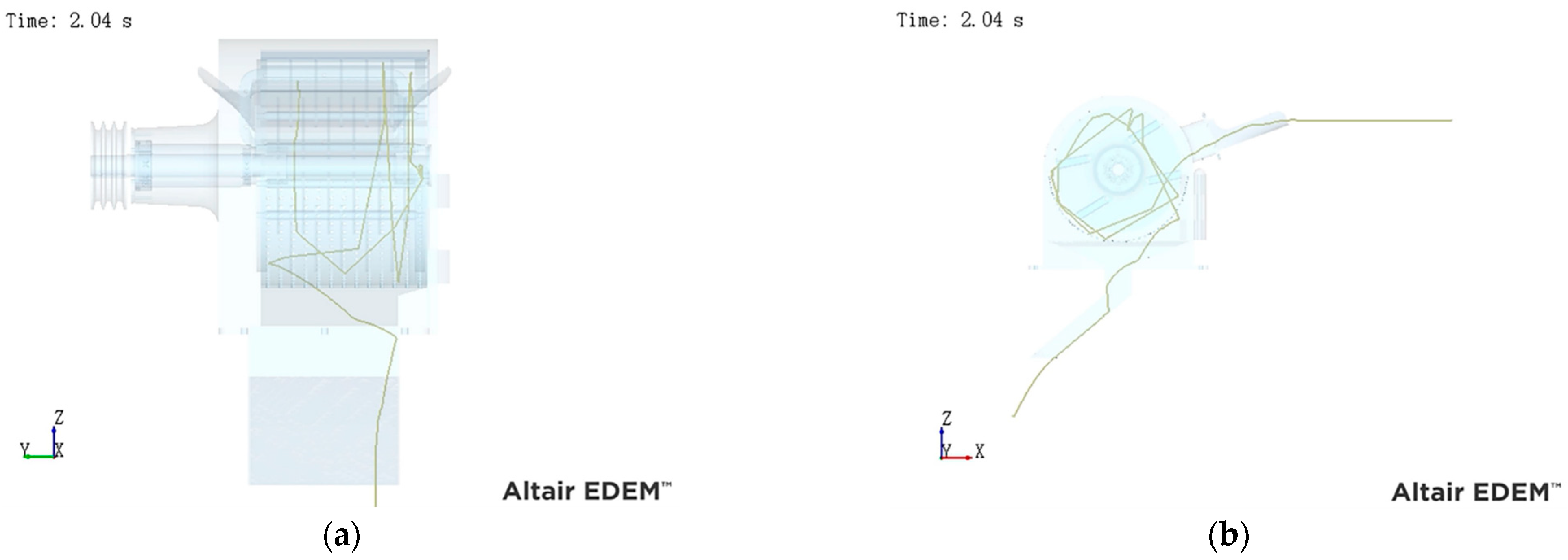

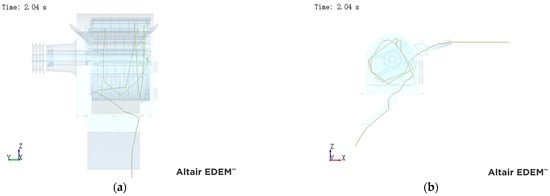

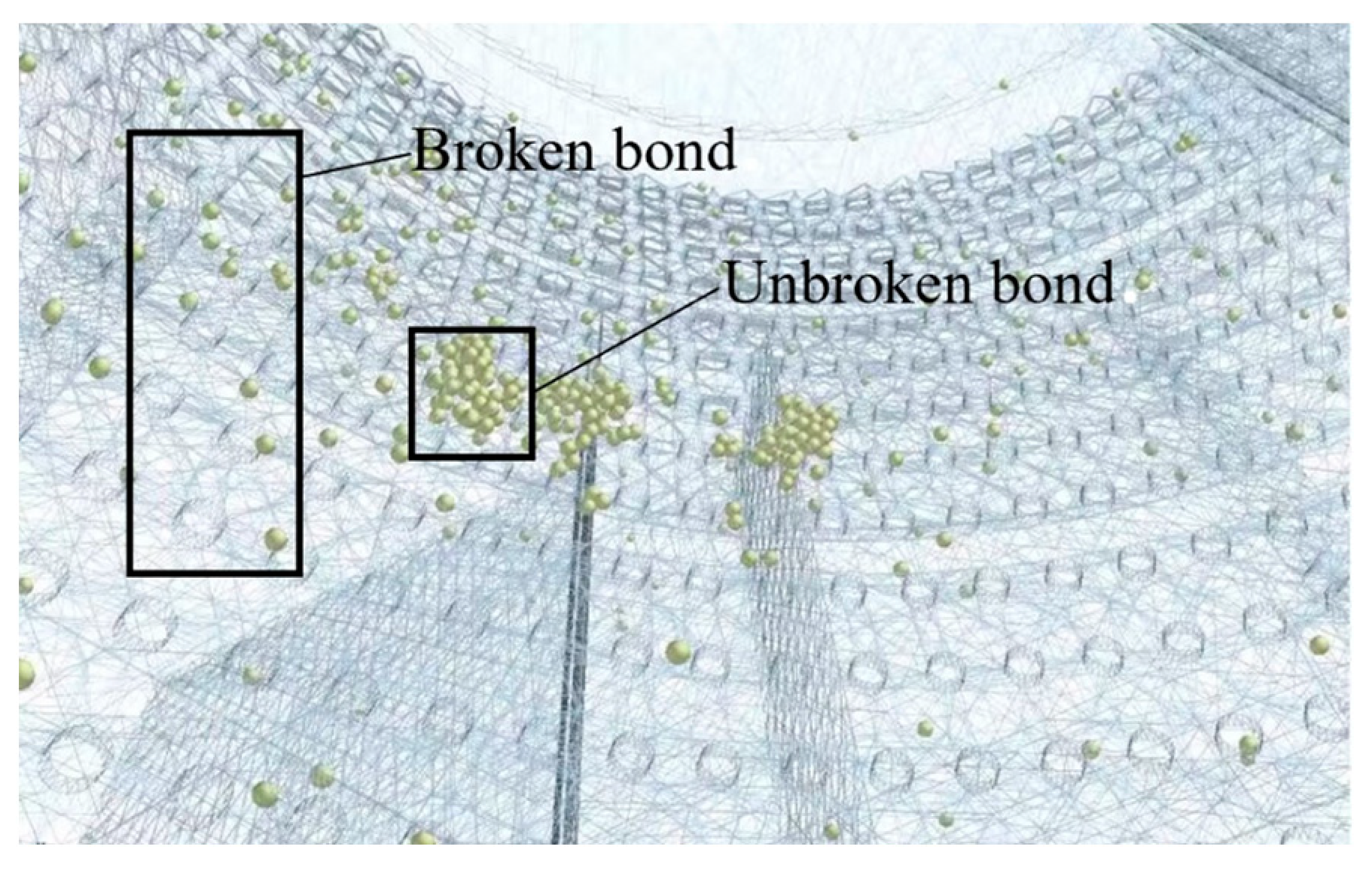

4.3. Discrete Element Analysis Results

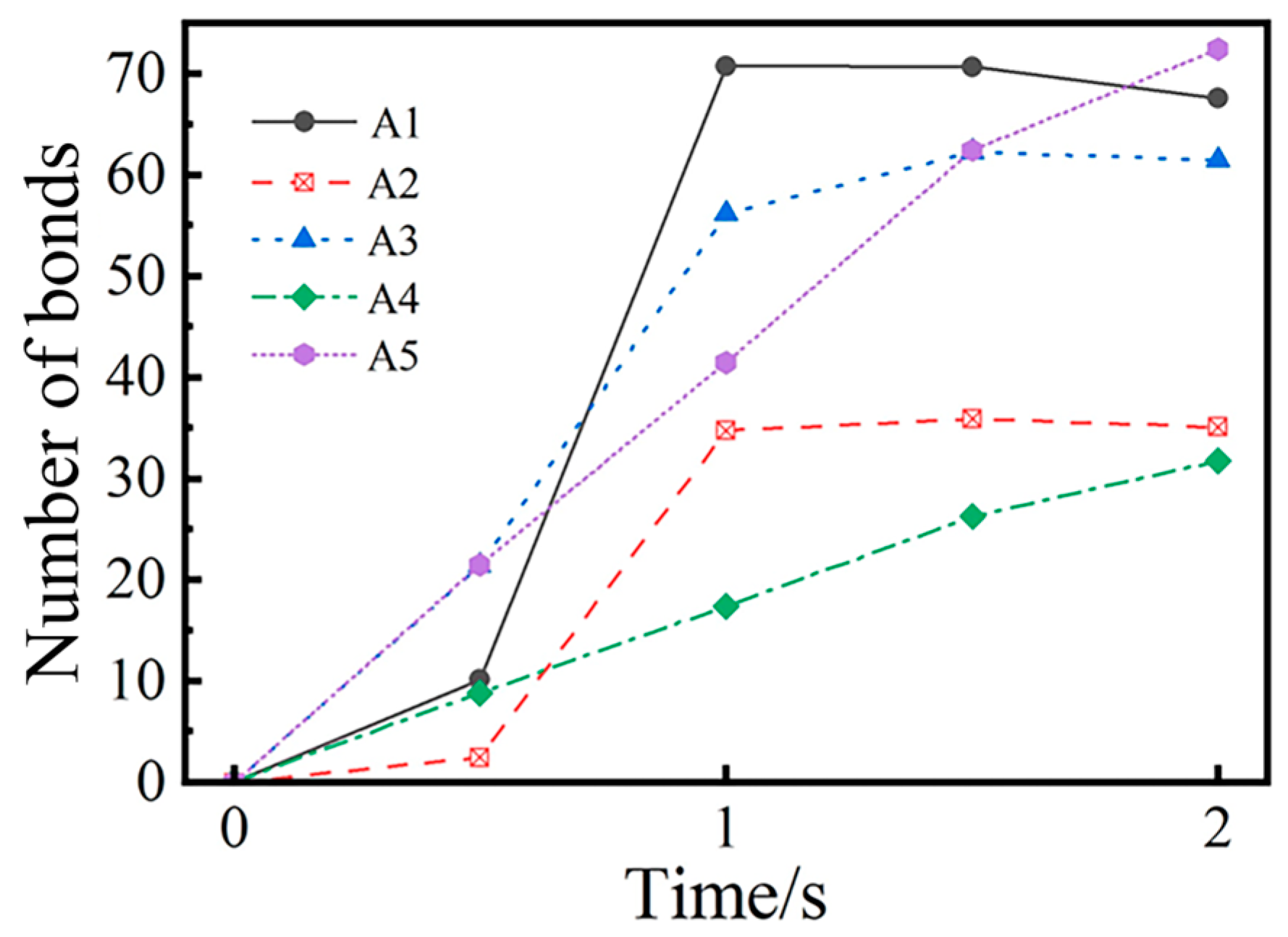

4.3.1. The Influence of Crushing Structure and Rotation Speed on Stalk Crushing Effect
4.3.2. Orthogonal Experimental Design and Range Analysis
5. Discussion
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Zhang, J.; Feng, B.; Yu, X.Z.; Zhao, C.; Li, H.; Kan, Z. Experimental Study on the Crushing Properties of Corn Stalks in Square Bales. Processes 2022, 10, 168. [Google Scholar] [CrossRef]
- Mu, X.D.; Li, H.B.; Wang, Z.Y.; Wang, Q.H.; Geng, D.Y.; Zhu, J.K. Comparison of Crushing Effect of Differently Shaped Crushing Rollers on Whole-Plant Silage Maize. Agriculture 2023, 13, 1276. [Google Scholar] [CrossRef]
- Li, Y.; Wu, Z.H.; Li, Y.; Guo, C.F.; Wei, S.Q. Design and test of vertical banana straw crushing and returning machine based on piranha tooth structure. J. Chin. Inst. Eng. 2023, 46, 591–600. [Google Scholar] [CrossRef]
- El Ghobashy, H.; Shaban, Y.; Okasha, M.; Abd El-Reheem, S.; Abdelgawad, M.; Ibrahim, R.; Ibrahim, H.; Abdelmohsen, K.; Awad, M.; Cottb, M.; et al. Development and evaluation of a dual-purpose machine for chopping and crushing forage crops. Heliyon 2023, 9, e15460. [Google Scholar] [CrossRef] [PubMed]
- Liu, W.H.; Su, Q.; Fang, M.; Zhang, J.C.; Zhang, W.J.; Yu, Z.H. Parameters Calibration of Discrete Element Model for Corn Straw Cutting Based on Hertz-Mindlin with Bonding. Appl. Sci. 2023, 13, 1156. [Google Scholar] [CrossRef]
- He, Z.Y.; Yang, J.Y.; Zou, L.M.; He, L. The effect of the double-horizontal-shaft vibrating mixing on the performance of UHPC. Int. J. Mater. Prod. Technol. 2023, 66, 379–396. [Google Scholar] [CrossRef]
- Li, C.; Li, Z.; Wang, T.; Ling, G.X.; Wang, S.F.; Li, J. Parameter optimization of column-comb harvesting of litchi based on the EDEM. Sci. Hortic. 2023, 321, 112216. [Google Scholar] [CrossRef]
- Li, J.R.; Xie, S.S.; Liu, F.; Guo, Y.P.; Liu, C.L.; Shang, Z.Y.; Zhao, X. Calibration and Testing of Discrete Element Simulation Parameters for Sandy Soils in Potato Growing Areas. Appl. Sci. 2022, 12, 10125. [Google Scholar] [CrossRef]
- Zhuang, H.Y.; Wang, X.L.; Zhang, X.C.; Cheng, X.P.; Wei, Z.C. Discrete element-based design of key parameters for wheel rut tillage devices. Eng. Agrícola 2023, 43, e20230039. [Google Scholar] [CrossRef]
- Wang, X.F.; Wu, W.B.; Jia, H.P. Calibration of discrete element parameters for simulating wheat crushing. Food Sci. Nutr. 2023, 11, 7443–8173. [Google Scholar] [CrossRef] [PubMed]
- Yan, D.; Deng, W.G.; Xie, S.S.; Liu, C.L.; Ren, Z.Q.; Zhao, H.H.; Cai, Y.S.; Zhao, Z.X. Discrete Element-Based Simulation Analysis and Research of Potato Soil Agglomerate Fragmentation and Separation. Appl. Sci. 2023, 13, 8416. [Google Scholar] [CrossRef]
- Zhou, Y.; Shang, W.Y.; Hui, Y.B.; Shi, C.; Gao, J.; Zhang, Y.Z.; Liu, J.J.; Cheng, D.D.; Zhu, K. Construction of an Accurate Wheat-Grain Model Based on X-ray Tomography and Bonding Parameters by Discrete Element. Appl. Sci. 2023, 13, 9265. [Google Scholar] [CrossRef]
- Shi, Y.Y.; Yu, H.W.; Jiang, Y.; Wang, X.C.; Chen, H.T.; Liu, H. Optimization of Strip Fertilization Planter for Straw Throwing and Paving. Agriculture 2022, 12, 613. [Google Scholar] [CrossRef]
- Lei, J.L.; Liu, Z.C.; Ren, D.N.; Wang, S.W.; Lei, D.Y.; Luo, J.W.; Lei, M. Discrete Elemental Parameter Calibration of Stacking Behavior of Sugarcane Tail Leaf Sieved Material. Bioresources 2023, 18, 4834–4849. [Google Scholar] [CrossRef]
- Bai, S.H.; Yang, Q.Z.; Niu, K.; Zhao, B.; Zhou, L.M.; Yuan, Y.W. Discrete element-based optimization parameters of an experimental corn silage crushing and throwing device. Trans. ASABE 2021, 64, 1019–1026. [Google Scholar] [CrossRef]
- Song, C.D. Study on Stress Tratisfer Law of Alfalfa Straw During Vibration Compression Based on Discrete Element Method; Inner Mongolia Agricultural University: Hohhot, China, 2020; pp. 30–31. [Google Scholar]
- Niu, K.; Yang, Q.Z.; Bai, S.H.; Zhou, L.M.; Chen, K.K.; Wang, F.Z.; Xiong, S.; Zhao, B. Simulation analysis and experimental research on silage corn crushing and throwing device. Appl. Eng. Agric. 2021, 37, 725–734. [Google Scholar] [CrossRef]
- Wang, P.; Chen, X.G.; Wen, H.J. Simulation Research on Cotton Stalk Cutting and Crushing Based on ANSYS/LS-DYNA and Field Experiments. Agriculture 2023, 13, 1268. [Google Scholar] [CrossRef]
- Zhang, J.; Feng, B.; Guo, L.; Kong, L.Z.; Zhao, C.; Yu, X.Z.; Luo, W.J.; Kan, Z. Performance test and process parameter optimization of 9FF type square bale straw crusher. Int. J. Agric. Biol. Eng. 2021, 14, 232–240. [Google Scholar] [CrossRef]
Parameter | Value |
---|---|
Alfalfa Poisson’s ratio | 0.4 |
Alfalfa density/kg·m−3 | 256 |
Alfalfa shear modulus/MPa | 5.00 |
Steel 45 Poisson’s ratio | 0.3 |
Steel 45 density/kg·m−3 | 7800 |
Steel 45 shear modulus/MPa | 70,000 |
Stalk–stalk collision recovery coefficient | 0.11 |
Stalk–stalk static friction coefficient | 0.45 |
Stalk–stalk rolling friction coefficient | 0.08 |
Stalk–steel 45 collision recovery coefficient | 0.16 |
Stalk–steel 45 static friction coefficient | 0.54 |
Stalk–steel 45 rolling friction coefficient | 0.24 |
Q235 elastic modulus/MPa | 210 × 103 |
Q235 density/ton·mm−3 | 7850 × 10−12 |
Q235 Poisson’s ratio | 0.3 |

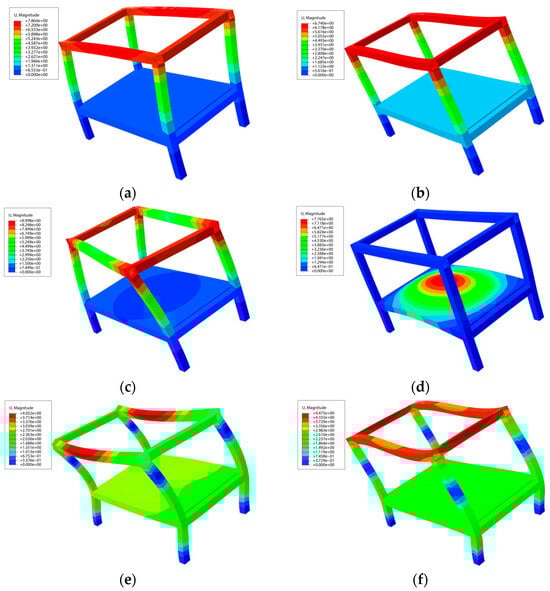

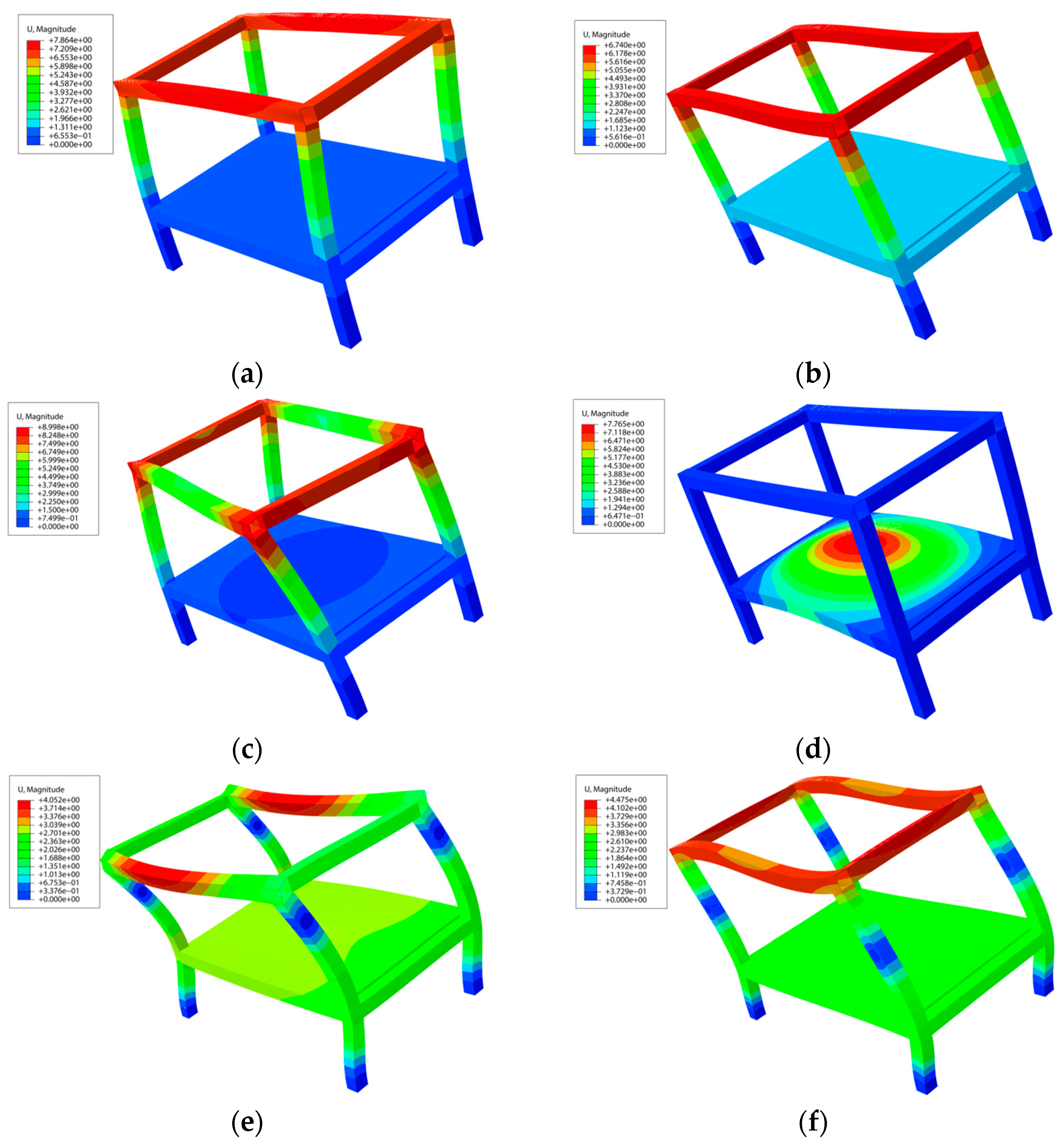

Order | Natural Frequency/Hz | Maximum Deformation/mm | Vibration Shape Description |
---|---|---|---|
1 | 63.67 | 7.86 | The upper beam deformed |
2 | 76.11 | 6.74 | The upper beam deformed |
3 | 91.20 | 9.00 | The upper short beam deformed |
4 | 104.42 | 7.77 | The support plate deformed |
5 | 137.45 | 4.05 | The upper long beam deformed |
6 | 149.84 | 4.48 | The upper beam deformed |
No. | Rotating Speed/r·min−1 | Crushed Structure |
---|---|---|
1 | 2400 | Hammer-crushing structure with a blade |
2 | 3000 | Hammer-crushing structure without blade |
3 | 3600 | Hammer rod-type crushing device |
4 | 4200 | Hob crushing structure |
5 | 4800 | Roller crushing structure |

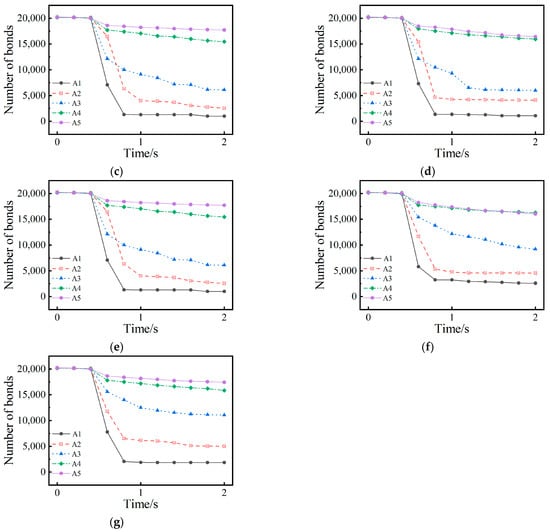

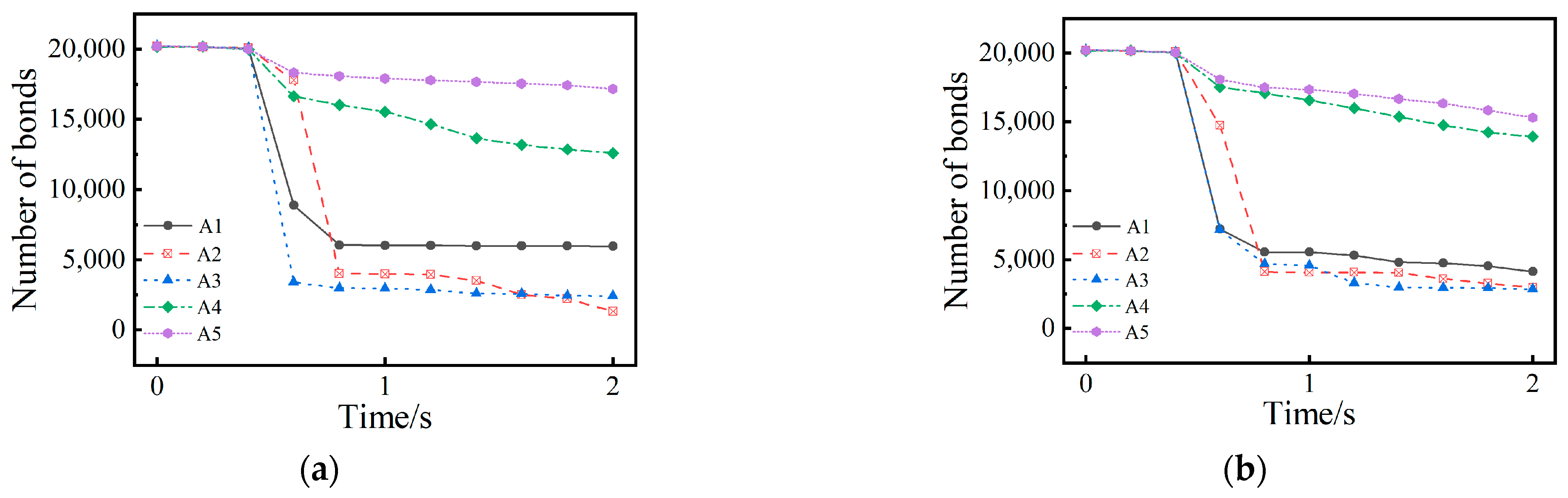

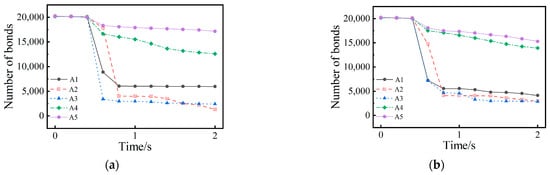

No. | Rotating Speed/r·min−1 | Crushed Structure | Percentage of Bonding Bonds |
---|---|---|---|
1 | 2400 | Hammer-crushing structure with a blade | Y1 |
2 | 2400 | Hammer-crushing structure without blade | Y2 |
3 | 2400 | Hammer rod-type crushing device | Y3 |
4 | 2400 | Hob crushing structure | Y4 |
5 | 2400 | Roller crushing structure | Y5 |
6 | 3000 | Hammer-crushing structure with a blade | Y6 |
7 | 3000 | Hammer-crushing structure without blade | Y7 |
8 | 3000 | Hammer rod-type crushing device | Y8 |
9 | 3000 | Hob crushing structure | Y9 |
10 | 3000 | Roller crushing structure | Y10 |
11 | 3600 | Hammer-crushing structure with a blade | Y11 |
12 | 3600 | Hammer-crushing structure without blade | Y12 |
13 | 3600 | Hammer rod-type crushing device | Y13 |
14 | 3600 | Hob crushing structure | Y14 |
15 | 3600 | Roller crushing structure | Y15 |
16 | 4200 | Hammer-crushing structure with a blade | Y16 |
17 | 4200 | Hammer-crushing structure without blade | Y17 |
18 | 4200 | Hammer rod-type crushing device | Y18 |
19 | 4200 | Hob crushing structure | Y19 |
20 | 4200 | Roller crushing structure | Y20 |
21 | 4800 | Hammer-crushing structure with a blade | Y21 |
22 | 4800 | Hammer-crushing structure without blade | Y22 |
23 | 4800 | Hammer rod-type crushing device | Y23 |
24 | 4800 | Hob crushing structure | Y24 |
25 | 4800 | Roller crushing structure | Y25 |
