In Vivo Biosynthesis of Au and Ag NPs Using Two Medicago sativa L. Genotypes

Abstract

The nano size as well as physical and chemical properties of Au and Ag nanoparticles (NPs) allow them to be used in medicine or plant protection, but chemical solvents used during synthesis makes them toxic and pose a threat to the environment. Chemical NP synthesis can be replaced by in vivo synthesis in which independently growing plants such as alfalfa take up and then split the precursor in their cells down to nano size using synthesis-promoting solvent-biomolecules, which can break down materials without free radicals and have anti-inflammatory, antioxidant effects, making NPs environmentally benign. In this study, two-week-old seedlings of two Medicago sativa L. genotypes, ‘Kometa’ and ‘la Bella’, were exposed to two precursors (AgNO₃, HAuCl₄) for 24 and 48 h to determine whether in vivo synthesis is possible. Two-beam and certain wavelength spectrophotometry and confocal microscopy confirmed statistically significant (p < 0.05) changes in light absorption and light fluorescence compared to the control. Confocal microscopy showed both precursors visible in the roots of both genotypes. Currently, NP synthesis and visualisation methods require a complex, expensive, and time-consuming sequence of methods. It is important to find an effective, environmentally friendly, and as cheap and simple as possible method for the biosynthesis of NPs.

1. Introduction

Due to their size of 1–100 nm, as well as their optical, electrical, and catalytic characteristics [1], silver (Ag) and gold (Au) nanoparticles (NPs) have multiple applications in medicine as antibacterial agents and even have wound-healing capabilities [2]. In addition to functioning as antibacterial agents, they are also used in textiles, coatings, food packaging, and other applications [2]. Au NPs are used in therapy, diagnostics [3], and biomedical applications, such as nuclear medicine, molecular imaging and contrast agents, vaccine development, medical implants, biosensing, and lab-on-chip applications. The synthesis of NPs heavily influences NP properties, which then influences NP applications [4]. It is necessary to analyse the impact and interaction of NPs with the environment and people, as well as to search for factors that have the greatest influence on NP properties [5].

Two widely used approaches are used to synthesise metal NPs, silver and gold. The physical approach is a top-down method in which NPs are made by mechanical breakdown [6]. The most popular methods for physical synthesis of Ag or Au NPs include laser ablation, ultrasonic machining, and ball milling [7]. The chemical approach is a bottom-up method in which NPs are made using a nucleation process with water-soluble cations as a precursor that triggers their reduction to metal monomers. Ag or Au NPs can be chemically synthesised using the sol–gel process, pyrolysis, and hydrothermal synthesis methods [6].

Although the size, shape, and other properties of NPs can be well controlled by physical and chemical methods, metal solvents are often toxic substances, and solvent toxicity can be transferred to synthesised NPs [8]. Due to their small size and ability to increase toxicity, Ag and Au NPs can be dangerously toxic to humans and animals [9,10].

NP biosynthesis, as one of the bottom-up methods, allows the replacement of mechanical or artificially obtained solvents for the synthesis of Ag and Au and other NPs with natural solvents obtained from living organisms, such as plants, bacteria, algae, and animals [11,12,13,14,15,16].

Plants are commonly used for NP biosynthesis due to the possibility of growing them easily or maintaining them more easily than bacteria and animals. Various agricultural plants, such as alfalfa (Medicago sativa L.) [17,18,19] and Aloe vera L. [20], are used in NP biosynthesis studies because they contain many biomolecules, such as phenols glucose, fructose, ascorbic acid, and citric acid [20,21,22,23], which can divide metal precursors, for example, AgNO₃ and HauCl₄ to Ag and Au NPs [22,23,24].

Biosynthesis with plants can be performed using plant extracts obtained from plant parts, including seeds [25], leaves [19], and fruit [26]. Extracts can also be obtained from plant callus cells. It has been established that callus cultures have concentrated biomolecules in larger quantities than vascular plants [27].

The biosynthesis of Au [28], Ag [29], and other NPs [30] is also possible using the in vivo method when the metal precursors are split by plant biomolecules in the plant cells as the plant continues to grow [28].

The realisation of all biosynthesis methods takes time, especially the in vivo method [29]. All three NPs biosynthesis methods (synthesis with extracts from plant parts or callus cultures and in vivo biosynthesis) are much cheaper than physical or chemical methods because they do not use expensive chemical solvents and require only a minimum amount of advanced equipment [14,25,28].

Comparing all mentioned biological methods, the least studied method is the in vivo biosynthesis method [28,29,30]. In vivo biosynthesis needs to be studied further because, recently, a lot of environmental pollution has been discovered. Metals of various sizes, household chemicals, acids, nitrates, salts, and other substances enter ecosystems uncontrolled [9]. Plants can absorb these materials and chemicals and then synthesise NPs from them in their cells. After synthesis, NPs can be distributed further throughout the trophic food web [10]. It has already been established that all types of NPs are insoluble, and their positive or negative effects pass from organism to organism by increasing the effect [10]. It is necessary to confirm that plants can break down metal precursors on their own, so that later in future studies, the course of this process and its effect on the plant can be analysed, as well as the properties of the obtained NPs [11,12,14].

NP biosynthesis has huge potential and promising future prospects [16,31], as this study aims to highlight the challenges of in vivo biosynthesis of Ag and Au NPs using Medicago sativa L. plants to find the best, fastest, and cheapest method for the biological synthesis of Ag and Au NPs.

2. Materials and Methods

2.1. Medicago sativa L. Seedling Cultivation

Medicago sativa L. seeds of a Spanish genotype (‘la Bella’) were obtained from Wrocław University (Poland) of Environmental and Life Sciences, Department of Genetics, Plant Breeding and Seed Production. Polish genotype (‘Kometa’) variety seeds were provided by Danko breeding company, Poland. The seeds were rinsed with tap water and transferred to Petri plates at 24 °C and kept in the dark for 2 d. After a period of germination and growth of 14 days, they were placed in a growth chamber at +24 °C and grown in hydroponics as a control group and in the experimental groups, AgNO₃ and HauCl₄, for 24 and 48 h. The control group was grown without any precursor [32].

2.2. Obtaining a Plant Suspension from Seedlings for Spectrophotometry

The seedlings were cut into small pieces, and 25 mg of green alfalfa seedling leaves were weighed for each group. A volume of 4.5 mL of deionised H₂O was added to the weighed leaves. The mixture was then ground with a pestle. The resulting mixture was filtered, using CellTrics^® filters (Sysmex, Norderstedt, Germany) with mesh size 10 μm. A new filter was used for each sample [33].

2.3. Determination of Light Absorbance at Different Wavelengths with a Two-Beam Shimadzu UV-2550PC UV–Vis Spectrophotometer

Light measurements were taken through all wavelengths, starting with the ultraviolet range (340 nm) to infrared (900 nm), using a two-beam spectrophotometer SHIMADZU UV-2550PC (Scinteck Instruments, Manassas, VA, USA). At certain wavelengths (340–450 nm) where intense absorption occurred, a peak was seen, and light absorbance was measured.

2.4. Determination of Light Absorbance Intensity at a Certain Wavelength by Spectrophotometry using a NanoDrop1000 Spectrophotometer

The absorbance of the light in the suspension solution was determined using a NanoDrop1000 spectrophotometer (Thermo Scientific, Wilmington, NC, USA). Three replicates of the measurements were performed for each sample. The obtained data were processed using the ND-1000 V3.6.0 computer programme at light wavelengths of 470 and 350 nm for AgNO₃ samples and 450 and 650 nm for HAuCl₄ samples [32].

2.5. Visualisation of Medicago sativa L. Seedlings with Confocal Microscopy

The leaves and roots of alfalfa were visualised using a confocal laser scanning microscope (CLSM, Nikon Eclipse Ti-E) configured with an A1 R MP microscope system and equipped with a digital sight DS-U3 camera (Nikon, Tokyo, Japan). Small pieces of the samples, together with distilled water, were observed at 600× magnification [34]. For the hermetic sealing of the sample, glue was used, and dyes were not used.

Fluorescence was excited at a 488 nm laser and at a wavelength of 503.0–583.0 nm. Specific confocal system parameters were chosen (laser: 58.2, HV: 217 and pinhole: 4.3). The pictures of samples were carried out and analysed with computer programme NIS Elements AR Analysis 3.2 64-bit [35].

2.6. Statistical Analysis

The mean standard deviation (SD) and one-way analysis of variance (ANOVA) were performed to determine the differences and significance (p < 0.05) of light absorbance at light wavelengths [32] of 470 and 350 nm for AgNO₃ samples and 450 and 650 nm for HAuCl₄ samples. One-way analysis of variance (ANOVA) was performed to determine the differences and significance (p < 0.05) of light absorbance from NanoDrop1000 spectrophotometer data of 24 h and 48 h after exposure of precursor. Three replicates for each treatment were performed.

3. Results

3.1. Medicago sativa L. Seedling Cultivation

Seedlings of both Medicago sativa L. genotypes ‘Kometa’ and ‘la Bella’ were successfully grown; 14 days after germination, the seedlings were between 7 and 9 cm long. Before precursor application, all plants were viable, with green leaves and pale white roots. Twenty-four hours after the addition of 500 or 1000 mg/L AgNO₃, the roots of the plants remained brown, and the leaves and stems of some plants became lighter. After 48 h of exposure to the precursor, the plant roots were extremely brown at all precursor concentrations. It was clear that Ag precursors settled in large quantities on the roots of the plants, influencing plant growth.

3.2. Obtaining Plant Suspension from Seedlings for Spectrophotometry

Despite the small size of the seedlings, plant green mass suspensions for spectrophotometric analysis were obtained from all experimental groups. When evaluating the external appearance of the suspension, no drastic colour changes were observed. No deposits or particles of other materials were observed. However, the green colour of some samples was darker.

3.3. Determination of Light Absorbance at Different Wavelengths from 340 to 900 nm with a Two-Beam Shimadzu UV-2550PC UV–Vis Spectrophotometer

Using a two-beam Shimadzu UV-2550PC UV–Vis spectrophotometer, light absorbance was determined at different wavelengths from 340 to 900 nm. Light absorbance results for each alfalfa genotype, depending on the precursor and its exposure time, are summarised in graphs of Figure 1, Figure 2, Figure 3 and Figure 4. The results of light absorption for the ‘Kometa’ genotype after 24 h exposure to AgNO₃ and HAuCl₄ are shown in Figure 1.

The most significant changes in the light absorption results compared to the control for the ‘Kometa’ genotype after 24 h of exposure to the precursors are summarised in

Table 1. Highest and lowest light absorbance values in ‘Kometa’ after 24 h of AgNO₃ and HauCl₄ exposure (green indicates results with maximum absorbance values (5.00), yellow indicates the results in which the absorption values are the highest but do not reach the maximum possible value (5.00), an arrow means a decrease in absorption results at the indicated wavelength of light).

Precursor	Precursor Concentration (mg/L)	Light Wavelength (nm)	Absorption (u.a.) Values
Control		340–391, 399–444	>5.00
		392–399	4.49
		448–899	↓
		900	0.67
HAuCl4	50	340–364, 434, 437, 440	>5.00
		435–439	↓
		441–899	↓
		900	0.5
	100	340–448	>5.00
		449–899	↓
		900	0.64
	200	340–449	>5.00
		450–899	↓
		900	0.70
AgNO3	250	341	4.31
		340	4.09
		344
		345–899	↓
		900	0.39
	500	340–345	>5.00
		446, 447	4.79
		348	4.31
		349	4.09
		350–899	↓
		900	0.5
	1000	340	4.57
		341	3.52
		342, 343	3.47
		344–899	↓
		900	0.5

.

The results of light absorption for the ‘la Bella’ genotype after 24 h of exposure to AgNO₃ and HauCl₄ are shown in Figure 2.

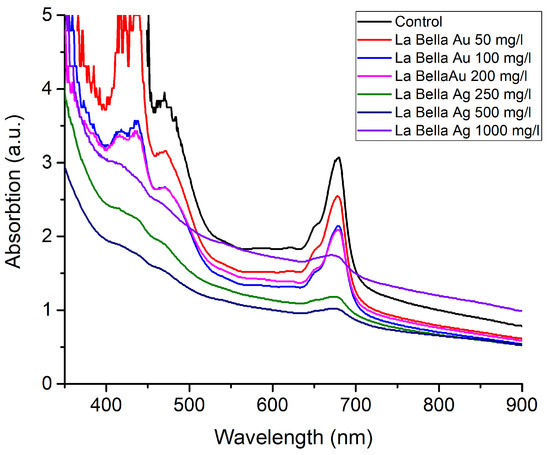

Figure 2. The results of light absorption for the ‘la Bella’ genotype after 24 h of exposure to AgNO₃ and HauCl₄.

Figure 2. The results of light absorption for the ‘la Bella’ genotype after 24 h of exposure to AgNO₃ and HauCl₄.

The most significant changes in the light absorption results compared to the control for the ‘la Bella’ genotype after 24 h of exposure to the precursors are summarised in

Table 2. Highest and lowest light absorbance values in ‘la Bella’ after 24 h of AgNO₃ and HAuCl₄ exposure (green indicates results with maximum absorbance values (5.00), yellow indicates the results in which the absorption values are the highest but do not reach the maximum possible value (5.00), an arrow means a decrease in absorption results at the indicated wavelength of light).

Precursor	Precursor Concentration (mg/L)	Light Wavelength (nm)	Absorption (u.a.) Values
Control		340–448, 451	>5.00
		449	4.79
		450	4.31
		452–899	↓
		900	0.78
HAuCl4	50	340–364, 366, 433–440	>5.00
		365	4.79
		367–432	↓
		441–899	↓
		900	0,61
	100	340–355, 359	>5.00
		356–358	4.79
		360–899	↓
		900	0.54
	200	340–345, 447	>5.00
		346	4.79
		348–899	↓
		900	0.58
AgNO3	250	340–341	4.79
		342–345	4.31
		346	4.09
		345–899	↓
		900	0.52
	500	340	3.25
		341	3.23
		341–899	↓
		900	0.53
	1000	340–352	>5.00
		353–899	↓
		900	0.99

.

The results of light absorption for the ‘Kometa’ genotype after 48 h of exposure to AgNO₃ and HAuCl₄ are shown in Figure 3.

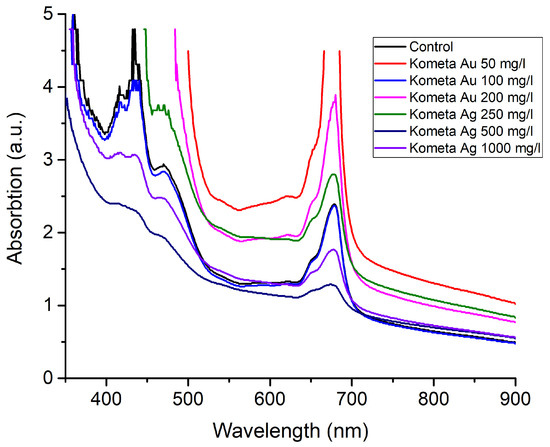

Figure 3. The results of light absorption for the ‘Kometa’ genotype after 48 h of exposure to AgNO₃ and HauCl₄.

Figure 3. The results of light absorption for the ‘Kometa’ genotype after 48 h of exposure to AgNO₃ and HauCl₄.

The most significant changes in the light absorption results compared to the control for the ‘Kometa’ genotype after 48 h of exposure to the precursors are summarised in

Table 3. Highest and lowest light absorbance values in ‘Kometa’ after 48 h of AgNO₃ and HAuCl₄ exposure (green indicates results with maximum absorbance values (5.00), yellow indicates the results in which the absorption values are the highest but do not reach the maximum possible value (5.00), an arrow means a decrease in absorption results at the indicated wavelength of light).

Precursor	Precursor Concentration (mg/L)	Light Wavelength (nm)	Absorption (u.a.) Values
Control		340–357, 359	>5.00
		358	4.79
		350–899	↓
		900	0.49
HAuCl4	50	340–499	>5.00
		500–899	↓
		900	1.2
	100	340–456, 359	>5.00
		457–358	↓
		360–899	↓
		900	0.48
	200	340–483	>5.00
		484–899	↓
		900	0.77
AgNO3	250	340–345	>5.00
		345–899	↓
		900	0.83
	500	340–343	>5.00
		344–899	↓
		900	0.55
	1000	340–354	>5.00
		355–899	↓
		900	0.56

.

The results of light absorption for the ‘la Bella’ genotype after 48 h of exposure to AgNO₃ and HAuCl₄ are shown in Figure 4.

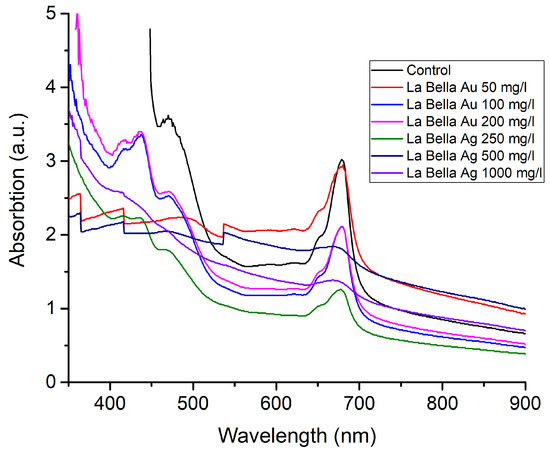

Figure 4. The results of light absorption for la Bella genotype after 48 h of exposure to AgNO₃ and HAuCl₄.

Figure 4. The results of light absorption for la Bella genotype after 48 h of exposure to AgNO₃ and HAuCl₄.

The most significant changes in the light absorption results compared to the control for the ‘la Bella’ genotype after 48 h of exposure to the precursors are summarised in

Table 4. Highest and lowest light absorbance values in ‘la Bella’ after 48 h of AgNO₃ and HAuCl₄ exposure (green indicates results with maximum absorbance values (5.00), yellow indicates the results in which the absorption values are the highest but do not reach the maximum possible value (5.00), an arrow means a decrease in absorption results at the indicated wavelength of light).

Precursor	Precursor Concentration (mg/L)	Light Wavelength (nm)	Absorption (u.a.) Values
Control		340–385, 387, 389, 392, 394, 397, 403–447	>5.00
		386,388	4.79
		390–391, 393	4.49
		395–396	↓
		398–402	4.19
		447–899	↓
		900	0.93
HAuCl4	50	340–345	2.56
		364–899	↓
		900	0,93
	100	340–345, 347	>5.00
		346	4.79
		347–899	↓
		900	0.47
	200	340–357, 360, 361	>5.00
		358–359	4.79
		362–899	↓
		900	0.51
AgNO3	250	340–341	3.62
		342–345	3.52
		346	3.40
		345–899	↓
		900	0.38
	500	342	2.22
		364	2.30
		365–899	↓
		900	0.99
	1000	340	4.09
		341	3.95
		342–899	↓
		900	0.70

.

Two-beam photo-spectroscopy showed that control samples of both alfalfa genotypes had a light absorption peak between 5.00 and 4.5 when the samples received light with a wavelength between 340 and 460 nm. When light was received with a wavelength exceeding 460 nm, the absorption intensity decreased in all control samples and reached a minimum at 900 nm (<1.00).

In both ‘Kometa’ and ‘la Bella’ samples of the experimental groups that received all concentrations of the HAuCl₄ precursor for 24 h and almost all concentrations for 48 h, the wavelength period in which the maximum values of light absorption were observed decreased compared to the control group. The decrease depended on the precursor type and its concentration. As the concentration of the precursor increased, the maximum values of light absorption were shown less frequently than in the control groups.

Samples were found where the light absorption peak did not reach the maximum value of 5.00. These were ‘Kometa’ genotype samples that received 250 and 1000 mg/L of the AgNO₃ precursor with an exposure time of 24 h, as well as ‘la Bella’ samples that received the AgNO₃ precursor with concentrations of 250 and 500 mg/L and an exposure time of 24 h.

When the precursors were used for 48 h, samples were detected in which the light absorption peak did not reach the maximum value of 5.00. These results are shown in Table 4. These were the ‘Kometa’ genotype samples that received 100 and 200 mg/L of the HauCl₄ precursor and samples that received 250 mg/L of the AgNO₃ precursor. The ‘la Bella’ sample that received 50 mg/L of the HauCl₄ precursor also differed significantly from the control. This was the only one of the HauCl₄ samples to show such a considerable difference from the control. Additionally, ‘la Bella’ samples that received the AgNO₃ precursor at all concentrations showed low absorption peaks with a short wavelength period.

3.4. Determination of Light Absorbance Intensity at a Certain Wavelength by Spectrophotometry Using a NanoDrop1000 Spectrophotometer

The absorbance of the light in the suspension solution was determined at light wavelengths of 470 and 350 nm for AgNO₃ samples and 450 and 650 nm for HauCl₄ samples. The NanoDrop1000 spectrophotometer differs from the two-beam Shimadzu UV-2550PC UV–Vis spectrophotometer, in that absorbance is determined at a specific wavelength rather than a period. Each sample measurement was repeated in triplicate, and the light absorbance was determined at the selected wavelengths.

Table 5. Light absorbance data at different wavelengths after 24 h of precursor exposure.

Genotype	Precursor	Wavelength (nm)	Concentration (mg/L)	Average Absorbance	Standard Deviation
‘Kometa’	None	450	Control	0.330	-
‘Kometa’	HAuCl4	450	50	0.506↑	±0.125
‘Kometa’	HAuCl4	450	100	0.336↑	±0.005
‘Kometa’	HAuCl4	450	200	0.327↓	±0.002
‘Kometa’	None	650	Control	0.112	-
‘Kometa’	HAuCl4	650	50	0.168↑	±0.040
‘Kometa’	HAuCl4	650	100	0.117↑	±0.004
‘Kometa’	HAuCl4	650	200	0.111↓	±0.0002
‘Kometa’	None	470	Control	0.112	-
‘Kometa’	AgNO3	470	250	0.089↓	±0.016
‘Kometa’	AgNO3	470	500	0.065↓	±0.187
‘Kometa’	AgNO3	470	1000	0.146↑	±0.130
‘Kometa’	None	350	Control	0.112	-
‘Kometa’	AgNO3	350	250	0.435↑	±0.229
‘Kometa’	AgNO3	350	500	0.323↑	±0.149
‘Kometa’	AgNO3	350	1000	0.266↑	±0.109
‘la Bella’	None	450	Control	0.289	-
‘la Bella’	HAuCl4	450	50	0.306↑	±0.012
‘la Bella’	HAuCl4	450	100	0.216 *↓	±0.052
‘la Bella’	HAuCl4	450	200	0.194 *↓	±0.068
‘la Bella’	None	650	Control	0.099	-
‘la Bella’	HAuCl4	650	50	0.103↑	±0.003
‘la Bella’	HAuCl4	650	100	0.099=	±0.017
‘la Bella’	HAuCl4	650	200	0.069 *↓	±0.021
‘la Bella’	None	470	Control	0.269	-
‘la Bella’	AgNO3	470	250	0.195 *↓	±0.052
‘la Bella’	AgNO3	470	500	0.282↑	±0.010
‘la Bella’	AgNO3	470	1000	0.199 *↓	±0.049
‘la Bella’	None	350	Control	0.463	-
‘la Bella’	AgNO3	350	250	0.354 *↓	±0.077
‘la Bella’	AgNO3	350	500	0.512 *↑	±0.034
‘la Bella’	AgNO3	350	1000	0.390↓	±0.051

* indicates a statistically significant difference compared to the control (p < 0.05); ↑↓ = indicate an increase, decrease, or no change in data compared to the control.

summarises the average data of the three measurements of light absorption for the control group and the experimental groups of seedlings of both genotypes after 24 h of exposure to precursors.

After statistical analysis of the data, the spectrophotometry results showed that ‘Kometa’ samples where absorption was measured at 450 or 650 nm after 24 h of exposure to HAuCl₄ showed a statistically insignificant increase in light absorption. Samples exposed to 100 mg/L showed a statistically insignificant increase, but samples exposed to 200 mg/L HAuCl₄ showed a statistically insignificant decrease. ‘Kometa’ genotype samples exposed to AgNO₃ showed statistically insignificant changes in light absorption, which were measured at both 350 and 470 nm at all precursor concentrations. At concentrations of 250 and 500 mg/L, absorbance at a 470 nm wavelength was reduced compared to the control group, but at the highest concentration of this precursor (1000 mg/L), absorbance was increased. In contrast, in samples where absorption was measured at 350 nm, absorbance was significantly increased in all three experimental groups. These results are shown in Table 5.

The light absorption results of the Medicago sativa L. genotype ‘la Bella’ were also very different. In samples with HAuCl₄, illumination at 450 nm showed a statistically significant decrease in absorbance when the precursor was used at concentrations of 100 mg/L and 200 mg/L. However, at a light wavelength of 650 nm, a statistically significant effect on light absorption was seen only when the precursor was used at a high concentration (200 mg/L). Absorption was reduced in ‘la Bella’ samples that received AgNO₃ and where absorption was measured at 470 and 350 nm. Statistically significant light absorption decreased when AgNO₃ was used at a concentration of 250 mg/L at waves of 470 and 350 nm. However, the absorbance was not significantly affected at 470 nm with a high precursor concentration (500 mg/L), whereas the highest concentration (1000 mg/L) was able to reduce the absorbance statistically significantly. Overall, the results showed that the sample with 500 mg/L AgNO₃ at 350 nm had a statistically significant increase, whereas the highest concentration (1000 mg/L) did not significantly affect absorption.

Almost all of the light absorption data at different wavelengths showed changed light absorption values after 24 h of exposure to precursors compared to the control group, except for one sample (‘la Bella’, 650 nm, HAuCl₄, 100 mg/L). However, the results changed unevenly, as only a part of the results (7 of 24) showed statistically significant changes.

Table 6. Light absorbance data at different wavelengths after 48 h of precursor exposure.

Genotype	Precursor	Wavelength (nm)	Concentration (mg/L)	Average Absorbance	Standard Deviation
‘Kometa’	None	450	Control	0.132	-
‘Kometa’	HAuCl4	450	50	0.295↑	±0.116
‘Kometa’	HAuCl4	450	100	0.281↑	±0.106
‘Kometa’	HAuCl4	450	200	0.391↑	±0.183
‘Kometa’	None	650	Control	0.045	-
‘Kometa’	HAuCl4	650	50	0.099 *↑	±0.039
‘Kometa’	HAuCl4	650	100	0.096 *↑	±0.036
‘Kometa’	HAuCl4	650	200	0.129 *↑	±0.059
‘Kometa’	None	470	Control	0.132	-
‘Kometa’	AgNO3	470	250	0.186↑	±0.168
‘Kometa’	AgNO3	470	500	0.167↑	±0.195
‘Kometa’	AgNO3	470	1000	0.195↑	±0.205
‘Kometa’	None	350	Control	0.045	-
‘Kometa’	AgNO3	350	250	0.283↑	±0.168
‘Kometa’	AgNO3	350	500	0.320↑	±0.195
‘Kometa’	AgNO3	350	1000	0.335↑	±0.195
‘la Bella’	None	450	Control	0.045	-
‘la Bella’	HAuCl4	450	50	0.283 *↑	±0.010
‘la Bella’	HAuCl4	450	100	0.320 *↑	±0.023
‘la Bella’	HAuCl4	450	200	0.234 *↑	±0.023
‘la Bella’	None	650	Control	0.106	-
‘la Bella’	HAuCl4	650	50	0.091↓	±0.010
‘la Bella’	HAuCl4	650	100	0.074 *↓	±0.023
‘la Bella’	HAuCl4	650	200	0.073 *↓	±0.023
‘la Bella’	None	470	Control	0.293	-
‘la Bella’	AgNO3	470	250	0.157 *↓	±0.096
‘la Bella’	AgNO3	470	500	0.142↓	±0.107
‘la Bella’	AgNO3	470	1000	0.171 *↓	±0.087
‘la Bella’	None	350	Control	0.106	-
‘la Bella’	AgNO3	350	250	0.271↑	±0.117
‘la Bella’	AgNO3	350	500	0.256↑	±0.106
‘la Bella’	AgNO3	350	1000	0.341↑	±0.167

* indicates a statistically significant difference compared to the control (p < 0.05); ↑↓ indicate an increase, decrease, in data compared to the control.

shows the average data of the three measurements of light absorption for the control group and the experimental groups of seedlings of both genotypes after 48 h of exposure to precursors.

These results showed that the changes in light absorption did not fluctuate as often as was seen in the results after 24 h of precursor exposure in alfalfa. In samples of genotype ‘Kometa’ that received HAuCl₄ acid for 48 h, light absorption was increased statistically significantly compared to the control in samples where absorption was measured at a wavelength of 650 nm. However, samples where absorption was measured at 450 nm showed statistically insignificant light absorption increase compared to the control. An increase in absorbance was observed at both wavelengths of light (450 and 650 nm). In samples of the ‘Kometa’ genotype that received AgNO₃ nitrate for 48 h and had absorption measured at 470 nm, light absorption was increased compared to the control group at all concentrations (50, 100, and 200 mg/L). However, this increase was not statistically significant. At 350 nm, its absorption in the ‘Kometa’ samples also increased statistically insignificantly. In ‘la Bella’ genotype samples that received HAuCl₄ acid for 48 h, light absorption increased statistically significantly at all acid concentrations (50, 100, and 200 mg/L) compared to the control group. For these samples, absorption was measured at a wavelength of 450 nm. However, samples treated at a wavelength of 650 nm and an acid concentration of 50 mg/L showed a decrease in absorbance compared to the control, but this was not statistically significant. Samples with the same light wavelength but a higher acid concentration (100 and 200 mg/L) showed a statistically significant decrease in light absorption compared to the control group. The consistency of the results between samples within the same experimental group was also demonstrated by the remaining samples with AgNO₃ chloride; however, these results did not rule out differences between the experimental groups. The results with AgNO₃ showed that light absorption decreased statistically significantly at almost all acid concentrations (250 and 1000 mg/L) compared to the control group when absorption of the samples at 470 nm was measured. However, light absorption decreased statistically insignificantly at samples with an acid concentration of 500 mg/L. Results when a wavelength of 350 nm was used showed that light absorption at all acid concentrations (250, 500, and 1000 mg/L) increased statistically insignificantly compared to the control group. These results are shown in Table 6.

In 10 of 24 samples, the results from light absorption data at different wavelengths after 48 h of exposure to precursors showed statistically significant changed light absorbance values. This indicates that 48 h of exposure to the precursor caused changes in light absorption more often. Results show that HAuCl₄ increased light absorption in ‘Kometa’ samples statistically significantly when absorption was measured at 450 nm. While in ‘la Bella’ samples, light absorption was statistically significantly decreased when AgNO₃ at concentrations of 250 mg/L and 1000 mg/L were used and when absorption was measured at 470 nm. Absorption also statistically significantly decreased when HAuCl₄ was used at concentrations of 100 mg/L and 200 mg/L and absorption was measured at 650 nm.

3.5. Visualisation of Medicago sativa L. Seedlings with Confocal Microscopy

The alfalfa leaves and roots were visualised in both genotypes using a confocal laser scanning microscope after 24 and 48 h of exposure to the precursor. Control and experimental samples with the highest precursor concentrations (‘Kometa’ leaves and roots of control, HAuCl₄ 200 mg/L, AgNO₃ 1000 mg/L and ‘la Bella’ leaves and roots of control, HAuCl₄ 200 mg/L, AgNO₃ 1000 mg/L) were visualised. Light fluorescence was determined for all the mentioned samples, and all samples were imaged. Some of the images are shown in these results. The peak of light fluorescence in all samples was shown when the samples received light with wavelengths from 530 to 550 nm. The wavelength period of peak light fluorescence intensity in leaf and root cells of ‘Kometa’ and ‘la Bella’ after exposure to precursors is shown in

Table 7. The wavelength period of peak light fluorescence intensity in leaf and root cells of ‘Kometa’ and ‘la Bella’ after exposure to precursors.

Genotype	Part of the Plant	Precursor	Precursor Concentration (mg/L)	Time of Precursor Exposure (H)	Wavelength Range with the Highest Fluorescence Intensity (nm)
‘Kometa’	Leaf	Control		24	300–350
	Root				800–900
	Leaf	HAuCl4	200		1600–1150
	Root				4000–3500
	Leaf	AgNO3	1000		3250–2750
	Root				3750–3500
‘la Bella’	Leaf	Control			850–900
	Root				550–650
	Leaf	HAuCl4	200		3750–4000
	Root				4000–3500
	Leaf	AgNO3	1000		3750–3500
	Root				4000–3750
‘Kometa’	Leaf	Control		48	1350–900
	Root				3000–2250
	Leaf	HAuCl4	200		600–650
	Root				2600–2000
	Leaf	AgNO3	1000		2000–1400
	Root				3500–3250
‘la Bella’	Leaf	Control			2250–2000
	Root				600–400
	Leaf	HAuCl4	200		400–600
	Root				2600–2200
	Leaf	AgNO3	1000		1800–1600
	Root				3000–2600

.

The confocal microscopy results showed that leaves of the ‘Kometa’ genotype from a control sample had some stoma and fragments of a chloroplast. The study used a thick leaf; thus, the leaf tissues and cells overlapped with each other. The maximum fluorescence intensity in ‘Kometa’ leaves for the control sample was about 350 nm, but for the root sample, the fluorescence peak was much higher, exceeding 900 nm.

An image of a ‘Kometa’ genotype root after 24 h of exposure to 200 mg/L HAuCl₄ is shown in Figure 5a.

Au particles were seen between the cells of the vascular tissue, which gave off bright fluorescence. The size of these particles could not be determined because they stuck together in many places and formed agglomerates, and some of the particles stuck around the root from the outside and could be seen in the image as larger spots. The maximum fluorescence intensity of these samples for both the leaves and roots increased significantly; thus, HAuCl₄ entered the plant roots.

After 24 h of exposure to 1000 mg/L AgNO₃, the leaves of the ‘Kometa’ genotype showed an increase in fluorescence intensity compared to the control, but no Ag particles were visible in either leaves or roots.

For the ‘la Bella’ genotype, the control had a maximum fluorescence intensity of about 850 nm for the leaves, but for the root sample, the fluorescence peak was lower, exceeding 650 nm.

An image of the ‘la Bella’ genotype leaf after 24 h of growing with HAuCl₄ 200 mg/L and a diagram of light fluorescence in the leaf and root are depicted in Figure 5b.

Some Au particles were seen between the cells of the vascular tissue, which gave off bright fluorescence. The intensity of these samples for both the leaf and root samples increased significantly; thus, HAuCl₄ entered the roots of the plant. Some of the particles formed an agglomerate and were around the root on the outside, as shown in the image as one larger spot.

An image of a ‘la Bella’ genotype leaf after 24 h of exposure to 1000 mg/L AgNO₃ is shown in Figure 5d.

Some Ag particles in this sample were also seen between the cells of the vascular tissue, which gave off a bright fluorescence. The intensity of both the leaf and root samples increased significantly; thus, AgNO₃ also entered the plant roots.

However, the ‘Kometa’ genotype leaves of the control sample and those treated for 48 h with 200 mg/L HAuCl₄ showed nothing. In the root sample, vascular tissue cells were partially visible, but no Au particles were visible. The maximum fluorescence intensity in ‘Kometa’ leaves for the control sample was about 1350 nm, but for the root sample, the fluorescence peak was much higher, exceeding 3000 nm. However, in sample leaves and roots of ‘Kometa’ with 200 mg/L HAuCl₄ acid, the fluorescence peak was much higher than that of the control, demonstrating that HAuCl₄ acid entered the plant and interacted with it.

An image of a ‘Kometa’ genotype leaf after 24 h of exposure to 1000 mg/L AgNO₃ is shown in Figure 5c.

After 48 h of exposure to 1000 mg/L HAuCl₄, ‘Kometa’ genotype leaves showed an increase in fluorescence intensity compared to the control. Ag particles were not visible in the leaf samples. In contrast, AgNO₃ particles were visible in the root samples, although they were not abundant; they appeared to be more abundant in the sample medium concentration of silver nitrate.

After 48 h of exposure, leaves of the ‘la Bella’ genotype without any precursor (control) or 200 mg/L HAuCl₄ showed nothing. In the root sample, vascular tissue cells were partially visible, and some Au particles could be seen between the tissues, but there were very few. The maximum fluorescence intensity in ‘la Bella’ leaves for the control sample was about 2500 nm, but for the root sample, the fluorescence peak was much lower, exceeding 600 nm. However, in the ‘la Bella’ leaves exposed to 200 mg/L HAuCl₄, the fluorescence peak was much lower than the control, and the roots showed a higher fluorescence peak than the control, demonstrating that HAuCl₄ acid entered the plant and affected the ‘la Bella’ genotype.

The ‘la Bella’ leaf and root samples exposed to AgNO₃ (1000 mg/L) for 48 h did not show a significant increase in fluorescence intensity compared to the control. The same Ag particles were visible in the leaf and root sample, although there were not many of them.

3.6. Statistical Comparison between the Results from 24 h and 48 h of Precursor Exposure

One-way analysis of variance (ANOVA) of light absorption from a NanoDrop1000 spectrophotometer was performed to determine if there is difference between the light absorption between data after 24 h and 48 h of precursor exposure. These results show that, in almost all of the samples, there is no statistically significant difference between the intensity of light absorption in the samples after a 24 h exposure to the precursor compared to the intensity of light absorption in the samples after a 48 h exposure to the precursor. A statistically significant difference (p < 0.05) is seen just in “Kometa” genotype samples, which received the AgNO₃ precursor at concentrations 250 mg/L, 500 mg/L, and 1000 mg/L and when light absorption was measured at 470 nm.

4. Discussion

Metal NPs, especially Ag and Au, have very wide applications in medicine, the food industry, cosmetic product production, the improvement of plant protection products, and other industries [3]. As the demand for NPs increases, they are being synthesised in larger quantities [2]. Physical and chemical methods make NP synthesis faster and more easily performed on a large scale but often involve the use of chemical solvents that can further increase the toxicity of NPs [7]. Currently, one of the biggest challenges and urgent goals is to find a method of NP synthesis that is as efficient as possible but healthier for the environment and people [11,12].

Biological synthesis of NPs is an efficient way to obtain NPs without excessive toxicity from chemical solvents. In contrast, biologically synthesised NPs have much better properties because plant biomolecules, as natural solvents, improve the properties of NPs, for example, strengthening the antibacterial properties of Ag NPs [36,37] or making diagnostic examinations with Au NPs as contrast agents more harmless to the human body [22].

Among the methods of NP biosynthesis used in other studies, synthesis in which the precursor is dissolved with plant extract obtained from various plant parts, including leaves, flowers, and fruit, is most often used [38,39]. NPs can be seeded very effectively in an extract obtained from plant callus cultures, as they also contain a high diversity and concentration of biomolecules [40].

NPs can also be synthesised biologically in the cells and tissues of independently growing plants (in vivo). The plant just needs to be able to take in the precursor and break it down to nano size. Until now, there have been very few studies in which such a synthesis has been demonstrated with different agricultural plants, including Medicago sativa L. Existing studies claim that the in vivo method should be further researched to find the fastest, simplest, and cheapest method for in vivo NP biosynthesis [29,41].

This study used the simplest and cheapest methods to provide and demonstrate the in vivo biosynthesis of Ag and Au NPs in the seedlings of two Medicago sativa L. genotypes, ‘Kometa’ and ‘la Bella’. One of the objectives was to determine which of the two precursor NPs were synthesised more efficiently and whether different selections of alfalfa genotypes influenced NP biosynthesis.

Other studies have reported that Ag and Au NPs affect plant growth; the effect depends on the size, shape, and concentration of the NPs. Low and medium concentrations below 20 mg/L easily penetrate plants, reach leaves via vascular tissue, and increase the synthesis and concentration of nitrogen (N), phosphorus (P), and potassium (K) in leaves. However, if higher concentrations of Ag and Au accumulate in the leaves, the defence mechanism at the cell/tissue level is activated in the roots, the proteomic expression changes, antioxidant activity increases, metabolism and reactive oxygen species form, and the total amount of chlorophyll decreases [37].

The results of this study also confirmed that the control plants that did not receive the precursor were healthy; their leaves were bright green, and their roots were light grey in colour. In the experimental groups with any of the precursors at any concentration, the seedling leaves became paler, and plant growth suffered. This was especially evident in the samples that had received the highest concentrations of both precursors (AgNO₃, 1000 mg/L; HAuCl₄, 200 mg/L) for 48 h. Such negative morphological changes could indicate that Ag and Au NPs were successfully synthesised in the samples in this study. AgNO₃ is used in agriculture as a growth regulator, which mostly has a positive effect on plant growth, and Au compounds are involved in plant photosynthesis, but toxicity is characteristic only for NPs [33,37].

Relatively high concentrations of the precursor were used in this study. It is possible that higher concentrations of HAuCl₄ and AgNO₃ stick around the roots of the seedlings and block the root vascular tissue even before the precursor is taken up by the plant. Confocal microscope images also showed that, in the samples that received precursors, their presence was not visible or visible very weakly in the leaves. Ag and Au particles were visible in the root samples of both alfalfa genotypes after 24 or 48 h of exposure to the precursor. It is possible that the technical capabilities of the microscope interfered with obtaining good images; thus, it cannot be claimed that the precursor was not present in the leaves. The presence of the precursor in the plant leaves may be indicated by changes in the maximum fluorescence intensity in all experimental groups compared to the control.

The penetration of both precursors into the green mass of both alfalfa genotypes was confirmed by the results of two-beam spectrophotometry. As the precursor concentration increased, light absorbance increased for almost all samples compared to the control but decreased for ‘la Bella’ samples that received AgNO₃. In general, the results were quite variable. The variability of the results was also confirmed by NanoDrop spectrophotometry, which showed that the presence of both precursors changed the light absorbance in all experimental groups, but both decreased and increased at different concentrations of the precursor.

This study used very young seedlings (only 2 weeks old), while other studies used much older plants (48 days to several months old). Young plants may be more sensitive to precursor- or NP-induced toxicity. Therefore, NP biosynthesis can also be disturbed and difficult. Lower concentrations of precursors should be recommended for future studies [29,41].

According to the confocal microscope images, HAuCl₄ penetrated the root tissues of both genotypes after exposure to the precursor for 24 h, but when the exposure was longer, the particles were clearly visible only in the ‘la Bella’ sample. AgNO₃ particles were not visible in ‘Kometa’ plants after 24 h of exposure but were visible after 48 h of exposure. In both ‘Kometa’ and ‘la Bella’ samples, the potential synthesis of Ag NPs could take longer than the biosynthesis of Au NPs. In the confocal microscope images, Au particles were visible in three different samples, while Ag particles were clearly visible in only two samples. These results indicate that the synthesis of Au NPs is not only faster but also more frequent. According to the confocal microscope results, one of the precursors was clearly visible three times in the ‘la Bella’ samples but only two times in the ‘Kometa’ samples. However, changes in light fluorescence and absorption were detected in almost all experimental samples; thus, these results did not show which alfalfa genotypes had more efficient biosynthesis.

The particles often formed large agglomerates, which produced bright fluorescence.

This study is significant in that it showed that particles from both HAuCl₄ and AgNO₃ precursors can penetrate and interact with the young root and leaf cells of two Medicago sativa L. genotypes. Based on the impairment of plant growth after the uptake of precursors and fluorescence intensity changes in confocal microscopy, it can be theoretically stated that Ag and Au NPs might have been synthesised using the in vivo method. This interaction was detected using methods that consume a small number of resources and time.

However, these results are not enough to say absolutely which substances were present in the plant cells, whether they were NPs or still a precursor. It is clearly understood that in vivo biosynthesis studies should be continued and an analysis of the chemical composition of plants should be carried out, which would confirm the presence of NPs. Here, it would be useful to use even more advanced microscopy, such as the scanning electron microscope (SEM) and the transmission electron microscope (TEM), to determine the nano size of one particle.

5. Conclusions

Based on the data obtained in this research, two-week-old seedlings of two Medicago sativa L. genotypes ‘Kometa’ and ‘la Bella’ could absorb both precursors (AgNO₃, HAuCl₄) into their tissues. The potential in vivo biosynthesis of Ag and Au NPs negatively affected plant growth after precursor uptake. Spectrophotometry methods statistically significantly (p < 0.05) confirmed the changes in light absorption compared to the control. Confocal microscopy also showed that particles from the Ag and Au precursors were visible in the roots of both genotypes. However, confocal microscopy was not the most accurate method for NP visualisation, as the magnification needed to be higher. Future studies are needed to provide further updates on NP biosynthesis studies directly with Medicago sativa L. genotypes ‘Kometa’ and ‘la Bella’ and to make a comparison between them, as other studies have not directly compared these genotypes. Additionally, it is necessary to improve methods of NP visualisation and detection to confirm the synthesis of NPs based on more reliable results, which would provide high-quality microscopy images to determine the size, shape, and number of visible particles and clarify which of the Medicago sativa L. genotypes more efficiently biosynthesises Au and Ag NPs. Moreover, it is important to detect NP biosynthesis in older alfalfa plants, which would probably be more similar to the natural conditions in the soil.
