Efficient Comic Content Extraction and Coloring Composite Networks

Abstract

Comics are widely loved by fans around the world as a form of visual art and cultural communication. With the development of digitalization, automated comic content detection and segmentation and comic coloring systems have become important research directions for digital archiving, automatic translation, and visual content analysis. This paper proposes a composite network composed of efficient content extraction and colorization, which includes a comic extraction module and a comic colorization module based on an improved Generative Adversarial Network. It solves the problem of single performance and poor effect that has been present in previous models. In various performance comparison experiments, our model shows an excellent and robust performance.

1. Introduction

Comics are popular all over the world, they combine images and text to convey information to people while encouraging immersive imagination. Compared to monotonous text, the combination of visual elements and text makes information dissemination more efficient and is widely used in entertainment, education, advertising, etc. The rapid development of digital network technology has led to the rapid dissemination of digital content such as text, pictures, videos, and music in a wide range of contexts. The presentation of comics, which are widely loved by people all over the world, has also undergone a radical change: from the past, when paper comics occupied the mainstream comics market, to the present, where digital comics are the main mode of distribution.

Comics are a complex document type that integrates images and text. The analysis, recognition, and extraction of their internal components is an interesting and challenging task. Usually, comics consist of multiple pages with mixed-layout features composed of multiple layouts. Each page basically contains multiple content boxes, each of which contains dialog boxes, characters, scenes, and other content comprising different shapes. In some comics, the characters or dialog elements in the content box will overflow the content box and penetrate the gap between panels, called the “gutters”. This free-form document layout of comics brings great difficulty to intelligent recognition and extraction tasks. Traditional comic segmentation technology uses basic features such as image edges, colors, and textures to segment elements in comic pages. Usually, the input image is grayed and binarized, and edge detection algorithms (such as Sobel and Canny) are used to detect the edges of dialog boxes, frames, and characters. Contour tracking or Hough transform are used to determine the position of the frames. The positions of dialog boxes, characters, and other graphic elements are determined based on the geometric shape of the contours. Although these traditional methods can segment comics with regular frames to a certain extent, they have poor effects on complex and irregular comic pages, are easily affected by noise or complex backgrounds, and cannot accurately detect and segment the diverse elements in comics, such as the characters, dialogue bubbles, and other elements in each frame of the comics. With the development of artificial intelligence and the widespread application of convolutional networks [1], more and more researchers have begun to try to use deep learning methods to process comics. Among them, Kondo and Hasegawa [2] used a CNN-based model to classify cartoon characters in illustrations and identify fake paintings. Qin et al. [3] used Faster R-CNN [4] to perform face detection on characters in comics, showing relatively good performance. Xin and Ma [5] used the YOLOv3 [6] model to detect dialogue bubbles in comics and recognize text, further promoting the development of comics detection. Soykan et al. [7] designed an identity-aware self-supervised framework that exploits the inherent similarity between facial and body representations to achieve comic character re-identification. Hinami et al. [8] designed a context-aware comic translation framework that translates Japanese comics by sensing the text content in the dialogue bubbles in the comics, showing good results. Sharma and Kukreja [9] proposed a CNN-SVM hybrid model to classify comic content, making it easier for readers to read more efficiently. Most of these studies involve the simple detection of comics, or recognition of comic characters, and rarely involve accurate extraction of the overall content of comics. The extraction of comic content is crucial for the secondary re-creation of comics, reducing the unnecessary duplication of content creation, or coloring comics. Therefore, in this paper, we designed a module that can accurately extract comic content to solve these problems and help comic practitioners reduce their workload and improve efficiency.

The task of coloring comic images is very important and challenging in comic projects. Traditional manual methods are time-consuming, labor-intensive, and monotonous. Comic images often contain complex lines and details, which require coloring algorithms to accurately understand the image semantics and keep the edges clear. Standard convolutional networks are difficult to handle. However, with the update and iteration of technology, the emergence of generative adversarial networks (GANs) [10] has given researchers hope. Among them, Shimizu et al. [11] proposed a semi-automatic colorization method based on generative adversarial networks (GANs) to learn the drawing style of a specific comic from a small amount of training data. This method solves the problem of comic character coloring to a certain extent. Liu et al. [12] proposed a feature zoom colorization network, Zoom-GAN, to solve the multi-scale object colorization problem. A zoom instance normalization (Zoom-IN) module was designed in the generator to improve the colorization performance of small object areas under different scene conditions. Parmar et al. [13] proposed a pix2pix-zero image-to-image translation method that preserves the content of the original image without manual hints and converts sketches into color images.

As a unique art form, comics are complex and time-consuming to create, especially in the process of content segmentation and coloring. With the development of computer vision and image processing technology, automated comic content segmentation and coloring technology have become possible. This paper aims to explore methods for comic content segmentation and automatic coloring, proposing a novel and efficient composite network for the automatic coloring and content extraction of black-and-white comics to reduce the burden on comic creators and improve their creation efficiency. Our main contributions are as follows:

• We designed a comic feature extraction network based on ResNet [14], incorporating the RoIalign layer and a subdivision layer to improve the performance of comic content detail feature detection and extraction.
• We created a GAN-based comic coloring network module. Using U-Net as the generator and Patchgan as the discriminator, the perception of image details is enhanced, the overall color performance of the image is improved, and the generated color comic images are comparable to those manually colored by comic artists.
• We created a dataset, KComics5000, based on Korean comics, consisting of 5000 comic pages.

2. Related Work

Comic content segmentation and extraction: In the traditional field of comic segmentation and extraction, specific areas in comics are extracted manually through specific software, or comic images are segmented and extracted using traditional image processing techniques such as edge detection, threshold segmentation, and regional growth. These methods work well when processing comics with simple backgrounds, but the segmentation effect is often not ideal when facing complex backgrounds and diverse characters. In recent years, a large number of deep-learning-based algorithm models have been widely used in image detection, recognition, and other fields, achieving good results. Deep convolutional neural networks (CNNs) can learn the hierarchical structure of image features and have been proven to outperform other algorithms that use carefully designed features in many visual recognition and positioning tasks. Deep neural network models are widely deployed in various industries, but in the comics industry, there are relatively few studies on the use of deep neural networks to analyze and process comic publications. It mainly detects simple borders and dialog boxes in comics and identifies the content of dialogues. For example, Arai and Tolle [15] used the improved connected component labeling (CCL) algorithm as a comic blob extraction function to detect speech bubbles in comics and recognize the text in the bubbles, thereby achieving the goal of automatically extracting Japanese characters from comics. Rigaud et al. [16] combined topology and spatial positioning, using the text positions in the comics as coordinates to achieve the pixel-level segmentation of the speech bubbles. Nguyen et al. [17] proposed the Sequencity612 comics dataset and used the YOLOv2 [18,19] model to detect specific characters in the comics. Dutta et al. [20] developed a CNN model that connects edge and semantic information to effectively detect narrative text boxes and speech bubbles of various shapes and their tails. Dubray and Laubrock [21] designed a fully convolutional network [22] based on the U-Net [23] architecture to predict pixel-based image segmentation and segment speech bubbles in comics. These studies involve only the simple detection of dialog bubbles or comic frames (rectangular boxes) of comics; few researchers have conducted studies on the detection of comic contents, and even fewer researchers have focused on the detailed segmentation of the characters appearing in them. Addressing the defects and problems that have arisen at this stage, we designed a module to automatically detect the content of comics and segment it meticulously.

Comic automatic coloring: With the booming development of the comics industry, the comic creation coloring process is highly repetitive, with low levels of creativity; it is gradually becoming a bottleneck that restricts efficiency. The traditional manual coloring method is time-consuming and labor-intensive, and it is difficult to meet the growing creative needs of the industry. Therefore, automated comic coloring and comic content detection and segmentation are equally important in comic projects. Chen et al. [24] matched the local features between the target image and the reference image based on the active learning framework and used the mixed-integer quadratic programming method (MIQP) to refine the matching results by considering the context structure, achieving the goal of coloring specific characters in comics. Dou et al. [25] proposed a novel dual-color space-guided generative adversarial network (DCSGAN), which considers the complementary information contained in RGB and HSV color spaces and generates vivid color comic character images through pixel-level supervision. Liu et al. [26] extracted the color style of a reference image and used adaptive instance normalization (AdaIN) to fuse the extracted color style features into the deep hierarchical representation of the sketch, achieving comic character coloring. Although these methods achieve the goal of the partial coloring of comics and improve the speed of coloring comics to a certain extent, they also suffer from incomplete coloring of the global content of comics, monotonous coloring, and poor overall naturalness in the image. Here, we design a composite network model that combines comic content detection segmentation and automatic coloring. By detecting the features of various elements in the cartoon, we determine the accurate feature areas and then perform accurate coloring to achieve a quality of performance that is not inferior to that of hand coloring.

3. Methods

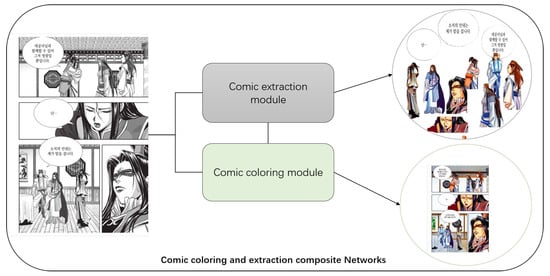

This section mainly introduces the proposed composite network for automatic colorization and content extraction of black-and-white comics. As shown in Figure 1, the network consists of a comic extraction module and a comic colorization module.

3.1. Comics Intelligent Detection and Recognition Framework

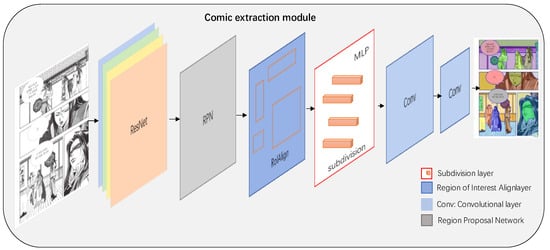

In the comic content extraction module, as shown in Figure 2, we designed a cartoon content segmentation network model. The network model is based on ResNet50 as the backbone network; here, skip connections, which can alleviate the problem of gradient vanishing in deep network training, are used to extract features, $F_i$, for comics accurately. The region proposal network is used to generate candidate regions for comic frames, dialog bubbles, characters, and so on. Drawing on the Mask R-CNN framework [27], a RoIalign layer is added to retain the original feature data without quantization, to obtain more realistic RoI features and improve the segmentation ability of characters and irregular dialog bubbles in comics. Since the standard Mask R-CNN is not ideal for edge prediction in image segmentation tasks, the generated mask size is only 28 × 28, and the stretched mask cannot accurately correspond to the detailed features of the characters in the comics, making it difficult to perform fine feature extraction.

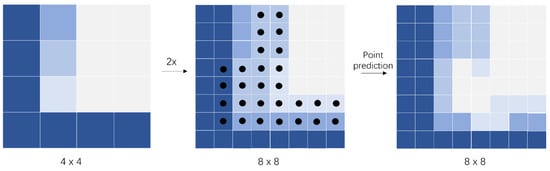

Therefore, we added an adaptive subdivision to the model. As show as Figure 3, the adaptive subdivision layer predicts segmentation labels by adaptively selecting points in the image plane and improving the anti-aliasing capability of object edges. This strategy is inspired by the classic adaptive subdivision technique in computer graphics [28], which can effectively improve the quality of the mask generated by image segmentation.

Here, we use the subdivision of multilayer perceptron to solve the local receptive field limitation and improve the global feature extraction ability; this is combined with upsampling to allow the unscaled information to blend, improving the quality of cartoon target extraction. Its equation can be expressed as:

$$P_i=\mathrm{ReLU}\left(W_i{F}_i+b_i\right)+\mathrm{Upsample}\left(P_{i+1}\right)$$

(1)

where $W_i$ is the MLP weight matrix, $b_i$ is the bias term, and $F_i$ is the feature extracted by ResNet.

The total loss function of the comic extraction module is:

$$L=L_{\mathrm{RPN}}+L_{\mathrm{ROI}-\mathrm{CLS}}+L_{\mathrm{ROI}-\mathrm{BOX}}+L_{\mathrm{MASK}}$$

(2)

Among them, $L_{\mathrm{RPN}}$ is the candidate box loss, $L_{\mathrm{ROI}-\mathrm{CLS}}$ is the target classification loss, $L_{\mathrm{ROI}-\mathrm{BOX}}$ is the bounding box loss, and $L_{\mathrm{MASK}}$ is the instance segmentation loss.

3.2. Comic Coloring Module

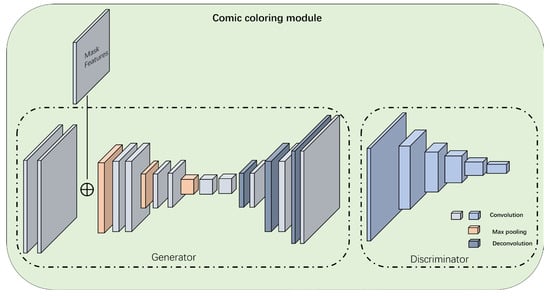

Comic coloring is an essential part of the comic project. Here, we designed a GAN-based coloring network module, as shown in Figure 4. In this network module, the U-Net structure is used as the generator for comic image coloring. In addition, the comic mask features extracted in the comic extraction module are introduced into the generator to reduce the amount of calculation while enhancing the feature generation performance. In the discriminator, we use patchgan. The generated colored image is represented as multiple patches, and the multi-receptive field method is used for discrimination, which enhances the attention to image details and improves the discriminator’s discrimination ability.

Generator G aims to generate a realistically colored image, y, by inputting the black-and-white comic image, $x$, and the mask feature, $m$, provided by Mask R-CNN. Therefore, the output of the generator is:

$$\hat{y}=G(x,m)$$

(3)

where $x$ is a black-and-white comic image, $m$ is the mask feature calculated by the comic extraction module, and $\hat{y}$ is the color image output by the generator.

The discriminator, $D$ is used to determine whether a local region is a true image or not; given an input image, $y$ (true image) or $\hat{y}$ (generated image), the discriminator outputs a true or false value of the local patch. We can define the discriminator’s determination of the input image $I$ as:

$$D\left(I\right)=\sigma \left(f\right(I\left)\right)$$

(4)

where $\sigma$ is the Sigmoid activation function, which outputs the probability of a local patch of the image being true or false (0 or 1). $f\left(I\right)$ is the feature extracted by the discriminator, $D$, for the input image, $I$.

This network module uses binary cross-entropy loss to distinguish between real and fake images, and its adversarial loss is expressed as:

$${\mathcal{L}}_{\mathit{GAN}}(G,D)=\mathbb{E}[\log D(x,y\left)\right]+\mathbb{E}[\log (1-D(x,G(x\left)\right)\left)\right]$$

(5)

where $G$ is a generator and $D$ is a discriminator in the GAN.

4. Results

4.1. Dataset and Implementation Details

In the selection of datasets, we selected the commonly used eBDtheque [29], Manga109 [30], and DCM [31], and created a dataset based on Korean comics, KComic5000. Samples of the dataset are shown in Figure 5.

eBDtheque: The eBDtheque database is a selection of one hundred comic pages from America, Japan (manga), and Europe. It contains 850 panels, 1092 bubble dialogues, 1550 comic characters, and more.

Manga109: Manga109 consists of 109 volumes of manga drawn by professional Japanese manga artists. Commercially available to the public from the 1970s to the 2010s, these comics cover a wide range of target audiences and genres. Each comic page has multiple comic frames (content frames), and the content in each frame is different.

K-Comics: We collected a total of 5000 Korean comics, including more than 25,000 panels, 20,000 bubble dialogs, and more than 10,000 comic characters.

DCM: The dataset consists of 772 annotated images from 27 Golden Age comic books. These images were collected for free from the Digital Comic Museum’s free public domain collection of digitized comic books. Ground truth bounding boxes were made for all panels and all characters (body + face), whether they are small or large, human-like or animal-like.

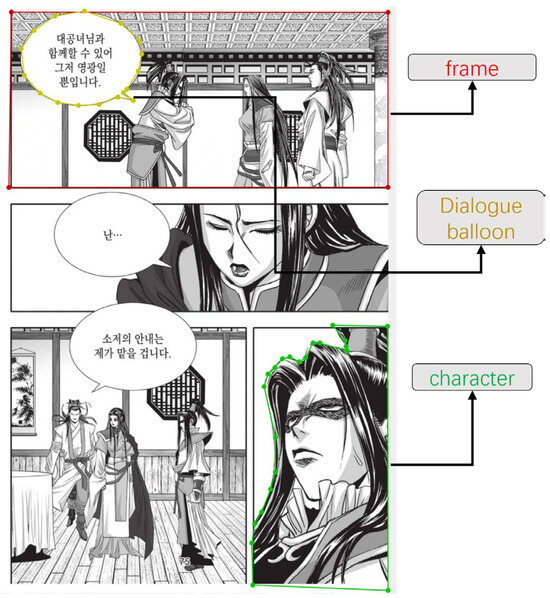

During the pre-training period, it is necessary to pre-process the comic. As shown in Figure 6, we label the frames (boxes), dialogue bubbles, and characters appearing on the comic page. The size of the comic page image is different from the general image size. Here, we use the standard 840 × 640 for a single-page image, which is convenient for model training later; 80% of the dataset is randomly selected for model training and 20% is used for model testing. All experiments are trained and tested on a server PC equipped with an NVIDIA RTX3090 GPU (NVIDIA Corporation, Santa Clara, CA, USA), an AMD Threadripper 2950x CPU (Advanced Micro Devices, Inc., Santa Clara, CA, USA), and 64 G RAM.

4.2. Overall Performance

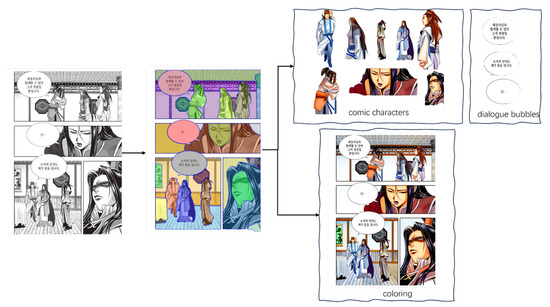

Currently, most of the research on comics is limited to single content detection, text extraction, or simple coloring processing, and almost no system model can comprehensively and systematically process the full content of comics. To solve these problems, we proposed a composite network for automatic coloring and content extraction of black-and-white comics. As shown in Figure 7, by inputting black-and-white comics into the network, the characters and dialogue bubbles in the comics can be accurately extracted, and the color image quality output can be comparable to that of manual coloring conducted by comic staff.

The composite network for automatic colorization and content extraction of black-and-white comics proposed in this study includes a comic extraction module and a comic colorization module, so it is necessary to conduct comparative verification experiments separately. The comparative experiment of the comic extraction network module verifies the comprehensive detection capabilities of frames (boxes), dialogue bubbles, and characters in comics. The comic extraction network module we proposed is compared with other excellent models. As shown in

Table 1. Colored comic image performance comparison.

Method	Recall	Precision	F1
Arai and Tolle [15]	69.8	62.3	63.6
Qin et al. [3]	78.7	75.1	75.4
Nguyen et al. [17]	83.2	84.0	82.7
Dutta et al. [20]	84.6	85.1	85.3
Xin and Ma [5]	88.5	87.9	88.4
Dubray and Laubrock [21]	90.7	91.6	91.1
Ours	95.3	98.8	98.5

, our proposed module performs more efficiently.

As shown in Figure 8, the comic content extraction module we designed can show excellent performance on various comics, especially in extracting complex character feature details in comics.

In the comic coloring verification experiment, we use FID and SSIM as performance verification indicators for generating color comic images. FID (Frechet Inception Distance) is a measure of the similarity between the feature distribution of the original image and the image generated by the generative model. The closer the distance, the better the effect of the generative model; that is, the image has high clarity and rich diversity. The following equation is used to calculate the FID:

$$\mathrm{FID}(x,g)=‖{\mu }_x-{\mu }_g‖{\displaystyle \frac{2}{2}}+\mathrm{T}\mathrm{r}\left({\mathsf{\Sigma }}_x+{\mathsf{\Sigma }}_g-2{\left({\mathsf{\Sigma }}_x{\mathsf{\Sigma }}_g\right)}^{{\displaystyle \frac{1}{2}}}\right)$$

(6)

SSIM (structural similarity index) is a widely used image quality evaluation indicator. It is based on the assumption that the human eye will extract structured information from the image and is a measure of the similarity between two images. It is calculated using the following equation:

$$\mathrm{S}\mathrm{S}\mathrm{I}\mathrm{M}(x,y)=\left[l\right(x,y){]}^{\alpha }\cdot [c(x,y){]}^{\beta }\cdot \left[s\right(x,y){]}^{\gamma }$$

(7)

As shown in

Table 2. Colored comic image performance comparison.

Model	FID	SSIM
Pix2Pix	103.25	0.53
S2PV3	79.01	0.61
DCSGAN	54.36	0.69
Zoom-GAN	34.75	0.87
VAE-GAN	27.09	0.91
Liu et al. [12]	25.16	0.92
Ours	24.58	0.94

, in the image quality evaluation experiment based on FID and SSIM, our proposed comic coloring network module shows a more excellent performance than the other models.

As shown in Figure 9, the post-coloring control of black-and-white comics based on our composite network model for comic coloring and content extraction demonstrates excellent performance in both the overall coloring of comics and the coloring of character details.

5. Discussion and Conclusions

Comic processing technology has made significant progress in recent years, shifting from traditional hand-painted crafts to digital processing, which has greatly improved the efficiency of creation and the quality of work. However, in the tasks of accurate comic content extraction and high-quality comic coloring, the performance is not satisfactory. To solve these problems, in this paper, we proposed a new composite network for automatic coloring and content extraction of black-and-white comics, which includes a redesigned comic extraction module and a comic coloring module based on the modified GAN. We verified each module separately. In the verification experiment of the comic extraction module, compared with other excellent networks, our proposed module achieved the highest scores of 95.3%, 98.8%, and 98.5% in Recall, Precision, and F1 score, respectively. In the comic coloring field, our module obtained excellent scores of 24.58 and 0.94 in the image quality evaluation based on FID and SSIM. After many comparative experiments with other excellent research models, our proposed network is found to be more efficient and robust in terms of the accuracy of comic content detection, segmentation, and high-quality color image generation.
