Volatile Sulphur Compounds in Wine Distillates by Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry
Analytical Chemistry Department, Faculty of Sciences-CAIV, University of Cadiz, Agrifood Campus of International Excellence, P.O. Box 40, Pol. Río San Pedro, 11510 Puerto Real, Spain
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(7), 3680; https://doi.org/10.3390/app15073680
Submission received: 28 February 2025
/
Revised: 21 March 2025
/
Accepted: 24 March 2025
/
Published: 27 March 2025
(This article belongs to the Special Issue Innovative Technologies in Food Detection—2nd Edition)
Abstract
:A Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry (SBSE-GC-MS) method has been optimized and validated for the determination of eight volatile sulphur compounds in wine distillates: diethyl sulphide (DES), dimethyl disulphide (DMDS), diethyl disulphide (DEDS), 2-thiophenecarboxaldehyde (TC), dibutyl sulphide (DBS), dipropyl disulphide (DPDS), dipropyl sulphide (DPS), and dimethyl trisulphide (DMTS). After optimization by 24 factorial design, the SBSE-GC-MS extraction conditions were as follows: a polydimethylsiloxane twister (10 mm × 0.5 mm), 35 °C as the extraction temperature, 10 mL as the sample volume, 7% (v/v) as the alcoholic grade, 47 min as the extraction time, 10% (w/v) of NaCl, and 1% (w/v) of EDTA (ethylenediaminetetraacetic acid). Under optimal conditions, adequate analytical figures of merit were obtained for eight of the ten compounds initially considered, with low quantification and detection limits and relative standard deviations for inter-twister and inter-day repeatability values ranging from 7.5 to 21.8% and from 7.2 to 27.5%, respectively. The methodology was applied to 34 wine distillates (continuous column distillation and distillation in pot still) elaborated for the production of Brandy de Jerez: 15 aged distillates aged for different periods of time in American oak wood and 19 non-aged distillates. The most significant volatile sulphur compounds were DBS, DMDS, and DPS. The Cluster Analysis (CA) on the volatile sulphur compounds grouped the samples according to the use of sulphur dioxide. In general, lower amounts of volatile sulphur compounds were found in the aged samples, although the high standard deviations obtained highlight that their contents depend on multiple factors related to the elaboration process.
1. Introduction
Volatile sulphur compounds (VSCs) are a group of compounds of diverse chemical nature, mainly thiols, mono- or polysulfides, and thiol-esters, which can be part of the composition of foods and beverages. They are, mainly, aromatic compounds and, although they are usually found in very low concentrations (in the order of µg/L, or even ng/L), they usually present low perception thresholds. The presence of VSCs in food and beverages is associated with defects in their organoleptic characteristics [1]. In general, their odours are unpleasant (garlic, onion, asparagus, rotten eggs, etc.), although there is a small group of VSCs that present pleasant odours such as dimethyl sulphide, which can have a beneficial effect in the organoleptic characteristics of wine, enhancing its fruity notes, an effect that depends on its concentration [2].
In the case of grape-derived beverages, these compounds are produced by two main routes: enzymatic and non-enzymatic [3]. In the enzymatic pathway, they are formed from hydrogen sulphide produced by yeasts during the winemaking process from inorganic sulphur compounds such as sulphates or sulphites, or from organic sulphur compounds such as glutathione or cysteine. The non-enzymatic pathway occurs mostly during the processing and storage stages, and involves chemical reactions catalyzed by light and/or the temperature of sulphur compounds present in the wine [4].
In distillation, being compounds with a low boiling point (below 90° Celsius), they pass, mainly, from the wine to the distillate in the first stage of the process (head fraction) together with other undesirable aromatic compounds. The wine distillate obtained in the central stage of the process (heart fraction) is richer in desirable aromatic compounds and has a lower concentration of VSCs [5,6]. In addition, their concentrations may be modified during the distillation stage according to the specific conditions employed [7].
Brandy de Jerez is produced in southern Spain from wine spirits that are aged in oak wood casks for specific durations. Its volatile composition depends on the starting grape, the fermentation conditions, the conservation of the wine obtained, the distillation process, and the aging period in oak wood. Among these conditions for the fermentation and conservation of the wine until the moment of its distillation, we find the use of sulphur dioxide as a preservative, which affects both the starting wine and the distillate obtained [8].
In relation to the VSC determination, the methods of analysis of these compounds in wine distillates present certain difficulties due to factors such as the complexity of the sample matrix, the high alcohol content (over 30% alcohol by volume (ABV)), the low levels of concentration of these compounds in distilled beverages, and their high reactivity [3]. Because of this, the methods of analysis found in the literature usually present a first stage of extraction and concentration before their analysis stage by GC. For the extraction of VSCs in wines and wine distillates, liquid–liquid extraction [3], static headspace [3], counter-current supercritical fluid extraction [9], purge and tramp concentrators [10], solid-phase extraction (SPE) [5], solid-phase microextraction (SPME) [3,11], headspace solid-phase microextraction (HS-SPME) [1,5,12,13,14], and Stir Bar Sorptive Extraction (SBSE) [15] have been used.
SPME and SBSE techniques have certain advantages over other extraction techniques, since they do not require solvents; they simultaneously combine the extraction and concentration of analytes in a single step; they are simple and fast techniques that require a low sample volume; and they are easily combined with analytical techniques such as GC. SBSE has a larger sorbent phase and higher sensitivity and is more robust than SPME [16], which makes it an ideal green analytical method for determining the concentration of volatile minor compounds such as VSCs at a stage prior to their analysis.
The most common detection system used in the analysis of VSCs in wine and distillate samples is MS [2,11,14,17,18], although other types of more specific detectors such as chemiluminescent detectors [19], atomic emission detectors [1], and pulsed flame photometric detection [12] are also found.
There are few recent papers that focus their studies on the analysis of VSCs in brandy samples [1,5,20,21], and there have been no studies on Brandy de Jerez samples. It is for this reason that the aim of this paper was the optimization of an SBSE-GC-MS method for the quantitative determination of volatile sulphur compounds in wine distillates and brandy samples. After optimization and validation, the analytical methodology was applied to a high number of distillates employed for the elaboration of Brandy de Jerez.
2. Materials and Methods
2.1. Distillates
A wine distillate from a local winery spiked with all volatile sulphur compounds considered in the present study at a concentration of 1 µg/L was employed to optimize the SBSE conditions. After optimization and validation, several wine distillates (head fraction, heart fraction, non-aged distillate, and aged distillate) subjected to the addition of different amounts of SO2 from different local companies were analyzed (Appendix A, Table A1).
2.2. Chemicals and Reagents
The commercial standards, diethyl sulphide (DES), 98%; dimethyl disulphide (DMDS), 99.0%; diethyl disulphide (DEDS), 99%; 2-thiophenecarboxaldehyde (TC), 98%; dibutyl sulphide (DBS), 98.0%; dipropyl disulphide (DPDS), 98%; dipropyl sulphide (DPS), 99%; thiophene (T), 99%; dimethyl trisulphide (DMTS), analytical standard; Ethyl methyl sulphide, (EMS) 96%; and 1-pentanethiol (P), 98%, were supplied by Merck (Darmstadt, Germany). Thiophene (T) was employed as internal standard. Some chemical and physical properties of all of these volatile compounds are shown in Table 1. NaCl and AEDT were purchased from Scharlau (Barcelona, Spain). Ethanol (analytical grade) was obtained from Merck (Darmstadt, Germany), whereas ultrapure water was obtained using a Milli-Q gradient water purification system (18.18 MΩ/cm at 25 °C; total organic content less than 10 µg/L).
Individual stock standard solutions of each sulphur compound were prepared by weight in ethanol.
From these, two global standard solutions containing all the analytes at high concentrations (A: EMS, P, DPS, DBS, and DPDS; and B: DES, DMDS, DEDS, DMTS, and TC) were prepared in ethanol. Working solutions were prepared by diluting different amounts of these global solutions in ethanol. All these solutions were kept at 4 °C.
2.3. Sample Preparation
After optimization, the specific SBSE procedure employed was as follows: 10 mL of sample diluted to 7% (v/v) with ultrapure water was pipetted into a 50 mL Erlenmeyer flask closed with parafilm and spiked with 100 µL of a solution of thiophene (IS, 0.1043 g/L in ethanol). NaCl at 10% (w/v) and 1% (w/v) ethylenediaminetetraacetic acid (EDTA) were also added. A 10 mm commercial PDMS stir bar (0.5 mm film thickness) was employed for the extraction. Each sample was agitated at 1100 rpm at a temperature of 35 °C for 47 min on a multi-position magnetic stirrer (Mulheim a/d Ruhr, North Rhine-Westphalia, Germany). After the extraction, the PDMS stir bar was removed, washed with distilled water, and gently dried. Then, it was transferred into a glass thermal desorption tube for thermal desorption.
2.4. Apparatus
A commercial thermal desorption unit (TDU, TDS-2, Gerstel, Mülheim and der Ruhr, North Rhine-Westphalia, Germany) equipped with a CIS-4 (cooled injection system, Gerstel) was used for the programmed thermal desorption (from 40 °C to 300 °C, held for 10 min and at 60 °C/min) under helium flow at 75 mL/min. After desorption (splitless for 2 min), the sulphur volatiles were cryofocused in the CIS-4 system employing liquid N2 at −140 °C. After cryofocusing and for the analysis by GC-MS, the CIS-4 was programmed from −140 °C to 300 °C (held for 5 min) at 10 °C/s.
Capillary GC-MS analyses in the electron impact mode (EI+ at 70 eV) were performed using an Agilent 6890 GC-5973N MS system (Agilent, Little Falls, DE, USA). The mass detector worked in a range from 30 to 400 amu.
A DB-Wax capillary column (J&W Scientific, Folsom, CA, USA), 60 m × 0.25 mm I.D., with 0.25 µm coating was used. The program of the GC oven was as follows: Temperature held at 35 °C for 10 min, and then ramped up to 100 °C at 5 °C/min. After that, the oven temperature was elevated to 210 °C at 3 °C/min and kept for 40 min. Helium was employed as carrier gas at a flow rate of 1.0 mL/min.
The MS signal identification was performed by analogy with mass spectra (with a minimum of 90% similarity) from commercial standards and those from Wiley 7N Edition Library [22] and confirmed by their retention times. Each volatile sulphur compound was quantified using selective ion monitoring mode (Table 2). Quantitative data were obtained by measuring the molecular ion area in relation to that of the internal standard (T).
For calibration, six levels of concentration, covering the expected concentration range, were tested in triplicate for each sulphur volatile compound.
2.5. Experimental Design
For the optimization of the SBSE conditions, a 24 two-level factorial design, using the statistical Computer Package Statgraphics Centurion 19.0 (Statpoint, VA, USA) was chosen. According to the bibliography [16,23] and the authors’ previous experience [24,25], four possible significant factors were selected: extraction time, temperature, alcoholic degree, and sample volume. Total chromatographic area and number of chromatographic peaks were fixed as experimental responses to be optimized. All the SBSEs were carried out using 1% EDTA, 10% NaCl, and agitation at 1100 rpm.
This 24 design involved seventeen experiments performed in duplicate and in random order to provide protection against the possible effects of lurking variables. The values corresponding to the high (+) and low (−) points for each factor were as follows: 10 and 25 mL for sample volume; 30 and 100 min for extraction time; 25 and 35 °C for temperature; and 5 and 25% (v/v) for alcoholic content. A central point (65 min as extraction time, 30 °C as temperature, 15% as alcohol content, and 17.5 mL as sample volume) was also considered (Table 3).
After determining the significant variables, a second experimental design (a rotatable central composite design (CCD) with α = 1.4142) considering only extraction time and alcoholic content was selected. Table 3 shows the levels for the different factors considered in each experimental design.
2.6. Validation SBSE Methodology
After optimization, the SBSE methodology was validated. For this, detection and quantification limits, linear ranges, correlation coefficients, and inter-twister and inter-day repeatability were calculated.
3. Results and Discussion
3.1. Optimization of the Extraction Conditions
Some factors such as the addition of EDTA (1%), NaCl (10%), and agitation (1100 rpm) were set according to previous studies. The addition of EDTA during the extraction of volatile sulphur compounds has demonstrated positive effects on their stability against oxidative phenomena [26], whereas the use of agitation and a certain amount of NaCl to enhance the SBSE efficiency [12,15] are clearly established. Firstly, a full factorial design (24) was employed for screening the variables that may influence the SBSE procedure for the determination of volatile sulphur compounds in wine distillates. The variables considered were the extraction time, sample volume, extraction temperature, and alcoholic grade. The range studied for all of them is presented in Table 3. All of these parameters have shown that they must be carefully studied according to the matrix and the physical and chemical properties of analytes when applying the SBSE methodology. In the case of beverages with a high amount of ethanol, the study of the dilution of the sample previous to the SBSE analysis in order to reduce its alcohol content is crucial. Davis and Qian [27] have shown that there is a marked decrease in the detectability of some volatile sulphur compounds by SPME when ethanol is present in the sample. For the extraction temperature factor, its high and low values were fixed, taking into account that high temperatures may cause thermal degradation problems and that low temperatures may give low chromatographic signals in the case of volatile compounds with low boiling temperatures.

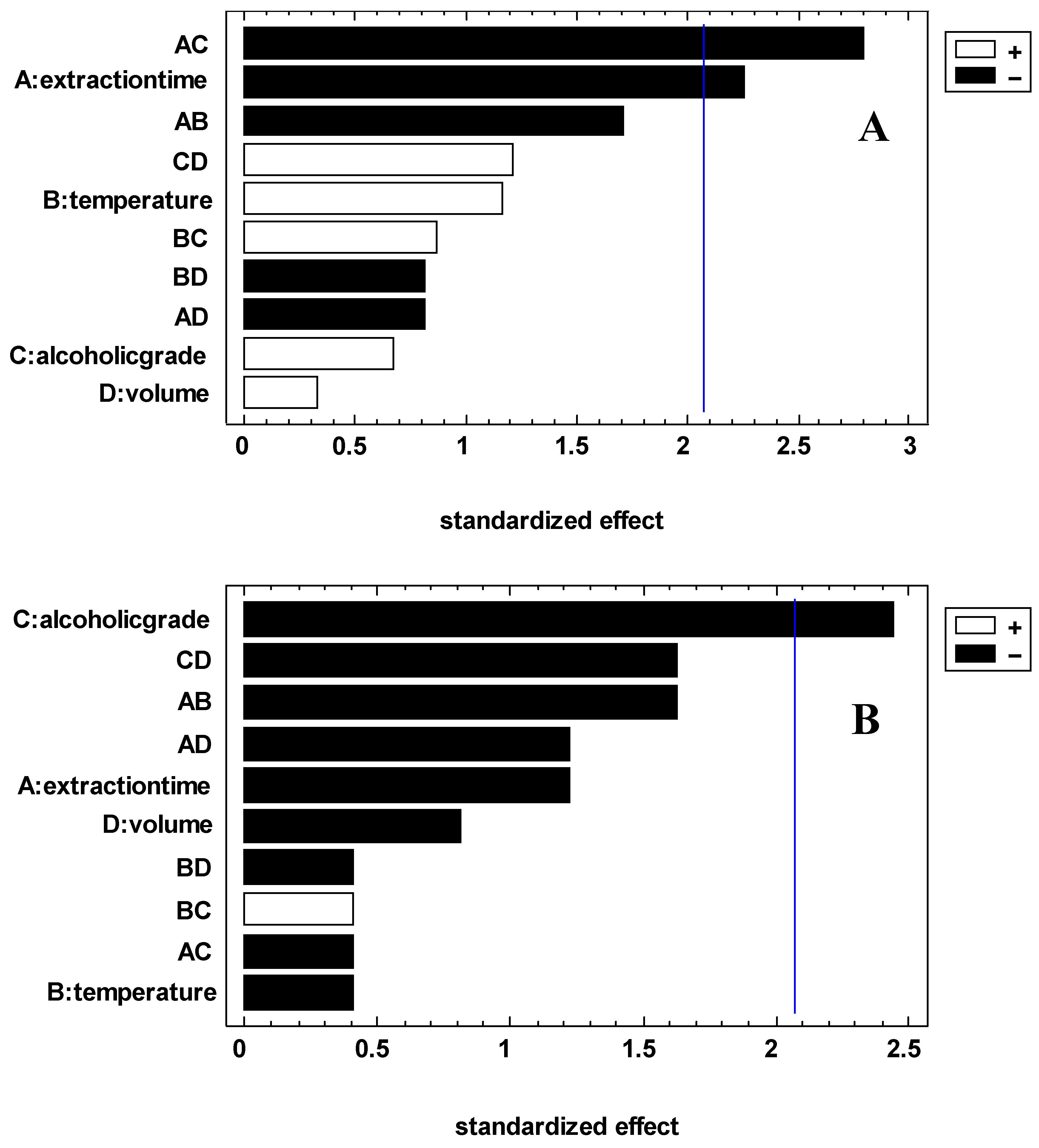

The total chromatographic area and number of volatile sulphur compounds detected were considered as the experimental responses. The data were evaluated by an analysis of variance at the 5% significance level and the results are shown in Figure 1 (p < 0.05 indicated by blue line).
As can be seen, for the total chromatographic area, the extraction time factor and the extraction time and alcoholic grade double interaction were significant at p < 0.05, whereas the alcoholic grade factor was the only significant variable for the number of compounds detected. In both cases, their effects were negative, that is, better chromatographic responses were obtained at lower values of these factors. Regarding the significant double interaction for the total chromatographic area, at lower extraction times, the chromatographic response increased as the alcohol content increased, while only a slight decrease was observed at high extraction times. This seems to indicate that when low extraction times are used, the dilution effect by the addition of water to the samples is more significant than that of a higher SBSE efficiency at a low ethanol content. However, if high extraction times are used, both effects (dilution versus lower extraction competence) are compensated for.
Taking into account these first results, the extraction temperature variable was fixed at 35 °C, whereas the sample volume was set at 10 mL. A second experimental design considering only the extraction time and alcoholic grade was carried out. For this, a response surface design (composite central design, α = 1.4142) was selected. Table 3 shows the studied values for extraction time and alcoholic grade. These values were set taking into account the previous results from the first design.
In this case, the total chromatographic area was significantly affected by both variables, with a positive sign. However, neither of them was significant for the number of compounds detected. According to all of the results, the optimized SBSE conditions were fixed as follows: 35 °C as the extraction temperature, 10 mL as the sample volume, 7% (v/v) as the alcoholic grade, 47 min as the extraction time, 10% (w/v) of NaCl, and 1% (w/v) of EDTA. A volume of 100 µL of a solution of thiophene (IS, 0.1043 g/L in ethanol) was also added.
3.2. Method Validation
Once the parameters of the SBSE technique for volatile sulphur compounds in distillates were optimized, the method was analytically validated. First, the linearity range of each compound was determined from its calibration curve. For calibration, six concentration levels were used, in triplicate, at 7% (v/v) alcoholic grade of each volatile sulphur compound to be studied and covering the range of concentrations expected to be found in the samples (Appendix A, Table A2). In general, good correlation coefficients were obtained, with values (r2) greater than 0.991 in eight of the ten compounds studied. EMS and P showed erratic relative chromatographic area values and their calibration curves could not be established. The calibration curve equations for the remaining eight sulphur compounds are shown in Table 4. 1-pentanethiol together with 1-propanethiol and 1-butanethiol had previously shown poor linearity in a study of the determination of volatile sulphur compounds in fruit brandies by SPME [11], whereas ethyl methyl sulphide exhibits the lowest boiling point and octanol-water partition coefficient (Log Kow) of all of the sulphur compounds considered in this work, which could explain these anomalous chromatographic values (Table 1).
Subsequently, the detection and quantification limits (DL and QL) for each sulphur compound were calculated as three and ten times, respectively, the standard deviation of the y-intercept of the regression lines divided by its slope [28]. As can be seen, the DL and QL values found were between 0.04–0.93 µg/L and 0.13–3.1 µg/L, respectively (Table 4). In general, lower DL and QL values were obtained for those volatile sulphur compounds with higher Log Kow values (Table 1). This is logical considering the apolar character of PDMS.
Finally, the inter-twister and inter-day repeatability values for each compound were evaluated (Table 4). For this purpose, the same sample prepared in absolute ethanol at intermediate concentrations in the linear range for each compound was analyzed under the optimized SBSE conditions on different days (3 days) and with five different twisters each day. The corresponding RSD values obtained for the inter-twister and inter-day repeatability are shown in Table 4. The RSD values obtained were from 5.9 to 21.8% for the inter-twister repeatability and from 7.2 to 27.5% for the inter-day values. 1-Pentanethiol exhibited high RDS values, which could be due to possible instability problems that were observed during the calibration phase. The values obtained demonstrate the high precision of the SBSE method optimized with values around 20% or lower.
For recovery, a non-aged distillate sample was spiked with a global standards solution at five levels of concentration. These concentrations coincided with those employed in the calibration phase. The slopes of the lines obtained for each compound were compared with those corresponding to the calibration (t criterion). In general, there was no significant difference between both slopes at p ≤ 0.05. The recovery values ranged from 84.8% for TC to 119.4% for DEDS, which corroborate the accuracy of the SBSE method developed.
3.3. Comparison with Other Analytical Methodologies
Considering that there are no previous works on volatile sulphur compounds in wine distillates using SBSE-GC-MS, the developed methodology was compared with other analytical techniques applied to different alcoholic beverages.
In terms of the DL values, the present methodology exhibited improved values with respect to methods such as the determination of DES, DMDS, DPS, DMTS, and DPDS in whisky by HS-SPME-AED; DES and DMDS in wine by HS-GC-pFPD; and DES, DEDS, and DMDS in wine by HS-GC-SCD with cryofocusing (Table 5).
However, some authors [11,13,14] obtained, in some cases, lower DL values employing HS-SPME. In these studies, divinylbenzene/carboxen/polydimethylsiloxane (DVB/CAR/PDMS) arrow fibers and carboxen-polydimethylsiloxane (CAR/PDMS) and (DVB/CAR/PDMS) fibers, which have slightly higher polarity and higher retention capacity than PDMS, were used. The DL and QL values obtained in the present work were, in general, low enough to quantify the eight VSCs studied (Appendix A, Table A2). If it were necessary to improve the sensitivity of the present methodology, it could be achieved using Tandem Mass Spectrometry, also known as MS/MS or MS2.
On the other hand, the current analytical methodology presented recovery, repeatability, and reproducibility values similar to those based on SPME (Table 5), using extraction times and temperatures similar to this one, but with the advantage that, in the case of SBSE, several extractions can be easily performed in parallel.
Therefore, the SBSE-GC-MS method developed can be truly used to identify and quantify eight volatile sulphur compounds in grape distillate samples at very low concentrations.

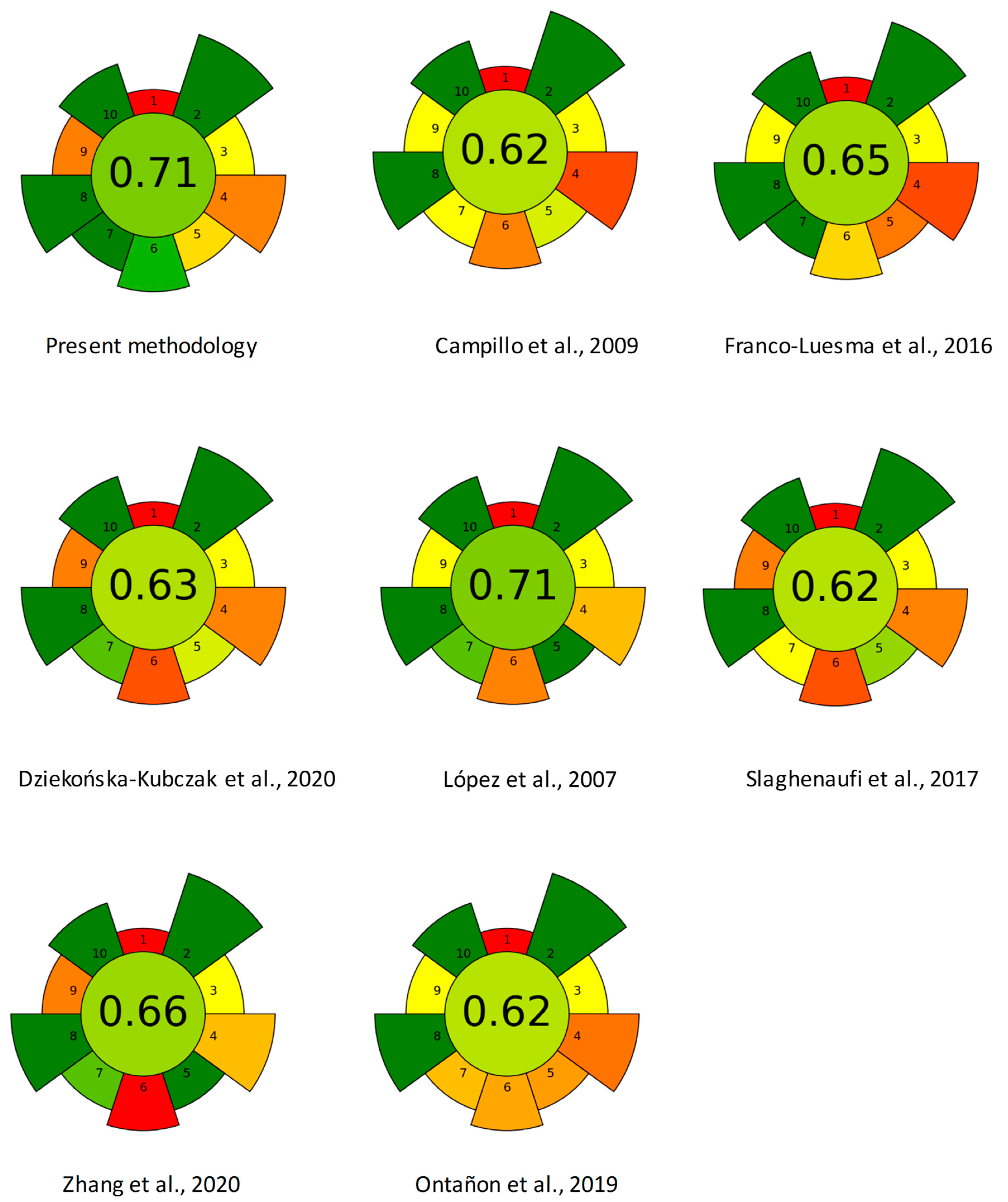

Regarding the green character of the SBSE-GC-MS method, the Analytical Greenness Calculator (AGREE) was used [29]. In this, the greenness and efficiency of each analytical method is evaluated and an overall global score from 0 to 1 is established (0, low; 1, high).
In the case of the present methodology, this global score was 0.71, equal to that reported by López et al. [12] using HS-SPME-GC- pFPD for the determination of DES and DMDS in wines (Figure 2). Both methodologies are characterized by the use of low sample volumes, no hazardous materials, no solvents, and low energy consumption. The lowest global scores were obtained by Campillo et al. [1], Ontañón et al. [19], and Slaghenaufi et al. [13], with analytical methodologies characterized by higher waste volumes, lower hourly sample throughputs, and/or a higher degree of complexity of the detection system.The aspect that received the lowest score for all of the methodologies was that related to the offline collection and determination, since the samples require transportation from the distillation point or the winery to the laboratory to be analyzed by GC.
3.4. Application to Real Samples
The optimized and validated SBSE–GC–MS method was applied for the analysis of thirty-four different samples obtained under different conditions (Appendix A, Table A1). Each sample was analyzed in duplicate. The results are shown in Appendix A (Table A2). Low standard deviations for each sample were obtained, indicating good precision values. DES was not detected in any sample, whereas DEDS was only detected in four samples. The most significant volatile sulphur compounds found in the samples were DBS, DMDS, and DPS. DMTS and TC were detected in a low number of samples from both column and pot still distillation. The mean concentrations for DBS and DMDS were 642.1 ± 696.8 µg/L and 185.8 ± 452.1 µg/L, respectively. The high standard deviations associated with the mean values obtained for all of the volatile sulphur compounds implies that their concentrations depend on several different factors such as raw wine, specific conditions for distillation, and possible aging in wood, among others.
Ledauphin, Basset, Cohen, Payot, and Barillier [30] found dimethyl disulphide (DMDS, from 50 to 500 µg/L of pure alcohol (PA)), dipropyl sulphide (DPS), dibutyl sulphide (DBS, from 20 to 100 µg/L of PA), dipropyl disulphide (DPDS), and 2-thiophenecarbolxadehyde (up to 1000 µg/L in some samples), among other volatile sulphur compounds, in Cognac samples, whereas dimethyl sulphide (DMS) was detected in brandy samples [10]. 2-thiophenecarboxaldehyde was also found by Xiang et al. [5] in the heart and tail fractions of a spirit obtained from Spine grape wine.

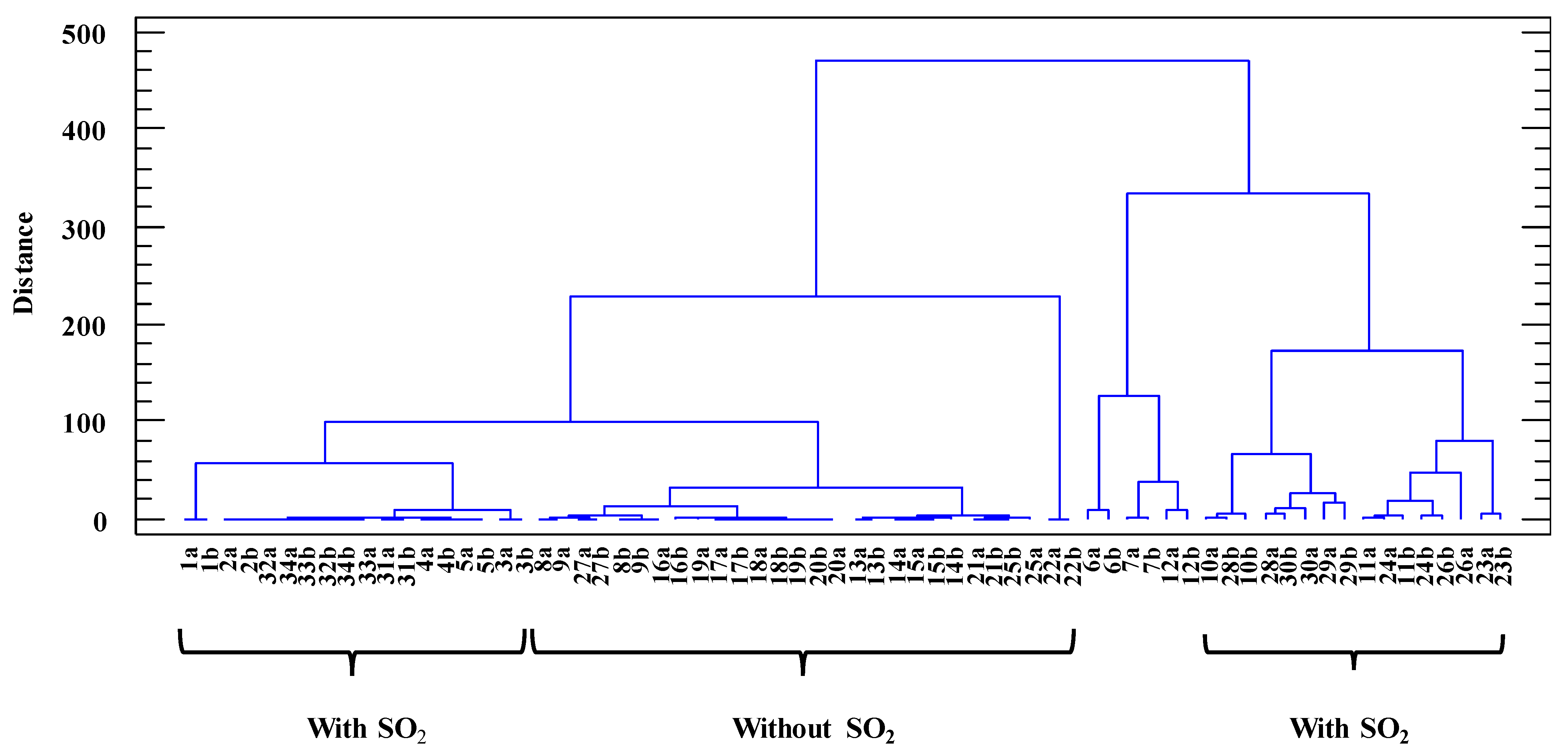

In order to evaluate the similarity among all of the samples, taking into account the content of volatile sulphur compounds considered in the present work, the data were subjected to a Cluster Analysis (CA) considering the squared Euclidean distance as a metric and the Ward method as an amalgamation rule. As can be seen in Figure 3, the samples seem to be grouped according to the use of sulphur dioxide, with three groups: one of them with distillates without SO2 and aged in wood, and two others with SO2. Guerrero-Chanivet et al. [31] found that the addition of sulphur dioxide during alcoholic fermentation had the higher influence on the aromatic and phenolic profile of distillates obtained using different distillation methods and aged for 14 and 28 months in oak wood. In the present study, samples 25, 27, 29, and 31 correspond to samples 24, 26, 28, and 30, respectively, after different periods of aging in wood. Out of all of them, 26, 28, and 30 were obtained from wines subjected to the addition of SO2. As can be observed in Table A2, in general, all of the volatile sulphur compounds were found to be decreased in the aged samples compared to unaged ones. In this sense, Zhou et al. [32] found that the content of sulphur volatile compounds together with alcohols, aldehydes, and terpenes decreased with aging time in different brandy samples. In this sense, De La Burgade et al. [33] found that dimethyl sulphide increased in Shiraz wines during accelerated bottle aging and that those increases were higher when more impermeable closures were employed, suggesting that its formation depends on the redox status of the wine. The same behaviour was observed for dimethyl disulphide by Jiménez-Lorenzo et al. [34] in a Viognier wine subjected to darkness under anoxic conditions for 9 weeks at a temperature of 50 °C. During aging in wood, the evolution of the redox potential depends on several factors: the amount of dissolved oxygen at the beginning of aging; the level of oxygen permeability through the wood; the amounts of compounds (phenolic compounds and volatile compounds, mainly) released from the wood; the temperature; and the rate of oxygen consumption [35]. According to this, all of these factors could determine the content of volatile sulphur compounds in distillates during their aging in wood.
All of this seems to indicate that aging in wood exerts a certain decreasing effect on the content of sulphur compounds, although further studies and a larger number of samples are necessary in order to obtain conclusive results on the effect of aging in wood on the content of this type of volatile compound in distillates.
4. Conclusions
To our knowledge, no methods have been published for the analysis of volatile sulphur compounds in wine distillates using SBSE-GC-MS. The method was successfully validated and shown to be suitable for the determination of eight volatile sulphur compounds: DES, DMDS, DPS, DEDS, DBS, DMTS, DPDS, and TC. The proposed method had a good analytical performance when compared with other analytical methodologies optimized and validated for similar analytes in similar samples. After optimization and validation, it was successfully applied for the analysis of 34 wine distillate samples. The most significant volatile sulphur compounds found in the samples were DBS, DMDS, and DPS. In relation to the possible influence of aging in wood on the volatile sulphur compound content, the preliminary results seem to indicate that these exhibit a decreasing tendency during the aging of distillates in wood.
Author Contributions
Conceptualization, R.C. and M.d.V.G.-M.; methodology, M.S.; software, R.C.; validation, R.C. and M.d.V.G.-M.; formal analysis, R.C. and M.d.V.G.-M.; investigation, M.S.; resources, R.C.; data curation, R.C., M.d.V.G.-M. and M.S.; writing—original draft preparation, M.d.V.G.-M. and R.C.; writing—review and editing, M.d.V.G.-M. and R.C.; visualization, M.d.V.G.-M. and R.C.; supervision, M.d.V.G.-M. and R.C.; project administration, R.C.; funding acquisition, R.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by Plan Propio de Apoyo y Estímulo a la Investigación y la Transferencia of University of Cadiz (Project PR2022-021).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The raw data are available from the authors upon request.
Acknowledgments
The authors would like to thank Grupo Caballero and Bodegas González Byass for providing the distillate samples.
Conflicts of Interest
The authors declare no conflicts of interest.
Abbreviations
The following abbreviations are used in this manuscript:
| ABV | Alcohol by volume |
| EMS | Ethyl methyl sulphide |
| DES | Diethyl sulphide |
| T | Thiophene |
| P | 1-Pentanethiol |
| DMDS | Dimethyl disulphide |
| DPS | Dipropyl sulphide |
| DEDS | Diethyl disulphide |
| DBS | Dibutyl sulphide |
| DMTS | Dimethyl trisulphide |
| DPDS | Dipropyl disulphide |
| DL | Detection limit |
| QL | Quantification limit |
| SPE | Solid Phase Extraction |
| SPME | Solid Phase MicroExtraction |
| HS-SPME | Headspace-Solid Phase MicroExtraction |
| SBSE-GC-MS | Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry |
| HS-GC-SCD | Headspace-Gas Chromatography-Sulphur Chemiluminescent Detection |
| HS-SPME-GC-AED | Headspace-Solid Phase MicroExtraction-Gas Chromatography-Atomic Emission Detection |
| HS-SPME-GC-pFPD | Headspace Solid-Phase Microextraction–Gas Chromatography–Pulsed Flame-Photometric Detection |
| TDU | Thermal desorption unit |
| EDTA | Ethylenediaminetetraacetic acid |
| CA | Cluster Analysis |
| PDMS | Polydimethylsiloxane |
| VSCs | Volatile sulphur compounds |
Appendix A
Table A1.
Information about samples studied.
| Code | Distillation Fraction | Alcohol Content (ABV) | SO2Addition* | Distillation Type | Aging |
|---|---|---|---|---|---|
| 1 | Head | 85% | High | Continuous column distillation | No |
| 2 | Heart | 77% | Very low | Continuous column distillation | No |
| 3 | Heart | 77% | Medium | Continuous column distillation | No |
| 4 | Head | 77% | High | Continuous column distillation | No |
| 5 | Head | 85% | High | Continuous column distillation | No |
| 6 | Head | 85% | - | Distillation in pot still | No |
| 7 | Head | 70% | - | Distillation in pot still | No |
| 8 | Heart | 70% | - | Continuous column distillation | No |
| 9 | Heart | 70% | Low | Continuous column distillation | Yes |
| 10 | Heart | 77% | - | Continuous column distillation | No |
| 11 | Head | 95% | - | Continuous column distillation | No |
| 12 | Heart | 65% | - | Continuous column distillation | No |
| 13 | Heart | 35% | - | Continuous column distillation | Yes |
| 14 | Heart | 35% | - | Continuous column distillation | Yes |
| 15 | Heart | 35% | - | Continuous column distillation | Yes |
| 16 | Heart | 35% | - | Continuous column distillation | Yes |
| 17 | Heart | 35% | - | Continuous column distillation | Yes |
| 18 | Heart | 35% | - | Continuous column distillation | Yes |
| 19 | Heart | 35% | - | Continuous column distillation | Yes |
| 20 | Heart | 35% | - | Continuous column distillation | Yes |
| 21 | Heart | 35% | - | Continuous column distillation | Yes |
| 22 | Heart | 35% | - | Continuous column distillation | Yes |
| 23 | Heart | 55% | Medium | Distillation in pot still | No |
| 24 | Heart | 55% | - | Distillation in pot still | No |
| 25 | Heart | 55% | - | Distillation in pot still | Yes |
| 26 | Heart | 55% | Medium | Continuous column distillation | No |
| 27 | Heart | 55% | Medium | Continuous column distillation | Yes |
| 28 | Heart | 55% | Medium | Distillation in pot still | No |
| 29 | Heart | 55% | Medium | Distillation in pot still | Yes |
| 30 | Heart | 65% | Medium | Distillation in pot still | No |
| 31 | Heart | 65% | Medium | Distillation in pot still | Yes |
| 32 | Head | 96% | Medium | Continuous column distillation | No |
| 33 | Head | 96% | Medium | Continuous column distillation | No |
| 34 | Heart | 65% | Medium | Continuous column distillation | No |
* High: >500 mg/L; medium: about 100 mg/L; low: <100 mg/L; very low: about 20 mg/L; -: without sulphur dioxide.
Table A2.
Mean concentrations (µg/L) and standard deviations for volatile sulphur compounds studied.
Table A2.
Mean concentrations (µg/L) and standard deviations for volatile sulphur compounds studied.
| Code | DES | DMDS | DPS | DEDS | DBS | DMTS | DPDS | TC |
|---|---|---|---|---|---|---|---|---|
| 1 | nd | 404.7 ± 6.7 | <QL | <QL | nd | 42.25 ± 0.38 | nd | nd |
| 2 | nd | 9.60 ± 0.37 | nd | nd | 67.48 ± 12.74 | nd | 1.67 ± 0.16 | nd |
| 3 | nd | 16.47 ± 1.44 | nd | nd | 13.21 ± 4.36 | 13.68 ± 1.79 | 2.40 ± 0.40 | nd |
| 4 | nd | 95.42 ± 3.55 | <QL | nd | nd | nd | nd | nd |
| 5 | nd | 96.83 ± 10.48 | nd | nd | nd | nd | <QL | nd |
| 6 | nd | 1656 ± 56 | nd | nd | 2491 ± 663 | nd | 29.18 ± 4.76 | nd |
| 7 | nd | 1626 ± 27 | nd | nd | 1316 ± 188 | 92.07 ± 1.81 | 53.97 ± 9.35 | nd |
| 8 | nd | 15.10 ± 0.48 | 128.6 ± 28.0 | nd | 237.2 ± 11.4 | nd | 19.87 ± 2.23 | <QL |
| 9 | nd | 12.90 ± 8.23 | 136.6 ± 43.8 | nd | 267.5 ± 44.8 | nd | 23.16 ± 2.65 | <QL |
| 10 | nd | nd | 153.5 ± 10.8 | nd | 533.5 ± 44.2 | <DL | 37.63 ± 6.40 | 87.10 ± 28.68 |
| 11 | nd | nd | 132.7 ± 40.4 | nd | 1030 ± 6 | nd | 56.38 ± 12.56 | nd |
| 12 | nd | 1568 ± 31 | 265.2 ± 60.6 | nd | 1527 ± 456 | 69.79 ± 7.79 | 42.35 ± 4.77 | nd |
| 13 | nd | 130.2 ± 0.8 | 113.9 ± 13.6 | nd | 916.0 ± 4.3 | nd | 17.59 ± 1.90 | nd |
| 14 | nd | 211.1 ± 2.8 | 123.9 ± 11.2 | nd | 1068 ± 111 | 7.25 ± 0.55 | 21.70 ± 5.34 | nd |
| 15 | nd | 124.1 ± 1.1 | 122.0 ± 4.5 | nd | 810.6 ± 85.4 | 6.07 ± 0.41 | 17.26 ± 2.71 | nd |
| 16 | nd | 10.14 ± 1.74 | 87.9 ± 31.8 | nd | 210.5 ± 51.7 | nd | 18.92 ± 5.89 | 16.34 ± 2.51 |
| 17 | nd | 6.00 ± 0.95 | 65.5 ± 3.1 | nd | 101.1 ± 23.3 | nd | 10.11 ± 0.43 | <QL |
| 18 | nd | 6.40 ± 0.90 | 78.61 ± 7.40 | nd | 94.31 ± 3.85 | nd | 10.77 ± 1.26 | <QL |
| 19 | nd | 6.98 ± 0.75 | 64.70 ± 6.89 | nd | 157.7 ± 39.7 | nd | 16.54 ± 5.40 | nd |
| 20 | nd | 6.05 ± 0.81 | 53.45 ± 11.81 | nd | 140.3 ± 36.5 | nd | 11.26 ± 0.56 | nd |
| 21 | nd | 95.29 ± 1.16 | 127.9 ± 7.6 | <QL | 665.9 ± 136.1 | nd | 17.29 ± 3.07 | nd |
| 22 | nd | 32.57 ± 0.70 | 88.66 ± 1.62 | 22.61 ± 0.39 | 599.0 ± 2.8 | nd | 14.25 ± 0.34 | nd |
| 23 | nd | 61.10 ± 2.58 | 205.2 ± 15.9 | 10.37 ± 2.75 | 2299 ± 175 | nd | 67.66 ± 9.18 | nd |
| 24 | nd | 36.81 ± 1.21 | 153.5 ± 49.0 | nd | 1794 ± 299 | nd | 55.58 ± 18.65 | nd |
| 25 | nd | 14.77 ± 9.62 | 133.3 ± 25.3 | nd | 780.2 ± 125.3 | nd | 25.71 ± 7.42 | nd |
| 26 | nd | 15.16 ± 6.21 | 274.4 ± 78.4 | nd | 1652 ± 144 | nd | 114.6 ± 32.5 | nd |
| 27 | nd | 9.70 ± 1.65 | 137.1 ± 4.9 | nd | 414.7 ± 29.7 | nd | 25.99 ± 3.05 | nd |
| 28 | nd | 14.20 ± 0.49 | 218.3 ± 36.4 | nd | 621.0 ± 64.7 | nd | 50.89 ± 16.46 | 120.5 ± 17.6 |
| 29 | nd | 13.87 ± 0.75 | 401.4 ± 133.1 | nd | 618.4 ± 109.0 | nd | 47.74 ± 23.32 | 183.8 ± 12.1 |
| 30 | nd | 18.13 ± 0.05 | 269.5 ± 11.9 | nd | 1403 ± 211 | <QL | 89.63 ± 12.51 | 132.0 ± 37.4 |
| 31 | nd | <DL | nd | nd | nd | nd | nd | 11.16 ± 0.49 |
| 32 | nd | nd | nd | nd | nd | nd | <QL | nd |
| 33 | nd | <QL | nd | nd | nd | nd | <QL | nd |
| 34 | nd | nd | nd | nd | nd | nd | <QL | nd |
| Mean | nd | 185.8 ± 452.2 | 104.0 ± 101.4 | 1.06 ± 1 ± 4.17 | 642.1 ± 696.8 | 7.02 ± 20.14 | 26.6 ± 27.7 | 17.0 ± 43.9 |
nd: not detected; <QL: below quantification limit; <DL: below detection limit.
References
- Campillo, N.; Peñalver, R.; López-García, I.; Hernández-Córdoba, M. Headspace solid-phase microextraction for the determination of volatile organic sulphur and selenium compounds in beers, wines and spirits using gas chromatography and atomic emission detection. J. Chromatogr. A 2009, 1216, 6735–6740. [Google Scholar] [CrossRef] [PubMed]
- Segurel, M.A.; Razungles, A.J.; Riou, C.; Salles, M.; Baumes, R.L. Contribution of dimethyl sulfide to the aroma of syrah and grenache noir wines and estimation of its potential in grapes of these varieties. J. Agric. Food Chem. 2004, 52, 7084–7093. [Google Scholar] [CrossRef]
- Mestres, M.; Busto, O.; Guasch, J. Analysis of organic sulfur compounds in wine aroma. J. Chromatogr. A 2000, 881, 569–581. [Google Scholar] [CrossRef] [PubMed]
- Franco-Luesma, E.; Ferreira, V. Reductive off-odors in wines: Formation and release of H2S and methanethiol during the accelerated anoxic storage of wines. Food Chem. 2016, 199, 42–50. [Google Scholar] [CrossRef]
- Xiang, X.F.; Lan, Y.B.; Gao, X.T.; Xie, H.; An, Z.Y.; Lv, Z.H.; Yin-Shi; Duan, C.Q.; Wu, G.F. Characterization of odor-active compounds in the head, heart, and tail fractions of freshly distilled spirit from Spine grape (Vitis davidii Foex) wine by gas chromatography-olfactometry and gas chromatography-mass spectrometry. Food Res. Int. 2020, 137, 109388. [Google Scholar] [CrossRef] [PubMed]
- Zanghelini, G.; Athès, V.; Vitu, S.; Giampaoli, P.; Esteban-Decloux, M. Charentaise distillation of cognac. Part II: Process simulation and impact of recycling practices on the aroma composition of freshly distilled spirit. Food Res. Int. 2024, 178, 113861. [Google Scholar] [CrossRef]
- Harrison, B.; Fagnen, O.; Jack, F.; Brosnan, J. The impact of copper in different parts of malt whisky pot stills on new make spirit composition and Aroma. J. Inst. Brew. 2011, 117, 106–112. [Google Scholar] [CrossRef]
- Guerrero-Chanivet, M.; Ortega-Gavilán, F.; Bagur-González, M.G.; Valcárcel-Muñoz, M.J.; García-Moreno, M.d.V.; Guillén-Sánchez, D.A. Pattern Recognition of GC-FID Profiles of Volatile Compounds in Brandy de Jerez Using a Chemometric Approach Based on Their Instrumental Fingerprints. Food Bioprocess Technol. 2023, 16, 1963–1975. [Google Scholar] [CrossRef]
- Da Porto, C.; Decorti, D. Countercurrent supercritical fluid extraction of grape-spirit. J. Supercrit. Fluids 2010, 55, 128–131. [Google Scholar] [CrossRef]
- Cardoso, D.R.; Sobrinho, L.G.A.; Lima-Neto, B.S.; Franco, D.W. A rapid and sensitive method for dimethylsulphide analysis in brazilian sugar cane sugar spirits and oOther distilled beverages. J. Braz. Chem. Soc. 2004, 15, 277–281. [Google Scholar] [CrossRef]
- Dziekońska-Kubczak, U.; Pielech-Przybylska, K.; Patelski, P.; Balcerek, M. Development of the method for determination of volatile sulfur compounds (VSCs) in fruit brandy with the use of HS-SPME/GC-MS. Molecules 2020, 25, 1232. [Google Scholar] [CrossRef] [PubMed]
- López, R.; Lapeña, A.C.; Cacho, J.; Ferreira, V. Quantitative determination of wine highly volatile sulfur compounds by using automated headspace solid-phase microextraction and gas chromatography-pulsed flame photometric detection. Critical study and optimization of a new procedure. J. Chromatogr. A 2007, 1143, 8–15. [Google Scholar] [CrossRef]
- Slaghenaufi, D.; Tonidandel, L.; Moser, S.; Román Villegas, T.; Larcher, R. Rapid Analysis of 27 Volatile Sulfur Compounds in Wine by Headspace Solid-Phase Microextraction Gas Chromatography Tandem Mass Spectrometry. Food Anal. Methods 2017, 10, 3706–3715. [Google Scholar] [CrossRef]
- Zhang, X.; Wang, C.; Wang, L.; Chen, S.; Xu, Y. Optimization and validation of a head space solid-phase microextraction-arrow gas chromatography-mass spectrometry method using central composite design for determination of aroma compounds in Chinese liquor (Baijiu). J. Chromatogr. A 2020, 1610, 460584. [Google Scholar] [CrossRef] [PubMed]
- Elpa, D.; Durán-Guerrero, E.; Castro, R.; Natera, R.; Barroso, C.G. Development of a new stir bar sorptive extraction method for the determination of medium-level volatile thiols in wine. J. Sep. Sci. 2014, 37, 1867–1872. [Google Scholar] [CrossRef] [PubMed]
- Nogueira, J.M.F. Stir-bar sorptive extraction: 15 years making sample preparation more environment-friendly. TrAC—Trends Anal. Chem. 2015, 71, 214–223. [Google Scholar] [CrossRef]
- Lukić, I.; Tomas, S.; Miličević, B.; Radeka, S.; Peršurić, D. Behaviour of volatile compounds during traditional alembic distillation of fermented Muscat blanc and Muškat ruža porežki grape marcs. J. Inst. Brew. 2011, 117, 440–450. [Google Scholar] [CrossRef]
- Plutowska, B.; Biernacka, P.; Wardencki, W. Identification of volatile compounds in raw spirits of different organoleptic quality. J. Inst. Brew. 2010, 116, 433–439. [Google Scholar] [CrossRef]
- Ontañón, I.; Vela, E.; Hernández-Orte, P.; Ferreira, V. Gas chromatographic-sulfur chemiluminescent detector procedures for the simultaneous determination of free forms of volatile sulfur compounds including sulfur dioxide and for the determination of their metal-complexed forms. J. Chromatogr. A 2019, 1596, 152–160. [Google Scholar] [CrossRef]
- Lončarić, A.; Patljak, M.; Blažević, A.; Jozinović, A.; Babić, J.; Šubarić, D.; Pichler, A.; Flanjak, I.; Kujundžić, T.; Miličević, B. Changes in Volatile Compounds during Grape Brandy Production from ‘Cabernet Sauvignon’ and ‘Syrah’ Grape Varieties. Processes 2022, 10, 988. [Google Scholar] [CrossRef]
- Raičević, D.; Popović, T.; Jančić, D.; Šuković, D.; Pajović-šćepanović, R. The Impact of Type of Brandy on the Volatile Aroma Compounds and Sensory Properties of Grape Brandy in Montenegro. Molecules 2022, 27, 2974. [Google Scholar] [CrossRef]
- McLafferty, F. Wiley Registry of Mass Spectral Data, 7th ed.; John Wiley & Sons Inc.: New York, NY, USA, 2024. [Google Scholar]
- Prieto, A.; Basauri, O.; Rodil, R.; Usobiaga, A.; Fernández, L.A.; Etxebarria, N.; Zuloaga, O. Stir-bar sorptive extraction: A view on method optimisation, novel applications, limitations and potential solutions. J. Chromatogr. A 2010, 1217, 2642–2666. [Google Scholar] [CrossRef] [PubMed]
- Delgado, R.; Durán, E.; Castro, R.; Natera, R.; Barroso, C.G. Development of a stir bar sorptive extraction method coupled to gas chromatography-mass spectrometry for the analysis of volatile compounds in Sherry brandy. Anal. Chim. Acta 2010, 672, 130–136. [Google Scholar] [CrossRef] [PubMed]
- Guerrero, E.D.; Marín, R.N.; Mejías, R.C.; Barroso, C.G. Optimisation of stir bar sorptive extraction applied to the determination of volatile compounds in vinegars. J. Chromatogr. A 2006, 1104, 47–53. [Google Scholar] [CrossRef]
- Mateo-Vivaracho, L.; Cacho, J.; Ferreira, V. Selective preconcentration of volatile mercaptans in small SPE cartridges: Quantitative determination of trace odor-active polyfunctional mercaptans in wine. J. Sep. Sci. 2009, 32, 3845–3853. [Google Scholar] [CrossRef] [PubMed]
- Davis, P.M.; Qian, M.C. Effect of ethanol on the adsorption of volatile Sulfur Compounds on solid phase micro-extraction fiber coatings and the implication for analysis in wine. Molecules 2019, 24, 3392. [Google Scholar] [CrossRef]
- Analytical Methods Committee Recommendations for the definition, estimation and use of the detection limit. Analyst 1987, 112, 199–204. [CrossRef]
- Pena-Pereira, F.; Wojnowski, W.; Tobiszewski, M. AGREE-Analytical GREEnness Metric Approach and Software. Anal. Chem. 2020, 92, 10076–10082. [Google Scholar] [CrossRef]
- Ledauphin, J.; Basset, B.; Cohen, S.; Payot, T.; Barillier, D. Identification of trace volatile compounds in freshly distilled Calvados and Cognac: Carbonyl and sulphur compounds. J. Food Compos. Anal. 2006, 19, 28–40. [Google Scholar] [CrossRef]
- Guerrero-Chanivet, M.; Ortega-Gavilán, F.; Bagur-González, M.G.; Valcárcel-Muñoz, M.J.; García-Moreno, M.V.; Guillén-Sánchez, D.A. Influence of the use of sulfur dioxide, the distillation method, the oak wood type and the aging time on the production of brandies. Curr. Res. Food Sci. 2023, 6, 100486. [Google Scholar] [CrossRef]
- Zhou, J.; Zhu, S.; Che, J.; Zhang, B.; Tang, K. Characteristics of aroma components in different years of base brandy by headspace solid-phase microextraction with comprehensive two-dimensional gas chromatography/time-of-flight mass spectrometry. Food Ferment. Ind. 2024, 50, 346–352. [Google Scholar]
- De La Burgade, R.; Nolleau, V.; Godet, T.; Galy, N.; Tixador, D.; Loisel, C.; Sommerer, N.; Roland, A. Wine Cork Closures Impacts on Dimethyl Sulfide (DMS) and Precursors (DMSP) Equilibrium of Different Shiraz Wines during Accelerated Bottle Ageing. Beverages 2023, 9, 15. [Google Scholar] [CrossRef]
- Jiménez-Lorenzo, R.; Farines, V.; Sablayrolles, J.M.; Camarasa, C.; Bloem, A. New Insights into the Origin of Volatile Sulfur Compounds during Wine Fermentation and Their Evolution during Aging. Fermentation 2022, 8, 139. [Google Scholar] [CrossRef]
- Guerrini, L.; Maioli, F.; Picchi, M.; Zanoni, B.; Parenti, A.; Canuti, V. Kinetic modeling of a Sangiovese wine’s chemical and physical parameters during one-year aging in different tank materials. Eur. Food Res. Technol. 2022, 248, 1525–1539. [Google Scholar] [CrossRef]
Figure 1.
24 factorial design. Pareto diagram for total chromatographic area (A) and number of compounds detected (B).
Figure 1.
24 factorial design. Pareto diagram for total chromatographic area (A) and number of compounds detected (B).
Figure 2.
Green character assessment of the present work and different analytical methodologies from bibliography (Table 5): Campillo et al., (2009) [1]; Franco-Luesma et al., (2016) [4]; Dziekońska-Kubczak et al. (2020) [11]; López et al. (2007) [12]; Slaghenaufi et al. (2017) [13]; Zhang et al. (2020) [14]; Ontañon et al. (2019) [19]. Colour codes: red: very low green character; orange: low green character; yellow: medium green character; green: high green character.
Figure 2.
Green character assessment of the present work and different analytical methodologies from bibliography (Table 5): Campillo et al., (2009) [1]; Franco-Luesma et al., (2016) [4]; Dziekońska-Kubczak et al. (2020) [11]; López et al. (2007) [12]; Slaghenaufi et al. (2017) [13]; Zhang et al. (2020) [14]; Ontañon et al. (2019) [19]. Colour codes: red: very low green character; orange: low green character; yellow: medium green character; green: high green character.
Figure 3.
Cluster Analysis according to content in volatile sulphur compounds. Codes in Table A1.
Figure 3.
Cluster Analysis according to content in volatile sulphur compounds. Codes in Table A1.
Table 1.
Some of the physical and chemical properties of the volatile sulphur compounds studied 1.
| Compounds | Molecular Weight (g/mol) | Boiling Temperature (°C) | Melting Temperature (°C) | Partition Coefficient (Log Kow) | Aromatic Descriptor |
|---|---|---|---|---|---|
| Ethyl methyl sulphide (EMS) | 76.16 | 65.0–67.0 | −104.8 | 1.54 | cabbage, garlic, sulphur |
| Diethyl sulphide (DES) | 90.19 | 92.1 | −103.9 | 1.95 | garlic, ethereal |
| Thiophene (T) | 84.14 | 84 | −39.4 | 1.81 | benzene |
| 1-Pentanethiol (P) | 104.22 | 126.6 | −75.69 | 2.74 | meaty, strong garlic |
| Dimethyl disulphide (DMDS) | 94.20 | 109.72 | −84.67 | 1.77 | garlic, onion, sulphurous |
| Dipropyl sulphide (DPS) | 118.24 | 142–143 | −102.5 | 2.84 | unpleasant |
| Diethyl disulphide (DEDS) | 122.3 | 152 | −101.5 | 2.41 | cabbage, carbide, roasted onion, rubber, sulphur |
| Dibutyl sulphide (DBS) | 146.3 | 182–189 | −80 | 4.50 | green, unpleasant |
| Dimethyl trisulphide (DMTS) | 126.3 | 165–175 | −85 | 1.87 | cabbage, fish, onion, sulphur |
| Dipropyl disulphide (DPDS) | 150.3 | 193–195 | −85.6 | 3.84 * | onion, garlic |
| 2-Thiophenecarboxaldehyde (TC) | 112.15 | 198 | <10 °C | 1.56 | sulphurous |
1 Data obtained from PubChem, https://pubchem.ncbi.nlm.nih.gov, accessed on 10 January 2025. National Institutes of Health, National Center for Biotechnology Information, U.S. National Library of Medicine, USA. * Estimated.
Table 2.
Volatile sulphur compounds studied. Information employed for their identification and quantification.
Table 2.
Volatile sulphur compounds studied. Information employed for their identification and quantification.
| Compounds | CAS Number | Retention Time (min) | Quantifying Ion | Qualifier Ions |
|---|---|---|---|---|
| Ethyl methyl sulphide (EMS) | 624-89-5 | 6.899 | 76 | 61, 48, 47 |
| Diethyl sulphide (DES) | 75-78-3 | 9.179 | 90 | 75, 47 |
| Thiophene (T) | 110-02-1 | 14.477 | 84 | 58, 45 |
| 1-Pentanethiol (P) | 110-66-7 | 15.955 | 104 | 70, 55, 42 |
| Dimethyl disulphide (DMDS) | 624-92-0 | 16.931 | 94 | 79, 45 |
| Dipropyl sulphide (DPS) | 111-47-7 | 17.169 | 118 | 89, 43 |
| Diethyl disulphide (DEDS) | 110-81-6 | 23.026 | 122 | 94, 66 |
| Dibutyl sulphide (DBS) | 544-40-1 | 26.057 | 146 | 61, 56 |
| Dimethyl trisulphide (DMTS) | 3658-80-8 | 28.779 | 126 | 110, 79, 45 |
| Dipropyl disulphide (DPDS) | 629-19-6 | 29.711 | 150 | 108, 43 |
| 2-Thiophenecarboxaldehyde (TC) | 98-03-3 | 39.778 | 112 | 111, 39 |
Table 3.
Factor levels. Optimization of SBSE conditions.
| First Experimental Design, 24 | |||||
|---|---|---|---|---|---|
| Factor | Low (−) | High (+) | Center | Axial (−α) | Axial (+α) |
| Temperature (°C) | 25 | 35 | 30 | ||
| Extraction time (min) | 30 | 100 | 65 | ||
| Sample volume (mL) | 10 | 25 | 17.5 | ||
| Alcoholic content (%, v/v) | 5 | 25 | 15 | ||
| Second Experimental Design, rotatable CCD | |||||
| Extraction time (min) | 15 | 45 | 30 | 8.8 | 51.2 |
| Alcoholic content (%, v/v) | 2.5 | 10 | 6.25 | 0.95 | 11.6 |
Table 4.
Validation study.
| Compound | Concentration Range (µg/L) | Calibration Curve (r2) | DL (µg/L) | QL (µg/L) | Repeatibility (%) | Recovery (%) | |
|---|---|---|---|---|---|---|---|
| Inter-Twister | Inter-Day | ||||||
| EMS | - | - | - | - | 15.4 | 14.5 | - |
| DES | 1.00–25.0 | 0.0009x + 0.0058 (0.9961) | 0.9293 | 3.0977 | 8.1 | 12.1 | 116.4 |
| P | - | - | - | - | 36.5 | 38.2 | - |
| DMDS | 0.10–30.0 | 0.0027x + 0.0018 (0.9958) | 0.1830 | 0.6101 | 6.3 | 7.2 | 110.1 |
| DPS | 0.10–1.00 | 0.0057x + 0.0011 (0.9963) | 0.0396 | 0.1321 | 14.4 | 22.1 | 116.8 |
| DEDS | 0.10–1.00 | 0.0133x − 0.0007 (0.9909) | 0.0676 | 0.2254 | 5.9 | 13.8 | 119.4 |
| DBS | 0.025–5.00 | 0.0055x + 0.0073 (0.9972) | 0.1678 | 0.5595 | 21.8 | 27.5 | 109.3 |
| DMTS | 0.25–10.0 | 0.0089x + 0.0002 (0.9980) | 0.2376 | 0.7921 | 7.5 | 10.6 | 113.6 |
| DPDS | 0.10–1.00 | 0.0167x − 0.0002 (0.9966) | 0.0382 | 0.1274 | 9.6 | 26.5 | 108.8 |
| TC | 0.25–15.0 | 0.0006x + 0.0004 (0.9970) | 0.4893 | 1.6310 | 18.7 | 27.4 | 84.8 |
Table 5.
Analytical comparison with previous methodologies.
| Methodology | Matrix | Analytes | Precision (%) | Recovery (%) | r2 | DL (µg/L) | QL (µg/L) | Ref. | |
|---|---|---|---|---|---|---|---|---|---|
| Repeat. | Reprod. | ||||||||
| SBSE-GC-MS | Grape distillate | DES, DMDS, DPS, DEDS, DBS, DMTS, DPDS, TC | 5.9–21.8 | 7.2–27.5 | 84.76– 119.39 | >0.9955 | 0.0382– 0.9293 | 0.127–3.098 | Present study |
| HS-SPME-GC-AED | Whisky | DES, DMDS, DPS, DMTS, DPDS | 4.2–8.8 | 0.045– 1.4 | [1] | ||||
| HS-GC-pFPD | Wine | DES | <4 | 89–128 | >0.99 | 0.527 | [4] | ||
| HS-SPME-GC-MS | Fruit brandy | DES, DMDS, P, DPS, DEDS, TC, DBS, DPDS | 78.02– 129.13 | >0.9640 | 0.003– 0.063 | 0.009– 0.208 | [11] | ||
| HS-SPME-GC-pFPD | Wine | DES, DMDS | <10 | 10–20 | 97–114 | >0.9914 | 0.2–0.9 | [12] | |
| HS-SPME-GC-MS | Wine | DES, P, DPS, DMDS, DEDS, DPDS, DMTS, TC | 2.0–15.8 | 9.9–33.0 | 90.2– 113.3 | >0.9933 | 0.023– 0.283 | 0.077– 0.942 | [13] |
| HS-SPME arrow-GC-MS | Chinese liquor (Baijiu) | DMTS | 10.75 | 8.78 | 96.97 | 0.9946 | 0.0030 | [14] | |
| HS-GC-SCD (with cryofocusing) | Wine | DES, DMDS, DEDS | >0.998 | 0.05–0.1 | [19] | ||||
DES: diethyl sulphide; DMDS: dimethyl disulphide; DPS: dipropyl sulphide; DEDS: diethyl disulphide; DBS: dibutyl sulphide; DMTS: dimethyl trisulphide; DPDS: dipropyl disulphide; TC: 2-thiophenecarboxaldehyde.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Silvosa, M.; García-Moreno, M.d.V.; Castro, R. Volatile Sulphur Compounds in Wine Distillates by Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry. Appl. Sci. 2025, 15, 3680. https://doi.org/10.3390/app15073680
AMA Style
Silvosa M, García-Moreno MdV, Castro R. Volatile Sulphur Compounds in Wine Distillates by Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry. Applied Sciences. 2025; 15(7):3680. https://doi.org/10.3390/app15073680
Chicago/Turabian StyleSilvosa, Marta, María de Valme García-Moreno, and Remedios Castro. 2025. "Volatile Sulphur Compounds in Wine Distillates by Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry" Applied Sciences 15, no. 7: 3680. https://doi.org/10.3390/app15073680
APA StyleSilvosa, M., García-Moreno, M. d. V., & Castro, R. (2025). Volatile Sulphur Compounds in Wine Distillates by Stir Bar Sorptive Extraction-Gas Chromatography-Mass Spectrometry. Applied Sciences, 15(7), 3680. https://doi.org/10.3390/app15073680
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
