Zwitterionic Polymer P(AM-DMC-AMPS) as a Low-Molecular-Weight Encapsulator in Deepwater Drilling Fluid

by
Xin Zhao
1,2,*,
Zhengsong Qiu
1,2,
Yongjun Zhang
3,
Hanyi Zhong
1,2,
Weian Huang
1,2 and
Zhichuan Tang
1
1
School of Petroleum Engineering, China University of Petroleum, Qingdao 266580, China
2
National Engineering Laboratory for Testing and Detection Technology of Subsea Equipments, Qingdao 266580, China
3
Tianjin Ruiyang Offshore Engineering Company Limited, Tianjin 300450, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2017, 7(6), 594; https://doi.org/10.3390/app7060594
Submission received: 9 April 2017 / Revised: 24 May 2017 / Accepted: 31 May 2017 / Published: 8 June 2017
(This article belongs to the Section Materials Science and Engineering)
Browse Figures
Versions Notes

Abstract

:

Featured Application

This work aims to simultaneously realize good encapsulation performance and low-temperature rheological property for deepwater drilling fluid. It is expected to be used in deepwater oil and gas drilling operations.

Abstract

In deepwater oil and gas drilling, the high-molecular-weight encapsulator aggravates the thickening of the drilling fluid at low temperatures. Therefore, it is hard to manage the downhole pressure, and drilling fluid loss occurs. In this paper, a zwitterionic polymer P(AM-DMC-AMPS) which was the terpolymer of acrylamide, methacrylatoethyl trimethyl ammonium chloride, and 2-acrylamido-2-methylpropane sulfonic acid, was developed as a low-molecular-weight encapsulator. It was characterized by Fourier transform infrared spectrum analysis, nuclear magnetic resonance, and gel permeation chromatography. Moreover, the low-temperature rheology, shale inhibition and filtration properties of water-based drilling fluids (WBDFs) containing different encapsulators were experimentally investigated and compared. The results showed that the molecular weight of P(AM-DMC-AMPS) was about 260,000, much lower than that of the conventional encapsulators. In the deepwater drilling temperature range 4–75 °C, WBDF containing P(AM-DMC-AMPS) had lower and more stable rheological property because of its short molecular chains. The high shale recovery rate and low swelling rate indicated its strong shale inhibition performance, owing to its adsorption on the clay surface and the wrapping effect through both hydrogen bonding and electrostatic interaction. It also improved the filtration property of WBDF, and was compatible with other WBDF components. This product is expected to simultaneously realize the good encapsulation performance and low-temperature rheological property for deepwater drilling fluid.

1. Introduction

Offshore deepwater regions are rich in oil, natural gas and gas hydrate resources. The drilling fluid is called the blood of drilling engineering [1], and it is extremely important for deepwater drilling operations. Shale in deepwater is water sensitive, so it is prone to hydration on exposure to filtrates of water-based drilling fluid (WBDF), thus causing wellbore instability [2,3,4,5]. Serious thickening of the drilling fluid occurs in deepwater drilling when it is cooled down by the low-temperature environment (approximately 4 °C) [6,7,8], leading to operation troubles.
Salt/polymer WBDF was initially used in deepwater drilling operations in the Gulf of Mexico in the early 1990s [9]. The partially hydrolyzed polyacrylamide (PHPA) was used to inhibit the hydration of shales to maintain the integrity of cuttings as well as the wellbore stability. As the drilling operations moved into deeper water regions, the wellbore instability in water-sensitive shale formation and thickening of drilling fluid caused by the high-molecular-weight polymer PHPA made this WBDF unsatisfactory for deepwater drilling operations. Synthetic-based drilling fluid (SBDF) has the advantages of high penetration rate, wellbore stability, etc. However, field applications show that it is an extraordinary challenge in managing the downhole pressure, because the elevated rheology of drilling fluid at a low temperature leads to a high equivalent circulating density (ECD). Since the safe density window between the fracture pressure and pore pressure in deepwater drilling is very narrow, the substantial increase in ECD exceeds the safe density limit, resulting in loss circulation of drilling fluid [6,10,11]. The frequent lost circulation significantly reduced or eliminated the economic benefits. Moreover, there are environmental concerns on the use of SBDF for some regions. Therefore, WBDF is favored in consideration of environmental protection and costs, but the shale inhibition and low-temperature rheology problems related to the high-molecular-weight encapsulator are still big concerns.
In recent years, a high performance WBDF has been developed [5,12,13], and it performs better than traditional WBDFs (water-based drilling fluids) in deepwater drilling. Owing to the development of a novel hydration inhibitor along with the use of encapsulator, the novel WBDF can achieve comparable shale inhibition to SBDF. Generally, the encapsulators for WBDF were the high-molecular-weight amide polymers, such as PHPA, polyacrylamide (PAM), and particular zwitterionic polymer [3,14,15,16,17,18,19]. They can form multi-point adsorption on the surface of clay particles on the wellbore by hydrogen bonding interaction of –CONH2 and other adsorption groups, and bridge the surrounding clay particles together and wrap them, thus preventing the dispersion and exfoliation of clay particles [13]. At the same time, the encapsulator can also maintain the integrity of drill cuttings in drilling fluid, enabling them to be easily removed by solid control equipment. Therefore, the high-molecular-weight (usually above 2,000,000) polymer is required to effectively bridge and wrap the clay particles [17]. However, the long molecular chains of these polymers result in high friction, and the curly molecular chains are prone to form grid structure through intertwining, and thus the WBDF thickens [20]. Particularly in deepwater drilling, the polymer molecular chains curl up and entangle with each other at a low temperature. Due to this, the viscosity and gel strength of WBDF substantially increase, so the ECD apparently increases, resulting in lost circulation. In addition, the viscous drilling fluid due to the presence of high-molecular-weight encapsulator at a low temperature usually adheres to the vibration screen and unable to get through the sieve, thus leading to drilling fluid leakage [21]. Since deepwater drilling is a high-risk and high-investment operation with a daily expense of approximately $1,000,000, problems such as lost circulation and leakage of drilling fluid lead to huge economic loss, and increase security risks. The ideal deepwater drilling fluid should have both excellent shale hydration inhibition and low-temperature rheological properties. Therefore, at present, it is essential to solve the contradiction that the encapsulator with high-molecular-weight causes thickening of drilling fluid at a low temperature, while that with low-molecular-weight provides poor encapsulation performance. Experimental study showed that, when the molecular weight of conventional encapsulator was lower than 2,000,000, the encapsulation effect was not satisfactory [22]. As currently reported, in consideration of both the encapsulation and low-temperature rheological properties, the low-molecular-weight encapsulator product was developed and its molecular weight was about 900,000 [21,23]. Field applications showed that it mitigated the thickening of WBDF at low temperatures to some extent. However, at present, the rheology-related problem has not been completely solved and lost circulation of drilling fluid occurs frequently in deepwater drilling operations. Moreover, it should be noted that the latest encapsulator is a cationic polymer, which can neutralize the negative charge on clay surface and increase the stability of shale. However, there are concerns about the compatibility of cationic polymer with other components of WBDF, because sometimes serious flocculation of the drilling fluid occurs when cationic polymer is added [24,25]. Therefore, the molecular structure and molecular weight of the encapsulator need to be further optimized.
In this paper, to simultaneously realize the good encapsulation performance, low-temperature rheological property and compatibility of drilling fluid, a zwitterionic polymer P(AM-DMC-AMPS) with low-molecular-weight for deepwater drilling was developed. It was synthesized using acrylamide (AM), methacrylatoethyl trimethyl ammonium chloride (DMC), and 2-acrylamido-2-methylpropane sulfonic acid (AMPS) as the monomers, and was named SDCap as a commercial product for potential application in the future. Its feasibility on deepwater drilling was investigated through experimental evaluations of the low-temperature rheological property, shale inhibition and filtration property.

2. Materials and Methods

2.1. Materials

AM was purchased from Jinan Jinrihe Chemical Co., Ltd. (Jinan, China); AMPS was purchased from Zhengzhou Dingshengxin Chemicals (Zhengzhou, China); DMC was purchased from Jinan Duoxin Co., Ltd. (Jinan, China). Sodium hydrogen sulfite, ammonium persulfate and mercaptoacetic acid were purchased from Sinopharm Chemicals (Shanghai, China), and all these materials were analytically pure. All the drilling fluid additives used for preparing the testing WBDFs were provided by China Oilfield Services (Sanhe, China) and Shida Chuangxin technology Co., Ltd. (Dongying, China); sodium bentonite with a cation exchange capacity of 74 mmol/g was purchased from Boyou Bentonite Group Co. Ltd. (Weifang, China), and it consisted of 57.6% montmorillonite, 32% quartz, 8% potassium feldspar, 0.6% kaolinite, 1.2% illite, and 0.6% chlorite. Drilling fluid bentonite was purchased from Weifang Huawei Bentonite Group Co., Ltd. (Weifang, China), following the American Petroleum Institute (API) standard. For the shale recovery rate tests, the shale sample #1 was obtained from the deepwater wells in the South China Sea, and it consisted of 23% clay, 45% quartz, 13% calcite, 10% anorthose, 4% dolomite, 4% halite, and 1% gypsum; the shale sample #2 was obtained from wells in Bohai Bay, and it consisted of 25% clay, 43% quartz, 20% anorthose, 9% potassium feldspar, 2% dolomite, and 1% calcite.

2.2. Preparation of SDCap

The aqueous solution polymerization method [26] was used to prepare the SDCap. Under a stirring conditions, AM, AMPS and DMC with a mole ratio of 6:1:3 were added into a four-necked flask, wherein the solvent was deionized water. The mole ratio of the three monomers was determined by experimental investigations on the effects of monomer ratio on the molecular weight, cationic degree and the inhibition performance of the product. As the mole fraction of DMC increased, the molecular weight of the product decreased, whereas the cationic degree increased. As the mole fraction of AM increased, the molecular weight of the product increased, whereas the cationic degree decreased. The orthogonal tests showed that, when the monomer molar ratio was 6:1:3, the shale inhibition performance of the product was the best. A total concentration of the monomers was maintained to be 15%, and oxygen was removed by purging the flask with nitrogen. The temperature was increased to 60 °C, while 0.1% mixture of sodium bisulfite and ammonium persulfate was added as the initiator with continuous introduction of nitrogen. After 2 h reaction time, the reaction was terminated by the addition of mercaptoacetic acid. Then, a target product was obtained after extracted with acetone. The molecular structure was shown in Figure 1.

2.3. Characterization and Performance Evaluation

2.3.1 Characterization of the Product

The Fourier transformation infrared (FT-IR) spectra of SDCap were recorded by a NEXUS FT-IR spectrometer (Thermo Nicolet Corporation, Denver, CO, USA), scanning from 4000 cm−1 to 400 cm−1.The nuclear magnetic resonance (NMR) spectra were recorded by a Bruker AVANCE III 400 MHz spectrometer (Bruker BioSpin, Rheinstetten, Germany) using D2O as the solvent [27]. Gel Permeation Chromatography (Malvern 270 max GPC, Malvern Instruments, Malvern, UK) was used to determine the molecular weight of SDCap [28].

2.3.2. Shale Inhibition Performance

Shale recovery rate test has been designed to simulate the exposure of shale samples to the drilling fluid in the wellbore. The hydration dispersion of shale samples in water and drilling fluid could be evaluated, reflecting the inhibition effect of drilling fluid on the dispersion of clay particles. Mass of 40 g shale samples, which were screened with a 10-mesh and 280 mL test fluid, was added into the oven cell. After hot rolling for 16 h, the solution containing shale samples were screened with a 40-mesh sieve. The remaining shale samples were dried at 105 °C for 4 h, and then weighed, and the recovery rate was determined [14,16].
The linear swelling test has been designed to evaluate the swelling rate of shale in drilling fluid. The tests were conducted using a NP-2 swelling instrument (Haitongda, Qingdao, China) to measure the linear swelling rate of the core sample after immersed in pure water and drilling fluid [29,30]. Bentonite which was crushed and sifted through a 100-mesh screen, was used to prepare the core sample.

2.3.3. Rheological Property

The rheological properties of different WBDFs were measured at 4, 25, 50 and 75 °C, using a ZNN-D6 viscometer (Haitongda, Qingdao, China) with the API recommended standard procedure. The apparent viscosity (AV), plastic viscosity (PV) and yield point (YP) were calculated using the following equations [31].
AV = 0.5 × θ600 (mPa·s)
PV = θ600 − θ300 (mPa·s)
YP = 0.5 × (θ300 − PV) (Pa)

2.3.4. Filtration Tests

The API filtrate volume of the WBDF was measured by a ZNS-2A filtration apparatus (Haitongda, Qingdao, China) at 4 °C and 0.7 MPa [32]. The high temperature and high pressure filtrate volume was measured by a GGS 42-1 HTHP filtration apparatus (Haitongda, Qingdao, China) at 150 °C and 3.5 MPa [27]. The surface morphology of filter cake formed by WBDF in API filtration tests was scanned using a S-4800 scaning electron microscope (Hitachi, Tokyo, Japan) [33,34].

2.4. Inhibition Mechanism Analysis

2.4.1. Analysis of the Particle Size

The particle size distribution of clay particles was measured using a Bettersize 2000 laser particle size analyzer (Dandong Bettersize instruments, Dandong, China) to study the influence of SDCap on the size distribution of clay particles [35].

2.4.2. Analysis of Zeta Potential

The surface charges of clay suspensions in the presence of different concentration of SDCap were measured using the zeta potential analyzer (Nano Brook Omni, Brook Heaven, NY, USA).

2.4.3. Adsorption of SDCap on Bentonite

Mass of 2 g sodium bentonite was added into the conical flask, and then 50 mL aqueous solution containing SDCap was added. The pH was adjusted to 8.5. The suspension was agitated at 200 r/min for 24 h, and then was separated by centrifugal elutriation. The concentration of SDCap in the supernatant was measured, and the adsorbance was calculated as follows [36,37].
A = (C0 − C)V/m
where A is the adsorbance, mg·g−1; V is the solution volume, mL; M is the mass of adsorbed bentonite, mg; C0 is the initial SDCap concentration, mg/L; and C is the concentration after absorption, mg/L.

3. Results and Discussions

3.1. Characterization of SDCap

The infrared spectrum results are shown in Figure 2. The –NH2 stretch vibration absorption peak and characteristic absorption peak appeared at 3416.3 cm−1 and 622.4 cm−1, respectively, while the C=O characteristic absorption peak in amide groups appeared at 1665.9 cm−1, indicating that the AM chain segments existed in the product. The –COO absorption peak appeared at 1724.4 cm−1, while the –CH–N+(CH3)3 methylene bending vibration absorption peak and quaternary ammonium group absorption peak appeared at 1449.7 cm−1 and 950.7 cm−1 respectively, indicating that the DMC chain segments existed in the product. The –SO3– absorption peak and vibration absorption peak appeared at 1192.2 cm−1 and 1042.5 cm−1, respectively, indicating that the product contained AMPS chain segments. The methyl and methylene asymmetric absorption peak appeared at 2942.9 cm−1. No C=C absorption peak was observed within 1635–1620 cm−1, indicating that the three monomers were sufficiently copolymerized. The analysis was further confirmed in Figure 3, which showed the nuclear magnetic resonance spectrum (NMR) of SDCap. There was no absorption peak in the range of 6–7 ppm, indicating that there was no C=C in the product and the three monomers were completely polymerized. The structure was characterized by NMR analysis, as shown in Figure 3.
The results of gel permeation chromatography test showed that the number-average molecular weight and weight-average molecular weight of SDCap were about 260,000 and 380,000, respectively. The molecular weight was much lower than that of the conventional encapsulator (over 2,000,000).

3.2. Rheological Properties of Water-Based Drilling Fluids with SDCap under Deepwater Drilling Temperature

WBDFs are multicomponent systems, so each component has to be compatible with others, otherwise the WBDF system would not be stable during drilling operations [38]. In order to evaluate the properties of SDCap in drilling fluid under field application conditions, two typical WBDFs were selected as the basic test fluids. WBDF-1 was a typical glycol/polymer WBDF, and WBDF-2 was a typical KCl/PHPA WBDF. Both WBDFs have been widely used in onshore and offshore drilling [13,39], and the formulas are shown in Table 1. In consideration of gas hydrate inhibition in deepwater drilling operations, at least a mass fraction of 10% NaCl was added in the WBDFs. Therefore, good salt resistance was also required for SDCap. It is noticed that the encapsulators in WBDF-1 and WBDF-2 were FA-367 and PHPA, respectively. FA-367 was a widely used zwitterionic encapsulator, and PHPA was the representative of conventional encapsulator. In order to compare the properties of SDCap with FA-367 and PHPA, the 0.3% FA-367 in WBDF-1 was replaced by 0.45% SDCap (WBDF-3), and the 0.25% PHPA in WBDF-2 was replaced by 0.375% SDCap (WBDF-4). The concentration of SDCap in WBDF-3 and WBDF-4 was 1.5 times of that of FA-367 and PHPA because the molecular weight of SDCap was far smaller than that of FA-367 and PHPA, and higher concentration of SDCap was required to maintain the desired encapsulation property. WBDF-5 was a WBDF containing SDCap optimized in our laboratory, and it was expected to have more satisfactory low-temperature rheological property as well as other properties. The rheological properties of these five WBDFs are shown in Figure 4.
The results showed that, for all tested WBDFs, the rheological parameters obviously increased as the temperature reduced. Particularly, when the temperature was reduced from 25 to 4 °C, the increase in rheological parameter was more apparently, which was indicated by the more sharp slope of the rheology-temperature curve from 25 to 4 °C. This low temperature interval is just the essential difference between deepwater drilling and onshore or offshore drilling, and it causes significant thickening of the drilling fluids. Therefore, we have to pay special attention to the rheological properties at 25–4 °C .The ratios of rheological parameters at 4 °C and 25 °C were used to describe the thickening of the drilling fluid at a low temperature. The AV represents the total viscosity of the drilling fluid and is the sum of PV and YP. PV represents the viscosity resulting from internal friction, while YP represents the viscosity generated by formations of grid structures among clay particles and high molecular polymers.
For WBDF-1, the AV at 4 °C was 52 mPa·s. The AV(4 °C)/AV(25 °C) ratio was 1.55; PV(4 °C)/PV(25 °C) ratio was 1.57; and the YP(4 °C)/YP(25 °C) ratio was 1.52. When 0.3% FA-367 was replaced by 0.45% SDCap, the AV of the drilling fluid (WBDF-3) was reduced by 22.1% (from 52 mPa·s to 40.5 mPa·s). For WBDF-3, the AV(4 °C)/AV(25 °C) ratio was 1.45; PV(4 °C)/PV(25 °C) ratio was 1.45; and the YP(4 °C)/YP(25 °C) ratio was 1.44. All ratios of rheological parameters at 4 °C and 25 °C were reduced, indicating the thickening of the drilling fluid at a low temperature was mitigated using SDCap instead of FA-367. For WBDF-2, the AV at 4 °C was up to 83 mPa·s. The AV(4 °C)/AV(25 °C) ratio was 1.69; PV(4 °C)/PV(25 °C) ratio was 1.71; and the YP(4 °C)/YP(25 °C) ratio was 1.64. When 0.25% PHPA was replaced by 0.375% SDCap, the AV of the drilling fluid (WBDF-4) was reduced by 31.3% (from 83 mPa·s to 57 mPa·s). For WBDF-4, the AV(4 °C)/AV(25 °C) ratio was 1.54; PV(4 °C)/PV(25 °C) ratio was 1.56; and the YP(4 °C)/YP(25 °C) ratio was 1.50. Therefore, using SDCap instead of PHPA also mitigated the thickening effect of the drilling fluid at a low temperature.
For WBDF-5 which was expected to be a drilling fluid with better rheological property, the AV, PV and YP at 4 °C were 32 mPa·s, 22 mPa·s, and 10 Pa, respectively, and were all lower than that of other four WBDFs. The AV(4 °C)/AV(25 °C) ratio was 1.33; PV(4 °C)/PV(25 °C) ratio was 1.38; and the YP(4 °C)/YP(25 °C) ratio was 1.25. In comparison, the AVs of the two conventional WBDFs (WBDF-1 and WBDF-2) were 52 mPa·s and 83 mPa·s. The AV of WBDF-5 was only 61% and 39% of that of the conventional WBDFs, respectively. The AV(4 °C)/AV(25 °C) ratios of the two conventional WBDFs were 1.55 and 1.69, respectively; the PV(4 °C)/PV(25 °C) ratios were 1.57 and 1.71, respectively; and the YP(4 °C)/YP(25 °C) ratios were 1.52 and 1.64, respectively. Therefore, all the ratios of rheological parameters at 4 °C and 25 °C for WBDF-5 were much lower than that of the conventional WBDFs, indicating this optimized WBDF had better low-temperature rheology. Moreover, the curves of AV, PV and YP with temperature in Figure 4 were more stable in the temperature range 4–75 °C, indicating that its rheological properties were more independent on temperature under the deepwater drilling conditions, thus reducing the risk of rheology-related problems.

3.3. Shale Inhibition Properties of Water-Based Drilling Fluid with SDCap

3.3.1. Inhibition on Shale Hydration Dispersion

The shale recovery rate test can reflect the encapsulation effect of encapsulators on clay particles. A high recovery rate implies the strong shale inhibition property of drilling fluid. Figure 5 shows the results of shale recovery rate tests with the five WBDFs. The recovery rates of shales from the South China Sea (shale #1) and Bohai Bay (shale #2) were only 4.2% and 15.7% in pure water, respectively, indicating that the shales were highly prone to hydration dispersion and were hard recover, particularly for deepwater wells. Therefore, wellbore instability occurred easily, and the rheological and filtration properties of drilling fluid were also impacted due to the dispersed clay particles. The WBDFs significantly increased the recovery rate. For shale #1 from deepwater wells, the recovery rates were 75.4%, 68.2%, 77.5%, and 72.0% for WBDF-1, WBDF-2, WBDF-3, and WBDF-4, respectively. For shale #2, the recovery rates were 83.5%, 79.3%, 87.9%, and 83.8%, respectively. For WBDF-5, the recovery rates for shale #1 and shale #2 were 82.2% and 89.3%, respectively, indicating its strong shale inhibition property. The results showed that SDCap was compatible with the WBDFs, and the recovery rate was increased when using SDCap instead of conventional encapsulator in WBDFs. Therefore, it could effectively inhibit the hydration dispersion of shales.

3.3.2. Shale Swelling Tests

The encapsulator can adsorb on the clay particles on the wellbore surface, and the water molecules entering inside the wellbore rocks can be slowed down. Therefore, the encapsulator also has a certain capability of inhibiting the swelling of shale. Due to this reason, the shale swelling tests were also conducted to evaluate the inhibition property of the encapsulators, and the results were shown in Figure 6. It was found that the swelling rate of clay sample in pure water within 8 h was up to 40.8%, indicating that the clay sample was highly prone to hydration swelling. In comparison, the swelling rate were 8.8%, 7.3%, 8.3%, 8.0% and 7.7% for WBDF-1, WBDF-2, WBDF-3, WBDF-4, and WBDF-5, respectively, indicating all the WBDFs could effectively inhibit the swelling of clay, and their inhibition effects were very similar.
Based on the results of shale inhibition tests and rheological property tests, the WBDF with SDCap had strong shale inhibition property, and had much better low-temperature rheological property than WBDFs with FA-367 and PHPA, even the concentration of SDCap was 1.5 times of that of FA-367 and PHPA. Therefore, using SDCap as the encapsulator in deepwater drilling fluid can both improve the low-temperature rheological property and shale inhibition property. In addition, SDCap has good salt resistance performance indicated by its stable properties in the presence of 10–20% NaCl.

3.3.3. Shale Inhibition Mechanism of SDCap with Low-Molecular-Weight

Adsorption of SDCap on sodium bentonite:
The adsorption isotherm of SDCap is illustrated in Figure 7. It was found that SDCap could effective get adsorbed onto the clay surface. As the concentration of SDCap increased, the adsorbance increased significantly. The absorption capacity is the primary reason for the inhibition performance of SDCap. During drilling, when the drilling fluid containing SDCap interact with clay particles on wellbore or in drilling cuttings, through both the hydrogen bonding between the amide group and clay, and the electrostatic interaction between cationic group and clay, SDCap can be adsorbed on the surface of clay particles and does not fall off easily. Therefore, it inhibits the clay hydration dispersion, thus maintaining the wellbore stability and keeping the integrity of drill cuttings.
Analysis on clay particle size distribution:
Figure 8 shows the variations of distributions of the bentonite particle size in the presence of different concentration of SDCap. After adding SDCap, the size of bentonite particles obviously increased. D50 of bentonite suspension without SDCap was 11.1 μm, while that of suspension with 0.5% SDCap was 131.3 μm, indicating the addition of 0.5% SDCap increased the D50 of bentonite suspensions by more than 10 times. This demonstrated that the dispersed bentonite particles were wrapped together by SDCap, and were not easily dispersed in the drilling fluid. The results also reflected the strong adsorption capacity of SDCap.
Zeta potential analysis:
The results of zeta potential tests in Figure 9 showed that the addition of SDCap did not significantly impact the surface charges of clay for it was a zwitterionic polymer with both cationic and anionic groups (sulfonic acid groups). The cationic groups helped SDCap get adsorbed onto the surface of clay particles by electrostatic adsorption, while the effect of electrical neutralization was not apparent, thus avoiding the excessive electrical neutralization or even electrical reversal caused by cationic polymer which resulted in serious flocculation of drilling fluid (shown in Figure 10).

3.4. Filtration Properties of Water-Based Drilling Fluid with SDCap

Figure 11 shows the results of API and HTHP filtration tests of different WBDFs. In API filtration tests, the filtrate volume was 6.6 mL for WBDF-1, while that of WBDF-3 was 5.7 mL, indicating that the filtration property of WBDF was improved by using 0.45% SDCap instead of 0.3% FA-367. The filtrate volume was reduced from 3.7 mL to 3.5 mL when 0.25% PHPA was replaced by 0.375% SDCap (WBDF-2 and SBDF-4). The filtrate volume of the optimized WBDF-5 was 4.8 mL. In general, the API filtrate volume lower than 5 mL could meet the requirement of drilling operations. In HTHP filtration tests, the filtrate volumes were apparently larger than that in API filtration tests for the high temperature and high pressure influence the quality of the filter cake and promote the invasion of drilling fluid filtrates into the wellbore. The HTHP filtrate volume of WBDF-1 was up to 24.2 mL. The WBDF-3 still had lower HTHP filtrate volume than WBDF-1, indicating that the addition of SDCap also improved the filtration property of WBDF under HTHP condition. The HTHP filtrate volumes of WBDF-2 and WBDF-4 were very similar. The HTHP filtrate volume of WBDF-5 was 15.8 mL, which was the smallest among these five WBDFs.
In order to further investigate the effect of SDCap on the filtration property of WBDF, the micro-structure of the filter cake which was formed by drilling fluid on the surface of filter paper in the API filtration tests was investigated using SEM analysis, as shown in Figure 12. In order to eliminate the influence of other additives on the characterization of the structure, 4% bentonite suspension containing only encapsulator was investigated. The filtrate volume in the API filtration tests was also measured. The SEM photos clearly showed the micro-structures of the filter cakes formed by different test fluids. For 4% bentonite suspension without encapsulator, it could not form a fine filter cake, and the surface of the filter cake was very coarse. There were lots of pores and fractures in the filter cake, as shown in Figure 12a,b. Therefore, the filtrates of the drilling fluid easily invade inside the rock formation in wellbore, resulting in hydration swelling and dispersion of shales. The filtrate volume of the API filtration tests could confirm the analysis for all the test fluid was leaking and the filtrate volume was large than 200 mL, indicating the very poor quality of the filter cake. Therefore, filtrate reducers have to be used. The filter cake formed by 4% bentonite suspension with 0.3% PHPA was better than that formed by bentonite suspension, but it was still not satisfactory, as shown in Figure 12c,d. Owing to the absorption of PHPA on clay particles in the filter cake, the filter cake was tighter with smoother surface than that formed by 4% bentonite suspension without encapsulator. However, there were still lots of pores and fractures, and the flocculation could be observed which would result in uneven surface of filter cake. The filtrate volume was up to 64.0 mL. In comparison, a tight filter cake with smooth surface was formed by 4% bentonite suspension containing 0.3% SDCap, as shown in Figure 12e,f, and the filter volume was 29.6 mL. Very tight filter cake surface was observed, even in the SEM photo with 5000-fold magnification. The molecular chain was short and the adsorption capacity was strong, so clay particles with adsorbed SDCap molecules were evenly dispersed on the surface of wellbore without apparent flocculation, forming tight filter cake. Therefore, the addition of SDCap improved the filtration property of WBDF, thus mitigating the wellbore instability problems caused by the invasion of drilling fluid filtrates.

4. Conclusions

Zwitterionic polymer P(AM-DMC-AMPS) named SDCap was developed as a low-molecular-weight encapsulator for deepwater drilling fluid. The number-average and weight-average molecular weight of SDCap were about 260,000 and 380,000, respectively, much lower than that of the conventional encapsulator. In the deepwater drilling temperature range 4–75 °C, the WBDF containing SDCap had lower and more stable rheological property than that containing conventional encapsulators PHPA and PA-367, because of its short molecular chains. The shale recovery rate of WBDF containing SDCap was higher than that of WBDFs containing conventional encapsulator, and the swelling rate of these WBDFs were similar, indicating the strong shale inhibition performance of SDCap although its molecular weight was low. In addition, SDCap improved the filtration property of WBDF by forming tight filter cake, and was completely compatible with other components in WBDFs for it was a zwitterionic polymer with low-molecular-weight. The strong shale inhibition property of SDCap owes to its adsorption on the surface of clay particle and wrapping effect through both hydrogen bonding and electrostatic interaction. An optimized WBDF containing SDCap was also presented and it performed better than other WBDFs. It was concluded that using SDCap instead of conventional encapsulators can maintain the wellbore stability and keep the integrity of drill cuttings by inhibiting shale dispersion, and prevent the drilling fluid from lost circulation and adhesion on the vibrating screen caused by the severe thickening at a low temperature.

Acknowledgments

This work was supported by the National Basic Research Program of China (2015CB251205), the National Natural Science Foundation of China (51374233 and 51474236), and the Postdoctoral Innovative Project Foundation of Shandong Province (No. 201602027).

Author Contributions

Xin Zhao, Zhengsong Qiu and Yongjun Zhang conceived and designed the experiments; Yongjun Zhang synthesized the encapsulator; Xin Zhao, Yongjun Zhang and Zhichuan Tang performed the evaluation experiments; Xin Zhao, Hanyi Zhong and Weian Huang analyzed the data; and Xin Zhao wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AMacrylamide
AMPS2-acrylamido-2-methylpropane sulfonic acid
DMCmethacrylatoethyl trimethyl ammonium chloride
PHPApartially hydrolyzed polyacrylamide
FA-367Commercial zwitterionic encapsulator
WBDFwater-based drilling fluid
APIAmerican Petroleum Institute
FT-IRFourier transformation infrared
NMRnuclear magnetic resonance
SEMScanning electron microscopy
AVapparent viscosity, mPa·s
PVplastic viscosity, mPa·s
YPyield point, Pa
θ600600 r·min−1 reading in the viscometer
θ300300 r·min−1 reading in the viscometer
HTHPhigh temperature and high pressure

References

  1. Zhuang, G.; Zhang, Z.; Fu, M.; Ye, X.; Liao, L. Comparative study on the use of cationic–nonionic-organo-montmorillonite in oil-based drilling fluids. Appl. Clay Sci. 2015, 116, 257–262. [Google Scholar] [CrossRef]
  2. Liu, K.; Ostadhassan, M.; Bubach, B. Applications of nano-indentation methods to estimate nanoscale mechanical properties of shale reservoir rocks. J. Nat. Gas Sci. Eng. 2016, 35, 1310–1319. [Google Scholar] [CrossRef]
  3. Van Oort, E. On the physical and chemical stability of shales. J. Pet. Sci. Eng. 2003, 38, 213–235. [Google Scholar] [CrossRef]
  4. Chen, G.; Chenevert, M.E.; Sharma, M.M.; Yu, M. A study of wellbore stability in shales including poroelastic, chemical, and thermal effects. J. Pet. Sci. Eng. 2003, 38, 167–176. [Google Scholar] [CrossRef]
  5. Zhong, H.; Qiu, Z.; Huang, W.; Cao, J. Shale inhibitive properties of polyether diamine in water-based drilling fluid. J. Pet. Sci. Eng. 2011, 78, 510–515. [Google Scholar] [CrossRef]
  6. Herzhaft, B.; Peysson, Y.; Isambourg, P.; Delepoulle, A.; Abdoulaye, T. Rheological Properties of Drilling Muds in Deep Offshore Conditions. In Proceedings of the 2001 SPE/IADC Drilling Conference, Amsterdam, The Netherlands, 27 February–1 March 2001; Society of Petroleum Engineers: Richardson, TX, USA, 2001. [Google Scholar]
  7. Knox, D.; Bulgachev, R.; Cameron, I. Defining Fragile—The Challenge of Engineering Drilling Fluids for Narrow Ecd Windows. In Proceedings of the 2015 SPE/IADC Drilling Conference and Exhibition, London, UK, 17–19 March 2015; Society of Petroleum Engineers: Richardson, TX, USA, 2015. [Google Scholar]
  8. Wang, S.; Yuan, C.; Zhang, C.; Chen, L.; Liu, J. Rheological properties with temperature response characteristics and a mechanism of solid-free polymer drilling fluid at low temperatures. Appl. Sci. 2017, 7, 18. [Google Scholar] [CrossRef]
  9. Rojas, J.C.; Daugherty, W.T.; Irby, R.D.; Bern, P.A.; Romo, L.A.; Dye, W.M.; Greene, B.; Trotter, R.N. New Constant-Rheology Synthetic-Based Fluid Reduces Downhole Losses in Deepwater Environments. In Proceedings of the 2007 SPE Annual Technical Conference and Exhibition, Anaheim, CA, USA, 11–14 November 2007; Society of Petroleum Engineers: Richardson, TX, USA, 2007. [Google Scholar]
  10. Ramirez, M.; Moura, E.; Aragao, A.; Taira, H. HPWBM as a Technical Alternative to Drill Challenging Wells Project: Lessons Learned in Deepwater Brazil. In Proceedings of the Latin American & Caribbean Petroleum Engineering Conference, Buenos Aires, Argentina, 15–18 April 2007; Society of Petroleum Engineers: Richardson, TX, USA, 2007. [Google Scholar]
  11. Dokhani, V.; Ma, Y.; Yu, M. Determination of equivalent circulating density of drilling fluids in deepwater drilling. J. Nat. Gas Sci. Eng. 2016, 34, 1096–1105. [Google Scholar] [CrossRef]
  12. Marin, J.U.; Shah, F.; Serrano, M.A.; Jaramillo, A.; Arevalo, W.; Priandi, G.B. First Deepwater Well Successfully Drilled in Colombia with a High-Performance Water-Based Fluid. In Proceedings of the 2009 Latin American and Caribbean Petroleum Engineering Conference, Caragena, Colombia, 31 May–3 June 2009; Society of Petroleum Engineers: Richardson, TX, USA, 2009. [Google Scholar]
  13. Zhong, H.; Qiu, Z.; Huang, W.; Huang, D.; Li, H. Successful application of unique polyamine high performance water-based drilling fluid in bohai bay shale formations. In Proceedings of the 2013 International Petroleum Technology Conference (IPTC 2013), Beijing, China, 26–28 March 2013. [Google Scholar]
  14. Zhong, H.; Qiu, Z.; Zhang, D.; Tang, Z.; Huang, W.; Wang, W. Inhibiting shale hydration and dispersion with amine-terminated polyamidoamine dendrimers. J. Nat. Gas Sci. Eng. 2016, 28, 52–60. [Google Scholar] [CrossRef]
  15. Kadaster, A.; Guild, G.; Hanni, G.; Schmidt, D. Field applications of phpa muds. SPE Drill. Eng. 1992, 7, 191–199. [Google Scholar] [CrossRef]
  16. Jain, R.; Mahto, V. Evaluation of polyacrylamide/clay composite as a potential drilling fluid additive in inhibitive water based drilling fluid system. J. Pet. Sci. Eng. 2015, 133, 612–621. [Google Scholar] [CrossRef]
  17. Lu, Y.H.; Chen, M.; Jin, Y.; An, S.; Xie, S.X.; Pan, D.X.; Yuan, J.B. The development and application of an environmentally friendly encapsulator eba-20. Pet. Sci. Technol. 2012, 30, 2227–2235. [Google Scholar] [CrossRef]
  18. Kang, P.S.; Lim, J.S.; Huh, C. Artificial neural network model to estimate the viscosity of polymer solutions for enhanced oil recovery. Appl. Sci. 2016, 6, 188. [Google Scholar] [CrossRef]
  19. Jain, R.; Mahto, V.; Mahto, T.K. Study of the effect of xanthan gum based graft copolymer on water based drilling fluid. J. Macromol. Sci. Part A 2014, 51, 976–982. [Google Scholar] [CrossRef]
  20. Sun, Q.; Zhang, N.; Li, Z.; Wang, Y. Nanoparticle-stabilized foam for mobility control in enhanced oil recovery. Energy Technol. 2016, 4, 1084–1096. [Google Scholar] [CrossRef]
  21. Luo, J.; Li, Z.; Li, H. Research and application of hem poly-amine drilling fluids used in deep water operation. Drill. Fluid Complet. Fluid 2014, 31, 20–23. [Google Scholar]
  22. Jiang, G.; Xie, S.; Chen, M.; Xu, F.; Wang, F.; Liu, C. Research and application on an environmentally friendly coating agent coater-10 with temperature resistance and salt tolerance. Oil Drill. Prod. Technol. 2011, 33, 14–18. [Google Scholar]
  23. Li, H.; Luo, J.; Li, Z.; TGeng, T.; Jing, P.; Huang, X. Research and evacuation of a low molecular encapsulator pf-cap for deep-water. Petrochem. Ind. Appl. 2013, 32, 91–93. [Google Scholar]
  24. Zou, C.; Liang, M.; Chen, X.; Yan, X. Β-cyclodextrin modified cationic acrylamide polymers for flocculating waste drilling fluids. J. Appl. Polym. Sci. 2014, 131, 93–98. [Google Scholar] [CrossRef]
  25. Zhang, Y.; Miao, Z.; Zou, J. A new cation-modified al-polyacrylamide flocculant for solid–liquid separation in waste drilling fluid. J. Appl. Polym. Sci. 2015, 132, 41641. [Google Scholar] [CrossRef]
  26. Michel, C.R.; Martínez, A.H.; Huerta-Villalpando, F.; Morán-Lázaro, J.P. Carbon dioxide gas sensing behavior of nanostructured gdcoo 3 prepared by a solution-polymerization method. J. Alloys Compd. 2009, 484, 605–611. [Google Scholar] [CrossRef]
  27. Xie, B.; Liu, X.; Wang, H.; Zheng, L. Synthesis and application of sodium 2-acrylamido-2-methylpropane sulphonate/n-vinylcaprolactam/divinyl benzene as a high-performance viscosifier in water-based drilling fluid. J. Appl. Polym. Sci. 2016, 133. [Google Scholar] [CrossRef]
  28. Ding, W.; Zhou, J.; Zeng, Y.; Wang, Y.-N.; Shi, B. Preparation of oxidized sodium alginate with different molecular weights and its application for crosslinking collagen fiber. Carbohydr. Polym. 2017, 157, 1650–1656. [Google Scholar] [CrossRef] [PubMed]
  29. Mao, H.; Qiu, Z.; Shen, Z.; Huang, W. Hydrophobic associated polymer based silica nanoparticles composite with core–shell structure as a filtrate reducer for drilling fluid at utra-high temperature. J. Pet. Sci. Eng. 2015, 129, 1–14. [Google Scholar] [CrossRef]
  30. Zhang, S.; Sheng, J.J.; Qiu, Z. Maintaining shale stability using polyether amine while preventing polyether amine intercalation. Appl. Clay Sci. 2016, 132, 635–640. [Google Scholar] [CrossRef]
  31. Baruah, A.; Chauhan, G.; Ojha, K.; Pathak, A. Phase behavior and thermodynamic and rheological properties of single-(sds) and mixed-surfactant (sds+ capb)-based fluids with 3-methylbutan-1-ol as the cosurfactant and pine oil as the organic phase. Ind. Eng. Chem. Res. 2014, 53, 19765–19774. [Google Scholar] [CrossRef]
  32. Li, M.-C.; Wu, Q.; Song, K.; De Hoop, C.F.; Lee, S.; Qing, Y.; Wu, Y. Cellulose nanocrystals and polyanionic cellulose as additives in bentonite water-based drilling fluids: Rheological modeling and filtration mechanisms. Ind. Eng. Chem. Res. 2015, 55, 133–143. [Google Scholar] [CrossRef]
  33. Fang, R.; Tian, W.; Chen, X. Synthesis of injectable alginate hydrogels with muscle-derived stem cells for potential myocardial infarction repair. Appl. Sci. 2017, 7, 252. [Google Scholar] [CrossRef]
  34. Liu, K.; Ostadhassan, M. Microstructural and geomechanical analysis of bakken shale at nanoscale. J. Pet. Sci. Eng. 2017, 153, 133–144. [Google Scholar] [CrossRef]
  35. Wang, Y.; Ge, J.; Zhang, W.; Zhang, G.; Lin, Y.; Song, K. Surface property and enhanced oil recovery study of foam aqueous dispersions comprised of surfactants—Organic acids—Nanoparticles. RSC Adv. 2016, 6, 113478–113486. [Google Scholar] [CrossRef]
  36. Li, F.; Feng, Y.; Guo, Y.; Hu, X. Study on adsorption property of hydrophbically modified polyacrylamides on clay. Chem. Eng. Oil Gas 2002, 31, 263–265. [Google Scholar]
  37. Wang, B.; Zhang, X.; Ji, W.; Ruan, Q.; Kuang, L. Adsorption and desorption characteristics of polyacrylamide on black soil. Chem. Eng. 2009, 37, 9–12. [Google Scholar]
  38. Huang, M.; Kang, Y.; Long, X.; Wang, X.; Hu, Y.; Li, D.; Zhang, M. Effects of a nano-silica additive on the rock erosion characteristics of a sc-co2 jet under various operating conditions. Appl. Sci. 2017, 7, 153. [Google Scholar] [CrossRef]
  39. Zhao, X.; Qiu, Z.; Huang, W.; Xu, J.; Sheng, J. Multifunctional properties of polyglycol in deepwater drilling fluids. Chem. Technol. Fuels Oils 2014, 50, 233–239. [Google Scholar] [CrossRef]
Applsci 07 00594 g001 550

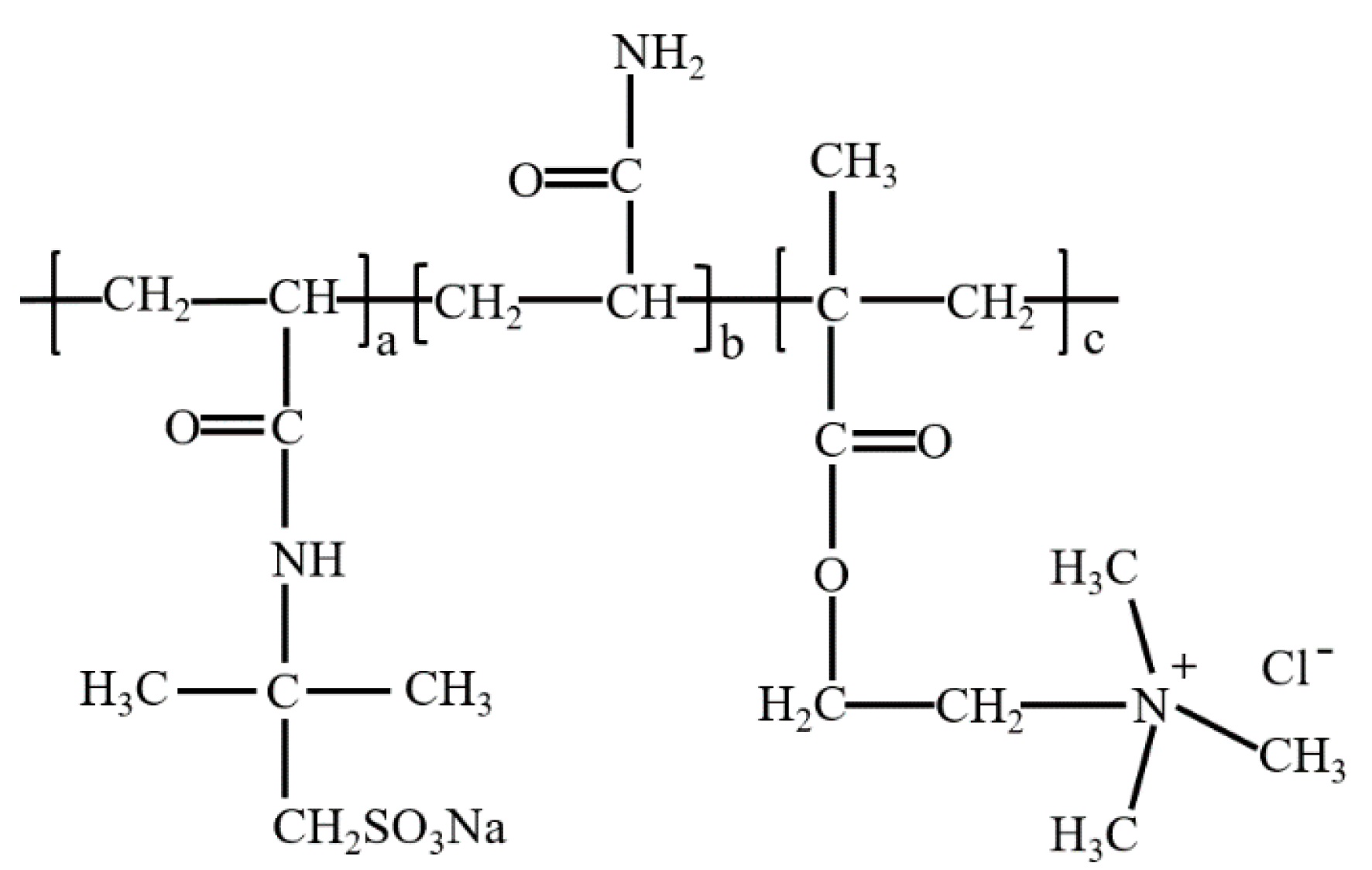

Figure 1. Molecular structure of SDCap (commercial name of P(AM-DMC-AMPS)).
Figure 1. Molecular structure of SDCap (commercial name of P(AM-DMC-AMPS)).
Applsci 07 00594 g001
Applsci 07 00594 g002 550

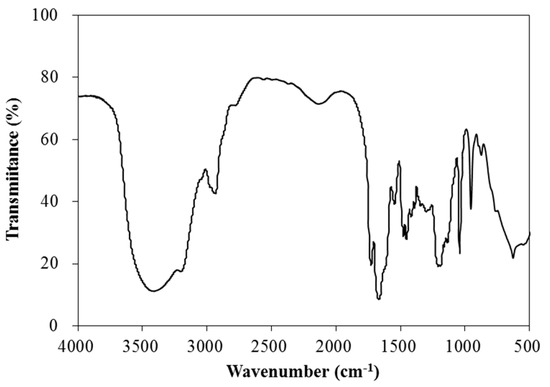

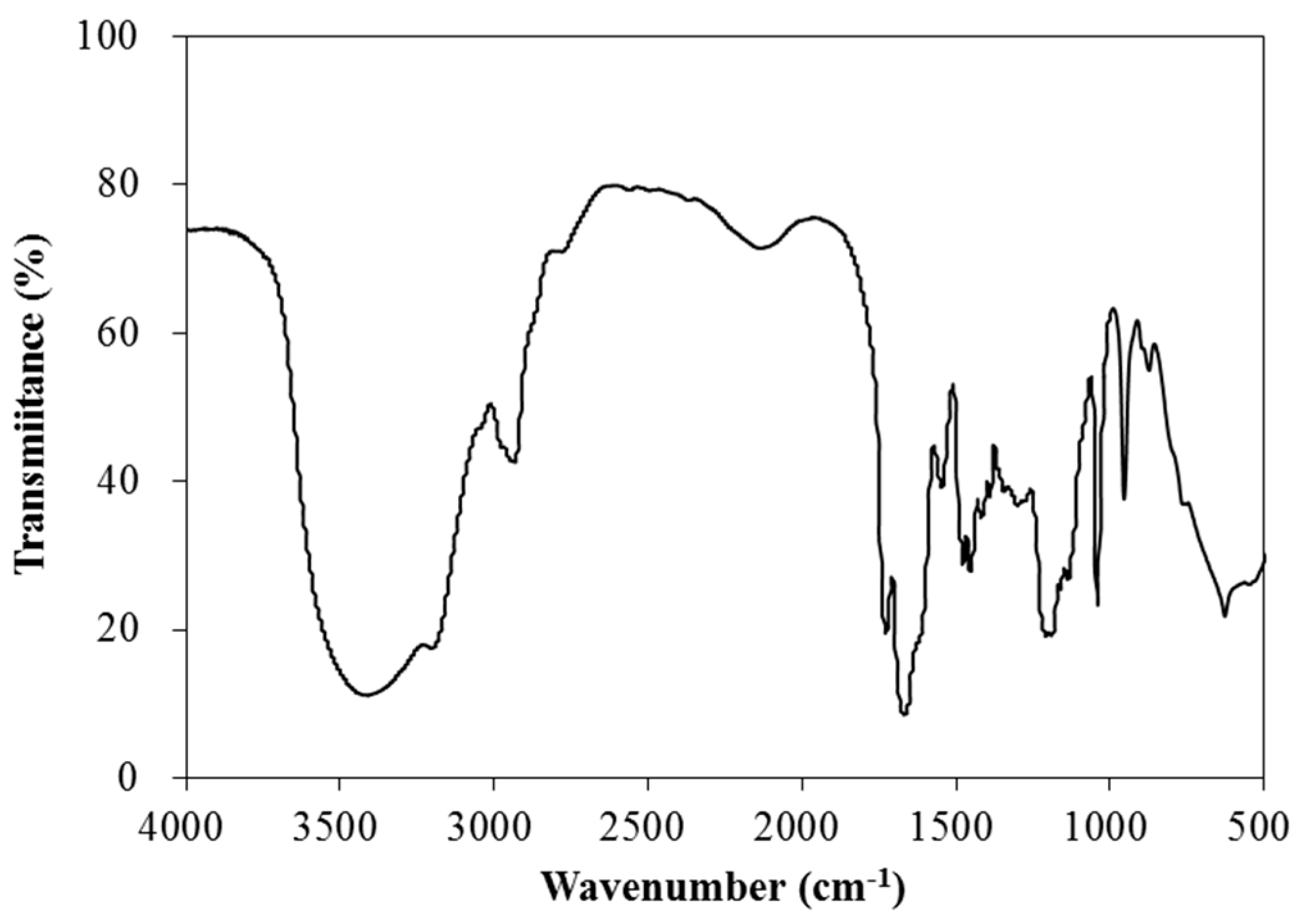

Figure 2. Analysis of SDCap Infrared spectrum.
Figure 2. Analysis of SDCap Infrared spectrum.
Applsci 07 00594 g002
Applsci 07 00594 g003 550

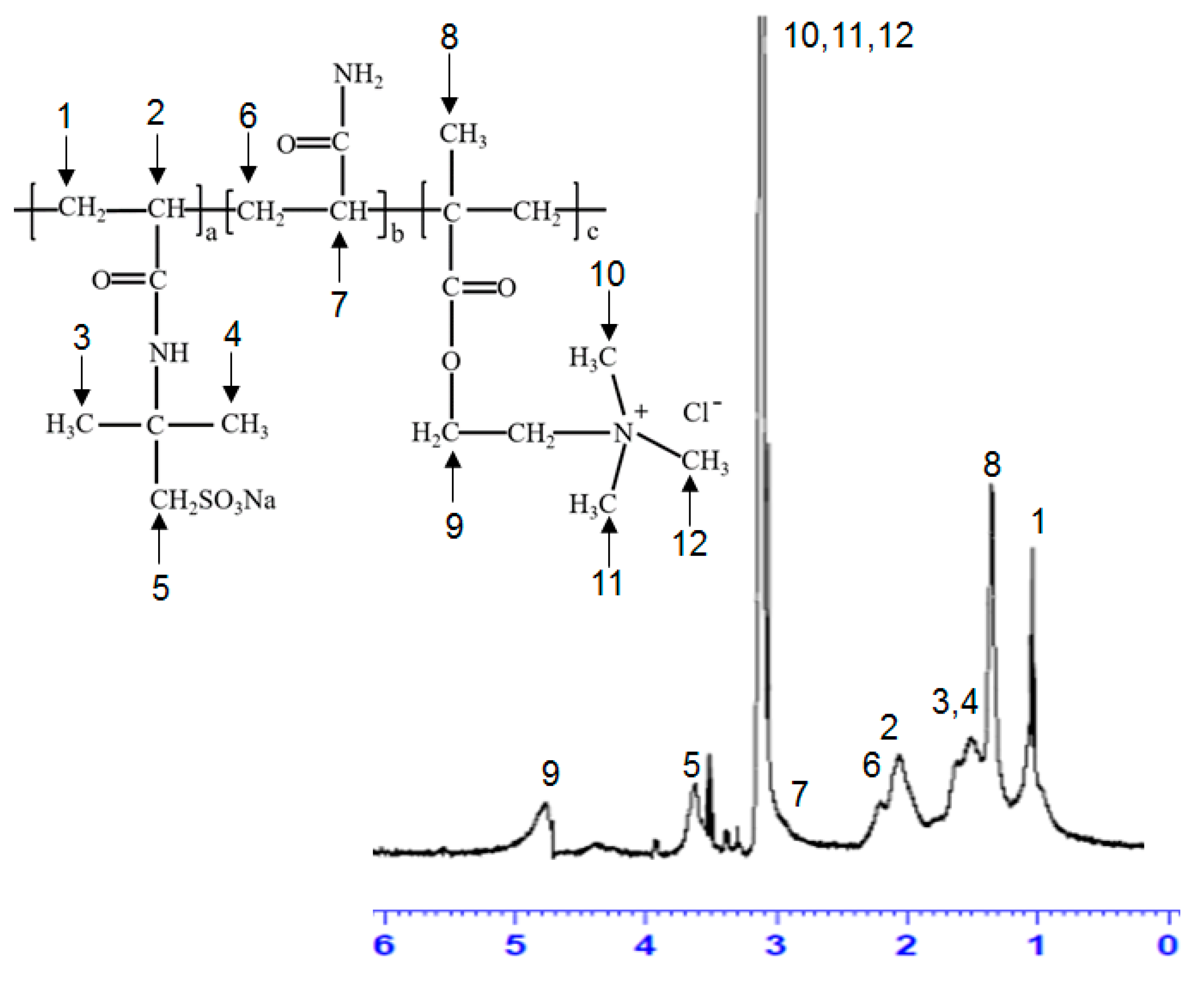

Figure 3. Analysis of SDCap nuclear magnetic resonance spectrum.
Figure 3. Analysis of SDCap nuclear magnetic resonance spectrum.
Applsci 07 00594 g003
Applsci 07 00594 g004 550

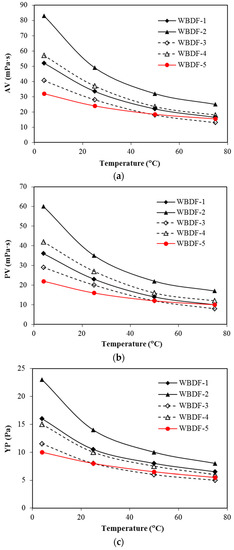

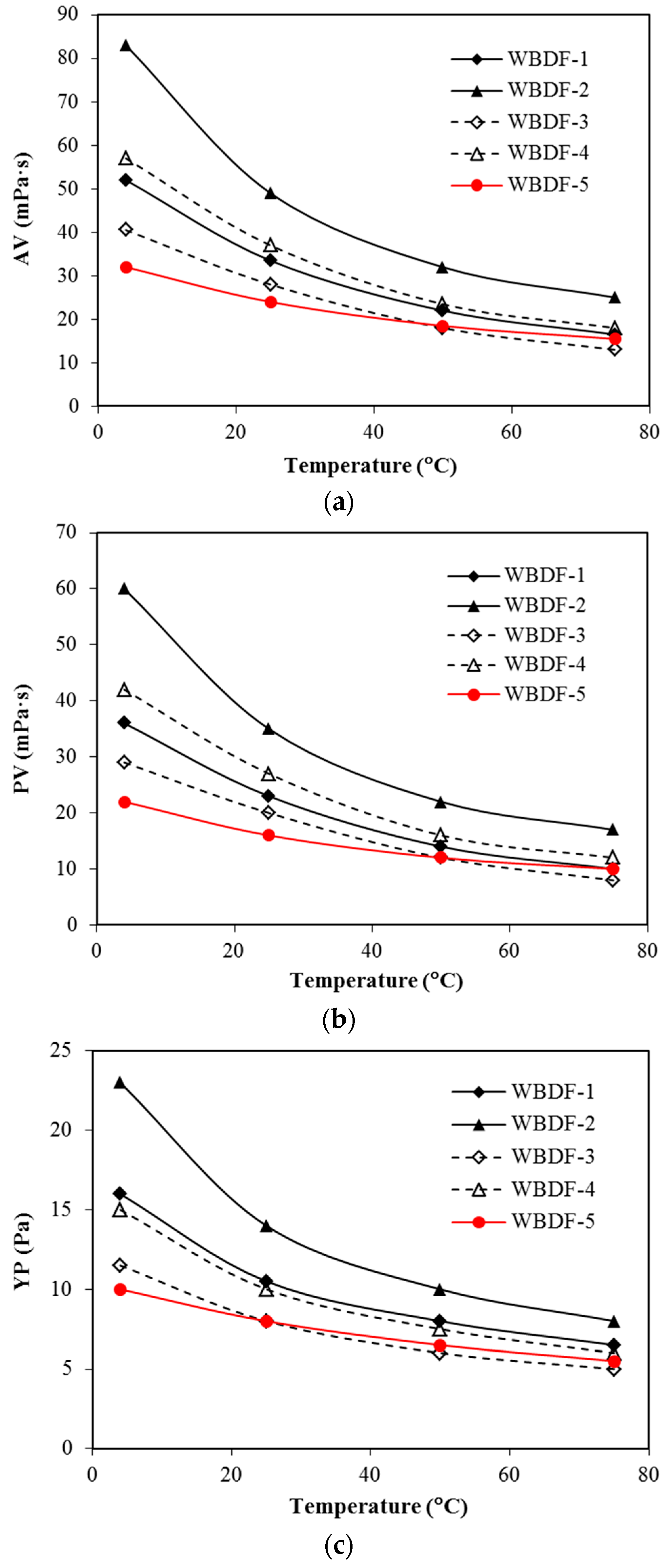

Figure 4. Rheological properties of WBDFs at the temperature range 4–75 °C: (a) changes in AV (apparent viscosity) as a function of temperature; (b) changes in PV (plastic viscosity) as a function of temperature; and (c) changes in YP (yield point) as a function of temperature.
Figure 4. Rheological properties of WBDFs at the temperature range 4–75 °C: (a) changes in AV (apparent viscosity) as a function of temperature; (b) changes in PV (plastic viscosity) as a function of temperature; and (c) changes in YP (yield point) as a function of temperature.
Applsci 07 00594 g004
Applsci 07 00594 g005 550

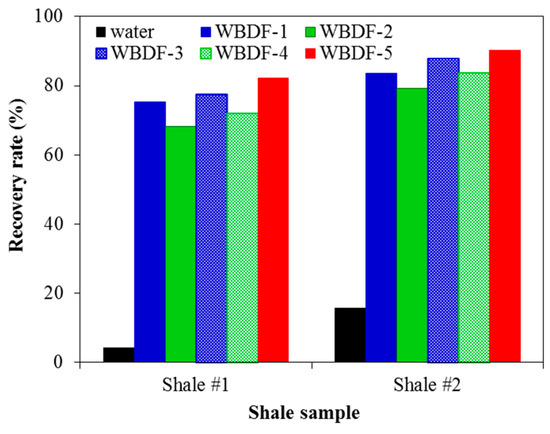

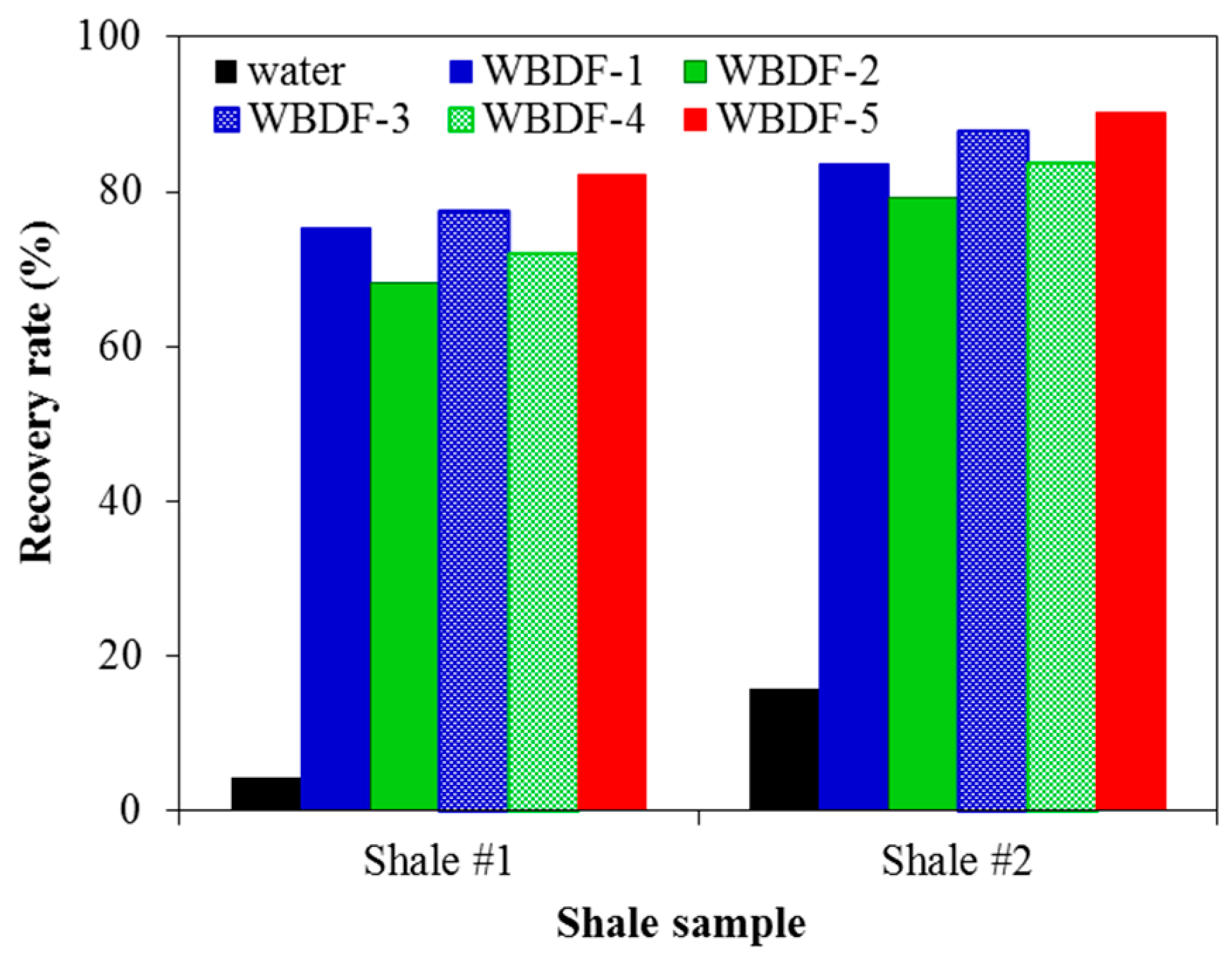

Figure 5. Shale recovery rates for different WBDFs.
Figure 5. Shale recovery rates for different WBDFs.
Applsci 07 00594 g005
Applsci 07 00594 g006 550

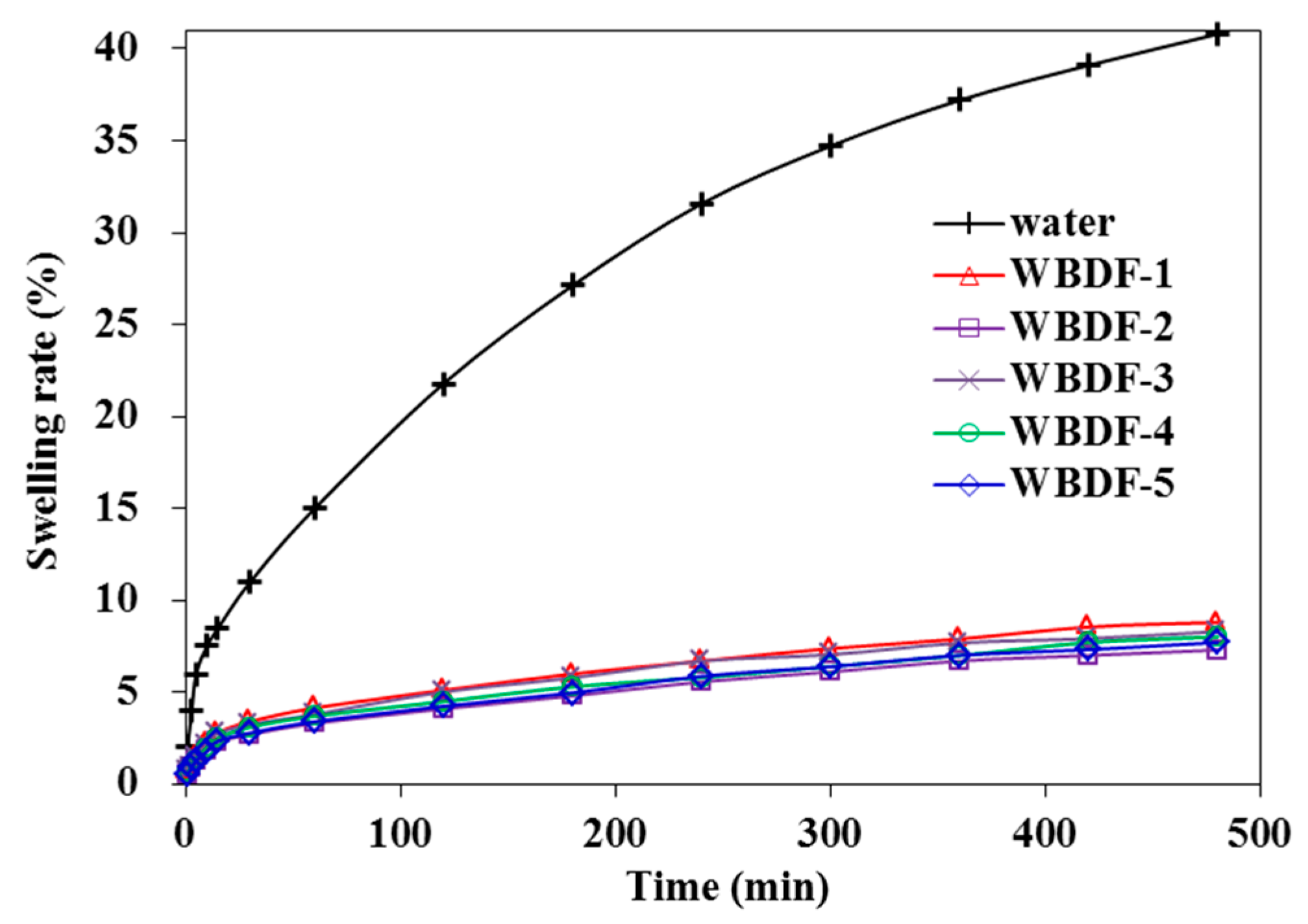

Figure 6. Swelling rates of samples in different WBDFs.
Figure 6. Swelling rates of samples in different WBDFs.
Applsci 07 00594 g006
Applsci 07 00594 g007 550

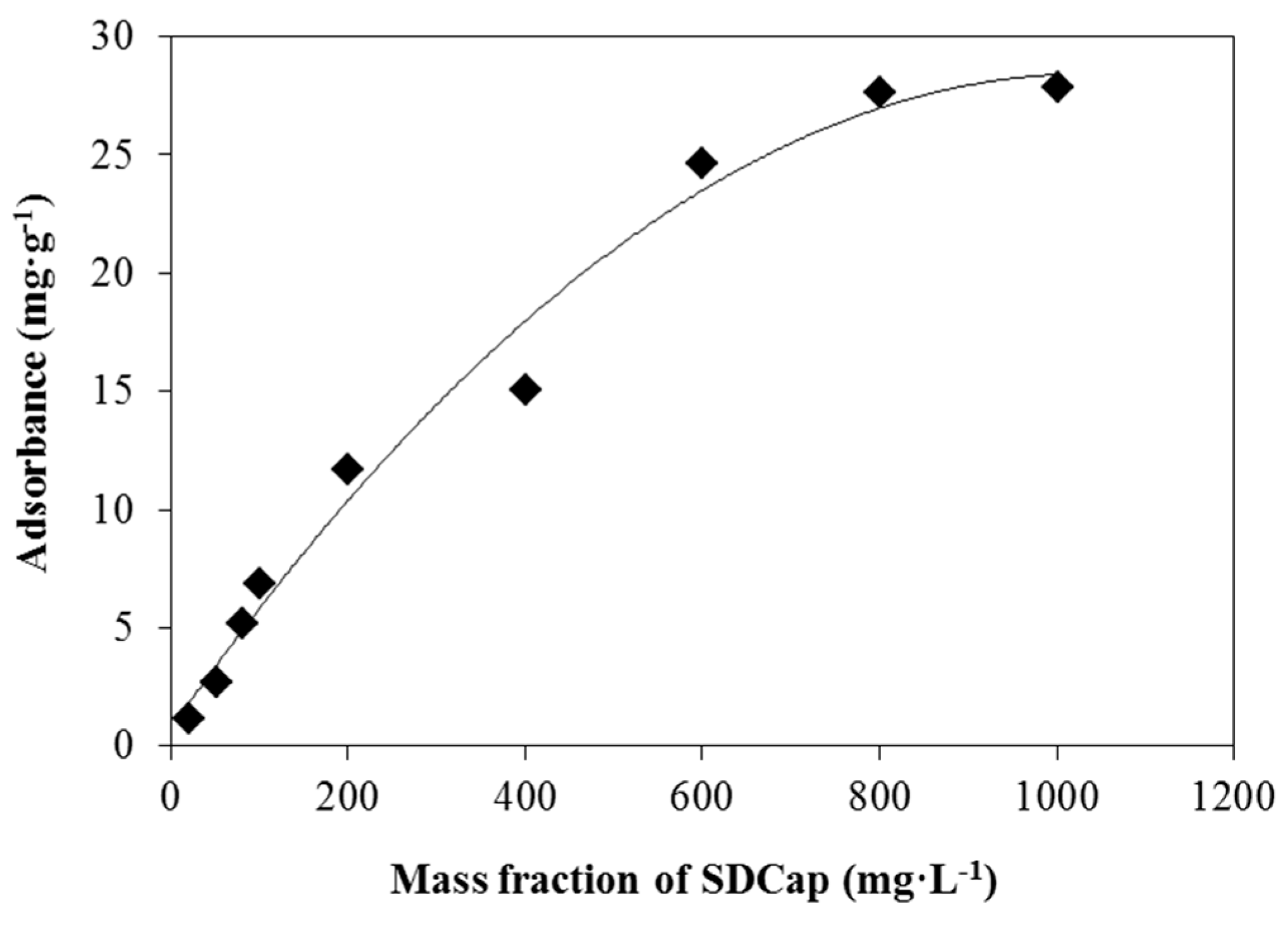

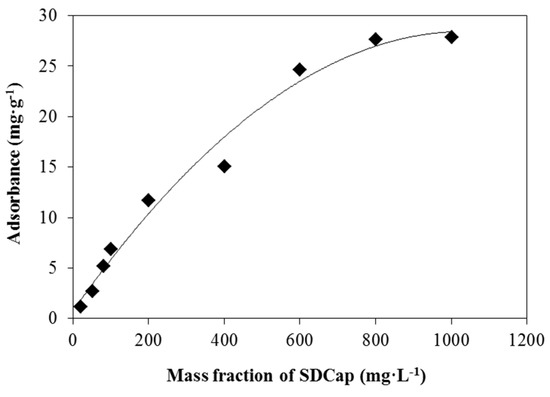

Figure 7. Variations of adsorbance of SDCap on clay particles as a function of concentration.
Figure 7. Variations of adsorbance of SDCap on clay particles as a function of concentration.
Applsci 07 00594 g007
Applsci 07 00594 g008 550

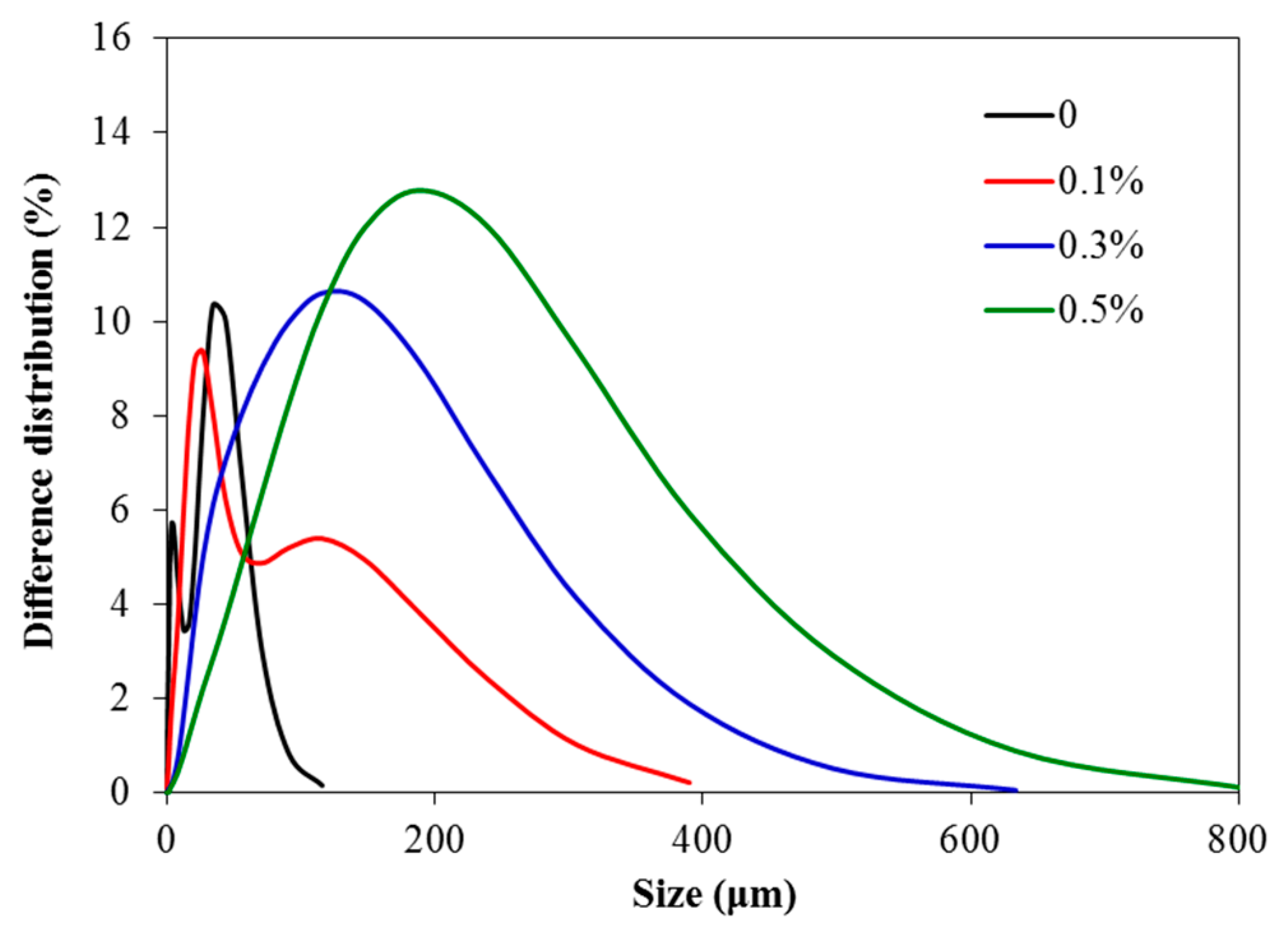

Figure 8. Clay particle size distribution in the presence of different concentration of SDCap.
Figure 8. Clay particle size distribution in the presence of different concentration of SDCap.
Applsci 07 00594 g008
Applsci 07 00594 g009 550

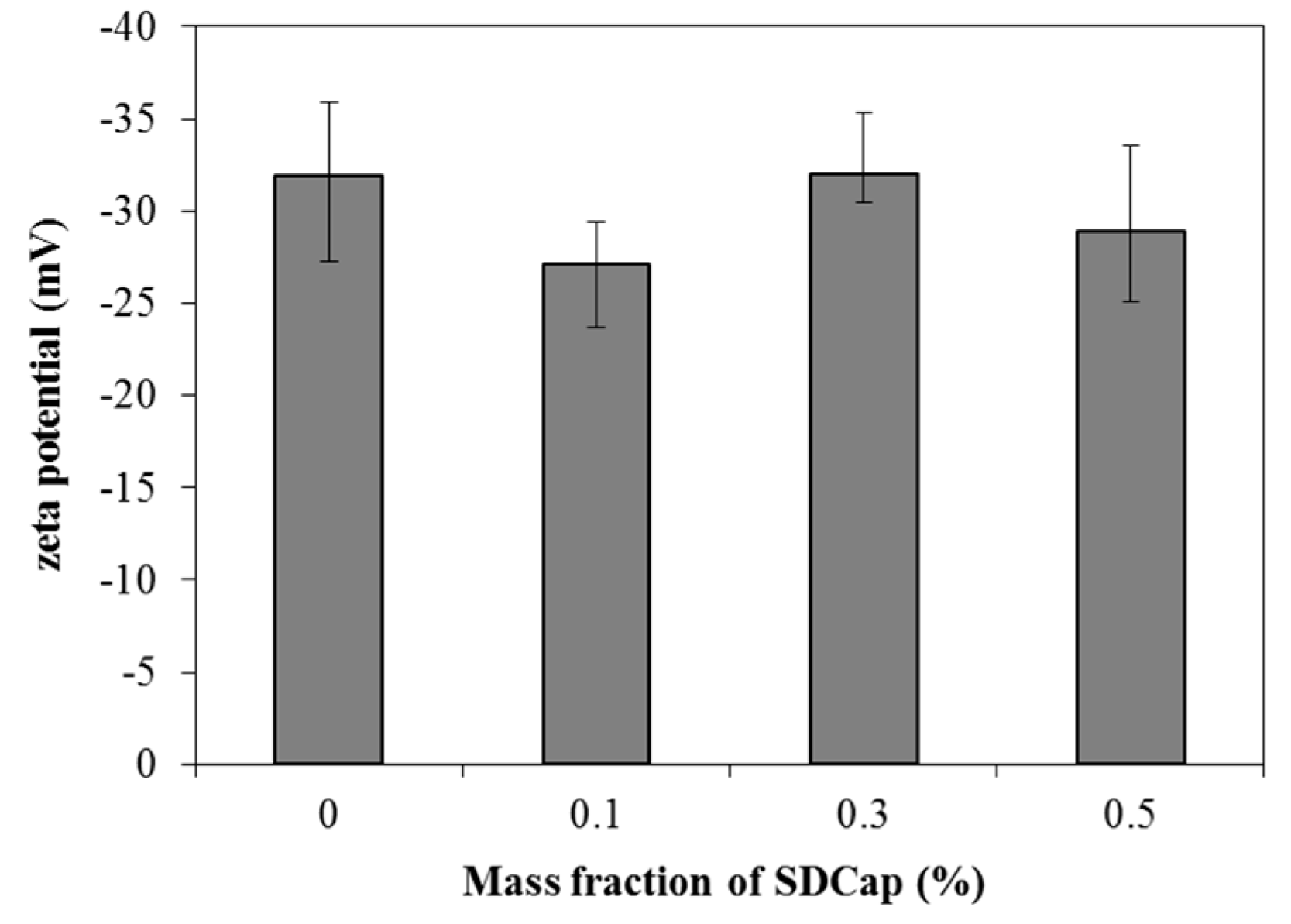

Figure 9. Variations of zeta potential as a function of concentration of SDCap.
Figure 9. Variations of zeta potential as a function of concentration of SDCap.
Applsci 07 00594 g009
Applsci 07 00594 g010 550

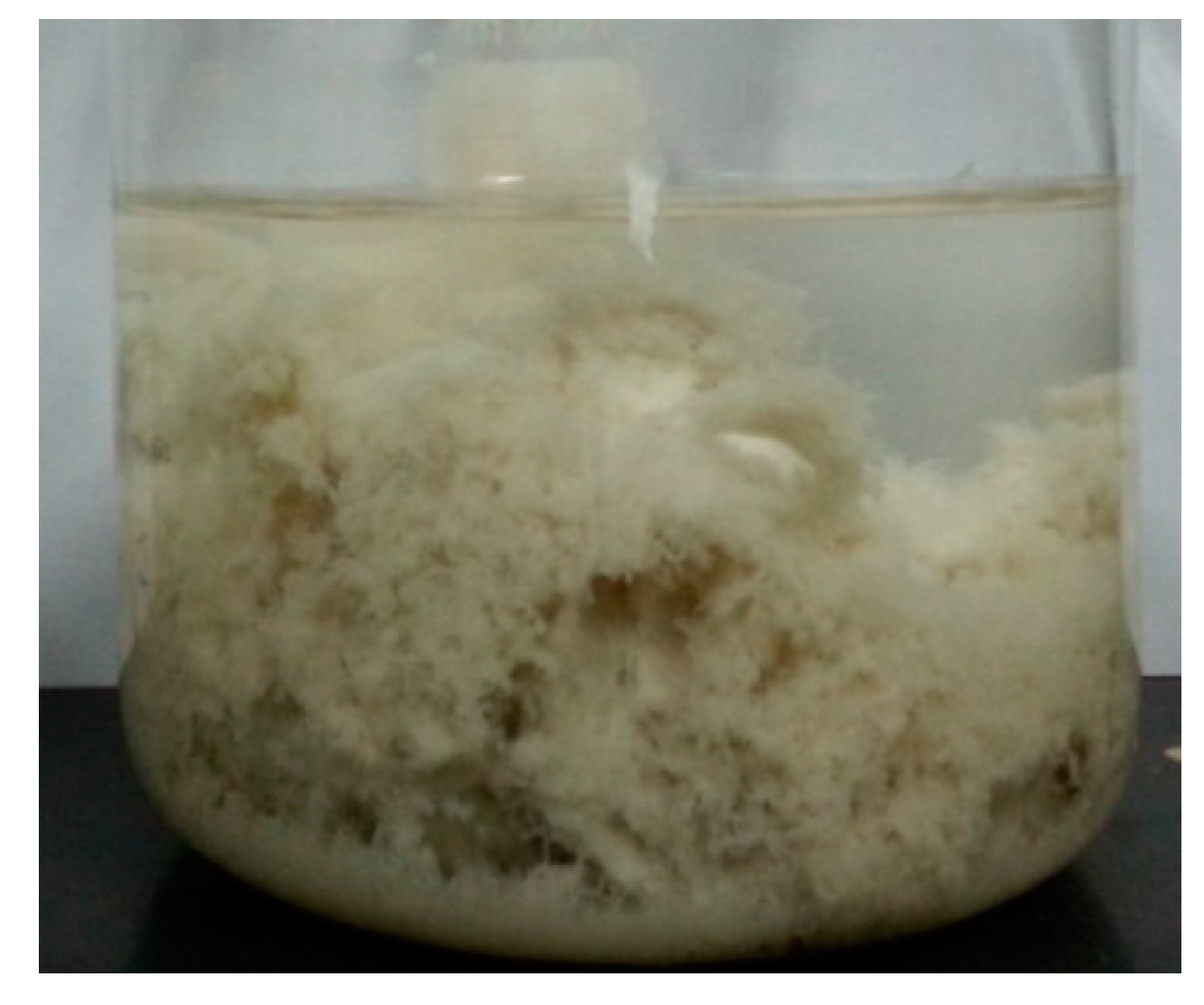

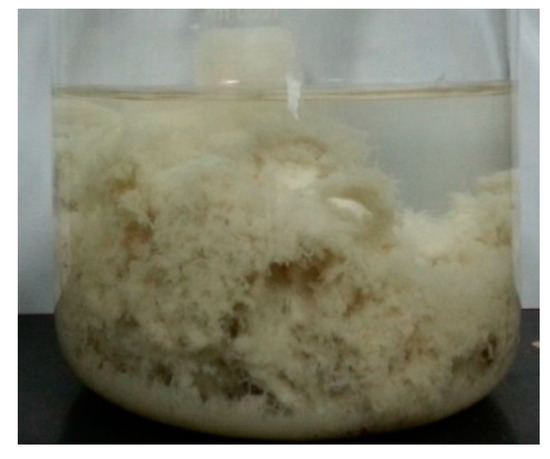

Figure 10. Flocculation of 4% bentonite suspension caused by addition of cationic polymer encapsulator.
Figure 10. Flocculation of 4% bentonite suspension caused by addition of cationic polymer encapsulator.
Applsci 07 00594 g010
Applsci 07 00594 g011 550

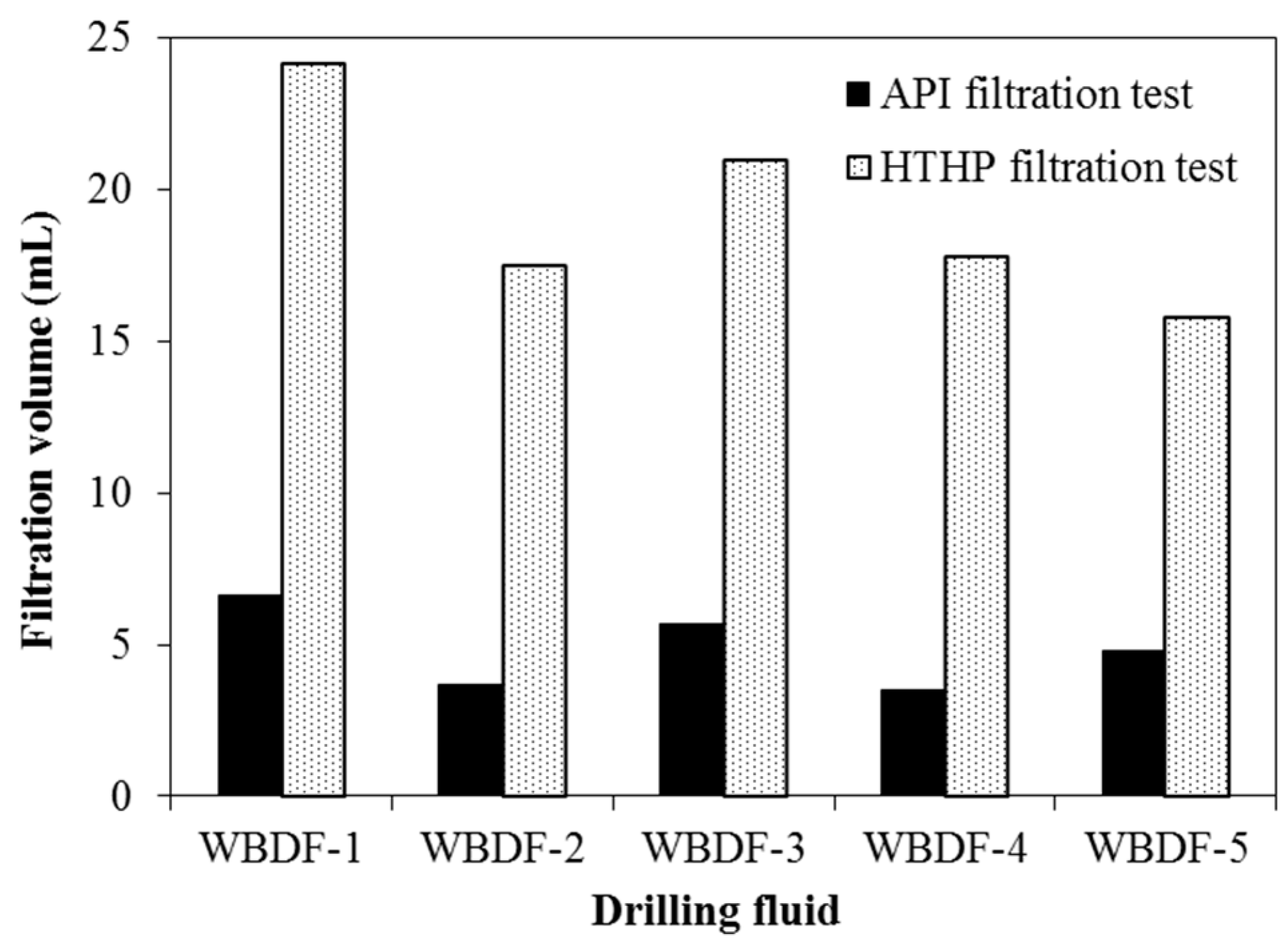

Figure 11. Filtration volumes with different WBDFs.
Figure 11. Filtration volumes with different WBDFs.
Applsci 07 00594 g011
Applsci 07 00594 g012 550

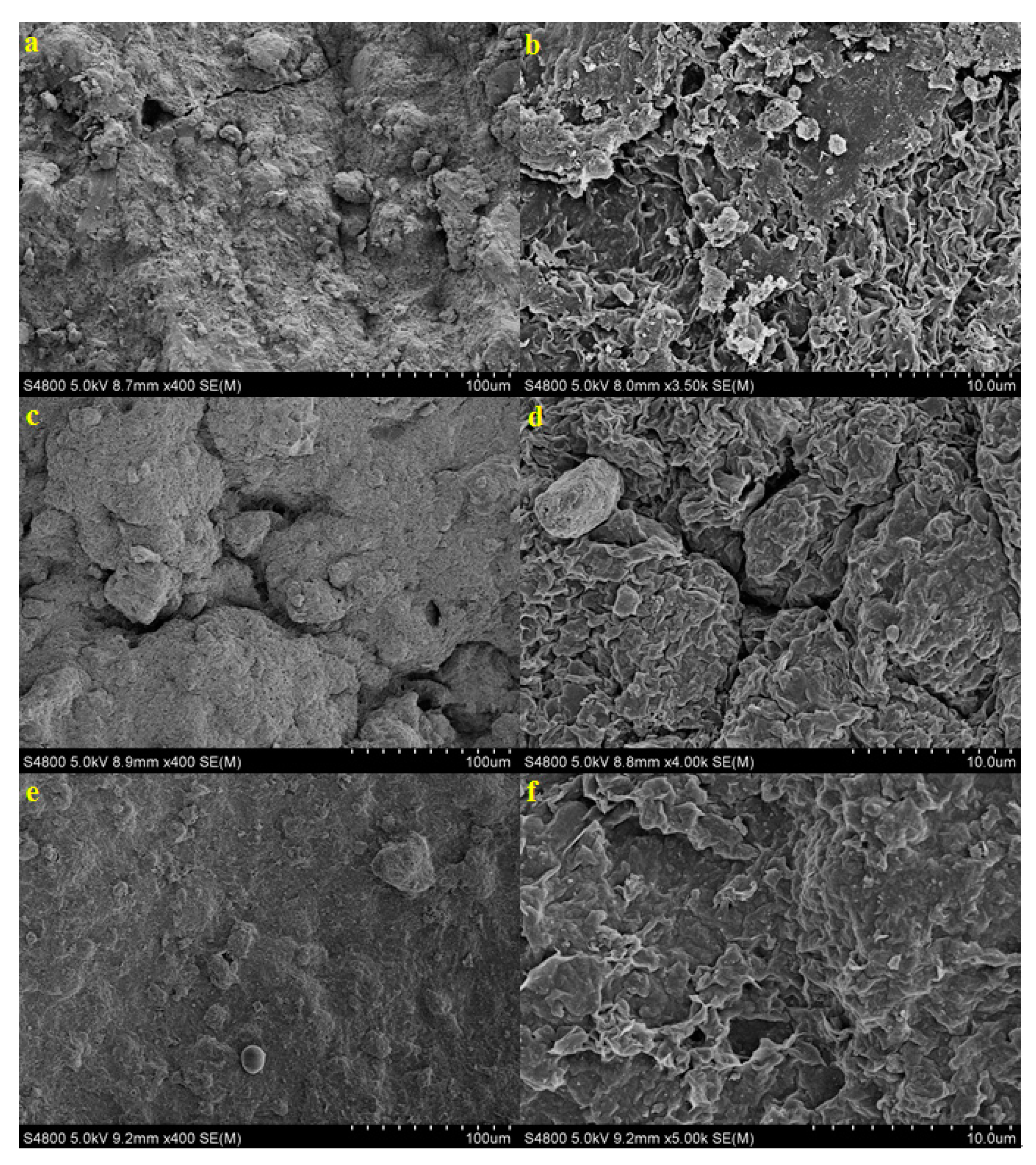

Figure 12. SEM photos of filter cakes formed by different test fluids. (a) 4% bentonite suspension (400-fold magnification); (b) 4% bentonite suspension (3500-fold magnification); (c) 4% bentonite suspension with 0.3% PHPA (400-fold magnification); (d) 4% bentonite suspension with 0.3% PHPA (4000-fold magnification); (e) 4% bentonite suspension with 0.3% SDCap (400-fold magnification); (f) 4% bentonite suspension with 0.3% SDCap (5000-fold magnification).
Figure 12. SEM photos of filter cakes formed by different test fluids. (a) 4% bentonite suspension (400-fold magnification); (b) 4% bentonite suspension (3500-fold magnification); (c) 4% bentonite suspension with 0.3% PHPA (400-fold magnification); (d) 4% bentonite suspension with 0.3% PHPA (4000-fold magnification); (e) 4% bentonite suspension with 0.3% SDCap (400-fold magnification); (f) 4% bentonite suspension with 0.3% SDCap (5000-fold magnification).
Applsci 07 00594 g012
Table
Table 1. Composition of the WBDFs (water-based drilling fluids).
Table 1. Composition of the WBDFs (water-based drilling fluids).
ComponentFunctionMass Fraction/%
WBDF-1WBDF-2WBDF-3WBDF-4WBDF-5
bentonitefiltrate reducer and viscosifier4.04.04.04.02.0
PHPAencapsulator 0.25
FA-367encapsulator0.3
SDCapencapsulator 0.450.3750.35
XCviscosifier 0.1 0.10.15
PAC-LVfiltrate reducer0.50.60.50.6
CMC-LVfiltrate reducer 0.5
starchfiltrate reducer1.0 1.0
SMPfiltrate reducer 4.0 4.04.5
polyamineshale inhibitor 2.0
Polyglycolshale inhibitor3.0 3.0
KClshale inhibitor3.04.03.04.04.0
NaClhydrate inhibitor10.010.010.010.020.0

Share and Cite

MDPI and ACS Style

Zhao, X.; Qiu, Z.; Zhang, Y.; Zhong, H.; Huang, W.; Tang, Z. Zwitterionic Polymer P(AM-DMC-AMPS) as a Low-Molecular-Weight Encapsulator in Deepwater Drilling Fluid. Appl. Sci. 2017, 7, 594. https://doi.org/10.3390/app7060594

AMA Style

Zhao X, Qiu Z, Zhang Y, Zhong H, Huang W, Tang Z. Zwitterionic Polymer P(AM-DMC-AMPS) as a Low-Molecular-Weight Encapsulator in Deepwater Drilling Fluid. Applied Sciences. 2017; 7(6):594. https://doi.org/10.3390/app7060594

Chicago/Turabian Style

Zhao, Xin, Zhengsong Qiu, Yongjun Zhang, Hanyi Zhong, Weian Huang, and Zhichuan Tang. 2017. "Zwitterionic Polymer P(AM-DMC-AMPS) as a Low-Molecular-Weight Encapsulator in Deepwater Drilling Fluid" Applied Sciences 7, no. 6: 594. https://doi.org/10.3390/app7060594

APA Style

Zhao, X., Qiu, Z., Zhang, Y., Zhong, H., Huang, W., & Tang, Z. (2017). Zwitterionic Polymer P(AM-DMC-AMPS) as a Low-Molecular-Weight Encapsulator in Deepwater Drilling Fluid. Applied Sciences, 7(6), 594. https://doi.org/10.3390/app7060594

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
