A Unified Approach to Design Robust Controllers for Nonlinear Uncertain Engineering Systems

Featured Application

Design and realization of robust, simple and effective controllers, mainly for the transportation and manufacturing systems.

Abstract

This paper presents new theorems, which allow to design in a unified way robust proportional-derivative (PD)-type control laws without chattering for a broad class of uncertain nonlinear multi-input multi-output (MIMO) systems, subject to bounded disturbances and noises, of great theoretical and engineering relevance. These controllers are used to track a reference signal with bounded second derivative with the tracking error norm smaller than a prescribed value. The proposed control laws are simple to design and implement, above all for robotic systems, both in the case of a trajectory assigned in the joint space and in the workspace. The obtained theoretical results can have numerous applications. In this paper four significant applications are provided. The first one concerns the solution of a nonlinear equations system or the determination of an equilibrium point of a nonlinear system. The second case study deals with the inversion of a nonlinear vectorial function or the kinematic inversion of a robot. The third application concerns: (A) the tracking control of a robot with parametric uncertainties, with and without measurement noise on velocity, both in the joint space and the workspace; (B) the impedance control of a robot interacting with a human operator. The fourth case study addresses the tracking control of an uncertain nonlinear system that does not belong to the class of mechanical systems. Finally, an appendix is included, providing six easy examples, which show how the results proposed in the paper can eliminate and/or reduce serious disadvantages existing in the robust control literature for significant classes of linear and nonlinear uncertain systems.

1. Introduction

Since a kilowatt-hour of electrical energy transformed into mechanical energy can produce an impressive amount of human work, current and future well-being depend primarily on automatic systems concerning many key areas for humanity, including the transportation and manufacturing systems.

Hence, it is of great relevance to develop control algorithms that can be easily implemented using modern digital and wireless technologies to force electromechanical systems to behave like skilled workers who work quickly, accurately, and cheaply despite parametric variations, nonlinearities, and persistent disturbances. In particular, special attention has been paid to solving robust tracking control problems, which resulted in a considerable number of publications (see, e.g., [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43] and references therein). However, there exist many results obtained under the following simplified hypotheses, which are not always realistic and feasible: (1) exact knowledge of the controlled system is assumed; (2) actuators are considered ideal; and (3) signals are assumed measurable without noises, therefore, ideal or almost ideal derivative actions can be used.

The robust tracking control mostly uses the well-known feedback linearization, inverse model and model predictive control (MPC) techniques.

Feedback linearization is the process of determining a feedback law and a change of coordinates that transform a nonlinear system into a linear and controllable one.

Inverse modeling is a general mathematical method to determine unknown causes on the basis of observation of their effects, as opposed to modeling of direct problems whose solution involves finding effects on the basis of a description of their causes.

MPC is a very popular controller design method in the process industry for discrete-time models.

Taking also into account that the computation time for feedback linearization or control signal generation by the inverse model or MPC techniques is non-negligible, these simplified hypotheses make the above mentioned techniques not always reliable (see [4,5,6,8,10,14,15,20,23,24,25,29,31,33,37,40,41]. In some cases, the control system can even be unstable, as can be verified with simple examples (see also Appendix A). Furthermore, the control techniques using high-frequency and high-amplitude control signals do not yield good performance (see also Appendix A).

To avoid the aforementioned problems, various modifications of the inverse model and feedback linearization techniques have been proposed, for instance, a computed-torque-like control with variable-structure compensation (see [20,25,26]), which is, however, difficult to design and implement and also presents high-frequency oscillations (see also Appendix A).

Thus, there is still a demand for smooth robust controllers that allow a plant belonging to a broad class of nonlinear uncertain systems, including electromechanical ones, to track a sufficiently smooth reference signal with a tracking error norm smaller than a prescribed value, despite the presence of disturbances and parametric and structural uncertainties, using real actuators and real derivative actions.

In some previous author’s contributions (see [21,34,35]) some control methodologies of MIMO uncertain linear systems and of a class of MIMO nonlinear uncertain systems have been provided in order to design simple controllers: state feedback controller with integral action, a pseudo-PD and pseudo-proportional-integral-derivative (pseudo-PID) to track sufficiently smooth trajectories with an a priori given maximum error.

Moreover, in [38], for three classes of uncertain nonlinear MIMO systems, that are wider with respect to [21,34,35], including several manufacturing systems and land, sea and air transportation systems, subject to nonstandard disturbances and noises, some theorems are proved, that allow to design pseudo-PID controllers to track a sufficiently smooth reference signal with the tracking error norm smaller than a prescribed value.

This paper, for a broad class of uncertain nonlinear MIMO systems much more general with respect to [34,35,38], provides a new and unified approach to design robust PD-type control laws without chattering to track a reference signal with bounded second derivative with the tracking error norm smaller than a prescribed value, despite the presence of bounded disturbances, parametric and structural uncertainties, and bounded measurement noises. With respect to [34], it is also proved that the proposed control laws are robust with respect to bounded measurement noises.

With reference to the mechanical and transportation systems, this theory can be successfully applied when the controller uses as information: signals related to the joint space (obtainable with encoders, resolvers, or tachometric dynamos, for example) or signals related to the workspace (e.g., obtainable with cameras, sonar, or global positioning system (GPS)). Moreover, the proposed results are very useful also for the control of human-machine interaction (see e.g., [8,15,28]).

The proposed control laws are based on the concept of majorant systems and result in establishing asymptotic bounds for the tracking error and its first derivative. The proposed controller design is based on two parameters. The first parameter is related to the minimum eigenvalue of a suitable matrix, on which the practical stability depends. The second parameter is easily related to the practical asymptotic stability region, the desired maximum tracking error norm, and its convergence velocity. If the tracked trajectories are not sufficiently smooth, suitable filtering laws are proposed to facilitate the implementation of the control laws and reduce the control magnitude, particularly during the transient phase.

The designed controllers using the developed majorant systems technique allow one to obtain, in general, less conservative results; i.e., the actual tracking error is quite close to the error computed with the proposed methodology, unlike many other approaches based on unsuitable Lyapunov functions. This enables one to avoid significant technological problems such as, e.g., oversized amplifiers and actuators.

The obtained theoretical results can be successfully applied to numerous theoretical and engineering applications (e.g., control of: rolling mills, conveyor belts, automatic guided vehicles (AGVs), unicycles, cars, trains, ships, airplanes, drones, missiles, satellites, manufacturing robots—welding, painting, assembly, pick and place for printed circuit boards, packaging and labeling, palletizing, product inspection, and testing-, surgical robots).

The above systems are of great engineering relevance, e.g., nowadays AGVs have revolutionized the logistics and production organization, as they are innovative, versatile and cheap mobile robots very used in various processes (production and management of warehouses) for the loading, unloading, and/or transportation purposes.

All the above mentioned systems fall into the considered broad class of systems and, therefore, can be effectively and simply controlled with the proposed laws in realistic situations and also by technicians not expert in the control field (see the easy and efficient control of the simple AGV considered in the Appendix A and, above all, the second and third applications in the paper).

Concerning this, in the paper four significant applications are provided.

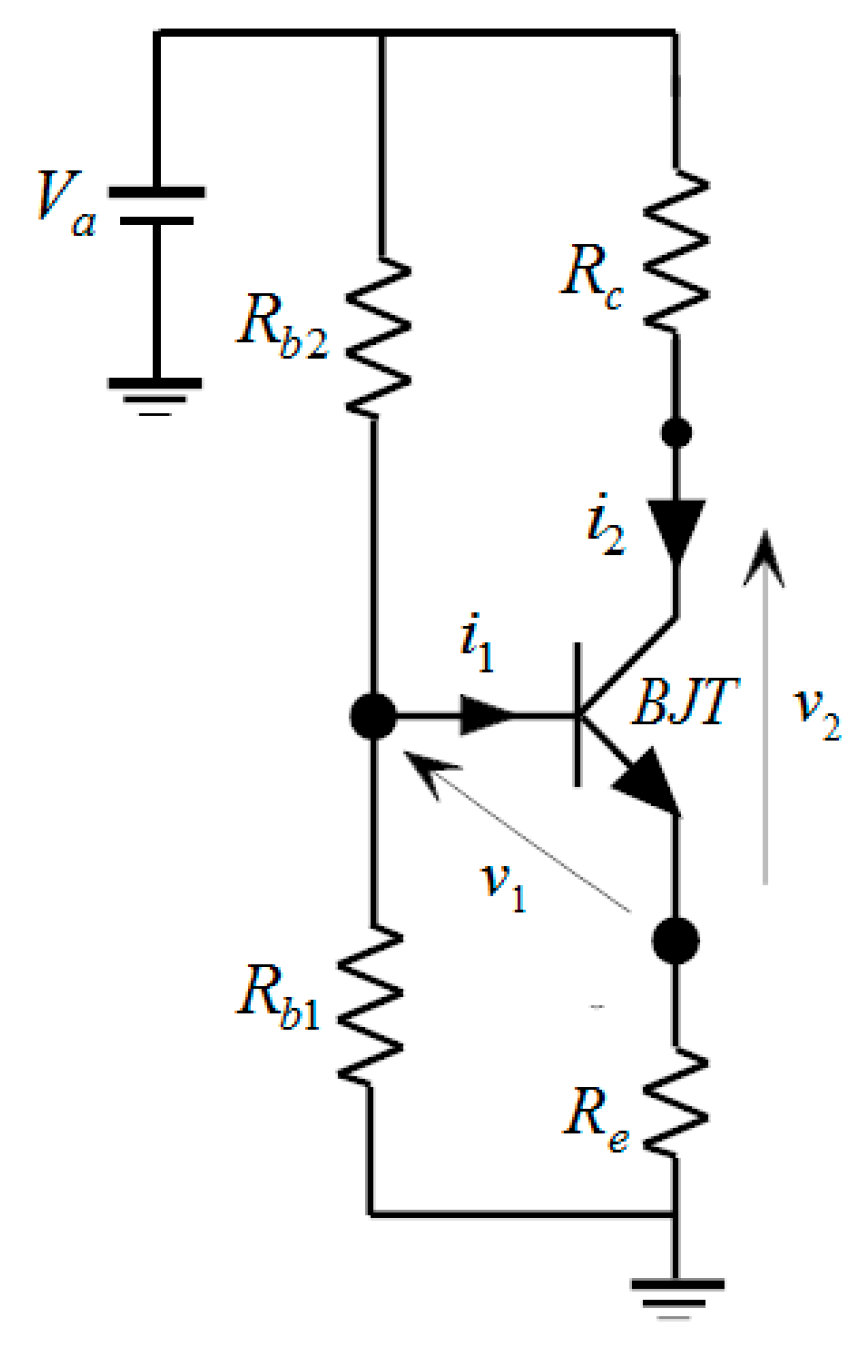

The first one concerns the solution of a nonlinear equations system or the determination of an equilibrium point of a nonlinear systems. The second case study deals with the inversion of a nonlinear vectorial function or the kinematic inversion of a robot. The third application concerns: (A) the tracking control of a robot with parametric uncertainties, with and without measurement noise on velocity, both in the joint space and the workspace; and (B) the impedance control of a robot interacting with a human operator. The fourth case study addresses the tracking control of an uncertain nonlinear system that does not belong to the class of mechanical systems and to the classes of systems considered in [34,35,38].

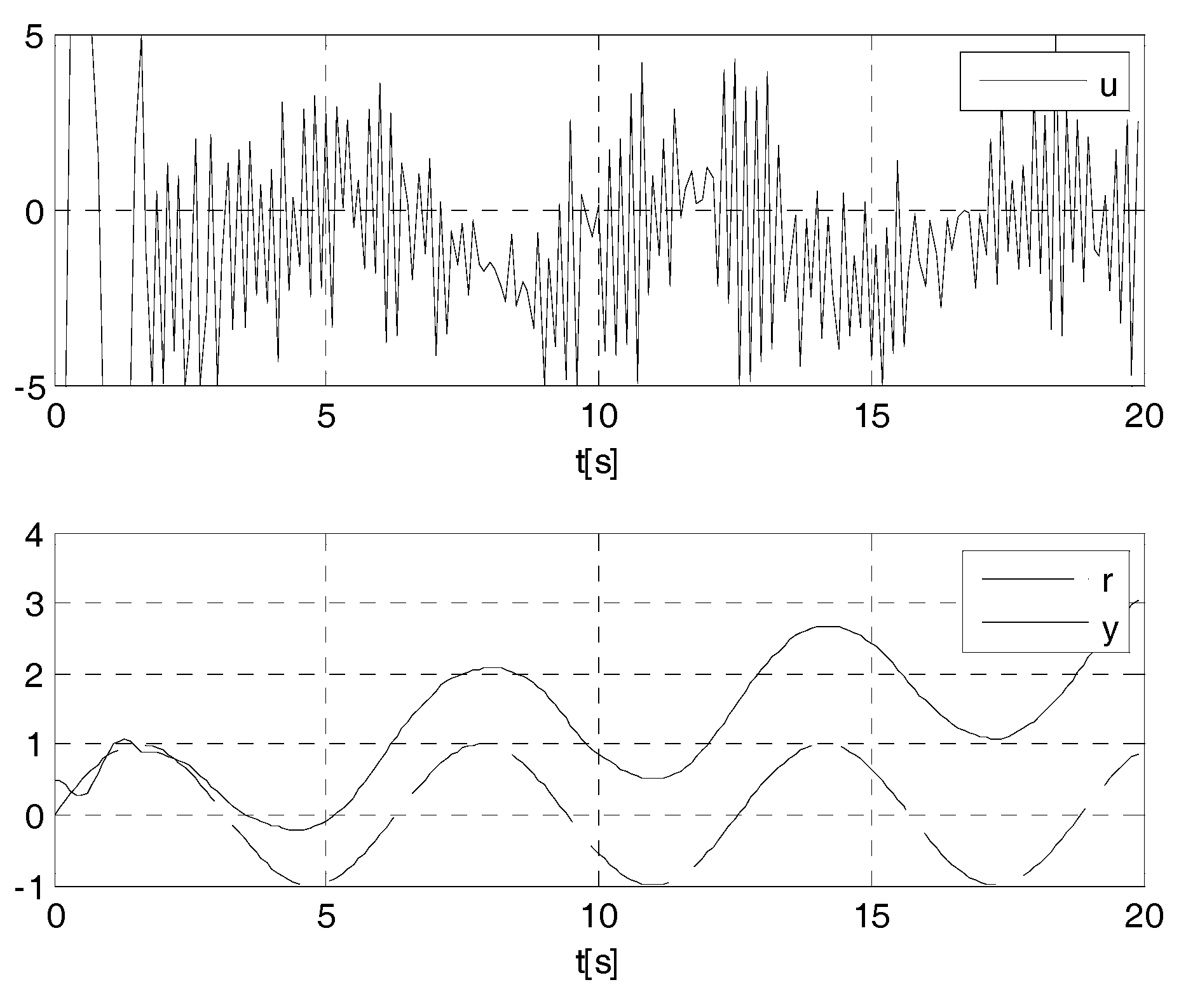

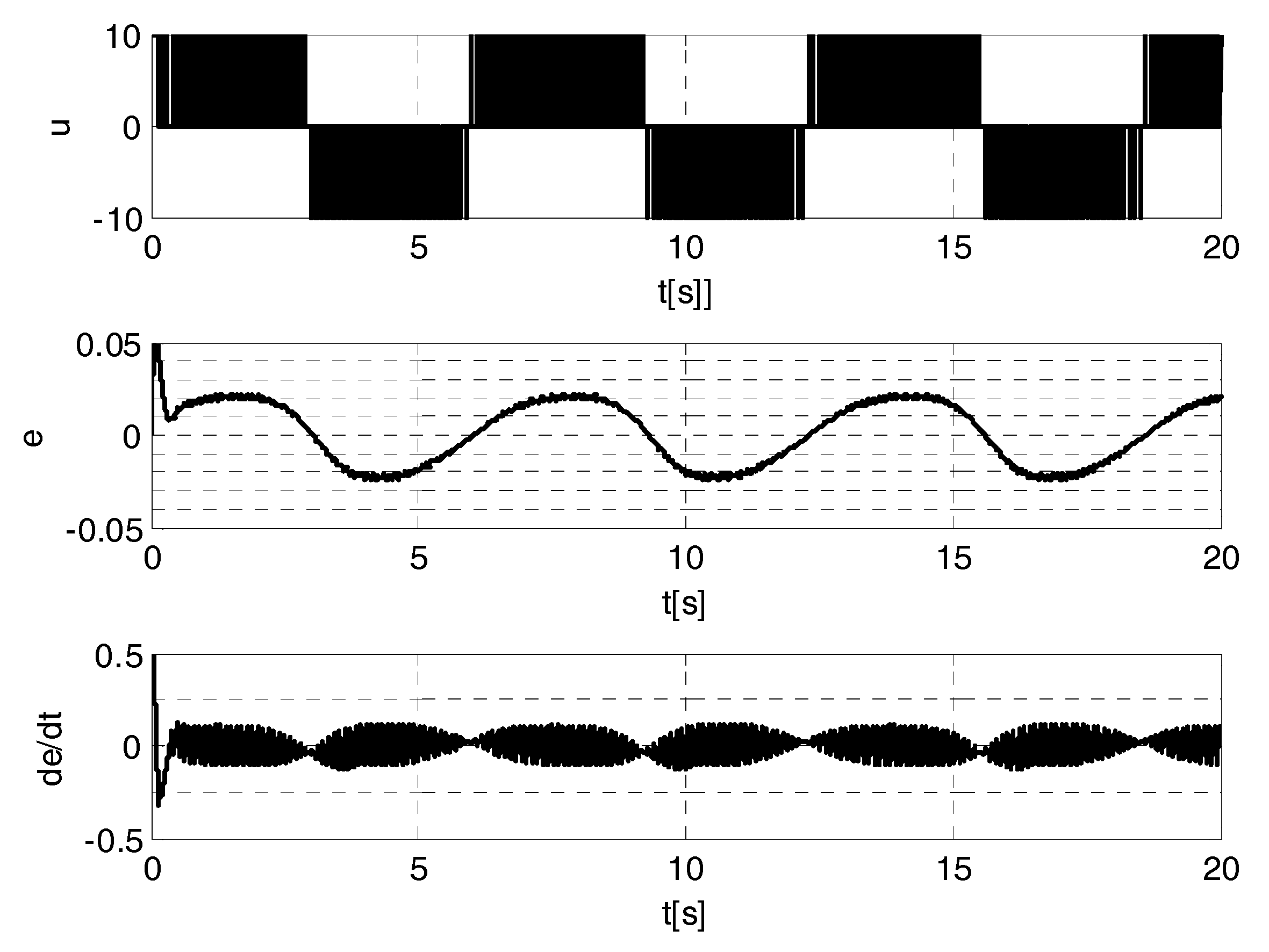

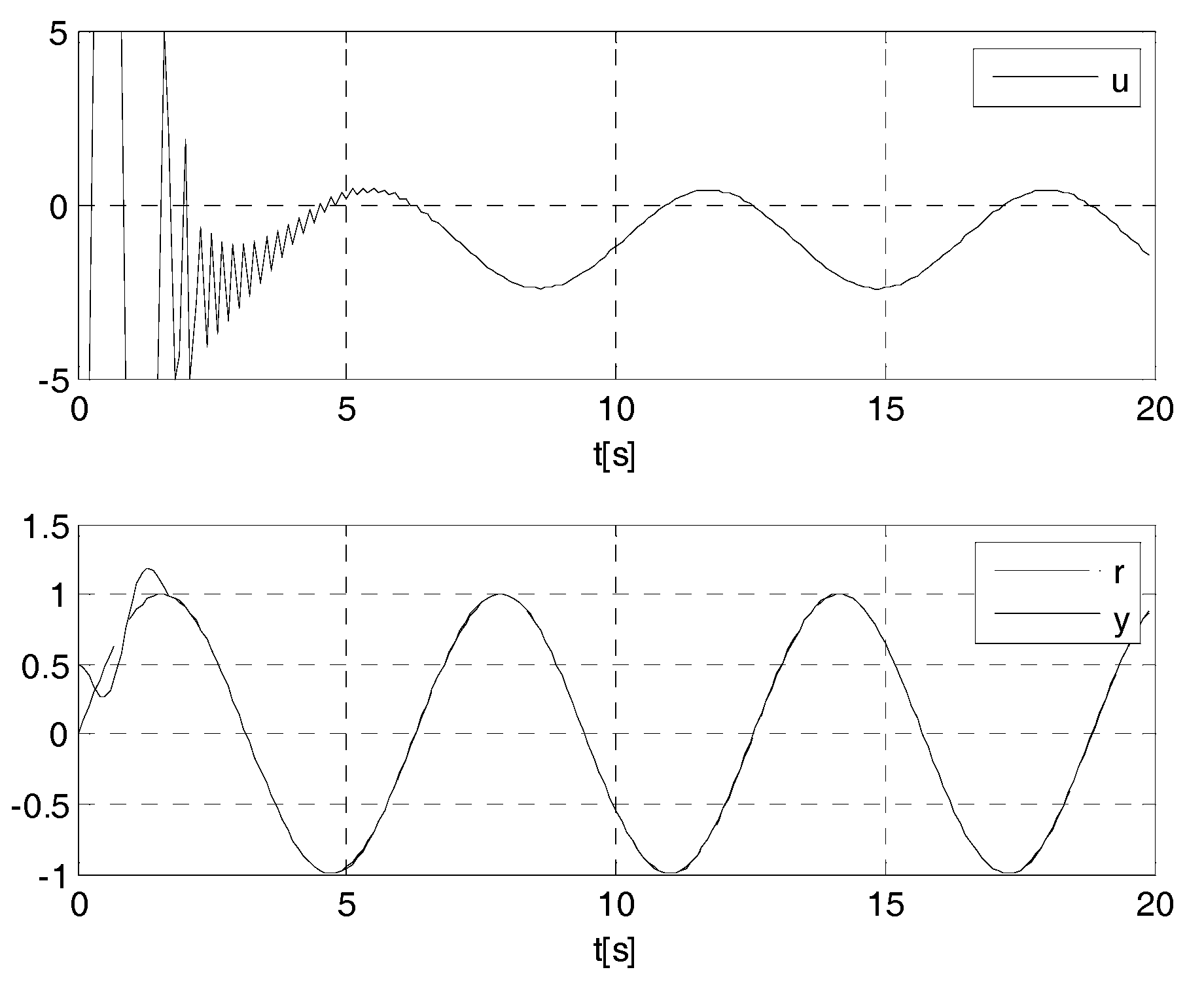

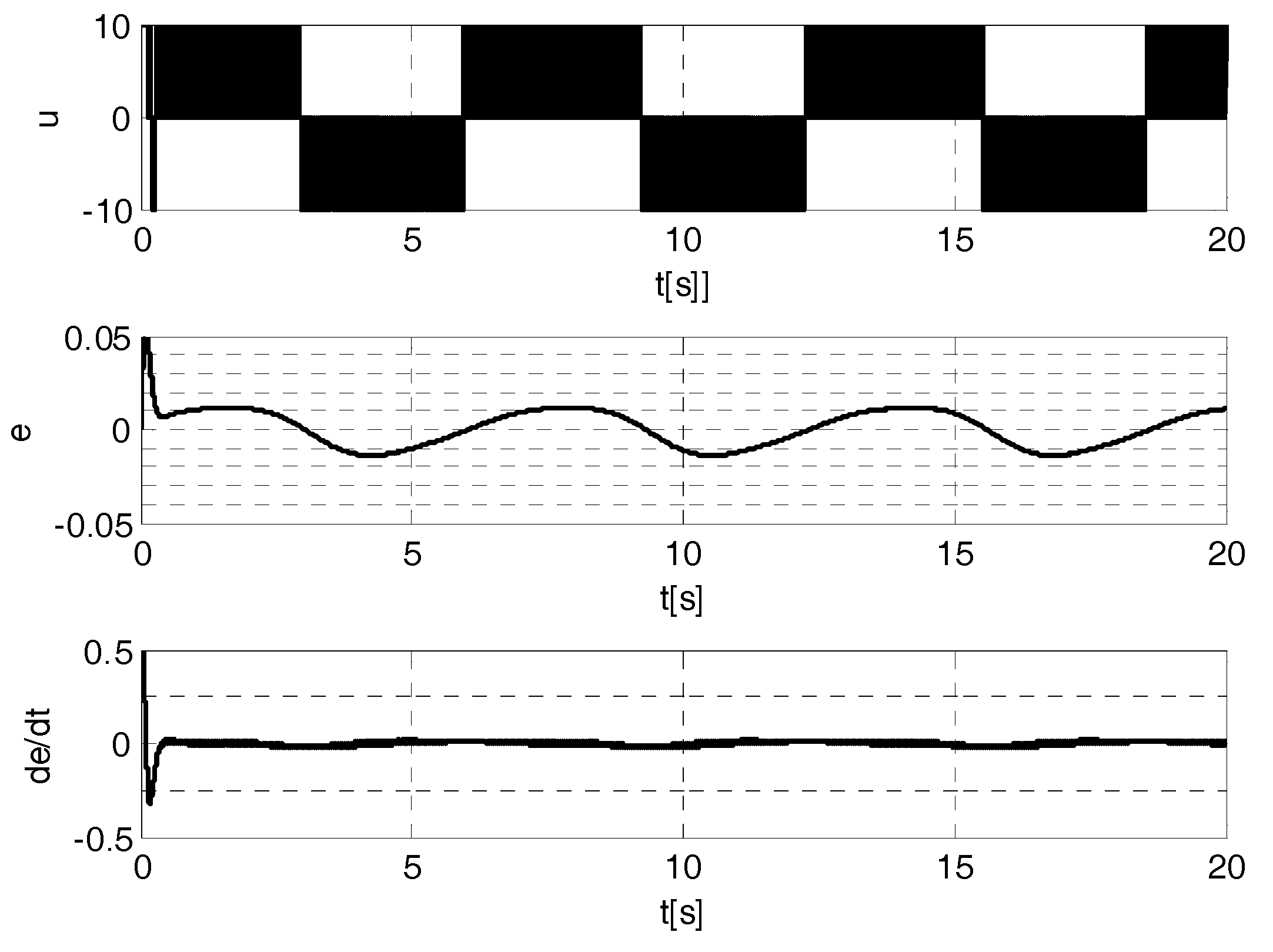

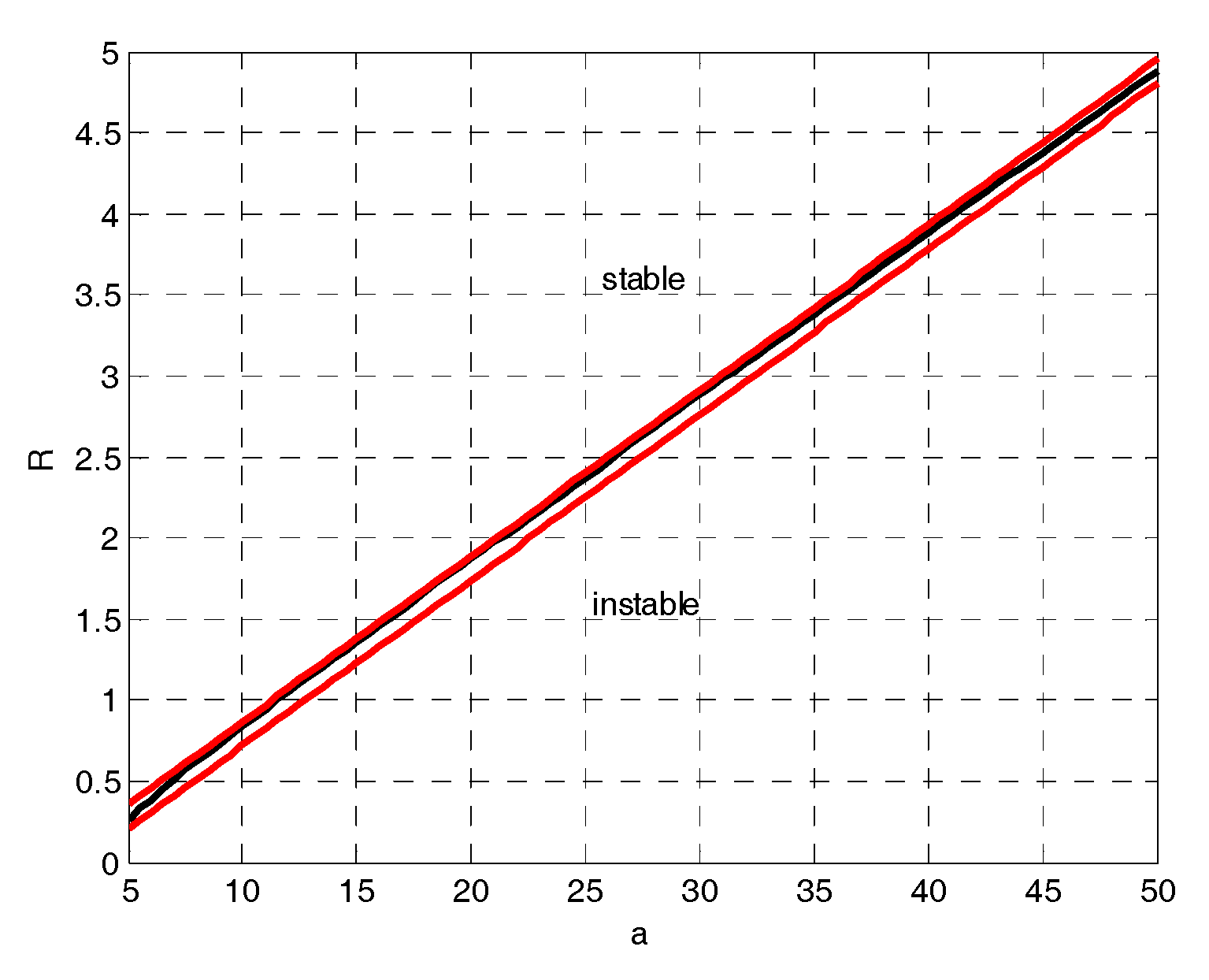

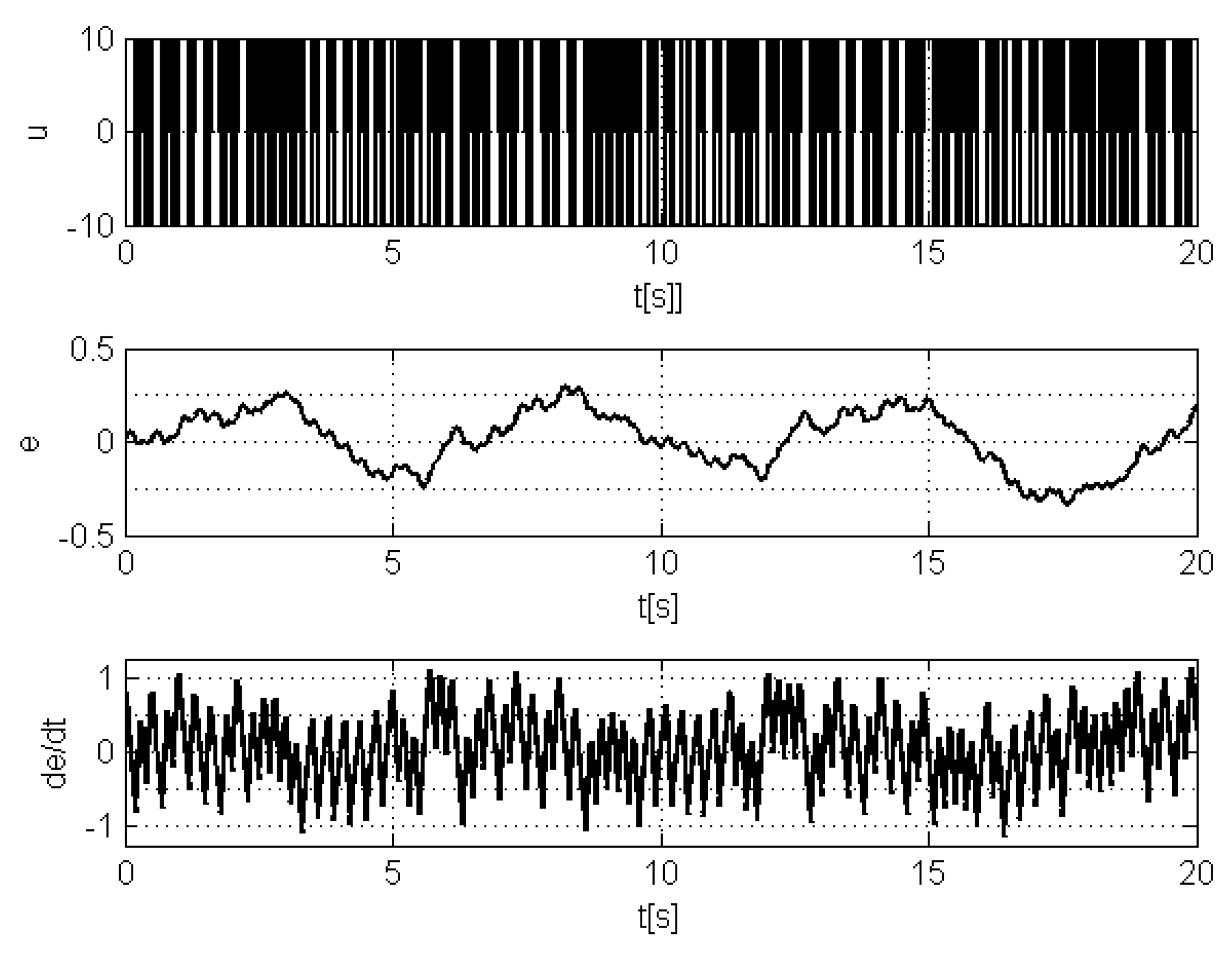

Finally, it is included an appendix in which six easy examples are provided. The first five ones clearly show how numerous control techniques available in the literature (e.g., [10,14,15,20,23,24,25,29,31,33,41,42,43] and the references therein) for significant classes of linear and nonlinear systems can produce unstable control system or can significantly reduce the performance of the control system, under the following realistic hypotheses: parametric uncertainties, real actuators, measurement noise, finite online computation time of the control signal.

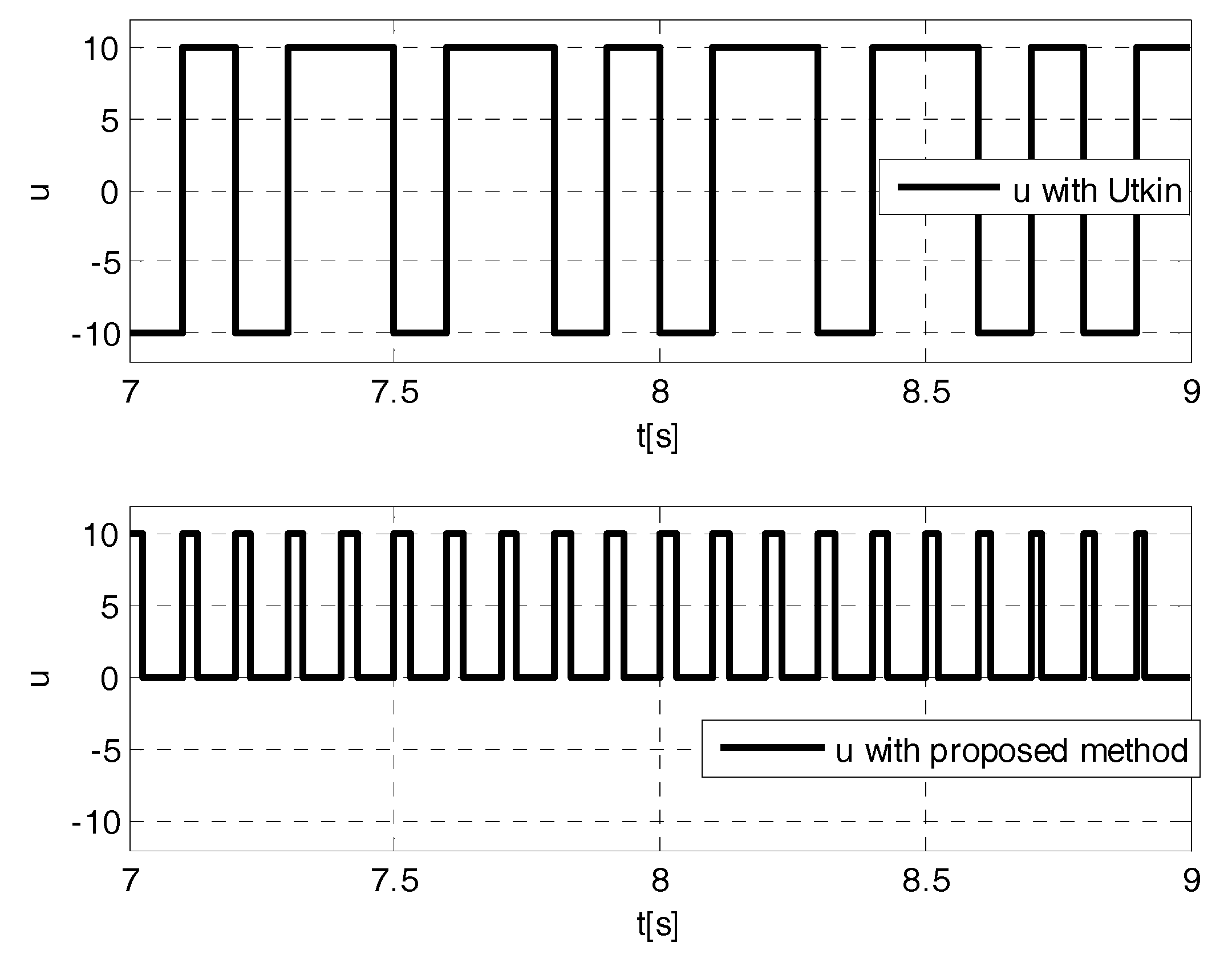

The sixth example shows that the above mentioned disadvantages can be eliminated and/or reduced with the results proposed in the paper.

This paper is organized as follows. The considered class of systems, the problem statement and theoretical background, including the majorant systems technique and some theorems useful to easily determine a majorant system of a nonlinear uncertain system with bounded uncertainties, are given in Section 2. Section 3 provides the main results, including the tracking control law and the corresponding tracking error bounds. Four case studies, of theoretical and engineering relevance, are presented in Section 4. Section 5 outlines the main contributions and future developments. Finally, an appendix provides simple five counter-examples and a sixth example, that shows the utility of the proposed results to eliminate and/or reduce serious disadvantages existing in the robust control literature in the presence of parametric uncertainties, real actuators, measurement noise, finite online computation time of the control signal, thus concluding this paper.

2. Problem Formulation and Preliminaries

Consider the uncertain nonlinear dynamic system, much more general with respect to [34,35,38]:

$$\ddot{y}=F(t,y,\dot{y},p)u+f(t,y,\dot{y},d,p)$$

(1)

where $t\in \mathcal{T}=[0, t_f]\subseteq R$ is the time, $y\in Y\subset R^m$ is the output, $\dot{y}\in Y_p\subset R^m$, $u\in U\subset R^r$ is the input, $d\in D\subset R^h$ is a bounded disturbance, $p\in \wp \subset R^{\mu }$ is the vector of the uncertain parameters, $F\in R^{m\times r}$ is a nonlinear bounded matrix function of rank $m$ and $f\in R^m$ is a nonlinear vector function satisfying the following conditions.

(1) Positivity condition: there exists a matrix $G\in R^{r\times m}$ such that:

$${\lambda }_{\min }(FG+G^T{F}^T)\ge 2$$

(2)

(2) Bounding condition of class $K_{{\gamma }_0}:$ there exists a continuous function ${\phi }_{{\gamma }_0}:R_0^{+}\to R_0^{+}$, non decreasing and with initial value ${\gamma }_0\ge 0,$ said of class $K_{{\gamma }_0},$ such that (see Figure 1).

$$\Vert f\Vert \le {\phi }_{{\gamma }_0}\left(\Vert \xi \Vert \right), \xi =\left[\begin{array}{c}y\\ \dot{y}\end{array}\right]$$

(3)

There exist several classes of systems whose models, after:

(a)

a possible appropriate changing of variable and/or;

(b)

the use of a possible appropriate compensation signal dependent on $t,y,\dot{y}$ and/or;

(c)

possible appropriate mathematical steps by using the derivative of Lie, are of type (1). In the following five significant classes of the above systems are reported.

Class 1.

Note that many mechanical systems with m degrees of freedom (e.g., cars, trains, conveyor belts, manufacturing machineries, and the Cartesian robots) are described by the equation:

$$M(p)\ddot{q}+K_a(p)\dot{q}+K_e(p)q=T_u(q)u+g(q,p)+T_d(q)d$$

(4)

where$q\in R^m$is the generalized coordinate vector,$u\in R^r$is the generalized control forces vector,$g\in R^m$is the generalized gravity forces vector,$d\in R^h$is the generalized disturbance forces vector,$M,K_a,K_e\in R^{m\times m}$,$T_u\in R^{m\times r}$with $\mathrm{rank}(T_u)=m$,$T_d\in R^{m\times h}$are, respectively, the inertia matrix, damping matrix, stiffness matrix and transmission matrices of the generalized forces$u$and$d$and, finally,$p\in \wp \subset R^{\mu }$is the vector of the uncertain parameters. It can be readily verified that the mechanical system (4) is of type (1) and can satisfy the conditions (2) and (3).

Class 2.

Note that many mechanical systems with m degrees of freedom are described by the equation:

$$M(p)\dot{\mathrm{v}}+K_a(p)\mathrm{v}=u+\gamma$$

(5)

where$\mathrm{v}\in R^m$is the velocity vector,$u\in R^m$is the generalized control forces vector,$\gamma \in R^m$is the generalized gravity and disturbance forces vector,$M,K_a\in R^{m\times m}$are, respectively, the inertia matrix and damping matrix, and$p\in \wp \subset R^{\mu }$is the vector of the uncertain parameters.

By activating system (5) with a real actuator described by equation:

$$\dot{u}=A_a(p_a)u+B_a(p_a)\upsilon +C_a(p_a)\mathrm{v}$$

(6)

where $\upsilon \in R^m$ is the actuator input (e.g., the actuator supply voltage), $A_a\in R^{m\times m}$ is the dynamic matrix, $B_a\in R^{m\times m}$ is the input matrix of full rank, $C_a\in R^{m\times m}$ is the interaction matrix, and $p_a\in {\wp }_a\subset R^{{\mu }_a}$ is the vector of the uncertain parameters.

Combining the Equations (5) and (6) yields:

$$M\ddot{\mathrm{v}}+K_a\dot{\mathrm{v}}=\dot{u}+\dot{\gamma }=A_{a}u+B_a\upsilon +C_a\mathrm{v}+\dot{\gamma }=A_a(M\dot{\mathrm{v}}+K_a\mathrm{v}-\gamma )+B_a\upsilon +C_a\mathrm{v}+\dot{\gamma }$$

(7)

from which:

$$M\ddot{\mathrm{v}}+(K_a-A_{a}M)\dot{\mathrm{v}}-(A_a{K}_a+C_a)\mathrm{v}=B_a\upsilon +\dot{\gamma }-A_a\gamma$$

(8)

It is easy to verify that the electromechanical system (8) is of type (1) and that it can satisfy conditions (2) and (3).

Class 3.

Note that many robots, satellites, drones, and ships with m degrees of freedom can be represented by the equation:

$$M(q,p)\ddot{q}+K_a(q,\dot{q},p)\dot{q}+K_e(q,p)y=T_u(q)u+g(q,p)+T_d(q)d$$

(9)

where$q\in R^m$is the generalized coordinate vector,$u\in R^r$is the generalized control forces vector,$g\in R^m$is the generalized gravity forces vector,$d\in R^h$is the generalized disturbance forces vector,$M(q,p)\in R^{m\times m}$is the inertia matrix,$K_a(q,\dot{q},p)\dot{q}$is the vector of the damping, centrifugal and Coriolis forces,$K_e(q,p)q$is the vector of the possible stiffness forces,$T_u(q)\in R^{m\times r}$with$\mathrm{rank}(T_u)=m$,$T_d(q)\in R^{m\times h}$are transmission matrices of the generalized forces$u$and$d$, and, finally,$p\in \wp \subset R^{\mu }$is the vector of the uncertain parameters.

It is easy to verify that system (9) is of type (1) and that it can satisfy conditions (2) and (3).

Class 4.

Consider the system:

$$\begin{array}{l}\dot{x}=A(p)x+B(x,p)u+g(t,x,d,p)\\ y=C(p)x\end{array}$$

(10)

where$x\in R^{2m}$is the state,$u\in R^m$is the input,$y\in R^m$is the output,$d\in R^h$is the disturbance,$A,B,C$are matrices of appropriate dimensions,$g(t,x,p)\in R^n$is a nonlinear vector function and$p\in \wp \subset R^{\mu }$is the vector of the uncertain parameters. If:

$$CB=0,\hspace{1em}Cg=0,\hspace{1em}rank(M_O)=2m,\hspace{1em}\mathrm{where} M_O=\left[\begin{array}{c}C\\ CA\end{array}\right]$$

(11)

it is:

$$\dot{y}=C(p)A(p)x,\hspace{1em}x=M_O^{-1}\left[\begin{array}{c}y\\ \dot{y}\end{array}\right]$$

(12)

$$\begin{array}{ll}\ddot{y}& =C(p)A(p)\left(A(p)x+B(x,p)u+g(t,x,d,p)\right)=\\ & =C(p)A(p)\left(A(p)M_O^{-1}\left[\begin{array}{c}y\\ \dot{y}\end{array}\right]+B\left(M_O^{-1}\left[\begin{array}{c}y\\ \dot{y}\end{array}\right],p\right)u+g\left(t,M_O^{-1}\left[\begin{array}{c}y\\ \dot{y}\end{array}\right],d,p\right)\right)=\\ & =F(y,\dot{y},p)u+f(t,y,\dot{y},d,p)\end{array}$$

(13)

It can be readily verified that system (13) is of type (1) and it can satisfy conditions (2) and (3).

Class 5.

Consider the transformation:

$$x(t)=c(q(t)), q\in R^m,x\in R^m$$

(14)

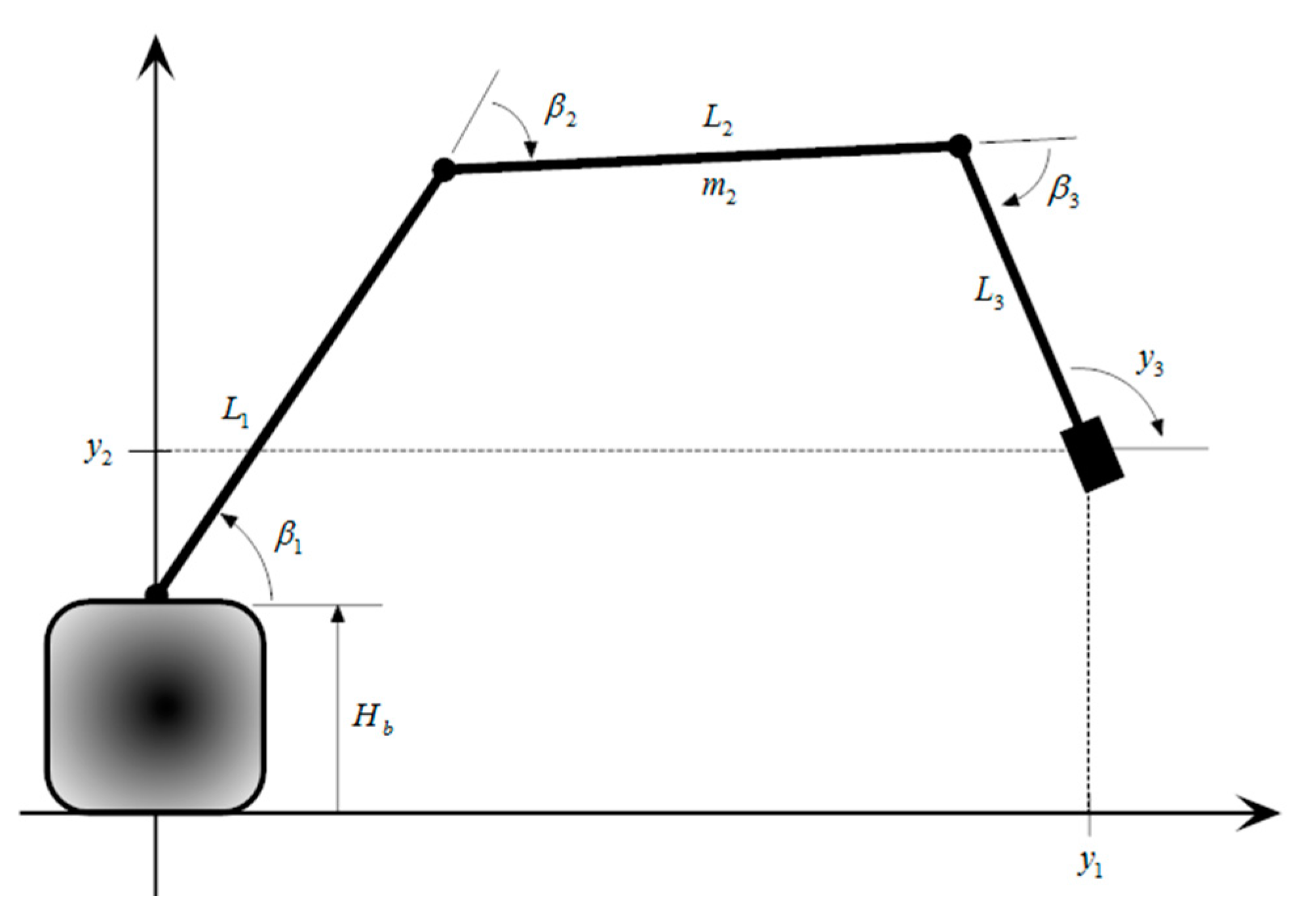

e.g., the coordinate transformation between the joint space and the workspace of a robot or consider the nonlinear equation$c(q)=x=$constant.

Let $x(t)$ a generic trajectory $r(t)$ with bounded second derivative, it is:

$$\epsilon =r-c(q),\hspace{1em}\dot{\epsilon }=\dot{r}-J(q)\dot{q},\hspace{1em}\mathrm{where} J(q)=\partial c/\partial q \mathrm{is} \mathrm{the} \mathrm{Jacobian} \mathrm{matrix} \mathrm{of} c(q)$$

(15)

Moreover:

$$\ddot{\epsilon }=-J(q)\ddot{q}+\ddot{r}-J_p(q,\dot{q})\dot{q},\hspace{1em}\mathrm{where} J_p(q,\dot{q})=dJ(q)/dt$$

(16)

By setting $\ddot{q}=J^{-1}(q)u, q=c^{-1}(r-\epsilon ), \dot{q}=J^{-1}\left(c^{-1}(r-\epsilon )\right)(\dot{r}-\dot{\epsilon })$ it can be verified that (16) is of type

$$\ddot{\epsilon }=-u+f(t,\epsilon ,\dot{\epsilon },\ddot{\epsilon }),\hspace{1em}f=\ddot{r}-J_p\left(c^{-1}(r-\epsilon ),J^{-1}\left(c^{-1}(r-\epsilon )\right)(\dot{r}-\dot{\epsilon })\right)J^{-1}\left(c^{-1}(r-\epsilon )\right)(\dot{r}-\dot{\epsilon })$$

(17)

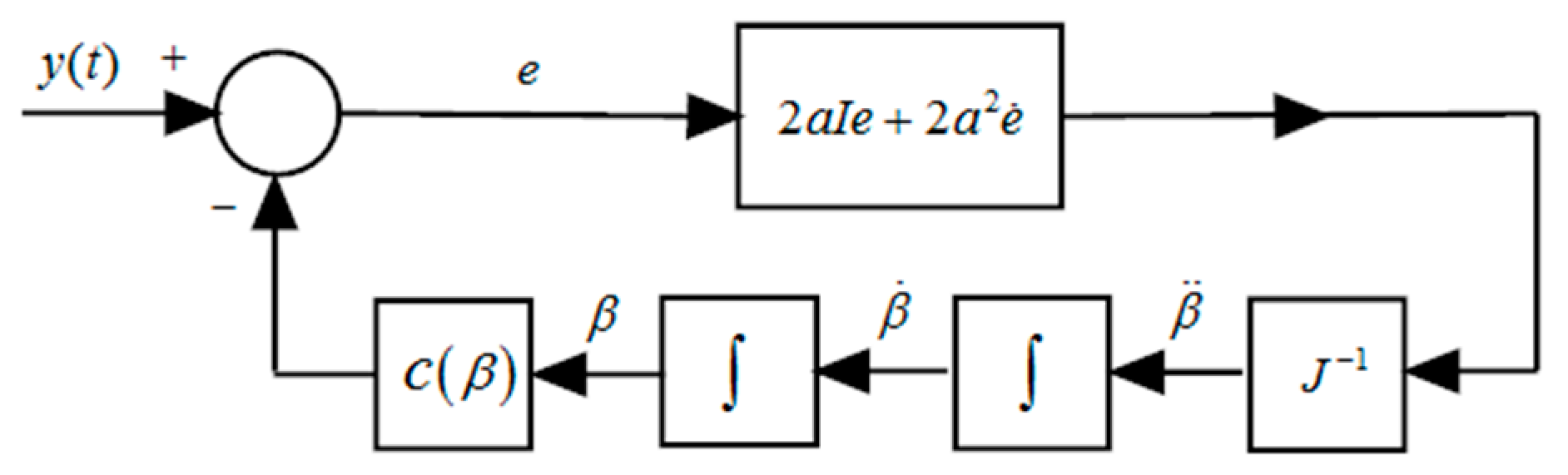

Hence the model of the inversion error of the transformation $x(t)=c(q(t))$ is of type (1), satisfies condition (2), and it can satisfy condition (3).

A possible control law, to force plant (1) to track a reference signal $r(t)\in R^m$ with bounded second derivative, is:

$$u(t)=G(t,y,\dot{y})\left(2a^{2}e(t)+2a\dot{e}(t)\right)+u_c$$

(18)

where $e(t)=r(t)-y(t)$, $G\in R^{r\times m}$, $a\in R^{+}$ and $u_c$ is a possible compensation signal, e.g., $u_c=F^{†}(t,\zeta ,\widehat{p})\left(\ddot{r}-f(t,\zeta ,\widehat{d},\widehat{p})\right)$ where $\zeta ={\left[\begin{array}{cc}{y}^T& {\dot{y}}^T\end{array}\right]}^T$ or $\zeta ={\left[\begin{array}{cc}{r}^T& {\dot{r}}^T\end{array}\right]}^T$, $F^{†}=F^T{(F{F}^T)}^{-1}$ is the pseudo-inverse of $F$ and $\widehat{p}, \widehat{d}$ are the nominal values of $p, d$.

Remark 1.

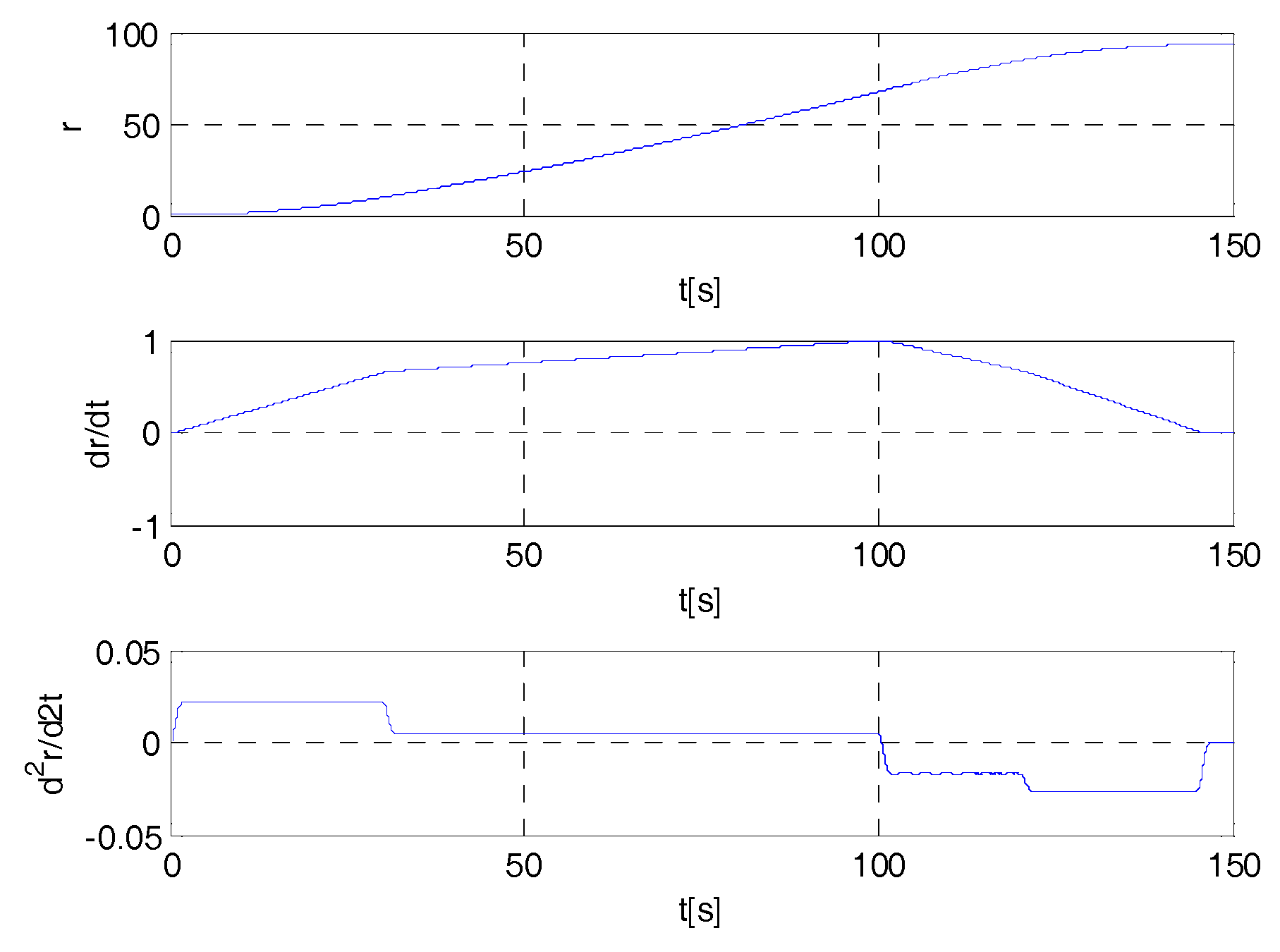

A reference signal$r(t)$with bounded second derivative can be obtained by interpolating a set of given points$(t_k, r_k), k=0, 1, \dots , n$with quadratic or cubic splines or by filtering any piecewise constant or piecewise linear signal$\tilde{r}(t)$with the following MIMO filter:

$$\dot{\zeta }=\left[\begin{array}{ccc}0& I& 0\\ 0& 0& I\\ -f_{1}I& -f_{2}I& -f_{3}I\end{array}\right]\zeta +\left[\begin{array}{c}0\\ 0\\ f_{1}I\end{array}\right]\tilde{r},\hspace{1em}\left[\begin{array}{c}r\\ \dot{r}\\ \ddot{r}\end{array}\right]=\left[\begin{array}{ccc}I& 0& 0\\ 0& I& 0\\ 0& 0& I\end{array}\right]\zeta$$

(19)

In this way, since$\dot{r}(t)$is available, the derivative action of the controller can be avoided, if$\dot{y}(t)$is measurable. Moreover, by suitably choosing the initial conditions of the filter and its cutoff frequency, it is possible to reduce the control action, above all during the transient phase.

It is worth noting that if the filter is a Bessel one with cutoff angular frequency${\omega }_b$larger or equal to the angular frequency of$\tilde{r}(t)$, then$r(t)\cong \tilde{r}(t-t_r), t_r=3\pi /(4{\omega }_b)$([34,35]).

By setting:

$$e=r-y,\hspace{1em}{x}_1=e,\hspace{1em}{x}_2=\dot{e},\hspace{1em}x={[x_1^T x_2^T]}^T$$

(20)

the plant (1) with the control law (18) is described by the following equations:

$$\begin{array}{l}\dot{x}=\left[\begin{array}{cc}0& I\\ -2a^{2}H& -2aH\end{array}\right]x+\left[\begin{array}{c}0\\ I\end{array}\right]w=Ax+Bw, x=\left[\begin{array}{c}{x}_1\\ x_2\end{array}\right]=\left[\begin{array}{c}e\\ \dot{e}\end{array}\right]\\ e=\left[\begin{array}{cc}I& 0\end{array}\right]x=C_{1}x,\hspace{1em}\dot{e}=\left[\begin{array}{cc}0& I\end{array}\right]x=C_{2}x,\end{array}$$

(21)

where:

$$H=FG,w=\ddot{r}-f-F{u}_c$$

(22)

To design the control law (18) in order to force plant (1) to track a reference signal $r(t)\in R^m$ with bounded second derivative, with tracking error norm smaller that a prescribed value, despite the presence of parametric and/or structural uncertainties and bounded disturbances, the following preliminary notations, definitions and lemmas are introduced.

$$\begin{array}{l}{\Vert x\Vert }_P=\sqrt{x^{T}Px}, \Vert x\Vert ={\Vert x\Vert }_I=\sqrt{x^{T}x}, S_{P, \rho }=\left\{x:{\Vert x\Vert }_P\le \rho \right\}, \rho \ge 0\\ C_{P, \rho }=\left\{x:{\Vert x\Vert }_P=\rho \right\}, {\widehat{C}}_{P, \rho }\supseteq C_{P, \rho }\end{array}$$

(23)

where $P\in R^{n\times n}$ is a symmetric and positive definite (p.d.) matrix, $x^T$ is the transpose of $x\in R^n$, ${\widehat{C}}_{P, \rho }$ is a compact set, ${\lambda }_{\max }(W) ({\lambda }_{\min }(W))$ is the maximum (minimum) eigenvalue of a square matrix $W\in R^{n\times n}$ with real eigenvalues.

Definition 1.

Given the system:

$$\begin{array}{l}\dot{x}=f(t,x,u,p), y=Cx\\ t\in \mathcal{T}=[0 , t_f]\subseteq R, x\in R^n, u\in R^r\\ p\in \wp \subset R^{\mu }, y\in R^m, C\in R^{m\times n}\end{array}$$

(24)

a constant$U\ge 0$and a$p. d.$symmetric matrix$P\in R^{n\times n}.$A positive first-order system:

$$\dot{\rho }=\phi \left(\rho , U\right), {\rho }_0={\Vert x_0\Vert }_P, Y=c\rho$$

(25)

where$\rho (t)={\Vert x(t)\Vert }_P$, such that$\Vert y(t)\Vert \le Y(t)$,$\forall t\in T$,$\forall u:\Vert u\Vert \le U$and$\forall p\in \wp$is said to be a majorant system of the system (24).

Remark 2.

It is worth noting that a majorant system of a system belonging to the class of the uncertain time-variant nonlinear systems (24) (which of course includes also the class of linear uncertain systems) is a time-invariant first-order system. So it can be used to easily solve numerous analysis and synthesis problems, such as the analysis of practical stability, the robust stabilization, the robust tracking (see also [21,34,35,38]).

Lemma 1.

Let$P\in R^{n\times n}$be a symmetric p.d. matrix,$Q(t,x,p)\in R^{n\times n}$be a symmetric matrix,$t\in [0, t_f]=T\subseteq R$, $x\in R^n$, $p\in \wp$, $\wp$be a compact subset of$R^{\mu }$,$w(t,x,p)\in R^m$be a vector continuous with respect to$t\in \mathcal{T}, x\in R^n$and$p\in \wp ,$$B\in R^{n\times r}$be a matrix of rank$r$and$C\in R^{m\times n}$be a matrix of rank m. Then,$\forall \rho \ge 0$and$\forall x\in C_{P,\rho }$, the following inequalities hold:

$$\underset{t\in T, x\in C_{P, \rho }, p\in \wp }{\max }{x}^{T}Q(t,x,p)x\le \underset{t\in T, x\in C_{P, \rho }, p\in \wp }{\max }{\lambda }_{\max }(Q(t,x,p)P^{-1}){\rho }^2\le \underset{t\in T, x\in {\widehat{C}}_{P, \rho }, p\in \wp }{\max }{\lambda }_{\max }(Q(t,x,p)P^{-1}){\rho }^2$$

(26)

$$\underset{t\in T, x\in C_{P, \rho }, p\in \wp }{\max }{x}^{T}PBw(t,x,p)\le \sqrt{{\lambda }_{max}(B^{T}PB)} \rho \underset{t\in T, x\in C_{P, \rho }, p\in \wp }{\max }\Vert w(t,x,p)\Vert \le \sqrt{{\lambda }_{max}(B^{T}PB)} \rho \underset{t\in T, x\in {\widehat{C}}_{P, \rho }, p\in \wp }{\max }\Vert w(t,x,p)\Vert$$

(27)

$$\Vert Cx\Vert \le \sqrt{{\lambda }_{\max }(C{P}^{-1}{C}^T)} \rho$$

(28)

Proof.

See Lemmas 1 and 3 in [21]. ☐

Lemma 2.

Consider a matrix function$H(p)\in R^{m\times m}$, with$p={[p_1 p_2 \cdots p_3 p_{\mu }]}^T\in \wp \subset R^{\mu }$, defined as a ratio of a multi-affine matrix function to a multi-affine non null polynomial:

$$H(p)=\left({\displaystyle \sum _{i_1,i_2,\cdots ,i_{\mu }\in \left\{0,1\right\}}{H}_{i_1,i_2,\cdots ,i_{\mu }}{p}_1^{i_1}{p}_2^{i_2}\cdots p_{\mu }^{i_{\mu }}}\right)/\left({\displaystyle \sum _{i_1,i_2,\cdots ,i_{\mu }\in \left\{0,1\right\}}{h}_{i_1,i_2,\cdots ,i_{\mu }}{p}_1^{i_1}{p}_2^{i_2}\cdots p_{\mu }^{i_{\mu }}}\right)$$

(29)

where$H_{i_1,i_2,\cdots ,i_{\mu }}\in R^{m\times m}$and$h_{i_1,i_2,\cdots ,i_{\mu }}\in R$. Suppose that$\wp$is an hyper-rectangle given by$\wp =\left[\begin{array}{cc}{p}_1^{-},& p_1^{+}\end{array}\right]\times \left[\begin{array}{cc}{p}_2^{-},& p_2^{+}\end{array}\right]\times \cdots \times \left[\begin{array}{cc}{p}_{\mu }^{-},& p_{\mu }^{+}\end{array}\right]=\left[\begin{array}{cc}{p}^{-},& p^{+}\end{array}\right]$.

Then, $\underset{p\in \wp }{\min }{\lambda }_{\min }\left(H+H^T\right)$ $(\underset{p\in \wp }{\max }{\lambda }_{\max }\left(H+H^T\right))$ is attained in one of the $2^{\mu }$ vertices $V_p$ of $\wp$.

Proof.

The proof follows from Theorem 1 in [44] by setting $P=I$ and $Q=H+H^T$. ☐

Lemma 3.

Let:

$$H(p)=\left({\displaystyle \sum _{i_1,i_2,\cdots ,i_{\mu }\in \left\{0,1,2\right\}}{H}_{i_1,i_2,\cdots ,i_{\mu }}{p}_1^{i_1}{p}_2^{i_2}\cdots p_{\mu }^{i_{\mu }}}\right)/\left({\displaystyle \sum _{i_1,i_2,\cdots ,i_{\mu }\in \left\{0,1,2\right\}}{h}_{i_1,i_2,\cdots ,i_{\mu }}{p}_1^{i_1}{p}_2^{i_2}\cdots p_{\mu }^{i_{\mu }}}\right),\hspace{1em}{H}_{i_1,i_2,\cdots ,i_{\mu }}\in R^{m\times m},\hspace{1em}{h}_{i_1,i_2,\cdots ,i_{\mu }}\in R$$

(30)

be a matrix function, ratio of a quadratic matrix function to a quadratic non null polynomial with respect to the parameters ${[p_1 p_2 \cdots p_{\mu }]}^T=p\in \wp =[p^{-}, p^{+}]$. Then a lower estimate of$\underset{p\in \wp }{{\lambda }_{\min }}\left(H^T(p)+H(p)\right)$(an upper estimate of$\underset{p\in \wp }{{\lambda }_{\max }}\left(H(p)+H^T(p)\right)$) is given by$\underset{p\in V_{ap}}{\min }{\lambda }_{\min }\left(H^T(p_a)+H(p_a)\right)$$(\underset{p\in V_{ap}}{\max }{\lambda }_{\max }\left(H^T(p_a)+H(p_a)\right))$, where$V_{ap}$is the set of$2^{2\mu }$vertices of and$H_a(p_a)$is obtained from matrix$H(p)$by replacing$p_i^2$with the product$p_i{p}_{\mu +i}$,$i=1, 2, \dots , \mu$.

Proof.

The proof follows from Corollary 1 in [44] by setting $P=I$ and $Q=H+H^T$. ☐

Lemma 4.

Let:

$$H(g(\pi ))=\left({\displaystyle \sum _{i_1,i_2,\cdots ,i_{\mu }\in \left\{0,1\right\}}{H}_{i_1,i_2,\cdots ,i_{\mu }}g{(\pi )}_1^{i_1}g{(\pi )}_2^{i_2}\cdots g{(\pi )}_{\mu }^{i_{\mu }}}\right)/\left({\displaystyle \sum _{i_1,i_2,\cdots ,i_{\mu }\in \left\{0,1\right\}}{h}_{i_1,i_2,\cdots ,i_{\mu }}g{(\pi )}_1^{i_1}g{(\pi )}_2^{i_2}\cdots g{(\pi )}_{\mu }^{i_{\mu }}}\right)$$

(31)

be a$m\times m$nonsingular function matrix, where$g={[g_1 g_1 \dots g_{\mu }]}^T$,$\pi \in \mathsf{\Pi }\subset R^{\nu }$,$\mathsf{\Pi }$is a compact set and each function$g_i, i=1,2,..,\mu$is continuous with respect to$\pi$Then, a lower estimate of$\underset{\pi \in \mathsf{\Pi }}{{\lambda }_{\min }}\left(H(g(\pi ))+H^T(g(\pi ))\right)$(an upper estimate of$\underset{\pi \in \mathsf{\Pi }}{{\lambda }_{\max }}\left(H(g(\pi ))+H^T(g(\pi ))\right)$) is given by$\underset{p\in \wp }{\min }{\lambda }_{\min }\left(H(p)+H^T(p)\right)$($\underset{p\in \wp }{\max }{\lambda }_{\max }\left(H(p)+H^T(p)\right)$), which is attained in one of the vertices of $\wp =\{p\in R^{\mu }:{[\min g_1\cdots \min g_{\mu }]}^T\le p\le {[\max g_1\cdots \max g_{\mu }]}^T\}$.

Proof.

The proof follows from Corollary 2 in [44] by setting $P=I$ and $Q=H+H^T$. ☐

Lemma 5.

Let$P\in R^{2m\times 2m}$be a symmetric p.d. matrix,$r\in R^m$a reference signal with bounded second derivative and$u_c$a compensation signal such that$\Vert \ddot{r}-f-F{u}_c\Vert \le \Vert \ddot{r}-f\Vert$. Then if$\Vert f(t, \xi ,d,p)\Vert \le {\phi }_{{\gamma }_0}\left(\Vert \xi \Vert \right)$where$\xi ={\left[y^T {\dot{y}}^T\right]}^T$and${\phi }_{{\gamma }_0}$is a function of class$K_{{\gamma }_0}$then:

$$\Vert w\Vert =\Vert \ddot{r}-f-F{u}_c\Vert \le {\psi }_{{\gamma }_c}\left({\Vert x\Vert }_P\right)$$

(32)

where$x={\left[e^T {\dot{e}}^T\right]}^T={\left[{(r-y)}^T {(\dot{r}-\dot{y})}^T\right]}^T$and${\psi }_{{\gamma }_c}$is a function of class$K_{{\gamma }_c}$, with${\gamma }_c=\max \Vert \ddot{r}\Vert +{\phi }_{{\gamma }_0}\left(\max {\Vert {\left[r^T {\dot{r}}^T\right]}^T\Vert }_P/{\lambda }_{\min }(P)\right)$.

Proof.

Note that $\Vert \xi \Vert \le {\Vert \xi \Vert }_P/{\lambda }_{\min }(P)={\Vert {\left[r^T {\dot{r}}^T\right]}^T-x\Vert }_P/{\lambda }_{\min }(P)\le \left({\Vert x\Vert }_P+\max {\Vert {\left[r^T {\dot{r}}^T\right]}^T\Vert }_P\right)/{\lambda }_{\min }(P)$ Hence:

$$\Vert \ddot{r}-f-F{u}_c\Vert \le \Vert \ddot{r}-f\Vert \le \Vert \ddot{r}\Vert +\Vert f\Vert \le \Vert \ddot{r}\Vert +{\phi }_{{\gamma }_0}\left(\Vert \xi \Vert \right)\le \Vert \ddot{r}\Vert +{\phi }_{{\gamma }_0}\left(\left({\Vert x\Vert }_P+\max {\Vert {\left[r^T {\dot{r}}^T\right]}^T\Vert }_P\right)/{\lambda }_{\min }(P)\right)\le {\psi }_{{\gamma }_c}\left({\Vert x\Vert }_P\right).$$

(33)

 ☐

3. Main Results

This section presents the main theorems and results, providing a general approach to designing smooth robust controllers for a system (1) to track a sufficiently smooth reference signal with error norm smaller than a prescribed value.

Theorem 1.

Consider the uncertain nonlinear dynamic system (1), satisfying conditions (1), (2) and controlled with the control law (18), i.e., the following:

$$\begin{array}{l}\dot{x}=\left[\begin{array}{cc}0& I\\ -2a^{2}H& -2aH\end{array}\right]x+\left[\begin{array}{c}0\\ I\end{array}\right]w=Ax+Bw\\ e=\left[\begin{array}{cc}I& 0\end{array}\right]x=C_{1}x, \dot{e}=\left[\begin{array}{cc}0& I\end{array}\right]x=C_{2}x\end{array}$$

(34)

where:

$$H=FG, w=\ddot{r}-f-F{u}_c$$

(35)

Then, if$\ddot{r}$is bounded and the possible compensation signal$u_c$is such that$\Vert \ddot{r}-f-F{u}_c\Vert \le \Vert \ddot{r}-f\Vert$a majorant system of the closed loop system (34) is:

$$\begin{array}{l}\dot{\rho }=-a\rho +{\psi }_{{\gamma }_c}\left(\rho \right)=\chi \left(\rho \right)\\ \Vert e\Vert =\frac{\rho }{a}, \Vert \dot{e}\Vert =\sqrt{2}\rho \end{array}$$

(36)

where$\rho ={\Vert x\Vert }_P$, with:

$$P=\left[\begin{array}{cc}2a^{2}I& aI\\ aI& I\end{array}\right], a>0$$

(37)

and${\psi }_{{\gamma }_c}$is a function of class$K_{{\gamma }_c}$, with${\gamma }_c=\max \Vert \ddot{r}\Vert +{\phi }_{{\gamma }_0}\left(\max {\Vert {\left[r^T {\dot{r}}^T\right]}^T\Vert }_P/{\lambda }_{\min }(P)\right)$.

Proof.

By choosing as “Lyapunov function” the quadratic form $x^{T}Px={\Vert x\Vert }_P^2={\rho }^2$, for $x$ belonging to the generic hyper-circumference $C_{P,\rho }$, its derivative satisfies the following inequalities:

$$2\rho \dot{\rho }\le \max \left(x^{T}Qx+2x^{T}PBw\right)\le \max \left(x^{T}Qx\right)+\max \left(2x^{T}PBw\right), Q=A^{T}P+PA$$

(38)

from which, for (26) and (27) of Lemma 1, it follows that:

$$\dot{\rho }\le \max \lambda (Q{P}^{-1})\rho /2+\sqrt{{\lambda }_{\max }(B^{T}PB})\max \Vert w\Vert$$

(39)

Since:

$$P^{-1}=\left[\begin{array}{cc} I/a^2& -I/a\\ -I/a& 2I\end{array}\right]$$

(40)

if ${\lambda }_{\min }\left(H+H^T\right)\ge 2$, after certain mathematical steps, then:

$$\max \lambda (Q{P}^{-1})=\max \lambda \left[A^T+PA{P}^{-1}\right]=\max \lambda \left(\left[\begin{array}{cc}-2aI& 2a^2(2I-H-H^T)\\ 0& -2a(H+H^T-I)\end{array}\right]\right)=-2a$$

(41)

Moreover, it is easy to verify that:

$$\sqrt{{\lambda }_{max}(B^{T}PB)}=1, \sqrt{{\lambda }_{max}(C_1{P}^{-1}{C}_1^T)}=\frac{1}{a}, \sqrt{{\lambda }_{max}(C_2{P}^{-1}{C}_2^T)}=\sqrt{2}$$

(42)

hence:

$$\dot{\rho }\le -a\rho +\max \Vert w\Vert$$

(43)

The proof follows from (43), from (32) of Lemma 5 and by noting that, for x belonging to the generic hyper-circumference $C_{P,\rho }$ from (28) of Lemma 1 and (42) it is:

$$\Vert e\Vert \le \frac{\rho }{a},\hspace{1em}\Vert \dot{e}\Vert \le \sqrt{2}\rho$$

(44)

 ☐

Theorem 1 allows one to establish the following significant theorems.

Theorem 2.

Consider the system (34). If hypotheses of Theorem 1 are satisfied then, for$\forall a\ge \stackrel{⌣}{a}$, the following inequalities hold:

$$\begin{array}{l}\rho (t)\le {\rho }_1,\forall {\rho }_0\le {\rho }_1;\underset{t\to \infty }{\lim }\rho (t)\le {\rho }_1,\forall {\rho }_0\in \left[{\rho }_1,{\rho }_2\right)\\ \Vert e(t)\Vert \le \frac{{\rho }_1}{a},\forall {\rho }_0\le {\rho }_1;\underset{t\to \infty }{\lim }\Vert e(t)\Vert \le \frac{{\rho }_1}{a},\forall {\rho }_0\in \left[{\rho }_1,{\rho }_2\right)\\ \Vert \dot{e}(t)\Vert \le \sqrt{2}{\rho }_1,\forall {\rho }_0\le {\rho }_1;\underset{t\to \infty }{\lim }\Vert \dot{e}(t)\Vert \le \sqrt{2}{\rho }_1,\forall {\rho }_0\in \left[{\rho }_1,{\rho }_2\right)\end{array}$$

(45)

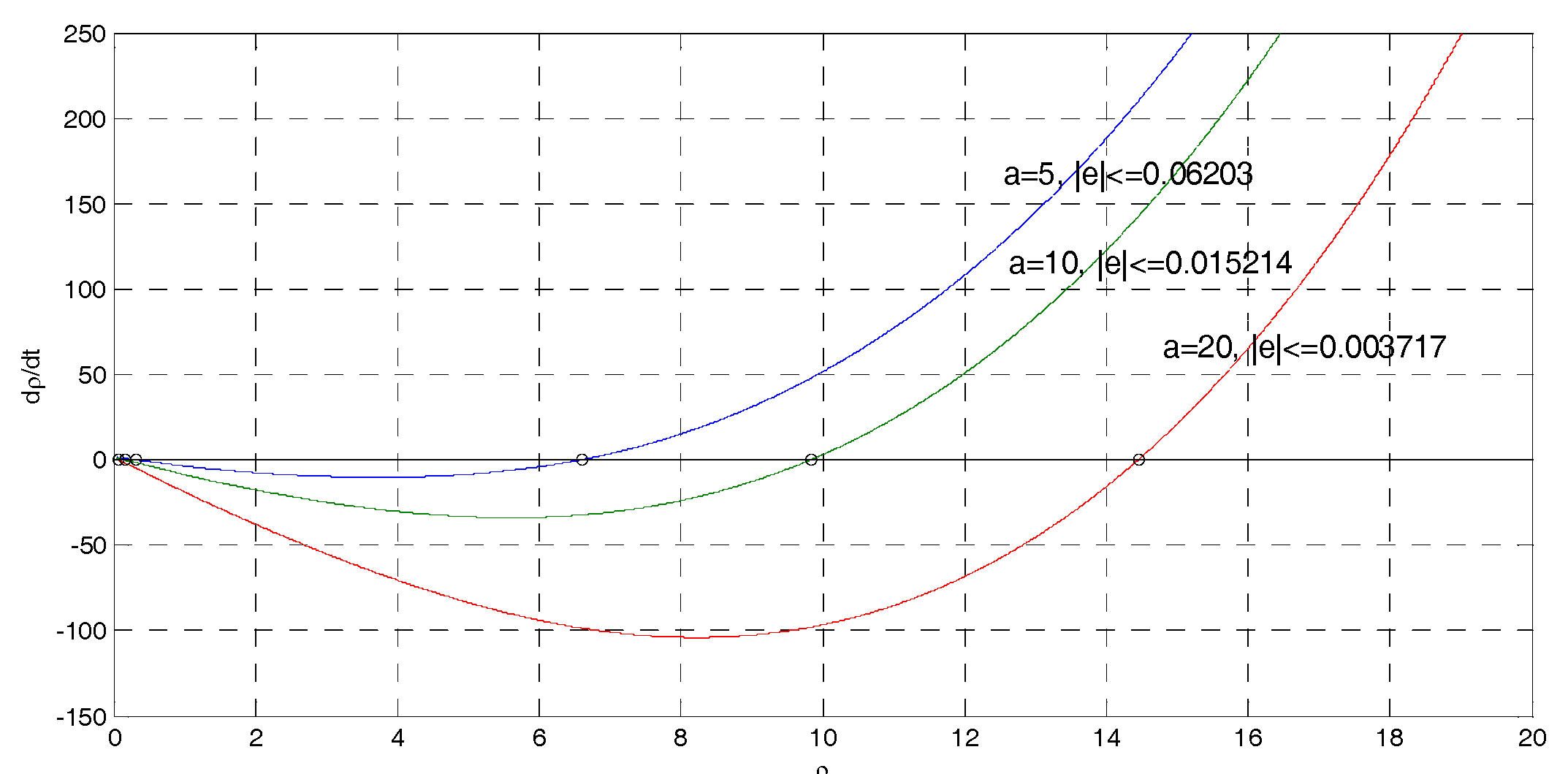

where$\stackrel{⌣}{a}$is the value of$a$for which the line$\dot{\rho }=a\rho$is tangent to the curve$\dot{\rho }={\psi }_{{\gamma }_c}\left(\rho \right)$and${\rho }_1, {\rho }_2$,${\rho }_1<{\rho }_2$are the smallest equilibrium points of the majorant system (36) (see Figure 2).

Proof.

The proof easily follows by using the Lyapunov function $V={\rho }^2$ or by noting that in the interval $({\rho }_1, {\rho }_2)$ $\rho (t)$ is decreasing (see Figure 2, as well). ☐

It is worth noting that for sufficiently large $a$ from Theorem 2 it is ${\rho }_1\cong {\gamma }_c/a.$ Hence, for sufficiently large $a$, if ${\Vert x(0)\Vert }_P\le {\rho }_1$ then:

$$\Vert e(t)\Vert \le \frac{{\rho }_1}{a}\cong \frac{{\gamma }_c}{a^2},\hspace{1em}\Vert \dot{e}(t)\Vert \le \sqrt{2}{\rho }_1\cong \frac{\sqrt{2}{\gamma }_c}{a},\hspace{1em}\forall t\ge 0$$

(46)

Remark 3.

From (46) and Theorem 2 it follows that, for sufficiently large$a$and for sufficiently large$t$, $\forall {\Vert x_0\Vert }_P<{\rho }_2$the error norm decreases with respect to parameter$a$with an almost quadratic behavior, and the derivative error norm decreases, always with respect to parameter$a$, with an almost linear behavior.

Remark 4.

Note that the time constant${\tau }_l$of the linearized model of the majorant system$\dot{\rho }=\chi \left(\rho \right)$(36) around the equilibrium point${\rho }_1$for sufficiently large$a$is${\tau }_l\cong 1/a$.

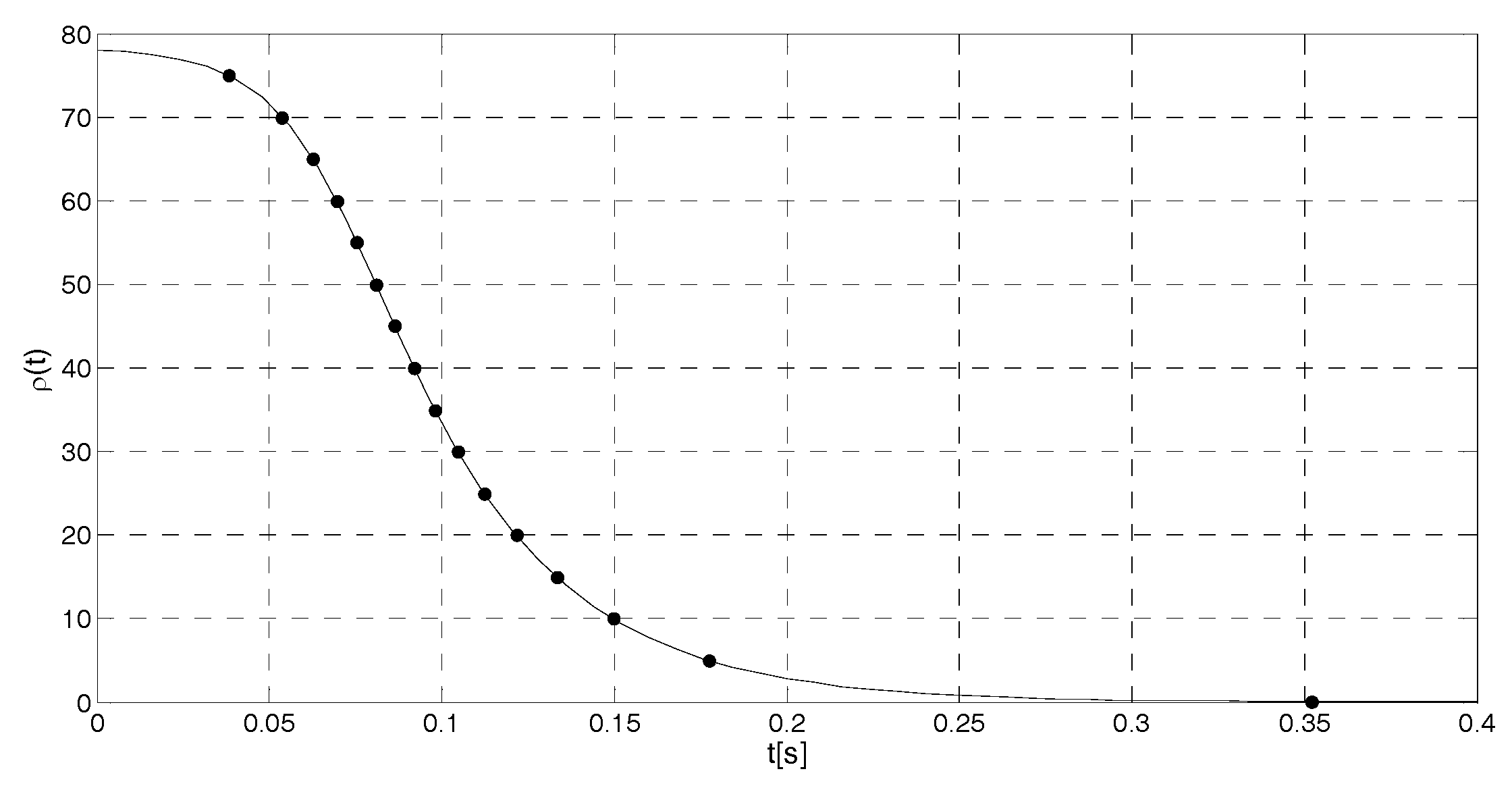

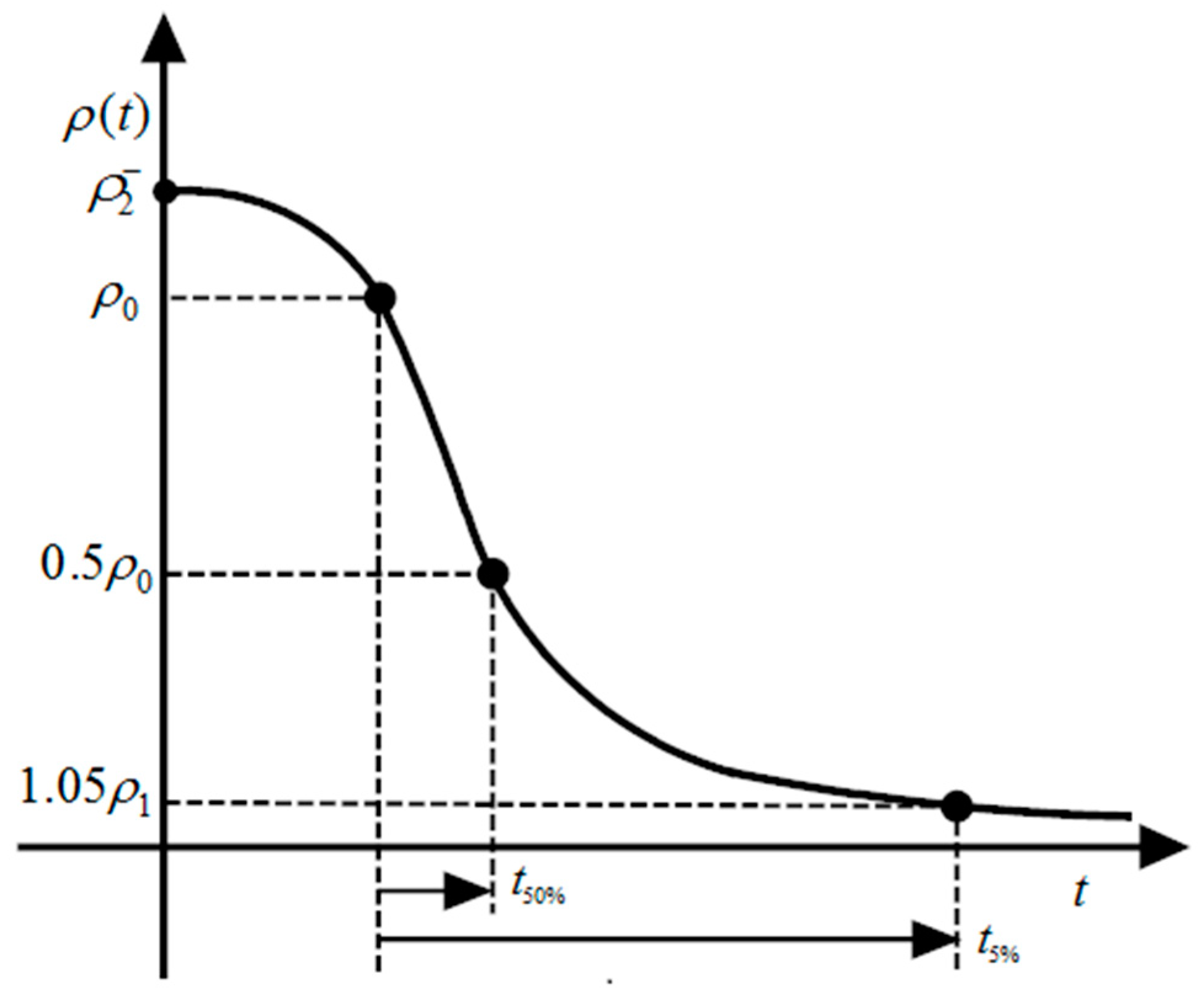

By integrating the equation $\dot{\rho }=\chi \left(\rho \right)$ with initial condition ${\rho }_2^{-}<{\rho }_2$ it is possible to obtain the “half time” $t_{50\%}$ and a “settling time” $t_{5\%}$ for any ${\rho }_0<{\rho }_2^{-}$ shown in Figure 3.

Remark 5.

Note that if$F$and$f$are independent of$p$and$f(t,y,\dot{y},d)=\overline{f}(t,y,\dot{y})+d$by using the linearizing control law:

$$u=F^{†}(h2a^{2}Ie+h2aI\dot{e}+\ddot{r}-\overline{f}),$$

(47)

where$F^{†}=F^T{(F{F}^T)}^{-1}$is the pseudo-inverse of F, the closed-loop control system (1), (47) becomes:

$$\dot{x}=\left[\begin{array}{cc}0& I\\ -h2a^{2}I& -h2aI\end{array}\right]x+\left[\begin{array}{c}0\\ I\end{array}\right](-d), e=\left[\begin{array}{cc}I& 0\end{array}\right]x, \dot{e}=\left[\begin{array}{cc}0& I\end{array}\right]x.$$

(48)

It is easy to prove that the control system (48) has the following properties:

(a)

if $h=1:$

-

behavior of a Butterworth filter with angular frequency ${\omega }_b=\sqrt{2}a$;

-

time constant $\tau =1/a$;

-

overshoot equal to 4.32%;

-

damping ratio $\zeta =\sqrt{2}/2$;

-

forced responses:

$$\begin{array}{l}\Vert e(t)\Vert <{\displaystyle {\int }_0^{\infty }\left|e^{-at}\sin (at)dt\right|}\cdot \max \Vert \ddot{r}\Vert \le \frac{0.545}{a^2}\max \Vert d\Vert \\ \Vert \dot{e}(t)\Vert <{\displaystyle {\int }_0^{\infty }\left|\frac{d}{dt}\left(e^{-at}\sin (at)\right)dt\right|}\cdot \max \Vert d\Vert \le \frac{0.674}{a}\max \Vert d\Vert .\end{array}$$

(49)

(b)

if $h>1$:

-

cutoff angular frequency ${\omega }_b\in [a, \sqrt{2}a]$;

-

max time constant ${\tau }_{\max }\in \left[1/2a, 1/a\right]$;

-

overshoot $\le$ 4.32%;

-

damping ratio $\zeta \le \sqrt{2}/2$;

-

forced responses:

$$\begin{array}{l}\Vert e(t)\Vert \le \frac{\left[0.5, 0.545\right]}{h{a}^2}\max \Vert d\Vert \\ \Vert \dot{e}(t)\Vert \le \frac{\left[0.674, 1\right]}{ha}\max \Vert d\Vert .\end{array}$$

(50)

The proposed control law is also robust with respect to a possible bounded measurement noise $n_{\dot{y}}$ on $\dot{y}$ as it is shown by the following theorem.

Theorem 3.

Consider the uncertain nonlinear dynamic system (1), satisfying conditions (1), (2), and controlled with the control law (18). If$\dot{y}$is affected by a bounded measurement noise$n_{\dot{y}}$, the rate of$\Vert e\Vert$due to the noise$n_{\dot{y}}$, for sufficiently large$a$is inversely proportional to$a$.

Proof.

If $\dot{y}$ is affected by a bounded measurement noise $n_{\dot{y}}$ the term $\Vert 2aH{n}_{\dot{y}}\Vert$ must be added to ${\gamma }_c$. From (46), for sufficiently large $a$, $\Vert e\Vert$ is inversely proportional to $a^2$. Hence, the rate of $\Vert e\Vert$ due to the noise $n_{\dot{y}}$, for sufficiently large $a$ is inversely proportional to $a$. ☐

Remark 6.

To design the controller it is essential to determine a matrix$G$satisfying condition (2). Since, in many practical cases, the matrix$F$is the ratio of a multi-affine or quadratic matrix function to a multi-affine or quadratic non-null polynomial with respect to the uncertain parameters and respect to bounded functions, the determination of$G$can be easily made by using Lemmas 2, 3 and 4, with:

(i)

$G=gI, g>0$ in the hypothesis that$F$is a p.d. matrix (in the case of (4) and (9));

(ii)

$G=g{J}^T, g>0$where$J$is the Jacobian matrix of a suitable coordinate transformation (e.g., the case of robots in their workspace or equipped with cameras used as sensors, in the cases of ships, drones, or satellites);

(iii)

$G=F^{†}=F^T{(F{F}^T)}^{-1}$if$F$is independent of$p$(e.g., in the case of kinematic inversion) or, by evaluating$G$in correspondence of the nominal value$\widehat{p}$of$p$, in the hypothesis that the variations of$p$are sufficiently bounded;

(iv)

other more suitable matrices$G$(see Application 3).

Remark 7.

After verifying that $f$ satisfies the bounding condition of class $K_{{\gamma }_0}$ (2) and determining a matrix $G$ satisfying the positivity condition (1), since the tracking error decreases when $a$ increases, the single parameter $a$ can be determined via simulation or experimentally for an assigned class of references $r$.

Remark 8.

Inequalities used to prove Theorems 1, 2, 3 (especially to prove that when the design parameter a increases the tracking error norm is inversely proportional to$a^2$) can make very conservative the stated results. A much less conservative estimate of the tracking error norm, i.e., providing smaller values of${\rho }_1$and larger values of${\rho }_2$, by taking into account that$2\rho \dot{\rho }=2x^{T}P\dot{x}$can be obtained by using the following relation:

$$\dot{\rho }=\chi (\rho )=\underset{x\in C_{P, \rho }, p\in \wp ,T\in [0, t_f]}{\max }{x}^{T}P(Ax+Bw)/\rho$$

(51)

that does not use any inequality. The offline use of (51) provides an error much near to the true one, as it turns out to be from Applications 3 and 4, and Examples 2 and 3 in [34].

The determination of the majorant system by using (51) can be easily made by using the Matlab command “fmincon” (which finds a constrained minimum of a function F(X) of several variables and, hence, also a constrained maximum changing the sign to F(X)) and/or by using randomized algorithms (e.g., see [22]).

Note that the current problem is not the computational burden of the controller design, but its simplicity of realization and its effectiveness.

Remark 9.

To reduce the gains of the controller and the control signal, above all during the transient phase, it is possible to:

1.

smooth the trajectories with appropriate filters and suitable initial conditions;

2.

better identify the process parameters and the disturbances, and use a compensation signal$u_c$to reduce the norm of$w$;

3.

use a connection trajectory if the initial error is excessive [35];

4.

slow down$r(t)$, i.e., replace the reference signal$r(t)$by$r(st), \mathrm{with} s<1$.

Moreover, consider also the following advantages (see (45) and (46), (49) and (50), Applications 1–4, Example 6 in the Appendix A and [16,19,34,35,38]):

• the control signals are without the chattering phenomenon, since the proposed control law does not present discontinuities and does not have high gains,
• the proposed control laws can be also realized by using simple analogical circuits,
• the stated theoretical results are useful to obtain other analytical and synthetic results, significant both from a theoretical and practical point of view, and to analyze complex systems with parametric and structural uncertainties.

4. Cases Study

The results provided in the preceding section are illustrated through some interesting applications.

Application 1.

Consider the electronic circuit in Figure 4. In the hypothesis that the considered transistor is a BJT described by the equations:

$$\begin{array}{l}{i}_1=\frac{I_s}{{\beta }_F}\left(e^{v_1/v_T}-1\right)+\frac{I_s}{{\beta }_R}\left(e^{(v_1-v_2)/v_T}-1\right)=g_1(v_1, v_2)\\ i_2=I_s\left(e^{v_1/v_T}-1\right)-\frac{I_s}{\frac{{\beta }_R}{1+{\beta }_R}}\left(e^{(v_1-v_2)/v_T}-1\right)=g_2(v_1, v_2)\end{array}$$

(52)

applying the Kirchhoff’s principles and the Thevenin’s theorem the model becomes:

$$\begin{array}{l}{R}_c{g}_2(v_1,v_2)+v_2+R_e\left(g_1(v_1,v_2)+g_2(v_1,v_2)\right)-V_a=c_1(v_1,v_2)=0\\ \frac{R_{b1}{R}_{b2}}{R_{b1}+R_{b2}}{g}_1(v_1,v_2)+v_1+R_e\left(g_1(v_1,v_2)+g_2(v_1,v_2)\right)-\frac{V_a{R}_{b1}}{R_{b1}+R_{b2}}=c_2(v_1,v_2)=0\end{array}$$

(53)

A goal is to determine the working point $\widehat{v}={\left[\begin{array}{cc}{\widehat{v}}_1& {\widehat{v}}_2\end{array}\right]}^T$ i.e., the solution of the nonlinear equations system:

$$\left(\begin{array}{c}{c}_1(v_1,v_2)\\ c_1(v_1,v_2)\end{array}\right)=c(v_1,v_2)=0$$

(54)

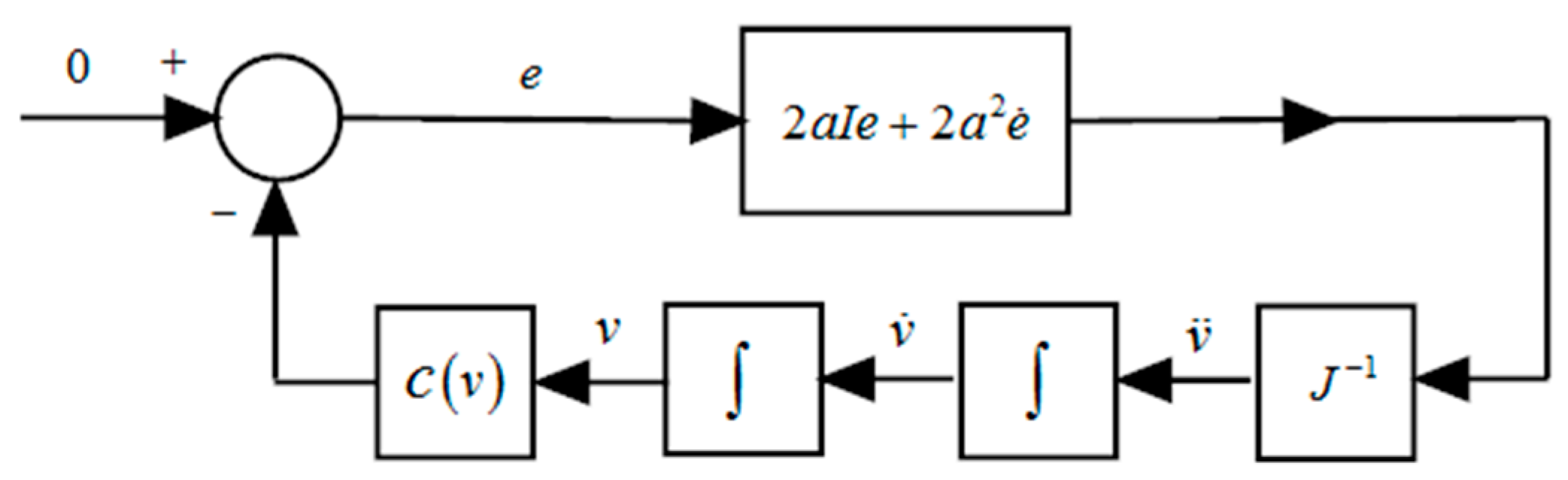

Based on (17) and Theorems 1 and 2 the value of $\widehat{v}$ can be obtained by integrating the control scheme in Figure 5.

Under the following hypotheses:

$$\begin{array}{l}{I}_s=1e^{-13}\mathrm{A},\hspace{1em}{v}_T=\frac{300}{{11}^{.}600}\mathrm{V},\hspace{1em}{\beta }_F=100,\hspace{1em}{\beta }_R=0.5\\ R_c=3\mathrm{k}\mathsf{\Omega },\hspace{1em}{R}_e=900\mathsf{\Omega },\hspace{1em}{R}_{b1}=1.70\mathrm{k}\mathsf{\Omega },\hspace{1em}{R}_{b2}=8.30\mathrm{k}\mathsf{\Omega },\hspace{1em}{V}_a=12\end{array}$$

(55)

by numerically computing the Jacobian matrix as follows:

$$J=\left(\begin{array}{cc}\frac{c_1(v_1+0.01,v_2)-c_1(v_1-0.01,v_2)}{0.02}& \frac{c_1(v_1,v_2+0.1)-c_1(v_1,v_2-0.1)}{0.2}\\ \frac{c_2(v_1+0.01,v_2)-c_2(v_1-0.01,v_2)}{0.02}& \frac{c_2(v_1,v_2+0.1)-c_2(v_1,v_2-0.1)}{0.2}\end{array}\right)$$

(56)

with $a=30$, ${\dot{v}}_0=0$ and by using the Matlab solver ode45 with variable-step, after 1.2 s the results reported in

Table 1. Values of $\widehat{v}$ and $c(\widehat{v})$ for several $v_0.$

${\mathit{v}}_0$	$\mathit{c}({\mathit{v}}_0)$	$\widehat{\mathit{v}}$	$\mathit{c}(\widehat{\mathit{v}})$
$\left[\begin{array}{c}0\\ 0\end{array}\right]$	$\left[\begin{array}{c} -12.000000000000000\\ -2.040000000000000\end{array}\right]$	$\left[\begin{array}{c}0.60687199846390\\ 5.931278656205906\end{array}\right]$	$\left[\begin{array}{c}0.127767840751858\\ 0.030172309095633\end{array}\right]{10}^{-8}$
$\left[\begin{array}{c}0.5\\ 5\end{array}\right]$	$\left[\begin{array}{c}-6.902629890911657\\ -1.517006057883000\end{array}\right]$	$\left[\begin{array}{c}0.606871998469258\\ 5.931278656228555\end{array}\right]$	$\left[\begin{array}{c}-0.355271367880050\\ -0.088817841970013\end{array}\right]{10}^{-14}$
$\left[\begin{array}{c}1\\ 10\end{array}\right]$	$\left[\begin{array}{c}2.425412444463312\\ 0.572760874825921\end{array}\right]$	$\left[\begin{array}{c}0.606871998507988\\ 5.931278656392560\end{array}\right]$	$\left[\begin{array}{c}-0.925230914106123\\ -0.218493267922781\end{array}\right]{10}^{-8}$

are obtained.

Application 2.

Consider the planar robot in Figure 6.

The goal is to realize the object in Figure 7 with the following time histories in the workspace:

$$y(t)=\left(\begin{array}{c}{y}_1(t)\\ y_2(t)\\ y_2(t)\end{array}\right)=\left(\begin{array}{c}0.3\sin (2\pi t/10)+0.15\sin (6\pi t/10)+0.50\\ 0.50\sin (2\pi t/10)+0.30\\ -\raisebox{1ex}{$\pi $}\!\left/ \!\raisebox{-1ex}{$10$}\right.\cos (\pi t/10)-\raisebox{1ex}{$\pi $}\!\left/ \!\raisebox{-1ex}{$2$}\right.\end{array}\right)=c\left(\beta (t)\right), \beta (t)=\left(\begin{array}{c}{\beta }_1(t)\\ {\beta }_2(t)\\ {\beta }_2(t)\end{array}\right), t\in [0,10]$$

(57)

The time history of the trajectory in the joint space $\beta (t)=c^{-1}\left(y(t)\right)$ can be obtained by integrating the control scheme in Figure 8, much easier than the ones proposed in ([10,11,13,33] and the related references therein), where:

$$y(t)=c\left(\beta (t)\right)=\left(\begin{array}{c}{L}_1\cos {\beta }_1+L_2\cos ({\beta }_1+{\beta }_2)+L_3\cos ({\beta }_1+{\beta }_2+{\beta }_3)\\ H_b+L_1\sin {\beta }_1+L_2\sin ({\beta }_1+{\beta }_2)+L_3\sin ({\beta }_1+{\beta }_2+{\beta }_3)\\ {\beta }_1+{\beta }_2+{\beta }_3\end{array}\right), J=\frac{\partial c}{\partial \beta }$$

(58)

the value of ${\beta }_0$ can be determined by using the method presented in Application 1 and the value of ${\dot{\beta }}_0$ with the relation ${\dot{\beta }}_0=J^{-1}({\beta }_0){\dot{y}}_0.$

Note that slowing down $r(t)$, i.e., replacing the reference signal $r(t)$ by $r(st), \mathrm{with} s<1,$ the value of the error norm of function $f(t,\epsilon ,\dot{\epsilon },\ddot{\epsilon })$ (17), for $\epsilon \cong 0, \dot{\epsilon }\cong 0$, is reduced of $s^2$ and, hence, for sufficiently large $a$, also the error norm is reduced of $s^2$.

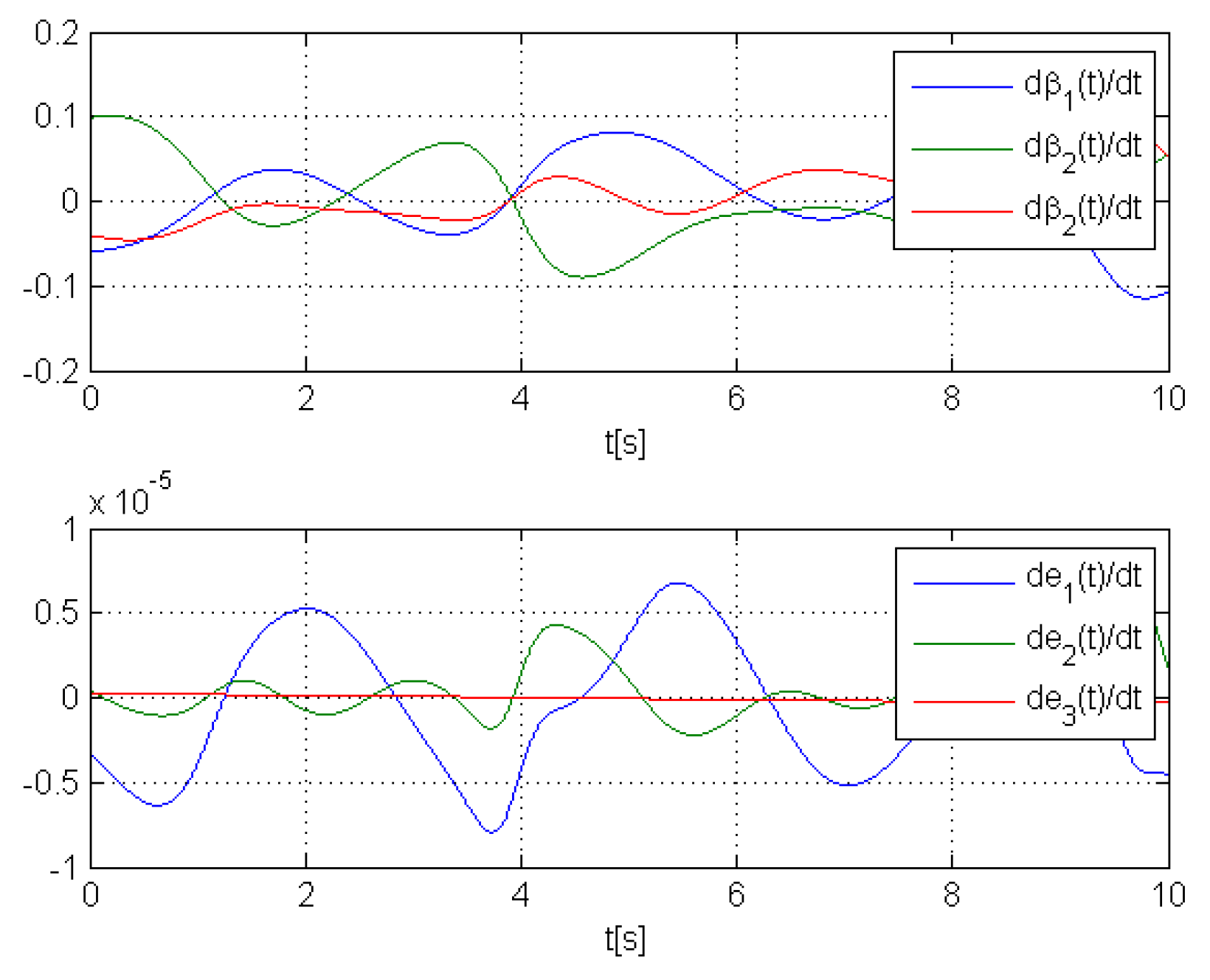

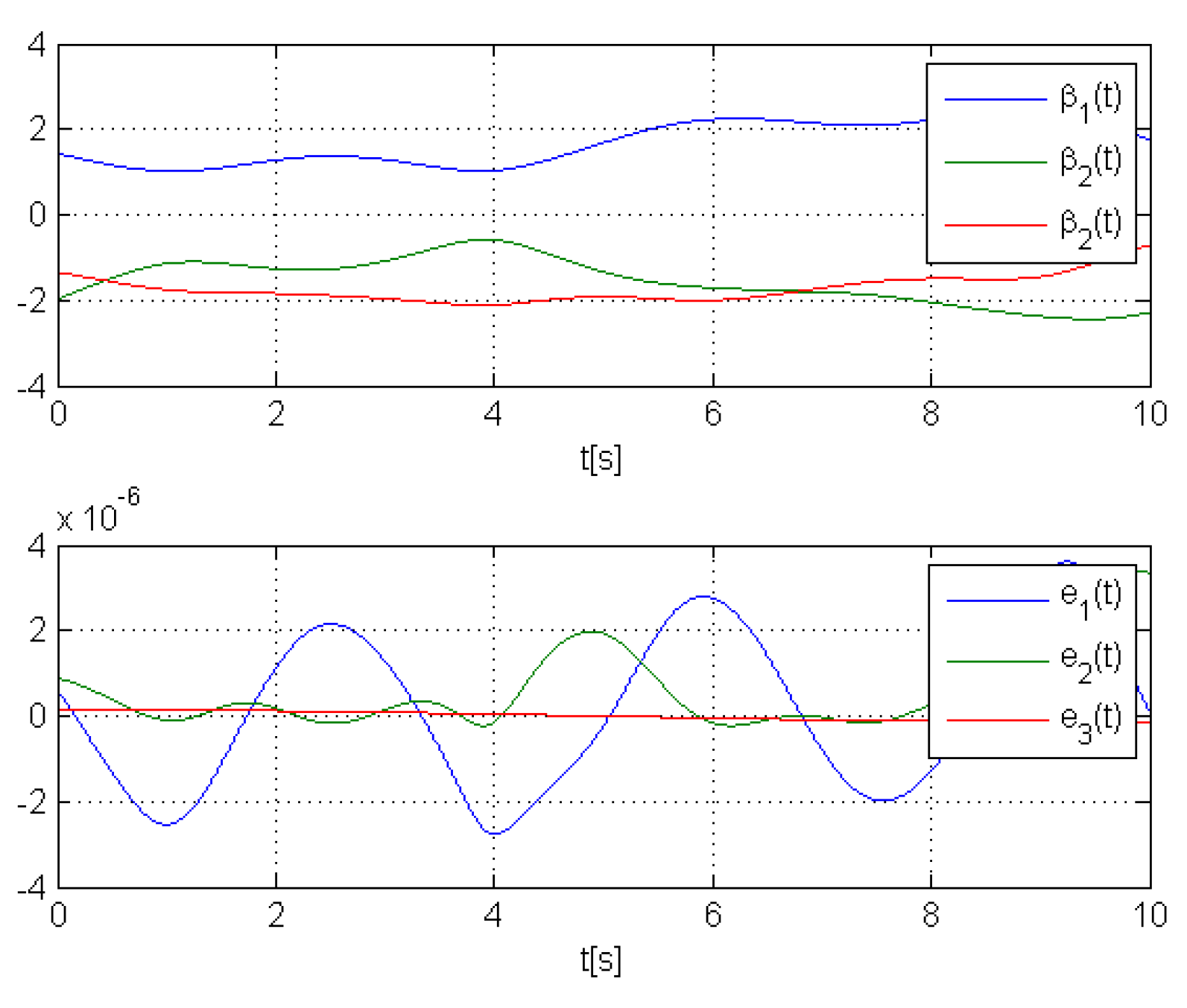

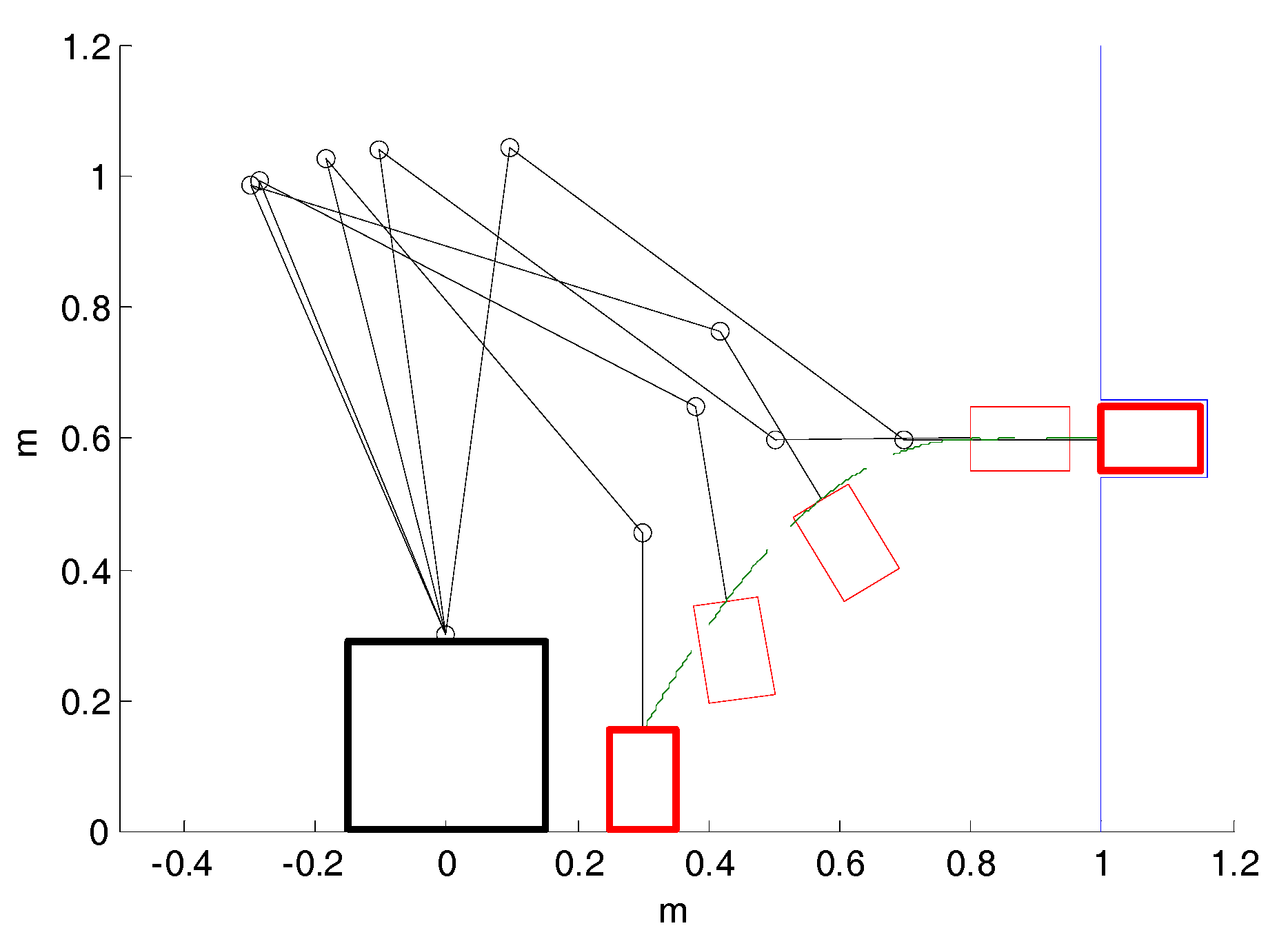

In the hypothesis that $H_b=0.3\mathrm{m}, L_1=0.6\mathrm{m}, L_2=0.6\mathrm{m}, L_3=0.3\mathrm{m}$ by choosing $s=0.1$ and by using the Matlab solver ode4 with fixed-step $={10}^{-2}$, the results shown in Figure 9, Figure 10 and Figure 11 are obtained.

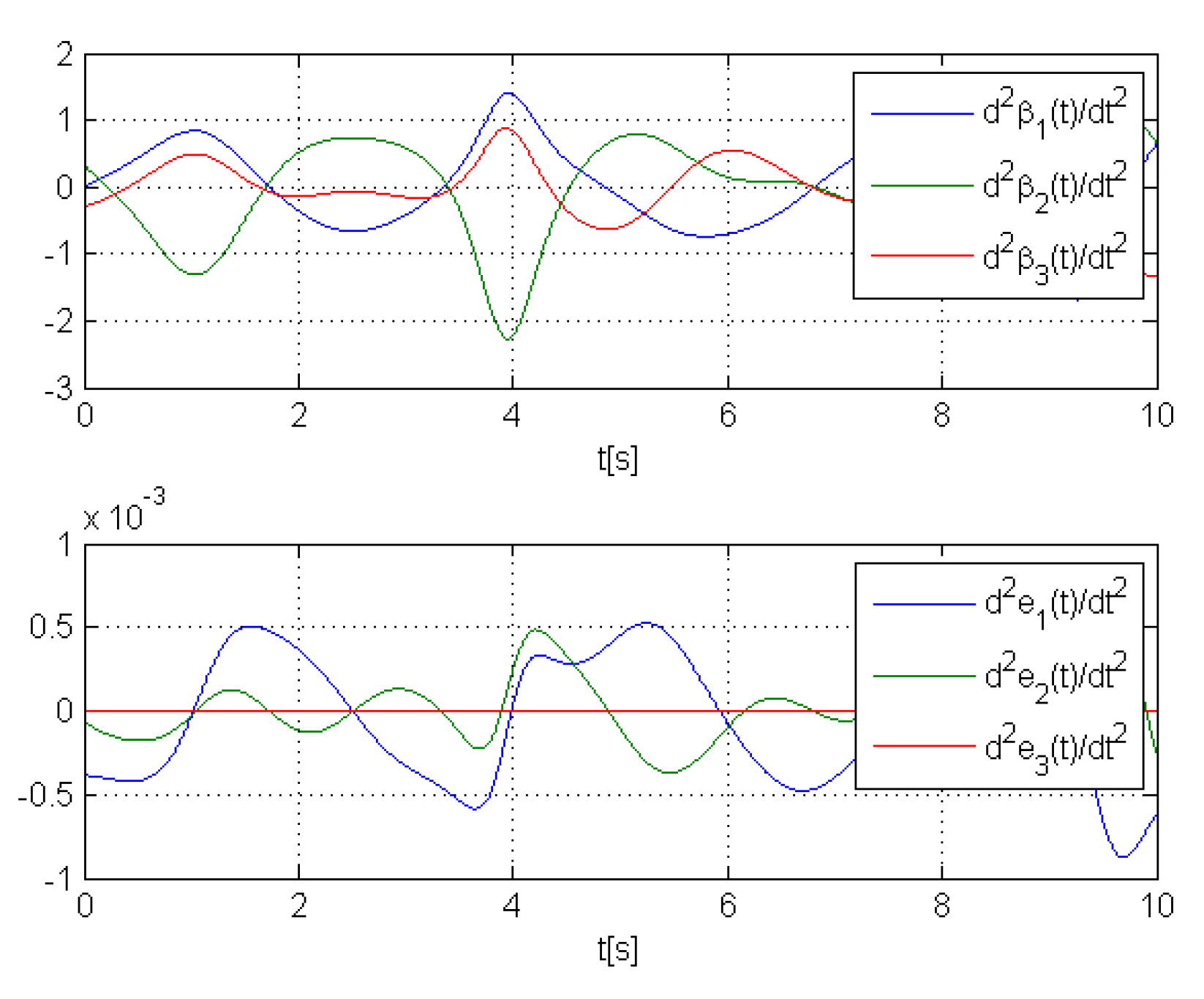

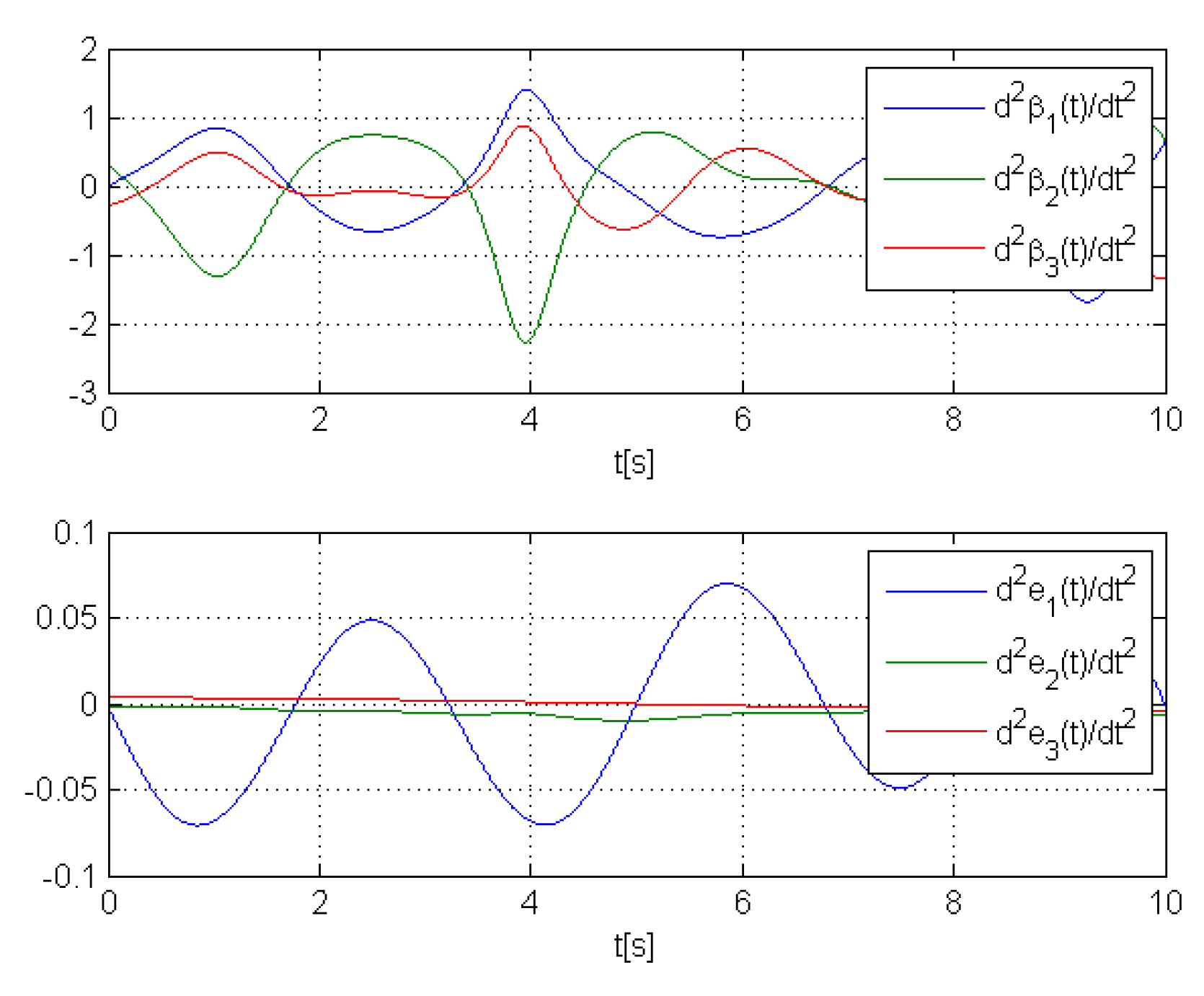

In Figure 12 the accelerations $\ddot{\beta }(t)$ are reported by numerically deriving $\dot{\beta }(t)$ and the related errors.

Remark 10.

To obtain the kinematic inversion, instead of starting from the “exact” initial conditions${\beta }_0,{\dot{\beta }}_0$, it is possible to extend to left$y(t)$(see Figure 13) and to start from initial conditions also very different from the “exact” one.

The following applications show how it is easy to design, by using the proposed method, simple, robust and efficient controllers, without chattering, with respect to other methods available in the literature.

Application 3.

In this application, the design of some robust controllers is considered for a three-link planar robot (see Figure 14). The goal is to perform assembly and/or warehouse tasks with any human operator (see Supplementary Material too).

Suppose, for simplicity, that the i-th link of the robot is a straight line of constant section and a mass density $m_i$ with the tip two masses $M_{mi}$ and $M_{pi}$ of inertia moments $I_{mi}$ and $I_{pi}.$ If:

$$\begin{array}{l}{H}_b=0.30 \mathrm{m}, L_1=0.75 \mathrm{m}, L_2=0.75 \mathrm{m}, L_3=0.30 \mathrm{m}\\ m_1=1.20 \mathrm{Kg}/\mathrm{m}, m_2=1.00 \mathrm{Kg}/\mathrm{m}, m_3=0.80 \mathrm{Kg}/\mathrm{m}\\ M_{m1}=0, M_{m2}=0, M_{m3}=0\\ M_{p1}=0.30 \mathrm{Kg}, M_{p2}=0.25 \mathrm{Kg}, M_{p3}=p_1\in [0, 1.00] \mathrm{Kg}\\ I_{m1}=0.12 \mathrm{Kg}{\mathrm{m}}^2, I_{m2}=0.10 \mathrm{Kg}{\mathrm{m}}^2, I_{m3}=0.08 \mathrm{Kg}{\mathrm{m}}^2\\ I_{p1}=0, I_{p2}=0, I_{p3}=p_2\in [0, 0.10] \mathrm{Kg}{\mathrm{m}}^2\\ K_{a1}=1.00Nms/rad, K_{a2}=1.00 \mathrm{Nms}/\mathrm{rad}, K_{a3}=1.00 \mathrm{Nms}/\mathrm{rad}\end{array}$$

(59)

then the inertia matrix $M$ can be computed by using the following relations (see [9]):

$$\begin{array}{ll}M(p,\beta )=& M_{00}+M_{01}{p}_1+M_{02}{p}_2+(M_{10}+M_{11}{p}_1+M_{12}{p}_2)\cos {\beta }_2+(M_{20}+M_{21}{p}_1+M_{22}{p}_2)\cos {\beta }_3+\\ & +(M_{30}+M_{31}{p}_1+M_{32}{p}_2)\cos ({\beta }_2+{\beta }_3)\end{array}$$

(60)

where the matrices $M_{ij}$ (and the corresponding model of the robot) can be found using the algorithm from [9].

The Jacobian matrix is computed as:

$$J=\frac{\partial }{\partial \beta }\left(\begin{array}{c}{L}_1\cos {\beta }_1+L_2\cos ({\beta }_1+{\beta }_2)+L_3\cos ({\beta }_1+{\beta }_2+{\beta }_3)\\ H_b+L_1\sin {\beta }_1+L_2\sin ({\beta }_1+{\beta }_2)+L_3\sin ({\beta }_1+{\beta }_2+{\beta }_3)\\ {\beta }_1+{\beta }_2+{\beta }_3\end{array}\right)$$

(61)

(A) Suppose that the goal is to perform the assembly or warehouse task shown in Figure 15, with behaviors of $r(t)={[r_1(t) r_2(t) r_2(t)]}^T$ and of $\dot{r}(t)$, in the workspace, reported in Figure 16. In Figure 17 the corresponding behaviors in the joint space are reported. These ones are obtained from the original behaviors $\tilde{r}(t)={[{\tilde{r}}_1(t) {\tilde{r}}_2(t) {\tilde{r}}_2(t)]}^T$ by using a third-order Bessel filter with ${\omega }_b=10 \mathrm{r}\mathrm{a}\mathrm{d}/\mathrm{s}$ and the kinematic inversion.

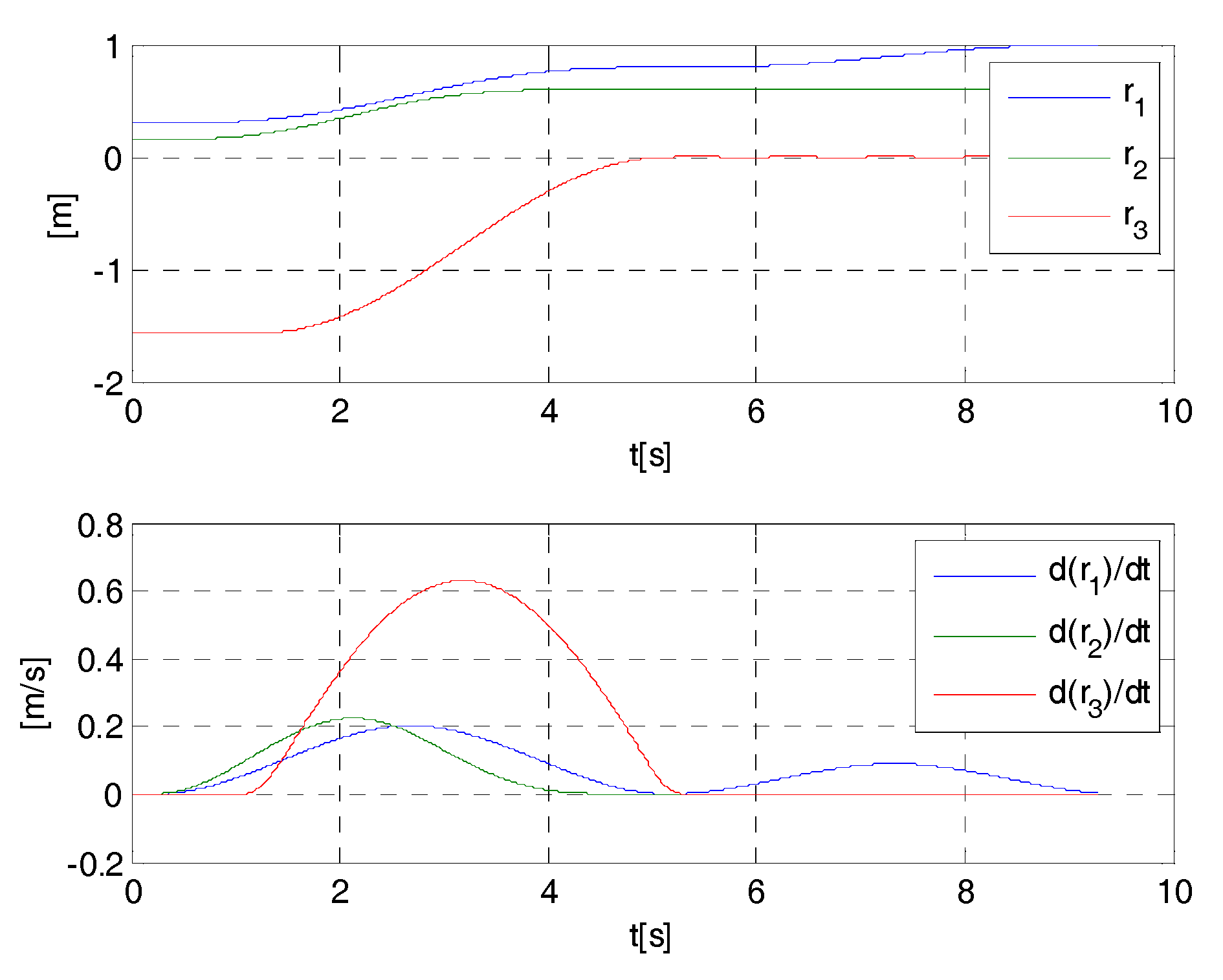

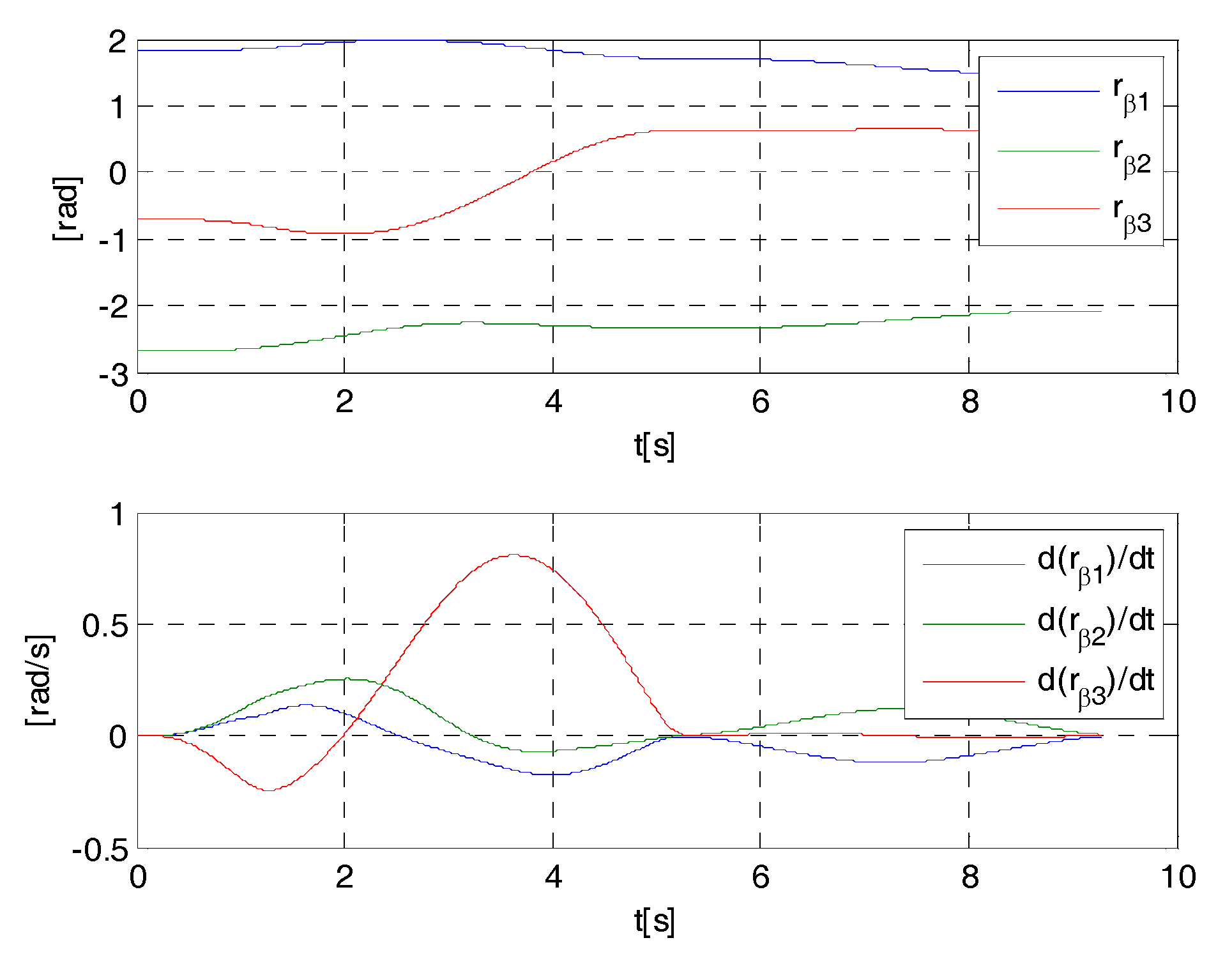

(a) Using Lemmas 2 and 4, a matrix $G_a$ of the type $G_a=gI, g>0,$ which satisfies condition ${\lambda }_{\min }(M^{-1}{G}_a+{(M^{-1}{G}_a)}^T)=2g/{\lambda }_{\max }(M)\ge 2$, $\forall p_1\in [0, 1]$, $\forall p_2\in [0, 0.10]$ is:

$$G_a={\lambda }_{\max }(M)I=7.963\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 1\end{array}\right]$$

(62)

(b) By using Lemmas 2 and 4, a matrix $G_b$ of the type $G_b=g diag([3 2 1]), g>0,$ which satisfies the condition ${\lambda }_{\min }(M^{-1}{G}_b+{(M^{-1}{G}_b)}^T)={\lambda }_{\min }(M^{-1}{G}_b+G_b{M}^{-1})\ge 2$, $\forall p_1\in [0, 1]$, $\forall p_2\in [0, 0.10]$ is:

$$G_b=4.515\left[\begin{array}{ccc}3& 0& 0\\ 0& 2& 0\\ 0& 0& 1\end{array}\right]$$

(63)

(c) By using Lemmas 2 and 4, a matrix $G_c$ of the type $G_c=g{J}^T(\beta )$ which satisfies the condition ${\lambda }_{\min }\left(J{M}^{-1}{G}_c+{(J{M}^{-1}{G}_c)}^T\right)=2g{\lambda }_{\min }\left(J{M}^{-1}{J}^T\right)\ge 2$, $\forall p_1\in [0, 1], p_2\in [0, 0.10]$ and $\forall {\beta }_1\in [-\pi , \pi ]$, $\forall {\beta }_2\in [-11\pi /12, -\pi /12]$, $\forall {\beta }_3\in [-11\pi /12, -\pi /12]$ is:

$$G_c=43.994J^T(\beta )$$

(64)

(d) By using Lemmas 2 and 4, a matrix $G_d$ of the type $G_d=g{J}^{-1}(\beta )$ which satisfies the condition ${\lambda }_{\min }\left(J{M}^{-1}{G}_d+{(J{M}^{-1}{G}_d)}^T\right)\ge 2$, $\forall p_1\in [0, 1]$, $\forall p_2\in [0, 0.10]$ and $\forall {\beta }_1\in [-\pi , \pi ]$ $\forall {\beta }_2\in [-11\pi /12, -\pi /12]$, $\forall {\beta }_3\in [-11\pi /12, -\pi /12],$ is:

$$G_d=15.516J^{-1}(\beta )$$

(65)

(e) Finally, by using Lemmas 2 and 4, it can be easily verified that the constant matrix:

$$G_e=5.143\left[\begin{array}{ccc}-2.923& 5.228& 1.549\\ 2.184& 2.326& 0.683\\ 0.198& 0.186& 1.000\end{array}\right]$$

(66)

satisfies the condition ${\lambda }_{\min }\left(J{M}^{-1}{G}_e+{(J{M}^{-1}{G}_e)}^T\right)\ge 2$, $\forall p_1\in [0, 1], \forall p_2\in [0, 0.10]$ and $\forall \beta \in I_{r_{\beta }}$, where:

$$I_{r_{\beta }}=\left\{\beta :\left|{\beta }_i-r_{{\beta }_i}\right|\le 15\pi /180, i=1,2, \left|{\beta }_3-r_{{\beta }_3}\right|\le 25\pi /180\right\}$$

(67)

In Figure 18 the neighborhood $I_{r_y}$ of $r_y$ in the workspace, corresponding to the neighborhoods $I_{r_{\beta }}$ of $r_{\beta }$, is shown.

Suppose that $M_{p3}=1.00 \mathrm{Kg}, I_{p3}=0.10 \mathrm{Kg}{\mathrm{m}}^2$.

(A1) If the following a simple control law (three classic PD controllers in the joint space) is used:

$$u(t)=7.963\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 1\end{array}\right]\left(2a^{2}e(t)+2a\dot{e}(t)\right), a=25, e(t)=r_{\beta }(t)-\beta (t)$$

(68)

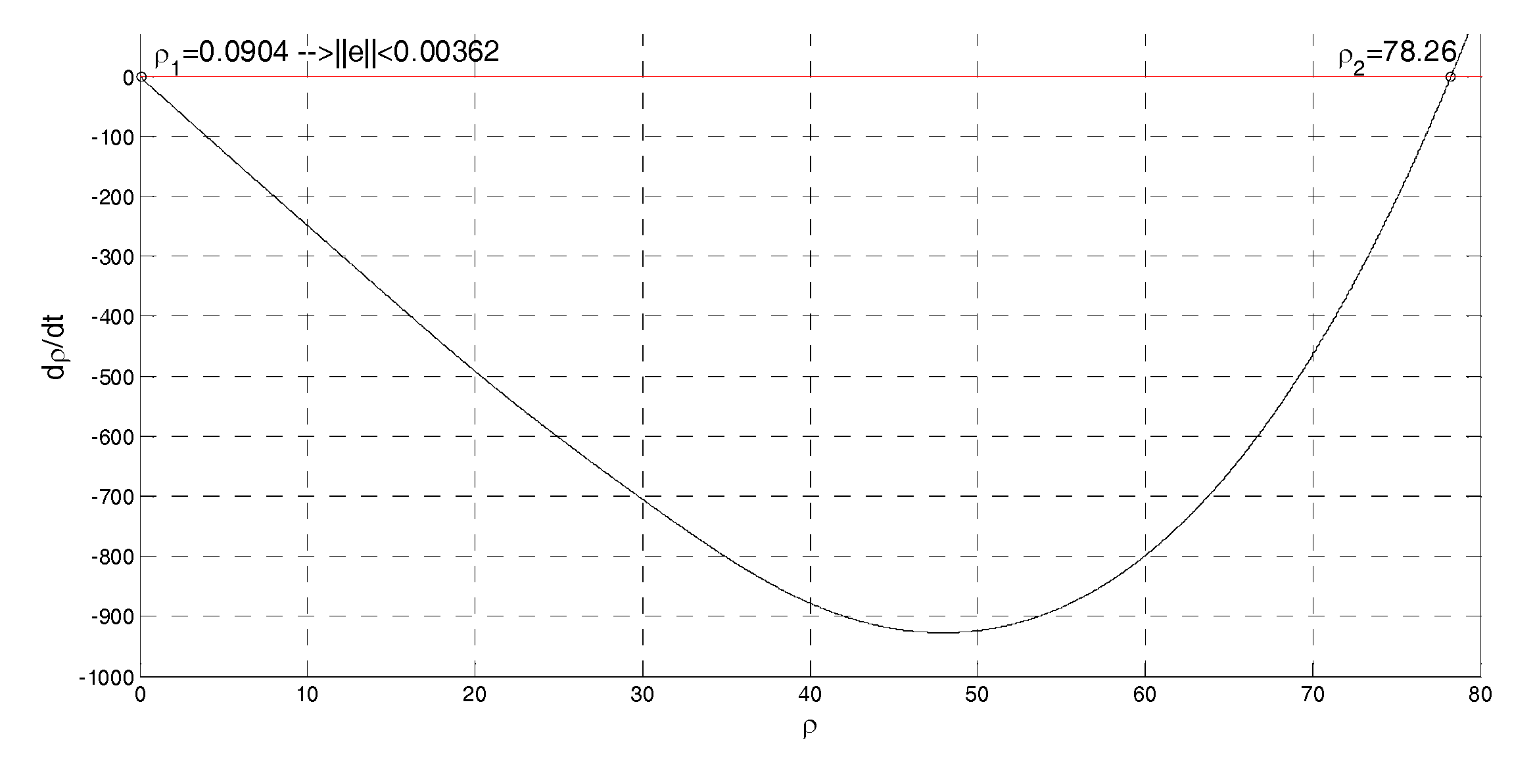

The graphical model of the majorant system $\forall p_1\in [0, 1] \mathrm{and} \forall p_2\in [0, 0.1]$, obtained with (51), is reported in Figure 19.

From Figure 19, in accordance with Theorem 2, it is:

• if ${\Vert x_0\Vert }_P\le {\rho }_1=0.0904$, then $\Vert e\Vert \le {\rho }_1/a=0.0904/25=0.00362,\forall t\ge 0$;
• if ${\Vert x_0\Vert }_P\in ({\rho }_1,{\rho }_2)=(0.0904, 78.26)$, then $\Vert e\Vert \to {\rho }_1/a$ (e.g., if ${\Vert x_0\Vert }_P=20$, at less $5\%$, $\Vert e\Vert \le 0.00362, \forall t>0.244s.$

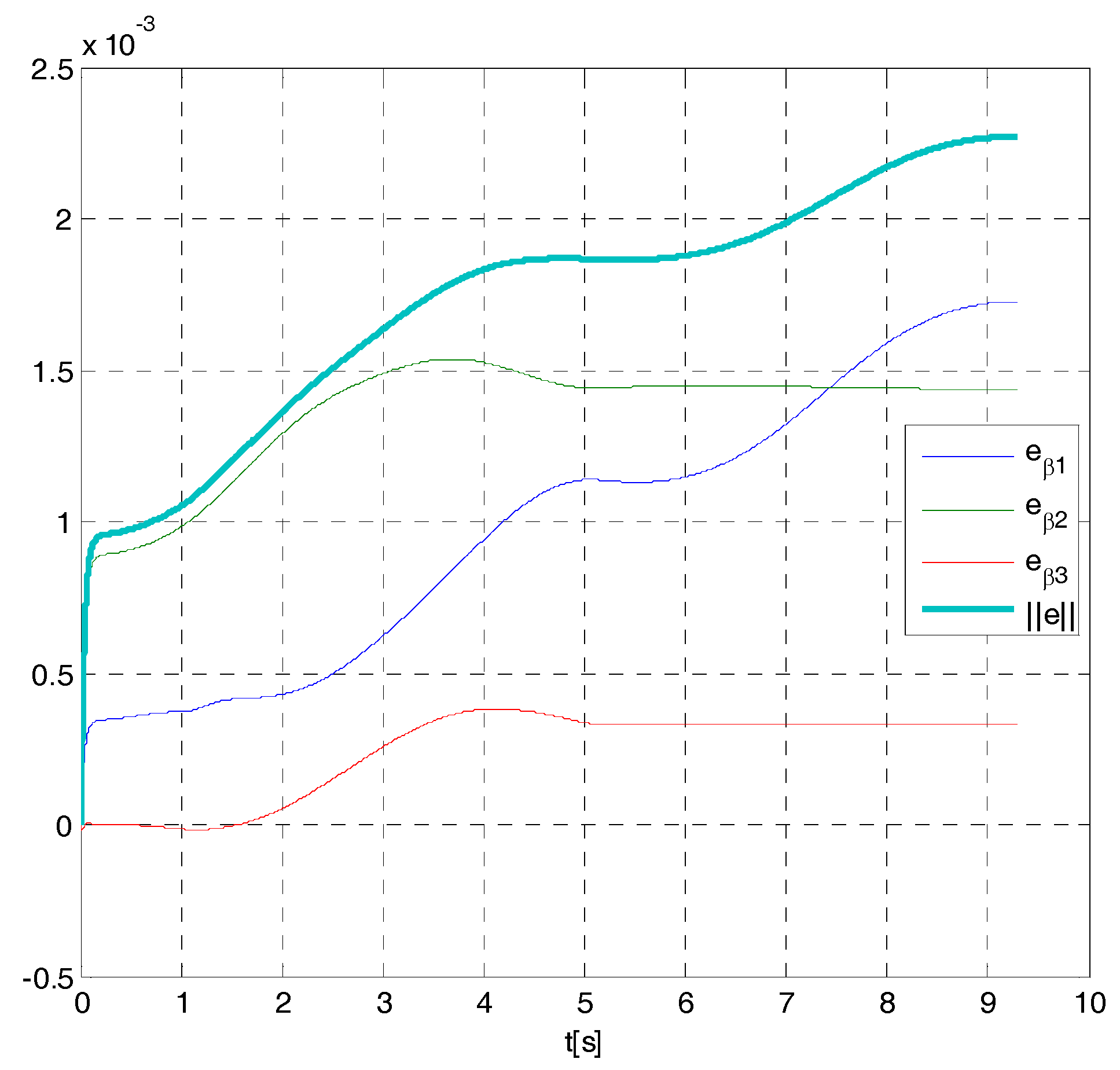

In Figure 20 and Figure 21, the behaviors of $u, e=[e_{\beta 1} e_{\beta 2} e_{\beta 3}{]}^T, \Vert e\Vert$ are shown in the hypothesis of $x_0=0$ From Figure 21 it is $\Vert e\Vert \le 0.00227,\forall t\ge 0$; this value is very close to the computed one 0.00362.

(A2) With the simple control law:

$$u(t)=4.515\left[\begin{array}{ccc}3& 0& 0\\ 0& 2& 0\\ 0& 0& 1\end{array}\right]\left(2a^{2}e(t)+2a\dot{e}(t)\right), a=25, e(t)=r_{\beta }(t)-\beta (t)$$

(69)

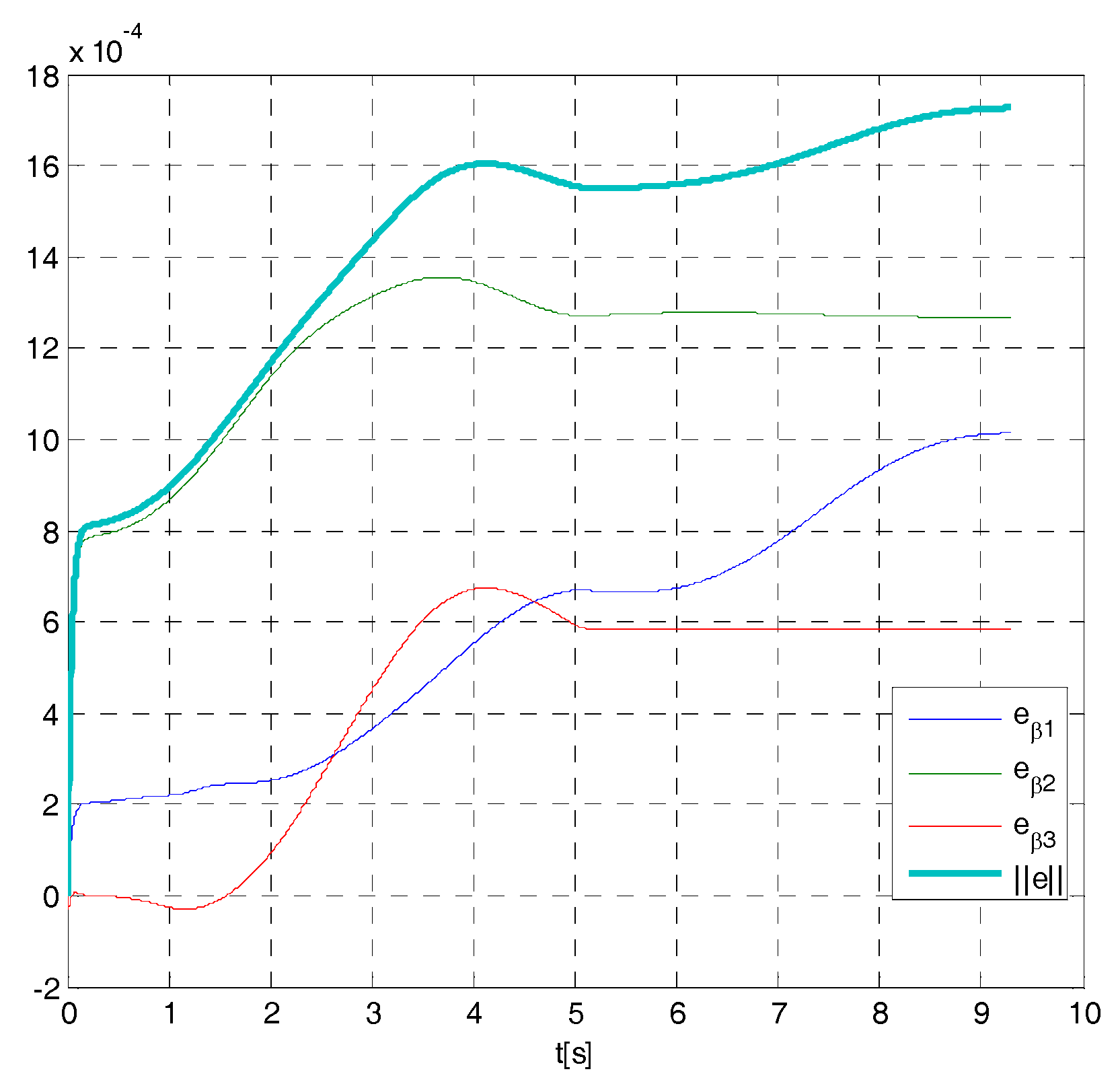

the errors e are reported in Figure 22.

(A3) With the control law:

$$u(t)=4.515\left[\begin{array}{ccc}3& 0& 0\\ 0& 2& 0\\ 0& 0& 1\end{array}\right]\left(2a^{2}e(t)+2a\dot{e}(t)\right)-u_g,e(t)=r_{\beta }(t)-\beta (t)$$

(70)

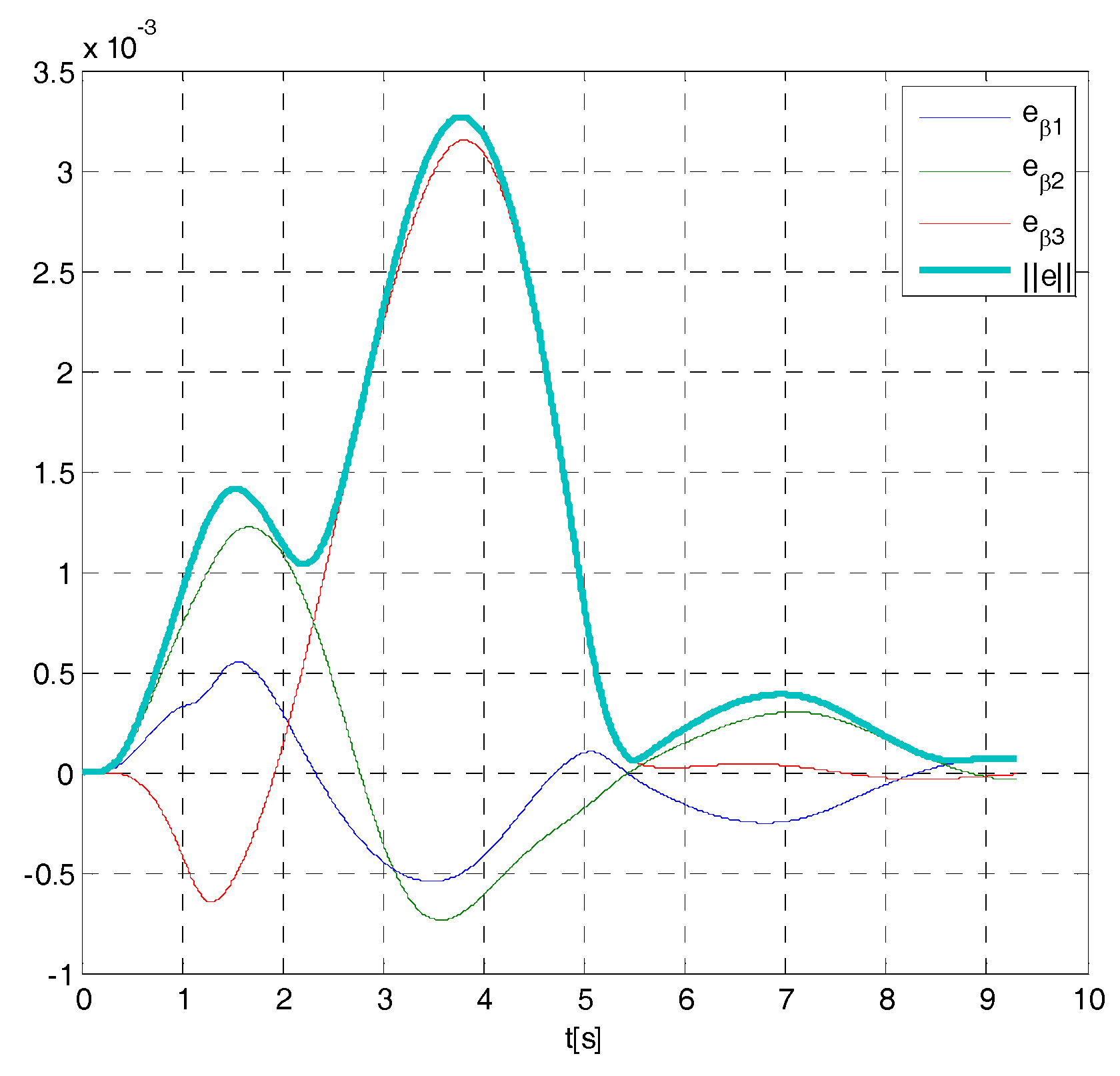

where $u_g$ are the gravity torques, with $a=10$, the errors $e$ are shown in Figure 23; while with $a=5$ the errors, as shown in Figure 24, are approximately 4 times larger, in accordance with (46).

If the velocity $\dot{\beta }(t)$ is affected by a measurement noise $n_{\dot{\beta }}$ uniformly distributed in $[-0.05, 0.05]$, always with the controller (70) with $a=5$, the errors $e$ are shown in Figure 25, in accordance with Theorem 3.

Now consider the control in the workspace.

(A4) With the control law:

$$\begin{array}{l}u(t)=43.994J^T(\beta )\left(2a^2{e}_y(t)+2a{\dot{e}}_y(t)\right)-u_g\\ a=5, e_y(t)=r(t)-y(t)\end{array}$$

(71)

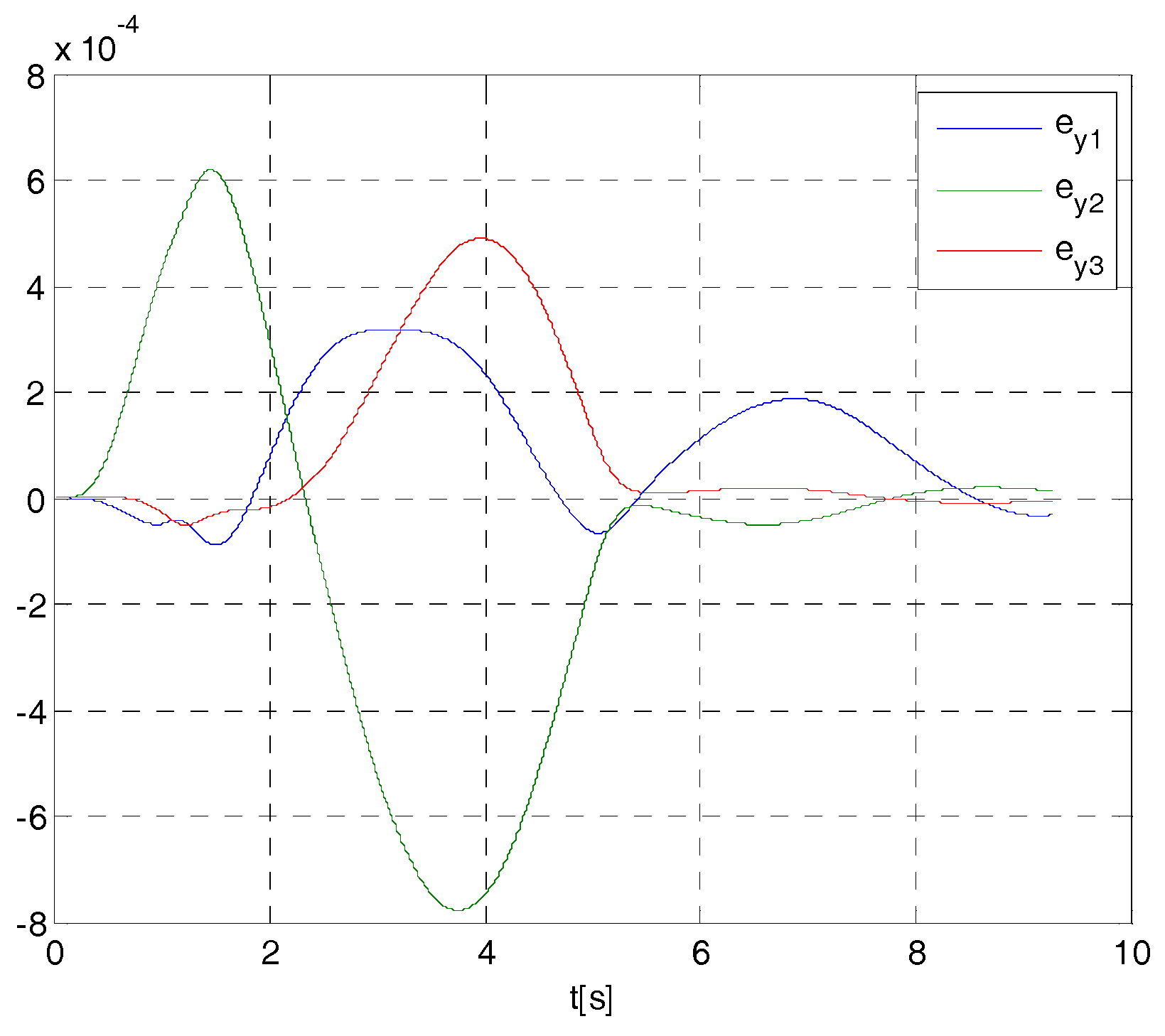

where $u_g$ are the gravity torques, the errors are shown in Figure 26.

(A5) With the control law:

$$\begin{array}{l}u(t)=15.516J^{-1}(\beta )\left(2a^2{e}_y(t)+2a{\dot{e}}_y(t)\right)-u_g\\ a=5, e_y(t)=r(t)-y(t)\end{array}$$

(72)

where $u_g$ are the gravity torques, the errors are shown in Figure 27.

(A6) Finally, by using the simple control law:

$$\begin{array}{l}u(t)=5.143\left[\begin{array}{ccc}-2.923& 5.228& 1.549\\ 2.184& 2.326& 0.683\\ 0.198& 0.186& 1.000\end{array}\right]\left(2a^2{e}_y(t)+2a{\dot{e}}_y(t)\right)\\ e_y(t)=r(t)-y(t), a=15\end{array}$$

(73)

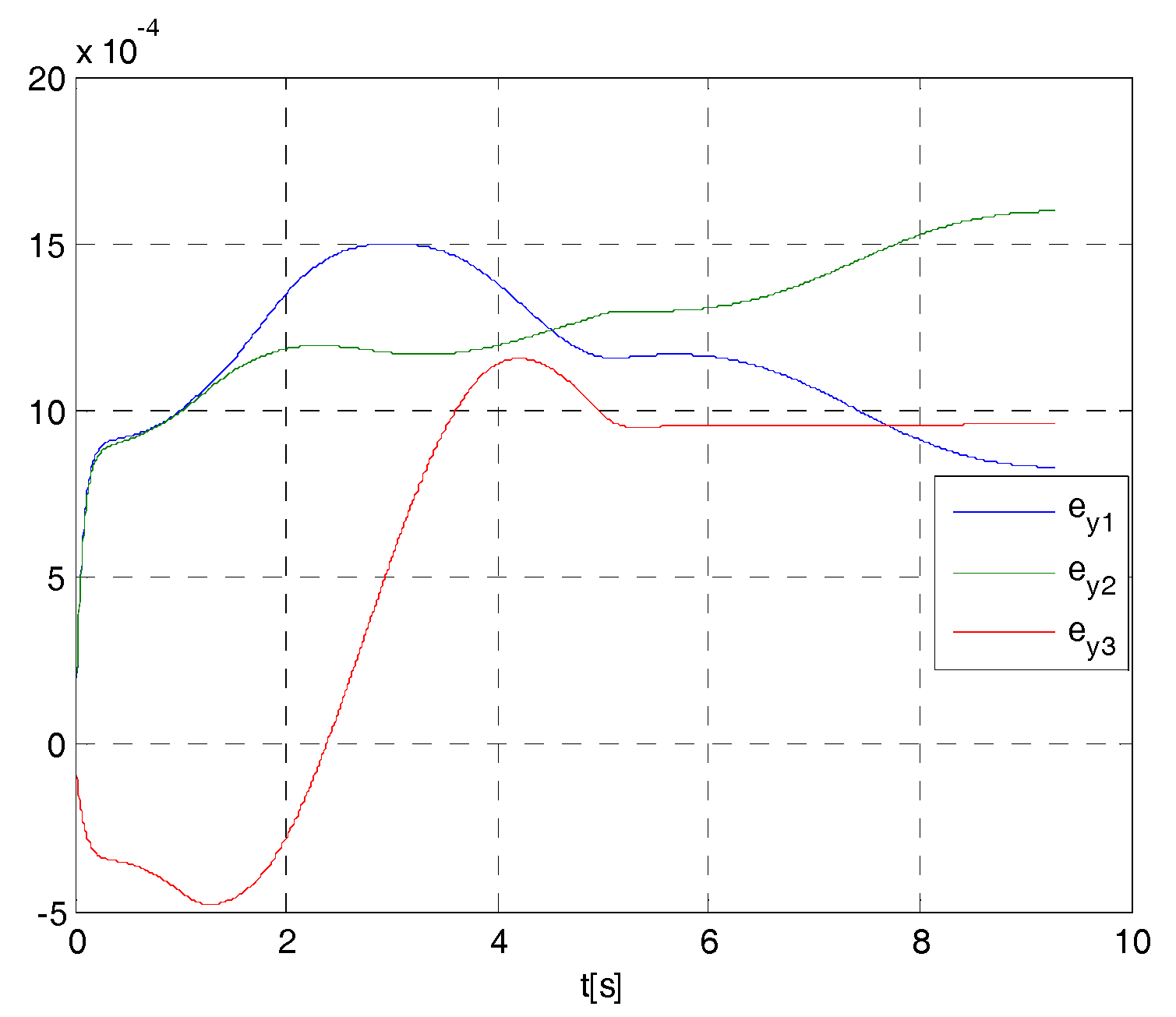

the errors are shown in Figure 28.

Remark 11.

Note that the control law (73) is independent of$\beta$.

(B) Now consider the interaction of the considered robot with a human operator. If $F_e={[F_{y_1} F_{y2} F_{y_3}]}^T$ is the generalized force exerted by the operator on the end-effector of the robot, the model is:

$$M\ddot{\beta }=u+J^T{F}_e+\gamma$$

(74)

Instead of opposing the action of $F_e$, this action can be supported by controlling the robot such to behave as an impedance, comparable to a generalized mass-spring-damper system.

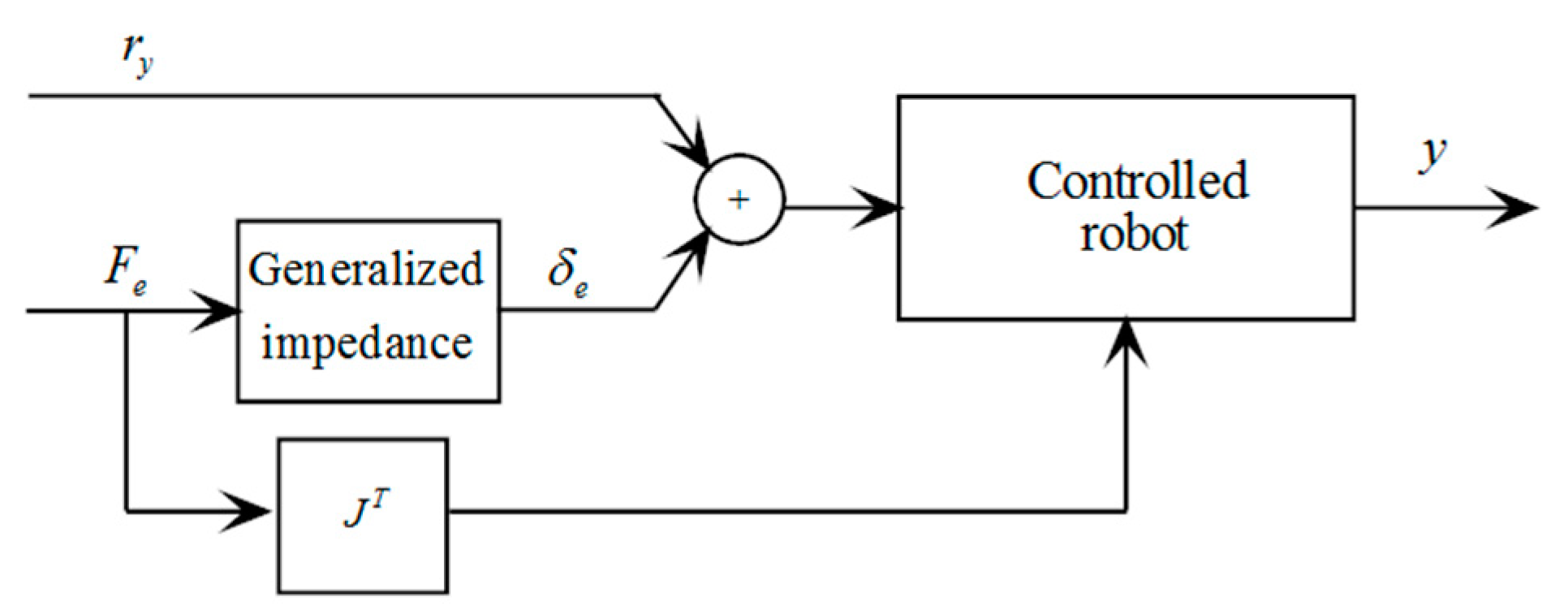

The above control can be achieved using the impedance control scheme in Figure 29.

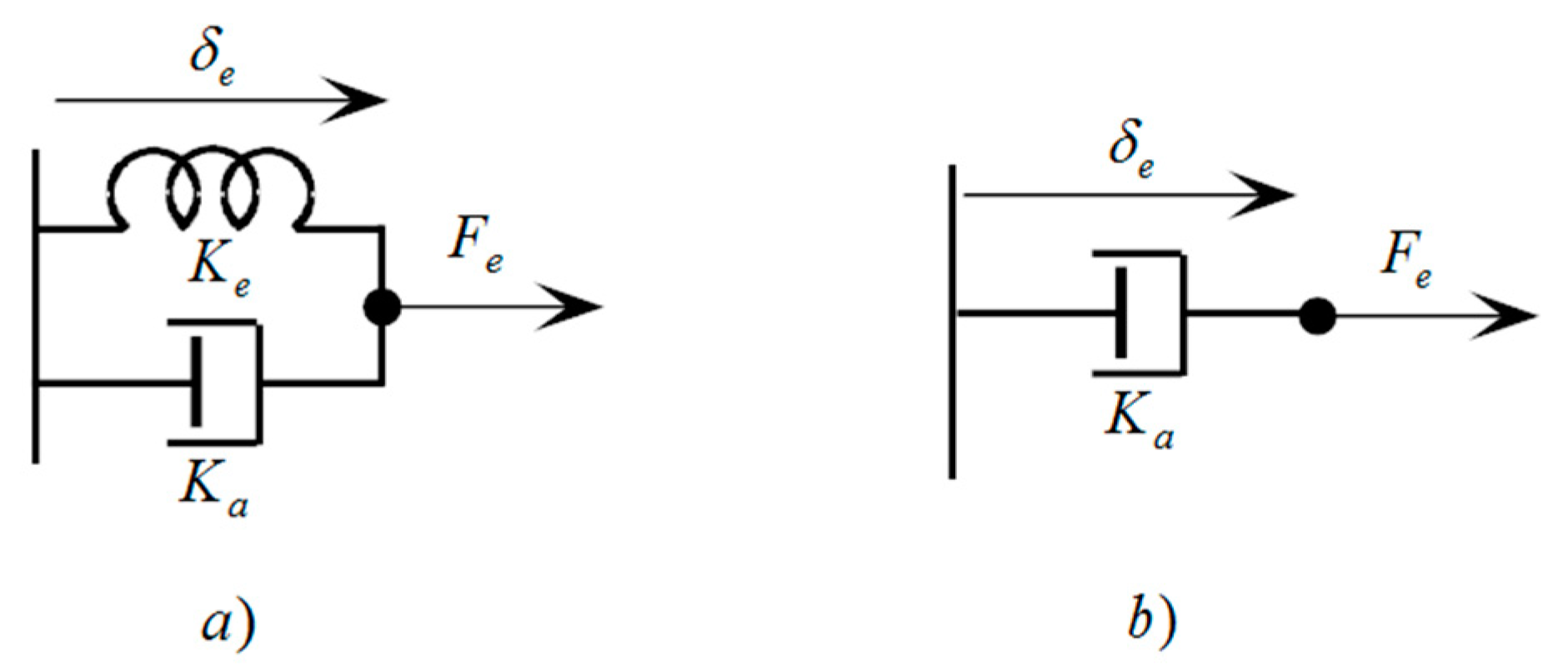

(B1) If the considered impedance is the one of a spring-damper system (see Figure 30a), then the model is:

$$\begin{array}{l}\dot{x}=-K_a^{-1}{K}_{e}x+K_a^{-1}{F}_e\\ {\delta }_e=x,\hspace{1em}{\dot{\delta }}_e=-K_a^{-1}{K}_{e}x+K_a^{-1}{F}_e\end{array}$$

(75)

Note that the output ${\dot{\delta }}_e$ can be used to realize the derivative action of the PD controller if $\dot{y}$ is measurable.

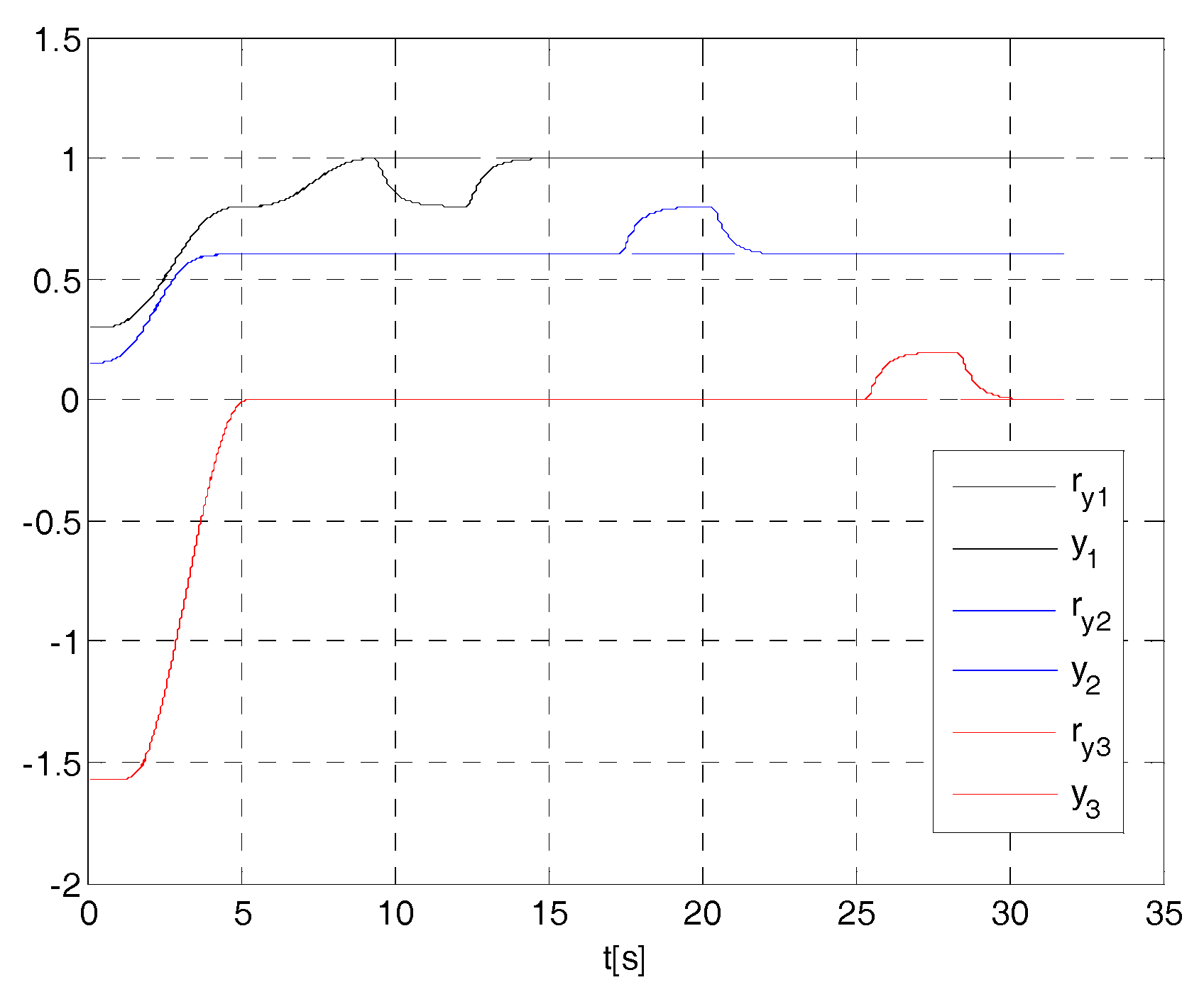

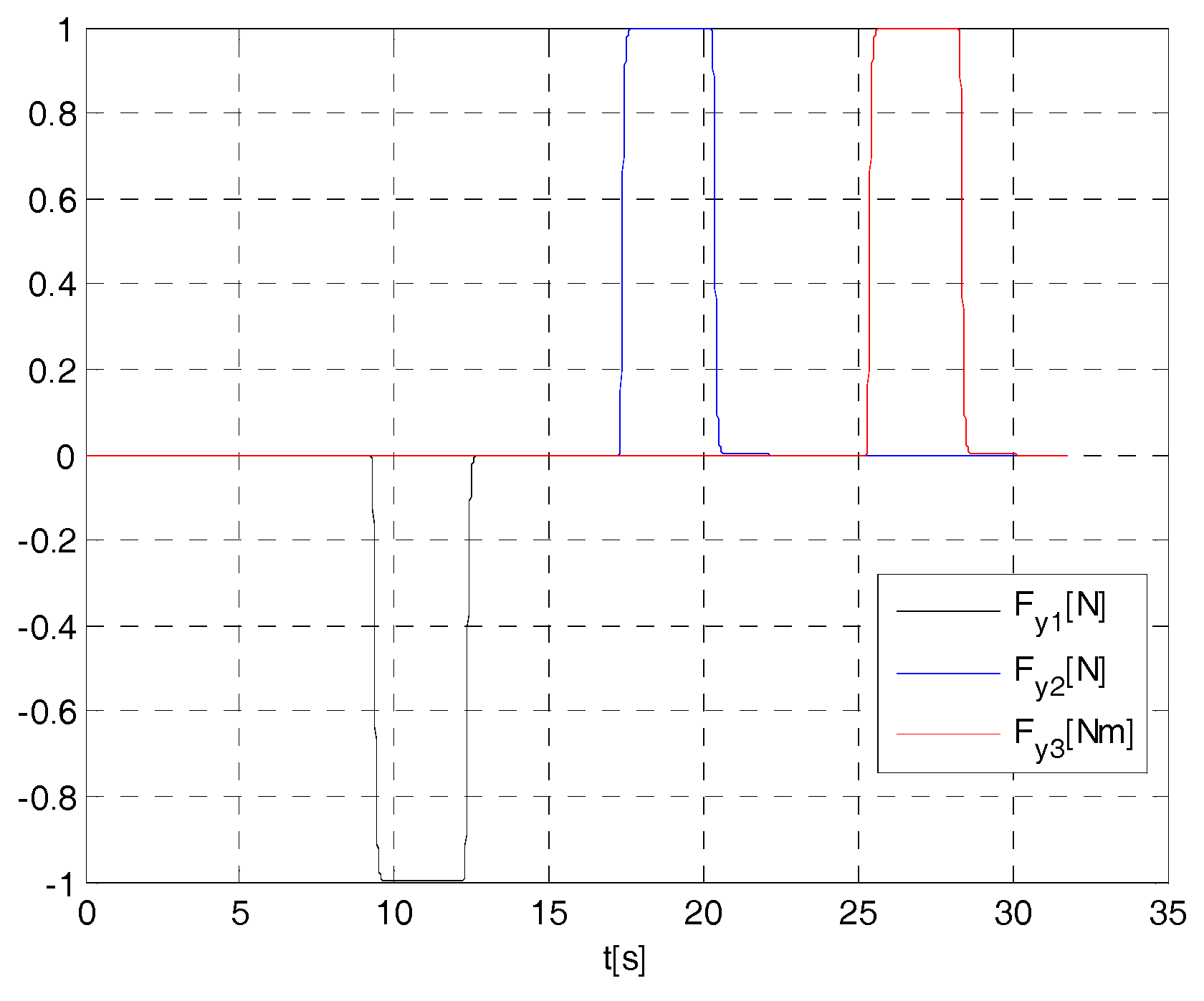

In the hypothesis that $K_e=5I$, $K_a=5/2I$, where $I$ is the third-order identity matrix, the used controller is (73), with $r(t)=r_y(t)$, assuming that the behaviors of the forces $F_{yi}$ are as shown in Figure 31 and the behaviors of $r_{yi}$ are as shown in Figure 32, then the behaviors of $y_i$ are reported in Figure 32.

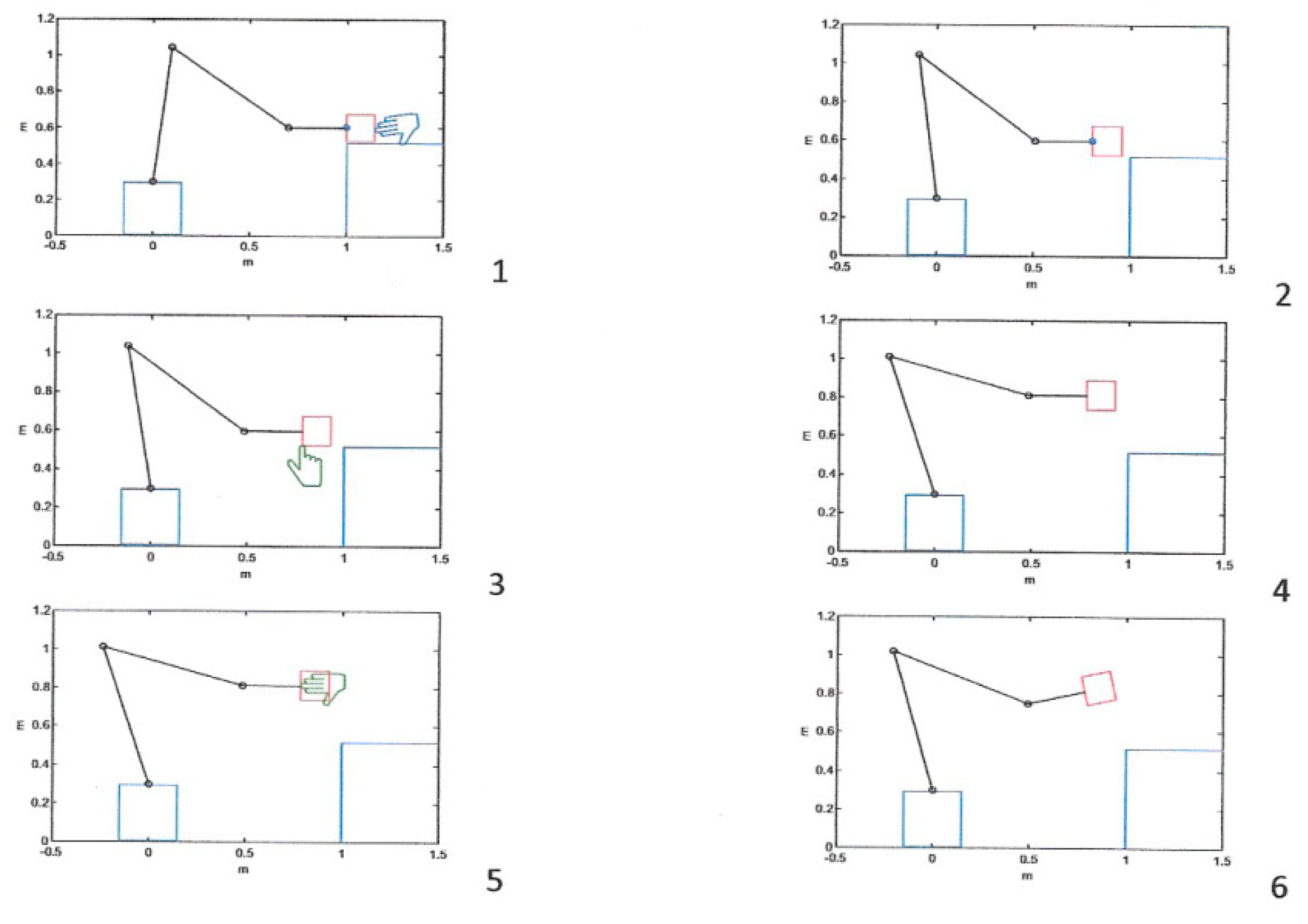

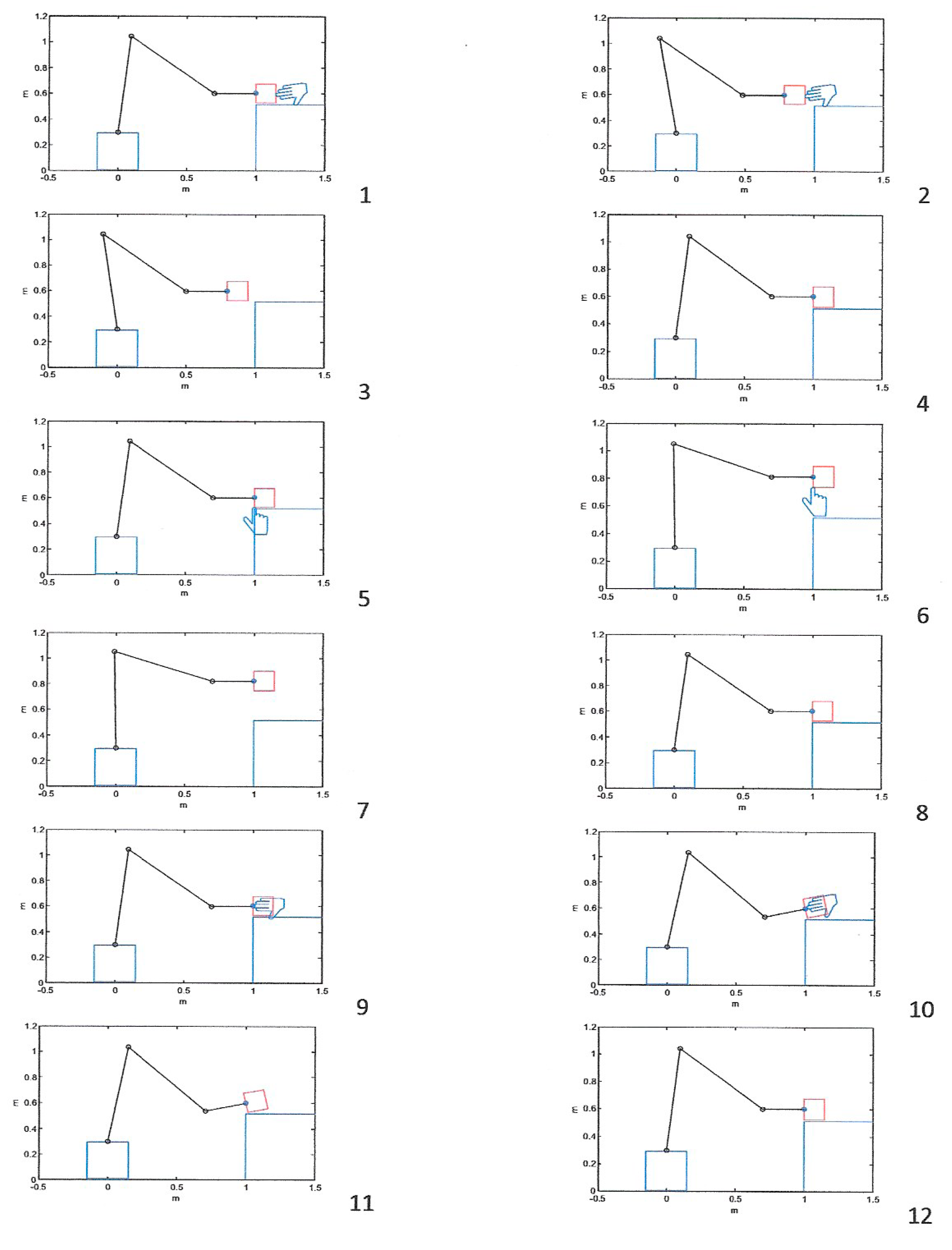

In Figure 33, selected phases of the robot interaction with a human operator are reported assuming that the impedance is as shown in Figure 30a).

(B2) If the considered impedance is the impedance of a damper (see Figure 30b), then the model is:

$$\begin{array}{l}\dot{x}=K_a^{-1}{F}_e\\ {\delta }_e=x,\hspace{1em}{\dot{\delta }}_e=K_a^{-1}{F}_e\end{array}$$

(76)

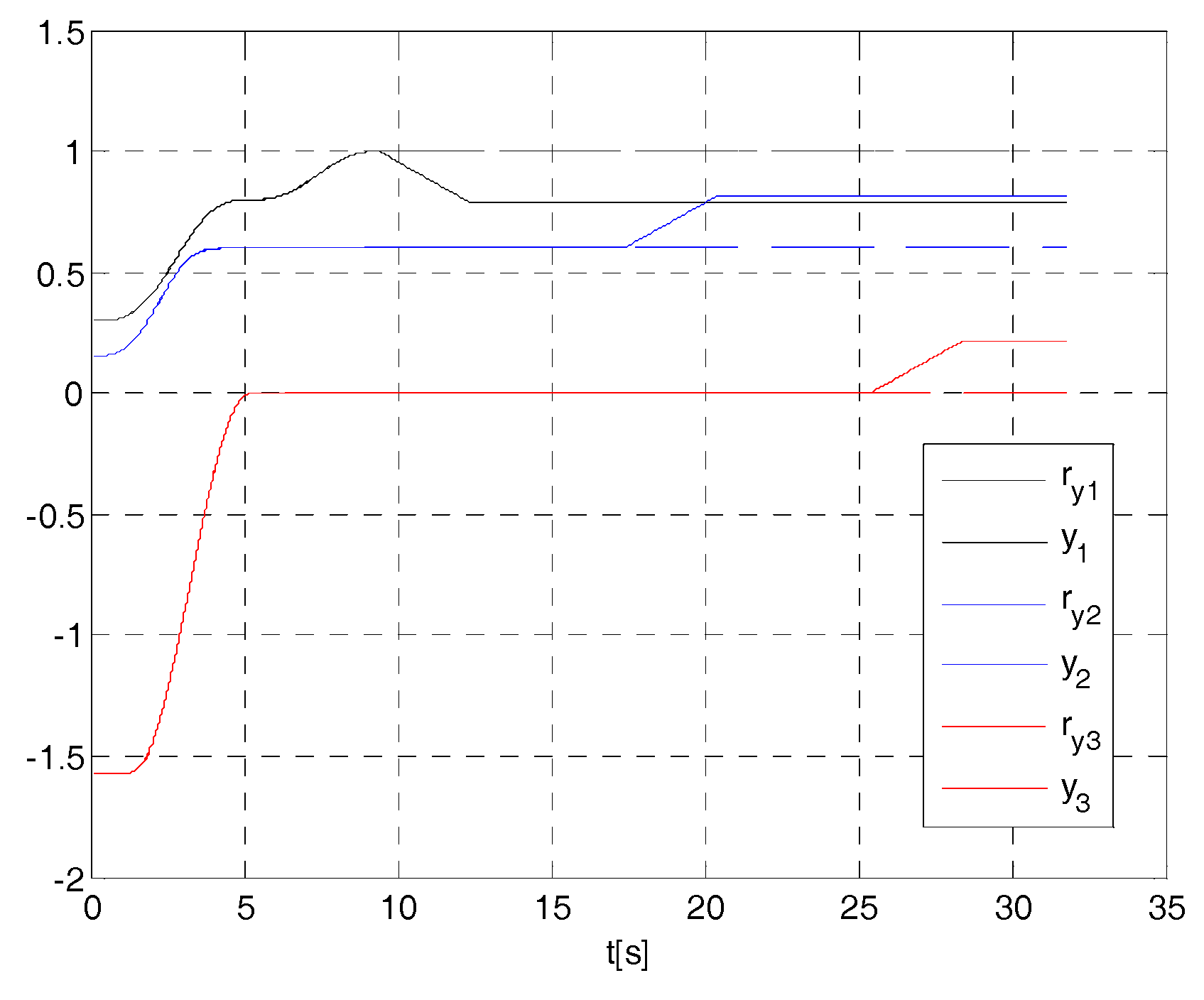

In the hypothesis that $K_a=5/2I$, where $I$ is the third-order identity matrix, the used controller is (73) with $r(t)=r_y(t)$, assuming that the behaviors of $r_{yi}$ are as shown in Figure 34 and the behaviors of the forces $F_{yi}$ are as shown in Figure 31, then the behaviors of $y_i$ are reported in Figure 34.

In Figure 35, selected phases of the interaction are reported in the hypothesis of an impedance as in Figure 30b.

Application 4.

To be further convinced of the usefulness of the developed theory, many other examples can be provided.

This example considers the plant:

$$\ddot{y}=-{\dot{y}}^3/20+y(\dot{y}-{\dot{y}}^3)/100+\sin (y/2){\dot{y}}^2/5+\mathrm{atan}(t/5)\sin (t/10)+1/(2+(\sin {(t/5)}^2))u$$

(77)

that does not belong to the class of system (9).

The desired reference signal is the one shown in Figure 36, which is obtained from an easily generable piecewise-linear signal filtered by using a third-order Bessel filter with ${\omega }_b=3rad/s$.

The following PD controller is applied:

$$u(t)=G(2a^{2}e+2a\dot{e}),\hspace{1em}e=r-y$$

(78)

with G = 3, satisfying condition (2).

In Figure 37, the graphical models of the majorant systems obtained with (78) are reported for $a=5, 10, 20$.

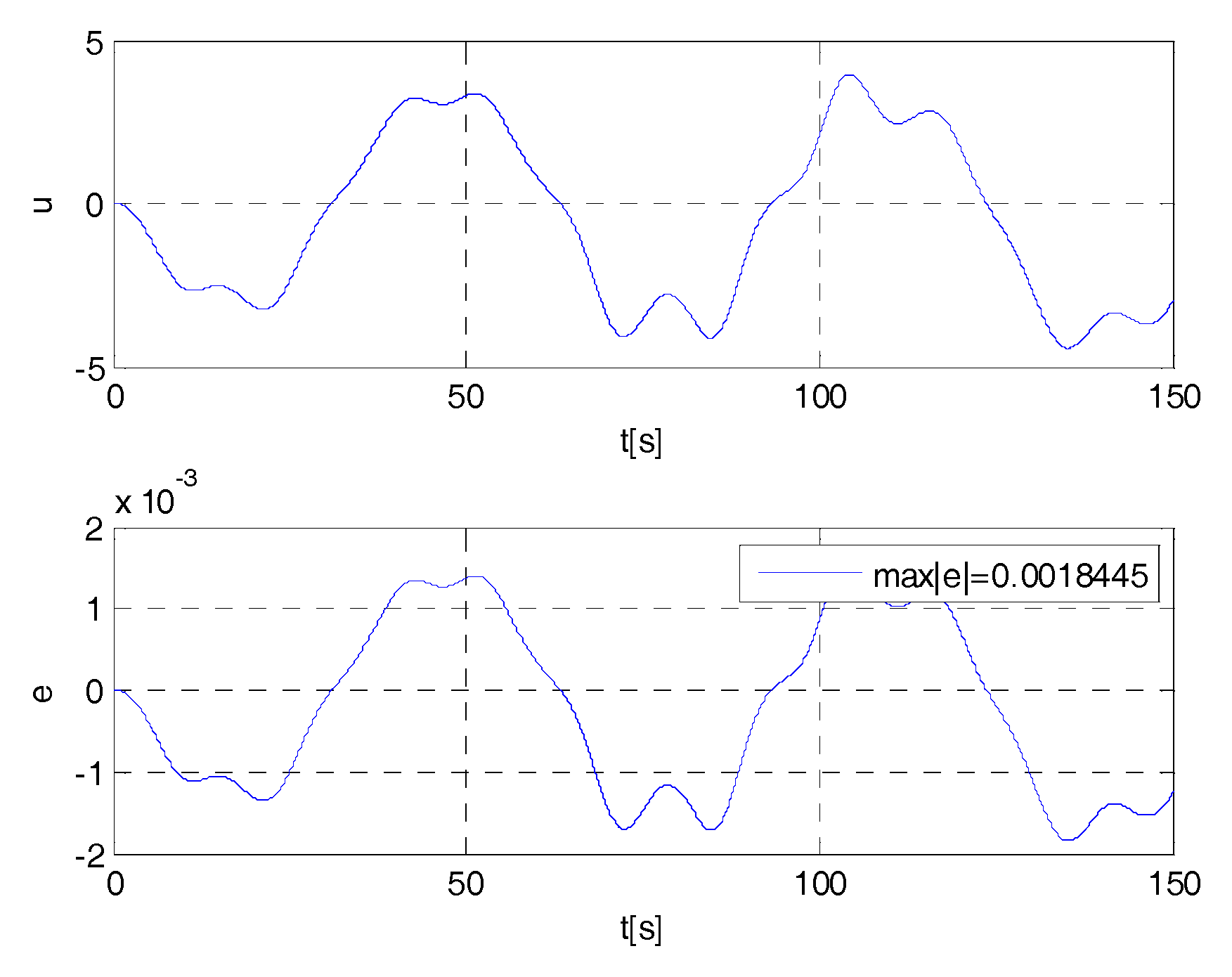

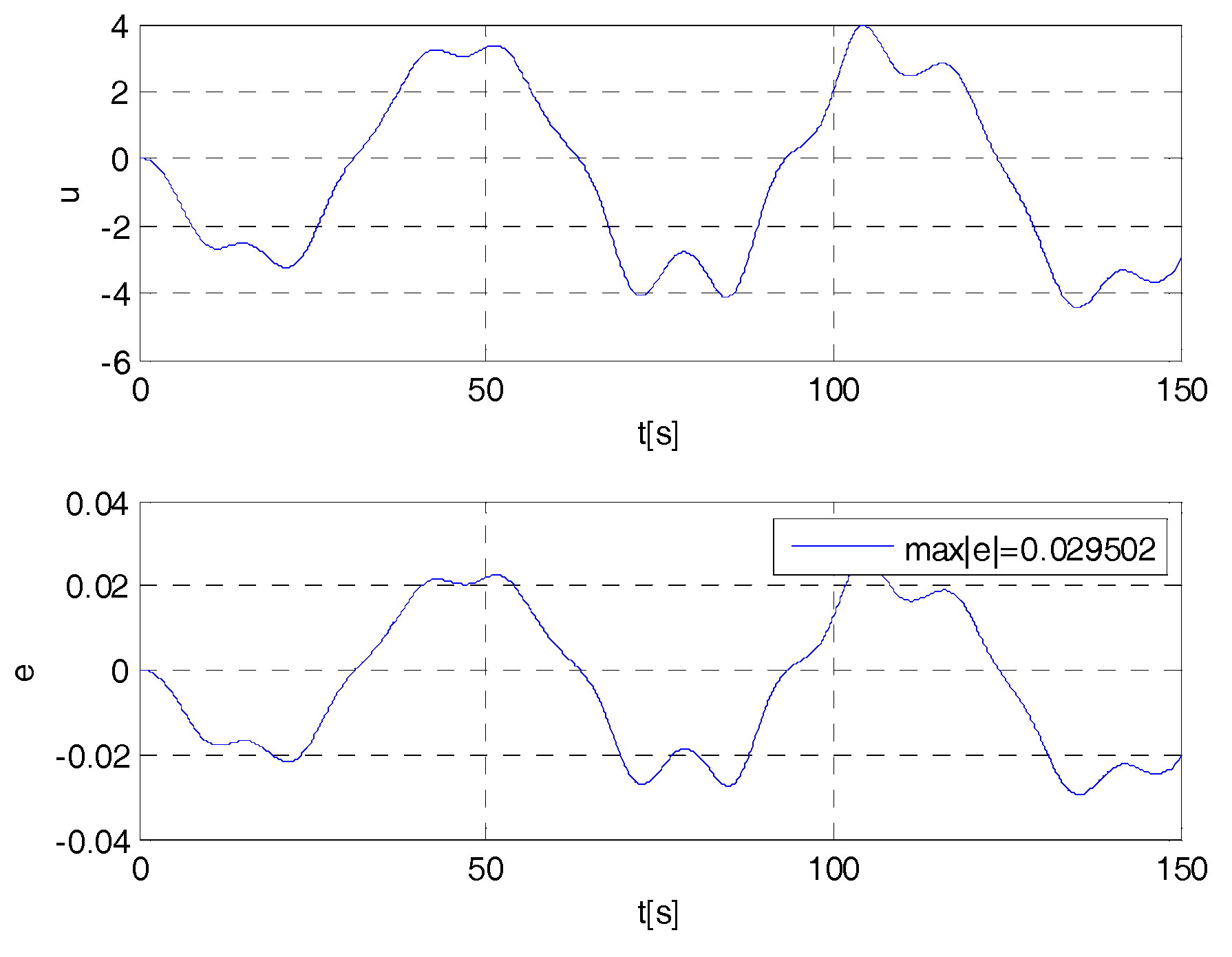

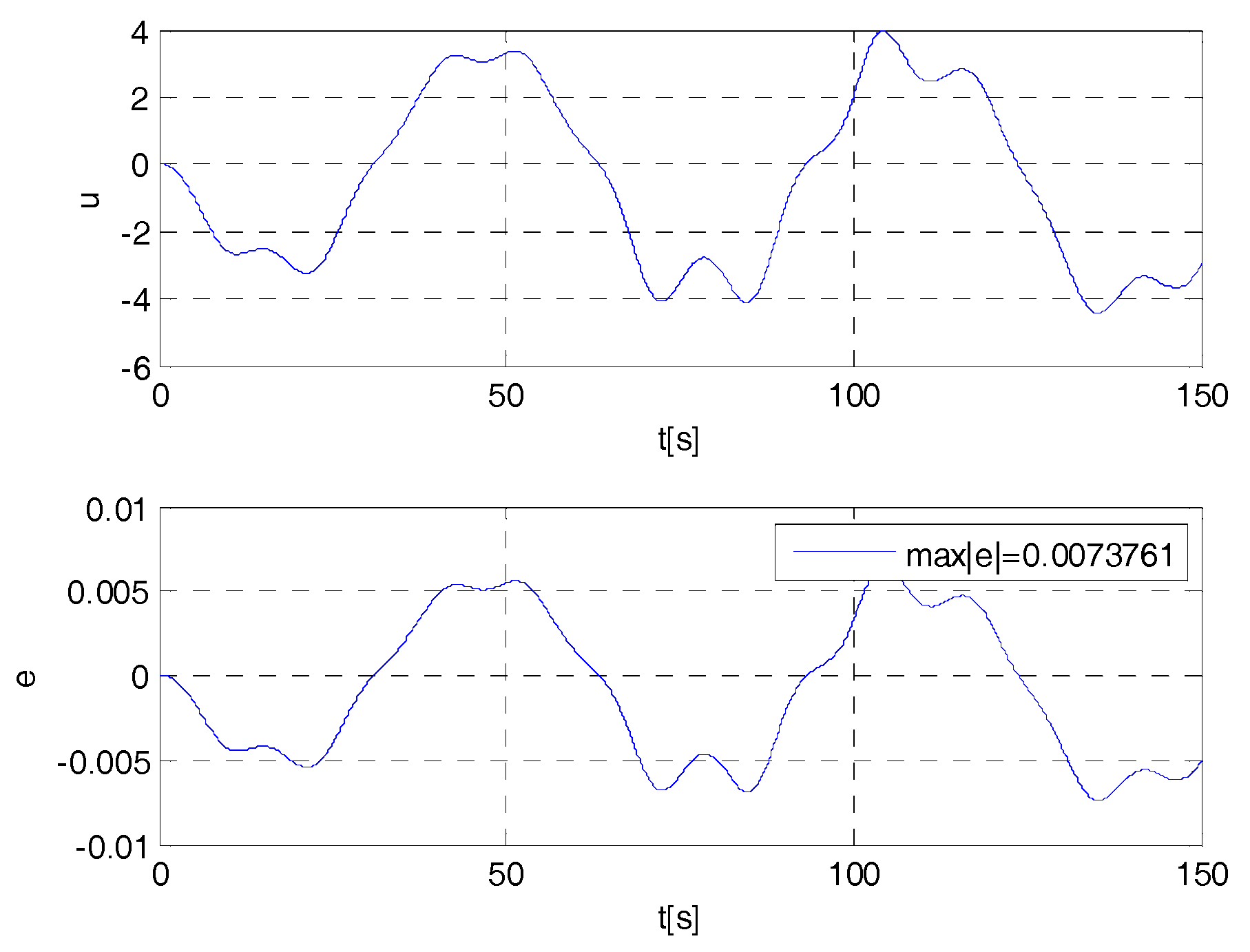

The time histories of $u$ and $e$ for $a=5, 10, 20$ are shown in Figure 38, Figure 39 and Figure 40, respectively.

Note that $\max {\left|e\right|}_{a=5}/\max {\left|e\right|}_{a=10}=4.08$, $\max {\left|e\right|}_{a=5}/\max {\left|e\right|}_{a=20}=16.69$, in accordance with the fact that, for sufficiently large $a$, the maximum of $\left|e\right|$ is inversely proportional to $a^2$.

Remark 12.

By taking into account numerous significant simulations made by the author, it follows that the control system performance is still good if the derivative action is a real one with time constant${\tau }_d\le \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$20a$}\right.$and/or if the used actuator is a real one with electrical time constant${\tau }_a\le \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$20a$}\right.$(see Example A3 in the Appendix A). This can be explained by taking into account Remark 5, Theorem 3 and the robustness of the proposed control law with respect to parametric uncertainties. The proof of the robustness of the control system with respect to${\tau }_d, {\tau }_a$will be the subject of a future paper.

5. Conclusions and Future Developments

In this paper, for a broad class of uncertain nonlinear MIMO systems, including many manufacturing systems and land, sea, and air transportation systems, a novel and unified robust control approach has been provided. It allows to design robust PD-type control laws without chattering to track a reference signal with bounded second derivative with the tracking error norm smaller than a prescribed value, despite the presence of bounded disturbances, parametric, and structural uncertainties, and bounded measurement noises. It has also been proved that the proposed control laws are robust with respect to bounded measurement noises.

With reference to the mechanical and transportation systems, this theory has been successfully applied when the controller uses information signals related to the joint space or signals related to the workspace. Moreover, the proposed results have also been fruitfully used for the control of human-machine interaction.

The obtained theoretical results have been illustrated through four relevant theoretical and engineering applications.

The main advantages of the results of this study can be summarized as follows:

• The considered class of nonlinear uncertain MIMO systems is broad and includes an important class of uncertain linear systems.
• A comprehensive approach based on the concept of majorant systems is provided to design smooth robust controllers. They have been used to track a generic reference signal with bounded second derivative with a tracking error norm smaller than a prescribed value.
• The obtained control laws are easy to design and implement. These laws have no high gains and are free from discontinuities.
• Suitable filtering laws are proposed for tracked trajectories to facilitate the implementation of the control laws and reduce the control magnitude, particularly during the transient phase.
• The maximum tracking error can be fixed a priori despite bounded parametric uncertainties, disturbances, and velocity measurement noise.
• A simple relation exists between a single design parameter of the controller and the maximum tracking error, which is useful for obtaining the desired tracking precision.
• The proposed control laws are robust with respect to bounded measurement noises.

The established theoretical results can be used also to obtain further analysis and synthesis results and study complex systems with parametric and structural uncertainties. Moreover, other engineering and/or theoretical complex nonlinear uncertain systems can be easily controlled as the treated case studies, e.g., a drone and missile in the ongoing activity of the author.

Future developments of this methodology and ongoing work of the author are: the theoretical extension of the proposed results when real derivative actions, real actuators and real amplifiers based on the PWM technique are considered.
