A Study on the Design Method for the Material Composition of Small Particle-Size Asphalt Mixture for Controlling Cracks in Asphalt Pavement

Featured Application

Authors are encouraged to provide a concise description of the specific application or a potential application of the work. This section is not mandatory.

Abstract

Generally, various kinds of cracks are the main type of distresses during the service period of asphalt pavements. To save maintenance costs and improve the crack resistance of asphalt pavements effectively, this paper presents a unique design method for the material composition of small particle-size (SPS) asphalt mixture for controlling cracks in asphalt pavement. First, Stone Mastic Asphalt (SMA)-II was designed as a basic gradation according to the A.N. Talbot curve and SMA-II-1, SMA-II-2 and SMA-II-3 were designed according to the Superpave mix design method, the Bailey method and the Particle interference theory, respectively. Second, based on Marshall test results, the optimal fiber content and optimal asphalt content of three gradations were determined. Then, the influence of the passing rate of 1.18-mm sieve and 0.075-mm sieve on the air voids of SMA-II and the influence of the filler-asphalt ratio on the performance of SMA-II were investigated, and an appropriate range of filler-asphalt ratio was obtained. Finally, a high-temperature performance test, a water stability test, and a skid resistance test demonstrate that the overall performance of SMA-II can satisfy the specifications. A low-temperature bend test and analysis of bending strain energy density show that SMA-II with a crumb rubber modifier and a polymer fiber has better crack resistance performance than SMA-I (SBS-modified mixture). Life-cycle cost analysis shows the economic advantage of SPS asphalt thin overlays over traditional AC-13 thin overlays.

1. Introduction

Asphalt pavement is exposed directly to the environment and continuous temperature cycling, and the sharp drop in temperature can cause huge shrinkage stress. Because it is closely bonded with the base, the asphalt surface will not be free to bend, which, as a result, can create different stress at the surface and the bottom of the asphalt surface layer. Combined with other stresses, larger tensile stress and cracks will appear in the surface. Under the repeated action of traffic loads and temperature stresses, micro-cracks in the surface and base will expand, densify and connect to eventually form macro-cracks, then cause damage to the pavement structure [1,2,3]. Thus, to control the road surface cracks, effective preventive maintenance measures are necessary. Hot mix asphalt (HMA) thin overlay technology, as a preventive maintenance method, has been widely used around the world.

In the 1970s, France was the first country to use a thin asphalt overlay called Béton Bitumineux Mince (BBM) on high-graded asphalt pavement [4]. In the early 1990s, the United Kingdom began to construct ultra-thin asphalt concrete (VTHMAL) test roads [5]. The United States introduced and promoted Stone Mastic Asphalt (SMA) technology in 1991. NovaChip is a pavement maintenance treatment developed by the Colas USA company [6]. In 1998, Wroclaw in Poland built a thin overlay test road, which, after being in service for several years, still has good performance. Stockholm in Sweden paved an ultra-thin asphalt concrete test road in 1999 [5]. Indonesia developed an ultra-thin overlay (20–40 mm) called LASTIKA, a hot mix asphalt concrete overlay with Superflex modified asphalt [7]. Gradually, a fine-grained SMA mixture, the nominal maximum particle sizes of which are 4.75 mm and 9.5 mm, were developed for the preventive maintenance of high-grade highway [8]. Application experience shows that thin asphalt overlay is an effective technology for delaying pavement distresses, restoring pavement function, improving pavement service level and extending the service life of the pavement [9,10]. For example, some research has demonstrated that thin overlays can efficiently improve the skid resistance of pavements [11,12,13,14,15]. Besides, asphalt overlays can also delay and restore various kinds of cracks in asphalt pavements. Some researchers tried to improve the crack resistance of asphalt mixture by developing new materials. For example, Wang et al. studied the resistance to reflective cracks of interlayer materials in asphalt overlay; the test results showed that Atactic Polypropylene (APP) asphalt felt > Fiberglass geogrid > Geotextile > Without interlayer material [16]. Fallah et al. investigated the effects of grid stiffness, tensile strength, coating type, amount of tack coat, overlay thickness, crack width, and stiffnesses of asphalt overlay and existing asphalt concrete on reinforced asphalt overlay performance with a geogrid interlayer [17]. V. Vinay Kumar et al. used a kind of geosynthetic called glass-grid composite (GGC) to improve the crack resistance of asphalt overlays because GGC can mobilize high tensile strength at a low strain value [18]. Some researchers tried to improve crack resistance with material composition. For example, Zhang et al. analyzed the effect of notch depth, gradation, asphalt properties and temperature on the crack resistance of the asphalt mixture based on semicircular bending (SCB) tests [19]. Liu et al. studied the effects of nominal maximum aggregate size (NMAS) on the performance of SMA and found that a decrease of NMAS showed better cracking and raveling resistance [20]. Garcia-Gil et al. studied the effect of aggregate gradation on the cracking performance of asphalt concrete for thin overlays and the results showed there is a significant correlation between the fine fraction content and the maximum nominal aggregate size and the cracking performance of the asphalt concrete mixtures [21]. In general, amongst research about the material composition and performance of SMA, research on gradations whose nominal maximum size of aggregate is 4.75 mm (dense-graded) is still rare. Still, in the current mix design of small-particle size asphalt mixture, high-temperature performance and water stability were used to evaluate the performance of asphalt mixture. Thus, more investigations including material composition and anti-crack performance are therefore needed to establish a systematic study on small-particle size (SPS) asphalt mixture.

Top-down cracks usually appear in asphalt surface layers within 5 years after construction and research showed that temperature and loads stresses under high and low temperatures are major factors. The relationship between pavement surface cracks and pavement structure is still uncertain; however, in fact, the appearance of cracks is closely related to asphalt mixture. Meanwhile, the severe oxidation of asphalt binder within a few millimeters of the pavement surface will reduce the tensile strength of the mixture, a larger tensile strain will appear in the pavement surface when the surface temperature approximates or exceeds the softening point at high temperatures. All of these are main contributors of top-down cracks [22,23]. Thus, it would be more effective to improve pavement crack resistance based on the material composition of asphalt mixture.

The small particle-size (SPS) asphalt mixture proposed in this paper is dense-graded mixture with a high content of asphalt. The nominal maximum size of aggregate is 4.75 mm, the proportion of aggregate passing a 2.36-mm sieve is 70%, asphalt content is between 6% and 8%.

2. Components of Asphalt Mixture

2.1. Crumb Rubber Modifier

Crumb rubber modifier (CRM) can improve the high temperature resistance, anti-aging resistance and elastic properties of matrix asphalt. Engineering practice showed that rubberized asphalt concrete has obvious advantages in delaying reflective cracks, thinning asphalt pavement thickness, withstanding heavy traffic, reducing road noise and resisting adverse climate [24,25].

Due to the differences in chemical composition and strong inertia between crumb rubber and asphalt, a swelling reaction usually occurs. Then, the prepared swollen rubber particles can uniformly disperse and suspend in asphalt; as a result, the asphalt changes from a single-phase system into a two-phase system which will cause changes in the interfacial properties and pavement performance of the asphalt [26,27,28]. Rubberized asphalt has several advantages: First, the increase of the viscosity of modified asphalt can improve high temperature stability of asphalt mixture. Then the temperature sensitivity of the asphalt decreases after crumb rubber modification. What is more, the low-temperature ductility of the asphalt will be improved after modification. Also, the water damage resistance of the asphalt mixture will be enhanced because of the increase of the rubberized asphalt film thickness of the aggregate. Finally, driving safety will be enhanced because of the increase of friction between vehicle tires and the pavement’s surface [29].

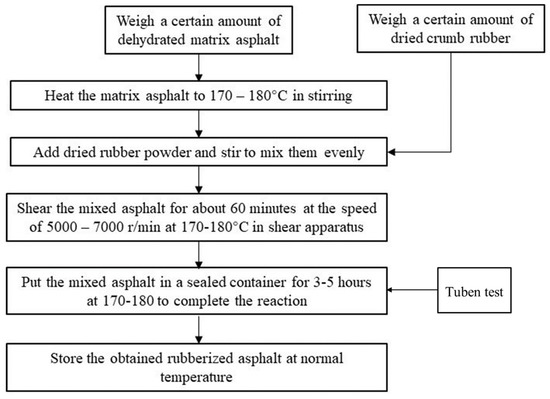

The rubberized asphalt used in this study was prepared indoors. Although the process was relatively simple, each procedure must be strictly controlled. The production procedures of rubberized asphalt are shown in Figure 1 and the Tuben test was performed to determine the tendency of CRM to separate from the asphalt binder during static storage at a controlled temperature. If the rubberized asphalt binder shows a tendency to separate during storage, some sort of agitation or stirring or reformulation of the binder must be considered. Testing was conducted in accordance with EN-13399 (Standard Practice for Determining the Separation Tendency of Polymer from Polymer-Modified Asphalt) [30].

Notes:

• The fineness of the crumb rubber is 40~80 meshes, the amount of crumb rubber is 20% of the matrix asphalt, the crumb rubber was dried at 110 °C.
• The matrix asphalt is 70# Karamay heavy traffic petroleum asphalt.

Table 1. Technical indicators of matrix asphalt binder.

Indicators	Unit	Test Result	Requirement	Test Method [32]
Penetration (25 °C, 100 g, 5 s)	0.1 mm	70	60~80	T 0604-2011
Penetration index	-	−0.86	−1.5~+1.0	T 0604-2011
Ductility (15 °C)	cm	>150	≥100	T 0605-2011
Softening point	°C	48.5	≥46	T 0606-2011
Dynamic viscosity (60 °C)	Pa·s	184	≥180	T 0625-2011
Flash point	°C	332	≥260	T 0613-2011
Density (15 °C)	g/cm3	1.030	-	T 0603-2011
Solubility in Trichloroethylene	%	99.8	>99.5	T 0607-2011
Wax content	%	1.72	2.2	T 0615-2011
Thin-Film Oven test (TFOT) (163 °C, 5 h)
Loss on heating	%wt	0.16	≤0.8	T 0609-2011
Retained penetration after TFOT	%	68.9	≥61	T 0609-2011
Ductility after TFOT (15 °C)	cm	15	≥15	T 0605-2011

shows the technical indicators of the matrix asphalt binder in this study. According to the test results in

Table 2. Technical indicators of asphalt-rubber binder.

Indicators	Unit	Test Result	Requirement	Test Method
Rotary viscosity (180 °C)	Pa·s	3.2	1.0~4.0	T 0604-2011 [31]
Penetration (25 °C, 100 g, 5 s)	0.1 mm	70	40~60	T 0604-2011 [32]
Softening point	°C	58.2	>56	T 0606-2011 [32]
Elastic recovery	%	75	55	T 0662-2000 [32]
Ductility (5 °C)	cm	16.7	>10	T 0605-2011 [32]

, all technical indicators of the asphalt-rubber binder can meet the Chinese specification JT/T 798-2011 [31].

2.2. Fibers

Fibers were used to strengthen the crack resistance of small particle-size asphalt mixture [33]. The following factors should be taken into account when selecting fibers:

• the capacity of adsorbing asphalt;
• the adhesiveness with asphalt;
• the improvement on crack resistance of mixture.

Frequently-used fibers in pavement engineering included lignin fiber, polyester fiber, mineral fiber and fiberglass. Compared with others, polyester fiber has many advantages such as good chemical stability, microbe-resistant properties, acid resistance, strong anti-erosion ability for normal non-polar solvents, high intensity, moderate extensibility, high modulus and good elasticity, except poor alkali resistance [34]. Thus, TF polyester fiber produced by a company in Gansu Province was selected for this paper. The technical indicators are shown in

Table 3. Technical indicators of polyester fiber.

Strength/MP	Ductility/%	Heat Resistance/°C	Diameter/μm	Dispersity
600	30 ± 6	260	20 ± 5	Even

and the indicator values demonstrate that TF polyester fiber will be stable in the asphalt mixture during the performance tests.

3. Gradation Design of Aggregates

3.1. Gradation Design Theory

There are two gradation theories: the maximum density curve theory and the particle interference theory. The former describes the grain size distribution of continuous gradation and is usually used in continuous gradation, while the latter is used to calculate both continuous and gap-graded gradation. Representative gradation design methods are as follows [35]:

(1)

W.B. Fuller curve:

$$P=100{\left(\frac{d}{D}\right)}^{0.5}\%$$

(1)

where, P is passing rate of sieve d_i (mm). D is maximum grain size of mineral mixture.

(2)

A.N. Talbot curve:

$$P=100{\left(\frac{d}{D}\right)}^n\%$$

(2)

where, n is the text index. d and D have the same meaning with those in Equation (1)

(3)

K method: Aggregate gradation curve based on mass degression coefficient k of grain gradation presented by H. H. Иванoв.

(4)

The theory of particle interference presented by C.A.G. Weymouth:

$${\mathrm{\Psi }}_s=\frac{{\mathrm{\Psi }}_0}{{\left(\frac{d}{D}+1\right)}^3}$$

(3)

where, Ψ_s is solid volume ratio of secondary size fraction. Ψ₀ is theoretical solid volume ratio of secondary size fraction. d is the grain size of former size fraction. D is the grain size of secondary size fraction.

3.2. Gradation Design of SPS Asphalt Mixture

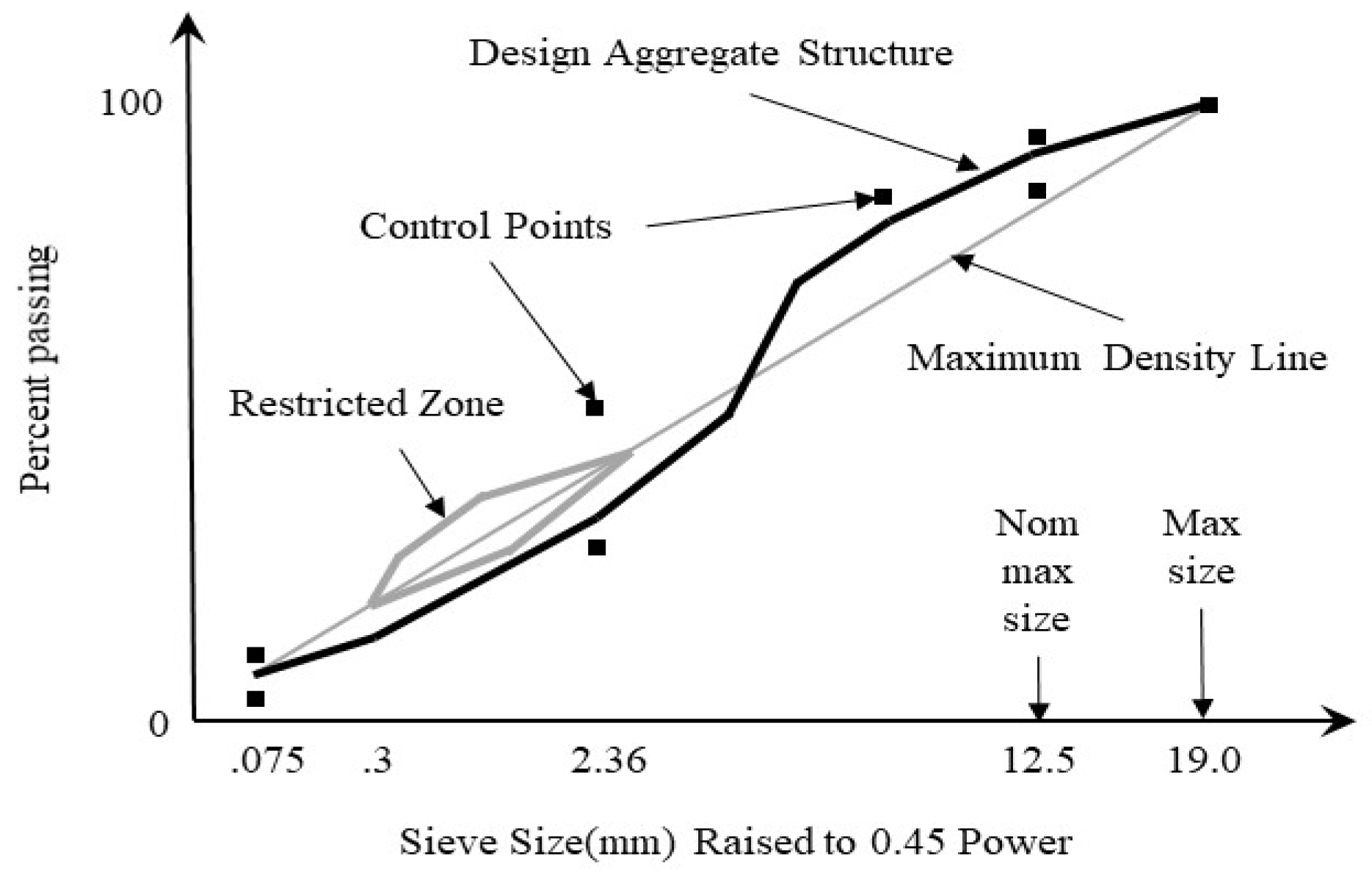

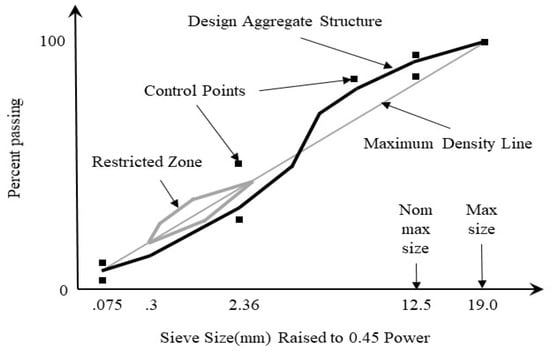

Goode and Lufsey found that when the gradation index is 0.5 in the Fuller curve, voids in the mineral aggregate (VMA) will be too low to meet indicators such as air voids and the saturation of asphalt mixture. In view of this, the gradation index should be 0.45 [36]. There are control points and restricted zones in Superpave aggregate gradation design as shown in Figure 2. Studies have shown that the gradation curve under the restricted zone can provide the asphalt mixture with better rutting resistance [37,38].

In this study, Asphalt Concrete (AC) gradation was adopted as the basis of mixture design. The technical indicators about coarse aggregate, fine aggregate and mineral filler can be seen in

Table A1. Technical indicators of coarse aggregate.

Indicators		Unit	Test Result
Crushing value		%	17.3
LA abrasion value		%	15.6
Bulk density	4.75 mm	g/cm3	2.722
	2.36 mm		2.741
	1.18 mm		2.727
Water absorption		%	0.63
Mud content		%	0.87
Flakiness index		%	10.1

,

Table A2. Technical indicators of fine aggregate.

Indicators	Unit	Test Result
Apparent density	g/cm3	2.717
Mud content	%	1.2
Sand equivalent	%	57
Methylene blue value	g/kg	19
Angularity	s	18.87

and

Table A3. Technical indicators of mineral filler.

Indicators		Test Result	Requirement
Apparent density (t/m3)		2.788	≥2.5
Water content (%)		0.6	≤1
Particle gradation/%	<0.6 mm	99.3	100
	<0.15 mm	92.1	90~100
	<0.075 mm	75.4	70~100
Hydrophilic coefficient		0.45	<1
Plasticity index (%)		2.2	<4

in Appendix A. According to A.N. Talbot curve (4), the basic gradation SMA-II is shown in

Table 4. SMA-II gradation calculation.

Grain Size/mm	9.5	4.75	2.36	1.18	0.6	0.3	0.15	0.075
Passing rate/%	100	73.2	53.4	39.1	28.9	21.1	15.5	11.3

.

$$P=100{\left(\frac{d}{D}\right)}^n\%$$

(4)

where n = 0.45, the gradation is as follows in Table 4:

To investigate the influence of gradation on the performance of SPS rubberized asphalt mixture, based on the original gradation SMA-II, SMA-II-1 was designed by way of the Superpave mix design method and SMA-II-2 was designed by way of the Bailey method. SMA-II-3 was designed according to particle interference theory. In contrast, SMA-I was designed as a traditional SMA-5 to the Chinese specification JTG F40-2004 [39]. Four comparative gradations are shown in

Table 5. SMA-II gradation design.

Particle Size/mm	9.5	4.75	2.36	1.18	0.6	0.3	0.15	0.075
Passing rate of SMA-I	100	95	46.5	29	23	18.5	15.5	13.5
Passing rate of SMA-II-1/%	100	76.7	55.6	36.3	23.3	18.3	13.5	9.5
Passing rate of SMA-II-2/%	100	95	85	70	55	35	18	12
Passing rate of SMA-II-3/%	100	88.2	67.6	47.1	47.1	29.4	16.5	10.5

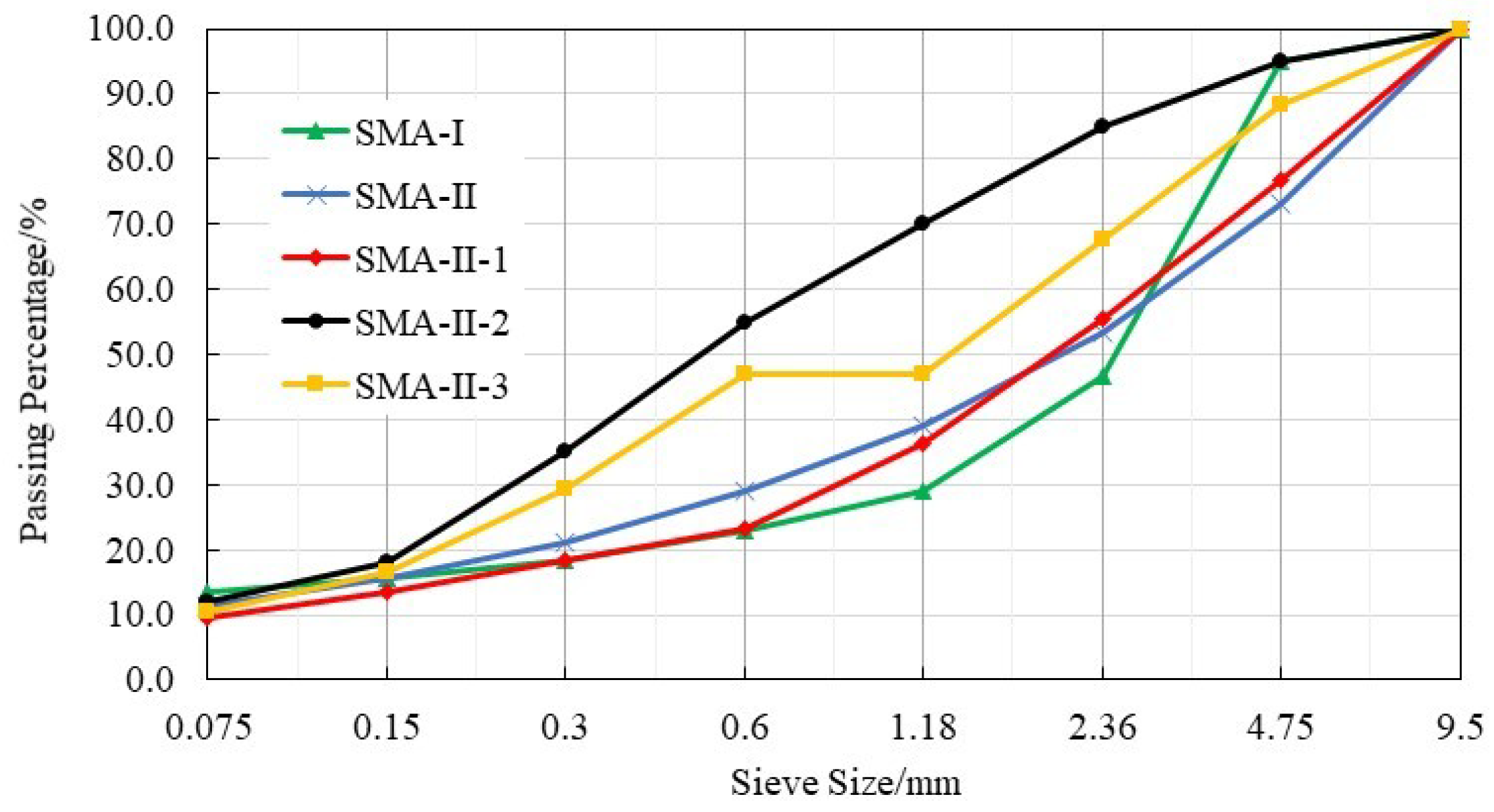

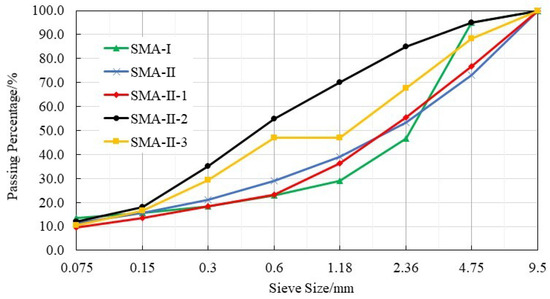

and Figure 3.

4. Mix Design of SPS Asphalt Mixture

4.1. Determination of Optimal Fiber Content and Optimal Asphalt Content

To determine the optimal fiber and asphalt content, the optimal composition of the asphalt mixture without fiber was first determined by the Marshall test. Then, the polymer fiber, as the admixture, was added to the asphalt mixture at a certain interval of content, while the asphalt content should increase at an appropriate proportion. Hence, under each fiber content, Marshall samples were molded respective to a certain interval of asphalt content and the optimal asphalt-aggregate ratio was determined.

Marshall test results of the mixture without fiber are shown in

Table 6. Marshall test results of SMA-II-1.

Test Items	Test Values
Asphalt-aggregate ratio/%	5.3	5.8	6.3	6.8	7.3
Bulk density/(g·cm−3)	2.393	2.427	2.445	2.438	2.422
VV/%	5.4	4.2	3.4	2.7	1.5
VMA/%	17.3	17.6	17.6	19.2	21.5
VFA/%	68.9	75.9	80.6	85.7	92.9
Stability/kN	10.65	10.94	11.12	11.02	10.41
FL/mm	3.31	3.52	3.85	4.33	4.65

,

Table 7. Marshall test results of SMA-II-2.

Test Items	Test Values
Asphalt-aggregate ratio/%	7.1	7.6	8.1	8.6	9.1
Bulk density/(g·cm−3)	2.367	2.395	2.406	2.368	2.343
VV/%	5.6	4.5	3.4	2.5	1.6
VMA/%	20.1	19.0	18.6	20.0	20.2
VFA/%	72.3	76.1	81.6	87.4	91.9
Stability/kN	9.31	9.82	10.35	9.91	9.73
FL/mm	4.22	4.58	5.15	5.74	6.13

and

Table 8. Marshall test results of SMA-II-3.

Test Items	Test Values
Asphalt-aggregate ratio/%	6.1	6.6	7.1	7.6	8.1
Bulk density/(g·cm−3)	2.397	2.422	2.433	2.418	2.402
VV/%	5.1	4.3	3.6	2.4	1.5
VMA/%	19.2	18.0	17.3	18.2	19.7
VFA/%	73.7	76.3	79.5	86.6	92.5
Stability/kN	9.72	10.51	10.67	10.26	9.83
FL/mm	3.37	3.96	4.33	4.75	5.35

:

Air voids have a significant influence on the performance of the mixture and should be strictly controlled within a reasonable range. Thus, air voids in this test were decreased within the allowable range to enhance the crack resistance of the dense-graded mixture. According to specification JTG F40-2004 [39], the air voids should be between 3.5% and 4%.

According to the Marshall test results, for SMA-II-1, the stability first increases from 10.65 kN to the maximum value of 11.12 kN with the increase of the asphalt-aggregate ratio from 5.3% to 6.3%, then the stability decreases to 10.41 kN with the increase of the asphalt-aggregate ratio from 6.3% to 7.3%. Similarly, the maximum values of stability for SMA-II-2 and SMA-II-3 are 10.35 kN when the asphalt-aggregate ratio is 8.1% and 10.67 kN when the asphalt-aggregate ratio is 7.1%. Thus, the optimal asphalt contents of SMA-II-1, SMA-II-2 and SMA-II-3 are 6.3%, 7.8% and 6.9%. Then, fiber was added to all SMA-II mixtures in different proportions; meanwhile, asphalt content should increase. The Marshall test results of SMA-II-1 are shown in

Table 9. Basic parameters and Marshall volumetric indicators of the mixture.

Mixture	Fiber Content/%	Asphalt-Aggregate Ratio/%	Bulk Density g/cm3	VV/%	VWA/%	VFA/%	Stability/kN	FL/mm
SMA-II-1	0.1	6.2	2.441	3.62	17.6	79.4	10.52	3.52
		6.5	2.437	3.23	18.3	82.4	10.73	3.76
		6.8	2.416	2.64	18.8	86.0	10.15	4.21
	0.15	6.3	2.438	3.42	17.7	80.7	10.47	3.35
		6.6	2.431	2.71	17.9	84.9	10.98	3.57
		6.9	2.409	2.43	18.6	87.0	10.15	4.12
	0.2	6.4	2.436	3.31	17.4	81.0	10.59	3.54
		6.7	2.433	3.03	17.5	82.7	11.06	3.88
		7.0	2.420	2.33	18.1	87.1	10.71	4.36
	0.25	6.4	2.435	3.52	17.4	79.8	10.84	3.67
		6.7	2.421	3.11	17.2	81.9	10.75	4.06
		7.0	2.402	2.73	18.2	85.0	10.23	4.63
	0.3	6.4	2.425	3.23	17.7	81.8	10.63	3.73
		6.8	2.406	2.61	17.2	84.8	10.41	4.39
		7.0	2.398	2.23	17.9	87.5	9.97	4.75

.

According to Marshall test results in Table 9 and calculation methods in the Chinese specification JTG40-2004 [39], OAC (the optimal asphalt content), OAC_min and OAC_max of SMA-II-1 with different fiber contents are shown in Figure 4:

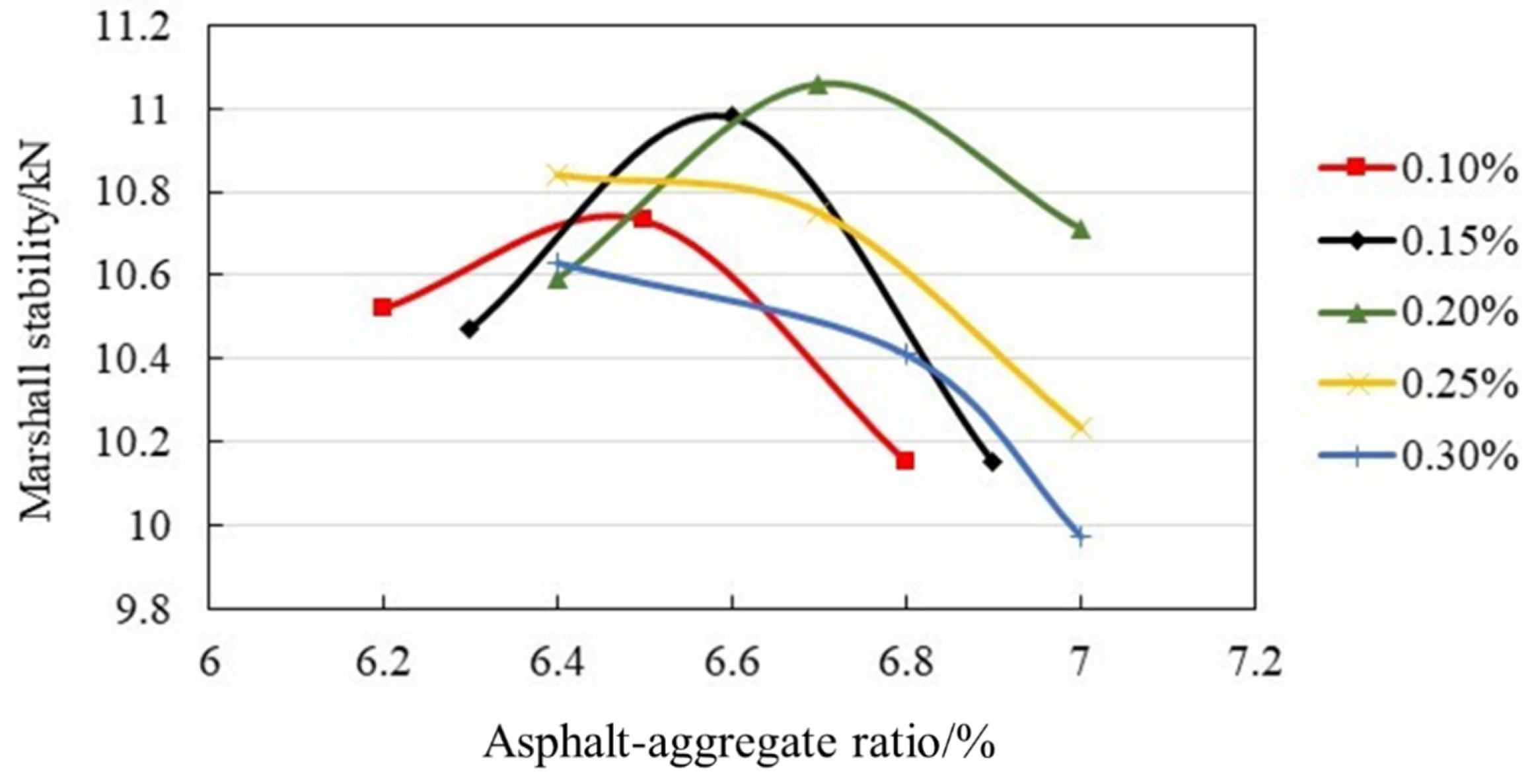

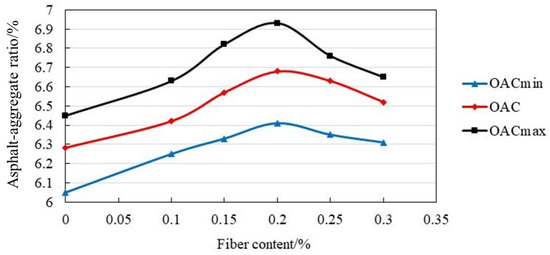

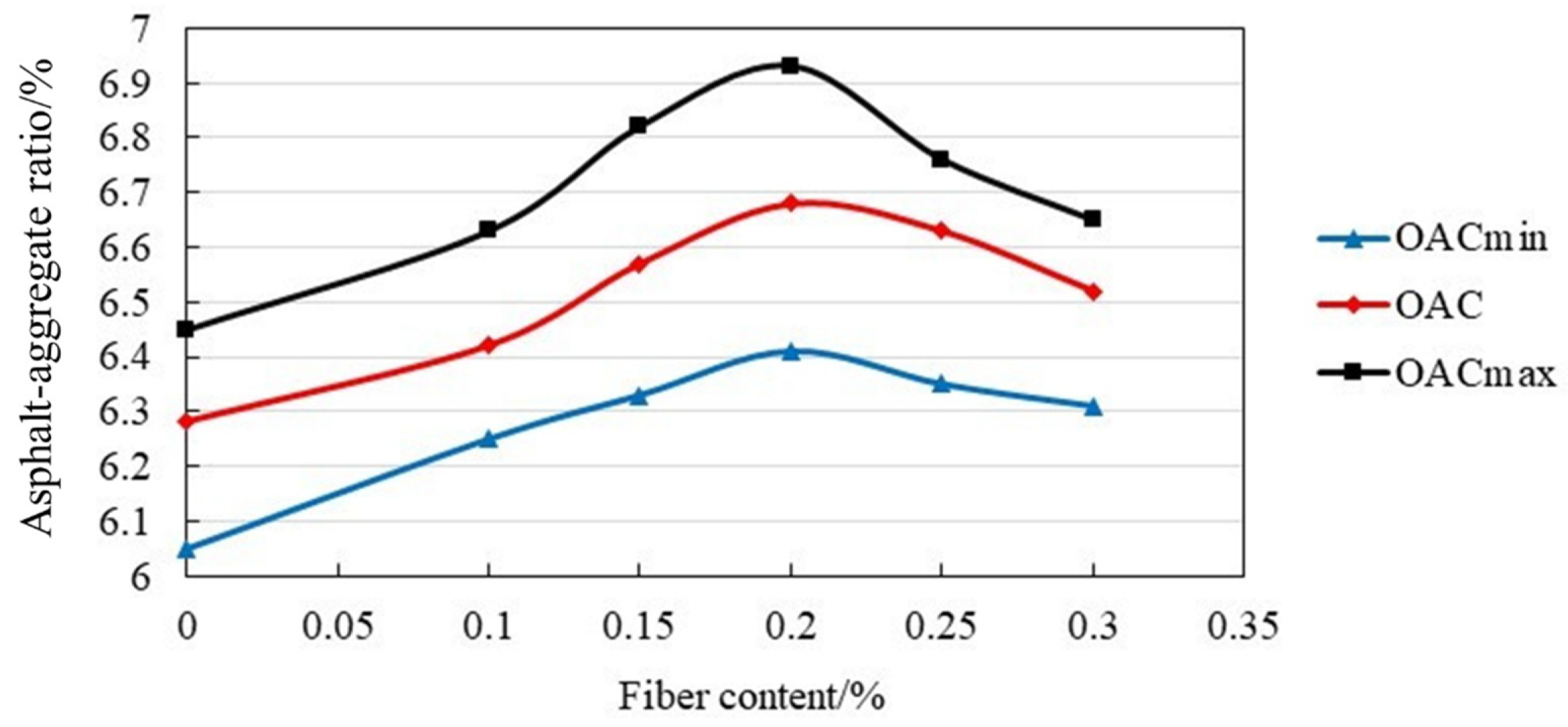

In Figure 4, before the peak of the curve, the optimal asphalt content (OAC) increases with increasing fiber content. At the peak, OAC increases by about 0.4% because of the presence of the fiber. After the peak, OAC reduces gradually with increasing fiber content. Figure 5 shows that there is an extremum for the Marshall stability of the asphalt mixture with different fiber contents and asphalt-aggregate ratios. The reason is that the specific surface area of the fiber will increase with the addition of fiber that will adsorb a certain amount of asphalt, then the OAC will increase. But with a further increase of fiber content, the specific surface area of the fiber will decrease because excess fiber can reduce the dispersity so OAC will decrease accordingly. Therefore, in this test, the optimal amount of polyester fiber is 0.18% while the optimal asphalt-aggregate ratio is 6.6%.

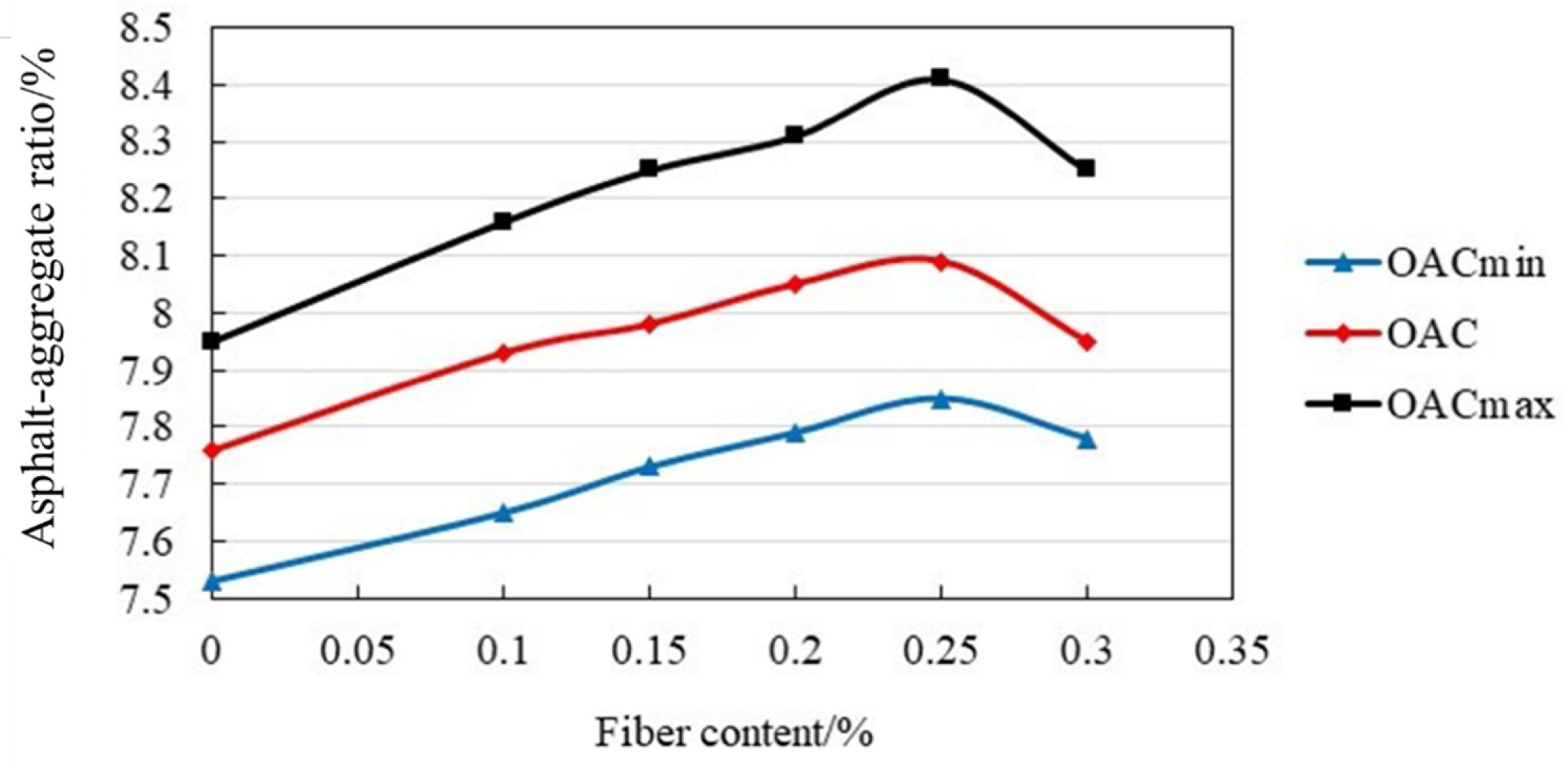

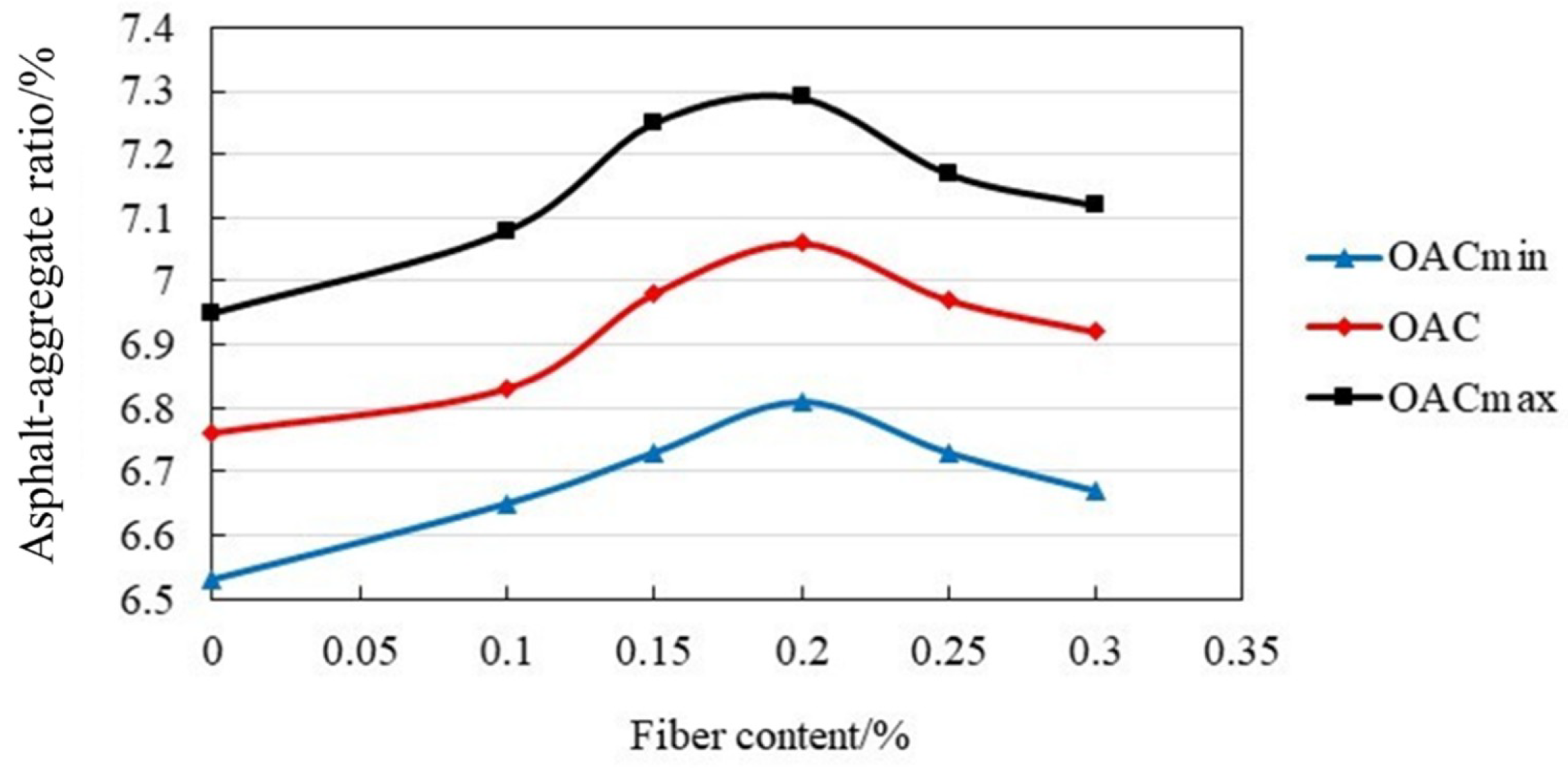

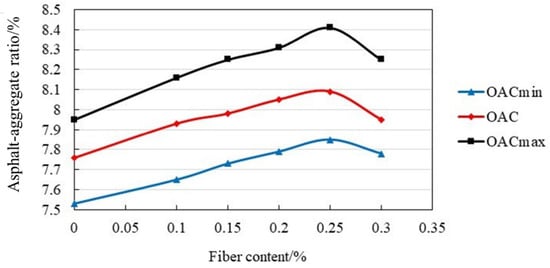

Similarly, the test results of SMA-II-2 and SMA-II-3 are shown in Figure 6 and Figure 7, respectively. The optimal fiber content and optimal asphalt-aggregate ratio of SMA-II-2 are 0.27% and 8.1%. The optimal fiber content and optimal oil stone ratio of SMA-II-3 are 0.21% and 7.1%.

4.2. Study on Key Controlling Indices of Mix Proportion

To guide the mix proportion design of the mixture, the influence of the passing rate on the air voids of the mixture and the influence of the filler-asphalt ratio on the performance of SMA-II were studied.

4.2.1. The Influence of 1.18-mm and 0.075-mm Sieve Passing Rate on Air Voids of the Mixture

The key control sieves are usually 1.18-mm and 0.075-mm sieves for a mixture with a 4.75-mm nominal maximum particle size. A 1.18-mm sieve can control the ratio of coarse and fine aggregates to form a coarse aggregate skeleton structure, a 0.075-mm sieve can influence the air voids of a mixture, which, as a result, can further influence the road performance of the mixture.

In

Table 10. Gradation with different passing rate of 1.18-mm and 0.075-mm sieves.

Gradations	9.5	4.75	2.36	1.18	0.6	0.3	0.15	0.075
SMA-II-1-1	100	76.7	55.6	36.3	23.3	18.3	13.5	8.5
SMA-II-1-2	100	76.7	55.6	36.3	23.3	18.3	13.5	9.5
SMA-II-1-3	100	76.7	55.6	36.3	23.3	18.3	13.5	10.5
SMA-II-2-1	100	92	72.3	55.3	37.7	19.4	12.9	8.5
SMA-II-2-2	100	92	72.3	55.3	37.7	19.4	12.9	9.5
SMA-II-2-3	100	92	72.3	55.3	37.7	19.4	12.9	10.5
SMA-II-3-1	100	88.2	67.6	47.1	47.1	29.4	16.5	8.5
SMA-II-3-2	100	88.2	67.6	47.1	47.1	29.4	16.5	9.5
SMA-II-3-3	100	88.2	67.6	47.1	47.1	29.4	16.5	10.5

, the asphalt content for three gradations (without fiber) are still 6.5%. As a control variable for each gradation, the passing rates of the 1.18-mm sieve are 36.3%, 55.3% and 47.1% in SMA-II-1, SMA-II-2 and SMA-II-3, respectively. The mineral filler content of each gradation is 8.5%, 9.5%, 10.5 %, respectively. Specimens of all gradations are made by way of the gyratory compaction method (125 times compaction).

Table 11. Air voids of gyratory compaction specimens.

Test Items	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3
Bulk density/(g·m−3) (cm−3)	2.318	2.406	2.422	2.396	2.36	2.328	2.374	2.396	2.457
Air voids/%	6.31	4.06	3.24	3.72	4.32	5.18	4.56	3.82	2.75

presents the test results of the air voids of gyratory compaction specimens.

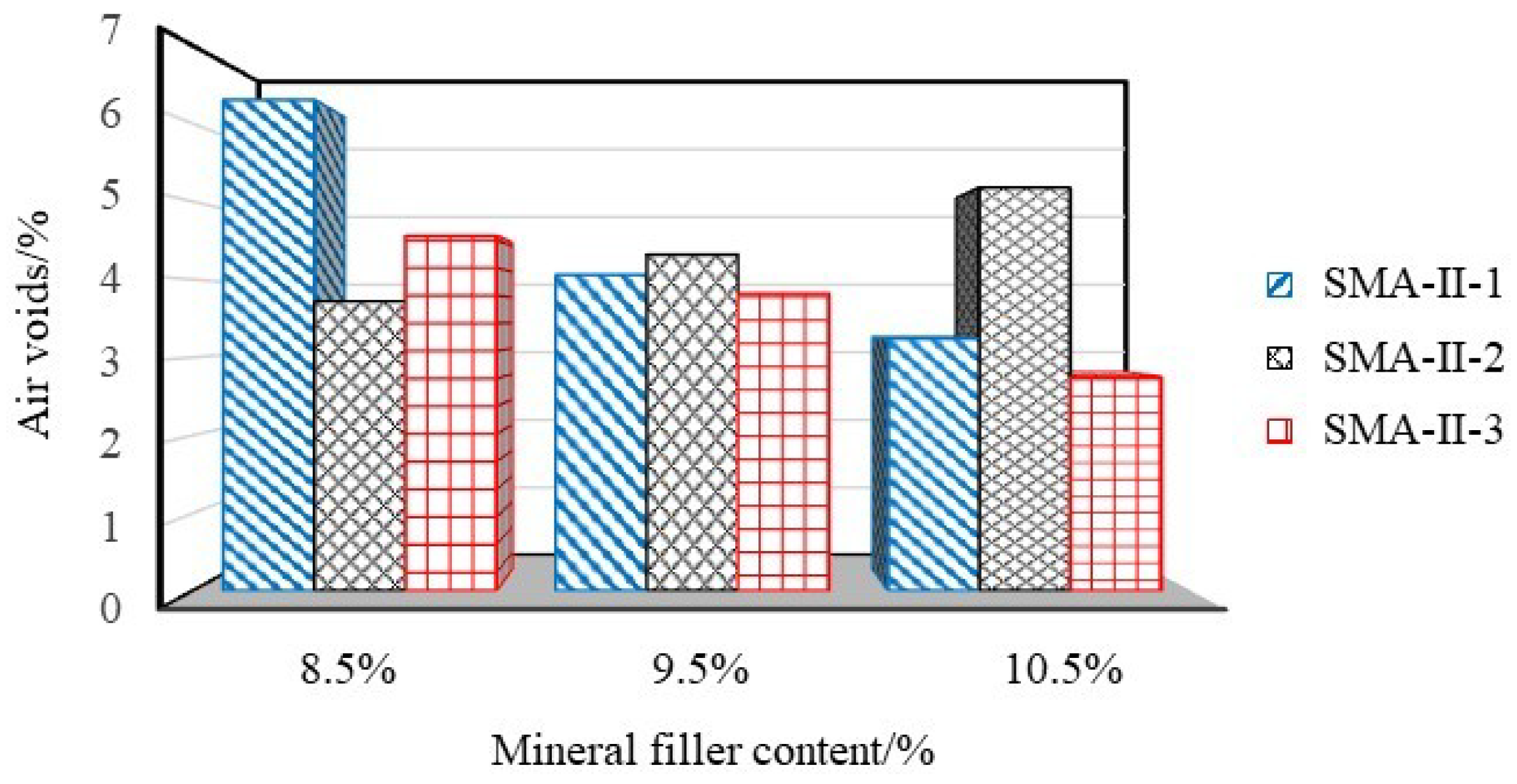

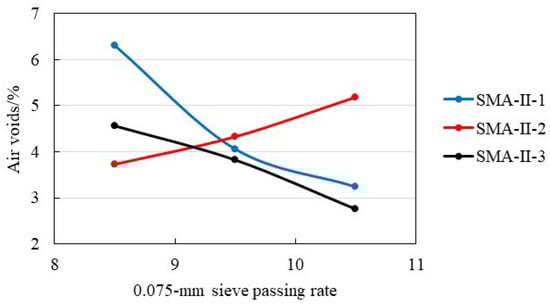

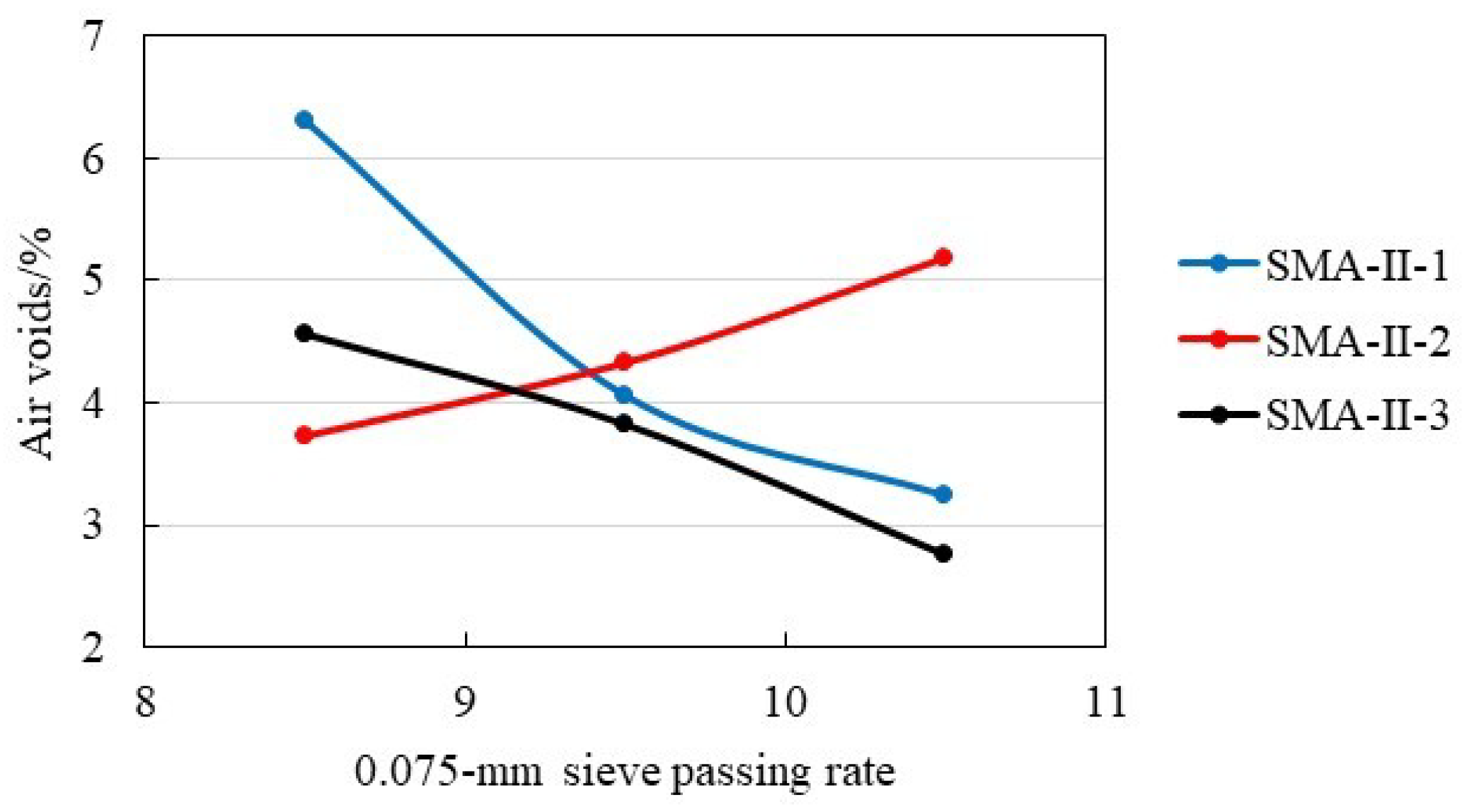

Figure 8 and Figure 9 show that, with the increase of mineral filler content, the air voids of both SMA-II-1 and SMA-II-3 decrease gradually but at different rates, that is, the variation of mineral filler content has a deeper influence on the air voids of SMA-II-1 than that of SMA-II-3. In contrast, the air voids of SMA-II-2 increase with the increase of the mineral filler content. According to the test results in Table 10, the mineral filler content changes from 8.5% to 9.5% and then to 10.5%, while the air voids of SMA-II-1 decrease by 33.6% and 29.3 %, respectively, the air voids of SMA-II-3 decrease by 16.2% and 17.5%, respectively and the air voids of SMA-II-2 increase by 13.9% and 16.6%, respectively. The average slopes of the air voids curves of SMA-II-1, SMA-II-2 and SMA-II-3 shown in Figure 8 are −1.535, 0.73 and −0.905, respectively.

The changing trends of the air voids of II-1 resemble those of II-3, which is because the amount of coarse aggregate in these two gradations are in the majority, and fine aggregate, especially mineral filler content, plays a significant role in the change of air voids. However, the air voids of the gap-graded are less sensitive to changes in the mineral filler content; hence, a qualified gradation is easier to design. For SMA-II-2 with a large amount of fine aggregate, a slight change of the mineral powder content has little effect on the air voids of the mixture; meanwhile, the oil-stone ratio 6.5% is low, which will make the air voids increase with the increase of the mineral filler content. In this case, the average slopes of the air voids curves show that the change in the air voids with mineral filler content is relatively stable; however, the change range of the fine aggregate content (the interval is 8.2% and 10.8%) is much larger than that of the mineral filler content (the interval is 1%). Therefore, the passing rate of the 1.18-mm sieve has a more remarkable influence on the air voids of the mixture.

4.2.2. The Influence of Filler-Asphalt Ratio on the Performance of SMA-II

Mineral filler is of vital importance to asphalt mixture. The cohesion between asphalt and aggregate is generated by an asphalt absorbing mineral filler based on a thin asphalt film, that is, the combination of asphalt and mineral filler is the real binder. The interaction between the asphalt and mineral filler was the determining factor of the formation of the asphalt mixture structure, which is directly related to the strength, temperature stability and aging rate of the asphalt mixture [40]. Therefore, it is necessary to study asphalt and mineral filler as a group. In this section, the freeze-thaw splitting test and the low-temperature bend test of SMA-II with a different filler-asphalt ratio were conducted to compare the influence of different filler-asphalt ratios on the water stability and low temperature properties of the mixture. SMA-II-3 without fiber was adopted in this test. Gradations are shown in

Table 12. Gradations with different mineral filler contents.

Gradations	Passing Rate of 1.18-mm Sieve	Passing Rate of 0.075-mm Sieve	Effective Asphalt Content	Filler-Asphalt Ratio
3-1	47.1	10.5	6.5	1.62
3-2	47.1	10.5	7.5	1.40
3-3	47.1	10.5	8.5	1.24
3-4	47.1	10.5	9.5	1.11
3-5	47.1	10.5	10.5	1.00

:

Specimens of five gradations in Table 12 were made with the optimal asphalt content, the rest of the results of the freeze-thaw splitting test and the low temperature bend test are shown in

Table 13. Results of the freeze-thaw splitting test.

Gradations	Original Splitting Strength (${\mathit{R}}_{\mathbf{T}1}$)/MPa	Freeze-Thaw Splitting Strength (${\mathit{R}}_{\mathbf{T}2}$)/MPa	Tensile Strength Ratio (TSR)/%	Requirement/%
3-1	0.8465	0.7085	83.70	≥80
3-2	0.8916	0.7737	86.78
3-3	0.9049	0.8058	89.05
3-4	0.9143	0.8386	91.72
3-5	0.9485	0.9021	95.11

and

Table 14. Results of the low-temperature bend test.

Test Items	Test Values
Filler-asphalt ratio	1.62	1.40	1.24	1.11	1.00
Maximum failure load/N	1315.5	1272.1	1248.7	1205.8	1126.3
Flexural strength ($R_{\mathrm{B}}$)/MPa	10.739	10.385	10.193	9.844	9.194
Ultimate tensile strain (${\epsilon }_{\mathrm{B}}$)/με	11,445	12,128	12,758	13,388	14,490
Flexural stiffness modulus ($S_{\mathrm{B}}$)/MPa	938.32	856.31	798.99	735.29	634.54

. Original splitting strength ($R_{\mathrm{T}1}$), freeze-thaw splitting strength ($R_{\mathrm{T}2}$) and Tensile strength ratio (TSR) were calculated based on Equations (A2)–(A4) shown in Appendix B. Flexural tensile strength $R_{\mathrm{B}}$, ultimate tensile strain ${\epsilon }_{\mathrm{B}}$ and flexural stiffness modulus $S_{\mathrm{B}}$ were calculated based on Equations (A6)–(A8) shown in Appendix B.

In Table 13, all TSRs of SMA-II-3 with different filler-asphalt ratios can meet the requirements of Chinese specification JTG F40-2004 [39]. The splitting strength and TSR of all mixtures increased gradually with the decrease of the filler-asphalt ratio. The splitting strength decreases rapidly when the filler-asphalt ratio is 1.6, which indicates a rapid increase of air voids. TSR increases rapidly when the filler-asphalt ratio is 1.0 and all values of TSR are more than 95%, which indicates that the air voids are very small. Hence, the recommended range of filler-asphalt ratio should be from 1.1% to 1.4%.

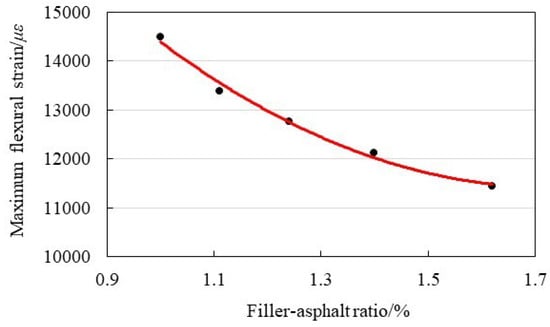

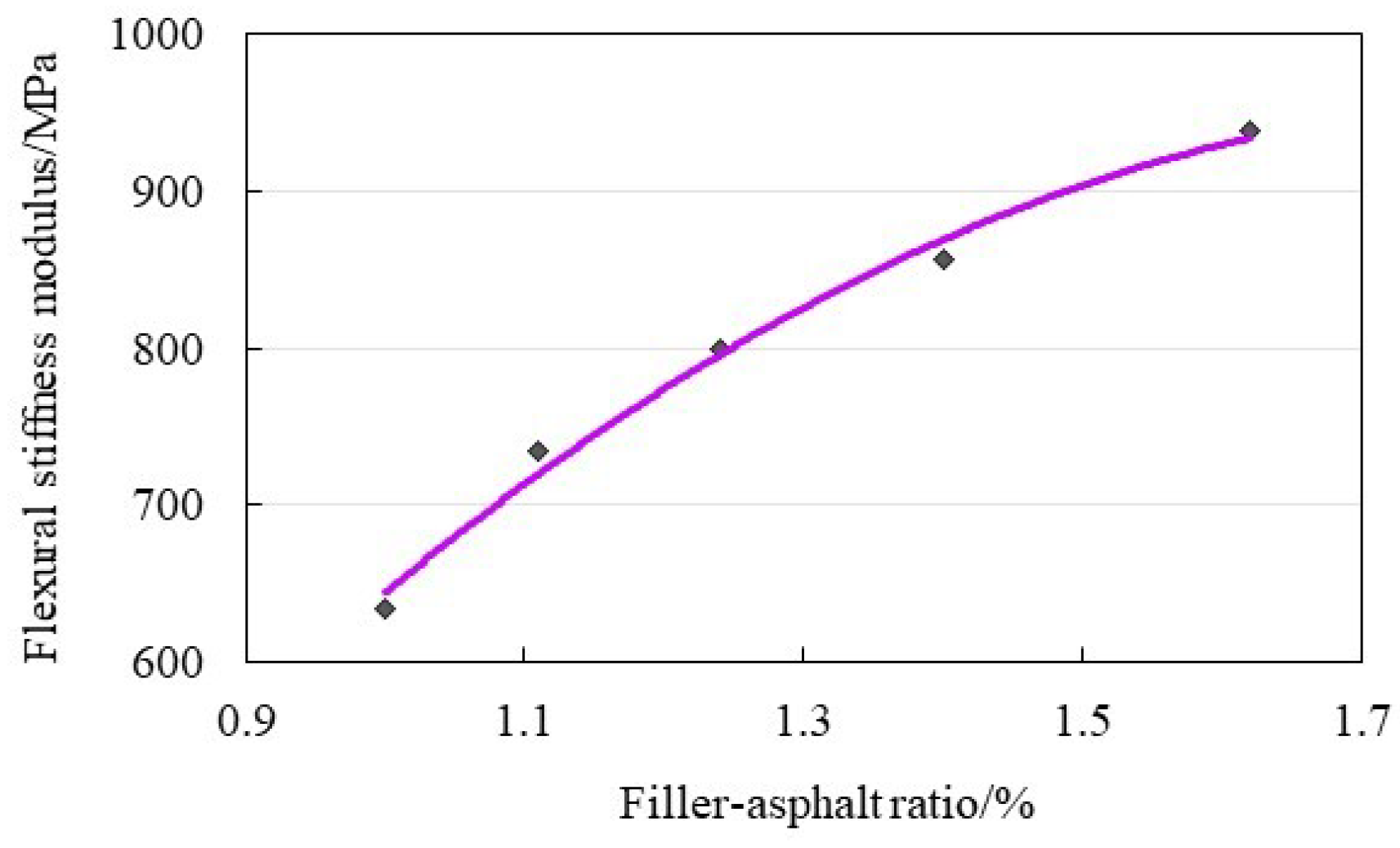

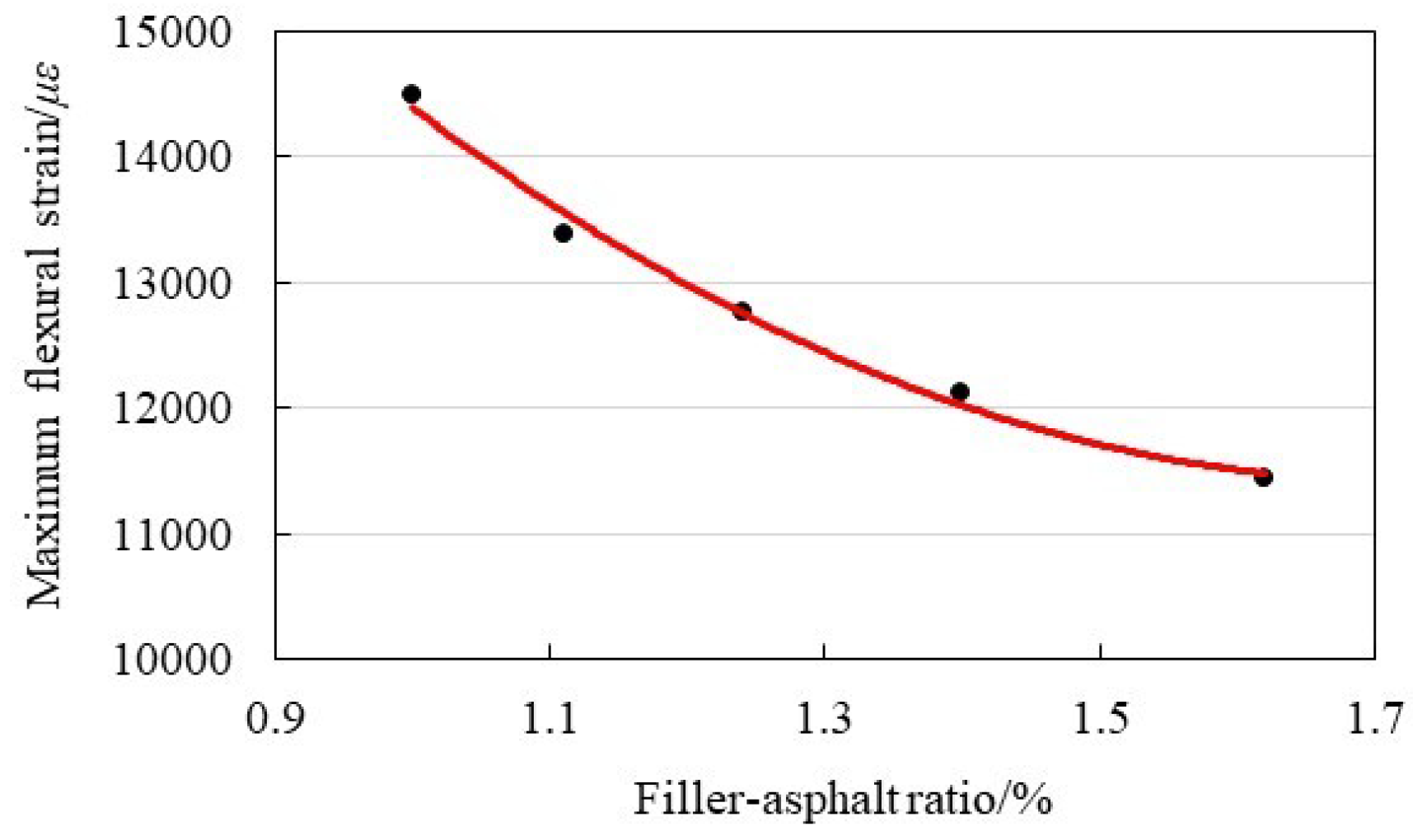

In Figure 10 and Figure 11, with the increase of the filler-asphalt ratio, the maximum flexural strain curve of the mixture is a concave decreasing curve, while the flexural stiffness modulus curve is a convex increasing curve. All maximum tensile strains in this test are more than 10,000, which is much larger than the 2800 that is required by Chinese specification JTG F40-2004 [39]. As a matter of fact, when the filler-asphalt ratio is small, because of the existence of too much free asphalt, the flexibility of the mixture enhances, then the bending tensile strain becomes smaller. The increase in the filler-asphalt ratio will result in the decrease of free asphalt, combined with the absorption and reinforcement of fiber, the flexural stiffness modulus increases while the bending tensile strain decreases. To sum up, the recommended filler-asphalt ratio should be from 1.0% to 1.6% from the perspective of low-temperature performance.

5. Results and Discussion

5.1. High-Temperature Performance

The Rutting Test shall be executed by reference to the test method of T 0719-2011 in Chinese specification JTG E20-2011 [32]. The material composition of specimens used in this test are based on the results of Figure 4, Figure 6 and Figure 7. Dynamic stability (DS) was calculated based on Equation (A1), shown in Appendix B. Test results are in

Table 15. Test results of dynamic stability of SMA-II.

Mixture	Specimen 1	Specimen 2	Specimen 3	Mean Value of Dynamic Stability/(Times/mm)
SMA-II-1	3182	2930	3029	3047
SMA-II-2	2540	2461	2944	2648
SMA-II-3	2930	3316	3264	3170

:

As shown in Table 15, Both mean values of dynamic stability of SMA-II-1 and SMA-II-3 are over 3000, which are greater than 2800 that is required in hot summer heavy traffic area in the Chinese specification JTG F40-2004 [39]. Dynamic stability of SMA-II-2 was slightly less than the highest value 3000 in the Chinese specification JTG F40-2004 [39], which indicates the relatively poor high-temperature performance of SMA-II-2.

5.2. Water Stability

In this section, Vacuum Saturated Marshall Stability and Freeze-thaw Splitting tests shall be respectively executed by reference to the test method of T 0709-2011 and T 0729-2000 in Chinese specification JTG E20-2011 [32]. The material composition of specimens used in this test are based on the results of Figure 4, Figure 6 and Figure 7. In the vacuum saturated Marshall stability test, specimens were cylinders (φ 101.6 mm × 63.5 mm), which were made according to T 0702-2011 [32]. Specimens were first placed in a vacuum dryer with the water inlet hose closed, then the vacuum pump was turned on to make the vacuum degree 97.3 kPa or above for 15 min. Thirdly, the water inlet hose was opened to let the cold-water flow enter to completely immerse the specimen in water for 15 min. At last, after normal pressure was restored, specimens were taken out from the vacuum dryer and put in a water bath with a constant temperature for 48 h. Test results are shown in

Table 16. Results of vacuum saturated Marshall stability test.

Mixture	Marshall Stability ($\mathbf{MS}$)/kN	Vacuum Saturated Marshall Stability (${\mathbf{MS}}_2$)/kN	Residual Marshall Stability (${\mathbf{MS}}_0^{\prime }$)/%	Requirement/%
SMA-II-1	10.93	10.03	91.8
SMA-II-2	10.21	9.52	93.2	≥85
SMA-II-3	11.02	9.96	90.4

. Residual stability ${\mathrm{MS}}_0^{\prime }$ was calculated based on Equation (A5) in Appendix B. Original splitting strength ($R_{\mathrm{T}1}$), freeze-thaw splitting strength ($R_{\mathrm{T}2}$) and Tensile strength ratio (TSR) were calculated based on Equations (A2)–(A4) in Appendix B.

The results in Table 16 and

Table 17. Results of Freeze-thaw splitting test.

Mixture	Original Splitting Strength (${\mathit{R}}_{\mathbf{T}1}$)/MPa	Freeze-Thaw Splitting Strength (${\mathit{R}}_{\mathbf{T}2}$)/MPa	Tensile Strength Ratio (TSR)/%	Requirement/%
SMA-II-1	1.13	1.01	89.4	≥80
SMA-II-2	1.07	0.97	90.7
SMA-II-3	1.17	1.04	88.9

show that all the performance indicators of the water stability of SMA-II-1, SMA-II-2 and SMA-II-3 can meet Chinese specification JTG F40-2004 [39]. Among the test values, the test value of the water stability of SMA-II-2 is the highest.

5.3. Skid Resistance

The sand patch method and portable pendulum tester method were adopted to measure texture depth and the friction coefficient of mixture surface, respectively. The sand patch method and the portable pendulum tester method were executed by reference to the test method of T 0731-2000 in specification JTG E20-2011 [32] and T 0964-2008 in Chinese specification JTG E60-2008, respectively [41]. The material composition of specimens used in this test are based on the results of Figure 4, Figure 6 and Figure 7. The texture depth of asphalt mixture was calculated based on the Equation (A9) in Appendix B. Test results are shown in

Table 18. Test results of skid resistance performance.

Mixture	Texture Depth (TD)/mm	BPN
SMA-II-1	1.02	76
SMA-II-2	0.87	66
SMA-II-3	0.96	73

:

The test results in Table 18 indicate that the Texture Depth of SMA-II-1 and SMA-II-2 are better because of the high content of coarse aggregate.

5.4. Low-Temperature Bend Test

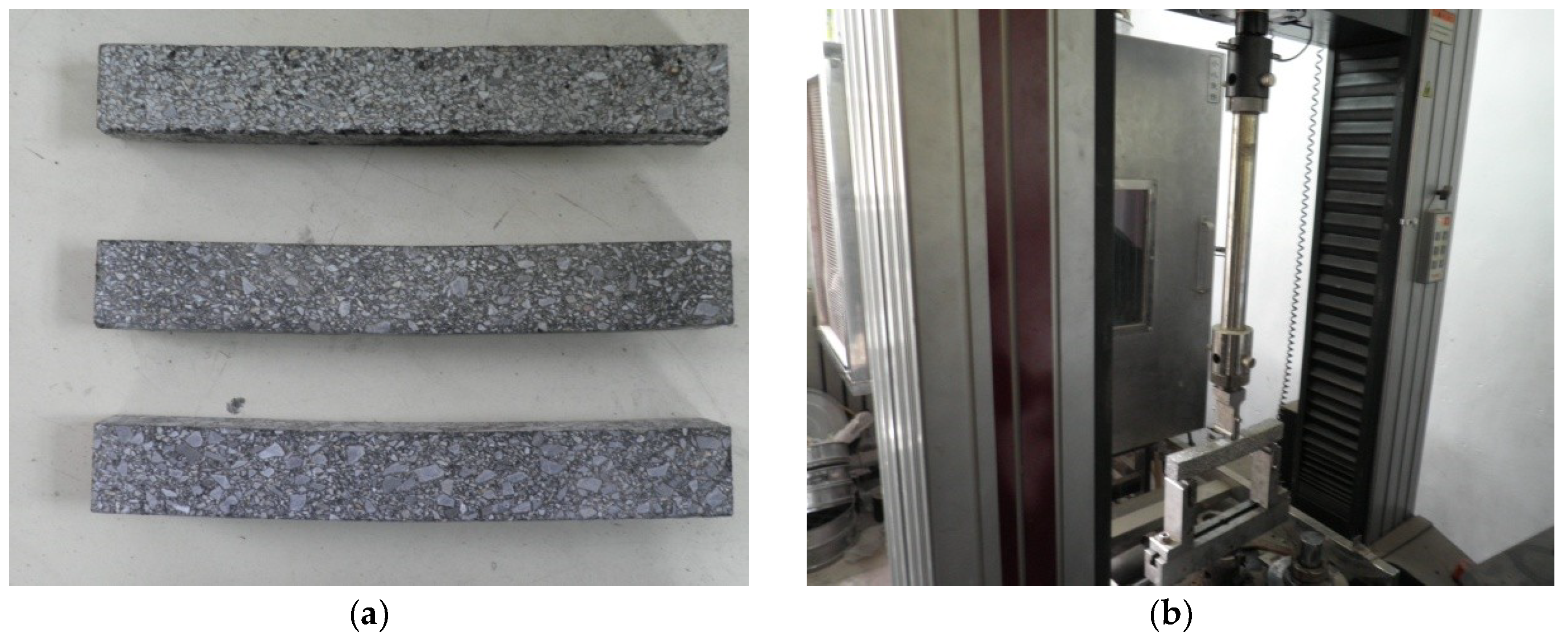

The beam bend test evaluates crack resistance at a low temperature based on flexural tensile strength, flexural tensile strain and bending stiffness modulus when the mixture is damaged. The material composition of the specimens used in this test are based on the results of Figure 4, Figure 6 and Figure 7. A low temperature bend test, as shown in Figure 11, was executed with reference to the test method of T 0715-2011 in Chinese specification JTG E20-2011 [32].

Table 19. Results of low temperature bend test.

Mixture	Asphalt	Fiber Content/%	Flexural Strength RB/MPa	Ultimate Tensile Strain EB/με	Flexural Stiffness Modulus SB/MPa
SMA-I	SBS-modified	0	12.91	7438.7	1735.74
SMA-II-1	Rubberized	0.18	10.12	10,072.1	1005.02
SMA-II-3	Rubberized	0.21	9.75	12,386.3	787.06
SMA-II-2	Rubberized	0.27	9.36	15,451.3	605.54

and Figure 12 are the results of the low temperature bend test.

According to the results shown in Table 19, the flexural strength of the SBS-modified SMA-I mixture is the largest, while the maximum flexural strain is the smallest. The flexural strengths of all SMA-II mixtures are lower than those of SMA-I mixture, while, in contrast, the maximum flexural strains are much larger than those of SMA-I. The flexural strength of SMA-II-1, II-3 and II-2 respectively are 78.4%, 75.5% and 72.5% of that of SMA-I, the maximum flexural strains respectively are higher than that of SMA-I by 26.1%, 39.9% and 51.9%. The maximum flexural strain of SMA-I is 7438.7, while for all SMA-II mixtures, the test values are greater than 10,000—the flexural strain of SMA-II-2 is more than 15,000, which is far greater than the 3000 that is required by Chinese specification JTG F40-2004 [39]. The flexural stiffness modulus of all SMA-II mixtures is lower than that of the SMA-I mixture—the flexural stiffness modulus of II-2 is only 35% of that of SMA-I. All of these demonstrate the good low-temperature flexibility, deformation and crack resistance of SMA-II.

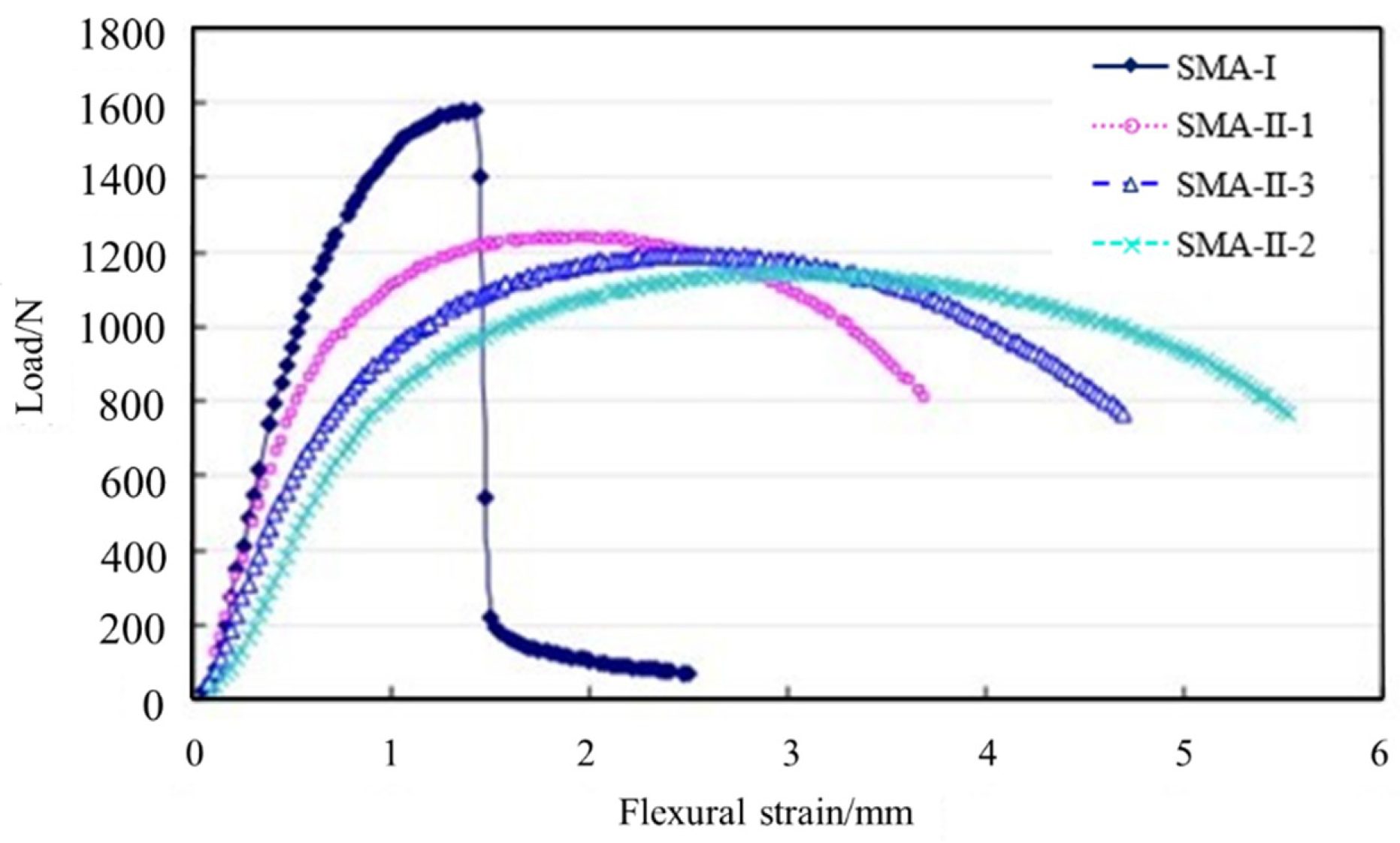

Figure 13 shows that the failure load of the SMA-I mixture decreases rapidly after reaching the maximum, which indicates there is obvious brittle fracture. The load-strain curve of SMA-II is a flat parabolic curve without a brittle fracture point. Among the three load-strain curves, SMA-II-1 has the maximum failure load but the minimum strain interval. SMA-II-2 has the minimum failure load but the maximum strain interval, as well as the flattest load-strain curve, which is related to the high asphalt content 8.1% of SMA-II-2. The load-strain curve of SMA-II-3 is in between the load-strain curves of SMA-II-1 and SMA-II-2.

To sum up, the low-temperature performance of the SMA-I (SBS-modified) mixture is much worse than that of the rubberized SMA-II mixtures, which indicates that the asphalt-rubber binder is the major factor that affects the low-temperature performance of the mixture. The reason is due to the swelling reaction between the crumb rubber and the asphalt—the rubber swollen particles can uniformly suspend and disperse in asphalt, which will result in the change of the asphalt’s interfacial property; hence, the viscosity of the asphalt-rubber binder increases and the temperature sensitivity lowers, which will improve the low temperature performance of the asphalt mixture.

5.5. Analysis of the Bending Strain Energy Density

Asphalt mixture can be regarded as an elastic material at low temperatures, for which the destructive process is the process of energy dissipation. Specifically, first, the work of external force on the material will be converted into elastic strain energy, then, elastic strain energy turns into surface energy when a new surface appears with the occurrence and development of cracks. Normally, the more elastic strain energy that is stored in the asphalt mixture, the better the low temperature crack resistance. Hence, to some extent, the bending strain energy density function is a preferable method for evaluating the low temperature performance of asphalt mixture [42]; the function is shown as (5):

$$W={\displaystyle {\int }_0^{{\epsilon }_0}{\sigma }_{ij}}d{\epsilon }_{ij}$$

(5)

where W is the strain energy density function. σ_ij is the stress value. ε_ij is the strain value. ε₀ is the strain value corresponding to the maximum stress.

According to the test results shown in Figure 13, the stress-strain curve was plotted. In order to achieve a good correlation between the fitted curve and the test data, the fourth power parabolic equation was adopted. Then, the critical strain energy density could be obtained by integral calculation according to the regression equation. The calculation results are shown in

Table 20. Bending strain energy density of asphalt mixtures.

Mixture	Bending Strain Energy Density/(kJ/m3)
SMA-I	14.75
SMA-II-1	17.72
SMA-II-3	20.38
SMA-II-2	24.28

:

Table 20 indicates that the bending strain energy density of rubberized SMA-II mixtures is significantly greater than that of SBS-modified SMA-I mixture. The strain energy density of SMA-II-1, SMA-II-3 and SMA-II-2 increases by 20.1%, 38.2% and 64.6% more than that of the SMA-I mixture. The SMA-II-2 mixture, with high asphalt content and polyester fiber, has the highest bending strain energy density. Therefore, from the perspective of crack resistance, SMA-II mixtures are better than SMA-I mixtures.

5.6. Life-Cycle Cost Analysis of Small Particle-Size Asphalt Pavement

In this section, life-cycle cost analysis (LCCA) was used to assess the economic effectiveness of small particle-size thin overlay on an SMA asphalt pavement and a typical Hot Mixed Asphalt (HMA) pavement. LCCA is a method based on the principles of economic analysis, which has been widely applied in pavement design and management [43].

Among the economic indices of the economic evaluation of projects, the internal rate of return (IRR), equivalent uniform annual cost (EUAC), benefit/cost ratio (B/C) and Net Present Value (NPV) are the most commonly used. In this case study, Net Present Value (NPV) was selected as the economic indicator. Equation (6) can be applied for an asphalt pavement case [43].

$$NPV=InitialCons.Cost+{\displaystyle \sum _{K=1}^{N}Future\mathrm{Cos}{t}_K\left[\frac{1}{{\left(1+i\right)}^{n_k}}\right]-SalvageValue\left[\frac{1}{{\left(1+i\right)}^{n_e}}\right]}$$

(6)

where:

• N = number of future costs incurred over the analysis period,
• i = discount rate in percent,
• n_K = number of years from the initial construction to the Kth expenditure,
• n_e = analysis period in years.

In this case study, it is assumed that the AC-13 thin overlay was applied to the ordinary HMA pavement every five years. The SPS thin overlay was applied to an SMA pavement every seven years because of the good crack resistance, there will therefore be one less thin overlay treatment than an ordinary HMA pavement in a 20-year service life.

For initial construction cost, according to average market price, the price of ordinary HMA was set to $70/ton, the price of small particle-size asphalt mixture was set to $100/ton. The analysis results can be seen in

Table 21. Life-cycle cost analysis of HMA and SMA pavements with SPS asphalt overlay.

Mixture Type	Age	Project	Cost/$	NPV/$		Total of NPV/$
HMA	0	New pavement (thickness of top, middle, and bottom layer is 4, 6, and 8 cm)	107,939	107,939		336,904
	5	3 cm AC-13 thin overlay	17,990	15,518	228,965
	10	3 cm AC-13 thin overlay	17,990	13,386
	15	3 cm AC-13 thin overlay	17,990	11,547
	Other	Total of other maintenance costs (Annual cost $11,873)	189,968	188,514
SMA	0	New pavement (thickness of top, middle, and bottom layer is 3, 6, and 8 cm)	109,652	109,652		291,604
	7	2 cm SPS asphalt overlay	17,133	13,930	181,952
	14	2 cm SPS asphalt overlay	17,133	11,327
	Other	Total of other maintenance costs (Annual cost $9869)	167,773	156,695

. The design life was 20 years, the discount rate in percent (i) was 3%, the annual maintenance cost of a new HMA pavement was 11% of the initial construction cost and the annual maintenance cost of a new SMA pavement was 9% of the initial construction cost. The total cost was calculated based on one 3.5 m-wide lane/km.

Table 21 shows that, compared with a traditional HMA pavement, the initial cost of an SMA asphalt pavement with an SPS asphalt mixture top layer increases from $107,939/km to $109,652/km. But the maintenance cost decreases by 20.5% (from $228,965 to $181,952) because of the reduction of maintenance times. Across the whole service life, the total NPV decreases by 13.4% (from $336,904 to $291,604). Considering the increase of user delay costs during the maintenance period and the high service level of an SPS asphalt mixture pavement, the total NPV of an SPS asphalt mixture pavement would be lower, which demonstrates the better life-cycle economic benefit of SPS asphalt mixture thin overlay over traditional AC-13 thin overlay.

6. Conclusions

A mix design of small particle-size (SPS) asphalt mixture for controlling cracks in pavement surfaces was studied. The gradation was improved SMA-II dense gradation, and the binder was asphalt-rubber binder with polyester fiber used to enhance crack resistance. The asphalt mixture presented in this paper can be used as a hot mix asphalt thin overlay, which is an effective preventive maintenance method or pavement surface layer to improve the crack resistance performance of asphalt pavement.

(1)

According to the Marshall test results, the optimal fiber content and the optimal asphalt-stone ratio for SMA-II-1 were 0.18% and 6.6%, respectively. The optimal fiber content and the optimal asphalt-stone ratio for SMA-II-2 were 0.27% and 8.1%, respectively. The optimal fiber content and the optimal asphalt-stone ratio for SMA-II-3 were 0.21% and 7.1%, respectively. In the study of the key controlling indices of mix proportion, the passing rate of the 1.18-mm sieve had a more remarkable influence on the air void content of the mixture than the passing rate of 0.075-mm sieve. The recommended range of the filler-asphalt ratio should be between 1.1% and 1.4%. The results above can be used as guidance for the mix design of asphalt mixture.

(2)

Overall performances of SMA-II-1, SMA-II-2, SMA-II-3 can satisfy requirements of the Chinese specifications according to the high temperature test, the water stability test and the skid resistance test. The beam bend test and the bending strain energy density function were adopted to evaluate the low temperature performance of three kinds of mixtures. Test results show that SMA-II with high rubberized asphalt content has better adaptability for deformation and greater bending strain energy density than traditional SMA-I (SBS-modified mixture), which can demonstrate good crack resistance performance of SMA-II. Life-cycle cost analysis showed the better life-cycle economic benefit of the SPS asphalt mixture thin overlay compared with the traditional AC-13 thin overlay.

(3)

The pavement performance of this SPS asphalt mixture needs to be further investigated in engineering practice. In fact, the design method for the material composition and thickness of the asphalt thin overlay still need improvement and innovation in theory, method and practice.
