Remarkably Facile Preparation of Superhydrophobic Functionalized Bismuth Trioxide (Bi₂O₃) Coatings

Abstract

Herein, a novel superhydrophobic functionalized nano-Bi₂O₃ coating is designed and fabricated using electrophoretic assembly deposition (EAD) in the optimal suspension of polyethylene glycol, ethanol, acetylacetone, and surface functionalization. The small size (70 nm, nano-scale) of Bi₂O₃ particles and uniform distribution make the target film possessing a promising structure for realizing hydrophobic functionalization. Moreover, the hydrophobicity and stability results indicate that the product has a high-water contact angle (CA) of ca. 167° and is kept almost stable after 180 days exposure in the natural environment. These findings will provide new insight into a better design of superhydrophobic functional coatings via this facile method, holding great promise for future various applications.

1. Introduction

Bismuth trioxide (Bi₂O₃), possessing six polymorphic modification forms of α-Bi₂O₃, β-Bi₂O₃, etc., is regarded as a promising semiconductor, which has attracted growing interests because of its narrower band gap of 2.5–2.8 eV (compared with traditional photocatalyst-TiO₂ of >3.0 eV) and thermal stability, high dielectric permittivity, and refractive index [1,2,3,4], resulting in Bi₂O₃ and its corresponding films’ wide numerous technological application in fields of the fuel cell layer, catalysis, sensors, microelectronics, electro-optics, and so on [5,6,7,8,9,10].

Recently, various methods, such as magnetron sputtering and liquid deposition, have been used for synthesising Bi₂O₃, as described in literature [11,12,13,14]. For example, Qiu et al. proved that Bi₂O₃ films consisting of nanowires with an average diameter of ~7 nm were fabricated using the Bi high temperature evaporation on an Al foil substrate, which wasfollowed by oxidative nucleation and growth at 350 °C [15]. The Bi₂O₃/TiO₂ photocatalytic film coated on floated glass balls was used for efficient removal of an organic pollutant reported by Zou et al., by using a sol-gel method assisted with a double-solvent system [16]. Guan et al. designed a novel hetero-structured Bi₂O₃-TiO₂ nanotube array composite film for photo-electrochemical cathode protection applications [17]. The thin films of bismuth oxide and yttrium-stabilized Bi₂O₃ were synthesized by a sol-gel/ink-jet printing method [18] and a pulsed laser deposition [19], respectively, which is complex in operation. However, the film-formation of Bi₂O₃ powders by a facile and low-cost technique is still a challenge.

In addition, the nano-Bi₂O₃ particles and their films are hydrophilic, leading to the destruction of structures in the humidity environment or under water conditions. Furthermore, instruction for designing the water-resistant Bi₂O₃ films are rarely reported. Thus, in this study, a novel superhydrophobic/functionalized Bi₂O₃ coating has been successfully prepared by a facile and low-cost technique using the electrophoretic assembly method (EAD) and surface modification, learning from the ‘lotus effect’ of surfaces capable of separating from water completely [20,21,22] and the facile and EAD conveniently film-forming design process based on low-cost equipment [23,24,25,26]. Furthermore, the microstructure and hydrophobic properties of the target film are investigated, which follows in detail.

2. Experimental Section

2.1. Materials and Reagent

Commercially available nano-bismuth trioxide (nano-Bi₂O₃ (III), CAS No. 1304-76-3) and other used reagents, including polyethylene glycol, ethanol, acetone, acetylacetone, polyethyleneimine and perfluorodecyltriethoxysilane were purchased from Aladdin Industrial Inc., Shanghai, China. The commercially available electrode materials of Ti and Cu sheets were used as received. Deionized water was used for all steps in this study.

2.2. Methods

To obtain stable suspension for a successful EAD process, 0.15 g nano-Bi₂O₃ aurantium powders were added into a 0.1 L mixture of polyethylene glycol, ethanol, and acetylacetone with a volume ratio of 0.01:0.45:0.45 in a glass beaker, which was moved into a water bath with an ultrasonic machine with 150 W (frequency of 30 kHz) for 0.5 h, before adding a handful of polyethyleneimine as the modifier. The working and counter electrode was the Ti and Cu sheet, respectively, the distance between which was 0.01 m. The pre-treatments of the electrode materials followed the steps as described below: (i) Grinding process by sandpapers, de-oiling process using a mixture of NaOH and Na₂SO₄ (mole ratio of 1:1), and cleaning process by deionized water and ethanol or acetone. (ii) The treated electrode materials were inserted vertically into an obtained stable suspension for EAD under different applied field strengths from 0 to 30 V/mm at room temperature. The Bi₂O₃ films obtained after the EAD process underwent a functional modification process, similar to the surface treament technique reported in our previous study [24], and finally, they were changed into a novel functional superhydrophobic nano-Bi₂O₃ coating.

2.3. Characterization

The microscopic images of samples were analyzed by a field emission scanning electron microscope (FESEM, JSM-7800F, Japan). The canon camera (EOS 5D Mark IV, Japan) with lens (EF 24–70 mm f/4L IS USM) was used to investigate the macroscopic structures of samples and explore the hydrophobic immersion experiments of the products. The contact angle (CA) and water repellent stability of functional superhydrophobic nano-Bi₂O₃ films were characterized by an optical CA admeasuring apparatus (HARKE-SPCA, China).

3. Results and Discussion

3.1. Microstructure and Surface Morphology

It is universally acknowledged that a successful EAD mainly depends on a well-dispersed and stable suspension [27,28,29]. In this study, different kinds of suspensions were used to fabricate the functional superhydrophobic nano-Bi₂O₃ films, while controlling other fixed conditions, and the results in Table S1 in the Supplementary Materials show the combination of polyethylene glycol, ethanol, acetylacetone, and polyethyleneimine being the optimal suspension, for which the assembly efficiency of target films turned out be the highest.

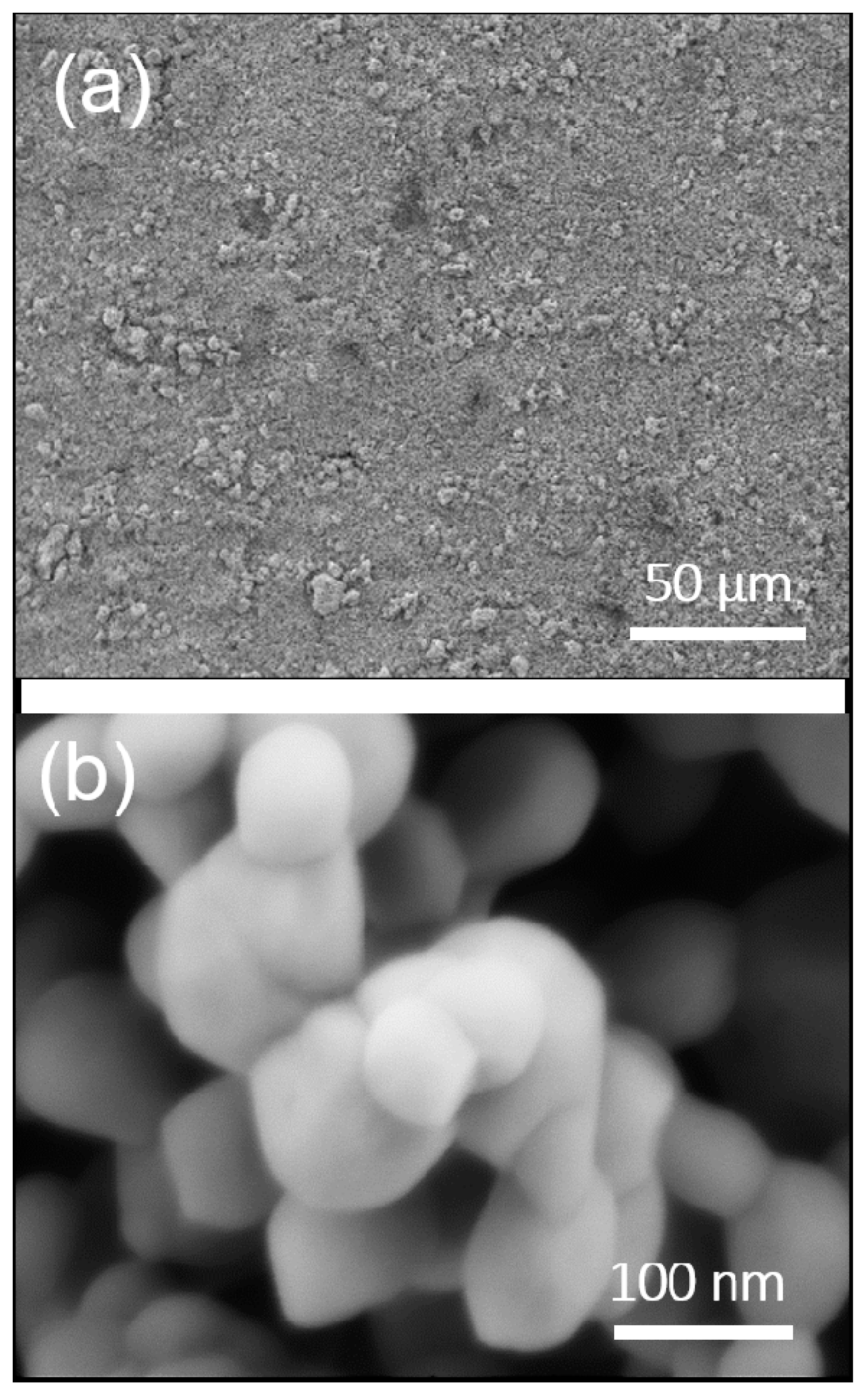

To explore the surface morphologies of superhydrophobic nano-Bi₂O₃ films, Figure 1 clearly displays the FESEM images with various magnifications of samples. As shown in Figure 1a, the target films consisted of a great deal of Bi₂O₃ particles with a relatively even distribution. After careful observation, there were lots of tiny crevices and bulges on the films, which largely contributed to realizing the design of the hydrophobic rough structures that was regarded as the key factor for preparing promising super-/hyrophobic materials, inspired by natural plants, for example, the lotus [30,31,32]. Moreover, Figure 1b shows the higher magnification of target functional films, where the particles were still in nano scale (ca. 70 nm) after the EAD process and other post-treatments, and the particle size distribution of nano-Bi₂O₃ is shown in Figure S1 in Supplementary Materials. In addition, lots of gaps existed among the nano-Bi₂O₃ particles, indicating the great superiority of the proposed EAD process under optimal suspension.

3.2. EAD Dynamics

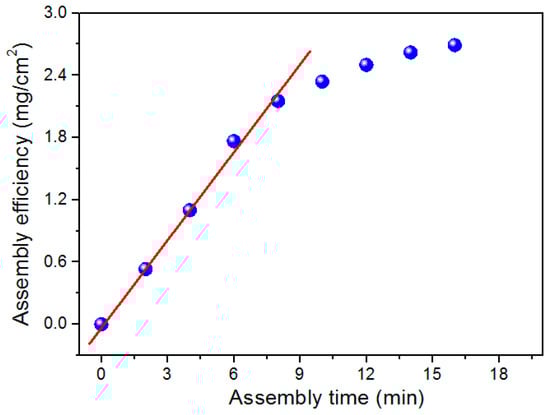

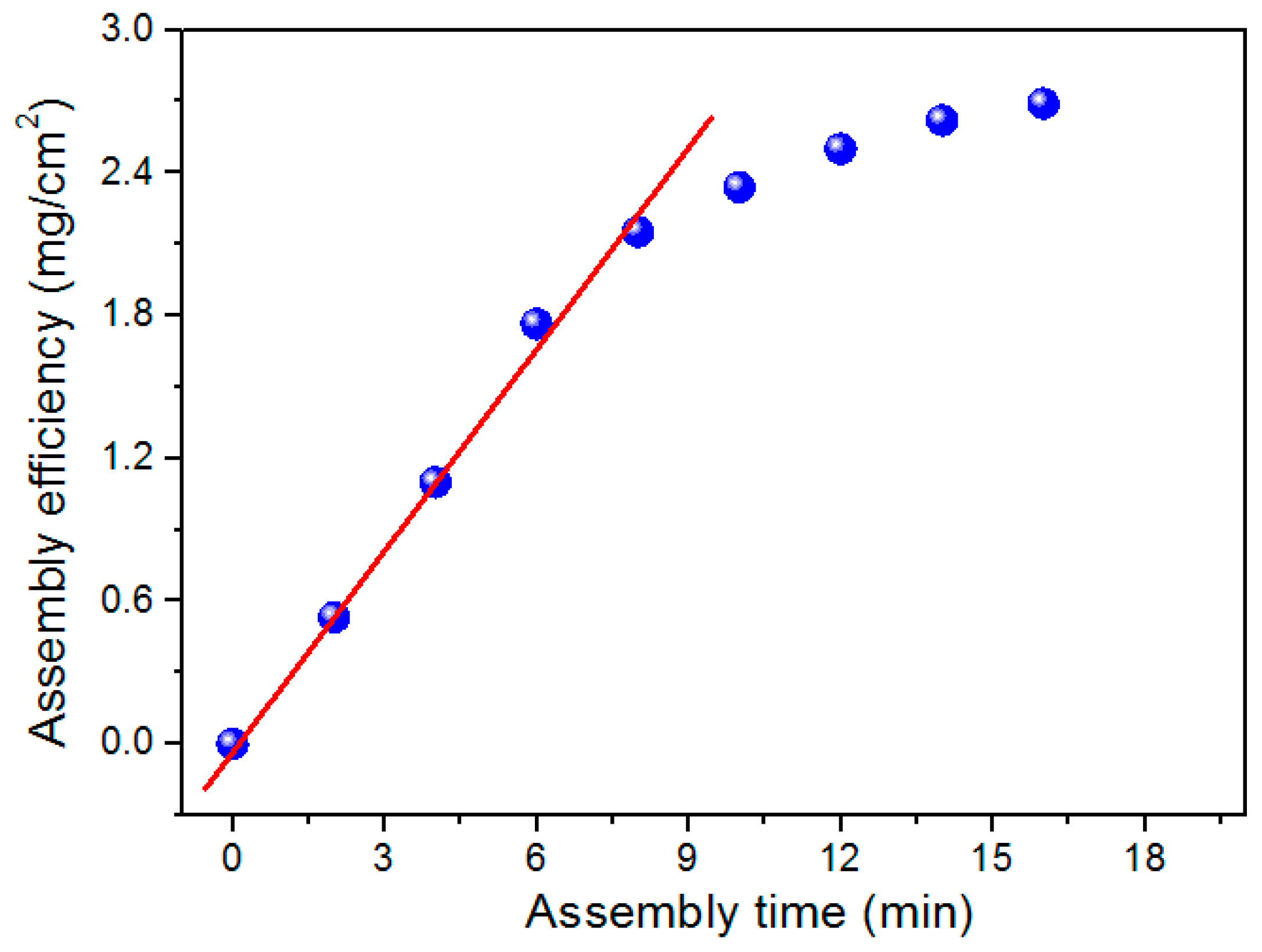

Forming film efficiently is important, but realizing the controllability is even more essential. In this study, the EAD dynamics of nano-Bi₂O₃ particles in the optimal suspension were studied in detail. Figure 2 shows the relationship of the assembly efficiency (mg/cm²) of functional superhydrophobic nano-Bi₂O₃ films and the EAD, or assembly time (min). The assembly efficiency of the target film increased nearly linearly with the EAD time, increasing from 0 to 8 min, and the rising tendency of the assembly efficiency decreased sharply as the EAD time continued to rise. It is worth mentioning that the relative weight gain of a product was not obvious after 18 min because of the gradual decrease of the concentration of particles.

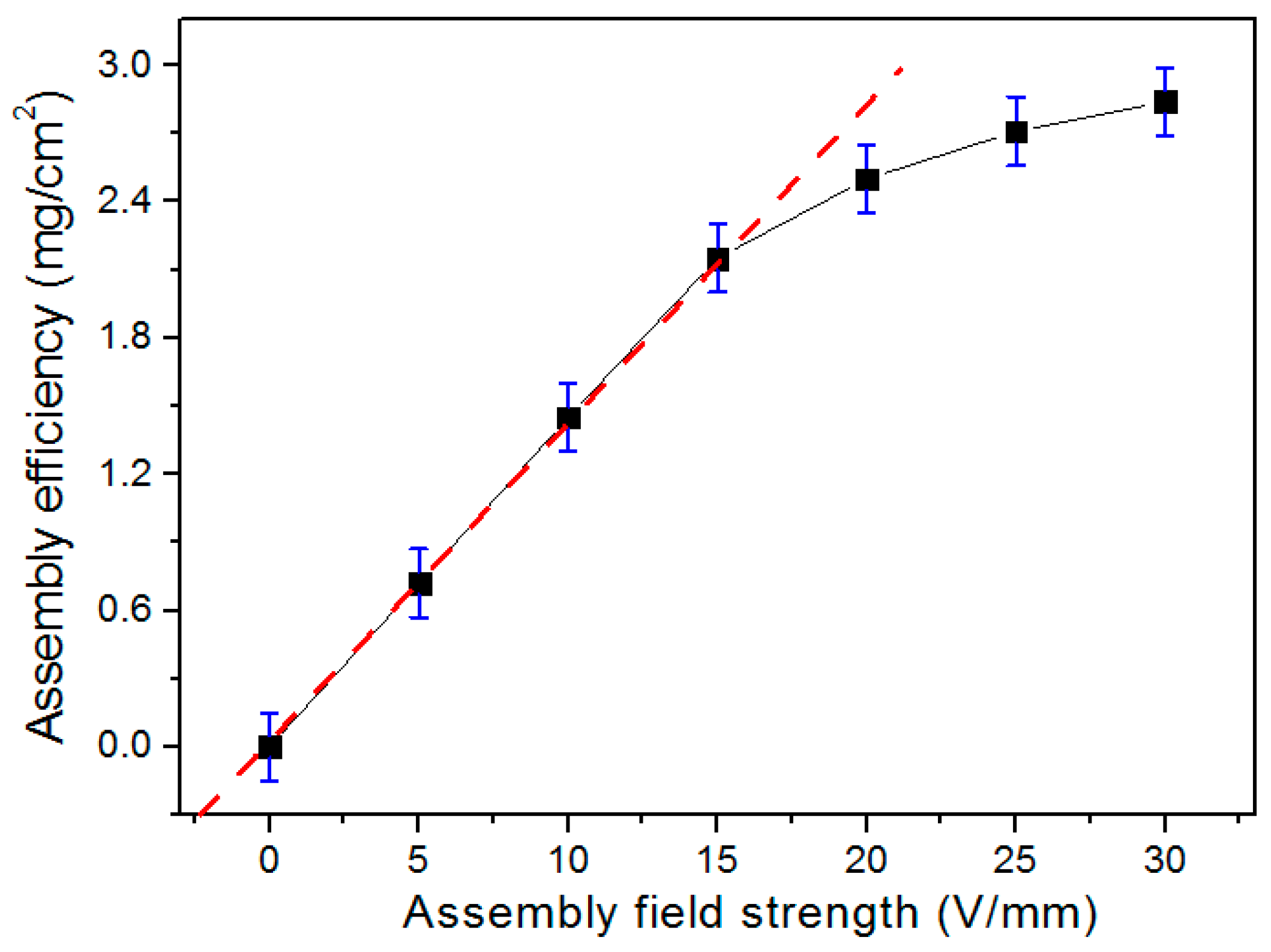

In addition, the effect of different applied field strengths on the assembly efficiency of the product is also analyzed in Figure 3. Interestingly, when the field strength was relatively low (<15 V/mm), there also existed a similar linear correlation equation between the assembly efficiency and the field strength. The assembly efficiency increased at a much lower rate as the field strength exceeded 15 V/mm, which was caused by several reasons, including the more serious severe disturbance of suspension, the gradual increase of the resistance of electrodes, and the sedimentations of part particles [33]. These results provided a theoretical reference for a controllable assembly of nanoparticles by an optimal EAD process.

3.3. Hydrophobic Studies

Firstly, the obtained functional novel nano-Bi₂O₃ film from scattered powder, was smooth and uniform, as shown in the Figure 4, where the color stays the same (yellow). The immersion test of product was then conducted to study its hydrophobicity. When the edge of target film slowly contacted the water, the surface of water was squeezed and the contacted part of water was pushed away, forming the interesting annular water lines (Figure 4) due to the strong water-repellency. After the immersion process, the samples under the water changed to a silvery surface, rather different from the other part of the product, which was caused by the light-reflections phenomenon of the air cushion layer on the surface of target functional films consisting of an abundance of captured air bubbles [34], further indicating the outstanding hydrophobicity. In addition, the CA of the product was ca. 168° (see in the embedded image in Figure 5).

3.4. Stability Study

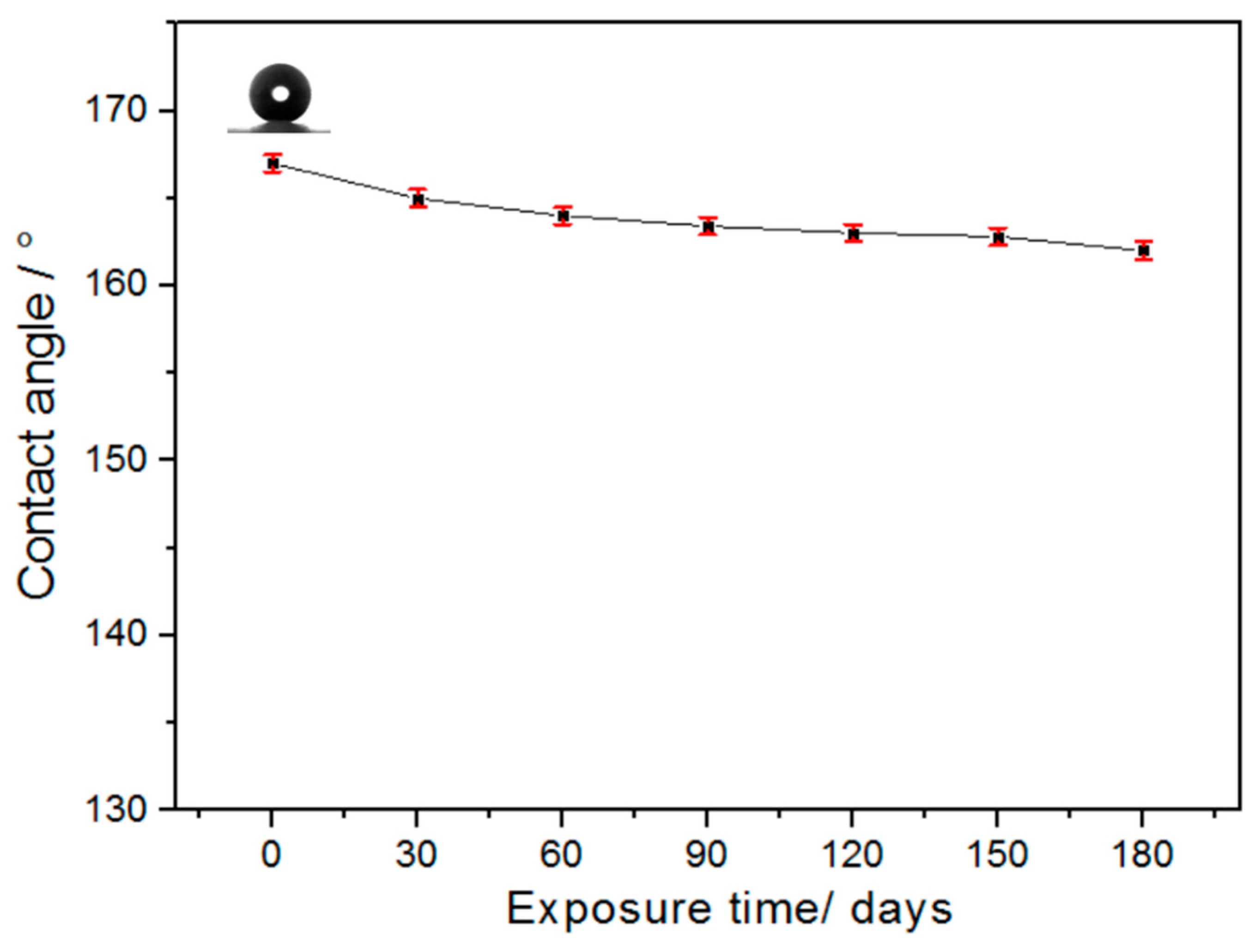

To confirm the stability of the target functional nano-Bi₂O₃ films, the extra-long exposure experiments were conducted as follows. All samples were divided into seven groups (I–0 day, II–30 days, III–60 days, IV–90 days, V–120 days, VI–150 days, and VII–180 days), each going through a different exposure time. Figure 5 shows the relationship betweeen the CA of C with the fresh samples in group I. When the exposure time continued increasing, the CA of samples gradually decreased with an infinitesimal range, even for group VII after 180 days of exposure. The difference in value of CA between samples in group I and VII was only ca. 2°, which indicated that the product after a half-year exposure test still possessed great superhydrophobicity, furthermore demonstrating the outstanding stability of functional nano-Bi₂O₃ films with wide application in lots of domains.

4. Conclusions

In brief, the functional superhydrophobic nano-Bi₂O₃ film with high CA of 168° and even distribution has been synthesized via a facile EAD and surface functionalization process at a mild condition. The target films turned out to be in nanoscale by the FESEM technique. In addition, the product showed outstanding superhydrophobic stability and kept a promising CA of ca. 166°, even after 180 days exposure. Thus, this work provides a new perspective for the fabrication of superhydrophobic oxide coatings with a wide potential application.
