Siamese Tracking with Adaptive Template-Updating Strategy

Abstract

Recently, we combined a contour-detection network and a fully convolutional Siamese tracking network to initialize a new start-up of vehicle tracking by clicking on the target, generating a contour proposal template instead of using a fixed bounding box. Tests on the OTB100 and Defense Advanced Research Projects Agency (DARPA) datasets proved that our method outperformed the state of the art and effectively solved the partial-occlusion problem. However, the current Siamese tracking method uses the target in the first frame as a template during the whole tracking period, and leads to the failed tracking of target deformation. In this paper, we propose a new template-update method and reconstruct the whole tracking process with a template-updating module. To be specific, the innovative adaptive template-updating module is comprised of a neural contour-detection network and a target-detection network. Experiment results on the DARPA dataset prove that our new tracking algorithm with the template-updating strategy prominently improved tracking accuracy regarding the deformation condition.

1. Introduction

Visual-object tracking is one of the most fundamental problems in computer vision and has attracted much attention in recent years. A wide range of applications relies on tracking methods such as human-motion analyses [1], robotic services [2], human–computer interactions [3], and surveillance [4]. In this paper, we focus on single-object tracking with the target given in the first frame, which is the most common scenario of tracking.

There are two aspects to improve target-locating precision and tracking robustness in existing tracking methods. One is to design effective algorithms of either generative [5,6,7,8] or discriminative [9,10,11,12,13,14,15] models; the other is to optimize target representation by extracting both conventional handcrafted features and deep convolutional features. As a result, complicated tracking algorithms or features improve performance but simultaneously increase computational complexity. However, the most difficult and significant problem in tracking application is to balance performance and speed. Unlike state-of-the-art DCF methods such as LADCF [16] and MFT, which fuse multiresolution and multifeature to improve performance on rank and sacrifice algorithm speed, Siamese tracking-network [17,18,19,20,21,22,23] approaches obtain balanced accuracy and speed. To be specific, GOTURN [18], SiamFC [19], and RASNet [20] transfer traditional tracking tasks from a target-searching and regressing process into a similarity-comparing function and complete tracking in each frame within a fixed amount of time. DSiam [7] adopts online target-variation transformation and background-suppression transformation, which make DSiam adapt target changes while excluding background interference.

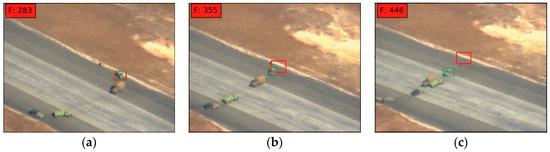

There are three problems that should be addressed, even though these Siamese tracking approaches have balanced speed and accuracy: first of all, most of these Siamese network trackers are not able to update the templates. On the one hand, their simple fixed models [17,18,19,20,23] guarantee high tracking speed; on the other hand, they sacrifice better adapting to target-appearance deformation. Second, the performance of most Siamese tracking networks cannot be guaranteed, especially with cluttered backgrounds, because of the interference of semantic backgrounds. In other words, conventional bounding-box inputs are not able to separate background distractions. Last, out-of-view and full-occlusion conditions are still great challenges due to the local-search strategy that is employed by most Siamese trackers.

Our contributions are threefold: (1) We designed and implemented the whole Siamese tracking system with an adaptive template-updating strategy. Single-point initialization, on the one hand, took advantage of our contour templates over conventional bounding-box templates; on the other hand, it achieved the function of our start-up in the system. (2) We designed and combined a target-and a contour-detection network to compose our template-update network that was able to adaptively update templates according to different conditions. (3) Our method achieved leading performance regarding vehicle video images in both the OTB100 and the Defense Advanced Research Projects Agency (DARPA) dataset.

2. Related Work

In this part, we introduce our related work from the following aspects: Section 2.1, Siamese Network; Section 2.2, Template Update; and Section 2.3, Shape-Adaptive Template.

2.1. Siamese Network

Recently, Siamese networks have been widely utilized in many visual-tracking tasks. A Siamese network has two branches, and each of them encodes different features into another representation domain and are then compared with each other by fusing with a specific tensor. Finally, a single output is produced to display results such as similarity. Siamese networks have balanced accuracy and speed because they transfer traditional visual tracking from searching tasks to comparison tasks.

2.2. Template Update

In real-world environments, many recent algorithms have achieved great success in visual-object tracking [24,25,26,27,28,29,30,31]. These algorithms were able to solve the problems of several types of appearance changes in the target, for instance, pose variations, occlusion, and illumination changes. However, if these changes are very extreme, most of the methods may fail to track the target. An example of false tracking caused by vehicle turning is shown in Figure 1. Test images are from the DARPA dataset’s video sequence “egtest03”.

In order to track targets with severe appearance changes, some methods [5,32,33] update the target template over time to improve tracking accuracy. The most common template-updating strategies either update every single frame, or update with a fixed number of frame intervals. These template-updating tracking algorithms assume that the current updated template can describe the target better than any other templates in previous frames. However, this assumption sometimes may face the following problem. Typically, the template is updated based on tracking results according to the current frame. While trackers are not able to precisely track the target, tracking results include errors that force the template to be incorrectly updated. As a result, the updated template is not able to accurately describe the current target and eventually causes the tracker to fail.

Obviously, the aforementioned simple template-update methods are not able to satisfy our needs in tracking applications. For one case, when a tracking object is partially shielded by other disturbing objects, such as a tank shielded by a tree, traditional bounding-box template updating treats part of the tree over the tank as a tracking object and introduces interference. To avoid background clutter and template pollution, two template-updating strategies are required. First, instead of simply updating every fixed frame, we need to let the tracker know the most appropriate opportunity to update the template. This strategy can not only reduce template-pollution risks, but also reduce computational complexity of frequent useless template updating. Another beneficial strategy is to reserve backup templates; once the current template is not able to match the target, the backup ones may play a significant role. This strategy can effectively improve the robustness of tracking algorithms.

2.3. Shape-Adaptive Template

Visual-target detection and tracking are two basic and challenging problems in computer vision. They are highly correlated in most tasks, and the input provided by detection can guide tracking and enhance its performance. At the same time, the precise solution of a detection problem provides reliable observation results for tracking.

There are a variety of target-detection methods with a bounding-box output. Some recent algorithms are introduced in the work of Pont Tuset et al. and Hosang et al. [34,35]. These methods are inspired by the requirements of target detection or tracking, and have been widely used in many applications. However, compared with object-contour detection, the disadvantage of these bounding boxes is that results are inaccurate, and targets cannot be precisely located. In contrast, the results of object-contour detection clearly show the shape and precise position of the target. Using target contour instead of a bounding box to detect or track not only helps improve accuracy, it also tells the system what the target might be according to its shape.

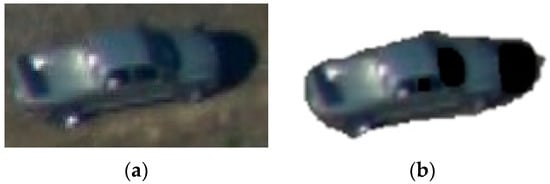

Figure 2 shows an example of the results of the bounding-box and the object-contour recommendation methods: the results of the bounding-box recommendation method are a rough window, while the results of the object-contour recommendation method are fine pixels. Obviously, the results of the object-contour method contain most target information and least background information compared with the results of the bounding-box method. In the process of feature extraction, background information in the bounding box is tracked as target information.

In our system, cameras are on aircrafts or Unmanned Aerial Vehicles (UAVs) that are far away from the target, so the initial target is very small in most cases. In addition, most applications currently used for real-time tracking start with the manual cropping of the bounding box on the target, and it is impossible to generate appropriate boundaries as ground truth in public datasets. In this case, we needed to make our tracker smarter to distinguish between targets and backgrounds. Therefore, we propose a method [36] to extract shape-adaptive templates from targets and track them using a fully convoluted Siamese network. Unlike most startups that use initial bounding boxes in tracking, our requirement was to select the target in real-time video by clicking on the target on the monitor screen. Once someone clicks on any part of the object, tracking information is automatically learned by the system. In particular, our system automatically detects and segments the contours of selected objects at the semantic level. Then, target features are extracted from the contour model without background information. In other words, we let the tracker know which object to track, not the bounding-box area.

3. Our Approach

Our main idea was to design a target-tracking network based on the artificial selection of objects in real-time video. Unlike most current tracking methods that run high scores in public datasets based on accurate ground-truth initialization, our network needed to achieve optimal performance in our real-time systems. In this section, we introduce our approach in three parts: system design, adaptive template-updating strategy, and Siamese tracking network.

3.1. System Design

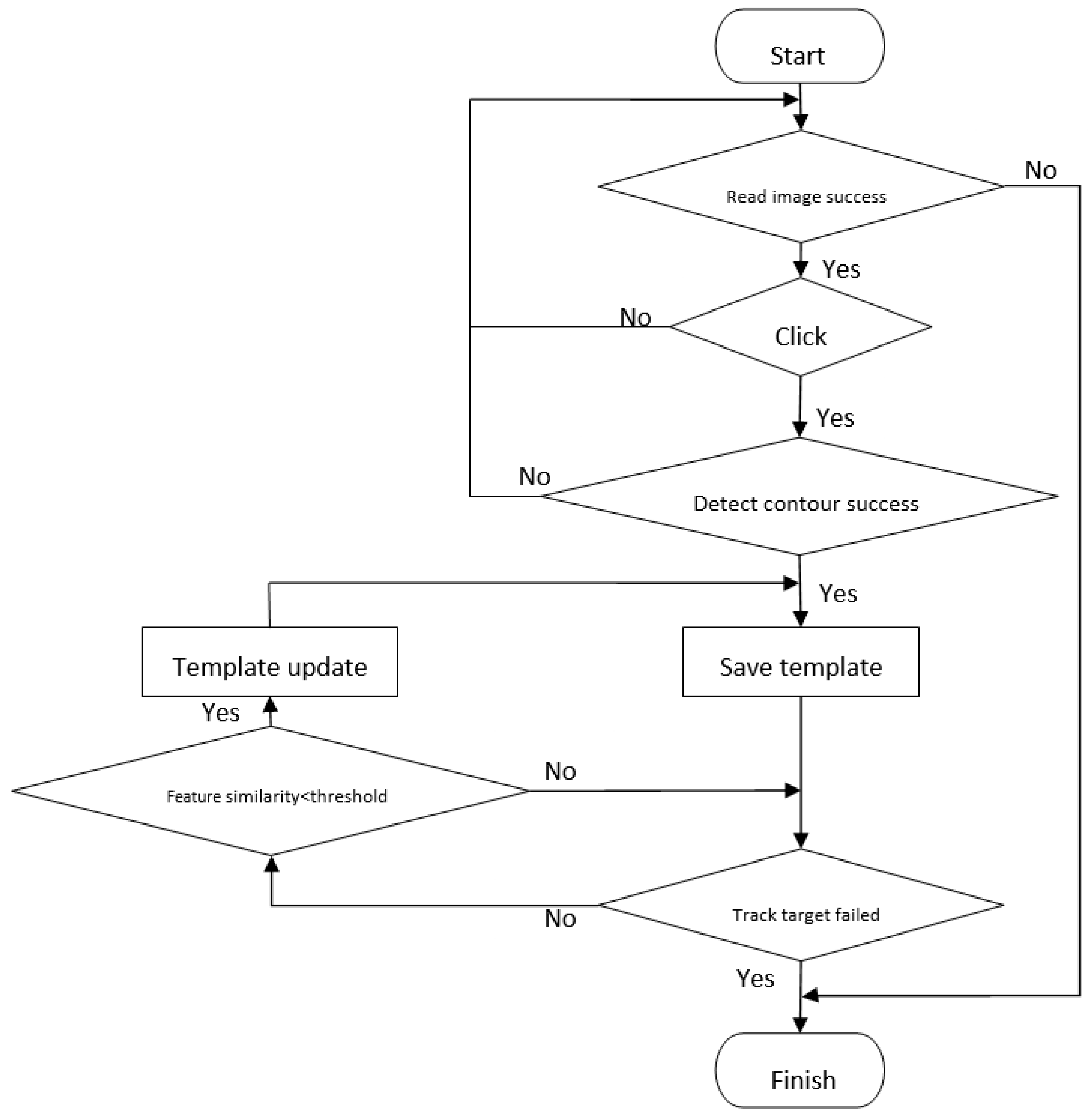

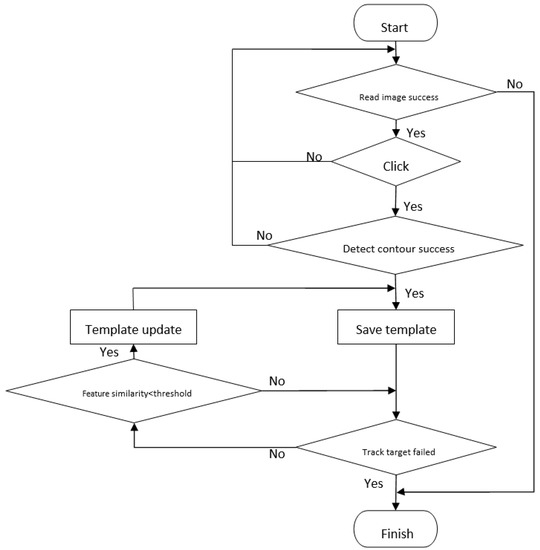

We propose utilizing our method in an intelligent real-time tracking system that can be remotely operated and monitored. In this system, images are taken in a timely manner by cameras on aircraft in the sky, and our targets are vehicles on land. Once the system is started, users can manually select the tracking target by clicking on it on the monitor screen. Then, the system automatically learns which object to track by detecting contours and abstracting semantic information according to the position of the initial point. After extracting target features, our system begins to track targets through features in the following frames and saves target features as a high-confidence template. If the similarity between template and tracking object is smaller than a threshold due to target deformation or occlusion, which suggests that the initial template is not able to precisely match object features in the current frame, our system updates the template with strategies that are discussed further down. While the tracker fails or finishes processing all images in a video sequence, the system finishes its task as well. A brief flowchart of the whole system is shown in Figure 3.

3.2. Adaptive Template-Updating Strategy

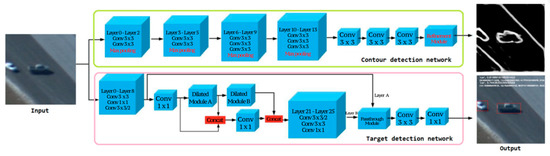

Our template-update network comprises two separate networks: a contour- and a target-detection network. The main framework is shown in Figure 4.

The contour-detection network is also individually used in the shape-adaptive template-generating process in the first frame. In detail, a filling algorithm started with a manually selected point is used to build the template at the output of the contour-detection network. Once the system needs to update the template in the following frame according to the result of the template-update network, the output of the contour-detection network can be reused for further processing. Specifically, the filling algorithm takes the central point of the tracking result in the current frame as the starting point to complete the contour generation of a new template.

3.2.1. Contour-Detection Network

The VGG-16 network has high depth and density (16 convolution layers and stead-1 convolution kernels), and it is widely used in classification tasks because of its easy training and fast convergence. Therefore, we used the VGG-16 network structure to extract contour features. In order to detect edges, we made some modifications to our contour-detection network. First, we removed all fully connected layers. Next, we deleted the last max pool layer. Third, the output terminal was connected with a refinement module. In detail, conv1–conv5 with max pooling in the VGG-16 network were taken as our front end, which is good at extracting features; then, we modified the back end to enable our network to extract contour information. This idea was generated from the five side-output layers of a normal holistically nested edge-detection (HED) network: the lower layer captures more spatial details, but lacks sufficient semantic information; on the contrary, the deeper layer encodes more abundant semantic information but lacks spatial details. In our task, we needed to reduce the interference of useless background information and abstract target contours. Therefore, we employed the deeper-layer features to formulate our template. However, especially in the deeper layers, side outputs suffer more from the problem of thick boundaries in HED networks. Consequently, output boundaries require refinement in order to generate clear and accurate object contours. In addition, the final outputs need to be resized to their original size by up-pooling and deconvolution. To get the best performance in convolution process, we chose the smallest convolution filter (3 × 3) with the stride of one pixel that can capture left/right, up/down, and central motion; max pooling was performed with stride 2 over a 2 × 2 pixel window. The configuration of each convolutional layer and the max pooling layer in our contour-detection network is summarized in

Table 1. Receptive field and stride size of each layer. RF, receptive field; C, convolution; P, pooling.

Layer	C1	P1	C2	P2	C3	P3	C4	P4	C5
RF size	5	6	14	16	40	44	92	100	196
Stride	1	2	2	4	4	8	8	16	16

.

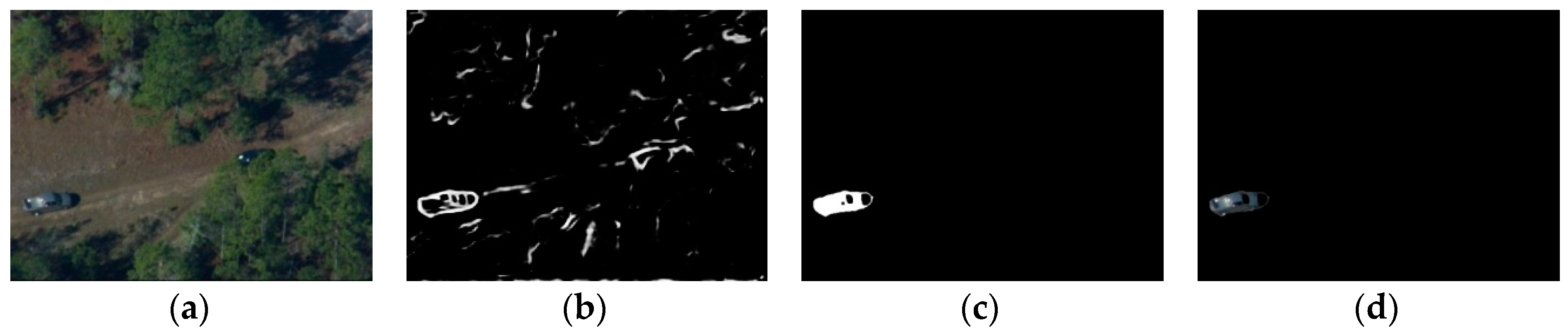

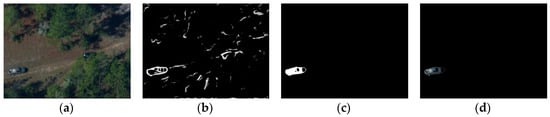

The output of our contour-detection network was a binary image with edge information. We first used the flooding-filling method in OpenCV to generate a connected region to represent the location of the target we chose from the contour map. Next, we could further generate object masks on the basis of the previous stage. The mask set background information to zero, and the selected object was segmented from the original image. Its feature could be extracted as the target template without background information. Finally, the drift problem of the bounding box in complex or deceptive backgrounds was successfully solved. The benefits of using shape-adaptive templates instead of conventional bounding-box region templates were discussed in Section 2.2, and the shape-adaptive template-generating process is illustrated in Figure 5.

3.2.2. Target-Detection Network

Target detection is another hotspot issue in computer vision. For our real-time system, we only focused on one-stage target-detection algorithms, which have a higher speed. As one of the most advanced target-detection methods, YOLOv3 [37] can detect targets of different scales with high accuracy. Tiny YOLOv3 sacrifices detection accuracy, especially for small targets through channel pruning, in order to improve detection speed. However, in our task, most targets were small. To avoid loss of contextual information, we utilized a “dilated module” inspired by dilated convolution [38] to expand the receptive fields. The comparison of the receptive fields between a convolution network and a dilated convolution network is summarized in

Table 2. Comparison of receptive fields, kernel sizes, and strides between convolutional network and dilated convolutional network of each layer.

Convolutional Network Layer	0	1	2	Dilated Convolutional Network Layer	0	1	2
RF size	3	5	7	RF size	3	7	15
Kernel size	3 × 3	3 × 3	3 × 3	Kernel size	3 × 3	3 × 3	3 × 3
Stride	1	1	1	Stride	1	1	1
				Dilated rate	1	2	4

.

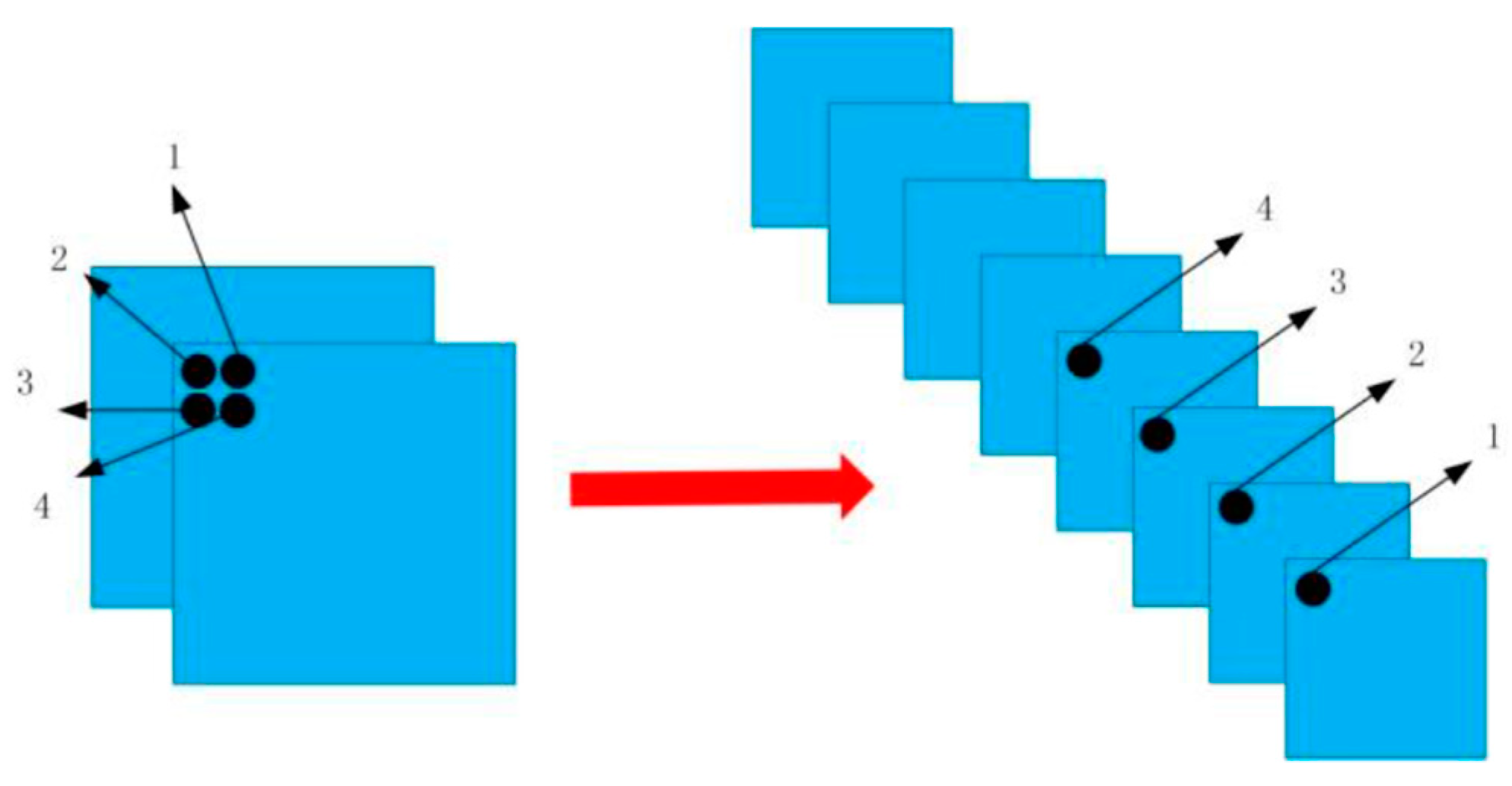

The “passthrough module” was added to combine target location information in the lower layers and semantic information in the higher layers. To be specific, the features of the lower layers contained more fine-grained information, which helps to locate small targets. Therefore, we used a passthrough layer with stride 2 that transformed the feature map from 2N × 2N × C to N × N × 4C. The function of the passthrough layer is explained in Figure 6.

Finally, we obtained similar accuracy with YOLOv3, and similar speed with tiny YOLOv3. The details and experiment results are available in previous work [39] from our team.

3.2.3. Template-Update Strategy

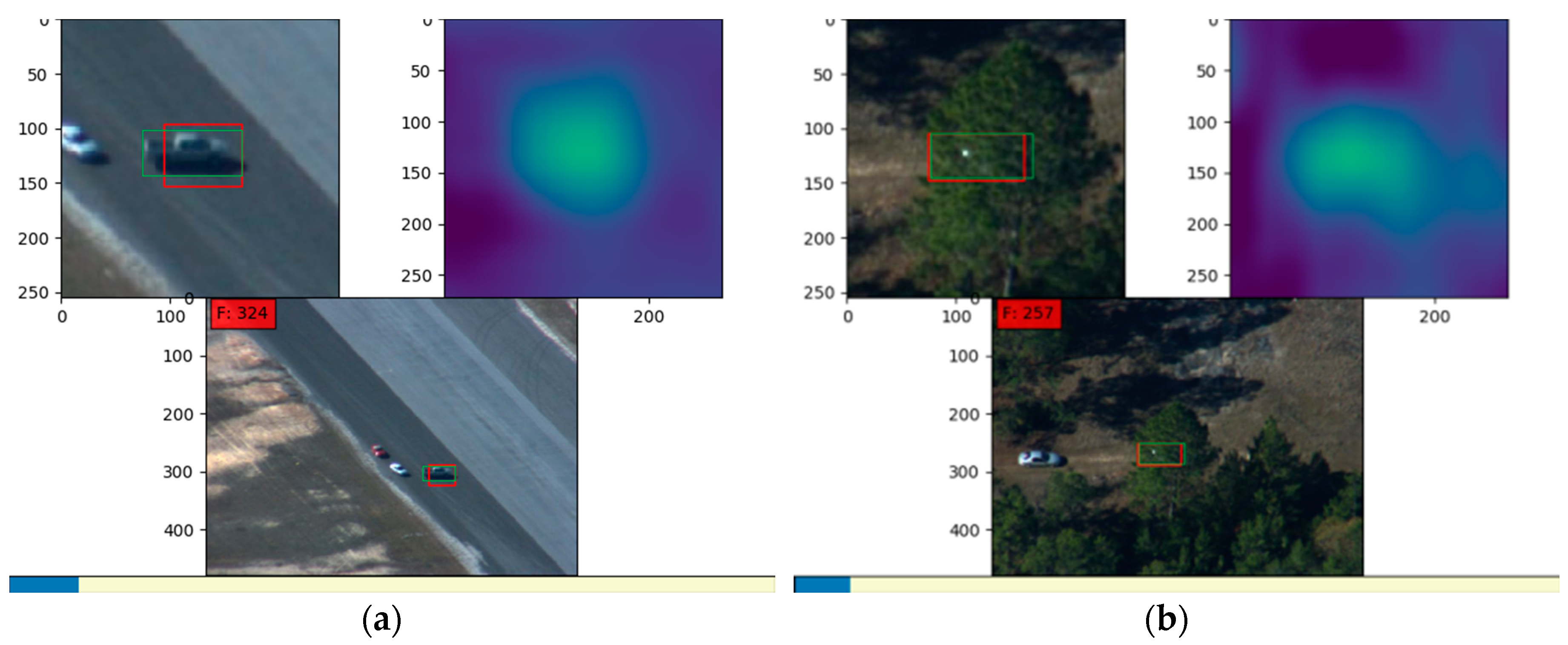

We set the greatest response on the heat map as the criterion for strategic decision. When the greatest response was smaller than our threshold, it indicated that the similarity between the tracked target in the current frame and the template was low. There were mainly two kinds of conditions in our application scenarios that could lead to this phenomenon: deformation and occlusion. When the target is deformed, such as when a vehicle makes a turn, updating the template is necessary because previous templates may not be suitable for the same object from another view angle; on the contrary, when a target is temporarily occluded, such as when a vehicle passes through the jungle and is shielded by trees, updating the template during occlusion is not needed and may cause template pollution because of shield interference. Therefore, our system needs to differentiate between these two conditions and decides whether to update the template or not. Examples of deformation and occlusion in tracking are shown in Figure 7.

After analyzing the characteristics of both conditions, we proposed an updating strategy that decided by the results of two separate networks: a contour- and a target-detection network. If the target had obvious appearance changes from one frame and activated the template-update network, both networks would output corresponding results within a neighboring target area, and a new appearance model would be generated. It needs to be denoted that our tracking method with shape-adaptive templates is able to deal with partial-occlusion conditions because there is less background interference compared with the traditional bounding-box template. Only severe occlusion may cause similarity low enough to activate the template-update network. Under severe occlusion conditions, the contour- and target-detection networks are not able to get consistent results in most cases. Figure 8 shows outputs from our template-updating network regarding the deformation and occlusion conditions.

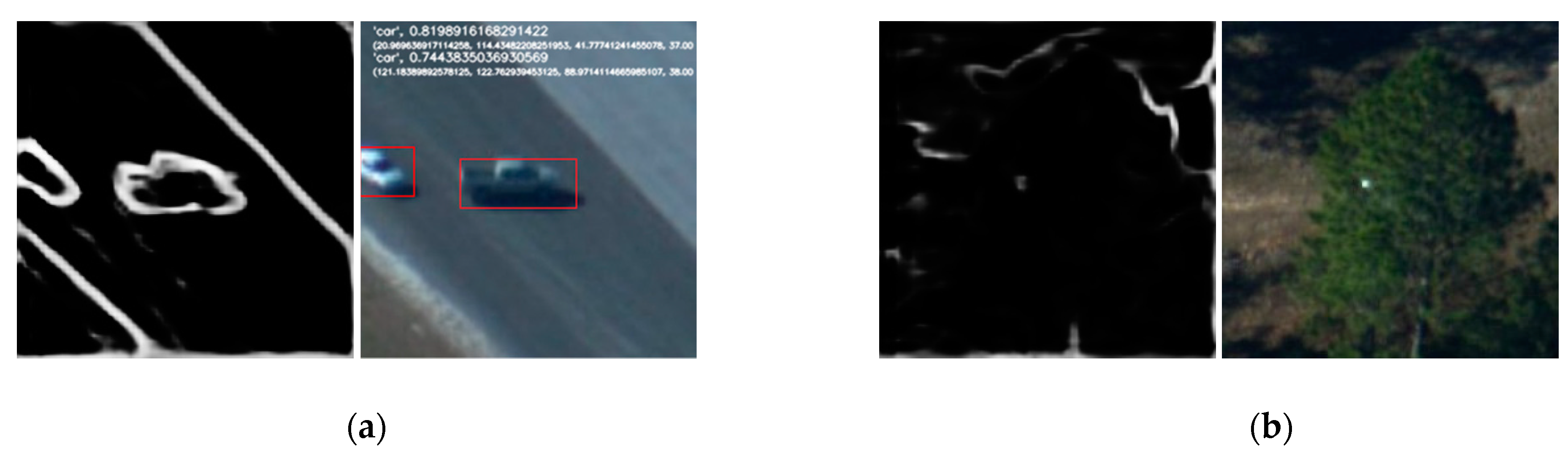

In Figure 8a, which was under deformation, the target vehicle in the center of image and its contour were simultaneously detected, while in Figure 8b, which was under occlusion, neither the more severe shielded vehicle nor its contour were detectable. In order to improve the robustness of our system and avoid unknown conditions that may lead to false tracking, we preserved the template in the first frame, which was manually selected and had the highest confidence. This highest confidence template was utilized as a backup template to match with the search region during each template update except for the first time.

3.3. Siamese Tracking Network

For most Siamese tracking networks, such as GOTURN and SiamFC, the first step is to zoom in on and crop input target images in the absence of target-feature information. In this process, when a target moves out of the bounding box, it is beneficial to add a margin to the context, but at the same time, this may lead to target-size reduction and the introduction of more background information. Siam FC is better than GOTURN for three reasons: first, its fully convoluted network structure makes offline training data highly identifiable; second, SiamFC uses a strictly supervised heat map rather than a recommended regression. Finally, the accuracy of the fusion tensor is improved by using a correlation layer as the fusion tensor, to which the success of correlation-based methods on visual-target tracking is owed. GOTURN uses regression results in the previous frame and updates the template in each frame, while SiamFC generates the template from basic facts in the first frame that in our system can be manually selected by operators. Feature similarity between template and search area is calculated by correlation operation, and a similarity heat map is generated. The highest response in the heat map represents the location of the target center in the next frame. In summary, the system realizes the tracking function from frame to frame.

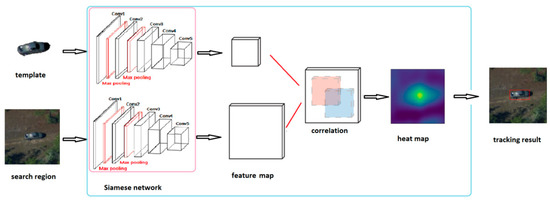

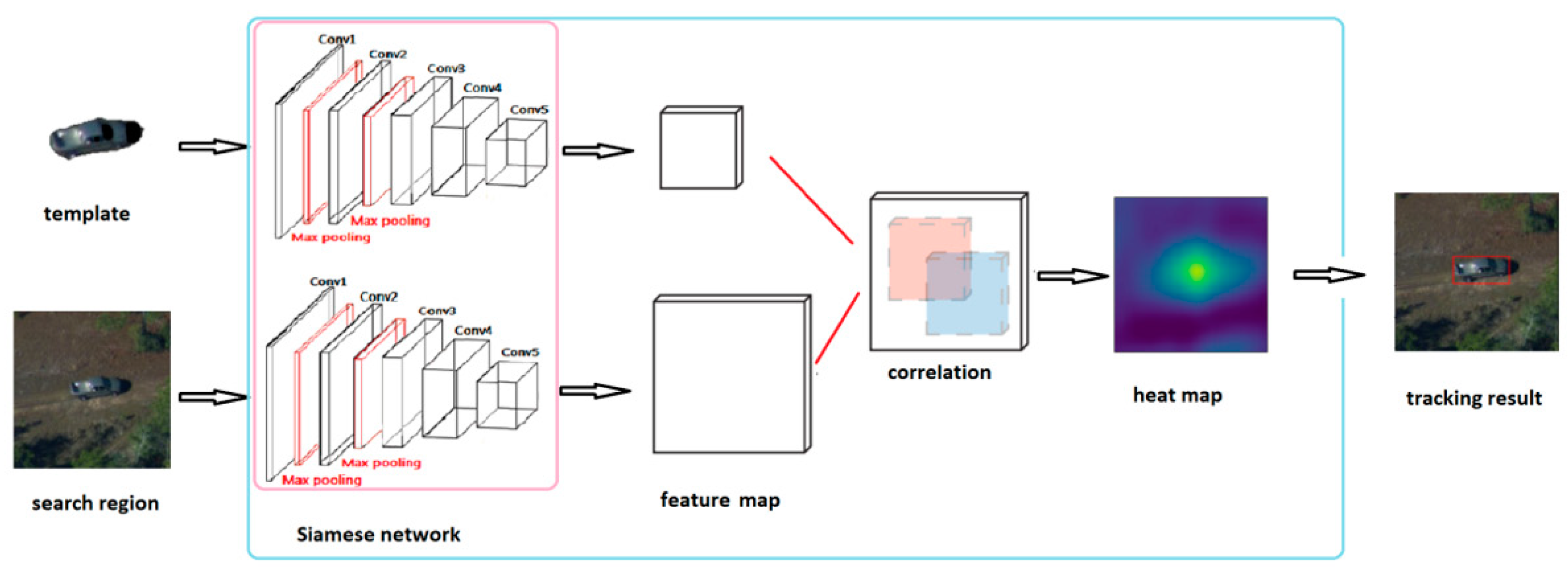

Figure 9 shows the architecture of our Siamese tracking network: First, the full convolutional network takes template and search area as inputs, respectively, and outputs features for the template and search area. Then, the heat map is generated through correlation of the similarity between template and search-area features. Last but not least, the target is tracked in the search area according to the highest response on the heat map.

Configurations on kernel sizes and strides of convolutional layers in the Siamese network are summarized in

Table 3. Kernel sizes and strides in our Siamese network.

Layer	C1	C2	C3	C4	C5
Kernel size	11 × 11 × 3	5 × 5 × 48	3 × 3 × 256	3 × 3 × 192	3 × 3 × 192
Stride	4	8	16	16	16

. It needs to be noted that there are response-normalizing and intervening pooling layers connected to the outputs of the first two convolutional layers.

4. Experiments and Results

Our template-updating network and Siamese tracking network were implemented based on the TensorFlow framework for Python with OpenCV 2.7. We had already run our Siamese tracking network on public dataset OTB100 and compared it with nine other tracking methods. In this part. we selected eleven vehicle videos in the OTB100 dataset: Car1, Car2, Car4, Car24, BlurCar1, BlurCar2, BlurCar3, BlurCar4, Suv, CarScale, and CarDark. Following the instruction of the OTB100 benchmark, the precision plots and success plots of one-pass evaluation (OPE) were plotted. Then, our Siamese tracking network with an adaptive template-updating strategy was tested on images taken at Eglin Air Base during the DARPA Video Verification of Identity (VIVID) program. This experiment set was performed by comparing the performance of our Siamese tracking network with or a without template-updating strategy. The image resolution in this experiment set was 640 x 480. From five video sequences (egtest01, egtest02, egtest03, egtest04, and egtest05), we chose 5000 images constituting our datasets for testing. All the above experiments were tested on a server with a TITAN X GPU and 3.5 GHz CPU.

4.1. OTB100 Results

We created a group label for these vehicle videos and modified the initialization part of our Siamese tracking network for tests because our requirement for the task was different from that in the OTB100 challenge. In detail, we used the center point of each bounding box according to the ground truth instead of our initialization point.

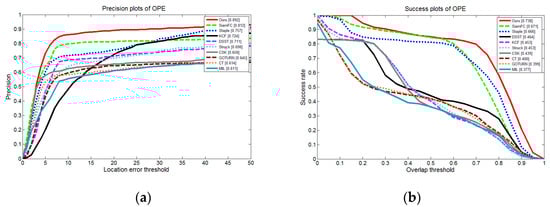

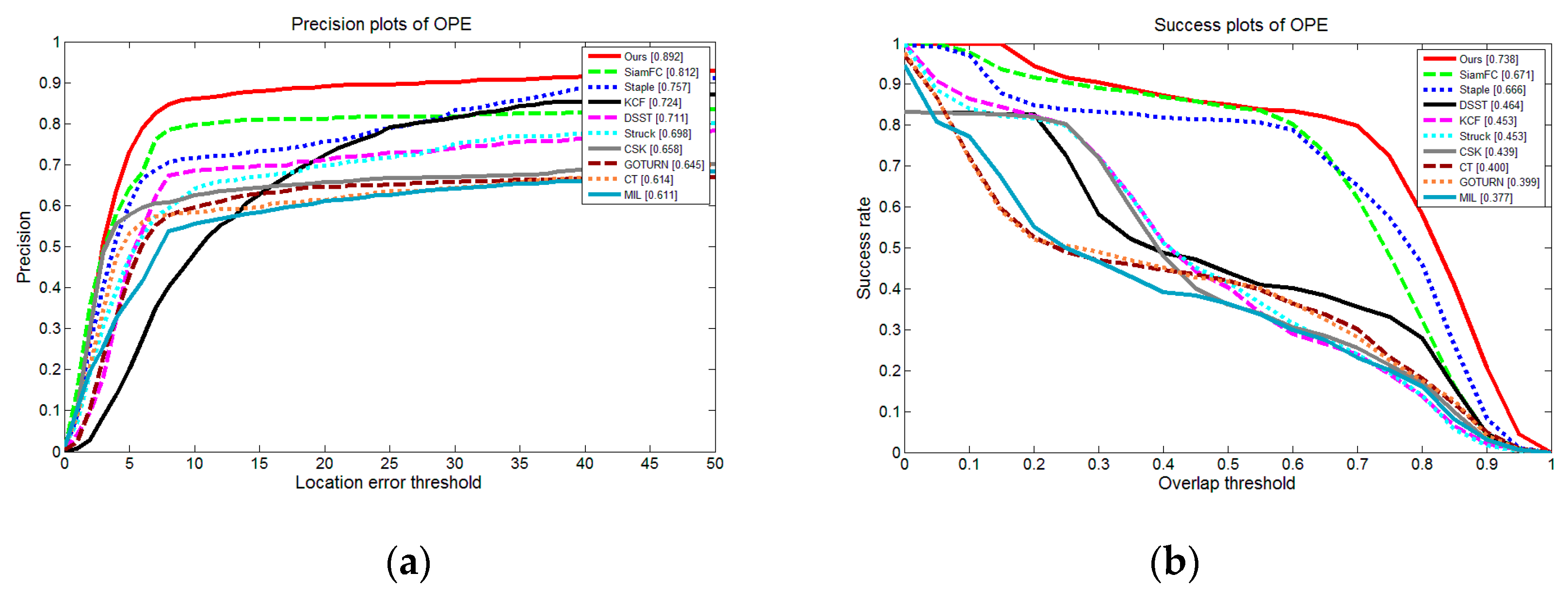

According to the requirement of our system, we only tested the OPE metric. Figure 10 shows the precision plots and the success plots of OPE.

As can be seen from Figure 10, our shape-adaptive template method achieved the best performance between the 10 trackers. The distance accuracy and overlap accuracy in OPE are shown in Figure 10a,b, respectively. It is noteworthy that we compared the central accuracy scores of the success rate under the 20-pixel threshold because, in our system center, accuracy is the most important, and most target sizes in our scenarios were about 20 to 40 pixels. In the experiment, our method achieved a success rate of 0.892 on distance accuracy of the 20-pixel threshold, and 0.738 on overlap accuracy. Our method achieved the best performance for both methods: in terms of distance accuracy, our method was 9.9% better than SiamFC, which ranked second, and in terms of overlap accuracy, our method was better by 10.0% as well.

4.2. DARPA Dataset Results

4.2.1. Qualitative Evaluation

As mentioned earlier, the images in our program were taken from airborne-sensor platforms that were far away from targets. This led to a low resolution and small-size targets. Therefore, similar datasets collected by DARPA were utilized for our testing. Images on the left-hand side below are results for the Siamese tracking network without template updating on the DARPA datasets; ones on the right-hand side are results for our Siamese tracking with an adaptive template-updating strategy on the same frames.

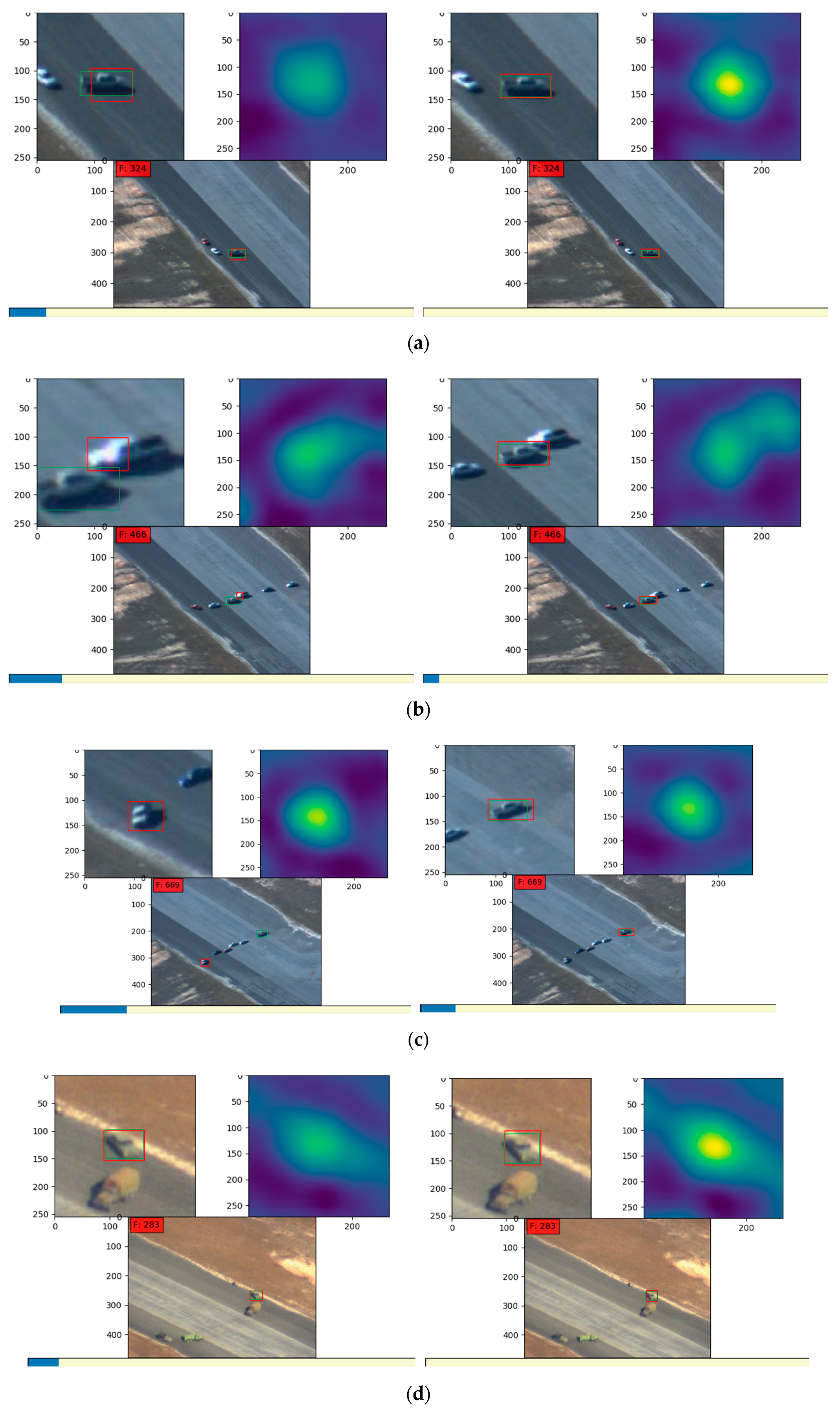

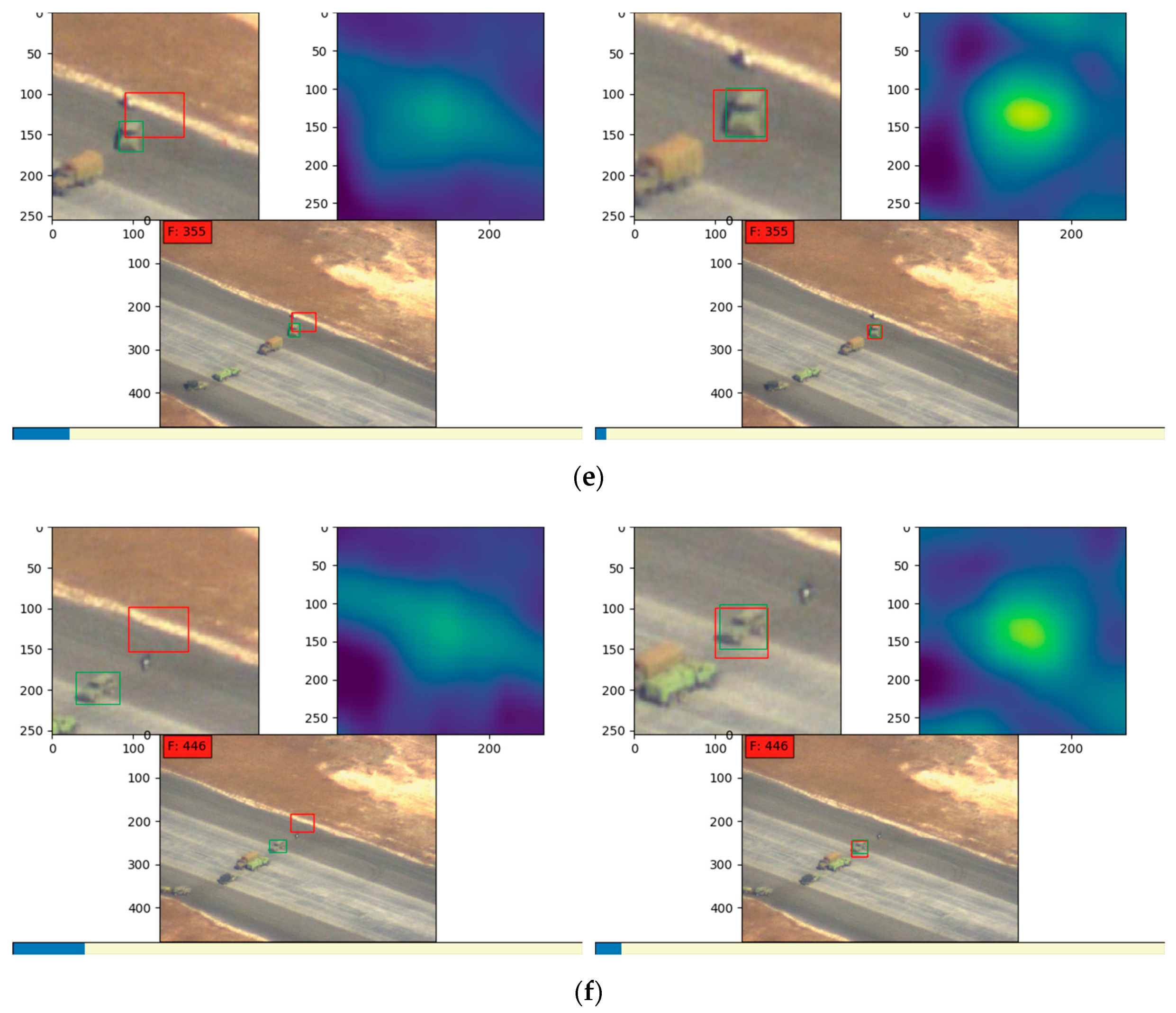

Figure 11 are the results of two different sequences of video images from the DARPA dataset. To be specific, images in Figure 11a–c are from video sequence “egtest02”, and images in Figure 11d–f are from video sequence “egtest03”. In Figure 11a,d, both of the tracking vehicles were making a turn and this lead to target deformation. These appearance changes could not match previous templates with high similarities according to the heat maps. As a result, the left images in Figure 11b,c,e,f show that the tracker without template-updating failed to track the target, while the right images in the corresponding group prove that our latest method was able to solve the problem through template updating.

4.2.2. Quantitative Evaluation

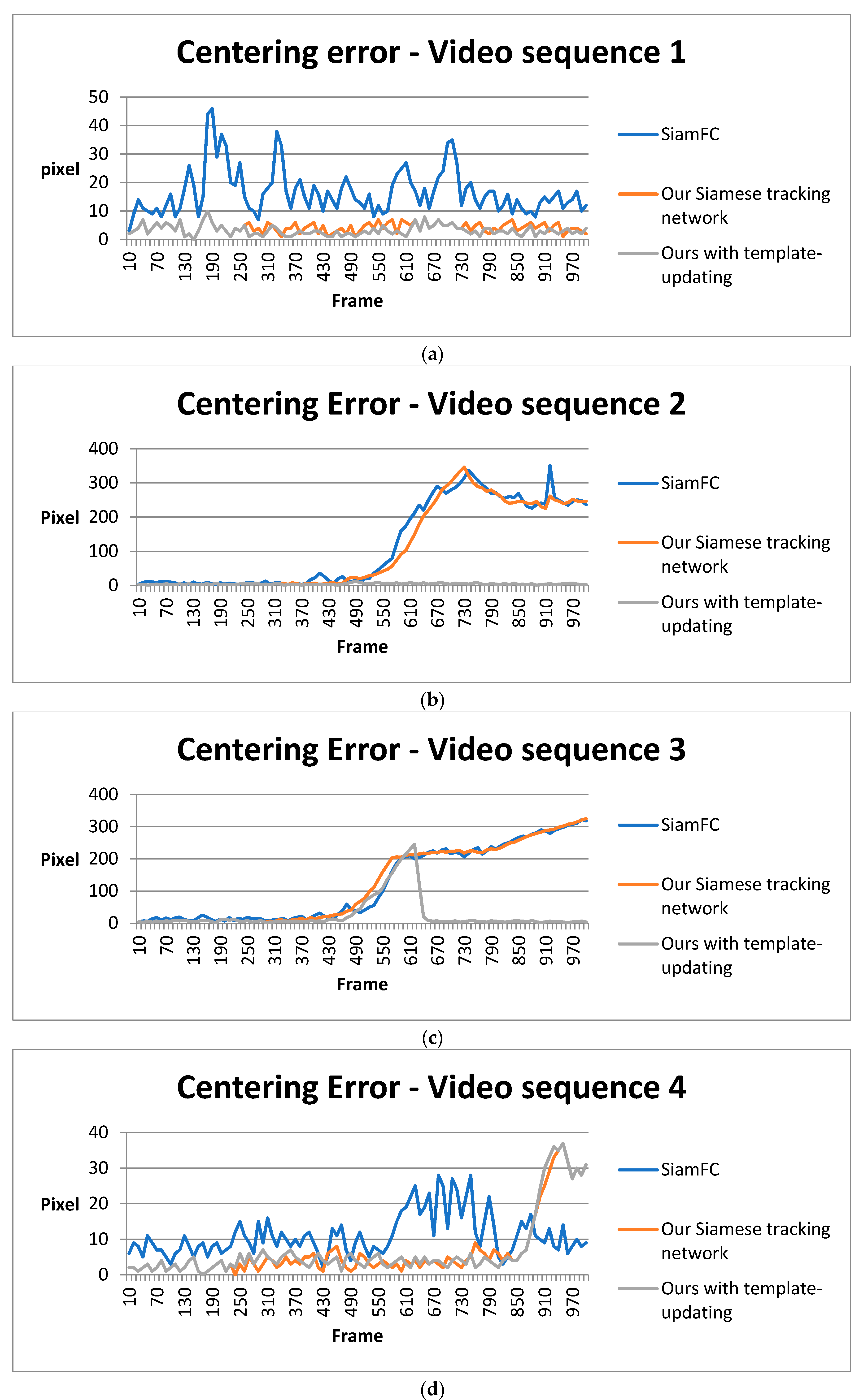

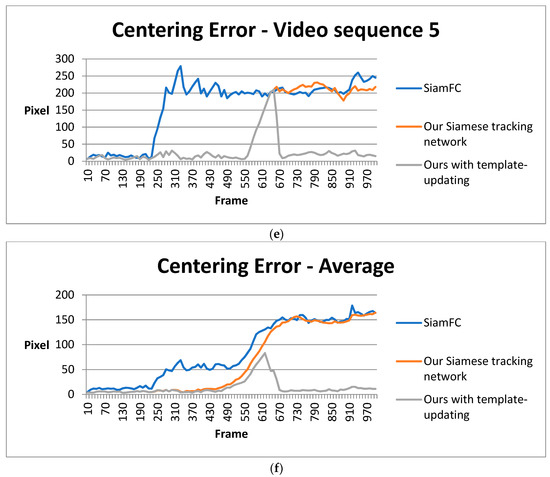

We calibrated and recorded the result deviations of SiamFC, our Siamese tracking network, and our Siamese tracking network with a template-updating strategy, respectively. In this set of experiments, we only compared the centering error of the different methods in each video sequence because, in our application, center precision was the most significant and could have had serious consequences. We calculated the centering error between the tracking results and the calibrated ground-truth centers every 10 frames for the three different methods, outlined in Figure 12. It is worth noting that the target size in the first four video sequences was about 20 to 40 pixels, and in the video sequence, 5 was about 100 pixels. In most frames, the central error of our method was less than 10 pixels. This deviation could be tolerated as long as the detected target center was still in the actual target location. When faced with challenges such as occlusion or deformation, our Siamese tracking with adaptive template-updating strategy had the least mistakes during the tracking process. The success of updating templates in our latest method generated some spikes that can be seen in the results of video sequences 3 and 5. Overall, the average centering error of our latest method was much lower than that of the others.

5. Conclusions

In this paper, we first analyzed the advantages and drawbacks of recent tracking methods and argued that Siamese tracking approaches, balancing accuracy and speed, are the most suitable for our requirements. After that, we designed and implemented the whole system with an innovative template-update network by modifying and combining a contour-detection network and a target-detection network to track in real time using contour templates instead of a conventional bounding-box template. Experiment results showed that our latest Siamese tracking with adaptive template-updating strategy was able to improve performance regarding occlusion and deformation problems in object tracking. The whole system is suitable for single-rigid-object tracking in real time. For multiple objects or nonrigid-object real-time tracking, there is still further work to be done.
