Rare VPS35 A320V Variant in Taiwanese Parkinson’s Disease Indicates Disrupted CI-MPR Sorting and Impaired Mitochondrial Morphology

1
Department of Neurology, Chang Gung Memorial Hospital, Linkou Medical Center and Chang Gung University College of Medicine, No. 5, Fusing St., Gueishan Township, Taoyuan County 33302, Taiwan
2
Department of Life Science, National Taiwan Normal University, 88 Ting-Chou Road, Section 4, Taipei 11677, Taiwan
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Brain Sci. 2020, 10(11), 783; https://doi.org/10.3390/brainsci10110783
Submission received: 25 September 2020 / Revised: 16 October 2020 / Accepted: 21 October 2020 / Published: 27 October 2020
(This article belongs to the Section Molecular and Cellular Neuroscience)

Abstract

:
Sequence variants in vacuolar protein sorting 35 (VPS35) have been reported to be associated with Parkinson’s disease (PD). To investigate if the genetic variants in VPS35 contribute to Taiwanese PD, VPS35 cDNA fragments from 62 patients with PD were sequenced. A cohort of PD (n = 560) and ethnically matched controls (n = 506) were further examined for the identified mutation. The effects of the mutation on cation-independent mannose-6-phosphate receptor (CI-MPR) sorting and mitochondrial morphology were further examined in 293T cells expressing the mutant VPS35. Here, a novel heterozygous A320V in the VPS35 gene was identified in two late-onset PD (LOPD) patients, which was absent in 506 normal controls. Expression of the A320V mutant in 293T cells demonstrated increased colocalization of VPS35 with CI-MPR and decreased CI-MPR and lysosomal-associated membrane protein 2 (LAMP2) levels. Decreased CI-MPR manifested in missorting of cathepsin D and decreased proteolysis of α-synuclein. A320V mutation also increased mitochondrial E3 ubiquitin protein ligase 1 (MUL1) and thus led to mitofusin 2 (MFN2) degradation. The results suggest that the expression of VPS35 A320V leads to disrupted CI-MPR sorting and impaired mitochondrial morphology, which may partly explain its action in PD.

Graphical Abstract

1. Introduction

Parkinson’s disease (PD) is the second most common neurodegenerative disease, and its pathogenesis is still unknown. A complex interaction between genetic and environmental factors contributes to development of this disease [1]. Genetic research in PD has identified mutations in several genes, including SNCA, LRRK2, and VPS35 or PARKIN, PINK1, DJ-1, ATP13A2, PLA2G6, and FBXO7, which are inherited in an autosomal dominant or autosomal recessive manner, respectively [2]. Furthermore, common genetic variations at the SNCA, LRRK2, and GBA loci confer risk for developing idiopathic PD [2]. Newly reported genes are DNAJC13, CHCHD2, and TMEM230 for dominant PD and SYNJ1, RAB39B DNAJC6, VPS13C, and PTRHD1 for recessive PD [3]. However, the pathogenicity of some newly reported genes (DNAJC13, CHCHD2, and TMEM230) remains to be validated. The abovementioned gene products have been reported to be involved in regulating several cellular pathways, including mitochondrial turnover, synaptic vesicle exocytosis/endocytosis, endosomal sorting, autophagy and lysosomal function, and neuroinflammation [4].
Mutations of vacuolar protein sorting 35 (VPS35, PARK17, OMIM: 614203) gene in PD have been explored (review in [5]). Initially, Vilarino-Guell and coworkers identified an aspartic-acid-to-asparagine mutation at residue 620 (p.D620N, c.1858G>A) in a Swiss family, three other families, and one patient with sporadic PD, while a proline-to-serine variant was identified at residue 316 (p.P316S, c.946C>T) in the VPS35 gene in a United States family in 2011 [6]. Following this initial report, other groups also reported the D620N mutation in a number of individuals and families with PD worldwide [5,7]. With the exception of Japanese [8], D620N mutation is predominantly found in families of Caucasian descent with autosomal dominant PD. The frequency of the D620N mutation in patients with familial PD is estimated to be 0.1% to 1% [9]. In addition, several rare variants have been identified in familial PD or sporadic PD cases, such as R32S, P51S, R524W, I560T, H599R, M607V, and L774M (review in [5]). However, the pathogenicity of most of these variants remains inconclusive.
The VPS35 protein functions as a core of the retromer complex that facilitates both endosome-to-plasma membrane and endosome-to-Golgi complex transport as well as recycling of transmembrane protein cargo [10]. VPS35 in the cargo recognition VPS26–VPS29–VPS35 complex binds the cation-independent mannose 6-phosphate receptor (CI-MPR) in endosomes and transports CI-MPR to the trans-Golgi network (TGN) to prevent its lysosomal degradation [11]. CI-MPR at the TGN binds mannose 6-phosphate groups on the lysosomal hydrolase precursors to transport lysosomal enzymes to lysosomes [12]. In a transgenic Drosophila model expressing human α-synuclein (SNCA), depletion of VPS35 resulted in inappropriate trafficking of CI-MPR and cathepsin D (CTSD), leading to enhanced α-synuclein accumulation and exacerbated locomotor impairments in flies [13]. Therefore, VPS35 deficiency has been suggested to increase α-synuclein accumulation via impaired lysosomal function.
The pathogenesis of the reported VPS35 P316S, R524W, and D620N mutations has been investigated. Utilizing Drosophila as a model, D620N and, to a smaller extent, P316S led to late-onset loss of dopaminergic (DA) neurons, poor mobility, reduced survival, and increased sensitivity to PD-linked rotenone toxin [14]. The endosomal trafficking of CI-MPR and subsequent CTSD processing was disrupted by the D620N mutation in model cell lines and PD fibroblasts with D620N mutation [15]. Additionally, DA neurons expressing PD-linked D620N impaired endosome-to-Golgi retrieval of lysosome-associated membrane protein 2 (LAMP2), which causes increased α-synuclein accumulation [16]. Moreover, PD-linked P316S, R524W, and D620N mutants increased mitochondrial E3 ubiquitin protein ligase 1 (MUL1) levels and thus led to mitofusin 2 (MFN2) degradation and mitochondrial fragmentation [17]. Mitochondrial fission and neuronal loss were also observed by enhanced dynamin-like protein 1 (DLP1) complex turnover, with more pronounced effects induced by D620N compared to R524W [18].
To date, reported evidence on the pathogenicity of rare VPS35 mutations is limited. This study aims to investigate if the genetic variants in VPS35 are etiologically relevant to the pathogenesis of Taiwanese PD.

2. Materials and Methods

2.1. Ethics Statement

This study was performed under a protocol approved by the institutional review boards of Chang Gung Memorial Hospital (No. 101-5299A3), and all examinations were performed after obtaining written informed consents.

2.2. Subjects

Patients diagnosed with PD (onset age 19–93 years, average age 62.9 ± 11.2 years, 45.7% females, n = 622) were recruited from the neurology clinics of Chang-Gung Memorial Hospital. Among them, a subgroup of PD (onset age 51–78 years, average age 59.6 ± 7.5 years, 45.2% females, n = 62) were randomly selected for VPS35 cDNA sequencing. The diagnosis of PD was based on the UK PD Society Brain Bank clinical diagnostic criteria [19]. Unrelated healthy adult volunteers (59.8 ± 12.8 years, 52.4% females, n = 506) matched for age, gender, ethnic origin, and area of residence were recruited as controls. To avoid the skew caused by multiple family members carrying the same genetic variants, we only included one proband if patients had family history of PD.

2.3. Genetic Analysis

Genomic DNA and RNA were extracted from leukocytes using the standard protocols. RNA from the abovementioned 62 PD patients was reverse transcribed to cDNA (SuperScriptTM III reverse transcriptase; Invitrogen, Carlsbad, CA, USA) and PCR amplified (forward primer: 5′-ATGACCGCGGGAGGCTAC, reverse primer: 5′-CCGGAGGTGCTGGGTAAAAC) for VPS35 cDNA direct sequencing. The identified VPS35 A320V variant was screened in 506 controls and the rest of the 560 PD patients by genomic DNA PCR (forward primer: 5′-GAGTGGAGAGTGCGTGACTG, reverse primer: 5′-AACAAGACAAATGCCAGCAG) and BseYI (loss of site) restriction analysis. We also screened the reported D620N variant in all the recruited PD patients by genomic DNA PCR (forward primer: 5′-CTCAGTTGTGTCCTGTGGCTCTC, reverse primer: 5′-CCTCCTCCCCATTTTTGTCC) and HinfI (gain of site) restriction analysis.

2.4. VPS35 and SNCA cDNA Constructs

The VPS35 cDNA (NM_018206) in pOTB7 was obtained from Bioresource Collection and Research Center (BCRC), Food Industry Research and Development Institute, Taiwan. The VPS35-containing BamHI/BsaI fragment, a linker flanked by BsaI and NheI sites (generated by annealing primers 5′-TCCTTGAAAAAGGATCCCCG and 5′-CTAGCGGGGATCCTTTTTCA), and ZsYellow1-containing NheI/DraI fragment (from pZsYellow1-C1) were subcloned into BamHI- and EcoRV-digested pcDNA5/FRT/TO (Novagen, Madison, WI, USA) to generate pcDNA5-VPS35-ZsYellow1. The resulting construct had a 12 amino acid linker (EKGSPLALPVAT) between VPS35 and ZsYellow1. To clone A320V VPS35, cDNA amplified from a late-onset PD (LOPD) patient carrying heterozygous A320V (patient H1914) was cloned into pGEM-T Easy (Promega, Madison, WI, USA) and sequenced. Then, DNA fragment containing A320V was excised with EcoNI-AflII and subcloned into the corresponding sites in pcDNA5-VPS35-ZsYellow1. The fidelity of the cDNA constructs was confirmed by restriction digestion and/or direct nucleotide sequencing.
Polyadenylated RNA (200 ng) isolated from neuroblastoma SK-N-SH cells was reverse transcribed as described. The sense and antisense primers for α-synuclein (SNCA, NM_000345) cDNA amplification were 5′-GCGGCCGCCATGGATGTATTCATGAAAGG (forward, NotI site underlined) and 5′-AGATCTGGCTTCAGGTTCGTAGTCTTG (reverse, BglII site underlined). The amplified SNCA cDNA was cloned into pGEM-T Easy vector (Promega) and sequenced. Then, the NotI/BglII fragment containing SNCA cDNA and BamHI/XhoI fragment containing Myc epitope and polyhistidine tag (from pcDNA3.1/myc-his, Invitrogen) were subcloned into NotI- and XhoI-digested pcDNA3 vector (Invitrogen) to generate pcDNA3-SNCA-Myc-His.

2.5. Cell Cultivation and Transfection

Human embryonic kidney (HEK)-293T (ATCC No. CRL-11268) cells were grown in a humidified 37 °C incubator with 5% CO2 atmosphere and maintained in Dulbecco’s modified Eagle’s medium containing 10% fetal bovine serum (FBS). Cells were plated into six-well (6 × 105/well) dishes, grown for 20 h, and cotransfected with VPS35-ZsYellow1 (wild-type and A320V) and SNCA-His constructs (2.5 µg each) into cells using Lipofectamine 2000 according to the manufacturer’s instructions (Life Technologies, Carlsbad, CA, USA). The cells were grown for 48 h for the protein studies.

2.6. Western Blotting

Cells were lysed in lysis buffer (20 mM HEPES pH 7.4, 1 mM MgCl2, 10 mM KCl, 1 mM DTT, 1 mM EDTA pH 8.0) containing the protease inhibitor mixture (Calbiochem, San Diego, CA, USA). After sonication and sitting on ice for 20 min, the lysates were centrifuged at 14,000× g for 30 min at 4 °C. Total proteins (25 µg) were electrophoresed on 10% sodium dodecyl sulfate (SDS)-polyacrylamide gel and blotted onto nitrocellulose membranes. After blocking, the membrane was probed with antibodies against CI-MPR (1:20000; Abcam, Cambridge, MA, USA), VPS35 (1:1000; GeneTex, Irvive, CA, USA), CTSD (1:500; Santa Cruz Biotechnology, Santa Cruz, CA, USA), LAMP2 (1:1000; Abcam, Cambridge, MA, USA ), MUL1 (1:1000; Abcam, Cambridge, MA, USA), MFN2 (1:1000; Cell Signaling, Danvers, MA, USA), His (1:1000; Acris Antibodies GmbH, Herford, Germany), β-actin (ACTB, 1:5000; Millipore, Billerica, MA, USA), and glyceraldehyde-3-phosphate dehydrogenase (GAPDH, 1:1000; MDBio, Taipei, Taiwan) at 4 °C overnight. Horseradish peroxidase-conjugated goat antimouse or goat antirabbit IgG antibody (1:5000; GeneTex, Irvive, CA, USA) and chemiluminescent substrate (Millipore) were used to detect the immune complexes.

2.7. Immunocytochemistry and Confocal Microscopy Examination

HEK-293T cells were plated into 12-well dishes (on coverslips, 2 × 105/well), grown for 20 h, and transfected with the wild-type and A320V VPS35-ZsYellow1 plasmids (2 µg each) for 48 h. Cells were then washed with phosphate-buffered saline (PBS) and fixed in 4% paraformaldehyde in PBS for 15 min, followed by 20 min incubation with 0.1% Triton X-100 in PBS to permeabilize cells and an overnight incubation with 2% bovine serum albumin (BSA) in PBS to block nonspecific binding. The primary CI-MPR (1:2000; Abcam) antibody was used to stain cells at 4 °C overnight. After washing with PBS containing 0.1% Tween 20 (PBST), cells were incubated for 2 h at room temperature in Cy5-conjugated secondary antibody (1:500; Invitrogen, Carlsbad, CA, USA) and washed in PBST. Nuclei were detected using 4′-6-diamidino-2-phenylindole (DAPI). Cells were examined after mounting on Vectashield (Vector Laboratories, Inc., Burlingame, CA, USA) for ZsYellow1 and Cy5 fluorescence using a Zeiss LSM 880 confocal laser scanning microscope (Carl Zeiss Microscopy, Oberkochen, Germany) optimized for simultaneous fluorescent imaging. For colocalization, 60 cells from three independent experiments were analyzed and quantified according to the proportion of pixels that were both red and green using Pearson’s rank coefficient as part of the ImageJ Coloc_2 plugin (rsb.info.nih.gov/ij/).
For mitochondrial morphology analysis, wild-type and A320V VPS35-ZsYellow1-transfected cells were stained for 20 min at 37 °C with 200 nM MitoTracker Deep Red FM (Invitrogen). The cells were then fixed, permeabilized, washed, and nuclei stained, and images were acquired as described above. Image analysis was performed using ImageJ macro tool to define the perimeter of mitochondria and calculate aspect ratio (long axis/short axis) and form factor (1/circularity, perimeter2/4 π × area). Mitochondria morphology analysis was repeated three times with at least 100 cells in each time of measurement.

2.8. Statistical Analysis

For statistical analysis of immunoblots and microscopy images, data were expressed as the means ± standard deviation (SD). Experiments in triplicate were performed, and noncategorical variables were compared using the Student’s t-test. All p values were two-tailed, with values of p < 0.05 being considered significant.

3. Results

3.1. Mutation Analysis

VPS35 cDNA fragments from 62 PD patients were amplified for sequence analysis. A novel heterozygous substitution leading to an amino acid change from alanine to valine at position 320 (p.A320V) was identified in a LOPD patient (H1914) (Figure 1A). A320V can be differentiated using PCR and BseYI restriction analysis (Figure 1B). A320V, a nonpolar amino acid residue located between VPS35 α-helices 14 and 15 [20], is evolutionary conserved in the known mammalian homologues of the VPS35 protein (Figure 1C). A320V was found in another LOPD patient (H1967) upon PCR and BseYI restriction analysis to screen the rest of the 560 patients, but it was not found in the 506 controls. In addition, known D620N was not found in any of our PD patients.

3.2. Clinical Analysis of Patients with A320V

There were two patients carrying A320V in our cohort. The first one (H1914) was a 67-year-old female, presented with right hemiparkinsonian features without other parkinsonism-plus abnormalities, which is identical to idiopathic PD at age 55. She had a very good response to levodopa with independent daily activity for five years. She started to have end-dose phenomenon to levodopa treatment seven years after onset of PD. Unfortunately, she got right parietal and occipital subcortical infarction at the age of 65, which made her confined to a wheelchair. Computer tomography of the brain performed at age 60 was normal. There were no other family members suffering from the same symptoms. The second one (H1967) came to our clinic at age 68. She had rest tremor and was clumsy of her right upper limb at age 67. PD was diagnosed according to the excellent response to levodopa as well as normal magnetic resonance imaging of the brain and an asymmetric reduction of 99mTc-TRODAT-1 uptake in the left striatum compared with a normal individual. She had no other family members or relatives having the similar symptoms.

3.3. Impaired Endosome-to-Golgi Retrieval of CI-MPR in A320V-Expressing Cells

CTSD is the main lysosomal hydrolase responsible for the degradation of α-synuclein [21]. In human cells, CTSD is first synthesized as pre-pro-CTSD (412 amino acids), which is processed to pro-CTSD (394 amino acids) by the removal of the signal peptide in the endoplasmic reticulum. After transport to the late endosomes and lysosomes, pro-CTSD is converted to mature disulfide-linked heavy (244 amino acids) and light (97 amino acids) chains. To examine if A320V affected VPS35 retromer function, the VPS35-ZsYellow1 and SNCA-Myc-His cDNAs were co-overexpressed in HEK-293T cells (Figure 2A and Figure S1). When compared to wild-type VPS35-transfected cells, the amount of CI-MPR and matured CTSD heavy chain proteins in A320V mutant-transfected cells were significantly reduced (CI-MPR: 81% vs. 100%, p = 0.015; CTSD: 83% vs. 100%, p = 0.020), suggesting impaired delivery of pro-cathepsin D to the late-endosome/lysosome for processing into the mature 27 kDa form. Notably, these changes were accompanied by a concomitant increase of SNCA detected by a His-tag antibody (131% vs. 100%, p = 0.002).
Additionally, the expression level of LAMP2 isoform A (LAMP2A) was examined. As shown in Figure 2A and Figure S1, the amount of LAMP2A in A320V mutant-transfected cells was significantly reduced (65% vs. 100%, p = 0.004), suggesting accelerated degradation of LAMP2A.
To determine if the presence of VPS35 A320V mutation impacts retromer-mediated trafficking of CI-MPR, studies in colocalization between transfected VPS35 and CI-MPR in HEK-293T cells were performed. Colocalization was significantly increased for CI-MPR and A320V (26% vs. 17%, p = 0.038) (Figure 2B) compared with that found in wild-type-transfected cells. Together with the observed reduced amounts of CI-MPR, our study results may suggest impaired endosome-to-Golgi retrieval of CI-MPR in VPS35 A320V-expressing cells.

3.4. Increased MUL1 and Reduced MFN2 in A320V-Expressing Cells

It is thought that mitochondrial fusion morphology is critical for maintenance of mitochondrial respiratory capacity in mammalian cells [22]. Given that VPS35 is a critical regulator for mitochondrial E3 ubiquitin ligase MUL1 and its substrate MFN2, we examined whether VPS35 A320V mutant affected MUL1 level, resulting in MFN2 degradation and mitochondrial fragmentation. As shown in Figure 3A and Figure S2, the amount of MUL1 protein in A320V mutant-expressing cells was significantly increased (134% vs. 100%, p = 0.004), which was associated with a decrease of MFN2 (74% vs. 100%, p = 0.001). Accordingly, the average aspect ratio (1.9 vs. 2.2, p = 0.033) and form factor (5.8 vs. 7.3, p = 0.008) were significantly lower in A320V-expressing cells when compared to wild-type VPS35-transfected cells, demonstrating that A320V may induce small and round mitochondria, indicative of mitochondrial fragmentation (Figure 3B).

4. Discussion

In the present study, we investigated VPS35 mutation in Taiwanese PD patients. One heterozygous variant, A320V, was identified in two LOPD patients among the 610 patients screened (allele frequency: 0.16%). A320V has been reported in the NCBI single nucleotide polymorphisms (dbSNP) database (rs747944333), with allele frequency of 0.015% in a study of 516,606 chromosomes. Based on Exome Aggregation Consortium (ExAC), this variant was mostly found in Latino (0.1%), while it was very rare in Asian (0.004%). Furthermore, this variant has not been reported in the Taiwan Biobank (https://taiwanview.twbiobank.org.tw/). Although p.D620N mutation has been reported in Taiwan [7]; however, this mutation was not found in our PD patients. Our results suggested that VPS35 mutation may not be a common cause of Taiwanese PD. This is in accordance with those previously reported [23,24,25].
VPS35 is the largest of the cargo recognition complex. Analysis of the VPS35 sequence showed that it is composed of a total 34 helices (17 two-helix repeats) that fold into an α-solenoid, with 13 C-terminal helices wrapping around VPS29 and 8 N-terminal helices interacting with VPS26 [20]. A320V is located between VPS35 α-helices 14 and 15, thus more likely to not affect the formation of VPS26–VPS29–VPS35 heterotrimer. Most retromer cargoes possess at least one simple hydrophobic motif, F/W-L-M/V, required for retromer-dependent sorting [26], and VPS35 has long been considered to provide the sole interface for cargo recognition. To understand the possible underlying molecular mechanism of VPS35 A320V mutation, we examined if trafficking of CI-MPR was disrupted by expression of this variant. Within HEK-293T cells expressing A320V, increased colocalization of A320V with CI-MPR (Figure 2B) may implicate reduced retrieval of CI-MPR to TGN, which may lead to accelerated lysosomal degradation of CI-MPR (Figure 2A). An increased dispersal of CI-MPR was also observed in different patient cells with D620N mutation [27]. Whether reduced retrieval of LAMP2A leads to decreased LAMP2A (Figure 2A) remains to be determined. LAMP2 is a receptor for chaperon-mediated autophagy (CMA) [28]. Decreased LAMP2A may impair CMA-mediated α-synuclein degradation, given the critical role of LAMP2A in CMA [29]. In addition, the VPS35 A320V variant reduces the retromer-mediated trafficking of cathepsin D, leading to decreased maturation of cathepsin D, which causes reduced degradation of α-synuclein in the lysosome (Figure 2A). However, whether VPS35 A320V promotes degradation of CI-MPR and LAMP2A by lysosome warrants substantial evidence from further studies. The observed endosomal and lysosomal alterations and trafficking defects resulting from A320V may have a strong correlation to the development and progression of PD.
Similar to A320V, the reported P316S is also located between VPS35 α-helices 14 and 15. Transgenic fly studies have demonstrated that expression of P316S leads to the loss of tyrosine hydroxylase-positive dopamine neurons, locomotor dysfunction, and reduced lifespan, although to a smaller extent [13]. Expression of P316S is also sufficient to increase MUL1 and reduce MFN2 [16]. Similar to P316S, VPS35 A320V mutant may affect mitochondrial dynamics by increasing mitochondrial MUL1, which leads to MFN2 degradation (Figure 3A) and results in mitochondrial fragmentation. While we showed that A320V altered expression of MUL1 and MFN2, further studies are required to demonstrate if A320V causes mitochondrial abnormalities, including fragmentation.
Familial PD-associated VPS35 mutants can cause mitochondrial fragmentation through enhanced VPS35-DLP1 interaction to recycle DLP1 complexes, eventually leading to mitochondria dysfunction and neuronal loss [18], and D620N mutant-induced mitochondrial fragmentation and respiratory deficits could be rescued by blocking the VPS35-DLP1 interaction and inhibiting the recycling of mitochondrial DLP1 complexes [30]. A320V may affect DLP1 complex recycling, resulting in the observed small and round mitochondria in A320V-expressing cells (Figure 3B), but this remains to be clarified by future studies.
Although increased α-synuclein accumulation via impaired lysosomal function in VPS35 knock-down Drosophila model has been shown [13], a recent study displayed robust tau pathology in D620N VPS35 knock-in (KI) mouse model, with no evidence of α-synuclein-positive neuropathology in aged VPS35 KI mice [31]. In addition to the difference in model organism used, the discrepancy of findings may be in part related to the different pathogenicity of VPS35 knock-down and D620N point mutation as D620N has been reported to result in a gain of function, causing PD through hyperactivation of the LRRK2 kinase [32] and alteration of the dopaminergic system [33].
Although our findings emphasize a possible vulnerability of developing PD in those carrying the VPS35 A320V variant, our observation may be biased as functional studies were performed after overexpression of the wild-type or A320V VPS35 and SNCA, and the observed effects could be rather divergent from effects caused by endogenous physiological expression levels of VPS35 or SNCA. The functional characteristics of VPS35 A320V need to be further validated using fibroblasts or neurons derived from VPS35 A320V carriers. Another limitation of our study is that mutations in recently reported genes, such as SYNJ1, RAB39B, DNAJC6, VPS13C, and PTRHD1, were not excluded in our PD patients sequenced for VPS35 cDNA. As cDNA sequencing may miss intronic/splice site variants, further analyses of the VPS35 gene on genomic DNA and functional studies are also warranted to determine VPS35 genetic variants contributing to the risk of Taiwanese PD.

5. Conclusions

We identified VPS35 A320V mutation in two LOPD from a cohort of 622 PD patients. A320V increased colocalization with CI-MPR and was associated with decreased CI-MPR and LAMP2 expression. Decreased CI-MPR manifested in missorting of cathepsin D, leading to decreased α-synuclein degradation. In addition, A320V increased MUL1, enhanced MFN2 degradation, and impaired mitochondrial morphology. Although VPS35 mutations are a rare cause of PD in Taiwan, the identification and characterization of the VPS35 A320V variant contributes to the understanding of VPS35-induced PD.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3425/10/11/783/s1, Figure S1: Immunoblots of VPS35-ZsYellow1, CI-MPR, CTSD, SNCA and LAMP2A from three independent experiments. Figure S2: Immunoblots of VPS35-ZsYellow1, MUL1 and MFN2 from three independent experiments.

Author Contributions

Conceptualization, Y.-R.W., C.-M.C., and G.-J.L.-C.; methodology, C.-H.L., C.-Y.C., and C.-W.C.; data analysis, C.-H.L. and G.-J.L.-C.; funding acquisition, Y.-R.W.; writing—original draft preparation, Y.-R.W., C.-H.L.; writing and editing, Y.-R.W., C.-H.L., C.-M.C., and G.-J.L.-C. All authors approved the final draft. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grants CMRPG3A0132 from Chang Gung Memorial Hospital and 102-2314-B-182A-113-MY2 from the Ministry of Science and Technology, Taipei, Taiwan.

Acknowledgments

The authors thank the PD patients and normal controls for participating in this study. We also thank the Molecular Imaging Core Facility of National Taiwan Normal University for the technical assistance. All experiments were approved by the hospital internal ethics and scientific boards.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Polito, L.; Greco, A.; Seripa, D. Genetic profile, environmental exposure, and their interaction in Parkinson’s disease. Parkinsons Dis. 2016, 2016, 6465793. [Google Scholar] [CrossRef] [PubMed]
  2. Hernandez, D.G.; Reed, X.; Singleton, A.B. Genetics in Parkinson disease: Mendelian versus non-Mendelian inheritance. J. Neurochem. 2016, 139 (Suppl. 1), 59–74. [Google Scholar] [CrossRef] [PubMed]
  3. Puschmann, A. New genes causing hereditary Parkinson’s disease or parkinsonism. Curr. Neurol. Neurosci. Rep. 2017, 17, 66. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Kumaran, R.; Cookson, M.R. Pathways to Parkinsonism Redux: Convergent pathobiological mechanisms in genetics of Parkinson’s disease. Hum. Mol. Genet. 2015, 24, R32–R44. [Google Scholar] [CrossRef] [Green Version]
  5. Williams, E.T.; Chen, X.; Moore, D.J. VPS35, the retromer complex and Parkinson’s disease. J. Parkinsons Dis. 2017, 7, 219–233. [Google Scholar] [CrossRef] [Green Version]
  6. Vilarino-Guell, C.; Wider, C.; Ross, O.A.; Dachsel, J.C.; Kachergus, J.M.; Lincoln, S.J.; Soto-Ortolaza, A.I.; Cobb, S.A.; Wilhoite, G.J.; Bacon, J.A.; et al. VPS35 mutations in Parkinson disease. Am. J. Hum. Genet. 2011, 89, 162–167. [Google Scholar] [CrossRef] [Green Version]
  7. Chen, Y.F.; Chang, Y.Y.; Lan, M.Y.; Chen, P.L.; Lin, C.H. Identification of VPS35 p.D620N mutation-related Parkinson’s disease in a Taiwanese family with successful bilateral subthalamic nucleus deep brain stimulation: A case report and literature review. BMC Neurol. 2017, 17, 191. [Google Scholar] [CrossRef] [Green Version]
  8. Ando, M.; Funayama, M.; Li, Y.; Kashihara, K.; Murakami, Y.; Ishizu, N.; Toyoda, C.; Noguchi, K.; Hashimoto, T.; Nakano, N.; et al. VPS35 mutation in Japanese patients with typical Parkinson’s disease. Mov. Disord. 2012, 27, 1413–1417. [Google Scholar] [CrossRef]
  9. Deng, H.; Gao, K.; Jankovic, J. The VPS35 gene and Parkinson’s disease. Mov. Disord. 2013, 28, 569–575. [Google Scholar] [CrossRef]
  10. Seaman, M.N. The retromer complex—Endosomal protein recycling and beyond. J. Cell. Sci. 2012, 125, 4693–4702. [Google Scholar] [CrossRef] [Green Version]
  11. Arighi, C.N.; Hartnell, L.M.; Aguilar, R.C.; Haft, C.R.; Bonifacino, J.S. Role of the mammalian retromer in sorting of the cation-independent mannose 6-phosphate receptor. J. Cell Biol. 2004, 165, 123–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Coutinho, M.F.; Prata, M.J.; Alves, S. Mannose-6-phosphate pathway: A review on its role in lysosomal function and dysfunction. Mol. Genet. Metab. 2012, 105, 542–550. [Google Scholar] [CrossRef] [PubMed]
  13. Miura, E.; Hasegawa, T.; Konno, M.; Suzuki, M.; Sugeno, N.; Fujikake, N.; Geisler, S.; Tabuchi, M.; Oshima, R.; Kikuchi, A.; et al. VPS35 dysfunction impairs lysosomal degradation of α-synuclein and exacerbates neurotoxicity in a Drosophila model of Parkinson’s disease. Neurobiol. Dis. 2014, 71, 1–13. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, H.S.; Toh, J.; Ho, P.; Tio, M.; Zhao, Y.; Tan, E.K. In vivo evidence of pathogenicity of VPS35 mutations in the Drosophila. Mol. Brain 2014, 7, 73. [Google Scholar] [CrossRef]
  15. Follett, J.; Norwood, S.J.; Hamilton, N.A.; Mohan, M.; Kovtun, O.; Tay, S.; Zhe, Y.; Wood, S.A.; Mellick, G.D.; Silburn, P.A.; et al. The Vps35 D620N mutation linked to Parkinson’s disease disrupts the cargo sorting function of retromer. Traffic 2014, 15, 230–244. [Google Scholar] [CrossRef]
  16. Tang, F.L.; Erion, J.R.; Tian, Y.; Liu, W.; Yin, D.M.; Ye, J.; Tang, B.; Mei, L.; Xiong, W.C. VPS35 in dopamine neurons is required for endosome-to-golgi retrieval of Lamp2a, a receptor of chaperone-mediated autophagy that is critical for α-synuclein degradation and prevention of pathogenesis of Parkinson’s disease. J. Neurosci. 2015, 35, 10613–10628. [Google Scholar] [CrossRef]
  17. Tang, F.L.; Liu, W.; Hu, J.X.; Erion, J.R.; Ye, J.; Mei, L.; Xiong, W.C. VPS35 deficiency or mutation causes dopaminergic neuronal loss by impairing mitochondrial fusion and function. Cell Rep. 2015, 12, 1631–1643. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, W.; Wang, X.; Fujioka, H.; Hoppel, C.; Whone, A.L.; Caldwell, M.A.; Cullen, P.J.; Liu, J.; Zhu, X. Parkinson’s disease-associated mutant VPS35 causes mitochondrial dysfunction by recycling DLP1 complexes. Nat. Med. 2016, 22, 54–63. [Google Scholar] [CrossRef] [Green Version]
  19. Hughes, A.J.; Daniel, S.E.; Kilford, L.; Lees, A.J. Accuracy of clinical diagnosis of idiopathic Parkinson’s disease: A clinico-pathological study of 100 cases. J. Neurol. Neurosurg. Psychiatry 1992, 55, 181–184. [Google Scholar] [CrossRef] [Green Version]
  20. Hierro, A.; Rojas, A.L.; Rojas, R.; Murthy, N.; Effantin, G.; Kajava, A.V.; Steven, A.C.; Bonifacino, J.S.; Hurley, J.H. Functional architecture of the retromer cargo-recognition complex. Nature 2007, 449, 1063–1067. [Google Scholar] [CrossRef]
  21. Sevlever, D.; Jiang, P.; Yen, S.H. Cathepsin D is the main lysosomal enzyme involved in the degradation of α-synuclein and generation of its carboxy-terminally truncated species. Biochemistry 2008, 47, 9678–9687. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Westermann, B. Bioenergetic role of mitochondrial fusion and fission. Biochim. Biophys. Acta 2012, 1817, 1833–1838. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Deng, H.; Xu, H.; Deng, X.; Song, Z.; Zheng, W.; Gao, K.; Fan, X.; Tang, J. VPS35 mutation in Chinese Han patients with late-onset Parkinson’s disease. Eur. J. Neurol. 2012, 19, e96–e97. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Chen, S.; Xiao, Q.; Cao, L.; Liu, J.; Rong, T.-Y.; Ma, J.F.; Wang, G.; Wang, Y.; Chen, S.D. Vacuolar protein sorting 35 Asp620Asn mutation is rare in the ethnic Chinese population with Parkinson’s disease. Parkinsonism Relat. Disord. 2012, 18, 638–640. [Google Scholar] [CrossRef]
  25. Chen, Y.; Chen, K.; Song, W.; Chen, X.; Cao, B.; Huang, R.; Zhao, B.; Guo, X.; Burgunder, J.; Li, J.; et al. VPS35 Asp620Asn and EIF4G1 Arg1205His mutations are rare in Parkinson disease from southwest China. Neurobiol. Aging 2013, 34, 1709.e7–1709.e8. [Google Scholar] [CrossRef]
  26. Seaman, M.N. Identification of a novel conserved sorting motif required for retromer-mediated endosome-to-TGN retrieval. J. Cell Sci. 2007, 120, 2378–2389. [Google Scholar] [CrossRef] [Green Version]
  27. McGough, I.J.; Steinberg, F.; Jia, D.; Barbuti, P.A.; McMillan, K.J.; Heesom, K.J.; Whone, A.; Caldwell, M.; Billadeau, D.; Rosen, M.; et al. Retromer binding to FAM21 and the WASH complex is perturbed by the Parkinson disease-linked VPS35(D620N) mutation. Curr. Biol. 2014, 24, 1670–1676. [Google Scholar] [CrossRef] [Green Version]
  28. Cuervo, A.M.; Dice, J.F. A receptor for the selective uptake and degradation of proteins by lysosomes. Science 1996, 273, 501–513. [Google Scholar] [CrossRef]
  29. Xilouri, M.; Brekk, O.R.; Stefanis, L. α-Synuclein and protein degradation systems: A reciprocal relationship. Mol. Neurobiol. 2013, 47, 537–551. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, W.; Ma, X.; Zhou, L.; Liu, J.; Zhu, X. A conserved retromer sorting motif is essential for mitochondrial DLP1 recycling by VPS35 in Parkinson’s disease model. Hum. Mol. Genet. 2017, 26, 781–789. [Google Scholar] [CrossRef] [Green Version]
  31. Chen, X.; Kordich, J.K.; Williams, E.T.; Levine, N.; Cole-Strauss, A.; Marshall, L.; Labrie, V.; Ma, J.; Lipton, J.W.; Moore, D.J. Parkinson’s disease-linked D620N VPS35 knockin mice manifest tau neuropathology and dopaminergic neurodegeneration. Proc. Natl. Acad. Sci. USA 2019, 116, 5765–5774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Mir, R.; Tonelli, F.; Lis, P.; Macartney, T.; Polinski, N.K.; Martinez, T.N.; Chou, M.Y.; Howden, A.J.M.; König, T.; Hotzy, C.; et al. The Parkinson’s disease VPS35[D620N] mutation enhances LRRK2-mediated Rab protein phosphorylation in mouse and human. Biochem. J. 2018, 475, 1861–1883. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Cataldi, S.; Follett, J.; Fox, J.D.; Tatarnikov, I.; Kadgien, C.; Gustavsson, E.K.; Khinda, J.; Milnerwood, A.J.; Farrer, M.J. Altered dopamine release and monoamine transporters in Vps35 p.D620N knock-in mice. NPJ Parkinsons Dis. 2018, 4, 27. [Google Scholar] [CrossRef] [Green Version]

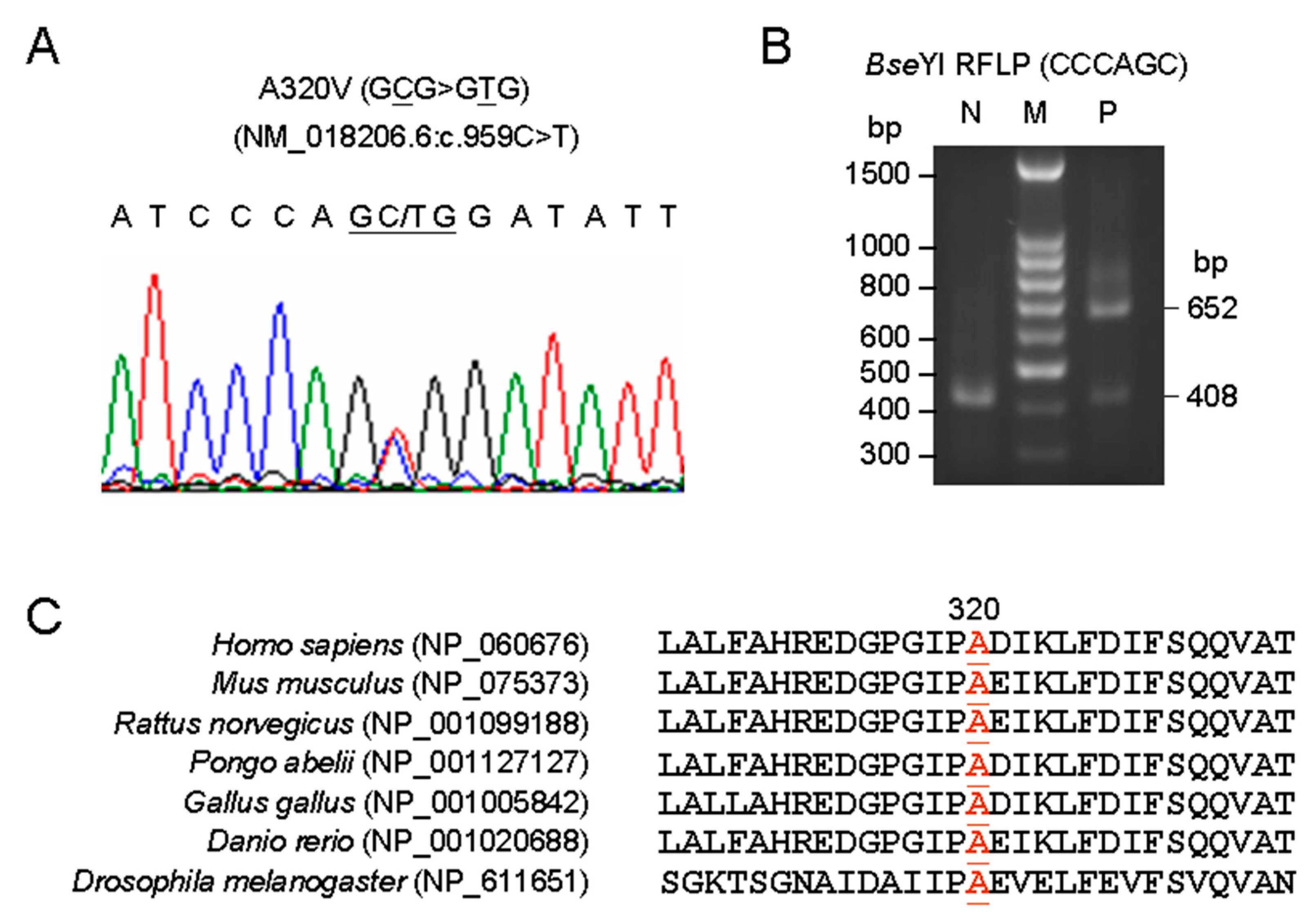

Figure 1. Mutation identification. (A) Chromatograms of direct cDNA sequencing of A320V. (B) PCR and BseYI restriction analysis of A320V. PCR-amplified products from a patient (lane P) and a normal control (lane N) were digested with BseYI and resolved on a 1.4% agarose gel. Lane M contains size markers. (C) Evolutionary conservation of the regions of vacuolar protein sorting 35 (VPS35) A320V using the program Vector NTI.
Figure 1. Mutation identification. (A) Chromatograms of direct cDNA sequencing of A320V. (B) PCR and BseYI restriction analysis of A320V. PCR-amplified products from a patient (lane P) and a normal control (lane N) were digested with BseYI and resolved on a 1.4% agarose gel. Lane M contains size markers. (C) Evolutionary conservation of the regions of vacuolar protein sorting 35 (VPS35) A320V using the program Vector NTI.
Brainsci 10 00783 g001

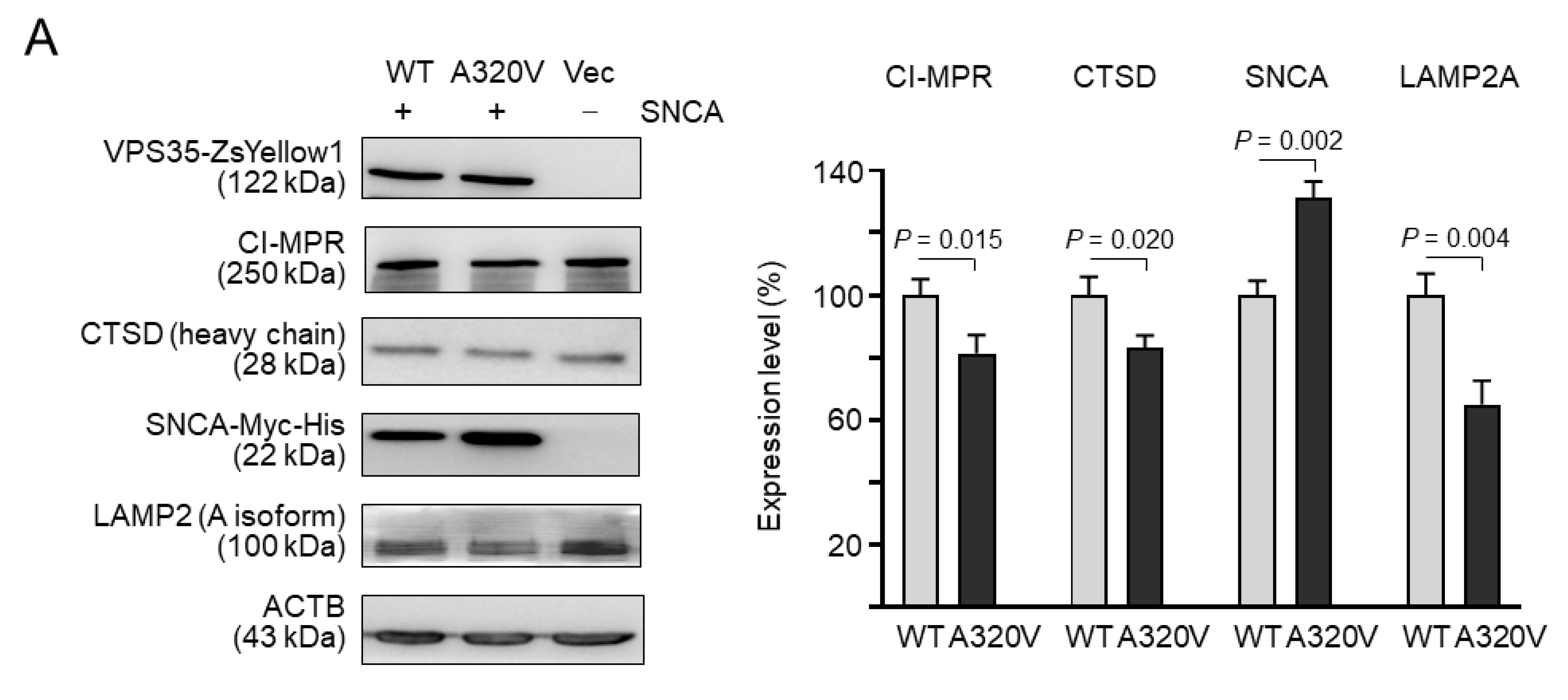

Figure 2. Impaired endosome-to-Golgi retrieval of cation-independent mannose-6-phosphate receptor (CI-MPR) in A320V-expressing cells. (A) Human embryonic kidney (HEK)-293T cells were transiently cotransfected with wild-type (WT) or mutant (A320V) VPS35-ZsYellow1 and α-synuclein (SNCA)-Myc-His cDNAs. The levels of exogenously expressed VPS35-ZsYellow1 and SNCA and endogenous CI-MPR, cathepsin D (CTSD), and lysosomal-associated membrane protein 2 (LAMP2A) were examined using Western blot analysis. Representative immunoblots from three independent experiments are shown. The densitometric quantification of CI-MPR, CTSD, SNCA, and LAMP2A versus β-actin (ACTB) is presented in the right panel. Data are expressed as the mean ± standard deviation. (B) Expression of VPS35 and CI-MPR proteins was examined by confocal microscopy and colocalization analysis. Wild-type or mutant VPS35 was labeled with green, while CI-MPR was stained with red by Cy5 fluorescence. Nuclei were counterstained with 4′-6-diamidino-2-phenylindole (DAPI; blue). The graph below represent quantification of colocalization with the means of three independent experiments.
Figure 2. Impaired endosome-to-Golgi retrieval of cation-independent mannose-6-phosphate receptor (CI-MPR) in A320V-expressing cells. (A) Human embryonic kidney (HEK)-293T cells were transiently cotransfected with wild-type (WT) or mutant (A320V) VPS35-ZsYellow1 and α-synuclein (SNCA)-Myc-His cDNAs. The levels of exogenously expressed VPS35-ZsYellow1 and SNCA and endogenous CI-MPR, cathepsin D (CTSD), and lysosomal-associated membrane protein 2 (LAMP2A) were examined using Western blot analysis. Representative immunoblots from three independent experiments are shown. The densitometric quantification of CI-MPR, CTSD, SNCA, and LAMP2A versus β-actin (ACTB) is presented in the right panel. Data are expressed as the mean ± standard deviation. (B) Expression of VPS35 and CI-MPR proteins was examined by confocal microscopy and colocalization analysis. Wild-type or mutant VPS35 was labeled with green, while CI-MPR was stained with red by Cy5 fluorescence. Nuclei were counterstained with 4′-6-diamidino-2-phenylindole (DAPI; blue). The graph below represent quantification of colocalization with the means of three independent experiments.
Brainsci 10 00783 g002aBrainsci 10 00783 g002b

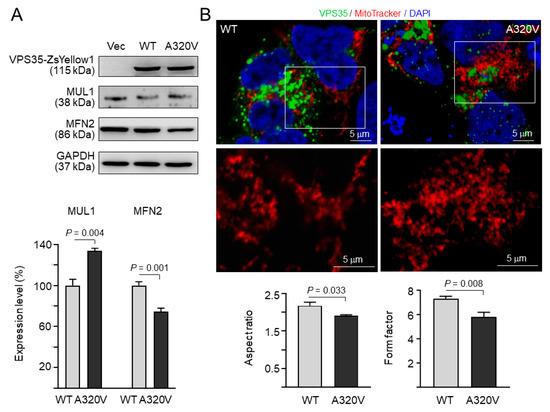

Figure 3. Increased MUL1 and reduced MFN2 in A320V-expressing cells. (A) HEK-293T cells were transiently transfected with WT or mutant (A320V) VPS35-ZsYellow1 cDNA. The levels of exogenously expressed VPS35-ZsYellow1 and endogenous MUL1 and MFN2 were examined using Western blot analysis. Representative immunoblots from three independent experiments are shown. The densitometric quantification of MUL1 and MFN2 versus glyceraldehyde-3-phosphate dehydrogenase (GAPDH) is presented in the right panel. Data are expressed as the mean ± standard deviation. (B) Mitochondrial morphology was examined by confocal microscopy. Wild-type or mutant VPS35 was labeled with green, while mitochondria were stained with red by MitoTracker Deep Red FM fluorescence. Nuclei were counterstained with DAPI (blue). The graphs below represent average values of aspect ratio and form factor from three independent experiments.
Figure 3. Increased MUL1 and reduced MFN2 in A320V-expressing cells. (A) HEK-293T cells were transiently transfected with WT or mutant (A320V) VPS35-ZsYellow1 cDNA. The levels of exogenously expressed VPS35-ZsYellow1 and endogenous MUL1 and MFN2 were examined using Western blot analysis. Representative immunoblots from three independent experiments are shown. The densitometric quantification of MUL1 and MFN2 versus glyceraldehyde-3-phosphate dehydrogenase (GAPDH) is presented in the right panel. Data are expressed as the mean ± standard deviation. (B) Mitochondrial morphology was examined by confocal microscopy. Wild-type or mutant VPS35 was labeled with green, while mitochondria were stained with red by MitoTracker Deep Red FM fluorescence. Nuclei were counterstained with DAPI (blue). The graphs below represent average values of aspect ratio and form factor from three independent experiments.
Brainsci 10 00783 g003
