Review

Improving Upper Limb and Gait Rehabilitation Outcomes in Post-Stroke Patients: A Scoping Review on the Additional Effects of Non-Invasive Brain Stimulation When Combined with Robot-Aided Rehabilitation

by
Antonino Naro
1 and
Rocco Salvatore Calabrò
2,*
1
Stroke Unit, AOU Policlinico G. Martino, 98122 Messina, Italy
2
Neurorehabilitation Unit, IRCCS Centro Neurolesi Bonino Pulejo, 98123 Messina, Italy
*
Author to whom correspondence should be addressed.
Brain Sci. 2022, 12(11), 1511; https://doi.org/10.3390/brainsci12111511
Submission received: 9 September 2022 / Revised: 3 November 2022 / Accepted: 4 November 2022 / Published: 7 November 2022
(This article belongs to the Section Neurorehabilitation)
Browse Figure
Review Reports Versions Notes

Abstract

:
Robot-aided rehabilitation (RAR) and non-invasive brain stimulation (NIBS) are the two main interventions for post-stroke rehabilitation. The efficacy of both approaches in combination has not been well established yet. The importance of coupling these interventions, which both enhance brain plasticity to promote recovery, lies in augmenting the rehabilitation potential to constrain the limitation in daily living activities and the quality of life following stroke. This review aimed to evaluate the evidence of NIBS coupled with RAR in improving rehabilitation outcomes of upper limb and gait motor impairment in adult individuals with stroke. We included 18 clinical trials in this review. All studies were highly heterogeneous concerning the technical characteristics of robotic devices and NIBS protocols. However, the studies reported a global improvement in body structure and function and activity limitation for the upper limb, which were non-significant between the active and control groups. Concerning gait training protocols, the active group outperformed the control group in improving walking capacity and recovery. According to this review, NIBS and RAR in combination are promising but not yet largely recommendable as a systematic approach for stroke rehabilitation as there is not enough data about this. Therefore, more homogenous clinical trials are required, pointing out the best characteristics of the combined therapeutic protocols.

1. Introduction

Multiple strategies have been developed to enhance the post-stroke spontaneous recovery mechanisms. These include early reperfusion therapies (i.e., intravenous thrombolysis and mechanical thrombectomy) aimed at limiting damage and preventing further cell death to contain lesion size and disability [1]. Furthermore, traditional (neurofacilitation or functional retraining through either shaping or task practice) and advanced rehabilitation protocols, including pharmacological manipulation to increase sprouting and anatomical plasticity, non-invasive brain stimulation (NIBS) to modulate the activity of targeted brain areas, and robot-aided rehabilitation (RAR) to perform an intensive, repetitive, assisted-as-needed, and task-oriented motor practice, are available in any phase of the post-stroke recovery process [2,3,4,5,6,7,8,9]. These rehabilitation strategies aim to increase the adaptive plasticity processes (mainly experience-dependent plasticity mechanisms) that develop in lesional and perilesional tissues [10,11,12].
To date, NIBS and RAR represent two cornerstones of the modern post-stroke rehabilitation era. Both strategies have been employed singularly concerning post-stroke rehabilitation with valuable positive results [2,3,4,5,6,7,8,9]. Both strategies aim at potentiating neuroplasticity mechanisms supporting functional recovery via bottom-up (RAR) and top-down (NIBS) mechanisms [13,14,15]. Bottom-up approaches mainly act at the physical level and attempt to bring about changes at the level of the central neural system, whereas top-down approaches (comprising serious exergames, virtual reality, robots, brain–computer interfaces, rhythmic music, and biofeedback) attempt to stimulate the brain more directly to elicit plasticity-mediated motor relearning [14]. Therefore, RAR and NIBS act indirectly and directly, respectively, on the spontaneous recovery mechanisms occurring after a brain injury (including stroke), which are aimed at substituting a part of the brain for the function of another (according to the theory of vicariation) [10]. In particular, directly modifying the spontaneous recovery mechanisms is postulated to: (i) favor remote structures’ reconnection to the site of injury following the diaschisis period (i.e., a temporary period of depressed metabolism and blood flow), including the perilesional cortex, spared areas in the injured hemisphere, and contralateral homologous and non-homologous areas; (ii) favor the learning of new, compensatory joint and muscle kinematic patterns; and (iii) avoid a maladaptive plasticity process potentially occurring during spontaneous local and sometimes distant rewiring of neural networks (through long-term potentiation, long-term depression, unmasking, synaptogenesis, dendritogenesis, and functional map plasticity) [10,16,17]. These effects occur through targeting the lesioned circuit to foster adaptive connections and minimize faulty connections by providing sensorimotor inputs to the lesioned network designed to specifically foster connections in keeping with Hebbian learning mechanisms (bottom-up approaches).
RAR, including exoskeletons and end-effector devices, may boost neural plasticity and functional recovery by providing patients with intensive, repetitive, assisted-as-needed, and task-oriented motor practice, which achieves functional motor relearning through the repetitive practice of all different phases of gait and movements of upper limbs related to functional tasks. This effect on neural plasticity is in common with conventional physiotherapy approaches. Actually, training the same movement repetitively enables the nervous system to develop circuits for better communication between the motor center and sensory pathways, which promotes motor function recovery [15,18]. Treatment by RAR compared with conventional treatment presents several advantages, including training duration, more reproducible symmetrical gait patterns, operation by a single therapist, and a reduction in the energy expenditure imposed upon the therapists [18,19,20].In particular, RAR produces benefits similar, but not significantly superior, to those from usual care for improving upper limb functioning and disability in patients diagnosed with stroke within six months. Conversely, recent research revealed that RAR results in a more symmetrical muscle activity pattern in paretic patients compared with conventional treatment, an improvement in activities of daily living, and in lower limb functions and muscle strength, and gait performance [15,18,19,20].
NIBS, including transcranial direct current stimulation (tDCS) and transcranial magnetic stimulation (TMS), can potentiate the neuroplasticity mechanisms entrained by rehabilitative training through associative plasticity mechanisms. At the same time, NIBS can serve as a primer to make the neuroplasticity mechanisms ready to be boosted by rehabilitative training.
The usefulness of conjugating both approaches stems from the idea that targeting the plasticity mechanisms mentioned above in a very specific manner, i.e., by providing cortical stimuli (top-down approaches) that focus on the effects of bottom-up approaches, could result in a significant enhancement of the plasticity-dependent recovery mechanisms and, eventually, motor function recovery. Some trials aimed to demonstrate the usefulness of these combined approaches concerning both upper and lower limb motor function recovery [3,9,14,21,22,23,24]. However, conclusive data on the efficacy of NIBS and RAR in combination is still missing. Therefore, we aimed to review the trials for upper and lower limb motor function recovery comparing the additional effects of NIBS when combined with RAR vs. stand-alone RAR concerning gait and upper limb function improvement in patients with stroke.

2. Materials and Methods

The present review was performed according to the Preferred Reporting Items for Scoping Reviews (PRISMA-ScR) guideline (Supplementary Table S1). The literature research was carried out on PubMed/MEDLINE (Medical Literature Analysis and Retrieval System Online; through the PubMed interface), Cochrane Central Register of Controlled Trials (CENTRAL), Scopus, Web of Science (WOS), and PEDro (Physiotherapy Evidence Database) scientific databases, using ‘stroke’ AND ‘robotic OR robotic therapy’ AND ‘non-invasive brain stimulation OR TMS OR tDCS’ as keywords. No publication date or language restrictions were imposed.
A first search using the abovementioned keywords returned 6281 papers; 2692 articles were removed before screening (Figure 1). The retrieved studies (n = 3589) were screened according to the inclusion/exclusion criteria as follows: (i) randomized, double-blind, sham-controlled (for NIBS), intention-to-treat analysis, clinical trials in adult humans with post-stroke upper/lower limb paresis; (ii) improvement in upper limb motor function and gait as the main outcome; and (iii) use of RAR and NIBS in combination. In addition, papers focusing on infratentorial stroke, applying NIBS other than tDCS and TMS, and not English-written, were excluded from review inclusion.
The so-screened studies (n = 897) were further reviewed on the title and abstract, and 58 articles were identified for full-text reading. After such an assessment, 18 publications were included in this scoping review, 11 regarding upper limb rehabilitation, and seven on gait rehabilitation.

3. Results

The main characteristics of the included studies are summarized in Table 1 and Table 2 for the upper [25,26,27,28,29,30,31,32,33,34,35] and lower limbs [36,37,38,39,40,41,42], respectively. The studies were published between 2011 and 2020. The majority of the included studies were randomized clinical trials (RCT) with parallel or crossover design; some among them were randomized studies limited to stimulation sites (i.e., cerebellum or spinal cord) and timing (before, during, or after RAR), and stimulation type (anodal and cathodal) [33,37,38,39]; there were also some differences in the double-blind design concerning concealment allocation, blinding of outcome assessment, and blinding of participants and personnel.
All studies concerned adults (ranging from eight to 41 individuals, 60–70 years aged on average) with subacute (less than six months) [29,31,32,35,42] or chronic (from 10 to 152 months) [25,26,27,30,33,35,36,37,38,39,40,41] post-stroke disability (regardless of severity, residual motor function, time since last stroke, type of stroke, or history of previous strokes), with an approximately equal distribution of cortical, subcortical, and mixed lesion localizations, and a smaller proportion of lacunar strokes (about 10%). The studies, however, differed concerning sample homogeneity (similarity between characteristics data of active and control groups), representativeness (absence or presence of exclusion criteria other than those usually present in RAR or NIBS trials), and description of sample calculation. Cerebellar strokes or strokes in cerebellar pathways were not included. Both in-patient and out-patient rehabilitation settings were considered.
Patients were provided with RAR associated with NIBS, including a control group with characteristics comparable to the experimental group, which was provided with RAR paired with sham NIBS. This design was consistent with the purpose of the included studies of assessing whether NIBS and RAR was superior to RAR alone. However, one study [37] also included a third control group (no NIBS), whereas some other studies also included a comparative analysis between different types [35,39,40,42] and timing of delivery of NIBS [33,38]. All included studies also provided the subjects with conventional therapy (including muscle strengthening, joint mobilization exercises, and a comprehensive physical rehabilitation program).
RAR and NIBS widely varied among studies. Exoskeletons [32,35,36,37,38,41,42] and end-effectors [25,26,27,28,29,30,31,33,35,39,40] were used for RAR, targeting one or more upper limb joints for both unimanual and bimanual training, with different types and degrees of arm-weight support (Table 1), and both lower limbs for gait training, with different degree of body-weight support (Table 2). tDCS was adopted for NIBS before [25,28,33,36,38], during [26,29,30,31,32,33,34,35,37,39,40,41,42], or after [33,38] the RAR sessions; usually, patients were provided with 7 to 36 sessions. One study reported on the continuous theta-burst stimulation effects [27]. tDCS setup varied among studies for electrode dimension (12.56 cm2 for cerebellar tDCS, 23.75 cm2 for spinal tDCS, and 25 vs. 35 cm2 for tDCS over M1), position (the cathodal tDCS mainly being used over the unaffected and the anodal tDCS or continuous TBS over the affected cortical motor areas corresponding to upper or lower limb); some studies implemented both anodal and cathodal tDCS (namely, bilateral tDCS) [25,26,31,38]), and shape (circular vs. rectangular). The stimulation intensity varied from 1.5–2 mA for tDCS over M1 to 2 mA for cerebellar tDCS and 2.5 mA for spinal tDCS; the duration ranged from 7 to 20 min (Table 1 and Table 2).
Subjects were generally evaluated for body function and structure using the Fugl-Meyer Assessment, whereas Box and Blocks Test, Wolf Motor Function Test, and Action Research Arm Test were used concerning activity limitation. Only a few studies included neurophysiological outcomes [33,38]. Nearly half of the studies assessed the spatiotemporal gait parameters. Follow-up measurements were taken at post-intervention (all studies), two weeks [39], one month (all lower limb studies), and three months [38]. The studies differed concerning description or implicit intention-to-treat analysis, the extent of loss, information regarding early cessation of trials, and selective reporting. The reviewed works were not supported by any grant from the public or private sector, there was nothing to disclose financially, or information funding was unavailable, but for one study [41], which the robot manufacturer sponsored.
Overall, the studies reported that NIBS with RAR intervention was not superior to stand-alone RAR (with some exceptions that documented the superiority of the combined approach) concerning the improvement in upper limb body structure and function (Table 1 and Table 2) [3,9]. Conversely, the combined approach outperformed stand-alone RAR with regard to gait recovery; however, some specific differences were appreciable between groups when employing spinal and cerebellar tDCS [39,40] and when comparing bilateral tDCS performed before, during, and after RAR [33,38].

4. Discussion

Restoring motor function is still a challenging issue in post-stroke rehabilitation. Most stroke survivors present a reduced ability to walk and limited upper limb activities in indoor and outdoor settings, with a poor quality of life. Although gait recovery is usually more easily achieved compared to upper limb function recovery (given that this is more dependent on the post-lesion integrity of the corticospinal tract and requires a higher degree of residual motor function after stroke to recover), gait abnormalities may often persist owing to the extent of gait pattern generators’ impairment (with particular regard to dorsiflexion strength) [43,44]. Therefore, several attempts to strengthen rehabilitation efficacy have been made using robotic devices and NIBS. In particular, RAR is thought to enhance brain plasticity mechanisms sustaining motor function recovery through intensive, repetitive, task-oriented, and assisted-as-needed motor practice, whereas NIBS mainly triggers a synaptic plasticity mechanisms potentiation via both an open loop and closed loop [43,44].
Concerning upper limb post-stroke rehabilitation, the available RCTs suggest that NIBS with RAR intervention was not superior to stand-alone RAR concerning the improvement in upper limb body structure and function [3,45]. However, this lack of clear evidence may depend on several methodological discrepancies among studies, including NIBS paradigms and motor training protocols. The NIBS protocols included in this review were mainly conducted according to an interhemispheric competition model, which posits that suppressing the excitability of the hemisphere not affected by stroke will enhance recovery by reducing interhemispheric inhibition of the stroke hemisphere, thus using bihemispheric stimulation, or to a vicariation model, which links functional recovery to the structural reserve spared by the lesion, thus targeting specific central nervous system areas, including the spinal cord and the cerebellum [43]. Despite this, there were large instrumental-related (stimulation number and duration, timing for RAR), patient-related (different levels of impairment) [42,46], and lesion location differences [47]. Furthermore, as is well known in the literature, intersubject and intrasubject variability consistently affect the potential of NIBS as a therapeutic tool [48,49,50]. Neuronavigated NIBS and electroencephalogram monitoring of NIBS effects in real time may be a viable option to decrease the variability in NIBS effects [48]. Contemporary, objective neuromarkers may be used to personalize NIBS paradigms [51].
A still unsolved issue regards the timing of NIBS to RAR. NIBS-RAR coupling is estimated to provide patients with a consistent amount of plasticity, which fosters recovery mechanisms. However, the order of application could have differential effects since the mechanisms of action of NIBS are different during and after stimulation [52]. Whether stand-alone NIBS and RAR can increase corticomotor excitability, the effects of these interventions are not necessarily additive; actually, subsequent practice-related synaptic activity might mask or even reverse NIBS aftereffects [53,54,55]. On the other hand, adding much more plasticity using NIBS during RAR may entrain a ceiling effect so that the impact of high-intensity motor practice on performance improvement may exceed the magnitude of the NIBS effects [56]. Furthermore, NIBS may act better on the retention of improved motor performance (as post-RAR NIBS sessions) or for preparing the brain for motor training (priming as pre-RAR NIBS intervention) than on motor training potentiation (as on-RAR NIBS session) [31,33,38]. However, the role of NIBS for shorter periods and the type of RAR best fitting with NIBS (including targeted joints and bilaterality of RAR intervention, especially for UL) remain unsolved [28,38,57]. Finally, the used outcome measures may be poorly sensitive to detect NIBS’s contribution to RAR [32,57,58,59].
Concerning lower limb studies, the available data suggest that the combined approach outperformed stand-alone RAR with regard to gait recovery. In particular, NIBS targeting the affected brain area for the lower limb or both the cerebellum and the spinal segment at the D10 level, in addition to RAR, improved walking ability (FAC) and capacity (6MWT). However, many unsolved issues remain, particularly regarding stimulation setup (intensity, dosage, session number, electrode positioning, even affected or contralesional hemisphere), type of stimulation, and timing concerning RAR delivery [33,38,60,61]. In this regard, we found that on-RAR and post-RAR bihemispheric tDCS improved patients’ balance and gait endurance compared to pre-RAR tDCS (contrarily to what was reported in a recent systematic review and consistently with previous reports) [62]. Further studies are nevertheless needed to shed light on the right timing of NIBS-RAR coupling.
Another significant issue to consider is the multiple localization of gait control mechanisms across the central nervous system, including the cerebellum and the spinal cord. There is some evidence that contemporary targeting of all of these structures might result in a functional improvement in patients with stroke through an increase in motor unit recruitment [63,64], a change in lower motor neuron responsiveness (in particular, they may become more responsive to synaptic activation but less prone to generate spontaneous activity that inhibits interneuronal networks) [63,64], a potentiation of cerebrum–cerebellum pathways that may be involved in a functional reorganization of motor networks following stroke and may substitute motor or cognitive systems in supratentorial stroke by playing as a non-lesioned entry [65,66].

Strength and Weakness of NIBS-RAR Coupled Intervention

Consistent with the cardinal issue that neuroplasticity is the key process in motor function relearning, targeting specific brain areas with NIBS during RAR can further improve brain metabolism and neural–synaptic activity. In line with this principle, TMS and tDCS are aimed at stimulating an appropriate brain area by depolarizing neurons and activating excitatory action potentials, which inhibits/excites cortical neurons [67]. This principle is corroborated by the clinical practice that NIBS can magnify RAR aftereffects in post-stroke patients. The NIBS-added improvement likely depends on the capability of NIBS to focus on the brain plasticity strengthening induced by sustained motor practice using RAR, thus further fostering motor function recovery.
However, the exact mechanism by which TMS works is still partially unclear. We can consider three levels of action: molecular, cellular, and network. The levels’ functionality depends on several factors related to the individual neurobiology (including an individual’s excitability threshold) and the stimulation setup (including intensity, dose, and stimulation location), whose standardization is crucial across experiments [68]. In particular, magnetic pulses influence the ongoing activity of those neurons located horizontally in a surface parallel to the TMS coil [69]. The rapid change in the magnetic field induces circular electric currents; thus, the current flow is parallel to the coil and to the scalp on which the coil is placed flat, leading to axonal depolarization and the activation of cortical pathways, up to some subcortical structures, including the thalamus and the basal ganglia [50]. Motor cortex activation by TMS causes different descending volleys in the corticospinal tracts (including the earliest D-wave by direct stimulation of the neurons of the pyramidal pathway, and the I-wave by trans-synaptic stimulation of the pyramidal pathway) [70], whose motor unit recruitment follows the principle of size, from the smallest to the largest one [71]. Repeatedly stimulating the cortex leads to functional changes in synapses, mainly long-term potentiation and long-term depression, at both presynaptic and postsynaptic level [72]. These mechanisms, variably shaped, exert neurorestorative effects, leading to structural neuronal and network changes [17,73,74], with a relevant role of BDNF [75,76,77].
The neurobiological effects of tDCS are similarly partially known. tDCS consists of applying a low-intensity current (1–2 mA) between two or multiple small electrodes applied over the scalp [78]. The effects are mainly, but not only, influenced by the electrode polarity, with consequent modification of the resting membrane potential. Usually, anodal stimulation induces depolarization and increases cortical excitability, whereas cathodal stimulation produces hyperpolarization and decreases cortical excitability [79,80,81,82]. Both stimulations can be applied simultaneously on opposite targets, according to the interhemispheric inhibitory competition model [83,84,85], producing an interhemispheric rebalancing effect [86].
Consistent with these premises, coupled NIBS-RAR intervention may help in a post-stroke rehabilitation setting, although we have to acknowledge that all patients were also treated with conventional physiotherapy, which may have contributed to the recovery. Actually, conventional physiotherapy acts similar to RAR as a bottom-up approach, although robot-assisted repetition can improve gait performance and upper limb movement precision and reproducibility more than conventional physiotherapy. Notwithstanding this, it has been shown by Cochrane reviews [19,20] that RAR and conventional physiotherapy are not significantly different concerning daily life activities and arm functions, despite the greatest effects being appreciable within 3 months post-stroke. Concerning gait recovery, RAR increases the chance of independent walking (but not walking velocity and capacity) at the end of the treatment but not at the follow-up, regardless of the stroke stage, the pre-stroke status, and the type of the device employed.
One could argue that NIBS could also have positive effects when coupled with conventional therapy. Actually, several works assessed NIBS coupled with conventional physiotherapy as compared to stand-alone for either upper or lower limbs, showing the coupled intervention as an effective strategy to improve motor function recovery in post-stroke patients [2,87]. No studies directly compared RAR, NIBS, and conventional physiotherapy. However, it can be argued that RAR allows a better standardization of the rehabilitation exercises concerning, above all, the timing of execution. This is critical if we consider that NIBS stimuli work in the temporal path of milliseconds, thus being basilar regarding associative plasticity mechanisms, which are critical concerning synaptic plasticity strengthening and motor relearning; therefore, we may speculate that RAR is more suitable for NIBS compared to conventional physiotherapy concerning plasticity mechanisms’ triggering. This justifies the growing interest of the scientific community in the evaluation of the effects of RAR coupled with NIBS in stroke [88], and some preliminary, convincing data suggest a solid rationale for its implementation in advanced rehabilitation settings. NIBS can strengthen the deficitary brain network within the lesion site and inhibit the overactive brain networks neighboring the brain lesion. This NIBS-dependent bihemispheric effect was originally proven in experimental models employing intracortical microstimulation, achieving a rapid cortical reorganization of motor representation [89]. In addition, there is robust evidence that cortical stimulation can modulate cortical excitability and the motor responses evoked from the stimulated cortex, increase the dendritic density in the stimulated cortex, favor the reorganization of representational maps in the stimulated cortex, and lead to the synchronization and spreading of the perilesional neuronal activity supporting a major rewiring of far-to-distant connections, including transcallosal loops [16,21,90,91,92,93,94,95,96].
Although promising, conjugating NIBS with RAR, as well as the single implementation of such tools, requires device and instrument availability, personnel trained in the use of robots and NIBS, and time, space, and human resources [97]. In addition to these factors, a higher degree of patient compliance is mandatory to afford NIBS and/or RAR. Furthermore, no neurophysiological assessment with TMS was performed to assess cortical excitability and brain connectivity before and after treatments (with a few exceptions) [33,38]. Finally, the magnitude and duration of NIBS-RAR aftereffects depend on many variables related to instrumentation and the stimulation paradigm, and the setting and patient subjectivity to NIBS. Notwithstanding this, NIBS was safe in post-stroke settings [3,9,39,40].

5. Final Remarks and Conclusions

Post-stroke rehabilitation is focused on the relearning of the lost skills aimed at regaining independence, decreasing the disability burden, and improving the quality of life. Many novel strategies have been introduced in neurorehabilitation to facilitate the achievement of the abovementioned fundamental goals, including RAR and NIBS. The present scoping review provided a broad overview of studies coupling NIBS with RAR, illustrating the general pros and cons in rehabilitation practice that may influence future decisions in patient therapy and trigger future innovative clinical studies.
Despite the limited amount of scientific evidence, our review suggests that the combined approach has the potential to be beneficial to stroke patients more than the stand-alone treatments. This potential likely arises from the additional amount of plasticity offered by NIBS with regard to the reduction in the healthy brain hemisphere excitability, the reduction in the inhibition of the affected brain hemisphere, and the triggering of new, competitive, beneficial, inhibition balance patterns between the brain hemispheres. However, given there is still insufficient data in this field, mainly due to the overall limited sample size of the available RCTs (with heterogeneous properties of stroke concerning phase, stoke location, and extent) and a huge variability in approaches (both RAR and NIBS setup; follow-up duration), further research is needed to confirm the combined approach’s efficacy and translate it into clinical practice. In particular, more research is needed to maximize the effectiveness of existing protocols by optimizing stimulation dosage, intensity, and duration, by considering the brain state with EEG-triggered interventions, and by better characterizing the targeted stroke cohorts that may benefit. Furthermore, the timing of applying NIBS, limb targeting, parameters or types of NIBS, and subjects’ status (severity, phase of recovery—acute, subacute, or chronic) are other still unsolved issues. In order to suggest a routinely clinical application of combined NIBS-RAR [3,9,41], it will be necessary to conciliate the necessity of more homogenous rehabilitation protocols and therapeutic intervention designs tailored to every patient [44].

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/brainsci12111511/s1, Table S1: PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) Checklist. Reference [98] is cited in the Supplementary Materials.

Author Contributions

Conceptualization, R.S.C. and A.N.; methodology, A.N.; software, A.N.; validation, R.S.C.; formal analysis, A.N.; investigation, A.N.; resources, R.S.C.; data curation, A.N.; writing—original draft preparation, A.N.; writing—review and editing, R.S.C.; visualization, R.S.C.; supervision, R.S.C.; project administration, R.S.C.; funding acquisition, R.S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Health, Italy, Current Research Funds 2022.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, X.; Ge, Y.; Chen, S.; Yan, Z.; Wang, Z.; Zhang, W.; Chen, Z.; Xue, T.; Wang, Z. Thrombectomy with or without thrombolysis in patients with acute ischemic stroke: A systematic review and meta-analysis. J. Neurol. 2022, 269, 1809–1816. [Google Scholar] [CrossRef]
  2. Veldema, J.; Gharabaghi, A. Non-invasive brain stimulation for improving gait, balance, and lower limbs motor function in stroke. J. Neuroeng. Rehabil. 2022, 19, 84. [Google Scholar] [CrossRef] [PubMed]
  3. Reis, S.B.; Bernardo, W.M.; Oshiro, C.A.; Krebs, H.I.; Conforto, A.B. Effects of Robotic Therapy Associated With Noninvasive Brain Stimulation on Upper-Limb Rehabilitation After Stroke: Systematic Review and Meta-analysis of Randomized Clinical Trials. Neurorehabilit. Neural Repair 2021, 35, 256–266. [Google Scholar] [CrossRef] [PubMed]
  4. Calabrò, R.S.; Sorrentino, G.; Cassio, A.; Mazzoli, D.; Andrenelli, E.; Bizzarini, E.; Campanini, I.; Carmignano, S.M.; Cerulli, S.; Chisari, C.; et al. Italian Consensus Conference on Robotics in Neurorehabilitation (CICERONE) Robotic-assisted gait rehabilitation following stroke: A systematic review of current guidelines and practical clinical recommendations. Eur. J. Phys. Rehabil. Med. 2021, 57, 460–471. [Google Scholar] [CrossRef]
  5. Hatem, S.M.; Saussez, G.; Della Faille, M.; Prist, V.; Zhang, X.; Dispa, D.; Bleyenheuft, Y. Rehabilitation of Motor Function after Stroke: A Multiple Systematic Review Focused on Techniques to Stimulate Upper Extremity Recovery. Front. Hum. Neurosci. 2016, 10, 442. [Google Scholar] [CrossRef] [Green Version]
  6. Chien, W.T.; Chong, Y.Y.; Tse, M.K.; Chien, C.W.; Cheng, H.Y. Robot-assisted therapy for upper-limb rehabilitation in subacute stroke patients: A systematic review and meta-analysis. Brain Behav. 2020, 10, e01742. [Google Scholar] [CrossRef]
  7. Calafiore, D.; Negrini, F.; Tottoli, N.; Ferraro, F.; Ozyemisci-Taskiran, O.; de Sire, A. Efficacy of robotic exoskeleton for gait rehabilitation in patients with subacute stroke: A systematic review. Eur. J. Phys. Rehabil. Med. 2022, 58, 1–8. [Google Scholar] [CrossRef] [PubMed]
  8. Bertani, R.; Melegari, C.; De Cola, M.C.; Bramanti, A.; Bramanti, P.; Calabrò, R.S. Effects of robot-assisted upper limb rehabilitation in stroke patients: A systematic review with meta-analysis. Neurol. Sci. Off. J. Ital. Neurol. Soc. Ital. Soc. Clin. Neurophysiol. 2017, 38, 1561–1569. [Google Scholar] [CrossRef]
  9. Bressi, F.; Cinnera, A.M.; Morone, G.; Campagnola, B.; Cricenti, L.; Santacaterina, F.; Miccinilli, S.; Zollo, L.; Paolucci, S.; Di Lazzaro, V.; et al. Combining Robot-Assisted Gait Training and Non-Invasive Brain Stimulation in Chronic Stroke Patients: A Systematic Review. Front. Neurol. 2022, 13, 795788. [Google Scholar] [CrossRef] [PubMed]
  10. Szelenberger, R.; Kostka, J.; Saluk-Bijak, J.; Miller, E. Pharmacological Interventions and Rehabilitation Approach for Enhancing Brain Self-repair and Stroke Recovery. Curr. Neuropharmacol. 2020, 18, 51–64. [Google Scholar] [CrossRef]
  11. Cirillo, C.; Brihmat, N.; Castel-Lacanal, E.; Le Friec, A.; Barbieux-Guillot, M.; Raposo, N.; Pariente, J.; Viguier, A.; Simonetta-Moreau, M.; Albucher, J.F.; et al. Post-stroke remodeling processes in animal models and humans. J. Cereb. Blood Flow Metab. 2020, 40, 3–22. [Google Scholar] [CrossRef] [PubMed]
  12. Grigoras, I.F.; Stagg, C.J. Recent advances in the role of excitation-inhibition balance in motor recovery post-stroke. Fac. Rev. 2021, 10, 58. [Google Scholar] [CrossRef] [PubMed]
  13. Chisari, C. Bottom-Up or Top-Down Approach? Understanding the Way to Reach the Milestone of Recovery in Stroke. Int. J. Neurorehabil. 2015, 2, 2. [Google Scholar]
  14. Morone, G.; Spitoni, G.F.; De Bartolo, D.; Ghanbari Ghooshchy, S.; Di Iulio, F.; Paolucci, S.; Zoccolotti, P.; Iosa, M. Rehabilitative devices for a top-down approach. Expert Rev. Med. Devices 2019, 16, 187–195. [Google Scholar] [CrossRef]
  15. Molteni, F.; Gasperini, G.; Cannaviello, G.; Guanziroli, E. Exoskeleton and End-Effector Robots for Upper and Lower Limbs Rehabilitation: Narrative Review. PM R J. Inj. Funct. Rehabil. 2018, 10 (Suppl. 2), S174–S188. [Google Scholar] [CrossRef] [Green Version]
  16. Grefkes, C.; Fink, G.R. Recovery from stroke: Current concepts and future perspectives. Neurol. Res. Pract. 2020, 2, 17. [Google Scholar] [CrossRef]
  17. Koh, S.H. Mechanism of Recovery After Stroke. In Stroke Revisited: Pathophysiology of Stroke; Stroke Revisited; Lee, S.H., Ed.; Springer: Singapore, 2020. [Google Scholar]
  18. Moggio, L.; de Sire, A.; Marotta, N.; Demeco, A.; Ammendolia, A. Exoskeleton versus end-effector robot-assisted therapy for finger-hand motor recovery in stroke survivors: Systematic review and meta-analysis. Top. Stroke Rehabil. 2021, 29, 539–550. [Google Scholar] [CrossRef]
  19. Mehrholz, J.; Thomas, S.; Kugler, J.; Pohl, M.; Elsner, B. Electromechanical-assisted training for walking after stroke. Cochrane Database Syst. Rev. 2020, 10, CD006185. [Google Scholar]
  20. Mehrholz, J.; Pollock, A.; Pohl, M.; Kugler, J.; Elsner, B. Systematic review with network meta-analysis of randomized controlled trials of robotic-assisted arm training for improving activities of daily living and upper limb function after stroke. J. Neuroeng. Rehabil. 2020, 17, 83. [Google Scholar] [CrossRef]
  21. Comino-Suárez, N.; Moreno, J.C.; Gómez-Soriano, J.; Megía-García, Á.; Serrano-Muñoz, D.; Taylor, J.; Alcobendas-Maestro, M.; Gil-Agudo, Á.; Del-Ama, A.J.; Avendaño-Coy, J. Transcranial direct current stimulation combined with robotic therapy for upper and lower limb function after stroke: A systematic review and meta-analysis of randomized control trials. J. Neuroeng. Rehabil. 2021, 18, 148. [Google Scholar] [CrossRef]
  22. Xing, Y.; Zhang, Y.; Li, C.; Luo, L.; Hua, Y.; Hu, J.; Bai, Y. Repetitive Transcranial Magnetic Stimulation of the Brain After Ischemic Stroke: Mechanisms from Animal Models. Cell. Mol. Neurobiol. 2022. [Google Scholar] [CrossRef] [PubMed]
  23. Kim, W.J.; Rosselin, C.; Amatya, B.; Hafezi, P.; Khan, F. Repetitive transcranial magnetic stimulation for management of post-stroke impairments: An overview of systematic reviews. J. Rehabil. Med. 2020, 52, jrm00015. [Google Scholar] [CrossRef] [PubMed]
  24. Elsner, B.; Kugler, J.; Pohl, M.; Mehrholz, J. Transcranial direct current stimulation (tDCS) for improving activities of daily living, and physical and cognitive functioning, in people after stroke. Cochrane Database Syst. Rev. 2020, 11, CD009645. [Google Scholar] [CrossRef] [PubMed]
  25. Ang, K.K.; Guan, C.; Phua, K.S.; Wang, C.; Zhao, L.; Teo, W.P.; Chen, C.; Ng, Y.S.; Chew, E. Facilitating effects of transcranial direct current stimulation on motor imagery brain-computer interface with robotic feedback for stroke rehabilitation. Arch. Phys. Med. Rehabil. 2015, 96, S79–S87. [Google Scholar] [CrossRef]
  26. Dehem, S.; Gilliaux, M.; Lejeune, T.; Delaunois, E.; Mbonda, P.; Vandermeeren, Y.; Detrembleur, C.; Stoquart, G. Effectiveness of a single session of dual-transcranial direct current stimulation in combination with upper limb robotic-assisted rehabilitation in chronic stroke patients: A randomized, double-blind, cross-over study. Int. J. Rehabil. Res. 2018, 41, 138–145. [Google Scholar] [CrossRef] [PubMed]
  27. Di Lazzaro, V.; Capone, F.; Di Pino, G.; Pellegrino, G.; Florio, L.; Zollo, L.; Simonetti, D.; Ranieri, F.; Brunelli, N.; Corbetto, M.; et al. Combining Robotic Training and Non-Invasive Brain Stimulation in Severe Upper Limb-Impaired Chronic Stroke Patients. Front. Neurosci. 2016, 10, 88. [Google Scholar] [CrossRef] [Green Version]
  28. Edwards, D.J.; Cortes, M.; Rykman-Peltz, A.; Chang, J.; Elder, J.; Thickbroom, G.; Mariman, J.J.; Gerber, L.M.; Oromendia, C.; Krebs, H.I.; et al. Clinical improvement with intensive robot-assisted arm training in chronic stroke is unchanged by supplementary tDCS. Restor. Neurol. Neurosci. 2019, 37, 167–180. [Google Scholar] [CrossRef]
  29. Hesse, S.; Waldner, A.; Mehrholz, J.; Tomelleri, C.; Pohl, M.; Werner, C. Combined transcranial direct current stimulation and robot-assisted arm training in subacute stroke patients: An exploratory, randomized multicenter trial. Neurorehabilit. Neural Repair 2011, 25, 838–846. [Google Scholar] [CrossRef]
  30. Panker, M.; Nicole, S. The Effects of Robotic Training and Cortical Stimulation on Reaching Skill after Chronic Stroke. Ph.D. Dissertation, Georgetown University, Washington, DC, USA, 2011. [Google Scholar]
  31. Straudi, S.; Fregni, F.; Martinuzzi, C.; Pavarelli, C.; Salvioli, S.; Basaglia, N. tDCS and Robotics on Upper Limb Stroke Rehabilitation: Effect Modification by Stroke Duration and Type of Stroke. BioMed Res. Int. 2016, 2016, 5068127. [Google Scholar] [CrossRef] [Green Version]
  32. Tedesco Triccas, L.; Burridge, J.H.; Hughes, A.; Verheyden, G.; Desikan, M.; Rothwell, J. A double-blinded randomised controlled trial exploring the effect of anodal transcranial direct current stimulation and uni-lateral robot therapy for the impaired upper limb in sub-acute and chronic stroke. NeuroRehabilitation 2015, 37, 181–191. [Google Scholar] [CrossRef] [Green Version]
  33. Giacobbe, V.; Krebs, H.I.; Volpe, B.T.; Pascual-Leone, A.; Rykman, A.; Zeiarati, G.; Fregni, F.; Dipietro, L.; Thickbroom, G.W.; Edwards, D.J. Transcranial direct current stimulation (tDCS) and robotic practice in chronic stroke: The dimension of timing. NeuroRehabilitation 2013, 33, 49–56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Mazzoleni, S.; Tran, V.D.; Dario, P.; Posteraro, F. Effects of Transcranial Direct Current Stimulation (tDCS) Combined With Wrist Robot-Assisted Rehabilitation on Motor Recovery in Subacute Stroke Patients: A Randomized Controlled Trial. IEEE Trans. Neural Syst. Rehabil. Eng. Publ. IEEE Eng. Med. Biol. Soc. 2019, 27, 1458–1466. [Google Scholar] [CrossRef] [PubMed]
  35. Ochi, M.; Saeki, S.; Oda, T.; Matsushima, Y.; Hachisuka, K. Effects of anodal and cathodal transcranial direct current stimulation combined with robotic therapy on severely affected arms in chronic stroke patients. J. Rehabil. Med. 2013, 45, 137–140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Danzl, M.M.; Chelette, K.C.; Lee, K.; Lykins, D.; Sawaki, L. Brain stimulation paired with novel locomotor training with robotic gait orthosis in chronic stroke: A feasibility study. NeuroRehabilitation 2013, 33, 67–76. [Google Scholar] [CrossRef] [Green Version]
  37. Geroin, C.; Picelli, A.; Munari, D.; Waldner, A.; Tomelleri, C.; Smania, N. Combined transcranial direct current stimulation and robot-assisted gait training in patients with chronic stroke: A preliminary comparison. Clin. Rehabil. 2011, 25, 537–548. [Google Scholar] [CrossRef]
  38. Naro, A.; Billeri, L.; Manuli, A.; Balletta, T.; Cannavò, A.; Portaro, S.; Lauria, P.; Ciappina, F.; Calabrò, R.S. Breaking the ice to improve motor outcomes in patients with chronic stroke: A retrospective clinical study on neuromodulation plus robotics. Neurol. Sci. 2021, 42, 2785–2793. [Google Scholar] [CrossRef]
  39. Picelli, A.; Chemello, E.; Castellazzi, P.; Roncari, L.; Waldner, A.; Saltuari, L.; Smania, N. Combined effects of transcranial direct current stimulation (tDCS) and transcutaneous spinal direct current stimulation (tsDCS) on robot-assisted gait training in patients with chronic stroke: A pilot, double blind, randomized controlled trial. Restor. Neurol. Neurosci. 2015, 33, 357–368. [Google Scholar] [CrossRef] [Green Version]
  40. Picelli, A.; Brugnera, A.; Filippetti, M.; Mattiuz, N.; Chemello, E.; Modenese, A.; Gandolfi, M.; Waldner, A.; Saltuari, L.; Smania, N. Effects of two different protocols of cerebellar transcranial direct current stimulation combined with transcutaneous spinal direct current stimulation on robot-assisted gait training in patients with chronic supratentorial stroke: A single blind, randomized controlled trial. Restor. Neurol. Neurosci. 2019, 37, 97–107. [Google Scholar]
  41. Seo, H.G.; Lee, W.H.; Lee, S.H.; Yi, Y.; Kim, K.D.; Oh, B.M. Robotic-assisted gait training combined with transcranial direct current stimulation in chronic stroke patients: A pilot double-blind, randomized controlled trial. Restor. Neurol. Neurosci. 2017, 35, 527–536. [Google Scholar] [CrossRef]
  42. Leon, D.; Cortes, M.; Elder, J.; Kumru, H.; Laxe, S.; Edwards, D.J.; Tormos, J.M.; Bernabeu, M.; Pascual-Leone, A. tDCS does not enhance the effects of robot-assisted gait training in patients with subacute stroke. Restor. Neurol. Neurosci. 2017, 35, 377–384. [Google Scholar] [CrossRef]
  43. Di Pino, G.; Pellegrino, G.; Assenza, G.; Capone, F.; Ferreri, F.; Formica, D.; Ranieri, F.; Tombini, M.; Ziemann, U.; Rothwell, J.C.; et al. Modulation of brain plasticity in stroke: A novel model for neurorehabilitation. Nat. Rev. Neurol. 2014, 10, 597–608. [Google Scholar] [CrossRef]
  44. Ting, W.K.; Fadul, F.A.; Fecteau, S.; Ethier, C. Neurostimulation for Stroke Rehabilitation. Front. Neurosci. 2021, 15, 649459. [Google Scholar] [CrossRef] [PubMed]
  45. Rojek, A.; Mika, A.; Oleksy, Ł.; Stolarczyk, A.; Kielnar, R. Effects of Exoskeleton Gait Training on Balance, Load Distribution, and Functional Status in Stroke: A Randomized Controlled Trial. Front. Neurol. 2020, 10, 1344. [Google Scholar] [CrossRef] [PubMed]
  46. Sankarasubramanian, V.; Machado, A.G.; Conforto, A.B.; Potter-Baker, K.A.; Cunningham, D.A.; Varnerin, N.M.; Wang, X.; Sakaie, K.; Plow, E.B. Inhibition versus facilitation of contralesional motor cortices in stroke: Deriving a model to tailor brain stimulation. Clin. Neurophysiol. 2017, 128, 892–902. [Google Scholar] [CrossRef] [PubMed]
  47. Thickbroom, G.W.; Cortes, M.; Rykman, A.; Volpe, B.T.; Fregni, F.; Krebs, H.I.; Pascual-Leone, A.; Edwards, D.J. Stroke subtype and motor impairment influence contralesional excitability. Neurology 2015, 85, 517–520. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Terranova, C.; Rizzo, V.; Cacciola, A.; Chillemi, G.; Calamuneri, A.; Milardi, D.; Quartarone, A. Is There a Future for Non-invasive Brain Stimulation as a Therapeutic Tool? Front. Neurol. 2019, 9, 1146. [Google Scholar] [CrossRef]
  49. Lefaucheur, J.P.; Aleman, A.; Baeken, C.; Benninger, D.H.; Brunelin, J.; Di Lazzaro, V.; Filipović, S.R.; Grefkes, C.; Hasan, A.; Hummel, F.C.; et al. Evidence-based guidelines on the therapeutic use of repetitive transcranial magnetic stimulation (rTMS): An update (2014–2018). Clin. Neurophysiol. 2020, 131, 474–528. [Google Scholar] [CrossRef]
  50. Liu, Y.; Mei, H.; Guo, L.; Liu, X.; Tao, X.; Ma, J. Non-invasive brain stimulation associated mirror therapy for upper-limb rehabilitation after stroke: Systematic review and meta-analysis of randomized clinical trials. Front. Neurol. 2022, 13, 918956. [Google Scholar]
  51. Ward, N.S. Non-invasive brain stimulation for stroke recovery: Ready for the big time? J. Neurol. Neurosurg. Psychiatry 2016, 87, 343–344. [Google Scholar] [CrossRef]
  52. Nitsche, M.A.; Fricke, K.; Henschke, U.; Schlitterlau, A.; Liebetanz, D.; Lang, N.; Henning, S.; Tergau, F.; Paulus, W. Pharmacological modulation of cortical excitability shifts induced by transcranial direct current stimulation in humans. J. Physiol. 2003, 553 Pt 1, 293–301. [Google Scholar] [CrossRef]
  53. Nitsche, M.A.; Roth, A.; Kuo, M.F.; Fischer, A.K.; Liebetanz, D.; Lang, N.; Tergau, F.; Paulus, W. Timing-dependent modulation of associative plasticity by general network excitability in the human motor cortex. J. Neurosci. 2007, 27, 3807–3812. [Google Scholar] [CrossRef] [Green Version]
  54. Siebner, H.R.; Lang, N.; Rizzo, V.; Nitsche, M.A.; Paulus, W.; Lemon, R.N.; Rothwell, J.C. Preconditioning of low-frequency repetitive transcranial magnetic stimulation with transcranial direct current stimulation: Evidence for homeostatic plasticity in the human motor cortex. J. Neurosci. 2004, 24, 3379–3385. [Google Scholar] [CrossRef] [Green Version]
  55. Lang, N.; Siebner, H.R.; Ernst, D.; Nitsche, M.A.; Paulus, W.; Lemon, R.N.; Rothwell, J.C. Preconditioning with transcranial direct current stimulation sensitizes the motor cortex to rapid-rate transcranial magnetic stimulation and controls the direction of after-effects. Biol. Psychiatry 2004, 56, 634–639. [Google Scholar] [CrossRef] [PubMed]
  56. Harvey, R.L.; Edwards, D.; Dunning, K.; Fregni, F.; Stein, J.; Laine, J.; Rogers, L.M.; Vox, F.; Durand-Sanchez, A.; Bockbrader, M.; et al. Randomized Sham-Controlled Trial of Navigated Repetitive Transcranial Magnetic Stimulation for Motor Recovery in Stroke. Stroke 2018, 49, 2138–2146. [Google Scholar] [CrossRef]
  57. Rodgers, H.; Bosomworth, H.; Krebs, H.I.; van Wijck, F.; Howel, D.; Wilson, N.; Aird, L.; Alvarado, N.; Andole, S.; Cohen, D.L.; et al. Robot assisted training for the upper limb after stroke (RATULS): A multicentre randomised controlled trial. Lancet 2019, 394, 51–62. [Google Scholar] [CrossRef] [Green Version]
  58. Krebs, H.I.; Krams, M.; Agrafiotis, D.K.; DiBernardo, A.; Chavez, J.C.; Littman, G.S.; Yang, E.; Byttebier, G.; Dipietro, L.; Rykman, A.; et al. Robotic measurement of arm movements after stroke establishes biomarkers of motor recovery. Stroke 2014, 45, 200–204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Conroy, S.S.; Wittenberg, G.F.; Krebs, H.I.; Zhan, M.; Bever, C.T.; Whitall, J. Robot-Assisted Arm Training in Chronic Stroke: Addition of Transition-to-Task Practice. Neurorehabilit. Neural Repair 2019, 33, 751–761. [Google Scholar] [CrossRef]
  60. Powell, E.S.; Carrico, C.; Westgate, P.M.; Chelette, K.C.; Nichols, L.; Reddy, L.; Salyers, E.; Ward, A.; Sawaki, L. Time configuration of combined neuromodulation and motor training after stroke: A proof-of-concept study. NeuroRehabilitation 2016, 39, 439–449. [Google Scholar] [CrossRef]
  61. Oldrati, V.; Colombo, B.; Antonietti, A. Combination of a short cognitive training and tDCS to enhance visuospatial skills: A comparison between online and offline neuromodulation. Brain Res. 2018, 1678, 32–39. [Google Scholar] [CrossRef]
  62. Yang, J.F.; Gorassini, M. Spinal and brain control of human walking: Implications for retraining of walking. Neuroscientist 2006, 12, 379–389. [Google Scholar] [CrossRef]
  63. Bocci, T.; Vannini, B.; Torzini, A.; Mazzatenta, A.; Vergari, M.; Cogiamanian, F.; Priori, A.; Sartucci, F. Cathodal transcutaneous spinal direct current stimulation (tsDCS) improves motor unit recruitment in healthy subjects. Neurosci. Lett. 2014, 578, 75–79. [Google Scholar] [CrossRef] [PubMed]
  64. Huang, Y.Z.; Lu, M.K.; Antal, A.; Classen, J.; Nitsche, M.; Ziemann, U.; Ridding, M.; Hamada, M.; Ugawa, Y.; Jaberzadeh, S.; et al. Plasticity induced by non-invasive transcranial brain stimulation: A position paper. Clin. Neurophysiol. Off. J. Int. Fed. Clin. Neurophysiol. 2017, 128, 2318–2329. [Google Scholar] [CrossRef] [PubMed]
  65. Koch, G.; Bonnì, S.; Casula, E.P.; Iosa, M.; Paolucci, S.; Pellicciari, M.C.; Cinnera, A.M.; Ponzo, V.; Maiella, M.; Picazio, S.; et al. Effect of Cerebellar Stimulation on Gait and Balance Recovery in Patients With Hemiparetic Stroke: A Randomized Clinical Trial. JAMA Neurol. 2019, 76, 170–178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Wessel, M.J.; Hummel, F.C. Non-invasive Cerebellar Stimulation: A Promising Approach for Stroke Recovery? Cerebellum 2018, 17, 359–371. [Google Scholar] [CrossRef] [PubMed]
  67. Cantone, M.; Lanza, G.; Ranieri, F.; Opie, G.M.; Terranova, C. Editorial: Non-invasive Brain Stimulation in the Study and Modulation of Metaplasticity in Neurological Disorders. Front. Neurol. 2021, 12, 721906. [Google Scholar] [CrossRef] [PubMed]
  68. Turi, Z.; Lenz, M.; Paulus, W.; Mittner, M.; Vlachos, A. Selecting stimulation intensity in repetitive transcranial magnetic stimulation studies: A systematic review between 1991 and 2020. Eur. J. Neurosci. 2021, 53, 3404–3415. [Google Scholar] [CrossRef]
  69. Tofts, P.S. The distribution of induced currents in magnetic stimulation of the nervous system. Phys. Med. Biol. 1990, 35, 1119–1128. [Google Scholar] [CrossRef]
  70. Di Lazzaro, V.; Ziemann, U. The contribution of transcranial magnetic stimulation in the functional evaluation of microcircuits in human motor cortex. Front. Neural Circuits 2013, 7, 18. [Google Scholar] [CrossRef] [Green Version]
  71. Henneman, E.; Mendell, L.M. Functional Organization of Motoneuron Pool and its Inputs. Compr. Physiol. 2011, 1, 423–507. [Google Scholar]
  72. Yamashita, A.; Murakami, T.; Hattori, N.; Miyai, I.; Ugawa, Y. Intensity dependency of peripheral nerve stimulation in spinal LTP induced by paired associative corticospinal-motoneuronal stimulation (PCMS). PLoS ONE 2021, 16, e0259931. [Google Scholar] [CrossRef]
  73. Huang, E.J.; Reichardt, L.F. Neurotrophins: Roles in neuronal development and function. Annu. Rev. Neurosci. 2001, 24, 677–736. [Google Scholar] [CrossRef] [Green Version]
  74. Kwon, M.; Fernández, J.R.; Zegarek, G.F.; Lo, S.B.; Firestein, B.L. BDNF-promoted increases in proximal dendrites occur via CREB-dependent transcriptional regulation of cypin. J. Neurosci. 2011, 31, 9735–9745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Heath, A.; Lindberg, D.R.; Makowiecki, K.; Gray, A.; Asp, A.J.; Rodger, J.; Choi, D.S.; Croarkin, P.E. Medium- and high-intensity rTMS reduces psychomotor agitation with distinct neurobiologic mechanisms. Transl. Psychiatry 2018, 8, 126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Chen, Y.H.; Zhang, R.G.; Xue, F.; Wang, H.N.; Chen, Y.C.; Hu, G.T.; Peng, Y.; Peng, Z.W.; Tan, Q.R. Quetiapine and repetitive transcranial magnetic stimulation ameliorate depression-like behaviors and up-regulate the proliferation of hippocampal-derived neural stem cells in a rat model of depression: The involvement of the BDNF/ERK signal pathway. Pharmacol. Biochem. Behav. 2015, 136, 39–46. [Google Scholar] [CrossRef]
  77. Feng, S.F.; Shi, T.Y.; Fan, Y.; Wang, W.N.; Chen, Y.C.; Tan, Q.R. Long-lasting effects of chronic rTMS to treat chronic rodent model of depression. Behav. Brain Res. 2012, 232, 245–251. [Google Scholar] [CrossRef] [PubMed]
  78. Dmochowski, J.P.; Datta, A.; Bikson, M.; Su, Y.; Parra, L.C. Optimized multi-electrode stimulation increases focality and intensity at target. J. Neural Eng. 2011, 8, 046011. [Google Scholar] [CrossRef] [PubMed]
  79. Nitsche, M.A.; Paulus, W. Excitability changes induced in the human motor cortex by weak transcranial direct current stimulation. J. Physiol. 2000, 527, 633–639. [Google Scholar] [CrossRef] [PubMed]
  80. Fregni, F.; Boggio, P.S.; Mansur, C.G.; Wagner, T.; Ferreira, M.J.; Lima, M.C.; Rigonatti, S.P.; Marcolin, M.A.; Freedman, S.D.; Nitsche, M.A.; et al. Transcranial direct current stimulation of the unaffected hemisphere in stroke patients. Neuroreport 2005, 16, 1551–1555. [Google Scholar] [CrossRef]
  81. Hummel, F.; Celnik, P.; Giraux, P.; Floel, A.; Wu, W.-H.; Gerloff, C.; Cohen, L.G. Effects of non-invasive cortical stimulation on skilled motor function in chronic stroke. Brain 2005, 128, 490–499. [Google Scholar] [CrossRef] [Green Version]
  82. Lindenberg, R.; Renga, V.; Zhu, L.L.; Nair, D.; Schlaug, G.M.D.P. Bihemispheric brain stimulation facilitates motor recovery in chronic stroke patients. Neurology 2010, 75, 2176–2184. [Google Scholar] [CrossRef] [Green Version]
  83. Duque, J.; Hummel, F.; Celnik, P.; Murase, N.; Mazzocchio, R.; Cohen, L.G. Transcallosal inhibition in chronic subcortical stroke. Neuroimage 2005, 28, 940–946. [Google Scholar] [CrossRef] [PubMed]
  84. Hummel, F.C.; Cohen, L.G. Non-invasive brain stimulation: A new strategy to improve neurorehabilitation after stroke? Lancet Neurol. 2006, 5, 708–712. [Google Scholar] [CrossRef]
  85. Tazoe, T.; Endoh, T.; Kitamura, T.; Ogata, T. Polarity specific effects of transcranial direct current stimulation on interhemispheric inhibition. PLoS ONE 2014, 9, e11424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Stagg, C.J.; Johansen-Berg, H. Studying the effects of transcranial direct-current stimulation in stroke recovery using magnetic resonance imaging. Front. Hum. Neurosci. 2013, 7, 857. [Google Scholar] [CrossRef]
  87. Cha, T.H.; Hwang, H.S. Rehabilitation Interventions Combined with Noninvasive Brain Stimulation on Upper Limb Motor Function in Stroke Patients. Brain Sci. 2022, 12, 994. [Google Scholar] [CrossRef]
  88. Triccas, L.T.; Burridge, J.H.; Hughes, A.M.; Pickering, R.M.; Desikan, M.; Rothwell, J.C.; Verheyden, G. Multiple sessions of transcranial direct current stimulation and upper extremity rehabilitation in stroke: A review and meta-analysis. Clin. Neurophysiol. 2016, 127, 946–955. [Google Scholar] [CrossRef] [Green Version]
  89. Nudo, R.J.; Jenkins, W.M.; Merzenich, M.M. Repetitive microstimulation alters the cortical representation of movements in adult rats. Somatosens. Mot. Res. 1990, 7, 463–483. [Google Scholar] [CrossRef]
  90. Kanno, M.; Matsumoto, M.; Togashi, H.; Yoshioka, M.; Mano, Y. Effects of acute repetitive transcranial magnetic stimulation on dopamine release in the rat dorsolateral striatum. J. Neurol. Sci. 2004, 217, 73–81. [Google Scholar] [CrossRef]
  91. Webster, B.R.; Celnik, P.A.; Cohen, L.G. Noninvasive brain stimulation in stroke rehabilitation. NeuroRx J. Am. Soc. Exp. NeuroTher. 2006, 3, 474–481. [Google Scholar] [CrossRef] [Green Version]
  92. Kubis, N. Non-Invasive Brain Stimulation to Enhance Post-Stroke Recovery. Front. Neural Circuits 2016, 10, 56. [Google Scholar] [CrossRef] [Green Version]
  93. Gerges, A.; Hordacre, B.; Pietro, F.D.; Moseley, G.L.; Berryman, C. Do Adults with Stroke have Altered Interhemispheric Inhibition? A Systematic Review with Meta-Analysis. J. Stroke Cerebrovasc. Dis. Off. J. Natl. Stroke Assoc. 2022, 31, 106494. [Google Scholar] [CrossRef]
  94. Kuriakose, D.; Xiao, Z. Pathophysiology and Treatment of Stroke: Present Status and Future Perspectives. Int. J. Mol. Sci. 2020, 21, 7609. [Google Scholar] [CrossRef] [PubMed]
  95. Xing, Y.; Bai, Y. A Review of Exercise-Induced Neuroplasticity in Ischemic Stroke: Pathology and Mechanisms. Mol. Neurobiol. 2020, 57, 4218–4231. [Google Scholar] [CrossRef]
  96. Joy, M.T.; Carmichael, S.T. Learning and Stroke Recovery: Parallelism of Biological Substrates. Semin. Neurol. 2021, 41, 147–156. [Google Scholar] [CrossRef]
  97. Ada, L.; Dean, C.M.; Lindley, R.; Lloyd, G. Improving community ambulation after stroke: The AMBULATE Trial. BMC Neurol. 2009, 9, 8. [Google Scholar] [CrossRef]
  98. Tricco, A.C.; Lillie, E.; Zarin, W.; O’Brien, K.K.; Colquhoun, H.; Levac, D.; Moher, D.; Peters, M.D.; Horsley, T.; Weeks, L.; et al. PRISMA Extension for Scoping Reviews (PRISMAScR): Checklist and Explanation. Ann. Intern. Med. 2018, 169, 467–473. [Google Scholar] [CrossRef]
Brainsci 12 01511 g001 550

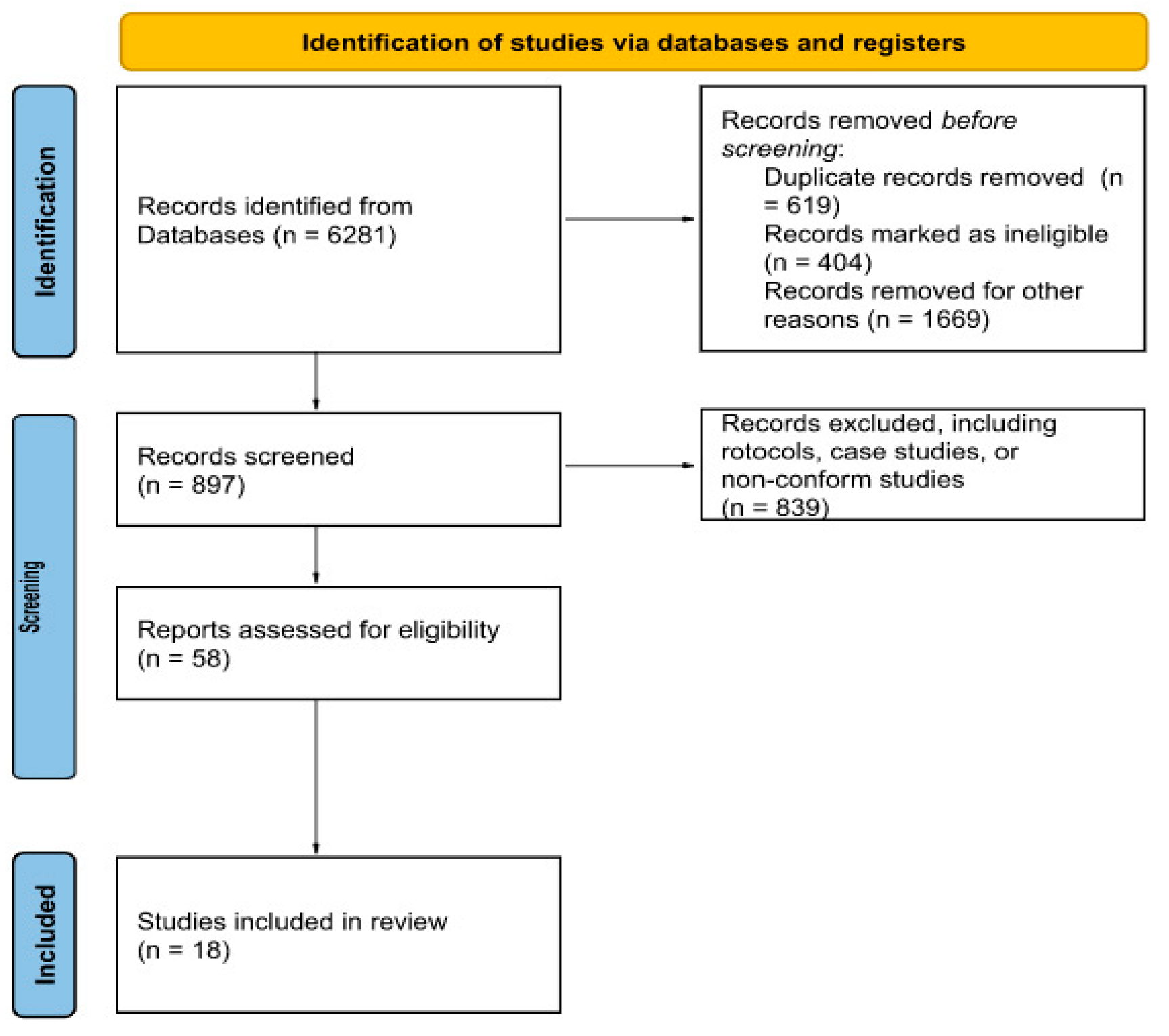

Figure 1. Study selection diagram flow.

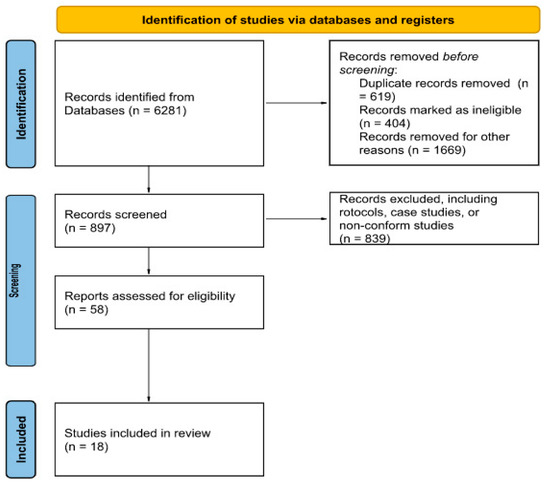

Figure 1. Study selection diagram flow.
Brainsci 12 01511 g001
Table
Table 1. Characteristics of upper limb studies.
Table 1. Characteristics of upper limb studies.
AuthorsActive-Control Group nDevice TypeJoint
Task		NIBSOutcomes #
NIBS + RAR vs. RAR + sham NIBS comparison
Ang 2015 [25]10-9MIT Manus (EE) 1 shoulder/elbow unimanual tasksa/c-tDCS
10 sessions, 20-min
before RAR
for 2 weeks		active > sham in AL
active = sham in BFS
Dehem 2018 [26]11-10REAplan robot (EE) shoulder/elbow unimanual tasksa/c-tDCS
1 session, 20-min
during RAR (20-min)
1 day		active > sham in AL
Di Lazzaro 2016 [27]8-9InMotion2 * (EE) 2 shoulder/elbow unimanual taskscontinuous theta-burst stimulation
10 sessions on affected hemisphere
before RAR
for 2 weeks		active > sham in BFS
Edwards 2019 [28] 41-41MIT Manus (EE) 3entire arm unimanual tasksa-tDCS
36 sessions, 20-min
before RAR
for 12 weeks		active = sham in BFS and AL
Hesse 2011 [29]32-32Bi-Manu Track (EE) 4 wrist/hand
bimanual tasks		a-tDCS
30 sessions, 20-min
at RAR beginning (400 movements)
for 6 weeks		active = sham in BFS
32-32Bi-Manu Track (EE) 5 wrist/hand
bimanual tasks		c-tDCS
30 sessions, 20-min
at RAR beginning (400 movements)
for 6 weeks		active = sham in BFS
Panker 2011 [30]9-9ReoGo(EE) shoulder/elbow unimanual tasksa-tDCS
22 sessions, 20-min
at RAR beginning (60 min)
for 2.5 weeks		active > sham in BFS
sham > active in AL
Straudi 2016 [31]12-11ReoGo (EE)shoulder/elbow unimanual tasksa/c-tDCS
10 sessions, 30-min
during the 30 min of RAR
for 2 weeks		active = sham in BFS
sham > active in AL
Tedesco Triccas 2015 [32]12-11Armeo®Spring (Ex) whole arm unimanual tasksa-tDCS
18 sessions, 25-min
during the first 25 min of 75 min RAR
for 8 weeks		sham > active in BFS
sham > active in AL
Mazzoleni 2019 [34]20-19InMotion (EE)wrist
unimanual tasks		a-tDCS
30 sessions, 20-min
during the treatment
for 6 weeks		active = sham in BSF
active > sham in AL
Timing of NIBS delivery during RAR
Giacobbe 2013 [33]12-12-12InMotion3 (EE)wrist
unimanual tasks		a/c-tDCS
1 session, 20-min
before vs. during vs. after training
(with sham during the training)
1 day
  • after > before = during in movement speed
  • before > during = after in movement smoothness
  • after > before = during in speed reduction
  • after = during = before in MEP increase
Different NIBSs’ comparison
Ochi 2013 [35]18-18Bi-Manu Track (EE)elbow/wrist
bimanual tasks		a-tDCS vs. c-tDCS
5 sessions, 10-min
during the treatment
for 5 days		a-tDCS=c-tDCS in BFS and spasticity
no effects on MAL
Legend: AL, activity limitation (assessed using Action Research Arm Test, Box and Blocks Test, or Wolf Motor Function Test); MI-BCI, motor imagery based brain–computer interface; BFS, body function and structure (assessed using Fugl-Meyer Assessment); * the commercial version of MIT Manus; MEP, motor evoked potential; MAL, motor activity log; EE, end effector; Ex, exoskeleton; a-tDCS, anodal transcranial direct current stimulation on affected M1 ref. contralateral orbit; c-tDCS, cathodal transcranial direct current stimulation on unaffected M1 ref. contralateral orbit. Adjunctive therapies: 1 1-h RAR (using MI-BCI); 2 960 RAR movements (active assistive); 3 1 h RAR (1024 movement repetitions); 4 physical and occupational therapy; 5 physical and occupational therapy; # significant outcomes in bold characters.
Table
Table 2. Characteristics of lower limb studies.
Table 2. Characteristics of lower limb studies.
AuthorsActive-Control Group nDeviceNIBSOutcomes #
NIBS + RAR vs. RAR + sham NIBS comparison
Danzl 2013 [36] 4-4Lokomat (Ex)c/a-tDCS (ref. supraorbit)
3 days/week sessions, 20-min
before the training (20–40 min)
for 4 weeks 		active = sham in gait speed and balance
Geroin 2011 [37] 10-10-10Gait Trainer 1 (Ex)c/a-tDCS (ref. contralateral orbit)
5 days/week sessions, 7-min
real vs. sham vs. no NIBS
during the training (50-min) 1
for 2 weeks		active = sham > no NIBS in gait endurance active = sham > no NIBS in gait speed
Seo 2017 [41] 10-11Walkbot_S (Ex)c-tDCS (ref. contralateral orbit)
5 days/week sessions, 20-min
during the training (45 min)
for 2 weeks		active > sham in gait endurance
Timing of NIBS delivery during RAR
Naro 2020 [38] 9-15-18Lokomat®Pro(Ex)c/a-tDCS (ref. contralateral CMA)
6 days/week sessions, 10-min
before vs. during vs. after training (60-min) 2
for 8 weeks 		during = after > before in gait endurance, fall risk, and gait performance
during = after = before in gait speed, disability burden, and gait performance
Different NIBSs’ comparison
Picelli 2015 [39]10-10-10G-EO System (EE)
  • a-tDCS (ref. contralateral orbit) + sham tsDCS
  • sham tDCS + tsDCS*
  • a-tDCS (ref. contralateral orbit) + tsDCS*
5 days/week sessions, 20-min
during the training (20 min)
for 2 weeks		active > sham in gait endurance up to two weeks but not up to one month after treatment
10-10G-EO System (EE)
  • tcDCS ** +tsDCS *
  • a-tDCS (ref. ipsilateral orbit) + tsDCS *
5 days/week sessions, 20-min
during the training (20 min)
for 2 weeks		active > sham in gait endurance up to two weeks but not up to one month after treatment
Picelli 2019 [40]20-20G-EO System (EE)
  • tcDCS ** + tsDCS *
  • tcDCS *** + tsDCS *
5 days/week sessions, 20-min
during the training (20 min)
for 2 weeks		active = sham in gait endurance
Leon 2017 [42]9-17-23Gait Trainer
or
Lokomat (Ex)
  • tDCSLEG
  • tDCSHAND
  • tDCSNO
5 days/week session, 20-min
during the training (30–45 min)
for 4 weeks		tDCSLEG = tDCSHAND = tDCSNO in improving gait speed and gait performance
Legend: a-tDCS, anodal transcranial direct current stimulation on affected cortical motor areas (CMA) controlling lower limb; c-tDCS, cathodal transcranial direct current stimulation on unaffected cortical motor areas controlling lower limb; * tsDCS, cathodal trans-spinal direct current stimulation with D10 ref. ipsilesional shoulder; ** tcDCS, cathodal transcerebellar direct current stimulation on contralesional cerebellar hemisphere ref. contralesional buccinator muscle; *** tctDCS, cathodal transcerebellar direct current stimulation on ipsilesional cerebellar hemisphere ref. contralesional buccinator muscle; adjunctive therapies: 1 30 min of lower limb muscle strengthening and joint mobilization, 2 physical rehabilitation program (1 h); tDCSLEG a-tDCS (affected CMA-leg ref. contralateral orbit); tDCSHAND a-tDCS (affected M1 ref. contralateral orbit); tDCSNO no tDCS; # significant outcomes in bold characters.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Naro, A.; Calabrò, R.S. Improving Upper Limb and Gait Rehabilitation Outcomes in Post-Stroke Patients: A Scoping Review on the Additional Effects of Non-Invasive Brain Stimulation When Combined with Robot-Aided Rehabilitation. Brain Sci. 2022, 12, 1511. https://doi.org/10.3390/brainsci12111511

AMA Style

Naro A, Calabrò RS. Improving Upper Limb and Gait Rehabilitation Outcomes in Post-Stroke Patients: A Scoping Review on the Additional Effects of Non-Invasive Brain Stimulation When Combined with Robot-Aided Rehabilitation. Brain Sciences. 2022; 12(11):1511. https://doi.org/10.3390/brainsci12111511

Chicago/Turabian Style

Naro, Antonino, and Rocco Salvatore Calabrò. 2022. "Improving Upper Limb and Gait Rehabilitation Outcomes in Post-Stroke Patients: A Scoping Review on the Additional Effects of Non-Invasive Brain Stimulation When Combined with Robot-Aided Rehabilitation" Brain Sciences 12, no. 11: 1511. https://doi.org/10.3390/brainsci12111511

APA Style

Naro, A., & Calabrò, R. S. (2022). Improving Upper Limb and Gait Rehabilitation Outcomes in Post-Stroke Patients: A Scoping Review on the Additional Effects of Non-Invasive Brain Stimulation When Combined with Robot-Aided Rehabilitation. Brain Sciences, 12(11), 1511. https://doi.org/10.3390/brainsci12111511

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
