Functional Characterization of Arylalkylamine N-Acetyltransferase, a Pivotal Gene in Antioxidant Melatonin Biosynthesis from Chlamydomonas reinhardtii

by
Ok-Jin Hwang
and
Kyoungwhan Back
*
Department of Biotechnology, College of Agriculture and Life Sciences, Chonnam National University, Gwangju 61186, Korea
*
Author to whom correspondence should be addressed.
Antioxidants 2022, 11(8), 1531; https://doi.org/10.3390/antiox11081531
Submission received: 13 July 2022 / Revised: 1 August 2022 / Accepted: 3 August 2022 / Published: 5 August 2022
(This article belongs to the Special Issue Understanding the Metabolic and Molecular Networking of Antioxidants and ROS Homeostasis in Plants)
Browse Figures
Versions Notes

Abstract

:
Arylalkylamine N-acetyltransferase (AANAT) is a pivotal enzyme in melatonin biosynthesis that catalyzes the conversion of serotonin to N-acetylserotonin. Homologs of animal AANAT genes are present in animals, but not in plants. An AANAT homolog was found in Chlamydomonas reinhardtii, but not other green algae. The characteristics of C. reinhardtii AANAT (CrAANAT) are unclear. Here, full-length CrAANAT was chemically synthesized and expressed in Escherichia coli. Recombinant CrAANAT exhibited AANAT activity with a Km of 247 μM and Vmax of 325 pmol/min/mg protein with serotonin as the substrate. CrAANAT was localized to the cytoplasm in tobacco leaf cells. Transgenic rice plants overexpressing CrAANAT (CrAANAT-OE) exhibited increased melatonin production. CrAANAT-OE plants showed a longer seed length and larger second leaf angle than wild-type plants, indicative of the involvement of brassinosteroids (BRs). As expected, BR biosynthesis- and signaling-related genes such as D2, DWARF4, DWARF11, and BZR1 were upregulated in CrAANAT-OE plants. Therefore, an increased endogenous melatonin level by ectopic overexpression of CrAANAT seems to be closely associated with BR biosynthesis, thereby influencing seed size.

1. Introduction

Arylalkylamine N-acetyltransferase (AANAT) is the penultimate enzyme for melatonin biosynthesis in animals and plants. It catalyzes the conversion of serotonin to N-acetylserotonin, which is the substrate for melatonin synthesis by N-acetylserotonin O-methyltransferase (ASMT) [1,2]. AANAT is also named serotonin N-acetyltransferase (SNAT); therefore, to differentiate them from animal AANAT genes, plant AANAT genes are frequently termed SNAT genes. Both animal AANAT and plant SNAT proteins belong to the GCN5-related N-acetyltransferase superfamily, which transfer an acetyl group from acetyl-coenzyme A (CoA) [3]. However, there is no significant amino sequence homology between animal AANATs and plant SNATs except for a few amino acids in the acetyl-CoA-binding domain [4]. Interestingly, an animal homolog of arylalkylamine N-acetyltransferase (AANAT) is present in the genome of C. reinhardtii, but not in other green algae or higher plants [3,5,6].
Based on the key role of AANAT (or SNAT) in melatonin biosynthesis, many animal AANAT and plant SNAT genes have been cloned and their recombinant proteins functionally characterized in vitro [7,8]. Ectopic overexpression of animal AANAT or plant SNAT genes in plant species resulted in increased melatonin synthesis [9,10]. The resulting AANAT- or SNAT-overexpressing transgenic plants exhibited increased melatonin synthesis and enhanced responses to biotic and abiotic stresses, including ultraviolet-B [11], high temperature [12], pathogen [13], salt [14], high light [15], cadmium [16,17], drought [18], oxidative stress [19], and cold exposure [20]. The enhanced tolerance to various stresses in AANAT- or SNAT-overexpressing plants was attributable to melatonin overproduction because melatonin not only has antioxidant activity but also induces antioxidant enzymes such as catalase, peroxidase, and superoxide dismutase [9,21].
CrAANAT was first characterized by Okazaki et al. [22]. CrAANAT transfers an acetyl group to serotonin. Transgenic tomato plants overexpressing CrAANAT had an increased melatonin level. However, the Km and Vmax values of recombinant CrAANAT and the phenotypes of CrAANAT-overexpressing transgenic plants are unknown. The aim of this work was to determine the enzyme kinetics of CrAANAT and its functional role in melatonin biosynthesis through heterologous expression in rice genome. We purified recombinant CrAANAT and determined the Km and Vmax values of its AANAT activity. Ectopic overexpression of CrAANAT in the rice genome increased the seed length and upregulated brassinosteroid (BR) (rather than cytokinin)-related gene expression.

2. Materials and Methods

2.1. Synthesis of C. reinhardtii AANAT

Based on AANAT of C. reinhardtii (CrAANAT; GenBank accession AB474787), the 192 codons of CrAANAT (including the stop codon) were manually optimized according to SNAT2 codons of rice [23]. Codon-optimized synthetic CrAANAT was custom-synthesized by Bioneer (Daejeon, South Korea).

2.2. Affinity Purification of Various Recombinant C. reinhardtii AANAT Proteins from Escherichia coli Expression

Four different types of Escherichia coli vectors were employed to express the full-length synthetic Chlamydomonas reinhardtii AANAT (CrAANAT) DNA. Two vectors were pET300 (Invitrogen, Carlsbad, CA, USA) and pET28b (Novagen, San Diego, CA, USA) which are designed to express the CrAANAT in either N-terminal- or C-terminal- hexahistidine tagged form. The other two vectors were pET32b (Novagen) and pET60 (Novagen) which are designed to express the CrAANAT in N-terminal fusion proteins of either thioredoxin (Trx) or glutathione-s-transferase (GST). As for pET300, CrAANAT-attB1 forward primer (5′-AAA AAG CAG GCT CCA TGG CTG AGG AGT CGC-3′) and CrAANAT-attB2 reverse primer (5′-AGA AAG CTG GGT CTA GGC CTC AGC AGC CTC-3′) were used for PCR amplification with the synthetic CrAANAT gene followed by second PCR using adaptor primers with attB recombination sequences (attB1 adaptor forward primer, 5′-GGG GAC AAG TTT GTA CAA AAA AGC AGG CT-3′; attB2 adaptor reverse primer, 5′-GGG GAC CAC TTT GTA CAA GAA AGC TGG GT-3′). The resulting PCR product was gel purified and cloned into the pDONR221 Gateway® vector (Invitrogen) via BP (between the attB and the attP sites) recombination. The pDONR221:CrAANAT gene entry vector was then recombined with the pET300 Gateway destination vector via LR (between the attL and the attR sites) recombination to form the pET300-CrAANAT vector. A pET28b-CrAANAT was constructed by PCR with NcoI forward primer (5′-ACC ATG GCT GAG GAG TCG CTC-3′) and XhoI reverse primer (5′-CTC GAG GGC CTC AGC AGC CTC TGC-3′). To generate pET60-CrAANAT, the CrAANAT-attB1 forward primer and 6×His attB2 reverse primer (5′-AGA AAG CTG GGT TCA GTG GTG GTG GTG GTG-3′) were used to amplify the CrAANAT with the pET28b-CrAANAT plasmid as a template. The resulting PCR product was further amplified with the attB1 adaptor forward and attB2 adaptor reverse primers followed by BP and LR recombination reactions as described above. A pET32b-CrAANAT was constructed by ligating the NcoI and XhoI insert prepared during the pET28b-CrAANAT vector construction. All plasmids were transformed into E. coli strain BL21(DE3) (Novagen).

2.3. Purification of Recombinant CrAANAT Proteins

Each 10 mL of E. coli overnight culture of E. coli containing pET300-CrAANAT, pET28b-CrAANAT, pET60-CrAANAT, and pET32b-CrAANAT plasmid vectors was inoculated into 100 mL of Terrific Broth (20 g/L Bacto-tryptone, 24 g/L Bacto-yeast extract, 4 mL/L glycerol, and phosphate buffer [0.017 M monopotassium phosphate and 0.072 M dipotassium phosphate]) containing with 50 mg/L ampicillin or 50 mg/L kanamycin (pET28b-CrAANAT) and incubated at 37 °C until the optical density at 600 nm reached 1.0 about 3 to 4 h. The culture was added with 1 mM isopropyl-β-D-thiogalactopyranoside (Sigma, St. Louis, MO, USA) and grown at 28 °C with shaking at 180 rpm for 5 h. The protein was purified via affinity nickel ion chromatography according to the column manufacturer’s instructions (Qiagen, Tokyo, Japan).

2.4. Measurement of Serotonin N-Acetyltransferase (SNAT) Enzyme Activity

Two types of purified recombinant CrAANAT proteins were incubated in 100 μL of 100 mM potassium phosphate (pH 8.8 or various pH values) in the presence of 0.5 mM serotonin and 0.5 mM acetyl-coenzyme A. SNAT enzyme assays were conducted at 45 °C for 30 min (or various temperatures) and stopped by adding 25 μL of methanol. Then, 10 μL aliquots of the reaction mixture were subjected to high-performance liquid chromatography (HPLC) coupled to a fluorescence detector system to detect N-acetylserotonin as described previously [24]. Non-enzymatic reaction products that were generated without the CrAANAT enzymes were deducted. To acquire substrate affinity (Km) and maximum reaction rate (Vmax), various substrates (50 to 2000 μM serotonin) and enzyme concentrations (0.2 to 1 μg) were employed. The Km and Vmax values were calculated using Lineweaver–Burk plots. Protein concentration was determined using Bradford assays (Bio-Rad, Hercules, CA, USA). The analyses were performed in triplicate.

2.5. Subcellular Localization of CrAANAT

The pER-mCherry vector which was kindly donated by Dr. H. Kang (Texas State University, San Marcos, TX, USA) was used for assessing the localization of CrAANAT protein in tobacco leaves. Full-length CrAANAT cDNA was amplified by PCR with two AscI containing primers (CrAANAT AscI forward primer 5′-GGC GCG CCA TGG CTG AGG AGT CGC TCG-3′; CrAANAT AscI reverse primer 5′-GGC GCG CCG GGC CTC AGC AGC CTC TGC-3′). The resulting PCR product was first cloned into the T&A cloning vector (T&A:CrAANAT; RBC Bioscience, New Taipei City, Taiwan) from which the AscI insert of CrAANAT was produced and cloned into the binary pER8-mCherry vector at the AscI restriction sites downstream of the estrogen-inducible XVE promoter to generate CrAANAT-mCherry fusion proteins. The plasmid was transformed into Agrobacterium tumefaciens strain GV2260 using the freeze-thaw method. As for a transient expression analysis of CrAANAT-mCherry, the leaves of two-week-old tobacco (Nicotiana benthamiana) plant, a native Australian species, were infiltrated with A. tumefaciens strain GV2260 carrying pER8:CrAANAT-mCherry plasmid. The transformed tobacco leaves were then examined using confocal microscopy to determine the subcellular localization of the CrAANAT-mCherry fusion proteins. Further treatment with β-estradiol (Sigma Aldrich, St. Louis, MO, USA) and confocal microscopy analysis were described previously [24].

2.6. Vector Construction and Production of CrAANAT-Overexpressing Transgenic Rice Plants

The pDONR221:CrAANAT gene entry vector harboring the synthetic CrAANAT gene was then recombined with the pIPKb002 destination vector [25] via LR recombination to yield pIPKb002-CrAANAT, which was transformed into Agrobacterium tumefaciens strain LBA4404. We used Agrobacterium-mediated rice transformation with the coculture with rice scutelum-derived calli to generate transgenic rice (Oryza sativa cv. Dongjin, a Korean japonica cultivar) plants as described previously [26].

2.7. Plant Growth Conditions

Rice (Oryza sativa cv. Dongjin, a Korean japonica cultivar) seeds of both wild type and CrAANAT overexpression (CrAANAT-OE) were sterilized with 2% sodium hyphochlorite and rinsed with sterile distilled water. Sterilized seeds were grown on half-strength Murashige and Skoog (MS) medium under cool daylight fluorescent lamps (60 μmol m−2 s−1) (Philips, Amsterdam, Netherlands) in 14-h light/10-h dark photoperiod at 28 °C/24 °C (day/night) for 7 days. Germinated seeds were grown in a paddy field at the Chonnam National University (35°09′ N and 126°54′ W; 53 m a.s.l), Gwangju, Korea in 2021. The distance between the rice plants within a row was 30 cm, and the distance between the rows was 30 cm. Grain length, grain width and 1000-grain weight were measured after harvesting followed by drying for 1 month at room temperature of about 26 °C.

2.8. Chemical Treatment

Seven-day-old rice seedlings were incubated in 30 mL of 100 μM 5-methoxytrytamine (Sigma-Aldrich, St. Louis, MO, USA) dissolved in 0.02% ethanol for 1 day under cool daylight fluorescent lamps (60 μmol m−2 s−1) (Philips) in 14-h light/10-h dark photoperiod at 28 °C/24 °C (day/night). The 0.02% ethanol was used as a control. The leaves and stems were harvested for further analyses.

2.9. Quantitative Real Time-Polymerase Chain Reaction (qRT-PCR) Analysis

Total RNA from rice plants was isolated using a NucleoSpin RNA Plant Kit (Macherey-Nagel, Düren, Germany). First-strand cDNA was synthesized from 2 μg of total RNA using EcoDryTM Premix (Takara Bio USA, Inc., Mountain View, CA, USA). qRT-PCR was performed in a Mic qPCR Cycler system (Biomolecular Systems, Queensland, VIC, Australia) with specific primers and the TB Green® Premix Ex TaqTM (Takara Bio Inc., Kusatsu, Shiga, Japan). The expression of genes was analyzed using Mic’s RQ software v2.2 (Biomolecular Systems) and normalized to actin 1 (ACT1). Reverse transcription (RT)-PCR and quantitative real-time (qRT)-PCR were performed with the primer set (Table S1).

2.10. Quantification of Melatonin

Frozen samples (0.1 g) were ground in liquid nitrogen with the use of the TissueLyser II (Qiagen, Tokyo, Japan) and extracted with 1 mL of chloroform. The chloroform extracts were centrifuged for 10 min at 12,000× g, and the supernatants (200 μL) were completely evaporated and dissolved in 0.1 mL of 40% methanol, and 20-μL aliquots were subjected to HPLC using a fluorescence detector system (Waters, Milford, MA, USA) as described previously [27]. In brief, melatonin was detected at 280 nm (excitation) and 348 nm (emission) on a Sunfire C18 column (Waters 4.6 × 150 mm) in the following gradient elution condition: from 42% to 50% methanol in 0.1% formic acid for 27 min, followed by isocratic elution with 50% methanol in 0.1% formic acid for 18 min at a flow rate of 0.15 mL/min. All measurements were performed in triplicate.

2.11. Statistical Analyses

The data were analyzed using analysis of variance (ANOVA) using IBM SPSS Statistics 23 software (IBM Corp., Armonk, NY, USA). Means with asterisks indicate significantly different values at p < 0.05, according to a Fisher’s least significant difference (LSD) test. All data are presented as mean ± standard deviations.

3. Results

3.1. Codon-Optimized Synthesis of CrAANAT and Its Expression in Escherichia coli

The full-length CrAANAT nucleotide sequence (encoding 191 amino acids) was chemically synthesized based on the codon usage of rice SNAT2 (AK068156) exhibiting a 70% G+C content. Among the 192 codons of CrAANAT, 55 were modified in the synthetic CrAANAT gene, increasing the G+C content from 64% to 67% (Figure 1 and Figure 2).
Synthetic CrAANAT was expressed in E. coli as a fusion protein with an N- or C-terminal hexa-histidine (His6) tag, followed by Ni2+ affinity purification (Figure 3). Intact His6-CrAANAT and CrAANAT-His6 were insoluble and so could not be purified using a Ni2+ affinity column. However, CrAANAT fusions with thioredoxin (Trx) or glutathione-s-transferase (GST) were soluble and subjected to Ni2+ affinity purification (Figure 3A,B). Recombinant Trx-CrAANAT-His6 exhibited serotonin N-acetyltransferase (SNAT) activity of 10.1 pkat/mg protein at 45 °C and pH 8.8, compared to 18.7 pkat/mg protein for GST-CrAANAT-His6 (Figure 3C). Therefore, CrAANAT transfers an acetyl group from acetyl-CoA to serotonin to produce N-acetylserotonin, the final substrate in melatonin biosynthesis [4].

3.2. Kinetics of Recombinant CrAANAT

SNAT activity peaked at pH 8.8 and was similar at pH 7.8 (Figure 4). This high pH optimum is consistent with that of other plant SNAT proteins [8,13,23,28,29] but unlike animal AANAT proteins (pH 6.7) [30,31]. SNAT activity was fourfold lower at pH 6.5 than at pH 8.8. SNAT activity was highest at 45 °C followed by 37 °C. The high level of SNAT activity at 37 °C is similar to other animal AANAT proteins but not plant SNAT proteins [8,30,31]. The Km and Vmax values were 247 μM and 5.4 pkat/mg protein (325 pmol/min/mg protein), respectively. The Km value of CrAANAT is similar to those of rice [24], Arabidopsis [29], and tobacco [8], but lower than that of red algae [32] and cyanobacteria [33]. The Km value of CrAANAT was threefold higher than that of sheep AANAT [7]. In contrast, the Vmax value of CrAANAT was lower than that of plant SNATs and sheep AANATs. Therefore, the kinetics of CrAANAT has similarities to those of plant SNATs and animal AANATs. To be more precise, the CrAANAT is close to plant SNAT at the level of Km value, but to animal AANAT at the level of Vmax value.

3.3. Subcellular Localization of CrAANAT

Because in silico TargetP analysis of CrAANAT showed no transit or signal sequence [34], we hypothesized that CrAANAT is cytoplasmic. We subcloned CrAANAT into a binary vector to express the CrAANAT-mCherry fusion protein under the control of the estrogen-inducible XVE promoter. Agrobacterium cells harboring the binary vector were infiltrated into tobacco leaves followed by transgene induction by β-estradiol. Confocal microscopy showed that CrAANAT-mCherry exhibited strong mCherry fluorescence, which co-localized with the green fluorescence of cytoplasmic GFP (Figure 5). Therefore, CrAANAT localizes to the cytoplasm, as does sheep AANAT [35]. CrAANAT in the cytoplasm is unlike the chloroplastic localizations of other plant SNAT proteins [8,13,24].

3.4. Transgenic Rice Plants Overexpressing CrAANAT (CrAANAT-OE)

To determine whether CrAANAT is functionally coupled to melatonin biosynthesis in vivo, we generated CrAANAT-OE under the control of the maize ubiquitin promoter (Figure 6A).
Six homozygous T2 CrAANAT-OE were selected from 11 independent T1 transgenic rice seeds (Figure 6A,B). These T2 CrAANAT-OE showed CrAANAT overexpression whereas CrAANAT transcript was not detected in wild type (WT). The T2 homozygous CrAANAT-OE, particularly line 7, showed slightly increased seedling growth (Figure 6C,D). When these T2 homozygous transgenic seedlings were rhizospherically challenged for 24 h with 100 μM 5-methoxytryptamine (5-MT), a substrate for AANAT-catalyzed melatonin biosynthesis, the WT and CrAANAT-OE lines produced 83 and 116 ng/g fresh weight (FW) (Figure 6E). Therefore, CrAANAT converts 5-MT into melatonin by acetylating 5-MT, as do most animal AANAT and plant SNAT proteins [8,36]. In the absence of 5-MT, the WT and CrAANAT-OE lines produced melatonin at 0.2 and 0.45 ng/g FW (Figure 6F). Therefore, ectopic overexpression of CrAANAT increased AANAT activity compared to wild type. CrAANAT overexpression was functionally associated with enhanced production of melatonin in the CrAANAT-OE line compared to wild type.
Homozygous T2 CrAANAT-OE seeds were of greater length, but lesser width, than WT seeds (Figure 7). The 1000-seed weight was similar in the CrAANAT-OE lines and wild type. To determine whether the increase in seed length is associated with BRs, we measured the second leaf angle, a phenotypic marker of BR levels. The second-leaf angle was larger in the CrAANAT-OE seedlings than in WT seedlings (Figure 8A), indicating increased BR levels. Cytokinins also regulate seed size in plants [37]. To identify the hormones responsible for the increased seed length in the CrAANAT-OE lines, we evaluated the expression levels of BR- and cytokinin-related genes. The expression levels of BR-related genes were significantly increased in the CrAANAT-OE lines (the BR biosynthesis-related genes DWARF [D]2, D4, and D11 and BRASSINOZOLE-RESISTANT 1 (BZR1), encoding a transcription factor that regulates BR-responsive gene expression; Figure 8B) [38,39]. By contrast, cytokinin degradation genes (CKX2, CKX4, and CKX10) and cytokinin biosynthesis genes (LOGL1, LOGL3, and LOGL10) were upregulated. Therefore, the increased lamina angle and seed length in the CrAANAT-OE line compared to wild type are caused by BRs rather than cytokinins.

4. Discussion

The final two genes in melatonin biosynthesis are AANAT (or SNAT) and ASMT [4]. AANAT was first cloned and characterized in sheep and rats [40,41]. AANAT homologs have been cloned from fish [42], humans [31], yeast [43], and mosquitos [44]. AANAT plays a rate-limiting role in melatonin biosynthesis by acetylating serotonin and 5-MT, thus synthesizing N-acetylserotonin and melatonin, respectively, in animals and plants [8,36]. An animal AANAT homolog was reported in the green alga C. reinhardtii, but not in other green algae or higher plants [5]. Okazaki et al. [22] expressed C. reinhardtii AANAT in E. coli and reported that the purified GST-CrAANAT fusion protein transferred an acetyl-CoA group to serotonin but did not determine its Km and Vmax values. Furthermore, its overexpression in tomato increased melatonin synthesis, but this did not affect the plant phenotype. The Km and Vmax values of purified recombinant CrAANAT for serotonin indicated that CrAANAT encodes a SNAT enzyme. Similar to other plant SNAT proteins, CrAANAT prefers a high pH, but an optimum temperature of around 37 °C, like animal AANATs [45]. This optimum temperature of CrAANAT is in contrast to that of other plant SNAT enzymes (45 °C to 55 °C) [8], indicating that CrAANAT possesses characteristics of animal AANAT and plant SNAT proteins.
Melatonin has diverse functions in plant growth, development, and biotic and abiotic stress responses [9,10,46,47,48,49] by modulating the cellular redox balance [50,51,52] and protein quality control [53]. Additionally, melatonin functions in concert with other plant hormones during growth and under stressful conditions [54,55]. Melatonin directly influences hormone levels in Arabidopsis thaliana, in which exogenous melatonin promotes primary root growth via the indole-3-acetic acid signaling pathway [56]. Indirect effects of melatonin on plant hormones have been reported in plants with up- or down-regulated melatonin synthesis [57,58]. Melatonin did not directly enhance gibberellic acid (GA) synthesis [57] and BR effects such as leaf angle increases [58]. However, melatonin suppression in an A. thaliana knockout mutant (snat1) and SNAT2 RNAi rice plants resulted in decreased levels of GA and BR, respectively. This was caused by decreased starch synthesis, which is promoted by melatonin [57,59,60]. An increased endogenous melatonin level in transgenic rice overexpressing caffeic acid O-methyltransferase (COMT) markedly increased the seed size and rice yield as a result of elevated cytokinin levels [61]. Transgenic rice plants overexpressing SNAT genes from Archaea and rice showed an increase in seed size [62,63]; however, whether this is caused by cytokinins or BRs is unclear. Here, the increased rice seed length caused by an increased endogenous melatonin level was linked to increased BR levels due to upregulation of BR biosynthetic genes (Figure 9), not increased cytokinin levels as in COMT-overexpressing rice [61]. Moreover, the increase in BR levels caused by endogenous melatonin overproduction induces melatonin biosynthesis by activating the expression of melatonin biosynthetic genes such as tryptophan decarboxylase 1 (TDC1), TDC3, and tryptamine 5-hydroxylase (T5H) [64] (Figure 9). In sum, the effect of melatonin on seed size and yield [17,61] and stress tolerance [65,66] suggests that the generation of melatonin-rich rice plants by exogenous application [64] or transgenic approaches [4] would increase yields and resistance to many biotic and abiotic stresses and enable the production of melatonin-rich foods with health benefits [67].

5. Conclusions

CrAANAT had homology to animal AANAT proteins but not to plant SNAT proteins. Its optimum temperature was 37 °C, similar to animal AANAT proteins, but its optimum pH was pH 8.8, similar to plant SNAT proteins, demonstrating that CrAANAT has characteristics of both animal AANAT and plant SNAT proteins. Ectopic overexpression of CrAANAT in the rice genome led to an increase in melatonin content, leaf angle, and seed length, indicative of enhanced BR biosynthesis. An increased BR level in CrAANAT-OE rice plants was indirectly verified by the upregulation of BR biosynthetic genes such as D2, D4, and D11. This is the first report of an increase in BR biosynthesis by the ectopic overexpression of AANAT or SNAT in transgenic plants. Many RNAi transgenic rice plants with downregulated melatonin synthesis show decreased BR levels and leaf angle, suggesting a close relationship between melatonin and BR levels in rice plants [39,61]. The CrAANAT can be used as a source gene for a simultaneous increase of melatonin and BR which will lead to improved plant growth and stress tolerance conferred by either melatonin or BR alone or a combination of both [38,39,50].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antiox11081531/s1, Table S1: Sequences of primers used for polymerase chain reaction.

Author Contributions

Conceptualization, K.B.; formal analysis, O.-J.H.; investigation, O.-J.H.; K.B.; writing-original draft preparation, K.B.; writing-review and editing, funding acquisition, O.-J.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation (NRF-2021R1C1C2006271) of the Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data presented in this study are available within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, D.; Yu, Y.; Shen, Y.; Liu, Q.; Zhao, Z.; Sharma, R.; Reiter, R.J. Melatonin synthesis and function: Evolutionary history in animals and plants. Front. Endocrinol. 2019, 10, 249. [Google Scholar] [CrossRef]
  2. Back, K. Melatonin metabolism, signaling and possible roles in plants. Plant J. 2021, 105, 376–391. [Google Scholar] [CrossRef] [PubMed]
  3. Coon, S.L.; Klein, D.C. Evolution of arylalkylamine N-acetyltransferase: Emergence and divergence. Mol. Cell. Endocrinol. 2006, 252, 2–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Liao, L.; Zhou, Y.; Xu, Y.; Zhang, Y.; Liu, X.; Liu, B.; Chen, X.; Guo, Y.; Zeng, Z.; Zhao, Y. Structural and molecular dynamics analysis of plant serotonin N-acetyltransferase reveal an acid/base-assisted catalysis in melatonin biosynthesis. Angew. Chem Int. Ed. 2021, 60, 12020–12026. [Google Scholar] [CrossRef]
  5. Sasso, S.; Stibor, H.; Mittag, M.; Grossman, A.R. From molecular manipulation of domestigated Chlamydomonas reinhardtii to survival in nature. eLife 2018, 7, e39233. [Google Scholar] [CrossRef] [PubMed]
  6. Merchant, S.S.; Prochnik, S.E.; Vallon, O.; Harris, E.H.; Karpowicz, S.J.; Witman, G.B.; Terry, A.; Salamov, A.; Fritz-Laylin, L.K.; Maréchal-Drouard, L.; et al. The Chlamydomonas genome reveals the evolution of key animal and plant functions. Science 2007, 318, 245–250. [Google Scholar] [CrossRef] [Green Version]
  7. Voisin, P.; Namboodiri, M.A.; Klein, D.C. Arylamine N-acetyltransferase and arylalkylamine N-acetyltransferase in the mammalian pineal gland. J. Biol. Chem. 1984, 259, 10913–10918. [Google Scholar] [CrossRef]
  8. Lee, H.Y.; Hwang, O.J.; Back, K. Functional characterization of tobacco (Nicotiana benthamiana) serotonin N-acetyltransferases (NbSNAT1 and NbSNAT2). Melatonin Res. 2021, 4, 507–521. [Google Scholar]
  9. Sun, C.; Liu, L.; Wang, L.; Li, B.; Jin, C.; Lin, X. Melatonin: A master regulator of plant development and stress responses. J. Integr. Plant Biol. 2021, 63, 126–145. [Google Scholar] [CrossRef]
  10. Arnao, M.B.; Cano, A.; Hernández-Ruiz, J. Phytomelatonin: An unexpected molecule with amazing performance in plants. J. Exp. Bot. 2022. [Google Scholar] [CrossRef]
  11. Yao, J.W.; Ma, Z.; Ma, Y.Q.; Zhu, Y.; Lei, M.Q.; Hao, C.Y.; Chen, L.Y.; Xu, Z.Q.; Huang, X. Role of melatonin in UV-B signaling pathway and UV-B stress resistance in Arabidopsis thaliana. Plant Cell Environ. 2021, 44, 114–129. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, X.; Zhang, H.; Xie, Q.; Liu, Y.; Lv, H.; Bai, R.; Ma, R.; Li, X.; Zhang, X.; Guo, Y.D.; et al. SISNAT interacts with HSP40, a molecular chaperone, to regulate melatonin biosynthesis and promote thermotolerance in tomato. Plant Cell Physiol. 2020, 61, 909–921. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, Y.; Bian, L.; Jiao, Z.; Keke, Y.; Wan, Y.; Zhang, G.; Guo, D. Molecular cloning and characterization of a grapevine (Vitis vinifera L.) serotonin N-acetyltransferase (VvSNAT2) gene involved in plant defense. BMC Genom. 2019, 20, 880. [Google Scholar] [CrossRef]
  14. Zhao, G.; Yu, X.; Lou, W.; Wei, S.; Wang, R.; Wan, Q.; Shen, W. Transgenic Arabidopsis overexpressing MsSNAT enhances salt tolerance via the increase in autophagy, and the reestablishment of redox and ion homeostasis. Environ. Exp. Bot. 2019, 164, 20–28. [Google Scholar] [CrossRef]
  15. Lee, H.Y.; Back, K. Melatonin induction and its role in high light stress tolerance in Arabidopsis thaliana. J. Pineal Res. 2018, 65, e12504. [Google Scholar] [CrossRef]
  16. Gu, Q.; Chen, Z.; Yu, X.; Cui, W.; Pan, J.; Zhao, G.; Xu, S.; Wang, R.; Shen, W. Melatonin confers plant tolerance against cadmium stress via the decrease of cadmium accumulation and reestablishment of microRNA-mediated redox homeostasis. Plant Sci. 2017, 261, 28–37. [Google Scholar] [CrossRef]
  17. Lee, K.; Back, K. Overexpression of rice serotonin N-acetyltransferase 1 in transgenic rice plants confers resistance to cadmium and senescence and increases grain yield. J. Pineal Res. 2017, 62, e12392. [Google Scholar] [CrossRef]
  18. Wang, L.; Zhao, Y.; Reiter, R.J.; He, C.; Liu, G.; Lei, Q.; Zuo, B.; Zheng, X.D.; Li, Q.; Kong, J. Change in melatonin levels in transgenic ‘Micro-Tom’ tomato over-expressing ovine AANAT and ovine HIOMT genes. J. Pineal Res. 2014, 56, 134–142. [Google Scholar] [CrossRef] [PubMed]
  19. Park, S.; Lee, D.E.; Jang, H.; Byeon, Y.; Kim, Y.S.; Back, K. Melatonin-rich transgenic rice plants exhibit resistance to herbicide-induced oxidative stress. J. Pineal Res. 2013, 54, 258–263. [Google Scholar] [CrossRef]
  20. Kang, K.; Lee, K.; Park, S.; Kim, Y.S.; Back, K. Enhanced production of melatonin by ectopic overexpression of human serotonin N-acetyltransferase plays a role in cold resistance in transgenic rice seedlings. J. Pineal Res. 2010, 49, 176–182. [Google Scholar] [CrossRef]
  21. Tan, D.X.; Manchester, L.C.; Terron, M.P.; Flores, L.J.; Reiter, R.J. One molecule, many derivatives: A never-ending interaction of melatonin with reactive oxygen and nitrogen species? J. Pineal Res. 2007, 42, 28–42. [Google Scholar] [CrossRef] [PubMed]
  22. Okazaki, M.; Higuchi, K.; Hahawa, Y.; Shiraiwa, Y.; Ezura, H. Cloning and characterization of a Chlamydomonas reinhardtii cDNA arylalkylamine N-acetyltransferase and its use in the genetic engineering of melatonin content in the Micro-Tom tomato. J. Pineal Res. 2009, 46, 373–382. [Google Scholar] [CrossRef] [PubMed]
  23. Byeon, Y.; Lee, H.Y.; Back, K. Cloning and characterization of the serotonin N-acetyltransferase-2 gene (SNAT2) in rice (Oryza sativa). J. Pineal Res. 2016, 61, 198–207. [Google Scholar] [CrossRef] [PubMed]
  24. Byeon, Y.; Lee, H.Y.; Lee, K.; Park, S.; Back, K. Cellular localization and kinetics of the rice melatonin biosynthetic enzymes SNAT and ASMT. J. Pineal Res. 2014, 56, 107–114. [Google Scholar] [CrossRef]
  25. Himmelbach, A.; Zierold, U.; Hensel, G.; Riechen, J.; Douchkov, D.; Schweizer, P.; Kumlehn, J. A set of modular binary vectors for transformation of cereals. Plant Physiol. 2007, 145, 1192–1200. [Google Scholar] [CrossRef] [Green Version]
  26. Lee, H.J.; Lee, S.B.; Chung, J.S.; Han, S.U.; Han, O.; Guh, J.O.; Jeon, J.S.; An, G.; Back, K. Transgenic rice plants expressing a Bacillus subtilis protoporphyrinogen oxidase gene are resistant to diphenyl ether herbicide oxyfluorfen. Plant Cell Physiol. 2000, 41, 743–749. [Google Scholar] [CrossRef]
  27. Lee, K.; Choi, G.H.; Back, K. Cadmium-induced melatonin synthesis in rice requires light, hydrogen peroxide, and nitric oxide: Key regulatory roles for tryptophan decarboxylase and caffeic acid O-methyltransferase. J. Pineal Res. 2017, 63, e12441. [Google Scholar] [CrossRef]
  28. Kang, K.; Lee, K.; Park, S.; Byeon, Y.; Back, K. Molecular cloning of rice serotonin N-acetyltransferase, the penultimate gene in plant melatonin biosynthesis. J. Pineal Res. 2013, 55, 7–13. [Google Scholar] [CrossRef]
  29. Lee, H.Y.; Lee, K.; Back, K. Knockout of Arabidopsis serotonin N-acetyltransferase-2 reduces melatonin levels and delays flowering. Biomolecules 2019, 9, 712. [Google Scholar] [CrossRef] [Green Version]
  30. De Angelis, J.; Gastel, J.; Klein, D.C.; Cole, P.A. Kinetic analysis of the catalytic mechanism of serotonin N-acetyltransferase (EC 2.3.1.87). J. Biol. Chem. 1998, 273, 3045–3050. [Google Scholar] [CrossRef] [Green Version]
  31. Ferry, G.; Loynel, A.; Kucharczyk, N.; Bertin, S.; Rodriguez, M.; Delagrange, P.; Galizzi, J.-P.; Jacoby, E.; Volland, J.-P.; Lesieur, D.; et al. Substrate specificity and inhibition studies of human serotonin N-acetyltransferase. J. Biol. Chem. 2000, 275, 8794–8805. [Google Scholar] [CrossRef] [Green Version]
  32. Byeon, Y.; Lee, H.Y.; Choi, D.W.; Back, K. Chloroplast encoded serotonin N-acetyltransferase in the red alga Pyropia yezoensis: Gene transition to the nucleus from chloroplasts. J. Exp. Bot. 2015, 66, 709–717. [Google Scholar] [CrossRef] [Green Version]
  33. Byeon, Y.; Lee, K.; Park, Y.I.; Park, S.; Back, K. Molecular cloning and functional analysis of serotonin N-acetyltransferase from the cyanobacterium Synechocystis sp. PCC 6803. J. Pineal Res. 2013, 55, 371–376. [Google Scholar] [CrossRef] [PubMed]
  34. Emanuelsson, O.; Nielsen, H.; Brunak, S.; Heijne, G. Predicting subcellular localization of proteins based on their N-terminal amino acid sequence. J. Mol. Biol. 2000, 300, 1005–1016. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Byeon, Y.; Lee, H.Y.; Lee, K.; Back, K. A rice chloroplast transit peptide sequence does not alter the cytoplasmic localization of sheep serotonin N-acetyltransferase expressed in transgenic rice plants. J. Pineal Res. 2014, 57, 147–154. [Google Scholar] [CrossRef] [PubMed]
  36. Tan, D.X.; Hardeland, R.; Back, K.; Manchester, L.C.; Alatorre-Jimenez, M.A.; Reiter, R.J. On the significance of an alternate pathway of melatonin synthesis via 5-methoxytryptamine: Comparisons across species. J. Pineal Res. 2016, 61, 27–40. [Google Scholar] [CrossRef] [Green Version]
  37. Jiang, H.; Zhang, A.; Liu, X.; Chen, J. Grain size associated genes and the molecular regulatory mechanism in rice. Int. J. Mol. Sci. 2022, 23, 3169. [Google Scholar] [CrossRef]
  38. Zhang, C.; Bai, M.; Chong, K. Brassinosteroid-mediated regulation of agronomic traits in rice. Plant Cell Rep. 2014, 33, 683–696. [Google Scholar] [CrossRef]
  39. Hwang, H.; Ryu, H.; Cho, H. Brassinosteroid signaling pathways interplaying with diverse signaling cues for crop enhancement. Agronomy 2022, 11, 556. [Google Scholar] [CrossRef]
  40. Coon, S.L.; Roseboom, P.H.; Baler, R.; Weller, J.L.; Nambroodiri, M.A.A.; Koonin, E.V.; Klein, D.C. Pineal serotonin N-acetyltransferase: Expression cloning and molecular analysis. Science 1995, 270, 1681–1683. [Google Scholar] [CrossRef]
  41. Borjigin, J.; Wang, M.M.; Snyder, S.H. Diurnal variation in mRNA encoding serotonin N-acetyltransferase in pineal gland. Nature 1995, 378, 783–785. [Google Scholar] [CrossRef] [PubMed]
  42. Coon, S.L.; Bégay, V.; Deurloo, D.; Falcón, J.; Klein, D.C. Two arylalkylamine N-acetyltransferase genes mediate melatonin synthesis in fish. J. Biol. Chem. 1999, 274, 9076–9082. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Ganguly, S.; Mummaneni, P.; Steinbach, P.J.; Klein, D.C.; Coon, S.L. Characterization of the Saccharomyces cerevisiae homolog of the melatonin rhythm enzyme arylalkylamine N-acetyltransferase (EC 2.3.1.87). J. Biol. Chem. 2001, 276, 47239–47247. [Google Scholar] [CrossRef] [Green Version]
  44. Mehere, P.; Han, Q.; Christensen, B.M.; Li, J. Identification and characterization of two arylalkylamine N-acetyltransferases in the yellow fever mosquito, Ades aegypti. Insect Biochem. Mol. Biol. 2011, 41, 707–714. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Zhan-Poe, X.; Craft, C.M. Biochemical characterization of recombinant serotonin N-acetyltransferase. J. Pineal Res. 1999, 27, 49–58. [Google Scholar] [CrossRef] [PubMed]
  46. Ahmad, S.; Wang, G.Y.; Muhammad, I.; Chi, Y.X.; Zeeshan, M.; Nasar, J.; Zhou, X.B. Interactive effects of melatonin and nitrogen improve drought tolerance of maize seedlings by regulating growth and physiological attributes. Antioxidants 2022, 11, 359. [Google Scholar] [CrossRef] [PubMed]
  47. Ali, M.; Lamin-Samu, A.T.; Muhammad, I.; Farghal, M.; Khattak, A.M.; Jan, I.; Haq, S.U.; Khan, A.; Gong, Z.-H.; Lu, G. Melatonin mitigates the infection of Colletotrichum gloeosporioides via modulation of the chitinase gene and antioxidant activity in Capsicum annuum L. Antioxidants 2021, 10, 7. [Google Scholar] [CrossRef]
  48. Bhardwaj, R.; Pareek, S.; Domínguez-Avila, J.A.; Gonzalez-Aguilar, G.A.; Valero, D.; Serrano, M. An exogenous pre-storage melatonin alleviates chilling injury in some mango fruit cultivars, by acting on the enzymatic and non-enzymatic antioxidant system. Antioxidants 2022, 11, 384. [Google Scholar] [CrossRef]
  49. Jiang, Y.; Huang, S.; Ma, L.; Kong, L.; Pan, S.; Tang, X.; Tian, H.; Duan, M.; Mo, Z. Effects of exogenous melatonin application on the grain yield and antioxidant capacity in aromatic rice under combined lead-cadmium stress. Antioxidants 2022, 11, 776. [Google Scholar] [CrossRef]
  50. Zhao, D.; Wang, H.; Chen, S.; Yu, D.; Reiter, R.J. Phytomelatonin: An emerging regulator of plant biotic stress resistance. Trends Plant Sci. 2021, 26, 70–82. [Google Scholar] [CrossRef]
  51. Pardo-Hernández, M.; López-Delacalle, M.; Rivero, R.M. ROS and NO regulation by melatonin under abiotic stress in plants. Antioxidants 2020, 9, 1078. [Google Scholar] [CrossRef] [PubMed]
  52. Zhang, T.; Wang, Y.; Ma, X.; Ouyang, Z.; Deng, L.; Shen, S.; Dong, X.; Du, N.; Dong, H.; Guo, Z.; et al. Melatonin alleviates copper toxicity via improving ROS metabolism and antioxidant defense response in tomato seedlings. Antioxidants 2022, 11, 758. [Google Scholar] [CrossRef] [PubMed]
  53. Lee, H.Y.; Hwang, O.J.; Back, K. Phytomelatonin as a signaling molecule for protein quality control via chaperone, autophagy, and ubiquitin–proteasome systems in plants. J. Exp. Bot. 2022. [Google Scholar] [CrossRef] [PubMed]
  54. Arnao, M.B.; Hernández-Ruiz, J. Melatonin and its relationship to plant hormones. Ann. Bot. 2018, 121, 195–207. [Google Scholar] [CrossRef] [Green Version]
  55. Yang, X.; Chen, J.; Ma, Y.; Huang, M.; Qiu, T.; Bian, H.; Han, N.; Wang, J. Function, mechanism, and application of plant melatonin: An update with a focus on the cereal crop, barley (Hordeum vulgare L.). Antioxidants 2022, 11, 634. [Google Scholar] [CrossRef] [PubMed]
  56. Yang, L.; You, J.; Li, J.; Wang, Y.; Chan, Z. Melatonin promotes Arabidopsis primary root growth in an IAA-dependent manner. J. Exp. Bot. 2021, 72, 5599–5611. [Google Scholar] [CrossRef]
  57. Lee, H.Y.; Back, K. Melatonin regulates chloroplast protein quality control via a mitogen-activated protein kinase signaling pathway. Antioxidants 2021, 10, 511. [Google Scholar] [CrossRef]
  58. Hwang, O.J.; Back, K. Melatonin is involved in skotomorphogenesis by regulating brassinosteroid biosynthesis in plants. J. Pineal Res. 2018, 65, e12495. [Google Scholar] [CrossRef]
  59. Altaf, M.A.; Shahid, R.; Ren, M.X.; Naz, S.; Altaf, M.M.; Khan, L.U.; Tiwari, R.K.; Lal, M.K.; Shahid, M.A.; Kumar, R.; et al. Melatonin improves drought tolerance of tomato by modulating plant growth, root architecture, photosynthesis, and antioxidant defense system. Antioxidants 2022, 11, 309. [Google Scholar] [CrossRef]
  60. Muhammad, I.; Yang, L.; Ahmad, S.; Mosaad, I.S.M.; Al-Ghamdi, A.A.; Abbasi, A.M.; Zhou, X.-B. Melatonin application alleviates stress-induced photosynthetic inhibition and oxidative damage by regulating antioxidant defense system of maize: A meta-analysis. Antioxidants 2022, 11, 512. [Google Scholar] [CrossRef]
  61. Huangfu, L.; Chen, R.; Lu, Y.; Zhang, E.; Miao, J.; Zuo, Z.; Zhao, Y.; Zhu, M.; Zhang, Z.; Li, P.; et al. OsCOMT, encoding a caffeic acid O-methyltransferase in melatonin biosynthesis, increases rice grain yield through dual regulation of leaf senescence and vascular development. Plant Biotechnol. J. 2022, 20, 1122–1139. [Google Scholar] [CrossRef] [PubMed]
  62. Hwang, O.J.; Back, K. Melatonin deficiency confers tolerance to multiple abiotic stresses in rice via decreased brassinosteroid levels. Int. J. Mol. Sci. 2019, 20, 5173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Lee, K.; Choi, G.H.; Back, K. Functional charcacterization of serotonin N-acetyltransferase in archaeon Thermoplasma volcanium. Antioxidants 2022, 11, 596. [Google Scholar] [CrossRef] [PubMed]
  64. Hwang, O.J.; Back, K. Molecular regulation of antioxidant melatonin biosynthesis by brassinosteroid acting as an endogenous elicitor of melatonin induction in rice seedling. Antioxidant 2022, 11, 918. [Google Scholar] [CrossRef] [PubMed]
  65. Sharma, A.; Zheng, B. Melatonin mediated regulation of drought stress: Physiological and molecular aspects. Plants 2019, 8, 190. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Li, R.; Yang, R.; Zheng, W.; Wu, L.; Zhang, C.; Zhang, H. Melatonin promotes SGT1oinvolved signals to ameliorate drought stress adaption in rice. Int. J. Mol. Sci. 2022, 23, 599. [Google Scholar] [CrossRef]
  67. Kuwabara, W.MT.; Gomes, P.RL.; Andrade-Silva, J.; Soares, J.M., Jr.; Amaral, F.G.; Cipolla-Neto, J. Melatonin and its ubiquitous effects on cell function and survival: A review. Melatonin Res. 2022, 5, 192–208. [Google Scholar] [CrossRef]
Antioxidants 11 01531 g001 550

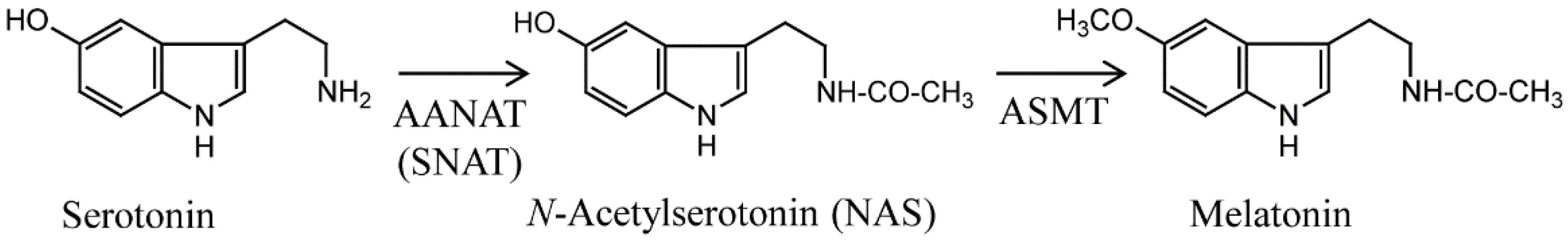

Figure 1. Schematic diagram of melatonin biosynthesis. AANAT is also known as serotonin N-acetyltransferase (SNAT) in plants. ASMT, N-acetylserotonin O-methyltransferase.
Figure 1. Schematic diagram of melatonin biosynthesis. AANAT is also known as serotonin N-acetyltransferase (SNAT) in plants. ASMT, N-acetylserotonin O-methyltransferase.
Antioxidants 11 01531 g001
Antioxidants 11 01531 g002 550

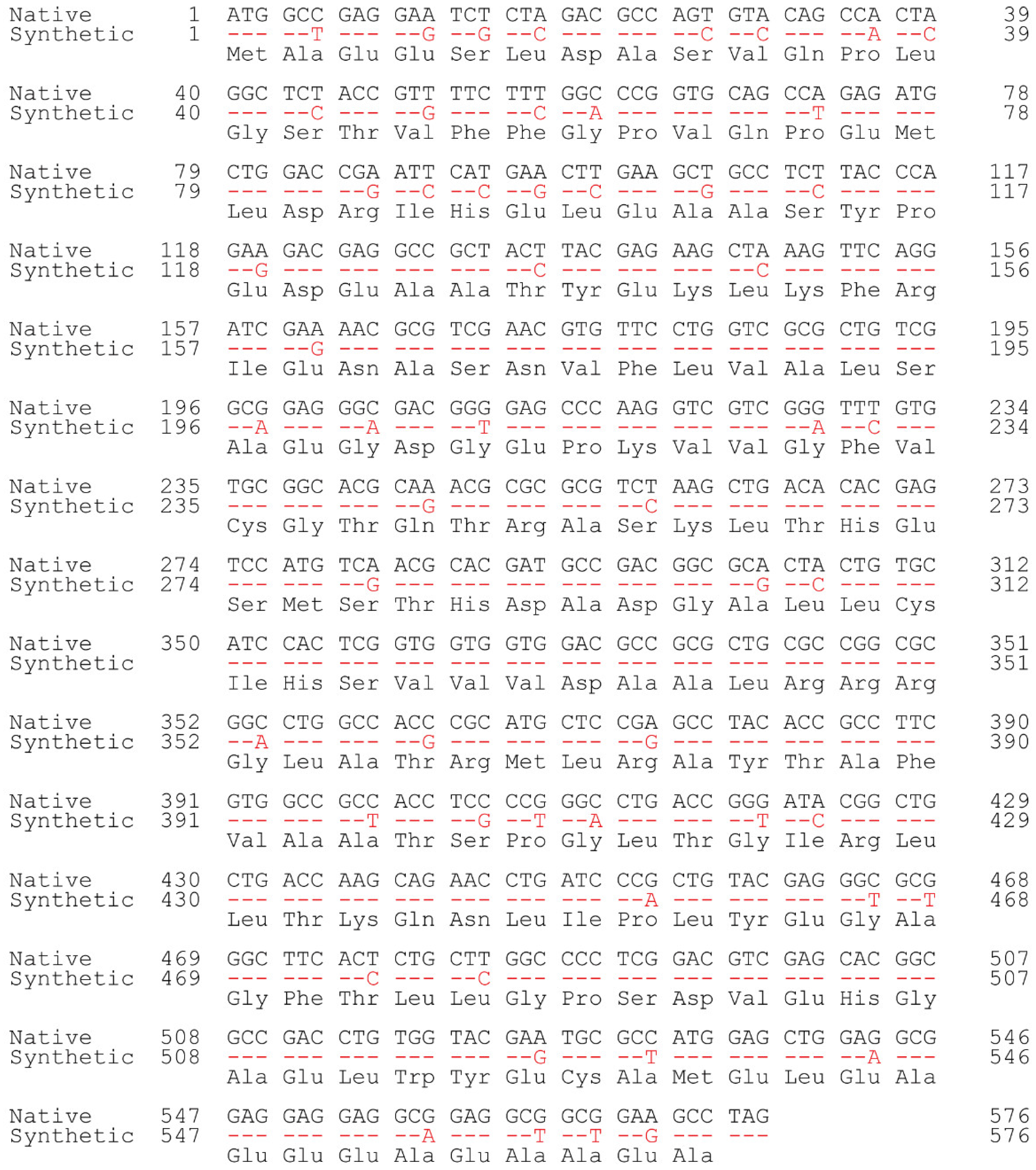

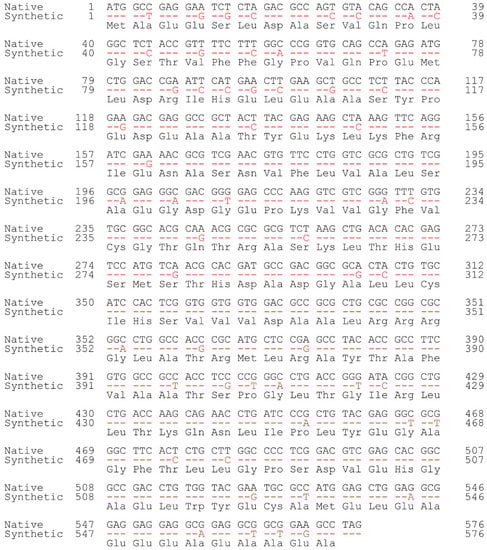

Figure 2. Nucleotide sequence alignments of native (black writing; AB474787) and synthetic CrAANAT (red writing) genes. Identity is denoted by red dashes. The nucleotide sequence of synthetic CrAANAT was codon-optimized with reference to rice SNAT2 (AK068156).
Figure 2. Nucleotide sequence alignments of native (black writing; AB474787) and synthetic CrAANAT (red writing) genes. Identity is denoted by red dashes. The nucleotide sequence of synthetic CrAANAT was codon-optimized with reference to rice SNAT2 (AK068156).
Antioxidants 11 01531 g002
Antioxidants 11 01531 g003 550

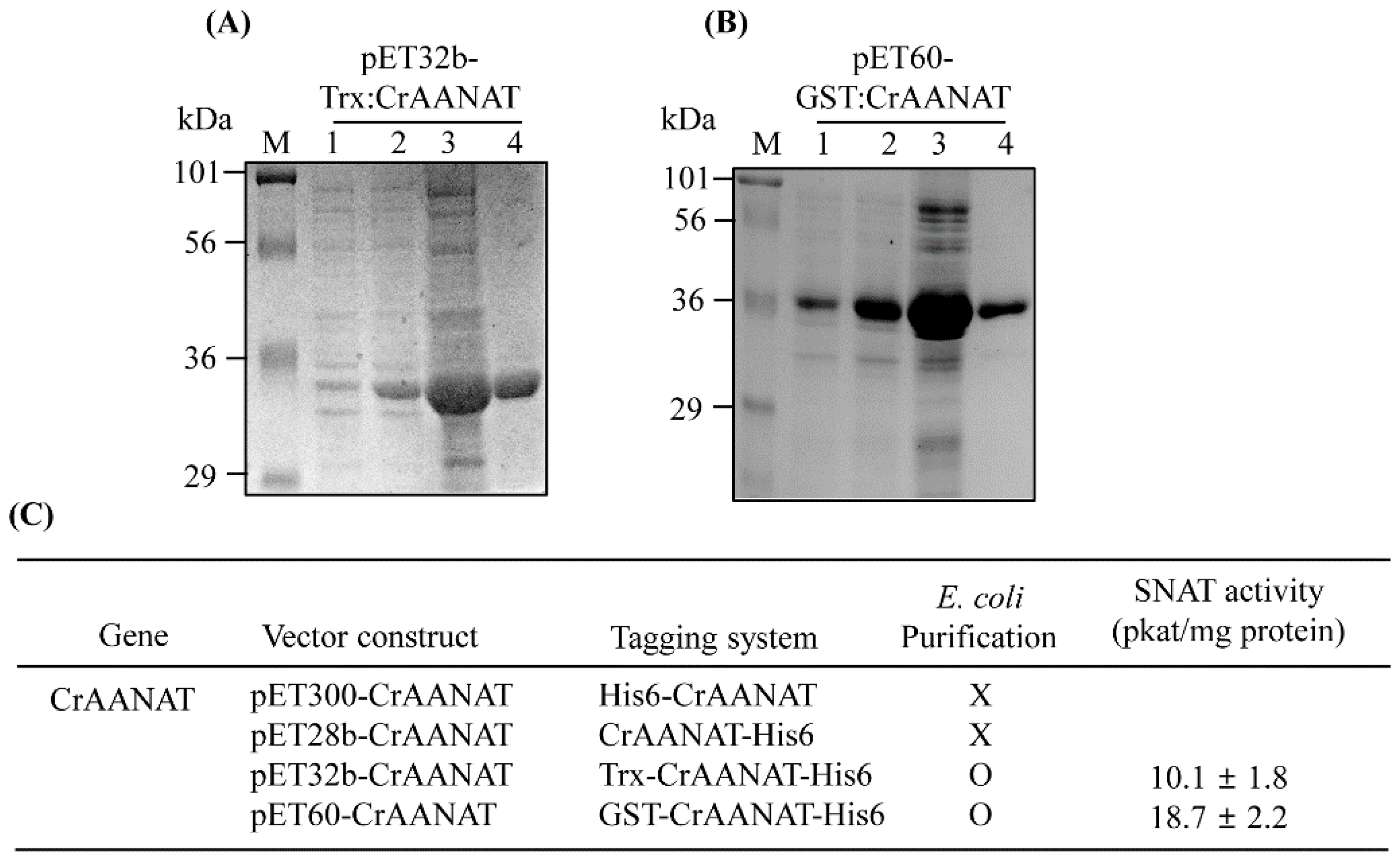

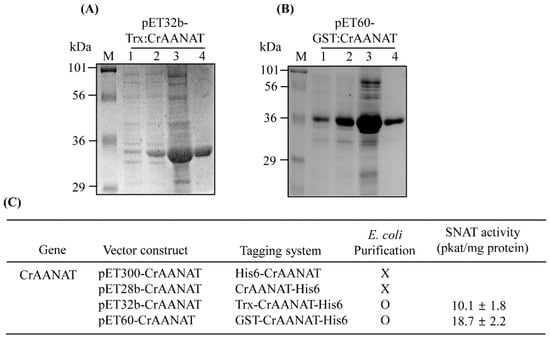

Figure 3. Expression of CrAANATs in Escherichia coli. (A) Affinity purification of thioredoxin (Trx)-CrAANAT. (B) Affinity purification of glutathione-s-transferase (GST)-CrAANAT. (C) SNAT activity of purified recombinant CrAANAT. Protein samples were separated by SDS-PAGE and stained with Coomassie brilliant blue. M, molecular size standard; 1, total proteins in 10 μL aliquots of bacterial cell culture without isopropyl β-D-thiogalactopyranoside (IPTG); 2, total proteins after IPTG treatment; 3, 20 μg of soluble protein extract from supernatant after centrifugation at 15,000× g; 4, recombinant proteins purified by affinity (Ni-NTA) chromatography. X, no purification; O, successful purification.
Figure 3. Expression of CrAANATs in Escherichia coli. (A) Affinity purification of thioredoxin (Trx)-CrAANAT. (B) Affinity purification of glutathione-s-transferase (GST)-CrAANAT. (C) SNAT activity of purified recombinant CrAANAT. Protein samples were separated by SDS-PAGE and stained with Coomassie brilliant blue. M, molecular size standard; 1, total proteins in 10 μL aliquots of bacterial cell culture without isopropyl β-D-thiogalactopyranoside (IPTG); 2, total proteins after IPTG treatment; 3, 20 μg of soluble protein extract from supernatant after centrifugation at 15,000× g; 4, recombinant proteins purified by affinity (Ni-NTA) chromatography. X, no purification; O, successful purification.
Antioxidants 11 01531 g003
Antioxidants 11 01531 g004 550

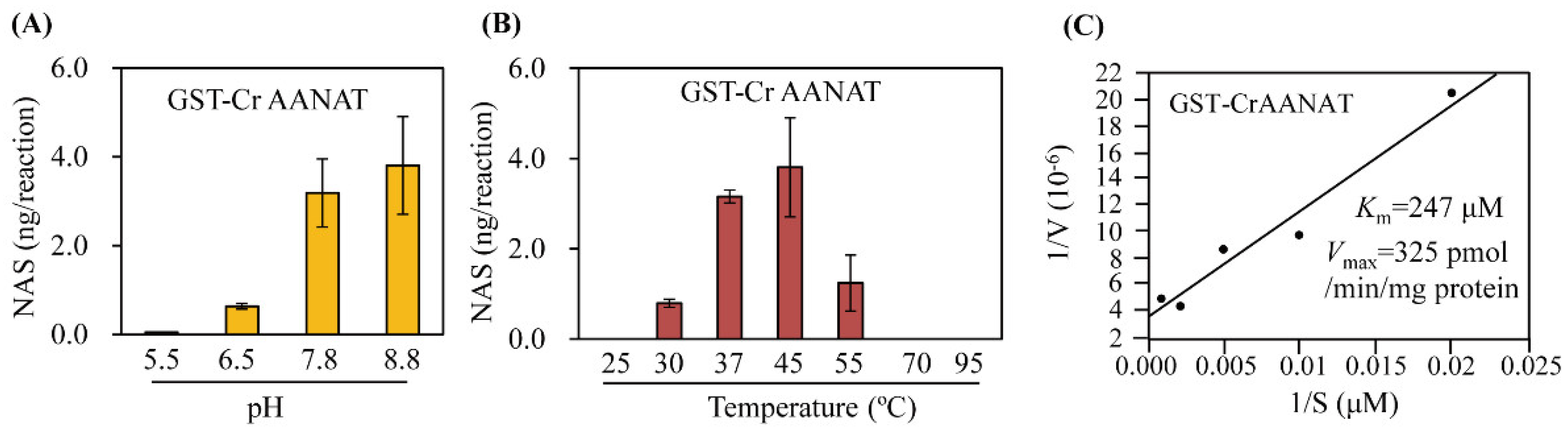

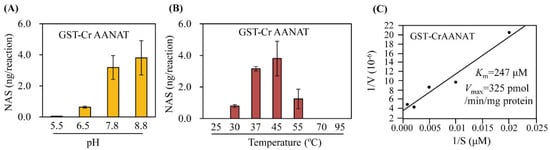

Figure 4. Conversion of serotonin to N-acetylserotonin as a function of (A) pH and (B) temperature. (C) Substrate affinity (Km) and maximum reaction rate (Vmax) values of CrAANAT. Purified recombinant GST-CrAANAT (1 μg) was incubated at a range of pH values and temperatures for 30 min. Km and Vmax values were determined using Lineweaver-Burk plots. N-Acetylserotonin, an in vitro enzymatic product, was quantified by high-performance liquid chromatography. The data are means ± standard deviation (n = 3).
Figure 4. Conversion of serotonin to N-acetylserotonin as a function of (A) pH and (B) temperature. (C) Substrate affinity (Km) and maximum reaction rate (Vmax) values of CrAANAT. Purified recombinant GST-CrAANAT (1 μg) was incubated at a range of pH values and temperatures for 30 min. Km and Vmax values were determined using Lineweaver-Burk plots. N-Acetylserotonin, an in vitro enzymatic product, was quantified by high-performance liquid chromatography. The data are means ± standard deviation (n = 3).
Antioxidants 11 01531 g004
Antioxidants 11 01531 g005 550
Figure 5. Localization of CrAANAT. (A) Red fluorescence of CrAANAT-mCherry. (B) Green fluorescence of cytoplasmic GFP. (C) Cyan fluorescence of chloroplasts. (D) Merged image (A + B + C). Leaves of 30-day-old tobacco (Nicotiana benthamiana) seedlings were infiltrated with Agrobacterium (GV2260) containing XVE-inducible CrAANAT-mCherry, or constitutive 35S:GFP (cytosolic marker). Bars, 20 μm. Synthetic CrAANAT was used in place of native CrAANAT (AB474787).
Figure 5. Localization of CrAANAT. (A) Red fluorescence of CrAANAT-mCherry. (B) Green fluorescence of cytoplasmic GFP. (C) Cyan fluorescence of chloroplasts. (D) Merged image (A + B + C). Leaves of 30-day-old tobacco (Nicotiana benthamiana) seedlings were infiltrated with Agrobacterium (GV2260) containing XVE-inducible CrAANAT-mCherry, or constitutive 35S:GFP (cytosolic marker). Bars, 20 μm. Synthetic CrAANAT was used in place of native CrAANAT (AB474787).
Antioxidants 11 01531 g005
Antioxidants 11 01531 g006 550

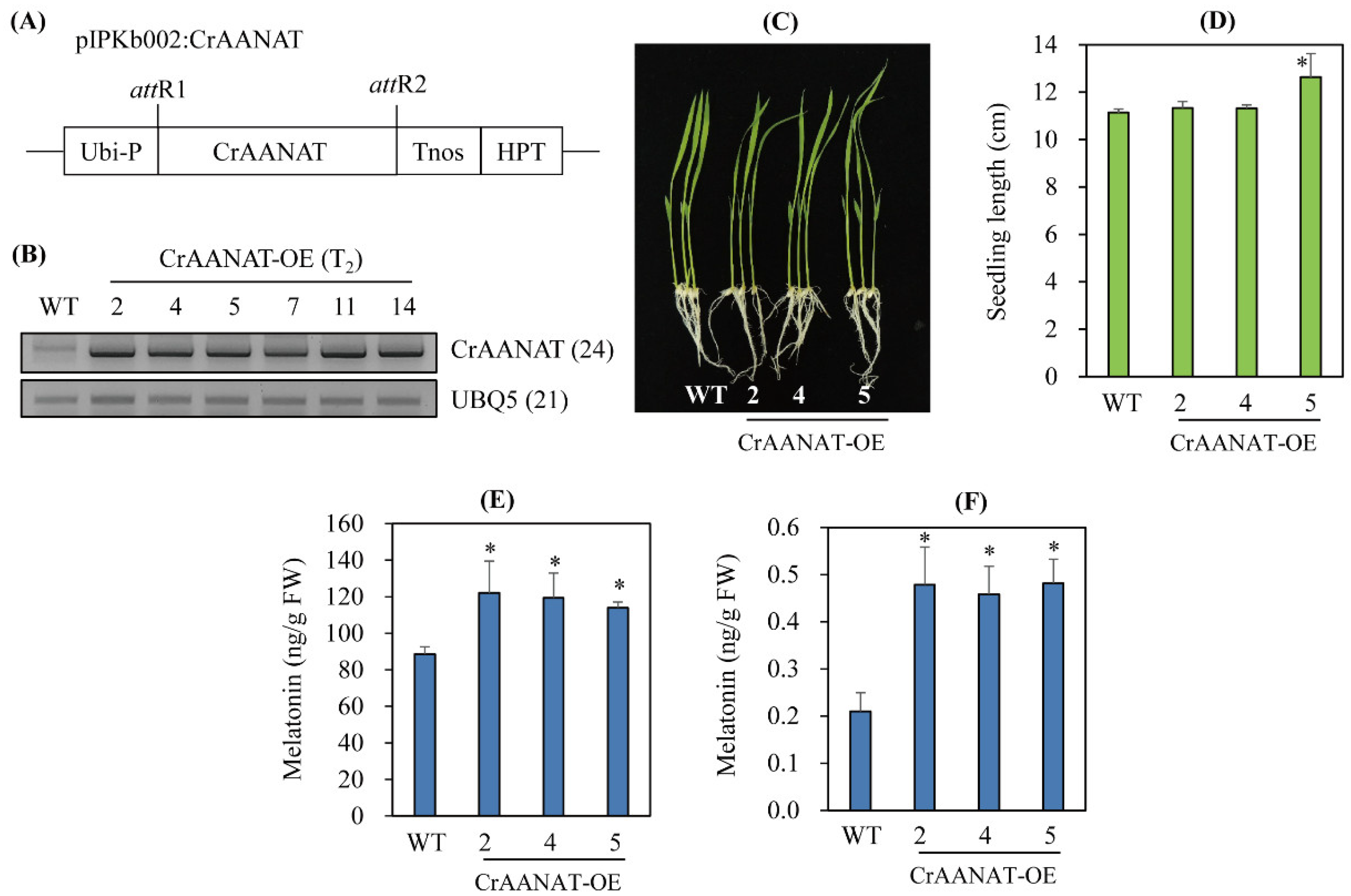

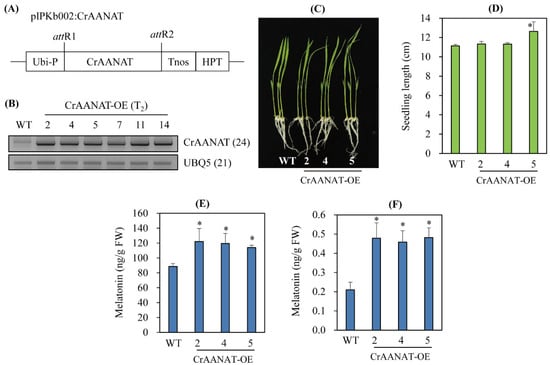

Figure 6. Structure of the pIPKb002-CrAANAT binary vector and its overexpression in transgenic rice plants. (A) Schematic diagram of the pIPKb002:CrAANAT binary vector. (B) Expression of CrAANAT in wild type (WT) and CrAANAT-overexpressing (CrAANAT-OE) seedlings (T2). (C) Phenotypes of 7-day-old rice seedlings of WT and CrAANAT-OE transgenic plants (T2). (D) Seedling lengths of WT and CrAANAT-OE plants. (E) Melatonin contents in 7-day-old rice seedlings after 100 μM 5-methoxytryptamine (5-MT) in 0.02% ethanol. (F) Melatonin contents in 7-day-old rice seedlings after 0.02% ethanol treatment. Seven-day-old rice seedlings were rhizospherically challenged with 100 μM 5-MT for 24 h in 0.02% ethanol. *, significant difference from wild type (p < 0.05; ANOVA, followed by Fisher’s LSD test). The numbers of PCR cycles are shown in parentheses. Synthetic CrAANAT was overexpressed in the rice genome. Ubi-P, maize ubiquitin promoter; HPT, hygromycin phosphotransferase; Tnos, nopaline synthase terminator. GenBank accession number of UBQ5, Os03g13170.
Figure 6. Structure of the pIPKb002-CrAANAT binary vector and its overexpression in transgenic rice plants. (A) Schematic diagram of the pIPKb002:CrAANAT binary vector. (B) Expression of CrAANAT in wild type (WT) and CrAANAT-overexpressing (CrAANAT-OE) seedlings (T2). (C) Phenotypes of 7-day-old rice seedlings of WT and CrAANAT-OE transgenic plants (T2). (D) Seedling lengths of WT and CrAANAT-OE plants. (E) Melatonin contents in 7-day-old rice seedlings after 100 μM 5-methoxytryptamine (5-MT) in 0.02% ethanol. (F) Melatonin contents in 7-day-old rice seedlings after 0.02% ethanol treatment. Seven-day-old rice seedlings were rhizospherically challenged with 100 μM 5-MT for 24 h in 0.02% ethanol. *, significant difference from wild type (p < 0.05; ANOVA, followed by Fisher’s LSD test). The numbers of PCR cycles are shown in parentheses. Synthetic CrAANAT was overexpressed in the rice genome. Ubi-P, maize ubiquitin promoter; HPT, hygromycin phosphotransferase; Tnos, nopaline synthase terminator. GenBank accession number of UBQ5, Os03g13170.
Antioxidants 11 01531 g006
Antioxidants 11 01531 g007 550

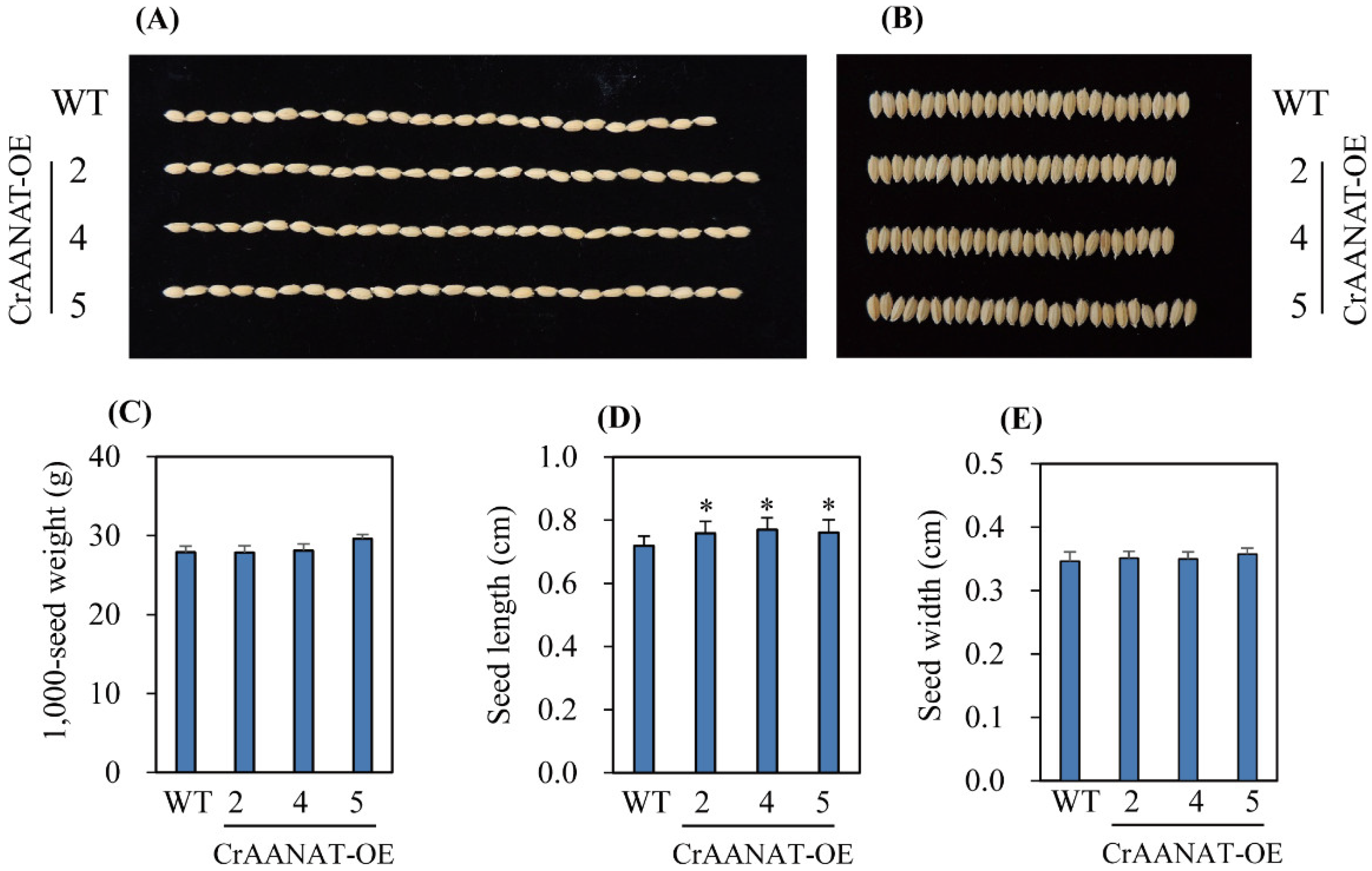

Figure 7. Morphology of T2 homozygous transgenic CrAANAT-OE seeds. (A) Photograph of WT and CrAANAT-OE seeds (T2). (B) Photograph of WT and CrAANAT-OE seeds (T2). (C) The weight of 1000 seeds of WT and CrAANAT-OE transgenic rice (T2). (D) Seed length. (E) Seed width. * Significant difference from wild type (p < 0.05; Fisher’s LSD test).
Figure 7. Morphology of T2 homozygous transgenic CrAANAT-OE seeds. (A) Photograph of WT and CrAANAT-OE seeds (T2). (B) Photograph of WT and CrAANAT-OE seeds (T2). (C) The weight of 1000 seeds of WT and CrAANAT-OE transgenic rice (T2). (D) Seed length. (E) Seed width. * Significant difference from wild type (p < 0.05; Fisher’s LSD test).
Antioxidants 11 01531 g007
Antioxidants 11 01531 g008 550

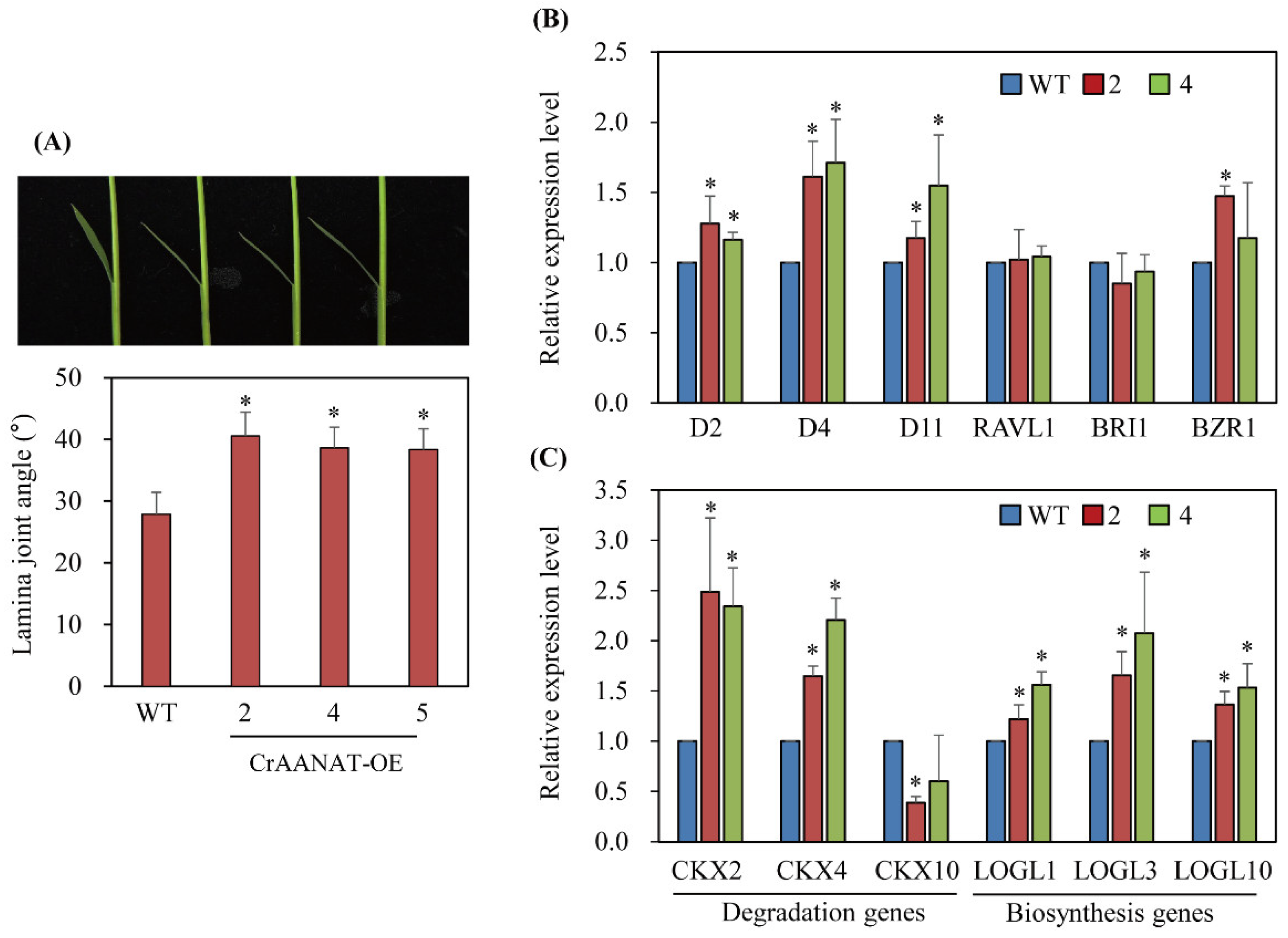

Figure 8. Second-leaf angle and cytokinin and brassinosteroid (BR) biosynthesis-related gene expression. (A) Second-leaf angle. (B) Quantitative real-time (qRT)-PCR of BR biosynthesis- and signaling-related genes. (C) qRT-PCR of cytokinin biosynthesis- and degradation-related genes. Fourteen-day-old rice seedlings grown in soil were used to measure the lamina angle of the second leaf; meristem parts of rice seedlings, including second leaves, were subjected to total RNA extraction and qRT-PCR. GenBank accession numbers are CKX2, cytokinin oxidase2 (Os01g0197700); CKX4 (Os01g0940000); CKX10 (Os06g0572300); LOGL1, LONELY GUY LIKE phosphoribohydrolase1 (Os01g0708500); LOGL3 (Os03g0109300); LOGL10 (Os10g0479500); D2, DWARF2 (XP-015611433); D4, DWARF4 (AB206579); D11, DWARF11 (AK106528); RAVL1, RAV Like1 (Os04g0581400); BRI1 (AK101085); BZR1 (Os07g39220); ACT1 (Os03g50885). * Significant difference from wild type (p < 0.05; Fisher’s LSD test).
Figure 8. Second-leaf angle and cytokinin and brassinosteroid (BR) biosynthesis-related gene expression. (A) Second-leaf angle. (B) Quantitative real-time (qRT)-PCR of BR biosynthesis- and signaling-related genes. (C) qRT-PCR of cytokinin biosynthesis- and degradation-related genes. Fourteen-day-old rice seedlings grown in soil were used to measure the lamina angle of the second leaf; meristem parts of rice seedlings, including second leaves, were subjected to total RNA extraction and qRT-PCR. GenBank accession numbers are CKX2, cytokinin oxidase2 (Os01g0197700); CKX4 (Os01g0940000); CKX10 (Os06g0572300); LOGL1, LONELY GUY LIKE phosphoribohydrolase1 (Os01g0708500); LOGL3 (Os03g0109300); LOGL10 (Os10g0479500); D2, DWARF2 (XP-015611433); D4, DWARF4 (AB206579); D11, DWARF11 (AK106528); RAVL1, RAV Like1 (Os04g0581400); BRI1 (AK101085); BZR1 (Os07g39220); ACT1 (Os03g50885). * Significant difference from wild type (p < 0.05; Fisher’s LSD test).
Antioxidants 11 01531 g008
Antioxidants 11 01531 g009 550

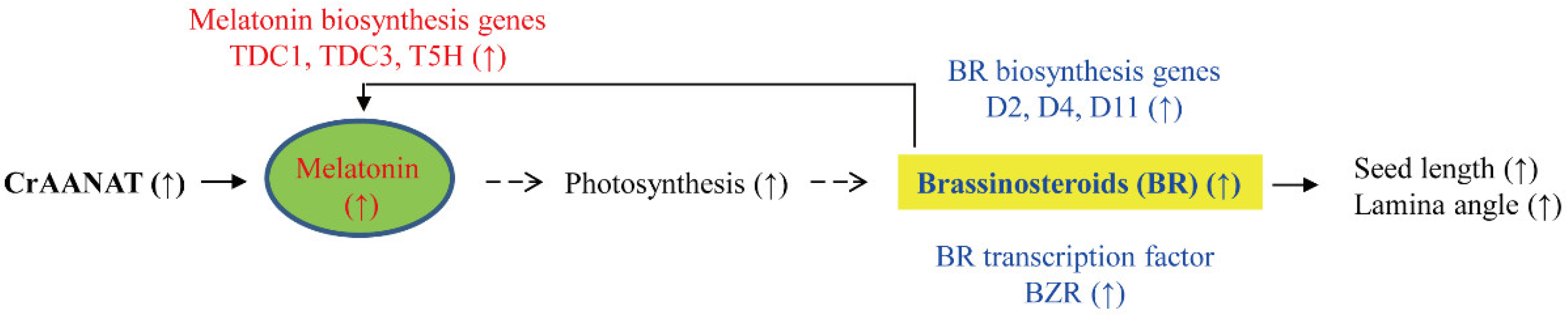

Figure 9. Proposed model for the melatonin-mediated increase in seed length. The increase in melatonin synthesis caused by ectopic overexpression of CrAANAT leads to an increased seed length and leaf angle, key phenotypic markers of increased BR levels in rice. A number of BR biosynthesis- and signaling-related genes were upregulated in the CrAANAT-overexpressing rice plants. These data suggest that melatonin is positively associated with BR levels in rice plants. The melatonin-induced BR increase is an indirect effect on photosynthesis—melatonin is positively coupled to starch synthesis and photosynthesis, which affect BR biosynthesis [57]. BR triggers melatonin biosynthesis by inducing the expression of melatonin biosynthesis genes such as tryptophan decarboxylase 1 (TDC1), TDC3, and tryptamine 5-hydroxylase (T5H) [64]. Solid arrows, confirmed functions; dashed arrows, steps not yet demonstrated in rice. ↑, upregulation.
Figure 9. Proposed model for the melatonin-mediated increase in seed length. The increase in melatonin synthesis caused by ectopic overexpression of CrAANAT leads to an increased seed length and leaf angle, key phenotypic markers of increased BR levels in rice. A number of BR biosynthesis- and signaling-related genes were upregulated in the CrAANAT-overexpressing rice plants. These data suggest that melatonin is positively associated with BR levels in rice plants. The melatonin-induced BR increase is an indirect effect on photosynthesis—melatonin is positively coupled to starch synthesis and photosynthesis, which affect BR biosynthesis [57]. BR triggers melatonin biosynthesis by inducing the expression of melatonin biosynthesis genes such as tryptophan decarboxylase 1 (TDC1), TDC3, and tryptamine 5-hydroxylase (T5H) [64]. Solid arrows, confirmed functions; dashed arrows, steps not yet demonstrated in rice. ↑, upregulation.
Antioxidants 11 01531 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hwang, O.-J.; Back, K. Functional Characterization of Arylalkylamine N-Acetyltransferase, a Pivotal Gene in Antioxidant Melatonin Biosynthesis from Chlamydomonas reinhardtii. Antioxidants 2022, 11, 1531. https://doi.org/10.3390/antiox11081531

AMA Style

Hwang O-J, Back K. Functional Characterization of Arylalkylamine N-Acetyltransferase, a Pivotal Gene in Antioxidant Melatonin Biosynthesis from Chlamydomonas reinhardtii. Antioxidants. 2022; 11(8):1531. https://doi.org/10.3390/antiox11081531

Chicago/Turabian Style

Hwang, Ok-Jin, and Kyoungwhan Back. 2022. "Functional Characterization of Arylalkylamine N-Acetyltransferase, a Pivotal Gene in Antioxidant Melatonin Biosynthesis from Chlamydomonas reinhardtii" Antioxidants 11, no. 8: 1531. https://doi.org/10.3390/antiox11081531

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
