Occupational Exposure to Metal-Based Nanomaterials: A Possible Relationship between Chemical Composition and Oxidative Stress Biomarkers
by
, , , , , and
Valeria Bellisario
1,†,
Giacomo Garzaro
1,†,
Giulia Squillacioti
1,
Marco Panizzolo
1,
Federica Ghelli
1,
Giuseppe Mariella
1,
Roberto Bono
1,*,
Irina Guseva Canu
2,‡ and
Enrico Bergamaschi
1,‡ 1
Department of Public Health and Pediatrics, University of Turin, 10126 Turin, Italy
2
Department of Occupational and Environmental Health, Center for Primary Care and Public Health (Unisanté), University of Lausanne, 1010 Lausanne, Switzerland
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work and share first authorship.
‡
These authors contributed equally to this work and share senior authorship.
Antioxidants 2024, 13(6), 676; https://doi.org/10.3390/antiox13060676
Submission received: 24 April 2024
/
Revised: 28 May 2024
/
Accepted: 29 May 2024
/
Published: 31 May 2024
(This article belongs to the Special Issue Oxidative Stress Induced by Air Pollution)
Abstract
:Nanomaterials (NMs) are in high demand for a wide range of practical applications; however, comprehensively understanding the toxicity of these materials is a complex challenge, due to the limited availability of epidemiological evidence on the human health effects arising from workplace exposures. The aim of this work is to assess whether and how urinary metal concentrations could be reliable and useful in NM biomonitoring. In the framework of “NanoExplore Project” [EU LIFE17 Grant ENV/GR/000285], 43 not-exposed subjects and 40 exposed workers were recruited to measure exposure to NMs (PCN and LDSA) in the proximity of the workstations and biological biomarkers (urinary metal concentrations—Aluminum (Al), Silica (Si), Titanium (Ti), and Chromium (Cr); urinary OS biomarkers—TAP, Isop, and MDA). The results showed that Si and Ti were directly associated with NM exposure (both PCN and LDSA), as well as with OS biomarkers, especially in exposed workers. Moreover, the mediation analyses showed that Si could account for about 2.8% in the relationship between LDSA and OS biomarkers, possibly by decreasing OS antioxidant defenses in exposed people. In conclusion, our study provides evidence that occupational exposure to mixtures containing NMs can represent an underestimated hazard for exposed people, increasing the body burden and the oxidative balance.
1. Introduction
Nanomaterials (NMs) have emerged as an exciting class of materials that are in high demand for a wide range of practical applications, with an approximate annual production volume of NMs reaching 60,000 tons [1,2,3]. As an excellent example of emerging nanotechnology, NMs currently show great potential and improved performances [4] in scratch-free paints, surface coatings, electronics, cosmetics, environmental remediation, sports equipment, sensors, and energy storage devices [5]. According to the European Commission, a nanomaterial is a natural, incidental, or manufactured material consisting of solid particles characterized by at least (a) one or more external dimensions in the size range of 1 nm–100 nm; (b) an elongated shape, such as a rod, fiber, or tube, where two external dimensions are smaller than 1 nm and the other dimension is larger than 100 nm; and (c) a plate-like shape, where one external dimension is smaller than 1 nm and the other dimensions are larger than 100 nm [6]. Carbon, metal, metal oxides, or organic substances are special classes of NMs, and the release of nanoparticles originating from the handling of micron-sized materials may be substantial in some occupational scenarios [7,8].
While the number of NM types and applications continues to increase, the knowledge on the health effects of nanoparticles exposure is still limited, even if the number of efforts aimed at determining the health risks associated with NM exposure continues to grow. As these nanoparticles are intentionally engineered to interact with cells, it is fundamental to ensure that these enhancements are not causing any adverse effects, undergoing biodegradation, or causing damage in the cellular environment [9]. For example, biodegraded nanoparticles may accumulate within cells and lead to intracellular changes, such as disruption of organelle integrity or gene alterations [10]. In vitro studies, using different cell lines and protocols, of chemically different nanoparticles have revealed a potential hazard; however, these surrogate models could only estimate what could occur after the interactions with biological systems. Moreover, these studies include a wide range of nanoparticle concentrations, making it difficult to determine whether the toxicity endpoints are relevant for human beings [11]. While in vitro nanoparticle applications allow less stringent toxicological characterization, in vivo studies of NMs require thorough understanding of the kinetics and toxicology of the particles. Although the toxicology of metals is a mature science, many interactions of metal nanoparticles with biological systems are still controversial.
Metal NMs interact with complex biological systems, such as the human body, and many epidemiological studies [8,12,13,14,15] have addressed the general role of these nanoparticles in neurodegeneration, neurotoxicity, and oxidative imbalance, as well as lung injury [16,17]. In particular, some works [17,18,19] suggest that Al could have some redox capacity and could be linked to oxidative damage, reacting with H2O2, producing Al superoxide radicals (AlO2•−), and promoting the generation of ROS. Owing to its high reactivity, Al is primarily found forming insoluble oxides, whose toxicity seems to be related to the displacement of other biological cations (Ca II, Fe II, or Mg Ife). Silica and Titanium may impair antioxidant/oxidant status and activate the immune system, which is indicative of inflammatory responses, but the mechanisms are not clearly understood [20,21,22]. Chromium (Cr III and IV) [23] could induce DNA damage, as MN or aberrations, instead of oxidative stress imbalance and inflammation.
Therefore, fully understanding the toxicity of these materials is a complex task, especially because there has been limited occupational epidemiologic evidence of human health effects from workplace exposures to NMs [24]. Possible adverse health effects can result from additional sources of metal NMs, thus increasing their body burden. This can occur especially in occupational settings, where the mass of airborne particles, instead of more appropriate metrics, such as the particle number concentration, is still considered [7,25].
In this context, we aimed to assess whether and how urinary metal concentrations, particularly Aluminum (Al), Titanium (Ti), Chromium (Cr), and Silica (Si), a metalloid, could be reliable biomarkers of exposure for NM biomonitoring. Moreover, we aimed to assess whether urinary metals are associated with oxidative stress biomarkers with a mediation and trigger role. Finally, this work assessed whether NM exposure can affect oxidative stress imbalance, in the perspectives of improving surveillance protocols and preventive strategies correlated.
2. Materials and Methods
2.1. Study Sample and Exposure to ENMs
This work is based on sampling and data gathered in the framework of the multicenter prospective cohort study “NanoExplore Project” [EU LIFE17 Grant ENV/GR/000285] [25], which aimed to investigate the association between occupational exposure to NMs and different biomarkers in workers within the European Union and Switzerland. In this work, within this main and general aim, we assessed the association between nanoparticle exposure and some urinary metals and a metalloid excreted with urine, namely Aluminum (Al), Titanium (Ti), and Chromium (Cr) and Silica (Si).
The companies were enrolled in each country based on confirmed prior knowledge of their activities related to the handling of NMs. A preliminary visit was conducted in each of the enrolled companies by the company’s environmental health and safety manager and an occupational hygienist associated with the NanoExplore study. Workers who had been previously identified as potentially exposed were invited to participate in the study. We analyzed 40 workers recruited in 4 industrial plants handling mixtures of materials containing a fraction of sub-micrometric and nanosized metal oxides (e.g., Alumina—Al2O3, Titanium dioxide—TiO2, Chromium ores, Siliceous sands—SiO2) for the production of paints, coatings, or construction chemicals. Furthermore, 43 people not exposed to chemicals and dusts were enrolled as a control group. All the subjects provided written informed consent to participate. The harmonized protocol, the cohort characteristics, the recruitment procedure, the study design, and the preliminary results have been reported elsewhere [25,26,27].
Exposure to airborne nanoparticles was measured by portable nanoparticle counters “DiSCminiTM” (Testo, Mönchaltorf, Switzerland) placed in the proximity of the workstations for two up to four consecutive working days, as already described [25,26]. The DiSCmini allowed measurements to be obtained based on two different metrics: (1) the particle number concentration (PCN, expressed as number of particles/cm3) and (2) the lung-deposited surface area (LDSA, expressed as µm2/cm3). Exposure was defined a priori according to the working tasks, and data provided by the DiSCmini measurements were used as independent variables.
2.2. Biological Sampling and Biomarkers
Biological samples were collected twice, the first on the first day of the campaign week, before the shift, and the second on the fourth day, after the shift [25]. Spot urine samples were collected in the morning before the beginning of shift and were immediately aliquoted and frozen at −20 °C until analysis. Two types of biomarkers were measured in the urine samples: (1) urinary metal concentrations (Aluminum (Al), Titanium (Ti), and Chromium (Cr)), and a metalloid (Silica (Si)) and (2) urinary OS biomarkers (Isoprostane (Isop), Malondialdehyde (MDA), and Total Antioxidant Power (TAP)). The technical information on the analytical methods adopted are reported in the Supplementary Materials (Table S1). The urinary metal concentrations were determined by inductively coupled plasma mass spectrometry (ICP-MS). In accordance with the manufacturer’s instructions, the OS biomarkers were analyzed as follows: IsoP concentrations using a competitive enzyme-linked immunoassay (EA85, Oxford, MI, USA); MDA concentrations (Thiobarbituric Acid Reactive Substances assay FR40 Oxford, MI, USA) and TAP concentrations using a colorimetric assay kit (Cupric ion reducing antioxidant capacity assay TA02, Oxford, MI, USA), respectively. In addition, the urinary creatinine concentration was measured, using the kinetic Jaffé technique, to normalize the concentration of urinary biomarkers according to urinary volume (µg/mg of creatinine). Only TAP was chosen for the analysis here, mainly because this biomarker has previously resulted in being the most sensitive urinary biomarker of OS [25].
2.3. Statistical Analysis
The statistical approach has been deeply described in a previous work [25]. In the above analysis, each urinary metal biomarker was considered as independent of the other biomarkers. A directed acyclic graph (DAG) was again performed using Dagitty (TM), to better identify the potential confounders in the association between NM exposure, urinary metal concentrations, and OS biomarkers and, also, to identify the set of variables that should be included in the advanced models. As shown in Figure 1, these variables were working age, sex, smoking and alcohol habits, and the body mass index (BMI).
For this specific work, we decided to maintain the original exposure classification of the workers, thus analyzing only the high exposures vs. the control group, excluding the low-exposure subjects from the analysis. The descriptive general analyses were reported elsewhere [25], but for the foreplay and descriptive analyses referred to in this work, the distributions of quantitative variables were summarized with means ± SD, medians, and minimum and maximum values, while categorical variables were presented as number and percentage. As the statistical distribution of some quantitative parameters was found to be non-Gaussian (Kolmogorov–Smirnov test), non-parametric tests were used to assess between-group differences (Mann–Whitney U test). A two-sided p-value < 0.05 was considered to indicate statistical significance. Finally, associations among the exposure variables were evaluated using Pearson’s r coefficients.
The direct association between the urinary elements (Al, Si, Ti, and Cr), as the dependent variables, and the NM exposure metrics (PCN and LDSA), as the independent variables, was analyzed using a multilevel mixed-effects model, using log10-transformed variables. All the models considered urinary parameters as a single entity and were controlled for different potential confounders. The results were reported as relative risks (RR) with 95% confidence intervals (CIs). All the analyses were carried out using the STATA 16.1 software (StataCorp LLC: College Station, TX, USA).
Finally, the role of urinary metals as effect modifiers when assessing the association between urinary metals and OS biomarkers, represented by TAP concentrations, was explored using the medmod package (for Jamovi 2.3.28 and Rstudio 3.6 softwares), which showed the mediation estimates, as a percentage, and the individual path estimates with 95% confidence intervals (CIs).
3. Results
In this work, the main outcome was fixed by the analysis of the possible associations between NM exposure, represented by PCN and LDSA measurements, and some urinary biomarkers of exposure, i.e., urinary metal concentrations, and early biological effects, such as TAP concentrations. Table 1 summarizes the main characteristics of the sample extracted from the cohort described previously [25].
Non-parametric correlation analyses were performed between the exposure data, urinary concentrations of nanosized metals, and OS biomarkers. TAP was associated with Silica (p = 0.03), Titanium (p < 0.001), Chromium (p = 0.004), PCN (p < 0.001), and LDSA (p < 0.001). Conversely, no associations were found with the other OS biomarkers (Isop and MDA).
All the models’ results were presented (1) first in the whole sample and then (2) as stratified by exposure pattern (exposed vs. not-exposed subjects). Since the correlations did not show significant associations between the metals, the metals were analyzed one by one. We adopted mixed multilevel regression models with ID and center as random variables, and each model was adjusted according to the subjects’ personal characteristics (BMI, smoking, health score, alcohol consumption, gender), working characteristics (exposure YES/NO, employment duration, use of PPE) and the quantitative variables measured (PCN, LDSA, urinary OS biomarkers). The results were summarized according to the type of exposure metrics (PCN and LDSA), and the significant relative risk with 95% confidence intervals (CIs) was reported.
3.1. Exposure
Table 2 and Figure 2 summarize the results of the models of urinary metal and NM exposure (PCN and LDSA). The Silica and Titanium urinary concentrations increased directly and were associated with increased PCN levels (Table 2, part A; coefficient = 4.7, p = 0.05, 95% C.I. 0.08/4.5; coefficient = 15.5, p = 0.02, 95% C.I. 2.2/23.2, respectively) in the whole-sample model. Interestingly, in the models stratified by exposure, the same associations were confirmed, albeit only in the exposed subjects and only for Silica and Titanium (Table 2, part B; coefficient = 14.5, p = 0.03, 95% C.I. 1.1/29.03; coefficient = 9.3 p = 0.04, 95% C.I. 3.6/12.2, respectively). Silica and Titanium (Figure 2) were directly associated with LDSA in the whole-sample model (Table 2, part C; coefficient = 4.5, p = 0.04, 95% C.I. 0.6/16.7; coefficient = 11.4, p = 0.03, 95% C.I. 1.1/16.2, respectively). The same associations were confirmed in the models stratified by exposure (Figure 2), but only in the exposed subjects and only for Silica and Titanium (Table 2, part D; coefficient = 5, p = 0.04, 95% C.I. 0.8/8.8; coefficient = 2.5, p = 0.02, 95% C.I. 0.5/4.2, respectively).
3.2. Oxidative Stress
We assessed whether urinary elements were associated with OS biomarkers, and with TAP in particular; these were the only biomarkers that showed significant associations in previous studies [7,25,27].
Owing to the small size and the heterogeneity of the sample under study, the models were performed only in the whole sample (Figure 3). The models showed a significant decrease in TAP concentration with increasing urinary Silica and Titanium concentrations (coefficient = −0.7, p = 0.01, 95% C.I. −0.02/−0.002; coefficient = −0–008, p = 0.04, 95% C.I. −0.05/−0.0001, respectively).
3.3. Mediation Analysis
On the basis of the previous findings, we assessed whether metallic elements were associated with redox imbalance. Thus, we ran a raw mediation analysis between the exposure metrics (PCN and LDSA) and TAP to investigate the possible mediating role of urinary Silica and Titanium, as a proxy of NM exposure.
3.3.1. Silica Mediation Analysis of Particle Metrics towards TAP
This mediation analysis was conducted to examine the mediating effect of Silica on the relationship between PCN and TAP (Table 3-part A). The total effect of the model was statistically significant (b = −4.5, z = −6.5, 95% C.I. −5.9/−3.2, p < 0.001). It was also found that there was a statistically significant direct effect of PCN on TAP (b = −4.8, z = −6.9, 95% C.I. −6.7/−3.5, p < 0.001) and a slight mediated indirect effect (b = −0.26, z = −1.5, 95% C.I. −0.7/0.05, p = 0.04). These results suggest that Si could account for about 1.1% of the relationship between PCN and TAP, affecting OS antioxidant defenses.
The same model was applied to examine the mediating effect of Silica between LDSA and TAP (Table 3-part B). The total effect of the model was statistically significant (b = −6.6, z = −7.02, 95% C.I. −8.4/−4.7], p < 0.001). The direct effect of LDSA on TAP (b = −7.1, z = −7.7, 95% C.I. −8.9/−5.3], p < 0.001) and the mediated indirect effect of Si were also statistically significant (b = 0.14, z = 1.9, 95% C.I. 0.04/1.03, p = 0.05). These results suggest that Silica could account for about 2.8% in the relationship between LDSA and TAP, possibly by decreasing OS antioxidant defenses.
3.3.2. Titanium Mediation Analysis towards PCN–TAP Relationship
When assessing Titanium’s mediating effect on the relationship between PCN and TAP (Table 3-part C), the total effect and the direct effect of the model were found to be statistically significant, (total: b = −4.6, z = −6.5, 95% C.I. −5.9/−3.2, p < 0.001; direct (b = −4.5, z = −6.4, 95% C.I. −5.8/−3.1, p < 0.001, respectively). The mediating indirect effect resulted in being not statistically significant (b = −0.1, z = −1.04, 95% C.I. −0.3/0.09, p = 0.3). These results suggest that Ti did not contribute to the relationship between PCN and TAP.
Finally, Ti showed a statistically significant mediating effect (Table 3-part D), for both total and direct effects, on the relationship between LDSA and TAP (total: b = −6.6, z = −7.02, 95% C.I. −8.4/−4.8, p < 0.001; direct: b = −6.4, z = −6.9, 95% C.I. −8.3/−4.6, p < 0.001). However, the mediating indirect effect resulted in being not significant (b = −0.1, z = −1.06, 95% C.I. −0.4/0.1, p = 0.3). These results suggest that Titanium did not affect the relationship between LDSA and TAP.
4. Discussion
The present study assessed whether the urinary concentration of metals (Al, Ti and Cr) and a metalloid (Si) released from NMs could be reliably used in the biomonitoring of exposure to NMs. The results showed that exposed workers had higher metal urinary concentrations than the not-exposed group, especially for Ti and Si. In addition, these metals, particularly Si, mediated the relationship between NM exposure and the OS biomarkers.
Although exposure assessment for NMs has dramatically improved in recent years, relying on innovative approaches that allow the sampling in the breathing zone of workers and the translation of the aerosol characteristics into relevant metrics [28], there is still the need to assess both the internal dose and the possible effects on the target organ [8,26]. There is a general consensus regarding the likelihood that particles between 0.1 and 1.0 μm in diameter reach the lower respiratory tract, but their deposition is low compared with particles with lower and higher aerodynamic diameter due to symmetric human lung morphology [29,30]. However, the available biokinetic data suggest that the translocation rates of nanoparticles from the portal of entry—the respiratory tract—to secondary organs, is size- and charge-dependent, but the number of particles reaching the systemic circulation is actually very low [30,31]). The demonstration of the translocation of NMs from the lungs into systemic circulation is theoretically possible for metallic nanoparticles, which release metal ions or dissolve in biological media. Similarly, metallic elements are measurable in blood and urine with appropriate analytical methods, giving an estimate of current or past exposure. As a result, excretion via the kidney is also presumed to be of a low quantity, although it is possible. This limited amount can be related to the absorption of the chemical constituents of nanomaterials in the body, thus supporting the usefulness of their urinary excretion as exposure biomarkers of nanomaterials [8].
Even there is few literatures describing, the in vivo and in vitro studies confirmed that urinary metals could be useful in the working and professional exposure context. In fact, urinary metal concentrations could be a possible product of the metabolism related to NM working exposure. In addition, generally, urinary metal concentrations could be related to redox oxidative stress imbalance, resulting from their high surface-to-volume ratio and from surface characteristics such as defects of crystal structure, surface atoms with free valence electrons, and adsorbed redox-active metal ions [32,33,34].
Our results confirmed that urinary metal concentrations can be reliable biomarkers of exposure and can correctly reflect NM levels of exposure. In fact, we found that urinary metal concentrations are higher in the high-exposure subjects, and this is even more true for Si and Ti concentrations. Mediation analysis between the exposure metrics (PCN and LDSA) and TAP, carried out for urinary Si and Ti, revealed a mild, albeit significant, contribution of Si (from SiO2) and Ti (from TiO2) in the relationships between one of the exposure metrics (LDSA) and the decline in the antioxidant defense pool.
This finding seems consistent with one of the main mechanisms by which nanoparticles induce adverse health effects., i.e., the generation of ROS and oxidative stress [15]. In our study, the only statistically significant finding concerning OS was the lower values of the urinary TAP in exposed workers. TAP reflects the cumulative effects of all the antioxidants from various endogenous anti-oxidative defense systems; thus, it limits the noxious effects caused by OS. However, it is also likely that the extent of the exposure of workers did not reach levels inducing overt oxidative changes. The absence of an increase in OS biomarkers in EBC [25] and the negative TAP relationship in urine have suggested that efficient antioxidant defense mechanisms could have counterbalanced the noxious effects of metal oxides, leading to the maintenance of the redox balance in exposed workers [8,25].
The relevance of oxidative markers due to exposure to particles and fibers and especially nanomaterials has been recently reviewed [34,35]. In addition, in some cases, ions released from nanoparticles such as silver, gold, and iron can be measured in urine and in blood [7]. Biomarkers of OS and inflammation have been shown to have an association with the biopersistence of particles and fibers, resulting in frustrated phagocytosis and oxidative cellular stress, especially in the lungs [25,26,35].
Regarding the limitations of this study, the most important is linked to the exposure assessment strategy adopted. As already reported in previous studies [25,26], airborne nanoparticle concentrations were measured with a stationary device (DiSCmini), without personal exposure devices, likely underestimating exposure by inhalation.
5. Conclusions
Our study provides evidence that occupational exposure to air mixtures containing NMs composed of metal oxides and other dusts can increase the body burden of these foreign chemicals.
Metals released by NMs can represent an underestimated hazard for people handling technological products, increasing their body burden and potentially affecting physiological functions, e.g., the redox balance within the body. Although the health significance of such findings needs to be further elucidated, the assessment of metals in the urine of nanotechnology workers may represent a tool for estimating the body burden following long-term exposure. As a whole, a combination of biomarkers of exposure and oxidative stress can suggest early health effects, indicating the need to carry out longitudinal studies on nanotechnology workers and predictable analytical techniques, in the highest perspectives of primary prevention and health promotion.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antiox13060676/s1, Table S1: Technical information.
Author Contributions
Conceptualization, V.B., G.G., G.S., R.B., I.G.C., and E.B.; methodology, V.B., G.G., G.S., G.M., R.B., I.G.C., and E.B.; validation V.B., G.G., G.S., M.P., and F.G.; formal analysis and data curation V.B., G.G., and G.S.; writing—original draft preparation, V.B., G.G., G.S., and E.B.; writing—review and editing, M.P., F.G., G.M., R.B., and I.G.C. supervision, R.B., I.G.C., and E.B. All authors have read and agreed to the published version of the manuscript.
Funding
This work is supported by the European Commission LIFE program [Grant LIFE17 ENV/GR/000285].
Institutional Review Board Statement
Approvals have been obtained from the local Ethics Committees: The Swiss ethics in Switzerland (approval 2020-01098); the Bioethical Committee of the University of Torino in Italy (approval 336577 8.08.2020); and the Health and Safety Board of the Catalan Institute of Nanoscience and Nanotechnology, in Spain (approval ICN2-22-03-2022).
Informed Consent Statement
Written informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The data that were used are confidential.
Acknowledgments
We acknowledge all members of NanoExplore consortium.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Maynard, A.D.; Wilson, W.; Hamilton, L.H.; Billington, J.H.; Cartwright, C.; Cook, R.; Garcia, D.E.; Gelb, B.S.; Glazer, C.L.; Longaberger, T.; et al. Nanotechnology: A Research Strategy for Addressing Risk; International Center for Scholars: Washington, DC, USA, 2006. [Google Scholar]
- Baig, N.; Kammakakam, I.; Falath, W.; Kammakakam, I. Nanomaterials: A Review of Synthesis Methods, Properties, Recent Progress, and Challenges. Mater. Adv. 2021, 2, 1821–1871. [Google Scholar] [CrossRef]
- OECD. Environment Directorate Chemicals and Biotechnology Committee Important Issues on Risk Assessment of Manufactured Nanomaterials Series on the Safety of Manufactured Nanomaterials; OECD: Paris, France, 2022. [Google Scholar]
- Marques, A.C.; Vale, M.; Vicente, D.; Schreck, M.; Tervoort, E.; Niederberger C Marques, M.A.; Vale, M.; Vicente, D.; Schreck, M.; Tervoort, E.; et al. Porous Silica Microspheres with Immobilized Titania Nanoparticles for In-Flow Solar-Driven Purification of Wastewater. Glob. Chall. 2021, 5, 2000116. [Google Scholar] [CrossRef]
- Sharifi, S.; Behzadi, S.; Laurent, S.; Forrest, M.L.; Stroevee, P.; Mahmoudi, M. Toxicity of Nanomaterials. Chem. Soc. Rev. 2012, 41, 2323–2343. [Google Scholar] [CrossRef]
- Audignon-Durand, S.; Gramond, C.; Ducamp, S.; Manangama, G.; Garrigou, A.; Delva, F.; Brochard, P.; Lacourt, A. Development of a Job-Exposure Matrix for Ultrafine Particle Exposure: The MatPUF JEM. Ann. Work Expo Health 2021, 65, 516–527. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
- Ghelli, F.; Panizzolo, M.; Garzaro, G.; Squillacioti, G.; Bellisario, V.; Colombi, N.; Bergamaschi, E.; Guseva Canu, I.; Bono, R. Inflammatory Biomarkers in Exhaled Breath Condensate: A Systematic Review. Int. J. Mol. Sci. 2022, 23, 9820. [Google Scholar] [CrossRef]
- Bergamaschi, E.; Bellisario, V.; Macrì, M.; Buglisi, M.; Garzaro, G.; Squillacioti, G.; Ghelli, F.; Bono, R.; Fenoglio, I.; Barbero, F.; et al. A Biomonitoring Pilot Study in Workers from a Paints Production Plant Exposed to Pigment-Grade Titanium Dioxide (TiO2). Toxics 2022, 10, 171. [Google Scholar] [CrossRef]
- Luo, X.; Xie, D.; Hu, J.; Su, J.; Xue, Z. Oxidative Stress and Inflammatory Biomarkers for Populations with Occupational Exposure to Nanomaterials: A Systematic Review and Meta-Analysis. Antioxidants 2022, 11, 2182. [Google Scholar] [CrossRef]
- Lewinski, N.; Colvin, V.; Drezek, R. Cytotoxicity of Nanopartides. Small 2008, 4, 26–49. [Google Scholar] [CrossRef]
- Kim, J.; Yu, I.J. National Survey of Workplaces Handling and Manufacturing Nanomaterials, Exposure to and Health Effects of Nanomaterials, and Evaluation of Nanomaterial Safety Data Sheets. Biomed. Res. Int. 2016, 2016, 8389129. [Google Scholar] [CrossRef]
- Jusko, T.A.; Henderson, C.R.; Lanphear, B.P.; Cory-Slechta, D.A.; Parsons, P.J.; Canfield, R.L. Blood Lead Concentrations < 10 Microg/DL and Child Intelligence at 6 Years of Age. Environ. Health Perspect. 2008, 116, 243–248. [Google Scholar] [CrossRef]
- Khan, K.; Wasserman, G.A.; Liu, X.; Ahmed, E.; Parvez, F.; Slavkovich, V.; Levy, D.; Mey, J.; van Geen, A.; Graziano, J.H.; et al. Manganese Exposure from Drinking Water and Children’s Academic Achievement. Neurotoxicology 2012, 33, 91–97. [Google Scholar] [CrossRef]
- Valko, M.; Jomova, K.; Rhodes, C.J.; Kuča, K.; Musílek, K. Redox- and Non-Redox-Metal-Induced Formation of Free Radicals and Their Role in Human Disease. Arch. Toxicol. 2016, 90, 1–37. [Google Scholar] [CrossRef]
- Farina, M.; Avila, D.S.; Da Rocha, J.B.T.; Aschner, M. Metals, Oxidative Stress and Neurodegeneration: A Focus on Iron, Manganese and Mercury. Neurochem. Int. 2013, 62, 575–594. [Google Scholar] [CrossRef]
- Donaldson, K.; Brown, D.; Clouter, A.; Duffin, R.; MacNee, W.; Renwick, L.; Tran, L.; Stone, V. The Pulmonary Toxicology of Ultrafine Particles. J. Aerosol. Med. 2002, 15, 213–220. [Google Scholar] [CrossRef]
- Garza-Lombó, C.; Posadas, Y.; Quintanar, L.; Gonsebatt, M.E.; Franco, R. Neurotoxicity Linked to Dysfunctional Metal Ion Homeostasis and Xenobiotic Metal Exposure: Redox Signaling and Oxidative Stress. Antioxid. Redox Signal. 2018, 28, 1669–1703. [Google Scholar] [CrossRef]
- McCormick, S.; Niang, M.; Dahm, M.M. Occupational Exposures to Engineered Nanomaterials: A Review of Workplace Exposure Assessment Methods. Curr. Environ. Health Rep. 2021, 8, 223–234. [Google Scholar] [CrossRef]
- Samir, A.M.; Rashed, L.A. Effects of Occupational Exposure to Aluminium on Some Oxidative Stress and DNA Damage Parameters. Hum. Exp. Toxicol. 2018, 37, 901–908. [Google Scholar] [CrossRef]
- Marie, C.; Ravanat, J.L.; Badouard, C.; Marques, M.; Balducci, F.; Maître, A. Urinary Levels of Oxidative DNA and RNA Damage among Workers Exposed to Polycyclic Aromatic Hydrocarbons in Silicon Production: Comparison with 1-Hydroxypyrene. Environ. Mol. Mutagen. 2009, 50, 88–95. [Google Scholar] [CrossRef]
- Wu, W.T.; Jung, W.T.; Lee, H.L. Lipid Peroxidation Metabolites Associated with Biomarkers of Inflammation and Oxidation Stress in Workers Handling Carbon Nanotubes and Metal Oxide Nanoparticles. Nanotoxicology 2021, 15, 577–587. [Google Scholar] [CrossRef]
- Anlar, H.G.; Bacanli, M.; İritaş, S.; Bal, C.; Kurt, T.; Tutkun, E.; Hinc Yilmaz, O.; Basaran, N. Effects of Occupational Silica Exposure on OXIDATIVE Stress and Immune System Parameters in Ceramic Workers in TURKEY. J. Toxicol. Environ. Health A 2017, 80, 688–696. [Google Scholar] [CrossRef]
- Junaid, M.; Hashmi, M.Z.; Malik, R.N.; Pei, D.S. Toxicity and Oxidative Stress Induced by Chromium in Workers Exposed from Different Occupational Settings around the Globe: A Review. Environ Sci. Pollut. Res. Int. 2016, 23, 20151–20167. [Google Scholar] [CrossRef]
- Schulte, P.A.; Leso, V.; Niang, M.; Iavicoli, I. Current State of Knowledge on the Health Effects of Engineered Nanomaterials in Workers: A Systematic Review of Human Studies and Epidemiological Investigations. Scand. J. Work Environ. Health 2019, 45, 217–238. [Google Scholar] [CrossRef]
- Hemmendinger, M.; Squillacioti, G.; Charreau, T.; Garzaro, G.; Ghelli, F.; Bono, R.; Sauvain, J.J.; Suarez, G.; Hopf, N.B.; Wild, P.; et al. Occupational Exposure to Nanomaterials and Biomarkers in Exhaled Air and Urine: Insights from the NanoExplore International Cohort. Environ. Int. 2023, 179, 108157. [Google Scholar] [CrossRef]
- Guseva Canu, I.; Plys, E.; Velarde Crézé, C.; Fito, C.; Hopf, N.B.; Progiou, A.; Riganti, C.; Sauvain, J.J.; Squillacioti, G.; Suarez, G.; et al. A Harmonized Protocol for an International Multicenter Prospective Study of Nanotechnology Workers: The NanoExplore Cohort. Nanotoxicology 2023, 17, 1–19. [Google Scholar] [CrossRef]
- Panizzolo, M.; Barbero, F.; Ghelli, F.; Garzaro, G.; Bellisario, V.; Guseva Canu, I.; Fenoglio, I.; Bergamaschi, E.; Bono, R. Assessing the Inhaled Dose of Nanomaterials by Nanoparticle Tracking Analysis (NTA) of Exhaled Breath Condensate (EBC) and Its Relationship with Lung Inflammatory Biomarkers. Chemosphere 2024, 358, 142139. [Google Scholar] [CrossRef]
- Iavicoli, I.; Fontana, L.; Pingue, P.; Todea, A.M.; Asbach, C. Assessment of Occupational Exposure to Engineered Nanomaterials in Research Laboratories Using Personal Monitors. Sci. Total Environ. 2018, 627, 689–702. [Google Scholar] [CrossRef]
- Broday, D.M.; Agnon, Y. Asymmetric Human Lung Morphology Induce Particle Deposition Variation. J. Aerosol. Sci. 2007, 38, 701–718. [Google Scholar] [CrossRef]
- Kreyling, W.G.; Semmler, M.; Erbe, F.; Mayer, P.; Takenaka, S.; Schulz, H.; Oberdörster, G.; Ziesenis, A. Translocation of Ultrafine Insoluble Iridium Particles from Lung Epithelium to Extrapulmonary Organs Is Size Dependent but Very Low. J. Toxicol. Environ. Health A 2002, 65, 1513–1530. [Google Scholar] [CrossRef]
- Kreyling, W.G.; Semmler-Behnke, M.; Seitz, J.; Scymczak, W.; Wenk, A.; Mayer, P.; Takenaka, S.; Oberdrster, G. Size Dependence of the Translocation of Inhaled Iridium and Carbon Nanoparticle Aggregates from the Lung of Rats to the Blood and Secondary Target Organs. Inhal. Toxicol. 2009, 21 (Suppl. 1), 55–60. [Google Scholar] [CrossRef]
- Papp, A.; Horváth, T.; Igaz, N.; Gopisetty, M.K.; Kiricsi, M.; Berkesi, D.S.; Kozma, G.; Kónya, Z.; Wilhelm, I.; Patai, R.; et al. Presence of Titanium and Toxic Effects Observed in Rat Lungs, Kidneys, and Central Nervous System in Vivo and in Cultured Astrocytes in Vitro on Exposure by Titanium Dioxide Nanorods. Int. J. Nanomed. 2020, 15, 9939–9960. [Google Scholar] [CrossRef]
- Nel, A.; Xia, T.; Mädler, L.; Li, N. Toxic Potential of Materials at the Nanolevel. Science 2006, 311, 622–627. [Google Scholar] [CrossRef]
- Buzea, C.; Pacheco, I.I.; Robbie, K. Nanomaterials and Nanoparticles: Sources and Toxicity. Biointerphases 2007, 2, MR17–MR71. [Google Scholar] [CrossRef]
- Iavicoli, I.; Leso, V.; Manno, M.; Schulte, P.A. Biomarkers of Nanomaterial Exposure and Effect: Current Status. J. Nanoparticle Res. 2014, 16, 2302. [Google Scholar] [CrossRef]

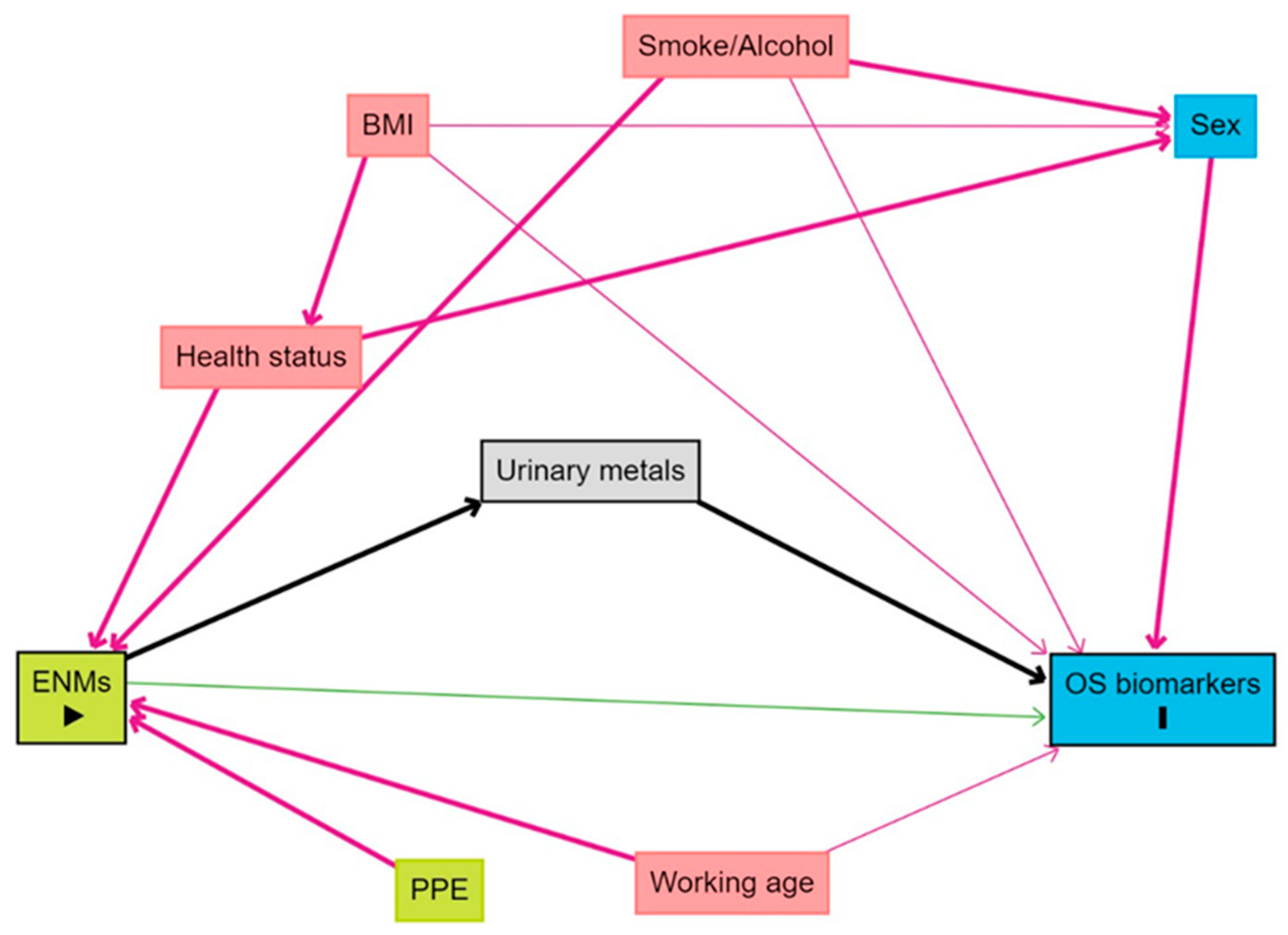

Figure 1.
Directed acyclic graph (DAG) showing the assumed causal relationship between nanomaterial exposure and OS biomarkers. Abbreviations: exposure to nanomaterials (ENMs), personal protective equipment (PPE), body mass index (BMI).
Figure 1.
Directed acyclic graph (DAG) showing the assumed causal relationship between nanomaterial exposure and OS biomarkers. Abbreviations: exposure to nanomaterials (ENMs), personal protective equipment (PPE), body mass index (BMI).

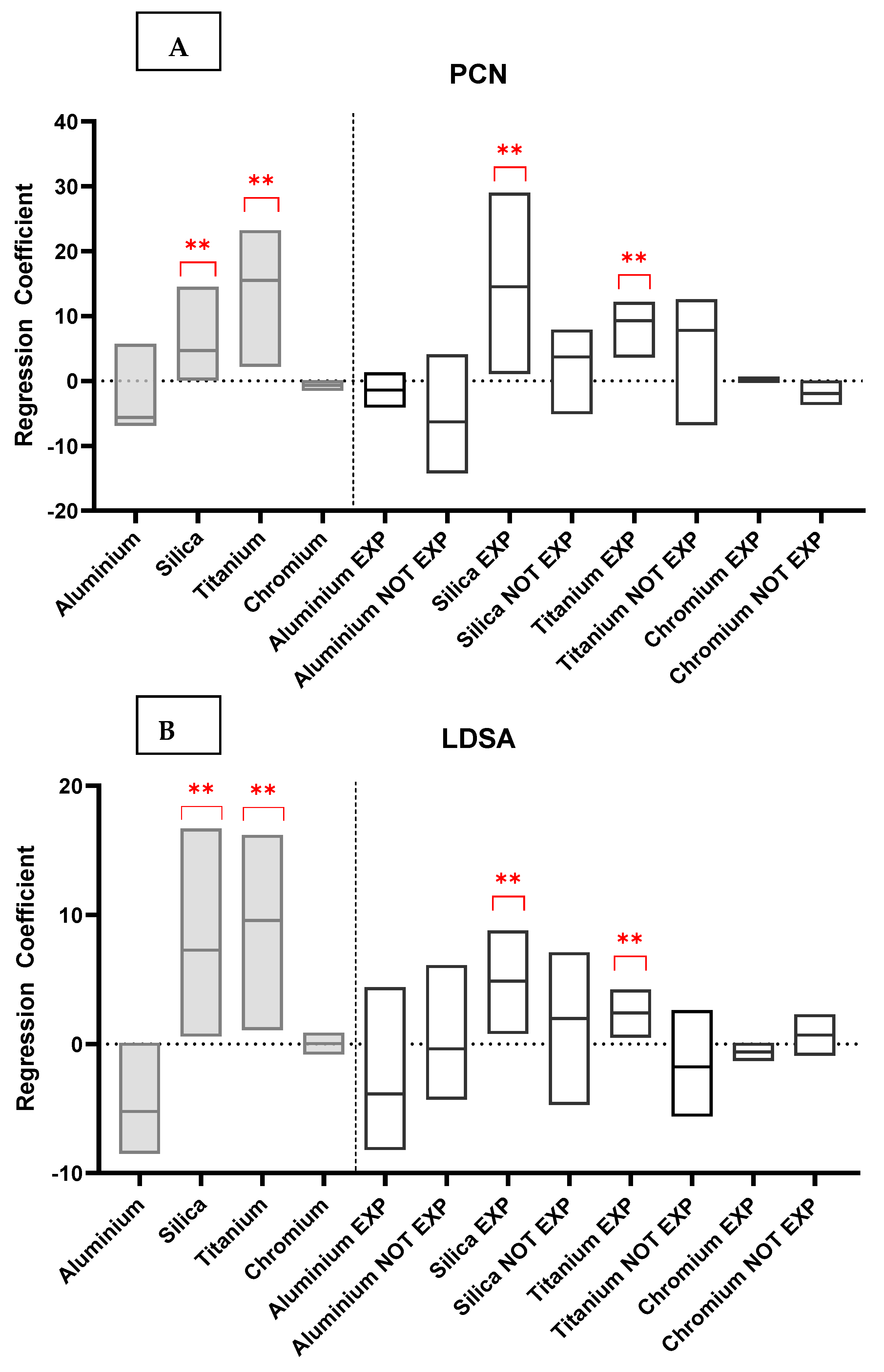

Figure 2.
Multilevel mixed-effects models of urinary metal (dependent variables) and NM exposure metrics (PCN part A and LDSA part B) in the whole sample (left part in grey) and stratified by exposure (right part in white). Red stars show significant p-value.
Figure 2.
Multilevel mixed-effects models of urinary metal (dependent variables) and NM exposure metrics (PCN part A and LDSA part B) in the whole sample (left part in grey) and stratified by exposure (right part in white). Red stars show significant p-value.

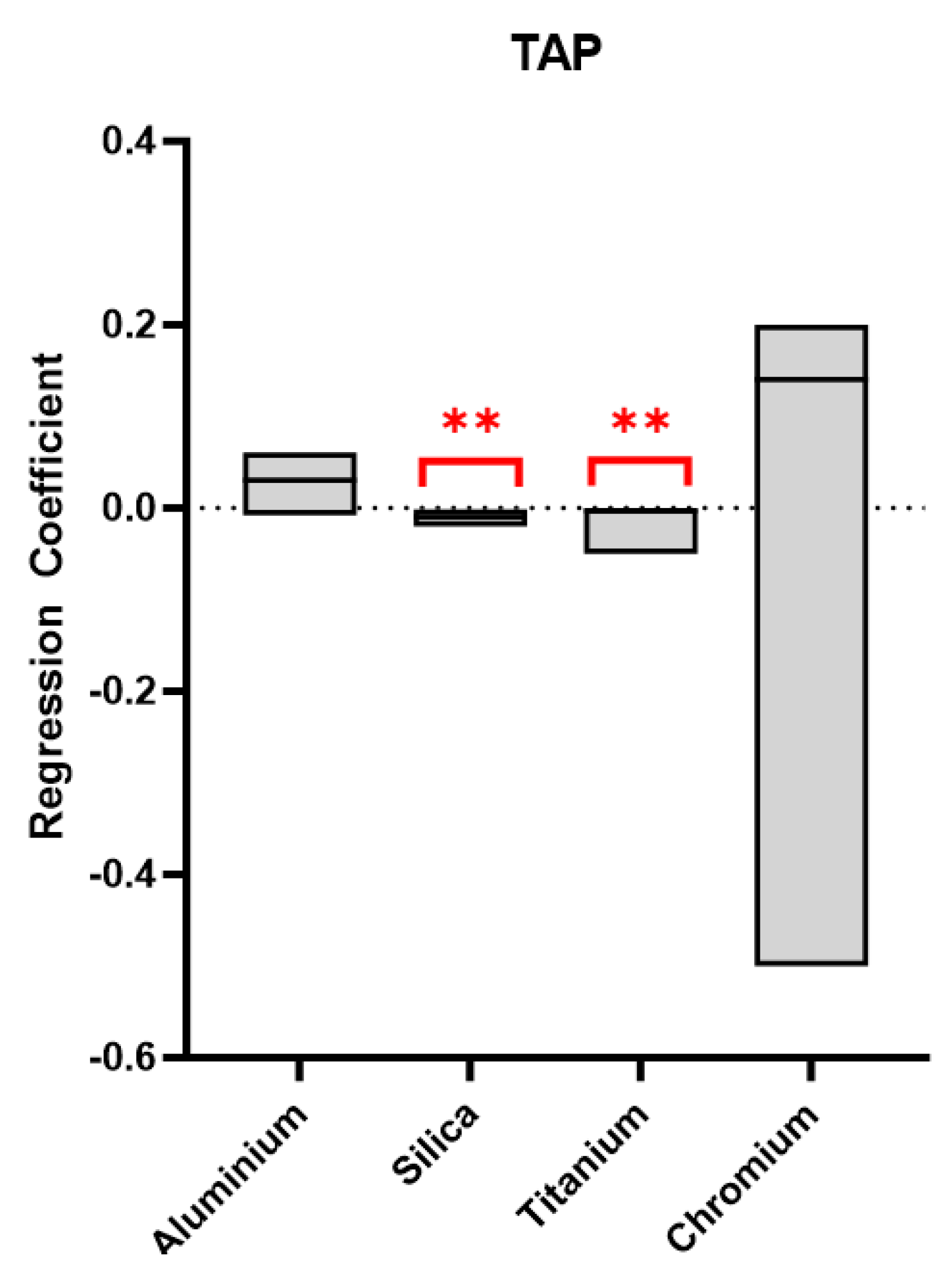

Figure 3.
Multilevel mixed-effects models graph of TAP (dependent variable) and urinary element concentrations in the whole sample. Red stars show significant p-value.
Figure 3.
Multilevel mixed-effects models graph of TAP (dependent variable) and urinary element concentrations in the whole sample. Red stars show significant p-value.
Table 1.
Descriptive statistics of the sample extracted from the cohort.
| SAMPLE | |||||||
| Not Exposed (n = 43) | Exposed (n = 40) | Total (n = 83) | |||||
| Subjects | Male | 21 | Male | 32 | Male | 53 | |
| Female | 22 | Female | 8 | Female | 30 | ||
| BMI | Male | 24.7 ± 3.4 | Male | 26.9 ± 4.1 | Male | 25.8 ± 5.8 | |
| Female | 22.2 ± 3.2 | Female | 22 ± 2.3 | Female | 22.1 ± 2.6 | ||
| Tobacco smoke | No | 39 | No | 28 | No | 67 | |
| Yes | 4 | Yes | 12 | Yes | 16 | ||
| Alcohol | No | 24 | No | 18 | No | 42 | |
| Yes | 19 | Yes | 22 | Yes | 41 | ||
| Health score | 76.6 ± 17.7 | 66.9 ± 21.1 | 70.5 ± 20 | ||||
| Employment duration (years) | <5 years | 30 | <5 years | 20 | <5 years | 50 | |
| >5 years | 13 | >5 years | 20 | >5 years | 33 | ||
| PPE use | No | 43 | No | 5 | No | 48 | |
| Yes | - | Yes | 35 | Yes | 35 | ||
| BIOLOGICAL BIOMARKERS | |||||||
| Not Exposed | Exposed | Total | Non-Parametric Test | ||||
| PCN [#/cm3] | 3.7 ± 0.3 | 4.8 ± 0.3 | 4.4 ± 0.6 | 0.002 | |||
| LDSA [µm2/cm3] | 1.1 ± 0.3 | 1.9 ± 0.2 | 1.6 ± 0.5 | 0.003 | |||
| Aluminum [µg/L] | 44.7 ± 45.7 | 37 ± 37.9 | 44 ± 48.9 | 0.7 | |||
| Silica [mg/L] | 12.3 ± 5.1 | 19.6 ± 8.3 | 15.7 ± 8 | 0.02 | |||
| Titanium [µg/L] | 25.8 ± 10.1 | 33 ± 11.5 | 29.6 ± 11.4 | 0.03 | |||
| Chromium [µg/L] | 0.6 ± 0.04 | 0.3 ± 0.2 | 0.4 ± 0.5 | 0.3 | |||
| MDA [µg/mgCREA] | 243 ± 196 | 235 ± 252 | 240 ± 218 | 0.5 | |||
| Isop [µg/mgCREA] | 4.3 ± 2.8 | 4.1 ± 2.5 | 76.6 ± 17.7 | 0.16 | |||
| TAP [µg/mgCREA] | 1.3 ± 0.4 | 0.9 ± 0.3 | 1.01 ± 0.9 | 0.001 | |||
Table 2.
Multilevel mixed-effects models of urinary metal (dependent variables) and NM exposure metrics (PCN and LDSA) in the whole sample (parts A and C) and stratified by exposure (parts B and D).
Table 2.
Multilevel mixed-effects models of urinary metal (dependent variables) and NM exposure metrics (PCN and LDSA) in the whole sample (parts A and C) and stratified by exposure (parts B and D).
| PCN | |||||
| Part A | Multilevel Mixed-Effects Model (Whole Sample) | ||||
| Coeff. | Std.Err. | p | [95% CI] | ||
| Al | −5.6 | 6.2 | 0.08 | −5.6/5.7 | |
| Si | 4.7 | 4.8 | 0.05 | 0.08/4.5 | |
| Ti | 15.5 | 7.2 | 0.02 | 2.2/23.2 | |
| Cr | −0.7 | 0.4 | 0.9 | −1.5/0.11 | |
| Part B | Multilevel Mixed-Effects Model (Exposure Stratified) | ||||
| Coeff. | Std.Err. | p | [95% CI] | ||
| Al | Exposed | −1.4 | 2.2 | 0.9 | −4.1/1.3 |
| Not exposed | −6.3 | 4.8 | 0.3 | −14.2/4.1 | |
| Si | Exposed | 14.5 | 7.4 | 0.03 | 1.1/29.03 |
| Not exposed | 3.7 | 10.9 | 0.7 | −5.1/7.9 | |
| Ti | Exposed | 9.3 | 11.7 | 0.04 | 3.6/12.2 |
| Not exposed | 7.8 | 7.7 | 0.3 | −6.8/12.6 | |
| Cr | Exposed | 0.2 | 0.3 | 0.5 | −0.3/0.7 |
| Not exposed | −1.9 | 0.9 | 0.4 | −3.7/0.08 | |
| LDSA | |||||
| Part C | Multilevel Mixed-Effects Model (Whole Sample) | ||||
| Coeff. | Std.Err. | p | [95% CI] | ||
| Al | −7.3 | 9.3 | 0.8 | −8.4/0.11 | |
| Si | 4.5 | 6.2 | 0.04 | 0.6/16.7 | |
| Ti | 11.4 | 10.1 | 0.03 | 1.1/16.2 | |
| Cr | 0.05 | 0.5 | 0.9 | −0.8/0.9 | |
| Part D | Multilevel Mixed-Effects Model (Exposure Stratified) | ||||
| Coeff. | Std.Err. | p | [95% CI] | ||
| Al | Exposed | −7.8 | 6.7 | 0.2 | −8.2/4.4 |
| Not exposed | −2.9 | 4.3 | 0.9 | −4.3/6.1 | |
| Si | Exposed | 5 | 3.6 | 0.04 | 0.8/8.8 |
| Not exposed | 3.5 | 4.4 | 0.4 | −4.7/7.1 | |
| Ti | Exposed | 2.5 | 1.05 | 0.02 | 0.5/4.2 |
| Not exposed | −2.3 | 3.3 | 0.3 | −5.6/2.6 | |
| Cr | Exposed | −0.6 | 0.4 | 0.1 | −1.3/0.1 |
| Not exposed | 0.7 | 0.8 | 0.4 | −0.9/2.3 | |
Table 3.
Mediating analysis between exposure biomarkers (PCN and LDSA) and TAP concentrations with Si (part A and B) and Ti (part C and D) as mediating factors.
Table 3.
Mediating analysis between exposure biomarkers (PCN and LDSA) and TAP concentrations with Si (part A and B) and Ti (part C and D) as mediating factors.
| Mediation Models: SILICA | ||||||||
| Part A | PCN/Si/TAP Mediation estimates | |||||||
| Effect | Label | Estimate | SE | Lower | Upper | Z | p | % Mediation |
| Indirect | a × b | −0.26 | 0.169 | −0.714 | −0.059 | −1.54 | 0.042 | 1.12 |
| Direct | c | −4.826 | 0.691 | −6.1798 | −3.471 | −6.98 | <0.001 | 94.88 |
| Total | c + a × b | −4.565 | 0.702 | −5.9416 | −3.189 | −6.5 | <0.001 | 100 |
| Part B | LDSA/Si/TAP Mediation estimates | |||||||
| Effect | Label | Estimate | SE | Lower | Upper | Z | p | % Mediation |
| Indirect | a × b | 0.14 | 0.262 | 0.045 | 1.03 | −1.96 | 0.05 | 2.78 |
| Direct | c | −7.063 | 0.917 | −8.86 | −5.27 | −7.7 | <0.001 | 93.22 |
| Total | c + a × b | −6.549 | 0.933 | −8.38 | −4.72 | −7.02 | <0.001 | 100 |
| Mediation Models: TITANIUM | ||||||||
| Part C | PCN/Ti/TAP Mediation estimates | |||||||
| Effect | Label | Estimate | SE | Lower | Upper | Z | p | % Mediation |
| Indirect | a × b | −0.101 | 0.0974 | −0.292 | 0.0897 | −1.04 | 0.298 | 2.22 |
| Direct | c | −4.464 | 0.7019 | −5.84 | −3.088 | −6.36 | <0.001 | 97.78 |
| Total | c + a × b | −4.565 | 0.7023 | −5.942 | −3.1887 | −6.5 | <0.001 | 100 |
| Part D | LDSA/Ti/TAP Mediation estimates | |||||||
| Effect | Label | Estimate | SE | Lower | Upper | Z | p | % Mediation |
| Indirect | a × b | −0.14 | 0.133 | −0.4 | 0.12 | −1.06 | 0.29 | 2.14 |
| Direct | c | −6.409 | 0.934 | −8.239 | −4.579 | −6.86 | <0.001 | 97.86 |
| Total | c + a × b | −6.549 | 0.933 | −8.377 | −4.722 | −7.02 | <0.001 | 100 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Bellisario, V.; Garzaro, G.; Squillacioti, G.; Panizzolo, M.; Ghelli, F.; Mariella, G.; Bono, R.; Guseva Canu, I.; Bergamaschi, E. Occupational Exposure to Metal-Based Nanomaterials: A Possible Relationship between Chemical Composition and Oxidative Stress Biomarkers. Antioxidants 2024, 13, 676. https://doi.org/10.3390/antiox13060676
AMA Style
Bellisario V, Garzaro G, Squillacioti G, Panizzolo M, Ghelli F, Mariella G, Bono R, Guseva Canu I, Bergamaschi E. Occupational Exposure to Metal-Based Nanomaterials: A Possible Relationship between Chemical Composition and Oxidative Stress Biomarkers. Antioxidants. 2024; 13(6):676. https://doi.org/10.3390/antiox13060676
Chicago/Turabian StyleBellisario, Valeria, Giacomo Garzaro, Giulia Squillacioti, Marco Panizzolo, Federica Ghelli, Giuseppe Mariella, Roberto Bono, Irina Guseva Canu, and Enrico Bergamaschi. 2024. "Occupational Exposure to Metal-Based Nanomaterials: A Possible Relationship between Chemical Composition and Oxidative Stress Biomarkers" Antioxidants 13, no. 6: 676. https://doi.org/10.3390/antiox13060676
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
