Macrophage Activation Assays to Evaluate the Immunostimulatory Capacity of Avibacterium paragallinarum in A Multivalent Poultry Vaccine

by
Robin H. G. A. van den Biggelaar
1,
Willem van Eden
1,
Victor P. M. G. Rutten
1,2 and
Christine A. Jansen
1,*
1
Department of Biomolecular Health Sciences, Division of Infectious Diseases and Immunology, Faculty of Veterinary Medicine, Utrecht University, Yalelaan 1, 3584CL Utrecht, The Netherlands
2
Department of Veterinary Tropical Diseases, Faculty of Veterinary Science, University of Pretoria, Private bag X20, Hatfield 0028, South Africa
*
Author to whom correspondence should be addressed.
Vaccines 2020, 8(4), 671; https://doi.org/10.3390/vaccines8040671
Submission received: 25 August 2020 / Revised: 15 October 2020 / Accepted: 6 November 2020 / Published: 10 November 2020
(This article belongs to the Special Issue Evaluation of Vaccine Immunogenicity)
Browse Figures
Review Reports Versions Notes

Abstract

:
High-quality vaccines are crucial to prevent infectious disease outbreaks in the poultry industry. In vivo vaccination tests are routinely used to test poultry vaccines for their potency, i.e., their capacity to induce protection against the targeted diseases. A better understanding of how poultry vaccines activate immune cells will facilitate the replacement of in vivo potency tests for in vitro assays. Using the chicken macrophage-like HD11 cell line as a model to evaluate innate immune responses, the current explorative study addresses the immunostimulatory capacity of an inactivated multivalent vaccine for infectious bronchitis, Newcastle disease, egg-drop syndrome, and infectious coryza. The vaccine stimulated HD11 cells to produce nitric oxide and to express pro-inflammatory cytokines IL-1β, TNF, and IL-12p40, chemokines CXCLi1 and CXCLi2, and the anti-inflammatory cytokine IL-10, but only when inactivated Avibacterium paragallinarum, the causative agent of infectious coryza, was present. Lipopolysaccharides from Avibacterium paragallinarum were crucial for the production of nitric oxide and expression of IL-1β and CXCLi1. The described immune parameters demonstrate the capacity of this multivalent vaccine to activate innate immune cells and may in the future, combined with antigen quantification methods, contribute to vaccine quality testing in vitro, hence the replacement of current in vivo vaccination tests.

Graphical Abstract

1. Introduction

In the poultry industry, chickens are routinely vaccinated against infectious diseases to maintain flock health. Vaccine batches are subjected to routine quality control (QC) to ensure their potency, i.e., their capacity to induce protection against the targeted infectious diseases. For many poultry vaccines, current QC test approaches include in vivo vaccination-challenge or vaccination-serology tests, which require large numbers of chickens. Alternatively, poultry vaccines could be tested in accordance with the consistency approach [1], which implies that quality can be proven by in vitro methods that demonstrate the similarity between the product profiles of a new batch and reference batches of proven clinical efficacy and safety. The characteristics that determine the potency of a vaccine have to be predetermined and may include properties like antigen quantity and the capacity to stimulate innate immune responses [1,2,3].
Infectious coryza is an upper respiratory tract infection caused by the Gram-negative bacterium Avibacterium (Av.) paragallinarum, which is responsible for worldwide economic losses due to mortality and reduced egg production in chickens [4]. Breeding and laying hens can be protected against infectious coryza by inactivated vaccines comprising multiple Av. paragallinarum isolates of serovars A, B, and C [5]. Like the vaccine used in this study, Av. paragallinarum can be incorporated in inactivated multivalent vaccines that also comprise infectious bronchitis virus (IBV), egg-drop syndrome ’76 virus (EDSV) and Newcastle disease virus (NDV), to reduce the time and costs of vaccination [6]. Inactivated NDV vaccines can be assessed for potency using an in vitro enzyme-linked immunosorbent assay (ELISA) [7,8,9] and inactivated IBV and EDSV vaccines can be assessed for potency by in vivo vaccination-serology tests [10,11], which have a lower impact on animal welfare than traditional vaccination-challenge tests. In contrast, inactivated infectious coryza vaccines still rely on vaccination-challenge tests to prove their potency and are hence in need of reliable in vitro alternatives [12,13]. The capacity of a vaccine to induce protective immunity depends in part on its capacity to stimulate innate immune cells through recognition of immunostimulatory constituents including adjuvants and intrinsic pathogen-associated molecular patterns (PAMPs) like bacterial cell wall components [14,15]. The importance of PAMPs for effective vaccination has already been demonstrated for human vaccines against bacterial pathogens [16] like Bordetella pertussis [17,18] and Mycobacterium tuberculosis [14,19]. However, these immunostimulatory constituents have not been described for most poultry vaccines. Here, we investigated whether infectious coryza vaccines contain PAMPs that activate innate immune cells.
In general, bacterial PAMPs are recognized by innate immune cells through pattern recognition receptors (PRRs), which are broadly expressed by phagocytes like macrophages. Furthermore, the importance of macrophages in detecting bacterial PAMPs during vaccination has been demonstrated in macrophage-depletion studies in mice [20], which justifies the use of this cell type in in vitro vaccine quality assessment. A prime candidate to characterize innate immune responses evoked by poultry vaccines is the chicken macrophage-like cell line HD11. The HD11 cell line was originally described as LSCC-HD (MC/MA1) [21] but later renamed to HD11 [22]. This cell line recognizes bacteria using a broad repertoire of PRRs, including most chicken toll-like receptors (TLRs) [23] and mannose receptors. Activation of HD11 cells can be observed by increased phagocytosis [24,25,26], cytokine expression [27,28], and nitric oxide production by the inducible nitric oxide synthase (iNOS) [27,28,29,30,31]. As vaccines for Av. paragallinarum are commonly multivalent and also used to protect chickens against other pathogens, we used two multivalent vaccines in the current study. To identify which responses were directed against Av. paragallinarum, an octavalent vaccine comprising inactivated IBV, NDV, EDSV, and 5 strains of Av. paragallinarum was used next to a trivalent vaccine that only contained inactivated IBV, NDV, and EDSV. In this explorative study, we aimed to identify candidate immune parameters for an in vitro QC test for inactivated poultry vaccines against Av. paragallinarum and contribute to the replacement of current in vivo vaccination-challenge tests.

2. Materials and Methods

2.1. HD11 Cell Culture and Stimulation

Batches of chicken macrophage-like HD11 cells [21] were suspended in complete Roswell Park Memorial Institute (RPMI)-1640 medium with 50% FBS (both from Gibco, Life Technologies Limited, Paisley, UK) and 10% DMSO (Honeywell, Bucharest, Romania) and stored at −140 °C. After thawing, they were maintained and propagated in a complete RPMI-1640 cell culture medium supplemented with GlutaMAX-I, phenol red, HEPES, 10% FBS, 200 U/mL penicillin, and 200 U/mL streptomycin (all from Gibco) at 37 °C, 5% CO2, in Corning 75 cm2 cell culture flasks (Sigma-Aldrich, Saint Louis, MO, USA). The cells were passaged twice weekly by washing the cells in Dulbecco’s phosphate-buffered saline without calcium and magnesium (PBS; Lonza, Basel, Switzerland) and detaching adherent cells using a 0.25% trypsin/EDTA solution supplemented with phenol red (Gibco). For the experiments, HD11 cells were harvested after 3 to 20 passages using the trypsin/EDTA solution, counted, and resuspended at a concentration of 200,000 cells/mL in complete RPMI-1640 medium. The cells were seeded at 1 mL/well in Corning Costar 24-well cell culture plates (Sigma-Aldrich) and cultured overnight at 37 °C and 5% CO2.
HD11 cells were exposed to various stimuli to assess their activation using nitric oxide production as a readout. First of all, TLR agonists were given at eleven different concentrations with increments of 100.25 between consecutive concentrations to create dose-response curves and to test the ability of HD11 cells to recognize different PAMPs. Stimuli included 1.0–300 ng/mL lipopolysaccharides (LPS) from Escherichia (E.) coli O127:B8 (Sigma-Aldrich) to target TLR4, 0.2–60 ng/mL Pam3CSK4 to target the TLR2/1 heterodimer, 0.2–60 μg/mL zymosan from Saccharomyces (S.) cerevisiae to target the TLR2/6 heterodimer, 0.1–30 μg/mL high molecular weight (1.5-8kb) polyinosinic-polycytidylic acid (poly[I:C]) to target TLR3, 0.1–30 μg/mL resiquimod (R848) to target TLR7, and 3–1000 ng/mL CpG oligonucleotides (ODN) 2006 to target TLR21 (all InvivoGen, San Diego, CA, USA). In addition, HD11 cells were exposed to established tri- an octavalent inactivated poultry vaccines kindly provided by Boehringer Ingelheim (Ingelheim am Rhein, Germany) as a partner of the VAC2VAC consortium (http://www.vac2vac.eu/). The octavalent vaccine comprised of whole-inactivated IBV, NDV, EDSV, and inactivated isolates of five serovars of Av. paragallinarum, including one isolate of serovar A, three of serovar B, and one of serovar C. The trivalent vaccine used in this study comprised whole-inactivated IBV, NDV, and EDSV only. Both vaccines were adjuvanted as mineral oil-based water-in-oil emulsions. The vaccines were prepared such that a single chicken vaccination dose corresponded to 0.5 mL vaccine. HD11 cells were exposed to the vaccines at a fixed concentration of 1 µL/mL or to different concentrations ranging from 0.2 to 30 µL/mL to create dose-response curves.
In accordance with a previous publication [7], total antigenic fractions were extracted from the vaccines by adding vaccine to isopropyl myristate (Sigma-Aldrich) in a 1:5 ratio, vigorous mixing on a vortex mixer for 1 min, and centrifugation at 1000× g. The lower water phase contained the antigenic fraction, which was gently resuspended and collected. HD11 cells were exposed to extracted antigens at a fixed concentration of 0.5 µL/mL or different concentrations ranging from 0.2–30 µL/mL to create dose-response curves. Furthermore, Av. paragallinarum bacteria were purified from 200 µL extracted antigens by centrifuging three times at 15,000 g and washing the bacterial pellet in PBS. Finally, the bacterial pellet was resuspended in 200 µL PBS. A pellet was absent when the trivalent vaccine comprising only viral antigens was exposed to the same procedure. HD11 cells were exposed to the purified bacteria at different concentrations ranging from 0.1–10 µL/mL to create dose-response curves.
The contribution of LPS, present within the antigens extracted from the octavalent vaccine, to the activation of HD11 cells was determined using the LPS-binding antibiotic polymyxin B (Sigma-Aldrich) [32]. For these experiments, 300 ng/mL E. coli LPS, 300 ng/mL CpG ODN2006, 0.5 µL/mL octavalent vaccine and 1.0 µL/mL extracted antigens were resuspended in complete RPMI-1640 and pre-incubated with 1, 10, or 100 µg/mL polymyxin B for 1 h at 37 °C. Subsequently, these mixtures were added to the HD11 cells and incubated for 48 h to evaluate the production of nitric oxide or for different periods of time between 0–48 h to evaluate the gene expression of candidate biomarkers over time.

2.2. Griess Test to Evaluate Nitric Oxide Production by Stimulated HD11 Cells

Nitric oxide production by HD11 cells was measured after 48 h of stimulation by the Griess test as previously described [33]. Griess test reagent was made by dissolving N-(1-naphtyl)ethylenediamine at 3 g/L and sulfanilamide at 10 g/L (both from Sigma-Aldrich) in 2.5% phosphoric acid (Supelco, Merck, St. Louis, MO, USA) and mixing the two solutions 1:1. From the stimulated HD11 cell cultures, 50 μL supernatant was harvested, transferred to a 96-well flat-bottom plate (Corning B.V. Life Sciences, Amsterdam, the Netherlands), and mixed with 50 μL/well Griess test reagent. The mixture turns purple upon reaction with nitrite ions in the cell culture supernatant. The median optical density at 540 nm was determined for each well using a FLUOstar Omega microplate reader (BMG Labtech, Ortenberg, Germany). The corresponding nitrite concentrations were calculated according to a nitrite standard curve made from a dilution series between 3.13–200 μM sodium nitrite (Sigma-Aldrich). For HD11 stimulated with TLR agonists or purified inactivated Av. paragallinarum bacteria, the results of the Griess test were plotted using the four-parameter logistic regression model from GraphPad Prism 8 software (GraphPad Software)
E ( C ) = E max + E max − E min 1   + ( C EC 50 ) n ,
where E(C) = effect at a given concentration (C), Emax = maximum observed effect, Emin = minimum observed effect, EC50 = half-maximum effective concentration, and n = Hill coefficient. The model was used to determine the maximum nitric oxide production (Emax) and the concentration that gives half-maximal nitric oxide production (EC50) as readouts for the capacity of the stimuli to induce nitric oxide production.

2.3. Relative Expression of iNOS and Cytokines Using Real-Time Quantitative PCR

To determine iNOS and cytokine gene expression, HD11 cells were harvested, either 8 h after stimulation or at different time points between 0–48 h (as indicated in Figure 3), using 200 µL PBS + 5 mM UltraPure EDTA (Invitrogen™, Life Technologies Europe BV, Bleiswijk, the Netherlands) and centrifugated at 400× g. The supernatant was discarded, and the pelleted cells were lysed in RLT buffer (Qiagen GmbH, Hilden, Deutschland) and stored at −20 °C until further processing. After thawing, RNA isolation was performed with the RNeasy Mini Kit (Qiagen GmbH, Hilden, Deutschland) including a DNase treatment using the RNase-Free DNase Set (Qiagen GmbH, Hilden, Deutschland). Next, cDNA was prepared using the iScript cDNA Synthesis Kit (Bio-Rad Laboratories B.V., Veenendaal, the Netherlands) according to the manufacturer’s instructions. RT-qPCR reactions were performed with 100 nM FAM-TAMRA-labelled TaqMan probes (listed in Table 1) together with 600 nM primers and TaqMan Universal PCR Master Mix or without probes using 400 nM primers and SYBR Green Master Mix (all from Applied Biosystems, Life Technologies Europe BV, Bleiswijk, the Netherlands). RT-qPCR reactions were performed using a CFX Connect qPCR detection system (Bio-Rad), using a program of 40 cycles with melting temperatures of 58 (SYBR Green probes) or 59 °C (TaqMan probes), and analyzed with CFX Maestro software (Bio-Rad). All RT-qPCR reactions were evaluated for proper amplification efficiency (95–105%) using serial dilutions of reference cDNA or plasmids before testing the samples (data not shown). RT-qPCR reactions were performed in triplicate for every sample. Changes in gene expression over time upon stimulation were assessed using t = 0 h as a reference time point and expressed as 2-ΔΔCt-values, according to the Livak method [34] with Ct being the number of cycles before a signal above the threshold (background) level was reached. The results were normalized to gene expression levels of the housekeeping genes 28S and GAPDH. An exception is the IL-10 gene expression data of Supplementary Figure S2, which were expressed as 40-Ct values according to a previous publication [35] as this method was more suitable when one or more data points did not reach a signal above the threshold within 40 cycles.

2.4. Flow Cytometric Assessment of HD11 Cell Viability after Stimulation

HD11 cells were harvested 48 h after stimulation using 200 µL PBS + 5 mM UltraPure EDTA and centrifuged at 400× g. The cells were transferred to a 96-well V-bottom plate, washed in PBS with 0.5% bovine serum albumin, 0.005% sodium azide (FACS buffer; both from Sigma-Aldrich), and stained for viability in 200 µL FACS buffer with 1.25 µg/mL 7-aminoactinomycin D (7-AAD; BD Biosciences, Pharmingen, San Diego, CA, USA). The staining of the cells was analyzed using the 488 nm laser of a CytoFLEX LX flow cytometer (Beckman Coulter Inc., Brea, CA, USA). The fraction of viable 7-AAD-negative HD11 cells was determined using FlowJo Software v. 10.5 (FlowJo LCC, Ashland, OR, USA). The cytotoxicity of the extracted antigens and purified bacteria from the octavalent vaccine was expressed as the concentration at which 50% of HD11 cells had died, i.e., the 50% lethal concentration (LC50).

2.5. Statistical Analysis

Statistical analyses were performed using GraphPad Prism 8 software (GraphPad Software Inc., San Diego, CA, USA). When the assumptions of normally distributed data and residuals were met, a one-way ANOVA with Holm–Sidak’s multiple comparisons test was used to test for statistically significant differences between stimulated and unstimulated control samples. Relative gene expression data were log-transformed to create normally distributed data. When the assumptions of normality were not met, a non-parametric Kruskal–Wallis test with Dunn’s multiple comparisons test was used instead. A p-value of <0.05 was considered statistically significant.

3. Results

3.1. The Inactivated Octavalent Poultry Vaccine Induces HD11 Cells to Produce Nitric Oxide

HD11 cells were stimulated for 48 h by different TLR agonists derived from or mimicking components from bacteria (Pam3CSK4, LPS, CpG), viruses (R848, CpG, poly[I:C]), and fungi (zymosan). Nitric oxide production was analyzed using the Griess test (Figure 1). The most potent inducer of nitric oxide production was Pam3CSK4 (EC50 = 23.0 ng/mL; Emax = 101 μM nitrite), which stimulates the chicken TLR2/1 heterodimer. Other potent stimuli were the TLR4 agonist E. coli LPS (EC50 = 122 ng/mL; Emax = 93.5 μM nitrite) and the TLR21 agonist CpG ODN2006 (EC50 = 127 ng/mL; Emax = 94.7 μM nitrite). High concentrations of R848 (EC50 = 6.42 μg/mL; Emax = 57.1 μM nitrite), stimulating TLR7, and S. cerevisiae zymosan (EC50 = 3.68 μg/mL; Emax = 66.3 μM nitrite), stimulating both the TLR2/6 heterodimer and Dectin-1, were required to induce nitric oxide production. Nitric oxide was not detected upon exposure to high molecular weight poly(I:C) oligonucleotides. Overall, these results demonstrate that nitric oxide production can be used as a readout to determine the capacity of various compounds to stimulate innate immune cells like macrophages.
Next, we investigated whether an inactivated octavalent poultry vaccine for IBV, NDV, EDSV, and five serovars of Av. paragallinarum contains any immunostimulatory constituents that may stimulate nitric oxide production by HD11 cells. Stimulation with this vaccine for 48 h at concentrations ranging from 0.56 to 3.2 μL/mL induced significantly higher nitric oxide production compared to unstimulated cells (Emax = 34.7 µM nitrite at 1.0 μL/mL) (Figure 2a). At doses > 1.0 μL/mL, nitric oxide production gradually decreased, which can be explained by the observed cytotoxicity of the vaccine at high concentrations, as assessed by 7-AAD viability staining (Supplementary Figure S1).
Gene expression of iNOS was measured to investigate the activation of the nitric oxide production pathway over time as the accumulation of nitric oxide cannot be detected at early time points (not shown). Expression of iNOS was strongly upregulated between 4 and 6 h after exposure to 1.0 μL/mL octavalent vaccine, reaching a 59-fold increase at t = 6 h in comparison to t = 0 h (Figure 2b). The maximum increase in iNOS expression was observed at t = 24 h (311-fold) and expression remained high at least up to 48 h (289-fold), which was the last time point assessed.

3.2. Stimulation with the Octavalent Vaccine Results in Enhanced Gene Expression of Cytokines and Chemokines

Cytokine gene expression by vaccine-stimulated HD11 cells was followed over time. As early as 1 h after exposure to the vaccine, HD11 cells upregulated gene expression levels of the pro-inflammatory cytokine IL-1β (4.3-fold) and IL-8-like chemokines CXCLi1 (2.9-fold) and CXCLi2 (3.3-fold) (Figure 3a–c), which increased up to 8 h after exposure to respectively 584-, 99.9-, and 225-fold. Expression of IL-1β subsequently decreased to 30.0-fold at 24 h and 9.3-fold at 48 h as compared to t = 0 h (Figure 3a), whereas expression of CXCLi1 and CXCLi2 remained high up to 48 h (Figure 3b,c). HD11 cells showed a modest upregulation of the pro-inflammatory cytokine TNF after exposure to the octavalent vaccine, reaching its peak at t = 8 h with a 4.0-fold increase in expression (Figure 3d). In contrast, stimulation with the vaccine did not induce gene expression of IL-6 and IFN-α at any of the time points studied (Figure 3e,f). Expression of the anti-inflammatory cytokine IL-10 was elevated after 6 h to 19.5-fold and remained at that level up to 48 h (Figure 3g). Expression of the Th1 or 17-inducing cytokine IL-12p40, depending on its heterodimerization with respectively IL-12p35 [36] or IL-23p19 [37], was increased maximally 11.7-fold at t = 48 h (Figure 3h). Expression of Th1-inducing cytokine IFN-γ was found slightly decreased at 24 and 48 h (4.50- and 4.14-fold decrease respectively) compared to t = 0 h (Figure 3i). The Th2-inducing cytokine IL-4 and Th1-inducing cytokine IL-12p35 were not detected (not shown). Taken together, HD11 cells showed increased expression of pro-inflammatory cytokines IL-1β and TNF, and chemokines CXCLi1 and CXCLi2 within 8 h after exposure to the octavalent vaccine, which was followed by the induction of the anti-inflammatory cytokine IL-10 and the Th1/Th17-inducing cytokine IL-12p40.

3.3. Av. Paragallinarum Antigens Contribute to the Stimulatory Capacity of the Octavalent Vaccine

To investigate whether Av. paragallinarum antigens were able to stimulate HD11 cells, the responses induced by the octavalent vaccine were compared to responses induced by a trivalent vaccine containing the same viral antigens but without bacterial Av. paragallinarum antigens. In contrast to the octavalent vaccine, the trivalent vaccine did not lead to nitric oxide production by HD11 cells (Figure 4a). These results strongly suggested that the Av. paragallinarum antigens were responsible for the nitric oxide production by HD11 cells. Next, antigens were extracted from the emulsion vaccines using isopropyl myristate. As shown in Figure 4b, the antigens extracted from the octavalent vaccine induced more nitric oxide production than the octavalent vaccine itself (50.2 µM vs. 6.7 µM nitrite at 0.3 μL/mL, respectively). In contrast, the antigens extracted from the trivalent vaccine did not induce nitric oxide production. Compared to the complete octavalent vaccine with an LC50 of 18 μL/mL, the extracted antigens were more cytotoxic for HD11 cells with a LC50 of 0.26 μL/mL (Supplementary Figure S1). To determine whether these cytotoxic effects were due to the bacterial antigens or other vaccine constituents, the bacteria were recovered from the antigenic fraction of the octavalent vaccine by centrifugation at high speed, followed by extensive washing in PBS, and resuspended in PBS according to the original volume of antigenic fraction (Supplementary Figure S2). The bacteria stimulated HD11 cells to produce high concentrations of nitric oxide (Emax = 57.1 µM nitrite at 1.0 μL/mL) over a wide range of concentrations (Figure 4c), whereas the cytotoxicity of the purified bacteria (LC50 = 4.2 μL/mL) was reduced compared to the antigenic fraction (LC50 = 0.26 μL/mL) (Supplementary Figure S1). The potency of the purified bacteria to induce nitric oxide production, as expressed by an EC50-value, was found to be = 0.276 µL/mL.
Next, the gene expression levels of iNOS and cytokines were determined 8 h after stimulation with either the tri- or octavalent vaccine. Exposure to the octavalent vaccine led to significantly increased expression of iNOS (36.4-fold), IL-1β (71.4-fold), TNF (1.7-fold), CXCLi1 (46.9-fold), CXCLi2 (55.7-fold) (Figure 4e–i), and IL-10 (40-Ct: 4.0 for octavalent vaccine vs. 1.1 for unstimulated; Supplementary Figure S3). In contrast, the trivalent vaccine did not induce the expression of iNOS or any of the cytokines. Expression IFN-α was slightly decreased after stimulation with either the tri- (2.1-fold decrease) or octavalent (2.0-fold decrease) vaccine (Figure 4j).

3.4. Activation of HD11 Cells by the Octavalent Vaccine Largely Depends on Av. Paragallinarum Antigen-Associated LPS

Finally, the antigenic fraction of the octavalent vaccine was pre-incubated with the LPS-binding antibiotic polymyxin B to determine the contribution of LPS, embedded in the cell wall of Av. paragallinarum bacteria, to HD11 cell activation. First, E. coli LPS (Figure 5a) and CpG ODN2006 (Figure 5b), acting as positive and negative controls, were both preincubated with polymyxin B for 1 h and subsequently administered to HD11 cell cultures. Polymyxin B significantly inhibited LPS-induced nitric oxide production (36.5% reduction), whereas CpG-induced nitric oxide production remained unchanged. Next, the antigenic fraction of the octavalent vaccine was preincubated with polymyxin B and administered to the cells (Figure 5c), which resulted in a significant reduction in nitric oxide production of 65.7% as compared to exposure to the antigenic fraction alone. Moreover, the treatment of the antigenic fraction of the octavalent vaccine with polymyxin B resulted in a significant reduction in the expression of iNOS (67.6% reduction; Figure 5d), IL-1β (80.0% reduction; Figure 5e), and CXCLi1 (58.9% reduction; Figure 5f). The expression levels of CXCLi2 (35.1% reduction; Figure 5g) and IL-10 (43.5% reduction; Figure 5h) tended to be inhibited by pre-incubation with polymyxin B, but this was not statistically significant. Taken together, these experiments suggest that LPS present in Av. paragallinarum antigens significantly contributed to the activation of HD11 cells upon exposure to the octavalent vaccine.

4. Discussion

In this explorative study, we aimed to investigate the capacity of an octavalent vaccine containing inactivated IBV, NDV, EDSV, and five serovars of Av. paragallinarum to activate innate immune cells, in view of identifying potential immune parameters that could be used in the future for in vitro vaccine QC testing of inactivated Av. paragallinarum. The vaccine was found to activate the chicken macrophage-like cell line HD11 shortly after stimulation, resulting in the expression of the nitric oxide-producing enzyme iNOS and the pro-inflammatory cytokines IL-1β, TNF, CXCLi1, and CXCLi2. From 6 h after stimulation, HD11 cells expressed the anti-inflammatory cytokine IL-10, which inhibits TLR signaling [38] and may be responsible for the subsequent return of IL-1β and TNF expression to baseline levels. In contrast, HD11 cells were not activated by a trivalent vaccine containing the same inactivated viral antigens but without inactivated Av. paragallinarum antigens, indicating that bacterial PAMPs were important for the evoked immune response. Furthermore, pre-treating the extracted antigens with the LPS-neutralizing antibiotic polymyxin B [32] largely averted nitric oxide production and cytokine expression by HD11 cells, showing that bacterial LPS was an important immunostimulatory factor of the octavalent vaccine. Hence, stimulation of HD11 cells by the octavalent vaccine must at least partly be dependent on TLR4, the designated PRR for LPS [39]. This is supported by an in vivo study, showing upregulation of the TLR4 signaling pathway in the nasal tissues of chickens infected with Av. paragallinarum [40].
The differences in macrophage activation by the octa- and trivalent vaccine were striking and may be explained by the presence or absence of bacterial PAMPs from Av. paragallinarum acting as an endogenous adjuvant of the octavalent vaccine. This is in agreement with in vivo data demonstrating that chickens developed strong granulomatous reactions involving macrophages at injection sites of inactivated bacterial Av. paragallinarum or Mycoplasma gallisepticum vaccines, but not at injection sites of inactivated viral NDV, IBV, avian reovirus, or infectious bursal disease virus vaccines [41,42,43]. The presence of bacterial antigens containing PAMPs in the multivalent vaccine most likely also boosts the immune responses against the antigens of viral origin, as demonstrated for an experimental vaccine against both inactivated viral influenza A and Streptococcus pneumonia in mice [15].
The role of nitric oxide production and cytokines to the induction of vaccine-mediated protection against Av. paragallinarum in chickens is still unknown. A genome-wide association study in chickens has shown that there is an association between serological responses and small nucleotide polymorphism within and surrounding the gene encoding for iNOS, suggesting that iNOS may also be important in chickens during vaccination [44]. Studies with iNOS, IL-17, IL-4, and IFN-γ-deficient mice have demonstrated the importance of nitric oxide [45] and cytokine production [17] for effective vaccination against Bordetella pertussis, also being a Gram-negative bacterium, and Trypanosoma cruzi [46]. Studies in humans mice and humans have more specifically demonstrated the importance of the cytokine-mediated induction of a mixed Th1/Th17 response for effective vaccination against Bordetella pertussis [17,18]. Similarly, a study in chickens has demonstrated that a nasal challenge with Pasteurella multocida, a member of the same bacterial family as Av. paragallinarum, results in a mixed Th1/Th17 response [47]. Similar to mice, a strong pro-inflammatory cytokine response is likely to be important for effective vaccination in chickens, as demonstrated for a flagellin-adjuvanted vaccine for Pasteurella multocida [48]. A nasal challenge with Av. paragallinarum in chickens was previously shown to result in the increased local gene expression of IL-6, which may contribute to a Th17 adaptive immune response in mammals [49], whereas no changes were observed for the Th1-inducing cytokine IL-12p35 [50]. In this in vitro study, we found increased gene expression of the Th1/Th17-inducing cytokine IL-12p40. We did unexpectedly not observe increased IL-6 expression by HD11 cells after stimulation with the octavalent vaccine, despite previous studies showing that bacterial stimulation induces IL-6 expression in HD11 cells [24]. The Th1-incuding cytokine IL-12p35 and the Th2-incuding cytokine IL-4 remained undetectable in HD11 cells at any of the time points after stimulation with the octavalent vaccine. The type of adaptive immune response that is triggered by Av. paragallinarum during natural infection or vaccination remains interesting for further investigation.
Since the potency of a vaccine does not depend solely on antigen quantity but also on its immunostimulatory capacity, the preservation and consistency of LPS and other PAMPs in inactivated Av. paragallinarum vaccines is likely to be important for vaccination [51,52,53,54]. The immunostimulatory capacity of Av. paragallinarum bacteria incorporated in the octavalent vaccine could be evaluated using the nitric oxide production assay and was expressed as the half-maximum effective concentration (EC50)-value, which here is the vaccine concentration that gives half-maximal nitric oxide production. This opens up the possibility to use the nitric production assay, in addition to antigen quantification methods, to test vaccines containing inactivated Av. paragallinarum (and potentially other Gram-negative bacteria) for potency without the use of animals. The bacterial antigens of the octavalent vaccine were extracted from the w/o emulsion with isopropyl myristate, followed by centrifugation steps, to enable the quantification of the immunostimulatory capacity of the vaccine. Testing extracted antigens, rather than the native vaccine formulation, is a strategy that is also used to test inactivated NDV vaccines for potency by an ELISA and has been implemented in the European Pharmacopoeia monograph 0870 [7,9]. Future studies should address the suitability of the nitric oxide assay to discriminate between vaccine batches of different potency, including non-conforming batches, in accordance with the consistency approach [1]. Furthermore, in our study, we observed that high cell passage numbers of the HD11 cell line may slightly affect the sensitivity of the nitric oxide production assay (not shown), which needs to be addressed in assay validation studies. The inclusion of reference standards for normalization might be required to improve precision. Finally, the performance of the assay as a QC test should be compared to the animal-based vaccination-challenge test that is currently in place as the gold standard for infectious coryza vaccines [13].

5. Conclusions

This explorative study aimed to investigate the immunostimulatory capacity of an inactivated octavalent vaccine for IBV, NDV, EDSV, and Av. paragallinarum and to identify immune parameters that could potentially influence vaccine potency. We have found that this inactivated octavalent poultry vaccine activates the chicken macrophage-like cell line HD11 due to the presence of LPS associated with Av. paragallinarum antigens, which resulted in the production of nitric oxide and expression of the pro-inflammatory cytokine IL-1β and chicken IL-8-like chemokine CXCLi1. In contrast, a trivalent vaccine containing inactivated IBV, NDV, and EDSV viral antigens, which are also present in the octavalent vaccine, did not induce nitric oxide production or cytokine expression by HD11 cells, further demonstrating that the responses measured in the assays were specific for the Av. paragallinarum antigens of the octavalent vaccine. Furthermore, the nitric oxide production assay was shown to be potentially useful as an in vitro potency test for inactivated poultry vaccines against Av. paragallinarum using the EC50 of the purified bacteria as a readout for potency. Therefore, this study may contribute to the replacement of current animal-based vaccine QC tests and improve animal welfare.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-393X/8/4/671/s1, Figure S1: Cytotoxicity of the octavalent vaccine, extracted antigens and purified Av. paragallinarum bacteria, Figure S2: Gram staining of extracted antigens from the tri- and octavalent vaccines, Figure S3: The octavalent vaccine-induced gene expression of IL-10, whereas a trivalent vaccine without Av. paragallinarum antigens did not.

Author Contributions

Conceptualization, R.H.G.A.v.d.B. and C.A.J.; formal analysis, R.H.G.A.v.d.B.; funding acquisition, W.v.E. and C.A.J.; investigation, R.H.G.A.v.d.B.; methodology, R.H.G.A.v.d.B. and C.A.J.; supervision, W.v.E., V.P.M.G.R., and C.A.J.; writing—original draft, R.H.G.A.v.d.B.; writing—review and editing, R.H.G.A.v.d.B., W.v.E., V.P.M.G.R., and C.A.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Innovative Medicines Initiative 2 Joint Undertaking under grant agreement No 115924 (VAC2VAC). This Joint Undertaking receives support from the European Union’s Horizon 2020 research and innovation program and EFPIA. The contents of this article represent the authors’ scientific conclusions and neither IMI nor the European Union, EFPIA, or any Associated Partners are responsible for any use that may be made of the information contained therein.

Acknowledgments

The authors thank Sabine Roersma for performing the initial experiments that led to this study. Furthermore, the authors thank the Veterinary Microbiological Diagnostic Centre of the Faculty of Veterinary Medicine, Utrecht University, for performing the Gram staining of our samples. The microscopy images have been acquired at the Center of Cellular Imaging, Faculty of Veterinary Medicine, Utrecht University. Flow cytometry was performed at the Flow Cytometry and Cell Sorting Facility, Faculty of Veterinary Medicine, Utrecht University.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data. in the writing of the manuscript, or in the decision to publish the results.

References

  1. Hendriksen, C.; Arciniega, J.L.; Bruckner, L.; Chevalier, M.; Coppens, E.; Descamps, J.; Duchêne, M.; Dusek, D.M.; Halder, M.; Kreeftenberg, H.; et al. The consistency approach for the quality control of vaccines. Biologicals 2008, 36, 73–77. [Google Scholar] [CrossRef]
  2. Hendriksen, C.F.M. Replacement, reduction and refinement alternatives to animal use in vaccine potency measurement. Expert Rev. Vaccines 2009, 8, 313–322. [Google Scholar] [CrossRef] [PubMed]
  3. Bruysters, M.W.; Schiffelers, M.-J.; Hoonakker, M.; Jungbaeck, C.; Ragan, I.; Rommel, E.; Van Der Stappen, T.; Viviani, L.; Hessel, E.V.; Akkermans, A.M.; et al. Drivers and barriers in the consistency approach for vaccine batch release testing: Report of an international workshop. Biologicals 2017, 48, 1–5. [Google Scholar] [CrossRef] [PubMed]
  4. Blackall, P.J.; Soriano, E.V. Infectious Coryza and Related Bacterial Infections. In Diseases of Poultry, 12th ed.; Saif, Y.M., Fadly, A.M., Glisson, J.R., McDougald, L.R., Nolan, L.K., Swayne, D.E., Eds.; Blackwell Publishing: Hoboken, NJ, USA, 2008; pp. 789–803. [Google Scholar]
  5. Page, L.A. Haemophilus infections in chickens. I. Characteristics of 12 Haemophilus isolates recovered from diseased chickens. Am. J. Vet. Res. 1962, 23, 85–95. [Google Scholar]
  6. Otsuki, K.; Iritani, Y. Preparation and Immunological Response to a New Mixed Vaccine Composed of Inactivated Newcastle Disease Virus, Inactivated Infectious Bronchitis Virus, and Inactivated Hemophilus gallinarum. Avian Dis. 1974, 18, 297. [Google Scholar] [CrossRef] [PubMed]
  7. Maas, P.; De Winter, M.; Venema, S.; Oei, H.; Claassen, I.M. Antigen quantification asin vitroalternative for potency testing of inactivated viral poultry vaccines. Vet. Q. 2000, 22, 223–227. [Google Scholar] [CrossRef] [Green Version]
  8. Claassen, I.; Maas, R.; Oei, H.; Daas, A.; Milne, C. Validation study to evaluate the reproducibility of a candidate in vitro potency assay of newcastle disease vaccines and to establish the suitability of a candidate biological reference preparation. Pharmeur. Bio 2004, 2004, 1–15. [Google Scholar]
  9. EDQM. Newcastle Disease Vaccine (Inactivated). In European Pharmacopoeia, 10th ed.; Monograph 870; EDQM: Strasbourgh, France, 2019; pp. 1134–1136. [Google Scholar]
  10. EDQM. Avian Infectious Bronchitis Vaccine (Inactivated). In European Pharmacopoeia, 10th ed.; Monograph 0959; EDQM: Strasbourgh, France, 2019; pp. 1059–1060. [Google Scholar]
  11. EDQM. Egg Drop Syndrome ’76 Vaccine (Inactivated). In European Pharmacopoeia, 10th ed.; Monograph 1202; EDQM: Strasbourgh, France, 2019; pp. 1100–1101. [Google Scholar]
  12. EDQM. Vaccines for veterinary use. In European Pharmacopoeia, 10th ed.; EDQM: Strasbourgh, France, 2019; pp. 896–900. [Google Scholar]
  13. García, A.; Romo, F.; Ortiz, A.M.; Blackall, P.J. The vaccination-challenge trial: The gold standard test to evaluate the protective efficacy of infectious coryza vaccines. Avian Pathol. 2008, 37, 183–186. [Google Scholar] [CrossRef]
  14. Kleinnijenhuis, J.; Quintin, J.; Preijers, F.; Joosten, L.A.B.; Ifrim, D.C.; Saeed, S.; Jacobs, C.; Van Loenhout, J.; De Jong, D.; Stunnenberg, H.G.; et al. Bacille Calmette-Guerin induces NOD2-dependent nonspecific protection from reinfection via epigenetic reprogramming of monocytes. Proc. Natl. Acad. Sci. USA 2012, 109, 17537–17542. [Google Scholar] [CrossRef] [Green Version]
  15. David, S.C.; Norton, T.; Tyllis, T.; Wilson, J.J.; Singleton, E.V.; Laan, Z.; Davies, J.; Hirst, T.R.; Comerford, I.; McColl, S.R.; et al. Direct interaction of whole-inactivated influenza A and pneumococcal vaccines enhances influenza-specific immunity. Nat. Microbiol. 2019, 4, 1316–1327. [Google Scholar] [CrossRef]
  16. Sander, L.E.; Davis, M.J.; Boekschoten, M.V.; Amsen, D.; Dascher, C.C.; Ryffel, B.; Swanson, J.A.; Müller, M.; Blander, J.M. Detection of prokaryotic mRNA signifies microbial viability and promotes immunity. Nat. Cell Biol. 2011, 474, 385–389. [Google Scholar] [CrossRef]
  17. Ross, P.J.; Sutton, C.E.; Higgins, S.; Allen, A.C.; Walsh, K.; Misiak, A.; Lavelle, E.C.; McLoughlin, R.M.; Mills, K.H. Relative Contribution of Th1 and Th17 Cells in Adaptive Immunity to Bordetella pertussis: Towards the Rational Design of an Improved Acellular Pertussis Vaccine. PLoS Pathog. 2013, 9, e1003264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Higgs, R.; Higgins, S.C.; Ross, P.J.; Mills, K.H.G. Immunity to the respiratory pathogen Bordetella pertussis. Mucosal Immunol. 2012, 5, 485–500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Tsuji, S.; Matsumoto, M.; Takeuchi, O.; Akira, S.; Azuma, I.; Hayashi, A.; Toyoshima, K.; Seya, T. Maturation of Human Dendritic Cells by Cell Wall Skeleton of Mycobacterium bovis Bacillus Calmette-Guérin: Involvement of Toll-Like Receptors. Infect. Immun. 2000, 68, 6883–6890. [Google Scholar] [CrossRef] [Green Version]
  20. Desbien, A.L.; Cauwelaert, N.D.; Reed, S.J.; Bailor, H.R.; Liang, H.; Carter, D.; Duthie, M.S.; Fox, C.B.; Orr, M.T.; Reed, S.G. IL-18 and Subcapsular Lymph Node Macrophages are Essential for Enhanced B Cell Responses with TLR4 Agonist Adjuvants. J. Immunol. 2016, 197, 4351–4359. [Google Scholar] [CrossRef] [Green Version]
  21. Beug, H.; Von Kirchbach, A.; Döderlein, G.; Conscience, J.-F.; Graf, T. Chicken hematopoietic cells transformed by seven strains of defective avian leukemia viruses display three distinct phenotypes of differentiation. Cell 1979, 18, 375–390. [Google Scholar] [CrossRef]
  22. Leutz, A.; Beug, H.; Graf, T. Purification and characterization of cMGF, a novel chicken myelomonocytic growth factor. EMBO J. 1984, 3, 3191–3197. [Google Scholar] [CrossRef]
  23. Iqbal, M.; Philbin, V.J.; Smith, A.L. Expression patterns of chicken Toll-like receptor mRNA in tissues, immune cell subsets and cell lines. Vet. Immunol. Immunopathol. 2005, 104, 117–127. [Google Scholar] [CrossRef]
  24. Peng, L.; Matthijs, M.G.; Haagsman, H.P.; Veldhuizen, E.J. Avian pathogenic Escherichia coli-induced activation of chicken macrophage HD11 cells. Dev. Comp. Immunol. 2018, 87, 75–83. [Google Scholar] [CrossRef]
  25. Wisner, A.L.S.; Potter, A.A.; Köster, W. Effect of the Salmonella Pathogenicity Island 2 Type III Secretion System on Salmonella Survival in Activated Chicken Macrophage-Like HD11 Cells. PLoS ONE 2011, 6, e29787. [Google Scholar] [CrossRef]
  26. Biggelaar, R.H.G.A.V.D.; Van Eden, W.; Rutten, V.P.M.G.; Jansen, C.A. Nitric Oxide Production and Fc Receptor-Mediated Phagocytosis as Functional Readouts of Macrophage Activity upon Stimulation with Inactivated Poultry Vaccines In Vitro. Vaccines 2020, 8, 332. [Google Scholar] [CrossRef] [PubMed]
  27. Van Dijk, A.; Van Eldik, M.; Veldhuizen, E.J.A.; Bokhoven, H.L.M.T.-V.; De Zoete, M.R.; Bikker, F.J.; Haagsman, H.P. Immunomodulatory and Anti-Inflammatory Activities of Chicken Cathelicidin-2 Derived Peptides. PLoS ONE 2016, 11, e0147919. [Google Scholar] [CrossRef]
  28. Setta, A.; Barrow, P.A.; Kaiser, P.; Jones, M.A. Immune dynamics following infection of avian macrophages and epithelial cells with typhoidal and non-typhoidal Salmonella enterica serovars; bacterial invasion and persistence, nitric oxide and oxygen production, differential host gene expression, NF-κB signalling and cell cytotoxicity. Vet. Immunol. Immunopathol. 2012, 146, 212–224. [Google Scholar] [CrossRef] [PubMed]
  29. Crippen, T.L. The selective inhibition of nitric oxide production in the avian macrophage cell line HD11. Vet. Immunol. Immunopathol. 2006, 109, 127–137. [Google Scholar] [CrossRef] [PubMed]
  30. He, H.; Genovese, K.J.; Swaggerty, C.L.; Nisbet, D.J.; Kogut, M.H. A Comparative Study on Invasion, Survival, Modulation of Oxidative Burst, and Nitric Oxide Responses of Macrophages (HD11), and Systemic Infection in Chickens by Prevalent Poultry Salmonella Serovars. Foodborne Pathog. Dis. 2012, 9, 1104–1110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. He, H.; Genovese, K.J.; Kogut, M.H. Modulation of chicken macrophage effector function by TH1/TH2 cytokines. Cytokine 2011, 53, 363–369. [Google Scholar] [CrossRef] [PubMed]
  32. Duff, G.W.; Atkins, E. The inhibitory effect of polymyxin B on endotoxin-induced endogenous pyrogen production. J. Immunol. Methods 1982, 52, 333–340. [Google Scholar] [CrossRef]
  33. Ariaans, M.P.; Matthijs, M.G.; Van Haarlem, D.; Van De Haar, P.; Van Eck, J.H.H.; Hensen, E.J.; Vervelde, L. The role of phagocytic cells in enhanced susceptibility of broilers to colibacillosis after Infectious Bronchitis Virus infection. Vet. Immunol. Immunopathol. 2008, 123, 240–250. [Google Scholar] [CrossRef] [Green Version]
  34. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  35. Eldaghayes, I.; Rothwell, L.; Williams, A.; Withers, D.; Balu, S.; Davison, F.; Kaiser, P. Infectious Bursal Disease Virus: Strains That Differ in Virulence Differentially Modulate the Innate Immune Response to Infection in the Chicken Bursa. Viral Immunol. 2006, 19, 83–91. [Google Scholar] [CrossRef] [Green Version]
  36. Degen, W.G.J.; Van Daal, N.; Van Zuilekom, H.I.; Burnside, J.; Schijns, V.E.J.C. Identification and Molecular Cloning of Functional Chicken IL-12. J. Immunol. 2004, 172, 4371–4380. [Google Scholar] [CrossRef] [PubMed]
  37. Truong, A.D.; Hoang, C.T.; Hong, Y.; Lee, J.; Lee, K.; Lillehoj, H.S.; Hong, Y.H. Functional analyses of the interaction of chicken interleukin 23 subunit p19 with IL-12 subunit p40 to form the IL-23 complex. Mol. Immunol. 2017, 92, 54–67. [Google Scholar] [CrossRef] [PubMed]
  38. Mittal, S.K.; Roche, P.A. Suppression of antigen presentation by IL-10. Curr. Opin. Immunol. 2015, 34, 22–27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Keestra, A.M.; Van Putten, J.P.M. Unique Properties of the Chicken TLR4/MD-2 Complex: Selective Lipopolysaccharide Activation of the MyD88-Dependent Pathway. J. Immunol. 2008, 181, 4354–4362. [Google Scholar] [CrossRef] [Green Version]
  40. Boucher, C.E.; Theron, C.W.; Jansen, A.C.; Bragg, R.R. Transcriptional profiling of chicken immunity-related genes during infection with Avibacterium paragallinarum. Vet. Immunol. Immunopathol. 2014, 158, 135–142. [Google Scholar] [CrossRef]
  41. Droual, R.; Bickford, A.A.; Charlton, B.R.; Kuney, D.R. Investigation of Problems Associated with Intramuscular Breast Injection of Oil-Adjuvanted Killed Vaccines in Chickens. Avian Dis. 1990, 34, 473. [Google Scholar] [CrossRef]
  42. Yamanaka, M.; Okabe, T.; Nakai, M.; Goto, N. Local Pathological Reactions and Immune Response of Chickens to ISA-70 and Other Adjuvants Containing Newcastle Disease Virus Antigen. Avian Dis. 1993, 37, 459. [Google Scholar] [CrossRef]
  43. Reid, G.G.; Blackall, P.J. Comparison of adjuvants for an inactivated infectious coryza vaccine. Avian Dis. 1987, 31, 59–63. [Google Scholar] [CrossRef]
  44. Zhang, L.; Li, P.; Liu, R.; Zheng, M.; Sun, Y.; Wu, D.; Hu, Y.; Wen, J.; Zhao, G. The Identification of Loci for Immune Traits in Chickens Using a Genome-Wide Association Study. PLoS ONE 2015, 10, e0117269. [Google Scholar] [CrossRef]
  45. Canthaboo, C.; Xing, D.; Wei, X.Q.; Corbel, M.J. Investigation of Role of Nitric Oxide in Protection from Bordetella pertussis Respiratory Challenge. Infect. Immun. 2002, 70, 679–684. [Google Scholar] [CrossRef] [Green Version]
  46. Pinge-Filho, P.; Peron, J.; De Moura, T.; Menolli, R.A.; Graça, V.; Estévâo, D.; Tadokoro, C.E.; Jankevicius, J.; Rizzo, L. Protective immunity against Trypanosoma cruzi provided by oral immunization with Phytomonas serpens: Role of nitric oxide. Immunol. Lett. 2005, 96, 283–290. [Google Scholar] [CrossRef] [PubMed]
  47. Petruzzi, B.; Dalloul, R.A.; Leroith, T.; Evans, N.P.; Pierson, F.W.; Inzana, T.J. Biofilm formation and avian immune response following experimental acute and chronic avian cholera due to Pasteurella multocida. Vet. Microbiol. 2018, 222, 114–123. [Google Scholar] [CrossRef] [PubMed]
  48. Doan, T.-D.; Wang, H.-Y.; Ke, G.-M.; Cheng, L.-T. N-terminus of Flagellin Fused to an Antigen Improves Vaccine Efficacy against Pasteurella multocida Infection in Chickens. Vaccines 2020, 8, 283. [Google Scholar] [CrossRef] [PubMed]
  49. Zhou, L.; Ivanov, I.I.; Spolski, R.; Min, R.; Shenderov, K.; Egawa, T.; Levy, D.E.; Leonard, W.J.; Littman, D.R. IL-6 programs TH-17 cell differentiation by promoting sequential engagement of the IL-21 and IL-23 pathways. Nat. Immunol. 2007, 8, 967–974. [Google Scholar] [CrossRef]
  50. Boucher, C.E.; Theron, C.W.; Hitzeroth, A.C.; Bragg, R.R. Regulation of chicken immunity-related genes and host response profiles against Avibacterium paragallinarum pathogen challenge. Vet. Immunol. Immunopathol. 2015, 167, 70–74. [Google Scholar] [CrossRef]
  51. Medzhitov, R.; Janeway, C.A. Innate immunity: Impact on the adaptive immune response. Curr. Opin. Immunol. 1997, 9, 4–9. [Google Scholar] [CrossRef]
  52. Iwasaki, A.; Medzhitov, R. Toll-like receptor control of the adaptive immune responses. Nat. Immunol. 2004, 5, 987–995. [Google Scholar] [CrossRef]
  53. Manicassamy, S.; Pulendran, B. Modulation of adaptive immunity with Toll-like receptors. Semin. Immunol. 2009, 21, 185–193. [Google Scholar] [CrossRef] [Green Version]
  54. Dalod, M.; Chelbi, R.; Malissen, B.; Lawrence, T. Dendritic cell maturation: Functional specialization through signaling specificity and transcriptional programming. EMBO J. 2014, 33, 1104–1116. [Google Scholar] [CrossRef]
Vaccines 08 00671 g001 550
Figure 1. The macrophage-like HD11 cell line produces nitric oxide upon stimulation with a broad range of TLR agonists for 48 h. HD11 cells were stimulated with titrated concentrations of the TLR agonists Pam3CSK4 (a), zymosan (b), poly(I:C) (c), LPS (d), R848 (e), and CpG (f). The expected receptors for each agonist are shown above each panel. Nitric oxide production is expressed as the concentration of nitrite ions (NO2−) in the cell culture supernatant, as measured by the Griess test. Four parameter logistic curves were plotted together with their confidence intervals (dotted lines). Unstimulated HD11 cells (UNST) were used as a negative control and HD11 cells stimulated with 300 ng/ml LPS (d) were used as a positive control in this and all subsequent experiments. The experiment was performed in triplicate. The error bars represent the SEM.
Figure 1. The macrophage-like HD11 cell line produces nitric oxide upon stimulation with a broad range of TLR agonists for 48 h. HD11 cells were stimulated with titrated concentrations of the TLR agonists Pam3CSK4 (a), zymosan (b), poly(I:C) (c), LPS (d), R848 (e), and CpG (f). The expected receptors for each agonist are shown above each panel. Nitric oxide production is expressed as the concentration of nitrite ions (NO2−) in the cell culture supernatant, as measured by the Griess test. Four parameter logistic curves were plotted together with their confidence intervals (dotted lines). Unstimulated HD11 cells (UNST) were used as a negative control and HD11 cells stimulated with 300 ng/ml LPS (d) were used as a positive control in this and all subsequent experiments. The experiment was performed in triplicate. The error bars represent the SEM.
Vaccines 08 00671 g001
Vaccines 08 00671 g002 550

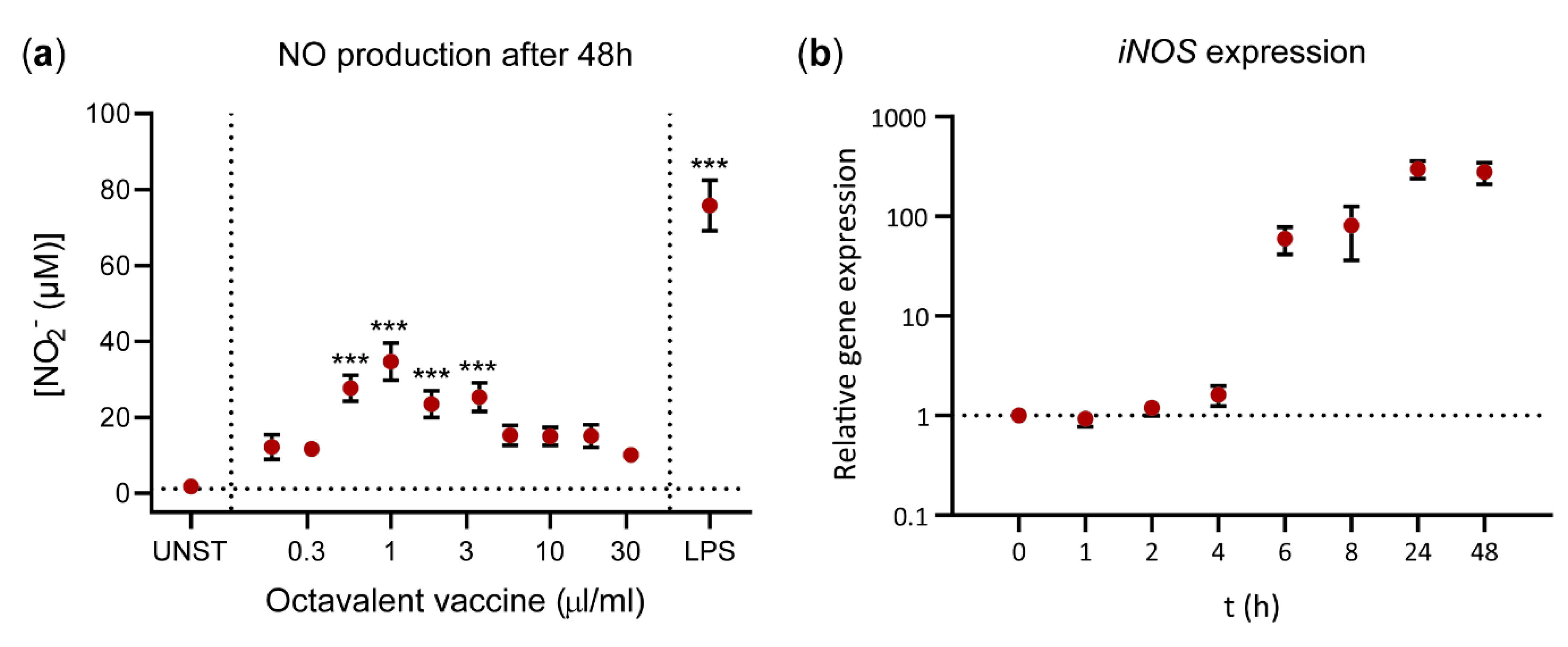

Figure 2. Nitric oxide was produced upon exposure to octavalent vaccine (IBV + NDV + EDSV + 5x Av. paragallinarum) for 48 h. (a) HD11 cells were exposed to titrated concentrations of the octavalent vaccine. Moreover, unstimulated HD11 cells (UNST) and HD11 cells stimulated with 300 ng/ml LPS are shown as negative and positive controls. The data comprises three independent technical replicates performed in triplicate. The error bars represent the SEM. A Kruskal–Wallis test combined with Dunn’s multiple comparisons test was used to test for significant induction of nitric oxide production upon stimulation. *** p < 0.001. (b) RT-qPCR was performed on HD11 cell samples stimulated with 1 µL/mL octavalent vaccine and harvested at the given time points between 0 and 48 h. iNOS expression is shown relative to t = 0 h and expressed as 2-ΔΔCt values as calculated using the Livak method and GAPDH and 28S as a reference gene. The experiment was performed in triplicate. The error bars represent the SEM.
Figure 2. Nitric oxide was produced upon exposure to octavalent vaccine (IBV + NDV + EDSV + 5x Av. paragallinarum) for 48 h. (a) HD11 cells were exposed to titrated concentrations of the octavalent vaccine. Moreover, unstimulated HD11 cells (UNST) and HD11 cells stimulated with 300 ng/ml LPS are shown as negative and positive controls. The data comprises three independent technical replicates performed in triplicate. The error bars represent the SEM. A Kruskal–Wallis test combined with Dunn’s multiple comparisons test was used to test for significant induction of nitric oxide production upon stimulation. *** p < 0.001. (b) RT-qPCR was performed on HD11 cell samples stimulated with 1 µL/mL octavalent vaccine and harvested at the given time points between 0 and 48 h. iNOS expression is shown relative to t = 0 h and expressed as 2-ΔΔCt values as calculated using the Livak method and GAPDH and 28S as a reference gene. The experiment was performed in triplicate. The error bars represent the SEM.
Vaccines 08 00671 g002
Vaccines 08 00671 g003 550

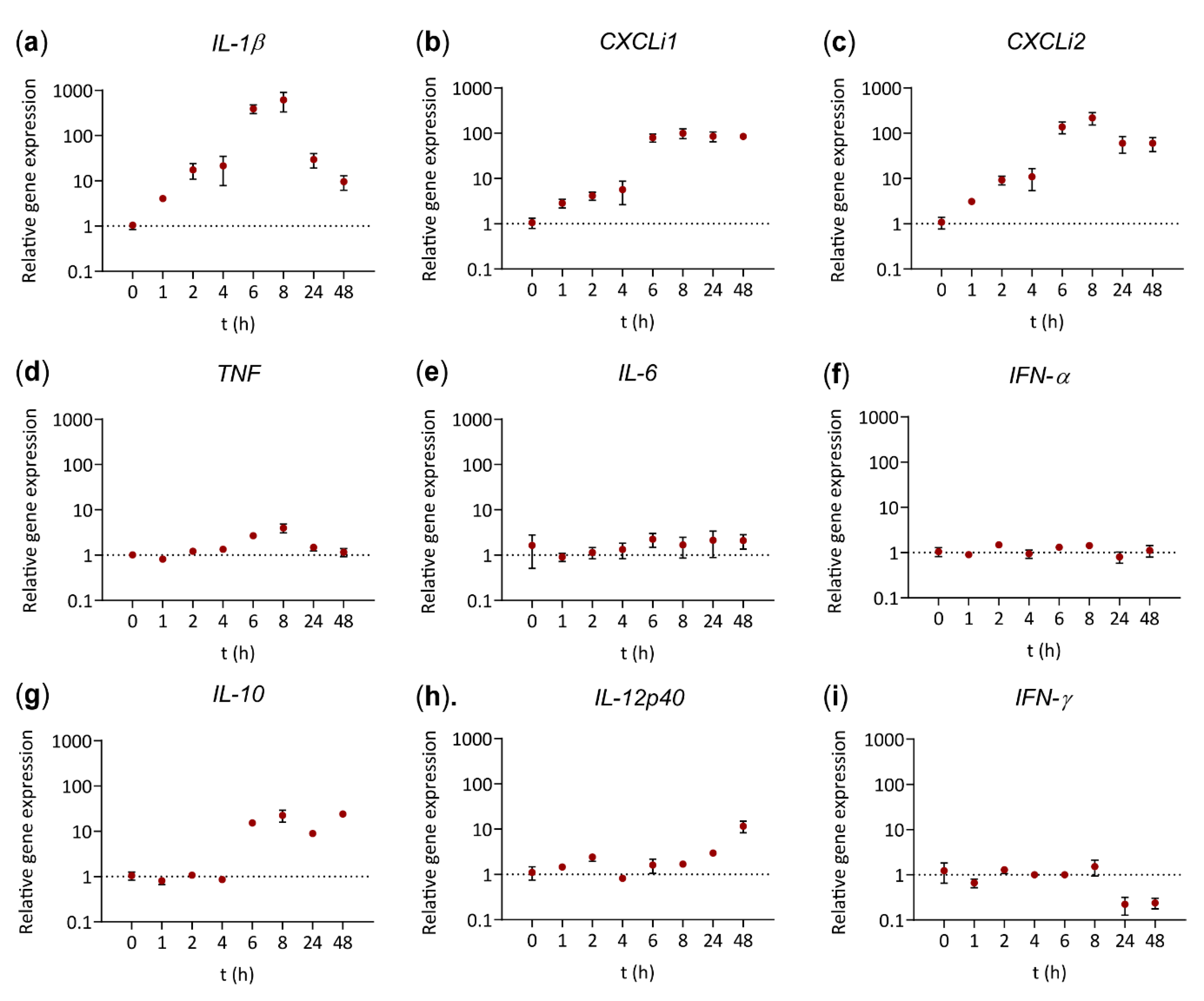

Figure 3. The octavalent vaccine induced the expression of pro-inflammatory cytokines at an early time point, followed by expression of the anti-inflammatory cytokine IL-10 and finally IL-12p40. HD11 cells were stimulated with 1 µL/mL octavalent vaccine and harvested at the indicated time points between 0 and 48 h. RT-qPCR was performed for the cytokinesIL-1β (a), CXCLi1 (b), CXCLi2 (c), TNF (d), IL-6 (e), IFN-α (f), IL-10 (g), IL-12p40 (h) and IFN-γ (i). The relative gene expression levels were normalized against t = 0 h and expressed as 2-ΔΔCt values as calculated using the Livak method and both GAPDH and 28S as reference genes. The experiment was performed in triplicate. The error bars represent the SEM.
Figure 3. The octavalent vaccine induced the expression of pro-inflammatory cytokines at an early time point, followed by expression of the anti-inflammatory cytokine IL-10 and finally IL-12p40. HD11 cells were stimulated with 1 µL/mL octavalent vaccine and harvested at the indicated time points between 0 and 48 h. RT-qPCR was performed for the cytokinesIL-1β (a), CXCLi1 (b), CXCLi2 (c), TNF (d), IL-6 (e), IFN-α (f), IL-10 (g), IL-12p40 (h) and IFN-γ (i). The relative gene expression levels were normalized against t = 0 h and expressed as 2-ΔΔCt values as calculated using the Livak method and both GAPDH and 28S as reference genes. The experiment was performed in triplicate. The error bars represent the SEM.
Vaccines 08 00671 g003
Vaccines 08 00671 g004 550

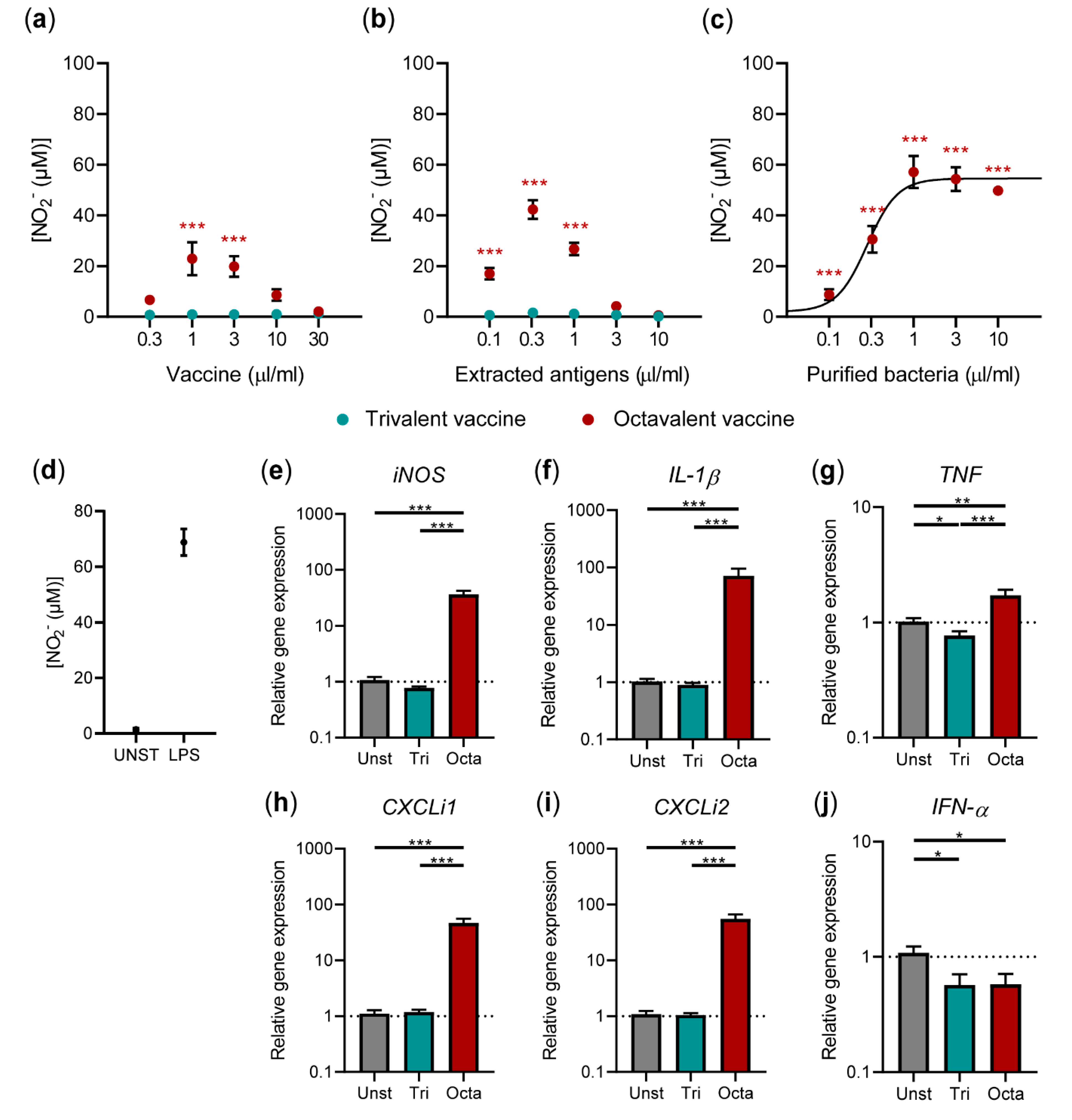

Figure 4. A trivalent vaccine without Av. paragallinarum antigens did not induce nitric oxide production or expression of pro-inflammatory cytokines. (a) Nitric oxide production was determined for HD11 cells exposed to titrated doses of trivalent (IBV + NDV + EDSV) and octavalent vaccine (IBV + NDV + EDSV + 5x Av. paragallinarum) for 48 h. (b) Antigenic fractions were extracted from the tri- and octavalent vaccines using isopropyl myristate and given to HD11 cells to determine nitric oxide production after 48 h. (c) The bacterial pellet was purified from the antigenic fraction of the octavalent vaccine and given to HD11 cells to determine nitric oxide production after 48 h. A four-parameter logistic curve could be calculated and was plotted. (d) The controls of the nitric oxide production assay included unstimulated HD11 cells (UNST) and HD11 cells stimulated with 300 ng/ml LPS. (e-j) Expression levels of iNOS (e), IL-1β (f), TNF (g), CXCLi1 (h), CXCLi2 (i), and IFN-α (j) by HD11 cells were determined 8 h after stimulation with 1.0 µL/mL tri- or octavalent vaccine. The values are expressed as 2-ΔΔCt values as calculated using the Livak method and both GAPDH and 28S as reference genes. All figures show three independent technical replicates. The error bars represent the SEM. A Kruskal-Wallis test combined with Dunn’s multiple comparisons test was used to test for statistical significance of the data. * p < 0.05, ** p < 0.01, *** p < 0.001. The relative gene expression data were log-transformed prior to the statistical analysis to generate normally distributed data.
Figure 4. A trivalent vaccine without Av. paragallinarum antigens did not induce nitric oxide production or expression of pro-inflammatory cytokines. (a) Nitric oxide production was determined for HD11 cells exposed to titrated doses of trivalent (IBV + NDV + EDSV) and octavalent vaccine (IBV + NDV + EDSV + 5x Av. paragallinarum) for 48 h. (b) Antigenic fractions were extracted from the tri- and octavalent vaccines using isopropyl myristate and given to HD11 cells to determine nitric oxide production after 48 h. (c) The bacterial pellet was purified from the antigenic fraction of the octavalent vaccine and given to HD11 cells to determine nitric oxide production after 48 h. A four-parameter logistic curve could be calculated and was plotted. (d) The controls of the nitric oxide production assay included unstimulated HD11 cells (UNST) and HD11 cells stimulated with 300 ng/ml LPS. (e-j) Expression levels of iNOS (e), IL-1β (f), TNF (g), CXCLi1 (h), CXCLi2 (i), and IFN-α (j) by HD11 cells were determined 8 h after stimulation with 1.0 µL/mL tri- or octavalent vaccine. The values are expressed as 2-ΔΔCt values as calculated using the Livak method and both GAPDH and 28S as reference genes. All figures show three independent technical replicates. The error bars represent the SEM. A Kruskal-Wallis test combined with Dunn’s multiple comparisons test was used to test for statistical significance of the data. * p < 0.05, ** p < 0.01, *** p < 0.001. The relative gene expression data were log-transformed prior to the statistical analysis to generate normally distributed data.
Vaccines 08 00671 g004
Vaccines 08 00671 g005 550

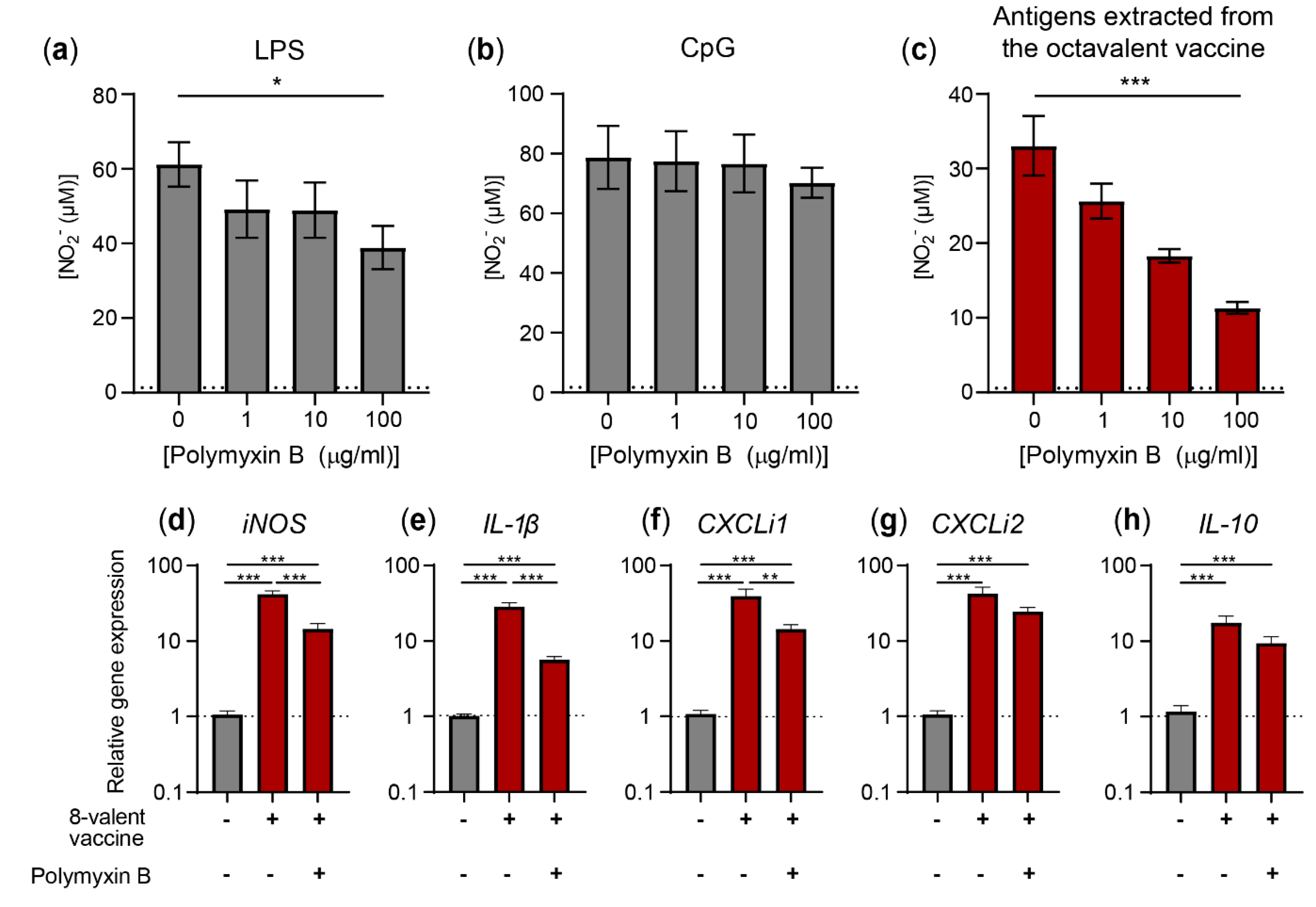

Figure 5. Nitric oxide production upon exposure to the antigenic fraction of the octavalent vaccine could be inhibited by the LPS-binding antibiotic polymyxin B. (a–c) HD11 cells were pre-incubated in cell culture media without or with 1, 10, or 100 μg/ml polymyxin B for 1 h at 37 °C and subsequently exposed to cell culture media containing 300 ng/ml LPS (a), 300 ng/ml CpG (b) or 0.5 µL/mL antigens extracted from the octavalent vaccine (c) for 48 h. Unstimulated controls are represented by the dotted lines. The first bar of panel a is the result of HD11 stimulated with 300 ng/ml without polymyxin B and thus represents the positive control. (d–h) Expression levels of iNOS (d), IL-1β (e), CXCLi1 (f), CXCLi2 (g), and IL-10 (h) by HD11 cells were determined 8 h after stimulation with 1 µL/mL octavalent vaccine and, when indicated, 1 h pre-incubation with 100 µg/ml polymyxin B. The values are expressed as 2-ΔΔCt values as calculated using the Livak method and both GAPDH and 28S as reference genes. The data comprises three independent technical replicates performed in triplicate. Unstimulated controls are represented by the dotted lines. The error bars represent the SEM. A Kruskal–Wallis test combined with Dunn’s multiple comparisons test was used to test for statistical significance of the data. * p < 0.05, ** p < 0.01, *** p < 0.001. The relative gene expression data were log-transformed prior to the statistical analysis to create normally distributed data.
Figure 5. Nitric oxide production upon exposure to the antigenic fraction of the octavalent vaccine could be inhibited by the LPS-binding antibiotic polymyxin B. (a–c) HD11 cells were pre-incubated in cell culture media without or with 1, 10, or 100 μg/ml polymyxin B for 1 h at 37 °C and subsequently exposed to cell culture media containing 300 ng/ml LPS (a), 300 ng/ml CpG (b) or 0.5 µL/mL antigens extracted from the octavalent vaccine (c) for 48 h. Unstimulated controls are represented by the dotted lines. The first bar of panel a is the result of HD11 stimulated with 300 ng/ml without polymyxin B and thus represents the positive control. (d–h) Expression levels of iNOS (d), IL-1β (e), CXCLi1 (f), CXCLi2 (g), and IL-10 (h) by HD11 cells were determined 8 h after stimulation with 1 µL/mL octavalent vaccine and, when indicated, 1 h pre-incubation with 100 µg/ml polymyxin B. The values are expressed as 2-ΔΔCt values as calculated using the Livak method and both GAPDH and 28S as reference genes. The data comprises three independent technical replicates performed in triplicate. Unstimulated controls are represented by the dotted lines. The error bars represent the SEM. A Kruskal–Wallis test combined with Dunn’s multiple comparisons test was used to test for statistical significance of the data. * p < 0.05, ** p < 0.01, *** p < 0.001. The relative gene expression data were log-transformed prior to the statistical analysis to create normally distributed data.
Vaccines 08 00671 g005
Table
Table 1. Primer and probe sequences. All probes contain the 5′ reporter dye FAM and the 3′ fluorescent quencher TAMRA.
Table 1. Primer and probe sequences. All probes contain the 5′ reporter dye FAM and the 3′ fluorescent quencher TAMRA.
GeneNCBI ReferenceTypeSequences (5′-3′)
iNOSNM_204961.1ForwardTGGGTGGAAGCCGAAATA
ReverseGTACCAGCCGTTGAAAGGAC
TNFMF000729.1ForwardCGCTCAGAACGACGTCAA
ReverseGTCGTCCACACCAACGAG
CXCLi1NM_205018.1ForwardCCAGTGCATAGAGACTCATTCCAAA
ReverseTGCCATCTTTCAGAGTAGCTATGACT
GAPDHNM_204305.1Forward GTGGTGCTAAGCGTGTTATC
Reverse GCATGGACAGTGGTCATAAG
IL-1βNM_204524.1Forward GCTCTACATGTCGTGTGTGATGAG
Reverse TGTCGATGTCCCGCATGA
ProbeCCACACTGCAGCTGGAGGAAGCC
IL-4NM_001007079.1Forward AACATGCGTCAGCTCCTGAAT
Reverse TCTGCTAGGAACTTCTCCATTGAA
ProbeAGCAGCACCTCCCTCAAGGCACC
IL-6NM_204628.1Forward GCTCGCCGGCTTCGA
Reverse GGTAGGTCTGAAAGGCGAACAG
ProbeAGGAGAAATGCCTGACGAAGCTCTCCA
CXCLi2NM_205498.1Forward GCCCTCCTCCTGGTTTCA
Reverse TGGCACCGCAGCTCATT
ProbeTCTTTACCAGCGTCCTACCTTGCGACA
IL-10NM_001004414.2Forward CATGCTGCTGGGCCTGAA
Reverse CGTCTCCTTGATCTGCTTGATG
ProbeCGACGATGCGGCGCTGTCA
IL-12p35NM_213588.1Forward TGGCCGCTGCAAACG
Reverse ACCTCTTCAAGGGTGCACTCA
ProbeCCAGCGTCCTCTGCTTCTGCACCTT
IL-12p40NM_213571.1Forward TGGGCAAATGATACGGTCAA
Reverse CTGAAAAGCTATAAAGAGCCAAGCAAGACGTTCT
ProbeCAGAGTAGTTCTTTGCCTCACATTTT
IFN-αXM_015277440.2Forward GACAGCCAACGCCAAAGC
Reverse GTCGCTGCTGTCCAAGCATT
ProbeCTCAACCGGATCCACCGCTACACC
IFN-γNM_205149.1Forward GTGAAGAAGGTGAAAGATATCATGGA
Reverse GCTTTGCGCTGGATTCTCA
ProbeTGGCCAAGCTCCCGATGAACGA
28SXR_003078040.1Forward GGCGAAGCCAGAGGAAACT
Reverse GACGACCGATTTGCACGTC
ProbeAGGACCGCTACGGACCTCCACCA
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

van den Biggelaar, R.H.G.A.; van Eden, W.; Rutten, V.P.M.G.; Jansen, C.A. Macrophage Activation Assays to Evaluate the Immunostimulatory Capacity of Avibacterium paragallinarum in A Multivalent Poultry Vaccine. Vaccines 2020, 8, 671. https://doi.org/10.3390/vaccines8040671

AMA Style

van den Biggelaar RHGA, van Eden W, Rutten VPMG, Jansen CA. Macrophage Activation Assays to Evaluate the Immunostimulatory Capacity of Avibacterium paragallinarum in A Multivalent Poultry Vaccine. Vaccines. 2020; 8(4):671. https://doi.org/10.3390/vaccines8040671

Chicago/Turabian Style

van den Biggelaar, Robin H. G. A., Willem van Eden, Victor P. M. G. Rutten, and Christine A. Jansen. 2020. "Macrophage Activation Assays to Evaluate the Immunostimulatory Capacity of Avibacterium paragallinarum in A Multivalent Poultry Vaccine" Vaccines 8, no. 4: 671. https://doi.org/10.3390/vaccines8040671

APA Style

van den Biggelaar, R. H. G. A., van Eden, W., Rutten, V. P. M. G., & Jansen, C. A. (2020). Macrophage Activation Assays to Evaluate the Immunostimulatory Capacity of Avibacterium paragallinarum in A Multivalent Poultry Vaccine. Vaccines, 8(4), 671. https://doi.org/10.3390/vaccines8040671

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
