Oxidized Carbon-Based Spacers for Pressure-Resistant Graphene Oxide Membranes
Abstract
:1. Introduction
2. Experimental Part
2.1. Preparation of Oxidized Graphitic Carbon Precursors
2.2. Preparation of Composite Membranes
2.3. Characterization of Composite Membranes
3. Results and Discussion

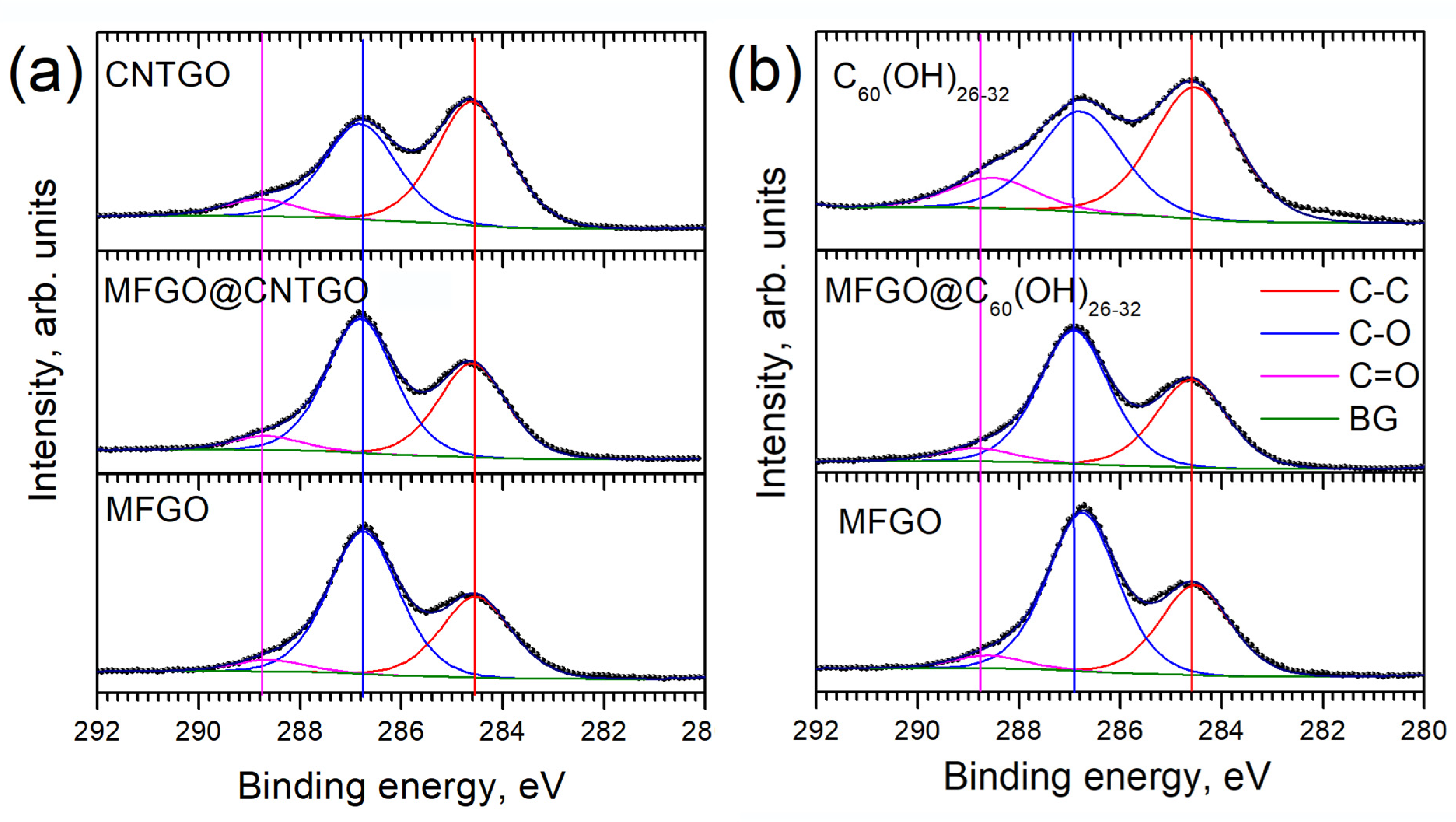

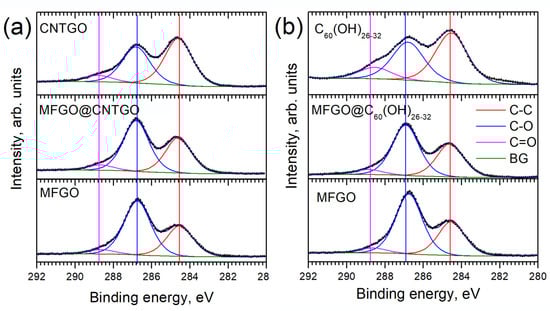

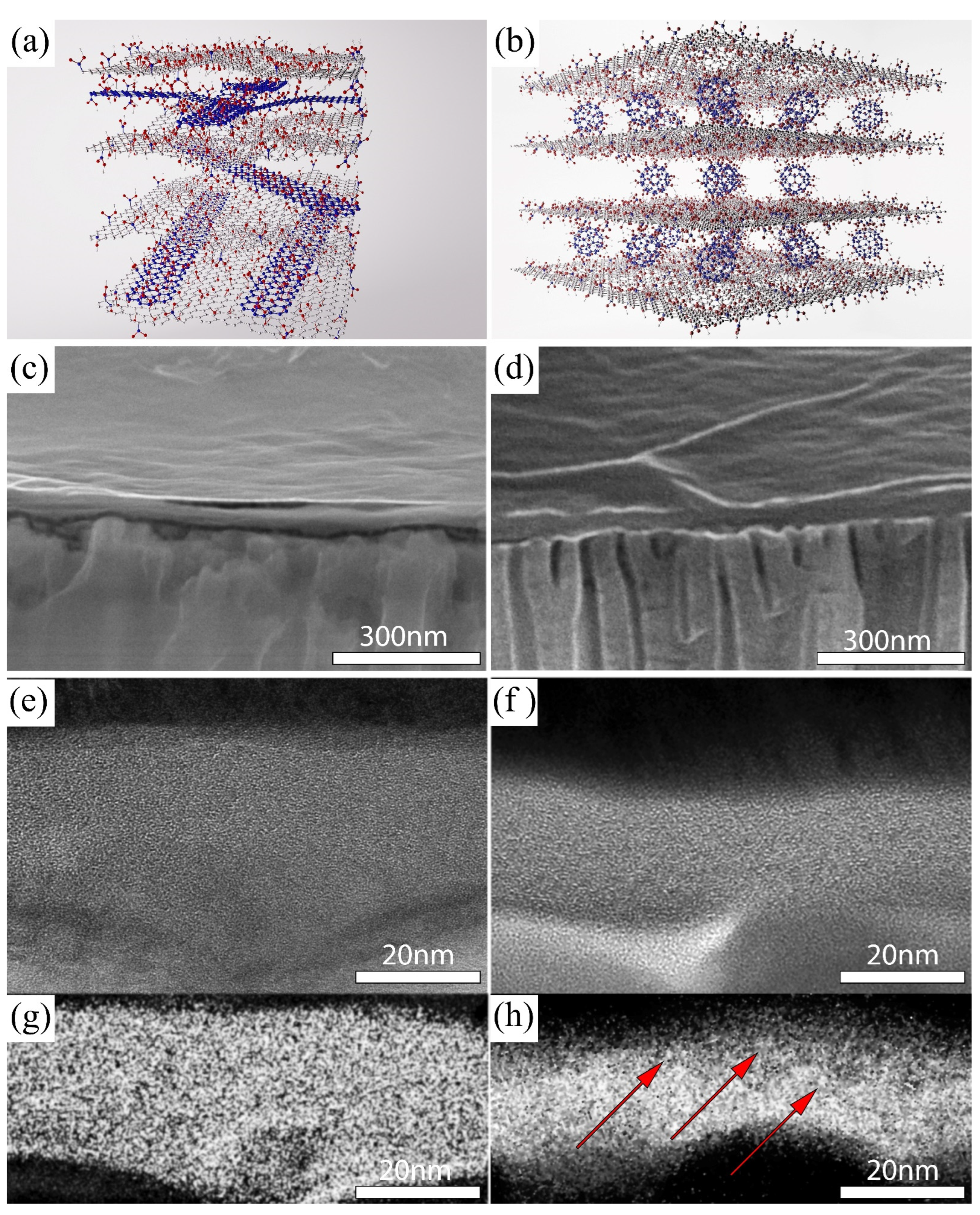

3.1. Microstructure of the Membranes

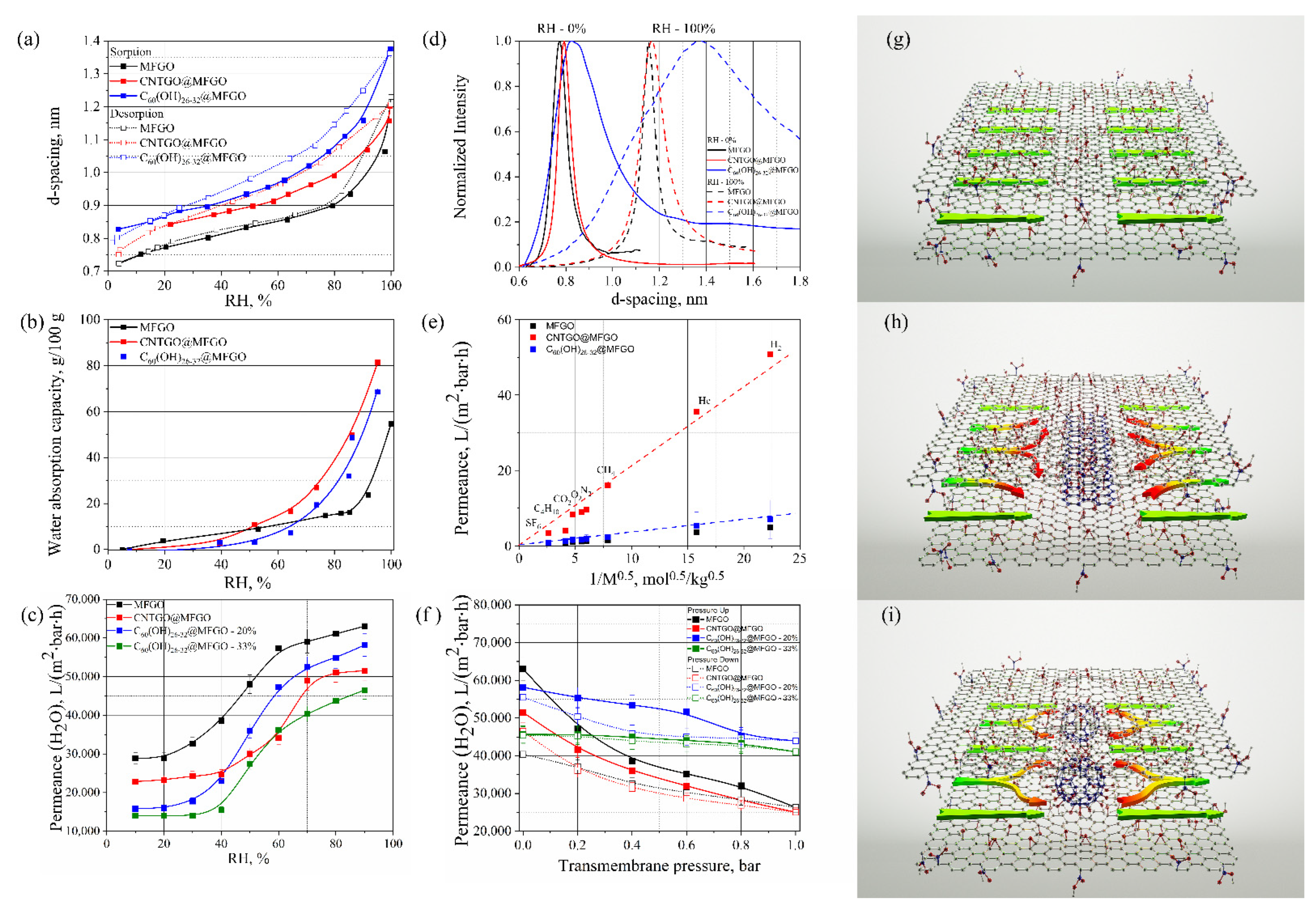

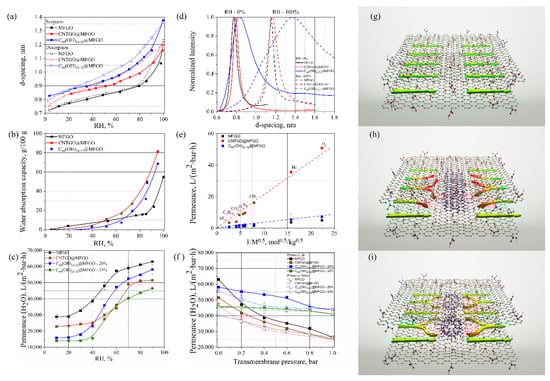

3.2. Nanoflakes Arrangement and Mass-Transport Properties of the Membranes
4. Conclusions
