Breath Figure Method for Construction of Honeycomb Films

by
Yingying Dou
,
Mingliang Jin
,
Guofu Zhou
and
Lingling Shui
*
Institute of Electronic Paper Displays, South China Academy of Advanced Optoelectronics, South China Normal University, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Membranes 2015, 5(3), 399-424; https://doi.org/10.3390/membranes5030399
Submission received: 30 June 2015 / Accepted: 19 August 2015 / Published: 28 August 2015
(This article belongs to the Special Issue Biomimetic Membranes)
Browse Figures
Versions Notes

Abstract

:
Honeycomb films with various building units, showing potential applications in biological, medical, physicochemical, photoelectric, and many other areas, could be prepared by the breath figure method. The ordered hexagonal structures formed by the breath figure process are related to the building units, solvents, substrates, temperature, humidity, air flow, and other factors. Therefore, by adjusting these factors, the honeycomb structures could be tuned properly. In this review, we summarized the development of the breath figure method of fabricating honeycomb films and the factors of adjusting honeycomb structures. The organic-inorganic hybrid was taken as the example building unit to discuss the preparation, mechanism, properties, and applications of the honeycomb films.

1. Introduction

Membranes play an important role in science and technology, such as the applications of ion exchange membranes in separation [1,2,3], wastewater treatment [2,3,4], food, and bio-technology [3,4]; nanoporous membranes in blood purification [5], separation and gas removal [6,7], virus filtration [8] and DNA/gene detection [9,10]; liquid crystal polymer membranes in optics, electronics, display devices, and bio-technology [11,12,13,14]; honeycomb films in anti-bacterial activity [15,16], cell/bacteria culture [17,18], protein adsorption [19], tissue engineering [20], lab-on-fiber technology [21], electrowetting display [22], and water/oil separation [23].
To prepare these functional membranes, self-assembly has been widely employed, such as in the examples of the solution casting technology for the preparation of the ion exchange membrane [24] and the breath figure process for honeycomb film formation [16]. Self-assembly is a “bottom-up” method [25], which can spontaneously induce the formation of diverse ordered structures, such as vesicles, nanoporous membranes, nanotubes, and nanofibers, etc. The driving forces are mainly the weak interactions such as electrostatic interaction, hydrogen-bond interaction, van der Waals force, capillarity, steric effect, dipolar force, and hydrophobic interaction. Generally, several weak interactions work together to complete one self-assembly process, although one plays the key role. For example, in an ionic self-assembly process, the electrostatic interaction plays the main role; however, the steric effect becomes significant when the molecule is large, and the hydrogen-bond interaction has to be considered for an active hydrogen system. Various materials could be applied for this process, such as surfactants [26], polymers [27,28], nanoparticles, and the organic-inorganic hybrid materials [29,30,31,32,33].
Breath figure patterning [34,35,36,37] is an example of a self-assembly process which forms honeycomb-structured films with micro-pores arranged in honeycomb morphology. The process typically includes several sections: one drop of polymer solution is casted on a substrate surface with humid air flowing up the polymer solution drop; the air/solution interface temperature reduces below the dew point as the solvent evaporates; water droplets condense on solution stabilized by the solutes without coalescence; water droplets align into ordered arrays due to the capillary and Marangoni forces; solutes precipitate around water droplets as solvent continues evaporating; and ordered polymer pore film is formed after the solvent and water droplets evaporate completely [34,35]. There are several key components during the breath figure process: the solute, i.e., the building unit, the solvent, and the humid air. Among them, the building units play an important role which brings the main functions for the honeycomb films. The commonly used building units include amphiphilic copolymers, star polymers, block copolymers, polymeric polyion materials, and organic-inorganic hybrids [34,35]. These materials can dissolve in organic solvents such as carbon disulfide, chloroform, and toluene. The organic-inorganic hybrid is a representative building unit which combines characteristics of both organic and inorganic materials, and therefore obtains multi-functional properties [34,35,36,37,38].
In this review, we focus on the fabrication of honeycomb films using the breath figure method. The mechanisms and developing history of the breath figure method are introduced in the first section, in which the driving forces are also discussed. The second section focuses on the materials and affecting factors for honeycomb film formation using the breath figure method. The materials, formation mechanism, and applications of the organic-inorganic hybrid honeycomb films are discussed in the last section.

2. Mechanism of Honeycomb Film Formation: Breath Figure Method

2.1. Development of the Breath Figure Method to Form Honeycomb Films

In 1893 and 1911, the breath figure process was proposed as a water droplet condensation procedure on a solid surface by Aitken [39] and Rayleigh [40,41], respectively. Then, in 1994, François [42] first reported the honeycomb film formed by the breath figure method using star polystyrene (PS) polymer or PS/polyparaphenylene (PPP) block copolymer as building units (Figure 1). In this process, organic carbon disulphide (CS2) was used as the polymer solvent. François proposed three significant factors for honeycomb film formation: (1) material structure, (2) solvent, and (3) moist atmosphere. Since then, more and more materials and solvents have been found to be able to form honeycomb films. The mechanism was described as the sequence of a gelation process:
(a)
Phase separation with rapid solvent evaporation;
(b)
Polymer concentration increasing;
(c)
Solution surface cooling;
(d)
Water condensation.
Membranes 05 00399 g001 1024
Figure 1. (A) Schematic drawing of the honeycomb film formation of star PS polymer or PS-PPP block copolymer; (B) SEM photograph of the PS-PPP honeycomb films, with copyright permission from [42].
Figure 1. (A) Schematic drawing of the honeycomb film formation of star PS polymer or PS-PPP block copolymer; (B) SEM photograph of the PS-PPP honeycomb films, with copyright permission from [42].
Membranes 05 00399 g001
Later, François [43,44] did more work on the mechanism exploration. Light-scattering experiments were carried out to observe the water droplets forming and growing on the surface of the polymer solution [43]. Additionally, no coalescence was observed during this process. They proposed that polymer precipitation at the solution/water interface was the decisive process. The polymer precipitated at the interface and then created a solid polymer envelope around the water droplets to avoid the water droplet coalescence [45]. Generally, the specific material (such as star PS), the organic solvent, and the flow of moist air were the key parameters for the breath figure process. To describe the mechanism more clearly, Srinivasarao [46] proposed the honeycomb film formation process as the following (Figure 2):
(a)
Liquid surface becomes cold with the solvent evaporation;
(b)
Water condenses on the cold surface to become water droplets, which is the nucleation process;
(c)
Water droplets form a close packed hexagonal array because of the convective currents of the evaporation and moist air flow;
(d)
Water droplet array cools and sinks into the polymer solution;
(e)
New nucleation and growth of the moist air induce the formation of another water droplet layer;
(f)
New layers of close packed hexagonal water droplet arrays are generated;
(g)
The solution surface cools back to room temperature after the solvent is totally evaporated, along with the honeycomb film formation after water evaporation;
(h)
Repeating the process from (d) to (f), another water droplet array layer forms.
Membranes 05 00399 g002 1024
Figure 2. Illustration of the ordered honeycomb structure formation mechanism proposed by Srinivasarao. (A) solvent evaporation leads to the cold polymer solution surface; (B) water condenses on cold surface to become water droplets, which is the nucleation process; (C) water droplets from close packed array because of the convective currents of the evaporation and moist air flow; (D) water droplet array cools and sinks into solution; (E) new generation of water droplets; (F) new close packed array template by underlying layer; (G) 3-D array remains after solvent and water evaporation, which means the ordered honeycomb pores formation. The copyright permission was from reference [46].
Figure 2. Illustration of the ordered honeycomb structure formation mechanism proposed by Srinivasarao. (A) solvent evaporation leads to the cold polymer solution surface; (B) water condenses on cold surface to become water droplets, which is the nucleation process; (C) water droplets from close packed array because of the convective currents of the evaporation and moist air flow; (D) water droplet array cools and sinks into solution; (E) new generation of water droplets; (F) new close packed array template by underlying layer; (G) 3-D array remains after solvent and water evaporation, which means the ordered honeycomb pores formation. The copyright permission was from reference [46].
Membranes 05 00399 g002
Srinivasarao figured out that the water droplets could sink into the polymer solution, forming multilayer honeycomb films when the density of the solution was smaller than water. Otherwise, monolayer honeycomb films could be obtained if the water droplets could not sink into the solution.
To explain the mechanism of monolayer or multilayer formation, researchers have also proposed other mechanisms. Bolognesi and co-workers [47] explained that the interfacial energy between the water droplets and the organic solvent was the main factor determining the number of layers, as shown in Figure 3. The interfacial energy balance z0 is defined as:
z0 = z/R = (γw − γw/s)/γs
where z is the distance between the droplet center and the air/solution interface; R is the droplet radius; γw/s is the interfacial tension between water and solution; γw and γs are the surface tension of the water and the solution, respectively. When −1 < z0 < 1, one layer of droplets stayed between the air and solution interface, forming monolayer ordered structures. When z0 > 1, the droplets immerged into the solution, forming multilayer films. When z0 < −1, water droplets could not remain at the interface or in the solution, so no ordered structure could be obtained. Bolognesi [47] provided three examples as shown in Table 1. When CS2 was used as solvent, z0 < 1, a monolayer honeycomb film was formed, while the solvent of toluene and benzene induced the formation of multilayer films with z0 > 1.
Membranes 05 00399 g003 1024
Figure 3. Schematic view of a spherical water droplet at the air/solution interface, with copyright permission from [47]. γs and γw, the surface tension of solution and water, respectively; γw/s, the interfacial tension between water and the solution; z, the distance between the water droplet center and surface; R, the radius of the spherical water droplet.
Figure 3. Schematic view of a spherical water droplet at the air/solution interface, with copyright permission from [47]. γs and γw, the surface tension of solution and water, respectively; γw/s, the interfacial tension between water and the solution; z, the distance between the water droplet center and surface; R, the radius of the spherical water droplet.
Membranes 05 00399 g003
Table
Table 1. The honeycomb film structures predicted from z0 values, with copyright permission from [47].
Table 1. The honeycomb film structures predicted from z0 values, with copyright permission from [47].
Solventγ (mN/m) T = 20 °CγH2O/solvent (mN/m) T = 20 °Cz0Type of Structure
CS232.347.30.84monolayer
toluene27.936.11.30multilayer
benzene28.2351.33multilayer
During the formation mechanism study, driving forces attracted a lot of attention due to their important role in the film formation process [35,48,49,50]. Bormashenko et al. [48] added specific additives into polymer solution to promote the large-scale patterned films, resulting from the temperature gradient-induced Marangoni instability, where the Marangoni number was explained by an equation. Chin et al. [49] formed non-close-packed patterns by adding a heat source to provide the moderate temperature to generate the Marangoni force. Infrared (IR) thermographs showed that the droplet center was cooler than the droplet circumference after casting the polymer solution onto a glass substrate. According to the Marangoni effect [50], the colder center possessed higher surface tension, leading the fluid to move radially inward to the droplet center, which was in agreement with the observation that honeycomb patterns concentrated at the center of the circular films. Meanwhile, Maruyama [51] proposed a mechanism as shown in Figure 4. They believed that the Marangoni convection and capillary forces were the main driving forces [34,35,36,52,53,54,55]. The polyion complex was used as the building unit with chloroform as the solvent. Water droplets could align rather than coalesce because the polyion complex was surface-active. This was a crucial theory to instruct the process selection of building units to form honeycomb films. The convection force was the driving force for the water droplets sinking, and the capillary force was the driving force for the droplets arranging into an ordered array. This mechanism was different from the explanation of Srinivasarao, which has later been widely used by other researchers in their work.
Membranes 05 00399 g004 1024
Figure 4. Top view of the honeycomb structure formation mechanism of polyion complexes, with copyright permission from [51].
Figure 4. Top view of the honeycomb structure formation mechanism of polyion complexes, with copyright permission from [51].
Membranes 05 00399 g004
Hao et al. also explored the mechanism of the honeycomb film formed by the breath figure method. For example, the amphiphilic ferrocenyl-based oligomer with cholesterol as side chains was used as the building unit to form honeycomb film on the solid silicon substrate and the air/water interface [56,57]. They agreed with François for the basic mechanism of the breath figure method and Maruyama for the explanation of driving forces for droplet formation and orderly packing. More importantly, they found that the formation of the monolayer or multilayer of honeycomb films depended not only on the organic solvent properties but also on the deposition space of the water droplets. From the solution edge to the center, honeycomb films with monolayer, bilayer, and trilayer pores were formed and observed by SEM and AFM (Figure 5A–F) [56] in turn. A direct view model of the monolayer, bilayer, and trilayer honeycomb film formation and its mechanism is shown in Figure 5G. The Marangoni convection and thermos-capillary effects were the basic driving forces, while the resistance forces were the viscous force and the buoyancy force. When the total driving force was larger than the resistance force, the water droplets could be dragged into the polymer solution. However, the formation of monolayer or multilayer films was also related to the polymer solution thickness. This meant that at the edge of the polymer solution, only monolayer films could be formed since there was not enough deposition space for more layers of water droplets. For this process, the solvent evaporation speed should be slow to ensure enough deposition space (wet thickness) and enough time for water condensing, sinking, and aligning.
Furthermore, based on honeycomb films, pincushion films were obtained by peeling off the top layer of honeycomb films with simple adhesive tape [58,59,60,61,62,63]. Yabu et al. found that pincushion structures showed greater hydrophobic property than normal honeycomb films [58,59]. Hydrophobic honeycomb films and superhydrophobic pincushion films were obtained with fluorinated polymer solution. Additionally, the maximum contact angle of pincushion films was even 170° [58]. The Wenzel model [64] and Cassie model [65] were used to explain this phenomenon, which meant that the wettability was related to the surface roughness and the surface components, respectively.
Membranes 05 00399 g005 1024

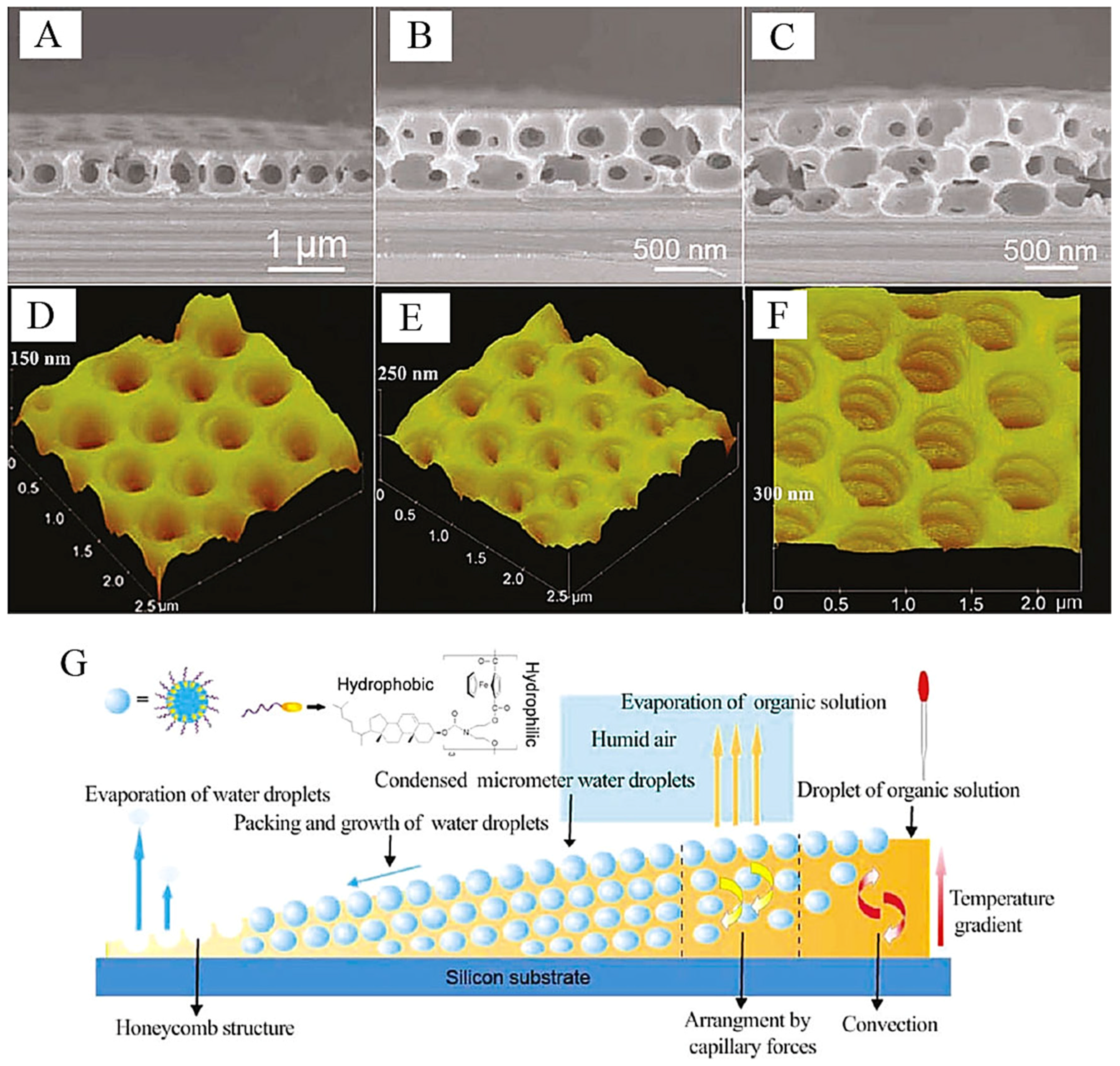

Figure 5. SEM (A–C) cross-section images and AFM (D–F) 3D observations of the monolayer (A,D), bilayer (B,E), and trilayer (C,F) honeycomb films from 0.6 mg/mL oligomer 1/CS2 mixed solution on silicon substrates. (G) The schematic drawing of the formation mechanism of honeycomb structures from single-layer to multilayer arrays of the pores on a silicon substrate with ferrocenyl-cholesterol as the building unit, with copyright permission from [56].
Figure 5. SEM (A–C) cross-section images and AFM (D–F) 3D observations of the monolayer (A,D), bilayer (B,E), and trilayer (C,F) honeycomb films from 0.6 mg/mL oligomer 1/CS2 mixed solution on silicon substrates. (G) The schematic drawing of the formation mechanism of honeycomb structures from single-layer to multilayer arrays of the pores on a silicon substrate with ferrocenyl-cholesterol as the building unit, with copyright permission from [56].
Membranes 05 00399 g005

2.2. Influence Factors of the Honeycomb Film Formation by the Breath Figure Method

The factors affecting the honeycomb film formation include the building units, solvents, substrates, temperature, humidity, air flow velocity, and so on. To know how these factors affect the process could help us to deeply understand the breath figure mechanism of the honeycomb film formation.

2.2.1. Building Units

Since François found that star polymer and block copolymer could form honeycomb films in 1994, more and more materials have been explored in this area, including the hyper-branched polymers [52,54,66], the terminated linear polymers [35,47,52], and the normal linear polymers without a special terminal group [67,68], the amphiphilic polyion complexes [51], the organic-inorganic hybrids [64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81], and so on. Recently, many functional structures have been explored to construct honeycomb films with specific functions like bio-activity and fluorescent properties which could be applied in functional devices. For instance, the fluorescent property has been observed in the DNA/surfactant hybrid (Figure 6) honeycomb films with loaded RhB dye molecules. The surfactant used here is ditetradecyldimethylammonium (DTDA) [69].
Membranes 05 00399 g006 1024
Figure 6. The chemical structure (A) and the schematic view (B) of the DNA-DTDA hybrid, with copyright permission from [69].
Figure 6. The chemical structure (A) and the schematic view (B) of the DNA-DTDA hybrid, with copyright permission from [69].
Membranes 05 00399 g006
As polymer was initially used to form honeycomb films, researchers have done a lot of work on the polymer honeycomb film formation process. The polymer structure, weight, and concentration all affect the honeycomb structures and properties. Polymer structures with special groups would endow the honeycomb films' functions [57,70,71,72,73,74,75,76,77]. For instance, the superhydrophobic honeycomb films were obtained with a fluorinated polymer [57,70], the thermo-responsive honeycomb films were due to the thermo-responsive amphiphilic copolymers [71], the photo-patterning honeycomb films were from polymers with groups sensitive to light (mainly UV light) [72,73,74,75,76], the electro-responsive films were achieved with liquid crystal polymers as building units [77].
According to Xu’s work, the honeycomb pore size decreased with polymer concentration increasing [78]. They used Henry's law to explain this phenomenon:
P = P0(1 − XB)
where P and P0 refer to the vapor pressure of solvent in solution and the pure solvent, respectively;XB is the mole fraction of the solute. Henry's law shows that the solvent of a solution with higher concentration owns lower vapor pressure, i.e., a lower P value. Additionally, low vapor pressure slows the solvent evaporation, resulting in the higher surface temperature, which means a smaller temperature difference between the surface and atmosphere. Then the smaller temperature difference leads to slower droplet size increasing speed during the nucleation process. As the nucleation process is the key factor of determining the pore size, the higher solution concentration then means a smaller pore size.
Meanwhile, the polymer molecular weight remarkably affects the honeycomb pore size and depth, the distance between adjacent pores, and the specific porosity (defined as total pores area per unit area) [78,79,80]. For pore size, molecular weight is a positive effect. Xu et al. still explained it using Perry's law. The polymer mole fraction reduced with a higher molecular weight, leading to a higher P value and larger pore size. For pore depth, Matsuyama obtained a negative relationship, which meant that the pore depth decreased with the molecular weight increasing [79]. However, Gendelman et al. got the opposite relationship [80]. Gendelman deduced that this discrepancy was related to the peculiarities of the honeycomb pattern formation process in Gendelman’s and Matsuyama’s experiments.
Organic-inorganic hybrids have been regarded as promising honeycomb film-building units, in which the inorganic property and size and the organic chain length and surfactant type play important roles in the honeycomb film formation. The details will be discussed in next sessions.

2.2.2. Solvents

In the honeycomb film formation process, the solvent evaporation speed needs to be high regardless of its relative density or miscibility to water. Many organic solvents have been found to be able to form honeycomb films with building units, such as carbon disulfide (CS2), chloroform (CHCl3), benzene, toluene, tetrahydrofuran (THF), and mixtures like CHCl3/CH3OH and CS2/toluene [57].
In 2004, Kim et al. found that multilayer honeycomb films were formed using water-immiscible solvents, such as CHCl3, while monolayer films formed using water-miscible solvents, such as THF with cellulose acetate butyrate (CAB) as the building unit [81]. However, in 2006, Kim et al. obtained the transition from monolayer to bilayer honeycomb films still using the CAB/THF solution but with decreasing polymer concentration, which was explained by the solvent evaporation speed and the interfacial energy between water droplets and the solvent [82]. Ferrari et al. [83] used liner PS to form honeycomb films by choosing proper solvents and substrates. The properties of solvents such as the thermodynamic affinity between the polymer and solvent, water miscibility, boiling point, and boiling enthalpy have also been found to be important for the honeycomb structure formation.

2.2.3. Substrates

Honeycomb films were formed on the surfaces of solid substrates at the beginning, and then the air/water interface from which the honeycomb film could be easily lifted off and transferred was also explored. The typical surface substrates for honeycomb film formation include mica [84], silicon [84,85], silicon oil surface [86,87], and ice [88]. Cong et al. [88] have compared the two substrates of glass and ice for the formation of the honeycomb film of cellulose triacetate (CTA) (Figure 7). It showed that the ice surface, on which ordered porous structures have been obtained, had a lower temperature and a lower water evaporation speed.
Ferrari et al. [83] tested honeycomb film formation on various inorganic and organic substrates, such as glass, silicon, silanized glass, fluorinated glass, polyethylene (PE), polyvinylchloride (PVC), polyethylene terephthalate (PET), etc. The orthogonal experimental data showed that there was an interaction between the substrate material and the solvent material, such as the wetting ability of the solvent on the substrate surface. As a result, for the CS2 solvent, the inorganic glass substrate and the organic PVC substrate were proper for honeycomb structure formation; for the dichloromethane solvent, glass, silanized glass (inorganic substrates) or PET, PVCs (organic substrates) were more suitable for honeycomb film formation.
Membranes 05 00399 g007 1024

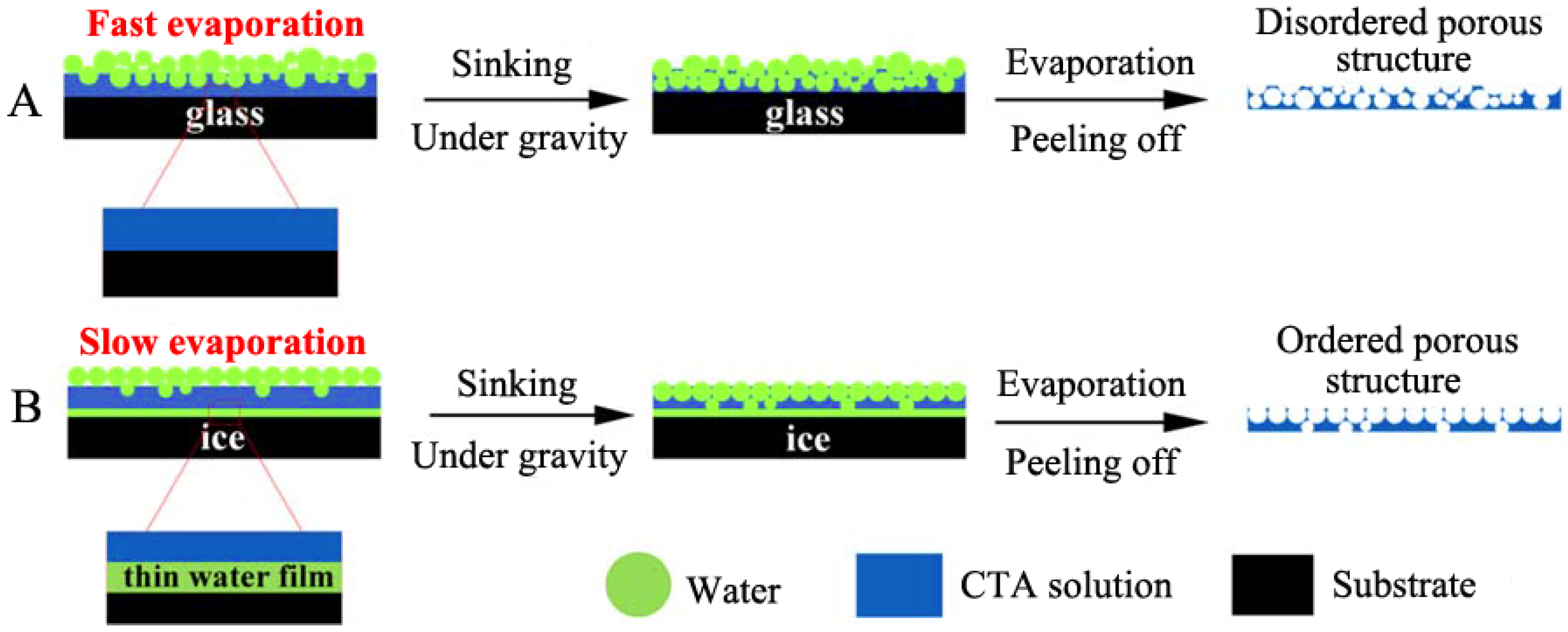

Figure 7. Comparison of the porous structure formation on glass (A) and ice (B) substrates, with copyright permission from [88].
Figure 7. Comparison of the porous structure formation on glass (A) and ice (B) substrates, with copyright permission from [88].
Membranes 05 00399 g007

2.2.4. Temperature

Honeycomb structure formation is sensitive to temperature [47,89]. Many experiments have confirmed that honeycomb structures can be obtained in a certain temperature range, and the temperature affects the pore size, pore size distribution, and pore shapes. Bolognesi et al. [47] prepared ordered honeycomb films with hydrophilic terminated linear polymer PS100K-2COOH dissolved in CS2 with the concentrations of 1.6% and 4% at temperatures of 20 °C, 30 °C, and 40 °C. As shown in Figure 8, when the temperature increased from 20 to 40 °C, for the 1.6% concentration sample, the pore size increased from 5 to 8 μm and the pore size distribution became narrower, while for the 4% concentration sample, the pore size was not directly related to the temperature changing, though the pore size distribution became narrow and the film changed from monolayer to multilayer.
Membranes 05 00399 g008 1024
Figure 8. The pore size distribution of the PS100K-2COOH honeycomb films from CS2 solutions at different temperatures for samples with the polymer concentration of 1.6% (A) and 4% (B), with copyright permission from [47].
Figure 8. The pore size distribution of the PS100K-2COOH honeycomb films from CS2 solutions at different temperatures for samples with the polymer concentration of 1.6% (A) and 4% (B), with copyright permission from [47].
Membranes 05 00399 g008
Cong et al. [88] compared the difference between normal glass substrate and ice substrate, which was actually related to the substrate temperature. For the influence of substrate temperature [90,91,92], Chin et al. [90] observed non-close-packed (NCP) honeycomb arrays at higher substrate temperatures caused by the patterned metal stage beneath, and close-packed (CP) honeycomb pores of PS/(CHCl3/C2H5OH) organic solution. Meanwhile, Perry et al. [92] compared the temperature drop of the wafer edge and center with various solvents on glass or silicon substrates. The temperature drop was caused by solvent evaporation, and the temperature drop difference was due to the metal replenishing process of the wafer center. This temperature drop difference resulted in the evaporation difference and surface tension gradient, which caused the Marangoni effect and affected the film thickness in the end.

2.2.5. Humidity

The process humidity also plays a significant role in the honeycomb structure formation. On solid substrates, the honeycomb film formation process description typically needs to figure out the relative humidity data, while at the air/water interface, the humidity is normally enough [52]. Peng et al. [52] used PS (Mw = 223.2 k, 1 wt%) toluene solution to form honeycomb films, and found that the pore size of prepared PS honeycomb films increased with the relative humidity, as shown in Figure 9. During this process, the relative humidity was adjusted by the nitrogen flow speed, i.e., the relative humidity increased from 40% to 95% with the nitrogen speed varying from 0 to 1 L/min. At low humidity of <46% or high humidity of >90%, no ordered structure formed because of the lack of water or too many droplets condensing onto the solution surface coalesced with adjacent water droplets.
Membranes 05 00399 g009 1024

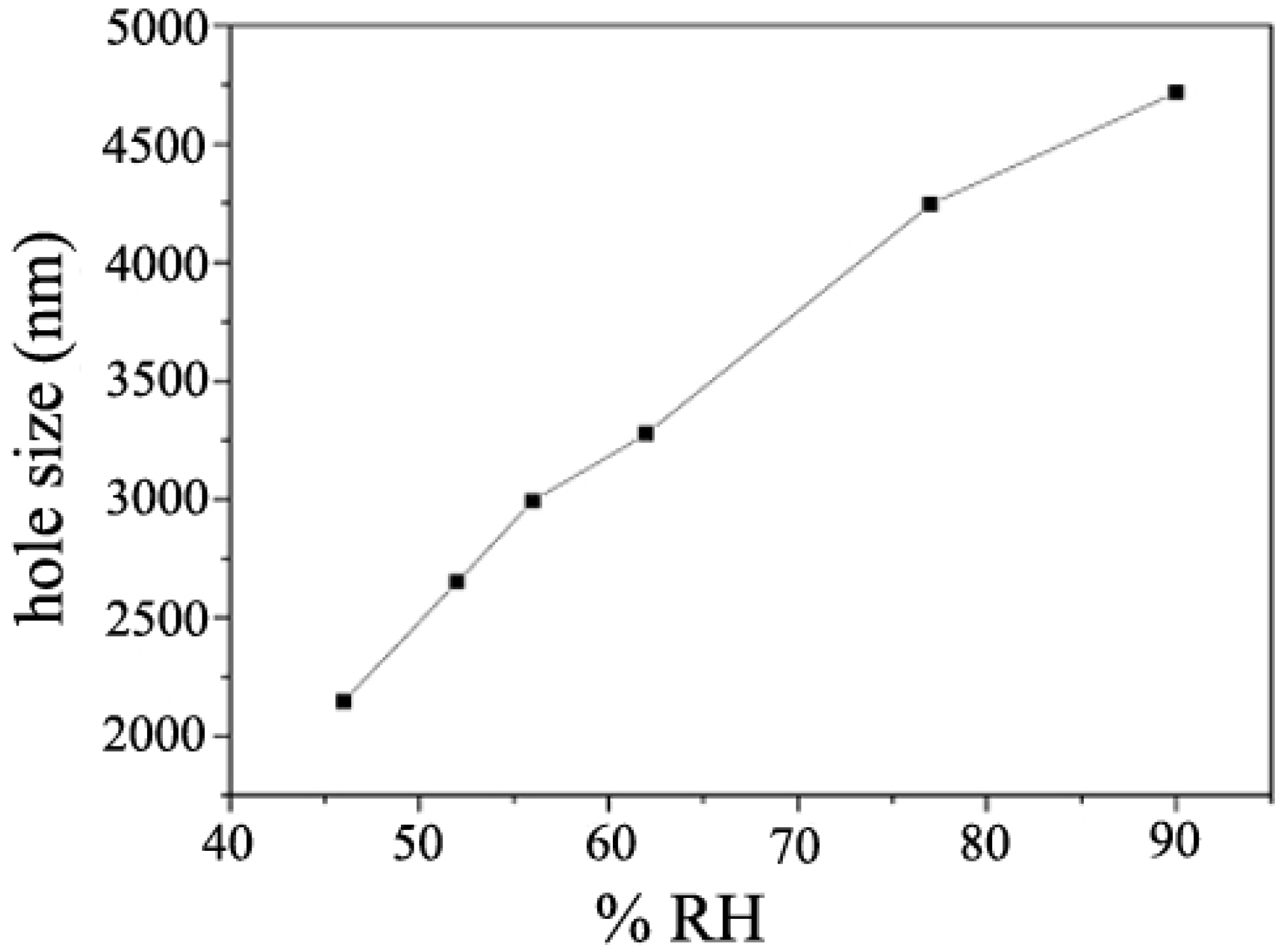

Figure 9. Curve of the pore size of PS honeycomb films versus the relative humidity, with copyright permission from [52].
Figure 9. Curve of the pore size of PS honeycomb films versus the relative humidity, with copyright permission from [52].
Membranes 05 00399 g009

2.2.6. Other Factors

Air flow velocity has been found to affect the honeycomb film pore shape and size [93,94]. Normally, with higher air flow speed, smaller pores were formed. Li et al. [93] found that honeycomb structures with different aspect ratios of the elliptic pores were formed with a 15° direction of moist air flow at a different air flow velocity, while circular pores were formed with perpendicular air flow (Figure 10).
Membranes 05 00399 g010 1024
Figure 10. Models of water droplets as templates to form circular pores (A) or elliptic pores (B), with copyright permission from [93].
Figure 10. Models of water droplets as templates to form circular pores (A) or elliptic pores (B), with copyright permission from [93].
Membranes 05 00399 g010
The applied voltage has also been found to affect the formation of honeycomb films. Zhal et al. [95,96] applied voltage during the honeycomb film formation process by linking two electrodes to the two copper plates on glass surface, as shown in Figure 11A. This process was called the electric breath figure (EBF) process. The mechanism is explained in Figure 11B. The voltage created the electrostatic interaction between two adjacent water droplets. The water surface tension was found to decrease with increasing the applied voltage, leading to the decrease of the contact angle between the water droplets and the PS chloroform solution. When SiO2 nanoparticles were added to the PS solution to assist this process, the PS/SiO2 chloroform solution was casted on the glass surface between the two copper plates [96]. The PS/SiO2 hybrid honeycomb pore size decreased with increasing the applied voltage (Figure 11C). Furthermore, the honeycomb film became more hydrophobic with the increasing voltage. As a consequence, superhydrophobic film with a contact angle of 150.1° was obtained when the applied voltage was increased to 3000 V.
Membranes 05 00399 g011a 1024Membranes 05 00399 g011b 1024
Figure 11. (A) Illustration of the electric breath figure device; (B) Schematic view of the electrostatic distribution of water droplets in the electric breath figure process, with copyright permission from [95]; (C) Curve of the pore diameter versus the applied voltage of PS/SiO2 chloroform solution, with copyright permission from [96].
Figure 11. (A) Illustration of the electric breath figure device; (B) Schematic view of the electrostatic distribution of water droplets in the electric breath figure process, with copyright permission from [95]; (C) Curve of the pore diameter versus the applied voltage of PS/SiO2 chloroform solution, with copyright permission from [96].
Membranes 05 00399 g011aMembranes 05 00399 g011b
Chin’s group [49] prepared non-close-packed (NCP) honeycomb pore arrays of PS/CHCl3 solution using electrostatic interaction by applied voltage, which was different from Zhal’s work. PS was acidified with hydrogen bromide (HBr). Water droplets received H+ ions from HBr in polymer solution to obtain positively charged water droplets, resulting in the inter-droplet electrostatic repulsion, which was the main driving force for the droplets aligning into ordered arrays.

3. Organic-Inorganic Hybrids as Building Units to Form Honeycomb Films

The organic-inorganic hybrid is a type of building unit used to form honeycomb films. The combination of the organic groups and inorganic groups builds the basic structure of honeycomb films, which also brings special properties, such as the surface-enhanced Raman effect, the surface hydrophobicity, and the fluorescent, magnetic, and photoelectric properties, etc. The organic part could be functional organic groups, such as surfactants or some bio-active organic groups. The inorganic part could be metal nanoparticles, POMs, QDs, and carbon nanotubes [97]. Water droplets are normally stabilized by these inorganic nanostructures modified by organic groups. A typical example is shown in Figure 12 [98]. The dodecanethiol-stabilized gold nanoparticles sit at the interface of a water droplet and the CHCl3 solution with a contact angle of θ, which is larger than 90° here, meaning that this nanoparticle has better wettability to CHCl3 solution than to water.

3.1. Surfactant Modified Nanoparticles

Nanoparticles own great optical, electrical, and magnetic properties according to the size effect. To prepare honeycomb films with these properties, nanoparticles modified by organic groups were used, such as Au [98,99], Ag [73,100,101], Al2O3 [102,103], SiO2, TiO2, and ZnO nanoparticles [103]. Hao et al. have investigated the honeycomb film formation and mechanism using surfactant-modified Au nanoparticles. For example, dodecanethiol-capped gold nanoparticles were used to fabricate 1.7–3.5 μm pore size honeycomb film at the air/water interface with the assistance of another surfactant, dioctadecyldimethylammonium chloride (DODMAC), as illustrated in Figure 13C [99]. Differentiated from the solid substrate using moist air flow to provide high humidity, the air/water surface provides enough humidity by itself. The authors have also found that different pore structures could be formed at different Au nanoparticle concentrations. The two-dimensional perforated monolayer dominated when the Au nanoparticle concentration was 0.6 g/L (Figure 13A), while three-dimensional alveoli-like porous films were mainly formed at 0.8 g/L concentration (Figure 13B). At the same time, these honeycomb films formed by modified Au nanoparticles possessed the property of surface-enhanced Raman spectroscopy (SERS) according to the nanoparticle size effect.
Membranes 05 00399 g012 1024
Figure 12. Schematic diagram of a water droplet stabilized by the dodecanethiol-stabilized gold nanoparticles at the water/chloroform interface, with copyright permission from [98]. Here, θ is the contact angle of a particle at the water/chloroform interface.
Figure 12. Schematic diagram of a water droplet stabilized by the dodecanethiol-stabilized gold nanoparticles at the water/chloroform interface, with copyright permission from [98]. Here, θ is the contact angle of a particle at the water/chloroform interface.
Membranes 05 00399 g012
Membranes 05 00399 g013 1024
Figure 13. SEM images of the honeycomb structures formed at the gold nanoparticle concentration of 0.8 g/L (A) and 0.6 g/L (B); (C) Schematic diagram of the honeycomb film formation mechanism at air/water interface. The copyright permission was from [99].
Figure 13. SEM images of the honeycomb structures formed at the gold nanoparticle concentration of 0.8 g/L (A) and 0.6 g/L (B); (C) Schematic diagram of the honeycomb film formation mechanism at air/water interface. The copyright permission was from [99].
Membranes 05 00399 g013
Ag nanoparticles have also been found to be potential building units for constructing honeycomb films [100,101] because the aggregation of Ag nanoparticles can induce the breath figure process. Jiang et al. [100] found that the presence of Ag nanoparticles in polymer solution assisted the water droplets to spread on the air/polymer solution interface, as shown in Figure 14. Water droplets spread over a larger area on the interface with more surfaces into the air and less into the polymer solution.
Membranes 05 00399 g014 1024
Figure 14. Schematic diagram of a water droplet at the air/solution interface with or without Ag nanoparticle stabilization during breath figure process. PU and PLLA are polyurethane and poly(L-lactic acid), respectively. (A) Wetting behavior of the water droplet at the solution-air interface. (B) PU in THF with 30% humidity, the water droplets sink into solution without the stabilization of Ag nanoparticles (left), while the water droplets spread stable at the solution-air interface with the stabilization of Ag nanoparticles (right). (C) PLLA in CHCl3 with 90% humidity, the water droplet grows fast to a large volume and immerses deeply into the polymer solution (left), resulting in the irregular pore pattern. And with the addition of Ag nanoparticles, the water droplet spreads at the solution-air interface stably with more surface exposed to air (right). The copyright permission was from [100].
Figure 14. Schematic diagram of a water droplet at the air/solution interface with or without Ag nanoparticle stabilization during breath figure process. PU and PLLA are polyurethane and poly(L-lactic acid), respectively. (A) Wetting behavior of the water droplet at the solution-air interface. (B) PU in THF with 30% humidity, the water droplets sink into solution without the stabilization of Ag nanoparticles (left), while the water droplets spread stable at the solution-air interface with the stabilization of Ag nanoparticles (right). (C) PLLA in CHCl3 with 90% humidity, the water droplet grows fast to a large volume and immerses deeply into the polymer solution (left), resulting in the irregular pore pattern. And with the addition of Ag nanoparticles, the water droplet spreads at the solution-air interface stably with more surface exposed to air (right). The copyright permission was from [100].
Membranes 05 00399 g014

3.2. Surfactant Modified POMs

Polyoxometalates (POMs) own great physical, chemical, and biological properties, showing potential applications in catalysis, energy storage, biomedicine, and other areas [104,105,106]. To expand their special properties in more fields, scientists created various honeycomb films using surfactant-modified POMs [105,106,107,108,109,110,111,112,113]. For example, Wu et al. prepared a series of supramolecular complexes, i.e., different types of SECs (surfactant-encapsulated polyoxometalate complexes) with dimethyl dialkylammonium surfactants (DODA, DTDA, DDDA, DHDA), as shown in Figure 15 [107]. Then various honeycomb films were prepared using these supramolecular complexes. By comparing the alkyl length (hydrophobic property) and SECs size, Wu et al. [38] concluded that both the wettability and the size of the SECs played a significant role in honeycomb structure formation. The proper hydrophobicity (>90° contact angle) and proper large size (11.86 nm3 volume size succeeded, while 8.70 nm3 or 6.82 nm3 volume size failed) were preferred for ordered structure formation. Meanwhile, (DODA)4H-[Eu(H2O)2SiW11O39] (SEC-1) was taken as an example to explore the honeycomb-ordered structure formation process.
Membranes 05 00399 g015 1024

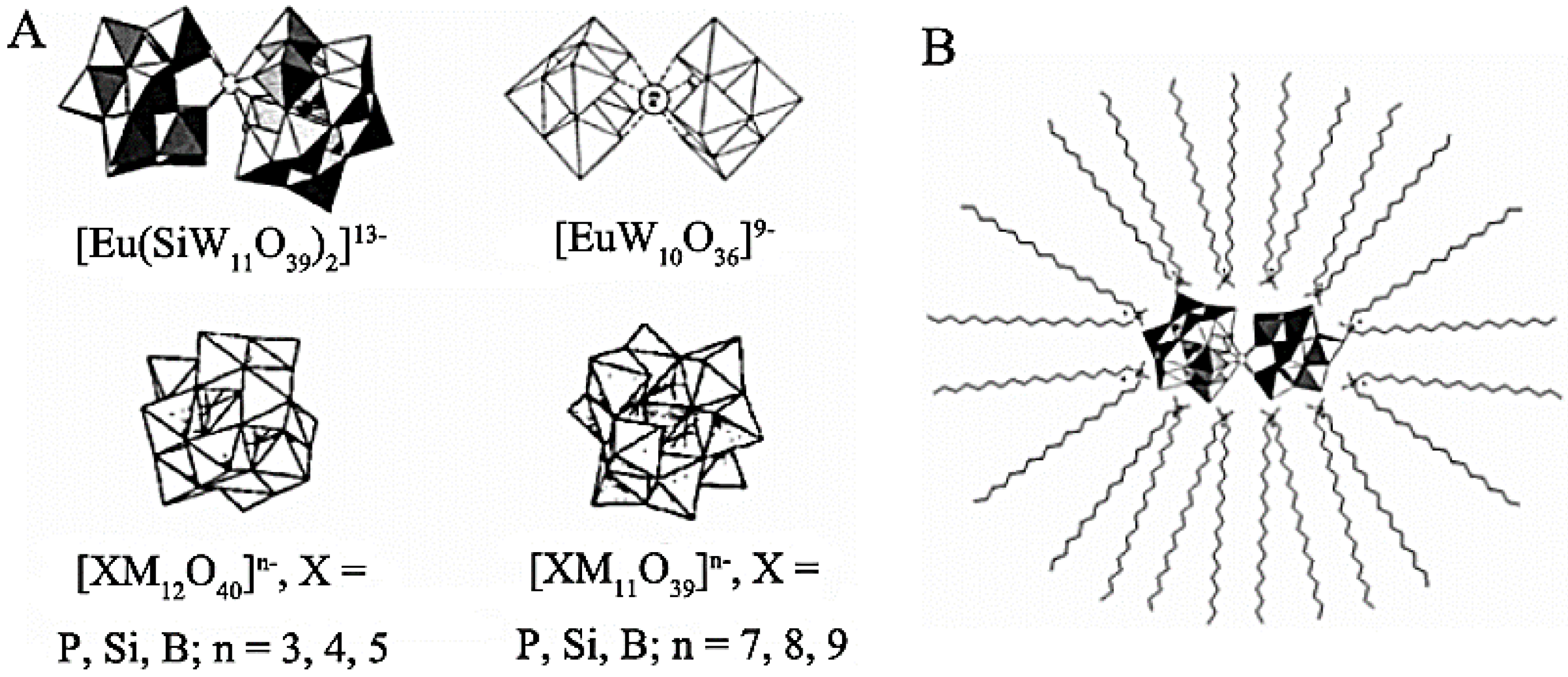

Figure 15. Schematic drawings of the structures of SECs series (A) and the SEC-1 structure (B), with copyright permission from [107].
Figure 15. Schematic drawings of the structures of SECs series (A) and the SEC-1 structure (B), with copyright permission from [107].
Membranes 05 00399 g015
Hao et al. found that other kinds of POMs modified by surfactants could also form ordered honeycomb films, such as {Mo72Fe30}–DODMA complexes [109], (DODMA)10{Mn2Bi2W20}, (DDDMA)10{Mn2Bi2W20}, (CTA)10{Mn2Bi2W20} [110], DODMA-{Mn2Bi2W20}, {Mo154}, {Mo132}, {Mo368}, and {PW12}, etc. [111]. These films possessed special properties; for instance, the ordered honeycomb film of DODMA+-encapsulated {Mn2Bi2W20} owned ferromagnetism, while the ordered honeycomb film of DODMA+-encapsulated {Mo368} had great electrochemical properties [111].

3.3. Modified QDs

Chen et al. [114] exposed the PMMA/Cd(AA)2 ionomer of chloroform solution to an H2S atmosphere, obtaining ordered hexagonal-patterned PMMA/CdS films (Figure 16), which were polymer-QD hybrid honeycomb films, presenting an excellent fluorescence property.
Based on the breath figure method, polymer-QD hybrid (PS-CdTe) honeycomb films were obtained by dipping PS honeycomb film into aqueous CdTe nanocrystals. Galeotti [115] prepared the hybrid honeycomb films by combining the ordered hexagonal morphology feature and the CdTe QDs semiconducting photoluminescence feature, presenting potential applications in light-emitting devices and hybrid organic/inorganic solar cells. Böker [116] created the polymer-QD hybrid honeycomb films by the breath figure process of polymer solutions, along with the CdSe nanoparticle self-assembly process at the polymer solution and water interface. As a consequence, the ordered honeycomb pores were formed, and then the CdSe nanoparticle film was obtained along the polymer/air interface, forming tri-N-octylphosphine oxide (TOPO)-stabilized CdSe nanoparticle honeycomb films.
Membranes 05 00399 g016 1024
Figure 16. Illustration of the CdS QDs honeycomb film formation process. The initial process is the synthesis of poly(methyl methacrylate)/cadmium acrylate (PMMA/Cd(AA)2) ionomer, and the breath figure process of this ionomer is shown as (A); Then PMMA/CdS QDs was formed by exposing the ionomer to an H2S atmosphere, and the QD-polymer honeycomb film formation is shown as (B). The SEM images formed by these breath figure process are shown in (a) for pure PMMA film, (b) for PMMA/Cd(AA)2 ionomer film and (c) for PMMA/CdS QD-polymer film. Here, the solvent is CHCl3, polymer concentration = 6.7 wt%, Cd2+/S2- = 1:0.33 mol mol-1, humidity = 85%. The copyright permission was from reference [114].
Figure 16. Illustration of the CdS QDs honeycomb film formation process. The initial process is the synthesis of poly(methyl methacrylate)/cadmium acrylate (PMMA/Cd(AA)2) ionomer, and the breath figure process of this ionomer is shown as (A); Then PMMA/CdS QDs was formed by exposing the ionomer to an H2S atmosphere, and the QD-polymer honeycomb film formation is shown as (B). The SEM images formed by these breath figure process are shown in (a) for pure PMMA film, (b) for PMMA/Cd(AA)2 ionomer film and (c) for PMMA/CdS QD-polymer film. Here, the solvent is CHCl3, polymer concentration = 6.7 wt%, Cd2+/S2- = 1:0.33 mol mol-1, humidity = 85%. The copyright permission was from reference [114].
Membranes 05 00399 g016

3.4. Applications of Organic-Inorganic Hybrid Honeycomb Films

The honeycomb films formed by organic-inorganic hybrids possess the properties of both organic and inorganic parts, showing potential applications in many fields: electrochemistry [117], antibacterial treatment [118], photoelectric devices [119,120], separation [121], sensors [122], functional membranes (fluorescent, super-hydrophobic, SERS) [98,99,100,114,123], catalysis [99,100] and so on, as summarized in Figure 17. The honeycomb films formed by surfactant-modified Au or Ag nanoparticles could be used as the substrate of surface-enhanced Raman spectroscopy (SERS) [73,99,123]. POM-surfactant hybrid honeycomb films not only played an important role in biology, sensor, catalyst, and separation areas, but also showed the applicability for electro-deposition [106,107,108,109,110,111,112,113,117]. Hao et al. [117] developed film applications as electrode surfaces by transferring the film onto a solid surface after film formation. Then, Au nanoparticles were electrodeposited into the honeycomb macropores, obtaining a hierarchical structure.
Membranes 05 00399 g017 1024
Figure 17. Summary of the applications of the organic-inorganic hybrid honeycomb films.
Figure 17. Summary of the applications of the organic-inorganic hybrid honeycomb films.
Membranes 05 00399 g017

4. Conclusions

Since François initially created ordered hexagonal honeycomb films by the breath figure method with star PS and block PS-PPP polymers in 1994, these films have attracted more and more attention. Currently, the research of breath figure honeycomb films has mainly been focused on exploring the mechanism, building unit expansion, factor adjustments, and application trials. In this review, we described the forming mechanism of the breath figure process. During the breath figure process, water droplets condensing into ordered arrays was the core part, and then the building units aggregated along the water droplets with further solvent and water evaporation to form ordered honeycomb films. As a consequence, the factors affecting the film formation were discussed, including the building units, solvents, substrates, temperature, humidity, air flow velocity, and the applied voltage. The organic-inorganic hybrid building units have been taken as an example to demonstrate the formation of honeycomb films with three types of materials: surfactant-modified nanoparticles, surfactant-modified POMs, and polymer-QDs. The organic-inorganic hybrid honeycomb films possess the properties of both organic and inorganic parts, showing potential applications in many areas.

Acknowledgments

We appreciate the financial support from National Nature Science Foundation of China (NSFC No. 21303060). This work was also supported by Guangdong Natural Science Foundation (S2013010014418), Program for Changjiang Scholars and Innovative Research Team in University (IRT13064) and Guangdong Talent Program (2011D039).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Varcoe, J.R.; Atanassov, P.; Dekel, D.R.; Herring, A.M.; Hickner, M.A.; Kohl, P.A.; Kucernak, A.R.; Mustain, W.E.; Nijmeijer, K.; Scott, K.; et al. Anion-exchange membranes in electrochemical energy systems. Energy Environ. Sci. 2014, 7, 3135–3191. [Google Scholar] [CrossRef]
  2. Li, J.; He, Z. Optimizing the performance of a membrane bio-electrochemical reactor using an anion exchange membrane for wastewater treatment. Environ. Sci. Water Res. Technol. 2015, 1, 355–362. [Google Scholar] [CrossRef]
  3. Nagarale, R.K.; Gohil, G.S.; Shahi, V.K. Recent developments on ion-exchange membranes and electro-membrane processes. Adv. Colloid Interface Sci. 2006, 119, 97–130. [Google Scholar] [CrossRef] [PubMed]
  4. Xu, T. Ion exchange membranes: State of their development and perspective. J. Membr. Sci. 2005, 263, 1–29. [Google Scholar] [CrossRef]
  5. Elgort, M.G.; Hermann, M.G.; Erali, M.; Durtschi, J.D.; Voelkerding, K.V.; Smith, R.E. Extraction and amplification of genomic DNA for human blood on nanoporous aluminum oxide membranes. Clin. Chem. 2004, 50, 1817–1819. [Google Scholar] [CrossRef] [PubMed]
  6. Sircar, S.; Rao, M.B. Nanoporous carbon membranes for separation of gas mixtures by selective surface flow. J. Membr. Sci. 1993, 85, 253–264. [Google Scholar]
  7. Sircar, S.; Rao, M.B. Performance and pore characterization of nanoporous carbon membranes for gas separation. J. Membr. Sci. 1996, 110, 109–118. [Google Scholar]
  8. Yang, S.Y.; Ryu, I.; Kim, H.Y.; Jang, S.K.; Russell, T.P. Nanoporous membranes with ultrahigh selectivity and flux for the filtration of viruses. Adv. Mater. 2006, 18, 709–712. [Google Scholar] [CrossRef]
  9. Harrell, C.C.; Choi, Y.; Horne, L.P.; Baker, L.A.; Siwy, Z.S.; Martin, C.R. Resistive-pulse DNA detection with a conical nanopore sensor. Langmuir 2006, 22, 10837–10843. [Google Scholar] [CrossRef] [PubMed]
  10. Fologea, D.; Gershow, M.; Ledden, B.; McNabb, D.S.; Golovchenko, J.A.; Li, J. Detecting single stranded DNA with a solid state nanoproe. Nano Lett. 2005, 5, 1905–1909. [Google Scholar] [CrossRef] [PubMed]
  11. Martinez-Felipe, A. Liquid crystal polymers and ionomers for membrane applications. Liq. Cryst. 2011, 38, 1607–1626. [Google Scholar] [CrossRef]
  12. Wang, X.; Engel, J.; Liu, C. Liquid crystal polymer (LCP) for MEMS: Processes and applications. J. Micromech. Microeng. 2003, 13, 628–633. [Google Scholar] [CrossRef]
  13. Broer, D.J.; Bastiaansen, C.M.W.; Debije, M.G.; Schenning, A.P.H.J. Functional organic materials based on polymerized liquid-crystal monomers: Supramolecular hydrogen-bonded systems. Angew. Chem. Int. Ed. 2012, 51, 7102–7109. [Google Scholar] [CrossRef] [PubMed]
  14. Schenning, A.P.H.J.; Gonzalez-Lemus, Y.C.; Shishmanova, I.K.; Broer, D.J. Nanoporous membranes based on liquid crystalline polymers. Liq. Cryst. 2011, 38, 1627–1639. [Google Scholar] [CrossRef]
  15. Park, J.J.; Lee, J.G.; Kim, D.Y.; Hong, J.H.; Kim, J.J.; Hong, S.; Yoon, S.S. Antibacterial and water purification activities of self-assembled honeycomb structure of aerosol deposited titania film. Environ. Sci. Technol. 2012, 46, 12510–12518. [Google Scholar] [CrossRef] [PubMed]
  16. Zang, K.; Shang, F.; Zhang, X.; Guo, S.; Tan, Y. The biocompatible and anti-bacterial effect of the poly(L-lactic acid) film with regularly impregnated Ag nanoparticles. Adv. Sci. Lett. 2012, 17, 228–232. [Google Scholar] [CrossRef]
  17. Beattie, D.; Wong, K.H.; Williams, C.; Poole-Warren, L.A.; Davis, T.P.; Barner-Kowollik, C.; Stenzel, M.H. Honeycomb-structured porous films from polypyrrole-containing block copolymers prepared via RAFT polymerization as a scaffold for cell growth. Biomacromolecules 2006, 7, 1072–1082. [Google Scholar] [CrossRef] [PubMed]
  18. Chaudhuri, J.B.; Davidson, M.G.; Ellis, M.J.; Jones, M.D.; Wu, X. Fabrication of honeycomb-structured poly(DL-lactide) and poly [(DL-lactide)-co-glycolide] films and their use as scaffolds for osteoblast-like cell culture. Macromol. Symp. 2008, 272, 52–57. [Google Scholar] [CrossRef]
  19. Sunami, H.; Ito, E.; Tanaka, M.; Yamamoto, S.; Shimomura, M. Effect of honeycomb film on protein adsorption, cell adhesion and proliferation. Colloids Surf. A Physicochem. Eng. Asp. 2006, 284–285, 548–551. [Google Scholar] [CrossRef]
  20. Itoh, H.; Aso, Y.; Furuse, M.; Noishiki, Y.; Miyata, T. A honeycomb collagen carrier for cell culture as a tissue engineering scaffold. Artif. Organs 2001, 25, 213–217. [Google Scholar] [CrossRef] [PubMed]
  21. Pisco, M.; Quero, G.; Iadicicco, A.; Giordano, M.; Galeotti, F.; Cusano, A. Lab on fiber by using the breath figure technique. In Lab-on-Fiber Technology; Cusano, A., Consales, M., Crescitelli, A., Ricciardi, A., Eds.; Springer Series in Surface Sciences: Basel, Switzerland, 2015; Volume 56, pp. 233–250. [Google Scholar]
  22. Bormashenko, E.; Pogreb, R.; Bormashenko, Y.; Aharoni, H.; Shulzinger, E.; Grinev, R.; Rozenman, D.; Rozenman, Z. Progress in low voltage reversible electrowetting with lubricated polymer honeycomb substrates. RSC Adv. 2015, 5, 32491–32496. [Google Scholar] [CrossRef]
  23. Bormashenko, E.; Balter, S.; Bormashenko, Y.; Aurbach, D. Honeycomb structures obtained with breath figures self-assembly allow water/oil separation. Colloids Surf. A Physicochem. Eng. Asp. 2012, 415, 394–398. [Google Scholar] [CrossRef]
  24. Choi, J.; Lee, K.M.; Wycisk, R.; Pintauro, P.N.; Mather, P.T. Nanofiber network ion-exchange membranes. Macromolecules 2008, 41, 4569–4572. [Google Scholar] [CrossRef]
  25. Zhang, S. Building from the bottom up. Materialstoday 2003, 6, 20–27. [Google Scholar]
  26. Choi, K.S.; Lichtenegger, H.C.; Stucky, G.D.; McFarland, E.W. Electrochemical synthesis of nanostructured ZnO films utilizing self-assembly of surfactant molecules at solid-liquid interfaces. J. Am. Chem. Soc. 2002, 124, 12402–12403. [Google Scholar] [CrossRef] [PubMed]
  27. Capito, R.M.; Azevedo, H.S.; Velichko, Y.S.; Mata, A.; Stupp, S. Self-assembly of large and small molecules into hierarchically ordered sacs and membranes. Science 2008, 319, 1812–1816. [Google Scholar] [CrossRef] [PubMed]
  28. Liang, C.; Hong, K.; Guiochon, G.A.; Mays, J.W.; Dai, S. Synthesis of a large-scale highly ordered porous carbon film by self-assembly of block copolymers. Angew. Chem. Int. Ed. 2004, 43, 5785–5789. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, Y.; Wang, A.; Claus, R. Molecular self-assembly of TiO2/polymer nanocomposite films. J. Phys. Chem. 1997, 101, 1385–1388. [Google Scholar] [CrossRef]
  30. Zhang, J.; Song, Y.F.; Cronin, L.; Liu, T. Self-assembly of organic-inorganic hybrid amphiphilic surfactants with large polyoxometalates as polar head groups. J. Am. Chem. Soc. 2008, 130, 14408–14409. [Google Scholar] [CrossRef] [PubMed]
  31. Govor, L.V.; Parisi, J. Honeycomb carbon networks: Preparation, structure, and transpor. In Self-organized Morphology in Nanostructured Materials, 6th ed.; Al-Shamery, K., Parisi, J., Eds.; Springer: Verlag Berlin, Germany; GmbH & Co. K: Heidelberg, Germany, 2008; Volume 99, pp. 115–153. [Google Scholar]
  32. Couck, S.; Denayer, J.F.M.; Baron, G.V.; Remy, T.; Gascon, J.; Kapteijn, F. An amine-functionalized MIL-53 metal-organic framework with large separation power for CO2 and CH4. J. Am. Chem. Soc. 2009, 131, 6326–6327. [Google Scholar] [CrossRef] [PubMed]
  33. Kim, H.; Lim, C.; Hong, S. Gas permeation properties of organic-inorganic hybrid membranes prepared from hydroxyl-terminated polyether and 3-isocyanatopropyltriethoxysilane. J. Sol. Gel. Sci. Technol. 2005, 36, 213–221. [Google Scholar] [CrossRef]
  34. Ma, H.; Hao, J. Ordered patterns and structures via interfacial self-assembly: Superlattices, honeycomb structures and coffee rings. Chem. Soc. Rev. 2011, 40, 5457–5471. [Google Scholar] [CrossRef] [PubMed]
  35. Bunz, U.H.F. Breath figures as a dynamic templating method for polymers and nanomaterials. Adv. Mater. 2006, 18, 973–989. [Google Scholar] [CrossRef]
  36. Stenzel, M.H.; Barner-Kowollik, C.; Davis, T.P. Formation of honeycomb-structured, porous films via breath figures with different polymer architectures. J. Polym. Sci. A Polym. Chem. 2006, 44, 2363–2375. [Google Scholar] [CrossRef]
  37. Hoa, M.L.K.; Lu, M.; Zhang, Y. Preparation of porous materials with ordered hole structure. Adv. Colloid Interface Sci. 2006, 121, 9–23. [Google Scholar] [CrossRef] [PubMed]
  38. Bu, W.; Li, H.; Sun, H.; Yin, S.; Wu, L. Polyoxometalate-based vesicle and its honeycomb architectures on solid surfaces. J. Am. Chem. Soc. 2005, 127, 8016–8017. [Google Scholar] [CrossRef] [PubMed]
  39. Aitkek, J. Breath figures. Nature 1911, 86, 516–517. [Google Scholar] [CrossRef]
  40. Rayleigh, L. Breath figures. Nature 1911, 86, 416–417. [Google Scholar] [CrossRef]
  41. Rayleigh, L. Breath figures. Nature 1912, 90, 436–438. [Google Scholar] [CrossRef]
  42. Widawski, G.; Rawiso, M.; François, B. Self-organized honeycomb morphology of star-polymer polystyrene films. Nature 1994, 369, 387–389. [Google Scholar] [CrossRef]
  43. Pitois, O.; François, B. Crystallization of condensation droplets on a liquid surface. Colloid Polym. Sci. 1999, 277, 574–578. [Google Scholar] [CrossRef]
  44. Pitois, O.; François, B. Formation of ordered micro-porous membranes. Eur. Phys. J. B 1999, 8, 225–231. [Google Scholar] [CrossRef]
  45. Stenzel, M.H. Formation of regular honeycomb-patterned porous film by self-organization. Aust. J. Chem. 2002, 55, 239–243. [Google Scholar] [CrossRef]
  46. Srinivasarao, M.; Collings, D.; Philips, A.; Patel, S. Three-dimensionally ordered array of air bubbles in apolymer film. Science 2001, 292, 79–83. [Google Scholar] [CrossRef] [PubMed]
  47. Bolognesi, A.; Mercogliano, C.; Yunus, S.; Civardi, M.; Comoretto, D.; Turturro, A. Self-organization of polystyrenes into ordered microstructured films and their replication by soft lithography. Langmuir 2005, 21, 3480–3485. [Google Scholar] [CrossRef] [PubMed]
  48. Bormashenko, E.; Malkin, A.; Musin, A.; Bormashenko, Y.; Whyman, G.; Litvak, N.; Barkay, Z.; Machavariani, V. Mesoscopic patterning in evaporated polymer solutions: Poly(ethylene glycol) and room-temperature-vulcanized polyorganosilanes/-siloxanes promote formation of honeycomb structures. Macromol. Chem. Phys. 2008, 209, 567–576. [Google Scholar] [CrossRef]
  49. Aw, J.E.; Goh, G.T.W.; Huang, S.; Reithofer, M.R.; Thong, A.Z.; Chin, J.M. Non-close-packed breath figures via ion-partitioning-mediated self- assembly. Langmuir 2015, 31, 6688–6694. [Google Scholar] [CrossRef] [PubMed]
  50. Scriven, L.E.; Sternling, C.V. The Marangoni effects. Nature 1960, 187, 186–188. [Google Scholar] [CrossRef]
  51. Maruyama, N.; Koito, T.; Nishida, J.; Sawadaishi, T.; Cieren, X.; Ijiro, K.; Karthaus, O.; Shimomura, M. Mesoscopic patterns of molecular aggregates on solid substrates. Thin Solid Films 1998, 327–329, 854–856. [Google Scholar] [CrossRef]
  52. Peng, J.; Han, Y.; Yang, Y.; Li, B. The influencing factors on the macroporous formation in polymer films by water droplet templating. Polymer 2004, 45, 447–452. [Google Scholar] [CrossRef]
  53. Zhang, K.; Zhang, L.; Chen, Y. Robust organic/inorganic hybrid porous thin films via breath-figure method and gelation process. Macromol. Rapid Commun. 2007, 28, 2024–2028. [Google Scholar] [CrossRef]
  54. Dong, W.; Zhou, Y.; Yan, D.; Mai, Y.; He, L.; Jin, C. Honeycomb-structured microporous films made from hyperbranched polymers by the breath figure method. Langmuir 2009, 25, 173–178. [Google Scholar] [CrossRef] [PubMed]
  55. Li, Z.; Ma, X.; Zang, D.; Shang, B.; Qiang, X.; Hong, Q.; Guan, X. Morphology and wettability control of honeycomb porous films of amphiphilic fluorinated pentablock copolymers via breath figure method. RSC Adv. 2014, 4, 49655–49662. [Google Scholar] [CrossRef]
  56. Dong, R.; Yan, J.; Ma, H.; Fang, Y.; Hao, J. Dimensional architecture of ferrocenyl-based oligomer honeycomb-patterned films: From monolayer to multilayer. Langmuir 2011, 27, 9052–9056. [Google Scholar] [CrossRef] [PubMed]
  57. Dong, R.; Ma, H.; Yan, J.; Fang, Y.; Hao, J. Tunable morphology of 2D honeycomb-patterned films and the hydrophobicity of a ferrocenyl-based oligomer. Chem. Eur. J. 2011, 17, 7674–7684. [Google Scholar] [CrossRef] [PubMed]
  58. Yabu, H.; Takebayashi, M.; Tanaka, M.; Shimomura, M. Superhydrophobic and lipophobic properties of self-organized honeycomb and pincushion structures. Langmuir 2005, 21, 3235–3237. [Google Scholar] [CrossRef] [PubMed]
  59. Kamei, J.; Saito, Y.; Yabu, H. Biomimetic ultra-bubble-repellent surfaces based on a self-organized honeycomb film. Langmuir 2014, 30, 14118–14122. [Google Scholar] [CrossRef] [PubMed]
  60. Yabu, H.; Shimomura, M. Mesoscale pincushions, microrings, and microdots prepared by heating and peeling of self-organized honeycomb-patterned films deposited on a solid substrate. Langmuir 2006, 22, 4992–4997. [Google Scholar] [CrossRef] [PubMed]
  61. Yabu, H.; Hirai, Y.; Shimomura, M. Electroless plating of honeycomb and pincushion polymer films prepared by self-organization. Langmuir 2006, 22, 9760–9764. [Google Scholar] [CrossRef] [PubMed]
  62. Hirai, Y.; Yabu, H.; Matsuo, Y.; Ijiro, K.; Shimomura, M. Arrays of triangular shaped pincushions for SERS substrates prepared by using self-organization and vapor deposition. Chem. Commun. 2010, 46, 2298–2300. [Google Scholar] [CrossRef] [PubMed]
  63. Saito, Y.; Kawano, T.; Shimomura, M.; Yabu, H. Fabrication of mussel-inspired highly adhesive honeycomb films containing catechol groups and their applications for substrate-independent porous templates. Macromol. Rapid Commun. 2013, 34, 630–634. [Google Scholar] [CrossRef] [PubMed]
  64. Wenzel, R.N. Resistance of Solid Surfaces to Wetting by Water. Ind. Eng. Chem. 1936, 28, 988–994. [Google Scholar] [CrossRef]
  65. Cassie, A.B.D.; Baxter, S. Wettability of porous surfaces. Trans. Faraday Soc. 1944, 40, 546–551. [Google Scholar] [CrossRef]
  66. Liu, C.; Gao, C.; Yan, D. Honeycomb-patterned photoluminescent films fabricated by self-Assembly of hyperbranched polymers. Angew. Chem. Int. Ed. 2007, 46, 4128–4131. [Google Scholar] [CrossRef] [PubMed]
  67. Escalé, P.; Rubatat, L.; Billon, L.; Save, M. Recent advances in honeycomb-structured porous polymer films prepared via breath figures. Eur. Polym. J. 2012, 48, 1001–1025. [Google Scholar] [CrossRef]
  68. Nyström, D.; Malmström, E.; Hult, A.; Blakey, I.; Boyer, C.; Davis, T.P.; Whittaker, M.R. Biomimetic surface modification of honeycomb films via a “Grafting From” approach. Langmuir 2010, 26, 12748–12754. [Google Scholar] [CrossRef] [PubMed]
  69. Sun, H.; Li, W.; Wu, L. Honeycomb-patterned films fabricated by self-organization of DNA-surfactant complexes. Langmuir 2009, 25, 10466–10472. [Google Scholar] [CrossRef] [PubMed]
  70. Yabu, H.; Shimomura, M. Single-step fabrication of transparent superhydrophobic porous polymer films. Chem. Mater. 2005, 17, 5231–5234. [Google Scholar] [CrossRef]
  71. Yabu, H.; Hirai, Y.; Kojima, M.; Shimomura, M. Structured films containing thermoresponsive polymers and their surface wettability. Chem. Mater. 2009, 21, 1787–1789. [Google Scholar] [CrossRef]
  72. Kojima, M.; Nakanishi, T.; Hirai, Y.; Yabu, H.; Shimomura, M. Photo-patterning of honeycomb films prepared from amphiphilic copolymer containing photochromic spiropyran. Chem. Commun. 2010, 46, 3970–3972. [Google Scholar] [CrossRef] [PubMed]
  73. Nakanishi, T.; Hirai, Y.; Kojima, M.; Yabu, H.; Shimomura, M. Patterned metallic honeycomb films prepared by photo-patterning and electroless plating. J. Mater. Chem. 2010, 20, 6741–6745. [Google Scholar] [CrossRef]
  74. Nakamichi, Y.; Hirai, Y.; Yabu, H.; Shimomura, M. Fabrication of patterned and anisotropic porous films based on photo-cross-linking of poly(1,2-butadiene) honeycomb films. J. Mater. Chem. 2011, 21, 3884–3889. [Google Scholar] [CrossRef]
  75. Kawano, T.; Nakamichi, Y.; Fujinami, S.; Nakajima, N.; Yabu, H.; Shimomura, M. Mechanical regulation of cellular adhesion onto honeycomb-patterned porous scaffolds by altering the elasticity of material surfaces. Biomacromolecules 2013, 14, 1208–1213. [Google Scholar] [CrossRef] [PubMed]
  76. Yabu, H.; Nakamichi, Y.; Hirai, Y.; Shimomura, M. Robust anisotropic polymer meshes prepared by stretching and photo-crosslinking of poly(1,2-butadiene) honeycomb films. Phys. Chem. Chem. Phys. 2011, 13, 4877–4880. [Google Scholar] [CrossRef] [PubMed]
  77. Yabu, H.; Akagi, K.; Shimomura, M. Micropatterning of liquid crystalline polyacetylene derivative by using self-organization processes. Synth. Met. 2009, 159, 762–764. [Google Scholar] [CrossRef]
  78. Xu, Y.; Zhu, B.; Xu, Y. A study on formation of regular honeycomb pattern in polysulfone film. Polymer 2005, 46, 713–717. [Google Scholar] [CrossRef]
  79. Matsuyama, H.; Ohga, K.; Maki, T.; Teramoto, M. The effect of polymer molecular weight on the structure of a honeycomb patterned thin film prepared by solvent evaporation. J. Chem. Eng. Jpn. 2004, 37, 588–591. [Google Scholar] [CrossRef]
  80. Bormashenko, E.; Pogreb, R.; Stanevsky, O.; Bormashenko, Y.; Gendelman, O. Formation of honeycomb patterns in evaporated polymer solutions: Influence of the molecular weight. Mater. Lett. 2005, 59, 3553–3557. [Google Scholar] [CrossRef]
  81. Park, M.S.; Kim, J.K. Breath figure patterns prepared by spin coating in a dry environment. Langmuir 2004, 20, 5347–5352. [Google Scholar] [CrossRef] [PubMed]
  82. Park, M.S.; Joo, W.; Kim, J.K. Porous structures of polymer films prepared by spin coating with mixed solvents under humid condition. Langmuir 2006, 22, 4594–4598. [Google Scholar] [CrossRef] [PubMed]
  83. Ferrari, E.; Fabbri, P.; Pilati, F. Solvent and substrate contributions to the formation of breath figure patterns in polystyrene films. Langmuir 2011, 27, 1874–1881. [Google Scholar] [CrossRef] [PubMed]
  84. Cheng, C.X.; Tian, Y.; Shi, Y.Q.; Tang, R.P.; Xi, F. Porous polymer films and honeycomb structures based on amphiphilic dendronized block copolymers. Langmuir 2005, 21, 6576–6581. [Google Scholar] [CrossRef] [PubMed]
  85. Zhu, Y.; Sheng, R.; Luo, T.; Li, H.; Sun, J.; Chen, S.; Sun, W.; Cao, A. Honeycomb-structured films by multifunctional amphiphilic biodegradable copolymers: Surface morphology control and biomedical application as scaffolds for cell growth. ACS Appl. Mater. Interfaces 2011, 3, 2487–2495. [Google Scholar] [CrossRef] [PubMed]
  86. Bormashenko, E.; Pogreb, R.; Stanevsky, O.; Bormashenko, Y.; Stein, T.; Gengelman, O. Mesoscopic patterning in evaporated polymer solutions: New experimental data and physical mechanisms. Langmuir 2005, 21, 9604–9609. [Google Scholar] [CrossRef] [PubMed]
  87. Li, Z.; Ma, X.; Zang, D.; Hong, Q.; Guan, X. Honeycomb porous films of pentablock copolymer on liquid substrates via breath figure method and their hydrophobic properties with static and dynamic behavior. RSC Adv. 2015, 5, 21084–21089. [Google Scholar] [CrossRef]
  88. Yu, B.; Cong, H.; Li, Z.; Yuan, H.; Peng, Q.; Chi, M.; Yang, S.; Yang, R.; Wickramasinghe, S.R.; Tang, J. Fabrication of highly ordered porous membranes of cellulose triacetate on ice substrates using breath figure method. J. Polym. Sci. B Polym. Phys. 2015, 53, 552–558. [Google Scholar] [CrossRef]
  89. Nishikawa, T.; Ookura, R.; Nishida, J.; Arai, K.; Hayashi, J.; Kurono, N.; Sawadaishi, T.; Hara, M.; Shimomura, M. Fabrication of honeycomb film of an amphiphilic copolymer at the air-water interface. Langmuir 2002, 18, 5734–5740. [Google Scholar] [CrossRef]
  90. Thong, A.Z.; Lim, D.S.W.; Ahsan, A.; Goh, G.T.W.; Xu, J.; Chin, J.M. Non-close-packed pore arrays through one-step breath figure self-assembly and reversal. Chem. Sci. 2014, 5, 1375–1382. [Google Scholar] [CrossRef]
  91. Mullan, M.J.; Campbell, P.A. Breath-figure polymer films with local microporosity controlled via spatio-thermal templating. Conf. Proc. IEEE Eng. Med. Biol. Soc. 2008, 2008, 2514–2517. [Google Scholar] [PubMed]
  92. Birnie, D.P., III; Zeilinski, B.J.; Perry, D.L. Infrared observation of evaporative cooling during spin-coating processes. Opt. Eng. 1995, 34, 1782–1788. [Google Scholar] [CrossRef]
  93. Li, J.; Peng, J.; Huang, W.; Wu, Y.; Fu, J.; Cong, Y.; Xue, L.; Han, Y. Ordered honeycomb-structured gold nanoparticle films with changeable pore morphology: From circle to ellipse. Langmuir 2005, 21, 2017–2021. [Google Scholar] [CrossRef] [PubMed]
  94. Wu, X.; Wang, S. Integration of photo-crosslinking and breath figures to fabricate biodegradable polymer substrates with tunable pores that regulate cellular behavior. Polymer 2014, 55, 1756–1762. [Google Scholar] [CrossRef]
  95. Zhai, S.; Ye, J.; Wang, N.; Jiang, L.; Shen, Q. Fabrication of porous film with controlled pore size and wettability by electric breath figure method. J. Mater. Chem. C 2014, 2, 7168–7172. [Google Scholar] [CrossRef]
  96. Zhai, S.; Hu, E.; Zhi, Y.; Shen, Q. Fabrication of highly ordered porous superhydrophobic polystyrene films by electric breath figure and surface chemical modification. Colloids Surf. A Physicochem. Eng. Asp. 2015, 469, 294–299. [Google Scholar] [CrossRef]
  97. Huang, C.M.; Zhang, M.; Wang, D.H.; Bai, W.B.; Hu, B.H.; Xu, Y.L.; Lin, J.H. Preparation of urushiol-titanium chelate polymer/multiwall carbon nanotubes composite honeycomb films with chemical resistance by breath figures. Polym. Compos. 2014. [Google Scholar] [CrossRef]
  98. Ma, H.; Cui, J.; Chen, J.; Hao, J. Self-organized polymer nanocomposite inverse opal films with combined optical properties. Chem. Eur. J. 2011, 17, 655–660. [Google Scholar] [CrossRef] [PubMed]
  99. Ma, H.; Hao, J. Evaporation-induced ordered honeycomb structures of gold nanoparticles at the air/water interface. Chem. Eur. J. 2010, 16, 655–660. [Google Scholar] [CrossRef] [PubMed]
  100. Jiang, X.; Zhou, X.; Zhang, Y.; Zhang, T.; Guo, Z.; Gu, N. Interfacial effects of in situ-synthesized Ag nanoparticles on breath figures. Langmuir 2010, 26, 2477–2483. [Google Scholar] [CrossRef] [PubMed]
  101. Pasricha, R.; Swami, A.; Sastry, M. Transmetalation reaction between hydrophobic silver nanoparticles and aqueous chloroaurate ions at the air-water interface. J. Phys. Chem. B 2005, 109, 19620–19626. [Google Scholar] [CrossRef] [PubMed]
  102. Saito, Y.; Shimomura, M.; Yabu, H. Dispersion of Al2O3 nanoparticles stabilized with mussel-inspired amphiphilic copolymers in organic solvents and formation of hierarchical porous films by the breath figure technique. Chem. Commun. 2013, 49, 6081–6083. [Google Scholar] [CrossRef] [PubMed]
  103. Saito, Y.; Shimomura, M.; Yabu, H. Breath figures of nanoscale bricks: A universal method for creating hierarchic porous materials from inorganic nanoparticles stabilized with mussel-inspired copolymers. Macromol. Rapid Commun. 2014, 35, 1763–1769. [Google Scholar] [CrossRef] [PubMed]
  104. Qi, W.; Wu, L. Polyoxometalate/polymer hybridmaterials: Fabrication and properties. Polym. Int. 2009, 58, 1217–1225. [Google Scholar] [CrossRef]
  105. Proust, A.; Thouvenot, R.; Gouzerh, P. Functionalization of polyoxometalates: Towards advanced applications in catalysis and materials science. Chem. Commun. 2008, 1837, 1837–1852. [Google Scholar] [CrossRef] [PubMed]
  106. Dai, L.; You, W.; Li, Y.; Wang, E.; Huang, C. A new polyoxometalate-templated Mo/V-oxide-based organic–inorganic hybrid framework with a honeycomb-like structure. Chem. Commun. 2009, 2721, 2721–2723. [Google Scholar] [CrossRef] [PubMed]
  107. Sun, H.; Li, H.; Bu, W.; Xu, M.; Wu, L. Self-organized microporous structures based on surfactant-encapsulated polyoxometalate complexes. J. Phys. Chem. B 2006, 110, 24847–24854. [Google Scholar] [CrossRef] [PubMed]
  108. Sun, H.; Li, W.; Wollenberg, L.; Li, B.; Wu, L.; Li, F.; Xu, L. Self-organized honeycomb structures of Mn12 single-molecule magnets. J. Phys. Chem. B 2009, 113, 14674–14680. [Google Scholar] [CrossRef] [PubMed]
  109. Fan, D.; Jia, X.; Tang, P.; Hao, J.; Liu, T. Self-patterning of hydrophobic materials into highly ordered honeycomb nanostructures at the air/water interface. Angew. Chem. Int. Ed. 2007, 46, 3342–3345. [Google Scholar] [CrossRef] [PubMed]
  110. Tang, P.; Hao, J. Formation mechanism and morphology modulation of honeycomb hybrid films made of polyoxometalates/surfactants at the air/water interface. J. Colloid Interface Sci. 2009, 333, 1–5. [Google Scholar] [CrossRef] [PubMed]
  111. Tang, P.; Hao, J. Macroporous honeycomb films of surfactant-encapsulated polyoxometalates at air/water interface and their electrochemical properties. Adv. Colloid Interface Sci. 2010, 161, 163–170. [Google Scholar] [CrossRef] [PubMed]
  112. Tang, P.; Hao, J. Photoluminescent honeycomb films templated by microwater droplets. Langmuir 2010, 26, 3843–3847. [Google Scholar] [CrossRef] [PubMed]
  113. Tang, P.; Jia, X.; Fan, D.; Wang, L.; Hao, J. Surface charges of hedgehog-shaped polyoxomolybdate modified by a cationic surfactant and the inorganic/organic complex. Colloids Surf. A Physicochem. Eng. Asp. 2008, 312, 18–23. [Google Scholar] [CrossRef]
  114. Wang, J.; Wang, C.; Shen, H.; Chen, S. Quantum-dot-embedded ionomer-derived films with ordered honeycomb structures via breath figures. Chem. Commun. 2010, 46, 7376–7378. [Google Scholar] [CrossRef] [PubMed]
  115. Galeotti, F.; Mróz, W.; Bolognesi, A. CdTe nanocrystal assemblies guided by breath figure templates. Soft Matter 2011, 7, 3832–3836. [Google Scholar] [CrossRef]
  116. Böker, A; Lin, Y.; Chiapperini, K.; Horowitz, R.; Thompson, M.; Carreon, V.; Xu, T.; Abetz, C.; Skaff, H.; Dinsmore, A.D.; et al. Hierarchical nanoparticle assemblies formed by decorating breath figures. Nat. Mater. 2004, 3, 302–306. [Google Scholar]
  117. Tang, P.; Hao, J. Directionally electrodeposited gold nanoparticles into honeycomb macropores and their Surface-Enhanced Raman scattering. New J. Chem. 2010, 34, 1059–1062. [Google Scholar] [CrossRef]
  118. Wang, Y.; Liu, Y.; Li, G.; Hao, J. Porphyrin-based honeycomb films and their antibacterial activity. Langmuir 2014, 30, 6419–6426. [Google Scholar] [CrossRef] [PubMed]
  119. Zhao, Y.; Shang, Q.; Yu, J.; Zhang, Y.; Liu, S. Nanostructured 2D diporphyrin honeycomb film: Photoelectrochemistry, photodegradation, and antibacterial activity. ACS Appl. Mater. Interfaces 2015, 7, 11783–11791. [Google Scholar] [CrossRef] [PubMed]
  120. Yin, S.; Men, X.; Sun, H.; She, P.; Zhang, W.; Wu, C.; Qin, W.; Chen, X. Enhanced photocurrent generation of bio-inspired graphene/ZnO composite films. J. Mater. Chem. A 2015, 3, 12016–12022. [Google Scholar] [CrossRef]
  121. Ou, Y.; Lv, C.; Yu, W.; Mao, Z.; Wan, L.; Xu, Z. Fabrication of perforated isoporous membranes via a transfer-free strategy: Enabling high-resolution separation of cells. ACS Appl. Mater. Interfaces 2014, 6, 22400–22407. [Google Scholar] [CrossRef] [PubMed]
  122. Dai, Z.; Lee, C.; Kim, B.; Kwak, C.; Yoon, J.; Jeong, H.; Lee, J. Honeycomb-like periodic porous LaFeO3 thin film chemiresistors with enhanced gas-sensing performances. ACS Appl. Mater. Interfaces 2014, 6, 16217–16226. [Google Scholar] [CrossRef] [PubMed]
  123. Ou, Y.; Wang, L.; Zhu, L.; Wan, L.; Xu, Z. In-situ immobilization of silver nanoparticles on self-assembled honeycomb-patterned films enables Surface-Enhanced Raman scattering (SERS) substrates. J. Phys. Chem. C 2014, 118, 11478–11484. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Dou, Y.; Jin, M.; Zhou, G.; Shui, L. Breath Figure Method for Construction of Honeycomb Films. Membranes 2015, 5, 399-424. https://doi.org/10.3390/membranes5030399

AMA Style

Dou Y, Jin M, Zhou G, Shui L. Breath Figure Method for Construction of Honeycomb Films. Membranes. 2015; 5(3):399-424. https://doi.org/10.3390/membranes5030399

Chicago/Turabian Style

Dou, Yingying, Mingliang Jin, Guofu Zhou, and Lingling Shui. 2015. "Breath Figure Method for Construction of Honeycomb Films" Membranes 5, no. 3: 399-424. https://doi.org/10.3390/membranes5030399

Article Metrics

Back to TopTop
