Three-Dimensional Cephalometric Landmarking and Frankfort Horizontal Plane Construction: Reproducibility of Conventional and Novel Landmarks
by
,
Gauthier Dot
1,2,3,*
,
Frédéric Rafflenbeul
4,
Adeline Kerbrat
1,
Philippe Rouch
1,5,
Laurent Gajny
1 and
Thomas Schouman
1,6,7 1
Institut de Biomecanique Humaine Georges Charpak, Arts et Metiers Paristech, 75013 Paris, France
2
UFR d’Odontologie, Universite de Paris, 75006 Paris, France
3
AP-HP, Hopital Pitie-Salpetriere, Service d’Odontologie, 75013 Paris, France
4
Department of Dentofacial Orthopedics, Faculty of Dental Surgery, Strasbourg University, 67000 Strasbourg, France
5
EPF–Graduate School of Engineering, 3 bis rue Lakanal, 92330 Sceaux, France
6
Faculte de Medecine, Sorbonne Universite, 75013 Paris, France
7
AP-HP, Hopital Pitie-Salpetriere, Service de Chirurgie Maxillo-Faciale, 75013 Paris, France
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2021, 10(22), 5303; https://doi.org/10.3390/jcm10225303
Submission received: 16 September 2021
/
Revised: 10 November 2021
/
Accepted: 11 November 2021
/
Published: 15 November 2021
(This article belongs to the Special Issue Current Challenges and Advances in Dental Imaging)
Abstract
:In some dentofacial deformity patients, especially patients undergoing surgical orthodontic treatments, Computed Tomography (CT) scans are useful to assess complex asymmetry or to plan orthognathic surgery. This assessment would be made easier for orthodontists and surgeons with a three-dimensional (3D) cephalometric analysis, which would require the localization of landmarks and the construction of reference planes. The objectives of this study were to assess manual landmarking repeatability and reproducibility (R&R) of a set of 3D landmarks and to evaluate R&R of vertical cephalometric measurements using two Frankfort Horizontal (FH) planes as references for horizontal 3D imaging reorientation. Thirty-three landmarks, divided into “conventional”, “foraminal” and “dental”, were manually located twice by three experienced operators on 20 randomly-selected CT scans of orthognathic surgery patients. R&R confidence intervals (CI) of each landmark in the -x, -y and -z directions were computed according to the ISO 5725 standard. These landmarks were then used to construct 2 FH planes: a conventional FH plane (orbitale left, porion right and left) and a newly proposed FH plane (midinternal acoustic foramen, orbitale right and left). R&R of vertical cephalometric measurements were computed using these 2 FH planes as horizontal references for CT reorientation. Landmarks showing a 95% CI of repeatability and/or reproducibility > 2 mm were found exclusively in the “conventional” landmarks group. Vertical measurements showed excellent R&R (95% CI < 1 mm) with either FH plane as horizontal reference. However, the 2 FH planes were not found to be parallel (absolute angular difference of 2.41°, SD 1.27°). Overall, “dental” and “foraminal” landmarks were more reliable than the “conventional” landmarks. Despite the poor reliability of the landmarks orbitale and porion, the construction of the conventional FH plane provided a reliable horizontal reference for 3D craniofacial CT scan reorientation.
1. Introduction
Diagnosis and planning of orthodontic and maxillofacial treatments rely heavily on X-ray imaging. Two-dimensional (2D) X-rays are routinely used but result in a flattening of three-dimensional (3D) craniofacial structures. In some clinical cases of dentofacial deformities—especially patients undergoing surgical orthodontic treatments (orthognathic surgery)—Computed Tomography (CT) or Cone Beam CT (CBCT) scans are useful [1]. For example, 3D imaging makes it possible to assess complex asymmetry and to obtain highly accurate orthognathic surgery planning that can subsequently be used for the manufacturing of surgical guides [1,2,3,4,5]. Several methods have recently been proposed for a fully automatic detection of the best symmetry plane in craniofacial CT scans [6,7]. The diagnostic value of these scans would increase if they could be used to perform 3D cephalometric analysis, which would require the localization of landmarks [8]. Currently, however, no set of 3D landmarks has been deemed sufficiently reproducible and repeatable for 3D cephalometry [8,9].
Most of the time, three-dimensional cephalometric landmarks previously tested in repeatability and reproducibility studies derived from classic 2D analysis [9]. Some of these landmarks have been shown to be poorly reproducible in 3D, especially orbitale (Or), porion (Po), gonion (Go), condylion (Co) and ramus (Ra) [10,11,12,13,14,15,16,17,18,19]. The localization of midsagittal landmarks has generally been shown to be reliable, mostly in datasets of patients showing no asymmetries [8,9]. Several authors suggested using “new” landmarks which cannot be localized on 2D X-rays. More specifically, landmarks located on the craniofacial foramens are presumably easy to identify and should provide good reproducibility [9,14,15]. However, few studies have tested the reproducibility of the new landmarks, and their reliability has not been tested yet in the context of presurgical orthodontic patients [15,20].
The main goal of cephalometric landmarking is to measure distances and angles between landmarks and planes so as to obtain a cephalometric analysis. In order to provide clinically relevant measurements that can be decomposed in the three planes of space (i.e., anteroposterior, vertical and transversal), 3D images need to be reoriented in a generic coordinate system [21,22]. The Frankfort Horizontal (FH) plane, used for standardizing and unifying the measurements, is the most commonly used horizontal reference for this coordinate system [21,23]. Its 3D clinical value has been demonstrated for assessing craniofacial morphology and evaluating soft-tissue and skeletal cants in patients receiving orthognathic surgery [24,25,26]. This plane is conventionally defined in 3D by the three following points: left orbitale (Or-L), right porion (Po-R) and left porion (Po-L) [23]. Hence, this reference plane is based on landmarks that are known to be poorly reproducible in 3D, suggesting that the conventionally defined FH plane is poorly reproducible [20]. However, landmark reproducibility does not necessarily result in plane reproducibility, as the latter depends on the direction of landmark errors [14]. To our knowledge, no study has yet tested the repeatability and reproducibility of vertical cephalometric measurements using the conventional FH plane (constructed from three landmarks) as a reference for horizontal head reorientation.
Looking for a new plane which would remain parallel with the conventional FH plane but be based on more reliable landmarks, Pittayapat et al. suggested a novel FH plane, in which the internal acoustic foramina (IAF) would replace Po [20]. Results from experiments performed on CBCT scans of dry human skulls revealed that the localization of IAF provided better reproducibility than that of Po. Moreover, the authors suggested that another new FH plane, based on mid-IAF, Or-R and Or-L, might replace the conventional FH plane, the angular difference found between the two planes being inferior to 1 degree. These results have not been validated yet on 3D scans of living human subjects.
In this context, using a dataset of preoperative CT scans, the aims of our study were:
- to assess landmarking repeatability and reproducibility of a set of 33 landmarks containing “conventional”, “foraminal” and “dental” landmarks;
- to assess repeatability and reproducibility of vertical cephalometric measurements using either the conventional or the newly proposed FH planes as references for horizontal head reorientation;
- to assess the parallelism between the conventional and the newly proposed FH planes.
2. Materials and Methods
2.1. Dataset
Sample size calculation was performed in order to ensure an uncertainty in the repeatability or reproducibility result of 15% for 6 repetitions [27]. As a result, a sample of at least 17 subjects was needed for this study. We performed a random selection of 20 CT scans (7 males, 13 females, mean age 25 ± 8 years) in a database of 134 consecutive orthognathic surgery patients (49 males, 85 females, mean age 27 ± 10 years) from a single Maxillofacial Surgery Department. Patients were considered for inclusion whatever maxillomandibular deformity they presented, with no minimum age. Exclusion criteria were refusal to participate in the research (all patients were contacted by mail) and lack of CT scan segmentation. We used a random number generator to obtain a random sequence of 20 numbers, which was used to select the sample of CT scans included in this study. Allocation was performed by one operator (#1) and supervised by a second operator (#2) at the beginning of the study. All selected subjects showed marked skeletal deformities: 14 skeletal class II—prognathic maxilla and/or retrognathic mandible—(10 short faces, 4 long faces) and 6 skeletal class III—retrognathic maxilla and/or prognathic mandible—(2 short faces, 4 long faces). Six subjects exhibited mandibular asymmetry (2 severe, 4 slight) and 2 subjects exhibited syndromic or rare dentofacial deformities (cleidocranial dysplasia and oligodontia, respectively). A set of 5 random CT scans not included in this study was used for operator training prior to landmarking.
The 20 CT scans were acquired on a Discovery CT750 HD scanner (GE Healthcare, Chicago, IL, USA) set at 100 kVp, 50 mAs, exposure time 730 ms, slice thickness 0.625 mm and slice increment 0.320 mm. Field of view ranged from 200 to 267 mm and pixel size ranged from 0.39 to 0.52 mm. Scans were not reoriented after their acquisition. Segmentation of the bones (upper skull, mandible) and upper/lower teeth was performed prior to the study according to an industry-certified semi-automatic process (Materialise, Leuven, Belgium). The study was approved by an Institutional Review Board (IRB No. CRM-2001-051), and all experiments were performed in accordance with relevant guidelines and regulations. Informed consent was obtained from all subjects and/or their legal guardian(s) for participants below age 16 years (all patients were contacted by mail).
2.2. Landmark Annotation
The 33 landmarks (Figure 1) were divided into 3 groups: “conventional” (Table 1) “foraminal” (Table 2) and “dental” (Table 3). Operators #1, #2 and #3 (2 trained orthodontists with at least 5 years of clinical experience, 1 final year postgraduate maxillofacial surgeon) received written and verbal instructions on the 3D description and annotation procedure for each landmark (Supplementary Material S1). Manual reorientation of the CT scans was performed based on the Frankfort Horizontal plane construction obtained from the annotation process. A calibration session was organized before the study began, and the instructions were repeated to the operators once more before the second annotation session.
The 20 CT scans and their segmentations were handed over to the 3 operators without any annotations. Manual placement of the 33 landmarks was performed independently by the operators on the software Mimics (v.22.0, Materialise, Leuven, Belgium), and was repeated once after a 3-week interval. Landmarks could be annotated either on the 3D surface or in the Multi-Planar Reconstruction (MPR) views. The operators had neither access to each other’s results nor to their first session’s results when performing the second session. For each session and each CT scan, results were exported as an .xml file containing the x-, y-, z- coordinates of each landmark. The time needed for each CT scan annotation was recorded by the operators and exported in a spreadsheet.
2.3. Statistical Analysis
2.3.1. New Coordinate System for Each CT Scan
After the two annotation sessions, each CT scan was reoriented in a new coordinate system according to the mean Frankfort Horizontal plane resulting from the 6 repetitions (mean Po-R, mean Po-L, mean Or-L). The origin was set at mid-porion; the -x axis followed the sagittal plane (from right to left); the -y axis followed the frontal plane (from front to back); and the -z axis followed the axial plane (from toe to head) (Figure 1). The landmarking results were then referenced in the new coordinate system before performing the statistical analysis.
2.3.2. Landmark Repeatability and Reproducibility
For each landmark, repeatability and reproducibility standard deviations (SD) were computed according to the ISO 5725 standard of the International Organization for Standardization [28]. Upon initial inspection of the results, the standard’s recommendations were followed for clear outlier points, whose annotations were considered as missing data. The reliability of each landmark in the -x, -y and -z directions was then estimated, considering a 95% confidence interval (CI) of 2×SD of repeatability and reproducibility. Modified Bland-Altman plots, showing the deviations of the landmark positions from their means for the 20 CT scans, were computed for each landmark and direction [29,30].
2.3.3. Repeatability and Reproducibility of Vertical Measurements with the Conventional FH Plane and the Newly Proposed FH Plane
For each CT scan and landmarking session (3 operators, 2 repetitions), we computed the landmarks’ orthogonal projections on 2 FH planes: the conventional FH plane (Or-L, Po-R, Po-L) and the newly proposed FH plane (Or-R, Or-L, mid-IAF). The results were used to compute the standard deviations of repeatability and reproducibility (ISO 5725 standard) of the landmarks’ vertical measurements, using the 2 FH planes as horizontal reference.
2.3.4. Parallelism between Conventional and Newly Proposed FH Planes
In order to assess whether the conventional FH plane and the new FH plane were parallel, the orthogonal projections of points IAF-R and IAF-L were computed on the mean conventional FH plane (as defined previously) for each subject. We then computed the absolute angular differences between the conventional FH plane and the novel FH plane, using trigonometry to calculate the angles between the normals to the planes.
2.3.5. Time Needed for Landmark Localization
Mean time (and standard deviation) needed for landmark localization were computed.
All data were analysed using the software Matlab (v.R2020a, MathWorks, Natick, MA, USA) and RStudio (v.1.3, RStudio PBC, Boston, MA, USA).
3. Results
3.1. Landmark Repeatability and Reproducibility
Outliers were identified for mental foramen points right/left placed by operator #3 during the first annotation session (subjects 4 to 20) and were considered as missing data (Supplementary Materials S2). Repeatability and reproducibility results for the 33 landmarks are shown in Table 4. The landmarks with 95% CI of repeatability and/or reproducibility superior to 2 mm for one of their axes were exclusively found in the “conventional” landmark group: point B (-z axis), gonion right/left (-y and –z axes), orbitale right/left (-x axis) and porion right/left (-x axis). Figure 2 shows an example of the modified Bland-Altman plots obtained for five left landmarks: three “foraminal” landmarks (IAF-L, infraorbital foramen left (IF-L), mental foramen left (MF-L)) and two “conventional” landmarks (Or-L and Po-L).
3.2. Repeatability and Reproducibility of Conventional and Newly Proposed FH Planes
The results of the repeatability and reproducibility analysis of vertical measurements of the landmarks using the two different FH planes as horizontal reference are shown in Table 5.
3.3. Parallelism between Conventional and Novel FH Planes
When using the mean conventional FH plane as horizontal reference, the mean absolute vertical measurements ± SD of IAF-L and IAF-R were 2.68 ± 2.51 mm and 2.78 ± 2.29 mm, respectively. Measurement results for each subject and each repetition are shown in Figure 3. The absolute angular difference between the conventional and the novel FH planes was 2.41° (SD 1.27°).
3.4. Time Needed for Landmark Localization
The average time required to landmark one CT scan was 14:48 ± 03:45 min.
4. Discussion
The reliability of 3D cephalometric landmarking and Frankfort Horizontal plane construction is a recurrent clinical issue in orthodontics and orthognathic surgery planning. In this study, we performed a repeatability and reproducibility analysis of conventional and 3D-specific cephalometric landmarks using a database of 20 randomly selected routine presurgical CT scans.
The first aim of our study was to assess landmarking reliability in a set of 33 landmarks containing “conventional”, “foraminal” and “dental” landmarks. As in previously published studies, we ranked the landmarks based on the 95% CI results: landmark with clinically acceptable error when the 95% CI was below 1 mm; landmark useful in most analyses when the 95% CI was between 1 and 2 mm (highlighted in orange in Table 4); landmark to be used with caution when the 95% CI was above 2 mm (highlighted in red in Table 4) [14,16]. Using this classification, all “dental” and “foraminal” landmarks showed a clinically acceptable error or were considered useful in most analyses (16O, 36O, IF-L, IAF-L, IAF-R). The group of “conventional” landmarks showed several landmarks to use with caution (B point, gonion right and left (Go-R, Go-L), Or-R, Or-L, Po-R, Po-L). These findings are in line with previously published reproducibility studies, in which “conventional” landmarks resulting from 2D cephalometric analysis are subject to caution [10,11,12,13,14,15,16,17,18,19]. As shown in the Bland-Altman plots (Figure 2), “foraminal” landmarks IAF-L, IF-L and MF-L lead to better repeatability and reproducibility than “conventional” landmarks Or-L and Po-L. We chose not to perform statistical tests such as intraclass correlation coefficients or paired t-tests because of their proven inadequacy in measuring landmarking reliability [29,30]. Outliers were only found in mental foramen landmarks. The definition of this specific “new” landmark was initially ill-understood by one of the operators, who located the landmark at the distal end of the foramen instead of the mesial end, as was agreed upon (Supplementary Materials S2). This illustrates the challenges encountered with landmark identification, which requires very precise definitions in order to be reliable [15]. The fact that our dataset was made of presurgical CT scans did not appear to influence the results negatively when compared with non-surgical subjects in the literature [10,11,13,14,15,16,17,18].
Our second objective was to assess the repeatability and reproducibility of vertical 3D cephalometric measurements using either the conventional FH plane or the newly proposed FH plane as reference for horizontal head reorientation. The measurements showed excellent repeatability and reproducibility (95% CI < 1 mm), using either FH plane as reference. These results tend to prove that despite the poor reliability of the landmarks used to construct them, both planes can be used as reliable horizontal references for head reorientation. An explanation could be that the poor reproducibility of Or, Po and IAF points mainly concerns the -x and -y coordinates. Our results show that a simple method using only three landmarks can provide a reliable horizontal reference for 3D head reorientation. Other methods, such as manual reorientation of the 3D model along the FH plane [21] or computation of additional semi-automated landmarks [22] have been shown to be reliable, but are more complex in terms of implementation.
Our third objective was to assess whether the conventional FH plane and the “new” FH plane were parallel. Our results regarding the vertical positions of IAF-L and IAF-R to the conventional FH plane, as well as the angular differences between the two planes, show that the planes are not parallel for most subjects. The vertical distance of IAF-L and IAF-R to the conventional FH plane showed significant variations in our cohort (Figure 3). This tends to invalidate the relevance of this “new” FH plane as a replacement for the conventional FH plane. Our results are not consistent with the findings of Pittayapat et al., which reported an angular difference of 0.53 ± 0.37° between the conventional FH plane (called FH1 in their study and constructed using mid-Po, Or-R, Or-L) and their new FH plane. In order to facilitate the comparison between our data and that of Pittayapat et al., the angular distances between the conventional and all newly proposed FH planes are provided in Supplementary Materials S3. The discrepancies between the two studies might be explained by a different definition of the IAF-R and IAF-L points. We tried our best to follow the instructions given by the aforementioned authors to define these points (Supplementary Materials S1), but a more precise anatomical description might be needed.
The average duration of CT scan landmarking confirms that this is a time-consuming procedure, requiring prior training of the operators and potentially limiting clinical implementation. Our durations were in line with the results of Hassan et al., who reported an average time of 10:41 ± 4:01 min to localize 22 landmarks using a similar protocol [13]. Given the operator training and time needed to place the 3D landmarks manually, semi- or fully automatic landmarking could help advance clinical use of 3D cephalometry [31].
This study has three main limitations. Firstly, it was based on a retrospective selection of a limited number of clinical cases, which can be a source of potential bias or imprecision in the statistical analysis. Despite the heterogeneity of our sample (sex, age, skeletal classes), we assumed that the within-subject standard deviation of each landmark was the same for all the patients [32]. We believe that our randomly selected cases from clinical practice are an asset for the clinical applicability of our results because they are representative of the variability encountered in a clinical practice. Secondly, it was performed on CT scans instead of CBCT scans, which are more commonly used for 3D cephalometric studies. We made this choice because CT scanning is the imaging modality currently used for orthognathic surgery planning in our department. We chose to include only presurgical patients in this study because they display a variety of significant craniofacial deformities for which 3D cephalometry could be very beneficial for in-depth evaluation [1,33]. Thirdly, the placement of most of our landmarks was carried out on the CT scans’ 3D surface models, using the MPR views for adjustments and verifications. As has been reported previously, while the use of 3D surface models make the annotation process easier and more robust, it implies prior segmentation of the CT scans [13]. Performing the segmentation process manually is tedious and time-consuming, but full automatization of the task, an active and promising research field, could resolve this problem [34]. Given that most of the annotations were made on 3D surface models, we hypothesize that using CBCT scans instead would yield similar results. In order to evaluate the consequences of our results on patients’ soft tissues, the 3D surface models used in this study could be superimposed with the patients’ facial scans [35]. The virtual patients obtained using this recently described technique could provide valuable additional clinical insights and help surgical planning. Not having a facial scanner at our disposal, we were not able to test the technique in our study.
Overall, our repeatability and reproducibility study on CT scans showed that “dental” and “foraminal” 3D landmarks tended to be more reliable than “conventional” cephalometric 3D landmarks in presurgical patients. Despite the poor overall reliability of the landmarks orbitale and porion in 3D, the conventional FH plane is a reliable horizontal reference for head reorientation and vertical measurements. The new FH plane, using IAF instead of porion, provided a reliable horizontal reference but was not found to be parallel to the conventional FH plane.
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/jcm10225303/s1, Supplementary Material S1: Written instructions for the landmarking process on the Mimics software; Supplementary Material S2: Analysis of outliers; Supplementary Material S3: Angular distances between conventional and novel FH planes.
Author Contributions
Conceived and designed the experiments: G.D., P.R., L.G., T.S.; Performed the experiments: G.D., F.R., A.K. Analysed the data: G.D., F.R., L.G., T.S. Wrote the draft of the paper: G.D. Revised the paper: G.D., F.R., A.K., P.R., T.S., L.G. All authors have read and agreed to the published version of the manuscript.
Funding
This study has received funding by the “Fondation des Gueules Cassées” (grant number 28-2020) and the “Société Française d’Orthopédie Dento-Faciale” (2019 Research Prize).
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of “Comité d’Ethique pour la Recherche en Imagerie Médicale” (CERIM) (protocol code CRM-2001-051, 7 March 2020).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The data underlying this article will be shared on reasonable request to the corresponding author.
Acknowledgments
The authors would like to thank the “Association Les Chirurgiens Maxillo-Faciaux” for its technical support.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Kapila, S.D.; Nervina, J.M. CBCT in Orthodontics: Assessment of Treatment Outcomes and Indications for Its Use. Dentomaxillofacial Radiol. 2015, 44, 20140282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Pietzka, S.; Wilde, F.; Schramm, A.; Mascha, F. Navigated Orbital Floor Reconstruction with Cad/Cam Guide and Patient-Specific Implant. Int. J. Oral Maxillofac. Surg. 2019, 48, 28. [Google Scholar] [CrossRef]
- Schouman, T.; Murcier, G.; Goudot, P. The Key to Accuracy of Zygoma Repositioning: Suitability of the SynpliciTi Customized Guide-Plates. J. Cranio-Maxillofac. Surg. 2015, 43, 1942–1947. [Google Scholar] [CrossRef]
- Patel, A.; Otterburn, D.; Saadeh, P.; Levine, J.; Hirsch, D.L. 3D Volume Assessment Techniques and Computer-Aided Design and Manufacturing for Preoperative Fabrication of Implants in Head and Neck Reconstruction. Facial Plast. Surg. Clin. N. Am. 2011, 19, 683–709. [Google Scholar] [CrossRef]
- Quast, A.; Santander, P.; Witt, D.; Damm, A.; Moser, N.; Schliephake, H.; Meyer-Marcotty, P. Traditional Face-Bow Transfer versus Three-Dimensional Virtual Reconstruction in Orthognathic Surgery. Int. J. Oral Maxillofac. Surg. 2019, 48, 347–354. [Google Scholar] [CrossRef] [PubMed]
- Noori, S.M.R.; Farnia, P.; Bayat, M.; Bahrami, N.; Shakourirad, A.; Ahmadian, A. Automatic Detection of Symmetry Plane for Computer-Aided Surgical Simulation in Craniomaxillofacial Surgery. Phys. Eng. Sci. Med. 2020, 43, 1087–1099. [Google Scholar] [CrossRef] [PubMed]
- Di Angelo, L.; Di Stefano, P.; Governi, L.; Marzola, A.; Volpe, Y. A Robust and Automatic Method for the Best Symmetry Plane Detection of Craniofacial Skeletons. Symmetry 2019, 11, 245. [Google Scholar] [CrossRef]
- Pittayapat, P.; Limchaichana-Bolstad, N.; Willems, G.; Jacobs, R. Three-Dimensional Cephalometric Analysis in Orthodontics: A Systematic Review. Orthod. Craniofacial Res. 2014, 17, 69–91. [Google Scholar] [CrossRef]
- Sam, A.; Currie, K.; Oh, H.; Flores-Mir, C.; Lagravére-Vich, M. Reliability of Different Three-Dimensional Cephalometric Landmarks in Cone-Beam Computed Tomography: A Systematic Review. Angle Orthod. 2019, 89, 317–332. [Google Scholar] [CrossRef] [Green Version]
- Chien, P.; Parks, E.; Eraso, F.; Hartsfield, J.; Roberts, W.; Ofner, S. Comparison of Reliability in Anatomical Landmark Identification Using Two-Dimensional Digital Cephalometrics and Three-Dimensional Cone Beam Computed Tomography In Vivo. Dentomaxillofacial Radiol. 2009, 38, 262–273. [Google Scholar] [CrossRef]
- Da Neiva, M.B.; Soares, Á.C.; de Oliveira Lisboa, C.; de Vasconcellos Vilella, O.; Motta, A.T. Evaluation of Cephalometric Landmark Identification on CBCT Multiplanar and 3D Reconstructions. Angle Orthod. 2015, 85, 11–17. [Google Scholar] [CrossRef] [Green Version]
- De Oliveira, A.E.F.; Cevidanes, L.H.S.; Phillips, C.; Motta, A.; Burke, B.; Tyndall, D. Observer Reliability of Three-Dimensional Cephalometric Landmark Identification on Cone-Beam Computerized Tomography. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endodontology 2009, 107, 256–265. [Google Scholar] [CrossRef] [Green Version]
- Hassan, B.; Nijkamp, P.; Verheij, H.; Tairie, J.; Vink, C.; van der Stelt, P.; van Beek, H. Precision of Identifying Cephalometric Landmarks with Cone Beam Computed Tomography In Vivo. Eur. J. Orthod. 2013, 35, 38–44. [Google Scholar] [CrossRef] [PubMed]
- Lagravère, M.O.; Low, C.; Flores-Mir, C.; Chung, R.; Carey, J.P.; Heo, G.; Major, P.W. Intraexaminer and Interexaminer Reliabilities of Landmark Identification on Digitized Lateral Cephalograms and Formatted 3-Dimensional Cone-Beam Computerized Tomography Images. Am. J. Orthod. Dentofac. Orthop. 2010, 137, 598–604. [Google Scholar] [CrossRef] [PubMed]
- Naji, P.; Alsufyani, N.A.; Lagravère, M.O. Reliability of Anatomic Structures as Landmarks in Three-Dimensional Cephalometric Analysis Using CBCT. Angle Orthod. 2014, 84, 762–772. [Google Scholar] [CrossRef] [Green Version]
- Olszewski, R.; Tanesy, O.; Cosnard, G.; Zech, F.; Reychler, H. Reproducibility of Osseous Landmarks Used for Computed Tomography Based Three-Dimensional Cephalometric Analyses. J. Cranio-Maxillofac. Surg. 2010, 38, 214–221. [Google Scholar] [CrossRef]
- Schlicher, W.; Nielsen, I.; Huang, J.C.; Maki, K.; Hatcher, D.C.; Miller, A.J. Consistency and Precision of Landmark Identification in Three-Dimensional Cone Beam Computed Tomography Scans. Eur. J. Orthod. 2012, 34, 263–275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Titiz, I.; Laubinger, M.; Keller, T.; Hertrich, K.; Hirschfelder, U. Repeatability and Reproducibility of Landmarks--a Three-Dimensional Computed Tomography Study. Eur. J. Orthod. 2012, 34, 276–286. [Google Scholar] [CrossRef] [Green Version]
- Zamora, N.; Llamas, J.M.; Cibrian, R.; Gandia, J.; Paredes, V. A Study on the Reproducibility of Cephalometric Landmarks When Undertaking a Three-Dimensional (3D) Cephalometric Analysis. Med. Oral 2012, 17, e678–e688. [Google Scholar] [CrossRef] [Green Version]
- Pittayapat, P.; Jacobs, R.; Bornstein, M.M.; Odri, G.A.; Lambrichts, I.; Willems, G.; Politis, C.; Olszewski, R. Three-Dimensional Frankfort Horizontal Plane for 3D Cephalometry: A Comparative Assessment of Conventional versus Novel Landmarks and Horizontal Planes. Eur. J. Orthod. 2018, 40, 239–248. [Google Scholar] [CrossRef] [Green Version]
- De Oliveira Ruellas, A.C.; Tonello, C.; Gomes, L.R.; Yatabe, M.S.; Macron, L.; Lopinto, J.; Goncalves, J.R.; Garib Carreira, D.G.; Alonso, N.; Souki, B.Q.; et al. Common 3-Dimensional Coordinate System for Assessment of Directional Changes. Am. J. Orthod. Dentofac. Orthop. 2016, 149, 645–656. [Google Scholar] [CrossRef] [PubMed]
- Shahen, S.; Lagravère, M.O.; Carrino, G.; Fahim, F.; Abdelsalam, R.; Flores-Mir, C.; Perillo, L. United Reference Method for Three-Dimensional Treatment Evaluation. Prog. Orthod. 2018, 19, 47. [Google Scholar] [CrossRef]
- Dos Santos, R.M.G.; De Martino, J.M.; Haiter Neto, F.; Passeri, L.A. Influence of Different Setups of the Frankfort Horizontal Plane on 3-Dimensional Cephalometric Measurements. Am. J. Orthod. Dentofac. Orthop. 2017, 152, 242–249. [Google Scholar] [CrossRef] [PubMed]
- Lin, H.-H.; Chuang, Y.-F.; Weng, J.-L.; Lo, L.-J. Comparative Validity and Reproducibility Study of Various Landmark-Oriented Reference Planes in 3-Dimensional Computed Tomographic Analysis for Patients Receiving Orthognathic Surgery. PLoS ONE 2015, 10, e0117604. [Google Scholar] [CrossRef]
- Oh, S.; Ahn, J.; Nam, K.-U.; Paeng, J.-Y.; Hong, J. Frankfort Horizontal Plane Is an Appropriate Three-Dimensinal Reference in the Evaluation of Clinical and Skeletal Cant. J. Korean Assoc. Oral Maxillofac. Surg. 2013, 39, 71–76. [Google Scholar] [CrossRef] [Green Version]
- Lonic, D.; Sundoro, A.; Lin, H.-H.; Lin, P.-J.; Lo, L.-J. Selection of a Horizontal Reference Plane in 3D Evaluation: Identifying Facial Asymmetry and Occlusal Cant in Orthognathic Surgery Planning. Sci. Rep. 2017, 7, 2157. [Google Scholar] [CrossRef]
- McAlinden, C.; Khadka, J.; Pesudovs, K. Precision (Repeatability and Reproducibility) Studies and Sample-Size Calculation. J. Cataract. Refract. Surg. 2015, 41, 2598–2604. [Google Scholar] [CrossRef]
- ISO 5725-1. Accuracy (Trueness and Precision) of Measurement Methods and Results; ISO: Geneva, Switzerland, 1994. [Google Scholar]
- Donatelli, R.E.; Lee, S.-J. How to Report Reliability in Orthodontic Research: Part 1. Am. J. Orthod. Dentofac. Orthop. 2013, 144, 156–161. [Google Scholar] [CrossRef] [Green Version]
- Donatelli, R.E.; Lee, S.-J. How to Report Reliability in Orthodontic Research: Part 2. Am. J. Orthod. Dentofac. Orthop. 2013, 144, 315–318. [Google Scholar] [CrossRef] [Green Version]
- Dot, G.; Rafflenbeul, F.; Arbotto, M.; Gajny, L.; Rouch, P.; Schouman, T. Accuracy and Reliability of Automatic Three-Dimensional Cephalometric Landmarking. Int. J. Oral Maxillofac. Surg. 2020, 49, 1367–1378. [Google Scholar] [CrossRef]
- Bland, J.M.; Altman, D.G. Statistics Notes: Measurement Error. BMJ 1996, 313, 744. [Google Scholar] [CrossRef] [PubMed]
- American Academy of Oral and Maxillofacial Radiology. Clinical Recommendations Regarding Use of Cone Beam Computed Tomography in Orthodontics. Position Statement by the American Academy of Oral and Maxillofacial Radiology. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2013, 116, 238–257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wang, H.; Minnema, J.; Batenburg, K.J.; Forouzanfar, T.; Hu, F.J.; Wu, G. Multiclass CBCT Image Segmentation for Orthodontics with Deep Learning. J. Dent. Res. 2021, 100, 943–949. [Google Scholar] [CrossRef] [PubMed]
- Granata, S.; Giberti, L.; Vigolo, P.; Stellini, E.; Fiore, A.D. Incorporating a Facial Scanner into the Digital Workflow: A Dental Technique. J. Prosthet. Dent. 2020, 123, 781–785. [Google Scholar] [CrossRef]
Figure 1.

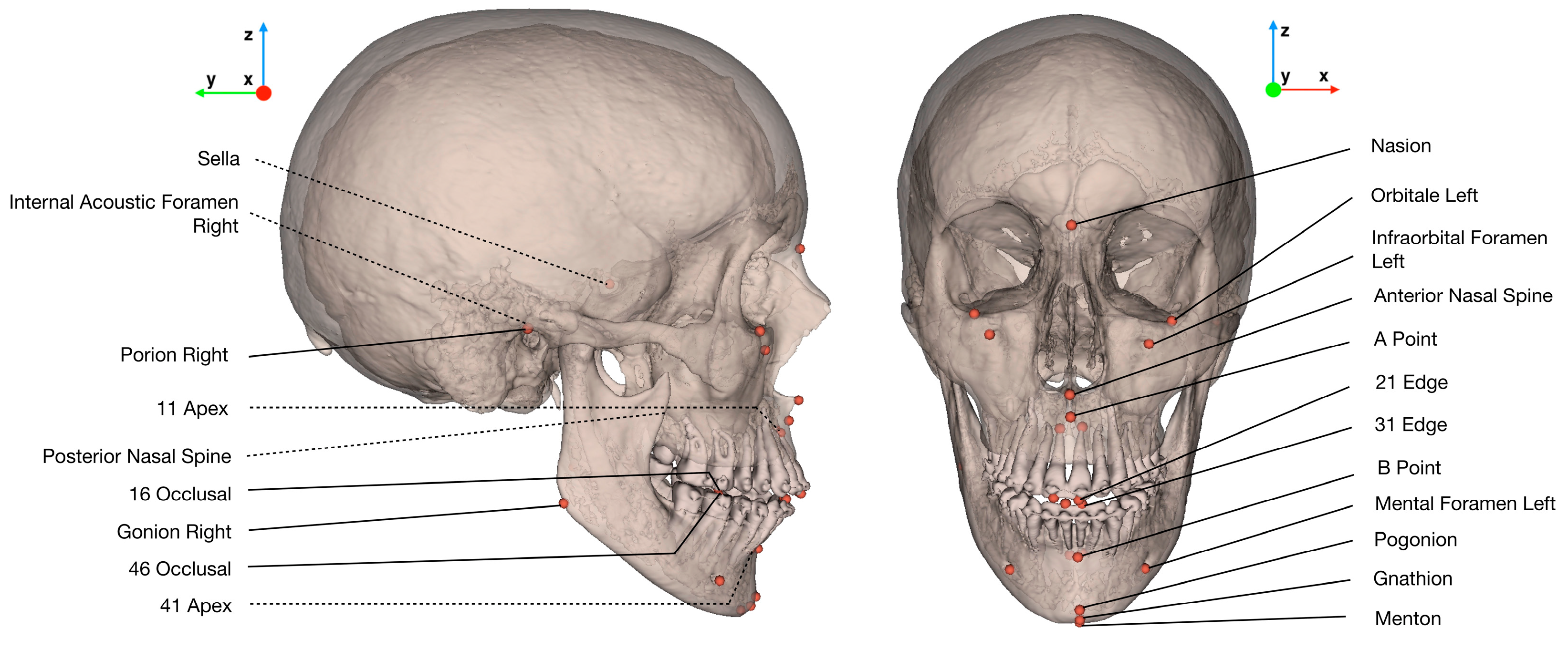

Illustration of the set of 33 landmarks localized by the operators, and the new coordinate system used for statistical analysis. In the case of bilateral landmarks, only one of the two landmarks is labelled. Dotted lines show landmarks localized inside bony structures.
Figure 1.
Illustration of the set of 33 landmarks localized by the operators, and the new coordinate system used for statistical analysis. In the case of bilateral landmarks, only one of the two landmarks is labelled. Dotted lines show landmarks localized inside bony structures.
Figure 2.

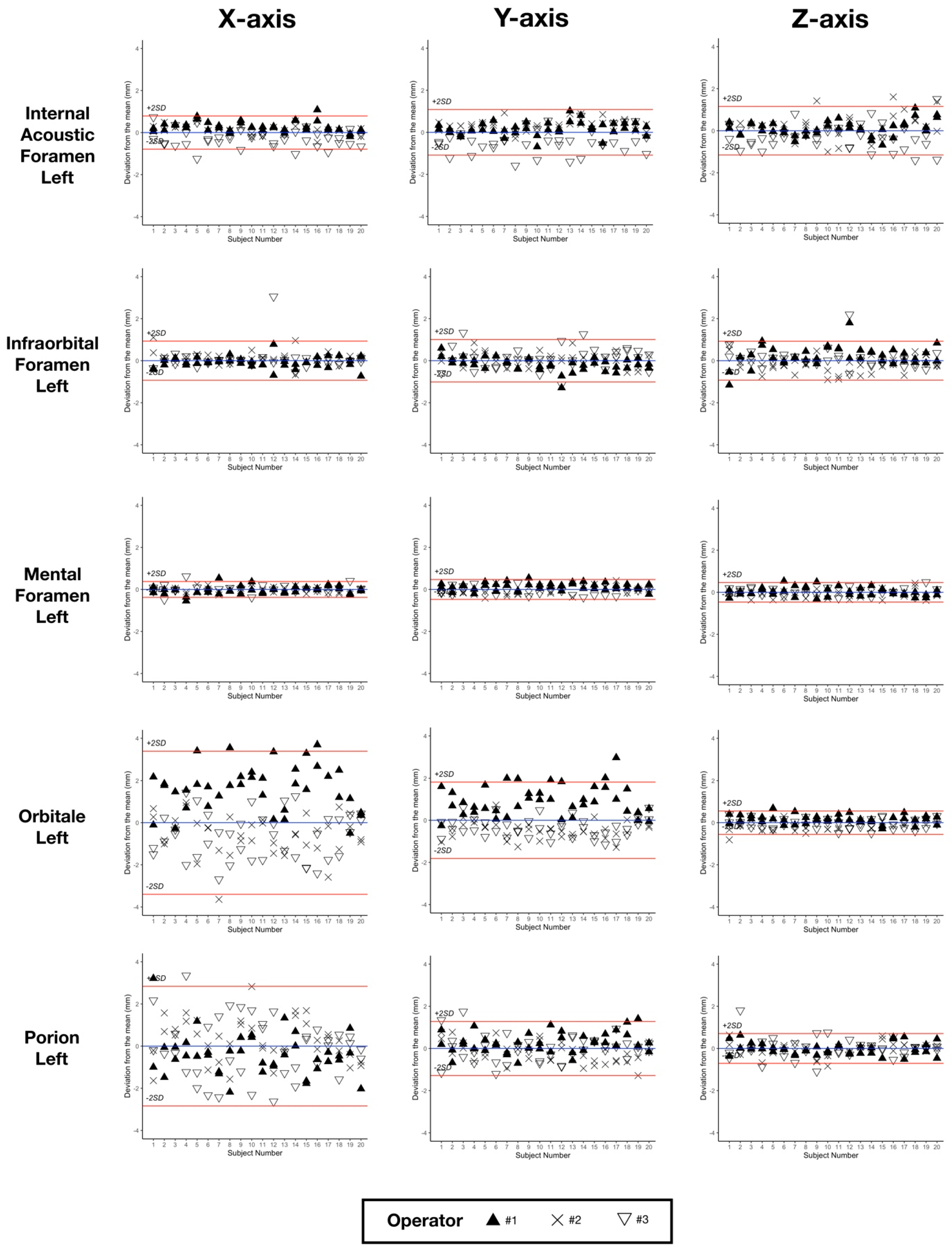

Bland-Altman plots for five left landmarks, showing the deviations from the mean (blue line) of the 6 repetitions for the 20 subjects. Red lines show the ± 2×SD of reproducibility. SD, standard deviation.
Figure 2.
Bland-Altman plots for five left landmarks, showing the deviations from the mean (blue line) of the 6 repetitions for the 20 subjects. Red lines show the ± 2×SD of reproducibility. SD, standard deviation.
Figure 3.

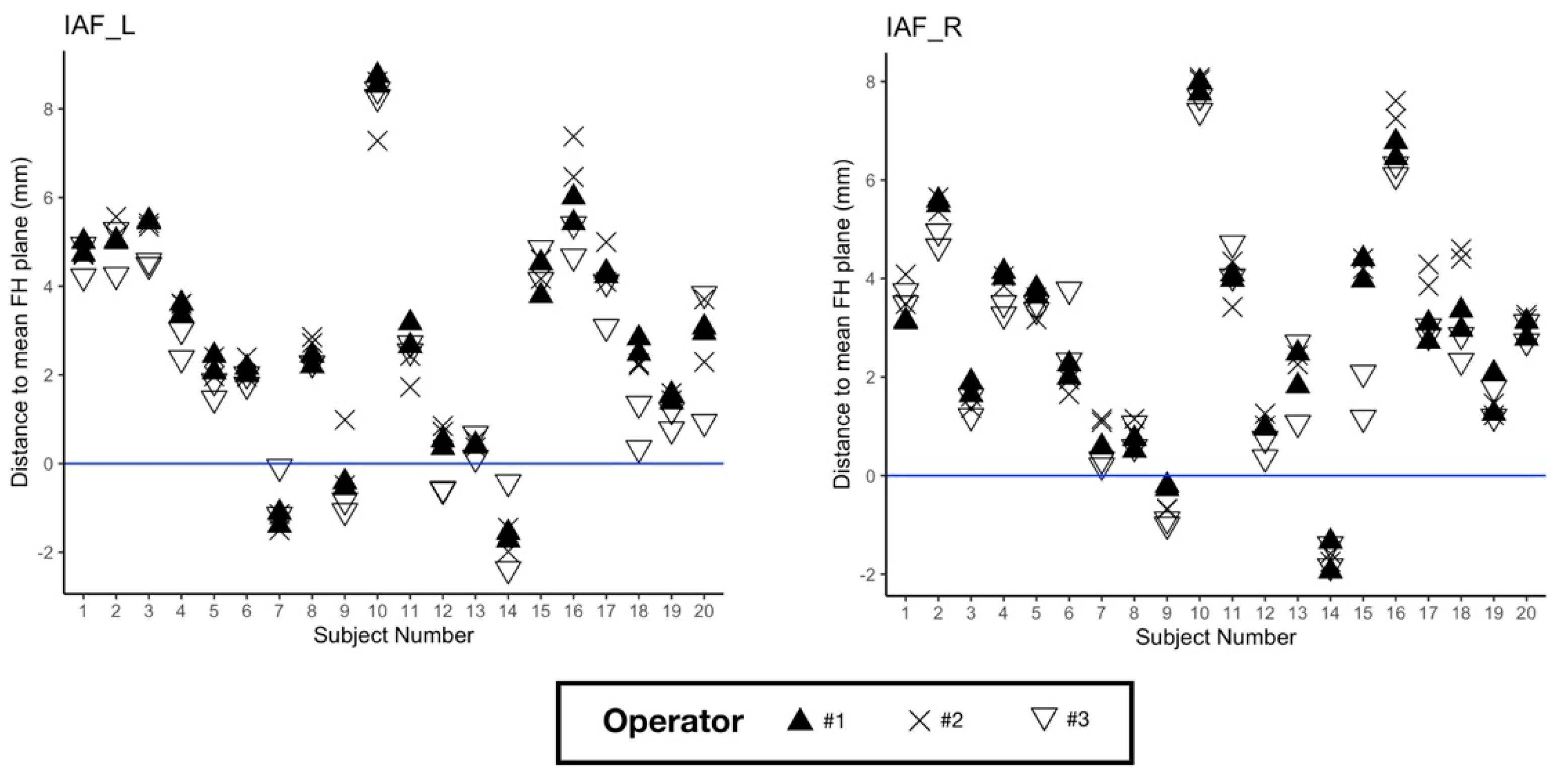

Vertical measurements of Internal Acoustic Foramen (IAF) left (on the left) and right (on the right) for each subject and repetition, using the mean conventional FH plane as horizontal reference.

Figure 3.
Vertical measurements of Internal Acoustic Foramen (IAF) left (on the left) and right (on the right) for each subject and repetition, using the mean conventional FH plane as horizontal reference.
Table 1.
Definition of “conventional” landmarks localized in our study (L/R: Left/Right).
| Landmark Name | Description |
|---|---|
| Nasion (Na) | Medial (and upper) point of the frontonasal suture |
| Orbitale L/R (Or-L/Or-R) | Lowest point of the orbital rim L/R |
| Anterior Nasal Spine (ANS) | Medial and most anterior point of the nasal spine |
| A Point (A) | Medial and most posterior point of the maxilla |
| B Point (B) | Medial and most posterior point of the mandible |
| Pogonion (Pog) | Medial and most anterior point of the mandible |
| Gnathion (Gn) | Medial and midpoint between Pog and Me |
| Menton (Me) | Medial and lowest point of the mandible |
| Gonion L/R (Go-L/Go-R) | Midpoint of the gonial angle L/R |
| Porion L/R (Po-L/Po-R) | External & uppermost point of the auditory canal L/R |
| Posterior Nasal Spine (PNS) | Medial & most distal point of the osseous palate |
| Sella (S) | Central point of the sella |
Table 2.
Definition of “foraminal” landmarks localized in our study (L/R: Left/Right).
| Landmark Name | Description |
|---|---|
| Infraorbital Foramen L/R (IF-L/IF-R) | External & most distal point of the infraorbital foramen L/R |
| Mental Foramen L/R (MF-L/MF-R) | External & most mesial point of the mental foramen L/R |
| Internal Acoustic Foramen L/R (IAF-L/IAF-R) | External, most mesial and posterior point of the internal acoustic foramen L/R |
Table 3.
Definition of “dental” landmarks localized in our study (FDI World Dental Federation notation for teeth numbering).
Table 3.
Definition of “dental” landmarks localized in our study (FDI World Dental Federation notation for teeth numbering).
| Landmark Name | Description |
|---|---|
| 11, 21, 31, 41 edges (11E, 21E, 31E, 41E) | Midpoint of 11/21/31/41 incisal edges |
| 11, 21, 31, 41 apexes (11A, 21A, 31A, 41A) | Root apex of 11/21/31/41 |
| 16, 26 occlusal (16O, 26O) | Summit of the mesio-palatal cusp of 16/26 |
| 36, 46 occlusal (36O, 46O) | Central fossa of 36/46 |
Table 4.
95% confidence interval (2×SD) of repeatability and reproducibility of the landmarks (mm), following the ISO 5725 standard. Values between 1 and 2 mm are highlighted in orange, and values superior to 2 mm are highlighted in red.
Table 4.
95% confidence interval (2×SD) of repeatability and reproducibility of the landmarks (mm), following the ISO 5725 standard. Values between 1 and 2 mm are highlighted in orange, and values superior to 2 mm are highlighted in red.
| Landmark | X Axis | Y Axis | Z Axis | |||
|---|---|---|---|---|---|---|
| Repet. 2×SD | Repro. 2×SD | Repet. 2×SD | Repro. 2×SD | Repet. 2×SD | Repro. 2×SD | |
| 11 Apex | 0.24 | 0.35 | 0.38 | 0.58 | 0.28 | 0.38 |
| 11 Edge | 0.25 | 0.34 | 0.24 | 0.30 | 0.08 | 0.10 |
| 16 Occlusal | 0.63 | 0.76 | 1.27 | 1.51 | 0.21 | 0.28 |
| 21 Apex | 0.30 | 0.41 | 0.33 | 0.58 | 0.28 | 0.47 |
| 21 Edge | 0.29 | 0.39 | 0.26 | 0.34 | 0.05 | 0.08 |
| 26 Occlusal | 0.65 | 0.83 | 0.68 | 0.88 | 0.17 | 0.23 |
| 31 Apex | 0.18 | 0.24 | 0.25 | 0.32 | 0.27 | 0.36 |
| 31 Edge | 0.40 | 0.26 | 0.18 | 0.25 | 0.14 | 0.10 |
| 36 Occlusal | 0.63 | 0.87 | 1.15 | 1.43 | 0.38 | 0.47 |
| 41 Apex | 0.18 | 0.22 | 0.35 | 0.50 | 0.23 | 0.35 |
| 41 Edge | 0.19 | 0.24 | 0.20 | 0.22 | 0.05 | 0.07 |
| 46 Occlusal | 0.40 | 0.54 | 0.55 | 0.82 | 0.23 | 0.30 |
| A Point | 0.80 | 0.86 | 0.29 | 0.34 | 1.31 | 1.59 |
| Anterior Nasal Spine | 0.57 | 0.67 | 0.80 | 1.31 | 0.57 | 1.10 |
| B Point | 0.65 | 1.12 | 0.55 | 0.63 | 2.46 | 2.89 |
| Gnathion | 0.75 | 1.14 | 0.76 | 0.92 | 1.05 | 1.25 |
| Gonion L | 0.63 | 0.93 | 1.55 | 2.02 | 1.96 | 2.64 |
| Gonion R | 0.61 | 0.82 | 1.38 | 1.75 | 1.94 | 2.45 |
| Infraorbital Foramen L | 0.88 | 0.93 | 0.81 | 1.01 | 0.63 | 0.93 |
| Infraorbital Foramen R | 0.87 | 0.99 | 0.80 | 0.93 | 0.66 | 0.82 |
| Internal Acoustic Foramen L | 0.52 | 0.79 | 0.81 | 1.09 | 0.84 | 1.15 |
| Internal Acoustic Foramen R | 0.51 | 0.82 | 0.88 | 1.04 | 0.56 | 1.01 |
| Mental Foramen L | 0.23 | 0.38 | 0.26 | 0.47 | 0.30 | 0.47 |
| Mental Foramen R | 0.23 | 0.35 | 0.25 | 0.45 | 0.32 | 0.43 |
| Menton | 0.76 | 1.11 | 1.29 | 1.84 | 0.37 | 0.54 |
| Nasion | 0.41 | 0.52 | 0.22 | 0.27 | 0.62 | 0.84 |
| Orbitale L | 2.05 | 3.40 | 1.00 | 1.82 | 0.40 | 0.56 |
| Orbitale R | 1.83 | 3.23 | 1.07 | 1.75 | 0.37 | 0.46 |
| Posterior Nasal Spine | 0.29 | 0.53 | 0.36 | 0.50 | 0.61 | 0.92 |
| Pogonion | 0.71 | 1.15 | 0.38 | 0.49 | 1.64 | 1.99 |
| Porion L | 2.39 | 2.84 | 0.88 | 1.28 | 0.61 | 0.71 |
| Porion R | 2.16 | 2.73 | 1.13 | 1.37 | 0.69 | 0.87 |
| Sella | 0.94 | 1.12 | 0.60 | 0.70 | 0.82 | 1.15 |
Repet., repeatability; Repro., reproducibility; SD, standard deviation; L/R: Left/Right.
Table 5.
95% confidence interval (2×SD) of repeatability and reproducibility of the vertical measurements of the landmarks (mm) using 2 FH planes as horizontal references, following the ISO 5725 standard.
Table 5.
95% confidence interval (2×SD) of repeatability and reproducibility of the vertical measurements of the landmarks (mm) using 2 FH planes as horizontal references, following the ISO 5725 standard.
| Landmark | Conventional FH | Novel FH | ||
|---|---|---|---|---|
| Repet. 2×SD | Repro. 2×SD | Repet. 2×SD | Repro. 2×SD | |
| 11 Apex | 0.54 | 0.74 | 0.35 | 0.46 |
| 11 Edge | 0.61 | 0.82 | 0.40 | 0.54 |
| 16 Occlusal | 0.51 | 0.68 | 0.29 | 0.39 |
| 21 Apex | 0.53 | 0.71 | 0.35 | 0.46 |
| 21 Edge | 0.58 | 0.78 | 0.40 | 0.54 |
| 26 Occlusal | 0.37 | 0.54 | 0.31 | 0.43 |
| 31 Apex | 0.52 | 0.68 | 0.32 | 0.42 |
| 31 Edge | 0.57 | 0.75 | 0.37 | 0.49 |
| 36 Occlusal | 0.35 | 0.52 | 0.31 | 0.43 |
| 41 Apex | 0.52 | 0.69 | 0.31 | 0.42 |
| 41 Edge | 0.58 | 0.77 | 0.37 | 0.49 |
| 46 Occlusal | 0.47 | 0.64 | 0.29 | 0.40 |
| A Point | 0.58 | 0.77 | 0.37 | 0.49 |
| Anterior Nasal Spine | 0.61 | 0.81 | 0.39 | 0.53 |
| B Point | 0.53 | 0.70 | 0.33 | 0.45 |
| Gnathion | 0.53 | 0.70 | 0.33 | 0.45 |
| Gonion L | 0.48 | 0.56 | 0.52 | 0.74 |
| Gonion R | 0.59 | 0.76 | 0.46 | 0.70 |
| Infraorbital Foramen L | 0.41 | 0.58 | 0.35 | 0.48 |
| Infraorbital Foramen R | 0.62 | 0.80 | 0.33 | 0.43 |
| Internal Acoustic Foramen L | 0.60 | 0.71 | 0.61 | 0.91 |
| Internal Acoustic Foramen R | 0.63 | 0.80 | 0.59 | 0.90 |
| Mental Foramen L | 0.40 | 0.55 | 0.32 | 0.43 |
| Mental Foramen R | 0.55 | 0.72 | 0.30 | 0.39 |
| Menton | 0.50 | 0.67 | 0.31 | 0.42 |
| Nasion | 0.56 | 0.75 | 0.35 | 0.46 |
| Orbitale L | 0.40 | 0.56 | 0.38 | 0.50 |
| Orbitale R | 0.65 | 0.84 | 0.34 | 0.43 |
| Posterior Nasal Spine | 0.39 | 0.53 | 0.31 | 0.46 |
| Pogonion | 0.54 | 0.71 | 0.33 | 0.46 |
| Porion L | 0.61 | 0.71 | 0.65 | 0.93 |
| Porion R | 0.69 | 0.87 | 0.59 | 0.88 |
| Sella | 0.43 | 0.55 | 0.40 | 0.60 |
FH, Frankfort Horizontal plane; Repet., repeatability; Repro., reproducibility; SD, standard deviation; L/R: Left/Right.
