Article

Clinical Characteristics and Audiological Profiles of Patients with Pathogenic Variants of WFS1

by
Joonho Jung
1,
Seung Hyun Jang
1,2,
Dongju Won
3,
Heon Yung Gee
2,
Jae Young Choi
1 and
Jinsei Jung
1,*
1
Department of Otorhinolaryngology, Yonsei University College of Medicine, Seoul 03722, Republic of Korea
2
Department of Pharmacology, Graduate School of Medical Science, Brain Korea 21 Project, Yonsei University College of Medicine, Seoul 03722, Republic of Korea
3
Department of Laboratory Medicine, Yonsei University College of Medicine, Seoul 03722, Republic of Korea
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2024, 13(16), 4851; https://doi.org/10.3390/jcm13164851
Submission received: 9 July 2024 / Revised: 6 August 2024 / Accepted: 14 August 2024 / Published: 16 August 2024
(This article belongs to the Section Otolaryngology)
Browse Figures
Versions Notes

Abstract

:
Background: Mutations in Wolfram syndrome 1 (WFS1) cause Wolfram syndrome and autosomal dominant non-syndromic hearing loss DFNA6/14/38. To date, more than 300 pathogenic variants of WFS1 have been identified. Generally, the audiological phenotype of Wolfram syndrome or DFNA6/14/38 is characterized by low-frequency hearing loss; however, this phenotype is largely variable. Hence, there is a need to better understand the diversity in audiological and vestibular profiles associated with WFS1 variants, as this can have significant implications for diagnosis and management. This study aims to investigate the clinical characteristics, audiological phenotypes, and vestibular function in patients with DFNA6/14/38. Methods: Whole-exome or targeted deafness gene panel sequencing was performed to confirm the pathogenic variants in patients with genetic hearing loss. Results: We identified nine independent families with affected individuals who carried a heterozygous pathogenic variant of WFS1. The onset of hearing loss varied from the first to the fifth decade. On a pure-tone audiogram, hearing loss was symmetrical, and the severity ranged from mild to severe. Notably, either both low-frequency and high-frequency or all-frequency-specific hearing loss was observed. However, hearing loss was non-progressive in all types. In addition, vestibular impairment was identified in patients with DFNA6/14/38, indicating that impaired WFS1 may also affect the vestibular organs. Conclusions: Diverse audiological and vestibular profiles were observed in patients with pathogenic variants of WFS1. These findings highlight the importance of comprehensive audiological and vestibular assessments in patients with WFS1 mutations for accurate diagnosis and management.

1. Introduction

Hearing loss is the most common sensorial disorder in humans, with genetic factors accounting for approximately 60–70% of cases [1]. So far, more than 124 deafness genes and 223 deafness-associated genes have been identified [2,3,4]. Among these genes, DFNA6 (DFN = deafness, A = dominant), DFNA14, and DFNA38 are associated with low-frequency non-syndromic hearing loss (LF-NSHL), which is caused by variants of the Wolfram syndrome 1 (WFS1) gene [5,6].
The WFS1 gene is located on human chromosome 4p16.1 and consists of eight exons. The WFS1 gene encodes the transmembrane protein, wolframin. Wolframin is an 890-amino-acid protein with an estimated molecular mass of 100 kDa that plays a pivotal role in the regulation of calcium homeostasis within the endoplasmic reticulum (ER) [7,8]. Wolframin is a resident component of the ER with an Ncytosolic/Cluminal orientation in the ER membrane and has a crucial role in the negative regulation of a feedback loop of the ER stress signaling network [9]. Although the physiological role of wolframin is unclear, wolframin is considered to have a role in protein synthesis, trafficking, and regulation of ER stress [10,11,12,13,14]. In addition, the WFS1 gene negatively regulates a key transcription factor involved in ER stress signaling [15]. WFS1 mutations are associated with autosomal recessive Wolfram syndrome and the autosomal dominant type of LF-NSHL (DFNA6/14/38) [16]. Wolfram syndrome is a rare, multisystem disorder characterized by diabetes insipidus, insulin-deficient diabetes mellitus, optic atrophy, and hearing loss [17].
The pathomechanism of DFNA6/14/38 and Wolfram syndrome remains elusive. It is suggested that a deficit in wolframin caused by pathogenic variants of WFS1 elicits an unfolded protein response and ER stress, leading to cellular apoptosis [17]. Given that wolframin is localized in the canalicular reticulum (specialized form of ER), the role of wolframin in the inner ear is possibly associated with ion homeostasis and regulation of ER stress in the ER [18].
A wide range of WFS1 gene variants are distributed throughout the whole gene [19]. However, pathogenic variants are concentrated in exon 8, which is the largest exon [20,21]. In this study, we aimed to investigate the clinical characteristics, audiological phenotypes, and vestibular function in patients with DFNA6/14/38 to provide a comprehensive profile of the impact of WFS1 variants.

2. Materials and Methods

2.1. Patient Enrollment

The present study enrolled patients registered in the cohort for genetic hearing loss, namely the Yonsei University Hearing Loss (YUHL) cohort. Patients with hearing loss who also had a family history of hearing loss or voluntarily had undergone genetic testing were included in this cohort. A total of 10 independent families were enrolled in this study. The enrolled patients consisted of five men (50.0%) and five women (50.0%), with an average age of 32.4 ± 19.9 years. This study was approved by the Institutional Review Board of our hospital (approval no. 4-2015-0659). Written informed consent was obtained from all participants.

2.2. Evaluation of Hearing Function

Pure-tone audiometry was performed for all enrolled patients and their family members. The pure-tone air (500–4000 Hz) and bone conduction (500–4000 Hz) thresholds were measured using clinical audiometers in a double-walled audio booth. The hearing threshold was calculated as the average threshold at 500, 1000, 2000, and 4000 Hz. Vestibular function tests, including the video head impulse test, caloric test, and vestibular-evoked myogenic potential (VEMP), were performed.

2.3. Genetic Analysis

Genetic testing using next-generation sequencing was performed for individuals and their family members, as previously reported [22,23,24,25,26,27]. Two-track genetic testing was applied; whole-exome sequencing (WES) or deafness gene panel sequencing was used depending on whether payment was covered by their own insurance system. For panel next-generation sequencing, a 207-deafness gene panel was customized as previously described [25]. For WES, the Agilent SureSelect V5 enrichment capture kit (Agilent Technologies, Santa Clara, CA, USA) was used according to the manufacturer’s sample preparation protocol. MiSeq sequencer (Illumina, San Diego, CA, USA) and MiSeq Reagent Kit v2 (300 cycles) were used for massively parallel sequencing. Sanger sequencing was performed for segregation analyses. Variants with a minimum count of five, minimum coverage of 20, and minimum frequency of 20% were called using the “Basic Variant Caller” function in CLC. Variants with minor allele frequencies >0.5% and >0.05% for recessive and dominant hearing loss genes, respectively, in the dbSNP and gnomAD databases were excluded. Genetic diagnoses were confirmed by a board of otolaryngologists and clinical geneticists according to the hearing loss-specified American College of Medical Genetics and Genomics (ACMG) and the Association for Molecular Pathology (AMP) guidelines in the Deafness Variation Database [28].

2.4. Statistical Analysis

All analyses were conducted using GraphPad Prism v8.0 (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. Clinical Characteristics of Patients with WFS1 Variants

We analyzed the clinical and genetic characteristics of 10 patients with pathogenic variants of the WFS1 gene. The patient demographics are shown in Table 1. The pedigree and audiogram of each patient are shown in Figure 1.
The age of onset varied, ranging from the first to the fifth decade. The hearing impairment was bilateral and sensorineural. The average thresholds for the pure-tone audiogram in the right and left ears were 52.8 ± 25.3 dB and 49.5 ± 25.1 dB, respectively, suggesting moderate hearing loss in both ears. Specifically, seven patients (70.0%) had moderate hearing loss (40–69 dB HL), one patient (10.0%) had severe hearing loss (70–89 dB HL), and one patient (10.0%) had profound hearing loss with a hearing threshold >90 dB HL. Although one patient (10.0%) had normal hearing at a pure-tone average, he had hearing loss at low frequencies (40 dB HL at both 250 and 500 Hz) and reported subjective hearing difficulties and vestibular symptoms. Bilateral involvement was observed in all patients (100.0%, n = 10). Additionally, four of the ten patients (40.0%) had vestibular symptoms.
Among the 10 affected patients, seven pathogenic variants were identified. Of these, three variants are novel and are reported here for the first time (Table 2), whereas the remaining variants have been previously reported in the literature [29,30,31,32]. All the novel variants were missense (p.C505S, p.R685C, and p.V839L) and have been classified as pathogenic or likely pathogenic according to the ACMG/AMP guidelines.
Variants of the WFS1 gene are known to cause low-frequency sensorineural hearing loss [33]. However, in this study, the audiometry patterns of our patients were diverse. Four patients (40.0%) exhibited flat or ski-slope configurations (Figure 2A), whereas the remaining six patients (60.0%) exhibited low- or mid-frequency hearing loss (Figure 2B). This suggests that the WFS1 gene can also contribute to high-frequency sensorineural hearing loss. There was no genotype–phenotype correlation in the audiological configuration when we compared all reported variants of the WFS1 gene (Figure 2C) [34]. Notably, variants in the N-terminal domain were associated with low/mid-frequency hearing loss, whereas those in the transmembrane and ER luminal domains were associated with both flat/ski-slope and low/mid-frequency hearing loss. Therefore, we conclude that the location and type of variants did not affect the pattern of hearing loss, and the factors that should be considered when predicting the patterns of hearing loss remain unclear.

3.2. Vestibular Symptoms and Functions in DFNA6/14/38

Vestibular dysfunction has not been extensively studied in patients with DFNA6/14/38. In addition, few studies have disclosed self-reported subjective vestibular symptoms, and vestibular examinations in some patients yielded results within the normal range [35,36]. In this study, vestibular symptoms were present in four patients (40.0%), whereas six patients (60.0%) did not report any vestibular symptoms. Among the four patients with vestibular symptoms, one underwent vestibular examination. Patient YUHS 613-21 with p.R685C exhibited abnormal vestibular examination results; this patient showed decreased gain values in the video head impulse test. The gain values for the anterior, lateral, and posterior canals were 0.79, 0.66, 0.64/0.7, and 0.56/0.62, respectively (right/left). In addition, the patient demonstrated a decreased caloric response in the left ear (canal paresis, 23%). Finally, the VEMP results were abnormal, with no response in either ear. These data indicate that patients with pathogenic variants of WFS1 commonly experience vestibular symptoms, which may be attributable to abnormal vestibular function.

3.3. Progression of Hearing Loss in DFNA6/14/38

Providing patients with information regarding the progression of hearing loss is important during genetic counseling. It is not well known whether hearing loss is progressive or the extent to which hearing impairment worsens over one’s lifespan. In this study, we compared the severity of hearing loss among individuals with the same WFS1 variants. The hearing levels in patients with p.S807R and p.C505S mutations were rarely progressive (Figure 3A,B). The severity of hearing loss in patients with both p.S807R and p.C505S mutations was moderate. Notably, a 62-year-old patient with the p.C505S variant of WFS1 exhibited a similar level of hearing loss as a two-year-old patient with the same variant. Additionally, there was a tendency for hearing thresholds at all frequencies to not change consistently with age (Figure 3C,D). The non-progressive and stable nature of hearing loss does not differ between low/mid-frequency and high/flat-frequency audiogram configurations. Therefore, we believe that hearing loss in patients with DFNA6/14/38 is not progressive and remains at a mild to moderate level.

4. Discussion

We investigated the clinical characteristics of the audiological and vestibular phenotypes in patients with pathogenic variants of the WFS1 gene. Ten patients with pathogenic variants of WFS1 exhibited non-syndromic hearing loss with an autosomal dominant inheritance pattern, consistent with DFNA6/14/38. Although the canonical pattern of low-frequency hearing loss was found in only 60% of the patients, the remaining 40% demonstrated hearing loss at high frequencies or across all frequencies. Notably, approximately half of the patients experienced vestibular imbalance, and one patient exhibited impaired vestibular function. Hearing loss was not progressive, and its severity was generally mild to moderate.
More than 250 pathogenic variants of the WFS1 gene have been identified worldwide (http://www.hgmd.cf.ac.uk/ac/index.php, accessed on 1 May 2024). Variants of the WFS1 gene are responsible for both Wolfram syndrome and autosomal dominant non-syndromic hearing loss (DFNA6/14/38) [5,37,38]. Wolfram syndrome is an autosomal recessive disorder characterized by diabetes mellitus, diabetes insipidus, optic atrophy, and hearing loss. In non-syndromic hearing loss, DFNA6/14/38 leads to LF-NSHL [33,37,39]. Although variants associated with Wolfram syndrome can be nonsense, frameshift, or missense, those associated with DFNA6/14/38 are predominantly missense, with the exception of one frameshift variant that leads to a truncated wolframin lacking the ER luminal domain (p.Phe515LeufsTer28) [34]. This finding indicates that variants linked to Wolfram syndrome are loss-of-function mutations, whereas variants linked to DFNA6/14/38 are likely gain-of-function mutations (https://omim.org/, accessed on 1 May 2024). Regarding the pathogenesis of DFNA6/14/38, a dominant-negative effect is less likely because such effects are expected to cause Wolfram syndrome. Instead, variants associated with DFNA6/14/38 lead to non-syndromic hearing loss without additional features of optic atrophy, diabetes mellitus, or diabetes insipidus.
According to the literature and the summarized variant map in Figure 2C, the hotspot region for mutations in the WFS1 gene is located in the ER luminal domain [31,34]. Specifically, the majority of variants associated with LF-NSHL are missense mutations in exon 8. Mutations responsible for LF-NSHL do not inactivate WFS1. Although the physiological role of WFS1 in the inner ear remains unknown, variants in the ER luminal domain cause misfolding of wolframin, leading to protein instability, ER stress, and cellular apoptosis [40,41]. However, it remains unclear why the cochlear apical turns responsible for detecting lower frequencies are more vulnerable to cellular ER stress. In addition, the specific variants that are more strongly associated with low-frequency hearing deterioration remain unknown. Generally, hair cells in the basal turn are more susceptible to ER stress and are prone to damage from chronic noise exposure [42]. Nevertheless, several genetic diseases, including DFNA6/14/38 and DFNA1, have been associated with low-frequency hearing loss. Future studies investigating the biological connection between WFS1 linked to DFNA6/14/38 and DIAPH1 linked to DFNA1 would be particularly interesting.
It is also worth noting that hearing loss in patients with DFNA6/14/38 was not progressive, although there was significant variability in the severity of hearing loss. Specifically, the severity of hearing loss did not exceed 60 dB in patients with low/mid-frequency hearing loss. By contrast, the hearing threshold tended to be relatively higher in cases with flat or ski-slope audiogram configurations than in those with low/mid-frequency hearing loss (Figure 3C,D). The difference in the severity of hearing loss depending on the audiological configuration suggests that variants leading to flat- or ski-slope-type hearing loss may be more likely to cause a more severe degree of hearing loss than that of those leading to low/mid-frequency hearing loss. These findings should be considered when providing genetic counseling to patients.
Little is known regarding vestibular function and symptoms in patients with DFNA6/14/38. Vestibular dysfunction in DFNA6/14/38 has not been extensively evaluated. A recent report identified mild vestibular impairments in patients with DFNA6/14/38, specifically otolith dysfunction in patients with the p.P838S variant, although this finding may be incidental [35]. In the present study, 40% of patients reported subjective vestibular impairment symptoms, and one patient (YUHL613-21, p.R685C) exhibited decreased gains in both the video head impulse test and the VEMP test, indicating impaired otolith function, which is consistent with findings in a previous report. Notably, two variants associated with abnormal VEMP results are located in the ER luminal domain. However, further case analyses are needed to confirm whether variants in the ER luminal domain affect vestibular function.
In conclusion, LF-NSHL is typically the representative audiological feature of DFNA6/14/38. However, flat or high-frequency types of hearing loss are also frequently observed. Therefore, more caution should be exercised when ruling out the possibility of DFNA6/14/38 in cases of flat or high-frequency hearing loss. Furthermore, given that vestibular dysfunction can also be present in DFNA6/14/38, vestibular function tests should be considered for evaluating vestibular function in patients with WFS1 variants. A comprehensive evaluation of both audiological and vestibular functions is therefore necessary for patients with variants of WFS1.

Author Contributions

Acquisition of data, J.J. (Joonho Jung), S.H.J. and D.W.; drafting of manuscript, J.J. (Joonho Jung) and J.J. (Jinsei Jung); data analysis and interpretation, H.Y.G., J.Y.C. and J.J. (Jinsei Jung); study conception and design, J.J. (Jinsei Jung). All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Foundation of Korea grant funded by the Korea government (MSIT) (RS-2024-00346485).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board of Severance Hospital, Yonsei University Health System (IRB #4-2015-0659, approved on 3 September 2015).

Informed Consent Statement

Informed consent was obtained from individuals with hearing loss for participation in this study and publication of their clinical data, and we enrolled them in the Yonsei University Hearing Loss cohort.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Petit, C.; Levilliers, J.; Hardelin, J.-P. Molecular Genetics of Hearing Loss. Annu. Rev. Genet. 2001, 35, 589–645. [Google Scholar] [CrossRef] [PubMed]
  2. Roman-Naranjo, P.; Gallego-Martinez, A.; Lopez Escamez, J.A. Genetics of vestibular syndromes. Curr. Opin. Neurol. 2018, 31, 105–110. [Google Scholar] [CrossRef] [PubMed]
  3. Deafness Variation Database. Available online: http://deafnessvariationdatabase.org/ (accessed on 13 October 2023).
  4. Azaiez, H.; Booth, K.T.; Ephraim, S.S.; Crone, B.; Black-Ziegelbein, E.A.; Marini, R.J.; Shearer, A.E.; Sloan-Heggen, C.M.; Kolbe, D.; Casavant, T.; et al. Genomic Landscape and Mutational Signatures of Deafness-Associated Genes. Am. J. Hum. Genet. 2018, 103, 484–497. [Google Scholar] [CrossRef] [PubMed]
  5. Bespalova, I.N.; Van Camp, G.; Bom, S.J.; Brown, D.J.; Cryns, K.; DeWan, A.T.; Erson, A.E.; Flothmann, K.; Kunst, H.P.; Kurnool, P.; et al. Mutations in the Wolfram syndrome 1 gene (WFS1) are a common cause of low frequency sensorineural hearing loss. Hum. Mol. Genet. 2001, 10, 2501–2508. [Google Scholar] [CrossRef] [PubMed]
  6. Van Camp, G.; Kunst, H.; Flothmann, K.; McGuirt, W.; Wauters, J.; Marres, H.; Verstreken, M.; Bespalova, I.N.; Burmeister, M.; Van de Heyning, P.H.; et al. A gene for autosomal dominant hearing impairment (DFNA14) maps to a region on chromosome 4p16.3 that does not overlap the DFNA6 locus. J. Med. Genet. 1999, 36, 532–536. [Google Scholar] [CrossRef] [PubMed]
  7. Hofmann, S.; Philbrook, C.; Gerbitz, K.-D.; Bauer, M.F. Wolfram syndrome: Structural and functional analyses of mutant and wild-type wolframin, the WFS1 gene product. Hum. Mol. Genet. 2003, 12, 2003–2012. [Google Scholar] [CrossRef] [PubMed]
  8. Takeda, K.; Inoue, H.; Tanizawa, Y.; Matsuzaki, Y.; Oba, J.; Watanabe, Y.; Shinoda, K.; Oka, Y. WFS1 (Wolfram syndrome 1) gene product: Predominant subcellular localization to endoplasmic reticulum in cultured cells and neuronal expression in rat brain. Hum. Mol. Genet. 2001, 10, 477–484. [Google Scholar] [CrossRef] [PubMed]
  9. Fonseca, S.G.; Ishigaki, S.; Oslowski, C.M.; Lu, S.; Lipson, K.L.; Ghosh, R.; Hayashi, E.; Ishihara, H.; Oka, Y.; Permutt, M.A.; et al. Wolfram syndrome 1 gene negatively regulates ER stress signaling in rodent and human cells. J. Clin. Investig. 2010, 120, 744–755. [Google Scholar] [CrossRef]
  10. Yurimoto, S.; Hatano, N.; Tsuchiya, M.; Kato, K.; Fujimoto, T.; Masaki, T.; Kobayashi, R.; Tokumitsu, H. Identification and characterization of wolframin, the product of the wolfram syndrome gene (WFS1), as a novel calmodulin-binding protein. Biochemistry 2009, 48, 3946–3955. [Google Scholar] [CrossRef]
  11. Yamada, T.; Ishihara, H.; Tamura, A.; Takahashi, R.; Yamaguchi, S.; Takei, D.; Tokita, A.; Satake, C.; Tashiro, F.; Katagiri, H.; et al. WFS1-deficiency increases endoplasmic reticulum stress, impairs cell cycle progression and triggers the apoptotic pathway specifically in pancreatic beta-cells. Hum. Mol. Genet. 2006, 15, 1600–1609. [Google Scholar] [CrossRef]
  12. Fonseca, S.G.; Fukuma, M.; Lipson, K.L.; Nguyen, L.X.; Allen, J.R.; Oka, Y.; Urano, F. WFS1 is a novel component of the unfolded protein response and maintains homeostasis of the endoplasmic reticulum in pancreatic beta-cells. J. Biol. Chem. 2005, 280, 39609–39615. [Google Scholar] [CrossRef] [PubMed]
  13. Yamaguchi, S.; Ishihara, H.; Tamura, A.; Yamada, T.; Takahashi, R.; Takei, D.; Katagiri, H.; Oka, Y. Endoplasmic reticulum stress and N-glycosylation modulate expression of WFS1 protein. Biochem. Biophys. Res. Commun. 2004, 325, 250–256. [Google Scholar] [CrossRef]
  14. Zatyka, M.; Ricketts, C.; da Silva Xavier, G.; Minton, J.; Fenton, S.; Hofmann-Thiel, S.; Rutter, G.A.; Barrett, T.G. Sodium-potassium ATPase 1 subunit is a molecular partner of Wolframin, an endoplasmic reticulum protein involved in ER stress. Hum. Mol. Genet. 2008, 17, 190–200. [Google Scholar] [CrossRef] [PubMed]
  15. Yoshida, H.; Haze, K.; Yanagi, H.; Yura, T.; Mori, K. Identification of the cis-acting endoplasmic reticulum stress response element responsible for transcriptional induction of mammalian glucose-regulated proteins. Involvement of basic leucine zipper transcription factors. J. Biol. Chem. 1998, 273, 33741–33749. [Google Scholar] [CrossRef] [PubMed]
  16. Hildebrand, M.S.; Sorensen, J.L.; Jensen, M.; Kimberling, W.J.; Smith, R.J. Autoimmune disease in a DFNA6/14/38 family carrying a novel missense mutation in WFS1. Am. J. Med. Genet. Part A 2008, 146A, 2258–2265. [Google Scholar] [CrossRef]
  17. Rigoli, L.; Lombardo, F.; Di Bella, C. Wolfram syndrome and WFS1 gene. Clin. Genet. 2011, 79, 103–117. [Google Scholar] [CrossRef] [PubMed]
  18. Cryns, K.; Thys, S.; Van Laer, L.; Oka, Y.; Pfister, M.; Van Nassauw, L.; Smith, R.J.; Timmermans, J.-P.; Van Camp, G. The WFS1 gene, responsible for low frequency sensorineural hearing loss and Wolfram syndrome, is expressed in a variety of inner ear cells. Histochem. Cell Biol. 2003, 119, 247–256. [Google Scholar] [CrossRef] [PubMed]
  19. Khanim, F.; Kirk, J.; Latif, F.; Barrett, T.G. WFS1/wolframin mutations, Wolfram syndrome, and associated diseases. Hum. Mutat. 2001, 17, 357–367. [Google Scholar] [CrossRef]
  20. Colosimo, A.; Guida, V.; Rigoli, L.; Di Bella, C.; De Luca, A.; Briuglia, S.; Stuppia, L.; Carmelo Salpietro, D.; Dallapiccola, B. Molecular detection of novel WFS1 mutations in patients with Wolfram syndrome by a DHPLC-based assay. Hum. Mutat. 2003, 21, 622–629. [Google Scholar] [CrossRef]
  21. Gasparin, M.R.R.; Crispim, F.; Paula, S.L.; Freire, M.B.S.; Dalbosco, I.S.; Manna, T.D.; Salles, J.E.N.; Gasparin, F.; Guedes, A.; Marcantonio, J.M.; et al. Identification of novel mutations of the WFS1 gene in Brazilian patients with Wolfram syndrome. Eur. J. Endocrinol. 2009, 160, 309–316. [Google Scholar] [CrossRef]
  22. Jung, J.; Lee, J.S.; Cho, K.J.; Yu, S.; Yoon, J.H.; Yung Gee, H.; Choi, J.Y. Genetic Predisposition to Sporadic Congenital Hearing Loss in a Pediatric Population. Sci. Rep. 2017, 7, 45973. [Google Scholar] [CrossRef]
  23. Song, M.H.; Jung, J.; Rim, J.H.; Choi, H.J.; Lee, H.J.; Noh, B.; Lee, J.S.; Gee, H.Y.; Choi, J.Y. Genetic Inheritance of Late-Onset, Down-Sloping Hearing Loss and Its Implications for Auditory Rehabilitation. Ear Hear. 2020, 41, 114–124. [Google Scholar] [CrossRef]
  24. Jung, J.; Kim, H.S.; Lee, M.G.; Yang, E.J.; Choi, J.Y. Novel COCH p.V123E Mutation, Causative of DFNA9 Sensorineural Hearing Loss and Vestibular Disorder, Shows Impaired Cochlin Post-Translational Cleavage and Secretion. Hum. Mutat. 2015, 36, 1168–1175. [Google Scholar] [CrossRef]
  25. Rim, J.H.; Noh, B.; Koh, Y.I.; Joo, S.Y.; Oh, K.S.; Kim, K.; Kim, J.A.; Kim, D.H.; Kim, H.Y.; Yoo, J.E.; et al. Differential genetic diagnoses of adult post-lingual hearing loss according to the audiogram pattern and novel candidate gene evaluation. Hum. Genet. 2022, 141, 915–927. [Google Scholar] [CrossRef]
  26. Sun, Y.; Xiang, J.; Liu, Y.; Chen, S.; Yu, J.; Peng, J.; Liu, Z.; Chen, L.; Sun, J.; Yang, Y.; et al. Increased diagnostic yield by reanalysis of data from a hearing loss gene panel. BMC Med. Genom. 2019, 12, 76. [Google Scholar] [CrossRef]
  27. Xiang, J.; Jin, Y.; Song, N.; Chen, S.; Shen, J.; Xie, W.; Sun, X.; Peng, Z.; Sun, Y. Comprehensive genetic testing improves the clinical diagnosis and medical management of pediatric patients with isolated hearing loss. BMC Med. Genom. 2022, 15, 142. [Google Scholar] [CrossRef]
  28. Oza, A.M.; DiStefano, M.T.; Hemphill, S.E.; Cushman, B.J.; Grant, A.R.; Siegert, R.K.; Shen, J.; Chapin, A.; Boczek, N.J.; Schimmenti, L.A.; et al. Expert specification of the ACMG/AMP variant interpretation guidelines for genetic hearing loss. Hum. Mutat. 2018, 39, 1593–1613. [Google Scholar] [CrossRef]
  29. Cryns, K.; Sivakumaran, T.A.; Van den Ouweland, J.M.; Pennings, R.J.; Cremers, C.W.; Flothmann, K.; Young, T.L.; Smith, R.J.; Lesperance, M.M.; Camp, G.V. Mutational spectrum of the WFS1 gene in Wolfram syndrome, nonsyndromic hearing impairment, diabetes mellitus, and psychiatric disease. Hum. Mutat. 2003, 22, 275–287. [Google Scholar]
  30. Kasakura-Kimura, N.; Masuda, M.; Mutai, H.; Masuda, S.; Morimoto, N.; Ogahara, N.; Misawa, H.; Sakamoto, H.; Saito, K.; Matsunaga, T. WFS1 and GJB2 mutations in patients with bilateral low-frequency sensorineural hearing loss. Laryngoscope 2017, 127, E324–E329. [Google Scholar] [CrossRef]
  31. Kobayashi, M.; Miyagawa, M.; Nishio, S.-y.; Moteki, H.; Fujikawa, T.; Ohyama, K.; Sakaguchi, H.; Miyanohara, I.; Sugaya, A.; Naito, Y. WFS1 mutation screening in a large series of Japanese hearing loss patients: Massively parallel DNA sequencing-based analysis. PLoS ONE 2018, 13, e0193359. [Google Scholar] [CrossRef]
  32. Wei, Q.; Zhu, H.; Qian, X.; Chen, Z.; Yao, J.; Lu, Y.; Cao, X.; Xing, G. Targeted genomic capture and massively parallel sequencing to identify novel variants causing Chinese hereditary hearing loss. J. Transl. Med. 2014, 12, 311. [Google Scholar] [CrossRef] [PubMed]
  33. Cryns, K.; Pfister, M.; Pennings, R.J.; Bom, S.J.; Flothmann, K.; Caethoven, G.; Kremer, H.; Schatteman, I.; Köln, K.A.; Tóth, T. Mutations in the WFS1 gene that cause low-frequency sensorineural hearing loss are small non-inactivating mutations. Hum. Genet. 2002, 110, 389–394. [Google Scholar] [CrossRef] [PubMed]
  34. Lim, H.D.; Lee, S.M.; Yun, Y.J.; Lee, D.H.; Lee, J.H.; Oh, S.-H.; Lee, S.-Y. WFS1 autosomal dominant variants linked with hearing loss: Update on structural analysis and cochlear implant outcome. BMC Med. Genom. 2023, 16, 79. [Google Scholar] [CrossRef] [PubMed]
  35. Velde, H.M.; Huizenga, X.J.; Yntema, H.G.; Haer-Wigman, L.; Beynon, A.J.; Oostrik, J.; Pegge, S.A.; Kremer, H.; Lanting, C.P.; Pennings, R.J. Genotype and Phenotype Analyses of a Novel WFS1 Variant (c. 2512C> T p.(Pro838Ser)) Associated with DFNA6/14/38. Genes 2023, 14, 457. [Google Scholar] [CrossRef] [PubMed]
  36. Sun, Y.; Cheng, J.; Lu, Y.; Li, J.; Lu, Y.; Jin, Z.; Dai, P.; Wang, R.; Yuan, H. Identification of two novel missense WFS1 mutations, H696Y and R703H, in patients with non-syndromic low-frequency sensorineural hearing loss. J. Genet. Genom. 2011, 38, 71–76. [Google Scholar] [CrossRef] [PubMed]
  37. Qian, X.; Qin, L.; Xing, G.; Cao, X. Phenotype Prediction of Pathogenic Nonsynonymous Single Nucleotide Polymorphisms in WFS1. Sci. Rep. 2015, 5, 14731. [Google Scholar] [CrossRef] [PubMed]
  38. Inoue, H.; Tanizawa, Y.; Wasson, J.; Behn, P.; Kalidas, K.; Bernal-Mizrachi, E.; Mueckler, M.; Marshall, H.; Donis-Keller, H.; Crock, P.; et al. A gene encoding a transmembrane protein is mutated in patients with diabetes mellitus and optic atrophy (Wolfram syndrome). Nat. Genet. 1998, 20, 143–148. [Google Scholar] [CrossRef]
  39. Fukuoka, H.; Kanda, Y.; Ohta, S.; Usami, S. Mutations in the WFS1 gene are a frequent cause of autosomal dominant nonsyndromic low-frequency hearing loss in Japanese. J. Hum. Genet. 2007, 52, 510–515. [Google Scholar] [CrossRef] [PubMed]
  40. Rendtorff, N.D.; Lodahl, M.; Boulahbel, H.; Johansen, I.R.; Pandya, A.; Welch, K.O.; Norris, V.W.; Arnos, K.S.; Bitner-Glindzicz, M.; Emery, S.B. Identification of p. A684V missense mutation in the WFS1 gene as a frequent cause of autosomal dominant optic atrophy and hearing impairment. Am. J. Med. Genet. Part A 2011, 155, 1298–1313. [Google Scholar] [CrossRef]
  41. Rigoli, L.; Bramanti, P.; Di Bella, C.; De Luca, F. Genetic and clinical aspects of Wolfram syndrome 1, a severe neurodegenerative disease. Pediatr. Res. 2018, 83, 921–929. [Google Scholar] [CrossRef]
  42. Mehrparvar, A.H.; Mirmohammadi, S.J.; Ghoreyshi, A.; Mollasadeghi, A.; Loukzadeh, Z. High-frequency audiometry: A means for early diagnosis of noise-induced hearing loss. Noise Health 2011, 13, 402–406. [Google Scholar] [CrossRef]
Jcm 13 04851 g001

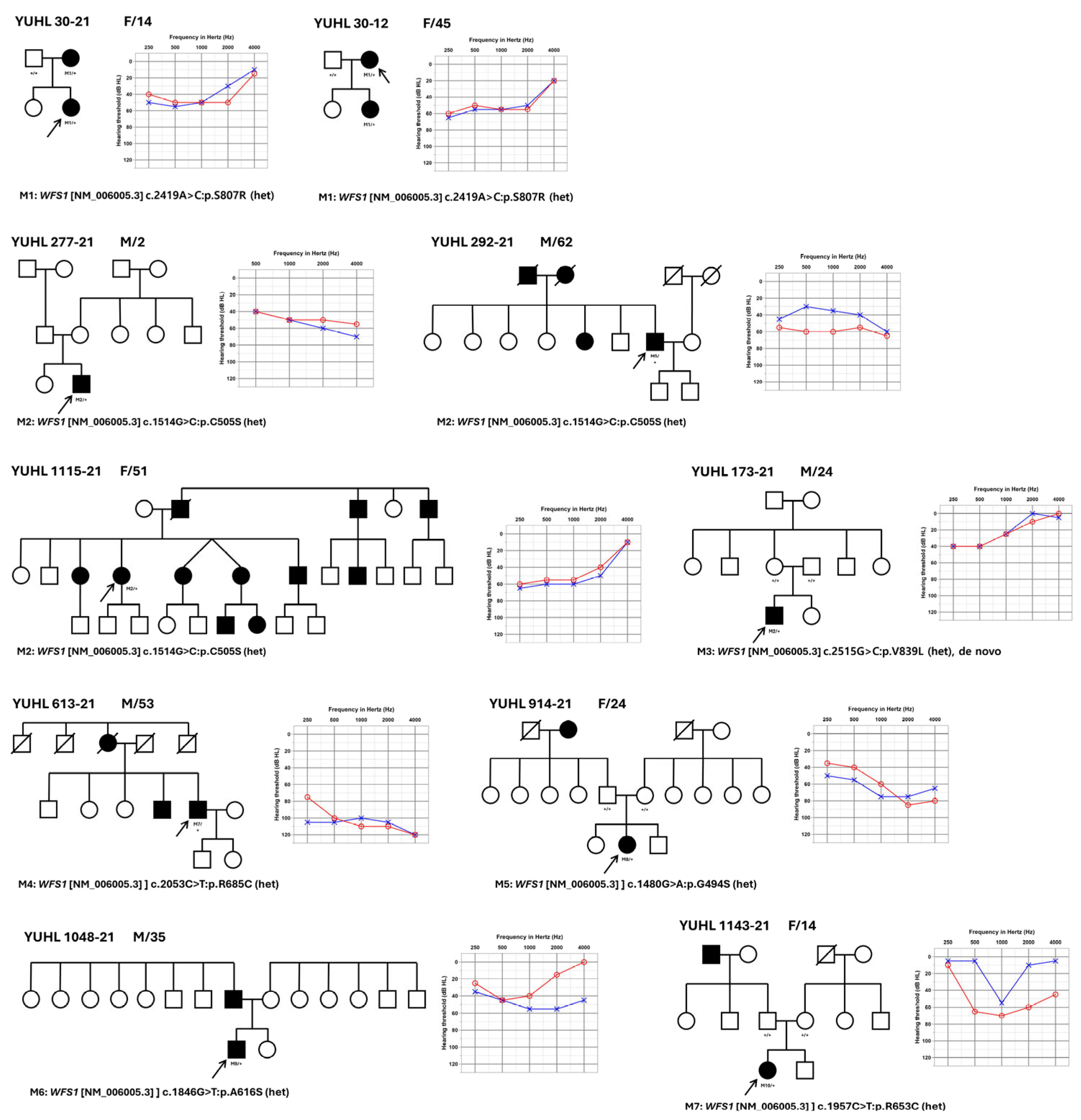

Figure 1. Pedigrees and audiograms of patients with pathogenic variants of Wolfram syndrome 1 (WFS1). The pedigrees and pure-tone audiograms of individuals with pathogenic variants of WFS1 from 10 independent families are depicted. In the pure-tone audiogram, the red color indicates the auditory thresholds in the right ear and the blue color indicates the auditory thresholds in the left ear.
Figure 1. Pedigrees and audiograms of patients with pathogenic variants of Wolfram syndrome 1 (WFS1). The pedigrees and pure-tone audiograms of individuals with pathogenic variants of WFS1 from 10 independent families are depicted. In the pure-tone audiogram, the red color indicates the auditory thresholds in the right ear and the blue color indicates the auditory thresholds in the left ear.
Jcm 13 04851 g001
Jcm 13 04851 g002

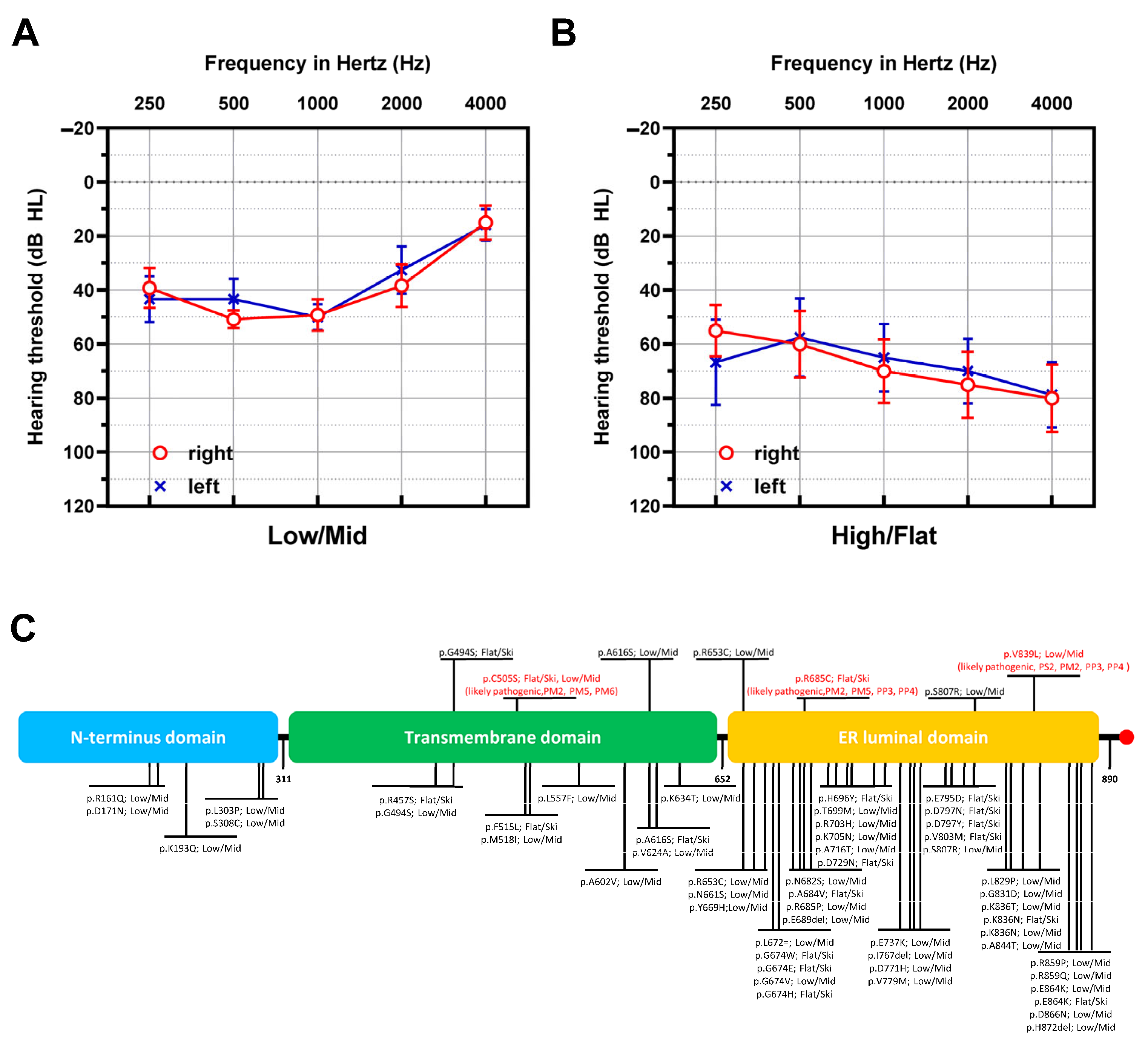

Figure 2. Audiogram configurations in patients with pathogenic variants of Wolfram syndrome 1 (WFS1). (A,B) The audiogram configuration comprises low/mid (low- and mid-frequency hearing loss, n = 6) (A) and high/flat (high- and all-frequency hearing loss, n = 6) (B) types. (C) Domain structure of WFS1 is depicted with variants in WFS1 and audiological configuration. The variants labeled over the domain figure represent those identified in the present study, whereas those labeled under the domain figure represent those reported previously [34]. Red color refers to the novel variants identified in this study. Low/Mid, low- and mid-frequency hearing loss; Flat/Ski, all-frequency and high-frequency hearing loss; ER, endoplasmic reticulum.
Figure 2. Audiogram configurations in patients with pathogenic variants of Wolfram syndrome 1 (WFS1). (A,B) The audiogram configuration comprises low/mid (low- and mid-frequency hearing loss, n = 6) (A) and high/flat (high- and all-frequency hearing loss, n = 6) (B) types. (C) Domain structure of WFS1 is depicted with variants in WFS1 and audiological configuration. The variants labeled over the domain figure represent those identified in the present study, whereas those labeled under the domain figure represent those reported previously [34]. Red color refers to the novel variants identified in this study. Low/Mid, low- and mid-frequency hearing loss; Flat/Ski, all-frequency and high-frequency hearing loss; ER, endoplasmic reticulum.
Jcm 13 04851 g002
Jcm 13 04851 g003
Figure 3. Progression of hearing loss in patients with pathogenic variants of Wolfram syndrome 1 (WFS1). (A,B) Comparisons of pure-tone audiograms among individuals of different ages. (A) Fourteen and forty-five-year-old individuals with p.S807R are compared. (B) Two, fifty-one, and sixty-two-year-old patients with p.C505S are compared. (C,D) Auditory thresholds at individual frequencies are depicted according to the patient ages in high/flat type (C) and low/mid type (D) of hearing loss.
Figure 3. Progression of hearing loss in patients with pathogenic variants of Wolfram syndrome 1 (WFS1). (A,B) Comparisons of pure-tone audiograms among individuals of different ages. (A) Fourteen and forty-five-year-old individuals with p.S807R are compared. (B) Two, fifty-one, and sixty-two-year-old patients with p.C505S are compared. (C,D) Auditory thresholds at individual frequencies are depicted according to the patient ages in high/flat type (C) and low/mid type (D) of hearing loss.
Jcm 13 04851 g003
Table 1. Demographics of the enrolled patients.
Table 1. Demographics of the enrolled patients.
CharacteristicsValue (n = 10)
Age (yr)32.4 ± 19.9
Sex
Male5 (50)
Female5 (50)
Age of onset
1st decade4 (40.0)
2nd decade3 (30.0)
3rd decade1 (10.0)
4th decade1 (10.0)
5th decade1 (10.0)
Side
Both10 (100.0)
Pure tone average (dB HL)
Right52.8 ± 25.3
Left49.5 ± 25.1
Hearing loss severity
Normal (0–25 dB HL)1 (10.0)
Mild (25–39 dB HL)0 (0.0)
Moderate (40–69 dB HL)7 (70.0)
Severe (70–89 dB HL)1 (10.0)
Profound (>90 dB HL)1 (10.0)
Pure tone audiometry pattern
Low/Mid6 (60.0)
Flat/ski4 (40.0)
Vestibular Symptoms
Yes4 (40.0)
No6 (60.0)
Table 2. Genetic variants of patients.
Table 2. Genetic variants of patients.
Gene SymbolIndividualAgeSexNucleotide
Change		Amino Acid
Change		ZygositygnomAD
(EAS)		SIFTMutation TasterPhyloPGERP++REVELCADD
Phred		ACMG/AMP
Guideline
WFS1YUHL 30-2114Fc.2419A>Cp.Ser807ArgHetAbsentDamagingDisease
Causing		ConservedConserved0.52125.6[29]
WFS1YUHL 173-2124Mc.2515G>Cp.Val839LeuHetAbsentDeleteriousDisease
Causing		ConservedConserved0.62224.2Likely pathogenic
(PS2, PM2, PP3, PP4)
WFS1YUHL 277-21
YUHL 292-21
YUHL 1115-21		2
62
51		M
M
F		c.1514G>Cp.Cys505SerHet0.000381ToleratedDisease
Causing		ConservedConserved0.73116.89Likely pathogenic
(PM2, PM5, PM6)
WFS1YUHL 613-2153Mc.2053C>Tp.Arg685CysHet0.000555DamagingDisease
Causing		Non-conservedConserved0.79732Likely pathogenic
(PM2, PM5, PP3, PP4)
WFS1YUHL 914-2124Fc.1480G>Ap.Gly494SerHet0.000401ToleratedDisease
Causing		ConservedConserved0.86223.6[30]
WFS1YUHL 1048-2135Mc.1846G>Tp.Ala616SerHet0.000163ToleratedPolymorphismConservedConserved0.57013.98[31]
WFS1YUHL 1143-2114Fc.1957C>Tp.Arg653CysHet0.000551DamagingDisease
Causing		Non-conservedConserved0.81732[32]
WFS1, Wolfram syndrome 1.
