Development of an Artificial Intelligence Diagnostic System Using Linked Color Imaging for Barrett’s Esophagus

by
Tsutomu Takeda
1,*,
Daisuke Asaoka
2,
Hiroya Ueyama
1,
Daiki Abe
1,
Maiko Suzuki
2,
Yoshihiro Inami
2,
Yasuko Uemura
1,
Momoko Yamamoto
1,
Tomoyo Iwano
1,
Ryota Uchida
1,
Hisanori Utsunomiya
1,
Shotaro Oki
1,
Nobuyuki Suzuki
1,
Atsushi Ikeda
1,
Yoichi Akazawa
1,
Kohei Matsumoto
1,
Kumiko Ueda
1,
Mariko Hojo
1,
Shuko Nojiri
3,
Tomohiro Tada
4 and
Akihito Nagahara
1add Show full author list remove Hide full author list
1
Department of Gastroenterology, Juntendo University School of Medicine, Tokyo 113-8421, Japan
2
Department of Gastroenterology, Juntendo Tokyo Koto Geriatric Medical Center, Tokyo 136-0075, Japan
3
Department of Medical Technology Innovation Center, Juntendo University School of Medicine, Tokyo 113-8421, Japan
4
AI Medical Service Inc., Tokyo 171-0013, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2024, 13(7), 1990; https://doi.org/10.3390/jcm13071990
Submission received: 1 March 2024 / Revised: 21 March 2024 / Accepted: 26 March 2024 / Published: 29 March 2024
(This article belongs to the Special Issue Recent Advances in Gastrointestinal Endoscopy)
Browse Figures
Versions Notes

Abstract

:
Background: Barrett’s esophagus and esophageal adenocarcinoma cases are increasing as gastroesophageal reflux disease increases. Using artificial intelligence (AI) and linked color imaging (LCI), our aim was to establish a method of diagnosis for short-segment Barrett’s esophagus (SSBE). Methods: We retrospectively selected 624 consecutive patients in total at our hospital, treated between May 2017 and March 2020, who experienced an esophagogastroduodenoscopy with white light imaging (WLI) and LCI. Images were randomly chosen as data for learning from WLI: 542 (SSBE+/− 348/194) of 696 (SSBE+/− 444/252); and LCI: 643 (SSBE+/− 446/197) of 805 (SSBE+/− 543/262). Using a Vision Transformer (Vit-B/16-384) to diagnose SSBE, we established two AI systems for WLI and LCI. Finally, 126 WLI (SSBE+/− 77/49) and 137 LCI (SSBE+/− 81/56) images were used for verification purposes. The accuracy of six endoscopists in making diagnoses was compared to that of AI. Results: Study participants were 68.2 ± 12.3 years, M/F 330/294, SSBE+/− 409/215. The accuracy/sensitivity/specificity (%) of AI were 84.1/89.6/75.5 for WLI and 90.5/90.1/91.1/for LCI, and those of experts and trainees were 88.6/88.7/88.4, 85.7/87.0/83.7 for WLI and 93.4/92.6/94.6, 84.7/88.1/79.8 for LCI, respectively. Conclusions: Using AI to diagnose SSBE was similar in accuracy to using a specialist. Our finding may aid the diagnosis of SSBE in the clinic.

1. Introduction

The frequency of Barrett’s esophagus (BE) and esophageal adenocarcinoma is increasing as the prevalence of gastroesophageal reflux disease (GERD) increases [1]. In Japan, besides the increasing prevalence of GERD, the incidence of BE and esophageal adenocarcinoma is feared to also increase due to an increase in obesity, lifestyle changes, and a decrease in Helicobacter pylori infections among the young [2]. In contrast to a diagnosis of long-segment Barrett’s esophagus (LSBE) using white light imaging (WLI), a diagnosis of short-segment Barrett’s esophagus (SSBE) is sometimes more troublesome. Western countries show a high frequency of LSBE. However, in Japan, LSBE is less prevalent than SSBE. After esophagogastroduodenoscopy during health checks, the frequency of SSBE was determined to be from 12.0 to 42.6% on endoscopic screening in Asia [3]. Patients showing LSBE are at higher risk of developing Barrett’s carcinoma; however, patients with SSBE are also susceptible [4]. In Japan, the occurrence of esophageal adenocarcinoma has increased to 6.5% in patients who undergo surgical resections and to 7.5% in those with various types of esophageal cancers, including those who had not undergone a surgical resection [5]. Consequently, an accurate diagnosis of BE is required.
Recently, in a BE diagnosis, esophageal metaplasia (ESEM), as observed by endoscopy, was recognized in the absence of a biopsy [6]. Although magnifying endoscopy was used for a precise diagnosis in several reports [7,8], daily clinical practice requires a diagnosis that is easy to make and accurate. Linked color imaging (LCI) in image-enhanced endoscopy (IEE) allows differences in mucosal color to be easily recognized. As a color-enhancing technology, images from LCI show improved color separation in the red areas of mucosal blood vessels. Such regions are more distinguishable subsequent to the overlap of exposure by narrow-band laser light on a white light laser that maintains the screen’s brightness. As a result, red and discolored lesions are more easily identified, as well as differences in mucosal color. We previously described the usefulness of a diagnosis of BE and reflux esophagitis using LCI [9,10]. Others have described the utility of LCI to aid in the diagnosis of Barrett’s neoplasia and BE [11,12,13,14]; the prevalence of BE using LCI in patients who visited a health center for a detailed medical check-up in Japan was 56.2% [14]. Moreover, as another IEE, the value of texture and color enhancement imaging in evaluating BE has been described [15,16]. It is hoped that IEE will improve the diagnostic capability of BE.
In recent years, artificial intelligence (AI)–based endoscopic diagnostics have been developed and shown to be effective in the field of BE and Barrett’s neoplasia [17,18,19,20,21,22]. The usefulness of using LCI to diagnose H. pylori gastritis [23,24,25] and colon polyps [26] was also described. It was noted that adding LCI to AI could improve diagnostic accuracy. However, reports of the diagnosis of BE with LCI using AI are non-existent, and an improvement in the diagnostic performance of BE combining LCI with AI remains unknown. Therefore, we aimed to develop a diagnostic system for BE using AI and LCI.

2. Materials and Methods

2.1. Preparation of Training and Test Image Sets

Our aim was to develop a diagnostic system for SSBE using an AI system and LCI at a single center in a retrospective clinical study. A total of 624 consecutive patients, treated with esophagogastroduodenoscopy using WLI and LCI (WLI: 696 [SSBE+/− 444/252] and LCI: 805 [SSBE+/− 543/262]) between May 2017 and March 2020 at Juntendo Tokyo Koto Geriatric Medical Center, were retrospectively selected. Equipment used included endoscopic systems (EG-L590WR, EG-L600WR7 or EG-L600ZW; Fujifilm Co., Tokyo, Japan), a light source (LASEREO LL-4450; Fujifilm Co.), and a video processor (AdvanciaHD VP-4450HD; Fujifilm Co.; Structure Emphasis: B6, Color Emphasis: C1). Most study participants were outpatients who were conscious during their endoscopic examination. Endoscopies were carried out for varied reasons: GERD symptoms, a medical check-up, abdominal pain, anemia, and to follow up gastric ulcers. Inclusion criteria of this study were as follows: (1) more than 20 years of age and diagnosed endoscopically as SSBE (SSBE group), or patients who did not have SSBE (control group) and had undergone WLI and LCI; (2) imaging of the gastroesophageal junction (GE-J) occurred during the inspiration of air phase; (3) circumferential images were acquired close to the squamocolumnar junction (SC-J). Exclusion criteria included patients who previously underwent esophageal surgery or a gastrectomy, or who had LSBE, dysplasia, or cancer in SSBE, or advanced esophageal or gastric cancer. Patients were also excluded if it was difficult to perform an endoscopic examination on them due to serious hepatic, respiratory, or heart diseases. In addition, if the GE-J was not fully extended, a patient was also excluded. Obtained images were in JPEG format of acceptable quality. Each image was approximately 100 Kb in size and had a pixel array of 640 × 510 and 24-bit color.
We used expert endoscopists who had each conducted more than 10,000 esophagogastroduodenoscopies (TT1, DA1, MS, YI). An ESEM diagnosis was based on a criterion of BE on endoscopy based on histological confirmation. The GE-J is considered to be at the distal end of the lower esophageal palisade vessels in Japan [27], while the medical establishment in Western countries considers it to be at the proximal end of the gastric folds (Prague C & M criteria) [28]; we used the former definition of GE-J. However, when we could not detect palisade vessels, the GE-J was considered to be at the proximal end of gastric folds. The ESEM was considered to be between the GE-J and SC-J [6]. Two expert endoscopists (TT1, DA1) evaluated WLI endoscopic images until a consensus was reached for each image. Reflux esophagitis was classified according to the Los Angeles (LA) classification system [29], and non-erosive reflux esophagitis was classified according to a modified LA classification system [30,31].

2.2. Development of an Endoscopic Diagnosis Support System for Esophageal Barrett’s Mucosa

Images from 528 patients using WLI: 542 (SSBE+/− 348/194) of 696 (SSBE+/− 444/252) or LCI: 643 (SSBE+/− 446/197) of 805 (SSBE+/− 543/262) were used randomly to learn from. A Vision Transformer (Vit-B/16-384, optimizer: “sam”, learning rate: 0.03, batchsize = 64) that diagnosed SSBE was used for two AI systems using WLI and LCI. A Vision Transformer is a neural network that does not use a convolution layer like conventional convolutional neural networks (CNNs) but consists of the encoder part of the transformer (a model that does not use CNNs or recurrent neural networks, but only attention).

2.3. Verification of AI Diagnostic Accuracy with Test Data

To assess the accuracy of diagnoses (diagnosis of SSBE or not), a separate test dataset from 96 patients with WLI: 126/LCI: 137 images (SSBE: WLI: 77/LCI: 81, non-SSBE images: WLI: 49/LCI:56) was applied to AI systems. The test dataset used was not augmented. For each test, trained AI systems created a continuous number between 0 and 1 for SSBE or not that corresponded to the probability of a specific condition being represented by an image. The cut-off value of 0.5 was used for a final diagnosis of each condition (SSBE/non-SSBE). Moreover, the area under the receiver-operating characteristic curve (AUC) was calculated in order to assess how accurate the AI-assisted Vision Transformer system was. Accuracy, sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV) were determined, respectively. The overall test speed was the period from the beginning to the end of an evaluation of test images as measured by the AI-assisted Vision Transformer system. How the AI-assisted Vision Transformer system recognized input images was assessed using a gradient-weighted class activation map (Grad-CAM) to decide the most important area of each image for classification. The Grad-CAM makes a coarse localization map that highlights pivotal regions in an image to predict a target concept such as SSBE. A heatmap image was created from localization map data.

2.4. AI Diagnostic Accuracy Compared to Three Experts and Three Non-Experts

Six endoscopists (three experts, raters A–C: HU1, YA, KM, and three trainees, raters A–C: HU2, TI, MY) assessed whether SSBE was present or not using 263 images (126 WLI and 137 LCI). Accuracy, sensitivity, specificity, PPV, and NPV were determined, respectively. The averages of the three experts and three trainees were evaluated for each value. The images (WLI or LCI) were displayed to each of the endoscopists in a random order independently at a size of 10.3 × 12.9 cm against a black background on a screen (Microsoft Office PowerPoint 2019, Microsoft Inc., Redmond, WA, USA). All images were made anonymous to raters, with no clinical data or dates of images shown.

2.5. Statistical Analysis

We undertook statistical analyses using SPSS version 28.0 (SPSS, Inc., Chicago, IL, USA). Continuous data were compared using Student’s t-test. Categorical analysis of variables was performed using a Chi-square test or Fisher’s exact test. p values < 0.05 were considered significant.

3. Results

3.1. Patient Characteristics in Training and Validation Datasets

The characteristics of the 624 participants of the study are shown in Table 1: mean age (y): 68.7; M/F 330/294; SSBE+/− 409/215. For SSBE, C0M1: 257; C0M2: 38; C1M1: 45; C1M2: 53; C1M3: 5; C2M2: 9; and C2M3: 2 were observed according to Prague C & M criteria. For reflux esophagitis, Grade M: 218; Grade A: 40; Grade B: 13; Grade C: 1; and Grade D: 0 were observed according to a modified LA classification system. Significant differences were not observed in patient characteristics between training and validation data. Figure 1 shows representative cases of non-SSBE and SSBE groups. Short-segment Barrett’s esophagus was emphasized in a purple color using LCI compared to WLI with palisade vessels (Figure 1e). In LCI, SSBE was emphasized in a purple color even when palisade vessels were not noted (Figure 1f).

3.2. Accuracy of AI-Assisted Computer-Aided Diagnostic System

Table 2 shows the accuracy of the AI-assisted computer-aided SSBE diagnostic system with WLI and LCI. The scoring of the AI systems with regard to accuracy/sensitivity/specificity/PPV/NPV (%) was 84.1/89.6/75.5/85.2/82.2 for WLI and 90.5/90.1/91.1/93.6/86.4 for LCI. Figure 2 shows heatmap images of the AI system using WLI or LCI. Images that the AI system determined to be SSBE were shown in red. However, images that the AI system judged to not be SSBE were not highlighted in red on the heatmap. Figure 3 shows receiver operating characteristic (ROC) curves of AI, experts, and trainees for WLI and LCI. The area under the curve (AUC) for AI was 0.882 when using WLI and 0.937 when using LCI. Artificial intelligence diagnostic results, with and without palisade vessels or reflux esophagitis, for test data for WLI and LCI are shown in Tables S1 and S2. False negatives were observed in twelve cases when using WLI and in five cases when using LCI. False positives were observed in eight cases when using WLI and in eight cases when using LCI. A significant difference was not observed in terms of accuracy in the presence or absence of palisade vessels and reflux esophagitis when using WLI or LCI. Figure S1 shows heatmap images of false negative and false positive cases.

3.3. Diagnostic Accuracy of Endoscopists

Table 3 shows the diagnostic accuracy of trainees and experts when using WLI or LCI. Results for the diagnostic accuracy of experts and trainees with respect to accuracy/sensitivity/specificity/PPV/NPV (%) were 85.7/87.0/83.7/89.3/80.4 for trainees using WLI; 88.6/88.7/88.4/92.3/83.3 for experts using WLI; 84.7/88.1/79.8/86.3/82.2 for trainees using LCI; and 93.4/92.6/94.6/96.2/89.8 for experts using LCI, respectively.

4. Discussion

In this study, the development of two AI systems using WLI and LCI rested on a Vision Transformer (Vit-B/16-384) that could diagnose SSBE. Respective findings with regard to the diagnostic accuracy of the AI systems were 84.1% using WLI and 90.5% using LCI. The AI diagnostic system using LCI for SSBE was more accurate compared to using WLI and showed the same accuracy as that of a specialist. For LCI users, adding AI systems to LCI screening may contribute to routine diagnoses. To the best of our knowledge, this is the first study to establish AI systems and the use of LCI for the diagnosis of SSBE.
Linked color imaging is a new technique of IEE and can enhance colors. The exposure of two types of light (short-wavelength narrow-band and white light lasers) is well balanced, which means that data on blood vessels and mucosal surface structures are acquired, as well as information from conventional WLI, simultaneously. The utility of LCI was shown with regard to a marked improved visibility of chronic gastritis [32,33] and the detection of neoplasms in the upper gastrointestinal tract [34] in upper gastrointestinal endoscopy. In recent years, AI systems for the diagnosis of gastritis and early gastric cancer have been developed [35,36,37,38]. In addition, AI systems using LCI have been described. Nakashima et al. reported that an AI diagnostic system for H. pylori infection using LCI achieved a sensitivity of 96.7% and a specificity of 83.3% compared to a sensitivity of 66.7% and a specificity of 60.0% using WLI [23]. The diagnostic accuracy for H. pylori infection using an LCI–computer-aided diagnostic system was 84.2% for uninfected, 82.5% for currently infected, and 79.2% for post-eradication. An LCI–AI system showed superior diagnostic accuracy compared to that based on a WLI–AI system [25]. Yasuda et al. found that an AI diagnostic system using LCI for the diagnosis of H. pylori infection showed an accuracy of 87.6%, a sensitivity of 90.4%, and a specificity of 85.7% [24]. However, regarding BE, the use of LCI in the diagnosis of BE has not been described. A strength of our study is showing the usefulness of an AI system using LCI for SSBE.
This study investigated the accuracy of an AI-assisted and computer-aided SSBE diagnostic system using WLI and LCI. An AI system using LCI showed higher accuracy, sensitivity, specificity, PPV, and NPV than WLI. The usefulness of LCI was also demonstrated by the AI system. This result is similar to that of a previous study on the diagnosis of H. pylori infection [23]; the accuracy of an AI system using LCI was higher than that when using WLI. In our previous report [9], SSBE was distinguishable by its purple–red color on LCI and showed improved visibility compared to WLI. An objective evaluation of the color difference (ΔE*) indicated significant differences between the gastric, esophageal, and Barrett’s mucosae. Therefore, when an AI system learns, SSBE is emphasized. This led to an improvement in the diagnosis, even when palisade vessels under WLI were hard to distinguish. Initially, we expected that the accuracy would decrease in the absence of palisade vessels or the presence of reflux esophagitis; however, no significant difference in accuracy was noted between these. An AI system using LCI may have been better because the AI system may have made judgements according to the color of the SSBE, regardless of the presence or absence of palisade vessels. This is considered to be highly useful in clinical practice under various conditions. However, in the evaluation of AI diagnostic results for test data, misdiagnosed cases were observed for both WLI and LCI. According to heatmaps, the locations of the oral or anal sides of the SC-J were not constant in false positive cases (Figure S1). These areas are considered to be areas of interest for AI even if they are not areas that endoscopists would normally diagnose as SSBE. These are characteristics of the AI system, and a further improvement in accuracy, such as by increasing the number of cases studied, is necessary.
The diagnostic accuracy of trainees and experts for SSBE using an AI system and WLI or LCI was also evaluated. Accuracy, sensitivity, specificity, PPV, and NPV were all higher using LCI than when using WLI for both trainees and experts. We previously reported the improved visibility of SSBE using LCI compared to WLI [9]; the higher accuracy for SSBE found with LCI in this current study supports this. Comparing the results of the AI system with those of trainees and experts, the AI system was inferior to experts using WLI but comparable to specialists using LCI. This result is similar to that of a previous report [24] of an AI diagnostic system using LCI for the diagnosis of H. pylori infection. A diagnostic AI system for Barrett’s adenocarcinoma has also been reported [17,20,39,40,41]. Better accuracy is expected with the addition of IEEs such as LCI. An AI system using LCI is at about the same level as that of specialists and is expected to have the added effect of equalizing test accuracy and diagnostic accuracy. The use of this system may have a useful impact on improving the quality of clinical endoscopy and SSBE screening in high-risk patients.
Several limitations were apparent in our study. The study was undertaken retrospectively and used a small number of patients from a single center. Second, the AI system that we evaluated did not use video images but only still images, so it could not be applied to a real-time diagnosis. In addition, the AI system does not detect the area of an SSBE but only whether it exists or not. In future, it is necessary to develop AI for an area by annotation. Third, SSBE was not always histologically confirmed, and findings of SSBE by AI were not related to any histological diagnosis since the aim of this investigation was a diagnosis of ESEM only. Furthermore, the study’s Vision Transformer model might have overfit the training set, which would have prevented it from generalizing to previously undiscovered scenarios. To lessen this risk, strategies like regularization and cross-validation could be applied [42]. Therefore, a prospective multi-center study using a bigger cohort with real-time video images and with annotation will be required to further develop our findings. The creation of AI models for the detection of additional esophageal diseases (such as LSBE, dysplasia, or cancer) is recommended for the future.

5. Conclusions

We found that an AI diagnostic system using LCI to detect SSBE was as accurate as when using a specialist. Using such an AI system may be useful for making a diagnosis in the esophageal junction area for LCI users in the clinic.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm13071990/s1, Figure S1: Endoscopic images diagnosed as false positive and negative by an AI system using white WLI and LCI with heatmap images; Table S1: Evaluation of AI diagnostic results for test data using WLI; Table S2: Evaluation of AI diagnostic results for test data using LCI.

Author Contributions

Conceptualization, T.T. (Tsutomu Takeda), D.A. (Daisuke Asaoka) and A.N.; methodology, T.T. (Tsutomu Takeda), D.A. (Daiki Abe), D.A. (Daisuke Asaoka) and T.T. (Tomohiro Tada); software, T.T. (Tsutomu Takeda); validation, T.T. (Tsutomu Takeda) and D.A. (Daisuke Asaoka); formal analysis, T.T. (Tsutomu Takeda), D.A. (Daisuke Asaoka) and S.N.; investigation, T.T. (Tsutomu Takeda), D.A. (Daiki Abe), D.A. (Daisuke Asaoka), M.S., Y.I., Y.U., M.Y., T.I., R.U., H.U. (Hisanori Utsunomiya), S.O., N.S., A.I., Y.A., K.M., K.U., H.U. (Hiroya Ueyama) and M.H.; resources, T.T. (Tsutomu Takeda), D.A. (Daiki Abe) and D.A. (Daisuke Asaoka); data curation, T.T. (Tsutomu Takeda), D.A. (Daisuke Asaoka) and S.N.; writing—original draft preparation, T.T. (Tsutomu Takeda); writing—review and editing, H.U. (Hiroya Ueyama), D.A. (Daisuke Asaoka) and T.T. (Tomohiro Tada); visualization, T.T. (Tsutomu Takeda), D.A. (Daiki Abe) and D.A. (Daisuke Asaoka); supervision, A.N.; project administration, T.T. (Tsutomu Takeda); funding acquisition, T.T. (Tsutomu Takeda), D.A. (Daisuke Asaoka) and A.N. All authors have read and agreed to the published version of the manuscript.

Funding

Author Tsutomu Takeda received Juntendo University Project Research Grant for medical research (2021-42).

Institutional Review Board Statement

The present study was performed according to the Declaration of Helsinki. The Juntendo University Hospital (E22-0022-H01, 22 April 2022) ethics committee approved the study and protocol.

Informed Consent Statement

Study participants were given information about our study on the homepage of our hospital as well as the opportunity to opt out of the study in accordance with directions by the same ethics committee.

Data Availability Statement

The datasets used during the present study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors thank all participants for cooperating with the study.

Conflicts of Interest

The authors Tsutomu Takeda, Daisuke Asaoka, and Akihito Nagahara were supported by a clinical joint research grant; Fujifilm Co., Ltd. Author Tomohiro Tada is the chief executive officer of the company AI Medical Service Inc. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Pera, M.; Cameron, A.J.; Trastek, V.F.; Carpenter, H.A.; Zinsmeister, A.R. Increasing incidence of adenocarcinoma of the esophagus and esophagogastric junction. Gastroenterology 1993, 104, 510–513. [Google Scholar] [CrossRef] [PubMed]
  2. Kusano, C.; Gotoda, T.; Khor, C.J.; Katai, H.; Kato, H.; Taniguchi, H.; Shimoda, T. Changing trends in the proportion of adenocarcinoma of the esophagogastric junction in a large tertiary referral center in Japan. J. Gastroenterol. Hepatol. 2008, 23, 1662–1665. [Google Scholar] [CrossRef] [PubMed]
  3. Chang, C.Y.; Cook, M.B.; Lee, Y.C.; Lin, J.T.; Ando, T.; Bhatia, S.; Chow, W.H.; El-Omar, E.M.; Goto, H.; Li, Y.Q.; et al. Current status of Barrett’s esophagus research in Asia. J. Gastroenterol. Hepatol. 2011, 26, 240–246. [Google Scholar] [CrossRef] [PubMed]
  4. Cameron, A.J. Epidemiology of Barrett’s esophagus and adenocarcinoma. Dis. Esophagus 2002, 15, 106–108. [Google Scholar] [CrossRef] [PubMed]
  5. Nishi, T.; Makuuchi, H.; Ozawa, S.; Shimada, H.; Chino, O. The Present Status and Future of Barrett’s Esophageal Adenocarcinoma in Japan. Digestion 2019, 99, 185–190. [Google Scholar] [CrossRef] [PubMed]
  6. Vakil, N.; van Zanten, S.V.; Kahrilas, P.; Dent, J.; Jones, R.; Group, G.C. The Montreal definition and classification of gastroesophageal reflux disease: A global evidence-based consensus. Am. J. Gastroenterol. 2006, 101, 1900–1920, quiz 1943. [Google Scholar] [CrossRef] [PubMed]
  7. Sharma, P.; Weston, A.P.; Topalovski, M.; Cherian, R.; Bhattacharyya, A.; Sampliner, R.E. Magnification chromoendoscopy for the detection of intestinal metaplasia and dysplasia in Barrett’s oesophagus. Gut 2003, 52, 24–27. [Google Scholar] [CrossRef] [PubMed]
  8. Endo, T.; Awakawa, T.; Takahashi, H.; Arimura, Y.; Itoh, F.; Yamashita, K.; Sasaki, S.; Yamamoto, H.; Tang, X.; Imai, K. Classification of Barrett’s epithelium by magnifying endoscopy. Gastrointest. Endosc. 2002, 55, 641–647. [Google Scholar] [CrossRef] [PubMed]
  9. Takeda, T.; Nagahara, A.; Ishizuka, K.; Okubo, S.; Haga, K.; Suzuki, M.; Nakajima, A.; Komori, H.; Akazawa, Y.; Izumi, K.; et al. Improved Visibility of Barrett’s Esophagus with Linked Color Imaging: Inter- and Intra-Rater Reliability and Quantitative Analysis. Digestion 2018, 97, 183–194. [Google Scholar] [CrossRef]
  10. Takeda, T.; Asaoka, D.; Abe, D.; Suzuki, M.; Nakagawa, Y.; Sasaki, H.; Inami, Y.; Ikemura, M.; Utsunomiya, H.; Oki, S.; et al. Linked color imaging improves visibility of reflux esophagitis. BMC Gastroenterol. 2020, 20, 356. [Google Scholar] [CrossRef]
  11. de Groof, A.J.; Fockens, K.N.; Struyvenberg, M.R.; Pouw, R.E.; Weusten, B.; Schoon, E.J.; Mostafavi, N.; Bisschops, R.; Curvers, W.L.; Bergman, J.J. Blue-light imaging and linked-color imaging improve visualization of Barrett’s neoplasia by nonexpert endoscopists. Gastrointest. Endosc. 2020, 91, 1050–1057. [Google Scholar] [CrossRef] [PubMed]
  12. Tokunaga, M.; Matsumura, T.; Ishikawa, K.; Kaneko, T.; Oura, H.; Ishikawa, T.; Nagashima, A.; Shiratori, W.; Okimoto, K.; Akizue, N.; et al. The Efficacy of Linked Color Imaging in the Endoscopic Diagnosis of Barrett’s Esophagus and Esophageal Adenocarcinoma. Gastroenterol. Res. Pract. 2020, 2020, 9604345. [Google Scholar] [CrossRef] [PubMed]
  13. Saito, M.; Koike, T.; Ohara, Y.; Nakagawa, K.; Kanno, T.; Jin, X.; Hatta, W.; Uno, K.; Asano, N.; Imatani, A.; et al. Linked-color Imaging May Help Improve the Visibility of Superficial Barrett’s Esophageal Adenocarcinoma by Increasing the Color Difference. Intern. Med. 2021, 60, 3351–3358. [Google Scholar] [CrossRef] [PubMed]
  14. Adachi, K.; Ishimura, N.; Kishi, K.; Notsu, T.; Mishiro, T.; Sota, K.; Ishihara, S. Prevalence of Barrett’s Epithelium Shown by Endoscopic Observations with Linked Color Imaging in Subjects with Different H. pylori Infection Statuses. Intern. Med. 2021, 60, 667–674. [Google Scholar] [CrossRef] [PubMed]
  15. Sugimoto, M.; Kawai, Y.; Morino, Y.; Hamada, M.; Iwata, E.; Niikura, R.; Nagata, N.; Koyama, Y.; Fukuzawa, M.; Itoi, T.; et al. Efficacy of high-vision transnasal endoscopy using texture and colour enhancement imaging and narrow-band imaging to evaluate gastritis: A randomized controlled trial. Ann. Med. 2022, 54, 1004–1013. [Google Scholar] [CrossRef] [PubMed]
  16. Ikeda, A.; Takeda, T.; Ueyama, H.; Uemura, Y.; Iwano, T.; Yamamoto, M.; Uchida, R.; Utsunomiya, H.; Oki, S.; Suzuki, N.; et al. Comparison of Texture and Color Enhancement Imaging with White Light Imaging in 52 Patients with Short-Segment Barrett’s Esophagus. Med. Sci. Monit. 2023, 29, e940249. [Google Scholar] [CrossRef] [PubMed]
  17. van der Sommen, F.; Zinger, S.; Curvers, W.L.; Bisschops, R.; Pech, O.; Weusten, B.L.; Bergman, J.J.; de With, P.H.; Schoon, E.J. Computer-aided detection of early neoplastic lesions in Barrett’s esophagus. Endoscopy 2016, 48, 617–624. [Google Scholar] [CrossRef] [PubMed]
  18. Swager, A.F.; van der Sommen, F.; Klomp, S.R.; Zinger, S.; Meijer, S.L.; Schoon, E.J.; Bergman, J.; de With, P.H.; Curvers, W.L. Computer-aided detection of early Barrett’s neoplasia using volumetric laser endomicroscopy. Gastrointest. Endosc. 2017, 86, 839–846. [Google Scholar] [CrossRef] [PubMed]
  19. Trindade, A.J.; McKinley, M.J.; Fan, C.; Leggett, C.L.; Kahn, A.; Pleskow, D.K. Endoscopic Surveillance of Barrett’s Esophagus Using Volumetric Laser Endomicroscopy With Artificial Intelligence Image Enhancement. Gastroenterology 2019, 157, 303–305. [Google Scholar] [CrossRef]
  20. de Groof, A.J.; Struyvenberg, M.R.; van der Putten, J.; van der Sommen, F.; Fockens, K.N.; Curvers, W.L.; Zinger, S.; Pouw, R.E.; Coron, E.; Baldaque-Silva, F.; et al. Deep-Learning System Detects Neoplasia in Patients With Barrett’s Esophagus With Higher Accuracy Than Endoscopists in a Multistep Training and Validation Study With Benchmarking. Gastroenterology 2020, 158, 915–929.e914. [Google Scholar] [CrossRef]
  21. Ebigbo, A.; Mendel, R.; Probst, A.; Manzeneder, J.; Prinz, F.; de Souza, L.A., Jr.; Papa, J.; Palm, C.; Messmann, H. Real-time use of artificial intelligence in the evaluation of cancer in Barrett’s oesophagus. Gut 2020, 69, 615–616. [Google Scholar] [CrossRef] [PubMed]
  22. Iwagami, H.; Ishihara, R.; Aoyama, K.; Fukuda, H.; Shimamoto, Y.; Kono, M.; Nakahira, H.; Matsuura, N.; Shichijo, S.; Kanesaka, T.; et al. Artificial intelligence for the detection of esophageal and esophagogastric junctional adenocarcinoma. J. Gastroenterol. Hepatol. 2021, 36, 131–136. [Google Scholar] [CrossRef] [PubMed]
  23. Nakashima, H.; Kawahira, H.; Kawachi, H.; Sakaki, N. Artificial intelligence diagnosis of Helicobacter pylori infection using blue laser imaging-bright and linked color imaging: A single-center prospective study. Ann. Gastroenterol. 2018, 31, 462–468. [Google Scholar] [CrossRef] [PubMed]
  24. Yasuda, T.; Hiroyasu, T.; Hiwa, S.; Okada, Y.; Hayashi, S.; Nakahata, Y.; Yasuda, Y.; Omatsu, T.; Obora, A.; Kojima, T.; et al. Potential of automatic diagnosis system with linked color imaging for diagnosis of Helicobacter pylori infection. Dig. Endosc. 2020, 32, 373–381. [Google Scholar] [CrossRef] [PubMed]
  25. Nakashima, H.; Kawahira, H.; Kawachi, H.; Sakaki, N. Endoscopic three-categorical diagnosis of Helicobacter pylori infection using linked color imaging and deep learning: A single-center prospective study (with video). Gastric Cancer 2020, 23, 1033–1040. [Google Scholar] [CrossRef] [PubMed]
  26. Neumann, H.; Kreft, A.; Sivanathan, V.; Rahman, F.; Galle, P.R. Evaluation of novel LCI CAD EYE system for real time detection of colon polyps. PLoS ONE 2021, 16, e0255955. [Google Scholar] [CrossRef] [PubMed]
  27. Kinjo, T.; Kusano, C.; Oda, I.; Gotoda, T. Prague C&M and Japanese criteria: Shades of Barrett’s esophagus endoscopic diagnosis. J. Gastroenterol. 2010, 45, 1039–1044. [Google Scholar] [CrossRef]
  28. Sharma, P.; Dent, J.; Armstrong, D.; Bergman, J.J.; Gossner, L.; Hoshihara, Y.; Jankowski, J.A.; Junghard, O.; Lundell, L.; Tytgat, G.N.; et al. The development and validation of an endoscopic grading system for Barrett’s esophagus: The Prague C & M criteria. Gastroenterology 2006, 131, 1392–1399. [Google Scholar] [CrossRef]
  29. Lundell, L.R.; Dent, J.; Bennett, J.R.; Blum, A.L.; Armstrong, D.; Galmiche, J.P.; Johnson, F.; Hongo, M.; Richter, J.E.; Spechler, S.J.; et al. Endoscopic assessment of oesophagitis: Clinical and functional correlates and further validation of the Los Angeles classification. Gut 1999, 45, 172–180. [Google Scholar] [CrossRef]
  30. Hongo, M. Minimal changes in reflux esophagitis: Red ones and white ones. J. Gastroenterol. 2006, 41, 95–99. [Google Scholar] [CrossRef]
  31. Hoshihara, Y.; Hashimoto, M. Endoscopic classification of reflux esophagitis (in Japanese with English abstract). Nippon. Rinsho 2000, 58, 1808–1812. [Google Scholar] [PubMed]
  32. Dohi, O.; Yagi, N.; Onozawa, Y.; Kimura-Tsuchiya, R.; Majima, A.; Kitaichi, T.; Horii, Y.; Suzuki, K.; Tomie, A.; Okayama, T.; et al. Linked color imaging improves endoscopic diagnosis of active Helicobacter pylori infection. Endosc. Int. Open 2016, 4, E800–E805. [Google Scholar] [CrossRef] [PubMed]
  33. Takeda, T.; Asaoka, D.; Nojiri, S.; Nishiyama, M.; Ikeda, A.; Yatagai, N.; Ishizuka, K.; Hiromoto, T.; Okubo, S.; Suzuki, M.; et al. Linked Color Imaging and the Kyoto Classification of Gastritis: Evaluation of Visibility and Inter-Rater Reliability. Digestion 2019, 101, 598–607. [Google Scholar] [CrossRef] [PubMed]
  34. Ono, S.; Kawada, K.; Dohi, O.; Kitamura, S.; Koike, T.; Hori, S.; Kanzaki, H.; Murao, T.; Yagi, N.; Sasaki, F.; et al. Linked Color Imaging Focused on Neoplasm Detection in the Upper Gastrointestinal Tract: A Randomized Trial. Ann. Intern. Med. 2020, 174, 18–24. [Google Scholar] [CrossRef]
  35. Shichijo, S.; Nomura, S.; Aoyama, K.; Nishikawa, Y.; Miura, M.; Shinagawa, T.; Takiyama, H.; Tanimoto, T.; Ishihara, S.; Matsuo, K.; et al. Application of Convolutional Neural Networks in the Diagnosis of Helicobacter pylori Infection Based on Endoscopic Images. EBioMedicine 2017, 25, 106–111. [Google Scholar] [CrossRef]
  36. Hirasawa, T.; Aoyama, K.; Tanimoto, T.; Ishihara, S.; Shichijo, S.; Ozawa, T.; Ohnishi, T.; Fujishiro, M.; Matsuo, K.; Fujisaki, J.; et al. Application of artificial intelligence using a convolutional neural network for detecting gastric cancer in endoscopic images. Gastric Cancer 2018, 21, 653–660. [Google Scholar] [CrossRef] [PubMed]
  37. Kanesaka, T.; Lee, T.C.; Uedo, N.; Lin, K.P.; Chen, H.Z.; Lee, J.Y.; Wang, H.P.; Chang, H.T. Computer-aided diagnosis for identifying and delineating early gastric cancers in magnifying narrow-band imaging. Gastrointest. Endosc. 2018, 87, 1339–1344. [Google Scholar] [CrossRef] [PubMed]
  38. Ueyama, H.; Kato, Y.; Akazawa, Y.; Yatagai, N.; Komori, H.; Takeda, T.; Matsumoto, K.; Ueda, K.; Hojo, M.; Yao, T.; et al. Application of artificial intelligence using a convolutional neural network for diagnosis of early gastric cancer based on magnifying endoscopy with narrow-band imaging. J. Gastroenterol. Hepatol. 2020, 36, 482–489. [Google Scholar] [CrossRef] [PubMed]
  39. Hashimoto, R.; Requa, J.; Dao, T.; Ninh, A.; Tran, E.; Mai, D.; Lugo, M.; El-Hage Chehade, N.; Chang, K.J.; Karnes, W.E.; et al. Artificial intelligence using convolutional neural networks for real-time detection of early esophageal neoplasia in Barrett’s esophagus (with video). Gastrointest. Endosc. 2020, 91, 1264–1271.e1261. [Google Scholar] [CrossRef]
  40. Hussein, M.; González-Bueno Puyal, J.; Lines, D.; Sehgal, V.; Toth, D.; Ahmad, O.F.; Kader, R.; Everson, M.; Lipman, G.; Fernandez-Sordo, J.O.; et al. A new artificial intelligence system successfully detects and localises early neoplasia in Barrett’s esophagus by using convolutional neural networks. United Eur. Gastroenterol. J. 2022, 10, 528–537. [Google Scholar] [CrossRef]
  41. Abdelrahim, M.; Saiko, M.; Maeda, N.; Hossain, E.; Alkandari, A.; Subramaniam, S.; Parra-Blanco, A.; Sanchez-Yague, A.; Coron, E.; Repici, A.; et al. Development and validation of artificial neural networks model for detection of Barrett’s neoplasia: A multicenter pragmatic nonrandomized trial (with video). Gastrointest. Endosc. 2023, 97, 422–434. [Google Scholar] [CrossRef] [PubMed]
  42. Maniaci, A.; Riela, P.M.; Iannella, G.; Lechien, J.R.; La Mantia, I.; De Vincentiis, M.; Cammaroto, G.; Calvo-Henriquez, C.; Di Luca, M.; Chiesa Estomba, C.; et al. Machine Learning Identification of Obstructive Sleep Apnea Severity through the Patient Clinical Features: A Retrospective Study. Life 2023, 13, 702. [Google Scholar] [CrossRef] [PubMed]
Jcm 13 01990 g001
Figure 1. Educational endoscopic images for artificial intelligence diagnostic system using WLI and LCI. (a) White light imaging (WLI). Non-short segment Barrett’s esophagus (SSBE) group. (b) WLI. SSBE group. Palisade vessels were observed in SSBE. (c) WLI. SSBE group. Palisade vessels were not observed in SSBE. (d) Linked color imaging (LCI). Non-SSBE group. (e) LCI. SSBE group. Yellow arrows indicate SSBE emphasized in a purple color with palisade vessels. (f) LCI. SSBE group. Yellow arrows show SSBE emphasized in a purple color without palisade vessels.
Figure 1. Educational endoscopic images for artificial intelligence diagnostic system using WLI and LCI. (a) White light imaging (WLI). Non-short segment Barrett’s esophagus (SSBE) group. (b) WLI. SSBE group. Palisade vessels were observed in SSBE. (c) WLI. SSBE group. Palisade vessels were not observed in SSBE. (d) Linked color imaging (LCI). Non-SSBE group. (e) LCI. SSBE group. Yellow arrows indicate SSBE emphasized in a purple color with palisade vessels. (f) LCI. SSBE group. Yellow arrows show SSBE emphasized in a purple color without palisade vessels.
Jcm 13 01990 g001
Jcm 13 01990 g002
Figure 2. Endoscopic images using WLI and LCI with heatmap images. (a) White light imaging (WLI). Non-short segment Barrett’s esophagus (SSBE) group. (b) Linked color imaging (LCI). Non-SSBE group. (c) WLI. SSBE group. (d) LCI. SSBE group. (e) WLI. No heatmap was observed. An artificial intelligence (AI) system diagnosed a non-SSBE group. (f) LCI. No heatmap was observed. An AI system diagnosed a non-SSBE group. (g) WLI. A heatmap was observed. An AI system diagnosed an SSBE group. (h) LCI. A heatmap was observed. An AI system diagnosed an SSBE group.
Figure 2. Endoscopic images using WLI and LCI with heatmap images. (a) White light imaging (WLI). Non-short segment Barrett’s esophagus (SSBE) group. (b) Linked color imaging (LCI). Non-SSBE group. (c) WLI. SSBE group. (d) LCI. SSBE group. (e) WLI. No heatmap was observed. An artificial intelligence (AI) system diagnosed a non-SSBE group. (f) LCI. No heatmap was observed. An AI system diagnosed a non-SSBE group. (g) WLI. A heatmap was observed. An AI system diagnosed an SSBE group. (h) LCI. A heatmap was observed. An AI system diagnosed an SSBE group.
Jcm 13 01990 g002
Jcm 13 01990 g003

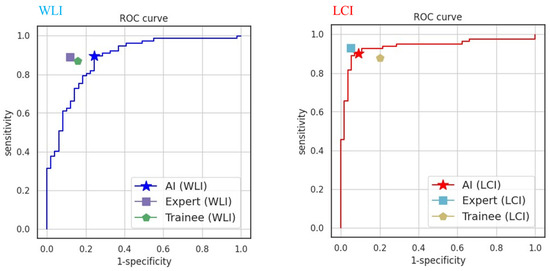

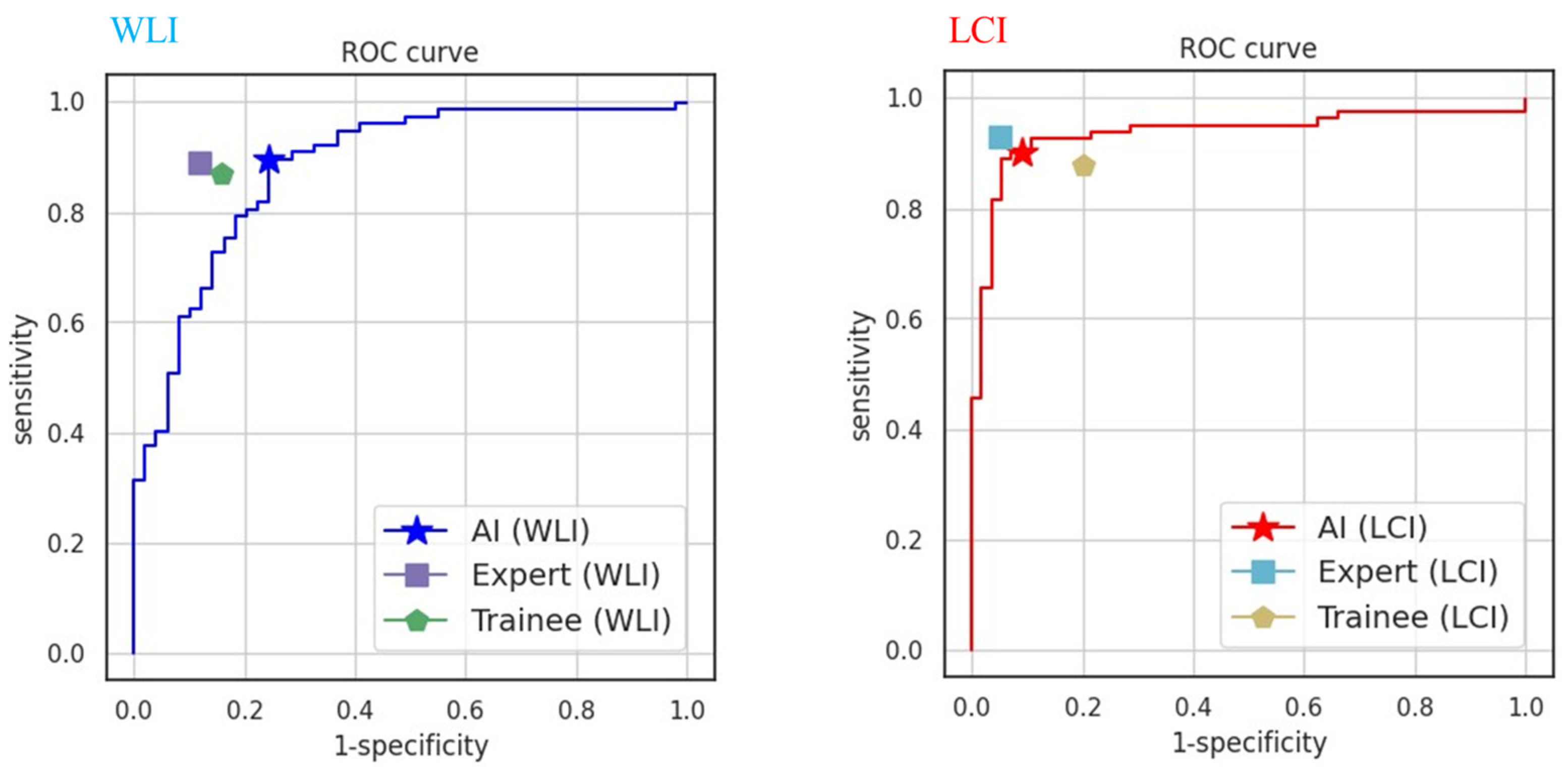

Figure 3. Receiver operating characteristic curve, sensitivity, and specificity of an AI system using WLI and LCI. AI, artificial intelligence; LCI, linked color imaging; ROC, receiver operating characteristic curve; WLI, white light imaging.
Figure 3. Receiver operating characteristic curve, sensitivity, and specificity of an AI system using WLI and LCI. AI, artificial intelligence; LCI, linked color imaging; ROC, receiver operating characteristic curve; WLI, white light imaging.
Jcm 13 01990 g003
Table 1. Baseline characteristics of study patients.
Table 1. Baseline characteristics of study patients.
CharacteristicsTraining Data (n = 528)Validation Data (n = 96)p Value
Male/female, n 276/25254/420.47
Age, mean (SD), years68.7 (11.8)68.6 (11.5)0.91
SSBE, n present/none345/18364/320.80
Palisade vessels, n present/none194/33435/610.96
Reflux esophagitis, n present/none233/29539/570.52
SD, standard deviation; SSBE, short-segment Barrett’s esophagus.
Table 2. Diagnostic accuracy of an AI–assisted computer-aided diagnostic system for SSBE.
Table 2. Diagnostic accuracy of an AI–assisted computer-aided diagnostic system for SSBE.
AccuracySensitivitySpecificityPPVNPV
WLI84.1%
(106/126)		89.6%
(69/77)		75.5%
(37/49)		85.2%
(69/81)		82.2%
(37/45)
LCI90.5%
(124/137)		90.1%
(73/81)		91.1%
(51/56)		93.6%
(73/78)		86.4%
(51/59)
AI, artificial intelligence; LCI, linked color imaging; NPV, negative predictive value; PPV, positive predictive value; SSBE: short-segment Barrett’s esophagus; WLI, white light imaging.
Table 3. Diagnostic accuracy of endoscopists for SSBE (%).
Table 3. Diagnostic accuracy of endoscopists for SSBE (%).
AccuracySensitivitySpecificityPPVNPV
All endoscopistsWLI86.388.283.389.183.2
LCI90.091.088.692.688.2
TraineesWLI85.787.083.789.380.4
LCI84.788.179.886.382.2
ExpertsWLI88.688.788.492.383.3
LCI93.492.694.696.289.8
LCI, linked color imaging; NPV, negative predictive value; PPV, positive predictive value; SSBE: short-segment Barrett’s esophagus; WLI, white light imaging.
