Peripheral Blood Lymphocyte Phenotype Differentiates Secondary Antibody Deficiency in Rheumatic Disease from Primary Antibody Deficiency

by
Alexandra Jablonka
†,
Haress Etemadi
†,
Ignatius Ryan Adriawan
,
Diana Ernst
,
Roland Jacobs
,
Sabine Buyny
,
Torsten Witte
,
Reinhold Ernst Schmidt
,
Faranaz Atschekzei
*,† and
Georgios Sogkas
*,†
Department of Rheumatology and Immunology, Hannover Medical School, 30625 Hannover, Germany
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally.
J. Clin. Med. 2020, 9(4), 1049; https://doi.org/10.3390/jcm9041049
Submission received: 5 March 2020 / Revised: 2 April 2020 / Accepted: 6 April 2020 / Published: 7 April 2020
(This article belongs to the Special Issue Rheumatoid Arthritis and Other Inflammatory Diseases: From Pathogenesis through Therapeutic Targets to Personalized Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

:
The phenotype of primary immunodeficiency disorders (PID), and especially common variable immunodeficiency (CVID), may be dominated by symptoms of autoimmune disorders. Furthermore, autoimmunity may be the first manifestation of PID, frequently preceding infections and the diagnosis of hypogammaglobulinemia, which occurs later on. In this case, distinguishing PID from hypogammaglobulinemia secondary to anti-inflammatory treatment of autoimmunity may become challenging. The aim of this study was to evaluate the diagnostic accuracy of peripheral blood lymphocyte phenotyping in resolving the diagnostic dilemma between primary and secondary hypogammaglobulinemia. Comparison of B and T cell subsets from patients with PID and patients with rheumatic disease, who developed hypogammaglobulinemia as a consequence of anti-inflammatory regimes, revealed significant differences in proportion of naïve B cells, class-switched memory B cells and CD21low B cells among B cells as well as in CD4+ memory T cells and CD4+ T follicular cells among CD4+ T cells. Identified differences in B cell and T cell subsets, and especially in the proportion of class-switched memory B cells and CD4+ T follicular cells, display a considerable diagnostic efficacy in distinguishing PID from secondary hypogammaglobulinemia due to anti-inflammatory regimens for rheumatic disease.

1. Introduction

Hypogammaglobulinemia as a consequence of hematological malignancies, systemic disorders causing excessive loss or catabolism of immunoglobulins, viral infections or drugs, such as antiepileptic agents and anti-inflammatory medications, is defined as secondary hypogammaglobulinemia [1,2]. Its exclusion is required for the diagnosis of primary immunodeficiency disorders (PID) [3]. Common variable immunodeficiency (CVID) is the most common form of symptomatic PID [4,5]. Besides bacterial infections due to primary antibody failure, CVID may manifest with autoimmunity, granulomatous and/or lymphoproliferative disease [6]. Autoimmunity in CVID includes rheumatic disease, such as rheumatoid arthritis (RA), systemic lupus erythematosus (SLE) and Sjögren’s syndrome (SS) [7,8,9]. These conditions necessitate anti-inflammatory treatment, which could lead to hypogammaglobulinemia even in the absence of a PID.
Secondary hypogammaglobulinemia is distinguished from primary hypogammaglobulinemia on the basis of a patient’s medical history [2,3]. In other words, the diagnosis of a PID is clear in case the diagnosis of hypogammaglobulinemia precedes immunosuppressive treatment of autoimmune or lymphoproliferative conditions. However, autoimmunity or lymphoproliferative disease and introduction of immunosuppressive treatment could precede the diagnosis of hypogammaglobulinemia [8,9,10,11,12]. The relatively recent discovery of monogenic disorders manifesting as CVID and subsequent studies of cohorts of patients with common monogenic defects revealed that hypogammaglobulinemia in primary immunodeficiency may have a later onset than autoimmunity or lymphoproliferative disease, which can phenotypically prevail [13,14,15,16]. In that case, distinction between primary and secondary hypogammaglobulinemia may become a diagnostic challenge.
After activating antigen recognition, progressive differentiation of T cells can be traced by characterizing CD45RA, CD27 and CD28 expression [17]. Upon activation, CD45RA switches to CD45RO, while CD28 and CD27 expression are lost sequentially in the course of T cell differentiation. In the case of CD8+ T cell differentiation, CD27−CD28− cells (late effector cells) display an effector-like phenotype, whereas CD27+CD28− cells (early effector cells) appear to have a recent replicative history and partial effector function [18]. Co-expression of CD31 and CD45RA defines recent thymic emigrants, associating with the presence of T cell receptor excision circles (TRECs) [19]. Follicular T cells are antigen-experienced CD4+ T cells, expressing CXCR5. These cells regulate antigen-specific activation of B cells in the context of a germinal center reaction but are also identified in peripheral blood [20]. After initial differentiation of B cells in the bone marrow, including the successful expression of a B cell receptor, transitional B cells emigrate from the bone marrow [21]. Expression of high levels of IgM and CD38 are used to characterize these cells. Naïve B cells are differentiated from memory ones on the basis of expression of CD27 and IgD [22]. CD21low B-cells are an innate-like memory B cell subset, found to be increased in autoimmune diseases such as SLE and RA as well as in CVID patients with autoimmune manifestations [23,24,25]. Peripheral blood lymphocyte phenotyping has been traditionally employed to evaluate immunodeficiency within PID and define disease subgroups [25]. According to the current diagnostic criteria of CVID, characterization of particular B and T cell subsets is required for the diagnosis of CVID and its differentiation from combined immunodeficiency (CID) [3].
In a previous study, secondary antibody deficiency as a consequence of glucocorticoid therapy with or without methotrexate has been associated with reduced naïve and transitional B cells as well as with reduced CD4 memory T cells [26]. Class-switched memory cells, which are found to be reduced in the majority of CVID patients, remained on the other hand unaffected [26,27]. Additional changes in peripheral lymphocyte subset counts, such as an increased numbers of transitional and CD21low B cells as well as elevated circulating CD4+ T follicular helper cells have been described in CVID [23,28,29]. So far, it remains unclear whether CVID-associated changes in peripheral lymphocyte counts could aid diagnostic distinction between primary and secondary hypogammaglobulinemia. Hence, we conducted a case-control study to examine the differences in peripheral B- and T- subpopulations between patients with secondary hypogammaglobulinemia due to immunosuppressive treatment of rheumatic disease and patients with CVID. Considering the identified differences, we propose criteria for the distinction of primary from secondary hypogammaglobulinemia and evaluate their diagnostic accuracy.

2. Experimental Section

This single-center study included all rheumatic disease patients with secondary hypogammaglobulinemia visiting our Rheumatology outpatient clinic between December 2018 and April 2019. Visits of patients were scheduled approximately every 3 to 6 months and serum immunoglobulin (Ig) levels were measured at every visit. Secondary hypogammaglobulinemia has been defined as persistently reduced IgG (< 7 g/L) at time of the study and in follow-up visits during at least the year before the study, developing as a consequence of anti-inflammatory regimens including prednisolone, diverse disease-modifying anti-rheumatic drugs (DMARD) and biological therapies [30]. The systemic lupus erythematosus disease activity index 2000 (SLEDAI-2K) and the disease activity score 28-c reactive protein score (DAS28-CRP) were calculated for SLE and RA patients, respectively, as described by others [31,32].
Patients with secondary hypogammaglobulinemia were compared with PID patients having an appointment in the Clinical Immunology outpatient clinic of Hannover Medical University at the same time. PID has been diagnosed in the absence of evidence for secondary hypogammaglobulinemia, including a history of previous steroid treatment and classified according to the current ESID diagnostic criteria [3]. Results of phenotypic analysis of lymphocytes from patients with secondary hypogammaglobulinemia were compared with data from patients with PID. Patients’ demographic data and Ig values are shown in Table 1. Table 2 shows the rheumatic diseases of patients with secondary hypogammaglobulinemia, their current treatment, the treatment at the time point of diagnosis of hypogammaglobulinemia as well as all previous anti-inflammatory treatments.
Phenotypic analysis of lymphocytes has been performed as described previously [33]. Briefly, peripheral blood mononuclear cells (PBMC) were obtained from heparinized blood samples of consenting patients by centrifugation over a Ficoll-Hypaque gradient. Phenotypic analyses were performed as multicolor immunofluorescence of PBMC, utilizing directly labeled monoclonal antibodies. 1 × 105 to 2 × 106 cells/well were incubated with murine monoclonal antibodies against the appropriate antigens at an optimal dilution for 20 min at 4° C. Nonspecific binding was eliminated by mixing the samples with a 1:5 solution of a commercial human IgG (Octagam; Octapharma, Lingolsheim, Germany). Samples were washed three times in phosphate buffered saline (PBS) supplemented with 0.5% bovine serum albumin (BSA) and at least 104 cells per appropriate gate were analyzed using a FACSCanto II flow cytometer with Cell Quest software (Becton Dickinson, Franklin Lakes, USA). Offline data analysis was performed by using FCS Express software V6 (Denovo Software, Pasadena, USA). Gating strategy to measure B cell and T cell subsets is shown in Figure S1 and Figure S2, respectively.
The following antibodies (all obtained from Biolegend, San Diego, USA, if not otherwise stated) were used for this study: CD3 PerCP (BD Pharmingen, Franklin Lakes, USA), CD3 PE, CD3 APC, CD4 FITC (Beckman Coulter, Brea, USA), CD4 PerCP, CD8 PE, CD8 PECy7, CD16 FITC, CD19 BV510, CD21 PE, CD24 FITC, CD27 FITC, CD28 BV421, CD31 FITC, CD38 PECy7, CD45R0 BV421, CD45RA BV510, CXCR5 PE, IgD PE, IgM Alexa Fluor 647. Each flow cytometric analysis was controlled with appropriate isotype-matched antibodies.
Differences between patients with primary and secondary hypogammaglobulinemia were evaluated with the Mann–Whitney test. Comparison of more than two groups was performed with the Kruskal–Wallis test. Correlation was evaluated with Spearman’s rho (r) analysis. For statistical calculation and diagrams we used GraphPad prism 5.00 (GraphPad, La Jolla, USA). Diagnostic value of studied lymphocyte subsets was evaluated with the “pROC” statistical package on R (v.3.6.0) [34].
This study was conducted in accordance with the Declaration of Helsinki and was approved from the Ethic committee of the Hannover Medical School (approval number: 8875 (21.03.14)). All patients signed an informed consent form.

3. Results

Thirty-eight patients with persistent secondary hypogammaglobulinemia as a consequence of anti-inflammatory treatment of their rheumatic disease have been identified and compared with 38 patients with PID, visiting our outpatient clinics at same time. Most of them (n = 32) had CVID, four had IgG deficiency falling under unclassified antibody deficiency and two had CID with reduced IgG and IgA levels. Secondary hypogammaglobulinemia appears to have a later onset than PID, as its diagnosis was made at a later age than PID ((53.42 y (interquartile range, IQR: 47.5–61.25) Vs. 38.5 y (IQR: 24.75–53.75)) (Table 1). On average, secondary hypogammaglobulinemia was diagnosed 7.3 y (IQR: 1–10.75) after the first diagnosis of rheumatic disease. Patients with secondary hypogammaglobulinemia had considerably higher levels of all measured Ig classes at diagnosis of hypogammaglobulinemia. There were 8/38 patients with secondary hypogammaglobulinemia and who had low IgA in addition to low IgG and 3/38 had low IgM. In contrast to the PID patients, who nearly all (37/38) were receiving immunoglobulin replacement treatment, only a minority of rheumatic patients with hypogammaglobulinemia required immunoglobulin replacement, which comes in accordance with the significantly higher IgG values in the case of secondary hypogammaglobulinemia. The majority of studied patients with secondary hypogammaglobulinemia had received more than one anti-inflammatory drug in addition to prednisolone, including DMARDs and biologics in combination with prednisolone (Table 2). Most rheumatic patients (34/38) were diagnosed with hypogammaglobulinemia while treated with anti-inflammatory regimens based on conventional DMARDs. There were 4/32 patients receiving oral prednisolone monotherapy and 13/38 developed hypogammaglobulinemia as a consequence of the first and only DMARD, which in most cases (11/13) was methotrexate. Most rheumatic patients displayed no significant disease activity at time measurement of peripheral lymphocyte subsets. SLE patients had a mean SLEDAI-2K score of 1.8 (IQR: 0.75–2.5). Except for two, all SLE patients had low-disease activity (SLEDAI-2K ≤ 2) considering the serologic parameters C3, C4 and anti–double-stranded DNA antibodies. The same holds true for the majority of studied patients with RA (9/11), who were in remission (DAS28-CRP ≤ 2.6, mean DAS28-CRP: 2.1, IQR: 1.6–2.6). Furthermore, nearly all studied patients (36/38) were receiving at time of testing no or a low-dosed prednisolone (≤5 mg/d, patient 11 was receiving 10 mg/d prednisolone and was on tapering and patient 13 had a maintenance dose of 7.5 mg/d).
Comparison of T cell counts in patients with PID and secondary hypogammaglobulinemia revealed a significantly higher percentage of memory CD4+ T cells and CD4+ T follicular cells in cases of primary hypogammaglobulinemia than in those with secondary (Figure 1). No substantial differences were observed for the rest of evaluated T cell subsets. This difference in proportion of memory CD4+ T cells and CD4+ T follicular cells among CD4+ T cells corresponded to increased absolute cell counts in the PID group as compared to secondary hypogammaglobulinemia (Figure S3). With respect to the B cell subsets, we found an increased proportion of naïve, transitional, plasma and CD21low B cells in peripheral lymphocytes from PID patients as compared to patients with secondary hypogammaglobulinemia (Figure 2). In contrast, the proportions of memory/marginal zone B cells and cl. sw. memory B cells were significantly reduced in cases of PID. With the exception of memory/marginal B cells, absolute counts for B cell subsets corresponded with changes in their proportions among B cells (Figure S3). Significantly lower levels of all studied immunoglobulin classes in patients with primary hypogammaglobulinemia than those with secondary could be the consequence of differences in the composition of peripheral lymphocyte subsets. To test this, we evaluated if immunoglobulin levels associate with the proportions of lymphocytes subsets. This revealed significant association of IgG or IgA values with the percentages of cl. sw. memory B cells in both patients with primary and secondary hypogammaglobulinemia (Table S1), suggesting that lower immunoglobulin values may be the consequence of alterations within the B cell compartment. However, both in case of PID and secondary hypogammaglobulinemia patients, T cell subset proportions did not associate with immunoglobulin levels (Table S1). Six among the PID patients were receiving anti-inflammatory drugs at the time of evaluation of their lymphocyte subset counts (Table S2). All six of them displayed reduced percentages of class-switched memory B cell counts and the majority had increased CD4+ T follicular cells, similar to the majority of PID patients, who were receiving no anti-inflammatory drugs. This suggests that changes in lymphocyte subsets in PID are rather related to disease-intrinsic mechanisms and are not the consequence of anti-inflammatory drugs, though the limited number of PID patients as well as the diversity of anti-inflammatory drugs does not allow firm conclusions concerning the way anti-inflammatory medications influence the lymphocyte phenotype.
Most studied patients with secondary hypogammaglobulinemia were diagnosed with either RA (11/38) or SLE (10/38). Despite the limited number of patients, separate analysis of lymphocyte subsets in patients with RA and secondary hypogammaglobulinemia revealed significantly reduced proportions of memory CD4+ and CD4+ follicular T cells and an increased percentage of class-switched memory B cells as compared with the PID patients (Figure 3). In case of SLE changes in memory, CD4+ and CD4+ follicular T cells did not reach significance, likely due to the small number of tested patients. However, within the B cells, SLE patients had significantly higher proportions of memory/marginal zone B cells and class-switched B and lower naïve B cells, compared to PID patients (Figure 3). As mentioned previously, the secondary hypogammaglobulinemia group included 11 patients, who each developed hypogammaglobulinemia as a consequence of methotrexate in combination with prednisolone. All those patients achieved remission, allowing prednisolone tapering to 0–5 mg/day. Aiming at identifying a likely drug-specific effect on peripheral T and B cell counts, we performed separate analysis of the relatively sizeable group of patients on methotrexate, which revealed similar differences to the ones described previously. In particular, increased proportions of CD4+ T follicular cells, memory CD4+ T cells as well as class-switched memory B cells and reduced naïve B cells were found in the methotrexate-treated patients as compared to the PID group (Figure S4). Differences for transitional and CD21low B cells did not reach significance, likely due to the limited number of methotrexate treated patients.
Overall, lymphocyte phenotyping in patients with primary and secondary hypogammaglobulinemia identified a differential B and T cell subset distribution (Figure 4A). To evaluate the diagnostic accuracy of peripheral T and B cell subsets in discriminating primary from secondary hypogammaglobulinemia, values for each of the significantly changed parameters (i.e., the proportions of memory CD4+ T cells, CD4+ T follicular cells, naïve B cells, memory/marginal zone B cells, class-switched memory B cells, transitional B cells, IgM+/- plasma cells and CD21low B cells) were ranked, fitted into logistic regression and plotted into receiver operating characteristic (ROC) curves (Figure S5). Optimal threshold values for distinguishing PID from secondary hypogammaglobulinemia for each parameter and the corresponding area under the curve (AUC) values for each of the aforementioned parameters was calculated (Figure S5). The proportions of memory CD4+ T cells and CD4+ T follicular cells, as well as those of naïve B cells, class-switched memory B cells and CD21low B cells, displayed adequate but still low sensitivity and specificity for the discrimination of primary from secondary hypogammaglobulinemia. Especially, the specificity values matching calculated threshold values were unsatisfactory, and were therefore adapted, to yield specificity higher than 85% (Table 3). Adapted threshold values and the respective proposed diagnostic criteria as well as their fulfilment by all studied patients with hypogammaglobulinemia are presented in Figure 4 (B and C). This adaptation of threshold values and the consequent increased specificity comes at the expense of a further reduction in sensitivity. Table 3 shows the diagnostic efficacy of the proposed diagnostic criteria in distinguishing primary from secondary hypogammaglobulinemia. The relatively poor performance of every single proposed criterion which can, however, be offset by an alternative consideration of both of the two better performing diagnostic parameters, which were the proportion of CD4+ T follicular cells and class-switched memory B cells. Alternative consideration of these two lymphocyte subsets displayed the best diagnostic efficacy among all other possible criteria combinations and could discriminate primary from secondary hypogammaglobulinemia with a specificity of 94.74% (c.i.: 88.25–99.36) and a sensitivity of 76.32% (59.76–88.56) (Table 3).

4. Discussion

A common side effect of anti-inflammatory regimens including corticosteroids, DMARD and biologics is hypogammaglobulinemia, which sometimes associates with clinically evident immunodeficiency [1,2]. In the present study approximately 20% of patients with secondary hypogammaglobulinemia displayed recurrent infections and were treated with immunoglobulin replacement. This—according to the literature—high proportion of patients on immunoglobulin replacement most likely reflects the fact that this study was conducted in a tertiary care center, where such patients are often referred to [30]. Furthermore, consistent with previous studies, suggesting the safety of most biologics with respect to the risk of infections [35,36,37], all studied rheumatic patients were diagnosed with hypogammaglobulinemia while treated with anti-inflammatory regimens containing conventional DMARDs.
PID and especially CVID may manifest as autoimmune diseases [6,7,8,9], which necessitates anti-inflammatory treatment with drugs that can result in hypogammaglobulinemia, independently of an underlying PID [2]. Measurement of immunoglobulin levels before starting an anti-inflammatory treatment, likely to cause hypogammaglobulinemia is therefore extremely important, as it may identify a preexisting hypogammaglobulinemia. The latter would be a per se primary hypogammaglobulinemia, falling under PID. Unfortunately, serum immunoglobulin levels before starting anti-inflammatory regiment are rarely tested by treating physicians, which may make the discrimination between primary and secondary hypogammaglobulinemia challenging. Furthermore, primary immunodeficiency and especially in CVID can be progressive and hypogammaglobulinemia may be absent in patients whose first manifestation is autoimmunity [38]. Our data suggest that hypogammaglobulinemia secondary to anti-inflammatory drugs differs from PID. In contrast to studied PID patients, the great majority of whom had combined IgG and IgA or IgM deficiency, the majority of patients with secondary hypogammaglobulinemia had an isolated IgG deficiency, which comes in accordance with a previous study on hypogammaglobulinemia in patients with giant cell arteritis or polymyalgia rheumatic [26]. However, approximately one fourth of studied patients with secondary hypogammaglobulinemia displayed a concomitant reduction of IgA and/or IgM, suggesting that isolated IgG deficiency cannot be a stringent criterion for discriminating primary from secondary hypogammaglobulinemia. Characterization of lymphocyte subsets among PID patients revealed abnormalities both within the B and the T cells. In case of B cells, in accordance with previous reports, we identify changes, such as the expansion of CD21low B cells and the reduction of switched memory B cells that have been described in CVID [25]. With respect to the T cells, our data reveal expanded peripheral CD4+ T follicular helper cells, as described in other reports [29,39].
For rheumatic disease, on the other hand, a broad heterogeneity within B and T cell subsets has been described [40]. Furthermore, changes in lymphocyte subsets in rheumatic disease reflect not only disease-specific immune dysregulation but also the effect of anti-inflammatory regimens, which may be different for different drugs. Several studies are aimed at addressing the effect of single-drug regimens on peripheral lymphocyte subsets. However, discriminating the effect of single DMARD or biologics is difficult, as most patients had received glucocorticoids and/or other anti-inflammatory drugs. Glucocorticoids have been shown to affect lymphocyte trafficking and survival [41]. The selective decrease in transitional and naïve B cells in patients under glucocorticoid has been suggested to stem from increased apoptosis of human bone marrow progenitors [42]. Methotrexate can induce a reduction of transitional B cells, as well [43]. Within the T cells, methotrexate has been shown to induce an expansion of CD4+ T follicular helper cells. Several studies have evaluated the effect of biologics on peripheral lymphocyte subsets. For example, BAFF blockade in SLE affects non-memory B cells, inducing a reduction in transitional and naïve B cells [44]. Etanercept treatment specifically induced a reduction in IgM+ memory B cells in a cohort of patients with juvenile idiopathic arthritis (JIA) [43]. Besides B cell depletion, rituximab induced a depletion of CD4+ T cells in patients with RA, which was associated with clinical response [45]. Studies on peripheral lymphocyte subsets in rheumatic diseases such as rheumatoid arthritis, Sjögren’s syndrome, SLE and spondylarthritis have identified changes both within the T and B cells and in some cases associated those changes with disease activity or with phenotypic variations [46,47,48,49,50,51]. Overall, B and T cell subset abnormalities within rheumatic diseases, their association with disease activity or particular disease subgroups and/or anti-inflammatory drugs remain to be better elucidated in larger longitudinal cohorts including in the treatment of naïve patients.
Here, despite the heterogeneity of the secondary hypogammaglobulinemia group, including different rheumatic diseases and anti-inflammatory regimens, a comparison of lymphocyte subsets between patients with secondary hypogammaglobulinemia and those with PID revealed significant differences. Highly significant were the differences in the proportion of class-switched memory B and CD4+ T follicular T cells, which were matched to abnormally low class-switched memory and abnormally high CD4+ T follicular T cell percentages, suggesting the prominent disease-intrinsic effect on peripheral lymphocyte counts in PID. Separate analysis of patients with RA or SLE confirmed differences within T or B cell subsets, despite the limited number of studied patients. With respect to distinguishing primary from secondary hypogammaglobulinemia, considering changes in single cell subsets was of limited diagnostic efficacy. The proportion of class-switched memory cells and CD4+ T follicular cells displayed the best performance in terms of specificity, which however comes at the expense of low sensitivity. The latter could be considerably improved by collective consideration of class-switched memory and CD4+ T follicular cells.
In summary, peripheral lymphocyte subset counts and especially measurement of CD4+ T follicular helper cells and class-switched memory B cell counts could aid differentiation of primary from secondary hypogammaglobulinemia. Confirmation of our findings in additional cohorts of patients with hypogammaglobulinemia is needed to establish the diagnostic value of lymphocyte phenotyping in resolving the diagnostic dilemma between primary and secondary hypogammaglobulinemia. Studies addressing the effects of underlying rheumatic diseases and anti-inflammatory drugs on peripheral lymphocyte subsets could lead to the identification of disease- or drug-specific changes, which may further improve the diagnostic efficacy of T and B cell subset counts in differentiating PID from secondary hypogammaglobulinemia.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0383/9/4/1049/s1, Figure S1: Strategy to measure B cell subsets. After doublet exclusion (not shown) and gating on lymphocytes based on SSC and FSC, we selected CD19+ B cells with subsequent gating based on IgD, IgM, CD27 and CD38 expression, as indicated; Figure S2: Strategy to measure T cell subsets. After doublet exclusion (not shown) and gating on lymphocytes based on SSC and FSC, we selected CD3+ T cells with subsequent gating based on TCR2, CD4, CD8, CD27, CD28, CXCR5, CD45RA and CD45RO expression; Figure S3: Comparison of absolute T cell (A) and B cell subset counts (B) in patients with primary (1, n = 38) and secondary hypogammaglobulinemia (2, n = 38 for T cell subsets and n = 37 for B cell subsets, as a patient’s (pat.nr. 37) B cells could not be differentiated due to their low number; * p < 0.05; ** p < 0.01; *** p < 0.001); Figure S4: Comparison of B and T cell subsets in patients with primary (1, n = 38) and secondary hypogammaglobulinemia due to methotrexate (MTX, n = 11; * p < 0.05; ** p < 0.01; *** p < 0.001); Figure S5: Receiver operating characteristic (ROC) curves and the corresponding area under the curve (AUC) values for the indicated B or T subset counts; Table S1: Association of lymphocyte subset percentage counts with immunoglobulin values in patients with primary (1) and secondary (2) hypogammaglobulinemia; Table S2: lymphocyte subset counts of patients with PID on anti-inflammatory regiments.

Author Contributions

Conceptualization, G.S. and F.A.; methodology, G.S. and F.A.; ROC analysis, I.R.A.; data collection and validation, A.J. and H.E.; analysis of flow cytometric data, D.E., S.B. and R.J.; statistical analysis, A.J., H.E., I.R.A. and G.S.; writing—original draft preparation, G.S. and F.A.; writing—review and editing, all authors; visualization, G.S. and I.R.A.; supervision, G.S., F.A. and R.E.S.; project administration, G.S. and F.A.; funding acquisition, T.W., R.E.S., G.S. and F.A. All authors have read and agreed to the published version of the manuscript.

Funding

G.S. and A.J. received funding from the Young Academy Clinician/Scientist program of Hannover Medical School, Germany. I.A. was supported by the German Academic Exchange Service (DAAD), the Hannover Biomedical Research School (HBRS) and the Center for Infection Biology (ZIB). All authors and this project are supported by the German Center for Infection Research (DZIF TTU 07.801), the cluster of excellence RESIST (EXC 2155) and the Rosemarie-Germscheid foundation.

Acknowledgments

We thank all nurses and physicians of the outpatient clinics of the department of Clinical Immunology and Rheumatology of the Hannover Medical School for collecting blood samples and informing the patients about the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jolles, S.; Chapel, H.; Litzman, J. When to initiate immunoglobulin replacement therapy (IGRT) in antibody deficiency: A practical approach. Clin. Exp. Immunol. 2017, 188, 333–341. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Patel, S.Y.; Carbone, J.; Jolles, S. The Expanding Field of Secondary Antibody Deficiency: Causes, Diagnosis, and Management. Front. Immunol. 2019, 10, 33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Seidel, M.G.; Kindle, G.; Gathmann, B.; Quinti, I.; Buckland, M.; van Montfrans, J.; Scheible, R.; Rusch, S.; Gasteiger, L.M.; Grimbacher, B.; et al. The European Society for Immunodeficiencies (ESID) Registry Working Definitions for the Clinical Diagnosis of Inborn Errors of Immunity. J. Allergy Clin. Immunol. Pract. 2019, 7, 1763–1770. [Google Scholar] [CrossRef]
  4. Ameratunga, R.; Woon, S.T. Perspective: Evolving Concepts in the Diagnosis and Understanding of Common Variable Immunodeficiency Disorders (CVID). Clin. Rev. Allergy Immunol. 2019. [Google Scholar] [CrossRef] [PubMed]
  5. El-Helou, S.M.; Biegner, A.K.; Bode, S.; Ehl, S.R.; Heeg, M.; Maccari, M.E.; Ritterbusch, H.; Speckmann, C.; Rusch, S.; Scheible, R.; et al. The German National Registry of Primary Immunodeficiencies (2012-2017). Front. Immunol. 2019, 10, 1272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Chapel, H.; Lucas, M.; Lee, M.; Bjorkander, J.; Webster, D.; Grimbacher, B.; Fieschi, C.; Thon, V.; Abedi, M.R.; Hammarstrom, L. Common variable immunodeficiency disorders: Division into distinct clinical phenotypes. Blood 2008, 112, 277–286. [Google Scholar] [CrossRef] [Green Version]
  7. Fernández-Castro, M.; Mellor-Pita, S.; Citores, M.J.; Muñoz, P.; Tutor-Ureta, P.; Silva, L.; Vargas, J.A.; Yebra-Bango, M.; Andreu, J.L. Common variable immunodeficiency in systemic lupus erythematosus. Semin. Arthritis Rheum. 2007, 36, 238–245. [Google Scholar] [CrossRef]
  8. Blazina, Š.; Markelj, G.; Jeverica, A.K.; Toplak, N.; Bratanič, N.; Jazbec, J.; Kopač, P.; Debeljak, M.; Ihan, A.; Avčin, T. Autoimmune and Inflammatory Manifestations in 247 Patients with Primary Immunodeficiency-a Report from the Slovenian National Registry. J. Clin. Immunol. 2016, 36, 764–773. [Google Scholar] [CrossRef]
  9. Gutierrez, M.J.; Sullivan, K.E.; Fuleihan, R.; USIDNET Consortium; Clifton O Bingham 3rd. Phenotypic characterization of patients with rheumatologic manifestations of common variable immunodeficiency. Semin. Arthritis Rheum. 2018, 48, 318–326. [Google Scholar] [CrossRef]
  10. Hanitsch, L.G.; Wittke, K.; Stittrich, A.B.; Volk, H.D.; Scheibenbogen, C. Interstitial Lung Disease Frequently Precedes CVID Diagnosis. J. Clin. Immunol. 2019, 39, 849–851. [Google Scholar] [CrossRef]
  11. Sogkas, G.; Fedchenko, M.; Dhingra, A.; Jablonka, A.; Schmidt, R.E.; Atschekzei, F. Primary immunodeficiency disorder caused by phosphoinositide 3-kinase δ deficiency. J. Allergy Clin. Immunol. 2018, 142, 1650–1653. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Schröder, C.; Sogkas, G.; Fliegauf, M.; Dörk, T.; Liu, D.; Hanitsch, L.G.; Steiner, S.; Scheibenbogen, C.; Jacobs, R.; Grimbacher, B.; et al. Late-Onset Antibody Deficiency Due to Monoallelic Alterations in NFKB1. Front. Immunol. 2019, 10, 2618. [Google Scholar] [CrossRef] [PubMed]
  13. Schwab, C.; Gabrysch, A.; Olbrich, P.; Patiño, V.; Warnatz, K.; Wolff, D.; Hoshino, A.; Kobayashi, M.; Imai, K.; Takagi, M.; et al. Phenotype, penetrance, and treatment of 133 cytotoxic T-lymphocyte antigen 4-insufficient subjects. J. Allergy Clin. Immunol. 2018, 142, 1932–1946. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Fliegauf, M.; Bryant, V.L.; Frede, N.; Slade, C.; Woon, S.T.; Lehnert, K.; Winzer, S.; Bulashevska, A.; Scerri, T.; Leung, E.; et al. Haploinsufficiency of the NF-κB1 Subunit p50 in Common Variable Immunodeficiency. Am. J. Hum. Genet. 2015, 97, 389–403. [Google Scholar] [CrossRef] [Green Version]
  15. Lawless, D.; Geier, C.B.; Farmer, J.R.; Lango Allen, H.; Thwaites, D.; Atschekzei, F.; Brown, M.; Buchbinder, D.; Burns, S.O.; Butte, M.J.; et al. Prevalence and clinical challenges among adults with primary immunodeficiency and recombination-activating gene deficiency. J. Allergy Clin. Immunol. 2018, 141, 2303–2306. [Google Scholar] [CrossRef] [Green Version]
  16. Fabre, A.; Marchal, S.; Barlogis, V.; Mari, B.; Barbry, P.; Rohrlich, P.S.; Forbes, L.R.; Vogel, T.P.; Giovannini-Chami, L. Clinical Aspects of STAT3 Gain-of-Function Germline Mutations: A Systematic Review. J. Allergy Clin. Immunol. Pract. 2019, 7, 1958–1969. [Google Scholar] [CrossRef]
  17. Bateman, E.A.; Ayers, L.; Sadler, R.; Lucas, M.; Roberts, C.; Woods, A.; Packwood, K.; Burden, J.; Harrison, D.; Kaenzig, N.; et al. T cell phenotypes in patients with common variable immunodeficiency disorders: Associations with clinical phenotypes in comparison with other groups with recurrent infections. Clin. Exp. Immunol. 2012, 170, 202–211. [Google Scholar] [CrossRef]
  18. Romero, P.; Zippelius, A.; Kurth, I.; Pittet, M.J.; Touvrey, C.; Iancu, E.M.; Corthesy, P.; Devevre, E.; Speiser, D.E.; Rufer, N. Four functionally distinct populations of human effector-memory CD8+ T lymphocytes. J. Immunol. 2007, 178, 4112–4119. [Google Scholar] [CrossRef] [Green Version]
  19. Junge, S.; Kloeckener-Gruissem, B.; Zufferey, R.; Keisker, A.; Salgo, B.; Fauchere, J.C.; Scherer, F.; Shalaby, T.; Grotzer, M.; Siler, U.; et al. Correlation between recent thymic emigrants and CD31+ (PECAM-1) CD4+ T cells in normal individuals during aging and in lymphopenic children. Eur. J. Immunol. 2007, 37, 3270–3280. [Google Scholar] [CrossRef]
  20. Fazilleau, N.; Mark, L.; McHeyzer-Williams, L.J.; McHeyzer-Williams, M.G. Follicular helper T cells: Lineage and location. Immunity 2009, 30, 324–335. [Google Scholar] [CrossRef] [Green Version]
  21. Martin, V.G.; Wu, Y.B.; Townsend, C.L.; Lu, G.H.; O’Hare, J.S.; Mozeika, A.; Coolen, A.C.; Kipling, D.; Fraternali, F.; Dunn-Walters, D.K. Transitional B Cells in Early Human B Cell Development—Time to Revisit the Paradigm? Front. Immunol. 2016, 7, 546. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Wu, Y.C.; Kipling, D.; Dunn-Walters, D.K. The relationship between CD27 negative and positive B cell populations in human peripheral blood. Front. Immunol. 2011, 2, 81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Rakhmanov, M.; Keller, B.; Gutenberger, S.; Foerster, C.; Hoenig, M.; Driessen, G.; van der Burg, M.; van Dongen, J.J.; Wiech, E.; Visentini, M.; et al. Circulating CD21low B cells in common variable immunodeficiency resemble tissue homing, innate-like B cells. Proc. Natl. Acad. Sci. USA 2009, 106, 13451–13456. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Warnatz, K.; Wehr, C.; Dräger, R.; Schmidt, S.; Eibel, H.; Schlesier, M.; Peter, H.H. Expansion of CD19(hi)CD21(lo/neg) B cells in common variable immunodeficiency (CVID) patients with autoimmune cytopenia. Immunobiology 2002, 206, 502–513. [Google Scholar] [CrossRef] [PubMed]
  25. Wehr, C.; Kivioja, T.; Schmitt, C.; Ferry, B.; Witte, T.; Eren, E.; Vlkova, M.; Hernandez, M.; Detkova, D.; Bos, P.R.; et al. The EUROclass trial: Defining subgroups in common variable immunodeficiency. Blood 2008, 111, 77–85. [Google Scholar] [CrossRef] [PubMed]
  26. Wirsum, C.; Glaser, C.; Gutenberger, S.; Keller, B.; Unger, S.; Voll, R.E.; Vach, W.; Ness, T.; Warnatz, K. Secondary Antibody Deficiency in Glucocorticoid Therapy Clearly Differs from Primary Antibody Deficiency. J. Clin. Immunol. 2016, 36, 406–412. [Google Scholar] [CrossRef]
  27. Warnatz, K.; Denz, A.; Dräger, R.; Braun, M.; Groth, C.; Wolff-Vorbeck, G.; Eibel, H.; Schlesier, M.; Peter, H.H. Severe deficiency of switched memory B cells (CD27(+)IgM(-)IgD(-)) in subgroups of patients with common variable immunodeficiency: A new approach to classify a heterogeneous disease. Blood 2002, 99, 1544–1551. [Google Scholar] [CrossRef] [Green Version]
  28. Vlková, M.; Fronková, E.; Kanderová, V.; Janda, A.; Ruzicková, S.; Litzman, J.; Sedivá, A.; Kalina, T. Characterization of lymphocyte subsets in patients with common variable immunodeficiency reveals subsets of naive human B cells marked by CD24 expression. J. Immunol. 2010, 185, 6431–6438. [Google Scholar] [CrossRef]
  29. Coraglia, A.; Galassi, N.; Fernández Romero, D.S.; Juri, M.C.; Felippo, M.; Malbrán, A.; de Bracco, M.M. Common Variable Immunodeficiency and Circulating TFH. J. Immunol. Res. 2016, 2016, 4951587. [Google Scholar] [CrossRef] [Green Version]
  30. Compagno, N.; Malipiero, G.; Cinetto, F.; Agostini, C. Immunoglobulin replacement therapy in secondary hypogammaglobulinemia. Front. Immunol. 2014, 5, 626. [Google Scholar] [CrossRef] [Green Version]
  31. Tselios, K.; Gladman, D.D.; Touma, Z.; Su, J.; Anderson, N.; Urowitz, M.B. Clinical Remission and Low Disease Activity Outcomes Over 10 Years in Systemic Lupus Erythematosus. Arthritis Care Res. 2019, 71, 822–828. [Google Scholar] [CrossRef] [PubMed]
  32. Sheehy, C.; Evans, V.; Hasthorpe, H.; Mukhtyar, C. Revising DAS28 scores for remission in rheumatoid arthritis. Clin. Rheumatol. 2014, 33, 269–272. [Google Scholar] [CrossRef] [PubMed]
  33. Sogkas, G.; Adriawan, I.R.; Ringshausen, F.C.; Baumann, U.; Schröder, C.; Klemann, C.; von Hardenberg, S.; Schmidt, G.; Bernd, A.; Jablonka, A.; et al. A novel NFKBIA variant substituting serine 36 of IκBα causes immunodeficiency with warts, bronchiectasis and juvenile rheumatoid arthritis in the absence of ectodermal dysplasia. Clin. Immunol. 2020, 210, 108269. [Google Scholar] [CrossRef] [PubMed]
  34. Robin, X.; Turck, N.; Hainard, A.; Tiberti, N.; Lisacek, F.; Sanchez, J.C.; Müller, M. pROC: An open-source package for R and S+ to analyze and compare ROC curves. BMC Bioinform. 2011, 12, 77. [Google Scholar] [CrossRef]
  35. Sepriano, A.; Kerschbaumer, A.; Smolen, J.S.; van der Heijde, D.; Dougados, M.; van Vollenhoven, R.; McInnes, I.B.; Bijlsma, J.W.; Burmester, G.R.; de Wit, M.; et al. Safety of synthetic and biological DMARDs: A systematic literature review informing the 2019 update of the EULAR recommendations for the management of rheumatoid arthritis. Ann. Rheum. Dis. 2020. [Google Scholar] [CrossRef] [Green Version]
  36. Grøn, K.L.; Glintborg, B.; Nørgaard, M.; Mehnert, F.; Østergaard, M.; Dreyer, L.; Krogh, N.S.; Hetland, M.L. Overall infection risk in rheumatoid arthritis during treatment with abatacept, rituximab and tocilizumab; an observational cohort study. Rheumatology 2019. [Google Scholar] [CrossRef]
  37. Cobo-Ibáñez, T.; Descalzo, M.Á.; Loza-Santamaría, E.; Carmona, L.; Muñoz-Fernández, S. Serious infections in patients with rheumatoid arthritis and other immune-mediated connective tissue diseases exposed to anti-TNF or rituximab: Data from the Spanish registry BIOBADASER 2.0. Rheumatol. Int. 2014, 34, 953–961. [Google Scholar] [CrossRef]
  38. Ameratunga, R.; Ahn, Y.; Steele, R.; Woon, S.T. The Natural History of Untreated Primary Hypogammaglobulinemia in Adults: Implications for the Diagnosis and Treatment of Common Variable Immunodeficiency Disorders (CVID). Front. Immunol. 2019, 10, 1541. [Google Scholar] [CrossRef] [Green Version]
  39. Turpin, D.; Furudoi, A.; Parrens, M.; Blanco, P.; Viallard, J.F.; Duluc, D. Increase of follicular helper T cells skewed toward a Th1 profile in CVID patients with non-infectious clinical complications. Clin. Immunol. 2018, 197, 130–138. [Google Scholar] [CrossRef]
  40. Tanaka, Y.; Kubo, S.; Miyagawa, I.; Iwata, S.; Nakayamada, S. Lymphocyte phenotype and its application to precision medicine in systemic autoimmune diseases. Semin. Arthritis Rheum. 2019, 48, 1146–1150. [Google Scholar] [CrossRef]
  41. Coutinho, A.E.; Chapman, K.E. The anti-inflammatory and immunosuppressive effects of glucocorticoids, recent developments and mechanistic insights. Mol. Cell. Endocrinol. 2011, 335, 2–13. [Google Scholar] [CrossRef] [PubMed]
  42. Lill-Elghanian, D.; Schwartz, K.; King, L.; Fraker, P. Glucocorticoid-induced apoptosis in early B cells from human bone marrow. Exp. Biol. Med. 2002, 227, 763–770. [Google Scholar] [CrossRef] [PubMed]
  43. Glaesener, S.; Quách, T.D.; Onken, N.; Weller-Heinemann, F.; Dressler, F.; Huppertz, H.I.; Thon, A.; Meyer-Bahlburg, A. Distinct effects of methotrexate and etanercept on the B cell compartment in patients with juvenile idiopathic arthritis. Arthritis Rheumatol. 2014, 66, 2590–2600. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Ahmed, S.; Anolik, J.H. B-cell biology and related therapies in systemic lupus erythematosus. Rheum. Dis. Clin. N. Am. 2010, 36, 109–130. [Google Scholar] [CrossRef] [PubMed]
  45. Mélet, J.; Mulleman, D.; Goupille, P.; Ribourtout, B.; Watier, H.; Thibault, G. Rituximab-induced T cell depletion in patients with rheumatoid arthritis: Association with clinical response. Arthritis Rheum. 2013, 65, 2783–2790. [Google Scholar] [CrossRef] [PubMed]
  46. Brokstad, K.A.; Fredriksen, M.; Zhou, F.; Bergum, B.; Brun, J.G.; Cox, R.J.; Skarstein, K. T follicular-like helper cells in the peripheral blood of patients with primary Sjögren’s syndrome. Scand. J. Immunol. 2018, e12679. [Google Scholar] [CrossRef] [Green Version]
  47. Long, S.; Ma, L.; Wang, D.; Shang, X. High frequency of circulating follicular helper T cells is correlated with B cell subtypes in patients with ankylosing spondylitis. Exp. Ther. Med. 2018, 15, 4578–4586. [Google Scholar] [CrossRef] [Green Version]
  48. Ishioka-Takei, E.; Yoshimoto, K.; Suzuki, K.; Nishikawa, A.; Yasuoka, H.; Yamaoka, K.; Takeuchi, T. Increased proportion of a CD38highIgD+ B cell subset in peripheral blood is associated with clinical and immunological features in patients with primary Sjögren’s syndrome. Clin. Immunol. 2018, 187, 85–91. [Google Scholar] [CrossRef]
  49. Szabó, K.; Papp, G.; Szántó, A.; Tarr, T.; Zeher, M. A comprehensive investigation on the distribution of circulating follicular T helper cells and B cell subsets in primary Sjögren’s syndrome and systemic lupus erythematosus. Clin. Exp. Immunol. 2016, 183, 76–89. [Google Scholar] [CrossRef] [Green Version]
  50. Thorarinsdottir, K.; Camponeschi, A.; Jonsson, C.; Granhagen Önnheim, K.; Nilsson, J.; Forslind, K.; Visentini, M.; Jacobsson, L.; Mårtensson, I.L.; Gjertsson, I. CD21-/low B cells associate with joint damage in rheumatoid arthritis patients. Scand. J. Immunol. 2019, 90, e12792. [Google Scholar] [CrossRef]
  51. Shimizu, T.; Nagafuchi, Y.; Harada, H.; Tsuchida, Y.; Tsuchiya, H.; Hanata, N.; Tateishi, S.; Kanda, H.; Sumitomo, S.; Shoda, H.; et al. Decreased peripheral blood memory B cells are associated with the presence of interstitial lung disease in rheumatoid arthritis: A case-control study. Mod. Rheumatol. 2020, 5, 1–6. [Google Scholar] [CrossRef] [PubMed]
Jcm 09 01049 g001 550

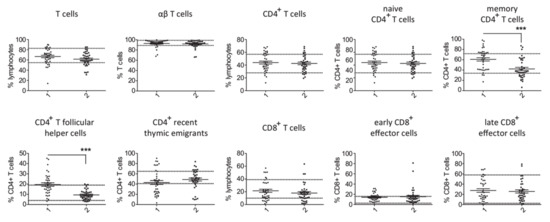

Figure 1. Comparison of T cell subsets in patients with primary (1, n = 38) and secondary (2, n = 38) hypogammaglobulinemia. Normal range values lie within the doted lines (*** p < 0.001).
Figure 1. Comparison of T cell subsets in patients with primary (1, n = 38) and secondary (2, n = 38) hypogammaglobulinemia. Normal range values lie within the doted lines (*** p < 0.001).
Jcm 09 01049 g001
Jcm 09 01049 g002 550

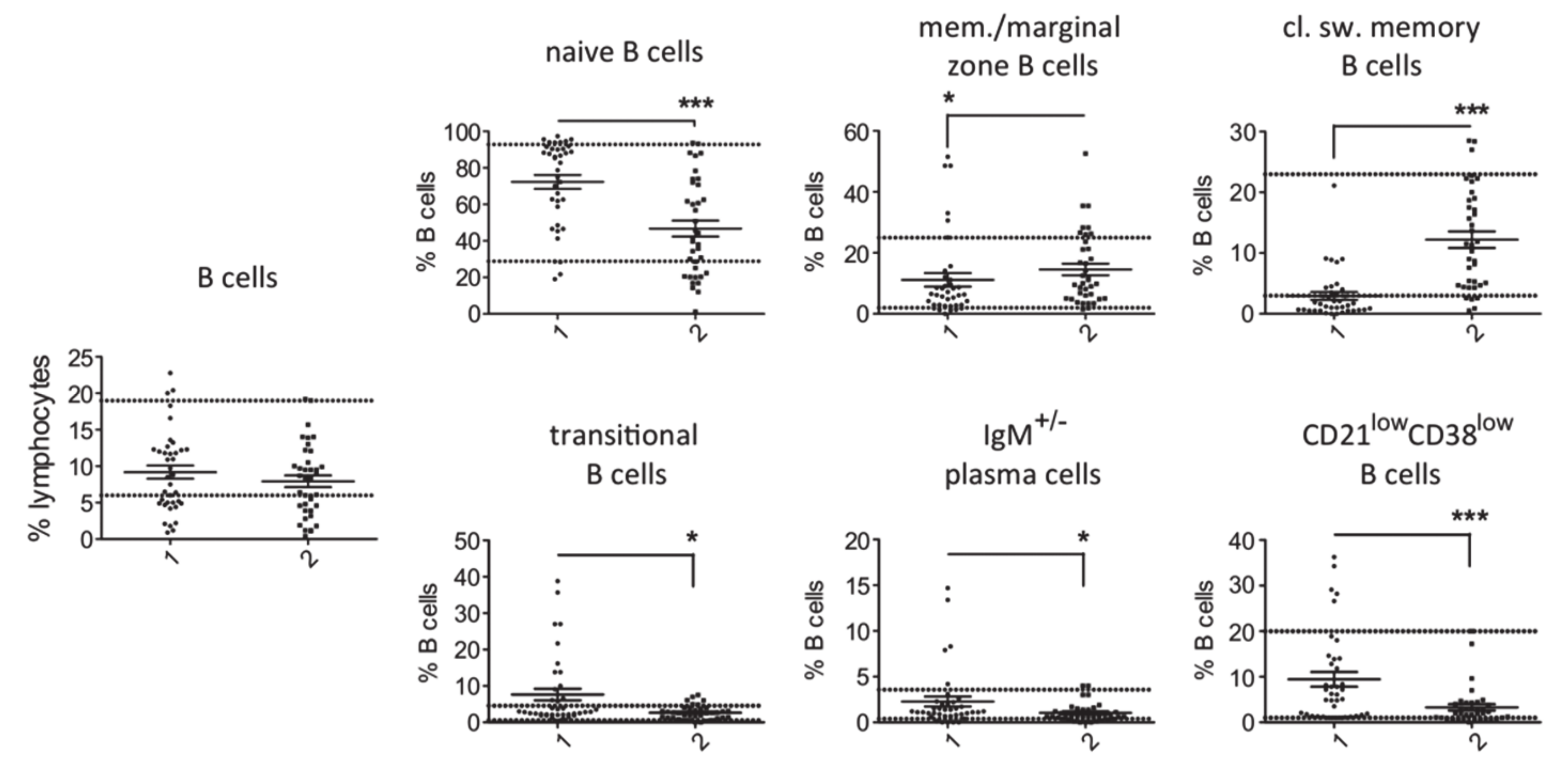

Figure 2. Comparison of B cell subsets in patients with primary (1, n = 38) and secondary (2, n = 37) hypogammaglobulinemia. Normal range values lie within the doted lines (* p < 0.05; *** p < 0.001).
Figure 2. Comparison of B cell subsets in patients with primary (1, n = 38) and secondary (2, n = 37) hypogammaglobulinemia. Normal range values lie within the doted lines (* p < 0.05; *** p < 0.001).
Jcm 09 01049 g002
Jcm 09 01049 g003 550

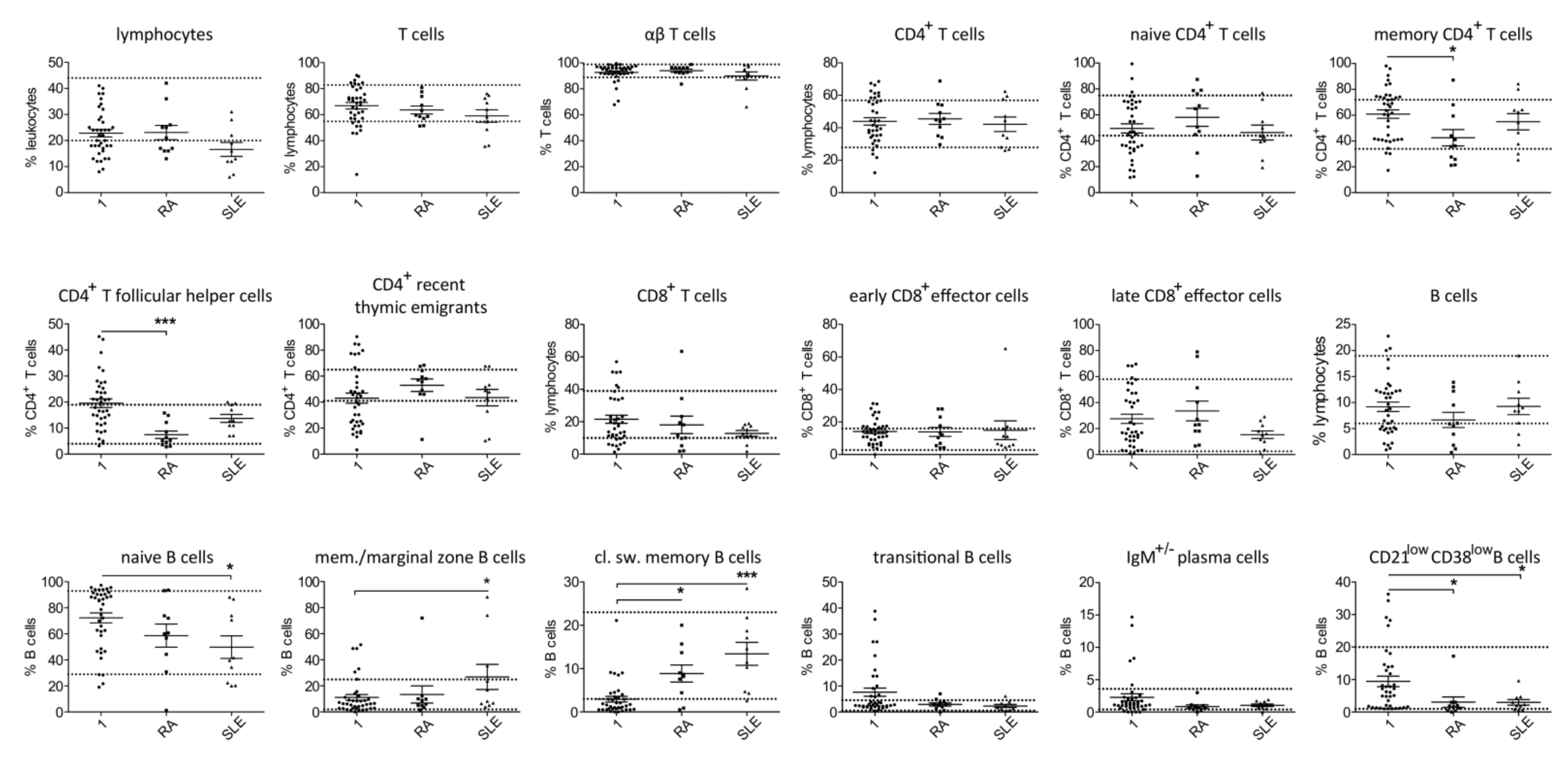

Figure 3. Comparison of T and B cell subsets in patients with primary (1) and secondary hypogammaglobulinemia with RA (n = 11 and n = 10 in case of B cell subsets, as a patient’s (pat. nr. 37) B cells could not be differentiated due to their very low count) and SLE (n = 10). (A) Normal range values lie within the doted lines (* p < 0.05; *** p < 0.001).
Figure 3. Comparison of T and B cell subsets in patients with primary (1) and secondary hypogammaglobulinemia with RA (n = 11 and n = 10 in case of B cell subsets, as a patient’s (pat. nr. 37) B cells could not be differentiated due to their very low count) and SLE (n = 10). (A) Normal range values lie within the doted lines (* p < 0.05; *** p < 0.001).
Jcm 09 01049 g003
Jcm 09 01049 g004 550

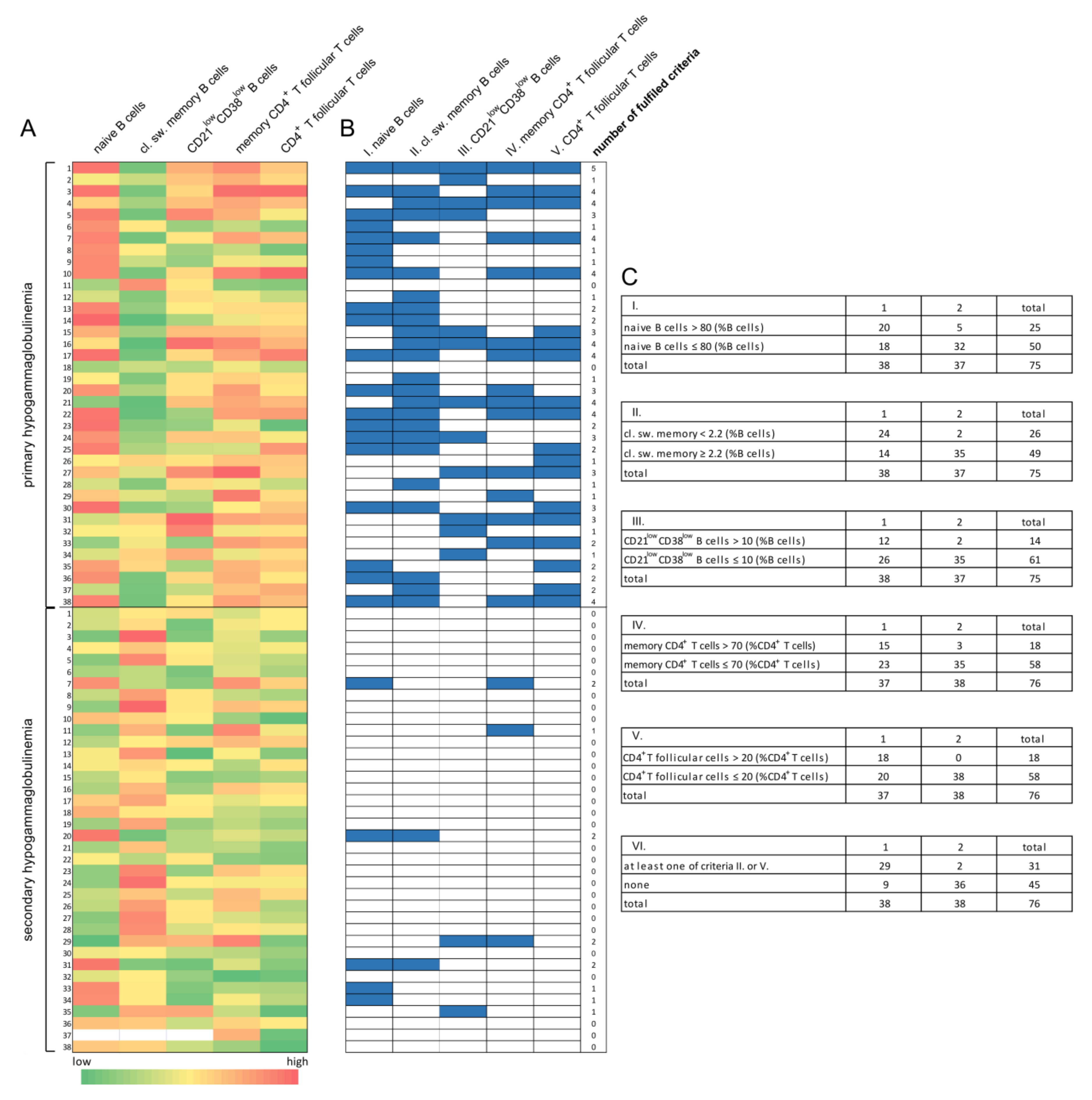

Figure 4. Diagnostic criteria for distinguishing primary from secondary hypogammaglobulinemia based in the differential B and T cell subset distribution in patients with primary immunodeficiency disorders (PID) as compared to patients with rheumatic disease and secondary hypogammaglobulinemia. (A) Heat map showing percentages of B and T cell subsets in all studied patients and highlighting their differential distribution. (B) Schematic representation of fulfilled diagnostic criteria (marked with blue) discriminating PID from secondary hypogammaglobulinemia. (C) Proposed diagnostic criteria for distinguishing primary from secondary hypogammaglobulinemia and cross tables showing all studied patients fulfilling or not fulfilling each time indicated criterion.
Figure 4. Diagnostic criteria for distinguishing primary from secondary hypogammaglobulinemia based in the differential B and T cell subset distribution in patients with primary immunodeficiency disorders (PID) as compared to patients with rheumatic disease and secondary hypogammaglobulinemia. (A) Heat map showing percentages of B and T cell subsets in all studied patients and highlighting their differential distribution. (B) Schematic representation of fulfilled diagnostic criteria (marked with blue) discriminating PID from secondary hypogammaglobulinemia. (C) Proposed diagnostic criteria for distinguishing primary from secondary hypogammaglobulinemia and cross tables showing all studied patients fulfilling or not fulfilling each time indicated criterion.
Jcm 09 01049 g004
Table
Table 1. Characteristics of studied patients with primary and secondary hypogammaglobulinemia.
Table 1. Characteristics of studied patients with primary and secondary hypogammaglobulinemia.
Primary Hypogammaglobulinemia (1)Secondary Hypogammaglobulinemia (2)p - Value
Number (n)3838
Male Gender (n (%))13 (34.21)10 (26.32)ns
Current Age (Mean (IQR))51.82 y (37.5–60)57.66 y (52–66.25)ns
Age at Diagnosis of Hypogammaglobulinemia (Mean (IQR))38.5 y (24.75–53.75)53.42 y (47.5–61.25)*** (<0.0001)
Patients Treated with Immunoglobulin Replacement (n (%))37 (97.37)7 (18.42)*** (<0.0001)
IgG (Mean (IQR))2.74 g/L (0.71–4.6)5.63 g/L (4.99–6.22)*** (<0.0001)
IgA (Mean (IQR))0.45 g/L (0.04–0.48)1.45 g/L (0.77–1.97)*** (<0.0001)
IgM (Mean (IQR))0.69 g/L (0.18–0.96)0.83 g/L (0.52–1.05)*** (0.0003)
Absolute Lymphocyte Count (Mean (IQR))1653 (1019–2080)1469 (1011–1838)ns
Lymphocyte Percentage (Mean (IQR))22.82 (16.75–28.25)20.92 (13–27)ns
IQR, interquartile range; ns, non-significant; y, years.
Table
Table 2. Secondary hypogammaglobulinemia patients’ rheumatic disease, current and previous treatments. Prednisolone treatment is noted in case it is the only treatment.
Table 2. Secondary hypogammaglobulinemia patients’ rheumatic disease, current and previous treatments. Prednisolone treatment is noted in case it is the only treatment.
Pat. Nr.Rheumatic DiseaseCurrent TherapyTherapy at Diagnosis of HypogammaglobulinemiaPrevious Therapies
1perSpAMTXMTX
2RAMTXMTX
3axSpAadalimumabMTXMTX, SSZ
4AOSDprednisoloneprednisolone
5SScMTXMTX
6perSpAMTX + etanerceptMTX + SSZMTX, SSZ, LFN
7SLEMMFCYCCYC, HCQ
8SLEMTXMTXHCQ
9SLEMMFMMF
10RAMTXMTXHCQ, SSZ
11SLECYCCYCAZA, MMF, HCQ
12SLECYCCYCAZA, MMF, HCQ
13RATCZMTX + RTXMTX, LFN, SSZ, gold, adalimumab, infliximab
14RAMTXMTX
15GCAMTXMTX
16RAMTX + etanerceptMTXMTX, HCQ
17SLELFN + HCQMTX + HCQAZA, MTX, HCQ
18axSpAMTX + infliximabMTX + infliximabadalimumab
19SSprednisoloneprednisolone
20RAMTXMTX
21SSMMFMMFCYC, AZA
22PGprednisoloneprednisolone
23AOSDprednisoloneprednisolone
24SSMTXMTX
25SLEMMF + HCQMMFMMF
26GCAMTXMTX
27SSMTXMTX
28SLEAZA + HCQAZA + HCQMTX
29RAMTXMTX
30RAMTXMTX
31RATCZSSZ + MTXMTX, SSZ, LFN, adalimumab, abatacept
32perSpAadalimumabSSZ + MTXSSZ, MTX, HCQ
33SLEAZAAZAHCQ
34SSAZA + HCQAZA + HCQ
35SSAZAAZA
36SLEMMFMMFHCQ
37RAMTX + RTXMTX + RTXLFN, MTX, HCQ, SSZ
38RAMTX + adalimumabMTX + RTXTCZ, etanercept, abatacept, SSZ, LFN, HCQ, MTX
AOSD, adult-onset Still’s disease; axSpA, axial spondyloarthritis; AZA, azathioprine; CYC, cyclophosphamide; GCA, giant cell arteritis; HCQ, hydroxychloroquine; LFN, leflunomide; MMF, mycophenolate mofetil; MTX, methotrexate; pat. nr., patient number; perSpA, peripheral spondyloarthritis; PG, pyoderma gangrenosum; RA, rheumatoid arthritis; RTX, rituximab; SLE, systemic lupus erythematosus; SS, Sjögren’s syndrome; SSc, systemic sclerosis; SSZ, sulfasalazine.
Table
Table 3. Diagnostic efficacy of peripheral lymphocyte subset counts for differentiation of primary from secondary hypogammaglobulinemia.
Table 3. Diagnostic efficacy of peripheral lymphocyte subset counts for differentiation of primary from secondary hypogammaglobulinemia.
Proposed
Diagnostic Criterion		I. Naive B Cells
>80 (%B Cells)		II. cl. sw. Memory B Cells <2.2 (%B Cells)III. CD21low CD38low B Cells
>10 (%B Cells)		IV. Memory CD4+ T Cells >70 (%CD4+ T Cells)V. CD4+ T Follicular Cells >20 (%CD4+ T Cells)VI. At Least One of Criteria II. or V
Sensitivity (%)52.6363.1631.5839.4747.3776.32
95% c.i.35.82–69.0245.99–78.1917.5–48.6524.04–56.6130.98–64.1859.76–88.56
Specificity (%)86.4994.5994.5992.1110094.74
95% c.i.71.23–95.4681.81–99.3481.81–99.3478.62–98.3490.75–100.088.25–99.36
PPV8092.3185.7183.3310093.55
95% c.i.59.3–93.1774.87–99.0557.19–98.2258.58–96.4281.47–100.078.58–99.21
NPV6471.4357.3860.3465.5280
95% c.i.49.19–77.0856.74–83.4244.06–69.9646.64–72.9551.88–77.5165.4–90.42
p - value0.0005<0.00010.00620.0024<0.0001<0.0001
c.i., confidence interval; PPV, positive predictive value; NPV, negative predictive value.

Share and Cite

MDPI and ACS Style

Jablonka, A.; Etemadi, H.; Adriawan, I.R.; Ernst, D.; Jacobs, R.; Buyny, S.; Witte, T.; Schmidt, R.E.; Atschekzei, F.; Sogkas, G. Peripheral Blood Lymphocyte Phenotype Differentiates Secondary Antibody Deficiency in Rheumatic Disease from Primary Antibody Deficiency. J. Clin. Med. 2020, 9, 1049. https://doi.org/10.3390/jcm9041049

AMA Style

Jablonka A, Etemadi H, Adriawan IR, Ernst D, Jacobs R, Buyny S, Witte T, Schmidt RE, Atschekzei F, Sogkas G. Peripheral Blood Lymphocyte Phenotype Differentiates Secondary Antibody Deficiency in Rheumatic Disease from Primary Antibody Deficiency. Journal of Clinical Medicine. 2020; 9(4):1049. https://doi.org/10.3390/jcm9041049

Chicago/Turabian Style

Jablonka, Alexandra, Haress Etemadi, Ignatius Ryan Adriawan, Diana Ernst, Roland Jacobs, Sabine Buyny, Torsten Witte, Reinhold Ernst Schmidt, Faranaz Atschekzei, and Georgios Sogkas. 2020. "Peripheral Blood Lymphocyte Phenotype Differentiates Secondary Antibody Deficiency in Rheumatic Disease from Primary Antibody Deficiency" Journal of Clinical Medicine 9, no. 4: 1049. https://doi.org/10.3390/jcm9041049

APA Style

Jablonka, A., Etemadi, H., Adriawan, I. R., Ernst, D., Jacobs, R., Buyny, S., Witte, T., Schmidt, R. E., Atschekzei, F., & Sogkas, G. (2020). Peripheral Blood Lymphocyte Phenotype Differentiates Secondary Antibody Deficiency in Rheumatic Disease from Primary Antibody Deficiency. Journal of Clinical Medicine, 9(4), 1049. https://doi.org/10.3390/jcm9041049

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
