Increasing Snow–Soil Interface Temperature in Farmland of Northeast China from 1979 to 2018
Abstract
:1. Introduction
2. Materials and Methods

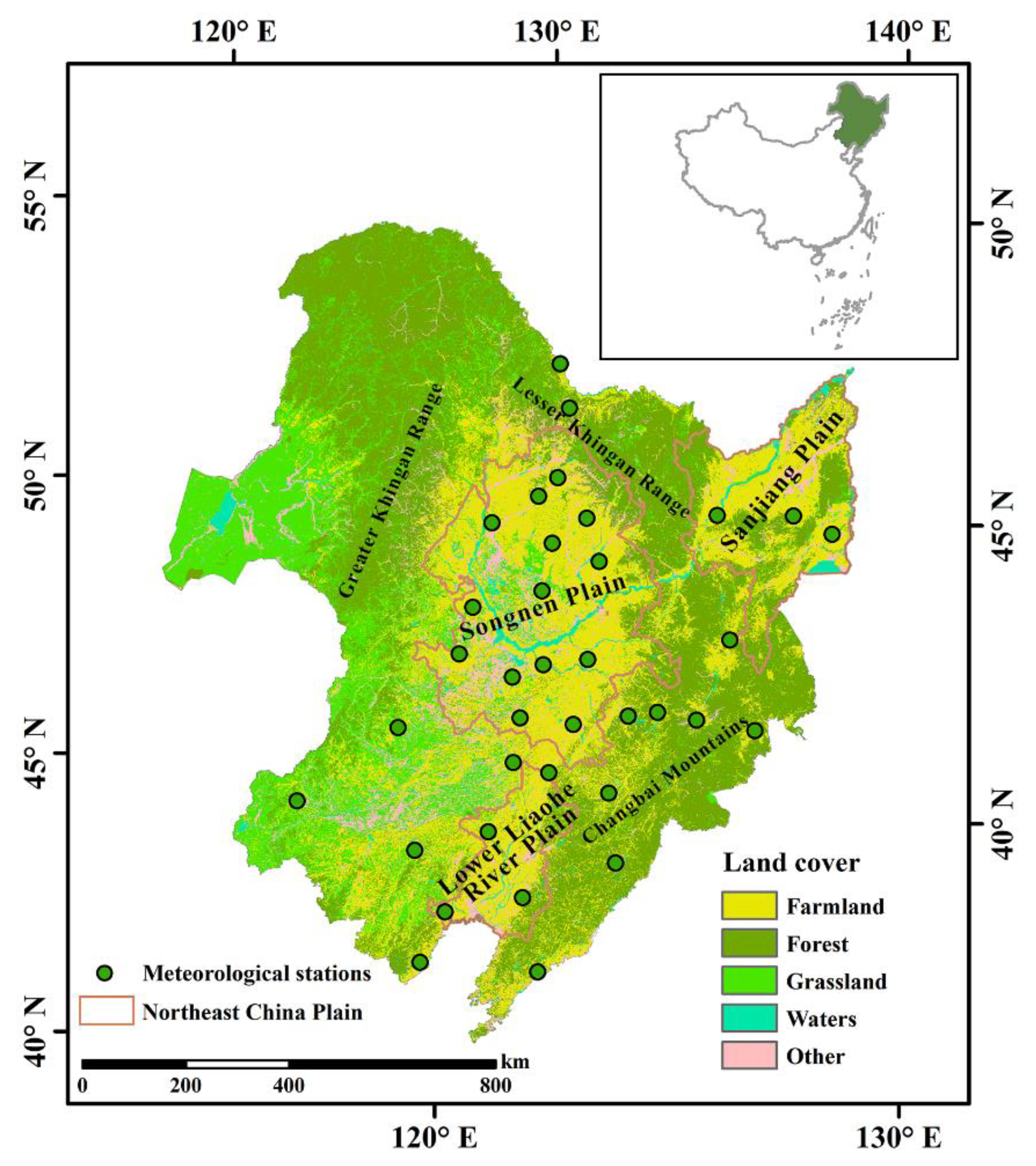

2.1. Meteorological Station Data in NEC
2.2. Datasets
2.2.1. Forcing Datasets
2.2.2. Snow Depth Dataset
2.2.3. Land Cover

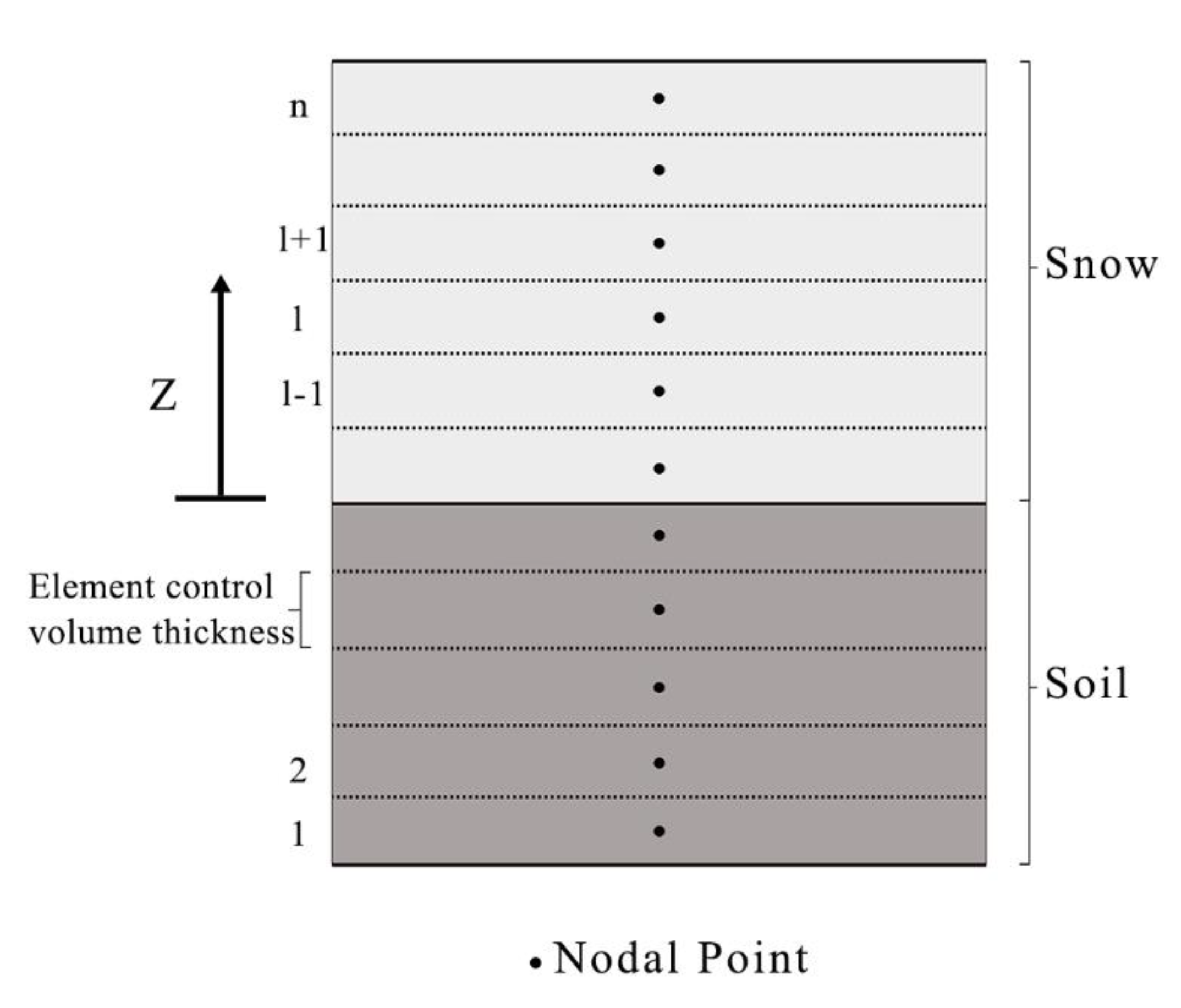

2.3. SNTHERM Model Description and Calibration
3. Results

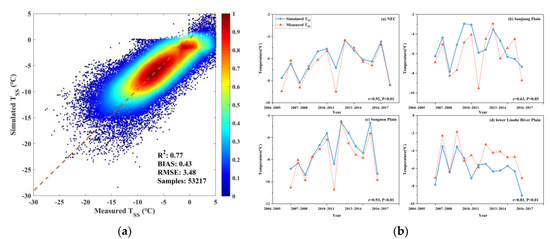

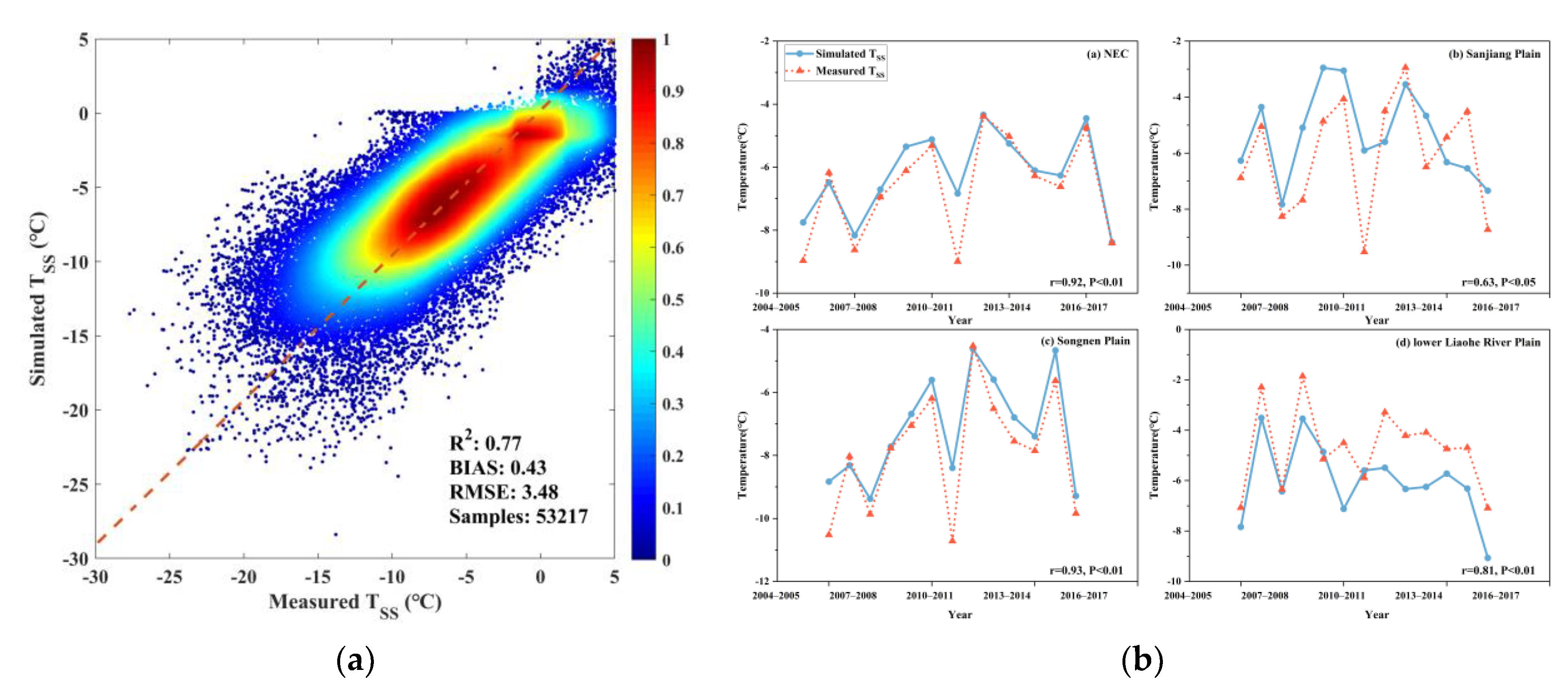

3.1. SNTHERM Model Validation

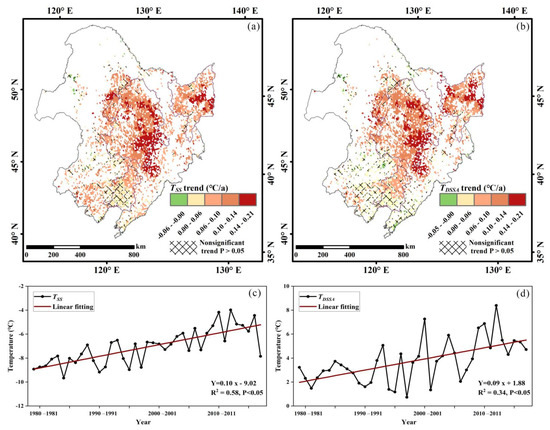

3.2. Spatiotemporal Variations of TSS and TDSSA

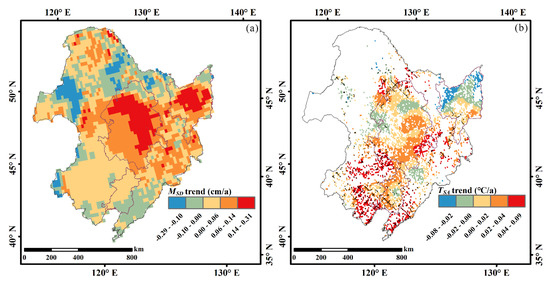

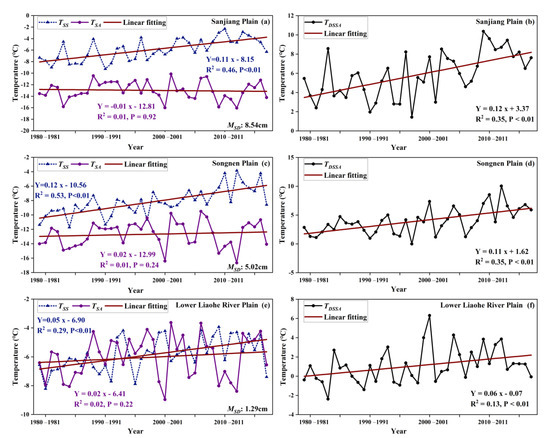

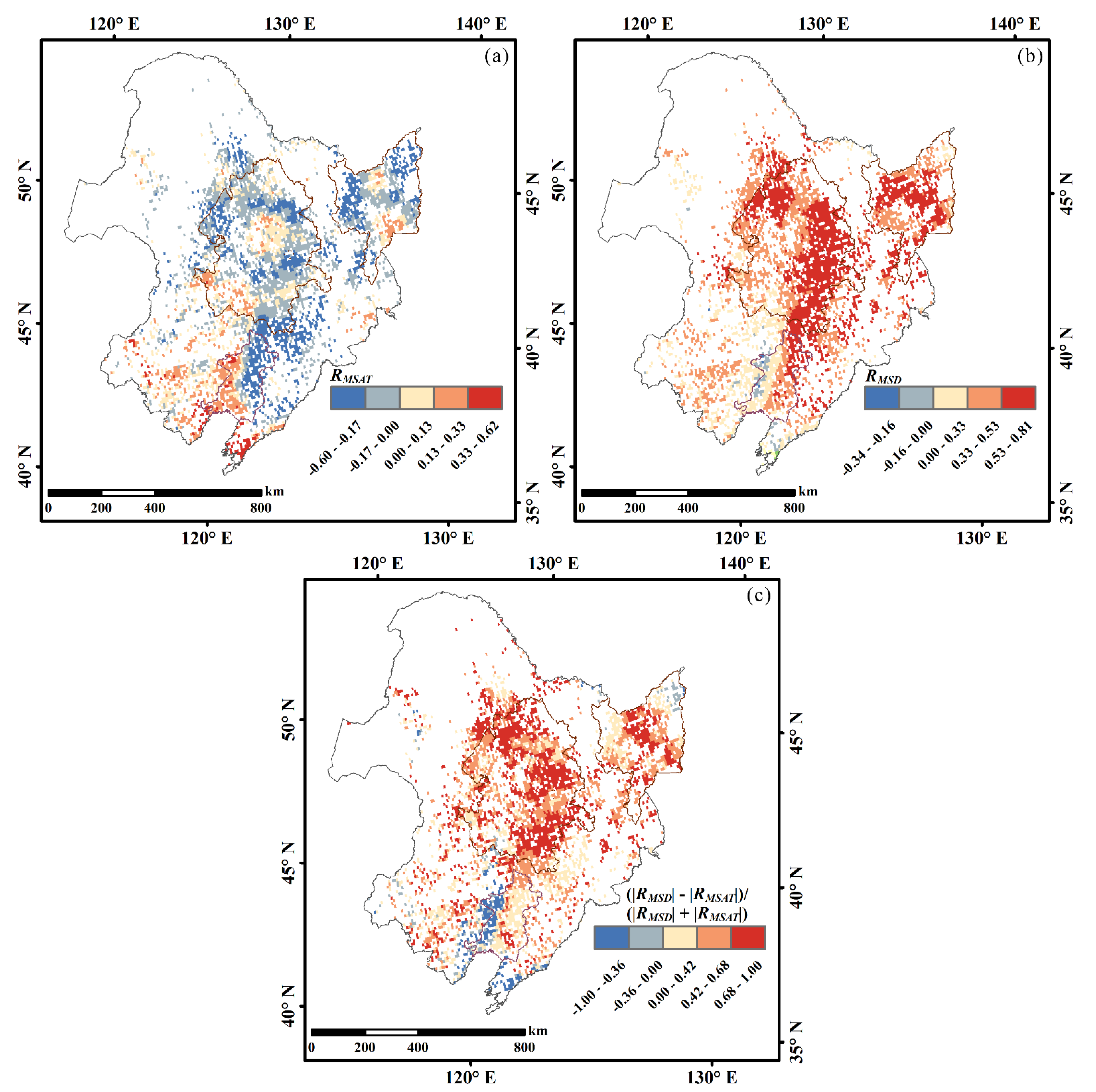

3.3. The Response of TSS to TSA and MSD
4. Discussion
4.1. The Environmental Impact of TSS Changes
4.2. Model Limitations and Uncertainties
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Zhang, T.; Osterkamp, T.E.; Stamnes, K. Influence of the depth hoar layer of the seasonal snow cover on the ground thermal regime. Water Resour. Res. 1996, 32, 2075–2086. [Google Scholar] [CrossRef]
- Ling, F.; Zhang, T. Sensitivity of ground thermal regime and surface energy fluxes to tundra snow density in northern Alaska. Cold Reg. Sci. Technol. 2006, 44, 121–130. [Google Scholar] [CrossRef]
- Smith, M.W. Microclimatic Influences on Ground Temperatures and Permafrost Distribution, Mackenzie Delta, North-west Territories. Can. J. Earth Sci. 1975, 12, 1421–1438. [Google Scholar] [CrossRef]
- Mackiewicz, M.C. A new approach to quantifying soil temperature responses to changing air temperature and snow cover. Polar Sci. 2012, 6, 226–236. [Google Scholar] [CrossRef] [Green Version]
- Groffman, P.M.; Driscoll, C.T.; Fahey, T.J.; Hardy, J.P.; Fitzhugh, R.D.; Tierney, G.L. Colder soils in a warmer world: A snow manipulation study in a northern hardwood forest ecosystem. Biogeochemistry 2001, 56, 135–150. [Google Scholar] [CrossRef]
- Pilon, C.E.; Té, B.C.; Fyles, J.W. Effect of snow removal on leaf water potential, soil moisture, leaf and soil nutrient status and leaf peroxidase activity of sugar maple. Plant Soil 1994, 162, 81–88. [Google Scholar] [CrossRef]
- Zhang, T. Influence of the seasonal snow cover on the ground thermal regime: An overview. Rev. Geophys. 2005, 43, G4002. [Google Scholar] [CrossRef]
- Ye, K.; Wu, R.; Liu, Y. Interdecadal change of Eurasian snow, surface temperature, and atmospheric circulation in the late 1980s. J. Geophys. Res. Atmos. 2015, 120, 2738–2753. [Google Scholar] [CrossRef]
- Peng, S.; Piao, S.; Ciais, P.; Fang, J.; Wang, X. Change in winter snow depth and its impacts on vegetation in China. Glob. Chang. Biol. 2010, 16, 3004–3013. [Google Scholar] [CrossRef]
- Brown, R.D.; Robinson, D.A. Northern Hemisphere spring snow cover variability and change over 1922–2010 including an assessment of uncertainty. Cryosphere 2011, 5, 219–229. [Google Scholar] [CrossRef] [Green Version]
- Barnett, T.P.; Adam, J.C.; Lettenmaier, D.P. Potential impacts of a warming climate on water availability in snow-dominated regions. Nature 2005, 438, 303–309. [Google Scholar] [CrossRef] [PubMed]
- Putnam, S.N.; Chapman, D.S. A geothermal climate change observatory: First year results from Emigrant Pass in northwest Utah. J. Geophys. Res. Solid Earth 1996, 101, 21877–21890. [Google Scholar] [CrossRef]
- Zhang, Y. Soil temperature in Canada during the twentieth century: Complex responses to atmospheric climate change. J. Geophys. Res. Atmos. 2005, 110, 1–15. [Google Scholar] [CrossRef]
- Halfpenny, J.C.; Ozanne, R.D. Winter: An Ecological Handbook. Arct. Alp. Res. 1989, 22, 423–424. [Google Scholar]
- Pauli, J.N.; Zuckerberg, B.; Whiteman, J.P.; Porter, W. The subnivium: A deteriorating seasonal refugium. Front. Ecol. Environ. 2013, 11, 260–267. [Google Scholar] [CrossRef]
- Goulden, M.L. Sensitivity of Boreal Forest Carbon Balance to Soil Thaw. Science 1998, 279, 214–217. [Google Scholar] [CrossRef] [Green Version]
- Bartlett, M.G.; Chapman, D.S.; Harris, R.N. Snow and the ground temperature record of climate change. J. Geo-Phys. Res. Earth Surf. 2004, 109, F04008. [Google Scholar] [CrossRef] [Green Version]
- Goncharova, O.Y.; Matyshak, G.V.; Epstein, H.E.; Sefilian, A.R.; Bobrik, A.A. Influence of snow cover on soil tempera-tures: Meso- and micro-scale topographic effects (a case study from the northern West Siberia discontinuous permafrost zone). Catena 2019, 183, 104224. [Google Scholar] [CrossRef]
- Chang, A.; Foster, J.L.; Hall, D.K. Nimbus-7 SMMR Derived Global Snow Cover Parameters. Ann. Glaciol. 2016, 9, 39–44. [Google Scholar] [CrossRef] [Green Version]
- Che, T.; Xin, L.; Jin, R.; Armstrong, R.; Zhang, T. Snow depth derived from passive microwave remote-sensing data in China. Ann. Glaciol. 2008, 49, 145–154. [Google Scholar] [CrossRef] [Green Version]
- Ke, C.Q.; Li, X.C.; Xie, H.; Ma, D.H.; Liu, X.; Kou, C. Variability in snow cover phenology in China from 1952 to 2010. Hydrol. Earth Syst. Sci. 2016, 12, 4471–4506. [Google Scholar] [CrossRef] [Green Version]
- Tan, X.; Wu, Z.; Mu, X.; Gao, P.; Zhao, G. Spatiotemporal changes in snow cover over China during 1960–2013. Atmos. Res. 2019, 218, 183–194. [Google Scholar]
- Yin, X.; Arp, P.A. Predicting forest soil temperatures from monthly air temperature and precipitation records. Can. J. For. Res. 1993, 23, 2521–2536. [Google Scholar] [CrossRef]
- Ling, F.; Zhang, T. A numerical model for surface energy balance and thermal regime of the active layer and permafrost containing unfrozen water. Cold Reg. Sci. Technol. 2004, 38, 1–15. [Google Scholar] [CrossRef]
- García, A.G.; Valero, F.C.; Beltrami, H.; Smerdon, J.E. Characterization of Air and Ground Temperature Relationships within the CMIP5 Historical and Future Climate Simulations. J. Geophys. Res. Atmos. 2019, 124, 3903–3929. [Google Scholar] [CrossRef]
- Zhang, Y.; Wang, S.; Barr, A.G.; Black, T.A. Impact of snow cover on soil temperature and its simulation in a boreal aspen forest. Cold Reg. Sci. Technol. 2008, 52, 355–370. [Google Scholar] [CrossRef]
- Kohn, J.; Royer, A. AMSR-E data inversion for soil temperature estimation under snow cover. Remote Sens. Environ. 2010, 114, 2951–2961. [Google Scholar] [CrossRef]
- Lakhankar, T.Y.; Muñoz, J.; Romanov, P.; Powell, A.M.; Krakauer, N.Y.; Rossow, W.B.; Khanbilvardi, R.M. CREST-Snow Field Experiment: Analysis of snowpack properties using multi-frequency microwave remote sensing data. Hydrol. Earth Syst. Sci. Discuss. 2012, 9, 8105–8136. [Google Scholar]
- Xie, Y.; Lin, H.; Ye, Y.; Ren, X. Changes in soil erosion in cropland in northeastern China over the past 300 years. Catena 2019, 176, 410–418. [Google Scholar] [CrossRef]
- World Meteorological Organization. Guide to Meteorological Instruments and Methods of Observation, 6th ed.; China Meteorological Press: Beijing, China, 2006. [Google Scholar]
- Yang, K.; He, J.; Tang, W.; Qin, J.; Cheng, C.C.K. On downward shortwave and longwave radiations over high altitude re-gions: Observation and modeling in the Tibetan Plateau. Agric. Forest Meteorol. 2010, 150, 38–46. [Google Scholar] [CrossRef]
- Dai, L. Inter-Calibrating SMMR, SSM/I and SSMI/S Data to Improve the Consistency of Snow-Depth Products in China. Remote Sens. 2015, 7, 7212–7230. [Google Scholar] [CrossRef] [Green Version]
- Jordan, R. A One-Dimensional Temperature Model for a Snow Cover: Technical Documentation for SNTHERM.89; U.S.Army Corpsof Engineers: Cold Regions Research and Engineering Laboratory: Hanover, NH, USA, 1991. [Google Scholar]
- Anderson, E.A. A Point of Energy and Mass Balance Model of Snow Cover; NOAA Technical Report NWS: Silver Spring, MD, USA, 1976. [Google Scholar]
- Patankar, S. Numerical Heat Transfer and Fluid Flow; Hemisphere Publishing: New York, NY, USA, 1980. [Google Scholar]
- Zhu, L.; Ives, A.R.; Zhang, C.; Guo, Y.; Radeloff, V.C. Climate change causes functionally colder winters for snow cov-er-dependent organisms. Nat. Clim. Chang. 2019, 9, 886–893. [Google Scholar] [CrossRef]
- Nelson, F.E.; Williams, P.J.; Smith, M.W. The Frozen Earth: Fundamentals of Geocryology. Arct. Alp. Res. 1989, 22, 323. [Google Scholar] [CrossRef]
- Iwata, Y.; Hirota, T. Monitoring over-winter soil water dynamics in a freezing and snow-covered environment using a thermally insulated tensiometer. Hydrol. Process. 2010, 19, 3013–3019. [Google Scholar] [CrossRef]
- Hirota, T.; John, W.; Raoul, J.; Charles, J. An extension of the force-restore method to estimating soil temperature at depth and evaluation for frozen soils under snow. J. Geophys. Res. 2002, 107, 4767. [Google Scholar] [CrossRef] [Green Version]
- Gold, L.W. Influence of the snow cover on the average annual ground temperature at Ottawa, Canada. Int. Assoc. Sci. Hydrol. 1963, 61, 82–91. [Google Scholar]
- Sharratt, B.; Benoit, G.; Daniel, J.; Staricka, J. Snow cover, frost depth, and soil water across a prairie pothole landscape. Soil Sci. 1999, 164, 483–492. [Google Scholar] [CrossRef]
- Zhang, X.; Wang, K.; Boehrer, B. Variability in Observed Snow Depth over China from 1960 to 2014. Int. J. Climatol. 2020. [Google Scholar] [CrossRef]
- Sturm, M.; Benson, C.S. Vapor transport, grain growth and depth-hoar development in the subarctic snow. J. Glaciol. 1997, 43, 42–59. [Google Scholar] [CrossRef] [Green Version]
- Iwata, Y.; Hayashi, M.; Suzuki, S.; Hirota, T.; Hasegawa, S. Effects of snow cover on soil freezing, water movement, and snowmelt infiltration: A paired plot experiment. Water Resour. Res. 2010, 46. [Google Scholar] [CrossRef] [Green Version]
- Starr, G.; Oberbauer, S.F. Photosynthesis of arctic evergreens under snow: Implications for tundra ecosystem carbon balance. Ecology 2003, 84, 1415–1420. [Google Scholar] [CrossRef]
- Marshall, K.E.; Sinclair, B.J. Threshold temperatures mediate the impact of reduced snow cover on overwintering freeze-tolerant caterpillars. Sci. Nat. 2012, 99, 33–41. [Google Scholar] [CrossRef]
- Monson, R.K.; Lipson, D.L.; Burns, S.P.; Turnipseed, A.A.; Delany, A.C.; Williams, M.W.; Schmidt, S.K. Winter forest soil respiration controlled by climate and microbial community composition. Nature 2006, 439, 711–714. [Google Scholar] [CrossRef] [PubMed]
- Song, C.; Wang, Y.; Wang, Y.; Zhao, Z. Emission of CO 2, CH 4 and N 2O from freshwater marsh during freeze–thaw period in Northeast of China. Atmos. Environ. 2006, 40, 6879–6885. [Google Scholar] [CrossRef]
- Müller, C.; Martin, M.; Stevens, R.J.; Laughlin, R.J.; Jäger, H.J. Processes leading to N2O emissions in grassland soil during freezing and thawing. Soil Biol. Biochem. 2002, 34, 1325–1331. [Google Scholar] [CrossRef]
- Feng, L.; Zhang, T. Modeled impacts of changes in tundra snow thickness on ground thermal regime and heat flow to the atmosphere in Northernmost Alaska. Glob. Planet. Chang. 2007, 57, 235–246. [Google Scholar]
- Stadler, D.; Wunderli, H.; Auckenthaler, A.; Uuml, F.; Hler, H.; Uuml, B.; Ndl, M. Measurement of frost-induced snowmelt runoff in a forest soil. Hydrol. Process. 2015, 10, 1293–1304. [Google Scholar] [CrossRef]
Parameters | Values | Unit |
---|---|---|
Plasticity index | 0.28 | / |
Density of dry minerals in material | 2700 | kg/m3 |
Bulk density of dry material | 1600 | kg/m3 |
Heat capacity of dry material | 800 | J/kg·K |
Thermal conductivity for dry bulk material | 0.113 | W/m·K |
Snow albedo | 0.78 | / |
Irreducible water saturation for snow | 0.04 | / |
Region | Slope | Contribution | ||||
---|---|---|---|---|---|---|
TSS (°C/a) | TSA (°C/a) | MSD (cm/a) | TSA | MSD | R2 | |
Sanjiang Plain | 0.11 ** | –0.01 | 0.13 | 0.20 | 0.74 ** | 0.44 |
Songnen Plain | 0.12 ** | 0.01 | 0.15 | 0.36 ** | 1.08 ** | 0.55 |
Lower Liaohe River Plain | 0.05 ** | 0.02 | 0.01 | 0.30 | 0.72 ** | 0.26 |
Region | Number of Pixels | Percentage (%) | |
---|---|---|---|
MSD | TSA | ||
Sanjiang Plain | 605 | 95 | 5 |
Songnen Plain | 1510 | 99 | 1 |
Lower Liaohe River Plain | 344 | 74 | 26 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
