The Prediction of Wheat Yield in the North China Plain by Coupling Crop Model with Machine Learning Algorithms

by
Yanxi Zhao
1,2,3,
Dengpan Xiao
1,2,3,*,
Huizi Bai
1,*,
Jianzhao Tang
1,
De Li Liu
4,5,
Yongqing Qi
6 and
Yanjun Shen
6,7
1
Hebei Technology Innovation Center for Geographic Information Application, Institute of Geographical Sciences, Hebei Academy of Sciences, Shijiazhuang 050011, China
2
College of Geography Science, Hebei Normal University, Shijiazhuang 050024, China
3
Hebei Laboratory of Environmental Evolution and Ecological Construction, Shijiazhuang 050024, China
4
NSW Department of Primary Industries, Wagga Wagga Agricultural Institute, Wagga, NSW 2650, Australia
5
Climate Change Research Centre, University of New South Wale, Sydney, NSW 2052, Australia
6
Key Laboratory for Agricultural Water Resources, Hebei Key Laboratory for Agricultural Water Saving, Center for Agricultural Resources Research, Institute of Genetics and Developmental Biology, Chinese Academy of Sciences, Shijiazhuang 050021, China
7
School of Advanced Agricultural Sciences, University of the Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Agriculture 2023, 13(1), 99; https://doi.org/10.3390/agriculture13010099
Submission received: 24 November 2022 / Revised: 19 December 2022 / Accepted: 26 December 2022 / Published: 29 December 2022
(This article belongs to the Special Issue Modeling the Adaptations of Agricultural Production to Climate Change)
Browse Figures
Review Reports Versions Notes

Abstract

:
The accuracy prediction for the crop yield is conducive to the food security in regions and/or nations. To some extent, the prediction model for crop yields combining the crop mechanism model with statistical regression model (SRM) can improve the timeliness and robustness of the final yield prediction. In this study, the accumulated biomass (AB) simulated by the Agricultural Production Systems sIMulator (APSIM) model and multiple climate indices (e.g., climate suitability indices and extreme climate indices) were incorporated into SRM to predict the wheat yield in the North China Plain (NCP). The results showed that the prediction model based on the random forest (RF) algorithm outperformed the prediction models using other regression algorithms. The prediction for the wheat yield at SM (the period from the start of grain filling to the milky stage) based on RF can obtain a higher accuracy (r = 0.86, RMSE = 683 kg ha−1 and MAE = 498 kg ha−1). With the progression of wheat growth, the performances of yield prediction models improved gradually. The prediction of yield at FS (the period from flowering to the start of grain filling) can achieve higher precision and a longer lead time, which can be viewed as the optimum period providing the decent performance of the yield prediction and about one month’s lead time. In addition, the precision of the predicted yield for the irrigated sites was higher than that for the rainfed sites. The APSIM-simulated AB had an importance of above 30% for the last three prediction events, including FIF event (the period from floral initiation to flowering), FS event (the period from flowering to the start of grain filling) and SM event (the period from the start of grain filling to the milky stage), which ranked first in the prediction model. The climate suitability indices, with a higher rank for every prediction event, played an important role in the prediction model. The winter wheat yield in the NCP was seriously affected by the low temperature events before flowering, the high temperature events after flowering and water stress. We hope that the prediction model can be used to develop adaptation strategies to mitigate the negative effects of climate change on crop productivity and provide the data support for food security.

1. Introduction

Food security is related to a series of major issues such as national food security, social stability and sustainable development of the national economy, which is highly concerned by the country [1,2,3]. Increasing food productivity is an important measure to ensure food security. However, the trend of global warming became more severe throughout the 20th century [4,5]. Generally, climate warming can shorten the crop growth period, which negatively influences the formation of a crop yield and, ultimately, causes crop failure [6,7]. Predicting the yield can provide data support to take appropriate management for farmers. Wheat is one of the three major grain crops in China, with a wide planting range, large planting area and high yield [8]. Therefore, the studies on yield prediction in wheat are conducive to the timely and accurate grasp of the grain production status and scientific formulation of policies for the government [9,10].
The statistical regression model (SRM) directly developed statistical models based on the relationship between selected predictors and target variables to achieve the goal [11,12,13,14]. Guan et al. [15] used partial least-square regression (PLSR) to estimate the relationships between crop yield and the predictor variables. In general, the models combined with statistical regression algorithms are easy to understand and require fewer parameters, so the methods are commonly used in yield predictions worldwide [16,17,18]. However, with the increasing volume and dimension of observation data, it is a great challenge to fully explore the information of datasets for effective analysis and utilization. The most current SRM based on linear regression have some problems in application due to the complexity of the crop production system. For example, crop yields exhibit nonlinear responses to extreme climate events, while previous linear regression models may not perform well under frequent extreme climate conditions [19,20]. Compared with the linear regression analysis, the machine learning algorithm (MLA) is an advanced method for yield estimation that can capture nonlinear relations between the dependent and independent variables [21,22,23,24]. The MLA can explore the information of the training data, obtain a higher generalization level, and enhance the robustness and universality of the prediction model [15]. For example, Cai et al. [25] developed the prediction model for wheat in Australia by using some machine learning, while the support vector machine (SVM) algorithm performs better than other statistical regression algorithms. Hunt et al. [26] used the random forest (RF) algorithm to evaluate the crop yield and achieved a good performance. Nevertheless, MLA are not mechanistic and can not fully consider the dynamic process of crop growth.
The crop mechanism model (CM) has good mechanical properties, which is a simulation program that can dynamically describe the process of crop growth and yield formation under various environmental conditions by importing weather data, a variety of parameters, soil data and so on [19]. With the development of CM, the studies on the estimation of the crop yield increased gradually. For example, Huang et al. [27], Xiao et al. [28] and Zhang et al. [29], based on CMs, estimated the yields of maize, wheat and rice in China, respectively. However, the results of the most related studies were end-of-season yield predictions. The greatest limitation of within-season predictions is the lack of meteorological data from the prediction date to the maturity date [30]. Some studies achieved the prediction results by coupling the CM with seasonal weather forecasts. Pagani et al. [31] developed a high-resolution integrated prediction system for rice yield at the district level based on the combination of the WARM model, weather forecasts and remote sensing images. However, the real weather conditions may deviate from the weather forecast data, thus increasing the uncertainty of the prediction model [32].
We can reduce unnecessary errors by combining MLA and CM for yield prediction. Feng et al. [32] used the integration of the MLA and APSIM model to predict the yield of wheat under rainfed conditions in Southeastern Australia, and the hybrid model obtained a decent yield prediction at one month leading time before harvest. Nevertheless, there are few studies on using a hybrid model to predict crop yields under irrigated conditions. Furthermore, CMs can simulate the effects of complicated climate conditions on crop growth to a certain extent but are not sufficient. The quantity variation of key climatic factors (e.g., temperature and precipitation) can be transformed into the climate suitability of crop growth based on the membership function method in fuzzy mathematics [33,34]. Meanwhile, the extreme climate indices (ECIs) can quantify the destructive effects of extreme climate events on crop growth [35,36]. The climate suitability and ECIs can be included in the hybrid model as predictive indicators to further explore the information reflected by the climate factors and improve the robustness of the hybrid model. However, there were few studies on using the combination of climate suitability and ECIs as predictive variables.
The North China Plain (NCP) is an important grain production base and occupies an important position in the national grain production in China [8]. In this study, we investigated the yield prediction of wheat in the NCP by using the CM and SRM. The main objectives of the study were (1) to develop the yield prediction model of wheat based on the combination of the multiple growth period-specific variables and SRM, (2) to identify the optimal lead time before maturity of yield prediction with acceptable accuracy, and (3) to evaluate the relative importance of input variables during different growth stages in the yield prediction model.

2. Data and Methods

2.1. Study Area

The NCP is delimitated in the east by the sea, the west by the Taihang Mountains, the south by the main stream of the Huaihe River, and the north by the Yan Mountains (Figure 1) [37]. The region has a warm temperate monsoon climate with plenty of light and heat resources [37]. The annual precipitation is not evenly distributed, with over 70% of precipitation appearing in July through September. The main soil type in the NCP is the loam of Aeolian origin, a soil type deposited by rivers over geological periods. The NCP is an important grain production region in China, where the main cropping system is the double cropping systems of winter wheat–summer maize [38]. Winter wheat is usually planted in early or middle October and harvested in early June. We selected 20 agro-meteorological sites distributed across the NCP (Figure 1). Table 1 presents basic information for the 20 study sites, including location, irrigation condition, and wheat phenology and yield.

2.2. Climate, Soil and Crop Data

The historical records about daily climate data, including mean temperature (Tmean), maximum temperature (Tmax), minimum temperature (Tmin), precipitation (Prec), and sunshine hours (Sh) during 2000 to 2010 for 20 agro-meteorological sites across the NCP, were obtained from China’s Meteorological Administration (CMA). Soil profile data of all the sites were obtained from the 1:1 million scale soil map of China included in the Harmonized World Soil Database (HWSD) version 1.2 [39]. The climate and soil data were used to run the APSIM model.
Detailed field experimental data records included the phenology (sowing date (SD), flowering date (FD), and maturity date (MD)); grain yield; and management data at the agro-meteorological experiment sites for 2000–2010 were also obtained from CMA. The phenology data was observed by experimenters in the specific fields at the agro-meteorological experiment sites, while the grain yield was the weight of the harvested crop in the specific fields. We used the experimental crop data to calibrate and validate the crop parameters in the APSIM model.

2.3. Methodology

2.3.1. Agricultural Production Systems SIMulator (APSIM) Simulations

The APSIM model is a comprehensive model developed to simulate biophysical processes in agricultural production systems [40,41]. The APSIM model can provide an acceptable prediction accuracy of crop productivity under the combined influences of climate change, soil condition, and management measures [42,43]. In this study, the APSIM model was implemented to simulate crop phenology, biomass, and grain yield during 2000–2010 at the 20 selected sites.

2.3.2. Climate Indices

In the study, we took account of four main growth periods, including the period from end of the juvenile stage to floral initiation (JF), the period from floral initiation to flowering (FIF), the period from flowering to the start of grain filling (FS), and the period from the start of grain filling to the milky stage (SM). We assessed the impacts of 10 extreme climate indices (ECIs) [44,45] and 3 for climate suitability (CS) [46] during different growth periods for wheat (Table 2). The calculation methods of the ECIs were shown in Table 2. The CS can further explore the information of the mean climate variables. We can develop the climate suitability model according to related studies [46].
The sunshine suitability (SS) of wheat was calculated as follows [47,48,49]:
SS = e − S i − S 0 / b 2                             S i < S 0         1                                                         S i ≥ S 0
where S 0 is the daily sunshine hours when the percentage of the daily sunshine hours reaches 70%,   S i is the daily sunshine hours (h), and b is a constant that can be determined according to the climatic conditions across the NCP and relevant studies [49,50]. The values for b at different growth periods are shown in Table 3. The arithmetic mean of the daily SS for a specific growth period is the SS for the corresponding period.
The temperature suitability (TS) of wheat was calculated as follows [47,48,49]:
TS = [ T i − T 1 T 2 − T i B ] [ T 0 − T 1 T 2 − T 0 B ]
  Among   B = T 2 − T 0 T 0 − T 1
where T i is the daily mean temperature (°C), T 0 is the optimal temperature (°C) at different growth periods, T 1 is the lower limit temperature (°C) at different growth periods, and T 2 is the upper limit temperature (°C) at different growth periods. The specific values of T 0 , T 1 , and T 2 refer to the climatic conditions across the NCP and relevant studies [49,51]. The values for T 0 , T 1 , and T 2 at different growth periods are listed in Table 3. The arithmetic mean of the daily TS for a specific growth period is the TS for the corresponding period.
The precipitation suitability (PS) of wheat was calculated as follows [52]:
PS = P / P 0 P i < P 0 P 0 / P P i ≥ P 0
where P is precipitation (mm), and P 0 is the physiological water requirement of crops, which can be calculated as follows:
P 0 = Kc • ET 0
where Kc is the crop coefficient, and ET 0 is the reference crop evapotranspiration (mm). The Kc values of wheat at different growth stages listed in Table 3 are determined according to the relevant studies [53,54]. The ET 0 values of wheat are calculated based on the Penman–Monteith formula [54].

2.3.3. Regression Models

Two machine learning algorithms, i.e., random forest (RF) and light gradient boosting machine (LGB), were selected to predict the wheat yield. RF is an ensemble learning algorithm [26,55], which creates multiple decision trees in a random way and applies them in training samples. Among all the current algorithms, RF has high accuracy and stability, which can effectively process input samples with large data volumes and high-dimensional features. LGB is an implementation of the gradient boosting decision tree, which is essentially based on decision tree training integration to gain the optimal model [56,57]. The LGB model uses the histogram algorithm to find the best branching point, which greatly improves the training speed of the model. At the same time, LGB optimizes the growth strategy of the decision tree and uses the leaf-wise algorithm with depth limitation to create the decision tree, which can reduce the unnecessary amount of computation. In addition, multiple linear regression (MLR) was selected as the benchmark model in this study to compare with the above two machine learning models.

2.3.4. The Framework for the Procedures

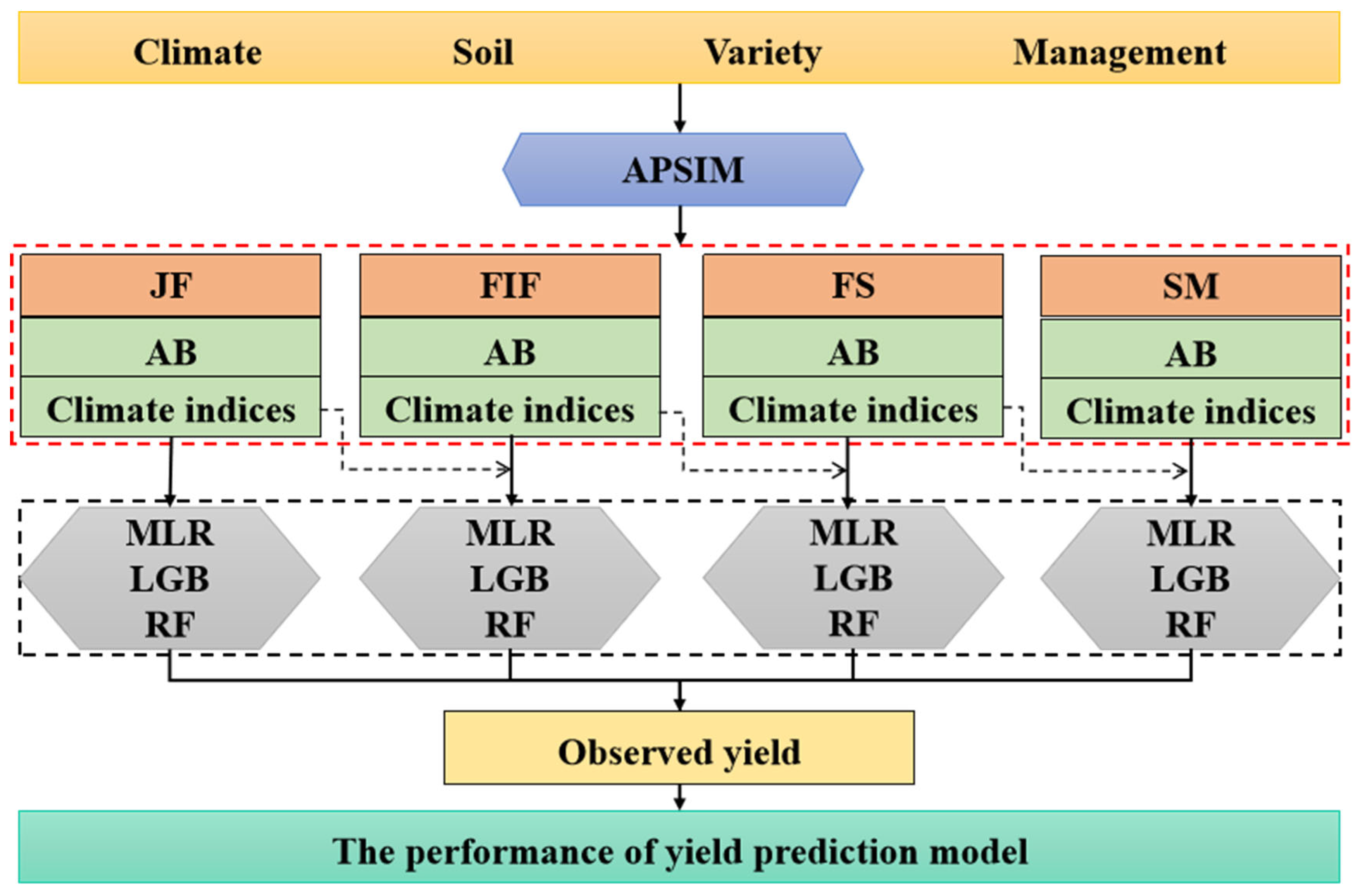

The diagram for the procedures in this study is shown in Figure 2. We developed a yield-predicting system based on multi-source environmental data using the APSIM model and regression models (MLR and RF). Firstly, the APSIM model was calibrated and validated based on observed phenology data and grain yield data at the selected sites. Then, we ran the implemented model to obtain the biomass and main growth stages, including the end of the juvenile stage, floral initiation, flowering, start of grain filling, and the milky stage. The main growth stages were used to calculate the 13 CIs. We aggregated the APSIM-accumulated biomass (AB) and climate variables into four groups by different growth periods. In the study, four prediction events (JF, FIF, FS, and SM) were triggered successively, while the predictive indicators were added with crop growth progression. Therefore, the number of predictive indicators would increase with progressing phases from JF to SM. Furthermore, we conducted “leave-one-year-out” experiments [25,58] for 2000–2010 to test the performances of the yield prediction models. Finally, the importance values for the input characteristic variables were analyzed based on the RF model and LGB model.

2.3.5. Model Performance Assessment

The performance of the yield prediction model was validated by calculating the root mean square error (RMSE), Pearson’s correlation coefficient (r), and mean absolute error (MAE) between the estimated data and the observed data. The calculation formulas were as follows:
r = ∑ i = 1 n O i −   O ¯ S i −   S ¯ ∑ i = 1 n O i −   O ¯ 2 ∑ i = 1 n S i −   S ¯ 2
RMSE = 1 n ∑ i = 1 n O i − S i 2
MAE = ∑ i = 1 n O i − S i n
where O i , S i ,   O ¯ , S , ¯ and n represent the observed data, estimated data, mean value of the observed data, mean value of the estimated data, and the number of samples, respectively.

3. Results

3.1. Validation of the APSIM Model

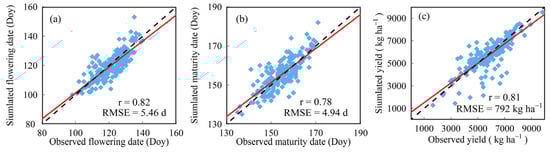

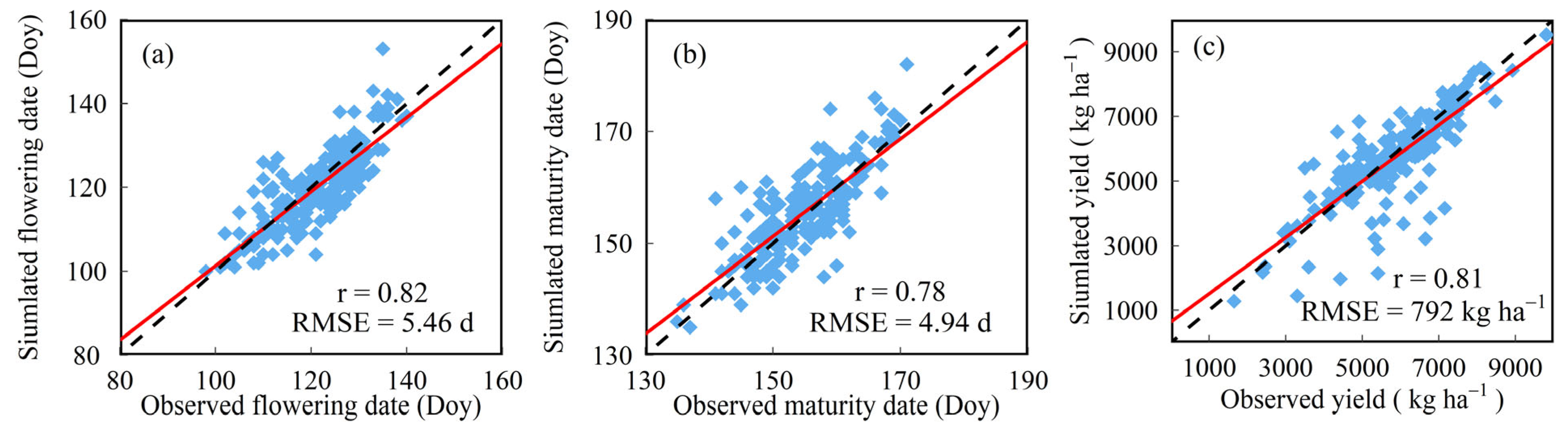

The comparison of the observed and APSIM-simulated values of the flowering date (FD), maturity date (MD), and yield from 2000 to 2010 at the 20 sites is shown in Figure 3. The simulated FD and MD were in good agreement with observed values. The r values for the simulated and observed values of FD and MD were 0.78 and 0.82, respectively. The RMSE values between the simulated and observed values of FD and MD were 5.46 d and 4.94 d, respectively. On the other hand, the simulated grain yield was consistent with the observed yield, with r of 0.81 and RMSE of 792 kg ha−1. Overall, the APSIM model can provide an acceptable assessment for the phenology and grain yield of wheat. Therefore, the simulation results from the APSIM model for wheat phenology and grain yield were reliable, and we could use the simulations to develop a hybrid model for predicting the wheat yield.

3.2. The Model Performance and Optimum Leading Time for Yield Prediction

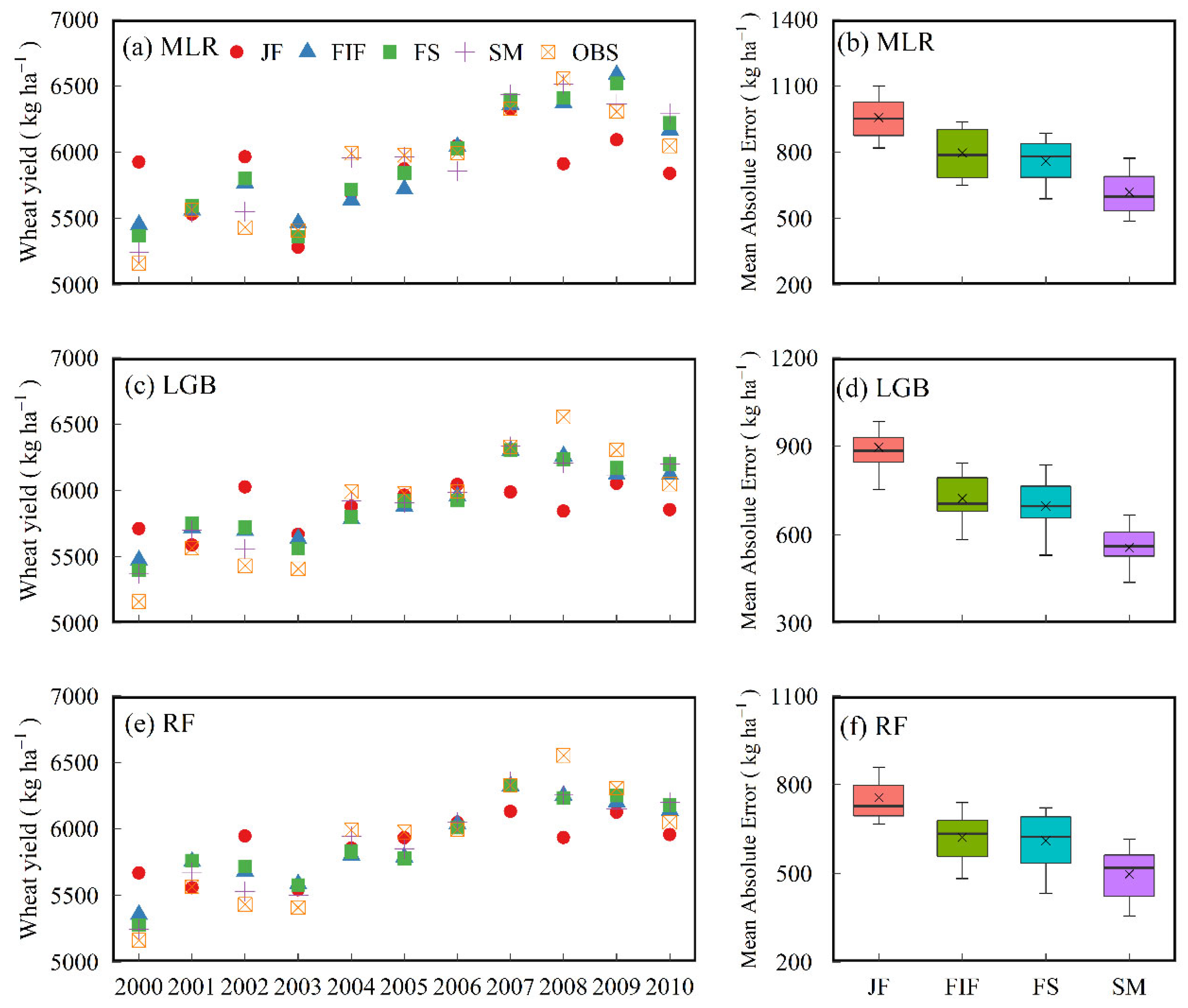

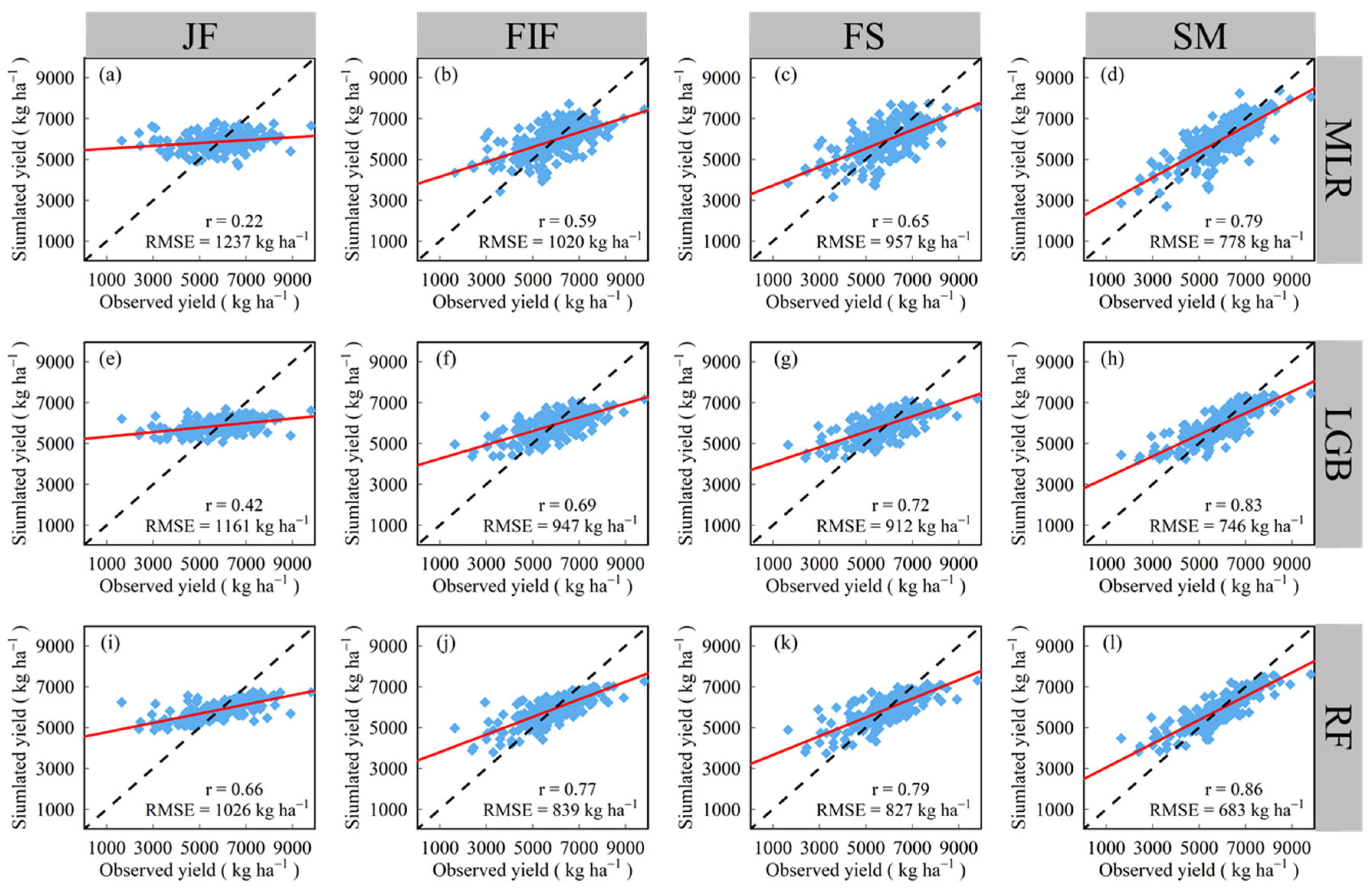

We developed a hybrid model to predict wheat yield based on the APSIM-simulated AB, climate indices at different growth stages and regression algorithms. The performances of three regression models are shown in Figure 4 and Figure 5. In the early stage, the yield prediction accuracy of the three regression models was generally lower, with RMSE values of above 1000 kg ha−1 and MAE values of more than 700 kg ha−1 (Figure 4a,e,i and Figure 5a,c,e). With the progression of wheat growth period, the input variables also increased, and the performances of the prediction models improved further. From JF to SM, the prediction accuracy increased significantly for the three regression models. For the MLR model, r increased from 0.22 to 0.79, RMSE decreased from 1237 kg ha−1 to 778 kg ha−1, and MAE decreased from 957 kg ha−1 to 619 kg ha−1 (Figure 4a–d and Figure 5b). Compared with the machine learning model, MLR was less effective in predicting the wheat yield. The machine learning model can capture the nonlinear relationship between the characteristic variables and the yield, and the overall performance of the machine learning models was good, especially the RF model. For the RF model, r increased from 0.66 to 0.86, RMSE decreased from 1026 kg ha−1 to 683 kg ha−1, and MAE decreased from 756 kg ha−1 to 498 kg ha−1 (Figure 4i–l and Figure 5f). The performances of the yield prediction models improved gradually with the development of crop growth. However, the tradeoff between the accuracy and leading time needs to be taken into account. The yield prediction at JF will achieve the target of the prediction approximate with three months leading time before the maturity but with a poor performance (r < 0.66). The yield prediction at SM outperformed the yield prediction at other growth periods, while the leading time of the prediction decreased to below 15 d. A higher precision and longer lead time were taken into consideration for the prediction of the yield at FS. Therefore, FS can be regarded as the optimal period, providing the best performance of yield prediction and about one month of lead time.

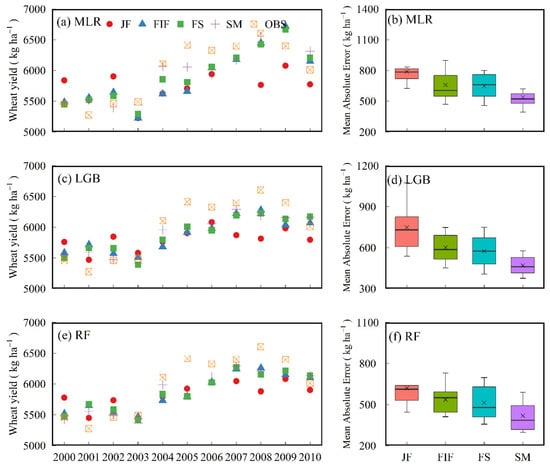

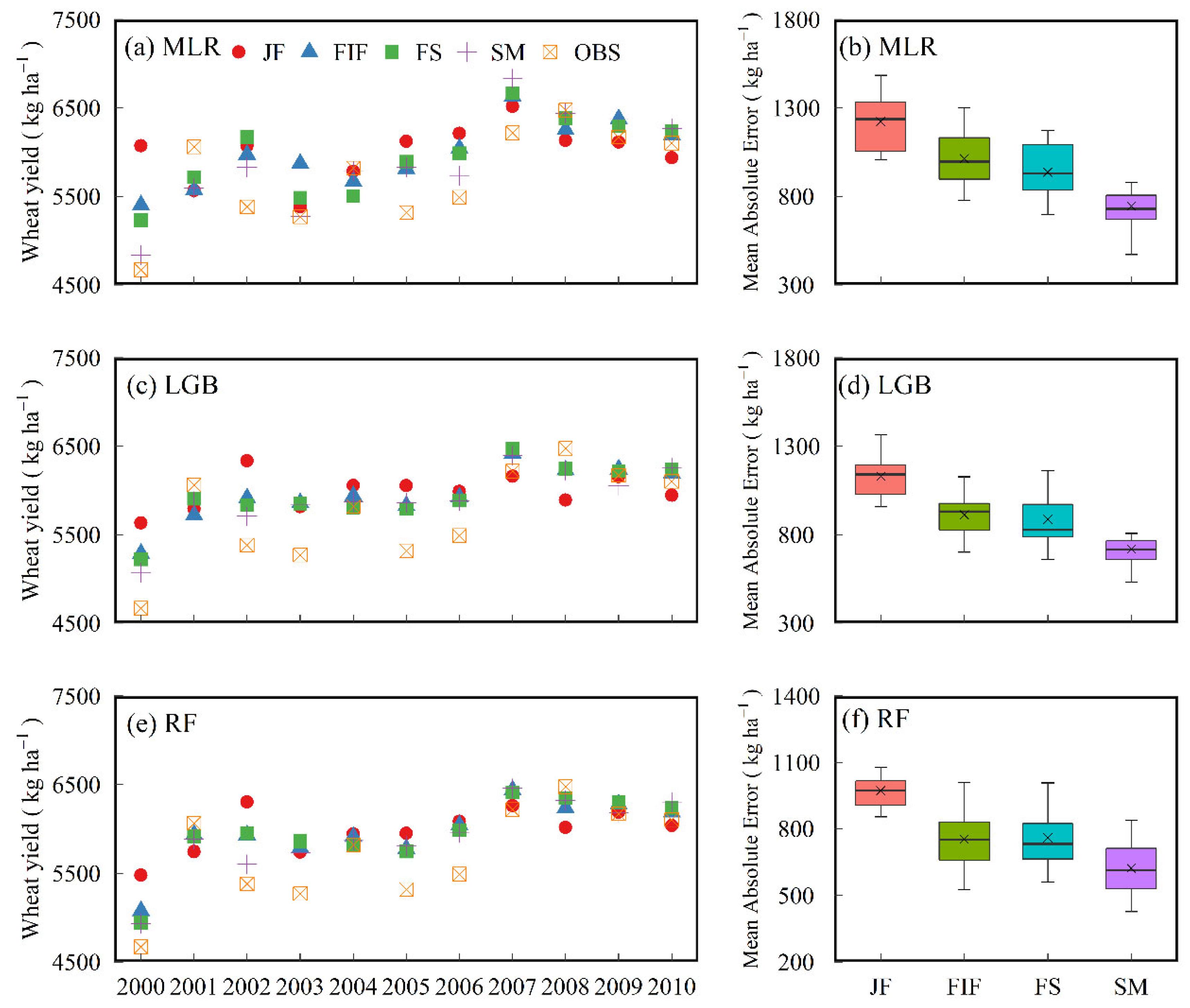

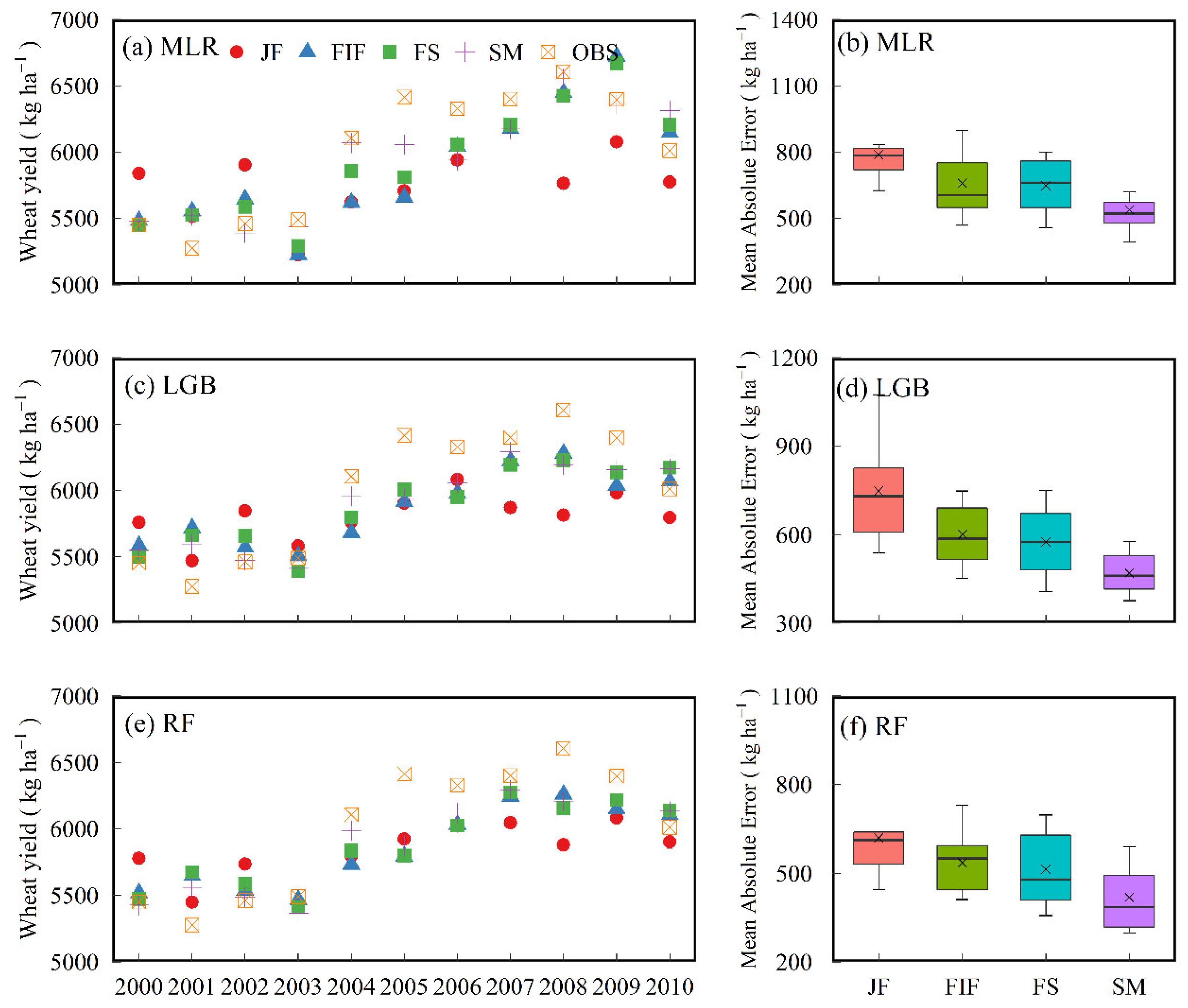

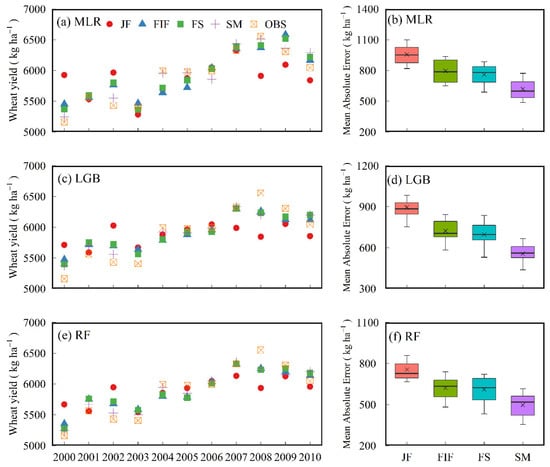

We compared the performance of the predicted yield across the study sites under irrigated conditions with the performance of the predicted yield across the study sites under rainfed conditions (Figure 6 and Figure 7). The errors of the predicted yield from three regression models at all growth periods for the study sites under irrigated conditions (MAE ranged from 419 kg ha−1 to 789 kg ha−1) were lower than those for the rainfed sites (MAE ranged from 624 kg ha−1 to 1130 kg ha−1) (Figure 6 and Figure 7). The accuracy of the predicted yield for the irrigated sites was higher than that for the rainfed sites. The water shortage caused by drought limited photosynthesis and carbon allocation, which was not conducive to the formation of the crop yield and affected the prediction accuracy [59,60]. However, the impacts of water stress on the crop yield was reduced by irrigation, which improved the accuracy of the yield prediction under irrigated conditions [61,62,63,64]. Nevertheless, the predicted yield for the study sites under irrigated conditions were underestimated compared to the observed yield, while the predicted yield for the rainfed sites were overestimated compared to the observed yield (Figure 6a,c,e and Figure 7a,c,e).

3.3. Relative Importance of Selected Predictors at Different Growth Stages

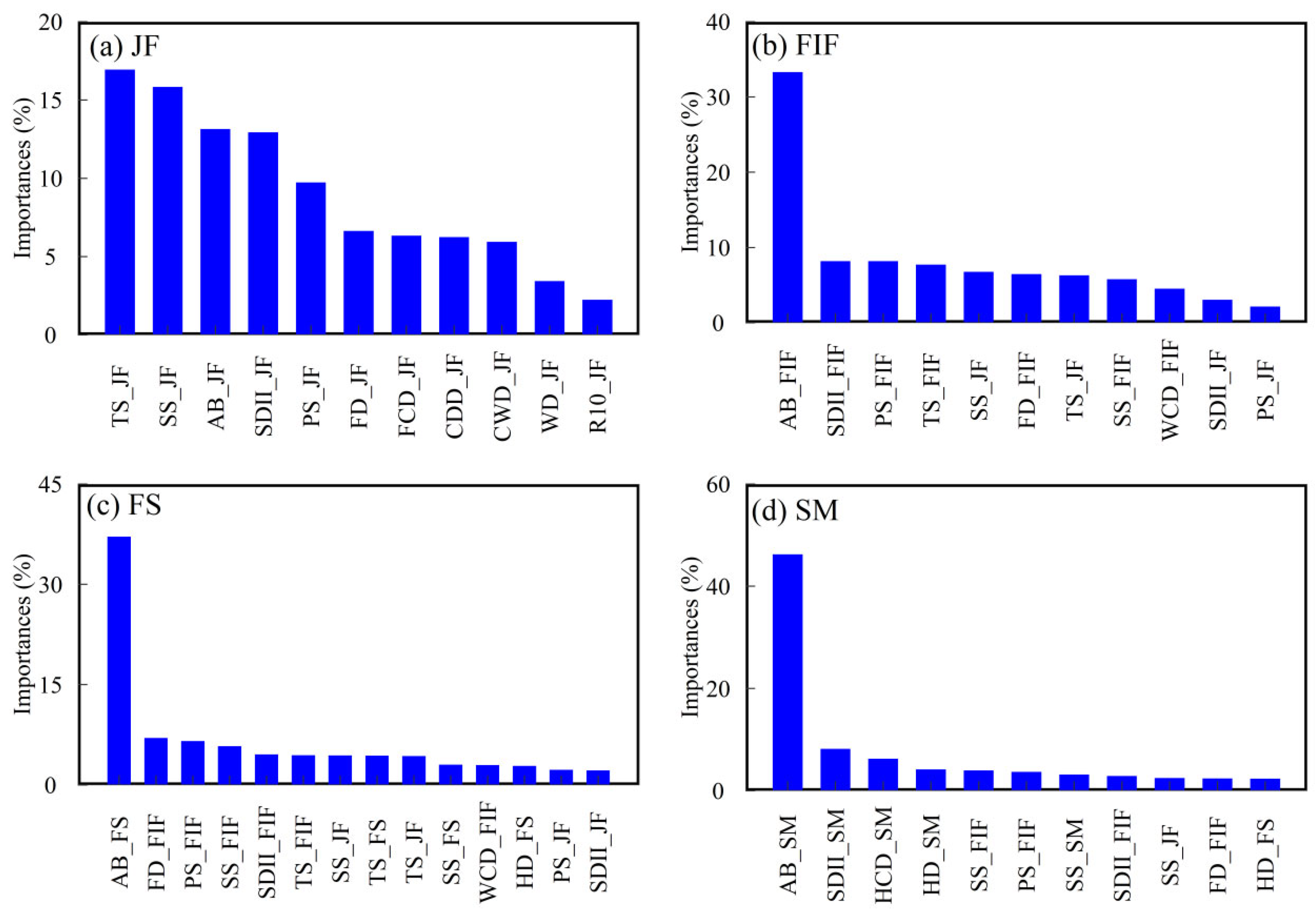

The RF model and LGB model were used to assess the importance of the input characteristic variables in the yield prediction model. The relative importance of the input predictors as determined from the average of the LGB model and RF model for each prediction event is shown in Figure 8. With the crop growth and progression, the importance of the APSIM-simulated accumulated biomass (AB) increased rapidly, while the importance of AB at the last three prediction events was over 30% (Figure 8). For the CIs, the climate suitability indices were most important for the yield prediction at the early prediction event, such as TS and SS (Figure 8a). The roles of the climate suitability indices in the prediction model should not be ignored, though some extreme climate indices had higher importance than the climate suitability indices in the last three prediction events (Figure 8b–d). In the middle prediction events (FIF and FS), SDII and FD at FIF generally ranked high in the climate indices, which may be because the wheat yield was very sensitive to low-temperature stress and water stress before flowering (Figure 8b,c). However, SDII and HCD at SM ranked first in the late prediction events, suggesting that the impact of heat stress and water stress after flowering on the wheat yield was more significant than low-temperature stress and water stress before flowering (Figure 8b–d).

4. Discussion

A crop model can dynamically describe the process of crop growth and development under various environmental conditions [65]. A growing body of studies have investigated the effects of climate change during the past few decades on crop phenology and yield using various crop models to develop adaptive measures (such as adjustment of the sowing date and renewal of crop variety) for reducing the yield loss [66,67,68]. However, there were fewer studies on the yield prediction using the crop model due to the limitation of the meteorological data. Some studies used the combination of statistical regression models and crop models to estimate the crop yield. For example, Everingham et al. [69] built one prediction model for sugarcane yield by incorporating the biomass simulated by the crop model and several climate indices into the RF algorithm and obtained a high accuracy. Similarly, Feng et al. [32] conducted the study on the yield prediction for wheat in South-Eastern Australia through combining the APSIM model and RF model, obtaining a high accuracy (r = 0.87, RMSE = 640 kg ha−1). In this study, we developed a hybrid model for the yield prediction of the wheat coupling crop model and several statistical regression models. The yield prediction model based on the crop model and RF algorithm outperformed the yield prediction model based on the crop model and other regression algorithms (MLR and LGB), with r of 0.86 and RMSE of 683 kgha−1. The precision of the study was similar to the related study [32]. This may be because that RF algorithm has a strong ability of data processing, which improved the accuracy and robustness of the yield prediction based on the RF algorithm [70,71,72].
Global climate change has a significant impact on social economy and the natural environment, especially on agricultural production [73,74,75,76,77,78,79,80]. Different crops have different demands for climate resources, and more or less, climate resources are not conducive to crop growth and development [81,82]. As compared with extreme climate events, mean climate conditions generally made more contributions to the variations of wheat growth in the NCP [83]. The climate suitability can be used to estimate the sensitivity of crops to climate factors, such as mean temperature, precipitation, and sunshine, and there is a certain correlation between climate suitability and climatic yield [84,85]. Climate suitability can further explore the information reflected by the mean climate conditions, though the crop model can simulate the effects of the mean climate conditions on crop growth to some extent. In this study, the climate suitability indices (TS, SS, and PS) played an important role in predicting the final yield of wheat, which generally ranked high in the models for every prediction event (Figure 8). The roles of climate suitability indices in the prediction model should not be ignored.
Extreme temperature events have a negative influence on crop growth and yield formation, which could cause crop yield loss [2,86,87,88]. The low-temperature events before flowering and high-temperature events after flowering are two major extreme temperature events affecting winter wheat [89,90]. Xiao et al. [91] found that there was the greatest frost duration and intensity in the NCP, which suffered the largest yield losses due to spring frost events. Warm temperatures can improve the growth of crops before the temperature reaches the threshold, but yields will abruptly diminish subsequently [92,93]. Around flowering or the grain filling period, extreme high temperature could affect pollination, reduce male fertility, and the efficiency of grain yield, and a large yield loss would be caused by continuous heat stress [94,95,96,97]. Bai et al. [98] found that heat stress after flowering significantly negative impacts wheat production in the NCP, while the wheat yield might have a higher frequency of exposure to extreme high-temperature stress in the future. The findings of the study showed that FD at FIF ranked high for the middle prediction events (FIF and FS), while HCD at SM ranked first in the climate indices for the late prediction events (Figure 8). Low-temperature events before flowering and heat stress after flowering are the main natural disasters affecting wheat growth in the NCP [90,99]. It is of great significance to take appropriate measures to alleviate the negative effects of these disasters on crops.
Drought is also closely correlated to agricultural production [100,101,102,103]. In this study, the rank of SDII related to water stress was consistently high for all prediction events, indicating that water stress has a significant impact on wheat yield in the North China Plain. Water stress can affect the coupling mechanism of environmental driving factors and crop yield, while it is difficult to achieve the acceptable yield prediction in the rainfed system [61]. The predicted yield for the sites under rainfed conditions would be overestimated due to the water stress, while irrigation can effectively reduce the effect of drought on the crop yield and increase the accuracy of the crop yield prediction [62,83]. In the study, the predicted yield for the sites in the rainfed system was overestimated, while the MAE of the predicted yield for the sites under the irrigated condition was significantly lower than that of the sites in the rainfed system (Figure 6 and Figure 7). More predictive variables may need to be incorporated into the hybrid model to improve the performance of the model under irrigated conditions.
There are still some uncertainties and limitations in our study. The RF model is more dependent on data. Sufficient data samples are conducive to improving the accuracy and robustness of the model, while the lack of training samples may lead to overfitting and increase the uncertainty of the model [104]. The data processing ability of machine learning algorithms can fully function by obtaining more yield samples, while the performance of the model can be improved further. Furthermore, the model developed in this study is limited to the yield prediction at the site scale, which is difficult to be applied in a large-scale region. Lobell et al. [105] developed a scalable satellite-based crop yield mapper (SCYM) based on satellite images and crop models, which successfully explained 35% of the maize yield variation and 32% of the soybean yield variation in the study area. In the future, we can incorporate the SCYM model into the hybrid model to predict the crop yield at a large-scale region. This is a study direction with great development potential.

5. Conclusions

Based on the APSIM-simulated AB, climate indices at different growth stages, and statistical regression algorithms, we developed a hybrid model to predict wheat yields in the NCP. The results showed that the prediction model based on machine learning algorithms outperformed the prediction models using MLR regression, especially the RF algorithm. The performances of the yield prediction models improved gradually with the development of crop growth. A higher precision and longer lead time were taken into consideration for the prediction of the yield at FS. The FS can be regarded as the optimal period, providing the acceptable performance of yield prediction and about one month lead time. Moreover, the accuracy of the predicted yield for the irrigated sites was higher than that for the rainfed sites. The APSIM-simulated AB dominated the last three prediction events, with the importance above 30%. The climate suitability indices played an important role in predicting the wheat yield, with high rankings for every prediction event. Among extreme climate events, the low temperature events before flowering, high temperature events after flowering, and water stress were major extreme climate events affecting the winter wheat yield.
In general, the hybrid model can be used to predict the wheat yield under both rainfed and irrigated conditions in the NCP. This model is helpful in developing adaptation strategies to alleviate the negative effects of climate change on crop productivity and improve agricultural risk management. Nevertheless, the hybrid model is dependent on the quantity and quality of the data samples. Furthermore, the model developed in this study is limited in the yield prediction at the large-scale region. In the next study, we can incorporate the SCYM model into the hybrid model to predict crop yield at large-scale regions.

Author Contributions

Conceptualization, D.X.; methodology and data analysis, Y.Z.; writing—original draft preparation, Y.Z.; and writing—review and editing, D.X., H.B., J.T., D.L.L., Y.Q. and Y.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research and the APC were funded by a grant from the Hebei Provincial Science Foundation for Distinguished Young Scholars (No. D2022205010), the National Natural Science Foundation of China (No. 41901128), the High-level Talents Training and Subsidy Project of Hebei Academy of Science (2022G04), and the Technology Program of Hebei Academy of Sciences (22102).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
