Appropriate Soil Fertilization or Drone-Based Foliar Zn Spraying Can Simultaneously Improve Yield and Micronutrient (Particularly for Zn) Nutritional Quality of Wheat Grains

by
Xue Gao
1,
Qiang Zhao
2,3,
Nuo Yuan
3,4,
Xiaojing Li
3,
Bin Zhang
3,5,
Yinghua Zhu
2,
Lingan Kong
3,5,
Zhaohui Wang
6,7,* and
Haiyong Xia
2,3,4,5,6,*
1
Institute of Agricultural Resources and Environment, State Key Laboratory of Barley and Yak Germplasm Resources and Genetic Improvement, Xizang Academy of Agricultural and Animal Husbandry Sciences, Lhasa 850002, China
2
School of Agronomy, Anhui Agricultural University, Hefei 230036, China
3
Crop Research Institute, National Engineering Research Center of Wheat and Maize/Shandong Technology Innovation Center of Wheat, Shandong Academy of Agricultural Sciences, Jinan 250100, China
4
School of Agriculture, Ludong University, Yantai 264025, China
5
State Key Laboratory of Nutrient Use and Management, Shandong Academy of Agricultural Sciences, Jinan 250100, China
6
State Key Laboratory for Crop Stress Resistance and High-Efficiency Production, Northwest A&F University, Yangling 712100, China
7
College of Natural Resources and Environment, Northwest A&F University, Yangling 712100, China
*
Authors to whom correspondence should be addressed.
Agriculture 2024, 14(9), 1530; https://doi.org/10.3390/agriculture14091530
Submission received: 8 August 2024 / Revised: 30 August 2024 / Accepted: 3 September 2024 / Published: 5 September 2024
(This article belongs to the Special Issue Research on Technologies for Achieving High-Yield Wheat)
Browse Figures
Versions Notes

Abstract

:
To better understand the effects of agronomic practices on yield–nutrition relationships in wheat (Triticum aestivum L.) grains for Zn biofortification while improving yields simultaneously, effects of different soil fertilization and different drone-based foliar spraying treatments were investigated in calcareous soils. For soil fertilization, the incorporation of Zn or increasing the N/P ratio in compound fertilizers proved to be effective in enhancing grain Zn concentrations and yields. However, the overall effects of soil fertilization are limited, with a maximal yield increase of only 7.0% and a maximal increase of the grain Zn concentration from 19.4 to 27.0 mg/kg, which is far below the target biofortification value of 40–50 mg/kg. Unfortunately, there was a negative side effect, which decreased Fe and Mn concentrations and the Fe bioavailability. Notably, drone-based foliar Zn sprayings increased grain yields from the control 7.5 t/ha to 8.6 t/ha at ZnO treatment by 12.0% and 8.8 t/ha at ZnSO4·7H2O treatment by 17.3%. Meanwhile, grain Zn concentrations were increased from the control 33.5 mg/kg to 41.9 mg/kg at ZnO treatment by 25.1% and 43.6 mg/kg at ZnSO4·7H2O treatment by 30.1%. Treatments with ZnSO4·7H2O increased grain Zn concentrations and accumulation more so than ZnO, indicating the importance of chemical Zn forms in determining the effectiveness of foliar spraying. Moreover, foliar Zn sprayings simultaneously increased grain concentrations and accumulation of Fe, Mn and Cu, demonstrating multiple benefits. There were positive correlations between Zn and Fe, Mn or Cu, indicating synergistic interactions. Compared to micronutrients, concentrations of grain macronutrients (N, P, K, Ca and Mg) were less affected. Thus, a dual-benefit in both grain yields and micronutrient (particularly for Zn) nutrition could be effectively achieved through appropriate soil fertilization and foliar Zn spraying. These findings provide a better understanding of the yield–nutrition relationship among wheat grain yields, Zn and other nutrient elements for a better integrated manipulation to achieve a win–win situation in yield and nutrition.

1. Introduction

Wheat (Triticum aestivum L.), as one of the world’s important food crops, accounts for about one-third of human daily food demand [1,2,3]. Facing the challenge of continuous population growth, undoubtedly, much more wheat production is required to satisfy the increasing demand [4,5]. To date, the Guinness World Record for the highest wheat grain yield is 17.95 t/ha [6]. However, large yield gaps, i.e., the difference between the practical farmers’ yields achieved in large areas and the potential highest yields that can be achieved by using the best soil-crop management practices with the best adapted cultivar, exist in in many regions of the world [7]. For example, the average wheat grain yield of China in 2023 is only 5.83 t/ha [8]. Zinc (Zn) is an essential micronutrient for wheat growth and human health [9]. However, the wheat grain generally contains low Zn, which cannot meet the daily nutrition requirement of our human body [10]. Chen et al. [11] investigated wheat grain Zn concentrations in seven major wheat production provinces of China, and found an average of only 23.3 mg/kg, which is far below the recommended target biofortification value of 40–50 mg/kg [12]. Therefore, while wheat grain yield needs to increase, it must simultaneously increase its Zn concentration to achieve both food and nutritional security.
Unfortunately, negative yield–nutrition trade-offs in wheat grains were frequently reported. High-yielding wheat cultivars generally had low gluten/protein concentrations [13], and wheat lines with low phytate, an antinutritional compound that reduces grain Zn bioavailability, always went along with low grain yields [14]. With the increase in the year of wheat variety release from 1838 to 2012 in the UK, concentrations of Zn, iron (Fe) and protein in grains were all unintentionally decreased, indicating that modern wheat varieties with higher yields than old ones have lower grain nutritional quality in minerals [15,16]. Thus, the “Green Revolution” was actually constrained by the yield–nutrition “dilution effect” [17,18,19], and simultaneously achieving high yield and high grain nutritional quality was an unavoidable dilemma and challenge for wheat breeders [20,21]. Actually, the “dilution effect” was reported to be mainly attributed to wheat breeding, but seldom due to agronomic management practices, which were rarely considered in the above-mentioned studies [22]. Whether agronomic practices, e.g., fertilization, can effectively overcome the yield–nutrition dilution effect or not is an emerging important question worthy to be answered [23,24].
Increasing Zn supply via soil fertilization and/or foliar spraying could effectively correct or prevent the symptomatic occurrence of Zn deficiency, ensure sufficient Zn uptake by wheat, and improve grain yields and Zn concentrations, particularly in calcareous soils with high pH, and low soil organic matter and moisture [10]. Notably, many previous studies have shown that foliar Zn spraying is much more effective and much more economically efficient (low dose) than soil Zn application in increasing Zn concentration and bioavailability in the wheat flour/grain [23]. In the HarvestZinc international study involving seven countries (China, India, Kazakhstan, Mexico, Pakistan, Turkey, and Zambia), 23 experimental sites, 10 different wheat varieties, and three years, the grain Zn concentration was increased by an average of 83.5%, achieved by foliar Zn spraying, and by only 12.0% by soil Zn application [25]. Numerous studies have shown that increasing nitrogen (N) supply moderately (not excessively) increases wheat grain yields, as well as improving grain Zn and N concentrations, i.e., the “N-Zn synergism”, but the input of phosphorus (P) fertilizer generally reduces crop grain Zn concentrations, being termed the “P-Zn” antagonism [12,23,26].
Therefore, the optimized N and P fertilizers, in combination with appropriate soil and foliar Zn applications, may act as a dual-benefit strategy to simultaneously achieve high wheat grain yields and high grain Zn concentrations/bioavailability [23]. However, most previous researches have focused on the dose effects of a single element (N, P, or Zn), but less on their chemical forms and the integration or interactions among these elements, and most studies on foliar Zn spraying were conducted using small watering cans or knapsack sprayers with high labor costs and low efficiency, resulting in a clear separation between the experimental treatments and the farmers’ practices [12]. There is a lack of research on compound, slow/controlled release, and organic/microbial fertilizers, and water and fertilizer integration technology adopted by farmers, and a lack of research on the development of new types of highly efficient foliar Zn fertilizers and foliar spraying techniques using modern agricultural drones.
In addition to Zn, other micronutrients, including Fe, manganese (Mn) and copper (Cu), and macronutrients, including N, P, potassium (K), calcium (Ca) and magnesium (Mg), are also essential nutrient elements determining wheat grain yields and nutritional quality and human dietary health [22,27,28,29,30]. Most studies on wheat grain Zn biofortification focus on only a few of these mineral nutrients (no more than three in most situations), but less on the whole suite of these elements in wheat grains. Thus, there is a lack of systematic understanding on effects of different crop management practices on the changes of these micro- and macro-nutrients in wheat grains, their cross-talks among each other and relationships with grain yields.
In this study, we changed the component ratio of N, P2O5, K2O and micronutrients in compound fertilizers through increasing N or micronutrients and decreasing P in the soil fertilization experiment; we sprayed foliar solutions with different chemical forms of Zn using an agricultural drone, and investigated their effects on the following: (1) Wheat grain yields, yield components and other agronomic parameters, including the plant height (PH), spike length (SL), spike number (SN), kernel number per spike (KNPS), thousand kernel weight (TKW), grain yield (Y), and harvest index (HI). (2) Concentrations and accumulation of grain micronutrients (Zn, Fe, Mn and Cu). (3) Changes in grain macronutrients (N, P, K, Ca and Mg). (4) Relationships among the agronomic and nutritional traits across different soil fertilization or foliar spraying treatments. The bioavailability of Zn and Fe, estimated by molar ratios of phytic acid (PA)/Zn, PA × Ca/Zn, PA/Fe and PA × Ca/Fe in wheat grains in the soil fertilization experiment was also investigated. These findings would provide a better understanding of the yield–nutrition relationship among agronomic practices, wheat yields and grain nutritional qualities to achieve food security in quantity and quality, and the biofortification of wheat grains with micronutrients (especially for Zn) to alleviate malnutrition.

2. Materials and Methods

2.1. Study Site

Field experiments were conducted at two sites and for two years during the wheat growing season from October to June in a rotation system of winter wheat–summer maize. The soil fertilization experiment was conducted at Jiyang Experimental Station, Shandong Academy of Agricultural Sciences, Jinan, China, during 2020–2021. The foliar spraying experiment was conducted at Liuyuan planting base, Maifeng Wheat Planting Professional Cooperative in Dongming County, Heze, China, during 2022–2023. The two sites are located in the west of Shandong Province of China; the area has a typical continental and warm-temperate monsoon climate, with a cold and dry spring and winter, and a hot and rainy summer. The annual mean temperature is 12.0–14.0 °C, and the annual frost-free period is 195–220 days. The annual precipitation is 500–700 mm, with 70% rainfall occurring during June–September. Detailed geographic coordinates and soil basal properties (0–20 cm) of the two experimental sites before wheat sowing are presented in Table 1.

2.2. Experimental Design and Crop Management

For the soil fertilization experiment, the single-factor randomized block design was applied with 5 treatments and 4 replicates. Corresponding to five treatments, five different compound fertilizers, (N-P2O5-K2O 15-15-15 as a control, 15-15-15+Micronutrient, 17-17-17, 26-10-15 and 30-10-11, Stanley Agricultural Group Co., Ltd., Linshu, China), were evenly broadcasted and incorporated into the soil layer of the upper 20 cm prior to wheat sowing, respectively, with a quantity of 750 kg·ha−1. The planting area of each treatment was 400 m2 (10 m × 40 m).
For the foliar spraying experiment, the single-factor randomized block design was applied with 3 treatments (Table 2) and 3 replicates. These three treatments included the following: (1) Spraying of deionized water as a control (CK). (2) Spraying of a mixed solution with deionized water and ZnO (2.0%, w/v). (3) Spraying of a mixed solution with deionized water and ZnSO4·7H2O (2.0%, w/v), labeled Zn. All solutions contained 0.01% (v/v) TWEEN 20 as a surfactant, and each time a dosage of 10 L/ha was sprayed to the area of 660 m2 (44 m × 15 m) for each treatment using an agricultural drone (DJI AGRAS T40, DJI Agriculture, Shenzhen, China). All foliar spraying treatments were conducted three times. The spraying occurred for the first time 5 days after wheat flowering on May 8, and was repeated on May 17 and May 23, respectively, at 6–9 day intervals (Table 2).
For the foliar spraying experiment, the soil fertilization prior to wheat planting was the same as in the control treatment of the soil fertilization experiment. In addition, for each treatment of the two above-mentioned experiments, a 112.5 kg N/ha (supplied as urea) was top-dressed with irrigation/rainfall during the regreening–jointing period. Winter wheat (Triticum aestivum L.) variety “Jimai 22” was sown around 20 October in autumn and harvested around 10 June in the following year. All plots were adequately irrigated and no obvious biotic (weeds, pests, disease, etc.) and abiotic (drought, cold damage, etc.) stress was observed during the wheat growing season. To control aphids, omethoate (2-dimethoxyphosphinoylthio-N-methylacetamide) was sprayed at the booting stage, and no fungicides were applied.

2.3. Plant Sampling and Nutrient Analysis

At maturity, a 1 m2 area of spikes in each plot of the two experiments was manually harvested to determine the wheat grain yield and yield components (SN: spike number, KNPS: kernel number per spike, and TKW: thousand kernel weight). In addition, 10 random plants of each plot were used to determine the average above-ground plant height (PH) and spike length (SL).
After determination of the grain yield and yield components, grain samples were rapidly washed with deionized water, oven-dried at 65 °C for 72 h until constant weight, and then ground with a stainless steel grinder. Sub-samples after ground were digested with HNO3-H2O2 in a microwave-accelerated reaction system (CEM Corp., Matthews, NC, USA). Concentrations of Zn, Fe, Mn, Cu, P, K, Ca and Mg in digested solutions were determined by inductively coupled plasma optical emission spectroscopy (ICP-OES, AvioTM 200, PerkinElmer, Waltham, MA, USA). A certified reference grain material (IPE556, Wageningen University) and two blanks were included in each digestion batch, to ensure the analytical quality. The grain N concentration was determined by the H2SO4-H2O2 digestion–micro-Kjeldahl method. Phytate-P concentration was determined by the method of Haug and Lantzsch [31], and converted to PA by dividing by 0.282. The molar ratios of PA/Zn, PA × Ca/Zn, PA/Fe and PA × Ca/Fe were calculated to estimate the bioavailability of Zn and Fe in wheat grains. Grain acquisition or accumulation of each nutrient was calculated by the nutrient concentration in the grain × grain yield.

2.4. Statistical Analysis

Data from the single-factor randomized block design experiments were subjected to one-way analysis of variance (ANOVA) using The SAS System for Windows V8 (SAS Institute Inc., Cary, NC, USA), and the mean value was compared according to Fisher’s protected least significant difference (LSD, p ≤ 0.05). Pearson’s correlation analysis and principal component analysis (PCA) were performed by OriginPro 2021 (OriginLab Corp., Northampton, MA, USA).

3. Results

3.1. Grain Yields, Yield Components and Other Agronomic Traits

Soil fertilization had non-significant impacts on plant height, spike number and thousand kernel weight (Table 3). Among different soil fertilization treatments, the spike lengths varied from 6.5 to 7.3 cm, and were in the order of “30-10-11” > “26-10-15” > “17-17-17” > “15-15-15+Micronutrient” > the control treatment. The treatment of 15-15-15+Micronutrient had the lowest kernel number per spike, which was significantly lower than 17-17-17, which had the maximum value. The grain yield was significantly increased from 7.1 t/ha in the control treatment to 7.4–7.6 t/ha in other soil fertilization treatments, with increases of 4.2–7.0%. Compared to the control treatment, only the treatment of 26-10-15 decreased the harvest index significantly (Table 3).
Among all agronomic traits, significant effects of foliar spraying treatments were observed on the thousand kernel weight and grain yield. Foliar spraying of Zn-containing fertilizers significantly increased the thousand kernel weight, from 43.9 g in the control to 45.7 g at ZnO treatment (by 4.1%) and 46.2 g at ZnSO4·7H2O treatment (by 5.2%), and significantly increased the yield from 7.5 to 8.6 t/ha at ZnO treatment (by 14.7%), and 8.8 t/ha at ZnSO4·7H2O treatment (by 17.3%) (Table 3).

3.2. Grain Nutrient Concentrations and Acquisition

For the soil fertilization experiment, the grain Zn concentration increased from 19.9 mg/kg in the control treatment to 23.5 mg/kg (by 18.1%) in 15-15-15+Micronutrient, to 22.5 mg/kg (by 13.1%) in 26-10-15, and to 27.0 mg/kg (by 35.7%) in 30-10-11 (Table 4). There were significant differences between treatments of control or 17-17-17 and 30-10-11. Similar trends occurred in grain Zn acquisition, and grain Cu concentrations and acquisition. Compared to the control, the grain Fe concentrations were significantly reduced by treatments of 26-10-15 and 30-10-11, and the grain Mn concentration was significantly reduced by 26-10-15. However, no significant differences in grain Fe and Mn acquisition were found between the control and other treatments (Table 4).
Compared to grain micronutrients, the concentrations and acquisition of grain macronutrients (N, P, K, Ca and Mg) were less affected by different compound fertilizers. Significant differences were observed between the treatments of 17-17-17 or 26-10-15 and 30-10-11 only in grain Mg concentrations, and between the control treatment and 26-10-15 only in grain P acquisition (Table 4).
For the foliar spraying experiment, concentrations and acquisition of grain micronutrients (Zn, Fe, Mn, and Cu) in treatments of foliar spraying with Zn (ZnO or ZnSO4·7H2O) were all significantly higher than those in the control treatment (Table 5). Grain Zn, Fe, Mn, and Cu concentrations were significantly increased from 33.5 mg/kg to 41.9 mg/kg (by 25.1%) and 43.6 mg/kg (by 30.1%), from 25.9 mg/kg to 28.3 mg/kg (by 9.3%) and 29.0 mg/kg (by 12.0%), from 13.3 mg/kg to 15.9 mg/kg (by 19.5%) and 14.4 mg/kg (by 8.3%), and from 4.5 mg/kg to 4.8 mg/kg (by 6.7%) and 5.4 mg/kg (by 20.0%), respectively, with highest values found in the treatment with ZnSO4·7H2O (except for Mn). Moreover, significant differences were found in grain Zn, Mn and Cu concentrations between the foliar spraying treatments of ZnO and ZnSO4·7H2O. Correspondingly, the grain Zn, Fe, Mn, and Cu acquisition were significantly increased by 42.9% and 51.9%, by 24.7% and 30.7%, by 36.7% and 26.8%, and by 22.6% and 40.4%, respectively, with maximum values noticed in the treatment of ZnSO4·7H2O (except for Mn). Significant differences in grain Fe, Mn and Cu acquisition were found between the foliar spraying treatments of ZnO and ZnSO4·7H2O (Table 5).
Compared with the control, both foliar spraying treatments of ZnO and ZnSO4·7H2O did not lead to significant changes in grain P, K, Ca, and Mg concentrations, but were associated with significantly higher grain P, K, Ca and Mg acquisition in most situations, with highest values observed in the treatment of ZnSO4·7H2O (Table 5).

3.3. Concentrations of Phytic Acid and Phytate-P, Phytate–P/P Ratios, and Molar Ratios of PA/Zn, PA × Ca/Zn, PA/Fe and PA × Ca/Fe in Wheat Grains

Variations in compound fertilizers had non-significant impacts on concentrations of phytic acid and phytate-P, and ratios of phytate-P/P (Table 6). Molar ratios of PA/Zn and PA × Ca/Zn decreased from 40.2 and 46.5 in treatments of control and 17-17-17 to 33.5–38.4 in other treatments, and from 327.1 and 394.7 to 278.5–307.6, respectively. Both treatments of 15-15-15+Micronutrient and 30-10-11 had significantly lower PA/Zn and PA × Ca/Zn molar ratios than 17-17-17. In addition, the molar ratio of PA × Ca/Zn in the treatment of 26-10-15 was also significantly lower than that of 17-17-17 (Table 6). Compared with the control treatment, PA/Fe and PA × Ca/Fe molar ratios were all significantly increased by the treatment of 26-10-15, and the PA/Fe molar ratio was also significantly increased, by 30-10-11. There were no significant differences in molar ratios of PA/Fe and PA × Ca/Fe between treatments of control and 15-15-15+Micronutrient or among treatments of 17-17-17, 26-10-15 and 30-10-11 (Table 6).

3.4. Principle Component Analysis (PCA) of Various Wheat Parameters as Affected by Soil Fertilization and Foliar Spraying

The principle component analysis revealed the data distribution in the soil fertilization experiment (Figure 1a), in the foliar spraying experiment (Figure 1b), and across these two experiments (Figure 1c). It demonstrated a better visualization of the relationships and great variations present among all the investigated parameters and among different treatments performed on wheat (Figure 1; Table S1). Two principal components (PCs) accounted for 46.3% (PC1-24.6%, PC2-21.7%) of the total variance of all data in the soil fertilization experiment (Figure 1a), 67.1% (PC1-47.7%, PC2-19.4%) of the total variance of all data in the foliar spraying experiment (Figure 1b), and 66.2% (PC1-55.0%, PC2-11.2%) of all data across these two experiments. There were clear separations in data distribution areas among five soil fertilization treatments (Figure 1a), among three foliar spraying treatments (Figure 1b), and, especially, between the two ways of fertilizer applications (Figure 1c).

3.5. Relationships among Wheat Grain Yield Traits and Nutritional Quality-Related Parameters

Across all data in the soil fertilization experiment, SN was positively correlated with grain yield, but negatively correlated with TKW (Figure 2a). There were significantly positive correlations between PH and SL, and between KNPS and HI. Both the grain yield and SN were negatively correlated with grain Cu concentration. In addition, the grain yield and SN were negatively correlated with grain Mn concentration and grain Zn concentration, respectively. Significantly positive correlations were found between PH and grain K concentration, between SN and the molar ratio of PA/Zn or PA × Ca/Zn, and between HI and grain Ca concentration (Figure 2a).
Grain concentrations of Zn, Mn, Ca, and Mg were all positively correlated with Cu, and Zn was positively correlated with Mg. Both Zn and Cu were negatively correlated with molar ratios of PA/Zn and PA × Ca/Zn, and Fe was negatively correlated with molar ratios of PA/Fe and PA × Ca/Fe (Figure 2a).
For N and Mg, they were all negatively correlated with PA/Zn and PA × Ca/Zn molar ratios. For P, K, Ca and Mg, there were positive correlations among each other (with the exception of K and Ca). In addition, Ca was positively correlated with phytate-P and the PA × Ca/Fe molar ratio. There were significantly positive correlations among grain phytate-P concentrations, phytate-P/P ratios, and molar ratios of PA/Fe and PA × Ca/Fe (Figure 2a).
Considering all data in the foliar spraying experiment, all significant correlations observed between two different parameters were positive, and there were no significantly negative correlations (Figure 2b). Among parameters of the grain yield, SN, TKW, and grain concentrations of Zn, Fe and Cu, any two of them (with an exception of the grain yield and SN) were positively correlated with each other. The HI was positively correlated with SN and grain Zn and Fe concentrations. The grain Mn concentration was positively correlated with PH and grain Zn and Fe concentrations. There was a significantly positive correlation between grain concentrations of Cu and Ca (Figure 2b).

4. Discussion

4.1. Appropriate Soil Fertilization Can Simultaneously Increase Wheat Grain Yields While Improving Grain Zn Nutritional Quality, but the Overall Effect Is Limited

Previous studies reported Zn concentrations in wheat grains increased with moderate Zn or N fertilizers [13,32] but decreased with P fertilizer [33,34,35,36]. And both the phenomena of “N-Zn synergism” and “P-Zn antagonism” and underlying mechanisms have been well established and also summarized in several of the latest review papers published [12,23,37,38]. Consistent with previous research, our study found that the incorporation of Zn or increasing the N/P ratio in compound fertilizers proved to be effective in enhancing wheat grain yields and grain Zn concentrations in the tested calcareous soil (Table 3 and Table 4).
Regarding the addition of Zn into compound fertilizers, previous research also indicated that the biofortification effect of Zn in compound fertilizers was not interfered with by other component elements [39]. Liu et al. [40] found that Zn application to soil at 50 kg ZnSO4·7H2O/ha increased the wheat grain yield by 8.8%, which was due to the improvement of thousand kernel weight and tiller number. In the current study, compared to the control, an increase of 5.6% of wheat grain yield was achieved by addition of micronutrient into the compound fertilizer, possibly due to the slight increase in spike number (Table 3).
However, here, the overall effects of Zn addition or changing the composition ratio of N-P2O5-K2O in compound fertilizers are limited, with a maximal increase of the wheat yield by only 7.0%, and a maximal increase of the grain Zn concentration from 19.4 to 27.0 mg/kg, which is far below the target value of 40–50 mg/kg for biofortification. Moreover, there may be a negative side effect, which decreased grain Fe and Mn concentrations, and Fe bioavailability (Table 6). The limited effect of soil fertilization was possibly due to the relatively low DTPA-Zn (only 1.7 mg/kg prior to sowing) in the experimental soil and insufficient Zn addition to the compound fertilizer. Liu et al. [40] showed that when the DTPA-Zn in the typical calcareous soil of North China Plain exceeded 4.09 mg/kg after Zn fertilizer application, a 45 mg/kg of wheat grain Zn concentration can be achieved, and is within the range of the target biofortification value of 40–50 mg/kg.

4.2. Foliar Zn Spraying Using Agricultural Drones Is a Highly Efficient Approach to Biofortify Wheat Grains with Zn While Enhancing Grain Yields, Thus Showing Great Potential to Be Adopted in Large Areas by Farmers

Most studies showing significant effects of foliar Zn treatments in increasing wheat grain Zn concentrations/bioavailability with respect to the target biofortification value were conducted using small watering cans in pot/plot experiments or using knapsack sprayers in a larger field area [10,13,23,41]. However, primarily due to the low work efficiency and high labor costs, such foliar spraying methods aiming at Zn biofortification are not conducive to being adopted by farmers, thus inevitably hindering the wide promotion of foliar Zn spraying in large areas. Our study innovated a highly efficient way of conducting the foliar Zn spraying on wheat plants, i.e., using an agricultural drone (e.g., DJI AGRAS T40, DJI Agriculture, Shenzhen, China) in combination with the suitable Zn spraying-solution concentration, which greatly saves labor, improves work efficiency, and achieves the target biofortification value of grain Zn, simultaneously.
Promisingly, the wheat grain yield was increased from the control 7.5 t/ha to 8.6 t/ha at ZnO treatment (by 12.0%) and 8.8 t/ha at ZnSO4·7H2O treatment (by 17.3%). Meanwhile, the grain Zn concentration was increased from the control 33.5 mg/kg to 41.9 mg/kg at ZnO treatment (by 25.1%) and 43.6 mg/kg at ZnSO4·7H2O treatment (by 30.1%), indicating a dual benefit in both yield and nutrition (Table 3 and Table 5). The yield increase caused by foliar Zn spraying has been observed under drought, even in a soil condition with high DTPA-Zn [42]. The exogenous foliar Zn supply may supplement the Zn demand of wheat due to the drought-induced insufficient Zn uptake from the soil, and simultaneously reduce the drought-induced oxidative cell damage by improving the antioxidative defense ability [43]. Our study demonstrated that the yield increase was mainly due to the increased thousand kernel weight, and there was a significantly positive correlation between the wheat grain yield and TKW (Table 3; Figure 2b).
In agreement with other studies [41,44,45,46] and our previous study [13], foliar Zn applications significantly increased Zn concentrations, as well as total Zn accumulation, in wheat grains (Table 5), indicating the critical role of the pool of available Zn within and on leaves in determining grain Zn deposition, especially when the Zn availability in soils (mostly calcareous or drought conditions, with low organic matter contents and moisture) is restricted during the wheat grain-filling stage [47]. The foliar-sprayed Zn could penetrate into leaves, and be transported/remobilized from leaves to wheat grains via phloem, where the mobility of Zn is high due to concentrated chelating solutes, such as organic acids, peptides, etc. [48,49,50,51,52,53,54,55,56].
When using small watering cans in pot/plot experiments or using knapsack sprayers in larger field areas, the suitable foliar Zn spraying concentrations generally fall in the range of 0.1–0.5% ZnSO4·7H2O (w/v), with a normal dose of 500–1000 L/ha each time (at least two or three times), and excessive concentrations would induce obvious foliar damage and a yield penalty [13,41,44,45]. However, in our current study, a drone-based spraying of 3 kg ZnSO4·7H2O/ha, i.e., 2.0% ZnSO4·7H2O (w/v) in water, which is four times the recommended maximal concentration of 0.5%, as known from the traditional foliar Zn spraying method, with a dose of 150 L/ha each time (three times in total), did not lead to a yield penalty, but simultaneously improved wheat grain yields and increased grain Zn concentrations to the target biofortification value of 40–50 mg/kg. In addition to the obvious characteristics of highly concentrated Zn spraying solution and low dose of water used, the drone-based spraying is highly efficient and both labor- and time-saving. Here, the work efficiency using the current model of drone (DJI AGRAS T40, DJI Agriculture, Shenzhen, China) can reach 40 ha per day. Therefore, compared with the traditional foliar Zn spraying method, the present drone-based technology showed obvious advantages and progress, updated our understanding of the manipulation of foliar Zn spraying, and would undoubtedly have great potential to be adopted in large areas by farmers in the very near future.

4.3. A Dual Benefit in Both Wheat Grain Yields and Micronutrient Nutrition, Rather Than a “Dilution Effect” on Zn Due to Yield Increase, Could Be Effectively Achieved through Appropriate Soil Fertilization and Foliar Zn Spraying

The breeder’s dilemma—yield or nutrition—arises from the negative relationship between crop yield and its nutritional quality [20,21,57]. A “dilution effect” between wheat grain micronutrient concentrations (especially for Zn) and grain yields has been observed during breeding [15,16], and such a relationship was precisely described by a negative linear correlation [22]. However, in the present study, appropriate soil fertilization by the addition of Zn or changing the component ratio of N-P2O5-K2O in compound fertilizers, and especially foliar Zn spraying, increased wheat grain yields and simultaneously elevated grain Zn concentrations, achieving a dual benefit in both yield and Zn nutrition.
Moreover, foliar Zn spraying simultaneously increased grain Fe, Mn and Cu concentrations (Table 5), demonstrating multiple benefits. There were positive correlations between Zn and Fe, Mn or Cu concentrations (Figure 2b), indicating synergistic interactions. Rakshit et al. [58] reported that foliar Fe fertilization elevated both Zn and Fe concentrations in wheat grains. Our previous study on maize also showed that foliar spraying of Zn alone increased grain Zn and Fe concentrations, simultaneously, i.e., “killing two birds with one stone” [59]. The underlying mechanisms regulating these positive crosstalks need further in-depth investigation.
There were significantly positive correlations between wheat grain yields and concentrations of Zn, Fe or Cu (Figure 2b), indicating a dual benefit in both wheat grain yields and micronutrient nutrition. Thus, our study clearly proved that the yield increase and nutrition improvement could be realized simultaneously by appropriate agronomic management practices (e.g., fertilization), suggesting the critical role of agronomic management practices on balancing the seesaw of yield–nutrition. The current study may shed light on closing the divide between more nutritious wheat grains and higher grain yields, to maximize the benefits to food security and human health [57].

4.4. Integrated Practical Strategies for Simultaneously Improving Grain Yield and Micronutrient (Particularly for Zn) Nutritional Quality

To maximize grain Zn/micronutrient nutritional quality while maintaining high wheat yield productivity, a comprehensive approach integrating soil and foliar fertilization is needed [10,22,60]. For example, compared to soil or foliar Zn application alone, a combined application resulted in an increase of 109% and 47% in the grain Zn concentration, respectively [61]. The current results indicated that soil fertilization alone is limited to increasing wheat grain yields, especially for grain Zn concentrations (Table 3 and Table 4). For instance, the maximal value of grain Zn concentrations due to soil fertilization was only 27.0 mg/kg, far below the target biofortification value of 40–50 mg/kg. On the other hand, there is a possibility of making grain Zn concentrations increase further, from the current levels of 41.9 and 43.6 mg/kg, to approach or exceed 45–50 mg/kg, if incorporating the appropriate soil fertilization (the addition of Zn and/or changing the component ratio of N-P2O5-K2O in compound fertilizers) into the foliar Zn spraying experiment. Here, we strongly suggest the integration of appropriate soil fertilization (the addition of Zn and/or moderately increasing N but decreasing P in compound fertilizers of N-P2O5-K2O) with foliar Zn spraying in farming management systems, to maximize the yield–nutrition benefits (Figure 3).

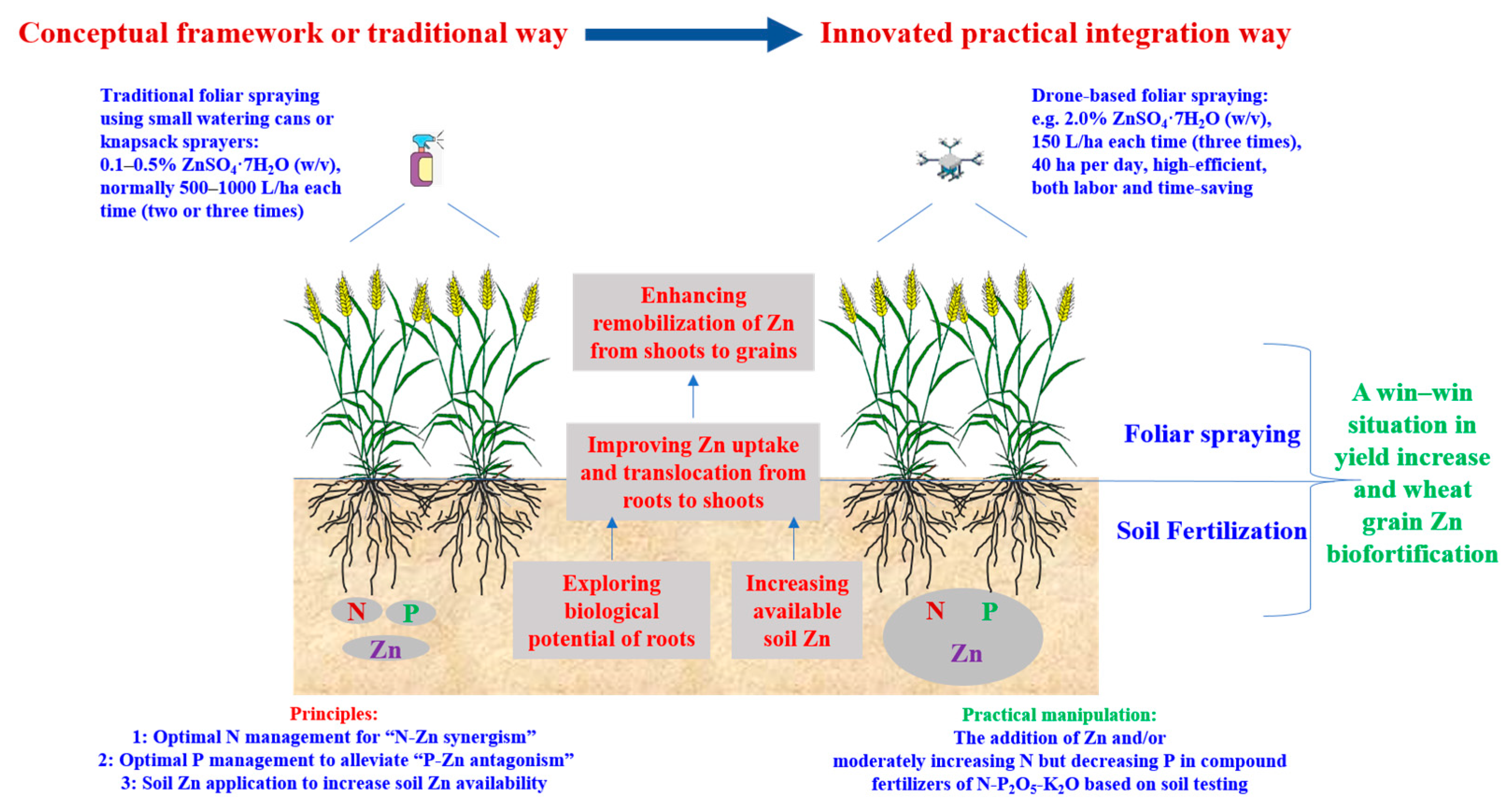

These combined measures are in accordance with the conceptual framework previously proposed by plant nutritionists for integrative strategies to attain wheat yield goal and to harvest more grain Zn [11,12,23]. In the conceptual framework for wheat grain Zn biofortification, at least three aspects should be considered and properly managed: (1) A moderate N supply to soil, to fully explore the potential of “N-Zn synergism”. (2) A slimming P supply to soil, to effectively alleviate the “P-Zn antagonism”. (3) An adequate Zn supply to soil for essential root uptake during the whole growth period of wheat, and a sufficient physiologically available Zn pool in leaves by foliar Zn spraying during the wheat grain-filling stage after anthesis (Figure 3). As farmers seldom apply Zn or P alone, the development of simple and practical integration technologies, e.g., the addition of Zn and/or tailoring the component ratio of N-P2O5-K2O in compound fertilizers based on soil testing should be easily carried out, and embraced by farmers; the drone-based technology for foliar spraying with Zn aiming at Zn biofortification, especially, would be particularly welcomed due to its high effectiveness in terms of both the labor and time saving.
Remarkably, our study showed a spraying of ZnSO4·7H2O increased the grain Zn concentration and accumulation more so than ZnO (Table 5), indicating the importance of chemical forms of Zn in determining the effectiveness of foliar Zn spraying. The ZnO nanoparticles have been proven to be more effective than ZnSO4·7H2O and/or ZnO for wheat grain Zn biofortification [46,62,63,64,65]. In addition, the spraying timing, frequency, and amounts all influenced the effectiveness of foliar Zn spraying [12,65]. However, the previous studies are mostly conducted using the spraying devices of small cans or knapsack sprayers, and there is a lack of information on using drones [65].
Our findings underscore the potential of using drones to boost wheat grain yields and Zn enrichment. Foliar spraying of a mixture of Zn and pesticide could reduce the cost, without apparent compatibility issues [66,67,68]. Plant hormones (auxin, cytokinin, abscisic acid, ethylene) may influence grain Zn accumulation of cereal crops [30,69,70,71]. To fully explore the potential and finally establish the drone-based precision and highly efficient integrated fertilization technology for wheat grain Zn biofortification, the spraying timing, frequency, chemical forms (e.g., nanoparticles), and amounts, in combination with the latest drone product (new model) and other chemical agents (pesticides, plant hormones, etc.), should be optimized and integrated further. Research has demonstrated that foliar spraying of both ZnSO4 and FeSO4 simultaneously improved grain Zn and Fe concentrations [72], and a cocktail micronutrient solution was effective for biofortifying wheat grains, simultaneously with Zn, selenium, iodine, and partly with Fe, while ensuring grain yields [73]. Therefore, it is promising to upgrade the drone-based technology from the biofortification of only Zn to the co-biofortification of multiple micronutrient elements, achieving a multi-win for better human health.

5. Conclusions

Our study proved that a dual benefit in both wheat grain yields and micronutrient nutrition, rather than a “dilution effect” on Zn due to yield increase, could be effectively achieved through appropriate fertilization management practices. Appropriate soil fertilization by moderately increasing N or micronutrients and decreasing P in compound fertilizers can simultaneously increase the wheat grain yield while improving grain Zn nutritional quality in calcareous soils, but the overall effect is limited. Foliar Zn spraying using agricultural drones is a more highly efficient approach than soil fertilization to biofortifying wheat grains with Zn while enhancing grain yields, thus showing great potential to be adopted in large areas by farmers. Here, we strongly recommend the integration of appropriate soil fertilization (the addition of Zn and/or tailoring the component ratios of N-P2O5-K2O in compound fertilizers based on soil testing) with drone-based foliar Zn spraying in farming management systems, to maximize the yield–nutrition benefits. Our current findings underscore the potential of using drones to boost wheat grain yields and Zn enrichment. In the future, it will be promising to upgrade the drone-based technology from biofortification of only Zn to co-biofortification of multiple micronutrient elements, achieving a multi-win for better human health.
