N-Doped Honeycomb-like Ag@N-Ti₃C₂T_x Foam for Electromagnetic Interference Shielding

Abstract

To solve the pollution problem of electromagnetic waves, new electromagnetic shielding materials should meet the requirements of being lightweight with high electrical conductivity. In this work, the combination of silver (Ag) nanoparticles and nitrogen doping (N-doping) was expected to tune the electromagnetic and physical properties of Ti₃C₂T_x MXene, and the Ag@N-Ti₃C₂T_x composites were fabricated through the hydrothermal reactions. The nitrogen doped (N-doped) Ag@Ti₃C₂T_x composites showed a hollow structure with a pore size of 5 μm. The influence of N-doped degrees on the electromagnetic interference (EMI) shielding performance was investigated over 8–18 GHz. Therefore, the controlled N-doping composites exhibited reflection-based EMI shielding performance due to the electrical conductivity and the special three-dimensional (3D) honeycomb-like structure. The achieved average EMI shielding values were 52.38 dB at the X-band and 72.72 dB at the K_u-band. Overall, the Ag@N-Ti₃C₂T_x foam, due to its special 3D honeycomb-like structure, not only meets the characteristics of light weight, but also exhibits ultra-high-efficiency EMI shielding performance, revealing great prospects in the application of electromagnetic wave shielding field.

1. Introduction

The development of telecommunication and portable electronic devices plays an important role in civilian and military applications; on the other hand, it has also been issued to cause serious electromagnetic interference problems. It may even threaten the human health. Hence, it is an urgent task to explore lightweight, efficient and environmentally friendly electromagnetic interference shielding materials to solve this kind of problem [1,2,3,4].

Traditionally, the efficient electromagnetic interference (EMI) shielding materials are made with intrinsic high electric conductivity or magnetics. Zeng et al. [5] synthesized Ni@carbon nanotubes (CNTs) in situ by the solvothermal method, and subsequently obtained PVDF/CNTs/Ni@CNTs composite films by solution casting and compression molding, which exhibited 51.4 dB of electromagnetic shielding performance. Younes et al. [6] coated carbon nanostructured (CNS) mats with Fe₃O₄ particles and explored its effect on electromagnetic shielding performance. Adding Fe₃O₄ to CNS mats, the electromagnetic shielding performance increased from 46.09 dB to 60.29 dB. However, due to the high density of metal and the shortcomings of easy agglomeration of carbon nanotubes, it does not meet the requirements for new electromagnetic shielding materials. Compared with traditional electromagnetic shielding materials, such as metals and carbon nanotubes, Ti₃C₂T_x shows great prospects for EMI applications owing to its super high intrinsic electrical conductivity and chemically tunable properties. The EMI shielding performance of Ti₃C₂T_x was first reported by Yury et al. [7] in 2016. They found that pure Ti₃C₂T_x film exhibited EMI effectiveness of 92 dB in the range of 8.2–12.4 GHz. The 60 wt% Ti₃C₂T_x/paraffin composites presented the EMI shielding performance of 39.1 dB [8]. However, the application of Ti₃C₂T_x in the field of electromagnetic shielding is often limited by the self-stacking effect. By fabricating the lamellar structure into a 3D structure, the self-stacking effect can be improved. Meanwhile, the transmission path of electromagnetic waves in the porous network can be increased, thus enhancing the electromagnetic wave loss [9]. When Zhang et al. [10] transferred the MXene film into MXene foam through the hydrazine-induced foaming method, the EMI shielding performance was improved from 53 dB to 70 dB. The increasing EMI shielding values were due to the high attenuation efficient of the electromagnetic wave in the three-dimensional cellular MXene foam. Wu et al. [11] prepared lightweight MXene/sodium alginate (SA) aerogel and obtained an EMI shielding performance of 70.5 dB.

These findings have prompted the exploration of MXene 3D structured composites to further enhance the intrinsic EMI shielding performance of MXene through building 3D microporous structures [12]. Based on previous work, 3D MXene based composites cannot only improve the electromagnetic shielding performance but also exhibit a good mechanical properties and high stability [13]. For example, the EMI shielding performance of 3D MXene/reduced graphene oxide (rGO)/polyurethane containing Diels-Alder bounds (PUDA) composite hardly changed after 5000 bending cycles [14]. MXene/AgNWs/Epoxy aerogel material obtained an EMI shielding performance of 94.1 dB and exhibited excellent thermal conductivity [15].

Recently, researchers reported that increasing the electrical conductivity of MXene through nitrogen doping could advance the electromagnetic absorption performance [16]. For example, a specific capacitance of Ti₃C₂T_x (201 F/g) could be increased by nitrogen doping to 340 F/g [16]. Li et al. [17] obtained −59.20 dB absorption performance of N-doped Ti₃C₂T_x at 10.56 GHz by N₂ plasma treatment method on Ti₃C₂T_x. Since the absorption loss is essential to the electromagnetic shielding performance, we intended to explore the electromagnetic shielding performance of N-doped 3D MXene based composites.

Inspired by these studies and based on our previous work [18,19], we employed a facile and stable route to fabricate a honeycomb-like N-doped Ag@Ti₃C₂T_x foam. While not destroying its microscopic morphology, high electrical conductivity can also be obtained and, at the same time, it can meet the characteristic of light weight. The uniform distribution of Ag particles and successful doping of nitrogen could significantly increase the conductivity of Ti₃C₂T_x MXene. Meanwhile, the constructed 3D cellular structure contributes to multiple reflections of electromagnetic wave in the inside channels. In terms of these effects, 3D Ag@N-Ti₃C₂T_x foam exhibited an improved electromagnetic shielding property (72.72 dB at the K_u-band). This provides a new prospect for the development of advanced EMI shielding materials.

2. Experimental

2.1. Materials

The materials used in this work were listed in

Table 1. List of materials used in this work.

Materials	Purity/Grain Size	Manufacturers
Ti3AlC2 MAX	≥99%	11 Technology Co., Ltd.
Hydrochloric acid (HCl)	36–38 wt%	Aladdin Biochemical Technology Co., Ltd.
Lithium fluoride (LiF)	≥99%	Macklin Biochemical Co., Ltd.
Polymethyl methacrylate (PMMA)	5 μm	Dongguan Kemai New Material Co., Ltd.
Ethanol	analytical reagent	Aladdin Biochemical Technology Co., Ltd.
Silver nitrate (AgNO3)	≥99.8%	Sinopharm Chemical Reagent Co. Ltd.
Sodium hydroxide (NaOH)	≥96%	Macklin Biochemical Co., Ltd.
Ammonia (N2H4·H2O)	≥98%	Aladdin Biochemical Technology Co., Ltd.

. All of them were used without further purification.

2.2. Synthesis of Honeycomb-like Ag@Ti₃C₂T_x Composites

Ti₃C₂T_x MXene suspension was prepared using the etching method as previous reported [20]. In the process of preparing honeycomb-structured Ag@Ti₃C₂T_x composites, the Ti₃C₂T_x/PMMA pellets were first fabricated by adding 0.04 g of PMMA (5 μm) into a 40-mL Ti₃C₂T_x suspension (1 mg/mL) and stirring for 1 h at room temperature. Subsequently, 0.1 M NaOH was added to the mixture until the pH value was 11. Then, 20 mL of AgNO₃ solution (1.8 mM) was gradually added and stirred for 30 min. Next, the mixture was heated in a microwave (200 W) for 1 min. Subsequently, the mixture was cooled at room temperature, washed and filtered through a microporous monolayer membrane (Celgard 3501, 11 Technology Co. Ltd. Changchun). Finally, to remove the PMMA template, the composite membrane was annealed at 400 °C for 0.5 h in an argon atmosphere, and the self-supporting honeycomb-structured Ag@Ti₃C₂T_x composites were obtained [19].

2.3. Synthesis of 3D Honeycomb-like Ag@N-Ti₃C₂T_x Foam

To investigate to effect of nitration degree on the physical property of MXene, the as-prepared honeycomb Ag@Ti₃C₂T_x samples were immersed into 40 mL of hydrazine hydrate in an oil bath at 75 °C and stirred for 0 h, 12 h, 18 h and 24 h, respectively. During this process, hydrazine hydrate decomposed into NH₃ that would replace the functional groups on the surface of Ag@Ti₃C₂T_x. The obtained suspension was centrifuged at 5000 rpm for 5 min, and this process was repeated three times. The final products of Ag@N-Ti₃C₂T_x were obtained by vacuum filtration and drying.

2.4. Characterization

The crystal structure of Ag@N-Ti₃C₂T_x composites was characterized using X-ray diffraction (XRD) coupled with Cu-Kα radiation (λ = 0.15418 nm). The scanning electron microscopy (SEM, JSM-7200F, JEOL, Tokyo) and transmission electron microscope (TEM, FEI Talos F200X, Waltham, America) were used to observe the microscopic morphologies and structures of samples. The surface chemical composition and valence states were measured using a X-ray photoelectron spectroscopy (XPS) spectrometer (Thermo Scientific Escalab 250Xi, Waltham, America). The conductivity of the composites was measured by a four-probe tester (RTS-8).

The paraffin-based Ag@N-Ti₃C₂T_x composites with a mass fraction of 50% were prepared for the evaluation of their EMI shielding performance. They were pressed into a ring shape with an inner distance of 3.04 mm and an outer diameter of 7.00 mm. The EMI shielding performance was calculated using the scattering parameters tested by the Vector network analyzer (MS46322B, Anli Co., Ltd., Kanagawa, Japan) at X-band (8–12 GHz) and K_u-band (12–18 GHz). All the formulas used for calculation of the EMI shielding performance could be found in the supporting information [21].

3. Results and Discussion

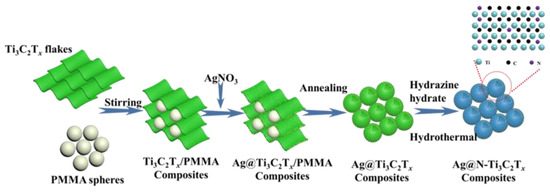

The fabrication process of the 3D honeycomb-like Ag@N-Ti₃C₂T_x foam is shown in Figure 1. Based on our previous work [18,19], the prepared honeycomb-like Ag@Ti₃C₂T_x composites were further nitrogen doped in an oil bath with hydrazine hydrate as a nitrogen source. During this process, hydrazine hydrate decomposed into NH₃ that would replace the functional groups on the surface of Ag@Ti₃C₂T_x, and the Ag@N-Ti₃C₂T_x foam was successfully prepared.

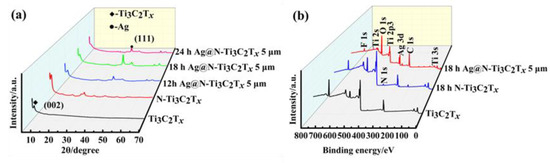

The XRD patterns of the prepared composites are shown in Figure 2a. The results showed that the (002) characteristic peak of Ti₃C₂T_x was slightly left shifted from 6.42° to 5.23°. In the N-doped treatment of Ti₃C₂T_x was further left shifted [16]. For the Ag@N-Ti₃C₂T_x composites, the peak at 38° corresponds to the (111) crystal plane of fcc Ag. The surface chemical information was recorded in the XPS spectra of Figure 2b. As shown in the survey spectra, we could detect the elemental signals of F, Ti, O, C, Ag and N from the Ag@N–Ti₃C₂T_x composites. Compared to pure Ti₃C₂T_x, the characteristic peak of N 1s at around 400 eV appears after the N-doped treatment. The reason for the appearance of N-Ti₃C₂T_x is that hydrazine hydrate decomposes to produce NH₃, and the functional groups on the surface of Ti₃C₂T_x react with NH₃ or are replaced. Thus, during the doping process, part of the NH₃ is attached to the surface of Ti₃C₂T_x to form the N-Ti₃C₂T_x. The signal of N 1s from the N-doped honeycomb-like Ag@N-Ti₃C₂T_x is weaker due to the presence of the Ag peak at 370 eV. The above results demonstrate the successful N-doping and preparation of honeycomb-like structured Ag@N-Ti₃C₂T_x composites.

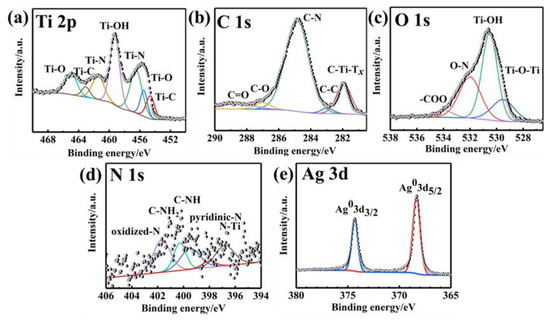

The high-resolution XPS spectra of Ti 2p, C 1s, O 1s, N 1s and Ag 3d are given in Figure 3. With the N-doping, it shows Ti-N bonds at the binding energies of 456 eV and 462 eV (Figure 3a) [16]. In Figure 3b, the peaks centered at 282 eV, 283 eV, 285 eV, 287 eV and 289 eV, corresponding to C-Ti-T_x, C-C, C-N, C-O and C=O, respectively [22]. The deconvoluted peaks of the O 1s at 530 eV, 531 eV, 532 eV and 535 eV are assigned to Ti-O-Ti, Ti-OH, O-N and -COO, respectively (Figure 3c). It can be seen that after N-doping, there were the C-N and O-N peaks [23], and the five deconvoluted peaks at 396.8 eV, 398.5 eV, 399.6 eV, 401.2 eV and 402.4 eV in the N 1s spectrum are assigned to N-Ti, pyridine-N, C-NH, C-NH₂ and oxidized-N, respectively (Figure 3d). The above analyses further indicate the successful doping of N in Ti₃C₂T_x foam. Moreover, the high resolution of Ag 3d spectrum is displayed in Figure 3e. Compared to the N-Ti₃C₂T_x composites (Figure S1), the two peaks at the binding energies of 368 eV and 374 eV, linked to the formation of Ag° 3d_3/2 and Ag° 3d_5/2, respectively, which further confirmed that the Ag particles exist in the composites.

The morphologies of N-Ti₃C₂T_x lamellae and honeycomb-like Ag@N-Ti₃C₂T_x foam were characterized by SEM, as shown in Figure 4a–e. There are wrinkles in the N-Ti₃C₂T_x, which is due to the lattice distortion caused by N-doping in the pristine Ti₃C₂T_x layer [24]. The prepared honeycomb-like Ag@Ti₃C₂T_x was nitrided in hydrazine hydrate to obtain honeycomb-like Ag@N-Ti₃C₂T_x foam, and the honeycomb-like structure was retained even after N-doping. The measured pore diameter of Ag@N-Ti₃C₂T_x composites was about 4 μm, and the diameter of an N-Ti₃C₂T_x thin shell was about 10 nm (Figure 4b–e).

To further observe the elemental distribution in the samples, an energy spectrum surface scan of N-Ti₃C₂T_x was performed. As shown in Figure 4f–i, the EDS mapping confirmed the uniform distribution of Ti, C, O and N elements in the N-Ti₃C₂T_x composite, which indicates the successful doping of N elements as well.

The microstructure of N-Ti₃C₂T_x and Ag@N-Ti₃C₂T_x foam was further characterized by TEM. As shown in Figure 5a, the N-Ti₃C₂T_x retains the flake-like structure of two-dimensional materials. The high-resolution TEM (HRTEM) image (Figure 5b) of the N-Ti₃C₂T_x composites showed the corresponding lattice fringes from (006) of Ti₃C₂T_x [25]. The SAED diagram (Figure 5c) confirms the hexagonal structure of parent Ti₃C₂T_x MXene phase was maintained in the N-Ti₃C₂T_x. In Figure 5d, the original honeycomb-like structure had not collapsed even after being N-doped, and the Ag nanoparticles were closely attached to the Ti₃C₂T_x shell (Figure 5d). The HRTEM image (Figure 5e) presents the corresponding lattice fringes of (111) of Ag and (006) of N-Ti₃C₂T_x. Figure 5f presents a variety of diffraction rings, confirming that the polycrystalline phase at the interface of the Ag and Ti₃C₂T_x and the spacing of diffraction rings correspond to the (111) of Ag and (100) (110) of Ti₃C₂T_x, respectively.

The elemental distribution on the surface of the prepared honeycomb-like structured Ag@N-Ti₃C₂T_x 5 μm was shown in Figure 5h–l. The EDS pattern confirms the coexistence of Ti, C, O, N and Ag components in Ag@N-Ti₃C₂T_x 5 μm composites, and the distribution of each element is relatively uniform, which further confirms the N doping in Ag@N-Ti₃C₂T_x composites.

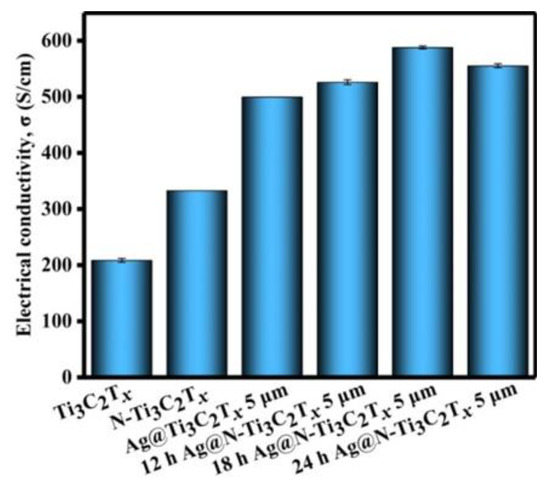

As described in the introduction, the conductivity of materials is crucial to the EMI shielding performance. We measured the electrical conductivity of the Ti₃C₂T_x, N-Ti₃C₂T_x and Ag@N-Ti₃C₂T_x with N-doping treated at varying hours (Figure 6). The N-doped Ti₃C₂T_x has an electrical conductivity of 350 S/cm, which is about 1.7 times higher than that of pure Ti₃C₂T_x. In the presence of silver particles, the electrical conductivity of the honeycomb-like Ag@Ti₃C₂T_x composites was 500 S/cm. As nitriding Ag@Ti₃C₂T_x composites for 12 h, 18 h and 24 h, the electrical conductivity of the honeycomb-like Ag@N-Ti₃C₂T_x composites was 520, 570 and 540 S/cm, respectively. This is mainly due to the great conductivity of sliver and the electron-giving effect of element N [26]. However, the silver effect was much more significant than the nitrogen doping effect. Moreover, as extra N doped into Ti₃C₂T_x, the increasing internal free electron concentrations indeed increase the conductivity of Ti₃C₂T_x nanosheets [27], the over doping of nitrogen may make the Ti₃C₂T_x oxidized and then generate TiO₂.

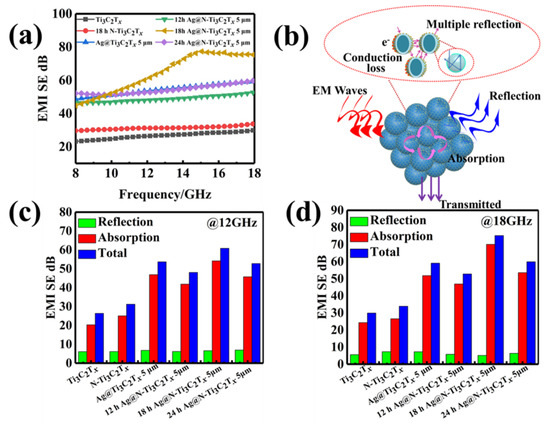

The frequency dependent EMI shielding performance of the Ag@N-Ti₃C₂T_x composites was shown in Figure 7a. The average EMI SE total of pure Ti₃C₂T_x, N-Ti₃C₂T_x and honeycomb-like structured Ag@Ti₃C₂T_x 5 μm at the X-band was 23.50 dB, 30.54 dB and 51.15 dB, respectively, while at the K_u-band, the values were 30.33 dB, 31.97 dB and 56.64 dB, respectively. With the N-doping treatment at 18 h, the average EMI SE total of the Ag@N-Ti₃C₂T_x 5 μm honeycomb-like was 52.38 dB over the X-band and 72.72 dB over the K_u-band, which was higher than other samples in the frequency range of 10–18 GHz (Figure S2b). In addition, its reflectivity was the lowest in the K_u-band compared to other absorbers (Figure S2a). This phenomenon may be due to the N-doping and the electric conductivity.

In addition, at 12 GHz the SE totals of Ti₃C₂T_x, N-Ti₃C₂T_x and 18 h Ag@N-Ti₃C₂T_x 5 μm were 26.41 dB, 31.27 dB and 60.10 dB, respectively (Figure 7c), while at 18 GHz the SE total values of Ti₃C₂T_x, N-Ti₃C₂T_x and 18 h Ag@N-Ti₃C₂T_x were 29.96 dB, 33.91 dB and 75.27 dB, respectively (Figure 7d). Overall, the 18 h Ag@N-Ti₃C₂T_x 5 μm composites exhibit the best EMI shielding performance with an average EMI SE total of 64.58 dB. The improvement in absorption loss has significantly contribution to SE_T with a negligible improvement in reflection loss.

The electromagnetic shielding mechanisms of the honeycomb-like Ag@N-Ti₃C₂T_x composite are summarized in Figure 7b. As fabricating the two-dimensional Ti₃C₂T_x into a three-dimensional honeycomb-like structure, the propagation paths of electromagnetic waves diameter increase [28]. The transmissivity of pure Ti₃C₂T_x was obviously decreased (Figure S2c). The multiple reflections of electromagnetic waves occurring in the honeycomb-like foam thus improve the electromagnetic shielding performance of Ag@N-Ti₃C₂T_x composites [29]. Moreover, the special honeycomb-like structure provides high specific surface area. The measured values for N-Ti₃C₂T_x and Ag@N-Ti₃C₂T_x are 49.89 and 67.47 m²/g, respectively, and the Ag nanoparticles distributed at the interfaces could generate the interfacial polarization relaxation loss. The charges then accumulate at these interfaces, leading to a strong interfacial polarization effect. The other factor can be attributed to the conduction loss. The conduction loss is related to the conductivity of the material. The higher the conductivity, the greater the macroscopic current caused by the carriers (including the current caused by the change in the electric field and the eddy current caused by the change of the magnetic field), which is conducive to the conversion of electromagnetic energy into heat energy. Both the introduction of Ag particles and the N-doping increase the electrical conductivity of the MXene material [26,30,31]. The increasing conductivity makes the skin depth ($\delta ={\left(\sqrt{\pi f\mu \sigma }\right)}^{-1}$) become smaller, thus, the electromagnetic wave cannot penetrate the material, and then electromagnetic shielding performance can also be improved. Hydrazine hydrate provides a reducing environment as a nitrogen source to avoid oxidation. However, the long nitriding time would lead to the generation of NH₃ gas from hydrazine hydrate and cause the Ti₃C₂T_x to be oxidized into TiO₂. The generation of TiO₂ will lead to a decrease in its own conductivity and affect the electromagnetic shielding performance of the material.

4. Conclusions

In this research, honeycomb-like Ag@N-Ti₃C₂T_x with different degrees of nitridation was prepared by using hydrazine hydride nitridation. Even after N-doping, the Ag@N-Ti₃C₂T_x composite still retained its original honeycomb-like structure in the same size. In the nitridation for 18 h, the electrical conductivity of Ag@N-Ti₃C₂T_x composites was 500 S/cm. The electromagnetic shielding performance was significantly improved by N-doping and the decoration of Ag particles. The average electromagnetic shielding performance was 52.38 dB, covering the whole X-band, and 72.72 dB over the Ku-band. The excellent electromagnetic shielding property of Ag@N-Ti₃C₂T_x composites comes from its own conductivity loss, the interfacial polarization between Ag nanoparticles and the N-Ti₃C₂T_x shell, the dipole polarization at the N dipole polarization at the defects, and multiple reflections and scatterings caused by the hollow honeycomb-like structure of the composite.
