Ordered Hierarchical Porous Structure of PtSn/3DOMM-Al2O3 Catalyst for Promoting Propane Non-Oxidative Dehydrogenation

by
Yuanqing Sun
1,†,
Bohan Feng
1,†,
Qian Lian
1,†,
Chengshu Xie
1,
Jing Xiong
1,2,*,
Weiyu Song
1,
Jian Liu
1 and
Yuechang Wei
1,2,*
1
State Key Laboratory of Heavy Oil Processing, College of Science, China University of Petroleum, Beijing 102249, China
2
Key Laboratory of Optical Detection Technology for Oil and Gas, College of Science, China University of Petroleum, Beijing 102249, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2023, 13(4), 728; https://doi.org/10.3390/nano13040728
Submission received: 17 January 2023 / Revised: 8 February 2023 / Accepted: 10 February 2023 / Published: 14 February 2023
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Versions Notes

Abstract

:
Herein, the hierarchical porous catalyst of 3-dimensional ordered macro-mesoporous (3DOMM) Al2O3 supported active PtSn nanoparticles (NPs) was prepared by the combined synthesized path of evaporation-induced self-assembly with colloid crystal template (EISA-CCT) methods. The hierarchical macro-mesoporous composite structure can markedly increase the specific surface area, accommodate the diffusion of propene, and decrease the number of surface acid sites. In addition, the special surface property and pore structure of 3DOMM-Al2O3 can modify the interaction between metals and substrates, as well as stabilize the metal nanoparticle, which promotes the formation of a highly active and stable PtSn phase. The PtSn/3DOMM-Al2O3 catalyst exhibits higher productivity and stability than PtSn/Al2O3 catalysts with macropore and mesopore structures. The PtSn/3DOMM-Al2O3 catalyst displays the best catalytic performance with propylene selectivity over 95% at a propane conversion of 33.9%. The study of the ordered hierarchical porous structure of PtSn/3DOMM-Al2O3 catalysts can contribute to obtaining improved catalysts in industrial processes.

Graphical Abstract

1. Introduction

Propylene is a significantly important hydrocarbon compound that contributes to the intermediates of a variety of chemical products and is widely used in human production and life [1]. In recent years, thermal and catalytic cracking technologies, which are the traditional production processes of propylene, have no longer been able to meet the increasing needs of the international market [2,3]. Producing propylene through the propane non-oxidative dehydrogenation (PDH) process has become a promising and effective approach. Furthermore, cheap propane is supplied due to the recently increased exploitation of shale gas [4,5]. Although there is keen industrial interest in PDH technology, the dehydrogenation reaction still needs to operate at a high temperature of about 650 °C to break the stable C-H bond of alkane [6,7]. The harsh reaction condition could cause many problems for Pt-based catalysts, such as coke deposition and the sintering of metal nanoparticles [8]. The development of Pt-based catalysts with improved yield, selectivity, and stability is the key issue in improving the industrial utilization value of PDH reactions.
Although the Pt element reveals high activity in breaking the C-H bond, the Pt-based catalysts without any promoters still have a high tendency to side reactions such as hydrogenolysis, cracking, and coke deposition and sintering during the reaction process [9,10,11,12]. Comparing pure Pt-based catalysts, the selectivity and stability of PDH can be significantly improved in PtSn-based catalysts. The Sn element could be reduced by hydrocarbon and alloyed with Pt to form PtSn nanoparticles. Pt is the active species of the PtSn-based catalyst, while Sn acts as the promoter [13,14,15,16]. The structural effects and electronic interaction of the promoter on Pt can effectively inhibit the side reactions [17]. In addition, Sn species can effectively disperse metal nanoparticles and reduce the loading amount of precious metal in Pt-based catalysts. Previous studies have also found that Sn species in an Al2O3 support can inhibit the sintering of PtSn alloy particles during regeneration [18]. The surface properties of the support are highly related to the active site structure of the PtSn-based catalyst. The dispersion of metal nanoparticles and the PtSn alloying phase in the catalyst is also dependent on the features of the interaction between the metal and the support [19,20]. Conventional supports for PtSn-based catalysts for PDH include Al-based, Si-based, and Zr-based oxide and carbon materials. Both the activity and deactivation rate during the PDH reaction highly depends upon the structure-property of the support.
Al2O3 with transition phases such as θ phase, η phase, and γ phase is widely applied in many Pt-based catalysts as a kind of supporting material due to its large surface area and high thermodynamic stability [21]. Among them, γ-Al2O3 is the most important phase of the PtSn-based catalyst for a PDH reaction [22]. γ-Al2O3 possesses the highest surface area, but the lowest thermodynamic stability compared with other transition Al2O3, which results in complex surface properties. The transition state of the γ phase provides a high degree of freedom for atomic arrangement, which allows Al3+ ions to locate among the tetrahedral, pentahedral, and octahedral sites in Al2O3, in order that the structures adopt an intangible arrangement and disorder. Therefore, fundamental research about the surface of γ-Al2O3 and strong support-metal interaction (SMI) are highly debated subjects of abundant ongoing questions related to several areas, including the lattice defect, phase crystallography, and mesoscopic morphology structure [23]. For example, the γ-Al2O3 nanosheet with exposure of the penta-coordinated Al3+ sites can better facilitate the anchor of the isolated dispersed metal atoms than γ-Al2O3 with ordinary morphology [24]. It is worth noting that the morphology of the support also greatly affects the diffusion process of propane and propylene during the PDH process, which affects the activity and stability at high space velocity and the partial pressure of propane under simulated industrial conditions [25]. Therefore, PtSn-based catalytic material with high performance can reasonably be obtained by carefully adjusting the pore structure of γ-Al2O3.
Herein, PtSn/γ-Al2O3 catalysts with a controllable pore structure, including ordered mesopore, ordered macropore, and hierarchically ordered macro-mesopore, are prepared by the combined pathway of evaporation-induced self-assembly with colloid crystal templates (EISA-CCT) methods. The 3-dimensional ordered macropores-mesoporous nanostructure (3DOMM) combined with the structural advantages of macropore and mesopore should increase the surface area of support and diffusion for propylene, which inhibits carbon deposition and the other side reactions of propylene in the channel of the catalyst. In addition, the special morphology of a 3DOMM-Al2O3 support also affects the surface acidity and Al3+ coordination structure, which plays an important role in anchoring sites for highly fine PtSn alloy nanoparticles. Therefore, designing and preparing a multistage pore structure for γ-Al2O3 is helpful to understand the complex structure–activity relationship of alumina and in designing and preparing high-performance propane non-oxidative dehydrogenation catalysts for industrial applications.

2. Experimental Section

2.1. Catalyst Preparation

PtSn/γ-Al2O3 catalysts with ordered mesopore (M-Al2O3), 3-dimensional ordered macropore (3DOM-Al2O3), and 3-dimensional ordered macro-mesopore (3DOMM-Al2O3) were obtained by varied methods. Polymethyl methacrylate (PMMA) microspheres were tightly packed three-dimensionally (3D) after the centrifugal operation. As shown in Figure S1, the particle size of the microspheres is around 300 nm. These 3D close-packed microspheres were used to obtain the macropore structure. The PMMA microspheres were immersed in an Al precursor solution. The solution fills the interspace between the PMMA microspheres to build structure of ordered macropores. F127 was employed to obtain a mesoporous structure. As the solvent evaporates, F127 molecules tend to form saturated micelles, which arrange themselves into a two-dimensional hexagon (p6mm) ordered pattern. During the growth process, Al ions adhere to the template to build ordered mesopores. After drying and calcining, the template (F127 and PMMA) can be removed and the ordered pores (macropore and mesopore) structure is obtained. As shown in Scheme 1, the 3DOMM nanostructured catalyst was obtained by the EISA-CCT method using two templates, while the 3DOMM structure was obtained after drying and calcining. For all the catalysts, the templates (F127 micelles or PMMA microspheres) were removed in a tube furnace under air (50 mL min−1) at 300 °C for 3 h, and then the temperature was increased to 650 °C for 4 h to crystallize the alumina. After obtaining γ-Al2O3 with different morphologies, Pt species (0.5 wt%) and Sn species (1 wt%) were added into the support by incipient wetness impregnation to obtain the PtSn/γ-Al2O3 catalyst. A detailed description of the synthesis pathway is listed in part of the Supporting Information.

2.2. Characterization

Scanning electron microscope (SEM) graphs were observed using a ZEISS Gemini SEM 300 microscope. Transmission electron microscope (TEM) images were obtained and energy dispersive spectrometer (EDS) element mapping was performed using the LaB6 2100 electron microscope.
The N2 adsorption-desorption results were obtained using Micromeritics TriStar-Ⅱ 3020 equipment. The catalyst was pretreated at 200 °C in a constant temperature tank to remove the adsorbed vapor. The X-ray diffraction (XRD) pattern was investigated with a Bruker Advance spectrometer.
The 27Al nuclear magnetic resonance (NMR) spectra were obtained using an Agilent 600 DD2 spectrometer. The temperature-programmed desorption of NH3 (NH3-TPD) was recorded using Autochem-II 2920 equipment. The catalyst (0.1 g) was placed in a quartz reactor. The catalyst was pretreated with He at 300 °C for 1 h and cooled to 50 °C, then treated with 10% NH3 balanced with He (30 mL min−1) for 1 h and then purged with pure He (30 mL min−1) for 1 h. The temperature was raised to 700 °C with a heating rate of 10 °C min−1. The NH3 desorption signal was observed using a thermal conductivity detector (TCD). The pyridine infrared adsorption (Py-IR) results were given by the Nicolet 6700 Fourier Transform Infrared spectrometer. Before the test, the catalysts were dried for 1 h at 300 °C.
The temperature-programmed reduction of the H2 (H2-TPR) pattern was conducted on a homemade fixed-bed reactor. The catalyst (0.1 g) was dried at 300 °C for 1 h, and then cooled to 50 °C under N2. Then, the H2 balanced by N2 (10%, 50 mL min−1) went through the bed at a temperature of 50–750 °C with a heating rate of 10 °C min−1. The consumption signal was recorded by a TCD. The temperature-programmed desorption of H2 (H2-TPD) was conducted using similar equipment with H2-TPR. The catalyst (0.1 g) was first dried for 1 h at 300 °C and reduced in flowing H2 (pure, 30 mL min−1) at 600 °C for 2 h. Then, the catalyst was cooled to room temperature and adsorbed in H2 for 1 h. The temperature was increased to 700 °C with a heating rate of 10 °C min−1 and the desorption signal was recorded by the TCD.
The differential thermal analysis and thermal gravimetric analysis (TG-DTA) were conducted in a homemade reaction instrument. The temperature was increased from room temperature to 800 °C at a rate of 10 °C min−1 under air (30 mL min−1). Raman patterns were obtained with Renishaw inVia reflex Raman equipment with excitation wavelengths of 532 nm.

2.3. Evaluation of Catalytic Performance

The PDH tests were conducted in a quartz tubular micro-reactor. The catalyst (0.2 g, 40–60 meshes) was loaded into the reactor. Before the catalytic evaluation, the catalyst was pretreated with H2 (pure, 10 mL min−1) for 2 h at 500 °C. The PDH reaction was carried out at 600 °C. The propane was fed at a weight hourly space velocity (WHSV) of 3.0 h−1 (C3H8/H2 = 1/1). Then, the products were analyzed using online gas chromatography (GC) equipped with a flame ionization detector (FID) and a TCD. The conversion and selectivity were obtained as follows:
Conversion ( % ) = C 3 H 8   reacted   C 3 H 8   fed     ×   100 %
Selectivity ( % ) = C 3 H 6   fromed   C 3 H 8   reacted   ×   100 %

3. Results and Discussion

3.1. Physical Properties and Morphology

The morphology of the PMMA microspheres and macropore catalysts was identified by SEM. As shown in Figure S1, the PMMA microspheres are closely packed and form a uniform interspace between them. Tightly arranged and uniform PMMA microspheres are important for the formation of ordered macropores. During the EISA-CCT process, Al ions hydrolyze, condense, and crystallize in the interspace of PMMA microsphere templates to form a macropore structure. As shown in Figure 1A,B, the PtSn/3DOM-Al2O3 and PtSn/3DOMM-Al2O3 catalysts exhibit well-defined and uniform 3D-ordered macropore structures. The average diameter of the macropore (about 240 nm) is shrunken compared with that of the PMMA microsphere templates (about 300 nm), which can be attributed to the melting of the PMMA microspheres and the crystallization of the Al2O3 during the calcination process [26]. Notably, some areas in the macropore also display disorder and a broken structure, which can be attributed to the mechanical milling which will inevitably damage part of the porous structure during the preparation of the SEM sample.
The mesoporous structures and supported metal nanoparticles (NPs) were identified with a TEM. As shown in Figure 2A,B, the PtSn/3DOMM-Al2O3 sample shows an ordered macropore structure. The ordered macropores are approximately 220 nm in pore size, and the thickness of the Al2O3 wall is approximately 80 nm, which matches the SEM image. In addition, there are many ordered mesopores present on the macropore wall of the PtSn/3DOMM-Al2O3 catalyst (Figure 2C). Ordered mesopores with a diameter of about 8–9 nm are densely arranged in a hexagon region on the macropore wall of 3DOMM Al2O3, indicating the hierarchical macro-mesoporous composited structure is successfully synthesized by the EISA-CCT method. The highly dispersed metal nanoparticles are formed on the surface of 3DOMM-Al2O3 with a uniform particle size of around 3 nm (Figure 2D). The atomic number of the Pt element is much larger than the Al element. Therefore, the metal NPs can be attributed to the Pt or PtSn alloy, while the nearly colorless parts can be attributed to the mesopores. For identifying the distribution of metal on the support, an EDS was employed. The elemental mapping images show Pt and Sn elements evenly distributed on the surface of the catalysts, indicating the formation of a PtSn alloy. In addition, TEM images of the PtSn/3DOM-Al2O3 and PtSn/M-Al2O3 catalysts are shown in Figure S2. The PtSn/M-Al2O3 catalyst has a mesopore structure with an average size of 10 nm, while the PtSn/3DOM-Al2O3 catalyst only has a macropore structure.
N2 adsorption–desorption experiments were applied to obtain the textual structure of catalysts. As shown in Figure 3A, the M-Al2O3 support shows an H1 hysteresis loop with the IV-type isotherm, which is characteristic of an ordered mesoporous nanostructure. The M-Al2O3 support has a specific surface area of 347 m2 g−1. The 3DOM-Al2O3 support shows the H3 hysteresis loop attributed to the ordered macropore structure. The specific surface area of the PtSn/3DOM-Al2O3 sample is 273 m2 g−1. Due to the presence of a hierarchical macro-mesoporous composite structure, the 3DOMM-Al2O3 material possesses the highest specific surface area of 369 m2 g−1 [27]. After the impregnation process, the specific surface area of the PtSn/3DOMM-Al2O3 sample is still maintained at 346 m2 g−1, indicating that the impregnated metal is evenly dispersed on the support. As shown in Figure 3B, the M-Al2O3 and 3DOMM-Al2O3 supports represent an even pore size distribution from 5 to 10 nm, which can be assigned to the mesopore structure. Furthermore, there is an additional pore distribution above 50 nm for the 3DOM-Al2O3 and 3DOMM-Al2O3 supports, which can be attributed to the macropore structure. The impregnation of PtSn NPs causes an obvious decrease in the pore distribution of mesopores, confirming that PtSn NPs are mainly dispersed in mesopores.
Wide-angle XRD measurements were employed to investigate the crystal phase of the PtSn/Al2O3 catalysts. As shown in Figure 4A, the PtSn/M-Al2O3, PtSn/3DOM-Al2O3, and PtSn/3DOMM-Al2O3 catalysts exhibit characteristic diffraction peaks at 31.9°, 39.4°, 45.8°, and 66.8°, which are attributed to (220), (222), (400), and (440) facets (PDF#79-1558) of Al2O3, respectively. No characteristic peaks corresponding to Pt and Sn were observed, which is due to the highly dispersed Pt-Sn NPs. In addition, low-angle XRD was employed to verify the ordered mesoporous nanostructure. As shown in Figure 4B, PtSn/M-Al2O3 and PtSn/3DOMM-Al2O3 catalysts exhibit a diffraction peak of 2θ at 0.6°, which is attributed to the (100) facet of the 2D hexagonal (p6mm) of the ordered mesopore nanostructure [28]. For the PtSn/3DOM-Al2O3 catalysts, the characterized diffraction peak is not located at the same position, indicating an irregular pore structure. In sum, the 3DOMM-Al2O3 support has a hierarchical macro-mesoporous composite structure, while the PtSn NPs highly disperse in the mesopores of the PtSn/3DOMM-Al2O3 catalyst.

3.2. Surface Property of Support

To perform an in-depth investigation of the surface characteristics of the Al2O3 support, solid-state 27Al NMR techniques were employed. Figure 5 exhibits the NMR spectra of the PtSn/Al2O3 catalysts. Three resonance signals were observed at 73, 44, and 9 ppm, which were assigned to the Al3+ ion in the tetra-coordinated (AlO4), penta-coordinated (AlO5), and hexa-coordinated (AlO6) coordination, respectively [29]. Penta-coordinated AlO5 is universally acknowledged to be the site for anchoring metal sites due to its coordination of unsaturated properties. For Pt/γ-Al2O3 catalysts, coordination unsaturated penta-coordination (AlO5) is the main site for stabilizing Pt [30]. The PtSn/3DOMM-Al2O3 catalyst has a much greater proportion of penta-coordinated Al3+ ions on its surface than both the PtSn/M-Al2O3 and PtSn/3DOM-Al2O3 catalysts. In addition, the proportions of Al3+ ions with different coordination sites are exhibited in Table 1. The PtSn/3DOMM-Al2O3 catalyst has the highest fraction of penta-coordinated Al3+ ions at 9%, while the PtSn/M-Al2O3 and PtSn/3DOM-Al2O3 catalysts have only about 1%. The penta-coordinated Al3+ ion sites on the PtSn/3DOMM-Al2O3 catalyst can enhance the anchoring interaction between γ-Al2O3 and Pt, which avoids the aggregation of nanoparticles and improves the stability.
The acid property of the varied catalysts was studied using NH3-TPD experiments, and the corresponding NH3-TPD patterns are shown in Figure 6. It is clear that two ammonia desorption peaks can be observed in the PtSn/3DOM-Al2O3 catalysts. The NH3-TPD profiles of the PtSn/3DOMM-Al2O3 and PtSn/M-Al2O3 catalysts display three desorption peaks at about 130, 200, and 430 °C. The PtSn/M-Al2O3 catalyst reveals the highest amount of acid sites. To obtain the relative amount of acid sites and the acidic strength, a Gaussian peak fitting was conducted to obtain the deconvolution of the NH3-TPD results. The fitting results are shown in Figure 6 and Table 2. It is widely known that the NH3 desorption in the temperature regions of 120–200, 200–350, and 350–450 °C can be attributed to the weak acid sites, medium acid sites, and strong acid sites, respectively [31]. The area percentages of the three different peaks of the PtSn/3DOMM-Al2O3 catalyst are 41, 50, and 9%, respectively. For the PtSn/M-Al2O3 sample, the area percentages are 51, 39, and 10%, respectively. The PtSn/3DOM-Al2O3 catalyst only shows two peaks at 169 and 447 °C, and their area percentages are 53 and 47%, respectively. Based on the result of Al NMR and NH3-TPD, the pore structure and morphology of the Al2O3 support plays a primary role in the surface property. In addition, the side reactions of the PDH can be catalyzed by Lewis acid sites in Al2O3. Thus, it could be inferred that side reactions occur more easily on the support surface of the PtSn/M-Al2O3 catalyst with a high amount of acid sites than that of the PtSn/3DOMM-Al2O3 catalyst [32].
Figure 7 exhibits the IR pattern of the three samples after the adsorption of pyridine (Py). The PtSn/3DOM-Al2O3 catalyst shows a very weak IR peak located at 1550 cm−1, which can be attributed to the peak of the Brønsted acid site. Moreover, there is no Brønsted acid site in the PtSn/M-Al2O3 and PtSn/3DOMM-Al2O3 catalysts [33]. The Py molecules can be also adsorbed by the Lewis acid site. The IR peak at 1595 cm−1 is due to the Py molecule adsorbed at the weak Lewis acidic site. The IR peak at 1605 cm−1 can be attributed to the Py molecule adsorbed at the Lewis acid site with medium strength. In addition, the IR peak located at 1626 cm−1 can be attributed to strong Lewis acid sites [34]. PtSn/M-Al2O3 catalysts show an obviously higher amount of Lewis acid sites than PtSn/3DOMM-Al2O3 catalysts, which can be attributed to the pore-dependent surface property of Al2O3. In summary, the catalysts with M-Al2O3, 3DOM-Al2O3, and 3DOMM-Al2O3 support reveal different surface properties. The PtSn/3DOMM-Al2O3 catalyst possesses a lower amount of acid sites compared to the PtSn/M-Al2O3 catalyst, which can inhibit side reactions such as coke deposition and other side reactions during the PDH reaction. In addition, the varied amount of penta-coordinated AlO5 sites in γ-Al2O3 also infers a different interaction between support with metal, which can affect the dispersion and structure of supported PtSn active species.

3.3. Structure of Active Sites

The nanopore structure and surface chemical property of catalysts can closely affect the Pt-Sn interaction and dispersion of metal nanoparticles. Therefore, H2-TPR measurements were employed to test the redox property of the PtSn/γ-Al2O3 samples, which is shown in Figure 8. The peak at about 200 °C is the reduction peak of the Pt component. During the reduction, the metallic state (Sn0) can be reduced to form the PtSn alloy, in which Sn can increase the reduction temperature of Pt. All the PtSn/γ-Al2O3 catalysts show a reduction peak located at around 400 °C, which is attributed to the Pt-Sn alloy formation [35,36]. Notably, the reducibility of catalysts is highly dependent on the surface chemical property of the support. The reduction temperatures of the PtSn/M-Al2O3 and PtSn/3DOMM-Al2O3 catalysts are located at 479 and 455 °C, which are higher than the reduction temperature of the PtSn/3DOM-Al2O3 catalyst (420 °C). This increased reduction temperature is attributed to a stronger interaction between the metal and the support, which infers a higher dispersion of metal species. In addition, the PtSn/3DOMM-Al2O3 and PtSn/3DOM-Al2O3 catalysts show a reduction peak at a temperature above 500 °C, which is attributed to the biggish SnOx nanoparticle weakly anchored by γ-Al2O3, indicating that the macropore nanostructure would affect the dispersion of metal. This can be attributed to the varied geometric confining effect of the macropores and mesopores on the loaded species. The macropore structure will lead to an increase in metal particle size and a decreased interaction between the metal and the carrier. For 3DOMM materials, the abundant mesoporous are conducive to the formation of small PtSn NPs through the confining effect of mesopores.
In order to analyze the dispersion of the PtSn species more thoroughly, the H2-TPD measurement is further employed. The H2-TPD patterns of the different samples are shown in Figure 9, while two desorption peaks can be detected in the patterns. It is well known that H2 could dissociate into two H atoms on the surface of metal active sites. Based on this, the low-temperature desorption peak (below 500 °C) is assigned to chemisorbed H atoms removed from the metal nanoparticles [37,38,39]. For the PtSn/3DOMM-Al2O3 catalyst, it displays the highest amounts of adsorbed hydrogen, which indicates that PtSn nanoparticles are highly dispersed on 3DOMM-Al2O3 after reduction. The PtSn/3DOMM-Al2O3 demonstrates a much larger peak area of H adsorption than the PtSn/3DOM-Al2O3 sample, indicating that the Pt active sites are highly dispersed on the 3DOMM-Al2O3 support. In addition, after chemical adsorption, the H atoms on the surface of Pt can also overflow the adjacent support, which is also known as hydrogen spillover. The high-temperature desorption peak above 600 °C can be attributed to the desorption peak of spilled H atoms [40]. Overall, the pore structure of γ-Al2O3 strongly affects the dispersion of the PtSn active sites. Strong metal-support interactions (SMSI) and the confined effect of mesopores in the macropore walls can result in small PtSn nanoparticles forming.

3.4. Catalytic Performance for PDH

The catalytic performances of the PtSn/γ-Al2O3 catalyst are shown in Figure 10A,B, which shows changes in conversion and selectivity with operating time, respectively. Among all the PtSn/Al2O3 catalysts, the PtSn/3DOMM-Al2O3 catalyst shows the most desired catalytic performance. The initial conversion rate of 51.0% reduced to a conversion rate of 33.9% after 4 h of reaction, and the selectivity increased from 90.7% to 96.5%. The PtSn/M-Al2O3 catalyst reveals a high initial conversion rate of propane (47.9%) but a low initial selectivity of propylene (initial: 70.9%), and it quickly deactivates within the first hour. However, the conversion rate dropped to 33.0% after 4 h, while the selectivity of propylene gradually increased (final: 90.3%). Although the conversion rate of PtSn/3DOM-Al2O3 is the lowest (initial: 30.4%, final: 14.5%), its selectivity (initial: 85.7%, final 92.3%) is higher than that of PtSn/M-Al2O3. This phenomenon can be explained by the volcanic curve relationship between selectivity and conversion in a PDH reaction [41]. Compared with PtSn/γ-Al2O3 catalysts with other porous structures, the hierarchical macro-mesoporous PtSn/3DOMM-Al2O3 catalyst has a higher conversion, selectivity, and strong stability. As shown in Figure 10C, it is also obvious that the PtSn/3DOMM-Al2O3 catalyst possesses the highest propylene yield, followed by PtSn/M-Al2O3, and the PtSn/3DOM-Al2O3 catalysts have the lowest yield during a 4 h reaction test. The PtSn/3DOMM-Al2O3 catalyst displays better comprehensive conversion and selectivity than the PtSn/M-Al2O3 and PtSn/3DOM-Al2O3 catalysts. In addition, the catalytic performance of the PtSn/3DOMM-Al2O3 catalyst was compared with that of Pt-based catalysts reported recently. As shown in Table S1, the PtSn/3DOMM-Al2O3 catalyst has high conversion and selectivity, indicating that it has a good prospect for industrial PDH application.
In order to improve the gas–solid contact area, catalysts for alkane dehydrogenation reactions are often designed with mesoporous structures. However, a small mesoporous pore size will cause the slow desorption of propylene, coke deposition, and blocked pores. For the 3DOMM-Al2O3 support, the PtSn active sites are mainly located in the mesoporous pores of the macropore walls, which effectively improves the pore connectivity and pore volume, facilitates the diffusion of propylene from pores and improves the carbon-holding capacity of the PtSn/γ-Al2O3 catalyst [42]. Therefore, the PtSn/3DOMM-Al2O3 catalyst shows the high stability for the PDH reaction. The specific surface area of the 3DOMM-Al2O3 material is also significantly higher than the specific surface area of the 3DOM-Al2O3 material due to the abundant mesopores in the macropore walls, which is beneficial to the dispersion of PtSn-active species. In addition, the hierarchical macro-mesoporous structure also affects the surface chemical property of γ-Al2O3. The catalytic dehydrogenation reaction performance of the catalyst is closely related to the chemical property of active metal, while acid sites on γ-Al2O3 are important to side reactions [43]. For the PtSn/M-Al2O3 catalyst, the amount of acid sites is relatively higher than the PtSn/3DOM-Al2O3 and PtSn/3DOMM-Al2O3 catalysts, consequently reducing the reaction selectivity and stability. In addition, for the PtSn/3DOMM-Al2O3 catalyst, the PtSn nanoparticles have a higher dispersion than that of the PtSn/3DOM-Al2O3 catalyst. Through the characterization of H2-TPR and H2-TPD, it can be concluded the interaction between the 3DOMM-Al2O3 support and PtSn component is beneficial to the formation of ultrafine Pt-Sn alloy particles. The propane dehydrogenation reaction is structurally insensitive, and its side reactions are structurally sensitive. The smaller metal nanoparticles can inhibit side reactions, which also increase the stability of the PtSn/3DOMM-Al2O3 catalyst [44]. Therefore, the PtSn/3DOMM-Al2O3 catalyst shows the best catalytic performance among all the PtSn/γ-Al2O3 catalysts.
To evaluate the regeneration performance of the PtSn/3DOMM-Al2O3 catalyst, a reaction activity test was carried out using a circulating reaction catalyst. As shown in Figure 11A, the initial propane conversion rate slightly decreased after the catalyst was first regenerated. However, in the second cycle reaction, the propane conversion rate was reduced by about 16% compared with the fresh catalyst. This may be due to the sintering of Pt nanoparticles after treatment with air at high temperatures; the increased selectivity is caused by the reduction of propene in reaction gas due to the decreased conversion (Figure 11B) [45]. In Figure 11C the detailed changes in conversion, selectivity, and yield are listed in a bar graph. These results indicate that the propylene selectivity of the PDH reaction remained stable for the PtSn/3DOMM-Al2O3 catalyst after regeneration. In summary, the 3DOMM-Al2O3 as a good support improves both the physical and chemical properties of PtSn/γ-Al2O3 catalysts, which can improve the catalytic performance of the PDH reaction.

3.5. Coke Analysis of Used Catalysts

The amount of coke was quantitatively obtained by TG-DTG, and the mass loss patterns are exhibited in Figure 12A. The total amount of coke follows the order PtSn/3DOM-Al2O3 (3.9%) < PtSn/3DOMM-Al2O3 (5.7%) < PtSn/M-Al2O3 (16.6%). Generally speaking, in the DTG curve, two types of combustion peaks of coke will appear on the Pt-based catalyst. The lower temperature (around 460 °C) peak is assigned to the combustion peak of coke deposition on the around metal nanoparticles. The higher temperature (around 560 °C) peak is attributed to the carbon deposits on the surface of the support [46,47]. It can be seen from Figure 12B that the peak I and peak II appearing in the DTG curve correspond to the carbon deposition on the around metal (peak I) and the coke on the support (peak II), respectively. The peak I at 432 °C for PtSn/M-Al2O3 can be considered as the coke deposited on the around Pt nanoparticle, and the peak II located at 546 °C for PtSn/3DOMM-Al2O3 can be considered as the coke deposited on the Al2O3 support, which can be attributed to macro-mesopore composite structure can facilitates the migration of carbon from the metal active site inside mesopore to the macropore in carrier. The PtSn/M-Al2O3 catalyst has the largest amount of carbon deposits, which is consistent with the characterization of acidity. Because of it having more Lewis acidic sites on the M-Al2O3 support, PtSn/M-Al2O3 triggers more side reactions than PtSn/3DOMM-Al2O3. PtSn/3DOMM-Al2O3 has moderate carbon deposits due to its suitable amount of acid sites. Notably, although PtSn/3DOM-Al2O3 has a small number of carbon deposits, its catalytic performance for the PDH reaction is poor, thus the low amount of coke can be attributed to its low activity. In sum, the low carbon deposition of the PtSn/3DOMM-Al2O3 catalyst can be attributed to the large surface area, low amount of acid sites, and highly dispersed Pt active components, which inhibits the carbon deposition. At the same time, the pore structure of the PtSn/3DOMM-Al2O3 catalyst improves the carbon-holding capacity of the catalyst, which improves catalytic stability.
Figure 13 shows the Raman spectra of the used PtSn/Al2O3 catalysts. The Raman spectrum exhibits two peaks representing the degree of graphitization of the coke, namely 1330 and 1600 cm−1. The Raman absorption peaks located at 1330 cm−1 and 1600 cm−1 are assigned to the D mode and G mode, respectively, which are caused by the multiple aromatic rings of graphite-like carbon materials. Among them, the D mode represents the disordered part of graphitized coking, while the G mode is considered to represent highly graphitized carbon. The ratio of intensity between the D and G modes is generally considered to be an important indicator for evaluating the graphitization degree of carbon material. Generally, a higher intensity ratio between the D and G modes means a lower graphitization degree [48]. The ratio of the intensity of the D to the G peak (ID/IG) was also obtained and is shown in Table 3. The ratio of ID/IG for the PtSn/3DOMM-Al2O3 catalyst is 0.73, which is much higher than the ratios of ID/IG for the PtSn/M-Al2O3 catalyst (0.66), indicating that the amount of disordered graphitized coke deposited on the PtSn/3DOMM-Al2O3 catalyst is higher than that on the PtSn/M-Al2O3 catalyst.
It is widely known that the formation of coke during the PDH reaction involves three processes, while alkene is the main precursor of coke formation: (1) the deep dehydrogenation or cyclization of alkene; (2) the oligomerization of hydrocarbon; (3) a Diels–Alder type reaction [49]. The PtSn/3DOMM-Al2O3 catalyst has a lower amount of acid sites than the PtSn/M-Al2O3 catalyst, which inhibits deep dehydrogenation and cyclization by Lewis acid sites. Therefore, the PtSn/3DOMM-Al2O3 catalyst has a higher ID/IG value than the PtSn/M-Al2O3 catalyst. Notably, the PtSn/3DOM-Al2O3 catalyst has a much higher ID/IG value than the PtSn/3DOMM-Al2O3 catalyst. This may be due to the low partial pressure of propylene caused by low conversion of PtSn/3DOM-Al2O3 catalyst which inhibits the deep dehydrogenation process. For the PtSn/M-Al2O3 catalyst, a high amount of acid sites on the Al2O3 support resulted in the formation of more graphitized coke deposition. This also proves that the surface acidity of catalysts is an important factor affecting the anti-coke stability of PtSn/γ-Al2O3 catalysts, which is also consistent with the conclusions of previous studies [50].

4. Conclusions

In this work, the effects of supports with different pore structures (3DOM-Al2O3, M-Al2O3, and 3DOMM-Al2O3) on the PDH reaction performance of bimetallic PtSn-based catalysts were studied. The PtSn/3DOMM-Al2O3 catalyst with a hierarchical porous structure shows the best catalytic performance among these three PtSn/Al2O3 catalysts. the experimental characterization reveals that the macro-mesoporous composite structure of the PtSn/3DOMM-Al2O3 catalyst has a significant impact on its physical structure and surface properties. The results indicate that the large specific surface area and hierarchical pore structure of the PtSn/3DOMM-Al2O3 catalyst are beneficial to the dispersion of PtSn nanoparticles and gas diffusion from the inside of the mesopores. In addition, the difference in the pore structure of supports significantly changes the surface acidity and interaction between the metal and the support. In summary, the design strategy for the hierarchical porous γ-Al2O3 support is an ideal method for improving the catalytic performance of PtSn-based catalysts in a PDH reaction.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13040728/s1, Figure S1: The morphology of 3D close-packed PMMA templates.; Figure S2: TEM images of 3DOM-Al2O3 (A) and M-Al2O3 (B).; Table S1: Performance comparison of recent Pt-based catalysts. References [18,40,51,52,53] are cited in the Supplementary Materials.

Author Contributions

The manuscript was written with the contribution of all authors. Y.S.; writing—original draft preparation, B.F.; writing—review and editing, Q.L.; investigation, C.X.; investigation, J.X.; writing—review and editing, W.S.; software, J.L.; project administration, Y.W.; writing—original draft preparation. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (21972166, 22035009), the National Natural Science Foundation of China (22208373), the National Key Research and Development Program of China (2021YFA1501300), and the Science Foundation of China University of Petroleum, Beijing (2462021YJRC018).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, J.; Chang, X.; Chen, S.; Sun, G.; Zhou, X.; Vovk, E.; Yang, Y.; Deng, W.; Zhao, Z.; Mu, R.; et al. On the Role of Sn Segregation of Pt-Sn Catalysts for Propane Dehydrogenation. ACS Catal. 2021, 11, 4401–4410. [Google Scholar] [CrossRef]
  2. Chen, S.; Chang, X.; Sun, G.; Zhang, T.; Xu, Y.; Wang, Y.; Pei, C.; Gong, J. Propane dehydrogenation: Catalyst development, new chemistry, and emerging technologies. Chem. Soc. Rev. 2021, 50, 3315–3354. [Google Scholar] [CrossRef]
  3. Kaylor, N.; Davis, R.J. Propane dehydrogenation over supported Pt-Sn nanoparticles. J. Catal. 2018, 367, 181–193. [Google Scholar] [CrossRef]
  4. Xu, Z.; Yue, Y.; Bao, X.; Xie, Z.; Zhu, H. Propane Dehydrogenation over Pt Clusters Localized at the Sn Single-Site in Zeolite Framework. ACS Catal. 2019, 10, 818–828. [Google Scholar] [CrossRef]
  5. Gómez-Quero, S.; Tsoufis, T.; Rudolf, P.; Makkee, M.; Kapteijn, F.; Rothenberg, G. Kinetics of propane dehydrogenation over Pt–Sn/Al2O3. Catal. Sci. Technol. 2013, 3, 962–971. [Google Scholar] [CrossRef]
  6. Nawaz, Z. Light alkane dehydrogenation to light olefin technologies: A comprehensive review. Rev. Chem. Eng. 2015, 31, 413–436. [Google Scholar] [CrossRef]
  7. Otroshchenko, T.; Jiang, G.; Kondratenko, V.A.; Rodemerck, U.; Kondratenko, E.V. Current status and perspectives in oxidative, non-oxidative and CO2-mediated dehydrogenation of propane and isobutane over metal oxide catalysts. Chem. Soc. Rev. 2021, 50, 473–527. [Google Scholar] [CrossRef]
  8. Nawaz, Z.; Tang, X.P.; Wang, Y.; Wei, F. Parametric Characterization and Influence of Tin on the Performance of Pt-Sn/SAPO-34 Catalyst for Selective Propane Dehydrogenation to Propylene. Ind. Eng. Chem. Res. 2010, 49, 1274–1280. [Google Scholar] [CrossRef]
  9. Bricker, J.C. Advanced Catalytic Dehydrogenation Technologies for Production of Olefins. Top. Catal. 2012, 55, 1309–1314. [Google Scholar] [CrossRef]
  10. Fu, Q.; Yang, F.; Bao, X. Interface-Confined Oxide Nanostructures for Catalytic Oxidation Reactions. Acc. Chem. Res. 2013, 46, 1692–1701. [Google Scholar] [CrossRef]
  11. Zhao, Z.; Dubau, L.; Maillard, F. Evidences of the migration of Pt crystallites on high surface area carbon supports in the presence of reducing molecules. J. Power Sources 2012, 217, 449–458. [Google Scholar] [CrossRef]
  12. Wang, W.; Yao, S.J.; Deng, S.W.; Wang, Y.B.; Qiu, C.L.; Mao, C.L.; Wang, J.G. Sintering Rate and Mechanism of Supported Pt Nanoparticles by Multiscale Simulation. Langmuir 2021, 37, 12529–12538. [Google Scholar] [CrossRef] [PubMed]
  13. Nykänen, L.; Honkala, K. Selectivity in Propene Dehydrogenation on Pt and Pt3Sn Surfaces from First Principles. ACS Catal. 2013, 3, 3026–3030. [Google Scholar] [CrossRef]
  14. Zhu, J.; Yang, M.; Yu, Y.; Zhu, Y.; Sui, Z.; Zhou, X.; Holmen, A.; Chen, D. Size-Dependent Reaction Mechanism and Kinetics for Propane Dehydrogenation over Pt Catalysts. ACS Catal. 2015, 5, 6310–6319. [Google Scholar] [CrossRef]
  15. Ma, S.; Liu, Z. Zeolite-confined subnanometric PtSn mimicking mortise-and-tenon joinery for catalytic propane dehydrogenation. Nat. Commun. 2022, 13, 2716. [Google Scholar] [CrossRef]
  16. Gould, T.D.; Lubers, A.M.; Corpuz, A.R.; Weimer, A.W.; Falconer, J.L.; Medlin, J.W. Controlling Nanoscale Properties of Supported Platinum Catalysts through Atomic Layer Deposition. ACS Catal. 2015, 5, 1344–1352. [Google Scholar] [CrossRef]
  17. Yang, M.; Zhu, Y.; Zhou, X.; Sui, Z.; Chen, D. First-Principles Calculations of Propane Dehydrogenation over PtSn Catalysts. ACS Catal. 2012, 2, 1247–1258. [Google Scholar] [CrossRef]
  18. Pham, H.N.; Sattler, J.J.H.B.; Weckhuysen, B.M.; Datye, A.K. Role of Sn in the Regeneration of Pt/γ-Al2O3 Light Alkane Dehydrogenation Catalysts. ACS Catal. 2016, 6, 2257–2264. [Google Scholar] [CrossRef]
  19. Sun, P.; Siddiqi, G.; Vining, W.C.; Chi, M.; Bell, A.T. Novel Pt/Mg(In)(Al)O Catalysts for Ethane and Propane Dehydrogenation. J. Catal. 2011, 282, 165–174. [Google Scholar] [CrossRef]
  20. Iglesias-Juez, A.; Beale, A.M.; Maaijen, K.; Weng, T.C.; Glatzel, P.; Weckhuysen, B.M. A combined in situ time-resolved UV–Vis, Raman and high-energy resolution X-ray absorption spectroscopy study on the deactivation behavior of Pt and PtSn propane dehydrogenation catalysts under industrial reaction conditions. J. Catal. 2010, 276, 268–279. [Google Scholar] [CrossRef]
  21. Prakash, N.; Lee, M.; Yoon, S.; Jung, K. Role of acid solvent to prepare highly active PtSn/θ-Al2O3 catalysts in dehydrogenation of propane to propylene. Catal. Today 2017, 293–294, 33–41. [Google Scholar] [CrossRef]
  22. Barias, O.A.; Holmen, A.; Blekkan, E.A. Propane dehydrogenation over supported platinum catalysts: Effect of tin as a promoter. Catal. Today. 1995, 24, 361–364. [Google Scholar] [CrossRef]
  23. Lee, J.; Jang, E.J.; Kwak, J.H. Acid-base properties of Al2O3: Effects of morphology, crystalline phase, and additives. J. Catal. 2017, 345, 135–148. [Google Scholar] [CrossRef]
  24. Shi, L.; Deng, G.; Li, W.; Miao, S.; Wang, Q.; Zhang, W.; Lu, A. Al2O3 Nanosheets Rich in Pentacoordinate Al3+ Ions Stabilize Pt-Sn Clusters for Propane Dehydrogenation. Angew. Chem. Inter. Ed. 2015, 54, 13994–13998. [Google Scholar] [CrossRef] [PubMed]
  25. Ye, G.; Wang, H.; Duan, X.; Sui, Z.; Zhou, X.; Coppens, M.; Yuan, W. Pore network modeling of catalyst deactivation by coking, from single site to particle, during propane dehydrogenation. AIChE J. 2019, 65, 140–150. [Google Scholar] [CrossRef]
  26. Xiong, J.; Wei, Y.; Zhang, Y.; Zhang, P.; Yu, Q.; Mei, X.; Liu, X.; Zhao, Z.; Liu, J. Synergetic Effect of K Sites and Pt Nanoclusters in an Ordered Hierarchical Porous Pt-KMnOx/Ce0.25Zr0.75O2 Catalyst for Boosting Soot Oxidation. ACS Catal. 2020, 10, 7123–7135. [Google Scholar] [CrossRef]
  27. Xiong, J.; Wu, Q.; Mei, X.; Liu, J.; Wei, Y.; Zhao, Z.; Wu, D.; Li, J. Fabrication of Spinel-Type PdxCo3–xO4 Binary Active Sites on 3D Ordered Meso-macroporous Ce-Zr-O2 with Enhanced Activity for Catalytic Soot Oxidation. ACS Catal. 2018, 8, 7915–7930. [Google Scholar] [CrossRef]
  28. Li, B.; Xu, Z.; Jing, F.; Luo, S.; Chu, W. Facile one-pot synthesized ordered mesoporous Mg-SBA-15 supported PtSn catalysts for propane dehydrogenation. Appl. Catal. A 2017, 533, 17–27. [Google Scholar] [CrossRef]
  29. McManus, J.; Ashbrook, S.E.; MacKenzie, K.J.D.; Wimperis, S. 27Al multiple-quantum MAS and 27Al{1H} CPMAS NMR study of amorphous aluminosilicates. J. Non-Cryst. Solids 2001, 282, 278–290. [Google Scholar] [CrossRef]
  30. Kwak, J.H.; Hu, J.; Mei, D.; Yi, C.W.; Kim, D.H.; Peden, C.H.; Allard, L.F.; Szanyi, J. Coordinatively unsaturated Al3+ centers as binding sites for active catalyst phases of platinum on gamma-Al2O3. Science 2009, 325, 1670–1673. [Google Scholar] [CrossRef]
  31. Gao, X.; Lu, W.; Hu, S.; Li, W.; Lu, A. Rod-shaped porous alumina-supported Cr2O3 catalyst with low acidity for propane dehydrogenation. Chin. J. Catal. 2019, 40, 184–191. [Google Scholar] [CrossRef]
  32. Yu, H.L.; Xu, H.Y.; Ge, Q.J.; Li, W.Z. Properties of the metallic phase of zinc-doped platinum catalysts for propane dehydrogenation. J. Mol. Catal. A Chem. 2007, 266, 80–87. [Google Scholar] [CrossRef]
  33. Liu, P.; Zhang, Z.; Jia, M.; Gao, X.; Yu, J. ZSM-5 zeolites with different SiO2/Al2O3 ratios as fluid catalytic cracking catalyst additives for residue cracking. Chin. J. Catal. 2015, 36, 806–812. [Google Scholar] [CrossRef]
  34. Jin, Q.; Shen, Y.; Zhu, S. Praseodymium Oxide Modified CeO2/Al2O3 Catalyst for Selective Catalytic Reduction of NO by NH3. Chin. J. Chem. 2016, 34, 1283–1290. [Google Scholar] [CrossRef]
  35. Liu, H.; Zhou, Y.M.; Zhang, Y.W.; Bai, L.Y.; Tang, M.H. Effect of Preparation Processes on Catalytic Performance of PtSnNa/ZSM-5 for Propane Dehydrogenation. Ind. Eng. Chem. Res. 2009, 48, 5598–5603. [Google Scholar] [CrossRef]
  36. Tasbihi, M.; Feyzi, F.; Amlashi, M.A.; Abdullah, A.Z.; Mohamed, A.R. Effect of the addition of potassium and lithium in Pt-Sn/Al2O3 catalysts for the dehydrogenation of isobutane. Fuel Process. Technol. 2007, 88, 883–889. [Google Scholar] [CrossRef]
  37. He, S.; Sun, C.; Bai, Z.; Dai, X.; Wang, B. Dehydrogenation of long chain paraffins over supported Pt-Sn-K/Al2O3 catalysts: A study of the alumina support effect. Appl. Catal. A 2009, 356, 88–98. [Google Scholar] [CrossRef]
  38. Im, J.; Shin, H.; Jang, H.; Kim, H.; Choi, M. Maximizing the catalytic function of hydrogen spillover in platinum-encapsulated aluminosilicates with controlled nanostructures. Nat. Commun. 2014, 5, 3370. [Google Scholar] [CrossRef] [PubMed]
  39. Zhang, Y.; Zhou, Y.; Liu, H.; Wang, Y.; Xu, Y.; Wu, P. Effect of La addition on catalytic performance of PtSnNa/ZSM-5 catalyst for propane dehydrogenation. Appl. Catal. A Gen. 2007, 333, 202–210. [Google Scholar] [CrossRef]
  40. Zhang, Y.; Zhou, Y.; Shi, J.; Zhou, S.; Sheng, X.; Zhang, Z.; Xiang, S. Comparative study of bimetallic Pt-Sn catalysts supported on different supports for propane dehydrogenation. J. Mol. Catal. A Chem. 2014, 381, 138–144. [Google Scholar] [CrossRef]
  41. Cesar, L.G.; Yang, C.; Lu, Z.; Ren, Y.; Zhang, G.; Miller, J.T. Identification of a Pt3Co Surface Intermetallic Alloy in Pt–Co Propane Dehydrogenation Catalysts. ACS Catal. 2019, 9, 5231–5244. [Google Scholar] [CrossRef]
  42. Liu, Q.; Luo, M.; Zhao, Z.; Zhao, Q. K-modified Sn-containing dendritic mesoporous silica nanoparticles with tunable size and SnOx-silica interaction for the dehydrogenation of propane to propylene. Chem. Eng. J. 2020, 380, 122423. [Google Scholar] [CrossRef]
  43. Long, L.; Xia, K.; Lang, W.; Shen, L.; Yang, Q.; Yan, X.; Guo, Y. The comparison and optimization of zirconia, alumina, and zirconia-alumina supported PtSnIn trimetallic catalysts for propane dehydrogenation reaction. J. Ind. Eng. Chem. 2017, 51, 271–280. [Google Scholar] [CrossRef]
  44. Zhao, Z.; Mu, R.; Zha, S.; Li, L.; Chen, S.; Zang, K.; Luo, J.; Li, Z.; Purdy, S.C.; Kropf, A.J.; et al. Breaking the scaling relationship via thermally stable Pt/Cu single atom alloys for catalytic dehydrogenation. Nat. Commun. 2018, 9, 4454. [Google Scholar] [CrossRef]
  45. Ma, R.; Yang, T.; Gao, J.; Kou, J.; Zhu Chen, J.; He, Y.; Miller, J.T.; Li, D. Composition tuning of Ru-based phosphide for enhanced propane selective dehydrogenation. ACS Catal. 2020, 10, 10243–10252. [Google Scholar] [CrossRef]
  46. Vázquez-Zavala, A.; Ostoa-Montes, A.; Acosta, D.; Gómez-Cortés, A. Characterization of structure and catalytic activity of Pt-Sn catalysts supported in Al2O3, SiO2 and TiO2. Appl. Surf. Sci. 1998, 136, 62–72. [Google Scholar] [CrossRef]
  47. Wang, H.; Sun, L.; Sui, Z.; Zhu, Y.; Ye, G.; Chen, D.; Zhou, X.; Yuan, W. Coke Formation on Pt–Sn/Al2O3 Catalyst for Propane Dehydrogenation. Ind. Eng. Chem. Res. 2018, 57, 8647–8654. [Google Scholar] [CrossRef]
  48. Han, Z.; Li, S.; Jiang, F.; Wang, T.; Ma, X.; Gong, J. Propane dehydrogenation over Pt–Cu bimetallic catalysts: The nature of coke deposition and the role of copper. Nanoscale 2014, 6, 10000. [Google Scholar] [CrossRef]
  49. Sattler, J.J.H.B.; Ruiz-Martinez, J.; Santillan-Jimenez, E.; Weckhuysen, B.M. Catalytic Dehydrogenation of Light Alkanes on Metals and Metal Oxides. Chem. Rev. 2014, 114, 10613–10653. [Google Scholar] [CrossRef]
  50. Aly, M.; Fornero, E.L.; Leon-Garzon, A.R.; Galvita, V.V.; Saeys, M. Effect of Boron Promotion on Coke Formation during Propane Dehydrogenation over Pt/γ-Al2O3 Catalysts. ACS Catal. 2020, 10, 5208–5216. [Google Scholar] [CrossRef]
  51. Zhang, Y.; Zhou, Y.; Huang, L.; Zhou, S.; Sheng, X.; Wang, Q.; Zhang, C. Structure and catalytic properties of the Zn-modified ZSM-5 supported platinum catalyst for propane dehydrogenation. Chem. Eng. J. 2015, 270, 352–361. [Google Scholar] [CrossRef]
  52. Mironenko, R.M.; Belskaya, O.B.; Talsi, V.P.; Gulyaeva, T.I.; Kazakov, M.O.; Nizovskii, A.I.; Kalinkin, A.V.; Bukhtiyarov, V.I.; Lavrenov, A.V.; Likholobov, V.A. Effect of γ-Al2O3 hydrothermal treatment on the formation and properties of platinum sites in Pt/γ-Al2O3 catalysts. Appl. Catal. A General 2014, 469, 472–482. [Google Scholar] [CrossRef]
  53. Wang, Y.; Hu, Z.; Lv, X.; Chen, L.; Yuan, Z. Ultrasmall PtZn bimetallic nanoclusters encapsulated in silicalite-1 zeolite with superior performance for propane dehydrogenation. J. Catal. 2020, 385, 61–69. [Google Scholar] [CrossRef]
Nanomaterials 13 00728 sch001 550

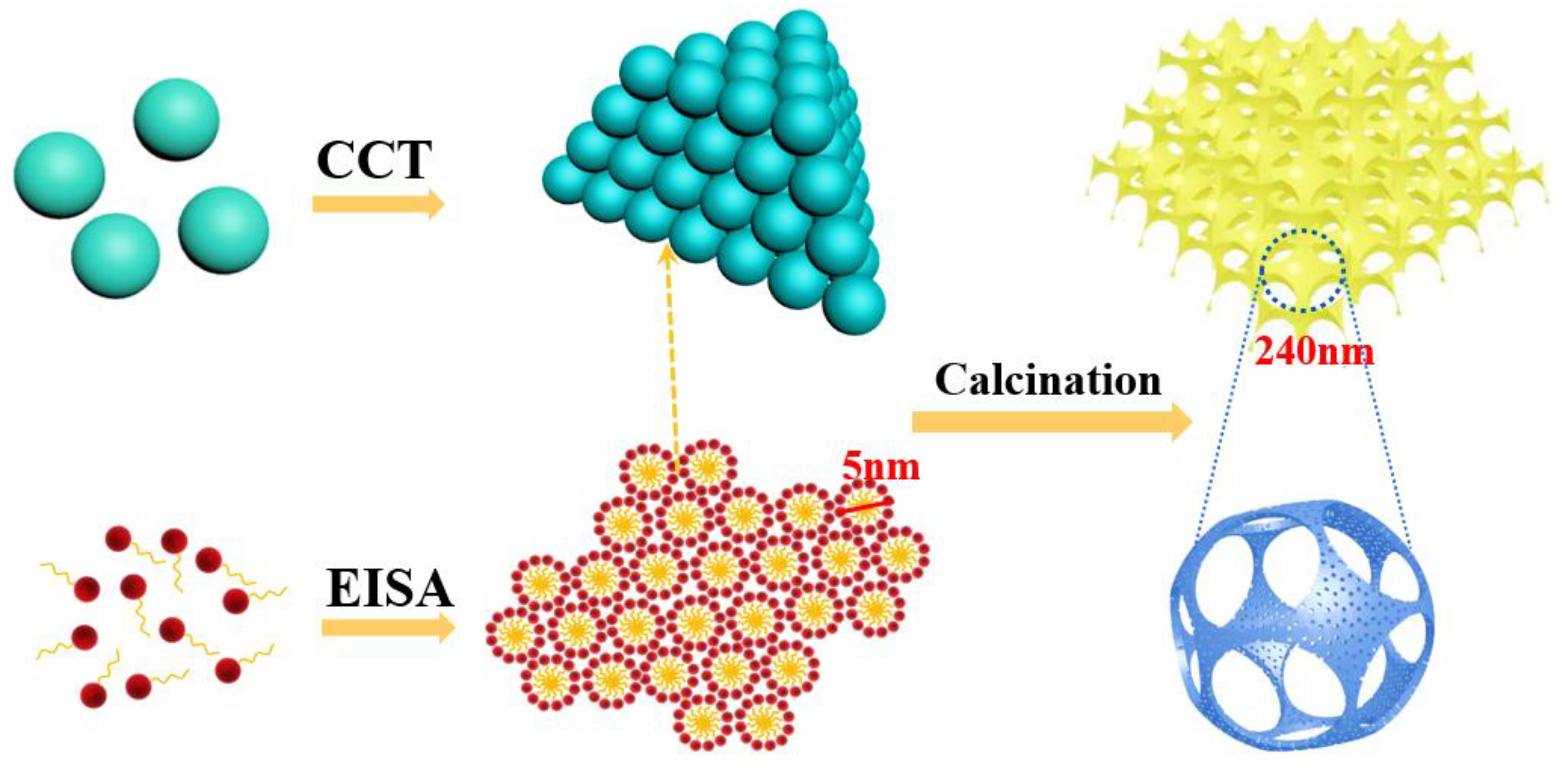

Scheme 1. Diagram for the preparation of the 3DOMM-Al2O3 support.
Scheme 1. Diagram for the preparation of the 3DOMM-Al2O3 support.
Nanomaterials 13 00728 sch001
Nanomaterials 13 00728 g001 550
Figure 1. SEM images of (A) PtSn/3DOM-Al2O3 catalyst and (B) PtSn/3DOMM-Al2O3 catalyst.
Figure 1. SEM images of (A) PtSn/3DOM-Al2O3 catalyst and (B) PtSn/3DOMM-Al2O3 catalyst.
Nanomaterials 13 00728 g001
Nanomaterials 13 00728 g002a 550Nanomaterials 13 00728 g002b 550
Figure 2. TEM images of fresh (A–C) and reduced (D) PtSn/3DOMM-Al2O3 catalyst; (E) EDS element-mapping analyses of PtSn/3DOMM-Al2O3 catalyst.
Figure 2. TEM images of fresh (A–C) and reduced (D) PtSn/3DOMM-Al2O3 catalyst; (E) EDS element-mapping analyses of PtSn/3DOMM-Al2O3 catalyst.
Nanomaterials 13 00728 g002aNanomaterials 13 00728 g002b
Nanomaterials 13 00728 g003 550

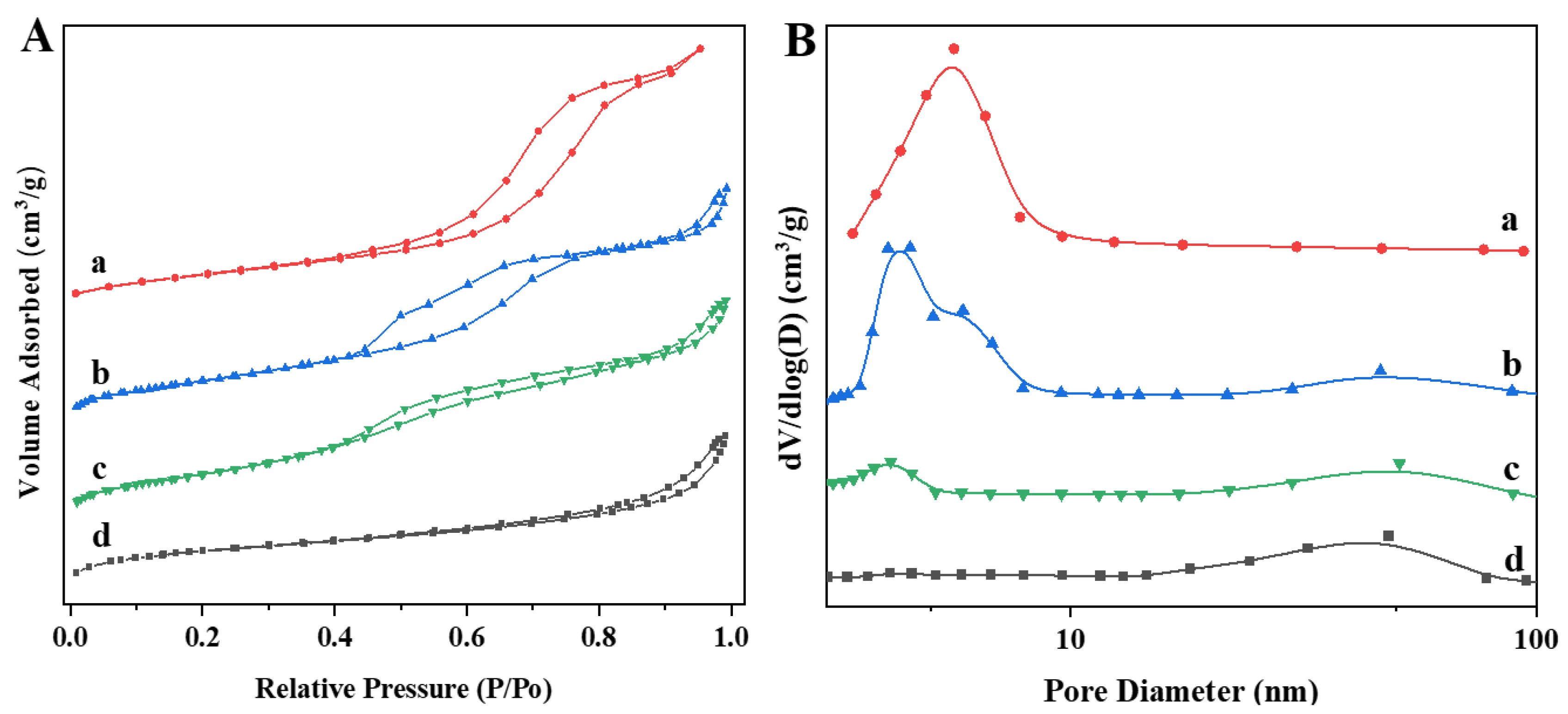

Figure 3. (A) N2 adsorption–desorption isotherms, (B) pore size distribution curves. (a) M-Al2O3; (b) 3DOMM-Al2O3; (c) PtSn/3DOMM-Al2O3; (d) 3DOM-Al2O3.
Figure 3. (A) N2 adsorption–desorption isotherms, (B) pore size distribution curves. (a) M-Al2O3; (b) 3DOMM-Al2O3; (c) PtSn/3DOMM-Al2O3; (d) 3DOM-Al2O3.
Nanomaterials 13 00728 g003
Nanomaterials 13 00728 g004 550
Figure 4. Wide- and low-angle XRD patterns (A,B). (a) 3DOMM-Al2O3; (b) PtSn/3DOMM-Al2O3; (c) PtSn/3DOM-Al2O3; (d) PtSn/M-Al2O3.
Figure 4. Wide- and low-angle XRD patterns (A,B). (a) 3DOMM-Al2O3; (b) PtSn/3DOMM-Al2O3; (c) PtSn/3DOM-Al2O3; (d) PtSn/M-Al2O3.
Nanomaterials 13 00728 g004
Nanomaterials 13 00728 g005 550

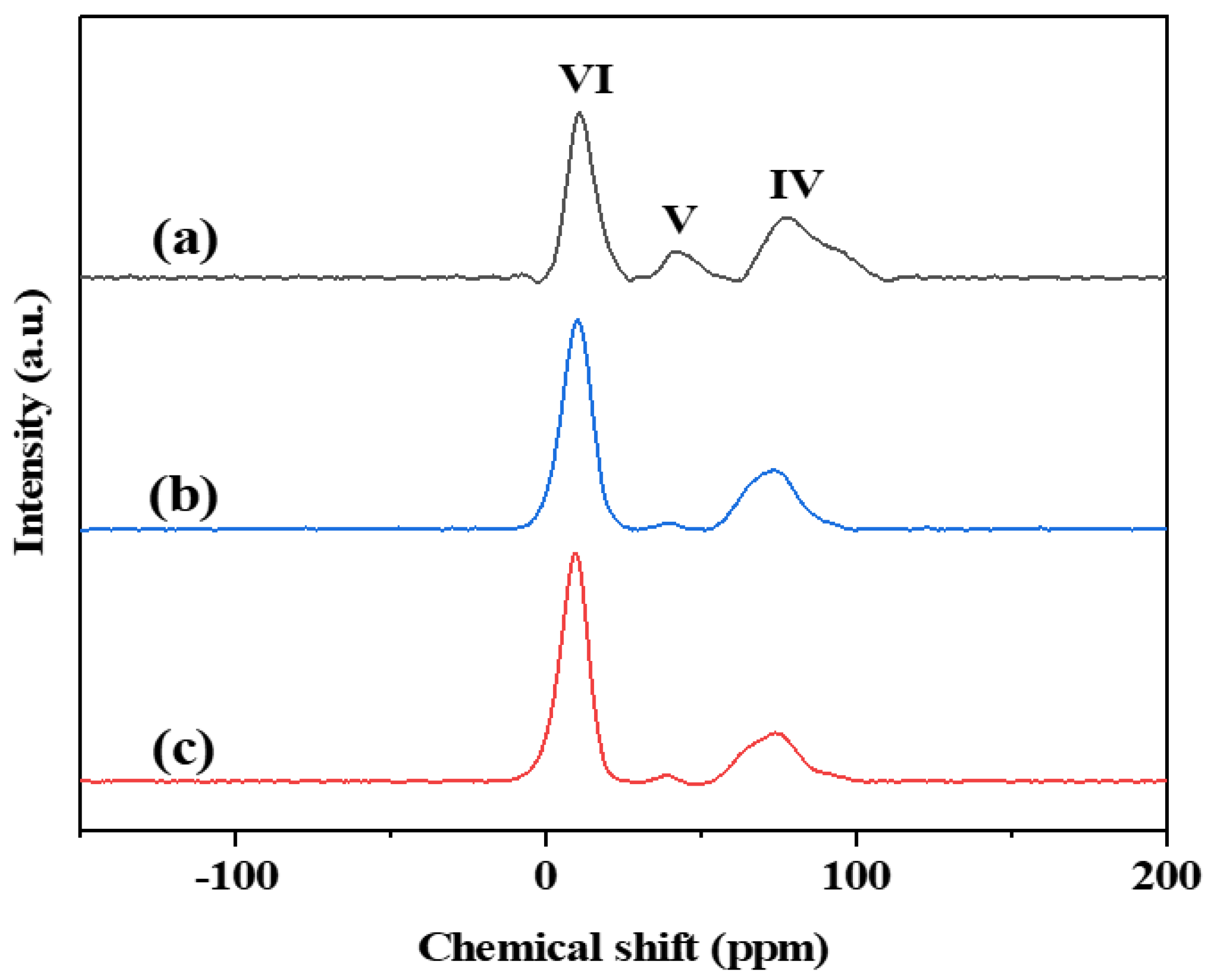

Figure 5. NMR patterns of the catalysts:(a) PtSn/3DOMM-Al2O3; (b) PtSn/3DOM-Al2O3; (c) PtSn/M-Al2O3.
Figure 5. NMR patterns of the catalysts:(a) PtSn/3DOMM-Al2O3; (b) PtSn/3DOM-Al2O3; (c) PtSn/M-Al2O3.
Nanomaterials 13 00728 g005
Nanomaterials 13 00728 g006 550

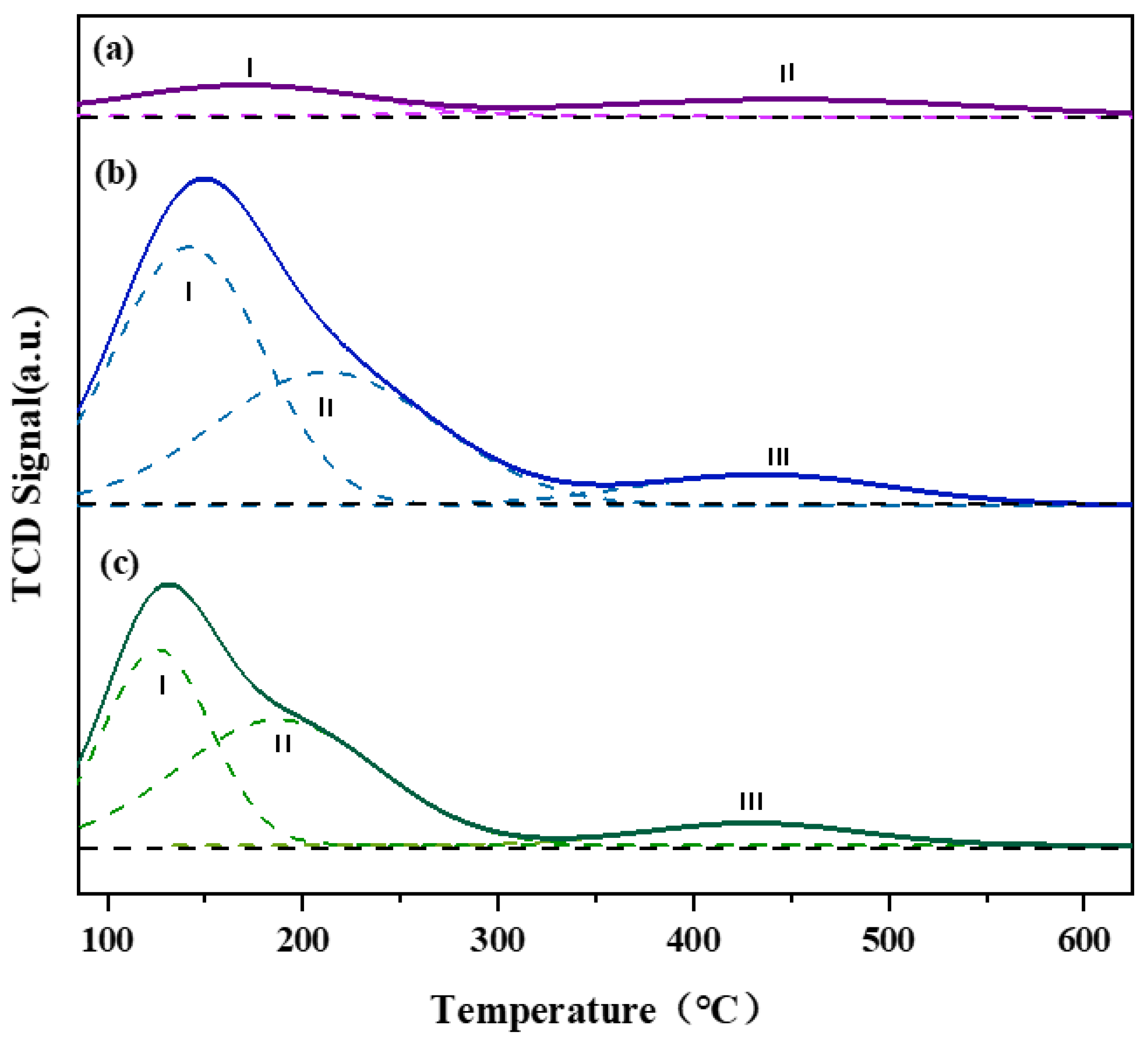

Figure 6. NH3-TPD patterns of the PtSn/γ-Al2O3: (a) PtSn/3DOM-Al2O3; (b) PtSn/M-Al2O3; (c) PtSn/3DOMM-Al2O3.
Figure 6. NH3-TPD patterns of the PtSn/γ-Al2O3: (a) PtSn/3DOM-Al2O3; (b) PtSn/M-Al2O3; (c) PtSn/3DOMM-Al2O3.
Nanomaterials 13 00728 g006
Nanomaterials 13 00728 g007 550
Figure 7. Py-IR patterns of the PtSn/Al2O3 catalysts: (a) PtSn/3DOM-Al2O3; (b) PtSn/3DOMM-Al2O3; (c) PtSn/M-Al2O3.
Figure 7. Py-IR patterns of the PtSn/Al2O3 catalysts: (a) PtSn/3DOM-Al2O3; (b) PtSn/3DOMM-Al2O3; (c) PtSn/M-Al2O3.
Nanomaterials 13 00728 g007
Nanomaterials 13 00728 g008 550

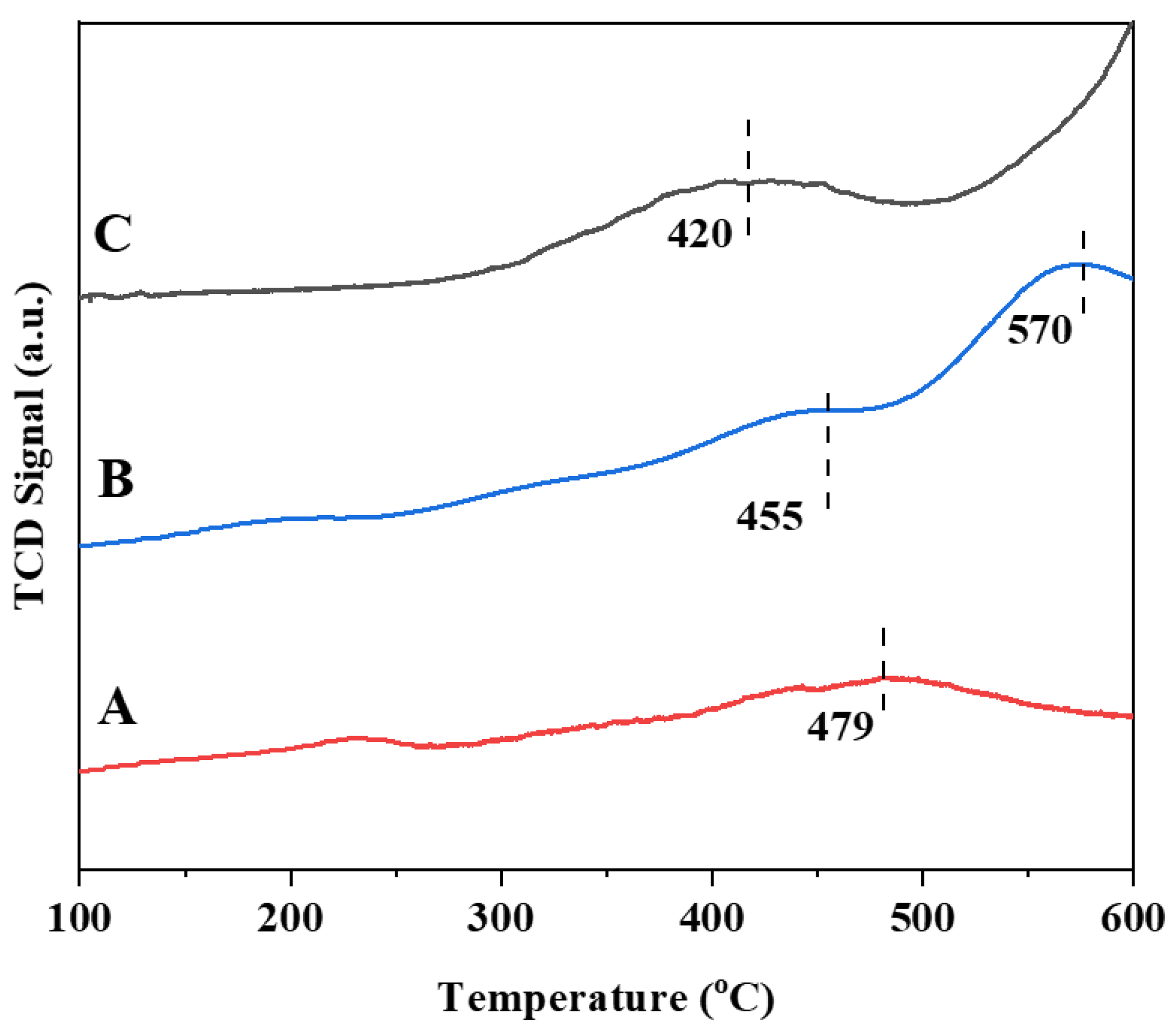

Figure 8. H2-TPR pattern of the PtSn/Al2O3 catalysts. (A) PtSn/M-Al2O3; (B) PtSn/3DOMM-Al2O3; (C) PtSn/3DOM-Al2O3.
Figure 8. H2-TPR pattern of the PtSn/Al2O3 catalysts. (A) PtSn/M-Al2O3; (B) PtSn/3DOMM-Al2O3; (C) PtSn/3DOM-Al2O3.
Nanomaterials 13 00728 g008
Nanomaterials 13 00728 g009 550

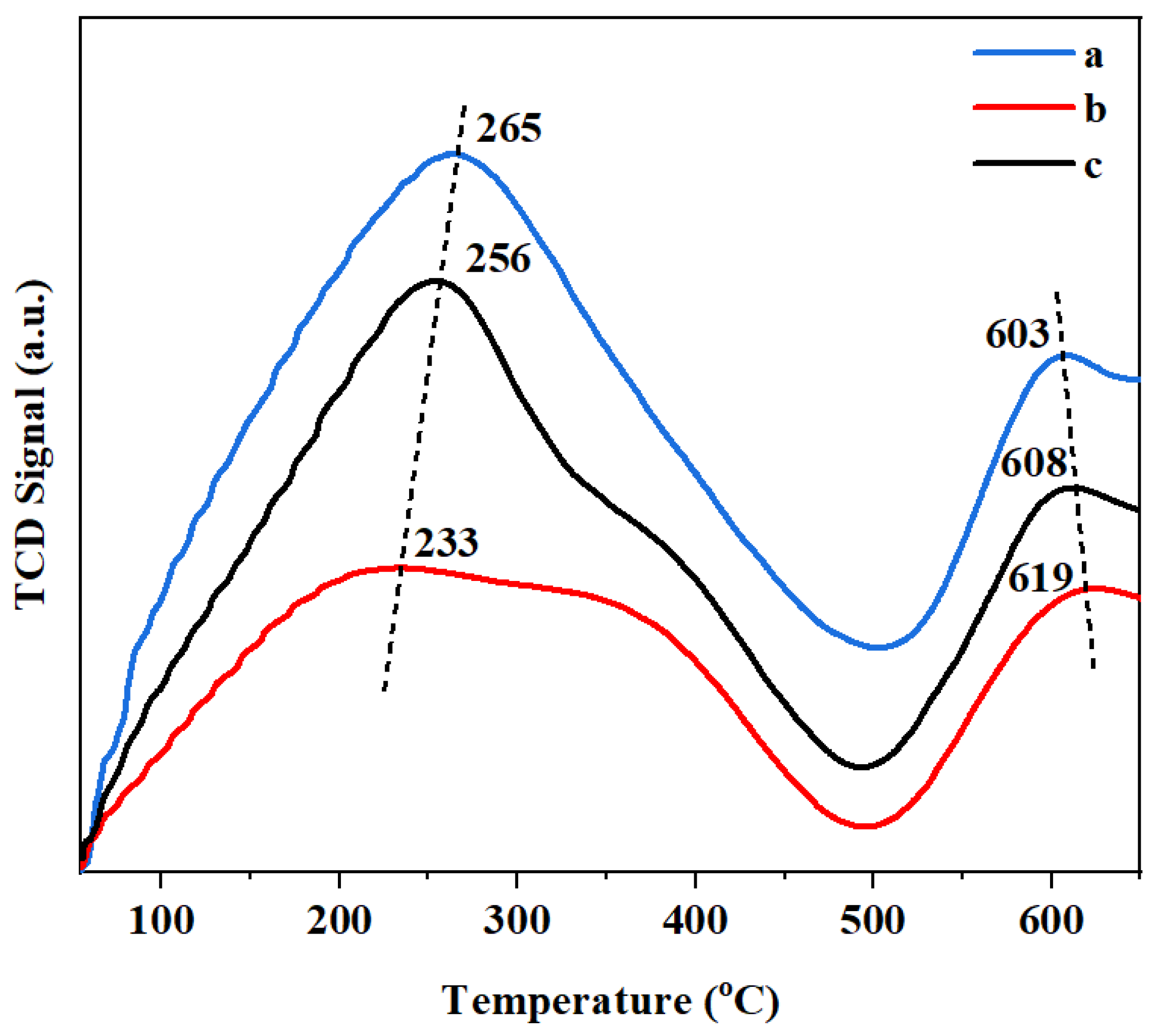

Figure 9. H2-TPD patterns of the PtSn/Al2O3 catalysts: (a) PtSn/3DOMM-Al2O3; (b) PtSn/M-Al2O3; (c) PtSn/3DOM-Al2O3.
Figure 9. H2-TPD patterns of the PtSn/Al2O3 catalysts: (a) PtSn/3DOMM-Al2O3; (b) PtSn/M-Al2O3; (c) PtSn/3DOM-Al2O3.
Nanomaterials 13 00728 g009
Nanomaterials 13 00728 g010 550

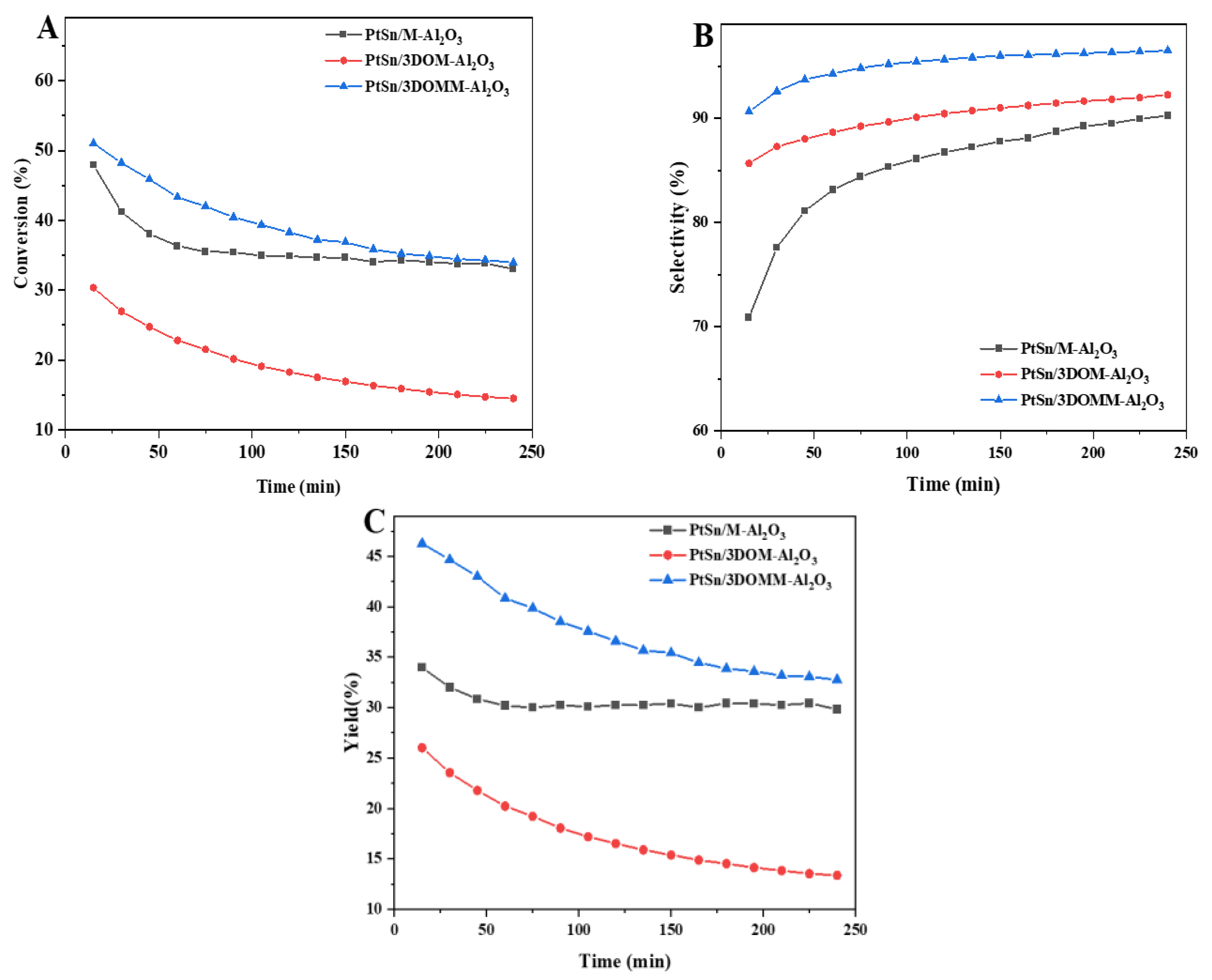

Figure 10. Catalytic performance for a propane dehydrogenation reaction. (A) conversion, (B) selectivity, and (C) yield.
Figure 10. Catalytic performance for a propane dehydrogenation reaction. (A) conversion, (B) selectivity, and (C) yield.
Nanomaterials 13 00728 g010
Nanomaterials 13 00728 g011 550

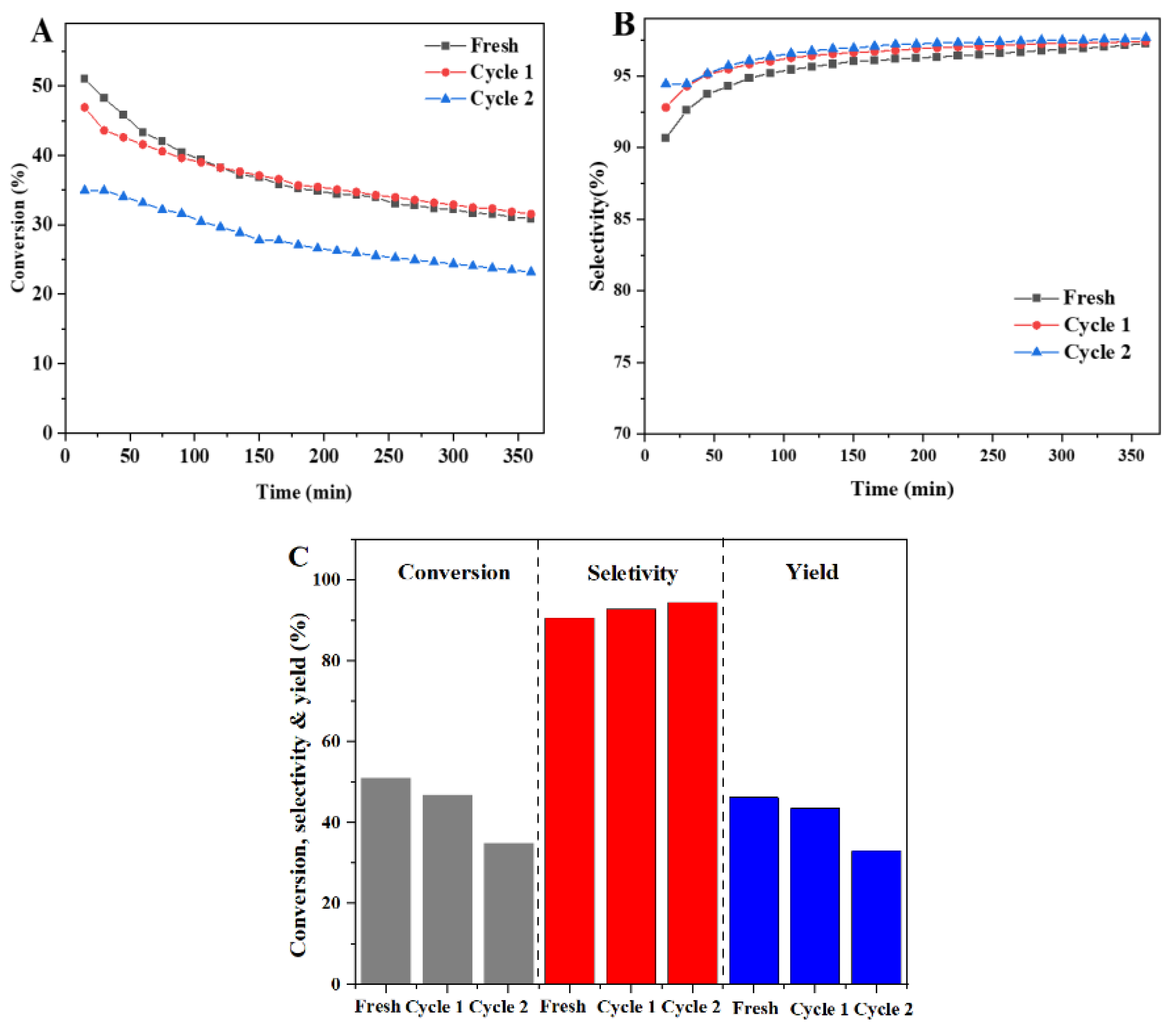

Figure 11. (A) Conversion and (B) selectivity of the regenerated PtSn/3DOMM-Al2O3 catalyst. Conversion, selectivity, and yield change with the number of regenerations (C).
Figure 11. (A) Conversion and (B) selectivity of the regenerated PtSn/3DOMM-Al2O3 catalyst. Conversion, selectivity, and yield change with the number of regenerations (C).
Nanomaterials 13 00728 g011
Nanomaterials 13 00728 g012 550

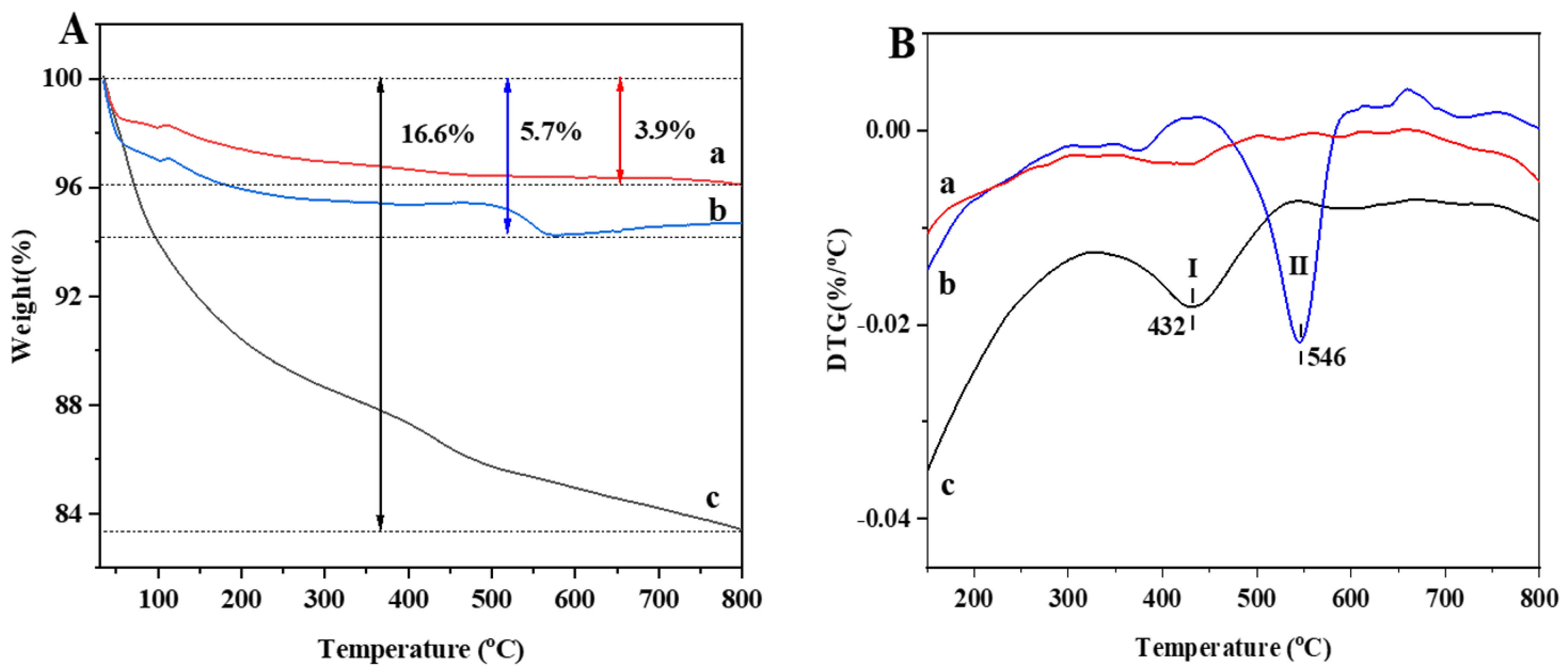

Figure 12. TG (A) and DTG (B) patterns of the PtSn/Al2O3 catalysts: (a) PtSn/3DOM-Al2O3; (b) PtSn/3DOMM-Al2O3; (c) PtSn/M-Al2O3.
Figure 12. TG (A) and DTG (B) patterns of the PtSn/Al2O3 catalysts: (a) PtSn/3DOM-Al2O3; (b) PtSn/3DOMM-Al2O3; (c) PtSn/M-Al2O3.
Nanomaterials 13 00728 g012
Nanomaterials 13 00728 g013 550

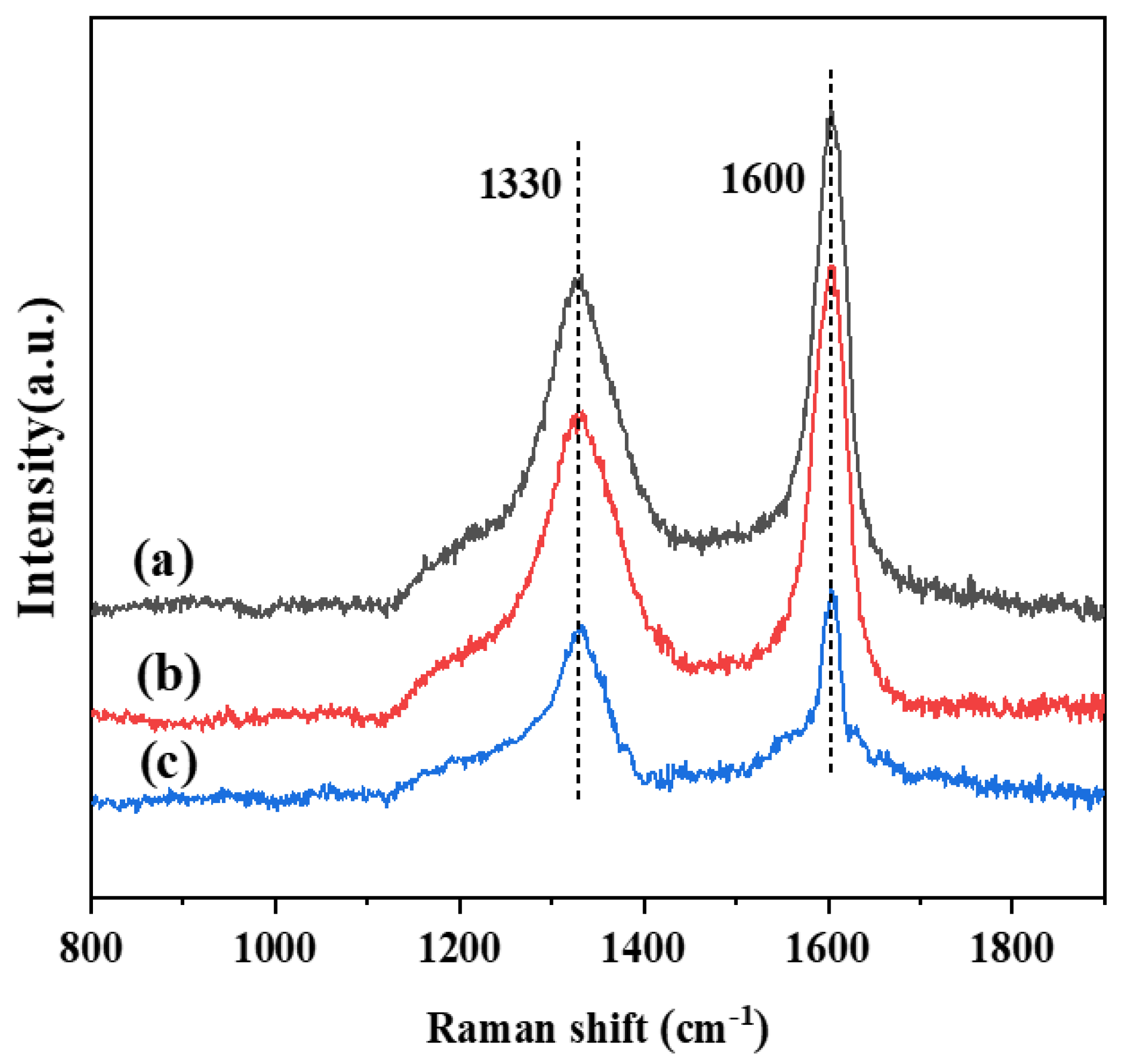

Figure 13. Raman patterns (532 nm) of the PtSn/Al2O3 catalysts: (a) PtSn/3DOMM-Al2O3; (b) PtSn/M-Al2O3; (c) PtSn/3DOM-Al2O3.
Figure 13. Raman patterns (532 nm) of the PtSn/Al2O3 catalysts: (a) PtSn/3DOMM-Al2O3; (b) PtSn/M-Al2O3; (c) PtSn/3DOM-Al2O3.
Nanomaterials 13 00728 g013
Table
Table 1. Fitted results of the NMR experiments of the PtSn/Al2O3 catalysts.
Table 1. Fitted results of the NMR experiments of the PtSn/Al2O3 catalysts.
CatalystPeak Area (%)
VIVIV
PtSn/3DOMM-Al2O352939
PtSn/3DOM-Al2O367132
PtSn/M-Al2O371128
Table
Table 2. NH3-TPD-fitted results of the PtSn/Al2O3 catalysts.
Table 2. NH3-TPD-fitted results of the PtSn/Al2O3 catalysts.
CatalystTM (°C)Peak Area (%)
IIIIIIIIIIII
PtSn/3DOM-Al2O3169447/5347/
PtSn/3DOMM-Al2O312519243041509
PtSn/M-Al2O3141211435513910
Table
Table 3. The ID/IG of coked PtSn/Al2O3 catalysts.
Table 3. The ID/IG of coked PtSn/Al2O3 catalysts.
CatalystID/IG
PtSn/3DOM-Al2O30.84
PtSn/3DOMM-Al2O30.73
PtSn/M-Al2O30.66
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sun, Y.; Feng, B.; Lian, Q.; Xie, C.; Xiong, J.; Song, W.; Liu, J.; Wei, Y. Ordered Hierarchical Porous Structure of PtSn/3DOMM-Al2O3 Catalyst for Promoting Propane Non-Oxidative Dehydrogenation. Nanomaterials 2023, 13, 728. https://doi.org/10.3390/nano13040728

AMA Style

Sun Y, Feng B, Lian Q, Xie C, Xiong J, Song W, Liu J, Wei Y. Ordered Hierarchical Porous Structure of PtSn/3DOMM-Al2O3 Catalyst for Promoting Propane Non-Oxidative Dehydrogenation. Nanomaterials. 2023; 13(4):728. https://doi.org/10.3390/nano13040728

Chicago/Turabian Style

Sun, Yuanqing, Bohan Feng, Qian Lian, Chengshu Xie, Jing Xiong, Weiyu Song, Jian Liu, and Yuechang Wei. 2023. "Ordered Hierarchical Porous Structure of PtSn/3DOMM-Al2O3 Catalyst for Promoting Propane Non-Oxidative Dehydrogenation" Nanomaterials 13, no. 4: 728. https://doi.org/10.3390/nano13040728

APA Style

Sun, Y., Feng, B., Lian, Q., Xie, C., Xiong, J., Song, W., Liu, J., & Wei, Y. (2023). Ordered Hierarchical Porous Structure of PtSn/3DOMM-Al2O3 Catalyst for Promoting Propane Non-Oxidative Dehydrogenation. Nanomaterials, 13(4), 728. https://doi.org/10.3390/nano13040728

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
