Communication

Stability of Zr-Based UiO-66 Metal–Organic Frameworks in Basic Solutions

by
Jun Yeong Kim
1,†,
Jiwon Kang
1,†,
Seungheon Cha
1,
Haein Kim
1,
Dopil Kim
1,
Houng Kang
2,
Isaac Choi
1,* and
Min Kim
1,*
1
Department of Chemistry, Chungbuk National University, Cheongju 28644, Republic of Korea
2
Department of Chemistry Education, Chungbuk National University, Cheongju 28644, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2024, 14(1), 110; https://doi.org/10.3390/nano14010110
Submission received: 29 November 2023 / Revised: 21 December 2023 / Accepted: 27 December 2023 / Published: 2 January 2024
(This article belongs to the Special Issue Metal Organic Framework (MOF)-Based Micro/Nanoscale Materials)
Browse Figures
Versions Notes

Abstract

:
Although Zr-based metal–organic frameworks (MOFs) exhibit robust chemical and physical stability in the presence of moisture and acidic conditions, their susceptibility to nucleophilic attacks from bases poses a critical challenge to their overall stability. Herein, we systematically investigate the stability of Zr-based UiO-66 (UiO = University of Oslo) MOFs in basic solutions. The impact of 11 standard bases, including inorganic salts and organic bases, on the stability of these MOFs is examined. The destruction of the framework is confirmed through powder X-ray diffraction (PXRD) patterns, and the monitored dissolution of ligands from the framework is assessed using nuclear magnetic resonance (NMR) spectroscopy. Our key findings reveal a direct correlation between the strength and concentration of the base and the destruction of the MOFs. The summarized data provide valuable insights that can guide the practical application of Zr-based UiO-66 MOFs under basic conditions, offering essential information for their optimal utilization in various settings.

1. Introduction

Metal–organic frameworks (MOFs) represent a class of materials based on metal–ligand coordination, characterized by a three-dimensional structure and inherent porosity. The versatility of MOFs is underscored by the utilization of various metal salts and clusters coupled with a diverse array of coordinating ligands (e.g., carboxylate or pyridyl groups) employed in their synthesis. This diversity allows for a broad spectrum of MOF compositions, imparting distinctive chemical and physical properties to these materials [1,2,3,4,5,6].
One defining feature of MOFs is their predictable reticular chemistry, which enables the exploration of similar structures with varying ligand lengths and identical frameworks originating from identical coordinating sites but featuring different functional groups [7,8,9,10]. This aspect has been extensively investigated in the field of MOF chemistry. The porosity of MOFs has been exploited for efficient gas storage and molecular separation, leveraging sieving effects, and their unique structural characteristics have found applications in diverse fields [11,12,13,14,15,16]. The tunable pores of MOFs hold promise for selective molecular conveyance, such as drug delivery applications [17,18,19]. Furthermore, the recurring combinations of metal–ligand coordination lead to a distinctive catalytic efficacy in reactions, contribute to optical properties and have the potential for applications in energy-related processes [4,20,21]. However, the practical applications of MOFs have been hindered by their relatively low stability under moisture or acidic/basic conditions. Addressing these stability challenges is crucial for unlocking the full potential of these sophisticated materials for real-world applications in various industries as well as in daily life [22,23,24,25,26,27]. The stability of MOFs has been investigated through theoretical and experimental approaches [28,29,30,31,32,33,34,35,36], and the effects of buffers, amino acids, and cell media on MOFs have been extensively examined [37,38,39].
For this reason, diverse strategies for the increase in their stability have been employed during the preparation steps [23,40,41]. Notably, the nature of the metal and ligand, as elucidated by the hard–soft acid–base (HSAB) theory, is pivotal [42,43]. Additionally, introducing hydrophobic characteristics and safeguarding frameworks have been the subject of extensive investigation [44,45,46]. For instance, the choice of metal ions and ligands significantly influences stability. Applying the HSAB theory, MOFs featuring hard carboxylate ligands, particularly those anchored to zirconium (Zr, a hard metal ion), exhibit superior stability against water compared to MOFs that incorporate softer metal ions such as zinc [47,48]. Consequently, Zr-based MOFs have emerged as a focal point in a plethora of research, demonstrating enhanced stability and versatility for various applications, including industrial uses [49,50,51,52,53,54].
The pioneering work on Zr-based MOFs is exemplified by the UiO series, employing benzene-1,4-dicarboxylate (BDC) ligands, as reported by Lillerud et al. [55]. Subsequent studies have explored manipulating the connectivity of secondary building units and the coordination of ligands, transitioning from dicarboxylic acids to tricarboxylic and tetracarboxylic acids. The exceptional stability of Zr-based MOFs in water and acidic conditions, coupled with their diverse structural possibilities and relative ease of accessibility, position them as representative MOFs across various applications spanning diverse research fields [49,50,51,52,53,54].
Despite the numerous advantages of Zr-based MOFs, the persistent challenge of low stability under basic conditions remains unresolved. Recurrent nucleophilic attacks by hydroxide ions (OH−) on Zr–carboxylate coordination bonds lead to the dissolution of Zr-based MOFs [56]. This instability is intricately linked to structural issues and the properties of the pore environments. Notably, Zr-based UiO-66 MOFs are commonly reported to be unstable under basic conditions [56], with a limitation level at pH 12 [41]. This inherent instability poses a significant obstacle, especially in the realm of catalytic applications in organic reactions, where bases are often used as essential additives. For instance, new bond-forming cross-coupling reactions, such as the Suzuki–Miyaura reaction and Buchwald–Hartwig amination, require a wide range of bases [57], translating the fact that the low stability of Zr-MOFs under basic conditions restricts their widespread use in applications in organic syntheses [58,59,60,61,62].
To address these concerns, our work focuses on the systematic study of Zr-MOFs in basic solutions to determine their stability. The UiO-66 system, which is based on the simplest BDC ligand, was chosen for investigation because of its ease of accessibility and high chemical stability. Our investigations encompass various inorganic and organic bases, and the insights gained from this study offer valuable information for the practical application of Zr-MOFs, particularly in scenarios involving basic conditions and catalytic applications.

2. Results and Discussion

2.1. Preparation of Zr-Based UiO-66 MOFs

UiO-66, the primary Zr-based MOF investigated in this study, was synthesized following Farha’s solvothermal protocol [63]. The synthesis involved ZrCl4 and H2BDC (benzene-1,4-dicarboxylic acid or terephthalic acid) with formic acid modulators. Detail procedures are provided in the Supplementary Materials (p. S2). Acid modulators are commonly employed in the solvothermal synthesis of MOFs to regulate crystallization speed and enhance reproducibility. However, using acid modulators introduced structural defects into the pristine UiO-66 MOF, a characteristic arising from the consistent protocol employed [64,65,66].
The crystallinity and stability of the synthesized MOFs were initially validated using powder X-ray diffraction (PXRD) pattern analysis. The PXRD patterns of the as-synthesized MOFs were compared with a simulated pattern derived from a reported structure (Figure 1). Any deviations, such as peak broadening in UiO-66, indicated framework destruction. The dissolution of ligands in the MOFs under basic conditions was monitored through physical mass measurements after basic treatment to further assess the stability. Additionally, 1H nuclear magnetic resonance (NMR) spectroscopy data acquired after acid digestion provided insight into ligand dissolution. An internal standard method was employed to quantify the BDC ligands within the framework, utilizing 1,3,5-trimethoxy benzene as the NMR internal standard. Detail protocols for PXRD and NMR are provided in the Supplementary Materials (p. S2). Before subjecting UiO-66 to the basic treatment, the pristine MOFs exhibited 91% of the expected BDC ligands compared to the ideal structure (Figure 1). This 9% discrepancy could be attributed to structural defects resulting from the use of formic acid modulators. Further comparisons of the remaining BDC ligand amounts (by 1H NMR) post-basic treatments shed light on the variations in stability. Notably, the introduction of additional functional groups to the ligand was not considered in this analysis. This omission was due to the potential impact of functional groups (e.g., nitro or tetramethyl groups) on MOF stability [41,67], which could introduce confounding variables into the study.

2.2. Effects of Inorganic Base Solutions on UiO-66 MOF

To assess the stability of the UiO-66 MOF under basic conditions, we selected representative potassium salts, including KOH, K3PO4, K2CO3, KHCO3, KOAc, and K2SO4. These inorganic bases were chosen to ensure a comprehensive evaluation while excluding cationic effects on MOF stability. The pKb values of these bases ranged from −1.7 to 12 (Table 1) [68,69,70]. Initial stability tests involved incubating 30 mg of UiO-66 MOF in each 0.1 M aqueous basic solution for 1 h, followed by recovery through centrifugation and PXRD analysis after washing with pure methanol to remove trapped water molecules.
As illustrated in Figure 2, the strongest base, KOH, led to the total destruction of the UiO-66 structure within 1 h. Conversely, weak bases, such as KHCO3, KOAc, and K2SO4, generally retained their PXRD patterns after 0.1 M of the solution treatment. Therefore, detailed analyses were performed with K3PO4, KHCO3, and KOAc by varying the concentration and treatment time.
The weak base, KOAc, demonstrated good tolerance for the UiO-66 MOF, with no changes in the PXRD patterns observed until treatment with a 1.0 M KOAc solution for 1 d. Structural decomposition commenced at a 2.0 M solution, and substantial destruction occurred with a 3.0 M KOAc solution for 1 h, leaving only 31% remaining BDC ligands in the solid-state MOF (Figure 3) compared to the ideal UiO-66 MOF. Since the starting MOF had 91% of BDC ligands in their structure (and 9% of the defect), 60% of the ligand was removed from the framework during base treatments.
Specific concentration effects were examined using medium-strength bases, KHCO3 and K3PO4. KHCO3 exhibited a PXRD peak that broadened at 0.2 M of the solution treatment for 1 h, with complete framework destruction confirmed at 0.3 M of solution incubation for 1 h, leaving less than 10% of the remaining ligands in the solid state (which meant an 81% loss from pristine MOF, Figure 4). Between K3PO4 and KHCO3, the stronger base, K3PO4, annihilated the UiO-66 structure with a 0.05 M solution within 1 h, with almost no remaining BDC ligand, as confirmed via the 1H NMR analysis after acid digestion (Figure 4).
The concentration limits and remaining ligands are summarized in Figure 5. Notably, KOH exterminated all MOF solid materials with a 0.1 M solution for 1 h, while KOAc exhibited tolerance even with a 1.0 M solution for 1 d. K3PO4 led to over half the destruction with a 0.05 M solution for 1 h, and KHCO3 resulted in similar framework destruction with a 0.2 M solution for 1 h of incubation. Consequently, it was confirmed that the acetate series is a promising inorganic base additive for using Zr-MOFs under basic conditions.

2.3. Effects of Organic Base Solutions on UiO-66 MOF

To assess the stability of UiO-66 MOFs under basic conditions, standard organic bases were examined, including DBU (1,8-diazabicyclo[5.4.0]undec-7-ene), Et3N (triethylamine), BnNH2 (benzylamine), DABCO (1,4-diazabicyclo[2.2.2]octane), and pyridine. Initial stability tests were conducted using 0.5 M of aqueous solutions, and the pKb values of these organic bases ranged from 0.5 to 8.77 (Table 2) [71]. The strong bases, DBU and Et3N, resulted in the complete destruction of the UiO-66 frameworks within 1 h of the 0.5 M concentration test (Figure 6). Furthermore, the concentration limits were explored using DBU, DABCO, and pyridine.
The concentration variation revealed that 0.3 M was the limit for a one-hour treatment of UiO-66 MOFs with the DBU solution. Although all the primary peaks in the PXRD of UiO-66 were retained with a 0.2 M solution treatment, 0.3 M of the DBU solution removed all the primary peaks from the PXRD patterns (Figure 7). Meanwhile, the portion of the remaining BDC ligand in the solid state was drastically decreased in the 0.3 M DBU solution treatment (Figure 7). In contrast, DABCO, which is often used as a nitrogen donor ligand for MOF synthesis, showed good compatibility with the Zr-MOFs. Although some peak broadenings were observed, all primary peaks of the UiO-66 frameworks were completely retained. In addition, ligand dissolution was much lower than that in the DBU treatment (Figure 7). Notably, higher concentration tests (>0.5 M) were unsuccessful because of the low solubility of DBU and DABCO in water. Finally, in the case of the weakest pyridine, the PXRD pattern of the UiO-66 MOF retained its sharpness until the 1.0 M treatment, and the BDC ligands remained in their solid state (Figure 7).
Six samples, each treated with 0.1 M of K2CO3, KHCO3, and K2SO4 as inorganic bases and 0.5 M of BnNH2, DABCO, and pyridine as organic bases, were carefully chosen for in-depth analysis to evaluate their morphology and porosity. The selection was based on the successful recovery of measurable and analyzable samples following the respective base treatments. Notably, the morphology of the recovered samples exhibited no discernible damage, as validated by the scanning electron microscope (SEM) images presented in Figure 8. Both the SEM images and the bulk crystallinity, as confirmed via the PXRD analysis depicted in Figure 7, indicated an overall influence on the entire MOF particles rather than the partial dissolution of specific MOF components.
Although the morphology of the MOF particles remained intact, the porosity experienced alterations due to the basic treatment. Gas adsorption experiments unveiled reductions in the N2 uptake following base treatments, with stronger bases demonstrating a more pronounced impact on porosity than their weaker counterparts (Figure 9). Notably, the N2 uptake underwent an approximate 50% decrease under the BnNH2 treatment among the organic bases. A subsequent Brunauer–Emmett–Teller (BET) surface area analysis was performed. While the pristine UiO-66 MOF boasted a BET surface area of 1777 m2/g, the recovered sample generally displayed a diminished surface area. Specifically, K2CO3 yielded the lowest surface area (524 m2/g), and weak bases like KHCO3, K2SO4, and pyridine had a minimal impact on the surface area (see Table 3).
Finally, inductively coupled plasma–optical emission spectrometry (ICP-OES) analysis was conducted to examine the metal-to-ligand ratio of the MOF following the base treatment. Given that the general formula of UiO-66 MOF is Zr6O4(OH)4(BDC-ligand)6, the dissolution of the ligand in a basic solution could lead to an increase in the metal ratio [72,73,74]. While UiO-66 exhibits a theoretical zirconium content of 32.9 wt%, the pristine UiO-66 (as-synthesized form) contains 34.0 wt% due to structural defects. Following the base treatment, strong bases, such as K2CO3 (inorganic) and BnNH2 (organic), exhibited significant increases in the Zr ratio according to ICP-OES analysis (refer to Table 4).

2.4. Comprehensive Concentration Limits and pKb Values for UiO-66 MOF

A comprehensive investigation demonstrated that KOAc and pyridine were the bases with the highest concentration limits for Zr-based UiO-66 MOFs. As an organic base, pyridine demonstrated remarkable ligand preservation, with more than 80% remaining intact within the solid-state frameworks. Similarly, the KOAc treatment retained over 60% of the ligands, as shown in Figure 10. During the DABCO base test, approximately 70% of the BDC ligands were dissolved from the solid framework into solution. Despite ligand dissolution, the PXRD patterns were adequately retained, and the morphology of UiO-66 remained intact.
The relationship between the strength of the base (expressed by the pKb value) and concentration was directly linked to the dissolution of the MOF frameworks. High basicity (i.e., low pKb and high pKa) proved critical for MOF destruction owing to a strong nucleophilic attack, while high concentrations also played a crucial role in MOF dissolution. Figure 10b illustrates the correlation between pKa and the concentration of the basic solution. The red color signifies the MOF framework dissolution, whereas the blue portion denotes the conserved structure of the MOFs. This visual representation underscores the interplay between the base strength and concentration in determining the fate of MOF stability under basic conditions.

3. Conclusions

Zr-based MOFs have gained widespread attention and applications owing to their excellent chemical and physical stability, ease of accessibility, and tunability. However, the practical deployment of these MOFs in industrial and daily-life scenarios is constrained by their inherent susceptibility to basic conditions. This limitation is indeed critical in a plethora of organic syntheses that use basic additives.
This study systematically probed the stability of Zr-based UiO-66 MOFs in various basic solutions, in which inorganic and organic bases commonly found in chemistry laboratories were investigated. The findings revealed that highly basic solutions (pKb < 3.3) led to the complete destruction of UiO-66 MOFs within 1 h at a 0.1 M concentration. Subsequent examinations focused on bases that have a higher pKb than 3.3. Among these experiments, UiO-66 MOFs exhibited overall stability in both the KOAc and pyridine solutions, while PXRD and NMR analyses detected some framework destruction and ligand dissolution during the KHCO3 and DABCO solution treatments. Notably, K3PO4 and DBU exhibited low concentration limits for the degradation of the UiO-66 MOF.
In conclusion, when designing experiments involving Zr-MOFs under basic conditions, considering the concentration and pKb values of the chosen base is essential. In this context, we believe that Figure 10 can serve as a key guide to practitioners in selecting bases for UiO-66 MOFs under aqueous conditions. Notably, MOF stability may also be influenced by metal salts, ligand functionalization, solvents, etc. Therefore, additional systematic consideration, both from the literature and empirical perspectives, is imperative for advancing the practical applications of MOFs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14010110/s1, General methods, preparation of UiO-66, procedure of base treatment, PXRD measurement, acid digestion of MOFs for NMR measurement, N2 isotherm for UiO-66, and appendix-PXRD and 1H NMR data of UiO-66. Ref. [63] is cited in the supplementary materials.

Author Contributions

J.Y.K., J.K., S.C., H.K. (Haein Kim) and D.K. equally contributed to this work. J.Y.K. and J.K. performed the stability studies with organic bases. S.C. and H.K. (Haein Kim) performed the stability test with inorganic bases. D.K. focused on the properties of MOFs. H.K. (Houng Kang) and I.C. summarized overall basicity and stability. H.K. (Houng Kang), I.C. and M.K. prepared the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the National Research Foundation of Korea (NRF), funded by the Ministry of Science and ICT (2022R1A2C1009706). In addition, Dopil Kim (a PhD candidate) was also financially supported by the NRF funded by the Ministry of Education (RS-2023-00274850).

Data Availability Statement

Data will be available upon request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhou, H.-C.; Long, J.R.; Yaghi, O.M. Introduction to Metal–Organic Frameworks. Chem. Rev. 2012, 112, 673–674. [Google Scholar] [CrossRef] [PubMed]
  2. Lu, W.; Wei, Z.; Gu, Z.-Y.; Liu, T.-F.; Park, J.; Park, J.; Tian, J.; Zhang, M.; Zhang, Q.; Gentle Iii, T.; et al. Tuning the structure and function of metal–organic frameworks via linker design. Chem. Soc. Rev. 2014, 43, 5561–5593. [Google Scholar] [CrossRef] [PubMed]
  3. Zhou, H.-C.J.; Kitagawa, S. Metal–Organic Frameworks (MOFs). Chem. Soc. Rev. 2014, 43, 5415–5418. [Google Scholar] [CrossRef] [PubMed]
  4. Bavykina, A.; Kolobov, N.; Khan, I.S.; Bau, J.A.; Ramirez, A.; Gascon, J. Metal–Organic Frameworks in Heterogeneous Catalysis: Recent Progress, New Trends, and Future Perspectives. Chem. Rev. 2020, 120, 8468–8535. [Google Scholar] [CrossRef] [PubMed]
  5. Jiang, J.; Yaghi, O.M. Brønsted Acidity in Metal–Organic Frameworks. Chem. Rev. 2015, 115, 6966–6997. [Google Scholar] [CrossRef] [PubMed]
  6. Zhu, L.; Liu, X.-Q.; Jiang, H.-L.; Sun, L.-B. Metal–Organic Frameworks for Heterogeneous Basic Catalysis. Chem. Rev. 2017, 117, 8129–8176. [Google Scholar] [CrossRef] [PubMed]
  7. O’Keeffe, M. Design of MOFs and intellectual content in reticular chemistry: A personal view. Chem. Soc. Rev. 2009, 38, 1215–1217. [Google Scholar] [CrossRef]
  8. Chen, Z.; Hanna, S.L.; Redfern, L.R.; Alezi, D.; Islamoglu, T.; Farha, O.K. Reticular chemistry in the rational synthesis of functional zirconium cluster-based MOFs. Coord. Chem. Rev. 2019, 386, 32–49. [Google Scholar] [CrossRef]
  9. Jiang, H.; Alezi, D.; Eddaoudi, M. A reticular chemistry guide for the design of periodic solids. Nat. Rev. Mater. 2021, 6, 466–487. [Google Scholar] [CrossRef]
  10. Freund, R.; Canossa, S.; Cohen, S.M.; Yan, W.; Deng, H.; Guillerm, V.; Eddaoudi, M.; Madden, D.G.; Fairen-Jimenez, D.; Lyu, H.; et al. 25 Years of Reticular Chemistry. Angew. Chem. Int. Ed. 2021, 60, 23946–23974. [Google Scholar] [CrossRef]
  11. Zhao, X.; Wang, Y.; Li, D.-S.; Bu, X.; Feng, P. Metal–Organic Frameworks for Separation. Adv. Mater. 2018, 30, 1705189. [Google Scholar] [CrossRef] [PubMed]
  12. Lim, D.-W.; Ha, J.; Oruganti, Y.; Moon, H.R. Hydrogen separation and purification with MOF-based materials. Mater. Chem. Front. 2021, 5, 4022–4041. [Google Scholar] [CrossRef]
  13. Wang, L.; Huang, H.; Zhang, X.; Zhao, H.; Li, F.; Gu, Y. Designed metal-organic frameworks with potential for multi-component hydrocarbon separation. Coord. Chem. Rev. 2023, 484, 215111. [Google Scholar] [CrossRef]
  14. Bae, C.; Gu, M.; Jeon, Y.; Kim, D.; Kim, J. Metal–organic frameworks for NH3 adsorption by different NH3 operating pressures. Bull. Korean Chem. Soc. 2023, 44, 112–124. [Google Scholar] [CrossRef]
  15. Mariella Babu, A.; Varghese, A. Electrochemical deposition for metal organic Frameworks: Advanced Energy, Catalysis, sensing and separation applications. J. Electroanal. Chem. 2023, 937, 117417. [Google Scholar] [CrossRef]
  16. Kim, J.; Na, C.; Son, Y.; Prabu, M.; Yoon, M. Stilbene ligand-based metal–organic frameworks for efficient dye adsorption and nitrobenzene detection. Bull. Korean Chem. Soc. 2023, 44, 507–515. [Google Scholar] [CrossRef]
  17. Sun, Z.; Li, T.; Mei, T.; Liu, Y.; Wu, K.; Le, W.; Hu, Y. Nanoscale MOFs in nanomedicine applications: From drug delivery to therapeutic agents. J. Mater. Chem. B 2023, 11, 3273–3294. [Google Scholar] [CrossRef]
  18. Gatou, M.A.; Vagena, I.A.; Lagopati, N.; Pippa, N.; Gazouli, M.; Pavlatou, E.A. Functional MOF-Based Materials for Environmental and Biomedical Applications: A Critical Review. Nanomaterials 2023, 13, 2224. [Google Scholar] [CrossRef]
  19. Pourmadadi, M.; Omrani, Z.; Forootan, Z.; Ebadi, M.S.; Yazdian, F. UiO-66 nanoparticles as a drug delivery system: A comprehensive review. J. Drug Deliv. Sci. Technol. 2023, 86, 104690. [Google Scholar] [CrossRef]
  20. Dhakshinamoorthy, A.; Li, Z.; Garcia, H. Catalysis and photocatalysis by metal organic frameworks. Chem. Soc. Rev. 2018, 47, 8134–8172. [Google Scholar] [CrossRef]
  21. Liu, J.; Goetjen, T.A.; Wang, Q.; Knapp, J.G.; Wasson, M.C.; Yang, Y.; Syed, Z.H.; Delferro, M.; Notestein, J.M.; Farha, O.K.; et al. MOF-enabled confinement and related effects for chemical catalyst presentation and utilization. Chem. Soc. Rev. 2022, 51, 1045–1097. [Google Scholar] [CrossRef] [PubMed]
  22. Kirchon, A.; Feng, L.; Drake, H.F.; Joseph, E.A.; Zhou, H.-C. From fundamentals to applications: A toolbox for robust and multifunctional MOF materials. Chem. Soc. Rev. 2018, 47, 8611–8638. [Google Scholar] [CrossRef] [PubMed]
  23. Ding, M.; Cai, X.; Jiang, H.-L. Improving MOF stability: Approaches and applications. Chem. Sci. 2019, 10, 10209–10230. [Google Scholar] [CrossRef] [PubMed]
  24. Cheng, P.; Wang, C.; Kaneti, Y.V.; Eguchi, M.; Lin, J.; Yamauchi, Y.; Na, J. Practical MOF Nanoarchitectonics: New Strategies for Enhancing the Processability of MOFs for Practical Applications. Langmuir 2020, 36, 4231–4249. [Google Scholar] [CrossRef] [PubMed]
  25. Freund, R.; Zaremba, O.; Arnauts, G.; Ameloot, R.; Skorupskii, G.; Dincă, M.; Bavykina, A.; Gascon, J.; Ejsmont, A.; Goscianska, J.; et al. The Current Status of MOF and COF Applications. Angew. Chem. Int. Ed. 2021, 60, 23975–24001. [Google Scholar] [CrossRef]
  26. Ntouros, V.; Kousis, I.; Pisello, A.L.; Assimakopoulos, M.N. Binding Materials for MOF Monolith Shaping Processes: A Review towards Real Life Application. Energies 2022, 15, 1489. [Google Scholar] [CrossRef]
  27. Lee, J.; Lee, J.; Kim, J.Y.; Kim, M. Covalent connections between metal–organic frameworks and polymers including covalent organic frameworks. Chem. Soc. Rev. 2023, 52, 6379–6416. [Google Scholar] [CrossRef]
  28. Acuna-Yeomans, E.; Gutiérrez-Sevillano, J.J.; Dubbeldam, D.; Calero, S. A simulation study of linker vacancy distribution and its effect on UiO-66 stability. Microporous Mesoporous Mater. 2024, 366, 112922. [Google Scholar] [CrossRef]
  29. An, Y.; Lv, X.; Jiang, W.; Wang, L.; Shi, Y.; Hang, X.; Pang, H. The stability of MOFs in aqueous solutions—Research progress and prospects. Green Chem. Eng. 2023; in press. [Google Scholar] [CrossRef]
  30. Pramanik, B.; Sahoo, R.; Das, M.C. pH-stable MOFs: Design principles and applications. Coord. Chem. Rev. 2023, 493, 215301. [Google Scholar] [CrossRef]
  31. Semivrazhskaya, O.O.; Salionov, D.; Clark, A.H.; Casati, N.P.M.; Nachtegaal, M.; Ranocchiari, M.; Bjelić, S.; Verel, R.; van Bokhoven, J.A.; Sushkevich, V.L. Deciphering the Mechanism of Crystallization of UiO-66 Metal-Organic Framework. Small 2023, 19, 2305771. [Google Scholar] [CrossRef]
  32. Ahmadijokani, F.; Molavi, H.; Rezakazemi, M.; Tajahmadi, S.; Bahi, A.; Ko, F.; Aminabhavi, T.M.; Li, J.-R.; Arjmand, M. UiO-66 metal–organic frameworks in water treatment: A critical review. Prog. Mater. Sci. 2022, 125, 100904. [Google Scholar] [CrossRef]
  33. Bůžek, D.; Demel, J.; Lang, K. Zirconium Metal–Organic Framework UiO-66: Stability in an Aqueous Environment and Its Relevance for Organophosphate Degradation. Inorg. Chem. 2018, 57, 14290–14297. [Google Scholar] [CrossRef] [PubMed]
  34. He, S.; Li, L.-X.; Zhang, L.-T.; Zeng, S.; Feng, C.; Chen, X.-X.; Zhou, H.-L.; Huang, X.-C. Elucidating influences of defects and thermal treatments on CO2 capture of a Zr-based metal–organic framework. Chem. Eng. J. 2024, 479, 147605. [Google Scholar] [CrossRef]
  35. Li, L.-X.; He, S.; Zeng, S.; Chen, W.-T.; Ye, J.-W.; Zhou, H.-L.; Huang, X.-C. Equipping carbon dots in a defect-containing MOF via self-carbonization for explosive sensing. J. Mater. Chem. C 2023, 11, 321–328. [Google Scholar] [CrossRef]
  36. Safy, M.E.A.; Amin, M.; Haikal, R.R.; Elshazly, B.; Wang, J.; Wang, Y.; Wöll, C.; Alkordi, M.H. Probing the Water Stability Limits and Degradation Pathways of Metal–Organic Frameworks. Chem.—A Eur. J. 2020, 26, 7109–7117. [Google Scholar] [CrossRef]
  37. Ahmad, R.; Rizaldo, S.; Gohari, M.; Shanahan, J.; Shaner, S.E.; Stone, K.L.; Kissel, D.S. Buffer Effects in Zirconium-Based UiO Metal–Organic Frameworks (MOFs) That Influence Enzyme Immobilization and Catalytic Activity in Enzyme/MOF Biocatalysts. ACS Omega 2023, 8, 22545–22555. [Google Scholar] [CrossRef]
  38. Bůžek, D.; Adamec, S.; Lang, K.; Demel, J. Metal–organic frameworks vs. buffers: Case study of UiO-66 stability. Inorg. Chem. Front. 2021, 8, 720–734. [Google Scholar] [CrossRef]
  39. Wang, Y.; Yin, J.; Cao, W.; Fu, Y.; Kong, X. The instability of a stable metal-organic framework in amino acid solutions. Nano Res. 2022, 15, 6607–6612. [Google Scholar] [CrossRef]
  40. Burtch, N.C.; Jasuja, H.; Walton, K.S. Water Stability and Adsorption in Metal–Organic Frameworks. Chem. Rev. 2014, 114, 10575–10612. [Google Scholar] [CrossRef]
  41. Wang, K.; Li, Y.; Xie, L.-H.; Li, X.; Li, J.-R. Construction and application of base-stable MOFs: A critical review. Chem. Soc. Rev. 2022, 51, 6417–6441. [Google Scholar] [CrossRef]
  42. Hamisu, A.M.; Ariffin, A.; Wibowo, A.C. Cation exchange in metal-organic frameworks (MOFs): The hard-soft acid-base (HSAB) principle appraisal. Inorganica Chim. Acta 2020, 511, 119801. [Google Scholar] [CrossRef]
  43. Wang, L.; Li, J.; Cheng, L.; Song, Y.; Zeng, P.; Wen, X. Application of hard and soft acid base theory to uncover the destructiveness of Lewis bases to UiO-66 type metal organic frameworks in aqueous solutions. J. Mater. Chem. A 2021, 9, 14868–14876. [Google Scholar] [CrossRef]
  44. Fernandez, C.A.; Nune, S.K.; Annapureddy, H.V.; Dang, L.X.; McGrail, B.P.; Zheng, F.; Polikarpov, E.; King, D.L.; Freeman, C.; Brooks, K.P. Hydrophobic and moisture-stable metal–organic frameworks. Dalton Trans. 2015, 44, 13490–13497. [Google Scholar] [CrossRef] [PubMed]
  45. Jayaramulu, K.; Geyer, F.; Schneemann, A.; Kment, Š.; Otyepka, M.; Zboril, R.; Vollmer, D.; Fischer, R.A. Hydrophobic Metal–Organic Frameworks. Adv. Mater. 2019, 31, 1900820. [Google Scholar] [CrossRef] [PubMed]
  46. Ding, M.; Jiang, H.-L. Improving Water Stability of Metal–Organic Frameworks by a General Surface Hydrophobic Polymerization. CCS Chem. 2020, 3, 2740–2748. [Google Scholar] [CrossRef]
  47. Kim, M.; Cohen, S.M. Discovery, development, and functionalization of Zr(iv)-based metal–organic frameworks. CrystEngComm 2012, 14, 4096–4104. [Google Scholar] [CrossRef]
  48. Kim, M.; Cahill, J.F.; Fei, H.; Prather, K.A.; Cohen, S.M. Postsynthetic Ligand and Cation Exchange in Robust Metal–Organic Frameworks. J. Am. Chem. Soc. 2012, 134, 18082–18088. [Google Scholar] [CrossRef]
  49. Bai, Y.; Dou, Y.; Xie, L.-H.; Rutledge, W.; Li, J.-R.; Zhou, H.-C. Zr-based metal–organic frameworks: Design, synthesis, structure, and applications. Chem. Soc. Rev. 2016, 45, 2327–2367. [Google Scholar] [CrossRef]
  50. Chen, Y.; Zhang, X.; Mian, M.R.; Son, F.A.; Zhang, K.; Cao, R.; Chen, Z.; Lee, S.-J.; Idrees, K.B.; Goetjen, T.A.; et al. Structural Diversity of Zirconium Metal–Organic Frameworks and Effect on Adsorption of Toxic Chemicals. J. Am. Chem. Soc. 2020, 142, 21428–21438. [Google Scholar] [CrossRef]
  51. Feng, L.; Day, G.S.; Wang, K.-Y.; Yuan, S.; Zhou, H.-C. Strategies for Pore Engineering in Zirconium Metal-Organic Frameworks. Chem 2020, 6, 2902–2923. [Google Scholar] [CrossRef]
  52. Hou, J.; Wang, H.; Zhang, H. Zirconium Metal–Organic Framework Materials for Efficient Ion Adsorption and Sieving. Ind. Eng. Chem. Res. 2020, 59, 12907–12923. [Google Scholar] [CrossRef]
  53. Fu, J.; Wu, Y.-n. A Showcase of Green Chemistry: Sustainable Synthetic Approach of Zirconium-Based MOF Materials. Chem.—A Eur. J. 2021, 27, 9967–9987. [Google Scholar] [CrossRef] [PubMed]
  54. Zhang, X.; Tong, S.; Huang, D.; Liu, Z.; Shao, B.; Liang, Q.; Wu, T.; Pan, Y.; Huang, J.; Liu, Y.; et al. Recent advances of Zr based metal organic frameworks photocatalysis: Energy production and environmental remediation. Coord. Chem. Rev. 2021, 448, 214177. [Google Scholar] [CrossRef]
  55. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A New Zirconium Inorganic Building Brick Forming Metal Organic Frameworks with Exceptional Stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef] [PubMed]
  56. Howarth, A.J.; Liu, Y.; Li, P.; Li, Z.; Wang, T.C.; Hupp, J.T.; Farha, O.K. Chemical, thermal and mechanical stabilities of metal–organic frameworks. Nat. Rev. Mater. 2016, 1, 15018. [Google Scholar] [CrossRef]
  57. Biffis, A.; Centomo, P.; Del Zotto, A.; Zecca, M. Pd Metal Catalysts for Cross-Couplings and Related Reactions in the 21st Century: A Critical Review. Chem. Rev. 2018, 118, 2249–2295. [Google Scholar] [CrossRef] [PubMed]
  58. Dhakshinamoorthy, A.; Asiri, A.M.; Garcia, H. Formation of C–C and C–Heteroatom Bonds by C–H Activation by Metal Organic Frameworks as Catalysts or Supports. ACS Catal. 2019, 9, 1081–1102. [Google Scholar] [CrossRef]
  59. Luo, S.; Zeng, Z.; Zeng, G.; Liu, Z.; Xiao, R.; Chen, M.; Tang, L.; Tang, W.; Lai, C.; Cheng, M.; et al. Metal Organic Frameworks as Robust Host of Palladium Nanoparticles in Heterogeneous Catalysis: Synthesis, Application, and Prospect. ACS Appl. Mater. Interfaces 2019, 11, 32579–32598. [Google Scholar] [CrossRef]
  60. Khoury, C.; Gadipelly, C.; Pappuru, S.; Shpasser, D.; Gazit, O.M. Progress in the Design of Cooperative Heterogeneous Catalytic Materials for C–C Bond Formation. Adv. Funct. Mater. 2020, 30, 1901385. [Google Scholar] [CrossRef]
  61. Wang, Q.; Astruc, D. State of the Art and Prospects in Metal–Organic Framework (MOF)-Based and MOF-Derived Nanocatalysis. Chem. Rev. 2020, 120, 1438–1511. [Google Scholar] [CrossRef]
  62. Singh, S.; Kumar, P.; Soni, A.; Nemiwal, M. An Exploration on Copper-Based Metal-Organic Frameworks as Propitious Heterogeneous Catalyst for Coupling Reactions. ChemistrySelect 2023, 8, e202204279. [Google Scholar] [CrossRef]
  63. Katz, M.J.; Brown, Z.J.; Colón, Y.J.; Siu, P.W.; Scheidt, K.A.; Snurr, R.Q.; Hupp, J.T.; Farha, O.K. A facile synthesis of UiO-66, UiO-67 and their derivatives. Chem. Commun. 2013, 49, 9449–9451. [Google Scholar] [CrossRef] [PubMed]
  64. Shearer, G.C.; Vitillo, J.G.; Bordiga, S.; Svelle, S.; Olsbye, U.; Lillerud, K.P. Functionalizing the Defects: Postsynthetic Ligand Exchange in the Metal Organic Framework UiO-66. Chem. Mater. 2016, 28, 7190–7193. [Google Scholar] [CrossRef]
  65. Cai, G.; Jiang, H.-L. A Modulator-Induced Defect-Formation Strategy to Hierarchically Porous Metal–Organic Frameworks with High Stability. Angew. Chem. Int. Ed. 2017, 56, 563–567. [Google Scholar] [CrossRef] [PubMed]
  66. Park, H.; Kim, S.; Jung, B.; Park, M.H.; Kim, Y.; Kim, M. Defect Engineering into Metal–Organic Frameworks for the Rapid and Sequential Installation of Functionalities. Inorg. Chem. 2018, 57, 1040–1047. [Google Scholar] [CrossRef] [PubMed]
  67. Kim, D.; Kang, M.; Ha, H.; Hong, C.S.; Kim, M. Multiple functional groups in metal–organic frameworks and their positional regioisomerism. Coord. Chem. Rev. 2021, 438, 213892. [Google Scholar] [CrossRef]
  68. Olmstead, W.N.; Margolin, Z.; Bordwell, F.G. Acidities of water and simple alcohols in dimethyl sulfoxide solution. J. Org. Chem. 1980, 45, 3295–3299. [Google Scholar] [CrossRef]
  69. Bickmore, B.R.; Tadanier, C.J.; Rosso, K.M.; Monn, W.D.; Eggett, D.L. Bond-valence methods for pKa prediction: Critical reanalysis and a new approach1 1Associate editor: C. M. Eggleston. Geochim. Et Cosmochim. Acta 2004, 68, 2025–2042. [Google Scholar] [CrossRef]
  70. Pines, D.; Ditkovich, J.; Mukra, T.; Miller, Y.; Kiefer, P.M.; Daschakraborty, S.; Hynes, J.T.; Pines, E. How Acidic Is Carbonic Acid? J. Phys. Chem. B 2016, 120, 2440–2451. [Google Scholar] [CrossRef]
  71. Tshepelevitsh, S.; Kütt, A.; Lõkov, M.; Kaljurand, I.; Saame, J.; Heering, A.; Plieger, P.G.; Vianello, R.; Leito, I. On the Basicity of Organic Bases in Different Media. Eur. J. Org. Chem. 2019, 2019, 6735–6748. [Google Scholar] [CrossRef]
  72. Bodylska, W.; Fandzloch, M.; Szukiewicz, R.; Lukowiak, A. Cation-Exchange in Metal-Organic Framework as a Strategy to Obtain New Material for Ascorbic Acid Detection. Nanomaterials 2022, 12, 4480. [Google Scholar] [CrossRef] [PubMed]
  73. Ye, G.; Wan, L.; Zhang, Q.; Liu, H.; Zhou, J.; Wu, L.; Zeng, X.; Wang, H.; Chen, X.; Wang, J. Boosting Catalytic Performance of MOF-808(Zr) by Direct Generation of Rich Defective Zr Nodes via a Solvent-Free Approach. Inorg. Chem. 2023, 62, 4248–4259. [Google Scholar] [CrossRef] [PubMed]
  74. Luzuriaga, M.A.; Benjamin, C.E.; Gaertner, M.W.; Lee, H.; Herbert, F.C.; Mallick, S.; Gassensmith, J.J. ZIF-8 degrades in cell media, serum, and some—But not all—Common laboratory buffers. Supramol. Chem. 2019, 31, 485–490. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 14 00110 g001

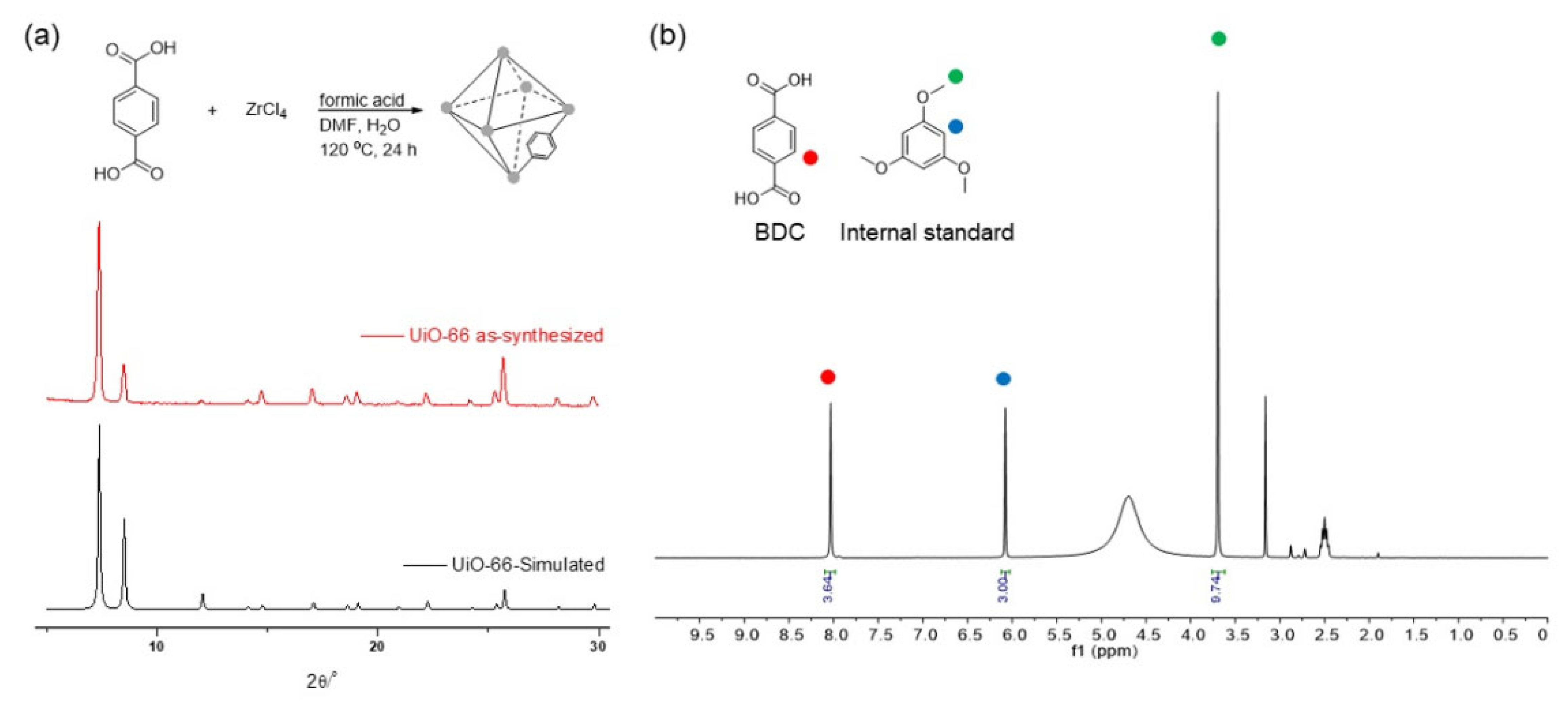

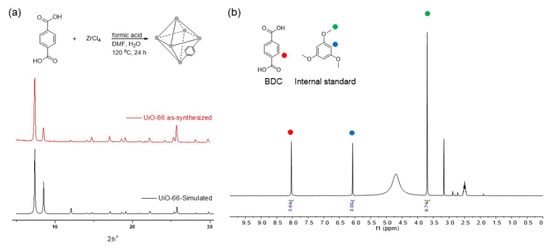

Figure 1. (a) Preparation of UiO-66 MOF and PXRD and (b) NMR data of pristine UiO-66 MOF (the digested sample) before base treatments.
Figure 1. (a) Preparation of UiO-66 MOF and PXRD and (b) NMR data of pristine UiO-66 MOF (the digested sample) before base treatments.
Nanomaterials 14 00110 g001
Nanomaterials 14 00110 g002

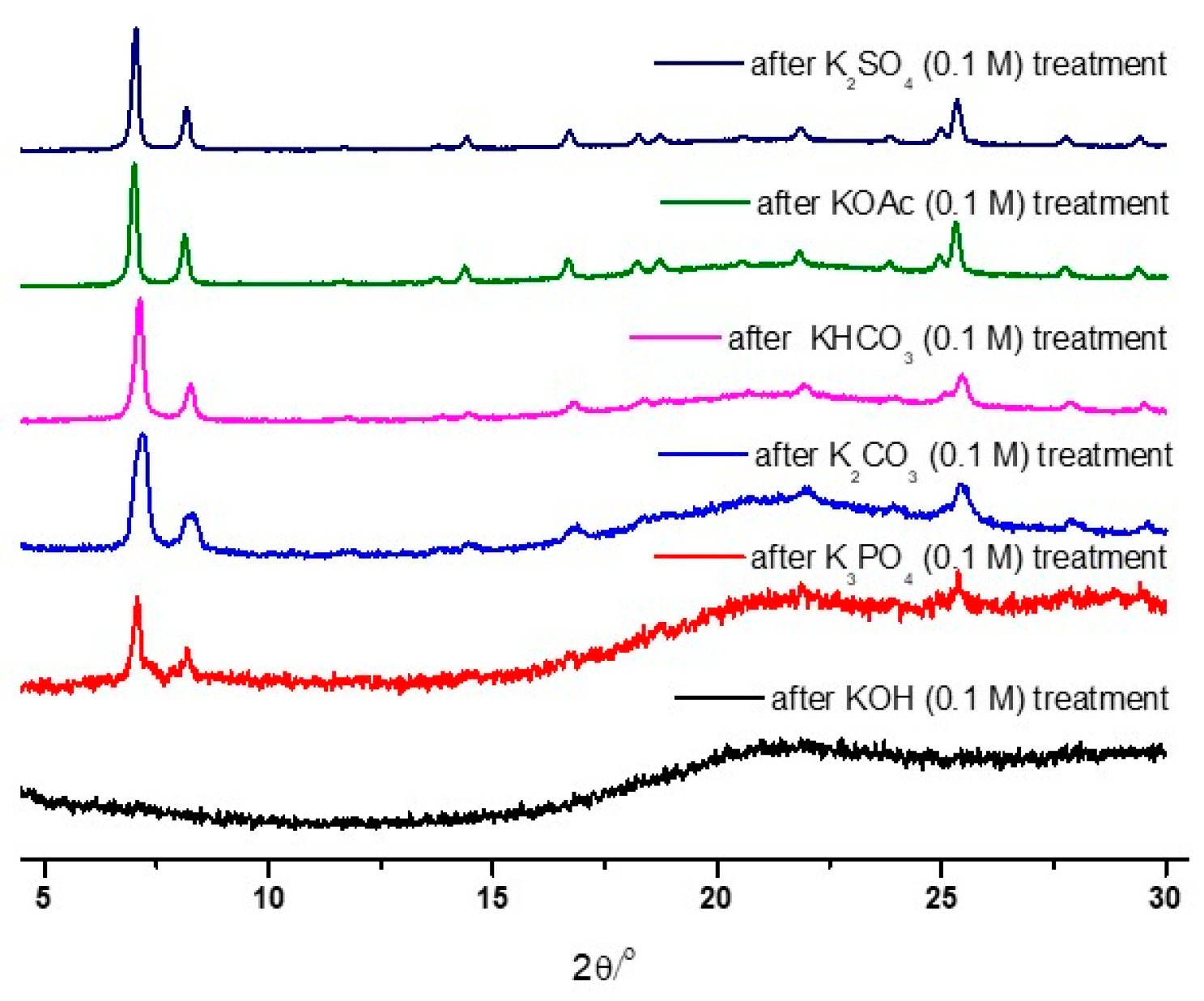

Figure 2. PXRD patterns of the recovered UiO-66 samples after the 0.1 M basic solution treatment.
Figure 2. PXRD patterns of the recovered UiO-66 samples after the 0.1 M basic solution treatment.
Nanomaterials 14 00110 g002
Nanomaterials 14 00110 g003

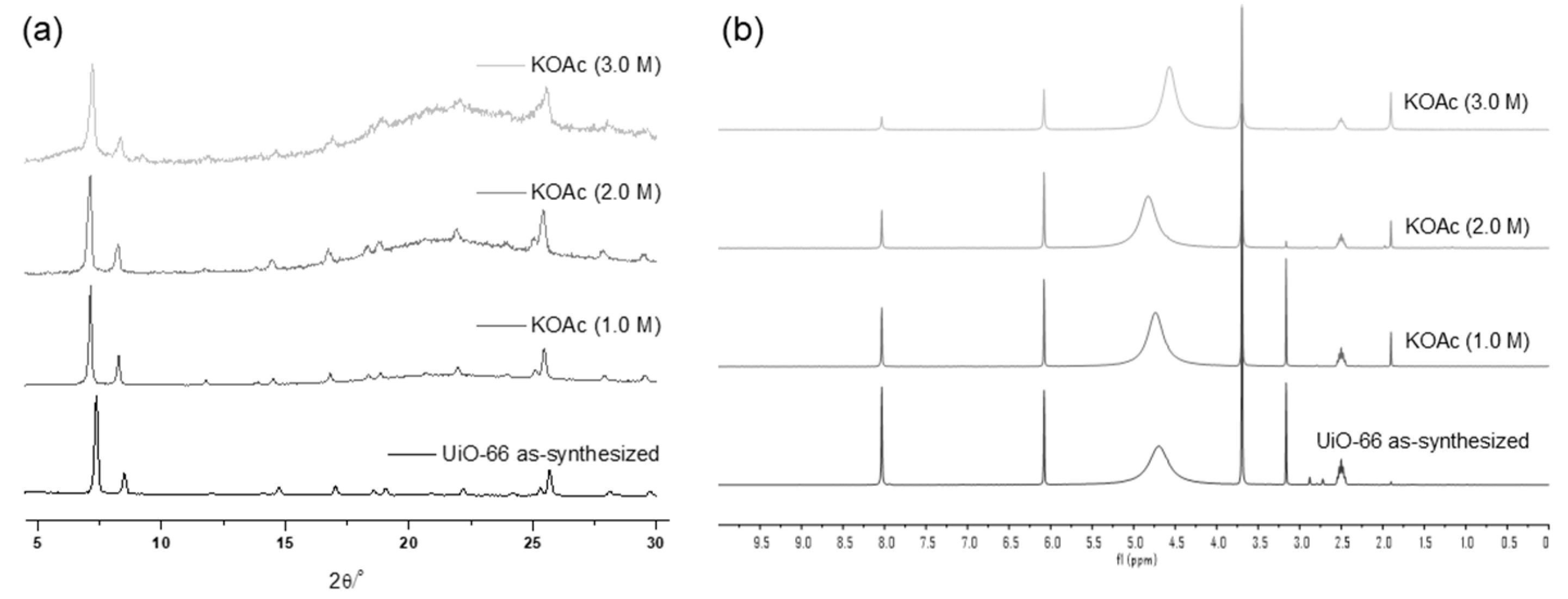

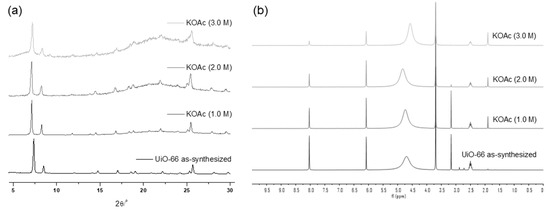

Figure 3. (a) PXRD patterns and (b) NMR spectral changes after treatment with the KOAc solution for 1 h.
Figure 3. (a) PXRD patterns and (b) NMR spectral changes after treatment with the KOAc solution for 1 h.
Nanomaterials 14 00110 g003
Nanomaterials 14 00110 g004

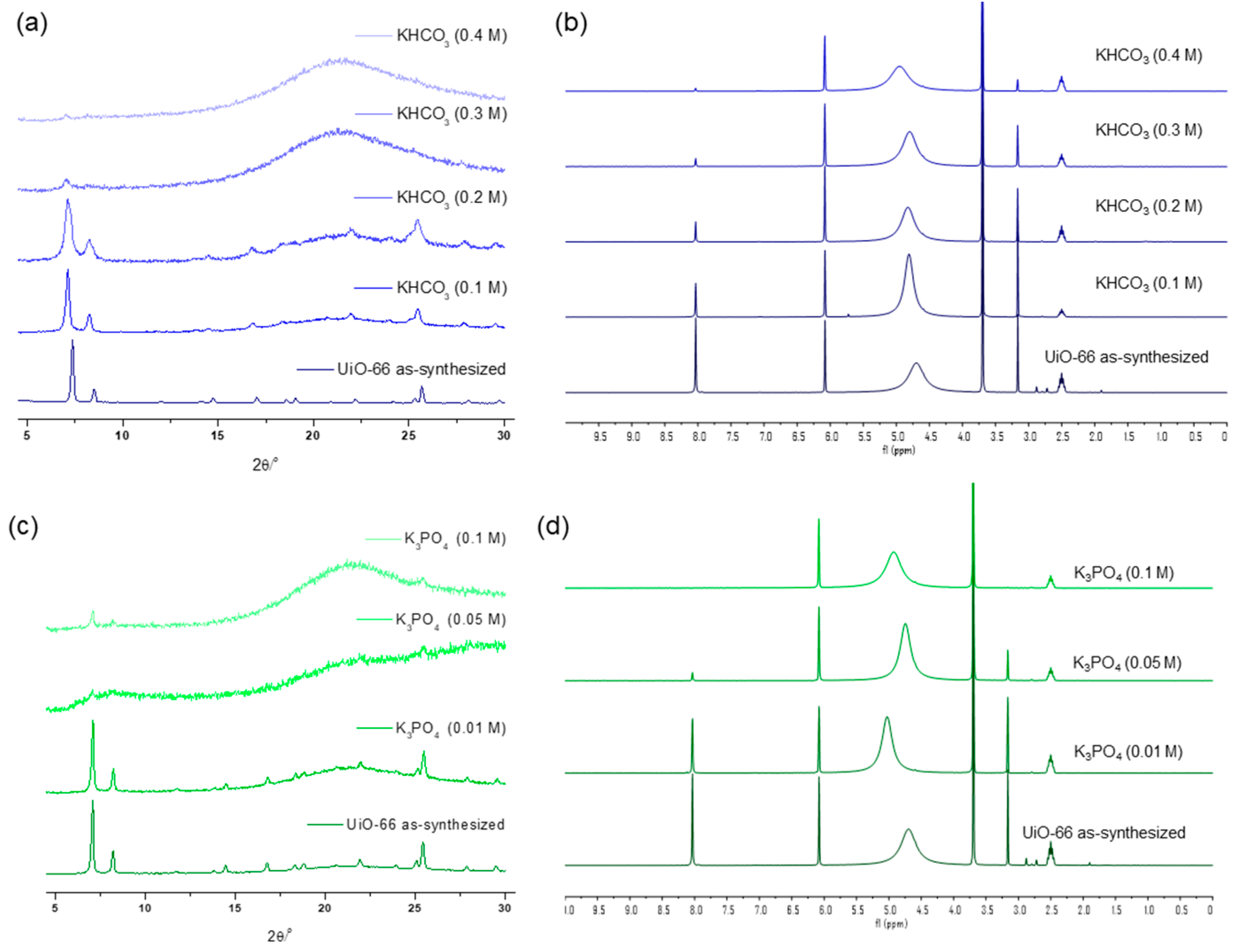

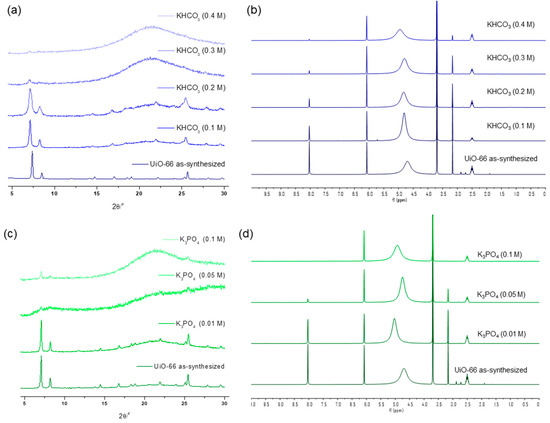

Figure 4. (a) PXRD patterns and (b) NMR spectral changes after KHCO3 solution treatment for 1 h. (c) PXRD patterns and (d) NMR spectral changes after K3PO4 solution treatment for 1 h.
Figure 4. (a) PXRD patterns and (b) NMR spectral changes after KHCO3 solution treatment for 1 h. (c) PXRD patterns and (d) NMR spectral changes after K3PO4 solution treatment for 1 h.
Nanomaterials 14 00110 g004
Nanomaterials 14 00110 g005

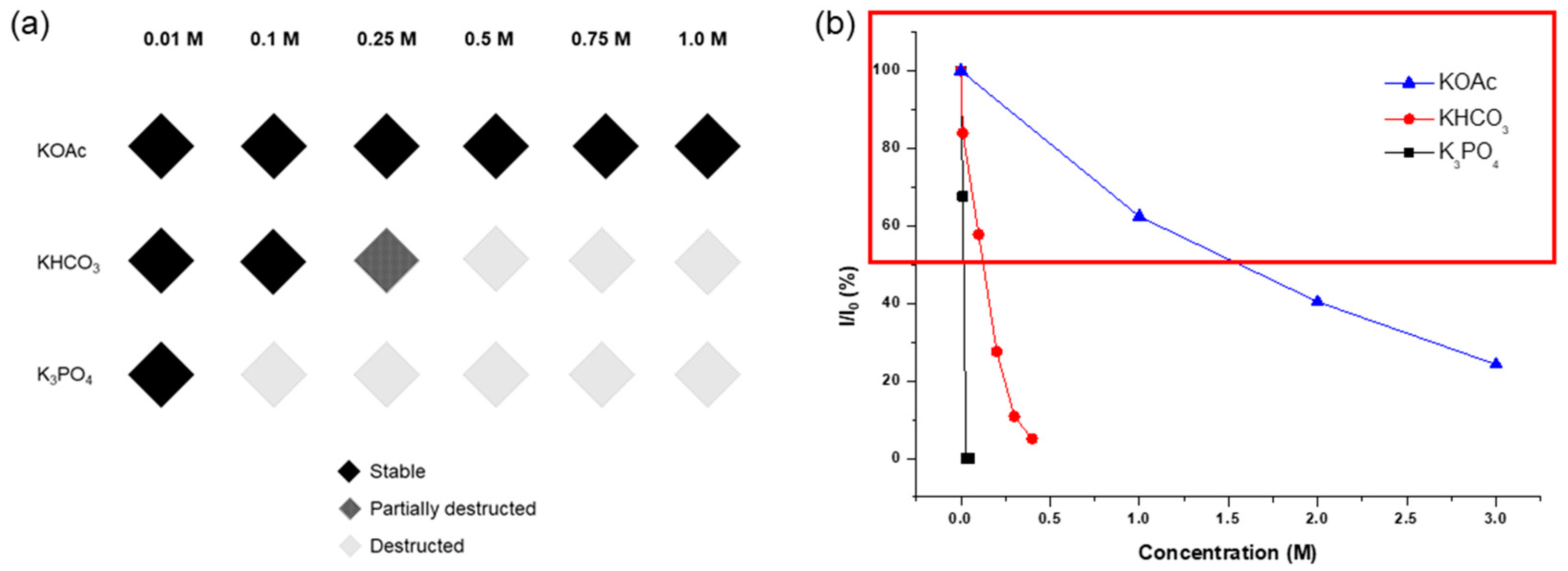

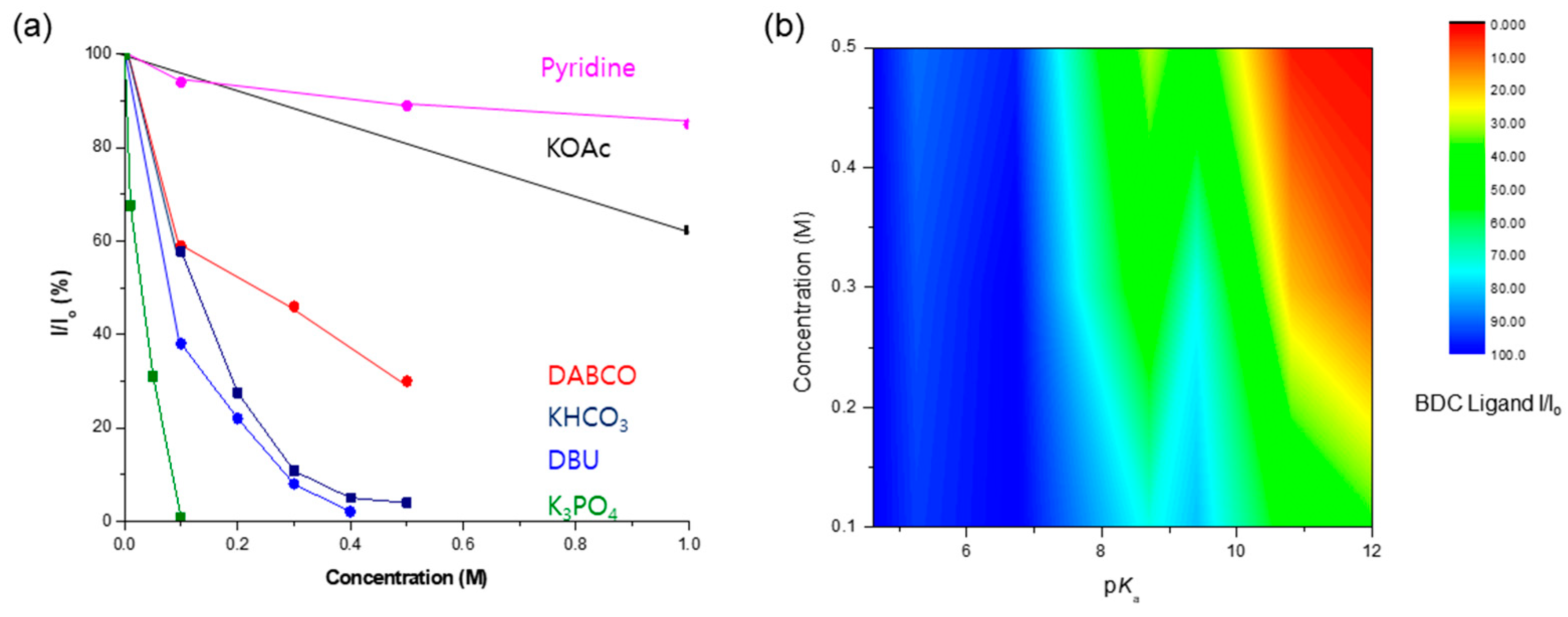

Figure 5. (a) Concentration limits for inorganic base treatments of UiO-66 and (b) the remaining BDC ligands in the recovered UiO-66 after each base treatment.
Figure 5. (a) Concentration limits for inorganic base treatments of UiO-66 and (b) the remaining BDC ligands in the recovered UiO-66 after each base treatment.
Nanomaterials 14 00110 g005
Nanomaterials 14 00110 g006

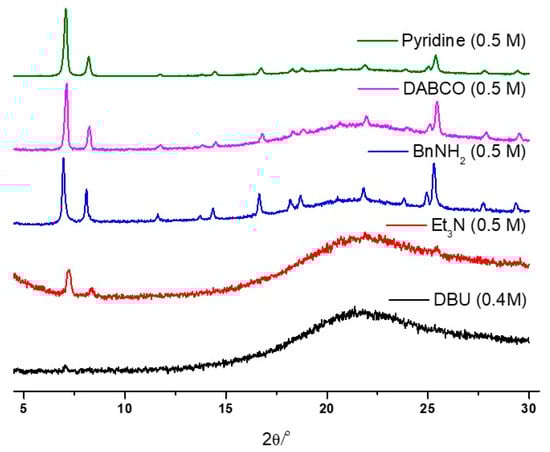

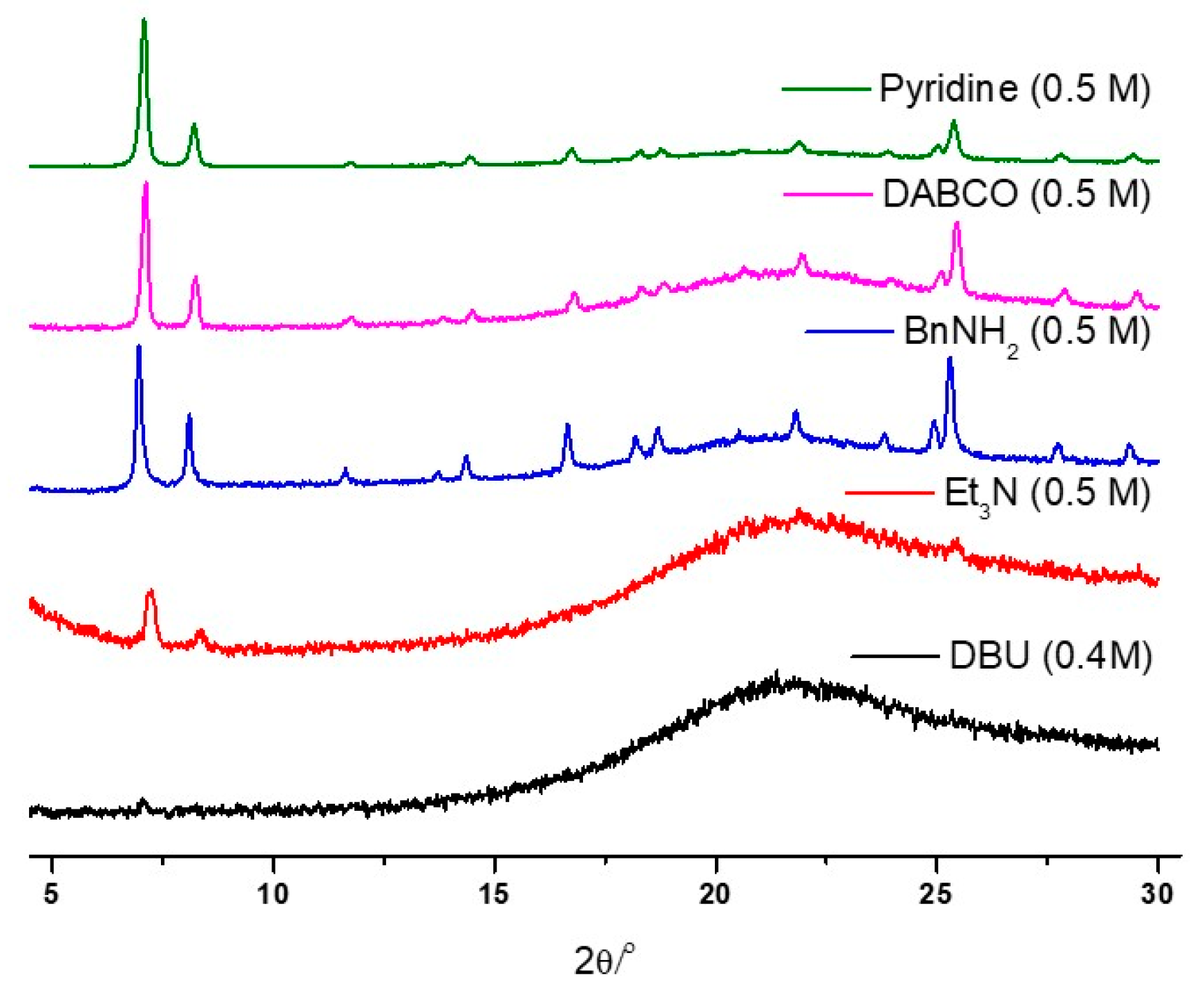

Figure 6. PXRD patterns of the recovered UiO-66 samples after the organic basic solution treatment.
Figure 6. PXRD patterns of the recovered UiO-66 samples after the organic basic solution treatment.
Nanomaterials 14 00110 g006
Nanomaterials 14 00110 g007aNanomaterials 14 00110 g007b

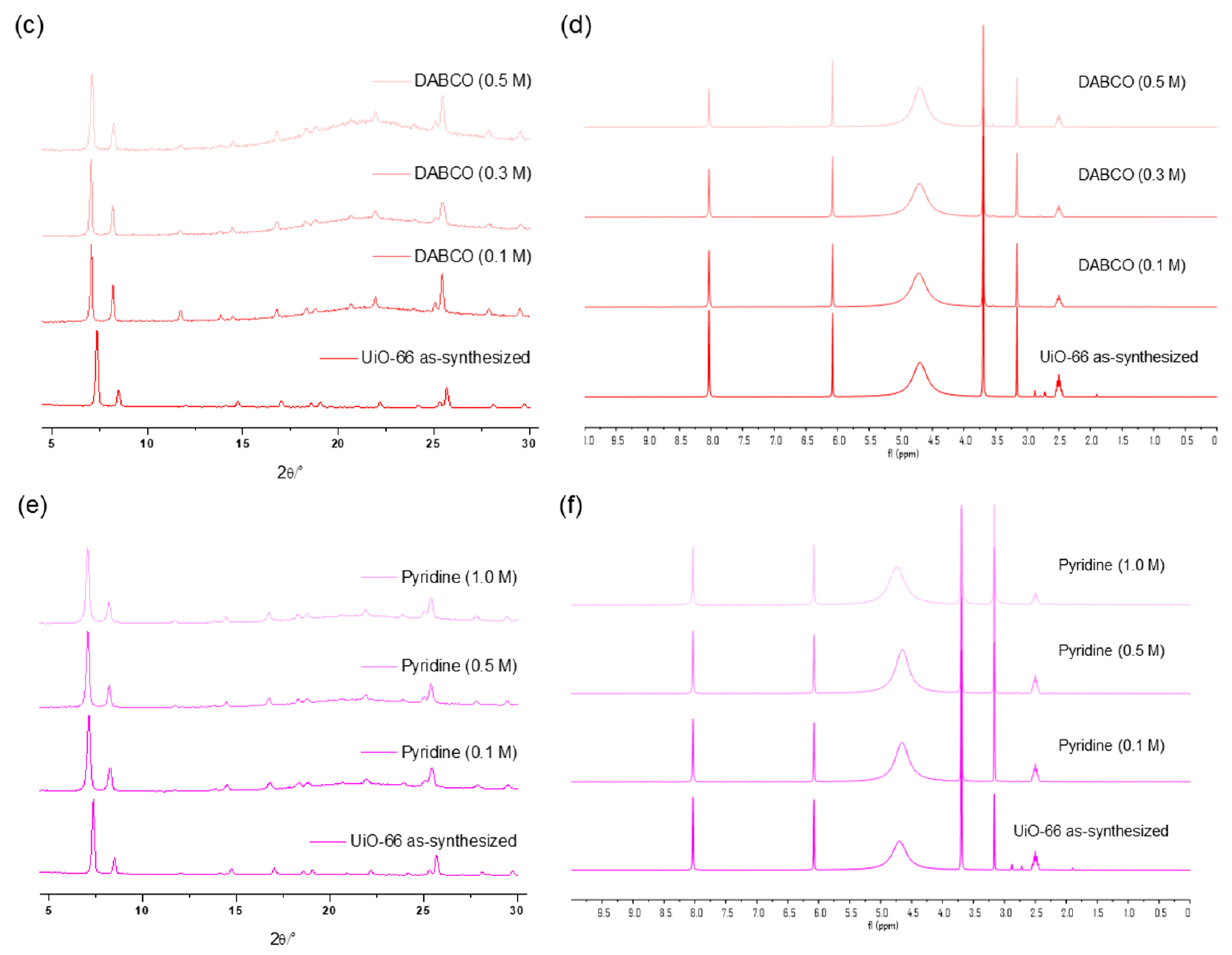

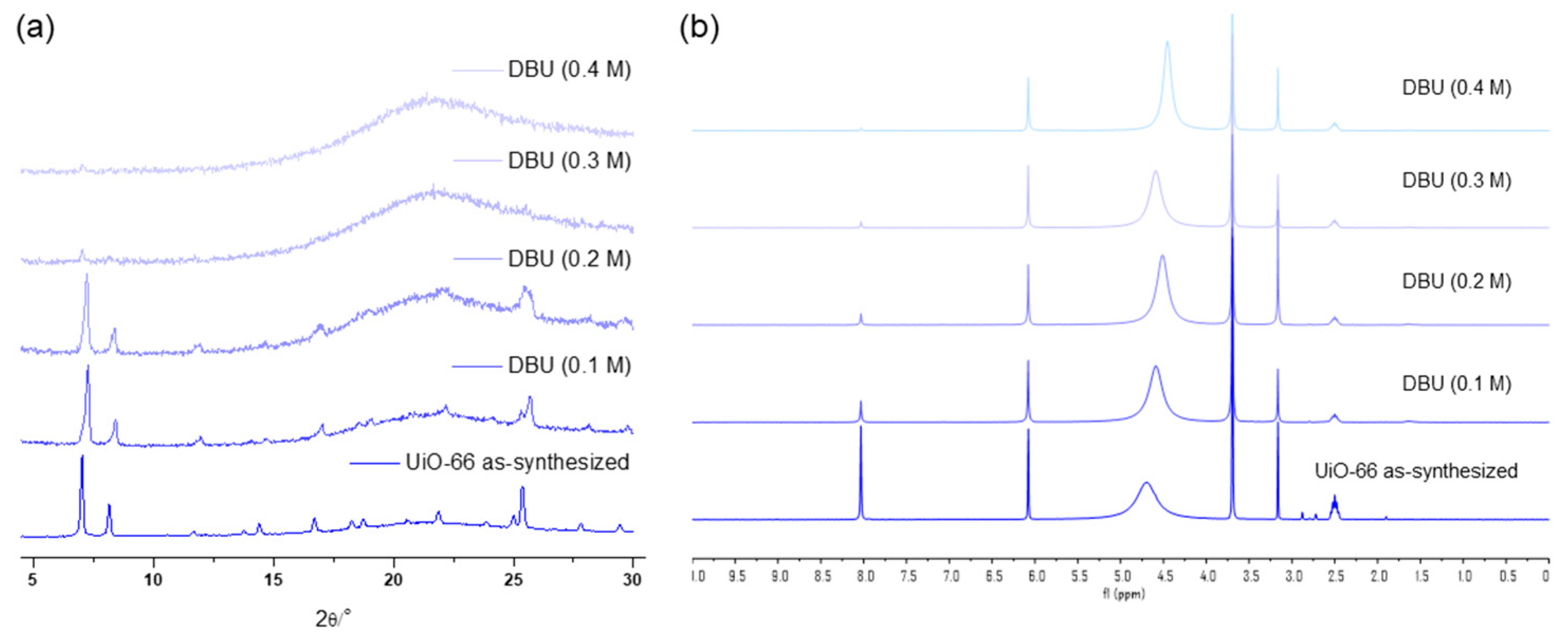

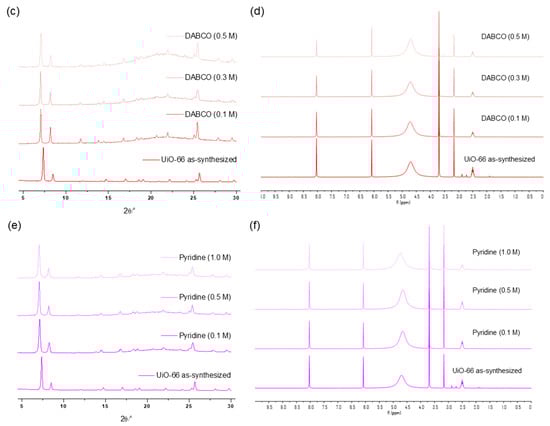

Figure 7. (a) PXRD patterns and (b) NMR spectral changes after DBU solution treatment for 1 h. (c) PXRD patterns and (d) NMR spectral changes after DABCO solution treatment for 1 h. (e) PXRD patterns and (f) NMR spectral changes after pyridine solution treatment for 1 h.
Figure 7. (a) PXRD patterns and (b) NMR spectral changes after DBU solution treatment for 1 h. (c) PXRD patterns and (d) NMR spectral changes after DABCO solution treatment for 1 h. (e) PXRD patterns and (f) NMR spectral changes after pyridine solution treatment for 1 h.
Nanomaterials 14 00110 g007aNanomaterials 14 00110 g007b
Nanomaterials 14 00110 g008

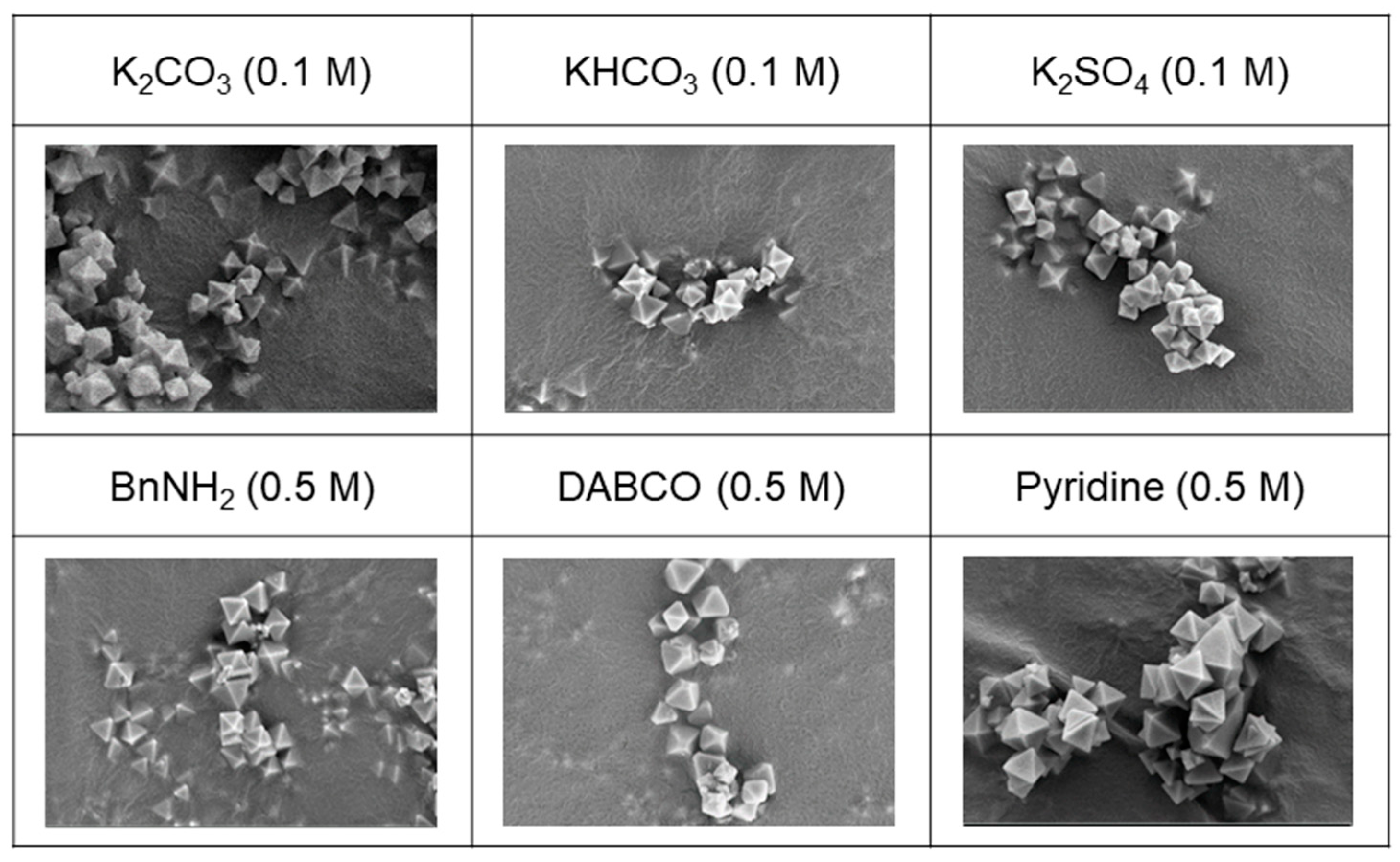

Figure 8. SEM images (×20,000) of recovered UiO-66 after base treatments.
Figure 8. SEM images (×20,000) of recovered UiO-66 after base treatments.
Nanomaterials 14 00110 g008
Nanomaterials 14 00110 g009

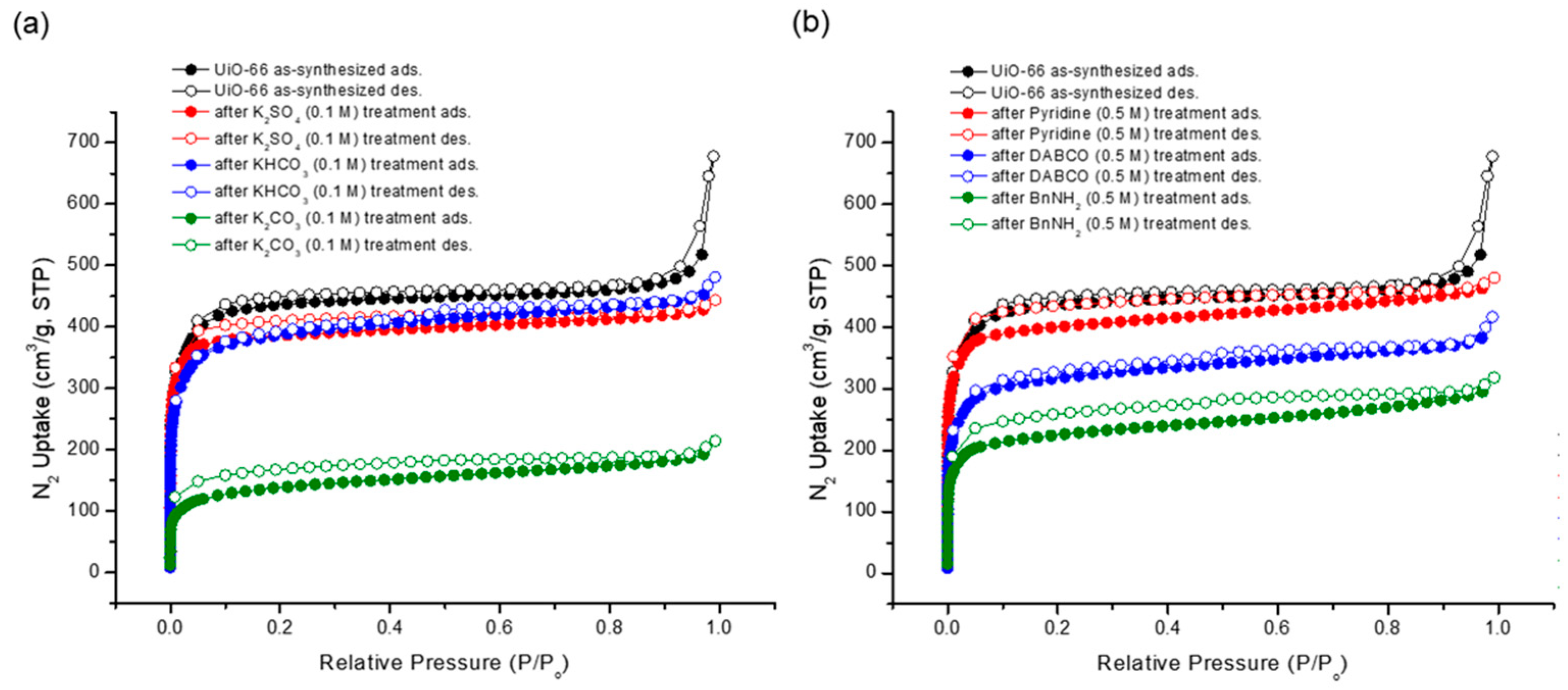

Figure 9. N2 adsorption (at 77 K) experiments of (a) recovered UiO-66 after inorganic base treatments and (b) recovered UiO-66 after organic base treatments.
Figure 9. N2 adsorption (at 77 K) experiments of (a) recovered UiO-66 after inorganic base treatments and (b) recovered UiO-66 after organic base treatments.
Nanomaterials 14 00110 g009
Nanomaterials 14 00110 g010
Figure 10. (a) Concentration limits of UiO-66 MOFs against the basic solution. (b) The correlation of pKa and concentration for the conservation of the MOF structure.
Figure 10. (a) Concentration limits of UiO-66 MOFs against the basic solution. (b) The correlation of pKa and concentration for the conservation of the MOF structure.
Nanomaterials 14 00110 g010
Table 1. pKb value of tested inorganic bases toward UiO-66 MOF.
Table 1. pKb value of tested inorganic bases toward UiO-66 MOF.
BaseKOHK3PO4K2CO3KHCO3KOAcK2SO4
pKb−1.71.64.17.29.212
Table 2. pKb values of the tested organic bases toward the UiO-66 MOF.
Table 2. pKb values of the tested organic bases toward the UiO-66 MOF.
BaseDBUEt3NBnNH2DABCOPyridine
pKb0.53.34.65.28.8
Table 3. BET surface area of recovered UiO-66 after base treatments.
Table 3. BET surface area of recovered UiO-66 after base treatments.
Base-
(Pristine)		K2CO3
(0.1 M)		KHCO3
(0.1 M)		K2SO4
(0.1 M)		BnNH2
(0.5 M)		DABCO
(0.5 M)		Pyridine
(0.5 M)
BET surface area
(m2/g)		17775241540156688110601622
Table 4. The ICP-OES of recovered UiO-66 after base treatments.
Table 4. The ICP-OES of recovered UiO-66 after base treatments.
Base-
(Pristine)		K2CO3
(0.1 M)		KHCO3
(0.1 M)		K2SO4
(0.1 M)		BnNH2
(0.5 M)		DABCO
(0.5 M)		Pyridine
(0.5 M)
Zr wt%34.045.225.730.049.431.035.6
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, J.Y.; Kang, J.; Cha, S.; Kim, H.; Kim, D.; Kang, H.; Choi, I.; Kim, M. Stability of Zr-Based UiO-66 Metal–Organic Frameworks in Basic Solutions. Nanomaterials 2024, 14, 110. https://doi.org/10.3390/nano14010110

AMA Style

Kim JY, Kang J, Cha S, Kim H, Kim D, Kang H, Choi I, Kim M. Stability of Zr-Based UiO-66 Metal–Organic Frameworks in Basic Solutions. Nanomaterials. 2024; 14(1):110. https://doi.org/10.3390/nano14010110

Chicago/Turabian Style

Kim, Jun Yeong, Jiwon Kang, Seungheon Cha, Haein Kim, Dopil Kim, Houng Kang, Isaac Choi, and Min Kim. 2024. "Stability of Zr-Based UiO-66 Metal–Organic Frameworks in Basic Solutions" Nanomaterials 14, no. 1: 110. https://doi.org/10.3390/nano14010110

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
