Advancing Silver Bismuth Sulfide Quantum Dots for Practical Solar Cell Applications

by
Fidya Azahro Nur Mawaddah
1 and
Satria Zulkarnaen Bisri
1,2,*
1
Department of Applied Physics and Chemical Engineering, Tokyo University of Agriculture and Technology, 2-24-16 Naka-cho, Koganei-shi 184-8588, Tokyo, Japan
2
RIKEN Center for Emergent Matter Science, 2-1 Hirosawa, Wako 351-0198, Saitama, Japan
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(16), 1328; https://doi.org/10.3390/nano14161328
Submission received: 7 July 2024 / Revised: 26 July 2024 / Accepted: 28 July 2024 / Published: 8 August 2024
(This article belongs to the Special Issue Advancing the Sustainable Application of Nanostructured Materials in Solar Cells)
Browse Figures
Versions Notes

Abstract

:
Colloidal quantum dots (CQDs) show unique properties that distinguish them from their bulk form, the so-called quantum confinement effects. This feature manifests in tunable size-dependent band gaps and discrete energy levels, resulting in distinct optical and electronic properties. The investigation direction of colloidal quantum dots (CQDs) materials has started switching from high-performing materials based on Pb and Cd, which raise concerns regarding their toxicity, to more environmentally friendly compounds, such as AgBiS2. After the first breakthrough in solar cell application in 2016, the development of AgBiS2 QDs has been relatively slow, and many of the fundamental physical and chemical properties of this material are still unknown. Investigating the growth of AgBiS2 QDs is essential to understanding the fundamental properties that can improve this material’s performance. This review comprehensively summarizes the synthesis strategies, ligand choice, and solar cell fabrication of AgBiS2 QDs. The development of PbS QDs is also highlighted as the foundation for improving the quality and performance of AgBiS2 QD. Furthermore, we prospectively discuss the future direction of AgBiS2 QD and its use for solar cell applications.

1. Introduction

The world faces two imminent crises threatening humanity: climate change and the energy crisis. These intertwining crises require radical solutions to develop low-energy-consuming electronic devices and to obtain energy technologies that are clean, environmentally safe, and zero-carbon in every aspect of their development. Developing highly efficient photovoltaic (PV) technologies at low production costs is one of the most promising solutions due to abundantly available primary energy (i.e., sunlight) [1]. Although the penetration of silicon solar cells has intensified in recent decades, more technological solutions are necessary to overcome the challenges related to energy conversion efficiency, the carbon footprint of current silicon solar cell fabrications, and material purity requirements, as well as the possibility of integrating them into future technologies and demands (e.g., lightweightness, compatibility with flexible electronics, among many others).
Among the emergent materials used for solar cells and other optoelectronic device applications, colloidal quantum dot QD devices are among the most prospective. Colloidal QDs are nanocrystals of such small sizes that the so-called quantum confinement effect occurs. The implications of the quantum confinement effect give rise to the size-tunable bandgap of the materials, enabling us to overcome the absorption spectral range limitation for efficient light harvesting. The 2023 Nobel Prize in Chemistry was awarded for the invention of these quantum dot concepts [2]. Furthermore, it also gave rise to the formation of discrete energy levels that essentially make them a new “giant atom” with distinct electronic and optical properties [3,4]. The existence of discrete energy levels is predicted to enable the occurrence of multiple-exciton generation (MEG), which will allow for the creation of two or more holes and electron pairs at the cost of a single photon light particle. It is essential and beneficial for developing solar cell devices with a power conversion efficiency that breaks the Shockley–Quiesser limit.
Over the past two decades, solar cells based on colloidal semiconductor quantum dots have seen significant development. Based on the 2024 NREL photovoltaic efficiency chart, perovskite QD solar cells achieved the highest efficiency, at 26.1%, and colloidal metal chalcogenide QD solar cells were not far behind [5]. In solar cell development, colloidal synthesis allows us to precisely control the dimensions and shapes of nanocrystals (NCs) and their properties [6]. The colloidal process also offers opportunities for low-cost device manufacturing through solution-based techniques, such as spin-coating, dip-coating, and inkjet printing. They can be used in roll-to-roll processing [4]. This method endows simple experimental equipment and chemicals with high-quality NCs and tunes their properties to be low cost and have low carbon footprints due to their low growth temperatures (below 200 °C) and without the demanding high vacuum process [7,8].
Looking at the research related to NC solar cells, Pb-, Hg-, and Cd-based semiconductor NCs (including their chalcogenides and Pb perovskite) are well-developed due to their facile synthetic accessibility and long development period [9]. Today, they show well-defined size-dependent quantum confinement effects (an example of PbS QDs is given in Figure 1a,b), and their high-performance applications in photodetectors and solar cells have been well investigated. These classes of QD compounds have become model materials in this field to understand the physical process. Although their device applications are nearly practical, the toxicity of Cd, Hg, Pb, and their compounds has become a health and environmental concern regarding their applications, particularly in several economies that have placed restrictions on their use [9,10]. This reality has motivated some researchers to start exploring the possibility of developing other NC compounds that are more environmentally friendly. Non-toxic metal chalcogenide/halides, such as ZnS [11], SnS [12], Bi2S3 [10], BiOI [13], and CuS [14], are drawing the interest of many researchers as NC materials.
Silver bismuth sulfide, AgBiS2 [15,16,17,18], a ternary bimetallic sulfide belonging to the I-V-VI group, has recently been introduced and reported as a promising eco-friendly material for optoelectronic applications [15,16,19,20,21]. This material has a broad absorption spectrum in the visible to near-infrared region and shows a high absorption coefficient greater than 105 and 104 cm−1 at 680 nm and 930 nm, respectively. It has a high dielectric constant and thermal conductivity, showing favorable photovoltaic characteristics. AgBiS2 in bulk form has a band gap of approximately 0.8 eV. By decreasing the nanocrystalline size closer to the quantum confinement regime, the band gap values can increase from 1 eV to 1.5 eV, excellently matching the Shockley–Quiesser limit requirements for solar cells [15,17,22,23]. AgBiS2 crystallizes in highly symmetrical crystalline structures, unlike other bismuth-chalcogenide compounds like Bi2S3. AgBiS2 has a pseudo-cubic rock salt structure, as shown in Figure 1d, like known nanocrystal compounds such as PbS (Figure 1c) and PbSe. This structure, which seems like a rock salt cubic structure, may enable the possible isotropic omnidirectional transport of carriers [24].
Nowadays, well-developed materials, such as Pb- and Cd-chalcogenide NC compounds, have demonstrated solar cells with a power conversion efficiency (PCE) of more than 19%. AgBiS2 can become the non-toxic material alternative if massive improvements and advancements in AgBiS2 NC synthesis can be achieved. At the start of AgBiS2 synthesis, SILAR and spray deposition methods produce a maximum PCE of 1.7% [20]. Utilizing the hot-injection method boosts the PCE of AgBiS2 NCs solar cells to 6.3% [15]. Several studies have successfully improved the efficiency of AgBiS2 solar cells by up to 9% [16]. There are still many unknown fundamental physical and chemical properties of this material. Several attempts have been made to increase the quality of the crystal and improve the performance of AgBiS2 QDs. However, to date, the morphology of this material is still far from good, as depicted in Figure 1e,f, compared to PbS QDs. The lack of proof of the size-dependent band gap feature and the absence of an excitonic peak (Figure 1g) are among the main factors that have prevented this material from exceeding the performance of Pb- and Cd-based QD materials for solar cells.
Nanomaterials 14 01328 g001

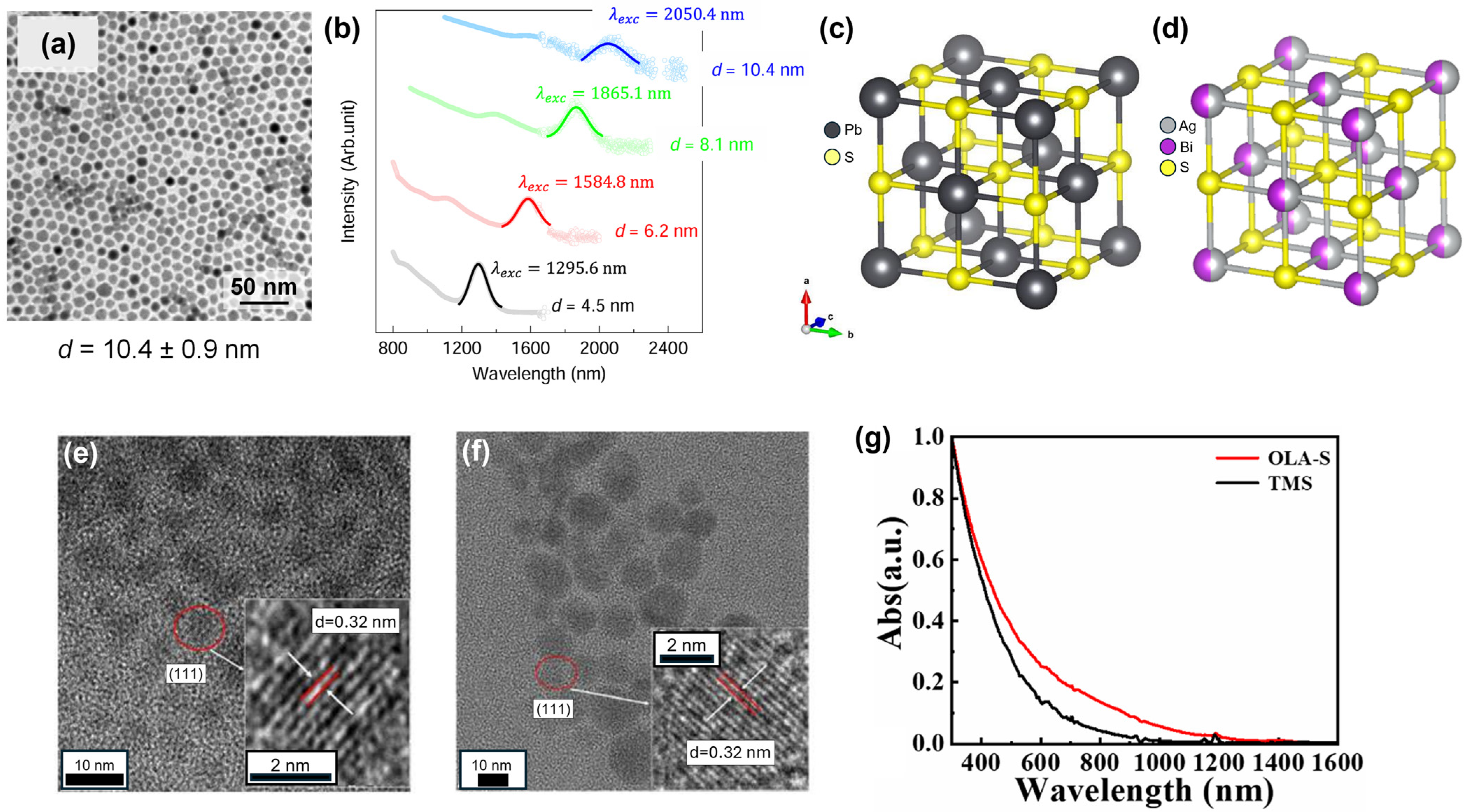

Figure 1. (a) TEM image, (b) absorption spectra, (c) crystal structure of PbS QD, (d) crystal structure, (e,f) TEM image of AgBiS2 NCs based on TMS and OLA-S, respectively, and (g) absorption spectra of AgBiS2 NC with different sulfur precursors. Reprinted and adapted from Reference [25] with permission from Nature Publishing Group and Reference [26] with permission from MDPI.
Figure 1. (a) TEM image, (b) absorption spectra, (c) crystal structure of PbS QD, (d) crystal structure, (e,f) TEM image of AgBiS2 NCs based on TMS and OLA-S, respectively, and (g) absorption spectra of AgBiS2 NC with different sulfur precursors. Reprinted and adapted from Reference [25] with permission from Nature Publishing Group and Reference [26] with permission from MDPI.
Nanomaterials 14 01328 g001
In this review, we comprehensively survey the current progress of research on AgBiS2 as a prospective material for optoelectronic device applications. We elaborate the development of various approaches to synthesize AgBiS2 NCs/QDs and functionalize them with various molecular ligands. The implications of the current approaches to synthesizing the NCs and preparing the assemblies for solar cell performances will be critically evaluated. To conclude, we will compare the state of research on this NC with the past and current research states of the more established colloidal PbS QD and other lead chalcogenides. This comparison will outline the required future research strategy for AgBiS2 NCs/QDs, focusing on the necessary fundamental investigation of charge carrier transport in this new emerging material system. There is a high expectation that the success story of PbS QDs can also be translated into an accelerated development of AgBiS2 NCs/QDs science.

2. Synthesis Method

The synthesis method of AgBiS2 QDs has evolved with the development of Pb- and Cd-based QDs. QDs are obtained by reactions between molecular precursors in organic solvent at mild temperatures (100 °C to 350 °C). The nucleation and growth of CQDs are controlled by surfactant molecules (ligands) that bind dynamically to CQD surfaces. Precise control over the stoichiometry, size, and shape of the CQDs depends on the precursors and surfactants and tuning the reaction temperature and time. Here, we recap all the methods used to produce AgBiS2 QDs, as shown in Table 1.
Table 1. Methods to obtain AgBiS2 QDs.
Table 1. Methods to obtain AgBiS2 QDs.
MaterialMethodPrecursorSize (nm)ApplicationRef
AgBiS2 QDsChemical and sonochemical depositionAgNO3, Bi(NO3)3, and Na2S2O3 in HNO3 4.2Photoconductor[27]
AgBiS2 NCsChemical synthesis and solvothermalAg(OAc), Bi(OAc), and sulfur in OA~11Thermoelectric[24]
AgBiS2 QDsHot injectionAgNO3, Bi(NO3)3, and sulfur in OLA8.5 ± 1.2-[28]
AgBiS2 NCsSolvothermalAg(OAc), BiCl3, and CS2 in OA, CH, and 1-decanol7.6Quantum dot-sensitized solar cells[29]
AgBiS2 NCsHot injectionAg(OAc), Bi(OAc) in OA, and (TMS)2S in ODE4.62Solar cells[15]
AgBiS2 thin filmMolecular precursorAgNO3, Bi(NO3)3·5(H2O), and SC(NH2)2 in DMSO11–67Photoconductor[30]
AgBiS2 NCsChemical synthesis (room temperature)AgNO3 and Bi(NO3)3·5(H2O) in OA; sulfur powder in OCT/DDA7–15Photodetector[31]
AgBiS2 thin filmsMolecular precursorAg(OAc) and Bi2O3 in DTCA~20–40Light absorbers[32]
AgBiS2 nano inkHot injectionAg(OAc) and Bi(OAc) in OA; sulfur in OLA.8.75Photodetector[33]
AgBiS2 NCsHot injectionAg(iPrXa), Bi(iPrXa)3 in OLA and ODE4.1–7.6-[34]
AgBiS2 QDsCation exchangeAg2S synthesis: AgNO3 in toluene and OLA; St2S in toluene.
Cation exchange: Ag2S QDs in toluene added by Bi(neo)3 in TOP		3Solar cell[35]

2.1. Sonochemical Synthesis

Sonochemistry is a method involving the formation, growth, and implosive collapse of bubbles in liquids irradiated with high-intensity ultrasound. The abrupt shrinking of these bubbles results in hot spots characterized by extreme conditions such as temperatures reaching 5000 K, pressures of 1000 atm, and rapid heating and cooling rates exceeding 1 × 1010 K s−1. Despite the reactor’s modest parameters, these localized conditions enable unique chemical reactions due to elevated temperature, pressure, and rapid cooling. Furthermore, applying ultrasonic waves to liquid–powder mixtures leads to significant alterations in the properties of the synthesized materials, known as heterogeneous sonochemical effects, which differ from those in homogeneous mediums. These effects arise from the implosive collapse of bubbles near phase boundaries, generating high-speed microjets and shockwaves. The outcome, whether particle erosion or coagulation induced by local melting, depends on the particles’ size and melting temperature. Thus, sonochemistry offers advantages such as rapid reaction rates, precise control over conditions, and the production of nanoparticles with uniform shapes, narrow size distributions, and high purity [27].
In 2008, Pejova et al. synthesized AgBiS2 QDs in thin film form and focused on the size-dependent structural, optical, and photoelectrical properties. Controlling the temperature of the deposition, the pH of the reaction system, and maintenance of relevant ion concentrations in the reaction system at a low level can contribute to the rate of precipitation reaction to produce thin films with decent quality and higher deposition yield. The crystal growth of AgBiS2 is made via a colloidal mechanism, and the reaction system is influenced by solid–liquid phase boundaries and ultrasound radiation, which affect the crystal size of the nanomaterial. The average crystal size obtained by sonochemical synthesis was 4.2 nm. Unfortunately, the shape and size distribution of the nanocrystals, or the claimed QDs, were not comprehensively evaluated using transmission electron spectroscopy (TEM).

2.2. Solvothermal

The solvothermal method was widely used to produce nanomaterials because tailoring the solvent, temperature reaction, reaction time, pH, and other additions can obtain a product with the desired crystalline phase, particle size, and morphology. However, this method suffers from a long reaction time that causes a low production rate [29]. Liang et al. reported homogeneous AgBiS2 NCs synthesized with 12 h of reaction time at 200 °C by the solvothermal method. The average size of the materials produced is about 7.6 nm, with a 2.26 nm distance between the NCs, showing the length of the oleic acid ligand. The AgBiS2 NCs were fabricated as counter electrodes in solar cells and compared with Pt. The obtained overall power conversion efficiency of 2.09% is comparable with Pt devices with a PCE of 1.73% under a light intensity of 100 mW cm−2.
In another work [24], black-colored nanocrystals of AgBiS2 were produced by mixing silver acetate and bismuth acetate in oleic acid for 2 h at 100 °C and placing them in a Teflon-lined stainless-steel autoclave with sulfur powder in a hot-air oven for 2 h at 180 °C.

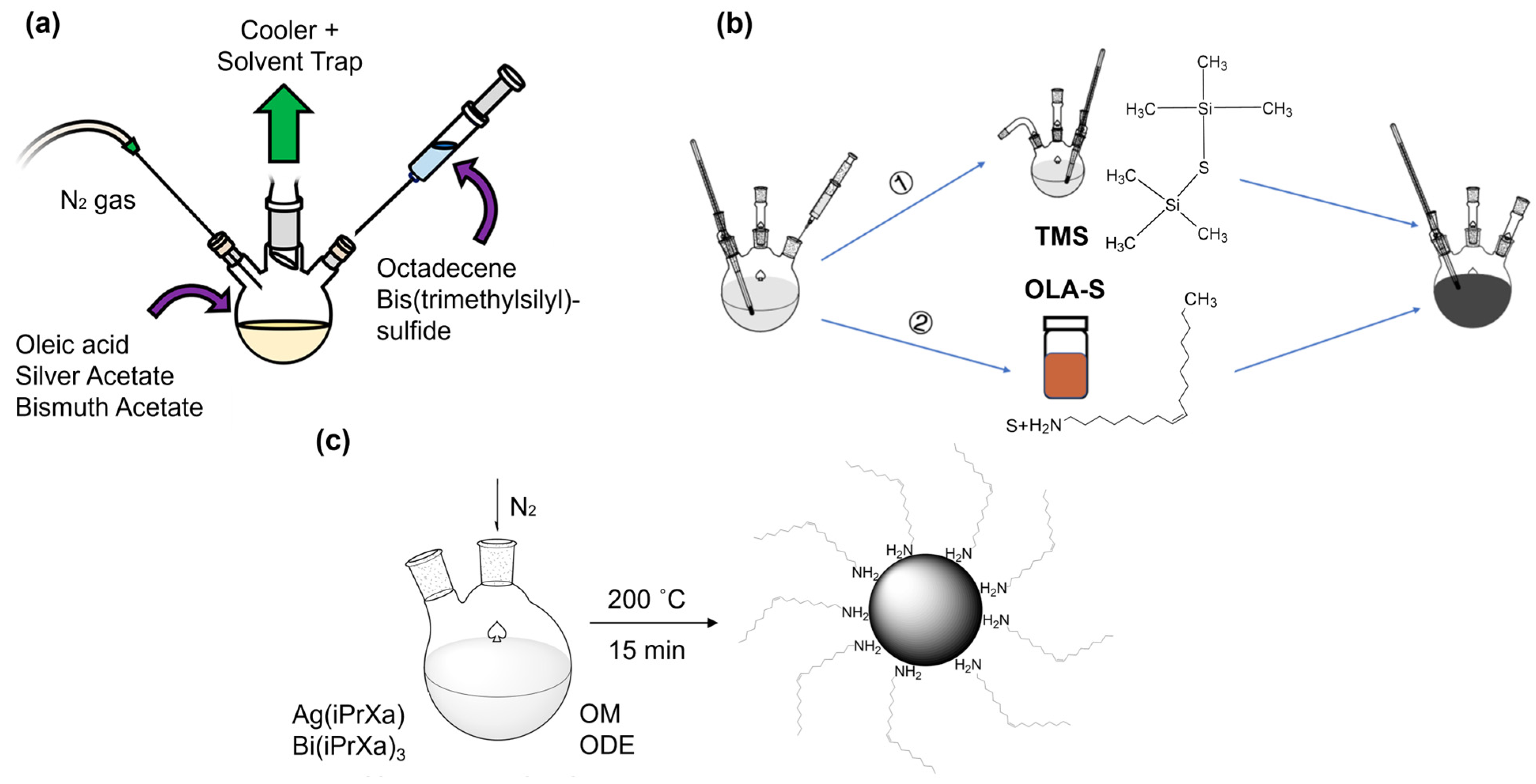

2.3. Hot Injection

The hot-injection method is the most common technique to synthesize colloidal quantum dots. This method typically uses long-chain organic ligands containing amines, carboxylates, thiolates, or phosphonates to dissolve and mix the metal precursors. These ligands later function as stabilizing agents on the QD surface. The role of the ligands is not merely to be the stabilizing and solubilizing agents that prevent the aggregation of QDs. The use of ligands may also modulate some of the physical properties of the formed QDs, such as the passivation of surface defects and the reduction in nonradiative recombination [36,37]. Reflecting on the initial development of PbS and CdS QD syntheses, two protocols were most commonly applied. The first protocol typically uses metal-oxides (e.g., PbO, CdO) and (TMS)2S or hexamethyldisilathiane (HMS) as the metal and sulfur sources, respectively [38]. The second protocol uses chloride salts (e.g., PbCl2 and CdCl2) and elemental sulfur in oleylamine as the metal and sulfur sources, respectively [39]. These two methods have also been implemented in the AgBiS2 synthesis route.
AgBiS2 QDs were synthesized with a hot-injection method for the first time, as reported by Chen et al. [28]. Based on the purpose of obtaining monodispersed AgBiS2 QDs, this work demonstrates the synthesis of AgBiS2 QDs with a narrow size dispersion with an average diameter of 8.5 ± 1.2 nm. The shape of the QDs is faceted with a face-centered cubic (FCC) phase. Furthermore, the AgBiS2 QDs were made into a pellet, and the dielectric constant was measured, resulting in a high number as large as 105.
Konstantatos’s group demonstrated the first AgBiS2 nanocrystal solar cells with a high power conversion efficiency of 6%. They developed a low-temperature hot-injection method (<100 °C) to synthesize colloidal AgBiS2. This work obtains the cubic rock salt structure of AgBiS2 NCs with diameters of 4.6 ± 1 nm. Silver acetate and bismuth acetate are used as silver and bismuth precursors to dissolve in oleic acid as a capping ligand. Hexamethyldisilathiane (HMS) is chosen as a sulfur precursor, referring to PbS and CdS sulfur sources [38,40,41]. After injecting HMS into a high-temperature mixture, the solution was allowed to cool down naturally.
Nakazawa et al. proposed an alternative sulfur source to replace HMS, which is expensive, toxic, stinky, and unstable in the open air in the colloidal AgBiS2 NCs synthesis process [33]. Oleylamine@sulfur (OLA-S) is already used in synthesizing CdS NCs [42] and PbS NCs [43]. Oleylamine, as a ligand stabilizer, can passivate surface defects and regulate NC growth [44]. Yuan et al. reported the effect of OLA-S on the growth and quality of colloidal AgBiS2 NCs by controlling the dosage of OLA-S, as shown in Figure 2b. OLA-S-based colloidal AgBiS2 NCs have a lower defect density and a broader absorption spectrum than HMS. The TEM image of AgBiS2 NCs based on HMS and OLA-S were depicted in Figure 1e,f, which shows no homogeneous crystal size and lattice.
Hu et al. created a modified route of the above protocol by comparing oleic acid and oleylamine as a capping ligand [45]. The Ag precursor dissolves more easily into oleylamine than oleic acid because of the amine’s complexation with the Ag cation. This modified synthesis route shows a narrower size distribution, element stoichiometry, and ligand attachment that can improve solar cell performance by being more tightly packed during film fabrication.
Another research group introduced a modified method by controlling the concentration of oleic acid in the metal precursor solution and the amount of ODE/HMS solution for use in injection [46]. Bernechea et al.’s previous synthetic route obtained irregular-sized AgBiS2 with large size distributions (5.5 ± 3.5 nm), indicating that the balance between nucleation and growth was not achieved. The modified method balances nucleation and growth by pre-adding the non-coordinating ODE solvent into the metal precursor solution and improving the PV performance up to a PCE of 5.94% [46].
The quality of AgBiS2 NCs/QDs resulting from the hot-injection method is still far from the state-of-the-art PbS QDs. The lattice is not well-ordered and homogeneous. However, there are still many ways to improve the lattice and uniformity of the QDs. In the latter part, we will discuss this further.

2.4. Room Temperature Chemical Synthesis in Ambient Atmosphere

Mak et al. pioneered a simple and fast synthesis route for AgBiS2 NCs [31]. Silver nitrate and bismuth nitrate pentahydrate were dissolved in oleic acid and heated at 120 °C. The sulfur precursor was prepared by dissolving sulfur powder into a long chain-length amine such as octylamine or dodecyl amine. Then, Ag/Bi and sulfur solution were mixed at a ratio of 1:1 at room temperature and atmosphere. This method resulted in cubic AgBiS2 without any observable by-products or oxide content. However, compared to the hot-injection method, this method could not produce nanocrystals with a homogeneous and well-ordered lattice. Nevertheless, currently it is an alternative method to obtain AgBiS2 at room temperature and ambient atmospheric conditions.
Konstantatos’s group also obtained AgBiS2 nanocrystals at room temperature and ambient atmosphere using AgI and BiI3 dissolved in amines [47]. A sulfur source using a sulfur–amine solution was injected into the AgI-BiI3 mixture, and 1-octanethiol was added. This work also produced a disordered NC lattice but showed a promising solar cell PCE of 5%. Prior to this work, the utilization of sulfur–alkylamine at room temperature was reported to be capable of obtaining large and cubic lattices of PbS NCs [48].
By following the protocols to obtain lead and cadmium sulfide that were produced via a heat-up synthesis of lead and cadmium ethyl xanthates in castor oil [49], a group reported the synthesis of AgBiS2 from silver and bismuth xanthates using oleylamine as a capping ligand (Figure 2c) [34,49]. Nanorod-shaped AgBiS2 NCs produced by tailoring the temperature can obtain different crystallite sizes.
Recently, Senina et al. proposed cation exchange as an alternative to the low-temperature synthesis of AgBiS2 [35]. Cation exchange is a process in which a guest cation replaces the host cation and is then incorporated into the nanocrystal structure [50]. First, Ag2S nanocrystals were produced by mixing silver nitrate and a bis(stearoyl) sulfide precursor in toluene and oleylamine at low reaction temperatures. Then, cation exchange was performed by adding bismuth neodecanoate to the Ag2S nanocrystals. The use of AgBiS2 nanocrystals prepared through cation exchange demonstrated a high solar cell PCE of 7.35%, showing that this synthesis approach can be an alternative to the hot-injection method, which requires high temperatures and a vacuum for prolonged periods.

2.5. Successive Ionic Layer Adsorption and Reaction (SILAR)

Ternary semiconductor compounds are more difficult to synthesize than binary compounds because three elements are involved, and the stoichiometry of these atoms must be precisely controlled. SILAR can be one of the options for synthesizing AgBiS2. Huang et al. demonstrated the growth of AgBiS2 sensitized on TiO2 photoelectrodes to produce liquid-junction solar cells [20]. In the first stage, Ag2S QDs were grown on the TiO2 photoelectrode, and in the second stage, Bi2S3 QDs were grown on top of the Ag2S. This resulted in a solar cell with a PCE of 0.53%.

2.6. Chemical Bath Deposition

Chemical bath deposition (CBD) is a low-cost method that can obtain uniformity, the feasibility of large-area preparation, and a fast growth rate. Compared to the other conventional methods, this method produces low chemical residues in the prepared films after deposition. Target ions are directly absorbed on the substrates to form thin films, and other residues stay in the solution [51]. Depositing AgBiS2 films with the CBD method can be performed at a relatively low temperature of 80 °C, and the film thickness can be tailored by controlling the depositing time. Nevertheless, controlling the formation of the advantageous nanostructures using this method is still challenging.

2.7. Synthesis by Reacting Molecular Precursor in Organic Solvent

Another versatile and flexible technique to synthesis AgBiS2 nanocrystals is the molecular precursor method. The conventional hot-injection method uses organic ligands as stabilizers and solvents, but they should be washed from the products many times. Meanwhile, some of the used long-chain ligands should always be exchanged with shorter ligands to enhance the performance of the materials at the application ends. These steps take time and waste organic solvents, which are substantial [52]. Therefore, the designed-molecular-precursor method can be one of the alternatives.
By mixing metal salts with certain solvents, molecular ink can be formed, resulting in films with reasonable compositional control that can be straightforwardly transferred to the printing and coating process [53]. Gu et al. mixed silver nitrate, bismuth nitrate pentahydrate, and thiourea in DMSO to produce AgBiS2 thin films [30]. DMSO is used because it can dissolve metal salts and produce stable molecular inks. Wu et al. fabricated AgBiS2 solar cells using a similar method and obtained a modest PCE of 1.4% [54].
A similar molecular precursor method developed by another research group did not use thiourea as a sulfur source. Thiourea limits the fabrication temperatures to above 250 °C and the film thickness to above 200 nm [32]. Their investigation on AgBiS2 solar cells revealed that they could achieve high-performance devices with low processing temperatures (100–150 °C) and a film thickness below 60 nm. This work reported the synthesis of metal–dithiocarbamate (DTC) complexes of silver and bismuth to fabricate AgBiS2 thin films.
Jiang et al. mentioned that the precursor method has a lower PCE than another methods, such as hot injection [52]. They emphasize the correlation between the composition of molecular precursors and device fabrication to improve the performance of AgBiS2 devices. The inverted p-i-n structured AgBiS2 photodiodes achieved a PCE of 2.04%.

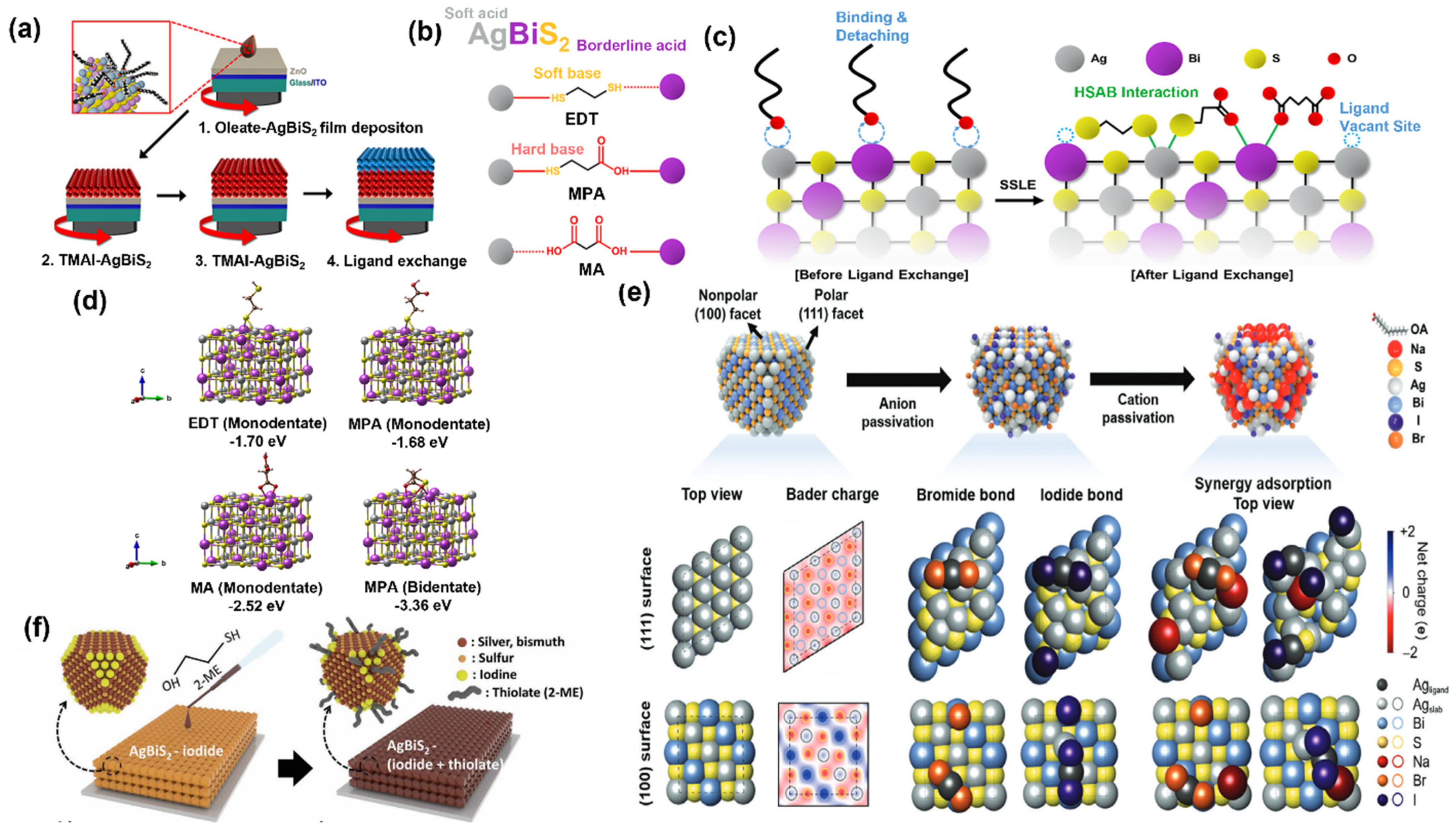

3. Ligand Exchange

The choice of passivating ligand is one of the critical parameters for controlling QD growth by facilitating QD growth by changing the growth environment. During NC synthesis, ligand selection is crucial for tailoring the solubility and supply of active components and reducing surface energy to achieve the colloidal stability of NCs for post-synthesis processing and improving functionality [55]. Ligand exchange also overcomes the aggregation of QD due to its tiny size, resulting in controllable assembly to enhance carrier mobility. The surface ligands for QD in solid devices can affect several parameters, such as carrier density, mobility, chemical stability, charge transport, and energy band gap structure. Long-ligand passivation in QD-based devices can limit the performance by inhibiting the transfer of charge carriers. To overcome this problem, the long ligands, such as oleic acid and oleylamine, need to be exchanged with short ligands, either some organic molecules or some inorganic species such as hydroxide (OH−), sulfide (S2−), or halide (I−, Br−, and Cl−) ions.
In the conventional hot-injection method to produce AgBiS2, oleylamine and oleic acid are widely used as the solvent and capping ligand. Several studies have reported ligand exchange in the performance of AgBiS2 nanocrystals. The first work of AgBiS2 with promising results was performed by referencing many earlier works on PbS devices that showed that organic EDT molecules are suitable for replacing the oleate ligands and acting as crosslinking molecules [15]. Nevertheless, the EDT-treated AgBiS2 solar cells showed a poor performance, which was then attributed to the finding that thiol compounds may not adequately passivate the AgBiS2 NCs by looking at XPS elemental analysis and some device characterizations. Furthermore, they explored halide compounds as a more effective passivation ligand. Using iodide sourced from tetramethylammonium iodide (TMAI), the AgBiS2 solar cell showed a higher power conversion efficiency value of 4.8%. Together with improving the iodide-treated AgBiS2 solar cells, using PTB7 polymer as the hole transport layer (HTL) significantly improved their performance. The thiophene-rich polymers help to facilitate efficient charge transfer from the AgBiS2 and improve charge collection, resulting in efficiency values of 6.3%.
One research group compared the solar cell performance of PbS CQDs and AgBiS2 NCs fabricated via a solid-state ligand exchange using TMAI. After deliberately dipping the solar cell devices in deionized (DI) water for 2 min, the AgBiS2 NC solar cell remained highly stable without changing its chemical composition and crystallinity. On the other hand, the PbS CQD solar cells showed a decrease in PCE of 31.7% of the initial value [56]. Furthermore, they explored different surface ligands, AgI-based halometallates, as short inorganic ligands by mixing AgI and BiI3 with methylammonium iodide (MAI) as the ligand sources in the solid-phase ligand exchange of AgBiS2 NCs. This new surface ligand can replace the native oleate ligands of AgBiS2 NCs. Dissolving AgI in a nonpolar solvent with methylammonium iodide (MAI) will solubilize it as [AgI2]− halometallates. The methylammonium ion acts as the counterion for [AgI2]−, helping to facilitate the colloidal stabilization of the solution-phase ligand exchange (SPLE)-prepared AgBiS2 NCs in the polar aprotic solvent. On the other hand, dissolving BiI3 and MAI in a polar aprotic solvent such as the bulky 3[MA]+[Bi2I9]3− results in the formation of MA3Bi2I9 hybrid perovskite crystals and would result in incomplete ligand exchange on the AgBiS2 NCs.
The abovementioned method can reduce the energetic disorder and trap density of the AgBiS2, resulting in higher VOC and PCE values of the solar cells [57]. Furthermore, to enhance the passivation on the surface of AgBiS2 NCs, they also introduced AgBr2 as an auxiliary ligand to AgI2 in a single-step solution phase process. The fabricated photodetector devices in the NIR region demonstrated improved performance with a high sensitivity of 1.8 × 1012 at 800 nm and a detectivity value of 2.6 × 1011 Jones at 1000 nm [18].
Ming et al. also demonstrated work comparing TMAI, TBAI, BDT, ACR, thiourea, and threonine as ligands and found that TMAI provided the best performance and device stability in ambient air [58]. Therefore, TMAI passivation generally suffers from high trap-assisted carrier recombination. Other ligands such as MPA, NH4I, EDT, ME, MA, and iodide-based ligands were also introduced for excellent performance. The process happens between two immiscible solvent phases, one nonpolar to dissolve organic ligands and the other polar, with high dielectric constants, to effectively screen electrostatic attraction between oppositely charged ions. Bae et al. compared EDT, MPA, and MA to the ligand exchange of AgBiS2 [59]. Ternary NCs like AgBiS2 have two metal elements, which is different from binary NCs such as PbS, which have a single metal element in the NCs. It can induce unbalanced, cation-selective coordination of the molecular ligands, preventing tuning the energy levels and proper surface defect passivation. By adopting the hard–soft acid–base (HSAB) theory, MPA can function as a bidentate ligand where carboxylic acid (a hard base) binds with Bi (borderline acid) and thiol (a soft base) binds with Ag (a soft acid) on the AgBiS2 surface, as shown in Figure 3a–d. This work demonstrated ~12% PCE improvement over the control device. The use of MPA enables a comprehensive surface defect passivation and strong linkage along the neighboring NCs with a smaller interparticle distance, which is beneficial for charge transport properties. Another report also achieved a PCE of up to 7.3% by using MPA and methanol as ligand and solvent pairs [60]. Ammonium iodide (NH4I) in DMF is also used to generate the ligand exchange of AgBiS2 QDs [61]. The photoconductivity in thin films formed from the ligand exchange can be achieved from a single deposition step without needing multiple layer-by-layer deposition cycles. The device shows high on/off ratios and fast response times. The mild proton-donating additives during phase-transfer ligand exchange processes offer benefits in both the processing time and tuning the electronic properties of QD films. Recent work from Kim et al. utilizes a quadruple-ligand ensemble using AgI, NaI, AgBr, and NaBr, as depicted in Figure 3e [62]. These ligands homogeneously passivated the AgBiS2 QD surface, enhanced the PCE of the solar cell (8.11%), and shortened the response time of the photodetector. Figure 3f shows the current highest PCE of AgBiS2 NC-based solar cells of 9.1%, fabricated by utilizing TMAI and 2-ME, leading to the energy level optimization of NCs for efficient charge extraction.

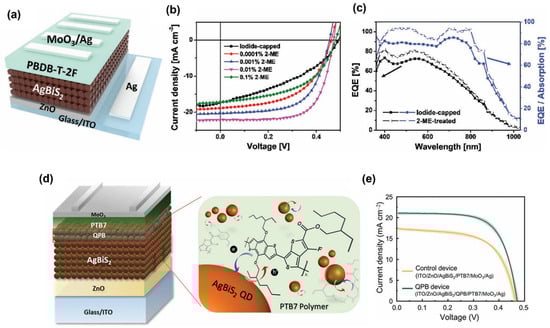

4. Device Fabrication

In the early stages of the development of AgBiS2, the NCs were expected to exhibit photoconductivity and favorable thermoelectric properties [27,63]. These early efforts measured the electrical conductivity and Seebeck coefficient of the synthesized materials. Some research on this material along this direction also demonstrated that the thermoelectric device can achieve a maximum ZT value of ~0.2 at 810 K [24]. Since the early demonstration of these AgBiS2 NCs, they were largely untouched. It was not until 2016 that some research groups started to perceive these NCs as potential materials for solar cell applications. Even so, the journey of these NCs as solar cell materials began with their use as a sensitizer or counter-electrode in dye-sensitized solar cells [15,20]. Table 2 summarizes AgBiS2 QD-based solar cell devices.
The fabrication of different functional layers is essential for solar cell performance. A photon absorbed by the film produces electron–hole pairs under the built-in electronic field. The electron–hole pairs are separated and drift to the corresponding charge transport layer, such as the electron transport layer and hole transport layer [64,65]. Combining the energy levels and mobility of charge transport layers with the solid film of colloidal quantum dots (CQDs) enhances charge transport at the interface between the CQD solid film and the charge transport layer. Thus, to reduce energy losses, it is crucial to substantially decrease charge carrier recombination within the CQD solid film caused by trap-assisted recombination and interface recombination at the CQD/charge transport layer interface. This reduction aims to enhance charge carrier collection, significantly impacting CQD solar cells’ photovoltaic performance [36].
The use of an alternative hole transport layer (HTL) employing a nickel oxide with pin architecture was demonstrated by Oh et al. [66]. They fabricated p-i-n-type AgBiS2 NC devices following the protocols for PbS CQD-based devices. The MPA-AgBiS2 layer was inserted between the nickel oxide HTL and TMAI-AgBiS2 active layer. The results showed that adding an extra MPA-AgBiS2 layer improves the device efficiency by up to 5.56%. According to UPS spectra, compared to TMAI-AgBiS2 NC, the ligand exchange with MPA could induce a p-type character to AgBiS2 NC films. Combining TMAI and MPA ligands leads to efficient charge transport and extraction between ZnO and NiO layers. Furthermore, this combination induced cascade-energy level alignment that was favorable for charge carrier transport and extraction. A relatively high PCE of 9.1% was obtained by introducing 2-mercaptoethanol (2-ME) and TMAI as ligand combinations and NC/BHJ structures using BTP-4Cl [16]. Amid the use of volatile organic compounds (VOC) such as acetone and alcohol solvents can potentially cause severe environmental and health problems in the device fabrication, Ming et al. proposed the use of methyl acetate to replace VOCs and yet still resulting in decent PCE and stability of QDSCs [58].
Jiang et al. demonstrated the first work of AgBiS2 devices with an inverted p-i-n structure [52]. AgBiS2 films were stacked between the fullerene electron transport layer (ETL) and PEDOT: PSS hole transport layer (HTL). The optimization of the device was achieved by a champion device with a PCE value of 2.04%, a fill factor of 43.3%, the highest VOC of 280 mV, and a Jsc of 16.85 mA cm−2. This work also showed the photodetection application by replacing the C60 layer with a thicker C70 electron transport layer to fully cover the pinholes of the thin film layer and reduce the dark leakage current and noise. The high responsivity of 0.18 A W−1 and a flat detectivity across the spectral range of 400 nm to 1100 nm was achieved. Furthermore, a quick response of ~700 ns was also demonstrated.
A new design strategy was proposed to obtain an efficient energy level structure in AgBiS2 NC/organic hybrid solar cells [16]. Figure 4a–c shows that the researchers selected PBDP-T-2F as an HTL with a lower highest occupied molecular orbital level than PTB7, leading to increased VOC of the device. Utilizing iodide and thiolate passivation also helps optimize the energy level for efficient charge extraction. Furthermore, utilizing PBDP-T-2F:BTP:4Cl achieved higher short-circuit current density through complementary absorption, obtaining the highest PCE of 9.1%.
The post-treatment of the AgBiS2 layer also helps to produce a high-performance solar cell device. Cation disorder homogenization under mild annealing conditions can enhance the absorption coefficient of AgBiS2 NCs [60]. Nevertheless, one of the problems with the current state of this AgBiS2 is poor charge extraction, as emphasized by Park et al. [67]. They investigated the problem of recombination at the interface by introducing a hybrid mixture of a charge acceptor and donor. A blend of AgBiS2 CQD and PTB7 polymers makes a quantum dot polymer bulk heterojunction (QPB) used at the HTL which increases the PCE by up to 6.78% compared to cells without QPB, as shown in Figure 4d,e. The solar cells with a well-designed glass/indium tin oxide (ITO)/SnO2/AgBiS2/PTAA/MoO3/Ag obtained a record efficiency of up to 9.17% (certified: 8.85%, Newport, RI, USA).
Table 2. AgBiS2 QDs-based solar cell devices.
Table 2. AgBiS2 QDs-based solar cell devices.
Device StructureLigandPCE (%)VOC (V)JSC (mA/cm2)FFRef
ITO/ZnO/AgBiS2/PTB7/MoOx/AgTMAI6.310.4522.10.63[15]
ITO/ZnO/AgBiS2/P3HT/AuTMAI4.30.4616.70.56[45]
ITO/ZnO/AgBiS2/PTB7/MoOx/AgTMAI5.750.5117.630.64[56]
FTO/ZnO/AgBiS2/P3HT/MoO3/AlNo ligand exchange1.240.2115.680.37[54]
ITO/ZnO/AgBiS2/PCE-10/MoO3/AgTMAI4.570.4418.870.54[58]
ITO/PEDOT:PSS/AgBiS2/C60/BCP/CuNo ligand exchange2.040.2816.850.2[52]
ITO/NiO/AgBiS2/ZnO/AlTMAI-MPA4.740.4616.460.58[66]
ITO/ZnO NP/AgBiS2-TMAI/PTAA:C60F48/AgTMAI4.40.4418.50.56[68]
ITO/SnO2/AgBiS2/PTAA/MoO3/AgMPA7.30.4524.90.61[60]
ITO/ZnO/AgBiS2/PBDB-T-2F:BTP-4Cl/MoO3/AgME9.10.4927.070.68[16]
ITO/SnO2/AgBiS2/PTAA/MoO3/AgMPA9.170.49527.110.68[69]
ITO/ZnO/AgBiS2/QPB/PTB7/MoO3TMAI6.780.4721.50.67[67]
ITO/ZnO/AgBiS2/PTB7/MoOx/AgAgX and NaX (X = Br, I)8.110.5422.330.67[62]
ITO/SnO2/AgBiS2/PTAA/MoO3/AgMPA7.350.48623.810.64[35]

5. Comparison to PbS QD Development

The PbS colloidal QD is one of the current model materials in the field, together with the other Pb-chalcogenide, Cd-chalcogenide, and Hg-chalcogenide compounds. Together with the lead-perovskite QDs, PbS QDs lead the development of emerging solar cells. By comparing the research states in the PbS colloidal QD, we will obtain strategic pathways for further developing AgBiS2 QDs as viable solar cells and optoelectronic materials.
Pb-based QDs were developed more than two decades ago (Figure 5a) [38], by the optimization of stoichiometry, precursors, and ligand selection, resulting in high-quality crystal PbS QDs [39,70,71,72,73]. Numerous studies related to charge carrier transport and the improvement of device structures have successfully obtained high-performing PbS QD-based optoelectronic devices [25,74,75,76,77,78,79,80]. Until now, the progress of the PbS QD has already moved toward commercialization and the exploration of new applications [81,82,83]. The National Renewable Energy Laboratory (NREL) chart shows the development of the power conversion efficiency of QD-based solar cells, starting from the ZnO/PbS solar cells achieving 2.9% in 2010 [84], until the recent result showing an efficiency value of more than 19% in Pb-based perovskite QD solar cells [85]. This recent device still achieves a high performance with 18.1% efficiency even after 1200 h, confirming the stability of this material.
The first synthesized PbS by Hines et al. in 2003, using the hot-injection method, sparked the exploration of Pb-chalcogenide QDs [38]. This work utilized lead oxide (PbO) dissolved in oleic acid and HMS in ODE or TOP. Another precursor of PbCl2, OLA, and sulfur can also produce high-quality PbS QDs [86]. The variation ratio of PbCl2 and sulfur can control the particle size. Ma et al. proposed a one-step strategy utilizing PbI2 and N, N-diphenyl thiourea (DphTA) in DMF as lead and sulfur precursors [87]. These QD inks can be directly used for device fabrication without ligand exchange. This method performs more simply and cheaply than conventional methods, such as hot injection.
Long-chain ligands, such as OA, must be exchanged with short-chain ligands to obtain QD films with low trap density and high mobility. In 2006, for the first time, organic-solvent-based ligand exchange was used to replace 2.5 nm OA with n-BTA with a length of 0.6 nm in photodetector devices [88]. These devices show a significant photoconductivity gain with a responsivity greater than 103 A W−1, surpassing the detector made of epitaxially grown InGaAs at that time. Further, continuous development has been updated to use the other organic ligands (e.g., MPA, EDT, BDT). The first observed photovoltaic effect of PbS QDs was reported in 2005 [89]. In 2008, the first PbS QDs Schottky diode and photodetector were demonstrated [90]. At the same time, Luther et al. reported that processing p-type QDs using EDT ligands significantly improved the electronic properties of PbS QDs [91]. However, the PbS-EDT still demonstrated a low carrier mobility. Therefore, to improve the responsivity of the device, Konstantatos et al. introduced PbS QDs on top of ultra-high-mobility graphene [92]. Since then, the combination of QDs with a broad range of materials has started to be investigated.
Understanding the fundamental mechanism of charge carrier transport in the assembly of QDs is crucial to improving solar cell performance. One way to investigate the charge carrier transport in the colloidal QDs is using field-effect transistors (FETs). Since 2011, some early efforts have been made to measure charge carrier mobility values employing solid gate FETs [93] and through electric double-layer FET (EDLT) that utilizes electrolytes for gating [76,94]. From FET studies, many parameters related to charge carrier transport under different values of charge densities can be elucidated. Nevertheless, the first thing that can be confirmed is the charge carrier types involved in the transport process. For a long time, PbS QD has been perceived as a p-type semiconductor with a modest value of hole mobility (<10−3 cm2 V−1 s−1) [93,95]. Meanwhile, many of the EDLT studies showed ambipolar transport. It was not until 2014 when Balasz et al. clarified that the perception of PbS QD acting as a p-type semiconductor was a result of the oxygen absorption in the QD assemblies that deeply trap the electrons, while intrinsically, PbS QD is an ambipolar material that can support both electron and hole transport [77]. This realization enables the understanding of why thin PbS QD Schottky-type solar cells can be highly efficient [96].
Since the PbS QD is known to be ambipolar, and with proper care to avoid oxygen and moisture, the electron mobility has typically been higher than the hole mobility; various strategies to tune the charge carrier types have been attempted [97]. These attempts include using various ligands and doping on the surface of the QDs. Replacing the ligands on the surface of the PbS QDs not only shifts the Fermi level but may also shift the conduction and the valence energy values [98]. One of the origins is the interplay between the doping process and trap passivation. Since trap levels also play a significant role in controlling the electronic properties of the PbS QDs, quantifying the trap density and their energetics is essential. FET studies provide a robust platform for such investigation, mainly when two different gate structures are utilized [99,100,101]. FETs and EDLTs were also used to test the changes in the electronic structure of PbS QDs when different ligands replaced the long oleic acid [76,102,103,104], or when different kinds of inorganic ligands, such as halide ligands, were also used [105,106]. Using the sulfuric-based ligand may alter the stoichiometry of the QDs, resulting in a shift of their Fermi level. Measuring FET and EDLTs can quantify this shift, where excess sulfur leads to intrinsic p-type behavior [70]. The use of some thiophene-based organic ligands can also achieve similar behavior [102].
Nanomaterials 14 01328 g005

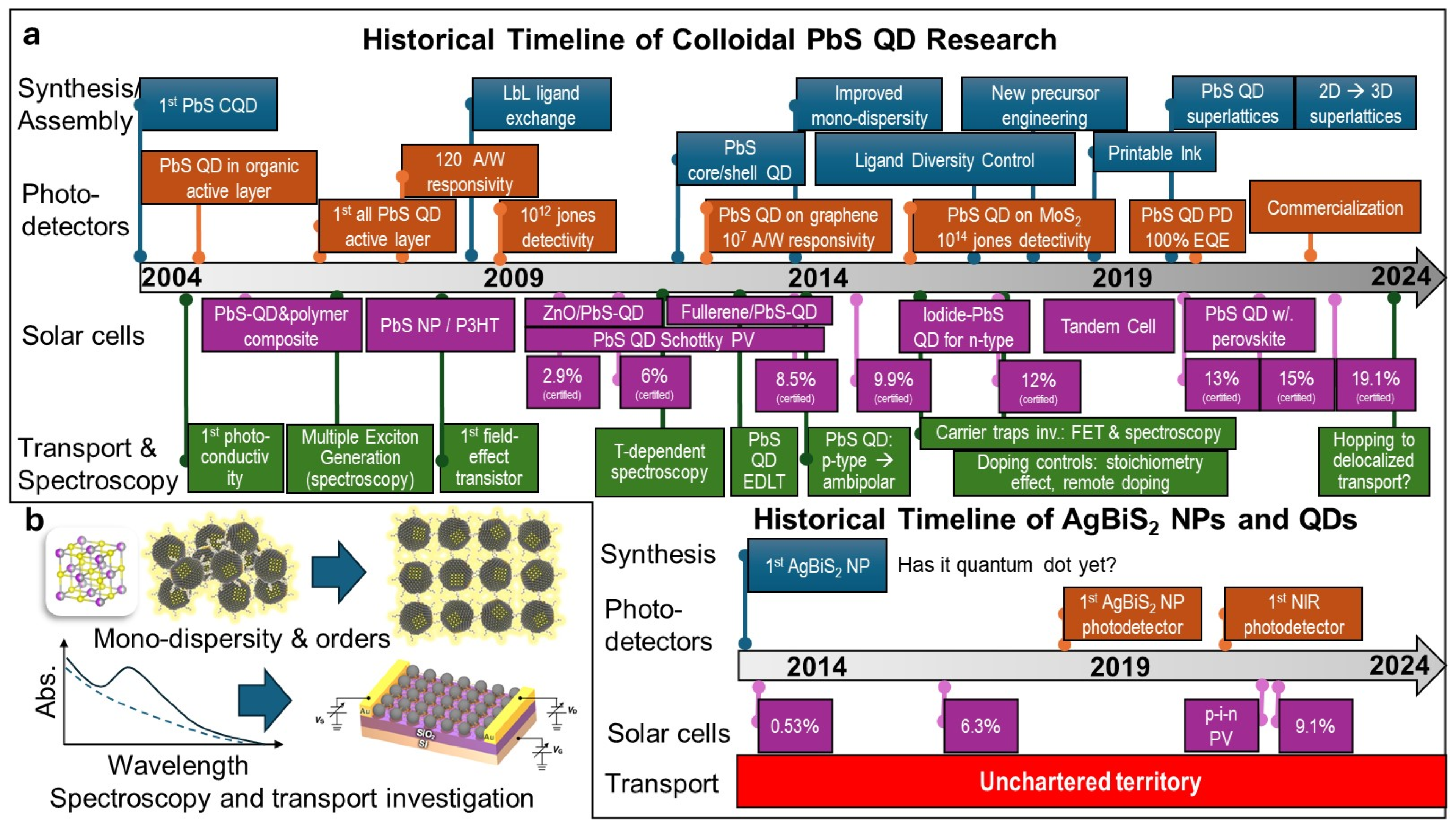

Figure 5. (a) Comparison of the historical timeline of the research and development of PbS colloidal quantum dots for optoelectronic devices (photodetectors and solar cells) and the current research stage of AgBiS2 nanoparticles and nanocrystals. (b) Among the most urgent investigations that should be undertaken are how to improve the monodispersity of the nanocrystals, to establish methods to create ordered assemblies, clarify their quantum confinement properties through spectroscopy, and investigate the charge transport process in their assemblies, including using field-effect transistors as a tool. Components are adapted from Reference [102] with permission from the American Chemical Society.
Figure 5. (a) Comparison of the historical timeline of the research and development of PbS colloidal quantum dots for optoelectronic devices (photodetectors and solar cells) and the current research stage of AgBiS2 nanoparticles and nanocrystals. (b) Among the most urgent investigations that should be undertaken are how to improve the monodispersity of the nanocrystals, to establish methods to create ordered assemblies, clarify their quantum confinement properties through spectroscopy, and investigate the charge transport process in their assemblies, including using field-effect transistors as a tool. Components are adapted from Reference [102] with permission from the American Chemical Society.
Nanomaterials 14 01328 g005
The structure of the FET and EDLTs, where the charge carrier flows in the planar direction, allows the direct correlation between the QD assembly structures and the resulting charge carrier transport properties. It is difficult to achieve in the buried interface of many other electronic device architectures. Therefore, attempts have been made to correlate how the assembly engineering in the ligand-exchanged QD assemblies will give rise to different values of obtained holes and electron mobilities. Various kinds of assembly techniques can lead to varying levels of assembly orders [107]. Furthermore, this type of research stimulates the explorations of obtaining large-scale highly ordered QD assemblies in superlattices. Novel techniques were recently invented, including selective ligand stripping [108], and several different processes to obtain epitaxially connected or nearly-epitaxially connected superlattices [25,109,110,111,112]. Improvements in electron and hole mobility values by several orders of magnitude through the perfection of the QD superlattice formations were recently reported. Furthermore, there is much more substantial proof that delocalized charge carrier transport through miniband formation in the highly-ordered colloidal QD superlattices may be achieved [25,111,113]. The consequential significance of the recent results of charge carrier transport improvements through FET/EDLT device investigations has yet to be realized. This research pathway may significantly enhance solar cell performance and fulfill much of the unrealized promise of colloidal PbS QD materials.
Intensive spectroscopic studies to probe the charge carrier transport in PbS and Pb-chalcogenide QDs are also an essential branch of the field, which have been able to elucidate the dynamics of charge trapping behavior and the relationship between structures and the charge carrier diffusion time and length. Various spectroscopic efforts have been performed, including ultrafast time-resolved photoluminescence [114], pump–probe spectroscopy [115,116,117], and spectroelectrochemistry [118,119,120], as well as microwave conductivity [121,122]. The intensive efforts of spectroscopy studies and device studies have enabled the relatively comprehensive knowledge of the PbS and Pb-chalcogenide QDs as present and future solar cell materials, which can also become the template for the investigations of many other colloidal QD compounds that are still in their early stages, like AgBiS2, or have still not been invented yet.

6. Conclusions and Future Outlook

In this review, we have introduced AgBiS2 QDs as an alternative environmentally friendly CQD for solar cell application. Further, we summarized all the existing synthesis methods, ligand choice, and device fabrications of AgBiS2 QDs. The development of this material successfully achieved a high efficiency of 9%. However, the result for Pb- and Cd-based QD materials is still far from that of Pb- and Cd-based materials. The development of AgBiS2 CQD solar cells remains challenging because of the limitation of surface defect passivation and band alignment [36]. In addition, we discussed the development of PbS QD materials as the foundation for the future outlook of AgBiS2 QDs. By looking at the development of PbS, several steps can be used to improve the performance of AgBiS2 QDs (Figure 5b). Improvements in crystal quality, electronic properties, transport studies, stability, and device architectures are needed to obtain high-performance AgBiS2 QD-based solar cells.
  • Improving the orders of the nanocrystal assemblies
In order to achieve high PV efficiencies, monodisperse CQDs with a narrow size distribution are required so that the device VOC mismatch to their bandgap can be reduced [123]. The quality of CQDs is determined by the perfection of the cores’ crystals, the thorough passivation of their surfaces, and the homogeneity of the crystal size and shape. High uniformity is crucial to reserve the near-discrete character of the density of states for an ensemble of CQDs [124]. One feasible method to control AgBiS2 solar cells’ band gap and light absorption spectrum is tailoring the QD synthesis protocols at a high temperature to obtain slightly larger diameter with a smaller band gap value [36,125]. Compared to well-developed QDs such as Pb- and Cd-chalcogenide, AgBiS2 still lacks uniformity which is critical for forming nanocrystal superlattices with enhanced charge carrier conductivity.
Several enhancements through synthesis protocols can be used to obtain uniform and well-ordered arrangements. Various colloidal synthesis protocols can be explored, such as the conventional hot-injection method, one-pot synthesis, and room-temperature chemical synthesis [12,17,46]. The solution-based colloidal method is more promising since it allows controlled sizes and shapes with a broad spectrum of colloidal semiconductor NCs [55]. First, precursor selection is made, and precursors with high purity and controlled reactivity are chosen to obtain uniform and high-quality nanocrystal formation. For example, the sulfur precursors for metal chalcogenide synthesis should always be organo-sulfur. A viable alternative should also be found. Second, temperature and solvent optimization must be conducted. Tuning the temperature and choice of solvent can control the size, shape, and crystallinity of AgBiS2 NCs. In the PbS synthetic process, PbO-TMS-OA was modified by diluting OA in ODE and using n-trioctylphosphine (TOP) as the co-ligand to improve the size distribution, stability, and passivation of the ligands [126,127]. Third, capping ligands can prevent agglomeration and control the surface chemistry that affects electronic and optical properties. One critical factor deciding power efficiency in solar cells is the quality of charge carrier transport. Stronger electronic coupling can improve charge carrier mobility [128].
  • Improving Electronic Properties
One feature that is interesting about QDs is the size-dependent band gap that is related to the quantum confinement effect. Tailoring the bandgap of AgBiS2 NCs by size control or doping can improve light absorption and photovoltaic performance. A type-I core-shell AgBiSe2/AgBiS2 increases the PCE from 1.4% (AgBiS2) to 2.1% (AgBiSe2/AgBiS2) [129].
Transistor studies are necessary to understand the fundamental mechanism of the electron transport role where charge carrier densities can be high and influence the optoelectronic properties. Improving the charge carrier mobility in FETs is vital to increase the potential for more broad applications of AgBiS2 NCs. One of the ways to improve the charge carrier mobility is by doping material chemically [130]. Doping the QDs can shift the Fermi level, increase solar cell device efficiency, and improve the mobility of transistor devices. As far as we know, no transistor study has been performed for AgBiS2 NCs.
The study of photoconductivity also plays a crucial role in developing advanced optoelectronic devices, such as photodetectors, solar cells, LEDs, and sensors. It can help us to understand carrier dynamics, including the generation, separation, transport, and recombination of electron–hole pairs. Among many other spectroscopy techniques, time-resolved microwave conductivity (TRMC) can be used to understand the charge carrier dynamics [131].
  • Enhancing Light Absorption and Photocurrent
One of the essential properties to be sought in CQDs is the existence of an excitonic absorption peak. The existence of excitonic peaks would play a crucial role in understanding the optoelectronic properties of QDs since it is one of the most apparent direct definitions of the quantum confinement effect. However, to date, a clear excitonic peak has never been found in all AgBiS2 NCs/QDs reports. There are many possible reasons behind that, such as the non-uniform size of the QDs, the existence of surface defects, aggregation, and the band gap mismatch due to size variations. If a clear excitonic peak can appear, it will enable us to enhance the performance of diverse kinds of device applications. Investigating the excitonic peak will lead to a clue towards obtaining a high-quality crystal size and shape uniformity. In the early days of the small-sized CdSe QDs case, researchers first obtained the “hidden” excitonic properties of the second and third electronic transition states of broadened absorption peaks [132].
QD-based solar cells have the potential to show higher power conversion efficiencies through enhanced multiple exciton generation (MEG), which can be the manifestation of shape–size control, internal QD heterojunction interface formation, and many other parameters related to material compound exploration. MEG can boost the photocurrent where single high-energy photons generate multiple electron–hole pairs. MEG appears when excitons with energy exceeding twice the band gap energy relax to the band edge by creating an additional electron–hole pair via impact ionization. MEG is anticipated to be more efficient in quantum-confined nanostructures than in bulk semiconductors because the requirement for momentum conservation is relaxed, and carrier–carrier interactions are enhanced due to strong confinement within the nanostructure [133].
Time-resolved photoluminescence measurement can be used to study the ultrafast dynamics of excitons in QDs, including carrier relaxation, recombination, and energy transfer processes occurring on femtosecond to nanosecond timescales. In order to improve the PCE of AgBiS2-based solar cells, a photoluminescence study can help us to identify and characterize them [134]. Furthermore, introducing many other nanostructures into the solar cells may enhance the photocurrent, such as the enhancement of light absorption via localized surface plasmon resonance.
  • Device Architecture Sophistication, Stability, and Environmental Compatibility
Improving material components and device architectures would enable rapid advancements in CQD solar cell development. The exploration of novel device structures (e.g., tandem or multijunction devices) to maximize light harvesting and improve efficiency must be accelerated for these AgBiS2 NCs. Nevertheless, the oldest solar cell fabrication, Schottky solar cells, can also be revisited to evaluate the size-tuned band positions of different CQD films relative to the known work functions of metals and elucidate the roles of drift, diffusion, and depletion in AgBiS2 CQD-based devices. This architecture can investigate the actual performance of AgBiS2 QDs without any HTL or ETL. More variations in heterojunction architecture can also be developed to improve charge extraction. Fundamental research efforts to optimize the interfaces between AgBiS2 NCs and other materials can reduce losses and improve charge extraction.
AgBiS2 QDs are still in the early stage of exploration. Improving the crystal quality, electronic properties, and light absorption, as well as achieving a quantum confinement effect, can be the next step in obtaining a high performance for solar cell devices. Investigation of the stability also enhances the potential application of this material. Fabricating device-efficient architecture is also worth trying for sufficient solar cell devices. Developing new materials is indeed a challenging issue. Many properties require in-depth investigation, and it is worth noting that having a “green” new technology for many applications with a high performance can be achieved. Further investigation does not merely assess the stability of AgBiS2 QDs but also explores more potential applications of this material.

Author Contributions

Conceptualization, F.A.N.M. and S.Z.B.; formal analysis, F.A.N.M. and S.Z.B.; investigation, F.A.N.M. and S.Z.B.; resources, S.Z.B.; writing—original draft preparation, F.A.N.M.; writing—review and editing, S.Z.B.; visualization, F.A.N.M.; supervision, S.Z.B.; project administration, S.Z.B.; funding acquisition, S.Z.B. All authors have read and agreed to the published version of the manuscript.

Funding

The research related to this review article is partially funded by the Iketani Science and Technology Foundation, 2023, grant number 0351125-A.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Jean, J.; Brown, P.R.; Jaffe, R.L.; Buonassisi, T.; Bulović, V. Pathways for Solar Photovoltaics. Energy Environ. Sci. 2015, 8, 1200–1219. [Google Scholar] [CrossRef]
  2. Yu, K.; Schanze, K.S. Commemorating The Nobel Prize in Chemistry 2023 for the Discovery and Synthesis of Quantum Dots. ACS Cent. Sci. 2023, 9, 1989–1992. [Google Scholar] [CrossRef] [PubMed]
  3. Stroyuk, O.; Raevskaya, A.; Gaponik, N. Solar Light Harvesting with Multinary Metal Chalcogenide Nanocrystals. Chem. Soc. Rev. 2018, 47, 5354–5422. [Google Scholar] [CrossRef] [PubMed]
  4. Talapin, D.V.; Lee, J.S.; Kovalenko, M.V.; Shevchenko, E.V. Prospects of Colloidal Nanocrystals for Electronic and Optoelectronic Applications. Chem. Rev. 2010, 110, 389–458. [Google Scholar] [CrossRef] [PubMed]
  5. NREL Best Research Cell Efficiency Chart. Available online: https://www.nrel.gov/pv/cell-efficiency.html (accessed on 17 June 2024).
  6. Klimov, V. (Ed.) Nanocrystal Quantum Dots, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2017; ISBN 9781315218632. [Google Scholar]
  7. Carey, G.H.; Levina, L.; Comin, R.; Voznyy, O.; Sargent, E.H. Record Charge Carrier Diffusion Length in Colloidal Quantum Dot Solids via Mutual Dot-to-Dot Surface Passivation. Adv. Mater. 2015, 27, 3325–3330. [Google Scholar] [CrossRef] [PubMed]
  8. Kwon, S.G.; Piao, Y.; Park, J.; Angappane, S.; Jo, Y.; Hwang, N.-M.; Park, J.-G.; Hyeon, T. Kinetics of Monodisperse Iron Oxide Nanocrystal Formation by “Heating-Up” Process. J. Am. Chem. Soc. 2007, 129, 12571–12584. [Google Scholar] [CrossRef]
  9. Reiss, P.; Carrière, M.; Lincheneau, C.; Vaure, L.; Tamang, S. Synthesis of Semiconductor Nanocrystals, Focusing on Nontoxic and Earth-Abundant Materials. Chem. Rev. 2016, 116, 10731–10819. [Google Scholar] [CrossRef] [PubMed]
  10. Aresti, M.; Saba, M.; Piras, R.; Marongiu, D.; Mula, G.; Quochi, F.; Mura, A.; Cannas, C.; Mureddu, M.; Ardu, A.; et al. Colloidal Bi2S3 Nanocrystals: Quantum Size Effects and Midgap States. Adv. Funct. Mater. 2014, 24, 3341–3350. [Google Scholar] [CrossRef]
  11. Xu, X.; Li, S.; Chen, J.; Cai, S.; Long, Z.; Fang, X. Design Principles and Material Engineering of ZnS for Optoelectronic Devices and Catalysis. Adv. Funct. Mater. 2018, 28, 1802029. [Google Scholar] [CrossRef]
  12. Miranti, R.; Septianto, R.D.; Kikitsu, T.; Hashizume, D.; Matsushita, N.; Iwasa, Y.; Bisri, S.Z. π-SnS Colloidal Nanocrystals with Size-Dependent Band Gaps. J. Phys. Chem. C 2022, 126, 5323–5332. [Google Scholar] [CrossRef]
  13. Abuelwafa, A.A.; Matiur, R.M.; Putri, A.A.; Soga, T. Synthesis, Structure, and Optical Properties of the Nanocrystalline Bismuth Oxyiodide (BiOI) for Optoelectronic Application. Opt. Mater. 2020, 109, 110413. [Google Scholar] [CrossRef]
  14. Zhang, F.; Chen, K.; Jiang, X.; Wang, Y.; Ge, Y.; Wu, L.; Xu, S.; Bao, Q.; Zhang, H. Nonlinear Optical Absorption and Ultrafast Carrier Dynamics of Copper Antimony Sulfide Semiconductor Nanocrystals. J. Mater. Chem. C 2018, 6, 8977–8983. [Google Scholar] [CrossRef]
  15. Bernechea, M.; Miller, N.C.; Xercavins, G.; So, D.; Stavrinadis, A.; Konstantatos, G. Solution-Processed Solar Cells Based on Environmentally Friendly AgBiS2 Nanocrystals. Nat. Photonics 2016, 10, 521–525. [Google Scholar] [CrossRef]
  16. Kim, C.; Kozakci, I.; Kim, J.; Lee, S.Y.; Lee, J. Highly Efficient (>9%) Lead-Free AgBiS2 Colloidal Nanocrystal/Organic Hybrid Solar Cells. Adv. Energy Mater. 2022, 12, 2200262. [Google Scholar] [CrossRef]
  17. Öberg, V.A.; Johansson, M.B.; Zhang, X.; Johansson, E.M.J. Cubic AgBiS2Colloidal Nanocrystals for Solar Cells. ACS Appl. Nano Mater. 2020, 3, 4014–4024. [Google Scholar] [CrossRef]
  18. Sharma, A.; Kim, H.; Kim, G.; Kang, J.; Lee, C.B.; Bae, S.Y.; Song, H.; Kim, K.; Kim, J.H.; Jung, I.H.; et al. Dual Facet Passivation of Silver Halometallate for Eco-Friendly Silver Bismuth Sulfide near IR Photodetector. Chem. Eng. J. 2023, 473, 145246. [Google Scholar] [CrossRef]
  19. Huang, Y.T.; Nodari, D.; Furlan, F.; Zhang, Y.; Rusu, M.; Dai, L.; Andaji-Garmaroudi, Z.; Darvill, D.; Guo, X.; Rimmele, M.; et al. Fast Near-Infrared Photodetectors Based on Nontoxic and Solution-Processable AgBiS2. Small 2023, 20, e2310199. [Google Scholar] [CrossRef]
  20. Huang, P.C.; Yang, W.C.; Lee, M.W. AgBiS2 Semiconductor-Sensitized Solar Cells. J. Phys. Chem. C 2013, 117, 18308–18314. [Google Scholar] [CrossRef]
  21. Kang, J.; Oh, J.T.; Kim, H.; Kim, H.; Choi, H.; Jung, I.H. Environmentally Friendly AgBiS2 Nanocrystal-Based High-Performance Quantum-Dot Photodetectors. Appl. Surf. Sci. 2022, 597, 153661. [Google Scholar] [CrossRef]
  22. Chen, D.; Shivarudraiah, S.B.; Geng, P.; Ng, M.; Li, C.-H.A.; Tewari, N.; Zou, X.; Wong, K.S.; Guo, L.; Halpert, J.E. Solution-Processed, Inverted AgBiS2 Nanocrystal Solar Cells. ACS Appl. Mater. Interfaces 2022, 14, 1634–1642. [Google Scholar] [CrossRef]
  23. Manimozhi, T.; Archana, J.; Navaneethan, M.; Ramamurthi, K. Shape-Controlled Synthesis of AgBiS2 Nano-/Microstructures Using PEG-Assisted Facile Solvothermal Method and Their Functional Properties. Appl. Surf. Sci. 2019, 487, 664–673. [Google Scholar] [CrossRef]
  24. Guin, S.; Biswas, K. Cation Disorder and Bond Anharmonicity Optimize the Thermoelectric Properties in Kinetically Stabilized Rocksalt AgBiS2 Nanocrystals. Chem. Mater. 2013, 25, 3225–3231. [Google Scholar] [CrossRef]
  25. Septianto, R.D.; Miranti, R.; Kikitsu, T.; Hikima, T.; Hashizume, D.; Matsushita, N.; Iwasa, Y.; Bisri, S.Z. Enabling Metallic Behaviour in Two-Dimensional Superlattice of Semiconductor Colloidal Quantum Dots. Nat. Commun. 2023, 14, 2670. [Google Scholar] [CrossRef]
  26. Li, Q.; Zheng, X.; Shen, X.; Ding, S.; Feng, H.; Wu, G.; Zhang, Y. Optimizing the Synthetic Conditions of “Green” Colloidal AgBiS2 Nanocrystals Using a Low-Cost Sulfur Source. Nanomaterials 2022, 12, 3742. [Google Scholar] [CrossRef]
  27. Pejova, B.; Grozdanov, I.; Nesheva, D.; Petrova, A. Size-Dependent Properties of Sonochemically Synthesized Three-Dimensional Arrays of Close-Packed Semiconducting AgBiS2 Quantum Dots. Chem. Mater. 2008, 20, 2551–2565. [Google Scholar] [CrossRef]
  28. Chen, C.; Qiu, X.; Ji, S.; Jia, C.; Ye, C. The Synthesis of Monodispersed AgBiS2 Quantum Dots with a Giant Dielectric Constant. CrystEngComm 2013, 15, 7644–7648. [Google Scholar] [CrossRef]
  29. Liang, N.; Chen, W.; Dai, F.; Wu, X.; Zhang, W.; Li, Z.; Shen, J.; Huang, S.; He, Q.; Zai, J.; et al. Homogenously Hexagonal Prismatic AgBiS2 Nanocrystals: Controlled Synthesis and Application in Quantum Dot-Sensitized Solar Cells. CrystEngComm 2015, 17, 1902–1905. [Google Scholar] [CrossRef]
  30. Gu, E.; Lin, X.; Tang, X.; Matt, G.J.; Osvet, A.; Hou, Y.; Jäger, S.; Xie, C.; Karl, A.; Hock, R.; et al. Single Molecular Precursor Ink for AgBiS2 Thin Films: Synthesis and Characterization. J. Mater. Chem. C 2018, 6, 7642–7651. [Google Scholar] [CrossRef]
  31. Mak, C.H.; Qian, J.; Rogée, L.; Lai, W.K.; Lau, S.P. Facile Synthesis of AgBiS2 Nanocrystals for High Responsivity Infrared Detectors. RSC Adv. 2018, 8, 39203–39207. [Google Scholar] [CrossRef]
  32. Van Embden, J.; Della Gaspera, E. Ultrathin Solar Absorber Layers of Silver Bismuth Sulfide from Molecular Precursors. ACS Appl. Mater. Interfaces 2019, 11, 16674–16682. [Google Scholar] [CrossRef]
  33. Nakazawa, T.; Kim, D.; Oshima, Y.; Sato, H.; Park, J.; Kim, H. Synthesis and Application of AgBiS2 and Ag2S Nanoinks for the Production of IR Photodetectors. ACS Omega 2021, 6, 20710–20718. [Google Scholar] [CrossRef] [PubMed]
  34. Vakalopoulou, E.; Knez, D.; Sigl, M.; Kothleitner, G.; Trimmel, G.; Rath, T. A Colloidal Synthesis Route Towards AgBiS2 Nanocrystals Based on Metal Xanthate Precursors. ChemNanoMat 2023, 9, e202200414. [Google Scholar] [CrossRef]
  35. Senina, A.; Prudnikau, A.; Wrzesińska-Lashkova, A.; Vaynzof, Y.; Paulus, F. Cation Exchange Synthesis of AgBiS2 Quantum Dots for Highly Efficient Solar Cells. Nanoscale 2024, 16, 9325–9334. [Google Scholar] [CrossRef] [PubMed]
  36. Zheng, S.; Mei, X.; Chen, J.; Johansson, E.M.J.; Zhang, X. Colloidal Quantum Dot for Infrared-Absorbing Solar Cells: State-Ofthe-Art and Prospects. Nano Res. Energy 2024, 3, e9120095. [Google Scholar] [CrossRef]
  37. Zhou, S.; Liu, Z.; Wang, Y.; Lu, K.; Yang, F.; Gu, M.; Xu, Y.; Chen, S.; Ling, X.; Zhang, Y.; et al. Towards Scalable Synthesis of High-Quality PbS Colloidal Quantum Dots for Photovoltaic Applications. J. Mater. Chem. C 2019, 7, 1575–1583. [Google Scholar] [CrossRef]
  38. Hines, M.A.; Scholes, G.D. Colloidal PbS Nanocrystals with Size-Tunable Near-Infrared Emission: Observation of Post-Synthesis Self-Narrowing of the Particle Size Distribution. Adv. Mater. 2003, 15, 1844–1849. [Google Scholar] [CrossRef]
  39. Cademartiri, L.; Montanari, E.; Calestani, G.; Migliori, A.; Guagliardi, A.; Ozin, G.A. Size-Dependent Extinction Coefficients of PbS Quantum Dots. J. Am. Chem. Soc. 2006, 128, 10337–10346. [Google Scholar] [CrossRef]
  40. Murray, C.; Norris, D.; Bawendi, M.; Murray, C.B.; Norris, D.J.; Bawendi, M.G. Synthesis and Characterization of Nearly Monodisperse CdE (E = S, Se, Te) Semiconductor Nanocrystallites. J. Am. Chem. Soc. 1993, 115, 8706–8715. [Google Scholar] [CrossRef]
  41. Peterson, J.J.; Krauss, T.D. Photobrightening and Photodarkening in PbS Quantum Dots. Phys. Chem. Chem. Phys. 2006, 8, 3851–3856. [Google Scholar] [CrossRef]
  42. He, J.; Chen, J.; Yu, Y.; Zhang, L.; Zhang, G.; Jiang, S.; Liu, W.; Song, H.; Tang, J. Effect of Ligand Passivation on Morphology, Optical and Photoresponse Properties of CdS Colloidal Quantum Dots Thin Film. J. Mater. Sci. Mater. Electron. 2014, 25, 1499–1504. [Google Scholar] [CrossRef]
  43. Liu, J.; Yu, H.; Wu, Z.; Wang, W.; Peng, J.; Cao, Y. Size-Tunable near-Infrared PbS Nanoparticles Synthesized from Lead Carboxylate and sulfurwith Oleylamine as Stabilizer. Nanotechnology 2008, 19, 345602. [Google Scholar] [CrossRef] [PubMed]
  44. Yuan, B.; Tian, X.; Shaw, S.; Petersen, R.E.; Cademartiri, L. Sulfur in Oleylamine as a Powerful and Versatile Etchant for Oxide, Sulfide, and Metal Colloidal Nanoparticles. Phys. Status Solidi Appl. Mater. Sci. 2017, 214, 1600543. [Google Scholar] [CrossRef]
  45. Hu, L.; Patterson, R.J.; Zhang, Z.; Hu, Y.; Li, D.; Chen, Z.; Yuan, L.; Teh, Z.L.; Gao, Y.; Conibeer, G.J.; et al. Enhanced Optoelectronic Performance in AgBiS2 Nanocrystals Obtained via an Improved Amine-Based Synthesis Route. J. Mater. Chem. C 2018, 6, 731–737. [Google Scholar] [CrossRef]
  46. Oh, J.T.; Cho, H.; Bae, S.Y.; Lim, S.J.; Kang, J.; Jung, I.H.; Choi, H.; Kim, Y. Improved Size Distribution of AgBiS2 Colloidal Nanocrystals by Optimized Synthetic Route Enhances Photovoltaic Performance. Int. J. Energy Res. 2020, 44, 11006–11014. [Google Scholar] [CrossRef]
  47. Akgul, M.Z.; Figueroba, A.; Pradhan, S.; Bi, Y.; Konstantatos, G. Low-Cost RoHS Compliant Solution Processed Photovoltaics Enabled by Ambient Condition Synthesis of AgBiS2 Nanocrystals. ACS Photonics 2020, 7, 588–595. [Google Scholar] [CrossRef] [PubMed]
  48. Si, H.-Y.; Yuan, D.; Chen, J.-S.; Chow, G.-M. Synthesis of PbS Nanocrystals from Sulfur–Amine Solutions at Room Temperature. RSC Adv. 2011, 1, 817–822. [Google Scholar] [CrossRef]
  49. Mensah, M.B.; Awudza, J.A.M.; Revaprasadu, N.; O’Brien, P. Synthesis of CdS and PbS Nanoparticles by the Thermal Decomposition of Ethyl Xanthate Complexes in Castor Oil Using the Heat-up Technique. Mater. Sci. Semicond. Process. 2021, 122, 105493. [Google Scholar] [CrossRef]
  50. De Trizio, L.; Manna, L. Forging Colloidal Nanostructures via Cation Exchange Reactions. Chem. Rev. 2016, 116, 10852–10887. [Google Scholar] [CrossRef] [PubMed]
  51. Yao, F.; Jiang, L.; Qi, Y.; Li, R.; Li, Y.; Xu, Y.; Liu, H.; Lin, Q. Chemical Bath Deposition of AgBiS2 Films for Visible and X-Ray Detection. Appl. Mater. Today 2022, 26, 101262. [Google Scholar] [CrossRef]
  52. Jiang, L.; Li, Y.; Peng, J.; Cui, L.; Li, R.; Xu, Y.; Li, W.; Li, Y.; Tian, X.; Lin, Q. Solution-Processed AgBiS2 Photodetectors from Molecular Precursors. J. Mater. Chem. C 2020, 8, 2436–2441. [Google Scholar] [CrossRef]
  53. Uhl, A.R.; Katahara, J.K.; Hillhouse, H.W. Molecular-Ink Route to 13.0% Efficient Low-Bandgap CuIn(S,Se)2 and 14.7% Efficient Cu(In,Ga)(S,Se)2 Solar Cells. Energy Environ. Sci. 2016, 9, 130–134. [Google Scholar] [CrossRef]
  54. Wu, Y.; Wan, L.; Zhang, W.; Li, X.; Fang, J. In Situ Grown Silver Bismuth Sulfide Nanorod Arrays and Their Application to Solar Cells. CrystEngComm 2019, 21, 3137–3141. [Google Scholar] [CrossRef]
  55. Mamiyev, Z.; Balayeva, N.O. PbS Nanostructures: A Review of Recent Advances. Mater. Today Sustain. 2023, 21, 100305. [Google Scholar] [CrossRef]
  56. Oh, J.T.; Bae, S.Y.; Ha, S.R.; Cho, H.; Lim, S.J.; Boukhvalov, D.W.; Kim, Y.; Choi, H. Water-Resistant AgBiS2 Colloidal Nanocrystal Solids for Eco-Friendly Thin Film Photovoltaics. Nanoscale 2019, 11, 9633–9640. [Google Scholar] [CrossRef] [PubMed]
  57. Bae, S.Y.; Oh, J.T.; Park, J.Y.; Ha, S.R.; Choi, J.; Choi, H.; Kim, Y. Improved Eco-Friendly Photovoltaics Based on Stabilized AgBiS2Nanocrystal Inks. Chem. Mater. 2020, 32, 10007–10014. [Google Scholar] [CrossRef]
  58. Ming, S.; Liu, X.; Zhang, W.; Xie, Q.; Wu, Y.; Chen, L.; Wang, H.Q. Eco-Friendly and Stable Silver Bismuth Disulphide Quantum Dot Solar Cells via Methyl Acetate Purification and Modified Ligand Exchange. J. Clean. Prod. 2020, 246, 118966. [Google Scholar] [CrossRef]
  59. Bae, S.Y.; Yang, J.; Oh, J.T.; Lee, C.B.; Song, H.; Lee, B.R.; Jin, H.M.; Kim, K.; Hong, J.P.; Kim, Y.; et al. Understanding the Cation-Selective Ligand Passivation for AgBiS2 Nanocrystal Photovoltaics. Chem. Eng. J. 2023, 474, 145674. [Google Scholar] [CrossRef]
  60. Wang, Y.; Peng, L.; Wang, Z.; Konstantatos, G. Environmentally Friendly AgBiS2 Nanocrystal Inks for Efficient Solar Cells Employing Green Solvent Processing. Adv. Energy Mater. 2022, 12, 2200700. [Google Scholar] [CrossRef]
  61. Kelley, M.L.; Ahmed, F.; Abiodun, S.L.; Usman, M.; Jewel, M.U.; Hussain, K.; Zur Loye, H.C.; Chandrashekhar, M.V.S.; Greytak, A.B. Photoconductive Thin Films Composed of Environmentally Benign AgBiS2 Nanocrystal Inks Obtained through a Rapid Phase Transfer Process. ACS Appl. Electron. Mater. 2021, 3, 1550–1555. [Google Scholar] [CrossRef]
  62. Kim, D.; Cho, G.; Kim, Y.H.; Kwon, J.H.; Oh, Y.; Yang, M.; Jee, S.; Lee, I.S.; Si, M.J.; Jung, Y.; et al. Multi-Facet Passivation of Ternary Colloidal Quantum Dot Enabled by Quadruple-Ligand Ensemble toward Efficient Lead-Free Optoelectronics. Adv. Energy Mater. 2024, 14, 2302579. [Google Scholar] [CrossRef]
  63. Pejova, B.; Nesheva, D.; Aneva, Z.; Petrova, A. Photoconductivity and Relaxation Dynamics in Sonochemically Synthesized Assemblies of AgBiS2 Quantum Dots. J. Phys. Chem. C 2011, 115, 37–46. [Google Scholar] [CrossRef]
  64. Sun, B.; Ouellette, O.; García de Arquer, F.P.; Voznyy, O.; Kim, Y.; Wei, M.; Proppe, A.H.; Saidaminov, M.I.; Xu, J.; Liu, M.; et al. Multibandgap Quantum Dot Ensembles for Solar-Matched Infrared Energy Harvesting. Nat. Commun. 2018, 9, 4003. [Google Scholar] [CrossRef] [PubMed]
  65. Zhitomirsky, D.; Voznyy, O.; Levina, L.; Hoogland, S.; Kemp, K.W.; Ip, A.H.; Thon, S.M.; Sargent, E.H. Engineering Colloidal Quantum Dot Solids within and beyond the Mobility-Invariant Regime. Nat. Commun. 2014, 5, 3803. [Google Scholar] [CrossRef] [PubMed]
  66. Oh, J.T.; Bae, S.Y.; Yang, J.; Ha, S.R.; Song, H.; Lee, C.B.; Shome, S.; Biswas, S.; Lee, H.M.; Seo, Y.H.; et al. Ultra-Stable All-Inorganic Silver Bismuth Sulfide Colloidal Nanocrystal Photovoltaics Using Pin Type Architecture. J. Power Sources 2021, 514, 230585. [Google Scholar] [CrossRef]
  67. Park, Y.; Kim, H.; Shin, D.; Kim, T.; Choi, M.; Kim, J.; Lee, D.C.; Jeong, S. Quantum Dot/Polymer Bulk Heterostructure Interlayer for Enhanced Charge Collection in AgBiS2 Quantum Dot Photovoltaics. Adv. Opt. Mater. 2022, 10, 2201086. [Google Scholar] [CrossRef]
  68. Becker-Koch, D.; Albaladejo-Siguan, M.; Kress, J.; Kumar, R.; Hofstetter, Y.J.; An, Q.; Bakulin, A.A.; Paulus, F.; Vaynzof, Y. Oxygen-Induced Degradation in AgBiS2 Nanocrystal Solar Cells. Nanoscale 2022, 14, 3020–3030. [Google Scholar] [CrossRef]
  69. Wang, Y.; Kavanagh, S.R.; Burgués-Ceballos, I.; Walsh, A.; Scanlon, D.; Konstantatos, G. Cation Disorder Engineering Yields AgBiS2 Nanocrystals with Enhanced Optical Absorption for Efficient Ultrathin Solar Cells. Nat. Photonics 2022, 16, 235–241. [Google Scholar] [CrossRef]
  70. Balazs, D.M.; Bijlsma, K.I.; Fang, H.-H.; Dirin, D.N.; Döbeli, M.; Kovalenko, M.V.; Loi, M.A. Stoichiometric Control of the Density of States in PbS Colloidal Quantum Dot Solids. Sci. Adv. 2017, 3, eaao1558. [Google Scholar] [CrossRef]
  71. Wang, Y.; Lu, K.; Han, L.; Liu, Z.; Shi, G.; Fang, H.; Chen, S.; Wu, T.; Yang, F.; Gu, M.; et al. In Situ Passivation for Efficient PbS Quantum Dot Solar Cells by Precursor Engineering. Adv. Mater. 2018, 30, 1704871. [Google Scholar] [CrossRef]
  72. Klem, E.J.D.; MacNeil, D.D.; Cyr, P.W.; Levina, L.; Sargent, E.H. Efficient Solution-Processed Infrared Photovoltaic Cells: Planarized All-Inorganic Bulk Heterojunction Devices via Inter-Quantum-Dot Bridging during Growth from Solution. Appl. Phys. Lett. 2007, 90, 183113. [Google Scholar] [CrossRef]
  73. Tang, J.; Kemp, K.W.; Hoogland, S.; Jeong, K.S.; Liu, H.; Levina, L.; Furukawa, M.; Wang, X.; Debnath, R.; Cha, D.; et al. Colloidal-Quantum-Dot Photovoltaics Using Atomic-Ligand Passivation. Nat. Mater. 2011, 10, 765–771. [Google Scholar] [CrossRef] [PubMed]
  74. Ellingson, R.J.; Beard, M.C.; Johnson, J.C.; Yu, P.; Micic, O.I.; Nozik, A.J.; Shabaev, A.; Efros, A.L. Highly Efficient Multiple Exciton Generation in Colloidal PbSe and PbS Quantum Dots. Nano Lett. 2005, 5, 865–871. [Google Scholar] [CrossRef] [PubMed]
  75. Klem, E.; Shukla, H.; Hinds, S.; MacNeil, D.; Levina, L.; Sargent, E. Impact of Dithiol Treatment and Air Annealing on the Conductivity, Mobility, and Hole Density in PbS Colloidal Quantum Dot Solids. Appl. Phys. Lett. 2008, 92, 212105. [Google Scholar] [CrossRef]
  76. Bisri, S.Z.; Piliego, C.; Yarema, M.; Heiss, W.; Loi, M.A. Low Driving Voltage and High Mobility Ambipolar Field-Effect Transistors with PbS Colloidal Nanocrystals. Adv. Mater. 2013, 25, 4309–4314. [Google Scholar] [CrossRef] [PubMed]
  77. Balazs, D.M.; Nugraha, M.I.; Bisri, S.Z.; Sytnyk, M.; Heiss, W.; Loi, M.A. Reducing Charge Trapping in PbS Colloidal Quantum Dot Solids. Appl. Phys. Lett. 2014, 104, 112104. [Google Scholar] [CrossRef]
  78. Wang, X.; Koleilat, G.I.; Tang, J.; Liu, H.; Kramer, I.J.; Debnath, R.; Brzozowski, L.; Barkhouse, D.A.R.; Levina, L.; Hoogland, S.; et al. Tandem Colloidal Quantum Dot Solar Cells Employing a Graded Recombination Layer. Nat. Photonics 2011, 5, 480–484. [Google Scholar] [CrossRef]
  79. Lan, X.; Voznyy, O.; García de Arquer, F.P.; Liu, M.; Xu, J.; Proppe, A.H.; Walters, G.; Fan, F.; Tan, H.; Liu, M.; et al. 10.6% Certified Colloidal Quantum Dot Solar Cells via Solvent-Polarity-Engineered Halide Passivation. Nano Lett. 2016, 16, 4630–4634. [Google Scholar] [CrossRef]
  80. Johnston, K.W.; Pattantyus-Abraham, A.G.; Clifford, J.P.; Myrskog, S.H.; Hoogland, S.; Shukla, H.; Klem, E.J.D.; Levina, L.; Sargent, E.H. Efficient Schottky-Quantum-Dot Photovoltaics: The Roles of Depletion, Drift, and Diffusion. Appl. Phys. Lett. 2008, 92, 122111. [Google Scholar] [CrossRef]
  81. Hou, Y.-X.; Li, Y.; Zhang, Z.-C.; Li, J.-Q.; Qi, D.-H.; Chen, X.-D.; Wang, J.-J.; Yao, B.-W.; Yu, M.-X.; Lu, T.-B.; et al. Large-Scale and Flexible Optical Synapses for Neuromorphic Computing and Integrated Visible Information Sensing Memory Processing. ACS Nano 2021, 15, 1497–1508. [Google Scholar] [CrossRef]
  82. Russ, B.; Eisler, C.N. The Future of Quantum Technologies: Superfluorescence from Solution-Processed, Tunable Materials. Nanophotonics 2024, 13, 1943–1951. [Google Scholar] [CrossRef]
  83. Meng, L.; Zeng, T.; Jin, Y.; Xu, Q.; Wang, X. Surface-Modified Substrates for Quantum Dot Inks in Printed Electronics. ACS Omega 2019, 4, 4161–4168. [Google Scholar] [CrossRef] [PubMed]
  84. Luther, J.M.; Gao, J.; Lloyd, M.T.; Semonin, O.E.; Beard, M.C.; Nozik, A.J. Stability Assessment on a 3% Bilayer PbS/ZnO Quantum Dot Heterojunction Solar Cell. Adv. Mater. 2010, 22, 3704–3707. [Google Scholar] [CrossRef] [PubMed]
  85. Kumar, S.; Bharti, P.; Pradhan, B. Performance Optimization of Efficient PbS Quantum Dots Solar Cells through Numerical Simulation. Sci. Rep. 2023, 13, 10511. [Google Scholar] [CrossRef] [PubMed]
  86. Joo, J.; Bin Na, H.; Yu, T.; Yu, J.H.; Kim, Y.W.; Wu, F.; Zhang, J.Z.; Hyeon, T. Generalized and Facile Synthesis of Semiconducting Metal Sulfide Nanocrystals. J. Am. Chem. Soc. 2003, 125, 11100–11105. [Google Scholar] [CrossRef] [PubMed]
  87. Wang, Y.; Liu, Z.; Huo, N.; Li, F.; Gu, M.; Ling, X.; Zhang, Y.; Lu, K.; Han, L.; Fang, H.; et al. Room-Temperature Direct Synthesis of Semi-Conductive PbS Nanocrystal Inks for Optoelectronic Applications. Nat. Commun. 2019, 10, 5136. [Google Scholar] [CrossRef] [PubMed]
  88. Konstantatos, G.; Howard, I.; Fischer, A.; Hoogland, S.; Clifford, J.; Klem, E.; Levina, L.; Sargent, E.H. Ultrasensitive Solution-Cast Quantum Dot Photodetectors. Nature 2006, 442, 180–183. [Google Scholar] [CrossRef] [PubMed]
  89. McDonald, S.A.; Konstantatos, G.; Zhang, S.; Cyr, P.W.; Klem, E.J.D.; Levina, L.; Sargent, E.H. Solution-Processed PbS Quantum Dot Infrared Photodetectors and Photovoltaics. Nat. Mater. 2005, 4, 138–142. [Google Scholar] [CrossRef]
  90. Clifford, J.P.; Konstantatos, G.; Johnston, K.W.; Hoogland, S.; Levina, L.; Sargent, E.H. Fast, Sensitive and Spectrally Tuneable Colloidal-Quantum-Dot Photodetectors. Nat. Nanotechnol. 2009, 4, 40–44. [Google Scholar] [CrossRef] [PubMed]
  91. Luther, J.M.; Law, M.; Song, Q.; Perkins, C.L.; Beard, M.C.; Nozik, A.J. Structural, Optical, and Electrical Properties of Self-Assembled Films of PbSe Nanocrystals Treated with 1,2-Ethanedithiol. ACS Nano 2008, 2, 271–280. [Google Scholar] [CrossRef]
  92. Konstantatos, G.; Badioli, M.; Gaudreau, L.; Osmond, J.; Bernechea, M.; de Arquer, F.P.G.; Gatti, F.; Koppens, F.H.L. Hybrid Graphene–Quantum Dot Phototransistors with Ultrahigh Gain. Nat. Nanotechnol. 2012, 7, 363–368. [Google Scholar] [CrossRef]
  93. Zarghami, M.H.; Liu, Y.; Gibbs, M.; Gebremichael, E.; Webster, C.; Law, M. P-Type PbSe and PbS Quantum Dot Solids Prepared with Short-Chain Acids and Diacids. ACS Nano 2010, 4, 2475–2485. [Google Scholar] [CrossRef] [PubMed]
  94. Kang, M.S.; Sahu, A.; Norris, D.J.; Frisbie, C.D. Size- and Temperature-Dependent Charge Transport in PbSe Nanocrystal Thin Films. Nano Lett. 2011, 11, 3887–3892. [Google Scholar] [CrossRef]
  95. Nagpal, P.; Klimov, V.I. Role of Mid-Gap States in Charge Transport and Photoconductivity in Semiconductor Nanocrystal Films. Nat. Commun. 2011, 2, 486. [Google Scholar] [CrossRef] [PubMed]
  96. Piliego, C.; Protesescu, L.; Bisri, S.Z.; Kovalenko, M.V.; Loi, M.A. 5.2% Efficient PbS Nanocrystal Schottky Solar Cells. Energy Environ. Sci. 2013, 6, 3054. [Google Scholar] [CrossRef]
  97. Balazs, D.M.; Loi, M.A. Lead-Chalcogenide Colloidal-Quantum-Dot Solids: Novel Assembly Methods, Electronic Structure Control, and Application Prospects. Adv. Mater. 2018, 30, 1800082. [Google Scholar] [CrossRef]
  98. Brown, P.R.; Kim, D.; Lunt, R.R.; Zhao, N.; Bawendi, M.G.; Grossman, J.C.; Bulović, V. Energy Level Modification in Lead Sulfide Quantum Dot Thin Films through Ligand Exchange. ACS Nano 2014, 8, 5863–5872. [Google Scholar] [CrossRef] [PubMed]
  99. Nugraha, M.I.; Häusermann, R.; Bisri, S.Z.; Matsui, H.; Sytnyk, M.; Heiss, W.; Takeya, J.; Loi, M.A. High Mobility and Low Density of Trap States in Dual-Solid-Gated PbS Nanocrystal Field-Effect Transistors. Adv. Mater. 2015, 27, 2107–2112. [Google Scholar] [CrossRef] [PubMed]
  100. Shulga, A.G.; Piveteau, L.; Bisri, S.Z.; Kovalenko, M.V.; Loi, M.A. Double Gate PbS Quantum Dot Field-Effect Transistors for Tuneable Electrical Characteristics. Adv. Electron. Mater. 2016, 2, 1500467. [Google Scholar] [CrossRef]
  101. Bisri, S.Z.; Degoli, E.; Spallanzani, N.; Krishnan, G.; Kooi, B.J.; Ghica, C.; Yarema, M.; Heiss, W.; Pulci, O.; Ossicini, S.; et al. Determination of the Electronic Energy Levels of Colloidal Nanocrystals Using Field-Effect Transistors and Ab-Initio Calculations. Adv. Mater. 2014, 26, 5639–5645. [Google Scholar] [CrossRef]
  102. Liu, L.; Bisri, S.Z.; Ishida, Y.; Hashizume, D.; Aida, T.; Iwasa, Y. Ligand and Solvent Effects on Hole Transport in Colloidal Quantum Dot Assemblies for Electronic Devices. ACS Appl. Nano Mater. 2018, 1, 5217–5225. [Google Scholar] [CrossRef]
  103. Maiti, S.; André, A.; Banerjee, R.; Hagenlocher, J.; Konovalov, O.; Schreiber, F.; Scheele, M. Monitoring Self-Assembly and Ligand Exchange of PbS Nanocrystal Superlattices at the Liquid/Air Interface in Real Time. J. Phys. Chem. Lett. 2018, 9, 739–744. [Google Scholar] [CrossRef]
  104. Scheele, M.; Brütting, W.; Schreiber, F. Coupled Organic-Inorganic Nanostructures (COIN). Phys. Chem. Chem. Phys. 2015, 17, 97–111. [Google Scholar] [CrossRef] [PubMed]
  105. Balazs, D.M.; Dirin, D.N.; Fang, H.-H.; Protesescu, L.; ten Brink, G.H.; Kooi, B.J.; Kovalenko, M.V.; Loi, M.A. Counterion-Mediated Ligand Exchange for PbS Colloidal Quantum Dot Superlattices. ACS Nano 2015, 9, 11951–11959. [Google Scholar] [CrossRef] [PubMed]
  106. Bederak, D.; Balazs, D.M.; Sukharevska, N.V.; Shulga, A.G.; Abdu-Aguye, M.; Dirin, D.N.; Kovalenko, M.V.; Loi, M.A. Comparing Halide Ligands in PbS Colloidal Quantum Dots for Field-Effect Transistors and Solar Cells. ACS Appl. Nano Mater. 2018, 1, 6882–6889. [Google Scholar] [CrossRef]
  107. Septianto, R.D.; Liu, L.; Iskandar, F.; Matsushita, N.; Iwasa, Y.; Bisri, S.Z. On-Demand Tuning of Charge Accumulation and Carrier Mobility in Quantum Dot Solids for Electron Transport and Energy Storage Devices. NPG Asia Mater. 2020, 12, 33. [Google Scholar] [CrossRef]
  108. Liu, L.; Bisri, S.Z.; Ishida, Y.; Aida, T.; Iwasa, Y. Tunable Electronic Properties by Ligand Coverage Control in PbS Nanocrystal Assemblies. Nanoscale 2019, 11, 20467–20474. [Google Scholar] [CrossRef] [PubMed]
  109. Whitham, K.; Yang, J.; Savitzky, B.H.; Kourkoutis, L.F.; Wise, F.; Hanrath, T. Charge Transport and Localization in Atomically Coherent Quantum Dot Solids. Nat. Mater. 2016, 15, 557–563. [Google Scholar] [CrossRef] [PubMed]
  110. Abelson, A.; Qian, C.; Crawford, Z.; Zimanyi, G.T.; Law, M. High-Mobility Hole Transport in Single-Grain PbSe Quantum Dot Superlattice Transistors. Nano Lett. 2022, 22, 9578–9585. [Google Scholar] [CrossRef]
  111. Abelson, A.; Qian, C.; Salk, T.; Luan, Z.; Fu, K.; Zheng, J.G.; Wardini, J.L.; Law, M. Collective Topo-Epitaxy in the Self-Assembly of a 3D Quantum Dot Superlattice. Nat. Mater. 2020, 19, 49–55. [Google Scholar] [CrossRef]
  112. Balazs, D.M.; Matysiak, B.M.; Momand, J.; Shulga, A.G.; Ibáñez, M.; Kovalenko, M.V.; Kooi, B.J.; Loi, M.A. Electron Mobility of 24 Cm2 V−1 S−1 in PbSe Colloidal-Quantum-Dot Superlattices. Adv. Mater. 2018, 30, 1802265. [Google Scholar] [CrossRef]
  113. Lan, X.; Chen, M.; Hudson, M.H.; Kamysbayev, V.; Wang, Y.; Guyot-Sionnest, P.; Talapin, D.V. Quantum Dot Solids Showing State-Resolved Band-like Transport. Nat. Mater. 2020, 19, 323–329. [Google Scholar] [CrossRef] [PubMed]
  114. Szendrei, K.; Speirs, M.; Gomulya, W.; Jarzab, D.; Manca, M.; Mikhnenko, O.V.; Yarema, M.; Kooi, B.J.; Heiss, W.; Loi, M.A. Exploring the Origin of the Temperature-Dependent Behavior of PbS Nanocrystal Thin Films and Solar Cells. Adv. Funct. Mater. 2012, 22, 1598–1605. [Google Scholar] [CrossRef]
  115. Speirs, M.J.; Balazs, D.M.; Fang, H.-H.; Lai, L.-H.; Protesescu, L.; Kovalenko, M.V.; Loi, M.A. Origin of the Increased Open Circuit Voltage in PbS–CdS Core–Shell Quantum Dot Solar Cells. J. Mater. Chem. A 2015, 3, 1450–1457. [Google Scholar] [CrossRef]
  116. Gilmore, R.H.; Winslow, S.W.; Lee, E.M.Y.; Ashner, M.N.; Yager, K.G.; Willard, A.P.; Tisdale, W.A. Inverse Temperature Dependence of Charge Carrier Hopping in Quantum Dot Solids. ACS Nano 2018, 12, 7741–7749. [Google Scholar] [CrossRef] [PubMed]
  117. Weidman, M.C.; Nguyen, Q.; Smilgies, D.-M.; Tisdale, W.A. Impact of Size Dispersity, Ligand Coverage, and Ligand Length on the Structure of PbS Nanocrystal Superlattices. Chem. Mater. 2018, 30, 807–816. [Google Scholar] [CrossRef]
  118. Boehme, S.C.; Vanmaekelbergh, D.; Evers, W.H.; Siebbeles, L.D.A.; Houtepen, A.J. In Situ Spectroelectrochemical Determination of Energy Levels and Energy Level Offsets in Quantum-Dot Heterojunctions. J. Phys. Chem. C 2016, 120, 5164–5173. [Google Scholar] [CrossRef]
  119. Gudjonsdottir, S.; van der Stam, W.; Kirkwood, N.; Evers, W.H.; Houtepen, A.J. The Role of Dopant Ions on Charge Injection and Transport in Electrochemically Doped Quantum Dot Films. J. Am. Chem. Soc. 2018, 140, 6582–6590. [Google Scholar] [CrossRef]
  120. Liu, L.; Septianto, R.D.; Bisri, S.Z.; Ishida, Y.; Aida, T.; Iwasa, Y. Evidence of Band Filling in PbS Colloidal Quantum Dot Square Superstructures. Nanoscale 2021, 13, 14001–14007. [Google Scholar] [CrossRef]
  121. Talgorn, E.; Gao, Y.; Aerts, M.; Kunneman, L.T.; Schins, J.M.; Savenije, T.J.; van Huis, M.A.; van der Zant, H.S.J.; Houtepen, A.J.; Siebbeles, L.D.a. Unity Quantum Yield of Photogenerated Charges and Band-like Transport in Quantum-Dot Solids. Nat. Nanotechnol. 2011, 6, 733–739. [Google Scholar] [CrossRef]
  122. Gao, Y.; Aerts, M.; Sandeep, C.S.S.; Talgorn, E.; Savenije, T.J.; Kinge, S.; Siebbeles, L.D.A.; Houtepen, A.J. Photoconductivity of PbSe Quantum-Dot Solids: Dependence on Ligand Anchor Group and Length. ACS Nano 2012, 6, 9606–9614. [Google Scholar] [CrossRef]
  123. Jo, J.W.; Kim, Y.; Choi, J.; de Arquer, F.P.G.; Walters, G.; Sun, B.; Ouellette, O.; Kim, J.; Proppe, A.H.; Quintero-Bermudez, R.; et al. Enhanced Open-Circuit Voltage in Colloidal Quantum Dot Photovoltaics via Reactivity-Controlled Solution-Phase Ligand Exchange. Adv. Mater. 2017, 29, 1703627. [Google Scholar] [CrossRef] [PubMed]
  124. García de Arquer, F.P.; Talapin, D.V.; Klimov, V.I.; Arakawa, Y.; Bayer, M.; Sargent, E.H. Semiconductor Quantum Dots: Technological Progress and Future Challenges. Science 2024, 373, eaaz8541. [Google Scholar] [CrossRef] [PubMed]
  125. Borrelli, N.F.; Smith, D.W. Quantum Confinement of PbS Microcrystals in Glass. J. Non. Cryst. Solids 1994, 180, 25–31. [Google Scholar] [CrossRef]
  126. Zhang, X.; Chen, Y.; Lian, L.; Zhang, Z.; Liu, Y.; Song, L.; Geng, C.; Zhang, J.; Xu, S. Stability Enhancement of PbS Quantum Dots by Site-Selective Surface Passivation for near-Infrared LED Application. Nano Res. 2021, 14, 628–634. [Google Scholar] [CrossRef]
  127. Abel, K.A.; Shan, J.; Boyer, J.-C.; Harris, F.; van Veggel, F.C.J.M. Highly Photoluminescent PbS Nanocrystals: The Beneficial Effect of Trioctylphosphine. Chem. Mater. 2008, 20, 3794–3796. [Google Scholar] [CrossRef]
  128. Boles, M.A.; Engel, M.; Talapin, D. V Self-Assembly of Colloidal Nanocrystals: From Intricate Structures to Functional Materials. Chem. Rev. 2016, 116, 11220–11289. [Google Scholar] [CrossRef]
  129. Akhil, S.; Kusuma, J.; Balakrishna, R.G. Green AgBiSe2/AgBiS2 Core Shell Quantum Dots for Stable Solar Cells by Robust SILAR Method. J. Clean. Prod. 2022, 366, 132760. [Google Scholar] [CrossRef]
  130. Stavrinadis, A.; Rath, A.K.; de Arquer, F.P.G.; Diedenhofen, S.L.; Magén, C.; Martinez, L.; So, D.; Konstantatos, G. Heterovalent Cation Substitutional Doping for Quantum Dot Homojunction Solar Cells. Nat. Commun. 2013, 4, 2981. [Google Scholar] [CrossRef]
  131. Crisp, R.W.; Kirkwood, N.; Grimaldi, G.; Kinge, S.; Siebbeles, L.D.A.; Houtepen, A.J. Highly Photoconductive InP Quantum Dots Films and Solar Cells. ACS Appl. Energy Mater. 2018, 1, 6569–6576. [Google Scholar] [CrossRef]
  132. Albe, V.; Jouanin, C.; Bertho, D. Confinement and Shape Effects on the Optical Spectra of Small CdSe Nanocrystals. Phys. Rev. B 1998, 58, 4713–4720. [Google Scholar] [CrossRef]
  133. Beard, M.C.; Luther, J.M.; Semonin, O.E.; Nozik, A.J. Third Generation Photovoltaics Based on Multiple Exciton Generation in Quantum Confined Semiconductors. Acc. Chem. Res. 2013, 46, 1252–1260. [Google Scholar] [CrossRef] [PubMed]
  134. Carey, G.H.; Abdelhady, A.L.; Ning, Z.; Thon, S.M.; Bakr, O.M.; Sargent, E.H. Colloidal Quantum Dot Solar Cells. Chem. Rev. 2015, 115, 12732–12763. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 14 01328 g002
Figure 2. Schematic experimental setup of the synthesis of AgBiS2 QDs with (a) the hot-injection method using HMS as a sulfur precursor, (b) the use of different sulfur sources with TMS and elemental sulfur, and (c) heat-up synthesis with silver xanthate and bismuth xanthate precursors. Reprinted and adapted from Reference [17] with permission from the American Chemical Society; Reference [26] with permission from MDPI; and Reference [34] with permission from Wiley VCH.
Figure 2. Schematic experimental setup of the synthesis of AgBiS2 QDs with (a) the hot-injection method using HMS as a sulfur precursor, (b) the use of different sulfur sources with TMS and elemental sulfur, and (c) heat-up synthesis with silver xanthate and bismuth xanthate precursors. Reprinted and adapted from Reference [17] with permission from the American Chemical Society; Reference [26] with permission from MDPI; and Reference [34] with permission from Wiley VCH.
Nanomaterials 14 01328 g002
Nanomaterials 14 01328 g003
Figure 3. (a) A schematic illustration of the layer-by-layer ligand exchange process of the TMAI-treated AgBiS2 NC films, (b) a schematic explanation of the HSAB-predicted cation-selective binding preferences, (c) a schematic illustration of the binding action of thiol- and carboxylic acid-containing ligands onto the AgBiS2 NC surface, (d) density functional theory (DFT) of the ligand-coordinated AgBiS2 NC surfaces with EDT, MPA, and MA, (e) DFT calculations of the multifaceted passivated AgBiS2 CQDs from top views and visualizations of the charge density with Na, Ag, Bi, S, Br, and I ligands, and (f) a schematic of the iodide-capped (left) and 2-ME-treated (right) AgBiS2 NC films. Reprinted and adapted from Reference [59] with permission from Elsevier; and from References [16,62] with permission from Wiley-VCH.
Figure 3. (a) A schematic illustration of the layer-by-layer ligand exchange process of the TMAI-treated AgBiS2 NC films, (b) a schematic explanation of the HSAB-predicted cation-selective binding preferences, (c) a schematic illustration of the binding action of thiol- and carboxylic acid-containing ligands onto the AgBiS2 NC surface, (d) density functional theory (DFT) of the ligand-coordinated AgBiS2 NC surfaces with EDT, MPA, and MA, (e) DFT calculations of the multifaceted passivated AgBiS2 CQDs from top views and visualizations of the charge density with Na, Ag, Bi, S, Br, and I ligands, and (f) a schematic of the iodide-capped (left) and 2-ME-treated (right) AgBiS2 NC films. Reprinted and adapted from Reference [59] with permission from Elsevier; and from References [16,62] with permission from Wiley-VCH.
Nanomaterials 14 01328 g003
Nanomaterials 14 01328 g004
Figure 4. (a) A schematic of the AgBiS2 NC solar cell with a PBDB-T-2F HTL, (b) J-V characteristics of AgBiS2 NC solar cells under 1 sun illumination, (c) EQE and EQE/absorption spectra of iodide-capped and 2-ME-treated AgBiS2 NC solar cells, (d) a schematic illustration of the AgBiS2 device employing a QPB interlayer, (e) J-V characteristics of the control device and QPB device. Reprinted and adapted from References [16,67] with permission from Wiley-VCH.
Figure 4. (a) A schematic of the AgBiS2 NC solar cell with a PBDB-T-2F HTL, (b) J-V characteristics of AgBiS2 NC solar cells under 1 sun illumination, (c) EQE and EQE/absorption spectra of iodide-capped and 2-ME-treated AgBiS2 NC solar cells, (d) a schematic illustration of the AgBiS2 device employing a QPB interlayer, (e) J-V characteristics of the control device and QPB device. Reprinted and adapted from References [16,67] with permission from Wiley-VCH.
Nanomaterials 14 01328 g004
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mawaddah, F.A.N.; Bisri, S.Z. Advancing Silver Bismuth Sulfide Quantum Dots for Practical Solar Cell Applications. Nanomaterials 2024, 14, 1328. https://doi.org/10.3390/nano14161328

AMA Style

Mawaddah FAN, Bisri SZ. Advancing Silver Bismuth Sulfide Quantum Dots for Practical Solar Cell Applications. Nanomaterials. 2024; 14(16):1328. https://doi.org/10.3390/nano14161328

Chicago/Turabian Style

Mawaddah, Fidya Azahro Nur, and Satria Zulkarnaen Bisri. 2024. "Advancing Silver Bismuth Sulfide Quantum Dots for Practical Solar Cell Applications" Nanomaterials 14, no. 16: 1328. https://doi.org/10.3390/nano14161328

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
