Recent Advances in Wearable Biosensors for Non-Invasive Detection of Human Lactate
Abstract

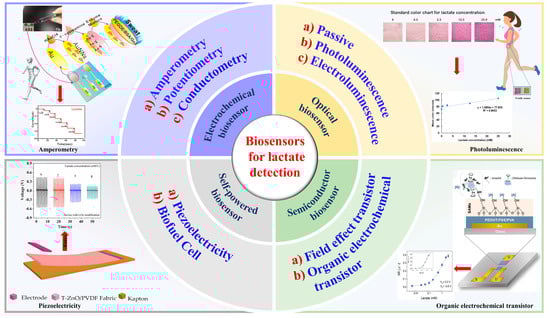

:1. Introduction

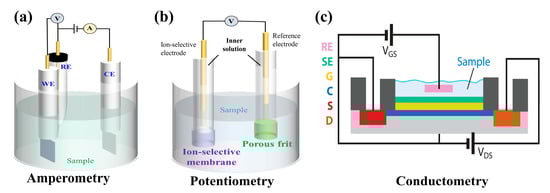

2. Electrochemical Biosensors
2.1. Types of Electrochemical Biosensors
2.1.1. Amperometric Lactate Biosensor
2.1.2. Potentiometric Lactate Biosensor
2.1.3. Conductive/Impedance Lactate Biosensor

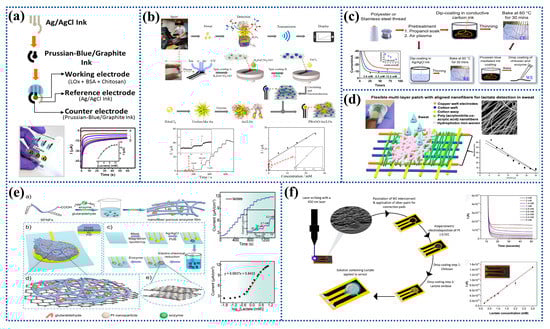

2.2. Preparation of Electrochemical Biosensors
2.2.1. Screen Printing
2.2.2. Drop Coating
2.2.3. Others

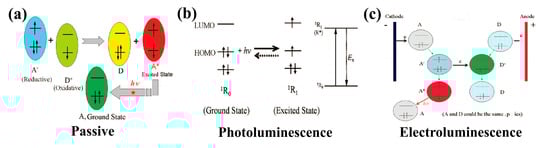

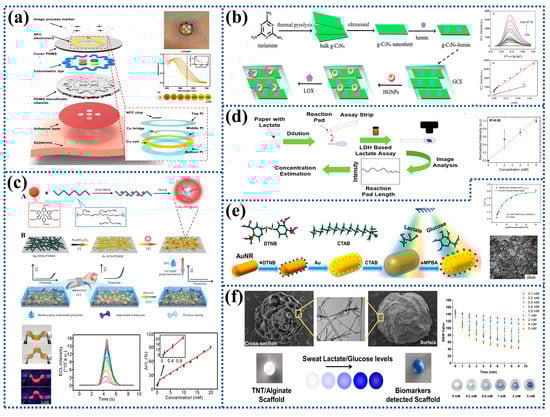

3. Optical Biosensors
3.1. Types of Optical Biosensors
3.1.1. Passive Optical Biosensor
3.1.2. Photoluminescent Optical Biosensor
3.1.3. Electroluminescent Optical Biosensor
3.2. Preparation of Optical Biosensors
3.2.1. Screen Printing
3.2.2. Immobilization
3.2.3. Others

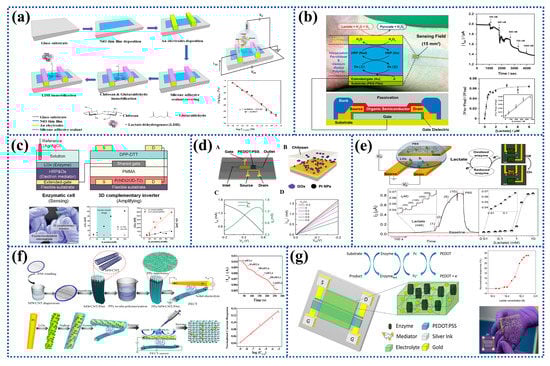

4. Semiconductor Biosensors
4.1. Field-Effect Transistors
4.2. Organic Electrochemical Transistors

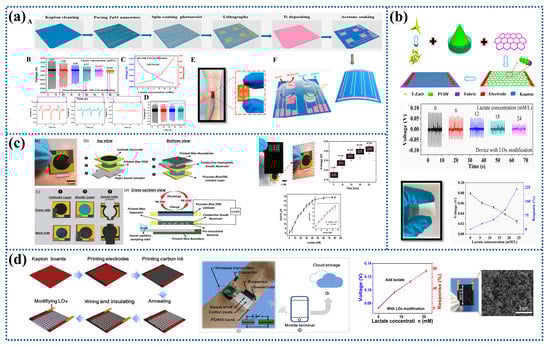

5. Self-Powered Biosensors
5.1. Piezoelectric Biosensors
5.2. Fuel Cell-Based Biosensors
5.3. Others

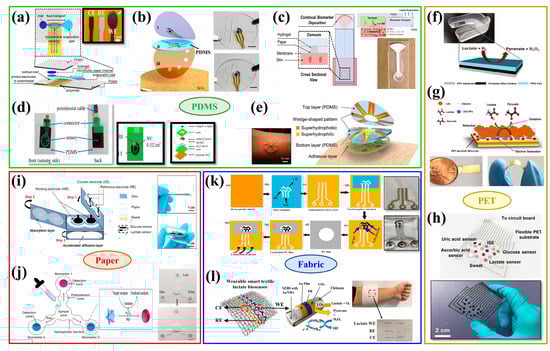

6. Flexible Substrate Materials for Wearable Biosensors
6.1. PDMS
6.2. PET
6.3. Paper
6.4. Fabric
7. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
