Intracellular ions strictly control the life process of cells, such as membrane potential regulation, osmotic balance, protein synthesis, signal transduction etc. [
15]. The basic idea of killing cancer cells by regulating the homeostasis of some ions in cells has long been applied in the field of cancer therapy, and has achieved breakthrough results, such as “ferroptosis“. In order to pass through the cell membrane barrier favorably, Fe
2+ ions which are loaded on nanoparticles enter into tumor cells by endocytosis. Then, ferrous ions are converted into Fe
3+ via the Fenton reaction upon the induction of the intracellular specific microenvironment and finally stimulate cells to produce a large number of reactive oxygen species (ROS) and lipid peroxides, resulting in the death of cancer cells [
16,
17]. This principle was first classified as “regulated cell death“ (RC) because it is highly dependent on Fe
2+ and regulated by Fe
2+ [
17]. However, with the in-depth study of intracellular ion action and cell signal pathways, Wenbo Bu et al. summarized the research on promoting cancer cell death based on ion induction or regulation as “ion interference therapy” [

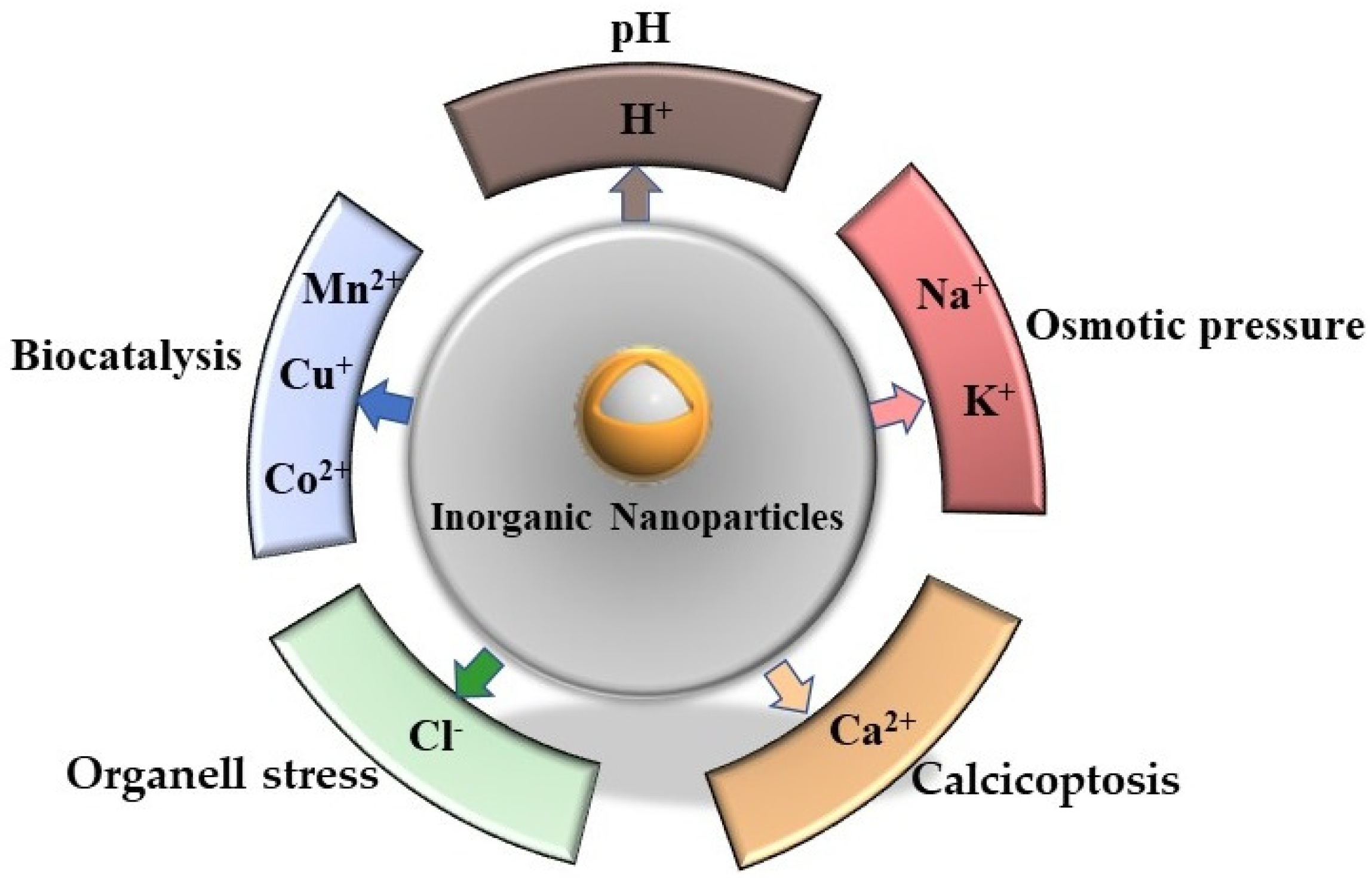

6]. In recent years, the research into ion interference therapy has attracted much attention. Some metal or non-metal ions (such as H
+, Na
+, K
+, Cl
−, Ca
2+, Mn
2+, Cu
+) have been applied and have good effects in inhibiting tumors (
Figure 1).
2.1. Protons in Tumor Cells
H
+ ions are widely distributed inside and outside cells to regulate the survival microenvironment of cells and the acid–base balance in cells. In particular, the acidic organelle in cells, the lysosome, as a proton store, is the center responsible for degradation, nutrient sensing and immunity [
18]. At the same time, lysosomes are also closely related to the growth, proliferation and migration of tumor cells [
19]. Targeting lysosomes to achieve H
+-mediated ion interference therapy is also an effective means to treat cancers.

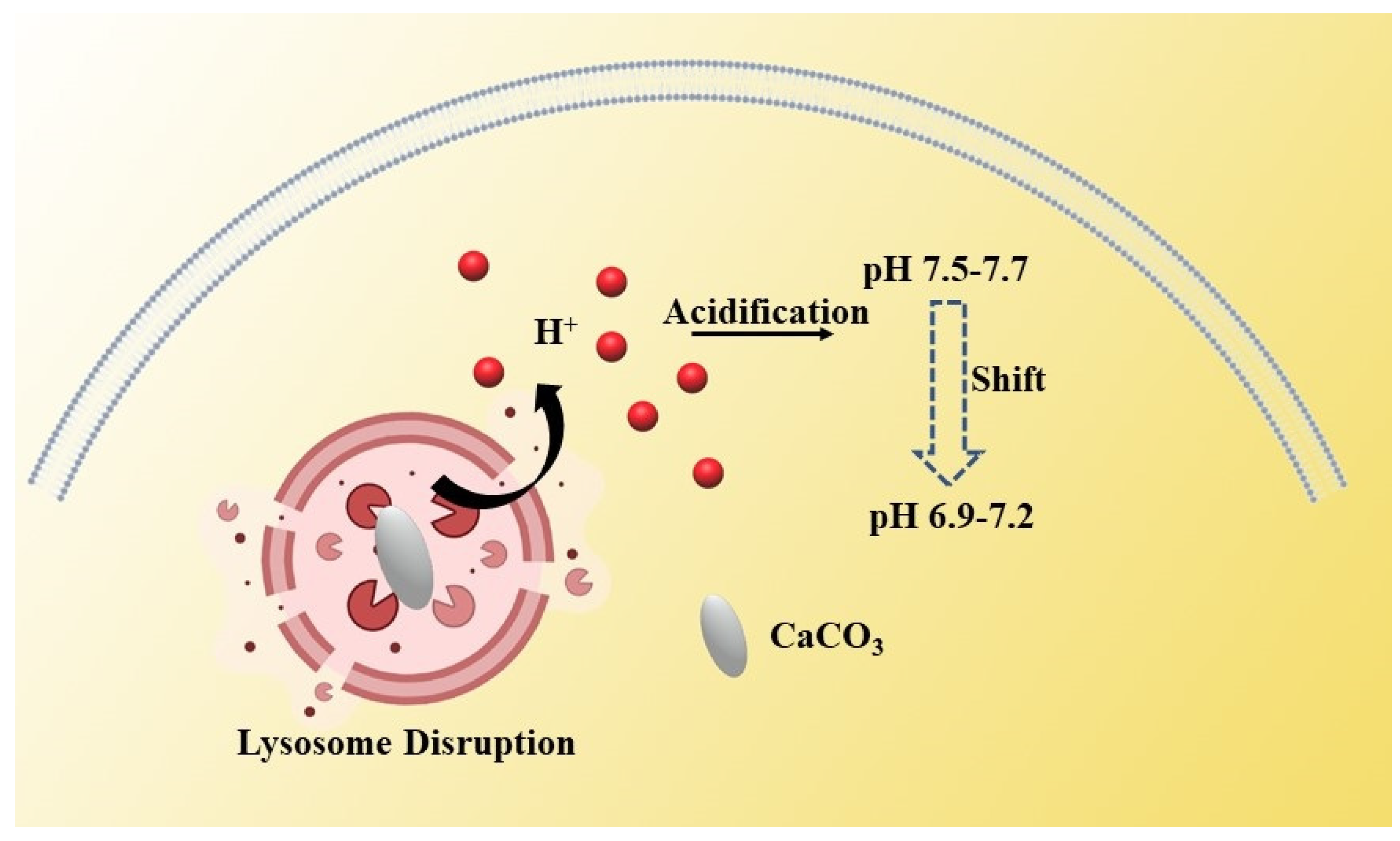

Under normal conditions, to avoid cellular acidosis, cells maintain a balanced internal and external pH, usually 7.2–7.4 inside normal cells and 7.6 inside tumor cells [
20]. This is due to the efflux of hydrogen ions in tumor cells, resulting in the pH of cytoplasm inside the tumor cells being higher than that of normal cells, while the pH outside the tumor cells is lower than that of normal cells—that is, the so-called acidic microenvironment. When nanoparticles gain access into the lysosome, the degradation or expansion of nanoparticles can cause lysosome swelling and the extrusion of abundant H
+ into the cytoplasm, which can induce intracellular acidification (
Figure 2) [
21]. The intracellular abnormal acidic environment will seriously affect the activity of cells. Therefore, we can interfere with the proliferation of tumor cells by regulating the homeostasis of intracellular hydrogen ions.
Nano-CaCO
3 as one kind of ideal vector with high biocompatibility, and can also be used to interfere with the intracellular homeostasis of lysosome hydrogen ions by utilizing the acid response of calcium carbonate, which was so called “lysosome bombs”, according to Chenxu Zhang et al. [
20]. The nano-vaterite calcium carbonate was coated with disulfide-cross-linked sodium alginate (DSA) and loaded with doxorubicin. When the nanoparticles are swallowed by tumor cells, the DSA on the surface of nano-CaCO
3 degrades in response to glutathione. Then, the exposed calcium carbonate particles enter the lysosome inside the tumor cell. Due to the expansion of nano-CaCO
3 in the lysosome, lysosome membrane will rupture rapidly and release acidic inclusions. The rapid change in intracellular pH makes tumor cells more sensitive to chemotherapeutic drugs, and finally accelerates the death of cancer cells. It can be seen that it is feasible to realize cancer treatment by interfering with the pH environment inside tumor cells by inorganic nanoparticles. However, there are still many places worth discussing and improving. Through a large number of experimental studies, although nano-calcium carbonate without modification can instantly change the pH environment of cytoplasm in cells, it is difficult to achieve a hydrogen ion interference treatment without relying on chemotherapeutic drugs. This may be due to the reaction between nano-calcium carbonate itself and hydrogen ions, which weakens the decline in pH in the cytoplasm. Secondly, the changes in the pH environment inside tumor cells caused by nanoparticles cannot always be maintained for a long time. When the self-regulatory ability of tumor cells is relatively strong, the effect of this treatment modality is diminished. Therefore, how to design a novel inorganic nanoparticle that can continuously change the intracellular pH and realize a treatment modality based on hydrogen ion interference under conditions independent of other treatments such as chemotherapy will be a new research direction.
At the same time, according to the above research results, the tumor cell death caused by hydrogen ion interference therapy is likely to be a programmed death. Programmed cell death is likely to release more antigens, which can promote the presentation efficiency of antigens to dendritic cells, and finally enhance the anti-cancer immune performance. Therefore, combined with this characteristic, it has potential to explore the application of hydrogen ion interference therapy in immunotherapy.
2.2. Sodium and Potassium Ions in Tumor Cells
The plasma membranes of mammalian cells are not protected by a cell wall, as with plant cells. Therefore, when mammalian cells are under abnormal osmotic pressure, cells swell easily, resulting in cell membrane rupture and cell death [
22]. Generally speaking, due to the existence of a sodium and potassium ion exchange pump on the cell membrane, the concentration of potassium ions in cells is higher than that outside cells, so as to maintain their normal structure and physiological activity [
23]. Once the concentration gradient of these ions exceeds the limit of cell self-regulation, the osmotic pressure will change sharply, resulting in the destruction of the cytoskeleton, the reduction in cell activity, and even cell lysis [
24]. Therefore, interference with ion balance can lead to effective antitumor therapy. Therefore, many Na
+ and K
+ ion carriers have been designed for ion interference therapy of tumors, including molecular carriers and inorganic nanoparticle carriers.
Recently, a molecular carrier, helical polypeptide-based potassium ionophores was designed by Daeyong Lee et al. to achieve transmembrane transport of K
+ [
25]. This molecular carrier can easily carry potassium ions through the cell membrane to the outside of tumor cells. When this carrier transports a large amount of K
+ outside the cell, the balance of the K
+ concentration in the cell is broken. The imbalance of intracellular potassium ion levels results in the strong activation of the unfolded protein response (UPR) in the endoplasmic reticulum (ER). The stressed ER leads to oxidative conditions by overproducing ROS, thereby damaging the mitochondria and activating apoptosis signaling. Therefore, K
+ has been proved to have a significant effect in inducing tumor cell death. In addition to the method of inputting relevant ions into cells in the form of carrier, it can also be realized by blocking relevant ion channels on cell membrane. For example, Lin Zhu, Ge Wang et al. used chondroitin sulfate to mineralize a layer of calcium carbonate membrane on the surface of cancer cell membrane, which will seriously affect the function of the Na
+/K
+ ion channel on the surface of the cell membrane and induce the imbalance of ion concentration in cells, so as to promote the death of cancer cells [
26]. Although this is a very effective method for ion interference, the number of ions that can be transported by molecular carriers is very low. Therefore, new and efficient ion transport methods have become the focus of attention, and inorganic nanoparticles happen to show more advantages in this regard.

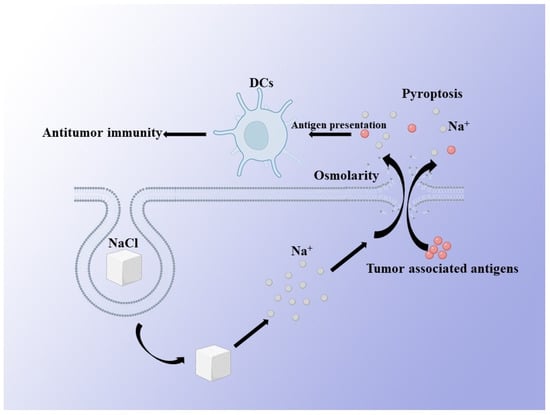

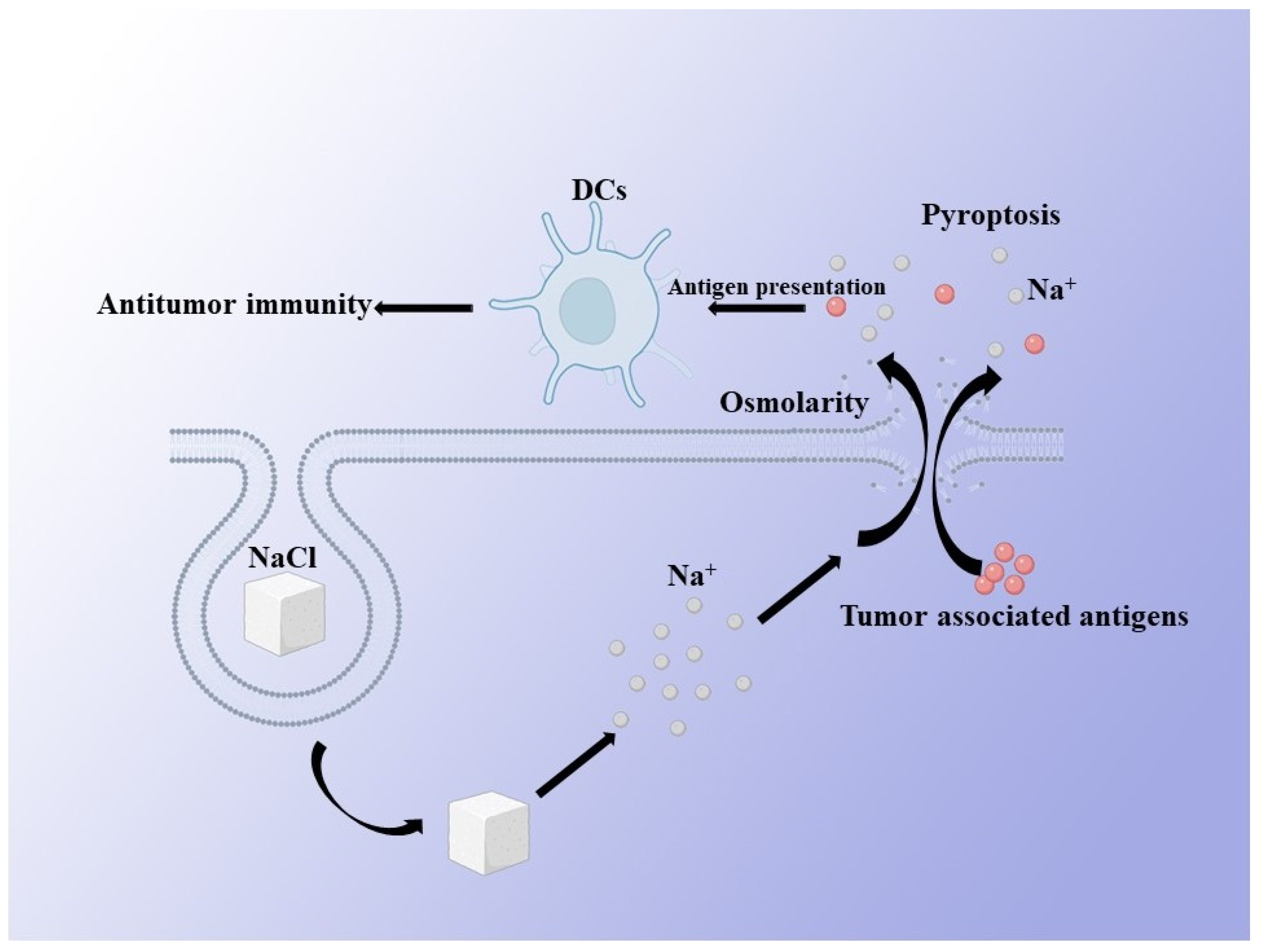

Compared with the molecular ion transporters and ion channel blockers, inorganic nanoparticles that can degrade in cells can achieve larger and more efficient ion transport, so as to interfere with the ion homeostasis in cells. Wen Jiang, Lei Yin et al. synthesized nanoparticles of NaCl (SCNPs), which are stable in the body fluid environment, through a microemulsion reaction. The reaction took place in a hexane/ethanol mixed solvent, with sodium oleate and molybdenum chloride as sodium and chloride precursors, and oleylamine as a surfactant. The as-synthesized SCNPs are hydrophobic because of the oleylamine coating. Additionally, they modified the SCNPs with PEGylated phospholipid. After the tumor cells engulfed the NaCl nanoparticles, the degradation of NaCl nanoparticles caused the explosive increase in the intracellular sodium ion concentration, resulting in the imbalance of intracellular and extracellular sodium ions, the change in cell osmotic pressure, and finally the death of tumor cells (
Figure 3) [
11]. Similarly, Yang Liu et al. designed a phospholipid-coated Na
2S
2O
8 nanoparticle. They also realized the massive accumulation of sodium ions in tumor cells, resulting in the imbalance of osmotic pressure inside and outside the cells, and finally promoted the swelling and death of cells [
27]. In their study, they also evaluated the synergistic effect of chemotherapy. They found that the therapeutic effect of chemotherapy could be significantly enhanced by interfering with the homeostasis of intracellular sodium ions [
11,
27]. Recently, biodegradable K
3ZrF
7:Yb/Er upconversion nanoparticles ZrNPs, which are similar to ion reservoirs, have been developed which can be dissolved inside cancer cells and release high amounts of K
+ and [ZrF
7]
3− ions, resulting a surge in intracellular osmolarity and homeostasis imbalance, according to Binbin Ding et al. [
28]. Through biodegradable inorganic nanoparticles containing sodium and potassium, this can artificially regulate the internal and external osmotic balance of tumor cells, and finally significantly inhibit the proliferation of tumor cells. In these studies, it is worth noting that, compared with tumor cells, normal cells have higher tolerance to abnormal ion homeostasis. Therefore, these inorganic nanoparticles will not damage normal cells. Therefore, compared with traditional cancer treatment methods, such as chemotherapy, Na
+- and K
+-based ion interference therapy has higher biocompatibility and is not limited by drug resistance. In general, this treatment is expected to enter clinical trials. However, if better targeting effects can be provided, so that more nanoparticles can enter tumor cells, and a longer in vivo circulation cycle can be developed, as nano-NaCl has only a short cycle of 24 h, it will be more beneficial to the treatment of cancer.
At the same time, the pyroptosis which is induced by the imbalance of intracellular ion homeostasis is more noteworthy. Pyroptosis, also known as inflammatory necrosis, is a kind of programmed cell death which is characterized by the continuous expansion of cells until the rupture of the cell membrane, leading to the release of cell contents and then activating a strong inflammatory response [
29]. Regardless of whether NaCl, Na
2S
2O
8, or ZrNPs were used, all could induce pyroptosis, exhibiting superior antitumor immunity activity, as confirmed by enhanced dendritic cell (DC) maturity and the frequency of effector-memory T cells, as well as observably inhibiting tumor growth and pulmonary metastasis. Such research results show that Na
+ and K
+ ion interference therapy can greatly promote the patient’s own immunity, so as to improve the anti-cancer effect. This makes the advantages of ion interference therapy based on inorganic nanoparticles more obvious, but the relevant research cannot be limited to this. For example, whether the balance of sodium and potassium ions can also change the activity of immune cells, such as promoting the activation of dendritic cells, the phenotypic transformation of tumor associated macrophages from M2 to M1, the activation of T cells, etc., needs to be explored. Therefore, research into ion interference therapy in immunity needs to be further conducted, and ion interference therapy combined with immunotherapy may be a promising treatment in the future.
2.3. Calcicoptosis of Tumor Cells
Calcium is an important regulator of many cellular processes, such as muscle contraction, gene transcription, hormone release, neural signal transduction etc. [
30]. In 2000, Michael R. Duchen summarized in detail the complex relationship between calcium ion signals and mitochondria [
31]. On the one hand, the accumulation of Ca
2+ in mitochondria can lead to the transient polarization of mitochondrial membrane potential. On the other hand, under the pathological conditions of intracellular calcium concentration overload, especially related to oxidative stress, the uptake of Ca
2+ by mitochondria will trigger cell death. Based on this, in 2019, Maike Glitsch claimed that the regulation of calcium by related proteins or ion channels is expected to become another new method for tumor treatment [
32]. It can be seen that calcium ions have broad research prospects in the field of tumor therapy [
33].
More recently, given the importance of calcium ions in multiple cellular processes, calcium overload, characterized by an abnormal cytoplasm accumulation of free calcium ions (Ca2+), is a widely recognized cause of cell damage and even cell death in numerous cell types. This undesirable destructive process can become a new tool applicable to ion interference therapy. Hence, some calcium-based inorganic nanoparticles were constructed to achieve calcium ion interference therapy, such as CaO2, CaP and amorphous calcium carbonate.

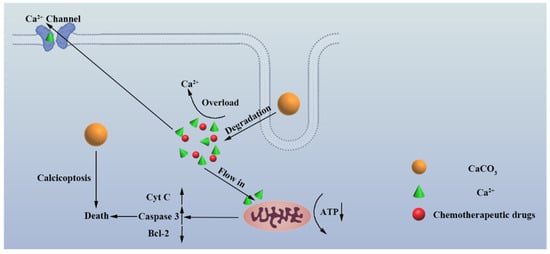

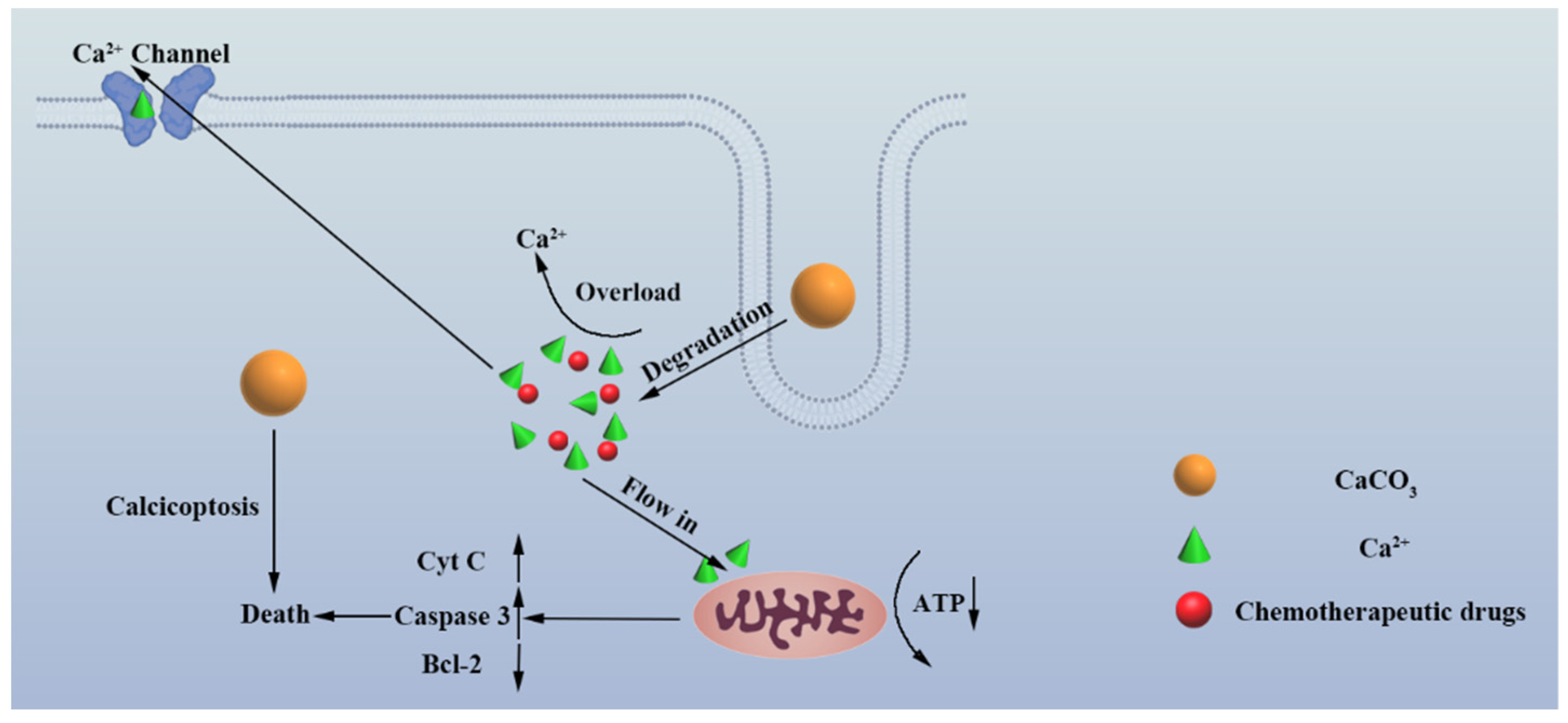

Calcium-based inorganic NPs, which can mediate intracellular calcium homeostasis interference therapy, namely “calcicoptosis”, have attracted extensive attention (
Figure 4). On the basis of the unique biological effects of Ca
2+, Bu et al. demonstrated a highly efficient strategy for tumor therapy by utilizing pH-sensitive sodium hyaluronate-modified calcium peroxide NPs (SH-CaO
2 NPs) [
8]. Effective modification with sodium hyaluronate, which was performed alongside the nucleation and growth of the CaO
2 NPs to confine the grain size, was achieved by the attraction between the negatively charged ions and positively charged nanocrystals. SH-CaO
2 could slowly decompose into free Ca
2+ and H
2O
2 in the acid tumoral microenvironment, leading to intracellular calcium overload and oxidative stress, resulting in the desensitization of calcium-related channels followed by an uncontrollable cellular accumulation of Ca
2+ [
8]. Overloaded calcium eventually leads to the decrease in mitochondrial membrane potential, mitochondrial damage and cell death. Notably, the killing effect is not limited to tumor types or hypoxic cells, and normal cells are more tolerant of the adverse influence of NPs than tumor cells. In 2021, Shi et al. reported a simple, yet versatile, tumor-targeting “calcium ion nanogenerator” (TCaNG) to reverse drug resistance by inducing intracellular Ca
2+ bursting [
34]. The TCaNG was prepared by loading the antitumor drug doxorubicin (DOX) into calcium phosphate (CaP) nanoparticles and then enveloping them with RGD peptide-decorated DSPE-PEG. Benefiting from the tumor vessel targeting effect of RGD, the TCaNG can be enriched in tumor tissues and internalized by tumor cells. Consequently, the TCaNG could induce Ca
2+ bursting in acidic lysosomes of tumor cells and then reverse drug resistance to improve cancer treatment. Similarly, the work of Cheng Wang et al. confirmed that the excessive calcium ions produced by amorphous calcium carbonate initiated the apoptosis program and killed cancer cells in cooperation with chemotherapy by using phospholipid-modified amorphous calcium carbonate [
7]. Due to the rapid degradation of amorphous calcium carbonate in tumor cells, a large number of calcium ions eventually lead to the death of tumor cells by damaging mitochondria. Yu Bin Dong’s team proved that Ca
2+ overload and photodynamics can produce obvious synergistic killing effect by constructing a nanoscale covalent organic framework (NCOF)-based nanoagent, namely CaCO
3@COF-BODIPY-2I@GAG, which is embedded with CaCO
3 nanoparticles (NPs) and has a surface decorated with BODIPY-2I as a photosensitizer (PS) and glycosaminoglycan (GAG) targeting agent for CD44 receptors on the digestive tract tumor cells [
35]. Xue Feng Yu et al.’s work significantly inhibited the proliferation of cancer cells through calcium overload by utilizing the prepared CaP mineralized black phosphorus material (CaBPs) [
4]. CaBPs exhibit enhanced and selective anticancer bioactivity due to the improved pH-responsive degradation behavior and intracellular Ca
2+ overloading in cancer cells. Furthermore, CaBPs specifically target mitochondria and cause structural damage, thus leading to mitochondria-mediated apoptosis in cancer cells. Jun Lin et al. emphasized the important role of calcium interference therapy of cuprous oxide nanoparticles coated with calcium carbonate [
36]. With CaCO
3 responsive to pH decomposition and Cu
2O responsive to H
2S sulfuration, Cu
2O@CaCO
3 can be turned “on” in the therapeutic mode by the colorectal TME. When the CaCO
3 shell decomposes and releases calcium in acidic colorectal TME, excessive calcium accumulates in the cells, and finally cooperates with Cu
2O degradation to stimulate the production of a large amount of reactive oxygen species (ROS), which promotes the death of cancer cells. Other calcium-containing nano-formulations were also developed for the purpose of cancer calcicoptosis, and the idea of “calcium-interference therapy” would potentially open up new opportunities for the development of antitumor strategies with high safety and precision.
Although the ion therapy based on calcicoptosis has achieved great success both in vitro anti-tumor experiments and in vivo anti-tumor experiments in mice, the anti-tumor effect of single intracellular calcium interference therapy does not seem to be so obvious. Therefore, calcicoptosis combined with other cancer treatments, such as photothermal therapy, chemokinetic therapy and immunotherapy, is a more effective means. At present, research on the effect of calcium on immunotherapy has also made some progress.
The acid-sensitive PEG-decorated calcium carbonate (CaCO
3) nanoparticle incorporating curcumin, which was designed by Pan Zheng et al., can successfully induce calcium overload in the mitochondria in cells under ultrasonic environment, and cause immunogenic death of cancer cells, a manner of tumor cell death that can trigger antitumor immune responses [
37]. The overload of intracellular calcium under ultrasonic conditions leads to cell immunogenic death, which greatly promotes the process of antigen delivery to mature dendritic cells, and finally produces strong antitumor immunity.
At the same time, as verified by Jingyi an and Kaixiang Zhang et al., calcium can also enhance antitumor immunity in other ways. They prepared honeycomb calcium carbonate nanoparticles (OVA@CaCO
3, denoted as HOCN) with ovalbumin (OVA) as the skeleton [
14]. Firstly, their research found that the degradation behavior of HOCN in response to the microenvironment at the tumor site improved the low-pH environment, which inhibited the maturation of dendritic cells. Secondly, the calcium ions released after the nanoparticles were ingested by dendritic cells destroyed the autophagy inhibition conditions of dendritic cells (DCs). Autophagy of DCs can further activate T cells and eventually enhance antitumor immunity. Finally, after the tumor cells swallowed the nanoparticles, overloaded calcium ions in tumor cells promote the release of damage-associated molecular patterns (DAMPs) and the maturation of dendritic cells. This study provides us with a new research idea. Calcium-based inorganic nanoparticles can also regulate the calcium concentration in immune cells. At the same time, the calcium concentration in immune cells can also affect the related immune process, so as to promote antitumor immunity.
2.4. Intracellular Chloridion
In addition to cations, anion homeostasis in cells also has a great impact on cell life activities. The balance of normal anion concentration in cells provides a basis for maintaining cell morphology and function [
38]. Compared with normal cells, cancer cells are more sensitive to anion homeostasis [
38]. Therefore, interfering with anion homeostasis in cancer cells is also an effective means to achieve cancer treatment. Chloridion, as the most common anion in cells, has been widely studied. Synthetic anion transporters, a type of small molecular organic compound with transmembrane anion transport activity, can interfere with the homeostasis of cell anions, especially chloride ions, and trigger cell death [
38]. Adil S. Aslam et al. proved that disturbed chloride ion concentration induced by an ion transporter in a cellular level affects endoplasmic reticulum (ER) stress by increasing Ca
2+ concentration, and leads to apoptosis [
39]. Similarly, Dong Un Lee et al. utilized cetrimonium bromide (CTAB: cationic quaternary amino group-based) gold nanorods to prove that the burst release of Cl
−, as a result of lysosomal swelling by gold nanorods, induced a massive Ca
2+ influx, which eventually promotes the apoptosis of cancer cells [

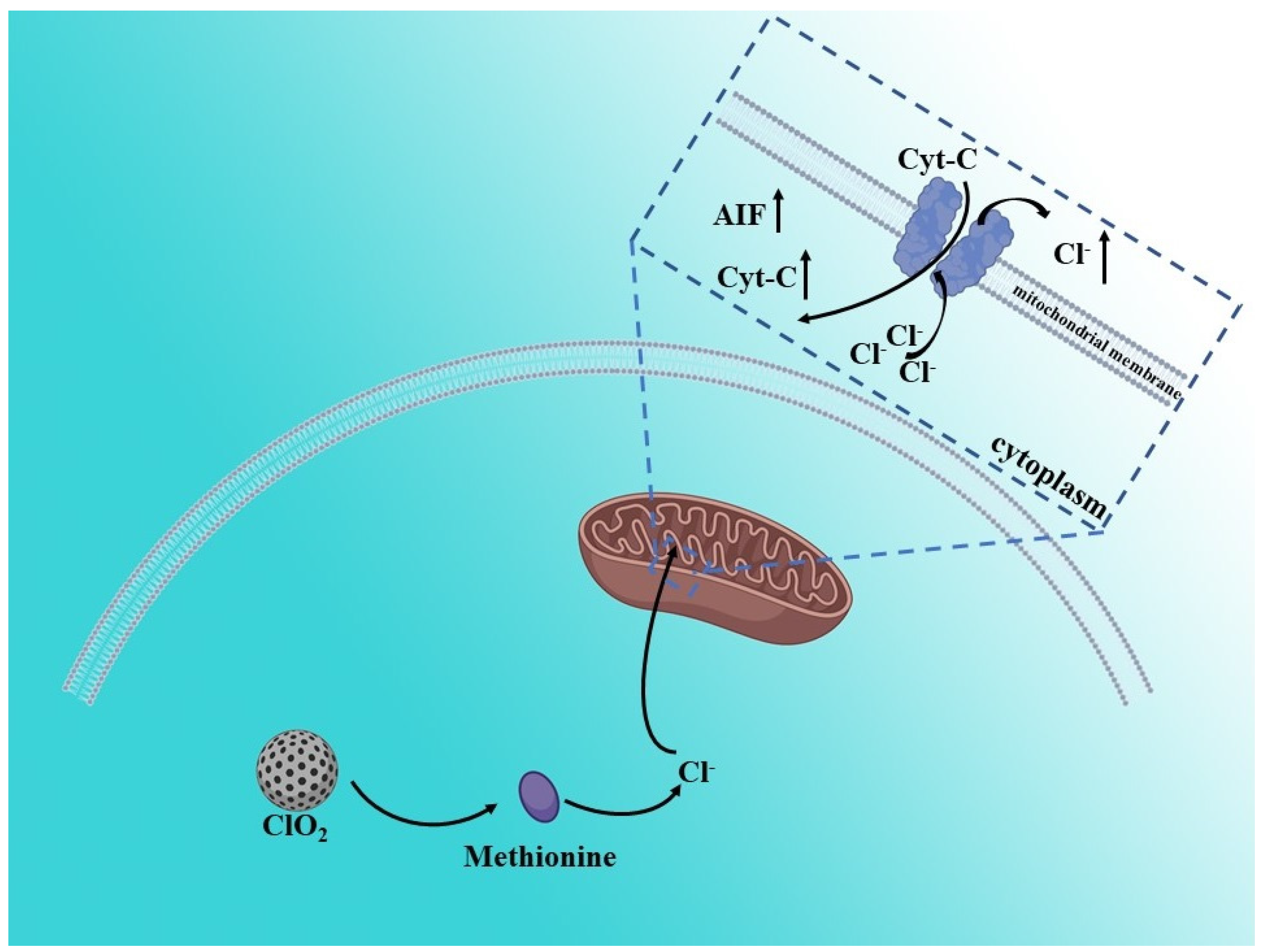

40]. Meanwhile, Yuping Jiang et al. prepared a ClO
2-loaded CaSiO
3 nanoparticle which can produce large numbers of Cl
− by capturing methionine to disturb the balance of homeostasis in cancer cells (
Figure 5). The released Cl
− by ClO
2, which can enter the mitochondria through the voltage-dependent anion channel (VDAC), leads to mitochondrial damage and membrane potential decline, which further induce cell apoptosis [
41]. In general, chloride ions directly or indirectly affect the ion homeostasis at different organelle levels in cells, including the endoplasmic reticulum, lysosome and mitochondria, thus affecting cell activity.
Similar to other ion interference treatment methods, chloride-based treatment often has better antitumor effects in combination with other treatment methods, such as starvation therapy. Therefore, this combination strategy is expected to be adopted to build more multifunctional platforms for in vivo treatment. Through the previous research, it can be found that ion interference therapy always needs to be combined with other treatment methods in order to achieve a better therapeutic effect.
Although there are few studies on the antitumor immunity of chloride ions, we can still expect that chloride-mediated apoptosis will have a positive effect on cancer immunotherapy.
2.5. Manganese, Copper, and Cobalt That Activate Biocatalysis
Enzymes are powerful catalysts to complete various chemical reactions related to life activities, such as metabolism, detoxification and biosynthesis [
42]. Due to the high catalytic efficiency, some biological enzymes are used to treat various diseases, including inhibiting tumor growth. Glucose oxidase (GO
x), which has the function of catalyzing the decomposition of glucose into H
2O
2, has been recognized as a “star” enzyme catalyst involved in cancer treatment [
43]. Hanchun Yao et al. used collagenase, which can etch the dense extracellular matrix around tumor cells to remodel tumor microenvironment, so as to treat cancer more effectively [
44]. However, due to the high synthesis cost and specific constraints of microenvironment where cells survive, biological protease used to treat diseases is difficult to popularize in the clinic.
With the development of nanotechnology, some ions with a catalytic function were developed to replace enzymes, and inorganic nanoparticles were used as carriers to inhibit tumor proliferation. Iron-based nanozymes (INs) are one of the earliest inorganic nanomaterials with exploitable catalytic behaviors [
45]. Fe
2+ can catalyze the reaction of H
2O
2 into the highly toxic ⋅OH, which can inhibit tumor proliferation [
46]. Mn
2+, Cu
+ and Co
2+, which are delivered by inorganic nanoparticles into tumor cells, can also produce similar catalytic reactions as Fe
2+, so they are also used for ion interference therapy.

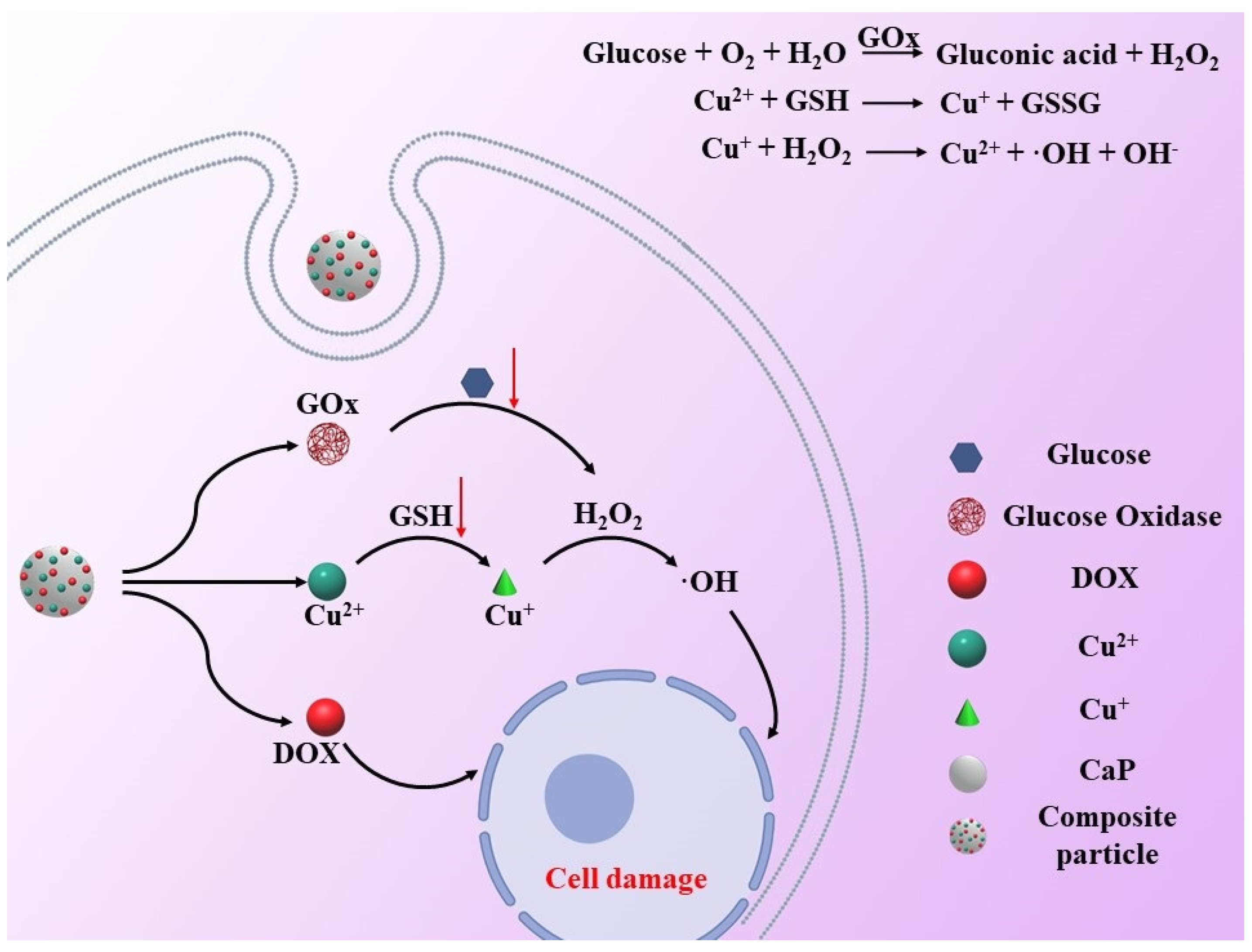

Lian-Hua Fu et al. constructed a Cu
2+-doped calcium phosphate nanoparticles. The released Cu
2+ with the degradation of calcium phosphate in tumor cells can react with glutathione to form the Fenton agent Cu
+, which further triggers the H
2O
2 to generate ⋅OH to enhance the antitumor effect (
Figure 6) [
47]. They also proved that Mn
2+-mediated Fenton-like reaction enhanced chemotherapy by using biodegradable manganese-doped calcium phosphate [
43]. Hanjing Kong et al. synthesized fine CaO
2 nanoparticles with Cu–ferrocene molecules at the surface (CaO
2/Cu–ferrocene). Under an acidic condition, the particles release Ca
2+ ions and H
2O
2 in a rapid fashion. The Fenton reaction between Cu
+ (from Cu–ferrocene) and H
2O
2 induced significant in vitro and in vivo antitumor phenomena by producing a large amount of ⋅OH [
48]. Shutao Gao et al. also proved that Co
2+ is also a Fenton agent that can enhance the antitumor effect by using a ZIF-67 coated CaO
2 nanoparticle (CaO
2@ZIF-67) [
49]. The nanoparticle is broken down in the weakly acidic environment within tumors to rapidly release the Fenton-like catalyst Co
2+. As with other Fenton reagents, Co
2+ reacts with H
2O
2, which was released by degraded CaO
2 to produce a large number of ⋅OH, which eventually leads to the death of tumor cells.
Compared with other forms of ion interference therapy, this ion interference therapy that activates the biocatalysis process does not depend on other traditional cancer treatments. A single ion treatment can produce good therapeutic effects in vitro and in vivo. Therefore, this treatment method is more reliable and has more potential to achieve practical clinical applications. For this treatment, it is worth noting that they all rely on H
2O
2 to start the tumor killing program, and Ca
2O is both a good donor of H
2O
2 and Ca
2+. Therefore, the combination of calcicoptosis and manganese, copper, and cobalt ion interference therapy using Ca
2O may be a more effective anti-tumor plan. In addition, there are also some new developments in the field of immunotherapy. Mengyu Chang et al. conducted further research by using Cu
2O@CaCO
3 modified with hyaluronic acid. They found that the oxidative stress caused by Cu
+ from Cu
2O@CaCO
3 nanocomposites can efficiently reprogram the macrophages from the M2 phenotype to the M1 phenotype and initiate a vaccine-like immune effect after primary tumor removal, which further induces an immune-favorable tumor microenvironment and intense immune responses for anti-CD47 antibody to simultaneously inhibit distant metastasis and recurrence by immunotherapy [
36]. It can be predicted that the combination of ion interference therapy and immunotherapy will have a more significant antitumor effect.
