Analytical Determination of Serotonin Exocytosis in Human Platelets with BDD-on-Quartz MEA Devices

by
Rosalía González Brito
1,
Pablo Montenegro
1,
Alicia Méndez
1,
Ramtin E. Shabgahi
2,
Alberto Pasquarelli
2 and
Ricardo Borges
1,*
1
Pharmacology Unit, Medical School, Universidad de La Laguna, 38200 La Laguna, Spain
2
Institute of Electron Devices and Circuits, Ulm University, 89069 Ulm, Germany
*
Author to whom correspondence should be addressed.
Biosensors 2024, 14(2), 75; https://doi.org/10.3390/bios14020075
Submission received: 11 December 2023 / Revised: 26 January 2024 / Accepted: 29 January 2024 / Published: 31 January 2024
(This article belongs to the Section Nano- and Micro-Technologies in Biosensors)
Browse Figures
Versions Notes

Abstract

:
Amperometry is arguably the most widely used technique for studying the exocytosis of biological amines. However, the scarcity of human tissues, particularly in the context of neurological diseases, poses a challenge for exocytosis research. Human platelets, which accumulate 90% of blood serotonin, release it through exocytosis. Nevertheless, single-cell amperometry with encapsulated carbon fibers is impractical due to the small size of platelets and the limited number of secretory granules on each platelet. The recent technological improvements in amperometric multi-electrode array (MEA) devices allow simultaneous recordings from several high-performance electrodes. In this paper, we present a comparison of three MEA boron-doped diamond (BDD) devices for studying serotonin exocytosis in human platelets: (i) the BDD-on-glass MEA, (ii) the BDD-on-silicon MEA, and (iii) the BDD on amorphous quartz MEA (BDD-on-quartz MEA). Transparent electrodes offer several advantages for observing living cells, and in the case of platelets, they control activation/aggregation. BDD-on-quartz offers the advantage over previous materials of combining excellent electrochemical properties with transparency for microscopic observation. These devices are opening exciting perspectives for clinical applications.

1. Introduction

Exocytosis is the cellular mechanism that through the fusion of intracellular organelles with the plasma membrane, allows the release of internal content to the outside. It is a discrete or quantum process, where the molecules stored inside vesicles, granules, lysosomes, or other cellular structures are released as chemical packages [1,2,3,4]. Exocytosis is the primary mechanism for the release of biological amine (i.e., dopamine, adrenaline, noradrenaline, serotonin, histamine). These chemical compounds perform a wide range of functions in living organisms [5,6,7,8,9,10].
Amperometry is arguably the most widely used technique for studying the exocytosis of biological amines. Wightman and collaborators introduced single-cell amperometry recordings with carbon fiber by placing the electrode onto the cell membrane, creating an ‘artificial synapse’ [11,12,13,14,15]. This electrochemical technique applies an electrical potential to the electrode surface to oxidize the amines released by the cell, allowing the monitoring of single exocytotic events with superb time resolution.
Platelets are the easiest human cells to study the amines’ exocytosis. They do not synthesize serotonin but avidly uptake it from blood; therefore, over 90% of the blood serotonin is in platelets. Serotonin is mainly stored and released through exocytosis by the δ-granules [16,17]. Amperometry has been applied for monitoring serotonin exocytosis in platelets, including humans, notably by the group of Haynes using single-cell recordings with conventional glass-encapsulated carbon fiber amperometry [18,19,20,21]. However, a given platelet contains just 4–8 δ-granules, which can be released on the opposite side from the electrode, making the process extremely tedious, especially for diagnostic purposes using human platelets.
The usage of conventional multi-electrode array (MEA) devices has significantly streamlined amperometry, eliminating the need for costly equipment such as amplifiers, micromanipulators, drug delivery puffers, antivibration tables, large Faraday cages, or inverted microscopes. Furthermore, these devices require minimal bench space. Most importantly, they enable simultaneous recordings from multiple working electrodes. MEA devices address challenges associated with cell-to-cell recordings, a particularly critical aspect for platelets given their smaller size compared to conventional glass or plastic-encapsulated electrodes.
Recently, our research group measured the release of serotonin by exocytosis in human platelets with boron-doped diamond (BDD) on silicon multi-electrode arrays (BDD-on-silicon MEAs), obtaining similar results to those described by Haynes et al. [17]. MEA devices allow the parallel monitoring of amperometric current from several electrodes simultaneously, increasing the chances of detecting exocytotic signals. Moreover, platelets do not need to be cultured on the device; instead, they are dispersed onto the MEA in a solution and allowed to settle down for a few seconds before reaching the electrodes.
MEA devices for amperometric measurements have been developed using different materials, such as those based on synthetic nanocrystalline BDD microelectrodes grown by chemical vapor deposition (CVD), or more recently, MEAs fabricated within an artificial single-crystal diamond matrix [22,23,24,25,26,27].
This later MEA fabrication utilizes an advanced ion beam lithography technique [28,29] with energy in the order of megaelectronvolts (MeVs), which created 3D micrographitic tracks consisting of buried channels ending with surface electrodes [27,30,31,32,33].
Despite the advantages of the devices used for platelets so far, they are opaque, hindering simultaneous observations of platelets. Given the need for the careful handling of platelets, and considering that certain treatments may promote their aggregation, it becomes crucial to exert control over their physical distribution. In response to this challenge, we chose to implement a novel MEA device that combines the excellent electrochemical characteristics of BDD-on-silicon with transparency, allowing for simultaneous observations. These devices will be employed for fluorescence microscopy.
In this research article, we compare two already described MEA devices: the BDD-on-glass MEA [27] and the BDD-on-silicon MEA [17], with a novel transparent MEA device called the BDD-on-quartz MEA. We describe their general electrochemical characteristics and their ability for amperometric monitoring of serotonin exocytosis from human platelets.

2. Materials and Methods

2.1. Solutions Used, Unless Specified (in mM), pH Adjusted with NaOH

Phosphate-buffered saline (PBS): NaCl (154), KH2PO4 (1.08), Na2HPO4 (5), and pH 7.4.
HEP buffer: NaCl (140), KCl (2.7), ethylene glycol-bis (β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid (EGTA) (5), N-2-Hydroxyethylpiperazine-N′-2-Ethanesulfonic Acid (HEPES) (3.8), penicillin (100 U/mL), gentamicin (40 µg/mL), and pH 7.4.
Citrate buffer: NaCl (150), EDTA (1), glucose (50), Na+-citrate (10), penicillin (100 U/mL), gentamicin (40 µg/mL), and pH 7.4.
Additive solutions for platelet conservation:
Buffer 1: NaCl (69.3), KCl (5), MgCl2 (1.5), Na2HPO4/NaH2PO4 (28.2), Na+-citrate (10.8), Na+-acetate (32.5), glucose (5), and pH 7.2.
Buffer 2: NaCl (69.3), KCl (5), MgCl2 (1.5), Na2HPO4/NaH2PO4 (28.2), Na+-citrate (10.8), Na+-acetate (32.5), glucose (5), ascorbic acid (10 µM), prostaglandin E1 (1 µM), penicillin (100 U/mL), gentamicin (40 µg/mL), and pH 7.2.
Thrombin solution: thrombin 4 UI; the final concentration diluted in buffer 1.

2.2. Human Platelets Preparation

Human platelet isolation was conducted by modifying the Abcam® method (Cambridge, UK) [16,17]. Briefly, nine milliliters of blood were taken by venipuncture from 10 participating volunteers. This study was approved by the Ethical Committee of the Canary Islands Health Department (Protocol CHUC_2020_80) and by the Ethical Committees of the University Hospital and the University of La Laguna (Protocol CEIBA2020-0430).
Blood samples were subjected to serial centrifugation at room temperature with no brake [17]: (i) 200× g for 20 min; separating two-thirds of the supernatant or PRP (platelet-rich plasma); (ii) the PRP was mixed in a 1:1 ratio with a solution of HEPES buffer supplemented with prostaglandin E1 (1 µM, final concentration). The mixture was centrifuged at 100× g for 15 min; (iii) the supernatant resulting from this second centrifugation was transferred to a sterile tube and centrifuged at 800× g for 20 min. The supernatant was discarded by decantation, and the platelet pellet was washed twice with 1 mL of citrate buffer solution. (iv) This pellet was resuspended in 5 mL of buffer 2. The final density of the platelet suspension was adjusted to 105/µL with buffer 2 and was tested by turbidimetry and hemocytometer counting [17].
The platelet solution was maintained in bioreactor tubes at room temperature in a humidified environment. To avoid platelet aggregation and activation, the samples described were rotated at 30 rpm at an angle of 30° throughout the conservation time. In a set of previous experiments, we determined that platelets maintain full functionality for 3 days. Nevertheless, all results presented in this paper were obtained in 24–48 h from extraction. The concentration of platelets used in the amperometric measurements was 4 × 105/µL. The discarded samples were disinfected with a 20% bleach solution for 20 min and placed in biological waste buckets for subsequent collection by accredited companies.

2.3. BDD-on-Quartz MEA

The main reason for developing a new technology for transparent MEAs resides in the fact that as reported in a very comprehensive analysis [34], BDD-on-glass materials exhibit a noise level that is too high for recording exocytosis from platelets. Other secretory biological models, like chromaffin cells and rat pheochromocytoma PC12 cells, provide amperometric spikes of several tens and in some cases even a few hundreds of picoamperes. In the case of platelets, the amperometric spikes can hardly reach an intensity of 10 pA. BDD-on-silicon MEAs were demonstrated to be suitable for these challenging recordings; therefore, we aimed to achieve similar results with a new transparent device: the BDD-on-quartz MEA. However, this new technology is required to face new challenges due to the large mismatch of the thermal expansion between diamond and quartz (see Figure S1 in the Supplementary Material). Both materials are very rigid, and after growing the diamond at about 800 °C, when cooling down to room temperature, the diamond film is affected by a significant tensile stress. If the diamond film is very thin, up to a few tens of nanometers, there is enough elasticity for dampening such stress, but if the grown layer is a few microns thick, the diamond film cracks in a myriad of fragments, like a mosaic. The solution to this problem could be found by observing that the size of such fragments ranges between 100 and 500 µm (see Figure S2 in the Supplementary Material). On this basis, it appeared realistic to selectively grow the diamond only for the electrode structures, for which we decided to us round spots of 60 µm in diameter, forming a planar 4 × 4 array with a pitch of 200 μm. Then, the spots are connected to the bonding pads and placed at the edge of the chip by means of planar metal wires. The contact resistance with the BDD spots is minimized by adopting ring-shaped metal structures, which leave a transparent central region with a diameter of 45 µm (Figure 1).

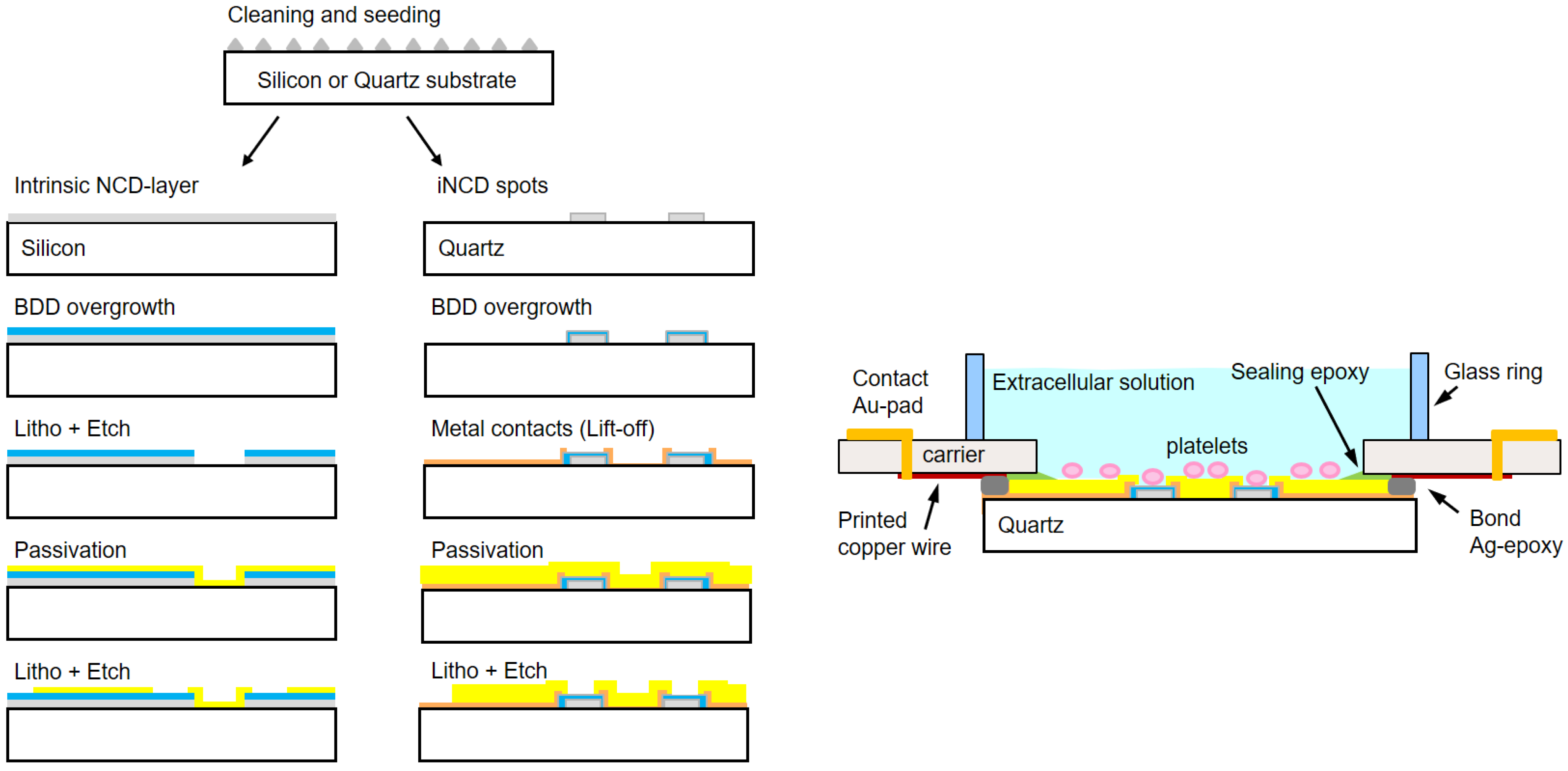

The fabrication is illustrated in the top-view in Figure 1 and the technological protocol in Figure 2. It consists schematically of the following steps:
  • Clean and then spin-coat the wafer with a NanoAmando seeding solution (New Metals and Chemicals, Tokyo, Japan).
  • Grow a 50 nm thin intrinsic nanocrystalline diamond (iNCD) layer by microwave plasma chemical vapor deposition (MWCVD) at a power of 2200 W in an H2 atmosphere at a gas flow of 400 sccm, with 1.5% of CH4, at a temperature of 800 °C and pressure of 30 Torr. This growth step has a duration of 10 min.
  • Create the wafer by lifting off a titanium hard mask with a pattern of the 60 µm spots.
  • Etch the unprotected iNCD by reactive ion etching (RIE) in an Ar-O2 atmosphere. This leaves the ‘footprint’ for growing the diamond spots of the microelectrodes.
  • Grow the iNCD spots resulting from the previous step up to a thickness of 1 µm. This growth is carried out with the same modality of step 2 but for a duration of 190 min.
  • Overgrow the iNCD-spots with ~350 nm BDD in a doping-dedicated MWCVD-reactor. Parameters are the same as above for steps 2 and 5, but the process duration is 70 min in this case. Doping is provided by boron wires (Goodfellow, Bad Nauheim, Germany) introduced into the plasma.
  • Create the wafer by lifting off the metal ring contacts and wires out of 100 nm titanium and 50 nm gold.
  • Passivate the wafer with a polyimide-based photoresist (Durimide® 7505, Fujifilm, Tokyo, Japan) and transfer the pattern of the openings of electrodes and contact pads by lithography.
  • Dice the wafer, bind the chips onto appropriate polychlorinated biphenyl carriers (PCB carriers), and glue a 10 mm wide and 4 mm thick glass ring to provide a ~200 µL incubation volume.
In summary, BDD-on-quartz MEAs have the same functional layout and dimensions as BDD-on-silicon MEAs, with 16 BDD microelectrodes (each with a nominal diameter of 20 µm) placed on a 4 × 4 array with a pitch of 200 µm to avoid overlapping the signals recorded individually by each microelectrode.
The comparison of these two technologies regards primarily the materials, with their specific processes adopted for the various structures, as summarized in Table 1 below:

2.4. BDD-on-Quartz MEA Recording System

Amperometric measurements of serotonin release by exocytosis were carried out with the same system previously used by our research group for this type of measurement with BDD-on-silicon MEA devices; see González-Brito et al., 2023, for more details [17]. Briefly, the read-out electronics consists of 16 transimpedance amplifiers with 1 GΩ feedback resistance, followed by anti-aliasing Bessel low-pass filters of the 4th order with a cutoff at 1 kHz. Then, the signals are acquired at a sampling rate of 4 kHz per channel and a 16-bit resolution with a USB-6216 from National Instruments (NI, Austin, TX, USA), controlled with an appropriate LabVIEW program, and are stored on the hard disk of the PC. Electrodes were calibrated with norepinephrine solutions (Figure S7 Supplementary Materials).
Exocytotic events are detected as oxidation currents by biasing the BDD electrodes at +800 mV against an Ag/AgCl sintered pellet electrode immersed in an incubation bath. Considering that this electrode is non-polarizable and that its effective active area of a few hundred mm2 is about five orders of magnitude larger than the total active area of the 16 electrodes together, providing a very low contact resistance to the electrolyte, the functions of a reference electrode and a counter electrode can be merged in this single electrode without introducing relevant systematic errors. This electrochemical scheme is very commonly adopted in cellular electrophysiology.
BDD-on-quartz MEA chips were used in each individual measurement. The goal was to demonstrate that these new transparent MEAs allow us to carry out amperometric measurements with the same efficiency and sensitivity as the opaque and easier-to-fabricate BDD-on-silicon MEA devices while adding transparency to allow optical inspections and detection methods.

2.5. Amperometric Data Analysis

Data analysis and graphing were carried out using IGOR-Pro 8 (Wavemetrics, Portland, OR, USA). Macros and routines were a modification of our previous version [35] to allow automatic data management. The macros were designed to obtain the following kinetic data from the recorded signals: Imax, maximum oxidation current, expressed in pA; t1/2, spike full width at half maximum (FWHM), expressed in ms; Q, spike net charge, expressed in pC; and m, ascending slope of the spike, expressed in pA/ms. These macros are freely available upon request. The mean values of the kinetic parameters are presented.
The discrimination threshold was fixed at 2.5 standard deviations (SDs) of the basal noise of the first derivative of each recording. It usually includes spikes with an Imax larger than 1.5–2 pA. All those spikes passed the selection criteria: (1) spikes above the detection threshold, (2) without overlap, and (3) measured parameters not affected by any artifact during recording.

2.6. Microscopy Observation

The images shown in Figure 3 (only on transparent MEAs) were obtained by differential interference contrast (DIC) microscopy. We use observations as a qualitative control for platelet density, assuring that platelets obtain all electrodes without forming aggregate lumps, assuming identical cell distribution on the BDD-on-silicon MEA.
The microscopy images depict a homogeneous distribution of the sample in each BDD-on-quartz MEA device (refer to Figures S3 and S4 in the Supplementary Material). For each measurement, 133 µL of the PRP sample was added at a concentration of 4 × 105/µL (approximately 53 million platelets per experiment). Each device features 16 microelectrodes, each with a nominal diameter of 20 µm and a surface area of ≈314 µm2. The total active surface of the device is ≈5000 µm2. This provides a sufficient number of cells on the electrodes for amperometric recordings.

2.7. Statistics

All kinetic parameters are presented as means ± SEM (the standard error of the mean). The non-parametric Mann–Whitney rank sum test or Student’s t-test were the mathematical parameters used to evaluate the statistical significance between groups of experiments (as appropriate, based on the D’Agostino–Pearson normality test). Differences were considered significant at the indicated p level. Data analysis was conducted using Prism® Software 5.03 (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. Characterization and Comparison of BDD-on-Quartz MEAs and BDD-on-Silicon MEAs

The MEAs were initially characterized using cyclic voltammetry (CV) in PBS, conducting multiple scans to assess electrode activity and stability cycle after cycle. The performances were nearly identical (Figures S5 and S6, Supplementary Material) in terms of potential window, peak currents, and background current.
Subsequently, the background noise of the MEAs was analyzed by recording signals without cells, covering a bandwidth of 1 kHz at a sampling rate of 4 kHz per channel, and performing a Fast Fourier Transform (FFT) to obtain noise spectra. Figure S6 in the Supplemental Material demonstrates very similar performances in terms of average noise spectral density. However, the spread of the individual spectra is lower for the BDD-on-quartz MEA. This result may be attributed to the lower resistance of the metal connections compared to the BDD connections on the BDD-on-silicon MEA. This leads to a more uniform noise level because the dominant noise sources are the microelectrodes on the BDD spots, which are substantially identical. The overall performance of BDD-on-glass is poorer, in particular regarding the noise level, which is one order of magnitude larger (Figures S5 and S6, Supplementary Material).
Microelectrode calibration was conducted using incremental concentrations of norepinephrine in buffer 1. The final calibration concentrations were 0, 1.25, 2.5, 5, and 10 µM. This method revealed that the variation in response among the 16 microelectrodes within the same device was less than 10% (refer to Figure S7 in the Supplementary Material). The calibration experiment confirmed the stable performance of the microelectrodes and their capability for accurate quantitative measurements.

3.2. Characterization of Serotonin Exocytosis of Human Platelets Using the BDD-on-Quartz MEA

Table 2 displays the main values of the four major kinetic parameters of secretory spikes, validating the results obtained with the BDD-on-quartz MEA. In general, all data exhibited good detection capacity and reproduced those obtained with the BDD-on-silicon MEA [17] and single electrodes of encapsulated carbon fiber electrodes [21]. Nevertheless, both the BDD-on-silicon and BDD-on-quartz MEA exhibited better signal-to-noise ratios. Additionally, both are easily and robustly cleaned and reused. Figure 4a shows representative spikes constructed using the average values in Table 2.
This set of information validates the use of these transparent devices for conducting amperometric measurements of electroactive molecules released by cells through secretory pathways. The results obtained are summarized in the statistically calculated mean peaks and the histograms presented in Figure 4. The histograms represent the Q1/3, or cubic root of the net charge (Q) of the recorded peaks, allowing the representation and analysis of the quantum size distribution of secretion vesicles released through exocytosis by the human platelets studied (because the sphere volume is proportional to the third power of its radius) [36,37,38,39].
All studies were conducted on isolated human platelets, closely maintained under physiological conditions following the general guidelines from clinical blood banks. We verified that amperometric measurements with the BDD-on-silicon MEA were effective both under basal conditions and in serotonin-loaded conditions.
Platelets avidly uptake serotonin through specific mechanisms, including SERT-1, on their membranes and VMAT-2 on dense granules. Additionally, serotonin permeates through a concentration gradient and accumulates within the acidic dense granules. In amperometry experiments, we assess both the baseline serotonin content and the functional condition of granule uptake. The incubation with 10 µM serotonin for 2 h was established in previous experiments [16] and is now employed as a control for loading.

4. Discussion

PRP has proven to be an excellent source of platelets for conducting amperometric studies of serotonin released through exocytosis. These investigations served as a foundational step to validate the efficacy of the BDD-on-silicon MEA under both basal conditions and after loading human platelets with 10 µM serotonin for 2 h. We established these incubation conditions in a previous paper [17]. Advancing further, we have developed a new BDD microelectrode device on a quartz carrier. The physicochemical nature of this support enables the passage of various light wavelengths, rendering the new device, termed the BDD-on-quartz MEA, transparent and suitable for certain microscopic studies.
Similar to the BDD-on-silicon MEA, the BDD-on-quartz MEA enables the recording of amperometry in human platelets with an excellent signal-to-noise ratio (Figure S6 in the Supplementary Material). With these two devices, we can presently measure spikes as small as 1.5–1.8 pA. Consequently, we can conduct a quantitative study of serotonin release in platelets under both basal conditions and after loading with 10 µM serotonin for 2 h (Figure 4). The kinetic parameters obtained with BDD-on-quartz MEAs are indistinguishable from those acquired with conventional amperometry [21] or with the BDD-on-silicon MEA system [17]. While secretory spikes generally occur spontaneously, the kinetics of exocytotic events remain almost identical, even when induced by the addition of thrombin.
Selectivity becomes a challenge when dealing with various detectable molecules exhibiting similar behavior, such as oxidation potential and the time course of the reaction. In our study, our focus is solely on serotonin, the exclusive electrochemically active molecule released through platelet exocytosis. Even if other oxidizable species are present, possibly as contaminations in the incubation chamber, they would not produce exocytosis-like signal transients. Instead, they would result in nearly constant currents (quasi-DC) over extended time intervals. Therefore, selectivity is inherently provided by the cell model and the preparation of the cell suspension.

4.1. Different Types of Recorded Spikes

Observing the recorded signals from human platelets reveals a high heterogeneity in the kinetics and quantum size of amperometric spikes (Figure 5). This phenomenon is well documented and common to other cell types [40,41,42,43], such as chromaffin [44,45], PC12 [46,47], or mast cells, which have been associated with different types of exocytosis (full vs. partial release) [47]. Factors such as intravesicular content and its inner distribution (matrix vs. halo) [47], fusion pore kinetics, and its expansion [48,49] contribute to this heterogeneity. Additionally, biological factors, electrode sensitivity, the distance from the electrode to the exocytotic site, and any factor modifying the electrode performance [35] can impact amine detection. Researchers should be aware of the varying sensitivities of electrodes within a chip and between different chips. Thus, ensuring electrode responsiveness through cyclic voltammetry performance (Figure S5 in the Supplementary Material) and pre- and post-calibrations with proper standards is crucial.
However, employing simple average measurements for the comparison of two experimental conditions should be approached with caution. For instance, ensuring similarity in the number of spikes is crucial; using ‘N’ instead of ‘n’ (representing the number of individuals versus the number of spikes) introduces less bias. Since the spike distribution is not normal, statistical comparisons are often conducted using medians instead of means.

4.2. Brief Comparison of the Three BDD MEAs

4.2.1. BDD-on-Glass MEAs

Devices with a boron silicate matrix produce deficient amperometric recordings with human platelets to date. As mentioned earlier, the background noise is excessively high for platelet recordings. While their fabrication technology is simpler than that of the other two MEA types, making these chips appealing for mass production at a lower cost, their microelectrodes are not stable during the cleaning process. They frequently become partially detached and lost. Currently, we only use these transparent devices as a parallel control for platelet allocation on the chip surface because their electrode distribution is the same as that of opaque silicon.

4.2.2. BDD-on-Silicon MEAs

These devices allow amperometric, potentiometric, and voltammetric measurements. Another advantage is the production cost compared to other existing MEA devices with a single crystal diamond (for example, micrographitic–diamond–multi-electrode arrays (μG-D-MEAs)) [26,27,33]. BDD-on-silicon MEAs are very low-noise devices, stable, and easy to clean. As platelets are not cultured on these chips but acutely added, biocompatibility is not a real problem. In our hands, these devices are ideal for the amperometric measurements of serotonin exocytosis in human platelets [17].

4.2.3. BDD-on-Quartz MEAs

These devices maintain a similar structural arrangement as the BDD-on-silicon MEA and are transparent, allowing cellular imaging studies to be carried out (Figure 3). However, platelets are too small for observing single exocytotic occurrences, and our efforts to observe coincident events using quinacrine or acridine orange were not yet successful.
BDD-on-quartz MEAs, like BDD-on-silicon MEAs, have been shown to be effective in amperometric measurements of serotonin release through exocytosis in human platelets. Amperometrical recordings are comparable. The main limitation of BDD on quartz surfaces is the more complex fabrication protocol, which is necessary for dealing with the thermal expansion mismatch between BDD and the quartz carrier.

5. Conclusions

The results presented in this paper confirm the effectiveness of the new BDD-on-quartz MEA devices in studying and quantifying the release of serotonin from human platelets. While this study was initially intended for working with human cells, we are currently expanding its capabilities to record catecholamine exocytosis from chromaffin and PC12 cells. Furthermore, the simultaneous observation of exocytosis would allow for the characterization of the different modes of exocytotic release [50].
Regarding the sensitivity and reproducibility of amperometric responses, the overall characteristics of the BDD-on-quartz MEA are nearly identical to the BDD-on-silicon MEA [11]. The BDD-on-quartz MEA also offers the possibility of combining amperometry with microscopy. Since platelets are the most accessible human source of amine-containing cells and are frequently used as a model for neurological diseases [51,52,53,54,55,56], MEA devices show promise as tools for translational medicine [57,58] and as a method to characterize human platelets for their potential clinical uses [59,60,61,62].
